2.1. Structure of APK Files

Android has become one of the most popular operating systems for smartphones. Since the Android operating system is open source, cybercriminals are attracted to using it. This section goes over the Android application, common Android malware families, Android malware analysis, and Android malware detection techniques. Generally, Android applications are mainly written using the Java programming language and then gather data and source files into an archive file called the Android application package (APK) (Android package) [28]. The APK is shared in the application market and is used for the installation of applications. However, the APK is a ZIP file consisting of multiple files, making it necessary to unzip it before use [29]. The Android APK structure is shown in Figure 1, and the details of each file and folder component are given in Table 1.

Malware families are groups of malwares with similar characteristics, behavior, and capabilities, such as stealing information from a location or a remote server, sending paid or malicious SMS messages, and so on. Malicious behavior uses the same package names as the attack for injecting a payload. In addition, the identity (signature) of a group of malwares (family) can be determined by repeating the use of package names (or other common characteristics) [19]. The most common malware families are given in Table 2 [18].

A significant amount of time is required to manually create features throughout the Android package (APK) structure for Android malware family classifications [3, 4, 30, 34, 35]. These safety mechanisms require significant computer resources, and their deployment in a restricted smartphone environment is challenging [31]. Android malware traces have been studied through classes.dex (CL), resource (RS), manifest, and Android application certificate (CR) files. Malware detection technology, as well as malicious code, have both been developed over time. It is necessary to analyze malware in order to be able to detect it. There are several methods for analyzing and classifying malware, including static, dynamic, hybrid, visualization (image), and audio [32, 33]. Static analysis and classification are the most common methods. Antimalware signatures and behavioral techniques such as static and dynamic analyses are the most important techniques for identifying malware. Intelligent malware, on the other hand, employs dynamic analysis in conjunction with antiemulation technology [28, 31, 36]. In order to use dynamic and static techniques on such files, a significant amount of manual effort or human intervention is required. To reverse engineer or analyze an application, it is necessary to have prior knowledge of the domain [29, 37–40]. Table 3 provides a comparison between two types of analysis, which are static and dynamic analyses.

However, the dynamic approaches experienced with false-positive rates can hinder their wild deployment in real applications. In general, dynamic malware detection is resilient to metamorphic and polymorphic malwares. However, they are slow, resource-consuming, and vulnerable due to the limitation of code reachability. Hence, they may be including a false positive rate. In practice, the weight value for each feature of an application indicates how significant the feature contributes to the classification result in the model pool that participates in the weighted voting that derives the classification result for the application. So, the abnormal feature values in terms of sensitive access might cause some benign apps to be falsely classified as malware. Thus, we can see the dynamic methods are not sufficient and scalable to trace many malicious apps. Moreover, since malware coders have more experience using traditional detection and classification techniques, it will be easier for them to create new malware that can circumvent the current security mechanism. For this reason, researchers have been working for the past few years to develop a new, faster method of automatically detecting, visualizing, and classifying malware. In 2011, Nataraj et al. [24] proposed a completely new approach to malware visualization and analysis using the image processing concept. This is done by visualizing the malware as binary images, extracting its features, and then classifying it. However, the system classifies malware into different families based on whether it has the same visual features, similar texture, and similar structure as malware belonging to another family [2]. This technique overcomes several limitations inherent in static and dynamic analyses. This motivates us to focus on visual-based analysis as it provided a new direction for deploying convolutional neural network (CNN) algorithms for the purpose of detecting malicious software effectively. The images generated by the visualization approach have a variety of layouts, styles, and forms. Thus, malware images have distinct visual similarities and characteristics that set them apart from benign images, which are distinguished by a variety of distinct stripes. These striking distinctions in the visual characteristics of acquired benign and malware images help us classify them according to their families.

2.2. Convolutional Neural Network (CNN)

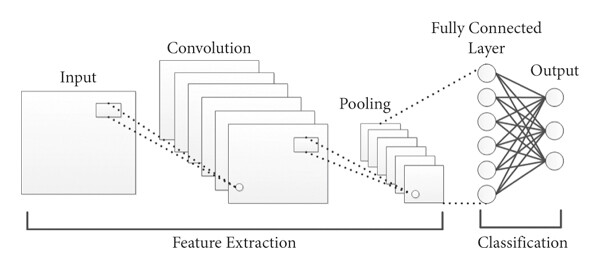

CNN is one of the neural network (NN) algorithms widely used for computer vision. However, in the traditional NN, the hidden layers are fully connected with each other, which significantly increases the number of training parameters, and this can increase the complexity of the classifier. The CNN produces the concept of parameter sharing in each layer to solve the limitations of the traditional NN and reduce the explosion of weight vectors. The weight sharing concept of the CNN can reduce the computational cost and the training time of the model classifier compared to the other DL models. The CNN is constructed from three core layers, i.e., convolution, pooling, and fully connected layers [48]. The simple architecture of the CNN is shown in Figure 1. The convolution layer is produced as a result of the linear operation of the kernel or filter with the previous output layer. The Relue activation function is widely used in the CNN to increase the degree of nonlinearity and to remove also all negative values of feature maps. The CNN can include more than a convolutional layer. The first layer is used to capture the simple features such as corners or edges. While, the higher layers are mainly used to learn the high-level features. The CNN does not only have the capability to extract the discriminatory features from the input data but can also reduce the spatial size of the convolved feature through the pooling layers. The CNN is implemented in several available architectures, such as ZFNet [49], ResNet [50], GoogLeNet [51], VGGNet [52], AlexNet [53], and LeNet [54]. Motivated by the success of the CNN in various application domains, we utilize the CNN for Android malware detection. The parameters’ sharing and the concept of dimensionality reduction are the factors that inspired us to use the CNN for the detection problem.

2.3. Deep Residual Networks

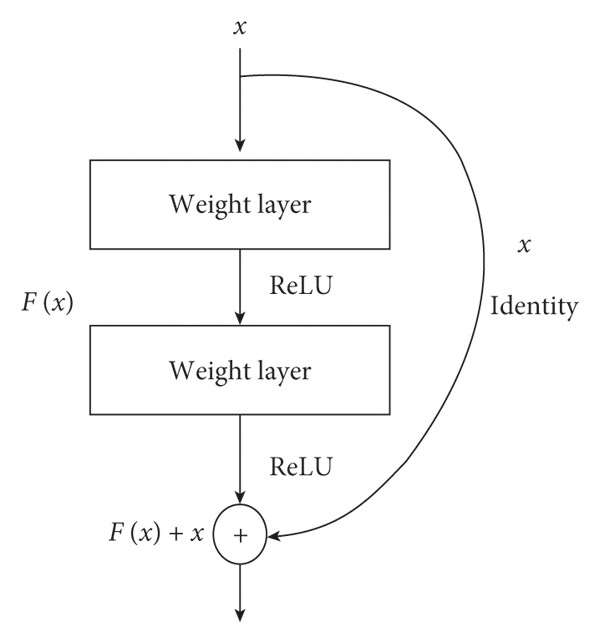

In 2016, Microsoft Research Lab [55] released the deep residual network to solve the inherent problems of traditional deeper networks. The traditional models are more difficult to train and exposed to the degradation problem (of training accuracy). Adding new layers to the deeper networks not necessarily improves the training accuracy. In most cases, the accuracy becomes saturated and will degrade rapidly with increasing of the network depth, and this can lead to high training errors. On the other hand, the deep residual network works to overcome the aforementioned limitations by using the residual blocks. The simple structure of residual building block is shown in Figure 2.

2.4. Regularizer Technique

3.1. Malware Detection Based on ML

Several ML algorithms such as logistic regression (LR), random forest (RF), k-nearest neighbor (KNN), and support vector machine (SVM) have been used for Malware attack detection.

In [58], three ML classifiers, namely, KNN, RF, and DT were used for AMD on APK samples, which consisted of 300 benign samples and 183 malwares. The Dalvik opcode was extracted from the classes.dex file and then converted into an 8-bit grayscale image. The GIST descriptor was used later to extract the input attributes from the created images. The experimental results showed that RF provided better accuracy of 84.14%.

Li et al. [59] produced a lightweight model for AMD using the SVM algorithm on a dataset downloaded from Google Play store. The authors used less number of permissions for malware classification instead of using all the requested permissions, i.e., selected the top permissions that are more specific for benign and the top permissions for malware to build the malware detection system.

Wang and Li [60] utilized three different ML algorithms, including NB, DT and K-nearest neighbors, for AMD. The feature selection and reduction techniques were used at the first stage to reduce the number of training features and to create a lightweight model with less number of features.

In the study by Massarelli et al. [20], the dynamic analysis was used to find the resource consumption metrics, including CPU, memory, and network usage, as input features of the training classifier. The SVM was utilized to identify several Android malware families on the Drebin dataset.

Chen et al. [61] proposed TinyDroid for AMD. The authors extracted the opcode sequence from Dalvik Executable files and then used the n-gram to extract the trained features from the opcode data. Four ML algorithms, RF, KNN, SVM, and NB, were used for the classification process to identify the malicious malware from normal APKs.

However, most of the aforementioned methods mainly used feature engineering in order to find the best features of the input data. However, selecting the best features is not an easy task, since the features that can work efficiently for one malware class are not necessarily important for other classes. Besides, the input data almost has a high degree of nonlinearity, and shallow learners have a poor ability to learn the complex and nonlinear structure of the data.

3.2. Malware Detection Based on DL

In recent days, deep learning (DL) techniques have been conducted in several application domains, such as image processing and speech recognition [62]. The high potential of DL in several applications returns to its capability to extract the representation features from the input data automatically without any human intervention. It has the good capability to work in data, which has a high degree of nonlinearity, in contrast to shallow learners, almost experienced with high false alarms as they require hand-crafted features as input. The high performance of DL in intensive domain areas encourages many organizations and enterprises such as Facebook, Google, and Microsoft to deploy DL in various applications [63]. Researchers are also starting to leverage DL for cybersecurity tasks and malware detection as well.

Huang and Kao [64] proposed a new model, namely, R2-D2 for detecting the Android malware. The authors first obtained fixed size colored images from the classes.dex bytecode of the Android archive file. Then, different network models based on the CNN algorithm were used for the training and classification processes. A realistic dataset with more than 2 million of benign and malicious malware samples was collected in the period from January 2017 to August 2017 for the research work.

Hardy et al. [65] used the stacked autoencoders- (SAEs-) based DL model for malware detection. The model composed of two phases. In the first phase, unsupervised learning was used to extract the discriminatory features of the input data. The API calls extracted from the Portable Executable (PE) files were used as input features for the DL model. In the second stage, fine-tuning based on supervised learning was used to adapt the weights and offset vectors. A dataset collected from the Comodo Cloud Security Center is used for a comprehensive experimental study to compare various malware detection models.

Kim et al. [66] proposed an Android malware detection model using a multimodal deep learning method. Seven diverse features have been extracted from the unzipped APK, i.e., shared library, dex, and manifest files. The collected features are merged together to create a fixed feature vector. In the classification process, the DNN was used on malware samples produced from three different sources, i.e., VirusShare, MalGenome project, and Google Play app store.

Another detection approach, i.e., MalDozer was proposed by Karbab [67] for Android malware classification. The CNN with one convolutional layer followed by another softmax layer and one fully connected layer was used to detect samples of unknown malware families. The classifier approach has been applied on three different datasets, including MalGenome, Drebin, and merged datasets. While, API calls that appear in the DEX file were extracted for input attributes.

Nix and Zhang [68] investigated the CNN for Android application/malware classification. The code included within the classes.dex was examined to obtain API calls as an input attributes. The CNN approach was compared with LSTM and other n-gram-based methods on a dataset collected from the Contagio Mobile repository. The results showed that the CNN outperformed the other classifier techniques.

Suarez-Tangil et al. [3] proposed DroidSieve to classify the malware samples using a static solution. Several features have been used to identify the normal samples from the malicious malware, such as API calls, native code, invoked components, code structure, and permissions. The authors used Drebin and MalGenome datasets for their experimental evaluation. However, the reported results relied on the Drebin dataset during its large size and covered all MalGenome samples. The obtained results approved that the DroidSieve approach successfully achieved high accuracy when using resource-centered features and reducing code analysis.

Along with dynamic features derived from an application’s behavioral profile, such as method calls and intercomponent communication (ICC) intents, DroidCat [69] identified and classified Android malware. Using apps that have evolved over the last nine years, it classified them with 97% accuracy. It was able to defeat attacks that targeted system calls or sensitive APIs, as well as malware samples that used obfuscation schemes. It outperformed two state-of-the-art techniques in terms of detection accuracy, using MalGenome, Drebin, AndroZoo, and VirusShare datasets [70]. It relied on a variety of machine learning algorithms, including SVM, Naive Bayes, and RF. The RF with 128 trees outperformed all other methods. Because the dynamic malware analysis technique proposed by Ficco [71] is composed of a combination of generic and specialized detectors that are used throughout the analysis process, it is resistant to specific evasion techniques. To address malware evolution, the proposed technique utilized an alpha-count mechanism to investigate the effect of varying the length of the observation time window during run-time on the accuracy and speed of detectors. He demonstrated the technique’s efficacy using data from 27 DREBIN families. Additionally, a second validation dataset, spanning the period June 2013 to March 2014, was used as a validation dataset taken from the VirusShare dataset.

In this research work, we propose an accurate and automated vision-based AMD model to deal with the critical cybersecurity challenges, which are difficult to ignore. A fine-tuned DL-based CNN algorithm is developed to efficiently detect malware attacks on Android OS.

On the Drebin dataset, we test several combinations and compare our approach to some state-of-the-art works, such as LeNet, Inception V3, ResNet50, Vgg16, EfficientNetB0, and SARVOTAM. All these methods are considered 2D convolution filter-based models. Also, we conduct extensive experiments and include the basic-1D-CNN with single and multistreams in our computations. The results indicate that the proposed ResNeXt achieved significant results in terms of accuracy and F1-score. In addition, the extensive computations of the ResNext model are significantly lower since it requires a smaller number of features to be analyzed compared to other methods. As a result, the modified ResNext demonstrates its effectiveness by quickly distinguishing Android malware from benign apps with the fewest recorded errors.

4.1. Dataset

Most of the studies that have been published between the periods of 2014 and 2020 use the Drebin dataset for training and evaluating their developed models. It is considered one of the most widely used datasets for malware family classification purposes [21]. So, for that reason, it is used in this experiment setup. The Drebin dataset has the most popular Android malware families, which were collected in the period between August 2010 and October 2012. It contains more than 5,560 files belonging to 179 special malware families like Fake Installer, GoldDream [72], GingerMaster [73], DroidKungFu [74], and many others. Table 4 provides the outlines of different malware datasets that have been used by the research community.

4.2. Transforming Malware APK into Images

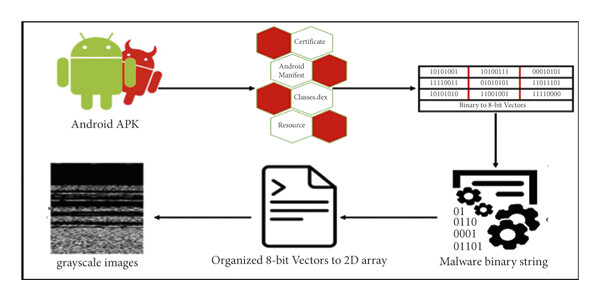

The fundamental files considered for visualization in APK are classes.dex, resources, manifest, and certificates. In this work, these four types from the malware APK files are employed to extract the malware images, which are used for our model training.

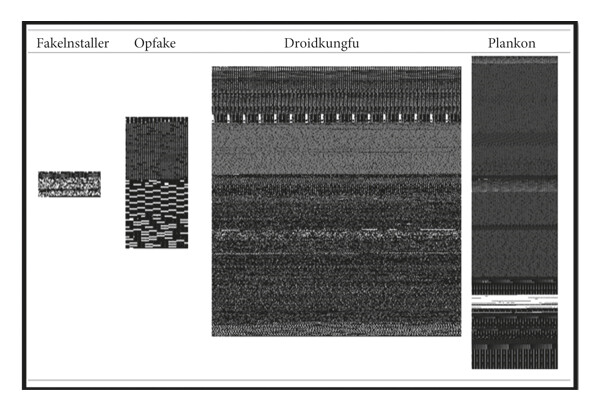

First, the binaries are transformed into 8-bit vectors, and in the next stage, these vectors are converted to grayscale images. The detailed procedure is discussed. Initially, a malware substring consists of a sequence of numerous substrings where each substring is 8-bit long and is called a pixel. The 8-bit substring is converted to a decimal number in the next step, ranging from 0 to 255. Furthermore, all the malware substrings were transformed into a one-dimensional vector and converted to a two-dimensional matrix of a specific width. We called it a “malicious code matrix.” This matrix is considered the two-dimensional grayscale image. The conversion process of APKs to grayscale images is shown in Figure 3. The width of the images was fixed based on the size of the APK files given in Table 5. Hence, the height also depends on the file size. CNN-based models require inputs to be of the same shape. Therefore, instead of trying varying sizes of APK files, we use the dimensions proposed by [26]. The main reason behind the chosen sizes is to retain as much information as required along with keeping the size compact. However, it is empirically decided by [17, 26]. Therefore, to avoid the trial-and-error method for finding the proper sizes, this work follows their proposed procedure. A complete APK can be represented by grayscale images with an underlying structure that follows certain divisions. Fifteen different file structure combinations were used to generate the Drebin Android malware images, each containing at least one image of a distinct malware family. Some images constructed from the files are shown in Figure 4. Classes.dex (CL), AndroidManifest (AM), certificate (CR), and resources (RS) are among the files included.

4.3. Proposed Model

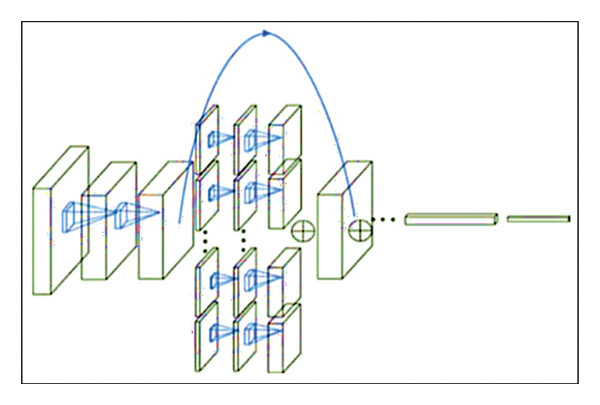

In this work, we use the same ResNeXt classification model, which was proposed by Xie at el. [27] in order to categorize malware families. The basic idea behind ResNeXt is to use an aggregated residual block instead of the basic residual block. This strategy is called ”split-transform-merge,” and it was implemented in the inception architecture [27].

The aggregated transformation in (8) serves as the residual function, as shown in (9).

ResNeXt is designed using ResNet’s skip concept and cardinality with better accuracy than a wide and deep network. In experiments using the ImageNet dataset, ResNeXt outperformed existing models in terms of accuracy. Due to these advantages, we utilize the ResNeXt model for malware image classification. The architecture of ResNeXt-50 is shown in Figure 6.

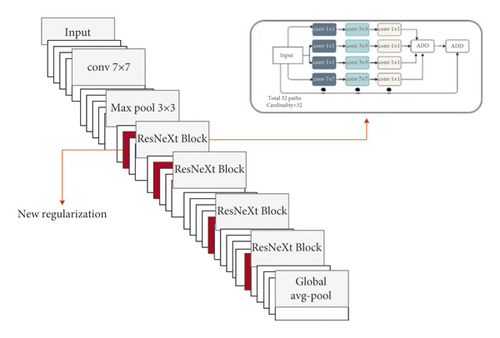

A new regularization technique was incorporated into our model in order to control individual weight values and the relationship between weight matrix entries. This is done by taking the weight matrix’s standard deviation and multiplying it by λ to create an adaptive weight decay form. Thus, the regularizer prevents the learning model from taking values from the weight space that are too widely distributed. In fact, the new regularizer has been extensively tested on various tasks with different datasets and proved to be more effective than other regularization methods [57, 76–80].

Our model uses the new regularizer technique to control the relationship between entries using weight values from the weight matrix. To create a weight decay adaptive form, we multiplied the standard deviation of the weight matrix by λ. This reduces model complexity by removing unnecessary data and keeping only data that are useful for classification. The explained regularizer was tested extensively in different domains, including computer security, and provided better performance than the other regularization techniques.

5.1. Classification Module Training and Validation

In this research, we used the Drebin dataset with a focus on the top 20 malware families as follows: BaseBridge, Plankton, DroidDream, SMSreg, FakeInstaller, OpFake, SendPay, FakeRun, Imlog, FakeDoc, ExploitLinuxLotoor, Iconosys, DroidKungFu, Adrd, Glodream, Gappusin, Kmin, MobileTx, GinMaster, and Geinimi. Table 6 provides Drebin malware class combinations and associated instances. The modified ResNeXt has 50 layers except for the input layer and the fully connected layer. 48 of the 50 layers are divided into 16 blocks. Each block contains three layers, with a total of 32 cardinalities.

5.2. Experimental Setup

In this work, all experiments have been executed using Python programming language. Several machine learning and deep learning libraries such as Keras and TensorFlow are used to build the ResNeXt model.

The simulations were run on a system with 20 GB of RAM and an Intel® CoreTM i3 processor, as well as an NVIDIA GeForce GTX 1080ti graphics processing unit with a frame buffer of 11 GB.

5.3. Experimental Results and Analysis

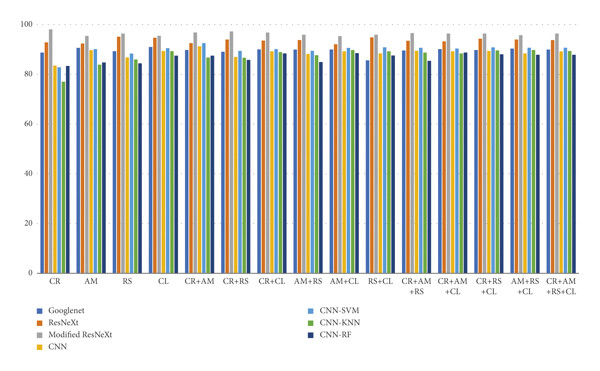

In our work, the modified ResNext model with an embedded new regularization performed well for approximately 100 epochs. The simulation results were recorded for the Drebin dataset after converting the attributes of raw malware binary executable files to grayscale images. We compared our observed performance measures with various state-of-the-art models, which indicates that the performance of our model is higher (Figure 7). The evaluation is compared for various combinations of the image types as given in Table 7.

The highest accuracy is achieved for the CR combination, as given in Table 7. As a result of the observations and simulation results, it is clear that the maximum amount of relevant information about malicious types is contained in the CR file, resulting in satisfactory classification performance. Apart from classification measures, Table 8 provides a time-based comparison for each combination used in the study and the number of images processed per second that belong to the corresponding class. The relative execution time is within a satisfactory range, which makes it possible to use it in real-time applications.

Thus, after training the model with high-quality classification measures, it can be used for testing in various applications. As given in Table 8, the average processing time for a single image is comparable to previous work [26]. Consequently, once integrated and deployed in software systems, the model’s execution performance will be the same as the state-of-the-art method.

The new regularized technique was implemented in order to control individual weight values as well as the relationship between weight matrix entries in order to eliminate unnecessary data while selectively using only data useful for classification. This demonstrates the effectiveness of our model in extracting better features while also maintaining a reasonable overall running time. The detailed confusion matrix for the top 20 malware families is given in Table 9. Table 10 provides the results of family-specific classifications for the original ResNeXt and our modified ResNeXt. As observed, the new regularization method was adaptive in order to avoid overfitting and to improve the CNN’s ability to predict whether a new observation of the data was not trained on the model. As a result, it enables a more adaptable method of weight loss. As a result, the regularizer prevents the learning model from using global values from the weight space as input. This reduces the complexity of the model and removes unnecessary data, while keeping only the data that are useful for classification. As shown in Figure 8, the proposed model outperformed all the other methods of family-specific classification in terms of F1-score.

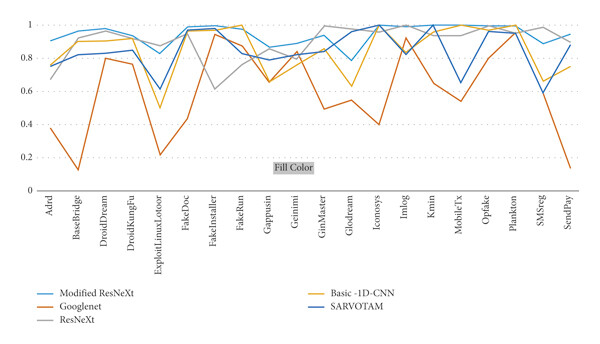

5.4. Malware Family Classification Performance Evaluation

It has recently become a problem for machine learning-based malware classifiers to deal with the evolution of malware, which changes its malicious behavior over time, resulting in the deterioration of the classifiers. It has been suggested that deterioration [20, 22] and model aging [17, 21] are better terms to describe this issue of long-term sustainability. Sustainability is defined as the ability of the classifier to sustain its capabilities over time without frequent retraining. Recently, the sustainability challenge associated with machine learning-based malware detection has been discussed, but with limited investigation depth and solutions.

In the same context, the authors in [20, 22] proposed and compared sustainability metrics with the five most recent Android malware detectors. Another study [81] outperformed five detectors in sustainability by employing a new behavioral profile for apps. In particular, the authors proposed DroidSpan, which surpassed the five detectors in terms of sustainability. However, their study was limited to malware detection and did not include any discussion of malware family classification. DroidEvolver [82] used a model pool with five linear online learning algorithms and delayed classifiers to perform the necessary updates. APIGraph [21] used API semantic similarity from an Android API relation graph to improve the latest malware classifiers. Therefore, we propose a modified ResNext-based classification network with new regularization for Android malware family classification. Each Android application is distributed via an Android application package (APK). An APK contains multiple folders and files, each of which contains multiple sections; an APK contains multiple folders and files; and an APK contains multiple sections. Among other files and sections, we pay close attention to the AndroidManifest.xml file (AM), classes.dex file (CL), and the certificate files included with each malware sample (CR). As a result of these sample characteristics, we chose the ResNeXt block because of its simplicity and performance. Following that, we modify ResNeXt to include a distinct block for each component (section or file) of a malware sample in order to account for the differences in characteristics between the components. A new regularization technique is utilized to improve the efficiency of malware family classification by extracting discriminatory features from the malware sample. This enables us to ultimately classify malware samples according to their correct families.

The modified ResNeXt model is divided into two distinct phases: training and testing. During the training phase, it builds a prediction model using a set of labeled samples from the Drebin dataset. Then, the trained model is used to classify samples from the Drebin and AMD datasets during the testing phase. Specifically, the primary motivation and goal for the modified ResNeXt is to demonstrate that this model can improve classification performance once trained on an older dataset and predict new patterns of malware samples from a new dataset without having to retrain on new samples.

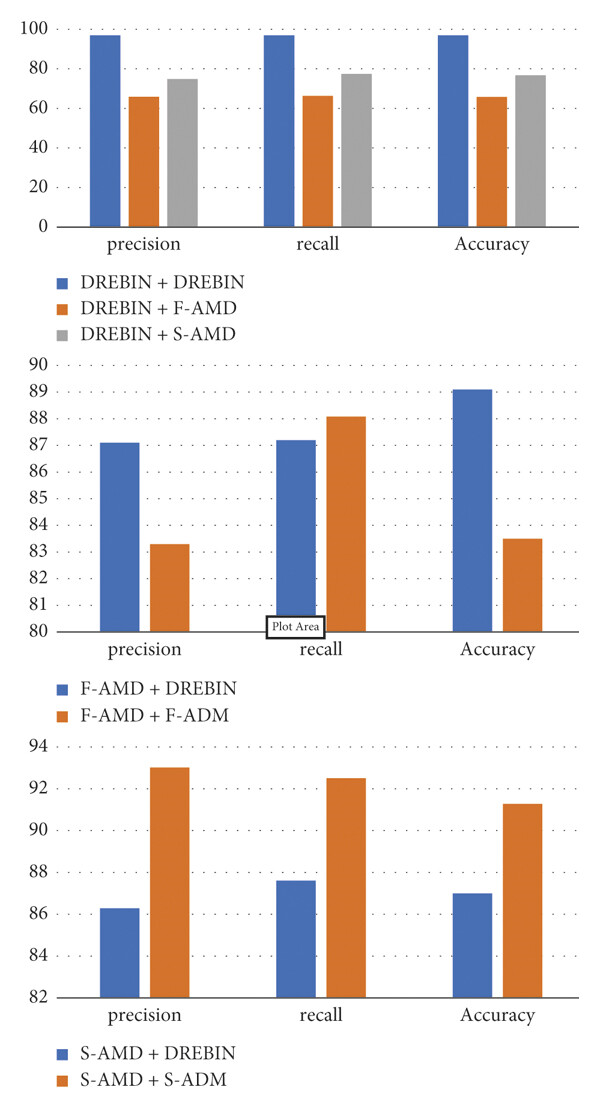

We addressed the issue of sustainability by assessing the model’s performance when it is trained on the Drebin dataset (collected between 2010 and 2012) and predicting labels for other datasets such as the AMD dataset [10] (collected between 2010 and 2016). We selected the AMD dataset because it was amassed over a longer time period than the Drebin dataset. Our experiment revealed that the feature extraction model trained on the AMD dataset outperformed the model trained on the Drebin dataset in terms of overall performance. This is because the AMD dataset contains more variation information about malware samples than the Drebin dataset, which makes it more suitable to study the evolutionary patterns of malware.

In particular, we divided the samples into three different groups, each with their own set of samples. The first group is the Drebin dataset, where we separated the malware samples from the same year into training, validation, and test sets. The goal is to assess the performance of our model with training and testing malware samples collected in the same period of time. The second group is the AMD dataset. We selected 3,460 malware samples randomly (S-AMD). By doing so, we intend to test the capability of our model in classifying apps that have never been used in training. For the third group (T-AMD), we used the entire AMD dataset, in which we utilized malware samples from different time periods than the training set. The goal is to focus on evaluating the stability of our model performance when it is trained on older datasets and predicting the labels of newer ones, spanning one to four years. Figure 9 shows the experimental results.

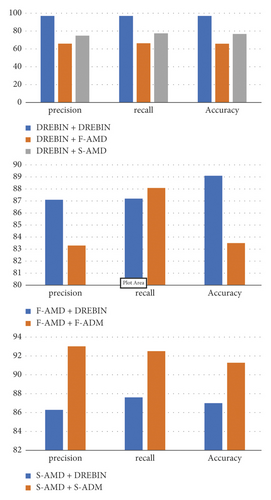

In the first experiment, we compared the feature extraction model learned from the Drebin and AMD datasets (same period) to observe the performance of our model. It is clear from Table 11 that the model’s generalization is better for Drebin than (S-AMD) and (T-AMD), which showed the suitability of the (S-AMD) and (T-AMD) sets in terms of containing more discriminatory features of malware samples. Next, we compared the accuracy of training and testing on the Drebin and the AMD datasets (same period and over-time). We observed that the accuracy of the Drebin dataset is better than that of the AMD dataset. This is because the Drebin dataset contains fewer malware families than the AMD dataset. In other words, the AMD dataset has sufficient variation information about malware samples, which improves the generalization performance. Thus, the generalization performance improved when the variation information of malware samples in the AMD dataset was learned.

Based on the results from Table 11, it was revealed that, even with a span of four years (the difference between Drebin and AMD datasets collection span), our model detection accuracy dropped noticeably over time from about 98% to below 80% in terms of accuracy for testing samples from year one. Over time, our model tended to be much more stable (with minimal fluctuation) in terms of detecting malware samples. It achieved an average accuracy of 87%, despite the evolution of Android malware. Despite the fact that our results are promising, we cannot claim that our model will continue to perform as well as it has in the case of future malware. The unpredictable evolution of our app in the future would also serve as a trigger for retraining our model in the future.

However, previous studies used a variety of different benchmarks casts doubt on the measurement degree of our findings’ validity. As a result, despite the fact that we collected samples from a variety of sources, our datasets may not be representative of the app population during the pertinent years. Our findings and conclusions are best understood in light of the benchmarks we analyzed.
