2.1.1. The Concept of IIoT

IIoT is the abbreviation for the combination of IoT and industrial manufacturing to improve the efficiency of industrial automation products. IIoT can perceive the system, has the advantages of reliable transmission and processing intelligence, and is commonly used in transportation, power grids, factories, and environmental monitoring. There are generally four implementation stages [13–16]

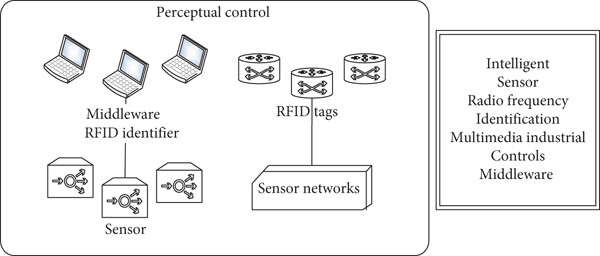

For the first stage, intelligent control is shown in Figure 1. This node combines sensors, wireless sensor networks, and other modules through intelligent sensing to achieve industry data collection and control equipment

In Figure 1, communication technologies such as local networks or the Internet are used to connect sensors, controllers, machines, people, things, to form the connection between people and things and things and things and realize informatization, remote management control, and intelligent network. The IoT is an extension of the Internet. It includes the Internet and all resources on the Internet and is compatible with all applications on the Internet. But all elements in IoT (all devices, resources, communications, etc.) are personalized and privatized. For the second stage, the comprehensive exchange is shown in Figure 2. IIoT uses sensors and other modules to collect data and integrates information technology and features through communication technologies such as the Internet, mobile networks, wide area networks, or radio and transmits the data in real time and quickly.

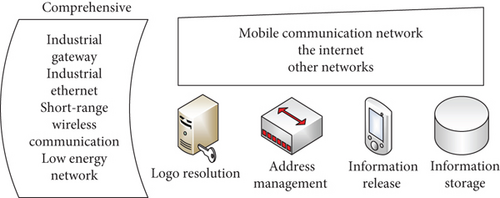

In Figure 2, the communication protocol is the language of the networked world. But the industrial network world is often not as open and unified as the Internet, due to industries, application scenarios, network topology, and mutual games between major industrial enterprises and countries. With the advent of emerging concepts such as the Industrial Internet, traditional industrial protocols are underdeveloped in terms of security and future-proofing. Industrial control security has become an important part of national infrastructure security. IoT technology is the integration of the Internet and the idea of intelligent data analysis. The construction of an integrated system where hardware entities and software entities are placed is very important [17]. The deep application of the third stage is shown in Figure 3. Cloud computing, big data, and other platforms are used for modeling, analysis, and optimization to develop multisource heterogeneous data and find valuable information at a high speed and accuracy through data mining, data storage, and other technologies.

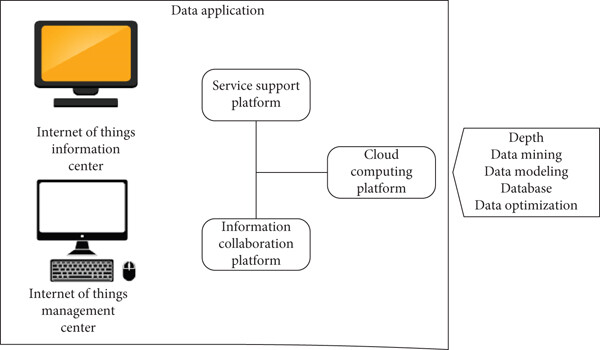

In Figure 3, the technological revolution is at some stage before the digital industrial revolution is truly revolutionized. After the invention of new technologies, industry professionals find their own internal technology gaps and choose new technologies that are suitable for them. Then, the technology is further configured for each industry. However, technology generally remains the same. Different industries have different application scenarios, resulting in different requirements. Replacing the kernel of the network (i.e., the search machine) by spiral search and bubble net search can improve the accuracy and reduce the execution time to achieve the goal achieved by the retrieval function [18]. For the fourth stage, service innovation is shown in Figure 4. Through intelligent equipment, platform integration, and other technologies, it can provide users with innovative services, including smart logistics and competent medical care, and establish a new ecological model of IIoT in all aspects to improve service levels.

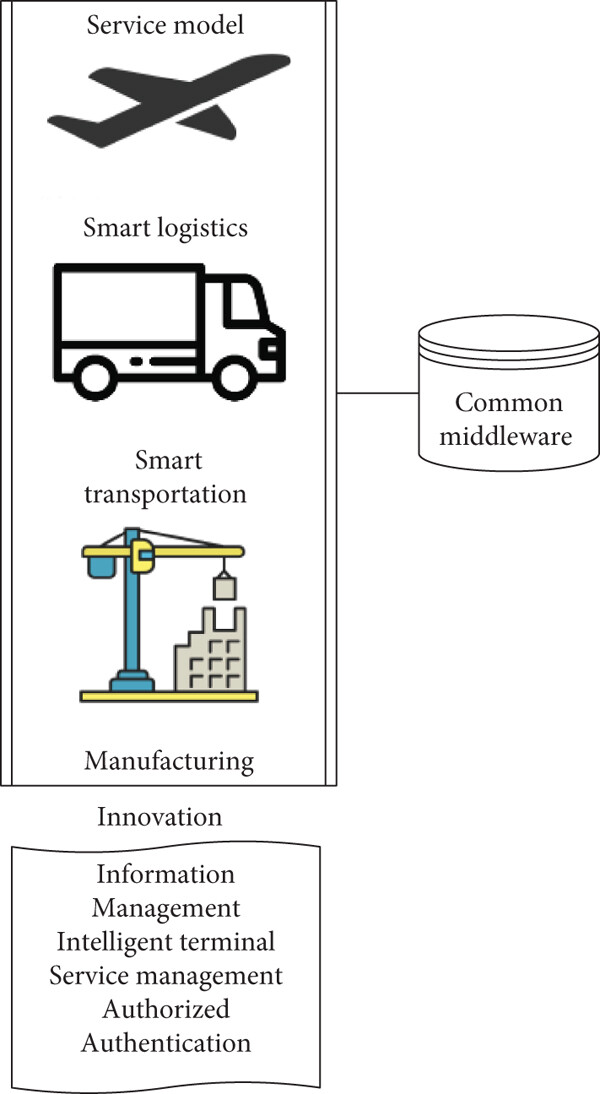

In Figure 4, the innovation stage of the IIoT is divided into three stages. Step 1 is cognitive innovation. The cognition of the Industrial Internet has gradually evolved and made breakthroughs, extending from the interconnection of equipment to the interconnection of people, machines, and things and then to the comprehensive link of all elements, the entire industrial chain, and the entire value chain. The Industrial Internet is an important cornerstone of the fourth industrial revolution. It is the deep integration of a new generation of network information technology and manufacturing. It can form a new industrial manufacturing and service system and promote the high-quality development of the real economy represented by advanced manufacturing.

Step 2 is idea innovation. The development law and mechanism of the Industrial Internet should be correctly grasped. The Industrial Internet is not a simple copy of the consumer Internet in the field of production, but a comprehensive expansion and leap of information network technology from virtual to physical, from life to production. This is not the connection extension of the consumer Internet from people to things, but the complete creation of a networked and intelligently upgraded infrastructure that expands from manufacturing to various industrial fields.

Step 3 is pattern innovation. The world today is going through a new round of major development, transformation, and adjustment, and the economic and social development of various countries is increasingly linked. Open cooperation is a realistic requirement to promote the stable recovery of the world economy. The development of the Industrial Internet is not limited to one country and one place. It must provide new impetus for the global economy to get out of the recession cycle in the process of “bringing in” and “going out.” The development of the IIoT is not just to catch up and improve the development level of the country but also to provide an important breakthrough for global network governance to break the monopoly deadlock and move towards multiparty cogovernance based on new elements, new fields, and new forms.

2.1.2. The Structure of IIoT

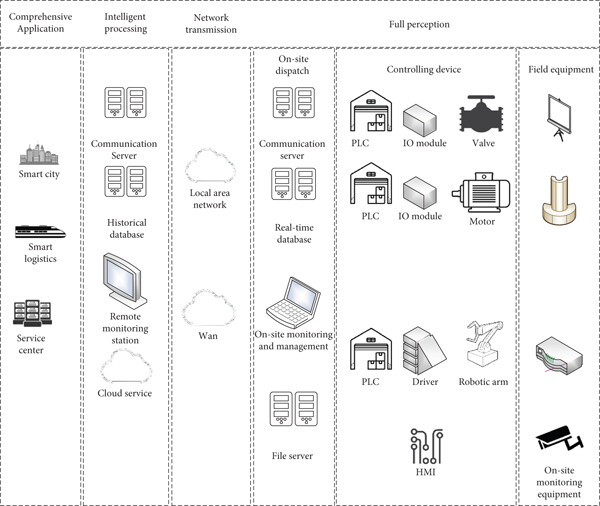

Starting from the system and automation control, IIoT can be divided into four structures, comprehensive perception, network transmission, intelligent processing, and integrated application, as shown in Figure 5 [19–22].

In Figure 5, the key technologies of IIoT mainly include comprehensive perception, information transmission, intelligent processing, and information feedback. Comprehensive perception refers to the collection and acquisition of information on objects anytime and anywhere by using modern information collection and collection techniques. Information transmission is the reliable exchange and sharing of information anytime and anywhere through various communication networks and the Internet. Intelligent processing is to analyze and process the collected massive data and information, improve the insight into the industrial production environment and market, and realize intelligent decision-making and control. Information feedback means that the processed information is communicated to each production link in the form of program instructions to optimize the production structure and complete the production plan. In comprehensive perception, data collection equipment includes instruments and sensors. Its primary function is to realize the exchange of IIoT information. The most used control device is the Programmable Logic Controller (PLC). Its role is to issue commands to the control device. Field equipment includes complex collection equipment responsible for collecting on-site process data to achieve accurate control and management.

In network transmission, data transmission is a collection of multiple communication networks. Its function is to connect the network of various devices on-site, is a bridge between data collection and postprocessing, and integrates multiple connection methods such as 5G, Bluetooth, and Wi-Fi. In IIoT, a variety of connection technologies must be used to ensure the connection of many sensors and processors.

Intelligent processing includes communicator, manager and historical data server, remote control, and other equipment. Generally, cloud computing is used as a platform for large-scale data processing to ensure data security. Comprehensive application is a service based on practical application. It provides personalized assistance to users through information control, authentication, authorization, etc., and it is necessary to ensure the safe access and privacy protection of users.

2.3.1. Basic Concepts

In James P. Anderson’s Computer Security Monitoring and Surveillance in 1980, the concept of anti-intrusion detection was first proposed [25]. In 1986, Peter Neumann and Dorothy Denning established the real-time model of IDS [26]. They applied this model to computer security defense work for the first time. The IDS is essentially a network security management system, and its function diagram is shown in Figure 6. The working principle is to collect and analyze data information in the network to extract offensive details and behaviors to determine whether the data has intrusions. Unauthorized or abnormal access behavior in the network is judged [27].

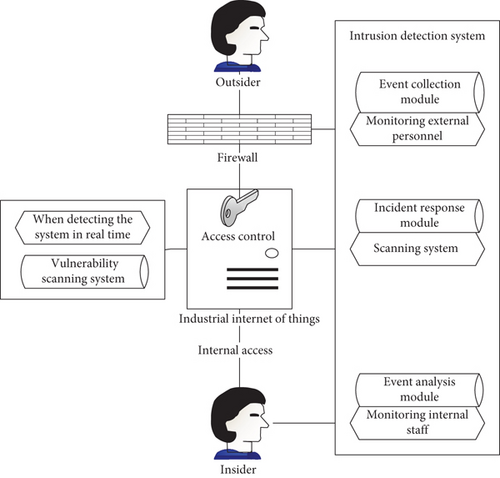

In Figure 6, since the system cannot be completely prevented from being attacked or intruded, the intrusion detection system becomes a system that can detect attacks or intrusions in time and provide valuable security alerts to security managers. As the actual harm of intrusion events is increasing, people pay more and more attention to intrusion detection systems. Intrusion detection system has become an important link in the network security architecture. The IDS can effectively judge abnormal network phenomena and protect the system, equipment, and machinery. The IDS extends the firewall, which usually includes the behavior subject, resource objects, audit records, behavior files, abnormal records, and processing rules [28]. The general detection process is shown in Figure 7.

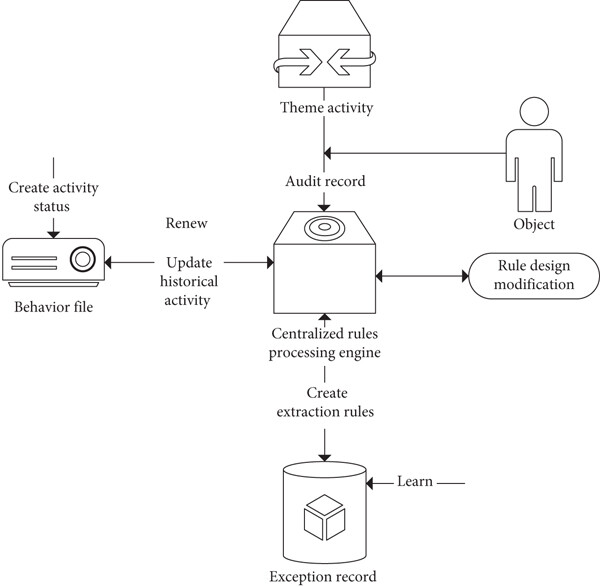

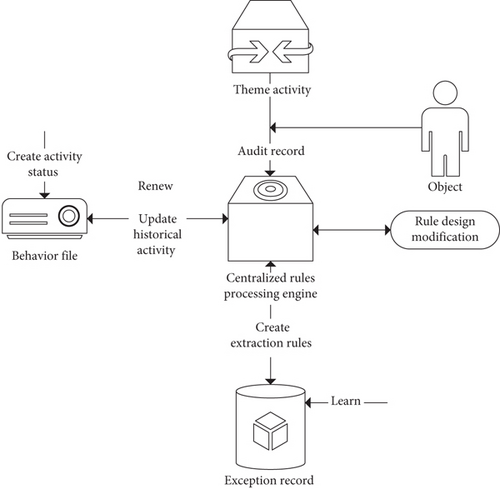

In Figure 7, the first steps of professional business process management include process design, analysis, and optimization. Design includes documenting the actual state of existing processes. The relevant knowledge held by the employees of the process is collected and integrated, which not only improves the transparency of the process but also allows for a more in-depth analysis of the process. Structured and process-organizational models can reflect the complexity of business operations and simplify them into manageable terms. The IDS needs to identify abnormal behaviors accurately and efficiently. When designing the structure, it must have all the mentioned functions. Therefore, referring to the general process of the IDS, the basic flow of the IIoT-IDS is shown in Figure 8.

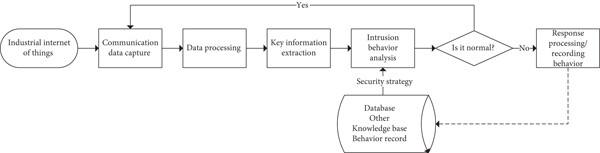

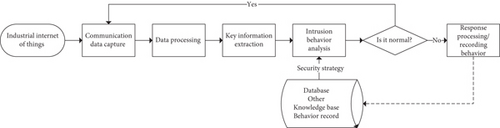

In Figure 8, this stage is the core stage of the entire intrusion detection system. The purpose of the system is to detect anomalies or to detect system vulnerabilities or application bugs for intrusion. According to the purpose of the system, it can be divided into abnormal behavior and misuse detection. The report and response phase responds to the judgments made in the previous phase. If it is judged that an intrusion has occurred, the system will take corresponding response measures or notify the management personnel that an intrusion has occurred so that measures can be taken. Recently, people’s requirements for intrusion detection and response are increasing, especially for their tracking functions.

2.3.2. IDS Category

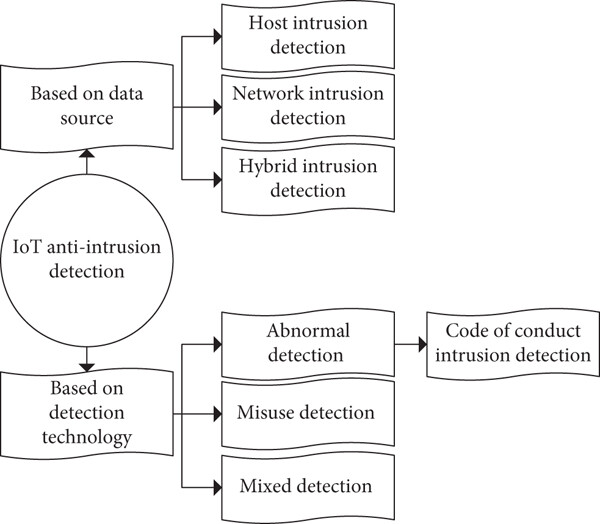

According to the data source to classify [29], the standard classification method is the object and detection technology. The general classification is shown in Figure 9. In addition, it can be divided into the centralized type and distributed type according to the model system. The operational mode of the tool can be divided into connection and offline types.

According to the classification of detection technology [30], the IDS can be divided into three types: anomaly detection, misuse detection, and hybrid detection. The principle of anomaly check is to determine whether it is an intrusion by the proportion of network users’ daily behaviors and operations to system resources. The working principle of misuse detection is to establish a database through the recorded intrusion behavior. When an access behavior occurs, it is compared with the intrusion behavior recorded in the database to judge the intrusion behavior. Traditional anomaly detection can identify attacks from unknown users. In actual applications, false positives occur from time to time. The detection rate of misuse detection is high, and the false-negative rate is also high. Therefore, a hybrid detection is produced after the two are comprehensively optimized. The frame is shown in Figure 10.

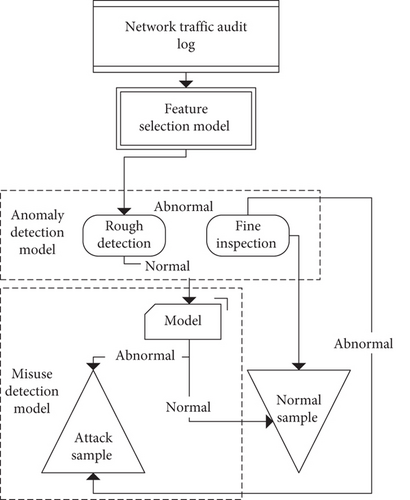

In Figure 10, intrusion detection technology is a technology designed and configured to ensure the security of computer systems that can timely detect and report unauthorized or abnormal phenomena in the system. It is a technology used to detect violations of security policies in computer network technology. In addition to firewalls and antivirus systems, intrusion detection technology has become an effective way to resist hacker attacks and has become the third wave of network security. IDS is primarily used to monitor and analyze user and system activity, identify activity patterns that reflect known attacks, and alert relevant individuals. For abnormal behavior patterns, IDS performs statistical analysis in the form of reports.

2.3.3. Anti-Intrusion Detection Method

Solving again can get the value of the Lagrange multiplier α_i. Turn to find the optimal hyperplane ω, b. Finally, the hyperplane and the classification decision function are obtained. These are the current mainstream algorithms for solving.

2.3.4. Arrangement of Anti-Intrusion Detection Algorithms Combined with Artificial Neural Networks

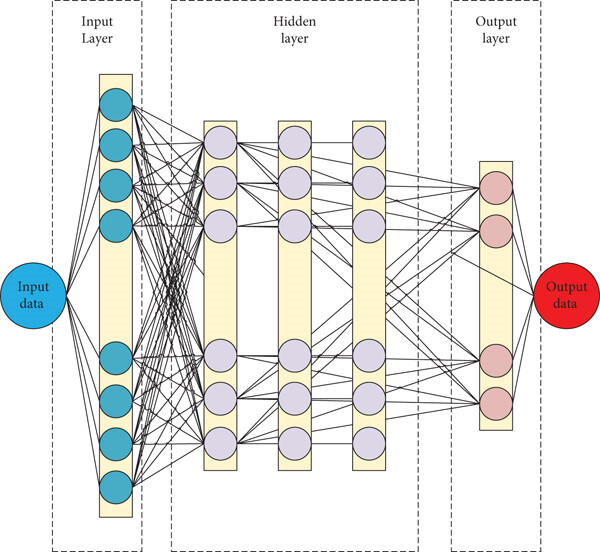

The Artificial Neural Network (ANN) is a processing algorithm proposed by research experts inspired by neural signals in human nerves. It can be explained by multilevel sensors [32], and the basic model is shown in Figure 11.

σ is the nonlinear activation function mapping [33]. An ANN is a representative method of artificial intelligence (AI) in deep learning. Since it was proposed, it has been applied to different scenarios, and many new structures have evolved. Deep learning can efficiently handle high-latitude nonlinear problems and is widely used in many fields. The anti-intrusion detection is a multiclassification problem, and the neural network structure in deep learning is used for research.

2.4.1. Basic Structure

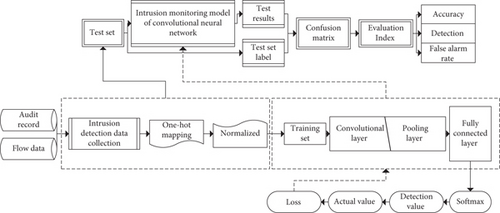

In IIoT, devices are always connected to the Internet. Therefore, security protection should be established in IIoT. The autonomy of deep learning is used. The constructed IIoT-IDS model structure is shown in Figure 12, which is used to identify intrusion data.

In Figure 12, intrusion detection is accomplished by performing tasks: (1)monitor and analyze user and system activities; (2) audit system structures and weaknesses; (3) identify patterns of activity that reflect known attacks and alert relevant individuals; (4) statistical analysis of abnormal behavior patterns; (5) evaluate the integrity of important systems and data files; and (6) audit trail management of operating systems, and identify user behaviors that violate security policies.

2.4.2. IIoT Anti-Intrusion Model by LeNet-5

CNN was first proposed in 1990. In 1998, Lecun established a LeNet-5 model for handwritten digit recognition [34], one of CNN’s earliest representative models. It contains one input layer, one output layer, two convolutional layers, two pooling layers, and one fully connected layer. The convolutional and pooling layers can be changed to change the structure of the entire network.

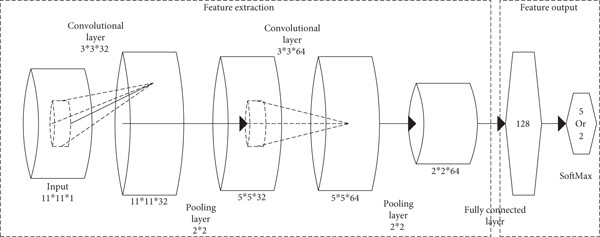

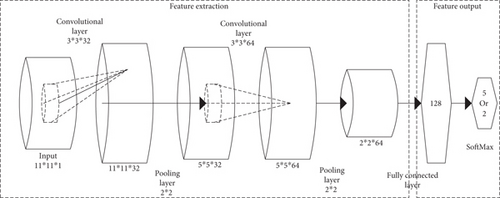

Although the LeNet5 network is small, it contains the basic modules of deep learning: convolutional layers, pooling layers, and fully connected layers. This is the basis for other deep learning models. The input image is subjected to the first convolution operation (using six convolution kernels of size 5∗5) to obtain 6 C1 feature maps (6 feature maps of size 28∗28, 32 − 5 + 1 = 28). The size of the convolution kernel is 5∗5, and there is a total of 6∗(5∗5 + 1) =156 parameters. Among them, +1 means that grain has a bias. For the convolutional layer C1, each pixel in C1 is connected to 5∗5 pixels in the input image and one tendency. So there are 156∗28∗28 = 122304 connections in total. There are 122304 connections, but only 156 parameters need to be learned, mainly through weight sharing. The most used LeNet-5 currently has a 7-layer structure, as shown in Figure 13.

$$ is the activation output of the jth nerve in the lth layer, $$ represents the ith two-dimensional output matrix of the l − 1 layer, $$ is the convolution kernel, ⊗ is the convolution operation, and $$ is the bias value.

$$ is the output feature of the upper layer, $$ is the pooling coefficient, and upsample is the pooling function.

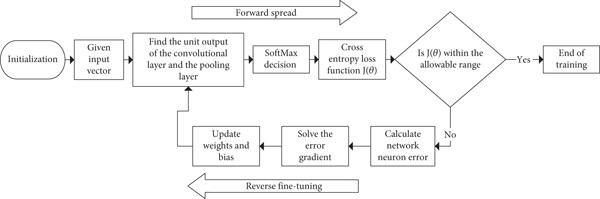

CNN is divided into two stages for training. One is forward propagation, and the other is reverse fine-tuning. The overall training process is shown in Figure 14.

The main steps and content are shown in Table 2.

This part is aimed at protecting data and preventing breaches in the network. Any exploitation of malware can cause a lot of damage to the company. Safely maintaining a network is the goal of all system administrators. Here, there are several important open source network intrusion detection tools. In today’s world, data breaches, threats, attacks, and intrusions are becoming very sophisticated. Cybercriminals and hackers have come up with new ways to gain access to business and home networks, making a multilayered approach to cybersecurity an urgent need. Therefore, the intrusion detection system is the most important tool used to defend the network from the high-tech attacks that occur on a daily basis. IDSs are network security tools used to detect exploits against targeted applications or computers. It is considered a high-end network device or software application that assists network or system administrators to monitor various malicious activities or threats in the network or system. A security information and event management system is used to report any unusual activity to administrators.

In Figure 14, the convolutional network is essentially an input-to-output mapping. It can learn a large number of mapping relationships between input and output without any precise mathematical expression between input and output. As long as the convolutional network is trained with known patterns, the network has input and output pairs. Convolutional networks perform supervised training, so their sample set consists of pairs of input vectors and ideal output vectors. All of these vector pairs should be derived from the actual “running” results of the system that the network is about to simulate. They can be collected from the actual operating system. Before starting training, all weights should be initialized with some different small random numbers. “Small random numbers” can be used to ensure that the network does not saturate due to too large weights, resulting in training failure. “Different” can be used to ensure that the network can learn properly. In fact, if the weight matrix is initialized with the same number, the network cannot learn.

2.4.3. Improved LeNet-5 Model

The traditional activation functions are saturated nonlinear, sigmoid, and tanh. A saturated nonlinear function will take longer to converge than a nonsaturated nonlinear function ReLU model. For large datasets, a faster learning process means more time savings. In addition, ReLU also introduces a certain sparsity. In the category of feature representation, the data has a certain sparsity. Some of the data is redundant. This sparsity can be simulated to preserve the characteristics of the data in a maximum approximation manner by introducing ReLU. In addition, the data collected by the LeNet-5 network also has the shortcomings of too light fitting degree and single response mode. Standard LeNet-5 networks are flawed. When convolutional layers are used for data feature extraction, and pooling layers are used for dimensionality reduction, data features become sparse. The data processing by the two-layer convolutional layer of the LeNet-5 network model will cause incomplete data extraction. The characteristic information of the data will be lost when the subsequent pooling layer of the convolutional layer processes the data.

The feature information of anti-intrusion detection data is unevenly distributed. The feature attributes of some data have a more significant impact on the recognition of detection results during network model processing. Part of the attribute feature information contains a small amount of data, which will cause the phenomenon that the data feature has nothing to do with intrusion behavior. When processing these data in the convolutional and pooling layers, it will cause a waste of redundant resources, which will interfere with the detection of intrusion behavior. In LeNet-5’s anti-intrusion detection, the input data is different from the original image data because the convolutional layer and the pooling layer are alternately used. One-dimensional data mapping will become blurred after two-dimensional space, making the entire model unable to describe the characteristic behavior accurately, and the model’s anti-intrusion performance is not ideal. Therefore, the traditional LeNet-5 [36] model will be optimized. The two convolutional layers are subjected to a pooling operation, and suitable parameters are used to extract the abnormal features of the data fully. The optimized model is the LeNet-7 model, and the structure is shown in Figure 15. There are four convolutional layers in the improved LeNet-7 network, two pooling layers, and one fully connected layer.

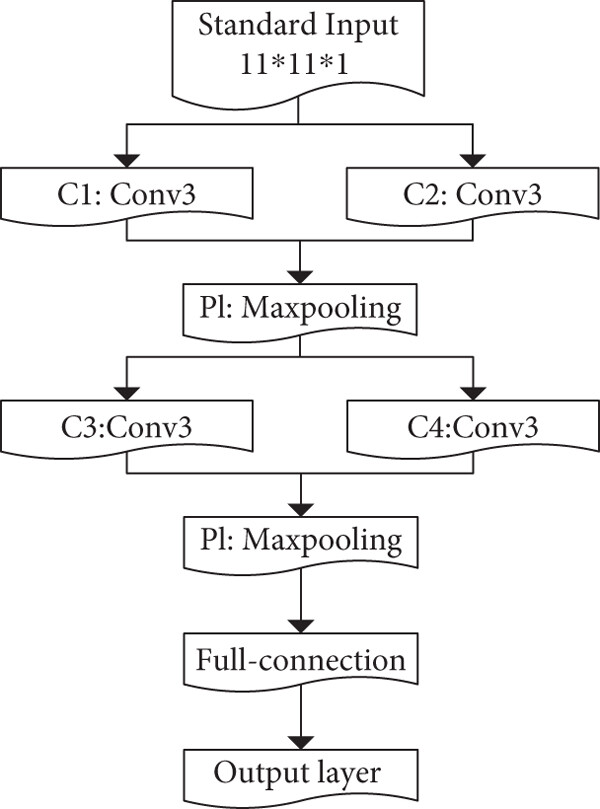

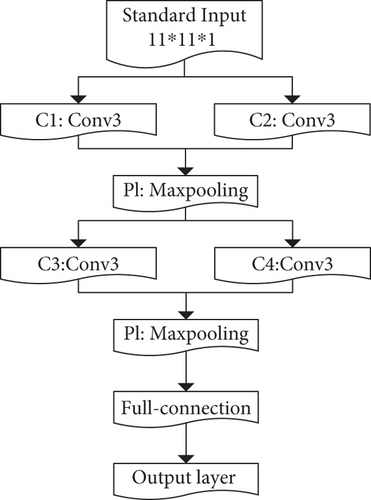

In Figure 15, as the depth of the network increases, the accuracy of the network should increase synchronously, and the overfitting problem needs to be paid attention to. But one problem with increasing network depth is that these added layers signal parameter updates. The gradient is propagated from the back to the front. After increasing the depth of the network, the gradient of the earlier layers will be very small, which means that the learning of these layers is basically stagnant. This is the vanishing gradient problem. The second problem with deep networks is training. When the network is deeper means the parameter space is larger and the optimization problem becomes harder. Therefore, simply increasing the network depth leads to higher training errors. Although the deep network converges, the network begins to degenerate; that is, increasing the number of network layers leads to greater errors.

2.5.1. Inception Network

To specifically solve the severe high-energy problem caused by the parameter hierarchy in the neural network, people have proposed deep learning combined with the CNN Inception network [37].

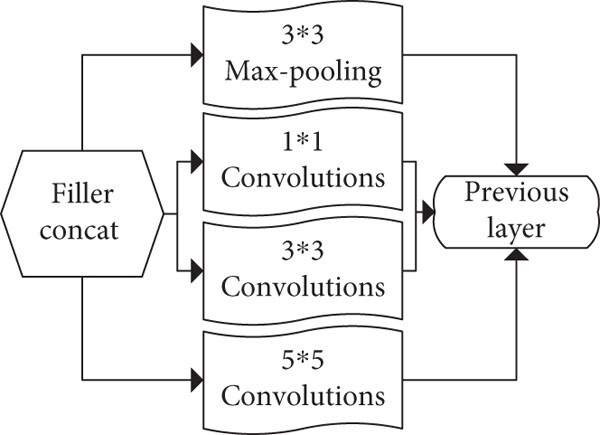

There are currently 4 Inception networks, of which Inception V4 can be combined with residual connections to build a deeper Inception-ResNet network. The Inception network can sparse the network structure and produce dense data. Multiple channels and multiple levels can be set in the network, and various convolution kernels and pooling can be used to operate. The basic structure of Inception is shown in Figure 16.

In order to increase the nonlinear model and reduce the parameter settings, the Inception model is expanded. The calculation amount of the model is increased, its structure is modified, the amount of convolution parameters is reduced, and the network nonlinearity is appropriately deepened. Combining different channels can extract more data features.

2.5.2. The Detection Method of Inception-CNN

μ_ij is the pooling factor, F_sum is the total element of the pooling core, and σ is the standard deviation. This algorithm can overcome the limitation of maximum pooling and obtain more accurate feature information.

2.5.3. IIoT-IDS Solution by Inception-CNN

Integrating the detection method of Inception and the improved LeNet-7 network, the model flow chart of the built Inception-CNN IIoT-IDS and the training structure of the model are shown in Figure 17.

Data preprocessing: the data used here comes from the MNIST dataset, and the mobile network data in the dataset is screened. Then, the information is normalized. Because the dimensionality of the original data is high, it must be reduced. Data with greater influence on the result is selected, and no influence data is removed. After that, the abnormal data part is adaptively manipulated. The detection algorithm flow of this model is shown in Table 3.

Model training: the data obtained by preprocessing is converted into a two-dimensional format to adapt it to the CNN format. Extract rich and diverse characteristics of intrusion behavior; adjust parameters until convergence.

Data output: after completing the training, use the test set to evaluate the model’s performance. If it meets the requirements, stop training. Otherwise, repeat the above steps to check the accuracy of the model.

2.5.4. The Limitations of the Anti-Intrusion Detection Algorithm of the Inception-CNN Network

At present, IDS technology is still regarded as a state that has not been fully completed. From a technological point of view, the technology does have some shortcomings and distances. People expect the functionality that IDS brings, but there are still bottlenecks that cannot be fully overcome in current commercial IDS suites. The amount of information generated by IDS is excessive, but the skills and ability to effectively filter, sift, and correlate data are lacking. Although IDS can bring various advantages, it should be emphasized here that the establishment of IDS is not foolproof for enterprises to strengthen information security. Before enterprises have mature basic concepts and processing procedures for information security, they will face more difficulties when building an IDS. IDS detects attack events based on the characteristic data of intrusion attacks rather than the way of using behavior. Therefore, intrusion detection is limited to predefined system events. In addition, the management console cannot effectively manage an unlimited number of monitoring devices, nor does it support intercorrelation of data from multiple different information sources. Currently, most of the data-related returns provided by IDS are based on predesigned templates. Such reward schemes are helpful, but limited.
