Objectives. The majority of human maxillary first molars is usually described as having three roots, but different morphologies were documented in several studies and case reports. One very rare and less investigated anatomical anomaly is the occurrence of four radicular structures in the upper first molars. This communication aimed to define the prevalence of four-rooted maxillary first molars on a meta-analytical basis. The external and internal morphology of these teeth was described by the collection of published case reports. Materials and Methods. Six electronic databases were accessed to collect case reports dealing with four-rooted maxillary first molars, as well as population-based cone-beam computed tomography (CBCT) studies. Afterward, the publications were selected according to predefined inclusion/exclusion criteria and evaluated using the Joanna Briggs Institute Critical Appraisal tool. The teeth of the chosen case reports were then independently analyzed by two dental professionals according to different dental classifications. Furthermore, the population studies were meta-analyzed to calculate the global and regional prevalence of four-rooted maxillary molars. Results. Included were forty-nine population-based CBCT studies containing 26663 maxillary first molars. Upon these data, the global incidence of four-rooted maxillary molars was meta-analytically determined as 0.047% (95%-CI:0.011–0.103%). In combination with the case reports, it was pointed out that this anomaly is distributed worldwide. Furthermore, forty-eight case reports were included containing fifty-three maxillary molars with four roots. The analyzed teeth exhibited Versiani´s pulpal chamber floor Types A and B. The majority of four-rooted maxillary first molars were classified as Type I regarding Christie′s configuration. But, also 7.54% of the altered teeth could not be described by this classification. 62.34% exhibited four root canals, but also variations with five, six, or seven canals were identified. Furthermore, a significant difference was found in the occurrence rate between male and female patients. Conclusion. Due to the worldwide occurrence, dental professionals should be aware of this rare anomaly to avoid treatment errors, especially during endodontic or surgical therapies.

1. Introduction

For centuries, anatomists have investigated dental anatomy to describe each human tooth by determining its coronal and radicular structures. Human maxillary first molars are generally characterized to possess four or five cusps (the additional mesiolingual cusp of Carabelli) and three roots [1, 2]. These roots were designated due to their anatomical position as mesiobuccal, distobuccal, and palatal root, usually exhibiting four root canals (mesiobuccal root with a second canal, whereas the other roots commonly contain only one canal) [3, 4]. However, numerous studies and case reports also presented maxillary first molars with various anatomical alterations resulting in an enormous diversity in the number of roots and canals. For example, rare cases of single, two-, or even five-rooted maxillary first molars were described [3, 5–7] as well as three-rooted versions with multiple canals [8–10].

Another rare aberration was described by Thews et al. 1979 [11], who identified radiographically four separate roots during endodontic treatment. This unlikely morphological anomaly was classified upon the radicular shape and the degree of root separation by Christie et al. in 1991 [12]. Their characterization was based mainly on studying endodontic treated or extracted maxillary molars and identified three different radicular configurations. Type I maxillary molars have widely divergent, long, and tortuous palatal roots with “cow-horn” shaped buccal roots. Type II maxillary molars have four, shorter, parallel running roots with blunt apices. By definition, “a type III maxillary molar is constricted in root morphology with the mesiobuccal, mesiopalatal, and distopalatal canal encaged in a web of root dentin” [12]. Furthermore, Baratto-Filho et al. in 2002 demonstrated an endodontic case with fused mesiobuccal and mesiopalatal roots and suggested an additional class IV [13] (Figure 1).

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

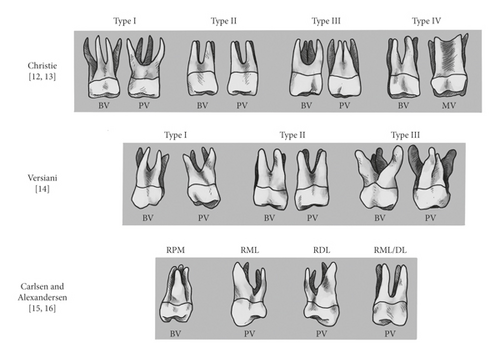

Schematic drawing of radicular classifications of four-rooted maxillary molars modified from [12–16]. Christie classified four-rooted maxillary molars in Type I to Type III based on the radicular shape and the degree of root separation [12]. Type IV was added by Baratto-Filho [13] with a fused mesiobuccal and mesiopalatal root. Versiani′s modified radicular classification [14]. Carlsen and Alexandersen defined and named additional radicular structures upon their buccal or palatal location and according to their affinity to the dental crown. BV:buccal view, PV:palatal view, MV:mesial view, RPM:radix paramolaris, RML:radix mesiolingualis, RDL:radix distolingualis, RML/DL:radix mesiolingualis/distolingualis.

However, Versiani et al. in 2012 indicated by studying four-rooted maxillary second molars with micro-CT the Christie′s configuration as not feasible, because fusions might occur on a different root level [14]. Therefore, they defined a classification introducing a new type III with less divergent and short palatal roots along with widely divergent buccal roots. In addition, Christie′s Types II and III were combined [12, 14]. However, another classification for this very rare anatomical anomaly was designed by naming the additional palatal root as radix mesio- or distolingualis based on its direct affinity to the pronounced part of the crown [15]. Moreover, Carlsen and Alexandersen described maxillary molars exhibiting three buccal roots and characterized the additional radicular structure as radix paramolaris [16] (Figure 1).

Interestingly, all mentioned classifications depended on the investigation of the second or even third maxillary molars and were commonly used for the description of maxillary first molars without any scientific proof [12, 14, 15]. However, due to the rarity of four-rooted maxillary first molars, no anatomical study could be found in dental literature [3]. Therefore, this study systematically collected case reports on maxillary first molars with four roots to study their specific anatomy. In addition, population-based cone-beam computed tomographic (CBCT) studies were analyzed to assess the unknown worldwide prevalence and distribution of these teeth.

2. Materials and Methods

2.1. Literature Search Strategy

This systematic review, case report collection, and meta-analysis followed the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) [17]. A literature search was conducted between August 2019 and November 2019 by both authors. Six electronic databases were searched (Google Scholar, PubMed, BASE (Bielefeld Academic Search Engine), SciELO (Scientific Electronic Library Online), AJOL (African Journals OnLine), and DHBD (Circumpolar Health Bibliographic Database)) for population-based studies using CBCT imaging for the investigation of maxillary first molars root anatomy according to specific terms (MeSH terms:“maxillary first molar” “cone-beam computed tomography”). Publications in Chinese, English, German, Italian, Japanese, Portuguese, Russian, Spanish, and Turkish were identified. Afterward, the references for these studies were hand-searched. The selection procedure of the records followed a three-step evaluation. At first, titles and abstracts were accessed and characterized as relevant or irrelevant in agreement with predefined inclusion and exclusion criteria (Suppl. Table 1). Afterward, the full texts (if available) of the selected articles were evaluated according to the mentioned criteria. The resulting articles were critically assessed and evaluated independently by both authors based on the JBI questionnaire [18]. Furthermore, few authors were contacted via e-mail to receive missing information on their studies according to the inclusion criteria and the JBI questions.

Additionally, the mentioned databases were accessed to identify case reports concerning maxillary molars with four roots (MeSH terms:“maxillary first molar” “four roots,” “maxillary first molar” “two palatal roots,” “maxillary first molar” “Radix mesiolingualis,” “maxillary first molar” “Radix distolingualis”). Publications in Chinese, English, Farsi, Portuguese, Spanish, and Turkish were identified. Afterward, the reference lists of the identified case reports were hand-searched. As mentioned above, at first, the titles and abstracts were evaluated according to predefined inclusion and exclusion criteria (Suppl. Table 1). Second, the available full texts were analyzed upon these criteria. Finally, both authors defined the case report teeth upon Christie’s radicular configuration regarding the published radiographs [12]. Afterward, when available, the intraoperative photographs of the teeth were classified according to Versiani’s pulpal chamber floor type [14] (Figure 2). Disagreements were resolved through consensus.

2.2. Statistical Analysis

The summary of the selected (population-based CBCT) studies and the calculation of the pooled proportion of teeth with 4 roots were carried out by a random-effects model with inverse-variance weights. Since some CBCT studies showed no record of upper first molars with 4 roots, the proportions of individual studies were first transformed for the calculation of the pooled proportion (Freeman-Tukey Double Arcsine Transformation). The graphical representation of the proportions of the individual studies and the fraction pooled share with a 95% confidence interval was carried out with a forest plot. In addition, the dispersion of the studies was illustrated in a funnel plot in which the number of teeth of each study was plotted against the proportion of teeth with 4 root canals. Furthermore, Cohen′s kappa was calculated to quantify the degree of compliance of two assessors in answering the JBI questions. All statistical tests were carried out on two sides at the significance level 0.05. Stata/IC 16.1 for Unix (StataCorp 4905 Lakeway Drive, College Station, TX 77845, USA) was used for data preparation and analysis.

3. Results

3.1. Included Studies

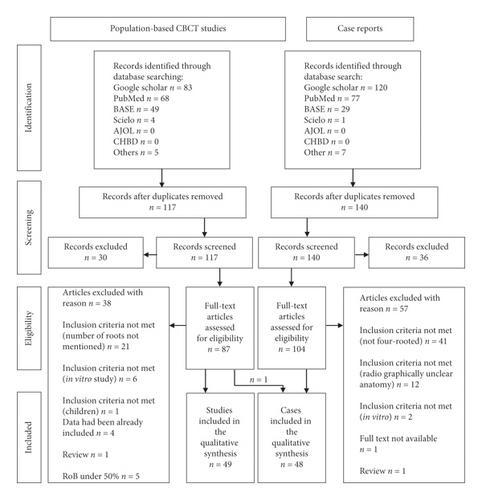

The electronic and manual search identified 117 relevant studies for the population-based CBCT studies. Sixty-eight studies were excluded by accessing the title, abstract, and/or full text (Figure 3). The JBI questions [18] Q5 and Q9 were considered not applicable, and Q6 was eliminated due to the predefined CBCT technique like previous dental studies described [19]. The results of the Cohen kappa interrater reliability for the publications investigated by the JBI questionnaire were 0.883 (Q1), 0.795 (Q2), 0.979 (Q4), 0.645 (Q7), and 0.764 (Q8). The resulting 54 studies had an average score of 77.2%. Five studies were excluded due to their low score (≤50%), whereas 38 papers had a high (≥75%) and 11 a moderate (≥50%) score. The finally selected 49 studies included 26663 investigated maxillary first molars (Table 1).

Table 1. Analysis of the population-based CBCT studies.

Author	Country	Voxel in µm	CBCT device	n	4-Root-ed	In %	CI -95%	Propor. (%)	Additional information to 4-rooted maxillary 1^st molars
Zheng et al. 2010 [20]	China	125	Accuitomo (Kyoto, Japan)	627	0	0	0–0.61	2.67
Zhang et al. 2011 [21]	China	125	Accuitomo	299	0	0	0–1.27	1.43
Kim et al. 2012 [22]	Korea	167	Dinnova (Gwangmyeong, Korea)	814	0	0	0–0.47	3.26
Abed et al. 2013 [23]	Iran	150	Planmeca (Helsinki, Finland)	119	0	0	0–3.12	0.61
Plotino et al. 2013 [24]	Italy	300	NewTom (Verona, Italy)	161	0	0	0–2.33	0.81
Jing et al. 2014 [25]	China	125	NewTom	630	3	0.476	0.2–1.4	2.68	Two with 4 RCs, 1 with 5 RCs
Silva et al. 2014 [26]	Brazil	200	i-CAT	314	0	0	0–1.21	1.49
Guo et al. 2014 [27]	USA	150–300	Galileos (Bensheim, Germany)	634	0	0	0–0.6	2.69
Estrela et a. 2015 [28]	Brazil	100	PreXion (San Mateo, USA)	100	0	0	0–3.7	0.52
Demırbuğa et al. 2015 [29]	Turkey	75	Newtom	894	1	0.112	0.02–0.6	3.49	Male, 4 RCs
Felsypremila et al. 2015 [30]	India	200	Carestream (Atlanta, USA)	367	2	0.545	0.15–2.0	1.71	Both 4 RCs
Gu et al. 2015 [31]	China	125	Galileos	1365	1	0.073	0.01–0.4	4.65	Male, left maxillary molar, extra root with 1 RC
Nikoloudaki et al. 2015 [32]	Greek	125	NewTom	410	5	1.220	0.52–2.8	1.88
Altunsoy et al. 2015 [33]	Turkey	300	i-CAT (Hatfield, USA)	1158	7	0.604	0.3–1.2	4.17	4 male, 3 female
Nakazawa et al. 2015 [34]	Japan	300	Aquilion 64 (Otawara, Japan)	443	1	0.226	0.04–1.3	2.01	Female
Beshkenadze and Chipashvili 2015 [35]	Georgia	85–133	Gendex (DesPlaines,USA)	221	0	0	0–1.71	1.09
Tian et al. 2016 [36]	China	160	NewTom	1558	1	0.064	0.011–0.363	5.04	4 RCs
Tanvi et al. 2016 [37]	India	76	i-CAT	201	0	0	0–1.875	1.00
Kalender et al. 2016 [38]	Cyprus	170	NewTom	373	6	1.609	0.74–3.5	1.74	5 male, 1 female, extra root in 80% 4 RC, in 20% 5 RCs
Monsarrat et al. 2016 [39]	France	200	Carestream	149	2	1.342	0.369–4.762	0.76	Both 5 RCs, 1 left and 1 right maxillary molar
Naseri et al. 2016 [40]	Iran	200	NewTom	149	0	0	0–2.513	0.76
Liu and Ma 2016 [41]	China	200	Carestream	83	0	0	0–4.424	0.43
Irhaim 2016 [42]	South A.	150	Galileos	400	0	0	0–0.951	1.84
Mohan et al. 2017 [43]	India	100–200	Planmeca	143	0	0	0–2.616	0.73
Ghoncheh et al. 2017 [44]	Iran	300	NewTom	345	2	0.580	0.16–2.1	1.62	Both 4 RCs
Khademi et al. 2017 [45]	Iran	150	Galileos	389	0	0	0–0.978	1.80
Lin et al. 2017 [46]	Taiwan	250	i-CAT	196	0	0	0–1.922	0.98
Olczak and Pawlicka 2017 [47]	Poland	125	Gendex	185	0	0	0–2.034	0.93
Pérez-Heredia et al. 2017 [48]	Spain	180	Carestream	142	0	0	0–2.634	0.72
Ghobashy et al. 2017 [49]	Egypt	133	Cranex (Tuusula, Finland)	605	0	0	0–0.631	2.59
Wang et al. 2017 [50]	China	200	Planmeca	953	2	0.210	0.06–0.8	3.65	1 with 4 RCs, 2 left molars
Al-Shehri et al. 2017 [51]	Saudi-A.	300	Different	351	0	0	0–1.083	1.65
Al-Kadhim et al. 2017 [52]	Malaysia	300–600	Accuitomo	421	0	0	0–0.90	1.92
Ogawa and Seki 2017 [53]	Japan	160	Planmeca	240	1	0.417	0.07–2.3	1.17
Zhang et al. 2017 [54]	China	150	NewTom	1008	0	0	0–0.38	3.80
Martins et al. 2018 [55]	Portugal	200	Planmeca	567	0	0	0–0.67	2.46
Razumova et al. 2018 [56]	Russia	300	3D eXam (Hatfield,USA)	410	0	0	0–0.93	1.88
Martins et al. 2018 [57]	Worldw.	75–250	Different	5000	9	0.180	0.10–0.3	8.59	2 with 4 RCs, 7 with 5 RCs
Salem et al. 2018 [58]	Egypt	150	Planmeca	138	0	0	0–2.71	0.70
Arbildo Villalta 2018 [59]	Peru	125	Planmeca	168	0	0	0–2.235	0.85
Ratanajirasut et al. 2018 [60]	Thailand	100	Accuitomo	476	1	0.210	0.04–1.2	2.13	4 RCs
Salzmann 2018 [61]	Austria	80	Accuitomo	147	0	0	0–2.55	0.75
Pan et al. 2019 [62]	Malysia	250	3D eXam	344	0	0	0–1.10	1.62
Candeiro et al. 2019 [63]	Brazil	125	Prexion	700	2	0.286	0.08–1.0	2.90
Mohara et al. 2019 [64]	Brazil	125	Accuitomo	328	0	0	0–1.16	1.55
Kewalramani et al. 2019 [65]	India	180	Carestream	600	0	0	0–0.64	2.57
Popović et al. 2019 [66]	Serbia	160	Galileos	138	0	0	0–2.71	0.70
Mashyakhy and gambarini 2019 [67]	Saudi-A.	250	Accuitomo	354	0	0	0–1.07	1.66
Tzeng et al. 2019 [68]	Taiwan	250	i-CAT	846	1	0.118	0.02–0.7	3.35	Male, 5 RCs, left
World	Overall random pooled∗			26663	47	0.047	0.011–0.103	100

CBCT:cone-beam computed tomographic, Propor.:proportion, RC:root canal, Saudi-A.:Saudi Arabia, South A.:South Africa, Worldw.:worldwide.

From 140 selected case reports concerning four-rooted maxillary first molars, 93 publications were excluded based on the predefined inclusion and exclusion criteria. One population-based CBCT study also documented a micro-CT of a four-rooted molar and was included (Figure 3). The finally selected 48 studies included 53 four-rooted maxillary molars (Table 2). In combination with additional information in the CBCT studies, the sample size of the analyzed teeth could be increased. So, 75 maxillary first molars with four roots could be investigated regarding their amount of root canals and 67 teeth to study the gender of the patients. On the other hand, the radicular subtype (46 teeth), Versiani’s pulpal chamber floor type (33 teeth), and the distinction of the right or left molar (49 teeth) had a less amount of studied subjects due to missing data in the case reports.

Table 2. Analysis of the case reports.

Author	Country	Age	Sex	Tooth number	Root canals				Christies’s radicular type [12, 13]	Versiani’s pulpal floor type [14]	Additional information
Author	Country	Age	Sex	Tooth number	MB	DB	MP	DP	Christies’s radicular type [12, 13]	Versiani’s pulpal floor type [14]	Additional information
Thews et al. 1979 [11]	USA	21	M	n.m.	1	1	1	1	n.m. (I)	—	Single, enlarged lingual cusp
Stabholz and Friedman 1983 [69]	Israel	13	F	16	2	1	1	1	n.m. (III)	B	Unusual configuration of the crown
Wong et al. 1991 [70]	USA	22	M	26	2	1	2	1	n.m. (III)	—
Christie et al. 1991 [12]	Canada	n.m.	F	16	1	1	1	1	I	B
Jacobsen and Nii 1994 [71]	USA	25	M	26	2	1	1	1	n.m. (III)		Presented case 3
Di Fiore 1999 [72]	USA	31	M	16	1	1	1	1	II	B
Baratto-Filho et al. 2002 [13]	Japan	38	F	16	1	1	1	1	I	—	Presented case 1
Maggiore et al. 2002 [73]	USA	19	M	26	2	1	2	1	n.m. (III)	—	Third palatal canal
Barbizam et al. 2004 [5]	Brazil	35	M	26	1	1	1	1	I	—	Presented case 1
Nahmias and Bery 2006 [74]	Canada	58	F	26	1	1	1	1	n.m. (I)	—
Adanir 2007 [75]	Turkey	31	M	16	2	2	1	1	n.m. (II)	A
Ravishanker and Prashanthi 2008 [76]	India	25	F	26	1	1	1	1	n.m. (I)	—
Gandhi and Madan 2009 [77]	India	50	M	26	1	1	1	1	n.m. (II)	B
Tomazinho et al. 2010 [78]	Brazil	32	M	26	2	2	1	1	I	B	MB and DB RC : Vertucci Class II
Salapoor and Mollashahi 2010 [79]	Iran	40	F	n.m.	1	1	1	1	n.m. (II)	—
He et al. 2010 [80]	China	35	M	16	1	1	1	1	n.m. (II)	A
Chakradhar Raju et al. 2010 [81]	India	24	M	26	1	1	1	1	I	B
	India	21	M	16	1	1	1	1	I	—
Moghaddas and Tabari 2010 [82]	Iran	41	F	26	1	1	1	1	n.m. (I)	—	Enamel pearl, hemisection
Kottoor et al. 2011 [83]	India	42	M	16	1	1	1	1	n.m. (III)	A	2 fused palatal roots
Singh et al. 2011 [84]	India	21	F	16	1	1	1	1	n.m. (I)	A	Presented case 1
Reddy et al. 2011 [85]	India	45	M	16	1	1	1	1	n.m. (I)	B
Du et al. 2011 [86]	China	21	F	26	2	1	1	1	n.m. (III)	B
Madhuram et al. 2012 [87]	India	27	F	n.m.	1	1	1	1	n.m. (III)	—	Pronounced Carabelli tubercle
Kottoor et al. 2012 [88]	India	23	M	26	1	1	1	1	n.d.	A	Second mesiobuccal root, 16 with identical morphology
	India	23	M	16	n.m	n.m.	n.m.	n.m.	n.d.	—
Mathew et al. 2013 [89]	India	35	M	16	1	1	1	1	I	—
Rajalbandi et al. 2013 [90]	India	42	M	26	1	1	1	1	I	B
Yesidal Yeter et al. 2013 [91]	Turkey	28	M	16	2	2	1	1	n.d.	A	Second mesiobuccal root
Aggarwal et al. 2013 [92]	India	24	M	26	1	1	1	1	I	A
Ghani et al. 2013 [93]	India	34	F	16	1	1	1	1	I	B	End. retreatment, both teeth fused MB&MP roots
	India	34	F	26	1	1	1	1	I	B
Sharma et al. 2014 [94]	India	31	F	16	1	2	1	1	n.d.	D	Fused MB&MP and DB&DP roots
Kararia et al. 2014 [95]	India	20	F	26	1	2	1	1	I	B	Endodontic retreatment, DB canal:Vertucci Class II
Shah and Jadhav 2014 [96]	India	38	F	16	1	1	1	1	n.m. (II)	B	Crown with four palatal cusps
Sánchez-Salas et al. 2014 [97]	Mexico	31	M	26	1	1	1	1	I	B
Shrestha 2015 [98]	Nepal	58	F	26	2	1	1	1	II	A	Presented case 1, End. Retreatment
Asghari et al. 2015 [99]	Iran	21	F	16	1	1	1	1	I	B
Wu and Wu 2015 [100]	China	29	M	26	1	1	1	1	n.m. (II)	B
	China	37	M	16	1	1	1	1	n.m. (I)	v	Enamel pearl, pronounced cusp of Carabelli
Gu et al. 2015 [31]	China	n.a.	n.a.	16	1	2	1	2	n.m. (IV)	—	Fused MB&MP roots
Deepa et al. 2016 [101]	India	41	F	16	1	1	1	1	n.m. (I)	—	CBCT after extraction
	India	n.m.	n.m.	n.m.	1	1	1	1	I	A	End. Retreatment, DB canal: Vertucci II
Tao et al. 2016 [102]	China	10	F	16	1	1	1	1	n.m. (II)	A	Three well-developed lobulated palatal cusps
Nayak et al. 2016 [103]	India	24	M	16	1	1	1	1	I	A
Barreto and Lins 2016 [104]	Brazil	28	M	26	1	1	1	1	n.m. (I)	—	MB canal: Vertucci Type II
Vázquez and Llácer 2016 [105]	Spain	46	M	16	2	1	1	1	n.m. (I)	A
Rodrigues et al. 2016 [106]	Brazil	23	F	16	3	2	1	1	n.m. (III)	A
Cao et al. 2017 [107]	China	30	M	16	2	1	1	1	n.m. (II)	B
Magnucki et al. 2018 [108]	Germany	51	M	26	2	1	1	1	I	A	2 enamel pearls, MB RC : Vertucci II
Meena and Hasija 2018 [109]	India	27	F	16	1	1	1	1	n.m. (III)	—
Schryvers et al. 2018 [110]	Belgium	44	M	26	1	1	1	1	I	A
Sriganesh and Priyan 2019 [111]	India	18	F	26	2	1	1	1	n.m. (III)	—

DB :distobuccal, DP:distopalatal, End.:endodontic, F:female, M: male, MB:mesiobuccal, MP:mesiopalatal, n.d.:not defined, n.m. :not mentioned, RC:root canal.

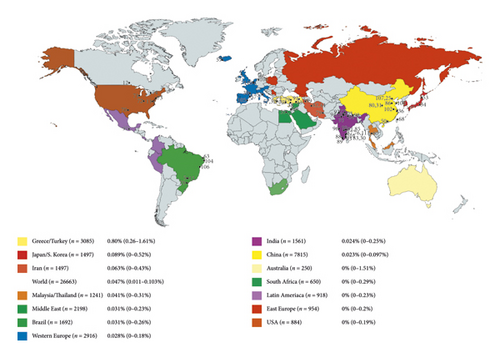

3.2. Global Distribution

Four-rooted maxillary molars were identified worldwide in population-based CBCT studies and case reports (Figure 4). The composed prevalence (95% CI) of the analyzed 26663 teeth was calculated as 0.047% (0.011–0.103%) (Table 1). The highest prevalence was meta-analytically found in the Greek-Turkish population with 0.804% (0.255–1.609%). Most of the case reports (43.4%) were documented in India in contrast to the moderate prevalence rate of 0.024% (0–0.249%) (Figure 4, Suppl. Table 2.1-14). The funnel plot demonstrated that four of the 49 included studies were outside the margins of the 95% confidence interval. This was in the expected proportion of 95% of studies between the curves, resulting in no risk of bias (Figure 5).

3.3. Anatomical Description of Four-Rooted Maxillary Molars

The analysis of the case reports (Table 2), according to Christie′s radicular structure, demonstrated that 37.7% of the authors used this classification. By using Christie′s accurate description for the radiographic identification, we characterized 52.83% as Type I, 18, 87% as Type II, 18, 78% as Type III, 1, and 88% as Type IV, and 7.54% could not be described by this classification (Table 3). Versiani’s introduced pulpal chamber floor type was only used by Magnucki et al. in 2018 [61]. Our analysis classified the geometrical location of the root canal orifices in 45.45% as Type A (irregular quadrilateral), 51.52% as Type B (trapezoid), and 3.03% as Type D (kite-shaped). Type C could not be found in the investigated case reports (Table 3). The majority of the analyzed teeth (combined CBCT studies and case reports, a sample size of 78 teeth) demonstrated four (62.34%) or five (27.27%) root canals. But also six (9.09%) or even seven (1.30%) root canals were described (Table 3). No statistical difference could be found between the left (50.00%) and right (50.00%) of maxillary first molars with four roots. Of the 68 teeth, where the sex of the patient was mentioned, 60.29% were males, and 39.71% were females. This difference was significant (Table 3). Coronal anomalies or enamel pearls in addition to the morphological alteration of four roots were documented in case reports in 15.1%.

Table 3. Evaluation of different anatomical characteristics, classification, and gender.

Christie’s Radicular Type (n = 46) [12, 13]	Type I	52.83%
	Type II	18.87%
	Type III	18.87%
	Type IV	1.88%
	n.d.	7.54%
Pulpal floor type (n = 33) [14]	Type A	45.45%
	Type B	51.52%
	Type C	0.00%
	Type D	3.03%
Amount of root canals (n = 77)	4 RCs	62.34%
	5 RCs	27.27%
	6 RCs	9.09%
	7 RCs	1.30%
Tooth number (n = 54)	Left #26	50.0%
Tooth number (n = 54)	Right #16	50.0%
Sex (n = 68)	Female	39.71%
Sex (n = 68)	Male	60.29%∗

The information on the investigated case reports and the CBCT studies was combined. ∗p < 0.05, n.d.:not defined, RC:root canal.

4. Discussion

The knowledge of oral anatomy, its anomalies, and their frequencies is fundamental for successful dental therapies. Therefore, this systematic review assessed the prevalence of maxillary first molars with four roots in humans and documented a very low global occurrence rate of 0.047%. Nevertheless, these morphologically altered teeth were found worldwide in documented case reports and population studies, except for Eastern Europe, Australia, and mostly Africa. Probably, a higher study activity in the field of dental anatomy could fill these areas, as it is mainly the lack of publication (e.g., 250 investigated teeth in Australia), which led to these unaddressed geographic regions. Population-based CBCT studies with high amounts of sample size can identify even very rare anatomical anomalies and are therefore a suitable scientific tool [4, 19, 57]. Besides an appropriate number of studied teeth, a reproducible methodology and detailed description of demographic factors are recommended as a guideline for these studies [4, 19]. The present study linked the occurrence of four-rooted maxillary first molars with regionally subgrouped populations based on the demonstrated association of rare morphological variations and ethnicity in dental literature [19, 112]. The highest occurrence rate was found in the Greek-Turkish population with a significantly higher prevalence than in all other populations. The lowest rates were identified in Eastern Europe and on the American continent (Figure 4). However, an anthropological conclusion reconstructing the human prehistoric colonization upon the teeth size as previously shown for C-shaped mandibular second molars [19] could not be demonstrated for four-rooted maxillary first molars.

However, the rarity of four-rooted maxillary first molars underlined by this review (in 26663 investigated maxillary first molars, only 47 exhibited four roots) caused the complete absence of studies concerning this topic [3]. Therefore, a systematic collection of case reports regarding treatment protocols of maxillary molars with four roots was considered to be an appropriate study design. With this technique, the number of 53 teeth could be identified. This amount can be compared to the most extensive published studies on four-rooted maxillary second molars with either 22 [12] or 25 investigated teeth [14]. One of the further strengths of the present review is the combination of CBCT studies and case reports, which results in, e.g., 77 investigated teeth concerning the number of root canals. Thus, upon this data, an anatomical description of four-rooted maxillary molars should be possible.

The radicular structure of four-rooted maxillary first molars is commonly described with Christie′s classification (Figure 1), although it was designed mainly upon maxillary second molars [12]. In the present review, 37.7% of the case report`s authors used Christie′s characterization. But, even after the application of Christie′s defined radiographic regulation, 7.54% of the teeth could not be classified upon the different types. These unclassified teeth had either fusion between roots [94] or three buccal (two mesiobuccal and one distobuccal) Radixes [88, 91]. Therefore, Christie′s classification cannot be transferred from maxillary second molars with four roots to four-rooted maxillary first molars without neglecting some teeth.

Regarding fusions, this review agreed with Versiani et al. in 2012, who pointed out that Christie′s configuration is not feasible because fusions might occur in different levels of all roots (Figure 1) [14]. On the other hand, Versiani’s suggested classification also ignored the description of three buccal and one palatal root. But, Versiani investigated four-rooted maxillary second molars, and these teeth exhibit probably no third buccal radicular structure. The main question is whether a second mesiobuccal root could be classified as a mesiopalatal, even if both structures can be found in five-rooted maxillary teeth [113].

However, the definition of Carlsen and Alexandersen, which is rarely used in scientific publications concerning maxillary molars with four roots, included the possibility of three buccal roots but was designed in vitro and on untreated teeth [15, 16]. But, their anatomical characterization described the radicular structures based on coronal anomalies [15], which might be decayed under clinical circumstances. In summary, all standard classifications were not entirely feasible or established for the description of four-rooted maxillary first molars. To cover all variants of four- or even five-rooted maxillary molars [113] or O-shaped teeth [114], new classifications have to be designed, which should also support the clinical and radiographic diagnostic.

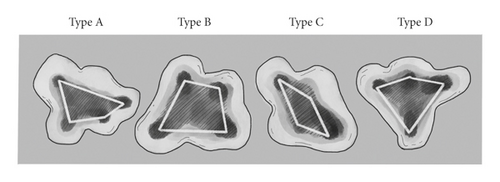

In relation to Versiani’s pulpal chamber floor classification, which defined the localization of the root canal orifices geometrically, the analyzed case reports documented the main allocation on Type A (irregular quadrilateral) and Type B (trapezoid) (Figure 2). With respect to the sample size of 33 teeth, this data corresponds to findings in four-rooted maxillary second molars where Types A and B were exhibited mainly [14]. However, the majority of maxillary first molars with four roots showed one root canal per root, which also correlated with findings in four-rooted maxillary second molars [14]. Five root canals were identified in 27.27% of the cases, but also six or seven canals were found. It must be taken into account that the present review depends mainly on clinical case reports and that in vivo CBCT or in vitro µCT studies would have higher reliability.

Interestingly, the present review identified a significant difference in the occurrence of four roots in maxillary first molars between males and females. Comparable data for four-rooted maxillary second molars have not been published due to the rarity of these teeth. Therefore, and under consideration of the sample size of 68 analyzed teeth, the presented data could indicate a morphological discrepancy between the genders, which should be further investigated by worldwide CBCT population studies as mentioned above. These future anatomical studies should also focus on coronal anomalies (like a pronounced cusp of Carabelli) [15] as well as on the occurrence of enamel pearls in four-rooted maxillary molars. Coronal factors were often mentioned to support the diagnostic of radicular alterations but have to be scientifically proven. In the present review, only 15.1% of the case reports [11, 69, 82, 87, 96, 100, 102, 108] documented further anatomical variations combined with the exhibition of four roots (Table 2). However, dental professionals should be aware of this rare anomaly to avoid treatment errors that result oftentimes in endodontic retreatments [93, 95, 98, 101, 115].

5. Conclusion

The occurrence rate for 4-rooted maxillary first molars in humans is 0.047%. By collecting population-based CBCT studies and case reports, this quadrangular anomaly was described with mainly four root canals. The root canal orifices on the pulpal chamber floor are located in trapezoid or irregular quadrilateral shape.

Conflicts of Interest

The authors declare no conflicts of interest related to this study.

Acknowledgments

The authors would like to thank Mrs. Monika Paidipamula for proofreading and Mrs. Anita Kurth for the graphical design of the figures.

Open Research

Data Availability

All underlying data can be found in the manuscript.

Supporting Information

References

1 Carabelli G., Systemisches Handbuch der Zahnheilkunde. Anatomie des Mundes, 1844, 2, Braunmuller und Seidel, Wien, Austria.
Google Scholar
2 Weine F. S., Endodontic Therapy, 1972, The C.V. Mosby Company, St. Louis, USA.
Google Scholar
3 Cleghorn B. M., Christie W. H., and Dong C. C. S., Root and root canal morphology of the human permanent maxillary first molar:a literature review, Journal of Endodontics. (2006) 32, no. 9, 813–821, https://doi.org/10.1016/j.joen.2006.04.014, 2-s2.0-33747357284.
10.1016/j.joen.2006.04.014
PubMed Web of Science® Google Scholar
4 Martins J. N. R., Marques D., Silva E. J. N. L., Carames J., Mata A., and Versiani M. A., Second mesiobuccal root canal in maxillary molars-A systematic review and meta-analysis of prevalence studies using cone beam computed tomography, Archives of Oral Biology. (2019) 113, 104589, https://doi.org/10.1016/j.archoralbio.2019.104589.
10.1016/j.archoralbio.2019.104589
PubMed Web of Science® Google Scholar
5 Barbizam J., Ribeiro R., and Filho M., Unusual anatomy of permanent maxillary molars, Journal of Endodontics. (2004) 30, no. 9, 668–671, https://doi.org/10.1097/01.don.0000121618.45515.5a, 2-s2.0-4544259276.
10.1097/01.DON.0000121618.45515.5A
PubMed Web of Science® Google Scholar
6 Paksefat S. and Rahimi S., Root canal treatment of a two-rooted C-shaped maxillary first molar:a case report, Iranian Endodontic Journal. (2014) 9, no. 4, 301–303.
PubMed Google Scholar
7 Jaikrishnan S., Kottoor J., Mathew J., Kumar S. R., George S., and Hari K., Evaluation and endodontic management of a patient with 6 single-rooted molars:a case report, General Dentistry. (2015) 63, no. 5, 35–37.
PubMed Google Scholar
8 Holderrieth S. and Gernhardt C. R., Maxillary molars with morphologic variations of the palatal root canals:a report of four cases, Journal of Endodontics. (2009) 35, no. 7, 1060–1065, https://doi.org/10.1016/j.joen.2009.04.029, 2-s2.0-67649230884.
10.1016/j.joen.2009.04.029
PubMed Web of Science® Google Scholar
9 Kottoor J., Velmurugan N., and Surendran S., Endodontic management of a maxillary first molar with eight root canal systems evaluated using cone-beam computed tomography scanning:a case report, Journal of Endodontics. (2011) 37, no. 5, 715–719, https://doi.org/10.1016/j.joen.2011.01.008, 2-s2.0-79956189256.
10.1016/j.joen.2011.01.008
PubMed Web of Science® Google Scholar
10 Badole G. P., Warhadpande M. M., Shenoi P. R., Lachure C., and Badole S. G., A rare root canal configuration of bilateral maxillary first molar with 7 root canals diagnosed using cone-beam computed tomographic scanning:a case report, Journal of Endodontics. (2014) 40, no. 2, 296–301, https://doi.org/10.1016/j.joen.2013.09.004, 2-s2.0-84892988372.
10.1016/j.joen.2013.09.004
PubMed Web of Science® Google Scholar
11 Thews M. E., Kemp W. B., and Jones C. R., Aberrations in palatal root and root canal morphology of two maxillary first molars, Journal of Endodontics. (1979) 5, no. 3, 94–96, https://doi.org/10.1016/s0099-2399(79)80156-9, 2-s2.0-0018440470.
10.1016/S0099-2399(79)80156-9
CAS PubMed Google Scholar
12 Christie W. H., Peikoff M. D., and Fogel H. M., Maxillary molars with two palatal roots:a retrospective clinical study, Journal of Endodontics. (1991) 17, no. 2, 80–84, https://doi.org/10.1016/s0099-2399(06)81613-4, 2-s2.0-0026113596.
10.1016/S0099-2399(06)81613-4
CAS PubMed Web of Science® Google Scholar
13 Baratto-Filho F., Fariniuk L. F., Ferreira E. L., Pecora J. D., Cruz-Filho A. M., and Sousa-Neto M. D., Clinical and macroscopic study of maxillary molars with two palatal roots, International Endodontic Journal. (2002) 35, no. 9, 796–801, https://doi.org/10.1046/j.1365-2591.2002.00559.x, 2-s2.0-0036719693.
10.1046/j.1365-2591.2002.00559.x
CAS PubMed Web of Science® Google Scholar
14 Versiani M. A., Pecora J. D., and De Sousa-Neto M. D., Root and root canal morphology of four-rooted maxillary second molars:a micro-computed tomography study, Journal of Endodontics. (2012) 38, no. 7, 977–982, https://doi.org/10.1016/j.joen.2012.03.026, 2-s2.0-84862277005.
10.1016/j.joen.2012.03.026
PubMed Web of Science® Google Scholar
15 Carlsen O. and Alexandersen V., Radix mesiolingualis and radix distolingualis in a collection of permanent maxillary molars, Acta Odontologica Scandinavica. (2000) 58, no. 5, 229–236, https://doi.org/10.1080/000163500750051782.
10.1080/000163500750051782
CAS PubMed Web of Science® Google Scholar
16 Carlsen O. and Alexandersen V., Radix paramolaris and radix distomolaris in Danish permanent maxillary molars, Acta Odontologica Scandinavica. (1999) 57, no. 5, 283–289, https://doi.org/10.1080/000163599428715, 2-s2.0-0033202125.
10.1080/000163599428715
CAS PubMed Web of Science® Google Scholar
17 Moher D., Liberati A., Tetzlaff J., and Altman D. G., Preferred reporting items for systematic reviews and meta-analyses:the PRISMA statement, BMJ. (2009) 339, no. jul21 1, https://doi.org/10.1136/bmj.b2535, 2-s2.0-69449100622.
10.1136/bmj.b2535
Google Scholar
18 Altman Z., Moola S., Lisy K., Riitano D., and Tufanaru C., Methodological guidance for systematic reviews of observational epidemiological studies reporting prevalence and cumulative incidence data, International Journal of Evidence Based Healthcare. (2015) 13, no. 3, 147–153.
10.1097/XEB.0000000000000054
PubMed Google Scholar
19 Martins J. N. R., Marques D., Silva E. J. N. L., Carames J., Mata A., and Versiani M. A., Prevalence of C-shaped canal morphology using cone beam computed tomography - a systematic review with meta-analysis, International Endodontic Journal. (2019) 52, no. 11, 1556–1572, https://doi.org/10.1111/iej.13169, 2-s2.0-85068749100.
10.1111/iej.13169
CAS PubMed Web of Science® Google Scholar
20 Zheng Q.-H., Wang Y., Zhou X.-D., Wang Q., Zheng G.-N., and Huang D.-M., A cone-beam computed tomography study of maxillary first permanent molar root and canal morphology in a Chinese population, Journal of Endodontics. (2010) 36, no. 9, 1480–1484, https://doi.org/10.1016/j.joen.2010.06.018, 2-s2.0-77957994875.
10.1016/j.joen.2010.06.018
PubMed Web of Science® Google Scholar
21 Zhang R., Yang H., Yu X., Wang H., Hu T., and Dummer P. M. H., Use of CBCT to identify the morphology of maxillary permanent molar teeth in a Chinese subpopulation, International Endodontic Journal. (2011) 44, no. 2, 162–169, https://doi.org/10.1111/j.1365-2591.2010.01826.x, 2-s2.0-78650805274.
10.1111/j.1365-2591.2010.01826.x
CAS PubMed Web of Science® Google Scholar
22 Kim Y., Lee S.-J., and Woo J., Morphology of maxillary first and second molars analyzed by cone-beam computed tomography in a Korean population:variations in the number of roots and canals and the incidence of fusion, Journal of Endodontics. (2012) 38, no. 8, 1063–1068, https://doi.org/10.1016/j.joen.2012.04.025, 2-s2.0-84863984442.
10.1016/j.joen.2012.04.025
PubMed Web of Science® Google Scholar
23 Abed M. F., Kolahdouzan S. A. R., and Hashemi S. P., Usage of cone-beam computed tomography (CBCT) to evaluate root and canal morphology of maxillary first molar, Bulletin of Environment, Pharmacology and Life Sciences. (2013) 2, no. 2, 19–23.
Google Scholar
24 Plotino G., Tocci L., Grande N. M. et al., Symmetry of root and root canal morphology of maxillary and mandibular molars in a white population:a cone-beam computed tomography study in vivo, Journal of Endodontics. (2013) 39, no. 12, 1545–1548, https://doi.org/10.1016/j.joen.2013.09.012, 2-s2.0-84888005752.
10.1016/j.joen.2013.09.012
PubMed Web of Science® Google Scholar
25 Jing Y. N., Ye X., Liu D. G., Zhang Z. Y., and Ma X. C., Cone-beam computed tomography was used for study of root and canal morphology of maxillary first and second molars, Beijing Da Xue Xue Bao Yi Xue Ban. (2014) 46, no. 9, 958–962.
CAS PubMed Google Scholar
26 Silva E. J. N. L., Nejaim Y., Silva A. I. V., Haiter-Neto F., Zaia A. A., and Cohenca N., Evaluation of root canal configuration of maxillary molars in a Brazilian population using cone-beam computed tomographic imaging:an in vivo study, Journal of Endodontics. (2014) 40, no. 2, 173–176, https://doi.org/10.1016/j.joen.2013.10.002, 2-s2.0-84892977547.
10.1016/j.joen.2013.10.002
PubMed Web of Science® Google Scholar
27 Guo J., Vahidnia A., Sedghizadeh P., and Enciso R., Evaluation of root and canal morphology of maxillary permanent first molars in a North American population by cone-beam computed tomography, Journal of Endodontics. (2014) 40, no. 5, 635–639, https://doi.org/10.1016/j.joen.2014.02.002, 2-s2.0-84899653879.
10.1016/j.joen.2014.02.002
PubMed Web of Science® Google Scholar
28 Estrela C., Bueno M. R., Couto G. S. et al., Study of root canal anatomy in human permanent teeth in A subpopulation of Brazil′s center region using cone-beam computed tomography - Part 1, Brazilian Dental Journal. (2015) 26, no. 5, 530–536, https://doi.org/10.1590/0103-6440201302448, 2-s2.0-84949221725.
10.1590/0103-6440201302448
PubMed Google Scholar
29 Demırbuga S., Buyuk S. K., Serkercı A. E. et al., Bir grup türk populasyonunda üst birinci ve ikinci büyük azı dişlerinin kök kanal konfigürasyonlarının konik işınlı bilgisayarlı tomografi ile incelenmesi, Turkiye Klinikleri Journal of Dental Sciences. (2015) 21, no. 1, 1–9.
10.5336/dentalsci.2014-39109
Google Scholar
30 Felsypremila G., Vinothkumar T. S., and Kandaswamy D., Anatomic symmetry of root and root canal morphology of posterior teeth in Indian subpopulation using cone beam computed tomography:a retrospective study, European Journal of Dentistry. (2015) 09, no. 4, 500–507, https://doi.org/10.4103/1305-7456.172623, 2-s2.0-84953745974.
10.4103/1305-7456.172623
Google Scholar
31 Gu Y., Wang W., and Ni L., Four-rooted permanent maxillary first and second molars in a northwestern Chinese population, Archives of Oral Biology. (2015) 60, no. 6, 811–817, https://doi.org/10.1016/j.archoralbio.2015.02.024, 2-s2.0-84924954275.
10.1016/j.archoralbio.2015.02.024
PubMed Web of Science® Google Scholar
32 Nikoloudaki G. E., Kontogiannis T. G., and Kerezoudis N. P., Evaluation of the root and canal morphology of maxillary permanent molars and the incidence of the second mesiobuccal root canal in Greek population using cone-beam computed tomography, The Open Dentistry Journal. (2015) 9, no. Suppl 2:M3, 267–272, https://doi.org/10.2174/1874210601509010267.
10.2174/1874210601509010267
PubMed Google Scholar
33 Altunsoy M., Ok E., Nur B. G., Aglarci O. S., Gungor E., and Colak M., Root canal morphology analysis of maxillary permanent first and second molars in a southeastern Turkish population using cone-beam computed tomography, Journal of Dental Sciences. (2015) 10, no. 4, 401–407, https://doi.org/10.1016/j.jds.2014.06.005, 2-s2.0-84960113696.
10.1016/j.jds.2014.06.005
Web of Science® Google Scholar
34 Nakazawa H., Baba T., and Tsujimoto Y., Analysis of root and root canal morphology of maxillary first and second molars using multi-detector CT in Japanese population, The Japanese Journal of Conservative Dentistry. (2015) 58, no. 5, 406–415.
Google Scholar
35 Beshkenadze E. and Chipashvili N., Anatomo-morphological features of the root canal system in Georgian population–cone-beam computed tomography study, Georgian Medical News. (2015) 10, no. 247, 7–14.
Google Scholar
36 Tian X.-M., Yang X.-W., Qian L., Wei B., and Gong Y., Analysis of the root and canal morphologies in maxillary first and second molars in a Chinese population using cone-beam computed tomography, Journal of Endodontics. (2016) 42, no. 5, 696–701, https://doi.org/10.1016/j.joen.2016.01.017, 2-s2.0-84961171941.
10.1016/j.joen.2016.01.017
PubMed Web of Science® Google Scholar
37 Tanvi M., Vimala N., and Lalitagauri M., Evaluation of the root morphology of maxillary permanent first and second molars in an Indian subpopulation using cone-beam computed tomography, IOSR Journal of Dental and Medical Sciences. (2016) 15, no. 10, 51–56.
Google Scholar
38 Kalender A., Celikten B., Tufenkci P. et al., Cone beam computed tomography evaluation of maxillary molar root canal morphology in a Turkish Cypriot population, Biotechnology and Biotechnological Equipment. (2016) 30, no. 1, 145–150, https://doi.org/10.1080/13102818.2015.1092885, 2-s2.0-84956852903.
10.1080/13102818.2015.1092885
Web of Science® Google Scholar
39 Monsarrat P., Arcaute B., Peters O. A. et al., Interrelationships in the variability of root canal anatomy among the permanent teeth:a full-mouth approach by cone-beam ct, PLoS One. (2016) 11, no. 10, e0165329, https://doi.org/10.1371/journal.pone.0165329, 2-s2.0-84992489502.
10.1371/journal.pone.0165329
PubMed Web of Science® Google Scholar
40 Naseri M., Safi Y., Akbarzadeh Baghban A., Khayat A., and Eftekhar L., Survey of anatomy and root canal morphology of maxillary first molars regarding age and gender in an Iranian population using cone-beam computed tomography, Iranian Endodontic Journal. (2016) 11, no. 4, 298–303, https://doi.org/10.22037/iej.2016.8, 2-s2.0-84989930038.
10.22037/iej.2016.8
PubMed Google Scholar
41 Liu H. X. and Ma Y. Z., Cone beam computed tomography study of the root canal morphology of maxillary first molars, Journal of Prevention and Treatment for Stomatological Diseases. (2016) 24, no. 8, 498–500.
CAS Google Scholar
42 Irhaim A. A., Evaluation of the root and canal morphology of permanent maxillary first molars using cone beam computed tomography in a sample of patients treated at the wits oral health centre, 2016, University of the Witwatersrand, Johannesburg, South Africa, Master Thesis.
Google Scholar
43 Mohan R. P., Thomas M. S., Shetty N., Ahmed J., Pallippurath G., and Tallada A., Evaluation of the root and canal morphology of maxillary first and second molar using cone beam computed tomography:a retrospective study, World Journal of Dentistry. (2017) 8, no. 2, 134–138.
10.5005/jp-journals-10015-1426
Google Scholar
44 Ghoncheh Z., Zade B. M., and Kharazifard M. J., Root morphology of the maxillary first and second molars in an Iranian population using cone beam computed tomography, Journal of Dentistry (Tehran, Iran). (2017) 14, no. 3, Tehran University of Medical Sciences, 115–122.
PubMed Google Scholar
45 Khademi A., Zamani Naser A., Bahreinian Z., Mehdizadeh M., Najarian M., and Khazaei S., Root morphology and canal configuration of first and second maxillary molars in a selected Iranian population:a cone-beam computed tomography evaluation, Iranian Endodontic Journal. (2017) 12, no. 3, 288–292, https://doi.org/10.22037/iej.v12i3.13708, 2-s2.0-85021793970.
10.22037/iej.v12i3.13708
PubMed Google Scholar
46 Lin Y.-H., Lin H.-N., Chen C.-C., and Chen M.-S., Evaluation of the root and canal systems of maxillary molars in Taiwanese patients:a cone beam computed tomography study, Biomedical Journal. (2017) 40, no. 4, 232–238, https://doi.org/10.1016/j.bj.2017.05.003, 2-s2.0-85026293845.
10.1016/j.bj.2017.05.003
PubMed Web of Science® Google Scholar
47 Olczak K. and Pawlicka H., The morphology of maxillary first and second molars analyzed by cone-beam computed tomography in a polish population, BMC Medical. (2017) 17, no. 1, 68, https://doi.org/10.1186/s12880-017-0243-3, 2-s2.0-85039699039.
10.1186/s12880-017-0243-3
Google Scholar
48 Perez-Heredia M., Ferrer-Luque C. M., Bravo M., Castelo-Baz P., Ruíz-Piñón M., and Baca P., Cone-beam computed tomographic study of root anatomy and canal configuration of molars in a Spanish population, Journal of Endodontics. (2017) 43, no. 9, 1511–1516, https://doi.org/10.1016/j.joen.2017.03.026, 2-s2.0-85025449839.
10.1016/j.joen.2017.03.026
PubMed Web of Science® Google Scholar
49 Ghobashy A. M., Nagy M. M., and Bayoumi A. A., Evaluation of root and canal morphology of maxillary permanent molars in an Egyptian population by cone-beam computed tomography, Journal of Endodontics. (2017) 43, no. 7, 1089–1092, https://doi.org/10.1016/j.joen.2017.02.014, 2-s2.0-85018434378.
10.1016/j.joen.2017.02.014
PubMed Web of Science® Google Scholar
50 Wang H., Ci B. W., Yu H. Y. et al., Evaluation of root and canal morphology of maxillary molars in a Southern Chinese subpopulation:a cone-beam computed tomographic study, International Journal of Clinical and Experimental Medicine. (2017) 10, no. 4, 7030–7039.
Web of Science® Google Scholar
51 Al-Shehri S., Al-Nazhan S., Shoukry S., Al-Shwaimi E., Al-Sadhan R., and Al-Shemmery B., Root and canal configuration of the maxillary first molar in a Saudi subpopulation:a cone-beam computed tomography study, Saudi Endodontic Journal. (2017) 7, no. 2, 69–76.
10.4103/1658-5984.205128
Google Scholar
52 Al-Kadhim A. H., Rajionb Z. A., Malika N. A. B., and Jaafara A. B., Morphology of maxillary first molars analyzed by cone-beam computed tomography among Malaysian:variations in the number of roots and canals and the incidence of fusion, International Medical Journal Malaysia. (2017) 16, no. 2, 33–39.
Web of Science® Google Scholar
53 Ogawa A. and Seki S., Evaluation of root anatomy and root canal configurations of mandibular second molars in a Japanese population using dental cone-beam computed tomography, The Journal of Japan Endodontic Association. (2017) 38, no. 1, 57–62.
Google Scholar
54 Zhang Y., Xu H., Wang D. et al., Assessment of the second mesiobuccal root canal in maxillary first molars:a cone-beam computed tomographic study, Journal of Endodontics. (2017) 43, no. 12, 1990–1996, https://doi.org/10.1016/j.joen.2017.06.021, 2-s2.0-85030689997.
10.1016/j.joen.2017.06.021
PubMed Web of Science® Google Scholar
55 Martins J. N. R., Marques D., Francisco H., and Carames J., Gender influence on the number of roots and root canal system configuration in human permanent teeth of a Portuguese subpopulation, Quintessence International. (2018) 49, no. 2, 103–111.
PubMed Web of Science® Google Scholar
56 Razumova S., Brago A., Khaskhanova L., Howijieh A., Barakat H., and Manvelyan A., A cone-beam computed tomography scanning of the root canal system of permanent teeth among the moscow population, International Journal of Dentistry. (2018) 2018, 6, 2615746, https://doi.org/10.1155/2018/2615746, 2-s2.0-85056500861.
10.1155/2018/2615746
PubMed Google Scholar
57 Martins J. N. R., Alkhawas M.-B. A. M., Altaki Z. et al., Worldwide analyses of maxillary first molar second mesiobuccal prevalence:a multicenter cone-beam computed tomographic study, Journal of Endodontics. (2018) 44, no. 11, 1641–1649, https://doi.org/10.1016/j.joen.2018.07.027, 2-s2.0-85053708365.
10.1016/j.joen.2018.07.027
PubMed Web of Science® Google Scholar
58 Salem S. A. B., Ibrahim S. M., and Abdalsamad A. M., Prevalence of second mesio-buccal canal in maxillary first and second molars in Egyptian population using CBCT (A cross-sectional study), Acta Scientific Dental Science. (2018) 2, no. 9, 64–68.
Google Scholar
59 Arbildo Villalta A. C., Evaluacíon de la morfologia radicular y del Sistema de conductos en la primera molar superior permanente en el hospital Luiz Nazario Sáenz, Periodo 2014-2018, 2018, Facultad de medicina humana y ciencia de la salud, Escuela professional de estomatologia, Lima, Peru, Ph. D Thesis.
Google Scholar
60 Ratanajirasut R., Panichuttra A., and Panmekiate S., A cone-beam computed tomographic study of root and canal morphology of maxillary first and second permanent molars in a Thai population, Journal of Endodontics. (2018) 44, no. 1, 56–61, https://doi.org/10.1016/j.joen.2017.08.020, 2-s2.0-85031738297.
10.1016/j.joen.2017.08.020
PubMed Web of Science® Google Scholar
61 Salzmann E., 3-D analyse der wurzelanatomie und kanalmorphologie des ersten oberkiefer molaren anhand von cbct daten der universitätszahnklinik wien, 2018, Medizinische Universität Wien, Wien, Austria, Ph.D Thesis.
Google Scholar
62 Pan J. Y. Y., Parolia A., Chuah S. R., Bhatia S., Mutalik S., and Pau A., Root canal morphology of permanent teeth in a Malaysian subpopulation using cone-beam computed tomography, BMC Oral Health. (2019) 19, no. 1, https://doi.org/10.1186/s12903-019-0710-z, 2-s2.0-85059952085.
10.1186/s12903-019-0710-z
PubMed Web of Science® Google Scholar
63 Candeiro G. T. M., Gonçalves S. D. S., Lopes L. L. A. et al., Internal configuration of maxillary molars in a subpopulation of Brazil′s Northeast region:a CBCT analysis, Brazilian Oral Research. (2019) 33, no. 1, e082, https://doi.org/10.1590/1807-3107bor-2019.vol33.0082, 2-s2.0-85071770873.
10.1590/1807-3107bor-2019.vol33.0082
PubMed Web of Science® Google Scholar
64 Mohara N. T., Coelho M. S., De Queiroz N. V. et al., Root anatomy and canal configuration of maxillary molars in a Brazilian subpopulation:a 125-μm cone-beam computed tomographic study, European Journal of Dentistry. (2019) 13, no. 1, 82–87, https://doi.org/10.1055/s-0039-1688736, 2-s2.0-85068052911.
10.1055/s-0039-1688736
PubMed Google Scholar
65 Kewalramani R., Murthy C. S., and Gupta R., The second mesiobuccal canal in three-rooted maxillary first molar of Karnataka Indian sub-populations:a cone-beam computed tomography studyfirst molar of Karnataka Indian sub-populations:a cone-beam computed tomography study, Journal of Oral Biology and Craniofacial Research. (2019) 9, no. 4, 347–351, https://doi.org/10.1016/j.jobcr.2019.08.001, 2-s2.0-85071978525.
10.1016/j.jobcr.2019.08.001
PubMed Google Scholar
66 Popovic M., Zivanovic S., Vucicevic T., Grujovic M., Papic M., and Kanjevac T., Cone-beam computed tomography study of tooth root and canal morphology of permanent molars in a Serbian population, Vojnosanitetski Pregled. (2019) 1, no. 00.
Google Scholar
67 Mashyakhy M. and Gambarini G., Root and root canal morphology differences between genders:a comprehensive in-vivo CBCT study in a Saudi population, Acta Stomatologica Croatica. (2019) 53, no. 3, 231–246, https://doi.org/10.15644/asc53/3/5, 2-s2.0-85072529868.
10.15644/asc53/3/5
Web of Science® Google Scholar
68 Tzeng L. T., Chang M. C., Chang S. H., Huang C. C., Chen Y. J., and Jeng J. H., Analysis of root canal system of maxillary first and second molars and their correlations by cone beam computed tomography, Journal of the Formosan Medical Association. (2019) S0929-6646, no. 19, 30762–30764.
Google Scholar
69 Stabholz A. and Friedman S., Endodontic therapy of an unusual maxillary permanent first molar, Journal of Endodontics. (1983) 9, no. 7, 293–295, https://doi.org/10.1016/s0099-2399(83)80121-6, 2-s2.0-0020792310.
10.1016/S0099-2399(83)80121-6
CAS PubMed Web of Science® Google Scholar
70 Wong M., Maxillary first molar with three palatal canals, Journal of Endodontics. (1991) 17, no. 6, 298–299, https://doi.org/10.1016/s0099-2399(06)81871-6, 2-s2.0-0026176764.
10.1016/S0099-2399(06)81871-6
CAS PubMed Web of Science® Google Scholar
71 Jacobsen E. L. and Nii C., Unusual palatal root canal morphology in maxillary molars, Dental Traumatology. (1994) 10, no. 1, 19–22, https://doi.org/10.1111/j.1600-9657.1994.tb00593.x, 2-s2.0-0028376387.
10.1111/j.1600-9657.1994.tb00593.x
CAS Web of Science® Google Scholar
72 Di Fiore P. M., A four-rooted quadrangular maxillary molar, Journal of Endodontics. (1999) 25, no. 10, 695–697, https://doi.org/10.1016/s0099-2399(99)80359-8, 2-s2.0-0033202311.
10.1016/S0099-2399(99)80359-8
CAS PubMed Web of Science® Google Scholar
73 Maggiore F., Jou Y. T., and Kim S., A six-canal maxillary first molar:case report, International Endodontic Journal. (2002) 35, no. 5, 486–491, https://doi.org/10.1046/j.1365-2591.2002.00533.x, 2-s2.0-0036561768.
10.1046/j.1365-2591.2002.00533.x
CAS PubMed Web of Science® Google Scholar
74 Nahimas Y. and Bery P., Double palatal roots, Ontario Dentist. (2006) no. Oct, 24–26.
Google Scholar
75 Adanir N., An unusual maxillary first molar with four roots and six canals:a case report, Australian Dental Journal. (2007) 52, no. 4, 333–335, https://doi.org/10.1111/j.1834-7819.2007.tb00511.x, 2-s2.0-38349163747.
10.1111/j.1834-7819.2007.tb00511.x
CAS PubMed Web of Science® Google Scholar
76 Ravishanker P. and Prashanthi K., Unusual Maxillary First Molar with two palatal roots:a case report, The Internet Journal of Dental Science. (2008) 7, no. 1, 1–4.
Google Scholar
77 Gandhi A. and Madan N., Aberration in root canal morphology of maxillary first molar- A case report, The Internet Journal of Dental Science. (2009) 9, no. 1, 1–4.
Google Scholar
78 Tomazinho F. S. F., Baratto-Filho F., Zaitter S., Leonardi D. P., and Gonzaga C. C., Unusual anatomy of a maxillary first molar with two palatal roots:a case report, Journal of Oral Science. (2010) 52, no. 1, 149–153, https://doi.org/10.2334/josnusd.52.149.
10.2334/josnusd.52.149
PubMed Google Scholar
79 Salapoor M. and Farhad Mollashahi N., Maxillary first molar with two separate palatal roots:a case report, Journal of Dental Medicine. (2010) 23, no. 4, 198–201.
Google Scholar
80 He W., Wei K., Chen J., and Yu Q., Endodontic treatment of maxillary first molars presenting with unusual asymmetric palatal root morphology using spiral computerized tomography:a case report, Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, and Endodontology. (2010) 109, no. 1, e55–e59, https://doi.org/10.1016/j.tripleo.2009.08.040, 2-s2.0-72049090902.
10.1016/j.tripleo.2009.08.040
PubMed Web of Science® Google Scholar
81 Chakradhar Raju R. V. S., Chandrasekhar V., Singh C., and Pasari S., Maxillary molar with two palatal roots:two case reports, Journal of Conservative Dentistry. (2010) 13, no. 1, 58–61, https://doi.org/10.4103/0972-0707.62627.
10.4103/0972-0707.62627
CAS Google Scholar
82 Moghaddas H. and Alizadeh Tabari Z., Palatal cervical enamel projection in a four rooted maxillary first molar:a case report, Research Journal of Biological Sciences. (2010) 5, no. 7, 508–511.
10.3923/rjbsci.2010.508.511
Google Scholar
83 Kottoor J., Velmurugan N., Ballal S., and Roy A., Four-rooted maxillary first molar having C-shaped palatal root canal morphology evaluated using cone-beam computerized tomography:a case report, Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology, and Endodontology. (2011) 111, no. 5, e41–e45, https://doi.org/10.1016/j.tripleo.2010.12.009, 2-s2.0-79954880598.
10.1016/j.tripleo.2010.12.009
PubMed Web of Science® Google Scholar
84 Singh A., Singh P., and Loomba K., Unusual anatomical variation in maxillary first molar and its management, Asian Journal of Oral Health and Allied Sciences. (2011) 1, no. 2, 134–137.
Google Scholar
85 Reddy S. J., Ravichandra P. V., Rajani P., and Santoshi L., Palatal Possibilties:variations of palatal root canal configuration in maxillary molars - a Report of Two Cases, International Journal of Contemporary Dentistry. (2011) 2, no. 2, 85–90.
Google Scholar
86 Du Y., Soo I., and Zhang C. F., A case report of six canals in a maxillary first molar, Chinese Journal of Dental Research. (2011) 14, no. 2, 151–153.
PubMed Google Scholar
87 Madhuram K., Dhanavel C., Naveen V., and Anbu R., Corono radicular anomaly in a maxillary first molar–a rare case report, Journal of Integrated Dentistry. (2012) 1, no. 1, 41–44.
Google Scholar
88 Kottoor J., Nandini S., and Velmurugan N., Maxillary first molar with three buccal roots evaluated with cone-beam computed tomography:a rare case report, General Dentistry. (2012) 60, no. 6, 404–407.
Google Scholar
89 Mathew J., Devadathan A., Jacob J., Syriac G., and Augustine J. C., Root canal treatment of a maxillary first molar with an unusual presentation of two palatal roots, Health Sciences. (2013) 2, no. 3, JS006B.
Google Scholar
90 Rajalbandi S., Shingte S. N., Sundaresh K. J., and Mallikarjuna R., Aberration in the palatal root of the maxillary first molar, BMJ Case Reports. (2013) 2013, bcr-2013008641, https://doi.org/10.1136/bcr-2013-008641, 2-s2.0-84878656692.
10.1136/bcr-2013-008641
Google Scholar
91 Yesildal Yeter K., Evcil M. S., and Ayranci L. B., Maxillary first molar with aberrant morphology:four roots and six canals:case report, Turkiye Klinikleri Journal of Dental Sciences. (2013) 19, no. 3, 20–24.
Google Scholar
92 Aggarwal R., Kumar Y., Aggarwal R., and Kaur H., Unusual anatomy of maxillary first molar with two palatal roots – confirmed with computed tomography:a case report, Indian Journal of Restorative Dentistry. (2013) 2, no. 2, 91–94.
Google Scholar
93 Ghani M. F., Ebenezar A. V. R., Narayanan A., Martina L., Mony B., and Mageshwaran T., Root canal treatment of bilaterally symmetric four-rooted maxillary first molars with two palatal roots using cone beam computed tomography:a case report, ENDO (Lond Engl). (2013) 7, no. 2, 135–140.
Google Scholar
94 Sharma R., Maroli K., Sinha N., and Singh B., An unusual maxillary molar with four roots and four buccal canals confirmed with the aid of spiral computed tomography:a case report, Journal of International Oral Health. (2014) 6, no. 4, 80–84.
PubMed Google Scholar
95 Kararia N., Kararia V., and Mathur M., Endodontic retreatment of a maxillary first molar with two palatal roots and three palatal canals, Journal of Advanced Medical and Dental Sciences Research. (2014) 2, no. 2, 180–183.
Google Scholar
96 Shah D. Y. and Jadhav G. R., Endodontic management of a maxillary molar with formation supradentalis:a case report, Journal of Conservative Dentistry :JCD. (2014) 17, no. 5, 481–482, https://doi.org/10.4103/0972-0707.139848, 2-s2.0-84907016443.
10.4103/0972-0707.139848
PubMed Google Scholar
97 Sanchez-Salas Orlando Isai C. D., Jiminez-Valdes Brissa Itzel E. E., and Gomez-Pizano E., Primer molar superior con dos raíces palatinas:reporte de un caso, Revista Endodoncia Actual. (2014) 9, no. 1, 16–20.
Google Scholar
98 Shrestha R., Permanent maxillary molar with two palatal roots:two case reports, Journal of Nepal Dental Association. (2015) 15, no. 2, 46–49.
Google Scholar
99 Asghari V., Rahimi S., Ghasemi N., Talebzadeh B., and Norlouoni A., Treatment of a maxillary first molar with two palatal roots, Iranian Endodontic Journal. (2015) 10, no. 4, 287–289, https://doi.org/10.7508/iej.2015.04.016, 2-s2.0-84943652501.
10.7508/iej.2015.04.016
CAS PubMed Google Scholar
100 Wu D. and Wu H., Maxillary first molar with twin-root canal in palatal side:two case reports, Hua Xi Kou Qiang Yi Xue Za Zhi. (2015) 33, no. 3, 329–330.
PubMed Google Scholar
101 Deepa V. L., Bollu I. P., Dhamaraju B., and Yadla P., Detection and management of a complex canal configuration in mesiobuccal root of maxillary first molar using three dimensional imaging, Journal of International Society of Preventive and Community Dentistry. (2016) 6, no. Suppl 1, 75–78, https://doi.org/10.4103/2231-0762.181190, 2-s2.0-84987820311.
10.4103/2231-0762.181190
PubMed Google Scholar
102 Tao N., Mei Y., Zhou H., and Yang Y., Treatment of a young permanent maxillary first molar with two palatal roots, JBR Journal of Clinical Diagnosis and Research. (2016) 4, no. 1, 000128.
Google Scholar
103 Nayak G., Aeran H., and Singh I., Radix mesiolingualis and radix distolingualis:a case report of a tooth with an unusual morphology, Restorative Dentistry and Endodontics. (2016) 41, no. 4, 322–331, https://doi.org/10.5395/rde.2016.41.4.322.
10.5395/rde.2016.41.4.322
PubMed Google Scholar
104 Barreto L. D. N. P. and Lins C. C. D. S. A., Maxillary molar with two palatal canals type I:case report, MOJ Anatomy and Physiology. (2016) 2, no. 3, 51–53.
Google Scholar
105 Vazquez Natividad I. and Faus Llacer V. J., Tratamiento de conductos en un primer molar maxilar de cuarto raíces y cinco conductos, Revista SCO. (2016) 6, 36–40.
Google Scholar
106 Rodrigues E., Braitt A. H., Galvao B. F., and Da Silva E. J. N. L., Maxillary first molar with 7 root canals diagnosed using cone-beam computed tomography, Restorative Dentistry and Endodontics. (2017) 42, no. 1, 60–64, https://doi.org/10.5395/rde.2017.42.1.60.
10.5395/rde.2017.42.1.60
PubMed Google Scholar
107 Cao C., Feng C., Wang Y., Xuan J., and Yao J., A maxillary first molar with two palatal roots and an accessory canal diagnosed by CBCT, Journal of Practical Stomatology. (2017) 33, no. 1, 126–128.
Google Scholar
108 Magnucki G. and Kahl W. A., Four rooted maxillary first molar with five root canals and two enamel pearls, The International Journal of Dental and Health Sciences. (2018) 5, no. 4, 600–605.
Google Scholar
109 Meena B. and Hasija M., A case report on non surgical management of rarely found maxillary first molar with four roots, International Journal of Oral Health Dentistry. (2018) 4, no. 2, 111–113.
Google Scholar
110 Schryvers A., Govaerts D., Politis C., and Lambrechts P., Endodontic management of a maxillary first molar with two palatal roots:a case report, Australian Endodontic Journal. (2018) 45, no. 3, 420–425, https://doi.org/10.1111/aej.12320, 2-s2.0-85055266906.
10.1111/aej.12320
PubMed Web of Science® Google Scholar
111 Sriganesh A. and Saravana Priyan G., Endodontic management of maxillary first molar with an anatomical variation of two palatal canals:a case report, Indian Journal of Dental Research. (2019) 30, no. 3, 478–480, https://doi.org/10.4103/ijdr.ijdr_854_18, 2-s2.0-85070632224.
10.4103/ijdr.IJDR_854_18
CAS PubMed Google Scholar
112 Kato A., Ziegler A., Higuchi N., Nakata K., Nakamura H., and Ohno N., Aetiology, incidence and morphology of the C-shaped root canal system and its impact on clinical endodontics, International Endodontic Journal. (2014) 47, no. 11, 1012–1033, https://doi.org/10.1111/iej.12256, 2-s2.0-84907960234.
10.1111/iej.12256
CAS PubMed Web of Science® Google Scholar
113 Borghesi A., Michelini S., Tononcelli E., and Maroldi R., Five-rooted permanent maxillary second molar:CBCT findings of an extremely rare anatomical variant, Radiology Case Reports. (2019) 14, no. 9, 1113–1116, https://doi.org/10.1016/j.radcr.2019.06.024, 2-s2.0-85068828952.
10.1016/j.radcr.2019.06.024
PubMed Google Scholar
114 Shin Y., Kim Y., and Roh B. D., Maxillary first molar with an O-shaped root morphology:report of a case, International Journal of Oral Science. (2013) 5, no. 4, 22–24, https://doi.org/10.1038/ijos.2013.68, 2-s2.0-84889848295.
10.1038/ijos.2013.68
Web of Science® Google Scholar
115 Magnucki G., Endodontic retreatment of maxillary second molar with four roots, Case Reports in Dentistry. (2019) 2019, 5, 5348048, https://doi.org/10.1155/2019/5348048, 2-s2.0-85071451408.
10.1155/2019/5348048
PubMed Web of Science® Google Scholar

Citing Literature

All articles

Four-Rooted Maxillary First Molars: A Systematic Review and Meta-Analysis

Abstract

1. Introduction
