Abstract

Element exchange and enrichment during fluid-rock interactions are common, providing potentially novel proxies to trace hydrocarbon migration in addition to the traditional organic geochemistry tracers. However, the processes, mechanisms, and geological and geochemical fingerprints of these interactions are complex, hampering the applications of hydrocarbon migration tracers. To investigate such interactions, we conducted a petrological, mineralogical, and in situ and bulk geochemical study of authigenic quartz and whole-rock samples from the Mahu Sag, northwestern Junggar Basin, northwest China. We found that dissolution, clay and chlorite formation, and overgrowth occurred on quartz grains in hydrocarbon fluid migration pathways, suggestive of strong fluid-rock interactions. In situ quantitative elemental analysis of quartz grains revealed elemental enrichment (e.g., Mn, Fe, Al, Sr, and W) in quartz overgrowth rims compared with their cores, indicating that migration of hydrocarbon-bearing fluids in reservoirs may promote elemental exchange between fluids and minerals. Whole-rock geochemical analysis showed that decreasing contents of some elements may reflect the direction of hydrocarbon-bearing fluid migration and can be monitored with three geochemical proxies, which are the MnO contents and MnO/Zr and Y/Ho ratios. Our data provide new constraints on fluid-rock interactions in petroleum reservoirs and have implications for using inorganic geochemical methods to trace hydrocarbon migration.

1. Introduction

Hydrocarbon fluid migration is the key link between hydrocarbon generation and accumulation. Numerous studies have been undertaken on hydrocarbon migration, including physical experiments [1–5], numerical simulations [6–12], coupling analysis of thermal, stress, and pressure fields [13–18], and organic geochemical and isotope studies [19, 20]. Physical and numerical simulations build a model from the perspective of forward modeling and then observe the migration process of hydrocarbon fluids in reservoirs by using experimental facilities or computer models [8, 9]. Thermal, stress, and pressure field coupling analysis mainly involves assessing the direction of hydrocarbon migration using the fluid potential, crude oil density, formation water salinity, and other parameters based on the physical properties of hydrocarbon-bearing fluids [21–25]. Organic geochemistry indicators, including maturity indicators, nitrogen-containing compounds in crude oil, and fractionation effects on carbazole, pyrrole, and other compounds, are amongst the most efficient methods to trace hydrocarbon fluid migration [26–31]. However, due to mixing of multisource and multiphase hydrocarbons in superimposed basins and the effects of secondary modification, organic geochemical indicators are susceptible to complex geological processes [32, 33]. Therefore, it is difficult to determine the direction of hydrocarbon migration based on only one indicator.

Studies have shown that strata through which fluids have migrated experience strong physical and chemical interactions between fluids and rocks, which then lead to changes in the composition, morphology, and other aspects of the rocks and minerals [34–36]. As such, these interactions can leave a record of the processes, direction, and strength of fluid migration [37–40]. When hydrocarbon-bearing fluids migrate in strata, organic inclusions can form in authigenic minerals in reservoirs. An increasing number of studies have investigated the effects of fluid-rock interactions and, in particular, the elemental and isotope geochemistry of authigenic minerals [41, 42], sources of hydrothermal fluids [43, 44], and rates and mechanisms of fluid-rock interactions [45]. In theory, geochemical changes recorded by authigenic minerals can record the migration of hydrocarbon-bearing fluids and reveal the processes of hydrocarbon migration. Therefore, such information is of significance in determining the migration direction of hydrocarbon fluids. However, the whole-rock geochemistry records only the averaged history of a hydrothermally modified rock. In contrast, in situ geochemical studies of authigenic minerals can provide more resolved information regarding fluid migration.

Elemental geochemistry has been used in recent studies to trace hydrocarbon fluid migration, based on rationale of interactions between organic fluids and inorganic minerals [46–48]. Most of these studies have focused on calcite or calcium carbonate cements in fault zones. However, studies of fluid migration in reservoirs with low contents of calcite and other diagenetic minerals remain limited. In addition, the distribution of elements in diagenetic minerals is heterogeneous, and hydrothermal fluids are likely to modify parts of the minerals, which requires an in situ analytical approach.

In addition to calcite cement, quartz is common in terrigenous clastic sedimentary rocks, and diagenesis and hydrothermal fluids result in quartz overgrowths. Recent studies have proposed that the geochemistry of quartz overgrowths may reflect the characteristics of hydrothermal fluids [38]. However, the relationship between the geochemical composition of the quartz overgrowths and hydrocarbon migration remains unclear and requires further investigation.

Therefore, in this paper, we present a petrological, mineralogical, and in situ and whole-rock geochemical study of the Lower Triassic Baikouquan Formation, which is a new exploration target on the slope of the Mahu Sag, Junggar Basin, northwest China. We use these data to investigate the migration of hydrocarbon fluids in reservoirs based on the geochemistry of quartz cements.

2. Geological Setting

The Junggar Basin is located in northern Xinjiang Province and is an important part of the Central Asian Orogenic Belt, covering an area of ~130,000 km². The basin is surrounded by three fold and thrust belts, including the Zhayier and Hala’alat Mountains along its northwestern margin, the Qinggelidi and Kelameili Mountains along its northeastern margin, and the Bogda and Yilinheibiergen Mountains of the Tianshan along its southern margin (Figure 1(a)). The Junggar Basin comprises Carboniferous folded basement [49, 50] and sedimentary cover rocks, including Paleozoic, Mesozoic, and Cenozoic strata. The basin has experienced three main stages: development of a foreland basin in the late Carboniferous-Permian, an intracontinental depressional basin in the Triassic-Paleogene, and a rejuvenated foreland basin since the Neogene [51–53].

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

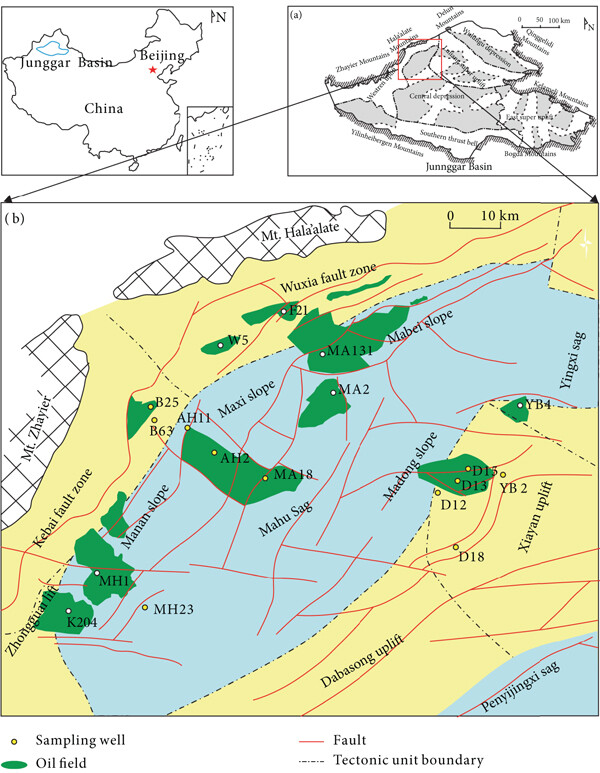

(a) Map showing the location and major tectonic units of the Junggar Basin. (b) Map showing the distribution of major oil fields and sampled wells in the Mahu Sag (modified after PetroChina Xinjiang Oilfield Company, 2019).

Several structural units occur in the Junggar Basin (Figure 1(a)), and the Mahu Sag is one of the largest depressions in the basin (Figure 1(a)) [54]. The slope of the Mahu Sag is the most favorable hydrocarbon accumulation area, where nearly one billion tons of oil have been discovered (Figure 1(b)). To the north, the slope area is bounded by the Wuxia (Wuerhe-Xiazijie) and Kebai (Karamay-Baikouquan) fault belts. The Yingxi Sag and Xiayan and Dabasong uplifts are located to the east of the Mahu Sag. According to drilling data, Neogene and Carboniferous strata are well developed in the Mahu Sag. Triassic strata unconformably overlie Permian strata. The source rocks in the Mahu Sag are mainly the lower Permian Jiamuhe and Fengcheng Formations [55, 56]. The Jiamuhe Formation has its hydrocarbon generation center in the west of the Mahu Sag and thins gradually to the east, north, and south. The Fengcheng Formation has its hydrocarbon generation center in the north of the Mahu Sag and thins to the east and west. Hydrocarbon accumulation in the Mahu Sag involved three stages, during the Middle-Late Permian, Late Triassic, and Early Cretaceous [57, 58]. The Triassic strata were generally deposited in the transgressive system of a lake basin, with alluvial fan and shallow-water fan-delta sediments deposited at the northwestern margin of the sag. The Baikouquan Formation (T₁b) consists mainly of red-brown and grey sandy conglomerates.

3. Samples and Methods

In this study, we collected 15 drill core samples of the Baikouquan Formation from 11 wells (MA18, MH23, AH2, AH11, B25, B63, D12, D13, D15, D18, and YB2) for mineralogical and geochemical studies. These samples are mainly grey or greyish green sandy conglomerates (Table 1). The locations of these wells are shown in Figure 1, and sample details are listed in Table 1. All samples were made into polished thin sections and powdered to <200 mesh (74 μm) in an agate mortar.

Table 1. Basic features of the Triassic Baikouquan Formation reservoir samples from the Mahu Sag, Junggar Basin.

Well	Depth (m)	Lithology	Core characteristics	Oil-bearing characteristics
B63	2452/2514	Sandy conglomerate	Grey conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
B25	2318.1	Sandy conglomerate	Grey conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
YB2	4110.2	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
AH2	3313.6	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
AH11	2824.5	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
D15	4245/4253.7	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
D12	4269.2/4267/4284	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
D18	4451.4	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
D13	4209	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
MH23	4078.9	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain
MA18	3905.8	Sandy conglomerate	Greyish-green conglomerate, the pebble is mainly lithic fragment and quartz	Oil stain

The samples were examined under a polarizing microscope (Zeiss Axio Lab A1) at the China University of Petroleum (East China), Qingdao. Cathodoluminescence (CL) imaging was undertaken in the Beijing SHRIMP Center, using a Carl Zeiss Merlin Compact instrument coupled to a GATAN Mono CL4. Scanning electron microscopy (SEM) was undertaken at the Key Laboratory of Shale Hydrocarbons, Chinese Academy of Geological Sciences, Beijing, using a Zeiss Sigma 300 instrument. In situ microanalysis was conducted at Beijing Standard Energy Ltd. using a JEOL JXA-8230 electron microprobe (major elements) and GeolasPro 193 nm laser ablation (LA) system coupled to an Agilent 7900 inductively coupled plasma mass spectrometer (ICP-MS; trace elements). The error of the electron microprobe analyses is <2%, while that of the LA-ICP-MS analyses is <10%. Whole-rock analyses were undertaken at ALS Chemex Company Ltd., Guangzhou, China, where major elements were determined by X-ray fluorescence (XRF) spectrometry with an error < 5% and trace elements were determined by ICP-MS with an error < 10%. XRF mapping was conducted in the Key Laboratory of Deep Hydrocarbons, China University of Petroleum (East China), Qingdao, using a Bruker M4 Tornado instrument with a scanning spot size of 20 μm.

4. Results

4.1. Petrological Features of Quartz

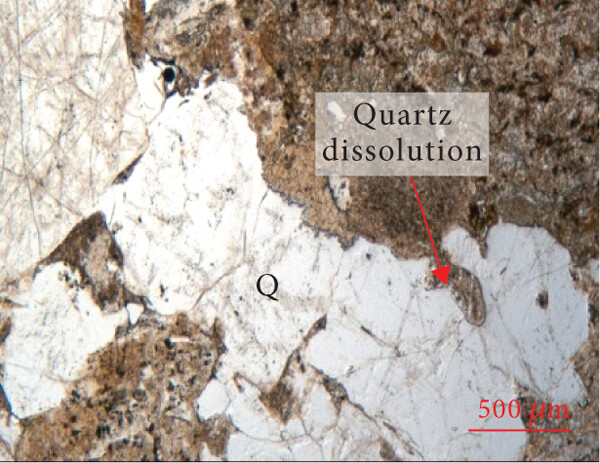

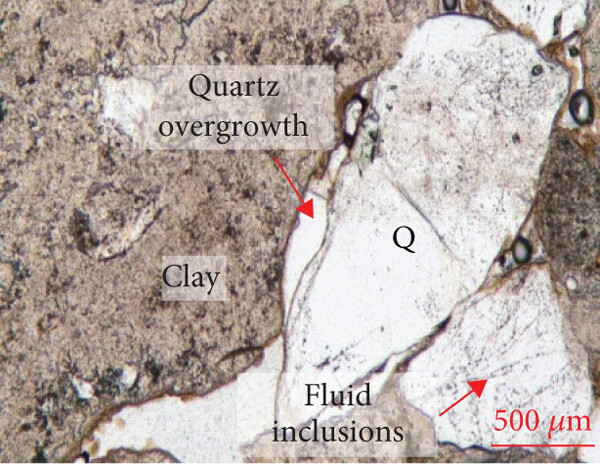

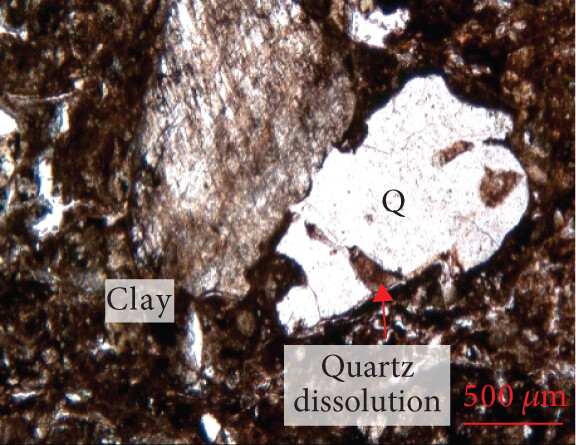

The edges of quartz grains exhibit curved dissolution profiles under the microscope (Figure 2), and parts of the quartz edges are replaced or infilled with clay minerals. The surface of the quartz is relatively rough, and a large number of fluid inclusions (typically <10 μm in size) are distributed along the fractures. Quartz overgrowths are developed along the edges of some grains. Most feldspar and lithic fragments in the sandy conglomerate have been altered, with the replacement products being mainly clay.

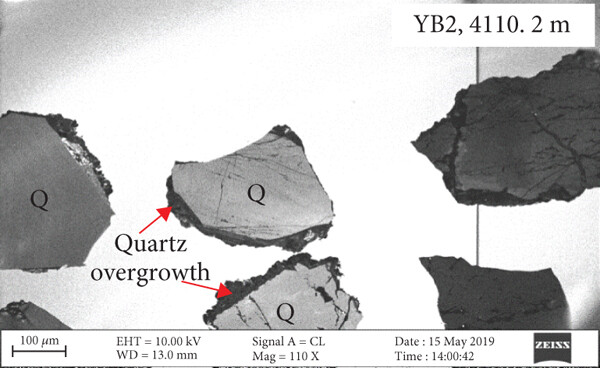

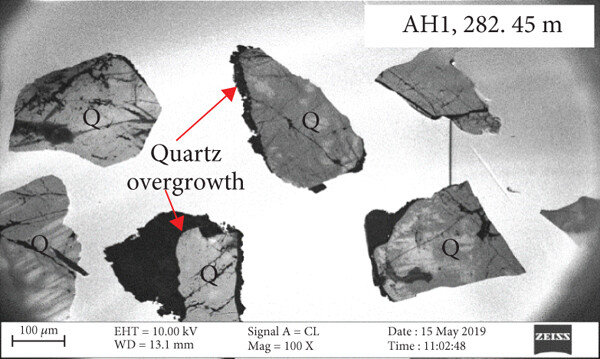

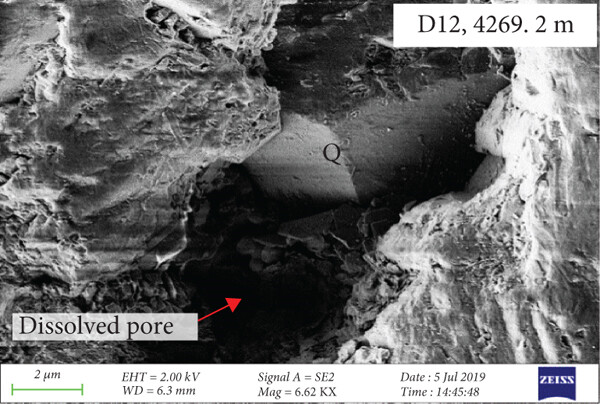

CL and SEM imaging was used to examine the interiors and edges of quartz grains. The quartz has obvious multiphase growth regions with different optical characteristics (Figures 3(a) and 3(b)). The secondary quartz is CL-dark and corresponds to quartz overgrowths. The quartz overgrowths are hexagonal and prism-shaped in SEM images (Figures 3(c) and 3(d)) and intergrown with clay minerals. Dissolution pores also occur near the edges of quartz grains.

4.2. In Situ Geochemistry of Quartz

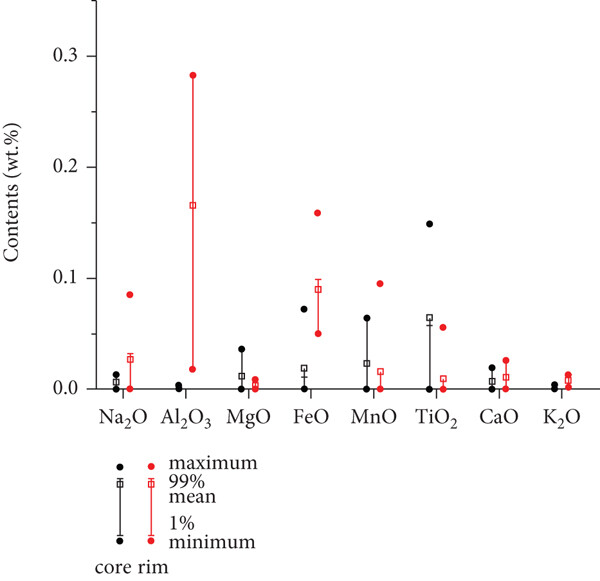

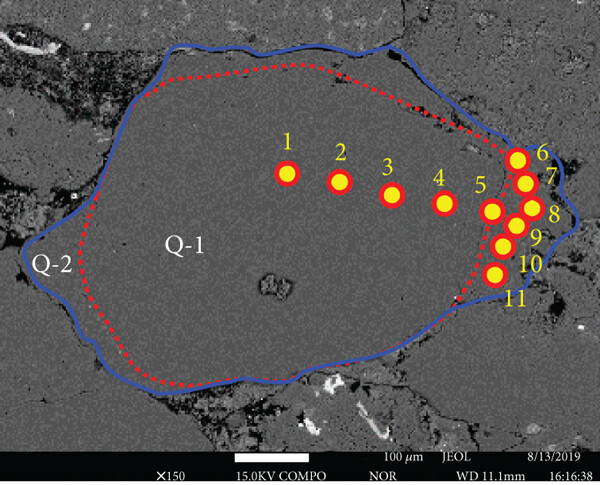

Backscattered electron images also reveal the original quartz cores and overgrowths, and they are separated with dark and curved layers, similar to the results of petrological observations (Figures 4(a) and 4(b)). Major element contents were analyzed from the core to the rim in selected quartz grains. SiO₂ contents are all >98 wt.%. The distribution of the other major elements (Figures 4(a) and 4(b), Table 2) is variable, and most elements have significantly lower contents in the cores (Q-1) than in the overgrowths (Q-2), particularly for Fe and Al.

Table 2. Major element data for quartz in the D13 well (in wt.%).

Point	Na₂O	Al₂O₃	MgO	SiO₂	FeO	MnO	TiO₂	CaO	K₂O	Total
1	0.002	bdl	bdl	98.98	0.011	0.006	bdl	bdl	bdl	99.00
2	0.013	bdl	bdl	99.45	0.011	bdl	0.038	0.019	0.004	99.53
3	0.011	bdl	0.023	99.29	bdl	0.064	bdl	bdl	bdl	99.39
4	0.006	bdl	bdl	98.68	bdl	bdl	0.149	0.012	bdl	98.85
5	bdl	0.003	0.036	99.74	0.072	0.045	0.038	0.004	bdl	99.94
6	0.032	0.211	bdl	99.06	0.088	bdl	0.056	0.013	0.007	99.46
7	0.015	0.246	0.009	98.03	0.066	bdl	bdl	bdl	0.004	98.37
8	0.085	0.283	0.004	98.19	0.159	0.095	bdl	0.026	0.013	98.85
9	bdl	0.2	bdl	98.15	0.05	bdl	bdl	0.015	0.009	98.42
10	bdl	0.036	0.006	99.53	0.099	bdl	bdl	0.011	0.002	99.68
11	0.027	0.018	bdl	99.03	0.077	bdl	bdl	bdl	0.005	99.16

Note: bdl denotes below detection limit.

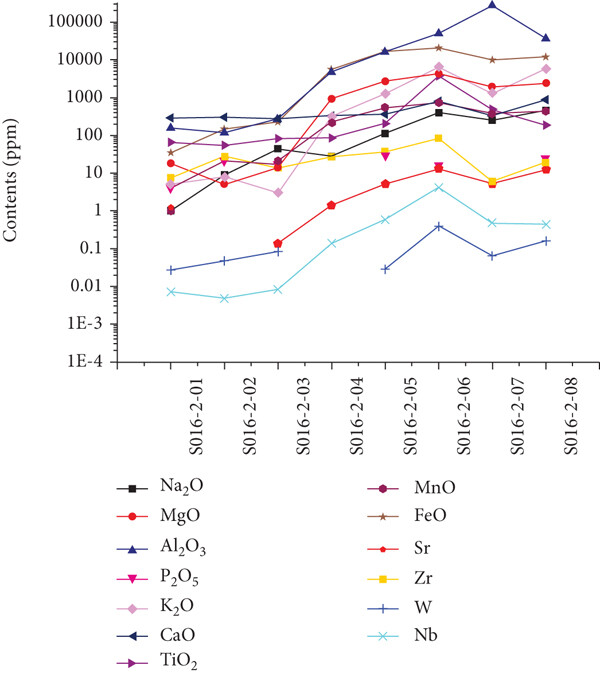

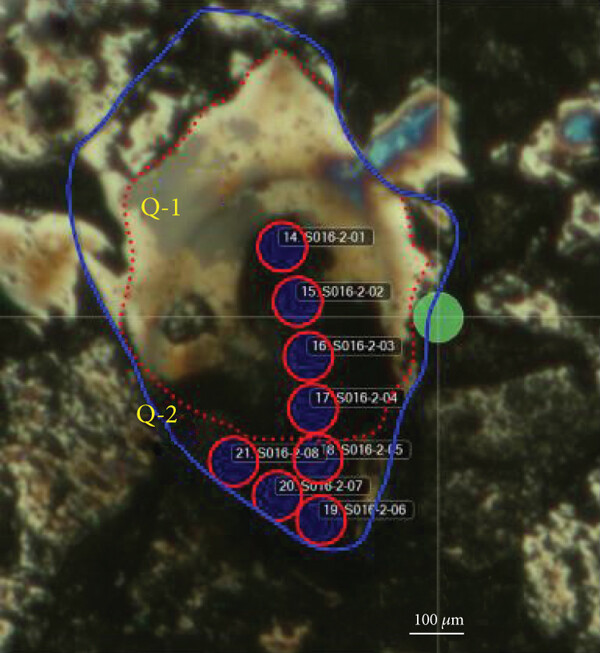

LA-ICP-MS was also used to analyze the major and trace element contents. The core analyses (S016-2-01–04) have average SiO₂ = 98.94 wt.%, Al₂O₃ = 0.133 wt.%, MnO = 0.006 wt.%, and FeO = 0.148 wt.%. The cores also have average Co = 1.78 ppm, Ni = 3.91 ppm, Sr = 0.66 ppm, and W = 0.04 ppm. The average SiO₂, Al₂O₃, MnO, and FeO contents of the rims (S016-2-05–08) are 98.85, 3.261, 0.052, and 1.482 wt.%, respectively. The rims have average Co = 2.47 ppm, Ni = 25.92 ppm, Sr = 8.98 ppm, and W = 0.16 ppm. The cores and rims separated by a thin, dark, and clay layer exhibit the largest compositional differences (Figures 4(c) and 4(d), Table 3). Some trace (e.g., Sr and W) and major element (e.g., Mn, Fe, and Al) contents are higher in the rims than in the cores. The differences can be by two or three orders of magnitude. However, some relatively immobile elements show no apparent concentration differences between the cores and rims (e.g., Zr).

Table 3. In situ major and trace element data for quartz in the D13 well. Sample S016, 4209 m depth.

Element	Unit	S016-2-01	S016-2-02	S016-2-03	S016-2-04	S016-2-05	S016-2-06	S016-2-07	S016-2-08
Na₂O	wt.%	0.0001	0.0009	0.0044	0.0028	0.0114	0.0403	0.0248	0.0456
MgO	wt.%	0.0018	0.0005	0.0014	0.0924	0.2689	0.4281	0.1951	0.238
Al₂O₃	wt.%	0.0157	0.0117	0.027	0.4778	1.5872	5.0255	27.8972	3.6433
SiO₂	wt.%	98.8128	99.3119	99.1262	98.5171	99.5735	99.4796	97.9821	98.3665
P₂O₅	wt.%	0.0004	0.0021	0.0017	bdl	0.0029	0.0016	bdl	0.0025
K₂O	wt.%	0.0005	0.0008	0.0003	0.0315	0.1263	0.6335	0.1276	0.5843
CaO	wt.%	0.0052	0.0023	0.0089	0.0106	0.0128	0.0484	0.0331	0.0502
CaO	wt.%	0.0286	0.0299	0.0275	0.0337	0.0359	0.0803	0.0321	0.0873
TiO₂	wt.%	0.0065	0.0054	0.0081	0.0085	0.0206	0.3722	0.0481	0.0186
MnO	wt.%	0.0001	bdl	0.0021	0.0219	0.0542	0.0746	0.0376	0.0429
FeO	wt.%	0.0035	0.0146	0.0227	0.5517	1.6852	2.0688	0.9899	1.1847
Li	ppm	2.0965	bdl	3.1423	7.8239	16.3127	23.3518	47.5405	47.7116
Be	ppm	bdl	0.0059	0.0268	0.1594	0.1286	0.5496	0.2767	0.5168
B	ppm	0.3452	0.9822	1.7401	0.3358	3.3413	15.6646	2.9438	5.3068
Sc	ppm	1.5332	1.5815	1.7752	2.4409	2.8277	5.2015	4.5676	3.5416
V	ppm	0.0768	0.141	0.1456	6.2744	18.6091	38.5048	44.2837	20.8029
Cr	ppm	0.9691	0.8712	1.1591	2.8601	5.3181	8.6423	8.2257	4.4051
Co	ppm	0.0849	3.4376	2.4933	1.1143	2.4508	3.1264	2.5711	1.737
Ni	ppm	0.1548	0.446	bdl	15.0496	18.0809	16.3241	60.7456	8.5679
Cu	ppm	4.6485	1.583	0.4035	10.0872	3.4157	8.3014	15.9753	10.3209
Zn	ppm	4.53	7.0383	3.4491	10.9982	15.4474	20.3231	8.3061	250.1787
Ga	ppm	0.0236	0.0091	0.0352	0.7123	2.3717	4.8447	5.7437	3.5102
Ge	ppm	1.1098	1.0578	0.917	1.2367	1.2775	1.584	1.1088	1.2653
Rb	ppm	0.0121	0.1982	bdl	0.7515	2.4961	21.3532	2.597	15.8376
Sr	ppm	1.1306	bdl	0.1347	1.3932	5.1935	13.4053	5.3072	12.018
Y	ppm	0.0789	bdl	0.3099	3.7087	4.4541	8.788	0.6344	3.0661
Zr	ppm	7.4731	27.9566	13.5468	27.0276	36.3953	83.4228	6.0641	19.4439
Nb	ppm	0.0072	0.0048	0.0083	0.1382	0.5832	4.2074	0.483	0.4359
Mo	ppm	0.0139	3.3567	0.8704	bdl	0.3764	0.1611	0.025	0.0231
Cs	ppm	0.0247	0.0419	0.146	0.0547	0.2173	1.947	0.1248	0.4007
Ba	ppm	0.0359	0.0357	1.0805	5.7055	20.774	92.4082	16.6073	125.0756
La	ppm	0.0032	bdl	0.0037	0.0462	0.2222	1.2463	0.3332	7.1036
Ce	ppm	0.1066	0.003	0.0191	0.1468	0.6328	1.9927	1.2214	12.4724
Pr	ppm	0.0059	0.0093	bdl	0.0183	0.079	0.1865	0.0786	1.1895
Nd	ppm	0.0064	0.0191	0.0074	0.107	0.4143	0.7609	0.2295	3.6637
Sm	ppm	bdl	bdl	0.0168	0.0664	0.2537	0.3327	0.045	0.4885
Eu	ppm	0.0185	0.0593	0.0309	0.0137	0.0202	0.1079	0.0064	0.1828
Gd	ppm	bdl	bdl	0.0078	0.1565	0.3665	0.4613	0.0312	0.3494
Tb	ppm	bdl	bdl	0.0038	0.0543	0.1052	0.2078	0.0237	0.0699
Dy	ppm	bdl	0.0307	bdl	0.6531	0.746	1.4292	0.1024	0.4987
Ho	ppm	bdl	0.0085	0.0136	0.1708	0.157	0.3226	0.0166	0.1081
Er	ppm	0.0164	0.418	0.0189	0.3973	0.4846	0.8769	0.0594	0.2808
Tm	ppm	0.0049	bdl	0.0056	0.1347	0.0878	0.1604	0.0075	0.046
Yb	ppm	0.0041	0.0041	0.0048	0.4731	0.493	1.0755	0.0836	0.3126
Lu	ppm	0.001	0.001	0.007	0.0804	0.0829	0.15	0.0078	0.0509
Hf	ppm	bdl	bdl	0.0036	0.6129	0.8206	2.2239	0.195	0.5997
Ta	ppm	0.0032	bdl	bdl	0.0082	0.0538	0.4038	0.1343	0.0415
W	ppm	0.0274	0.0471	0.0823	bdl	0.029	0.4034	0.0648	0.1617
Hg	ppm	bdl	bdl	bdl	bdl	bdl	bdl	bdl	bdl
Tl	ppm	0.6772	bdl	0.0362	bdl	0.0633	0.0847	0.0332	0.0451
Pb	ppm	6.8722	0.4472	1.3452	0.0906	0.3238	3.8856	0.7726	0.4805
Th	ppm	0.0192	bdl	0.0225	2.0437	1.3406	9.2599	0.8271	8.162
U	ppm	0.0017	0.0051	0.0778	0.2246	0.2462	0.9181	0.165	0.8694

Note: bdl denotes below detection limit.

4.3. XRF Element Maps of Quartz

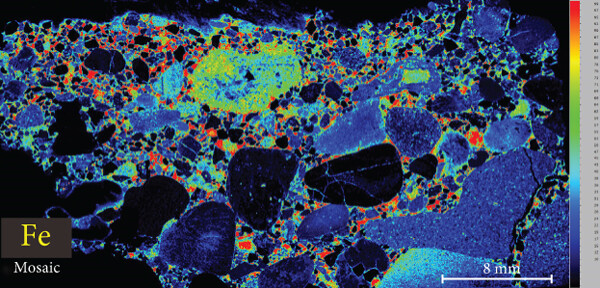

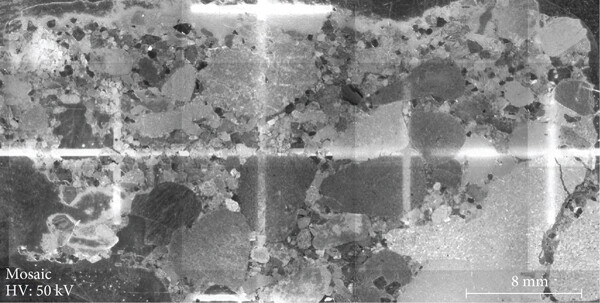

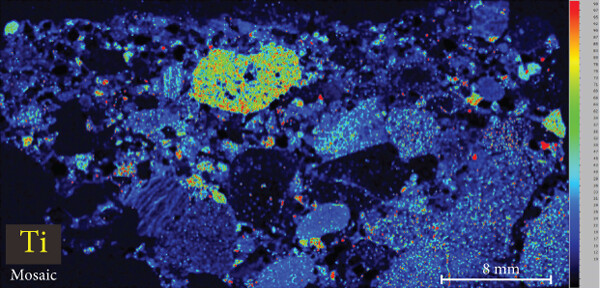

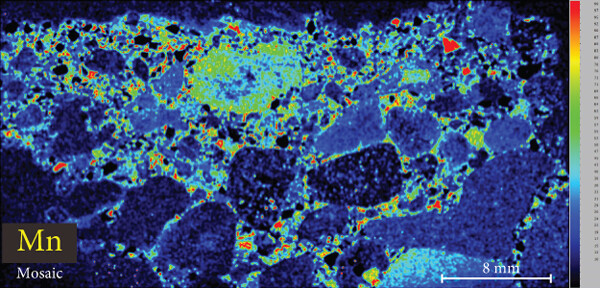

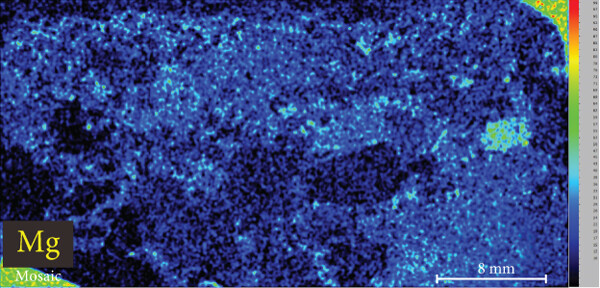

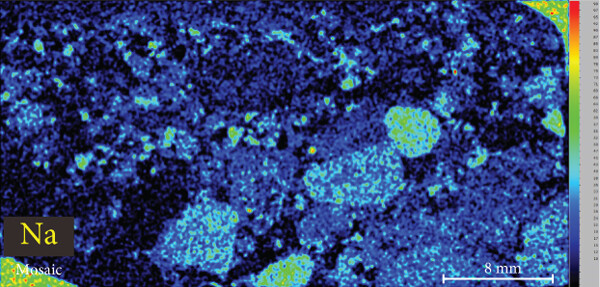

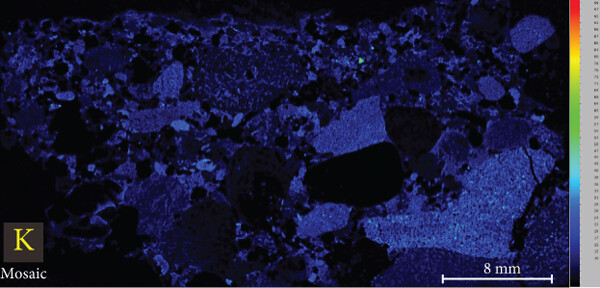

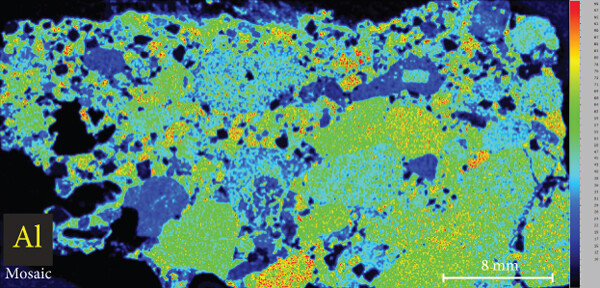

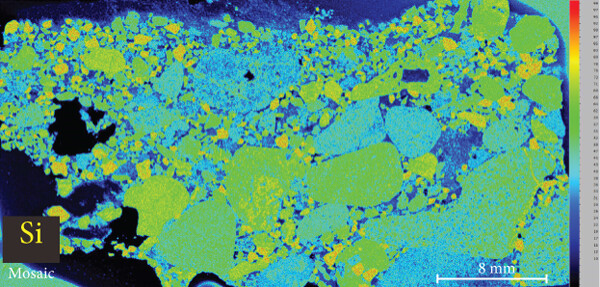

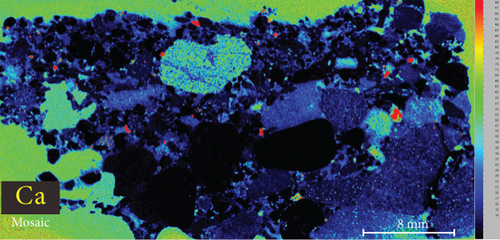

The elemental map showed that the distribution of elements in the rock thin sections is heterogeneous (Figure 5). Elements mobile in hydrothermal fluids, such as Mn and Fe, are significantly concentrated at the edges of quartz grains.

4.4. Whole-Rock Geochemistry

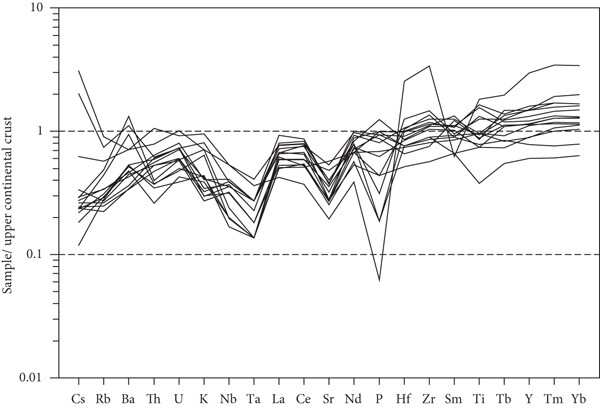

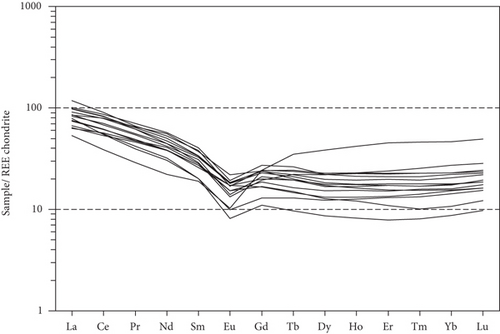

Whole-rock geochemical data for 15 samples from 11 wells are listed in Table 4. The samples have variable major element compositions, with SiO₂ = 57.92–78.98 wt.%, MgO = 0.52–2.04 wt.%, TFe₂O₃ = 1.55–10.25 wt.%, Al₂O₃ = 9.69–19.66 wt.%, CaO = 0.25–1.40 wt.%, and MnO = 0.05–0.20 wt.%. Total rare earth element (REE) concentrations vary from 81.50 to 140.85 ppm. The chondrite-normalized REE patterns of these samples show apparent fractionation of light REEs relative to heavy REEs (Figure 6(a)), with La_N/Yb_N = 1.15–9.03. The Eu/Eu∗ values of the sandy conglomerates vary from 0.48 to 0.83, reflecting negative Eu anomalies. In trace element patterns (Figure 6(b)), the large-ion lithophile elements (e.g., Cs, Rb, K, and Ba) exhibit variable contents. Some high-field-strength elements exhibit obvious negative anomalies, such as Nb and Ta.

Table 4. Whole-rock major (in wt.%) and trace element (in ppm) data for samples from the Baikouquan Formation.

Well	B63	B63	B25	YB2	AH2	AH11	D15	D15	D12	D12	D12	D18	D13	MH23	MA18
Depth (m)	2514	2452	2318	4110	3314	2825	4245	4254	4269	4267	4284	4451	4209	4079	3906
Al₂O₃	19.66	17.44	13.12	14.9	9.69	13.15	10.83	12.42	10.62	11.29	10.65	12.78	11.04	11.1	13.46
BaO	0.03	0.06	0.06	0.03	0.01	0.04	0.02	0.01	0.01	0.01	0.01	0.02	0.01	0.02	0.02
CaO	0.64	0.66	0.59	0.47	0.48	0.4	0.64	0.55	0.25	0.42	0.4	1.04	1.4	0.38	1.3
Cr₂O₃	0.02	0.05	0.03	<0.01	0.03	0.02	0.02	0.02	0.01	0.03	<0.01	<0.01	<0.01	<0.01	0.01
TFe₂O₃	8.94	10.25	4.33	1.68	2.19	3.12	2.78	3.99	4.16	3.84	2.66	4.45	3.45	1.55	3.73
K₂O	3.2	2.73	2.39	2.4	1.31	2.16	1.16	1.37	1.01	1	1.39	1.09	0.92	1.48	1.44
MgO	0.95	2.04	1.3	0.66	0.75	0.9	0.76	0.73	0.88	0.9	0.62	1.33	0.97	0.52	1
MnO	0.08	0.11	0.09	0.05	0.06	0.06	0.07	0.09	0.15	0.13	0.08	0.18	0.16	0.08	0.2
Na₂O	1.23	1.33	2.85	2.4	2.95	3.83	3.05	3.3	2.68	2.99	2.61	3.12	2.96	2.75	3.84
P₂O₅	0.01	0.03	0.16	0.05	0.07	0.11	0.15	0.13	0.03	0.16	0.1	0.2	0.15	0.07	0.14
SiO₂	57.92	58.04	70.95	72.4	78.91	73.28	77.35	73.81	77.68	76.59	78.93	70.36	75.04	78.98	70.47
SO₃	<0.01	0.02	0.02	0.02	<0.01	<0.01	<0.01	<0.01	<0.01	0.01	<0.01	<0.01	0.01	<0.01	0.01
SrO	0.01	0.01	0.02	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.02
TiO₂	0.91	0.82	0.66	0.63	0.39	0.48	0.43	0.48	0.37	0.47	0.37	0.78	0.48	0.19	0.44
LOI	6.14	6.36	2.92	3.37	2.49	2.04	2.37	2.6	1.95	2.17	1.9	3.97	3.53	2.26	3.56
La	12.7	19.7	15.2	23.3	14.9	17.6	24	27.9	15.9	23.1	20.3	21.7	17.8	18.6	20.1
Ce	23.7	43.2	32.7	51	34.8	37.7	53.1	55.3	34.3	50.6	41.7	48.1	38	33.7	48.9
Pr	2.68	5.16	4.28	5.75	4.41	4.53	6.52	6.13	3.89	5.92	5.06	5.72	4.44	3.65	6.03
Nd	10.1	20.4	17.5	20.4	17.6	17.6	26.1	24.1	14.7	23	19.2	21.6	18.6	13.9	25.5
Sm	2.81	4.82	4.02	4.28	4.02	3.82	5.98	5.65	2.99	5	4.59	4.98	4.16	2.97	5.52
Eu	0.58	1.02	0.97	0.75	0.86	0.97	1.09	0.95	0.56	1.04	0.79	1.01	0.86	0.46	1.24
Gd	4.84	4.79	3.98	3.87	3.35	3.31	5.42	4.86	2.59	4.72	4.18	4.58	3.71	2.2	4.75
Tb	1.26	0.88	0.7	0.8	0.54	0.53	0.95	0.86	0.47	0.79	0.7	0.76	0.59	0.35	0.72
Dy	9.43	5.57	4.37	5.38	3.14	3.24	5.47	5.47	3.04	4.85	4.14	4.51	3.76	2.12	4.24
Ho	2.29	1.25	0.96	1.25	0.66	0.72	1.16	1.23	0.69	1.06	0.92	0.97	0.84	0.45	0.89
Er	7.28	3.65	2.76	3.84	1.74	2.15	3.37	3.58	2.09	3.18	2.76	2.85	2.43	1.26	2.48
Tm	1.14	0.56	0.42	0.63	0.25	0.35	0.52	0.56	0.33	0.48	0.42	0.44	0.39	0.2	0.38
Yb	7.52	3.68	2.81	4.37	1.73	2.47	3.55	3.68	2.29	3.29	2.84	2.87	2.57	1.4	2.51
Lu	1.22	0.6	0.48	0.7	0.3	0.4	0.56	0.58	0.38	0.54	0.46	0.46	0.43	0.24	0.4
Y	65.7	35.3	25.1	33.1	17.2	19.6	32.4	32.6	19.8	29.1	25.3	26.6	24.4	13.2	24.9
Cs	11.35	7.47	1.07	2.31	0.68	0.87	0.87	1.09	0.9	0.97	1.02	1.24	0.88	0.44	0.81
Rb	101	83.1	54.5	64.3	33.1	49.3	32.4	37.7	27.7	29.4	38.2	30.4	25.1	31.4	34.7
Ba	392	612	724	390	263	521	293	253	186.5	200	235	245	187	290	283
Th	11.3	6.6	4.25	8.46	2.78	4	6.34	6.83	5.08	6.51	5.99	5.68	5.68	3.71	3.97
U	2.57	2.04	1.65	2.82	1.19	1.34	2.06	2.24	1.67	2.04	1.99	1.68	1.62	1.09	1.4
Nb	13.3	9.7	6	13.4	5	4.9	9.2	10.2	7.9	8.9	8.9	9.8	8	4.2	5
Ta	0.8	0.6	0.3	0.9	0.3	0.3	0.5	0.6	0.4	0.6	0.6	0.6	0.4	0.3	0.3
Cr	120	210	130	20	240	140	10	30	10	10	20	40	40	30	80
Ga	23.2	19.6	14.5	17.5	10.3	14.4	12.3	15.4	11.8	13.2	12.9	13.8	10.3	13.8	14.4
Hf	14.8	5.8	4.4	7.3	6	4.3	5.3	6.2	4.4	5.7	4.9	5	4.4	3	3.8
Sr	67.9	112	201	140	94.4	168.5	130.5	130.5	89	98.1	95.9	133.5	124.5	96.3	187
V	79	103	80	73	73	61	60	51	62	73	51	104	65	37	64
Zr	641	224	163	279	258	154	211	238	170	217	197	208	170	108	143
MnO/Zr	1.25	4.91	5.52	1.79	2.33	3.9	3.32	3.78	8.82	5.99	4.06	8.65	9.41	7.41	13.99
Y/Ho	28.69	28.24	26.15	26.48	26.06	27.22	27.93	26.5	28.7	27.45	27.5	27.42	29.05	29.33	27.98
La_N/Yb_N	1.15	3.64	3.67	3.62	5.85	4.84	4.59	5.15	4.72	4.77	4.86	5.14	4.71	9.03	5.44
δEu	0.48	0.65	0.74	0.56	0.71	0.83	0.58	0.55	0.61	0.65	0.55	0.64	0.67	0.55	0.74
ΣREE	87.55	115.3	91.15	126.3	88.3	95.39	137.8	140.9	84.22	127.6	108.1	120.6	98.58	81.5	123.7

5. Discussion

5.1. Fluid-Rock Interactions Recorded by Quartz

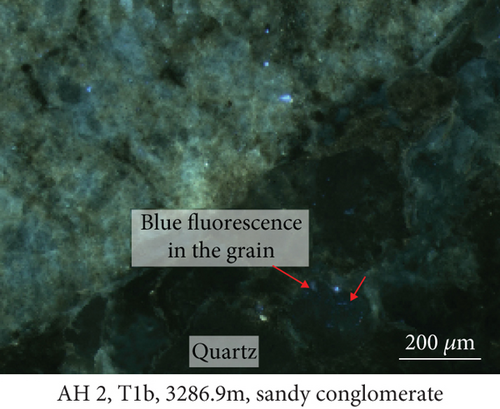

Fluid-rock interactions occur widely in reservoirs, and these can cause migration of chemically active elements, dissolution of minerals, or modification of primary minerals [34, 59, 60]. The sandy conglomerates of the Baikouquan Formation exhibit dissolution and overgrowths at the edges of quartz grains, suggesting that these samples experienced strong fluid-rock interactions (Figures 2 and 3). The quartz grains developed numerous microcracks, and SiO₂ from the hydrothermal fluids infilled these microcracks to form new quartz. In addition, abundant fluid inclusions were captured during this process. These samples exhibit obvious blue and white fluorescence around the quartz grains (Figure 7(a)) and even some strong fluorescence at the edges of the grains (Figure 7(b)), implying that hydrocarbons migrated with the hydrothermal fluids involved in the fluid-rock interactions.

The geochemical data indicate that the chemically active elements, such as Fe, Mn, Al, Sr, and W, have higher contents in the rims than in the cores of quartz (Figures 4 and 5), implying that these elements migrated with the fluids and were deposited in the overgrowths.

The elemental contents of the quartz overgrowths in the reservoirs of the Baikouquan Formation in the Mahu Sag depend on internal and external factors. The internal factors pertain mainly to the initial elemental abundances of the quartz; the external factors pertain mainly to the mobility of elements during fluid migration and fluid-rock interactions. Major elements such as Mn, Fe, and Al and trace elements such as Sr and W in the quartz cores are relatively low in content. Permian source rocks in the study area are rich in Mn, Fe, and Cr [61]. Insoluble MnO₂ can react with water in the presence of anaerobic bacteria to form Mn²⁺ and OH^–, which allows Mn to be dissolved in hydrothermal fluids and OH^– to form an alkaline environment that promotes the dissolution of SiO₂ [62]. Elements such as Fe, Mn, and Cr in the source rocks are all elements with variable valence states, which can migrate in a reducing environment. Therefore, we speculate that the quartz overgrowths are rich in Mn and other elements, owing to the effects of reducing hydrocarbon-bearing fluids. This process can be described by the following chemical equations [62]:

(1)

During the process of hydrocarbon generation, a large amount of organic acids will be discharged along with hydrocarbons, which can promote the dissolution of feldspar and carbonates and thus form dissolution pores [63–65]. This is of significance in the formation and transformation of reservoirs and is also a common model for the formation of feldspar-rich reservoirs in lacustrine basins in eastern China (e.g., the Bohai Bay Basin [39]). However, in some areas of western China, such as the Sichuan and Junggar Basins [66–68], alkaline fluids are considered to have caused the dissolution of quartz during burial. The edges of quartz grains in the Baikouquan Formation have been dissolved and replaced by clay minerals (Figure 2). Most of these quartz grains exhibit features of multiphase growth and contain abundant fluid inclusions, which were related to late fluid activity (Figure 2).

Quartz is relatively stable in acidic and neutral environments but is more easily dissolved in alkaline solutions, especially at higher pH values [69, 70]. Experimental studies have shown that when the pH exceeds 6–7, the dissolution rate of quartz increases rapidly, thus forming curved quartz edges [71]. At higher temperatures and pressures, quartz is also more readily dissolved [72]. Clastic sediments experience the syngenetic, early diagenetic, and late diagenetic stages from the onset of sedimentation through to the earliest metamorphism [72]. Due to the effects of organic matter evolution and fluid-rock reaction in each stage, the fluid pH will increase [73, 74]. Therefore, alkaline fluids form because of burial diagenesis in clastic rocks [69–72]. Acid-labile minerals such as calcite and dolomite can be formed and preserved as cements in most clastic rock reservoirs, which also demonstrates that alkaline formation waters existed. Early and late carbonate cements in clastic rock reservoirs possibly reflect multiphase activity of alkaline fluids. It is known that the Mahu Sag was an alkaline lake basin in the Permian [68], which provided favorable conditions for the dissolution of quartz and formation of quartz overgrowths.

5.2. Implications for Hydrocarbon Migration

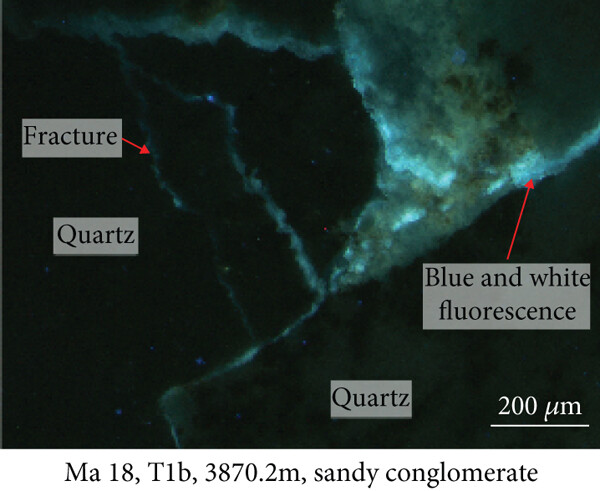

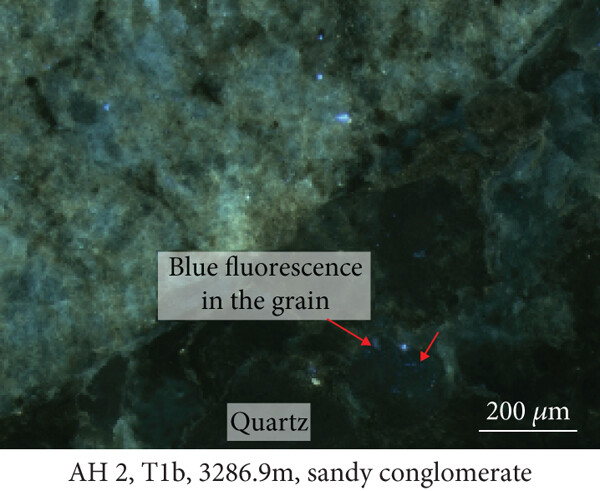

Given that a large number of elements are mobile in fluids, when fluids interact with rocks, the elements in the fluids can be partially incorporated into quartz overgrowths, thus resulting in elemental enrichment. Therefore, the distribution and enrichment of elements in authigenic minerals can indicate whether fluids have migrated through rocks and can also be used to infer the direction of hydrocarbon migration.

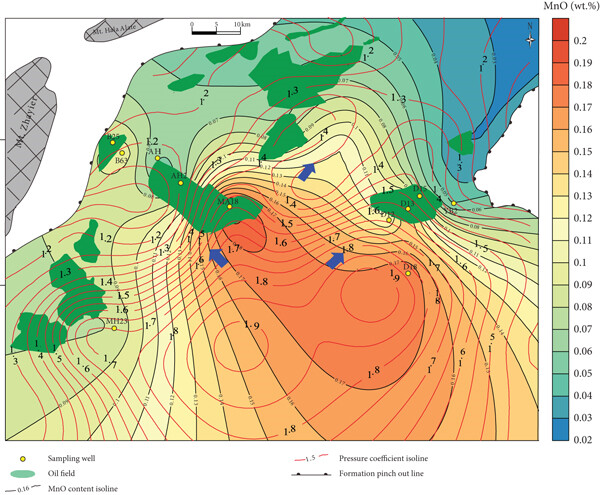

Based on our in situ geochemical data for quartz, we selected several proxies, including MnO contents and MnO/Zr and Y/Ho ratios, to examine the migration of hydrocarbon-bearing fluids in the Mahu Sag. The MnO contents tend to decrease from the center to the outer margin of the sag (Figure 8(a)). Those MnO contents to the south of wells MA18 and D18 are high and gradually decrease to the slope regions in the north, west, and east. The MnO contents on the western slope are slightly higher than those on the eastern slope. The reason for these differences is that Mn tends to concentrate in the center of a sedimentary basin, and MnO is then likely to be migrated away by hydrothermal fluids [47, 48]. Therefore, the direction in which the MnO contents decrease might have been a fluid migration pathway. Basin-scale pressure coefficient contours show that the distribution of MnO is consistent with the pressure coefficients, particularly near wells D12-D13-D15, MA18-AH2, and MA22. This reveals a trend of hydrocarbon migration towards the (N)NE and NW, which is also consistent with the distribution of the Triassic hydrocarbon reservoir (Figure 8(a)). For the trace elements, the chemically active elements also show a gradual change from the center to the margin of the sag. For example, Sr contents also increase to the NW and NE (Figure 8(b)), similar to MnO.

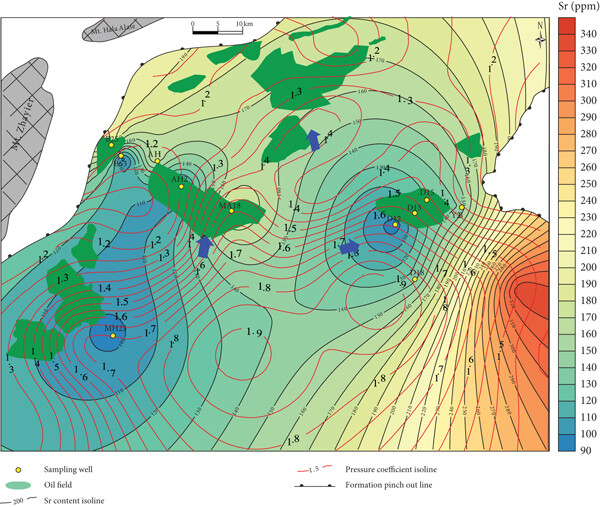

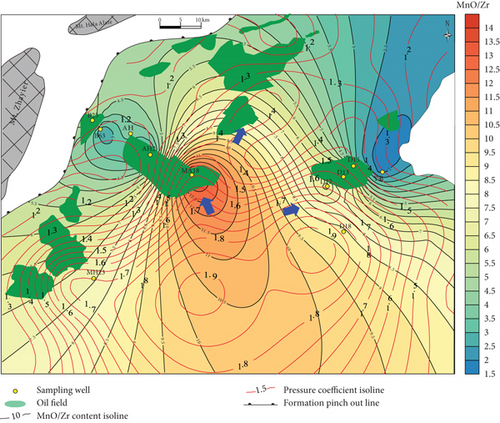

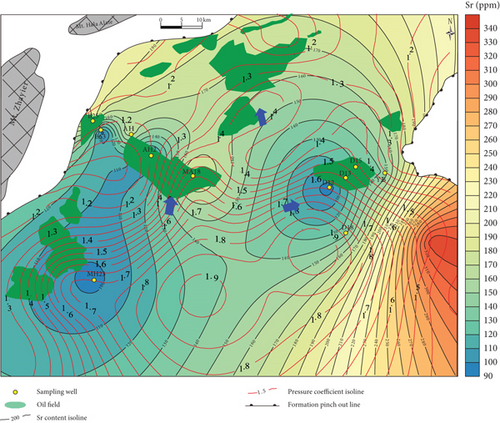

Inorganic geochemical proxies were used to investigate the fluid migration according to the distribution of these chemically active elements. For example, the MnO/Zr ratio was used as Zr which is a fluid-immobile element [62], which is also supported by the in situ geochemical data (Figures 4(c) and 4(d)), whereas Mn was fluid-mobile (Figures 4 and 5). MnO/Zr values decrease gradually from the center to the margin of the sag, and changes also occurred near wells DA12-DA13-DA15, MA18-AH2, and MA22 (Figure 8(c)), similar to the MnO contents. MnO/Zr values have a similar distribution to the pressure coefficients and also reveal fluid migration to the (N)NE and NW.

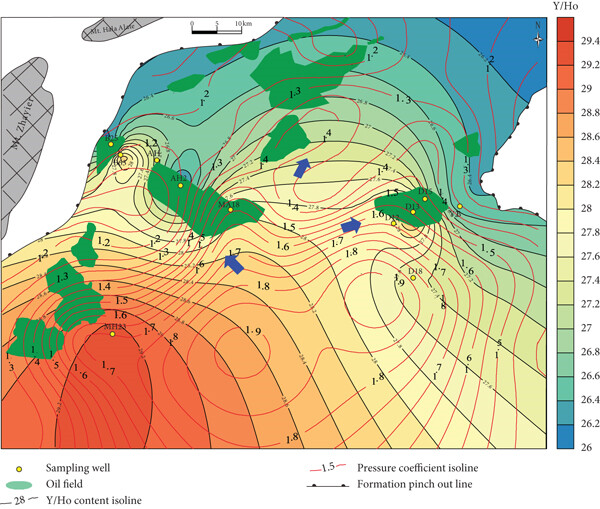

Yttrium and Ho typically exist exclusively as trivalent elements, with similar ionic radii of Y³⁺ = 0.900 Å and Ho³⁺ = 0.901 Å [75]. Therefore, Y and Ho often exhibit identical geochemical behavior in geological environments [76]. Previous studies have shown that partial melting and fractional crystallization cannot fractionate Y and Ho, and the Y/Ho ratio in igneous rocks is ~28 [77]. However, these two elements may be significantly fractionated in aqueous solutions [76], such as in seawater, river water, and hydrothermal fluids. The Y/Ho ratios of the studied samples vary widely (Table 4), suggesting that the samples experienced strong fluid-rock interactions. The Y/Ho ratios tend to decrease toward the margin of the sag (Figure 8(d)). As such, Y/Ho ratios also reveal a migration direction to the (N)NE and NW.

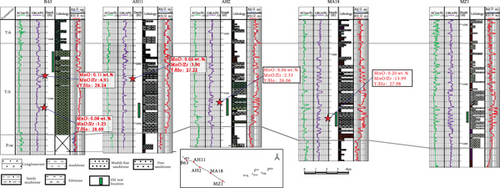

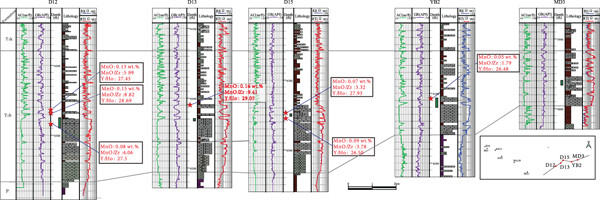

Well correlations also reflect the trends of hydrocarbon migration. On the east slope of the Mahu Sag (Figure 9(a)), MnO, MnO/Zr, and Y/Ho decrease gradually from the center to the margin of the sag, suggesting that rocks in the wells on the hydrocarbon migration pathways were subjected to strong fluid-rock interactions. For rocks in wells on the west slope (Figure 9(b)), MnO, MnO/Zr, and Y/Ho tend to decrease.

Our results are also consistent with the hydrocarbon migration inferred from organic geochemistry proxies, such as diasterane/regular sterane and C₃₀ moretane/C₃₀ hopane ratios, and oil exploration results (Figure 8), which show that the western slope is the preferred area for hydrocarbon exploration.

Organic matter in sediments becomes buried and forms source rocks and hydrocarbons. Most studies have used organic geochemistry proxies to infer hydrocarbon migration pathways [19, 20]. However, organic geochemistry proxies are affected by heat and biodegradation effects in geological environments, and these indicators may not be robust in complex geological settings. Previous studies have found that Mn-rich calcite veins are efficient in tracing possible fluid migration pathways in fault zones of the Junggar Basin, and these processes are consistent with the formation of Mn-depleted and Mn-enriched pore waters [47, 48]. This demonstrates that inorganic geochemical methods are another way to investigate hydrocarbon migration. Our study also shows that the distribution of elements can be recorded by quartz overgrowths.

Hydrocarbon migration from source rocks to reservoirs is usually accompanied by the migration of hydrothermal fluids, which can also form hydrocarbon and brine inclusions. Hydrothermal fluids can infill cracks, faults, and unconformities with vein minerals and also enter pores and chemically react with minerals causing mineral dissolution and the formation of authigenic minerals. Based on our inorganic geochemical study of quartz in the Baikouquan Formation in the Mahu Sag, samples on the migration pathway of hydrocarbon-bearing fluids formed authigenic minerals through fluid-rock interactions, which resulted in the exchange and enrichment of certain elements. The fluids evolved with migration distance, with different element enrichments, showing that inorganic elements are affected by the migration of hydrocarbon-bearing fluids. Therefore, our methodology provides a new means for tracing hydrocarbon-bearing fluid migration.

6. Summary and Conclusions

We conducted a petrological and geochemical study of reservoir rocks of the Triassic Baikouquan Formation from the slope of the Mahu Sag, Junggar Basin. Our results show that inorganic geochemical data can track the migration of hydrocarbon-bearing fluids.

The sandy conglomerate samples on the hydrocarbon-bearing fluid migration pathways underwent strong fluid-rock interactions, with formation of clay minerals, and quartz dissolution and overgrowths.

Chemically active elements, such as Mn, Fe, Al, Sr, and W, have higher contents in quartz overgrowths than in quartz cores, implying that these elements were supplied by hydrocarbon-bearing hydrothermal fluids.

MnO contents and Mn/Zr and Y/Ho ratios can be used to reconstruct the hydrocarbon migration and accumulation pathways. The direction in which these contents and ratios decrease can indicate the potential direction of hydrocarbon-bearing fluid migration. More studies from different settings would refine the results and understandings of the present study.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Acknowledgments

We would like to express our sincere thanks to PetroChina Xinjiang Oilfield Company for providing core samples and data such as formation pressure and density of crude oil. Besides, our heartfelt thanks are also expressed to the Major National Science and Technology Project (Grant Nos. 2017ZX05001 and 2016ZX03003) and National Natural Science Foundation of China (Grant No. 41702138) which provide funding for the research work.

Open Research

Data Availability

The data used to support the findings of this study are available from the corresponding author upon request.

References

1 Thomas M. M. and Clouse J. A., Scaled physical model of secondary oil migration, AAPG Bulletin. (1995) 79, no. 1, 19–28.
Web of Science® Google Scholar
2 Meakin P., Wagner G., Vedvik A., Amundsen H., Feder J., and Jøssang T., Invasion percolation and secondary migration: experiments and simulations, Marine and Petroleum Geology. (2000) 17, no. 7, 777–795, https://doi.org/10.1016/S0264-8172(99)00069-0, 2-s2.0-0034253252.
10.1016/S0264-8172(99)00069-0
CAS Web of Science® Google Scholar
3 Jiang Z. X., Pang X. Q., Zeng J. H., Wang H. Y., and Luo Q., Research on types of the dominant migration pathways and their physical simulation experiments, Earth Science Frontiers. (2005) 12, no. 4, 507–516.
Google Scholar
4 Zhang S. H., Yang M. H., and Luo X. H., Hydrocarbon episodic migration in fault zones: insights from physical simulation experiments, Geological Review. (2015) 65, no. 5, 1183–1191.
Google Scholar
5 Zhang Y. C., Zeng J. H., Dai Z. X., Viswanathan H., Xiao T., Ma Y., and Feng X., Experimental investigation on oil migration and accumulation in tight sandstones, Journal of Petroleum Science and Engineering. (2018) 160, 267–275, https://doi.org/10.1016/j.petrol.2017.10.049, 2-s2.0-85033700683.
10.1016/j.petrol.2017.10.049
CAS Web of Science® Google Scholar
6 Zhou Y. S. and Littke R., Numerical simulation of the thermal maturation, oil generation and migration in the Songliao Basin, Northeastern China, Marine and Petroleum Geology. (1999) 16, no. 8, 771–792, https://doi.org/10.1016/S0264-8172(99)00043-4, 2-s2.0-0033368243.
10.1016/S0264-8172(99)00043-4
CAS Web of Science® Google Scholar
7 Luo X., Simulation and characterization of pathway heterogeneity of secondary hydrocarbon migration, AAPG Bulletin. (2011) 95, no. 6, 881–898, https://doi.org/10.1306/11191010027, 2-s2.0-79959924058.
10.1306/11191010027
CAS Web of Science® Google Scholar
8 Gusterhuber J., Hinsch R., and Sachsenhofer R. F., Evaluation of hydrocarbon generation and migration in the molasse fold and thrust belt (Central Eastern Alps, Austria) using structural and thermal basin models, AAPG Bulletin. (2014) 98, no. 2, 253–277, https://doi.org/10.1306/06061312206, 2-s2.0-84896851746.
10.1306/06061312206
Web of Science® Google Scholar
9 Luo X. R., Hu C. Z., Xiao Z. Y., Zhao J., Zhang B. S., Yang W., Zhao H., Zhao F. Y., Lei Y. H., and Zhang L. K., Effects of carrier bed heterogeneity on hydrocarbon migration, Marine and Petroleum Geology. (2015) 68, 120–131, https://doi.org/10.1016/j.marpetgeo.2015.08.015, 2-s2.0-84951877078.
10.1016/j.marpetgeo.2015.08.015
Web of Science® Google Scholar
10 Wang T., Dong S., Wu S., Xu H., and Hou P., Numerical simulation of hydrocarbon migration in tight reservoir based on Artificial Immune Ant Colony Algorithm: a case of the Chang 8₁ reservoir of the Triassic Yanchang Formation in the Huaqing area, Ordos Basin, China, Marine and Petroleum Geology. (2016) 78, 17–29, https://doi.org/10.1016/j.marpetgeo.2016.09.003, 2-s2.0-84988026237.
10.1016/j.marpetgeo.2016.09.003
CAS Web of Science® Google Scholar
11 Guo Q. L., Liu J. F., Chen N. S., Wu X. Z., Ren H. J., Wei Y. Z., Chen G., Gong D. Y., and Yuan X. J., Mesh model building and migration and accumulation simulation of 3D hydrocarbon carrier system, Petroleum Exploration and Development. (2018) 45, no. 6, 947–959.
10.1016/S1876-3804(18)30105-8
Web of Science® Google Scholar
12 Herdes C., Petit C., Mejía A., and Müller E. A., Combined experimental, theoretical, and molecular simulation approach for the description of the fluid-phase behavior of hydrocarbon mixtures within shale rocks, Energy & Fuels. (2018) 32, no. 5, 5750–5762, https://doi.org/10.1021/acs.energyfuels.8b00200, 2-s2.0-85047445524.
10.1021/acs.energyfuels.8b00200
CAS Web of Science® Google Scholar
13 Hindle A. D., Petroleum migration pathways and charge concentration: a three-dimensional model 1, AAPG Bulletin. (1997) 81, no. 9, 1451–1481.
CAS Web of Science® Google Scholar
14 Lee M. and Williams D. D., Paleohydrology of the Delaware Basin, Western Texas: overpressure development, hydrocarbon migration, and ore genesis, AAPG Bulletin. (2000) 84, no. 7, 961–974.
CAS Web of Science® Google Scholar
15 Chen Z. H., Osadetz K. G., Issler D. R., and Grasby S. E., Hydrocarbon migration detected by regional temperature field variations, Beaufort-Mackenzie Basin, Canada, AAPG Bulletin. (2008) 92, no. 12, 1639–1653, https://doi.org/10.1306/07300808011, 2-s2.0-58549113833.
10.1306/07300808011
CAS Web of Science® Google Scholar
16 Baron M., Parnell J., Mark D., Carr A., Przyjalgowski M., and Feely M., Evolution of hydrocarbon migration style in a fractured reservoir deduced from fluid inclusion data, Clair Field, west of Shetland, UK, Marine and Petroleum Geology. (2008) 25, no. 2, 153–172, https://doi.org/10.1016/j.marpetgeo.2007.05.010, 2-s2.0-38949094164.
10.1016/j.marpetgeo.2007.05.010
Web of Science® Google Scholar
17 Makeen Y. M., Abdullah W. H., Pearson M. J., Hakimi M. H., Elhassan O. M. A., and Hadad Y. T., Thermal maturity history and petroleum generation modelling for the Lower Cretaceous Abu Gabra Formation in the Fula Sub-basin, Muglad Basin, Sudan, Marine and Petroleum Geology. (2016) 75, 310–324, https://doi.org/10.1016/j.marpetgeo.2016.04.023, 2-s2.0-84964877068.
10.1016/j.marpetgeo.2016.04.023
CAS Web of Science® Google Scholar
18 Chang J., Qiu N., Zhao X., Shen F., Liu N., and Xu W., Mesozoic and Cenozoic tectono-thermal reconstruction of the western Bohai Bay Basin (East China) with implications for hydrocarbon generation and migration, Journal of Asian Earth Sciences. (2018) 160, 380–395, https://doi.org/10.1016/j.jseaes.2017.09.008, 2-s2.0-85030465457.
10.1016/j.jseaes.2017.09.008
Web of Science® Google Scholar
19 Williams L. B., Ferrell R. E., Hutcheon I., Bakel A. J., Walsh M. M., and Krouse H. R., Nitrogen isotope geochemistry of organic matter and minerals during diagenesis and hydrocarbon migration, Geochimica et Cosmochimica Acta. (1995) 59, no. 4, 765–779, https://doi.org/10.1016/0016-7037(95)00005-K, 2-s2.0-58149212536.
10.1016/0016-7037(95)00005-K
CAS Web of Science® Google Scholar
20 Byrne D. J., Barry P. H., Lawson M., and Ballentine C. J., The use of noble gas isotopes to constrain subsurface fluid flow and hydrocarbon migration in the East Texas Basin, Geochimica et Cosmochimica Acta. (2020) 268, 186–208, https://doi.org/10.1016/j.gca.2019.10.001.
10.1016/j.gca.2019.10.001
CAS Web of Science® Google Scholar
21 Bian R. K., Zhang J. C., Tang X., Yun L., Jiang S. L., Zhang P. X., Guo H. Q., and Wang Z. Y., Characteristics of energy fields and the hydrocarbon migration-accumulation in deep strata of Tahe Oilfield, Tarim Basin, NW China, Petroleum Exploration and Development. (2010) 37, 416–423.
10.1016/S1876-3804(10)60042-0
Google Scholar
22 Li C. L., Guo P., and Ren D. S., Relationship between tectonic stress field and migration and accumulation of oil and gas in Damintun depression, Petroleum Geology and Recovery Efficiency. (2012) 19, no. 6, 47–49.
CAS Google Scholar
23 Zeng W. T., Zhang J. C., Ding W. L., Zhao S., Zhang Y. Q., Liu Z. J., and Jiu K., Fracture development in Paleozoic shale of Chongqing area (South China). Part one: fracture characteristics and comparative analysis of main controlling factors, Journal of Asian Earth Sciences. (2013) 75, 251–266, https://doi.org/10.1016/j.jseaes.2013.07.014, 2-s2.0-84883308558.
10.1016/j.jseaes.2013.07.014
Web of Science® Google Scholar
24 Tian T., Ren Z. L., Wu X. Q., Ma G. F., Zhang R. S., Yang Z. M., and Guo K., The paleogeothermal field and hydrocarbon accumulation period in Sartai depression, Yabrai Basin, Acta Sedimentologica Sinica. (2015) 33, no. 4, 836–844.
CAS Google Scholar
25 Liu H., Jiang C., Liu Y. L., Yuan F. F., and Lu H., Optimization of hydrocarbon migration parameters and identification of migration pattern, Petroleum Geology & Experiment. (2018) 40, no. 3, 424–430.
Google Scholar
26 Liu L. F. and Kang Y. S., Investigation on secondary migration of oils in central tarim basin using pyrrolic nitrogen conpounds, Geochimica. (1998) 27, no. 5, 475–482.
CAS Google Scholar
27 Wang T. G., Li S. M., Zhang A. Y., Zhu L., Li B. H., and Zhou Y. B., Oil migration analysis with pyrrolic nitrogen compounds, Journal of the University of Petroleum, China. (2000) 24, no. 4, 83–87.
CAS Google Scholar
28 Xiang C. F., Xia B., Xie X. N., Feng Z. Q., and Wu H. Y., Tracing hydrocarbon migration by integrated analysis of different kinds of tracers in western slope zone of Songliao Basin, Northeast China, Geological Science and Technology Information. (2004) 23, 64–70.
CAS Google Scholar
29 Shan B. Z., The application of nitric compound research in tracing hydrocarbon migration in Liangjialou oilfield, Xinjiang Oil & Gas. (2005) 1, no. 2, 19–21.
CAS Google Scholar
30 Li J. J., Tang D. Z., and Yang Y. Y., Migration tracing mechanism of carbazole compounds and its application, Petroleum Geology and Recovery Efficiency. (2008) 15, no. 5, 38–41.
Google Scholar
31 Pang Q. W., Zhen Q., Qin Y., and Fu H., Tracer analysis of hydrocarbon migration in Baijiahai arch-Fubei slope of Junggar Basin, Journal of Yangtze University(Natural Science Edition). (2011) 8, no. 12, 40–43.
CAS Google Scholar
32 England W. A., L. B. Magoon and W. G. Dow, Secondary migration and accumulation of hydrocarbons, The Petroleum System-From Source to Trap, 1994, 211–217.
Google Scholar
33 Karlsen D. A., Skeie J. E., and Backer-owe K., J. M. Cubitt, W. A. England, and S. R. Larter, Petroleum migration, faults and overpressure. Part II. Case history: the Hltenbanken Petroleum Province, offshore Norway, Understanding Petroleum Reservoirs: Towards an Integrated Reservoir Engineering and Geochemical Approach, 2004, 237, 305–372.
Google Scholar
34 Bau M., Rare-earth element mobility during hydrothermal and metamorphic fluid-rock interaction and the significance of the oxidation state of europium, Chemical Geology. (1991) 93, no. 3-4, 219–230, https://doi.org/10.1016/0009-2541(91)90115-8, 2-s2.0-0026287312.
10.1016/0009-2541(91)90115-8
CAS Web of Science® Google Scholar
35 Goddard J. V. and Evans J. P., Chemical changes and fluid-rock interaction in faults of crystalline thrust sheets, northwestern Wyoming, U.S.A., Journal of Structural Geology. (1995) 17, no. 4, 533–547, https://doi.org/10.1016/0191-8141(94)00068-B, 2-s2.0-0028808447.
10.1016/0191-8141(94)00068-B
Web of Science® Google Scholar
36 Steefel C. I. and Maher K., Fluid-rock interaction: a reactive transport approach, Reviews in Mineralogy and Geochemistry. (2009) 70, no. 1, 485–532, https://doi.org/10.2138/rmg.2009.70.11, 2-s2.0-70349764162.
10.2138/rmg.2009.70.11
CAS Web of Science® Google Scholar
37 Schieber J., Dave K., and Lee R., Diagenetic origin of quartz silt in mudstones and implications for silica cycling, Nature. (2000) 406, no. 6799, 981–985, https://doi.org/10.1038/35023143, 2-s2.0-0034739012, 10984049.
10.1038/35023143
CAS PubMed Web of Science® Google Scholar
38 Hyodo A., Kozdon R., Pollington A. D., and Valley J. W., Evolution of quartz cementation and burial history of the Eau Claire Formation based on in situ oxygen isotope analysis of quartz overgrowths, Chemical Geology. (2014) 384, 168–180, https://doi.org/10.1016/j.chemgeo.2014.06.021, 2-s2.0-84907317010.
10.1016/j.chemgeo.2014.06.021
CAS Web of Science® Google Scholar
39 Yuan G., Cao Y., Gluyas J., Cao X., and Zhang W., Petrography, fluid-inclusion, isotope, and trace-element constraints on the origin of quartz cementation and feldspar dissolution and the associated fluid evolution in arkosic sandstones, AAPG Bulletin. (2018) 102, no. 5, 761–792, https://doi.org/10.1306/0608171616017066, 2-s2.0-85046785764.
10.1306/0608171616017066
Web of Science® Google Scholar
40 Oye O. J., Aplin A. C., Jones S. J., Gluyas J. G., Bowen L., Orland I. J., and Valley J. W., Vertical effective stress as a control on quartz cementation in sandstones, Marine and Petroleum Geology. (2018) 98, 640–652, https://doi.org/10.1016/j.marpetgeo.2018.09.017, 2-s2.0-85054018151.
10.1016/j.marpetgeo.2018.09.017
CAS Web of Science® Google Scholar
41 Emery D., Hudson J. D., and Marshall J. D., The origin of late spar cements in the Lincolnshire limestone, Jurassic of Central England, Journal of the Geological Society of London. (1988) 145, no. 4, 621–633, https://doi.org/10.1144/gsjgs.145.4.0621, 2-s2.0-0024257061.
10.1144/gsjgs.145.4.0621
CAS Web of Science® Google Scholar
42 Boles J. R., Eichhubl P., and Garven G., Evolution of a hydrocarbon migration pathway along basin-bounding faults: evidence from fault cement, AAPG Bulletin. (2004) 88, no. 7, 947–970, https://doi.org/10.1306/02090403040, 2-s2.0-4644299694.
10.1306/02090403040
CAS Web of Science® Google Scholar
43 Zhu M. Y., Zhen X., Liu X. S., and Zhang W. Z., Stable carbon isotope of authigenetic calcite used in reservoirs to tracing the hydrocarbon migration, Natural Gas Industry. (2007) 27, no. 9, 24–27.
Google Scholar
44 Cao J., Hu W. X., Yao S. P., Zhang Y. J., Wang X. L., Zhang Y. Q., Tang Y., and Shi X. P., Manganese in reservoir calcite cement and its implication for tracing oil migration in Junggar Basin, Acta Petrolei Sinica. (2009) 30, 705–710.
CAS Google Scholar
45 Cao J., Jin Z. J., Hu W. X., Zhang Y. J., Yao S. P., Wang X. L., Zhang Y. Q., and Tang Y., Improved understanding of petroleum migration history in the Hongche fault zone, northwestern Junggar Basin (northwest China): constrained by vein-calcite fluid inclusions and trace elements, Marine and Petroleum Geology. (2010) 27, no. 1, 61–68, https://doi.org/10.1016/j.marpetgeo.2009.08.014, 2-s2.0-70449100757.
10.1016/j.marpetgeo.2009.08.014
CAS Web of Science® Google Scholar
46 Allen M. B. and Vincent S. J., Fault reactivation in the Junggar region, northwest China: the role of basement structures during Mesozoic-Cenozoic compression, Journal of the Geological Society. (1997) 154, no. 1, 151–155, https://doi.org/10.1144/gsjgs.154.1.0151, 2-s2.0-0030833840.
10.1144/gsjgs.154.1.0151
Web of Science® Google Scholar
47 Zhao J. M., Huang Y., Ma Z. J., Shao X. Z., Cheng H. G., Wang W., and Xu Q., Discussion on the basement structure and property of northern Junggar Basin (in Chinese with English abstract), Chinese Journal of Geophysics. (2008) 51, no. 6, 1767–1775.
Web of Science® Google Scholar
48 Chen X. H., Lu F., Shu L. S., Wang H. M., and Zhang G. Q., Study on tectonic evolution analysis of Junggar Basin (in Chinese with English abstract), Geological Journal of China Universities. (2002) 8, 257–267.
Google Scholar
49 He D. F., Jia C. Z., Zhou X. Y., Shi X., Wang Z. M., Pi X. J., and Zhang C. J., Control principles of structures and tectonics over hydrocarbon accumulation and distribution in multi-stage superimposed basins (in Chinese with English abstract), Acta Petrolei Sinica. (2005) 26, 1–9.
PubMed Google Scholar
50 Pang X. Q., Luo X. R., Jang Z. X., Lin C. S., Zhang S. C., Zhong N. N., and Li Z., Advancements and problems on hydrocarbon accumulation research of complicated superimposed basins in western China (in Chinese with English abstract), Advances in Earth Science. (2007) 27, 879–887.
Google Scholar
51 Wang Y. T. and Jiang S. B., Deep origin and exploration for the hydrocarbon of the Lunan uplift on the hinterland of the Junggar Basin (in Chinese with English abstract), Experimental Petroleum Geology. (1999) 21, 34–40.
Google Scholar
52 Wang X. L. and Kang S. F., Analysis on the oil source of the Mabei oilfield of northwest Junggar Basin (in Chinese with English abstract), Journal of Southwest Petroleum Institute. (2001) 23, 6–9.
CAS Google Scholar
53 Chen J. P., Wang X. L., DENG C. P., Liang D. G., Zhang Y. Q., Zhao Z., Ni Y. Y., Zhi D. M., Yang H. B., and Wang Y. T., Geochemical features of source rocks and crude oil in the Junggar Basin, northwest China, Acta Geologica Sinica. (2016) 90, no. 1, 37–67.
CAS Google Scholar
54 Cao J., Xia L., Wang T., Zhi D., Tang Y., and Li W., An alkaline lake in the Late Paleozoic Ice Age (LPIA): a review and new insights into paleoenvironment and petroleum geology, Earth-Science Reviews. (2020) 202, article 103091, https://doi.org/10.1016/j.earscirev.2020.103091.
10.1016/j.earscirev.2020.103091
Web of Science® Google Scholar
55 Gao C. H., Zha M., Qu J. X., and Ding X. J., Fluid inclusion characteristics and hydrocarbon accumulation stages of unconformable reservoirs in the northwest margin of the Junggar Basin, Natural Gas Industry. (2015) 35, no. 11, 23–32.
Google Scholar
56 McDonough W. F. and Sun S. S., The composition of the Earth, Chemical Geology. (1995) 120, no. 3-4, 223–253, https://doi.org/10.1016/0009-2541(94)00140-4, 2-s2.0-0028812936.
10.1016/0009-2541(94)00140-4
CAS Web of Science® Google Scholar
57 Taylor S. R. and McLennan S. M., The geochemical evolution of the continental crust, Reviews of Geophysics. (1995) 33, no. 2, 241–265, https://doi.org/10.1029/95RG00262, 2-s2.0-0028830453.
10.1029/95RG00262
Web of Science® Google Scholar
58 Gray D. R., Gregory R. T., and Durney D. W., Rock-buffered fluid-rock interaction in deformed quartz-rich turbidite sequences, eastern Australia, Journal of Geophysical Research: Solid Earth. (1991) 96, no. B12, 19681–19704, https://doi.org/10.1029/91JB01639.
10.1029/91JB01639
Web of Science® Google Scholar
59 White, Geochemistry, 2007, Wiley.
Google Scholar
60 Surdam R. C., Crossey L. J., and Hagen E. S., Organic-inorganic interactions and sandstone diagenesis, AAPG Bulletin. (1989) 77, no. 1, 1–23.
Google Scholar
61 Surdam R. C. and Heasler H. P., Techniques for the Delineation of Liquid Hydrocarbon Resources Using Maturation and Enhanced Eeservoir Porosity Models, 1990, Wyoming University, Laramie, WY (United States).
Google Scholar
62 Stoessell R. K. and Pittman E. D., Secondary porosity revisited: the chemistry of feldspar dissolution by carboxylic acids and anions, AAPG Bulletin. (1990) 74, no. 12, 1795–1805.
CAS Web of Science® Google Scholar
63 Knauss K. G. and Wolery T. J., The dissolution kinetics of quartz as a function of pH and time at 70°C, Geochimica et Cosmochimica Acta. (1988) 52, no. 1, 43–53, https://doi.org/10.1016/0016-7037(88)90055-5, 2-s2.0-0023815548.
10.1016/0016-7037(88)90055-5
CAS Web of Science® Google Scholar
64 Dove P. M. and Crerar D. A., Kinetics of quartz dissolution in electrolyte solutions using a hydrothermal mixed flow reactor, Geochimica et Cosmochimica Acta. (1990) 54, no. 4, 955–969, https://doi.org/10.1016/0016-7037(90)90431-J, 2-s2.0-0025247435.
10.1016/0016-7037(90)90431-J
CAS Web of Science® Google Scholar
65 Crundwell F. K., On the mechanism of the dissolution of quartz and silica in aqueous solutions, ACS Omega. (2017) 2, no. 3, 1116–1127, https://doi.org/10.1021/acsomega.7b00019, 2-s2.0-85028934955, 31457494.
10.1021/acsomega.7b00019
CAS PubMed Web of Science® Google Scholar
66 Qiu L. W. and Jiang Z. X., Alkaline Diagenesis of Terrigenous Clastic Rocks, 2006, Geological Press, Beijing.
Google Scholar
67 Sullivan K. B. and McBride E. F., Diagenesis of sandstones at shale contacts and diagenetic heterogeneity, Frio Formation, Texas, AAPG Bulletin. (1991) 75, no. 1, 121–138.
Web of Science® Google Scholar
68 Zheng J. M. and Ying F. X., Reservoir characteristics and diagenetic model of sandstone intercalated in coal-bearing strata (acid water medium), Acta Petrolei Sinica. (1997) 18, no. 4, 19–24.
CAS Google Scholar
69 Yu K., Cao Y., Qiu L., and Sun P., Depositional environments in an arid, closed basin and their implications for oil and gas exploration: the lower Permian Fengcheng Formation in the Junggar Basin, China, AAPG Bulletin. (2019) 103, no. 9, 2073–2115, https://doi.org/10.1306/01301917414, 2-s2.0-85072270539.
10.1306/01301917414
Web of Science® Google Scholar
70 Xia L., Cao J., Wang M., Mi J., and Wang T., A review of carbonates as hydrocarbon source rocks: basic geochemistry and oil–gas generation, Petroleum Science. (2019) 16, 713–728.
10.1007/s12182-019-0343-5
CAS Web of Science® Google Scholar
71 Bau M. and Dulski P., Comparative study of yttrium and rare-earth element behaviours in fluorine-rich hydrothermal fluids, Contributions to Mineralogy and Petrology. (1995) 119, no. 2-3, 213–223, https://doi.org/10.1007/BF00307282, 2-s2.0-0029530477.
10.1007/BF00307282
CAS Web of Science® Google Scholar
72 Anders E. and Grevesse N., Abundances of the elements: meteoritic and solar, Geochimica Et Cosmochimica Acta. (1989) 53, no. 1, 197–214, https://doi.org/10.1016/0016-7037(89)90286-X, 2-s2.0-0024528508.
10.1016/0016-7037(89)90286-X
CAS Web of Science® Google Scholar
73 Bau M., Mller P., and Dulski P., Yttrium and lanthanides in eastern Mediterranean seawater and their fractionation during redox-cycling, Marine Chemistry. (1997) 56, no. 1-2, 123–131, https://doi.org/10.1016/S0304-4203(96)00091-6, 2-s2.0-0031081789.
10.1016/S0304-4203(96)00091-6
CAS Web of Science® Google Scholar
74 Liu G. D., Gao G., Huang Z. L., and Yang H. F., Oil source and accumulation in the overthrust belt in the Ke-Bai region, Junggar Basin, West China, Petroleum Science. (2010) 7, no. 1, 31–39, https://doi.org/10.1007/s12182-010-0004-1, 2-s2.0-76049091441.
10.1007/s12182-010-0004-1
CAS Web of Science® Google Scholar
75 Wang A. G., Yi L. P., Xiang B. L., Li J., Fan C. Y., Li C. Y., Zhou N., and Wang Y., Origin of deep heavy oils in the northwestern Junggar Basin (NW China) and implications for gas migration, Energy Exploration & Exploitation. (2020) 38, no. 4, 819–840, https://doi.org/10.1177/0144598720903390.
10.1177/0144598720903390
Web of Science® Google Scholar
76 Ma A. L., Advancement in application of diamondoids on organic geochemistry, Journal of Natural Gas Geoscience. (2016) 1, no. 4, 257–265, https://doi.org/10.1016/j.jnggs.2016.09.001.
10.1016/j.jnggs.2016.09.001
Google Scholar
77 Gordadze G. N., Kerimov V. Y., Gaiduk A. V., Giruts M. V., Lobusev M. A., Serov S. G., Kuznetsov N. B., and Romanyuk T. V., Hydrocarbon biomarkers and diamondoid hydrocarbons from late Precambrian and lower Cambrian rocks of the Katanga saddle (Siberian platform), Geochemistry International. (2017) 55, no. 4, 360–366, https://doi.org/10.1134/S0016702917040024, 2-s2.0-85018522888.
10.1134/S0016702917040024
CAS Web of Science® Google Scholar
78 Niwa M., Mizuochi Y., and Tanase A., Changes in chemical composition caused by water-rock interactions across a strike-slip fault zone: case study of the Atera fault, Central Japan, Geofluids. (2015) 15, no. 3, 387–409, https://doi.org/10.1111/gfl.12096.
10.1111/gfl.12096
CAS Web of Science® Google Scholar
79 Zhao Z. Y., Zhao J. H., Wang H. J., Liao J. D., and Liu C. M., Distribution characteristics and applications of trace elements in Junggar Basin, Natural Gas Exploration and Development. (2007) 30, no. 2, 30–32.
Google Scholar

Citing Literature

All articles

Chemically Active Elements of Reservoir Quartz Cement Trace Hydrocarbon Migration in the Mahu Sag, Junggar Basin, NW China

Abstract

1. Introduction

2. Geological Setting

3. Samples and Methods
