In this study, a novel integrated guidance and control (IGC) algorithm based on an IGC method and the asymmetric barrier Lyapunov function is designed; this algorithm is designed for the interceptor missile which uses a direct-force/aerodynamic-force control scheme. First, by considering the coupling between the pitch and the yaw channels of the interceptor missile, an IGC model of these channels is established, and a time-varying gain extended state observer (TVGESO) is designed to estimate unknown interferences in the model. Second, by considering the system output constraint problem, an asymmetric barrier Lyapunov function and a dynamic surface sliding-mode control method are employed to design the control law of the pitch and yaw channels to obtain the desired control moments. Finally, in light of redundancy in such actuators as aerodynamic rudders and jet devices, a dynamic control allocation algorithm is designed to assign the desired control moments to the actuators. Moreover, the results of simulations show that the IGC algorithm based on the asymmetric barrier Lyapunov function for the interceptor missile allows the outputs to meet the constraints and improves the stability of the control system of the interceptor missile.

1. Introduction

The interceptor missile plays an important role in modern anti-missile systems. Given the rapid development of hypersonic aircraft, demands on accurate guidance and control of the interceptor missile has become increasingly stringent. To cope with high-speed aircraft with a strong penetration capability, the interceptor missile generally adopts a direct-force/aerodynamic-force control scheme that can accelerate the speed of command response. The guidance and control system of the interceptor missile is a highly dynamic and multivariate system of strong coupling, rapid temporal change, and uncertainty, thereby making it critical to the examination of the guidance and control of interceptor missile at high speed with strict control requirements.

Integrated guidance and control (IGC) refers to using the relative interceptor–target motion information and the dynamic information of the interceptor missile to generate a control force that drives it to strike the target. IGC allows for a rational allocation of interceptor missile control capability to not only maintain the interceptor missile’s flight attitude but also improve the precision of its guidance [1, 2]. The authors in [3, 4] explored the IGC control law by using high-order sliding-mode control methods and backstepping control algorithms. On the basis of backstepping control algorithms, the authors in [5, 6] considered saturation factors and introduced dynamic models of actuators models to design algorithms for longitudinal and anti-saturation IGC for aircraft. An adaptive sliding-mode control method was used to implement the design of an IGC system on the pitch plane to configure missiles to attack ground targets [7], but the problem of target mobility was not considered. Based on a backstepping method, the missile control loop was regarded as a second-order element in the study [8], which introduced a first-order integral filter to estimate the derivative of the input to the virtual control and design the control law. Based on a three-dimensional (3D) ICG model, a robust adaptive backstepping method was implemented to design an IGC algorithm for a missile [9]. Methods of IGC design have been widely used in guidance and control systems of aircraft [10], missiles [11–13], and unmanned aerial vehicles [14, 15]. In recent years, researchers have combined this method with modern control theories, such as dynamic surface control [16], optimal control [17], and predictive control [18], to generate methods of IGC design for aircrafts. However, most prevalent IGC design methods do not consider the coupling relationship between the pitch and the yaw channels. Moreover, to improve the stability of the guidance process, constraints concerning the angular velocities of the line of sight during the guidance of the interceptor missile should be considered.

Nonlinearity commonly exists in the IGC system of the interceptor missile. In recent years, with practical engineering problems’ increasing demand on the control performance, there has been considerable progress in the development of nonlinear control theory, especially in adaptive control [19], neural network control [20], fuzzy control [21], etc. All of these have laid a solid foundation for the in-depth research of nonlinear control theory. However, in actual engineering applications, the use of nonlinear systems is always subject to input, output, and state constraints, among others, and violation of these constraints can result in the control system’s downgraded performance. Therefore, it has now become an important research direction, when constructing the control system to consider the effect of these constraints and to properly handle them in the controller design process. The authors in [22] proposed an adaptive neural network constrained control algorithm for single-input/single-output nonlinear stochastic switching systems; this algorithm constructed traditional Lyapunov function to handle constraint control, which achieved good results. As barrier Lyapunov function does not require an exact solution of the system, the constrained control method based on barrier Lyapunov function has been widely used in state constraint and output constraint problems in recent years. Barrier Lyapunov function is a special type of continuous function, unlike traditional Lyapunov function which is radially unbounded, in barrier Lyapunov function, when the parameters approach the limit value, the function value will tend to infinity to ensure that the control system satisfies the constraints [23]. Barrier Lyapunov function can be utilized to satisfy the constraints of both symmetric and asymmetric constraint controls, even when the constraint is a time-varying asymmetric one. According to the authors in [24], barrier Lyapunov function has been used to solve constraint problems in a hybrid PDE-ODE system that describes a nonuniform gantry crane system. The authors in [25] proposed an adaptive fuzzy neural network control method using impedance learning for a constrained robot system based on barrier Lyapunov function. According to the authors in [26, 27], barrier Lyapunov functions have been used to solve constraint problems in nonlinear and uncertain systems and to expand the definitions of the constraints. Methods based on these functions can effectively solve problems of symmetrically and asymmetrically constrained control. The authors in [28, 29] have expanded output control constraints to include time-varying outputs while relaxing the limitations on the initial values of control systems. By combining barrier Lyapunov functions with dynamic surface control technologies, some studies [30, 31] have proposed barrier Lyapunov function-based methods suitable for constrained dynamic surface control to solve the computational inflation problem caused by backstepping control. Researchers subsequently applied this method to brushless DC motors [32], plane braking systems [33], and hypersonic aircraft [34, 35] to achieve satisfactory results in terms of constrained control. However, few studies have investigated the application of this method to interceptor missile control. Design methods based on barrier Lyapunov functions are advantageous because they can solve the output constraint problem of interceptor missile guidance control systems and improve their stability.

In view of the above analysis, to aim at the interceptor missile which uses a direct-force/aerodynamic-force control scheme, and to consider the coupling relationship between the pitch and the yaw channels as well as the constraints on the system’s output, this study proposes an IGC algorithm based on the asymmetric barrier Lyapunov function. First, a time-varying gain extended state observer (TVGESO) is designed to estimate interferences in the system. Second, an asymmetric barrier Lyapunov function and a dynamic surface sliding-mode control method, respectively, are used to design control laws for the interceptor missile to obtain the desired moments. Finally, a dynamic control allocation algorithm is designed to allocate the desired control moments. The results of simulations show that the proposed algorithm enables the outputs to meet the constraints and improves the stability of the interceptor missile control systems.

2. IGC Model of Interceptor Missile

The relationship of relative motion between the interceptor missile and its target in 3D space is shown in Figure 1.

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

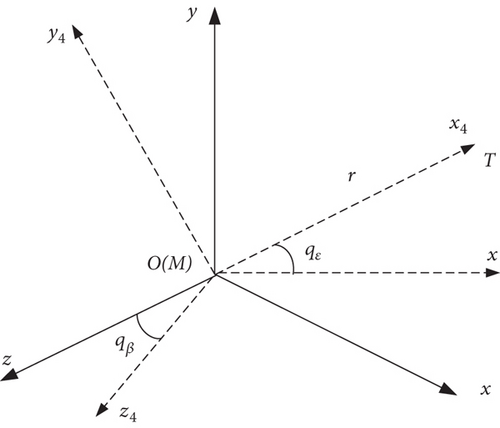

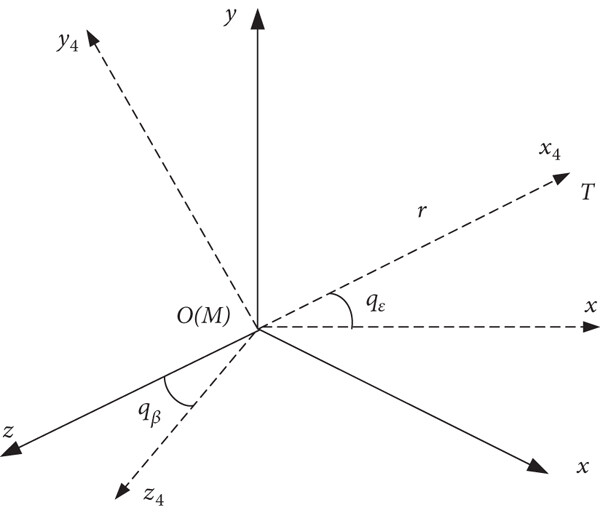

The relative relationship between the interceptor missile and its target in 3D space.

In the figure, Oxyz refers to an inertial coordinate system and Ox₄y₄z₄ refers to a line-of-sight coordinate system, respectively; M and T refer to the interceptor missile and the target, respectively; q_ε and q_β are the vertical and horizontal angles of the line of sight with the interceptor missile and the target, respectively, and r denotes the relative distance between the interceptor missile and the target. The model of the relative motion of the interceptor missile and target is as follows:

(1)

where

and

denote the vertical and horizontal angular velocities of the line of sight with the interceptor missile and the target, respectively; a_m4ε and a_m4β denote the longitudinal and lateral accelerations of the interceptor missile, respectively; and a_tε and a_tβ denote the longitudinal and lateral accelerations of the target, respectively.

The interceptor missile uses a direct-force/aerodynamic-force control scheme. Assuming that the direct force is adjustable and continuous, the angles of deflection of the rudder equivalent to the direct force in the pitch and the yaw channels are, respectively, defined as

(2)

where F_z and F_y denote the thrust generated by the jet device, and F_smax is the maximum steady-state thrust of the jet devices.

In light of the coupling relationship between the pitch and yaw channels of the interceptor missile, its dynamic model is expressed as follows:

(3)

(4)

where S is the reference area of the interceptor missile; q is the dynamic pressure; V_m is the speed of the interceptor missile;

is its reference length; L_m is the average distance between the jet device and its center of mass; m is the mass of the interceptor missile; α and β denote the attack angle and the sideslip angle, respectively; ω_z and ω_y denote the angular velocities of the pitch and the yaw, respectively; δ_z and δ_y denote the angles of deflection of the aerodynamic rudder; K_z and K_y denote the amplification factors of moment (used to describe the effect of the mutual interference between lateral jets and incoming flow on the aerodynamic moment of the interceptor missile); d_α,

, d_β, and

refer to the disturbances and uncertain interferences at each link of the system; J_z and J_y refer to the moments of inertia;

, and

refer to the relevant aerodynamic forces and coefficients of moment; and a_m3ε and a_m3β refer to the vertical and lateral overloads of the interceptor missile, respectively.

Assuming that the angle of the line of sight of the interceptor missile in the terminal guidance stage changes slightly and that the angle of line of sight and direction of velocity of the interceptor missile are relatively small, let a_m3ε = a_m4ε and a_m3β = a_m4β. According to Equations (1)–(4), by defining x_z1 = q_ε,

, x_z3 = α, x_z4 = ω_z, x_y1 = q_β,

, x_y3 = β, and x_y4 = ω_y, one can have the nonlinear IGC model in the pitch channel for the interceptor missile:

(5)

where

, g_z3 = 1/J_z, d_z3 = ω_ytanβsinα + d_α,

, and

, with u_z representing the moment generated jointly by both the aerodynamic rudders and the jet devices in the pitch channels.

Similarly, the nonlinear IGC model for the interceptor missile in its yaw channel is as follows:

(6)

where

, g_y3 = 1/J_y,

, and

, with u_y representing the moment generated jointly by both the aerodynamic rudders and the jet devices in the yaw channel.

Assumption 1. The unknown interferences d_z3, d_z4, d_y3, and d_y4 in the IGC models in Equations (5) and (6) of the interceptor missile are continuously differentiable, and the derivatives are bounded.

3. Design of TVGESO

A TVGESO can estimate nonlinear uncertainties in the model of the system and feed the estimates back into the control system for compensation. To eliminate the effects of unknown uncertain interferences a_tε, a_tβ, d_z3, d_z4, d_y3, and d_y4 in the system models in Equations (5) and (6) on the control system of the interceptor missile, a TVGESO is designed to estimate these interferences.

By defining

, and

, one obtains

(7)

(8)

Considering the system in Equation (5) and Equation (7), one can design the following TVGESO to estimate acceleration a_tε of the target:

(9)

where

; v_z21 and v_z22, respectively, are the estimated values of v_ε and a_tε; e_z21 and e_z22 are the estimated errors; and λ_z21 and λ_z22 are the time-varying gain coefficients designed for the state observer. They are defined as λ_z21 = 2L(t) and λ_z22 = L²(t), respectively. Function L(t) is defined as

(10)

where γ is the adaptive coefficient and is greater than zero. As indicated in the literature [36], appropriate values of the coefficient can ensure that the error system of the TVGESO is stable for a limited time.

Similarly, by estimating interferences d_z3 and d_z4 of the angle-of-attack loop and the pitch angular velocity loop, respectively, in Equation (5), one can obtain the following:

(11)

(12)

where

and

, the interferences d_z3 and d_z4 are estimated as v_z32 and v_z42, respectively, and the estimation errors for them are denoted by e_z32 and e_z42, respectively.

According to Equations (9)–(12), the interferences a_tβ, d_y3, and d_y4 in the system in Equation (6) have estimated values of v_y22, v_y32, and v_y42, respectively, with the estimation errors of e_y22, e_y32, and e_y42, respectively.

4. Design of the Dynamic Surface Sliding-Mode Control Law Based on Asymmetric Barrier Lyapunov Function

Let us define ζ as an open region containing the origin and the barrier Lyapunov function V(x) as a scalar function defined in ζ for the system . It also has the following characteristics: (1) smooth and positive definite, (2) has a first-order continuous partial derivative at each point in ζ, (3) tends to infinity when x approaches the edge of ζ, and (4) satisfies the expression V(x(t)) ≤ b for ∀t ≥ 0 if x(0) ∈ ζ, where b > 0.

Assumption 2. For any t > 0, there exist constants and that satisfy and , with their derivatives satisfying , , i = 1, 2, and ∀t ≥ 0.

Assumption 3. For any 和 , there exist functions and as well as positive constants Y₁ and Y₂ satisfying and , such that they make the system track command x_2d = diag{x_z2d, x_y2d}, and its time derivative satisfies and as well as for ∀t ≥ 0. There exists a continuous set satisfying .

Given that the IGC model of interceptor missile is a mismatching and uncertain system, to enable the guidance and control system to accurately pursue the target, and not violating the constraints on the control system, the control law allows using a dynamic surface sliding mode algorithm based on the asymmetric barrier Lyapunov function. It can enable the control system to pursue the target highly precisely, meanwhile ensuring that the closed-loop system is consistent and ultimately bounded, and the tracking error converges to a small set.

4.1. Design of Control Law for Pitch Channel

For the system in Equation (5), define x_z2d as the system’s track command signal.

(1)
Define the first dynamic error surface:

(13)

Taking the derivative of s_z2, one obtains the error dynamic equation:

(14)

Because the backstepping method does not have a perfect solution to the expansion of items and the problems caused by the expansion of items in the derivation process of the virtual control, this shortcoming is particularly prominent in the higher-order system. By using the dynamic surface control method and using the first-order filter to calculate the derivative of the virtual control, the expansion of the differential items can be eliminated and the controller and parameters can be designed simply [37]. Introduce virtual control variables

and

. To avoid complicated calculations of the expansion of the number of items during the derivation of the virtual control variables, the virtual control variable

before filtering is passed through a first-order low-pass filter to become the virtual control variable

(15)

In the above expression, τ_z3 is the filter’s time constant, τ_z3 > 0, and the filtering error is defined as .

Considering boundary layer errors of the dynamic surface, one can construct the following asymmetric barrier Lyapunov function:

(16)

where

(17)

, log(•) represents a natural logarithm, and

and

represent output constraints.

Given the independence characteristic of the output constraints and , the tracking error constraints k_a11 and k_b11 can be designed independently. When constraints k_a11 and k_b11 are constant, and k_a11 ≠ k_b11, the output constrained control can be extended to a static asymmetric constraint, whereas the output constraint becomes a symmetric constraint when k_a11 = k_b11. This means that the initial output can be changed depending on the setting of the constraint. It is evident that the asymmetric barrier Lyapunov function relaxes the constraint on the initial condition of the output.

As shown by Equation (16), the expression V_z1 ≥ 0 simplifies to V_z1 = 0 if and only if s_z2 = 0 and simultaneously. Therefore, V_z1 is a positive-definite function in the range −k_a11 < s_z2 < k_b11. Moreover, given , V_z1 is a piecewise continuously differentiable function in the ranges s_z2 ∈ (−k_a11, 0] and s_z2 ∈ (0, k_b11). Therefore, V_z1 is a valid Lyapunov function that can ensure that the system’s output error is constrained in the ranges s_z2 ∈ (−k_a11, 0] and s_z2 ∈ (0, k_b11).

Substituting the estimated values of TVGESO in Equation (9), one can design the virtual control variable for the first dynamic surface as shown in Equation (18):

(18)

where k_z2 > 0, g_z2 > 0, and r > 0, and the control coefficient

is defined as

(19)

According to Equation (15), the derivative of the virtual control variable for the error surface after filtering is

(20)

(2)
Define the second dynamic error surface as

(21)

By taking the derivation of s_z3, one can obtain the equation for the dynamic error as follows:

(22)

Introduce two virtual control variables

and

. By passing the virtual control variable

through a first-order low-pass filter, one obtains the virtual control variable

(23)

In Equation (23), τ_z4 denotes the filter time constant, τ_z4 > 0, and the filtering error is defined as .

Construct the following Lyapunov function:

(24)

By substituting the estimated values of TVGESO into Equation (11), one can design the virtual control variable for the second dynamic surface as shown in Equation (25):

(25)

where k_z3 > 0 and

According to Equation (23), the derivative of the virtual control variable for the error surface after filtering is

(26)

(3)
Define the third dynamic error surface:

(27)

By taking the derivative of s_z4, one can obtain the equation of error dynamic as follows:

(28)

Construct the following Lyapunov function:

(29)

By substituting v_z42 with the estimated values of TVGESO in Equation (12), one can design the dynamic sliding-mode control law of the interceptor missile as shown in Equation (30):

(30)

where k_z4 > 0, k_z5 > 0, 0 < ∂_z < 1, and g_z3 > 0.

4.2. Stability Analysis of Control Law for Pitch Channel

(31)

where γ₁ and γ₂ are K_∞ functions. Suppose V(η)≔V₁(S₁) + U(ϖ) and S₁(0) ∈ S₁. If the inequality,

(32)

is valid in the domain

, and c and υ are positive constants, then S₁(t) is still in the set for ∀t ∈ [0, ∞).

Lemma 1 (see [20].)For any two functions k_a(t) and k_b(t), suppose S₁≔{S₁ ∈ ℝ:−k_a(t) < S₁ < k_b(t)} ⊂ ℝ and N≔ℝ^l × S₁ ⊂ ℝ^l+1 to be open sets. For system with as state, function h : ℝ₊ × N → ℝ^l+1 is piecewise continuous with respect to t, and S₁ satisfies the Lipschitz condition in ℝ₊ × N. If there exist two functions U : ℝ^l → ℝ₊ and V₁ : S₁ → ℝ₊ that are continuous and positively definite in their domains, respectively, the following two expressions are valid when S₁→−k_a(t) or S₁ → k_b(t):

Theorem 1. For the closed-loop system Equation (5), if the virtual control variables and the control law satisfy Equations (18), (25), and (30), then for any set to which the initial condition y_z(0) belongs, there always exists a sufficiently large set that can prevent the system’s output constraints from being violated. Moreover, by selecting appropriate design parameters, it is possible to bound all closed-loop signals of the closed-loop system Equation (5) and make the output error converge in the neighborhood of the origin.

Proof 1. According to Equations (16), (24), and (29), one can construct a Lyapunov function that is a combination of asymmetric barrier Lyapunov functions and traditional Lyapunov functions as follows:

(33)

By taking derivatives on both sides of the Lyapunov function in Equation (33), one obtains Equation (34):

(34)

where

Define the estimated error of the TVGESO system to satisfy Equation (35):

(35)

where N_z2, N_z3, and N_z4 are positive constants.

It can be seen that the filtering errors are

(36)

By taking derivatives of y_z3 and y_z4, one obtains the dynamic filtering errors:

(37)

From Equations (13)–(30) and (36), one has

(38)

From Equations (13)–(28) and (36)–(38), one has

(39)

where

, and it is assumed that

is a positive constant, and

(40)

(41)

According to Young’s inequality and Equations (39)–(41), one has

(42)

(43)

(44)

It is clear that the variables in the system model and their derivatives are all bounded. If there exist continuous functions

and

that satisfy

and

, the variables

and

satisfy

(45)

According to Young’s inequality and Equations (36)–(37) and (45), one has

(46)

(47)

By substituting Equations (42)–(47) into Equation (34) and arranging the terms, one has

(48)

For convenience of description, define the following parameters:

(49)

Then, Equation (48) can be rewritten as

(50)

In the set −k_a11(t) < s_z2 < k_b11(t), one has

(51)

Then, Equation (50) can be further rewritten as

(52)

Define positive-definite matrix Q as

(53)

By selecting κ = min[2λ_min(Q), 2σ_z3, 2σ_z4], where κ is a positive constant and λ_min(Q) denotes the minimum eigenvalue of matrix Q, one has

(54)

Define two sets

and

that satisfy

and

. From s_z2(0) = y_z(0) − x_z2d(0), one has

(55)

Therefore, set M_z is an invariant set. According to Lemma 1, it can be seen that given

, the following expression is valid for ∀t ≥ 0:

(56)

According to Equations (13) and (56), one has the following expression for ∀t ≥ 0:

(57)

Therefore, it can be concluded that for any initial compact set defined by , there is always a sufficiently large compact set M_z to make y_z ∈ M_z for ∀t ≥ 0.

Define parameters according to Equation (48) to satisfy the following rules:

(58)

Multiply both sides of Equation (54) by e^κt and arrange the terms to obtain the following expression:

(59)

Therefore, it is clear that by designing parameters k_z2, k_z3, k_z4, and k_z5 and parameters τ_z3 and τ_z4, it is possible to ensure that all closed-loop signals of the system are bounded. Opting to increase k_z2, k_z3, k_z4, and k_z5 and decrease τ_z3 and τ_z4 can ensure that κ is sufficiently large to make the filtering errors and the error surface small enough to control accuracy. Q.E.D.

Remark 1. Theoretically, larger values of the designed parameters k_z2, k_z3, k_z4, and k_z5; smaller ones of τ_z3 and τ_z4; the final boundary of the resulting error surfaces s_z2, s_z3, and s_z4; and filtering errors y_z3 and y_z4 indicate an increase in the precision of control. However, in practice, very large values of k_z2, k_z3, k_z4, and k_z5, and very small ones of τ_z3 and τ_z4 can easily lead to input saturation in interceptor missile control systems, which triggers the saturation nonlinearity of the system such that the required overloads of the interceptor missile are beyond the available capacity, resulting in a reduction in the system’s control performance. Moreover, given the physical limitations of the low-pass filter, τ_z3 and τ_z4 should not be chosen to be arbitrarily small. Therefore, the parameters of the control algorithm should be properly selected in light of practical considerations.

4.3. Design of Control Law for Yaw Channel

Based on the design of the control law for the pitch channel, one can substitute v_y22, v_y32, and v_y42—the estimated interferences of the TVGESO—into the system of Equation (6) and define x_y2d as the system’s track command sign for the following form of control law for the yaw channel:

(60)

where

(61)

, k_y2 > 0, k_y3 > 0, k_y4 > 0, k_y5 > 0, 0 < ∂_y < 1, g_y2 > 0, g_y3 > 0, and r > 0. The parameters s_y2, s_y3, and s_y4 are error surfaces; τ_y3 and τ_y4 are filter time constants, τ_y3 > 0 and τ_y4 > 0;

and

are virtual control variables of the system Equation (6); and

and

, respectively, are virtual control variables after filtering.

According to the stability analysis method in Equations (33)–(59), it can be proven that the closed-loop system of Equation (6) is stable and the system’s control precision can be achieved by designing appropriate parameters.

5. Dynamic Control Allocation Algorithm

Based on Equations (30) and (60), one can obtain the control moments jointly generated by the aerodynamic rudders and the jet devices using control inputs u_z and u_y as the desired control moments. Therefore, it is necessary to use a dynamic control allocation technique to distribute the desired control moments to the actuators.

Define virtual control moment u as

(62)

where

(63)

, B_z2 = (1 + K_z)F_smaxL_m, , and B_y2 = (1 + K_y)F_smaxL_m.

Given that actuators are subject to physical constraints, such as structural and load-related constraints, the range of deflection and speed are limited. Define the control moment as in the feasible range δ_min(t) ≤ δ(t) ≤ δ_max(t). To achieve stable control performance, define the rate of change of the control moment to satisfy

, where δ_min and δ_max are the minimum and maximum positional constraints of the actuators, respectively, with

and

being, respectively, the minimum and maximum speed constraints. Using T to denote sampling time, one can rewrite the feasible range of the actuators as

(64)

where

and

To achieve stable and smooth actuator trajectories to suppress the impacts of noise and interference on the controller, a dynamic control allocation algorithm is designed to solve the allocation problem between the aerodynamic rudders and the jet devices.

The dynamic control allocation problem can be expressed as the following hybrid optimization problem:

(65)

where

, and

‖·‖ represents a norm defined as , δ_s(t) denotes the desired control command of the actuators, J₀ denotes the minimum energy principle, J₁ denotes the minimum error principle for the desired control commands of the actuators, and J₂ denotes the minimum transition rate principle for the relative sampling time of the expected control commands.

Define diagonal matrices R₀, R₁, and R₂ with corresponding dimensions

(66)

where

(67)

and

(68)

with δ_i(t),

, δ_si(t),

, δ_i(t − T),

, and

the elements of the corresponding vectors i ∈ {1, 2, 3, 4}.

Theorem 2. The hybrid optimization problem in Equation (65) is equivalent to

(69)

where

, and

, and the general solution is given in Equation (70):

(70)

where

, and

Proof 2. From Equation (69), one has

(71)

where

. Therefore, the optimization problem in Equation (69) is equivalent to

(72)

According to the weighted pseudo-inverse theorem [38], the general solution of the optimization problem in Equation (69) is

(73)

By substituting Equation (71) into Equation (73), one can find that Theorem 2 is valid. Q.E.D.

Remark 2. By including the minimum error term related to the error between the command of the given step and those one or two steps prior, the purpose is to reduce chattering in the system and smoothen the control commands. By increasing the coefficient matrices R₀, R₁, and R₂, one can solve the constraint problem of control moment to solve the optimization problem.

6. Simulation Analysis

To verify the effectiveness of the asymmetric barrier Lyapunov function-based IGC algorithm designed in this study for the interceptor missile, it was assumed that given an interceptor missile, its initial position was (Xm, Ym, Zm) = (0 m, 0 m, 0 m), its initial velocity was V_m0 = 1600 m/s, and the initial position of the target was (Xt, Yt, Zt) = (5000 m, 6000 m, 4000 m), and the initial velocity was V_t0 = 1200 m/s. The rudder deflection angle of the interceptor missile was limited in the range -30° to +30°, the angular velocity of the rudder’s deflection was limited in the range -300°/s to +300°/s, the maximum steady-state thrust of the jet devices was F_smax = 4800 N, and the their moment amplification factor was K_z = K_y = 0.3. The asymmetric output constraints were and , and the time-varying asymmetric output constraints were and . The aerodynamic parameters of the interceptor missile are shown in Table 1.

Table 1. Aerodynamic parameters of the interceptor missile.

Parameter	Value	Value
J_z	247.43 kg·m²	19.79
J_y	247.43 kg·m²	-15.26
m	204 kg	-15.26
	0.22 m	-0.16
L_m	2 m	-0.16
S	0.0409 m²	-11.81
	-19.79	-11.81

The method designed in this study (i.e., ABLFIGC+DCA) was compared with the combined use of IGC and the traditional dynamic surface sliding-mode control law (i.e., IGC+DCA). Assuming that the interferences in the system were d_z3 = d_z4 = d_y3 = d_y4 = 0.02sin(t), target interception was maneuvered in the following two scenarios:

Scenario 1. The target was in uniform motion: a_tε = a_tβ = 0 m/s².

Scenario 2. The target was in accelerated motion: a_tε = a_tβ = 10 m/s².

When the asymmetric output constraints were and , the simulation comparison plots of Scenario 1 are shown in Figures 2-6–7.

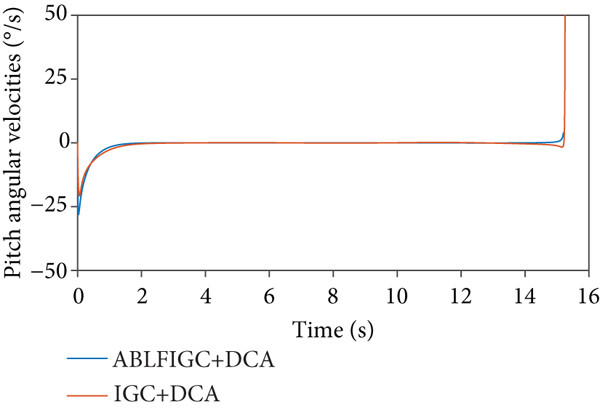

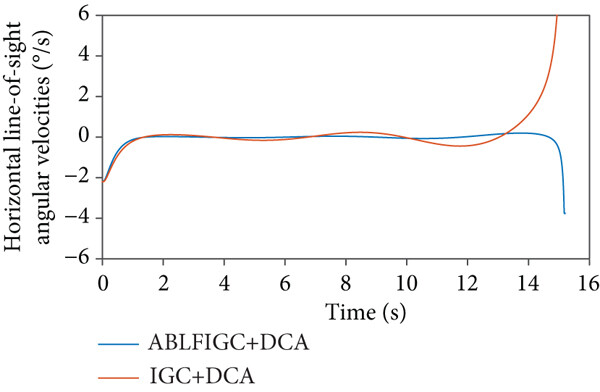

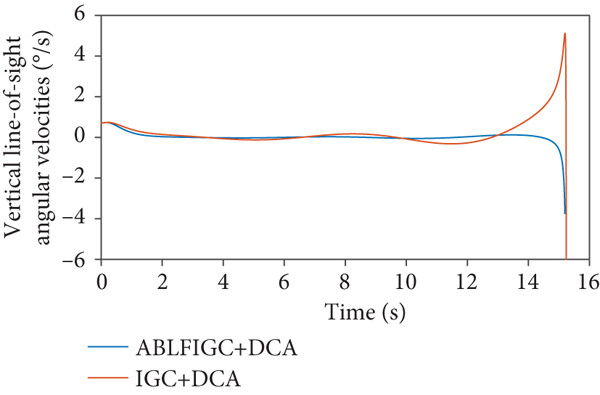

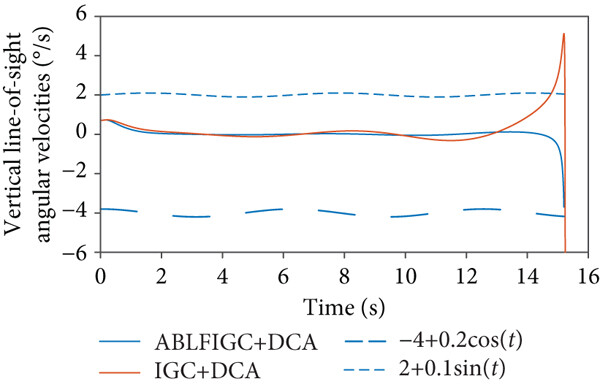

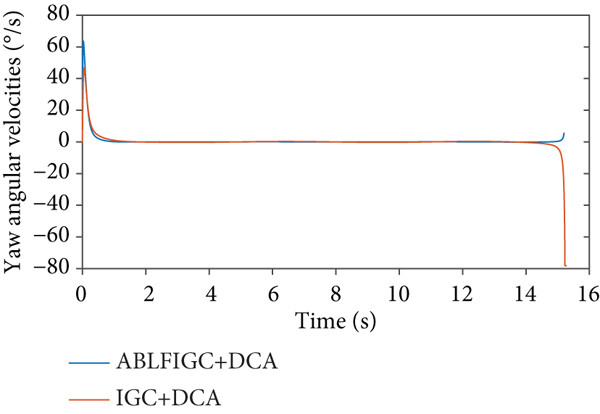

Figures 2 and 3, respectively, show the curves of angular velocities of the vertical and horizontal lines of sight of the interceptor missile in Scenario 1. It is clear that a certain degree of chattering occurred during convergence when the traditional IGC algorithm was used, and the two angular velocities exhibited large jumps in the late stage of guidance. By contrast, the ABLFIGC+DCA algorithm designed in this study caused the two angular velocities to converge more quickly to steady-state values in a smoother convergence process that met the asymmetric output constraints and , thus improving the stability of the guidance and control system and showing good robustness against external interferences.

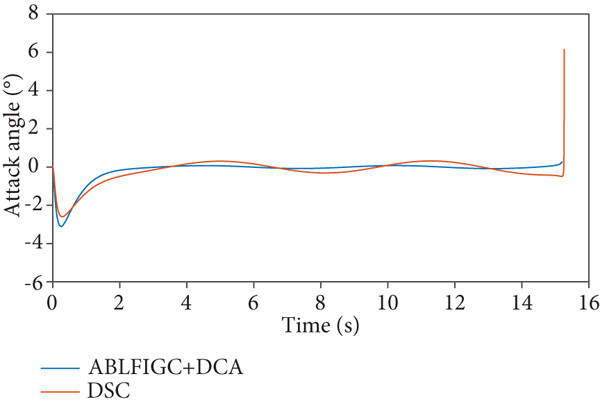

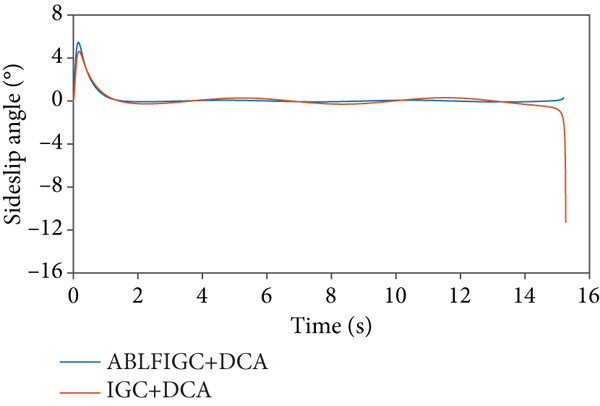

Figures 4–7 show the curves of the attack angle, sideslip angle, and angular velocities of the pitch and yaw of the interceptor missile in Scenario 1, respectively. A certain degree of chattering appeared due to interference when the traditional IGC algorithm was used, and the above four parameters all exhibited large jumps in the late stage of guidance. By contrast, the ABLFIGC+DCA algorithm designed in this study renders the entire convergence process smoother, with the above four parameters stable and not recording large jumps in the late stage of guidance. Moreover, this algorithm showed good robustness against external interference.

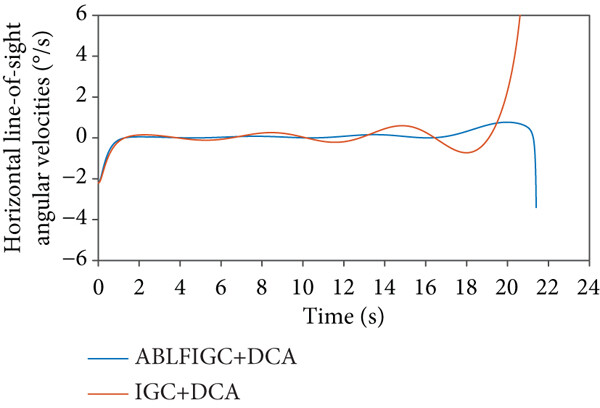

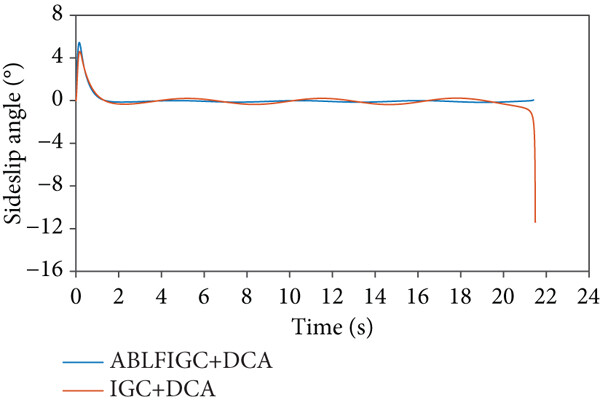

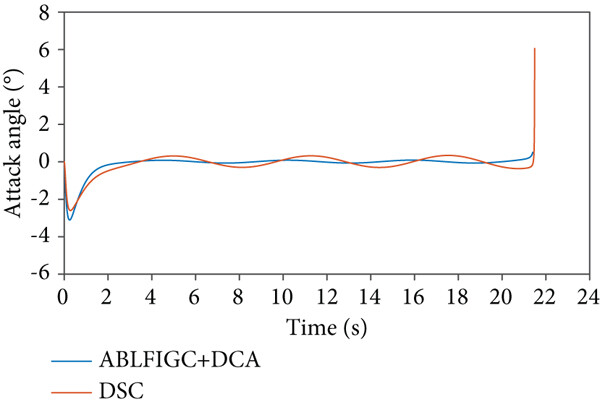

The simulation comparison plots of Scenario 2 are shown in Figures 8–13.

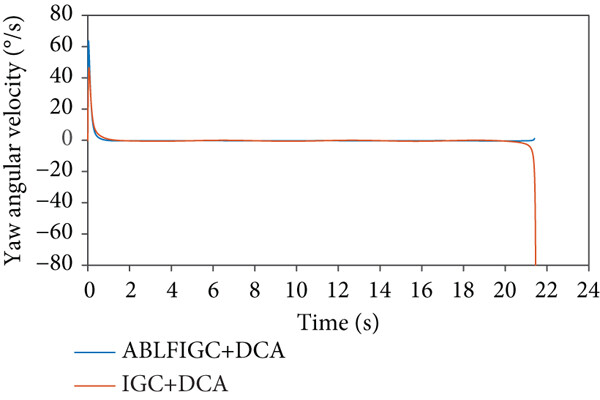

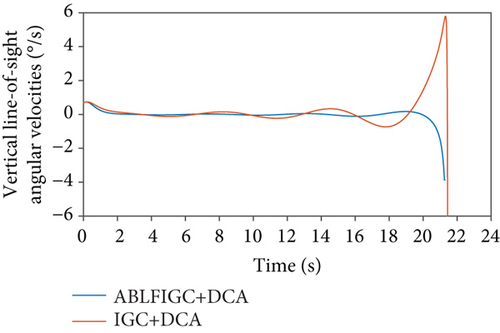

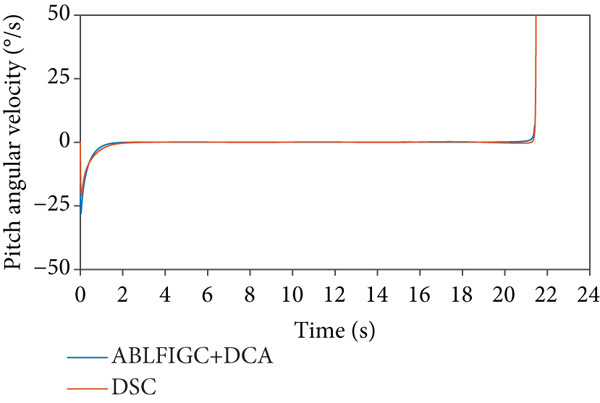

Figures 8–13 show the simulation comparison plots of the target motion Scenario 2. From Figures 8 and 9, it is clear that the ABLFIGC+DCA algorithm smoothened convergence and was free of large jumps in the guidance process, met the asymmetric output constraints and , and showed good robustness against external interference. As shown in Figures 10–13, the ABLFIGC+DCA algorithm ensured that the flight attitude of the interceptor missile was stable and changed smoothly.

The results of comparison of the two scenarios in terms of the target miss distance and interception time of the interceptor missile are shown in Table 2.

Table 2. Comparison of simulation results between the two scenarios.

Scenario	Control mode	Miss distance (m)	Interception time (s)
1	ABLFIGC+DCA	0.608	15.21
1	IGC + DCA	0.792	15.26

2	ABLFIGC+DCA	0.854	21.42
2	IGC + DCA	0.992	21.48

As shown in Table 2, the algorithm designed in this study had a smaller miss distance and interception time than the IGC algorithm subject to the traditional dynamic sliding-mode control law.

For Scenario 1, the simulation comparison plots of δ_z, δ_sy, δ_y, and δ_sz of the actuators obtained by the dynamic control allocation algorithm are shown in Figures 14–17.

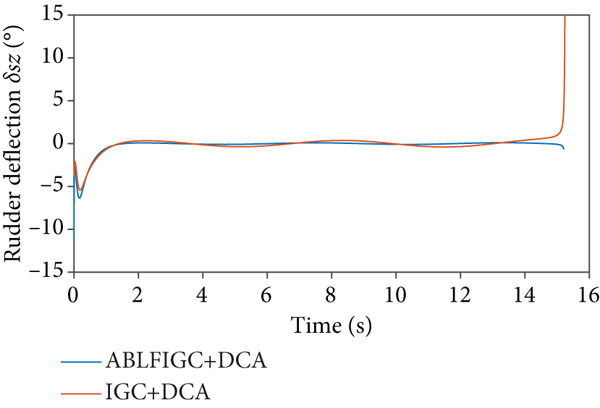

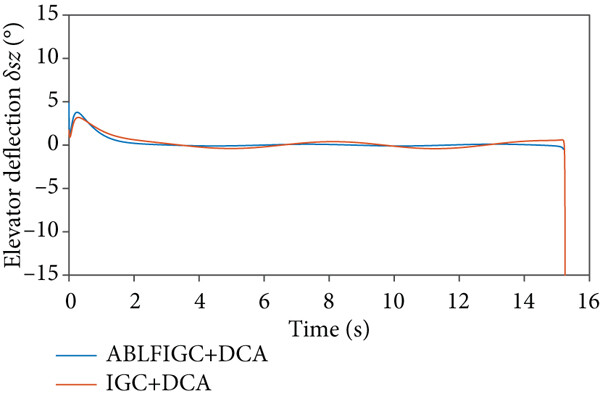

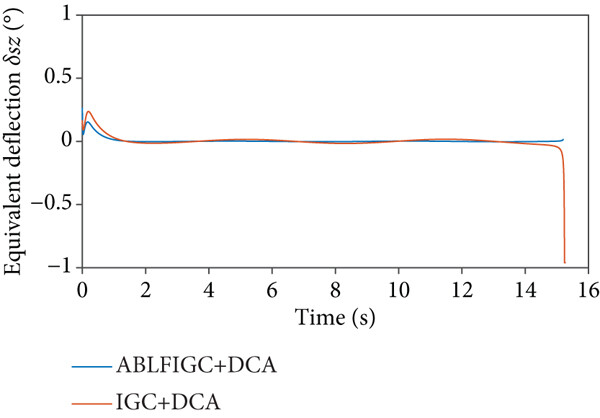

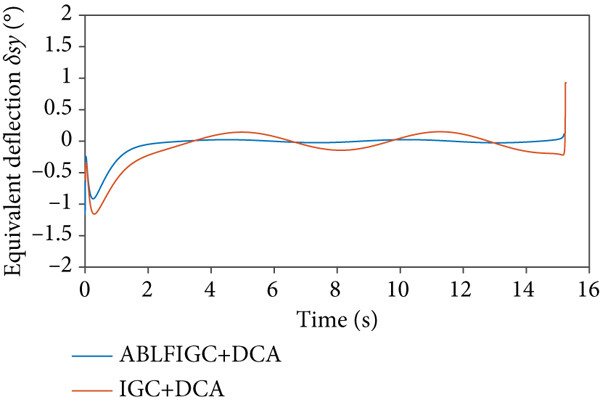

Figures 14–17 show the curves of the elevator deflection angle δ_z, the rudder deflection angle rudder angle δ_y, and the equivalent rudder deflection angles δ_sz and δ_sy, respectively, all of which were obtained via the dynamic control allocation algorithm. As shown in these figures, the ABLFIGC+DCA algorithm rendered the actuator outputs bounded and caused them to alter smoothly, had good robustness against external interferences, and did not incur a large jump in the late stage of guidance, indicating a good control allocation performance.

When the time-varying asymmetric output constraints were and , due to the attack angle, sideslip angle, and angular velocities of the pitch and yaw of the interceptor missile which are similar to the above, therefore, only the angular velocities of the vertical and horizontal lines of sight of the interceptor missile are compared. The simulation comparison plots of Scenario 1 are shown in Figures 18 and 19.

The simulation comparison plots of Scenario 2 are shown in Figures 20 and 21.

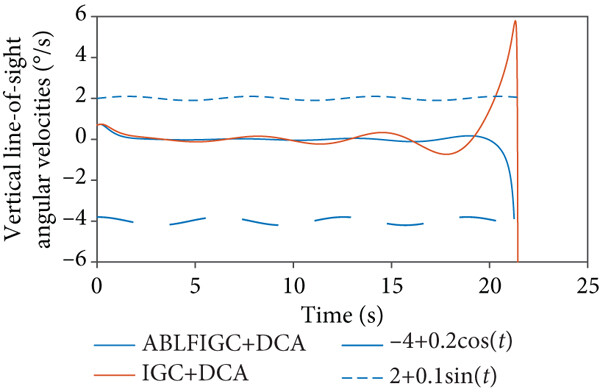

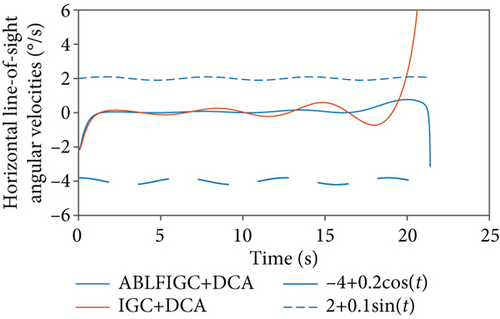

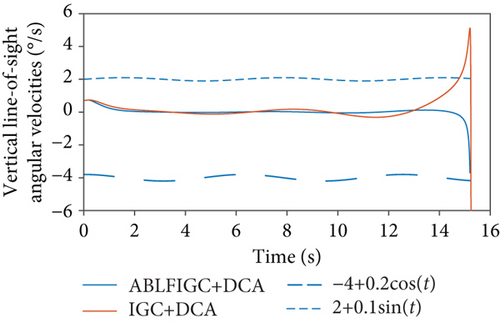

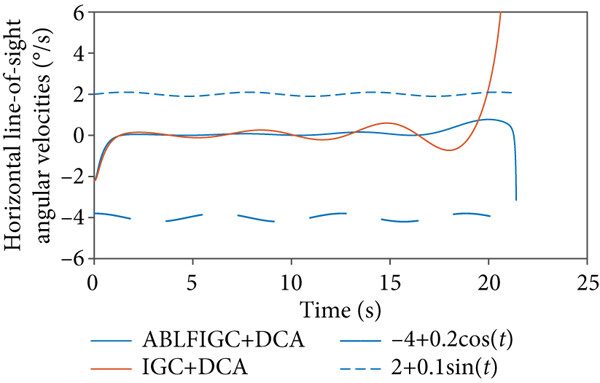

Figures 18–21, respectively, show the curves of angular velocities of the vertical and horizontal lines of sight of the interceptor missile in Scenario 1 and Scenario 2. From Figures 18 and 21, it is clear that the ABLFIGC+DCA algorithm smoothened convergence and was free of large jumps in the guidance process, met the asymmetric output constraints and , and showed good robustness against external interference.

As shown by the above simulation results, the asymmetric barrier Lyapunov function-based IGC algorithm proposed in this study for the interceptor missile, when compared with the conventional IGC algorithm, can enable the outputs to meet constraints and the system to have better control performance and anti-interference ability, thus improving the stability of the guidance and control systems for the interceptor missile.

7. Conclusion

In the context of the interceptor missile which uses a direct-force/aerodynamic-force control scheme, by considering the coupling relationship between the pitch and yaw channels of the interceptor missile as well as the output constraint problems of the system. This study combined the IGC method with an asymmetric barrier Lyapunov function to design an asymmetric barrier Lyapunov function-based IGC algorithm for the interceptor missile. Compared with traditional algorithms, by adopting the asymmetric barrier Lyapunov function, the proposed algorithm relaxed the constraints on the initial conditions of the system. In addition, the study utilized the dynamic surface sliding-mode control law and a TVGESO to design an IGC algorithm for interceptor missile, which not only reduced the system’s requirements for high-order differentiability of the stability function but also enhanced the control system’s resistance to unknown interferences. The study also considered the existing redundancy of the aerodynamic rudder and the reaction jet device in the actuator and consequently designed a dynamic control allocation algorithm to allocate the desired control moments to the actuator, thereby improving its efficiency. Finally, the simulation results showed that the proposed algorithm demonstrated relatively good dynamic characteristics and was able to satisfy the interceptor missile IGC system’s requirements for accuracy and stability without breaking the constraints.

Conflicts of Interest

The authors declare that there is no conflict of interest regarding the publication of this paper.

Acknowledgments

This work was supported by the Aeronautical Science Foundation of China (grant number 2016ZC12005). The authors gratefully acknowledge the suggestions and help by the Prof. Xiaogeng Liang and Northwestern Polytechnical University.

Open Research

Data Availability

The simulation data used to support the findings of this study were supplied by Northwestern Polytechnical University under license and so cannot be made freely available. Requests for access to these data should be made to Prof. Xiaogeng Liang, E-mail: [email protected].

References

1 Menon P. K. and Ohlmeyer E. J., Integrated design of agile missile guidance and autopilot systems, Control Engineering Practice. (2001) 9, no. 10, 1095–1106, https://doi.org/10.1016/S0967-0661(01)00082-X, 2-s2.0-0035478988.
10.1016/S0967-0661(01)00082-X
Web of Science® Google Scholar
2 Xue W. C., Huang C. D., and Huang Y., Design methods for the integrated guidance and control system, Control Theory & Applications. (2013) 30, no. 12, 1511–1520.
Google Scholar
3 Shtessel Y. B. and Tournes C. H., Integrated higher-order sliding mode guidance and autopilot for dual control missiles, Journal of Guidance, Control, and Dynamics. (2009) 32, no. 1, 79–94, https://doi.org/10.2514/1.36961, 2-s2.0-60349083158.
10.2514/1.36961
Web of Science® Google Scholar
4 Cross M. and Shtessel Y. B., Integrated guidance navigation and control using high-order sliding mode control for a missile interceptor, AIAA Guidance, Navigation and Control Conference, 2018, Kissimmee, FL, USA, 1–17, https://doi.org/10.2514/6.2018-1121, 2-s2.0-85044615574.
10.2514/6.2018-1121
Google Scholar
5 Liang X. L., Hou M. Z., and Duan G. R., Integrated guidance and control for missile in the presence of input saturation and angular constraints, Proceedings of the 32nd Chinese Control Conference, 2013, Piscataway, NJ, USA, 1070–1075.
Google Scholar
6 Liang X., Hou M., and Duan G., Adaptive dynamic surface control for integrated missile guidance and autopilot in the presence of input saturation, Journal of Aerospace Engineering. (2015) 28, no. 5, 04014121–04014412, https://doi.org/10.1061/(ASCE)AS.1943-5525.0000458, 2-s2.0-84939554021.
10.1061/(ASCE)AS.1943-5525.0000458
Web of Science® Google Scholar
7 Hou M., Liang X., and Duan G., Adaptive block dynamic surface control for integrated missile guidance and autopilot, Chinese Journal of Aeronautics. (2013) 26, no. 3, 741–750, https://doi.org/10.1016/j.cja.2013.04.035, 2-s2.0-84879788778.
10.1016/j.cja.2013.04.035
Web of Science® Google Scholar
8 Zhou D., Qu P., and Sun S., A guidance law with terminal impact angle constraint accounting for missile autopilot, Journal of Dynamic Systems, Measurement, and Control. (2013) 135, no. 5, 051009–051010, https://doi.org/10.1115/1.4024202, 2-s2.0-84886404832.
10.1115/1.4024202
Web of Science® Google Scholar
9 Gao C., Jiang C., Zhang Y., and Jing W., Three-dimensional integrated guidance and control for near space interceptor based on robust adaptive backstepping approach, International Journal of Aerospace Engineering. (2016) 2016, 11, 6598983, https://doi.org/10.1155/2016/6598983, 2-s2.0-85004089004.
10.1155/2016/6598983
Web of Science® Google Scholar
10 Shamaghdari S., Nikravesh S. K. Y., and Haeri M., Integrated guidance and control of elastic flight vehicle based on robust MPC, International Journal of Robust and Nonlinear Control. (2015) 25, no. 15, 2608–2630, https://doi.org/10.1002/rnc.3215, 2-s2.0-84941191847.
10.1002/rnc.3215
Web of Science® Google Scholar
11 Bhavnesh P., Subramanian K., and Talole S. E., Robust integrated guidance and control design for tactical missiles, AIAA Guidance, Navigation and Control Conference, 2018, Kissimmee, FL, USA, 1–20, https://doi.org/10.2514/6.2018-1120, 2-s2.0-85044567420.
10.2514/6.2018-1120
Google Scholar
12 Seyedipour S. H., Fathi Jegarkandi M., and Shamaghdari S., Nonlinear integrated guidance and control based on adaptive back-stepping scheme, Aircraft Engineering and Aerospace Technology. (2017) 89, no. 3, 415–424, https://doi.org/10.1108/AEAT-12-2014-0209, 2-s2.0-85020700890.
10.1108/AEAT-12-2014-0209
Web of Science® Google Scholar
13 Fathi Jegarkandi M., Ashrafifar A., and Mohsenipour R., Adaptive integrated guidance and fault tolerant control using backstepping and sliding mode, International Journal of Aerospace Engineering. (2015) 2015, 7, 253478, https://doi.org/10.1155/2015/253478, 2-s2.0-84948808701.
10.1155/2015/253478
Web of Science® Google Scholar
14 Zhou H., Zhao H., Huang H., and Zhao X., Integrated guidance and control design of the suicide UCAV for terminal attack, Journal of Systems Engineering and Electronics. (2017) 28, no. 3, 546–555, https://doi.org/10.21629/JSEE.2017.03.14, 2-s2.0-85024487028.
10.21629/JSEE.2017.03.14
Web of Science® Google Scholar
15 Viswanathan S. H., Sanyal A. K., and Izadi M., Integrated guidance and nonlinear feedback control of underactuated unmanned aerial vehicles in SE(3), AIAA Guidance, Navigation, and Control Conference, 2017, Grapevine, TX, USA, 1–12, https://doi.org/10.2514/6.2017-1044.
10.2514/6.2017-1044
Google Scholar
16 Wang X., Zheng Y., and Lin H., Integrated guidance and control law for cooperative attack of multiple missiles, Aerospace Science and Technology. (2015) 42, 1–11, https://doi.org/10.1016/j.ast.2014.11.018.
10.1016/j.ast.2014.11.018
Web of Science® Google Scholar
17 Vaddi S., Menon P. K., and Ohlmeyer E. J., Numerical state-dependent riccati equation approach for missile integrated guidance control, Journal of Guidance, Control, and Dynamics. (2009) 32, no. 2, 699–703, https://doi.org/10.2514/1.34291, 2-s2.0-65949085172.
10.2514/1.34291
Web of Science® Google Scholar
18 Panchal B., Mate N., and Talole S. E., Continuous-time predictive control-based integrated guidance and control, Journal of Guidance, Control, and Dynamics. (2017) 40, no. 7, 1579–1595, https://doi.org/10.2514/1.G002661, 2-s2.0-85020699237.
10.2514/1.G002661
Web of Science® Google Scholar
19 Niu B., Li H., Zhang Z., Li J., Hayat T., and Alsaadi F. E., Adaptive neural-network-based dynamic surface control for stochastic interconnected nonlinear nonstrict-feedback systems with dead zone, IEEE Transactions on Systems, Man, and Cybernetics: Systems. (2018) 1–13, https://doi.org/10.1109/tsmc.2018.2866519, 2-s2.0-85052787356.
10.1109/tsmc.2018.2866519
Web of Science® Google Scholar
20 Niu B., Wang D., Alotaibi N. D., and Alsaadi F. E., Adaptive neural state-feedback tracking control of stochastic nonlinear switched systems: an average dwell-time method, IEEE Transactions on Neural Networks and Learning Systems. (2019) 30, no. 4, 1076–1087, https://doi.org/10.1109/TNNLS.2018.2860944, 2-s2.0-85051827471.
10.1109/TNNLS.2018.2860944
PubMed Web of Science® Google Scholar
21 Precup R. E. and Hellendoorn H., A survey on industrial applications of fuzzy control, Computers in Industry. (2011) 62, no. 3, 213–226, https://doi.org/10.1016/j.compind.2010.10.001, 2-s2.0-79952448716.
10.1016/j.compind.2010.10.001
Web of Science® Google Scholar
22 Niu B., Wang D., Li H., Xie X., Alotaibi N. D., and Alsaadi F. E., A novel neural-network-based adaptive control scheme for output-constrained stochastic switched nonlinear systems, IEEE Transactions on Systems, Man, and Cybernetics: Systems. (2019) 49, no. 2, 418–432, https://doi.org/10.1109/TSMC.2017.2777472, 2-s2.0-85038840830.
10.1109/TSMC.2017.2777472
Web of Science® Google Scholar
23 Ngo K. B., Mahony R., and Jiang Z. P., Integrator backstepping using barrier functions for systems with multiple state constraints, 44th IEEE Conference on Decision and Control, and the European Control Conference 2005, 2017, Seville, Spain, 8306–8312.
Google Scholar
24 He W. and Ge S. S., Cooperative control of a nonuniform gantry crane with constrained tension, Automatica. (2016) 66, 146–154, https://doi.org/10.1016/j.automatica.2015.12.026, 2-s2.0-84959457456.
10.1016/j.automatica.2015.12.026
Web of Science® Google Scholar
25 He W. and Dong Y., Adaptive fuzzy neural network control for a constrained robot using impedance learning, IEEE Transactions on Neural Networks and Learning Systems. (2018) 29, no. 4, 1174–1186, https://doi.org/10.1109/TNNLS.2017.2665581, 2-s2.0-85016449601, 28362618.
10.1109/TNNLS.2017.2665581
PubMed Web of Science® Google Scholar
26 Ren B., Ge S. S., Tee K. P., and Lee T. H., Adaptive neural control for output feedback nonlinear systems using a barrier Lyapunov function, Neural Networks. (2010) 21, no. 8, 1339–1345, https://doi.org/10.1109/TNN.2010.2047115, 2-s2.0-77955516678, 20601313.
10.1109/TNN.2010.2047115
PubMed Web of Science® Google Scholar
27 Salgado I., Mera M., and Chairez I., Suboptimal adaptive control of dynamic systems with state constraints based on barrier Lyapunov functions, IET Control Theory & Applications. (2018) 12, no. 8, 1116–1124, https://doi.org/10.1049/iet-cta.2017.1120, 2-s2.0-85046092306.
10.1049/iet-cta.2017.1120
Web of Science® Google Scholar
28 Tee K. P., Ren B., and Ge S. S., Control of nonlinear systems with time-varying output constraints, Automatica. (2011) 47, no. 11, 2511–2516, https://doi.org/10.1016/j.automatica.2011.08.044, 2-s2.0-80053623551.
10.1016/j.automatica.2011.08.044
Web of Science® Google Scholar
29 Niu B. and Zhao J., Barrier Lyapunov functions for the output tracking control of constrained nonlinear switched systems, Systems and Control Letters. (2013) 62, no. 10, 963–971, https://doi.org/10.1016/j.sysconle.2013.07.003, 2-s2.0-84883150841.
10.1016/j.sysconle.2013.07.003
Web of Science® Google Scholar
30 Qiu Y., Liang X., and Dai Z., Backstepping dynamic surface control for an anti-skid braking system, Control Engineering Practice. (2015) 42, 140–152, https://doi.org/10.1016/j.conengprac.2015.05.013, 2-s2.0-84934965845.
10.1016/j.conengprac.2015.05.013
Web of Science® Google Scholar
31 Dai Z., Cao J., Qiu Y., Chen Y. Q., and Liang X., Backstepping dynamic surface control for a class of non-linear systems with time-varying output constraints, IET Control Theory & Applications. (2015) 9, no. 15, 2312–2319, https://doi.org/10.1049/iet-cta.2015.0019, 2-s2.0-84942531975.
10.1049/iet-cta.2015.0019
Web of Science® Google Scholar
32 Qiu Y., Dai Z., Chen Y., and Liang X., Constrained control for brushless DC motors with fractional friction compensation, International Design Engineering Technical Conferences, 2015, Boston, MA, USA, https://doi.org/10.1115/DETC2015-47508, 2-s2.0-84979000024.
10.1115/DETC2015-47508
Google Scholar
33 Chen X., Dai Z., Lin H., Qiu Y., and Liang X., Asymmetric barrier Lyapunov function-based wheel slip control for antilock braking system, International Journal of Aerospace Engineering. (2015) 2015, 10, 917807, https://doi.org/10.1155/2015/917807, 2-s2.0-84946926228.
10.1155/2015/917807
Web of Science® Google Scholar
34 Xu B., Shi Z., Sun F., and He W., Barrier Lyapunov function based learning control of hypersonic flight vehicle with AOA constraint and actuator faults, IEEE Transactions on Cybernetics. (2018) 99, 1–11, https://doi.org/10.1109/TCYB.2018.2794972, 2-s2.0-85042357223.
10.1109/TCYB.2018.2794972
Web of Science® Google Scholar
35 An H., Xia H., and Wang C., Barrier Lyapunov function-based adaptive control for hypersonic flight vehicles, Nonlinear Dynamics. (2017) 88, no. 3, 1833–1853, https://doi.org/10.1007/s11071-017-3347-y, 2-s2.0-85009887981.
10.1007/s11071-017-3347-y
Web of Science® Google Scholar
36 Lu X., Zhao H., Zhao B., and Zhou J., Disturbance compensation-based integrated guidance and control design for near space interceptor, Control and Decision. (2017) 32, no. 10, 1782–1788.
Google Scholar
37 Swaroop D., Hedrick J. K., Yip P. P., and Gerdes J. C., Dynamic surface control for a class of nonlinear systems, IEEE Transactions on Automatic Control. (2000) 45, no. 10, 1893–1899, https://doi.org/10.1109/TAC.2000.880994, 2-s2.0-0034291333.
10.1109/TAC.2000.880994
Web of Science® Google Scholar
38 Johansen T. A. and Fossen T. I., Control allocation-a survey, Automatica. (2013) 49, no. 5, 1087–1103, https://doi.org/10.1016/j.automatica.2013.01.035, 2-s2.0-84876693638.
10.1016/j.automatica.2013.01.035
Web of Science® Google Scholar

Citing Literature

All articles

Integrated Guidance and Control of Interceptor Missile Based on Asymmetric Barrier Lyapunov Function

Abstract

1. Introduction

2. IGC Model of Interceptor Missile

3. Design of TVGESO

4. Design of the Dynamic Surface Sliding-Mode Control Law Based on Asymmetric Barrier Lyapunov Function

4.1. Design of Control Law for Pitch Channel

4.2. Stability Analysis of Control Law for Pitch Channel

4.3. Design of Control Law for Yaw Channel

5. Dynamic Control Allocation Algorithm

6. Simulation Analysis

7. Conclusion

Conflicts of Interest

Acknowledgments

Open Research

Data Availability

References

Citing Literature

Figures

References

Information

About Wiley Online Library

Help & Support

Opportunities

Connect with Wiley

Integrated Guidance and Control of Interceptor Missile Based on Asymmetric Barrier Lyapunov Function

Abstract

1. Introduction

2. IGC Model of Interceptor Missile

3. Design of TVGESO

4. Design of the Dynamic Surface Sliding-Mode Control Law Based on Asymmetric Barrier Lyapunov Function

4.1. Design of Control Law for Pitch Channel

4.2. Stability Analysis of Control Law for Pitch Channel

4.3. Design of Control Law for Yaw Channel

5. Dynamic Control Allocation Algorithm

6. Simulation Analysis

7. Conclusion

Conflicts of Interest

Acknowledgments

Open Research

Data Availability

References

Citing Literature

Figures

References

Related

Information
