Colorimetric techniques provide a useful approach for sensing application because of their low cost, use of inexpensive equipment, requirement of fewer signal transduction hardware, and, above all, their simple-to-understand results. Colorimetric sensor can be used for both qualitative analyte identification as well as quantitative analysis for many application areas such as clinical diagnosis, food quality control, and environmental monitoring. A gap exists between high-end, accurate, and expensive laboratory equipment and low-cost qualitative point-of-care testing tools. Here, we present a label-free plasmonic-based colorimetric sensor fabricated on a transparent plastic substrate consisting of about one billion nanocups in an array with a subwavelength opening and decorated with metal nanoparticles on the side walls, to bridge that gap. The fabrication techniques of the plasmonic sensor, integration to portable microfluidic devices for lab on chip applications, demonstration of highly sensitive refractive-index sensing, DNA hybridization detection, and protein-protein interaction will be reviewed. Further, we anticipate that the colorimetric sensor can be applied to point-of-care diagnostics by utilizing proper surface functionalization techniques, which seems to be one of the current limiting factors. Finally, the future outlook for the colorimetric plasmonic sensors is discussed.
1. Introduction
Most biochemical assay or sensing methods require labels such as fluorescent, radioactive or enzymes (e.g., in enzyme-linked immunosorbent assays (ELISAs)) to detect biomolecules [1]. The label molecule is attached to the target molecule and it is the label molecule that is detected rather than the target molecule. Label-free sensing does not need any label but can directly detect the presence of target molecules [2]. Plasmonics take advantage of the coupling of light to bound charges like electrons in metals and allow breaking the diffraction limit for the localization of light into subwavelength dimensions enabling strong field enhancements [3]. The shape of the nanoparticle extinction and scattering spectra and in particular the peak wavelength, λmax, depends on the nanoparticle composition, size, shape, orientation, and local dielectric environment so it can be used for sensing applications [4]. For the surface plasmon resonance (SPR) sensor, the peak wavelength at plasmon resonance is shifted by different refractive index of the environment but complicated instrumentation such as Otto setup, Kretschmann configuration, and spectrometer is required to detect the shift of the resonance peak [5]. Early in 1983, Liedberg et al. proposed using the plasmon sensor for label-free immunoassay [6]. In recent years, different types of sensors using surface plasmon have been implemented, including the surface plasmon resonance (SPR) sensor for cell adhesion studies [7], detection of metal ion [8], and clinical diagnosis of type I allergies [9]; localized surface plasmon resonance (LSPR) of a single particle for detection of proteins [10], colorimetric visualization of concentration of glucose [11], and colorimetric enzyme-linked immunosorbent assay [12]; surface enhanced Raman scattering (SERS) sensors for detection of DNA molecule [13], water contaminants [14], melamine [15], and yeast cells [16]. Compared to chemical-based sensors, surface plasmon-based sensors have the advantages of versatility, high sensitivity, reusability, and a label-free property.
Generally, surface plasmon sensors are divided into two categories: localized surface plasmon sensor (LSPR) and propagating surface plasmon sensor (SPR). LSPR sensors are composed of discrete nanoparticles (ordered or random) either in solution or on solid substrates. In literature, several excellent review articles exist that deals with LSPR biosensor design, their underlying physics, and application for sensing of biomolecules [4, 17–23]. Here, we will mainly focus on SPR sensors. Conventional prism coupled SPR sensors have already entered the realm of commercial market and will not be reviewed here. Instead, interested readers are directed to recent review and perspective on conventional SPR sensors [24, 25]. Another form of SPR sensors involving extraordinary optical transmission (EOT), which is composed of periodic array of nanoholes, has been widely used for biosensing applications. Recently, nanohole sensors integrated with microfluidics using spectroscopic-based measurements have been reviewed [26]. Another recent review also deals with use of plasmonic sensors to point of care applications [27]. In this review, we will mainly focus on EOT-based nanohole sensors using intensity-based measurement systems as opposed to spectroscopic-based measurement systems.
Krishnan et al. were the first to propose extraordinary optical transmission (EOT) of light through subwavelength holes in silver films due to the excitation of surface plasmon resonance (SPR) as shown in Figure 1(a) [28]. The incident light coming from top, first couple to SPR at the top due to the periodic hole array, then the light tunnels through the hole and couple to SPR at the bottom surface of metallic film. Finally, the light is reemitted from the bottom surface with multiple resonance peaks as shown in Figure 1(b). The resonance peak position of the transmission spectrum at normal incidence can be approximately calculated using the surface plasmon dispersion relation as [29, 30]
(1)
where a0 is the period of the nanohole array, εm and εd are the permittivity of the metal and the dielectric material in contact with the metal, respectively, and i and j are the scattering orders from the hole array. As shown in (1), the resonance peak position is proportional to the periodicity of the nanohole array. Hence, sensor resonance properties can be tuned by adjusting the periodicity of the hole array. For example, the color transmitted by the sensor can be tuned from blue to red by varying the periodicity of the nanoholes from 230 nm to 410 nm as shown in Figures 2(a) and 2(c). Figure 2(b) shows an SEM image of the sensor with lattice constant of 330 nm and the corresponding microscopic image at the inset transmitting green light. With the increase in the distance between the holes (i.e., increasing the lattice constant a0), the transmission resonance peaks are generally red shifted as shown in Figure 2(d). However, as shown in Figure 1(b), the EOT structures are associated with appearance of multiple peaks in the visible range due to coupling of resonances among holes and asymmetric boundary conditions (low dielectric materials like air on top and high dielectric materials like glass/quartz at the bottom of the metallic film). For colorimetric sensor it is advantageous to have single peak. There are several fabrication techniques that can be applied to making such sensor, which will be discussed next.

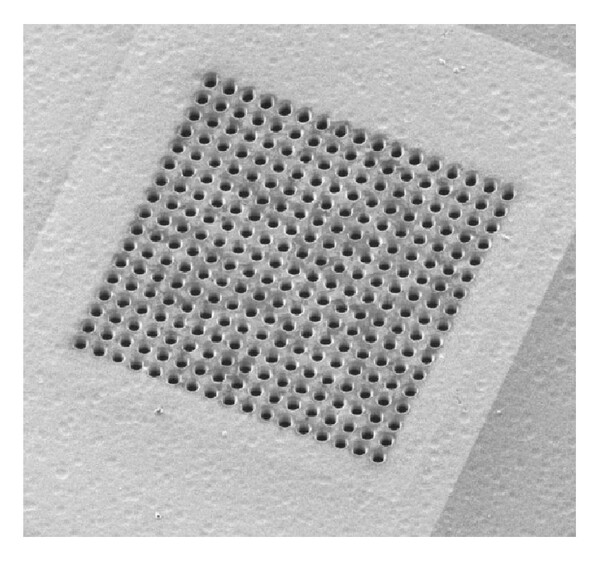

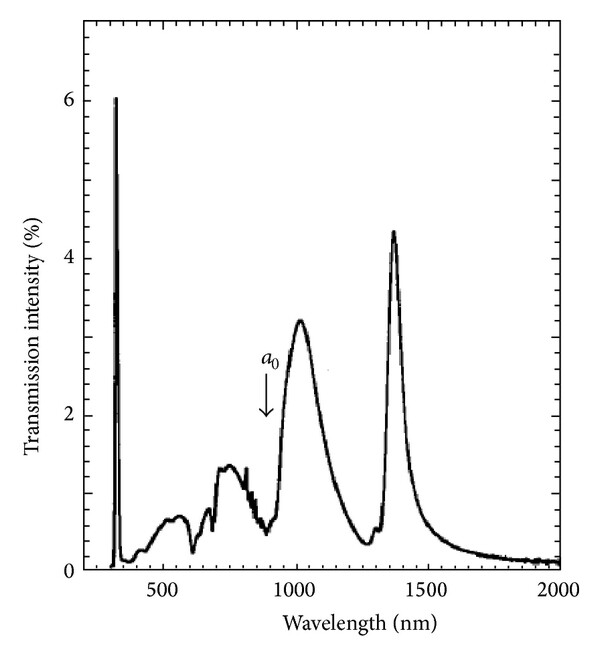

(a) Periodic nanohole arrays with square array of holes show EOT [28]. (b) Transmission spectrum of EOT sensor using Ag film of thickness 200 nm, hole diameter 150 nm, and periodicity, a0 = 900 nm [87].
(a) Periodic nanohole arrays with square array of holes show EOT [28]. (b) Transmission spectrum of EOT sensor using Ag film of thickness 200 nm, hole diameter 150 nm, and periodicity, a0 = 900 nm [87].

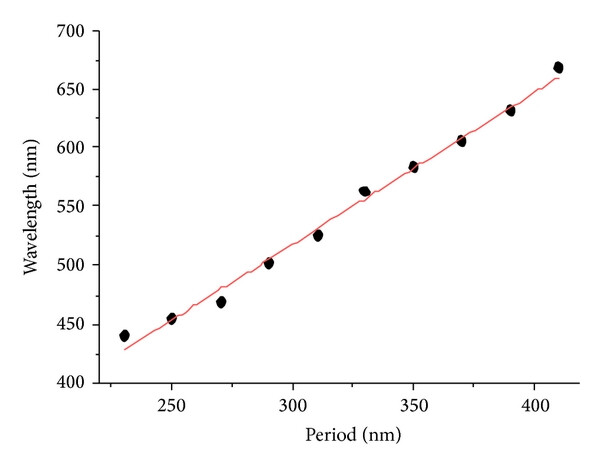

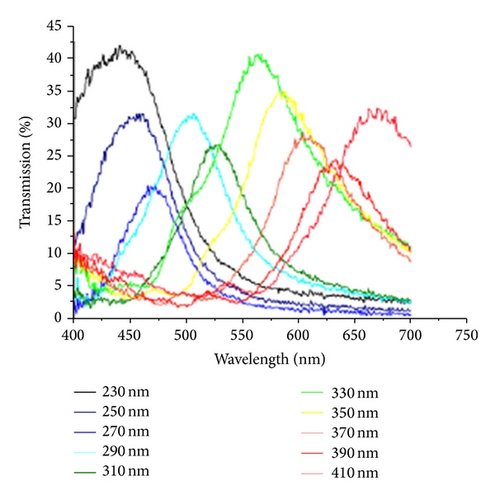

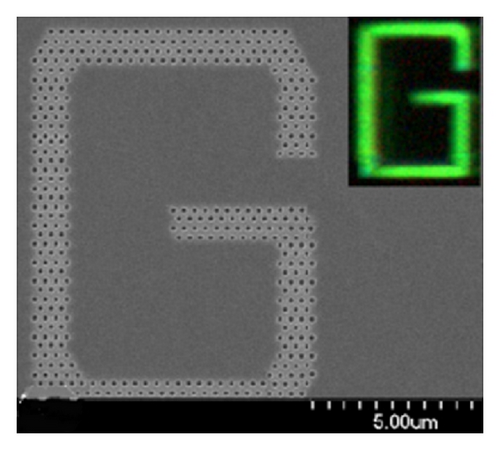

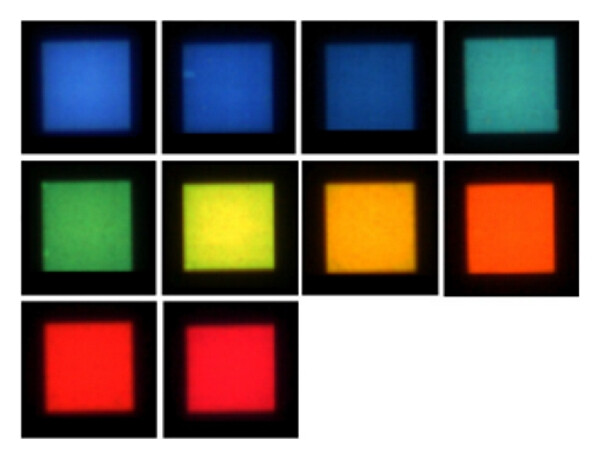

Plasmonic nanohole array transmitting different colors based on periodicity of the holes. (a) Images of various nanohole array in transmission mode under a white light illumination. (b) A SEM image of holes composing the letter “G” with periodicity of 330 nm. The transmitted light image of the structure is shown in the inset. (c) Transmission spectra of the nanohole arrays are shown in (a). (d) Dependence of transmission peak of the nanohole array on the period of the holes. Adapted from [88].
Plasmonic nanohole array transmitting different colors based on periodicity of the holes. (a) Images of various nanohole array in transmission mode under a white light illumination. (b) A SEM image of holes composing the letter “G” with periodicity of 330 nm. The transmitted light image of the structure is shown in the inset. (c) Transmission spectra of the nanohole arrays are shown in (a). (d) Dependence of transmission peak of the nanohole array on the period of the holes. Adapted from [88].
Plasmonic nanohole array transmitting different colors based on periodicity of the holes. (a) Images of various nanohole array in transmission mode under a white light illumination. (b) A SEM image of holes composing the letter “G” with periodicity of 330 nm. The transmitted light image of the structure is shown in the inset. (c) Transmission spectra of the nanohole arrays are shown in (a). (d) Dependence of transmission peak of the nanohole array on the period of the holes. Adapted from [88].
Plasmonic nanohole array transmitting different colors based on periodicity of the holes. (a) Images of various nanohole array in transmission mode under a white light illumination. (b) A SEM image of holes composing the letter “G” with periodicity of 330 nm. The transmitted light image of the structure is shown in the inset. (c) Transmission spectra of the nanohole arrays are shown in (a). (d) Dependence of transmission peak of the nanohole array on the period of the holes. Adapted from [88].
2. Fabrication of Plasmonic Sensors
Plasmonic structures, free-standing noble-metal structures, or metal deposited over nanophotonics structures has attracted attentions in recent years due to its capability to guide and manipulate light at nanoscale dimensions. Different metal nanoparticle shapes such as spheres, rods, cubes, boxes, bowls, rice, pyramids, and cages [31, 32] have been achieved through chemical synthesis processes. Although solution-based methods are scalable, achieving uniformity in size and shape and controlling the space between the structures within a matrix are still a challenge [33]. Direct writing methods such as electron beam lithography (EBL) and the focused ion beam (FIB) have also been used to generate plasmonic nanostructure with lateral resolution of less than 10 nm [34], which is mainly limited by electron or ion scattering in the polymer matrix and swelling of the resist in the developer solution. Additional processing steps including metal deposition and pattern are required for completing the fabrication process, which further limit the resolution. The metal films using electron beam evaporation and sputtering methods are inherently polycrystalline and the rough-grain boundaries in polycrystalline noble metal surfaces introduce undesirable scattering and ohmic losses in the plasmonic devices.
Recently, Teri Odom’s lab at Northwestern University has developed a new technique called PEEL (combining PSP (phase-shifting photolithography), etching, electron-beam deposition, and lift-off) to transfer patterned features in a photoresist into free-standing, functional materials (Figure 3) [35]. The key attributes of using EBL and FIB to generate plasmonic nanostructures are of high resolution, controllability in design, and shape and also fewer defects [36, 37]. However, tools like EBL, FIB, or deep-UV projection lithography are very expensive and are difficult to scale for large-scale fabrication of plasmonic structures because of the low throughput due to the serial process.

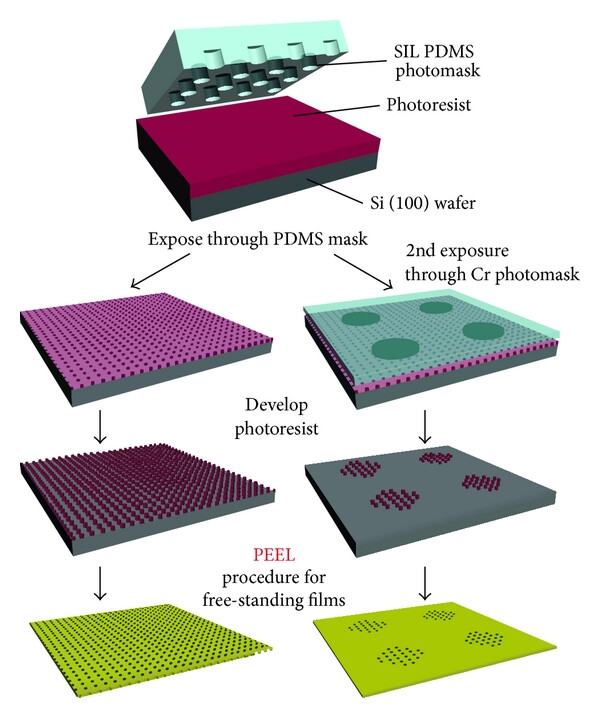

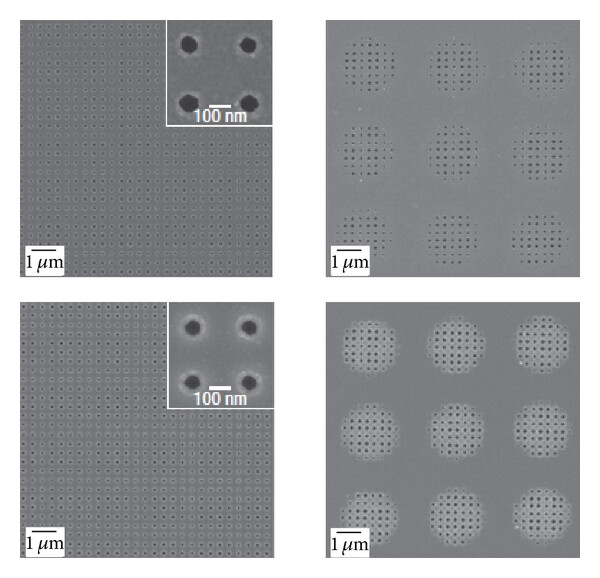

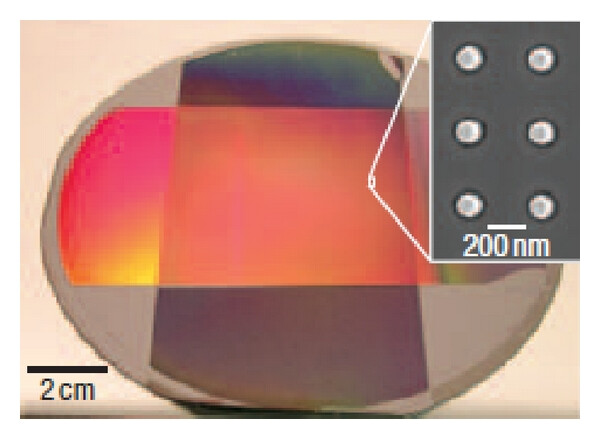

Soft interference lithography. (a) Schematic showing the PEEL (photolithography, etching, electron-beam deposition, and lift-off of the film) process. (b) Optical image of master mold used in the PEEL process. The area of the mold is about 14 cm × 14 cm and it consists of array of Si post with diameter = 100 nm, height = 400 nm, and pitch = 400 nm. SEM image of the post is shown in the inset. (c) SEM image of the replicated nanohole array is from the master mold. Adapted from [89].
Soft interference lithography. (a) Schematic showing the PEEL (photolithography, etching, electron-beam deposition, and lift-off of the film) process. (b) Optical image of master mold used in the PEEL process. The area of the mold is about 14 cm × 14 cm and it consists of array of Si post with diameter = 100 nm, height = 400 nm, and pitch = 400 nm. SEM image of the post is shown in the inset. (c) SEM image of the replicated nanohole array is from the master mold. Adapted from [89].
Soft interference lithography. (a) Schematic showing the PEEL (photolithography, etching, electron-beam deposition, and lift-off of the film) process. (b) Optical image of master mold used in the PEEL process. The area of the mold is about 14 cm × 14 cm and it consists of array of Si post with diameter = 100 nm, height = 400 nm, and pitch = 400 nm. SEM image of the post is shown in the inset. (c) SEM image of the replicated nanohole array is from the master mold. Adapted from [89].
The ablation mechanism in FIB is a complex combination of the photochemical and photothermal processes. The etch rate selection of different materials for ablation is also a challenge as the etched fragments can be redeposited on the projection lens which can damage the optics. To overcome these problems various soft lithography techniques such as replica molding, microtransfer printing, and nanoimprint lithography (NIL) [38–41] are used in which the master template is mechanically pressed into a polymer material (target substrate) to transfer the features from the master mold followed by curing of the polymer material with cooling, heating or ultraviolet (UV) light. In order to produce ultrasmooth plasmonic surfaces, a nanomanufacturing method called template stripping has been introduced as shown in Figure 4 [42]. In general, noble metals have poor adhesion but good wettability on ultrasmooth templates such as freshly cleaved mica or silicon wafers. Template stripping takes advantage of the above properties and works in such a way that, first, a metal film is deposited onto the clean template and then an epoxy or adhesive backing layer is attached to the topside of the metal film. By peeling off the supporting polymer layer, the metal will be released from the template.

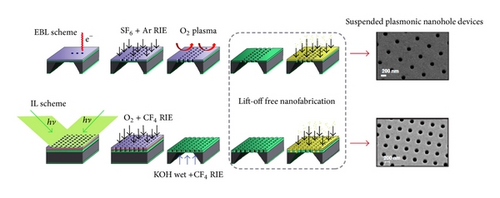

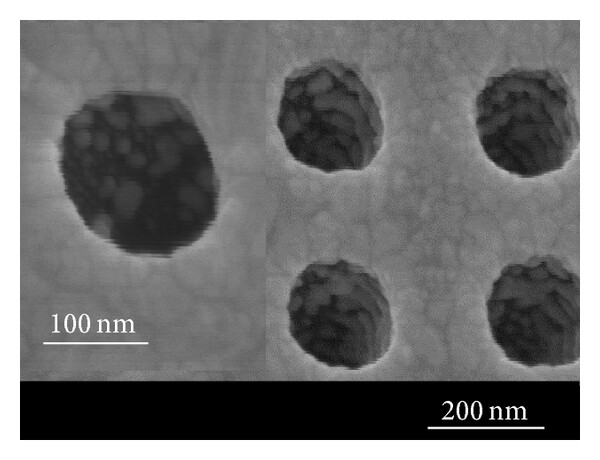

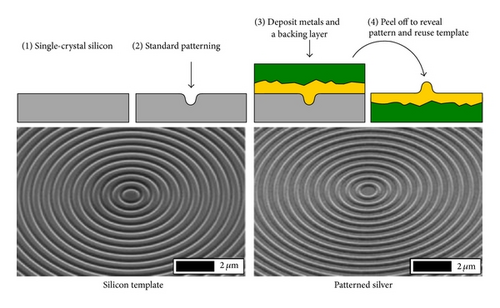

(a) Lift-off free evaporation (LIFE) method of forming nanoholes. The method involves making holes on the underlying SiNx membrane instead of the PMMA resist. The backetching of Si supporting substrate enables a suspended plasmonic nanohole structure. Both electron-beam lithography (EBL) and interference lithography (IL) were used to make the nanohole structures. SEM images on the right show fabricated devices showing nanohole array with period of 600 nm, and diameter of 180 nm made using EBL process. Using IL process the periodicity was 580 nm and the diameter of the holes was 230 nm. Adapted from [78]. (b) Schematic of template stripping methods to make plasmonic devices with smooth surfaces. This process takes advantage of the poor adhesion and good wettability of noble metals on silicon. SEMs of the silicon template and template stripped silver device are shown at the bottom. Adapted from [90].
(a) Lift-off free evaporation (LIFE) method of forming nanoholes. The method involves making holes on the underlying SiNx membrane instead of the PMMA resist. The backetching of Si supporting substrate enables a suspended plasmonic nanohole structure. Both electron-beam lithography (EBL) and interference lithography (IL) were used to make the nanohole structures. SEM images on the right show fabricated devices showing nanohole array with period of 600 nm, and diameter of 180 nm made using EBL process. Using IL process the periodicity was 580 nm and the diameter of the holes was 230 nm. Adapted from [78]. (b) Schematic of template stripping methods to make plasmonic devices with smooth surfaces. This process takes advantage of the poor adhesion and good wettability of noble metals on silicon. SEMs of the silicon template and template stripped silver device are shown at the bottom. Adapted from [90].
Logan Liu’s group has fabricated the plasmonic structure using the replica molding process where the master nanocone pattern is fabricated on a glass substrate using the laser interference lithography technique [43, 44] with a range of different heights (h = 250, 500, and 1000 nm). Figure 5 shows the SEM images of the master mold. The two-dimensional square lattice of master mold (pitch, p = 350 nm) is transferred to a flexible and optically transparent polyethylene terephthalate (PET) film using nanoreplica molding process. Figure 6 shows the schematic of the replica molding fabrication process. The nanocone master made on glass substrate is first cleaned and silanized for 30 min followed by ethanol and deionized water rinse (Figure 6(a)). The 5 μL of UV-curable polymer (NOA-61) is evenly spread on the top of the nanocone master and a PET sheet is carefully put on top of the polymer, to avoid the bubble formation and to act as a substrate. The master with the polymer and PET sheet was then exposed to UV-light (105 mW cm−2) for 60 sec (Figure 6(b)). The PET substrate with nanohole arrays was peeled off carefully from the master mold (Figure 6(c)) and then in order to make the structure surface plasmon active, 90 nm of metal layer of gold or silver is deposited (Figure 6(d)). From the SEM images of the plasmonic device obtained using replica a molding process is shown in Figure 7, and it is quite clear that nanoscale features can be transferred to the polymer substrate from the original master mold with high fidelity. This process, using replica molding, is used to make a low-cost, wafer-scale plasmonic device with a simple methodology and high resolution and also opens up opportunity for biosensing applications. However, due to imperfect replica molding, defects can be introduced on the plasmonic device which can broaden the resonance.

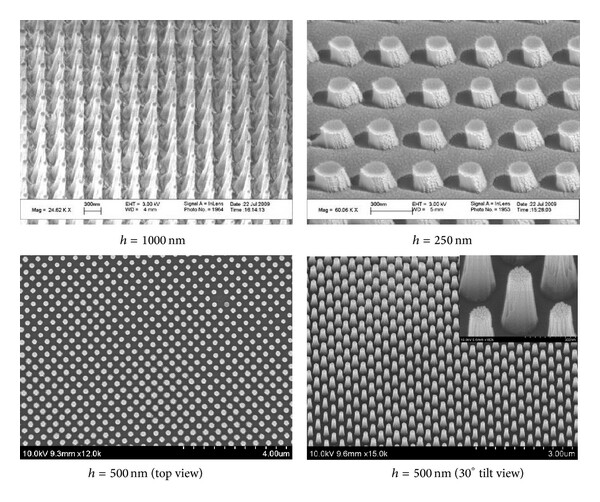

Scanning electron micrograph (SEM) of the master mold used for the fabrication of nanoplasmonic device. The master mold is fabricated on a glass substrate using laser interference lithography technique [91, 92] with a range of different heights; h = 1000 nm (top left), h = 250 nm (top right), h = 500 nm top view (bottom left), and h = 500 nm 30° tilted view (bottom right) [46].

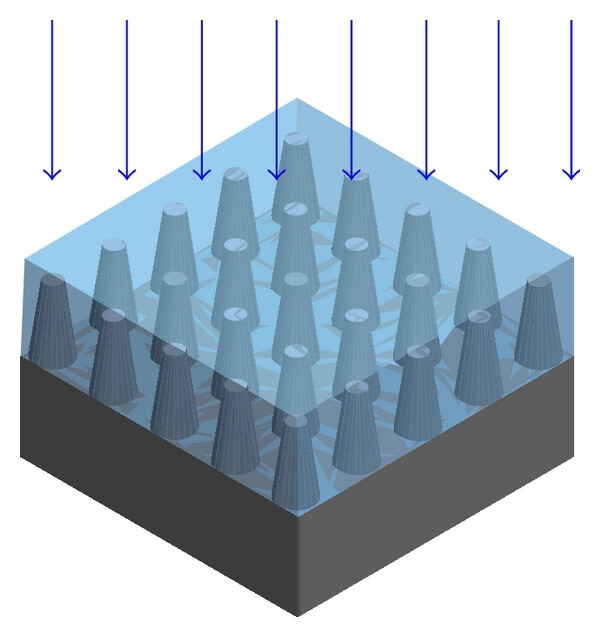

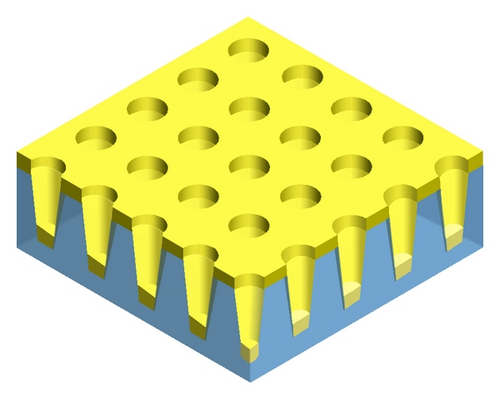

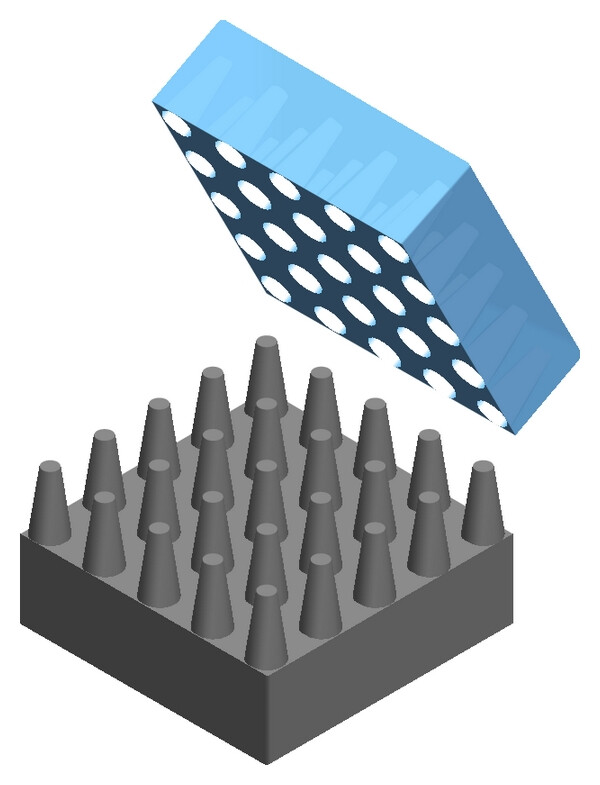

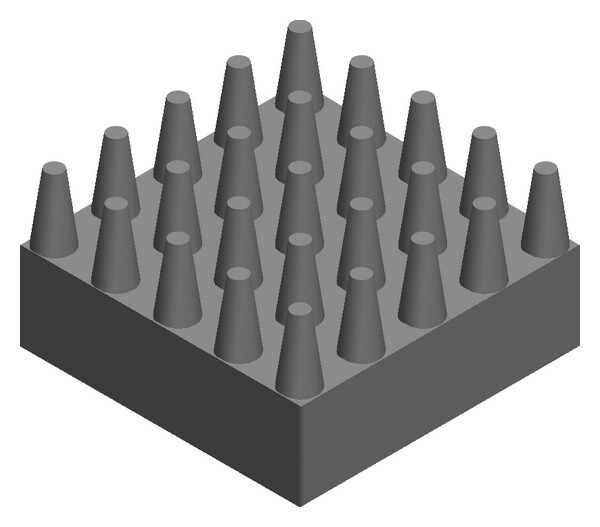

Schematic overview of the replica molding fabrication process. (a) The nanocone master mold made on glass substrate is first cleaned and silanized for 30 min followed by ethanol and deionized water rinse. (b) 5 μL of UV-curable polymer (NOA-61) is evenly spread on the top of the nanocone master and a PET sheet is carefully, to avoid the bubble formation, put on top of the polymer to act as a substrate. The master with the polymer and PET sheet then exposed to UV-light (105 mW cm−2) for 60 sec. (c) The PET substrate with nanohole arrays is peeled off carefully from the master mold. (d) Then and then in order to make the structure surface plasmon active, 90 nm of metal layer of gold or silver is deposited [46].
Schematic overview of the replica molding fabrication process. (a) The nanocone master mold made on glass substrate is first cleaned and silanized for 30 min followed by ethanol and deionized water rinse. (b) 5 μL of UV-curable polymer (NOA-61) is evenly spread on the top of the nanocone master and a PET sheet is carefully, to avoid the bubble formation, put on top of the polymer to act as a substrate. The master with the polymer and PET sheet then exposed to UV-light (105 mW cm−2) for 60 sec. (c) The PET substrate with nanohole arrays is peeled off carefully from the master mold. (d) Then and then in order to make the structure surface plasmon active, 90 nm of metal layer of gold or silver is deposited [46].
Schematic overview of the replica molding fabrication process. (a) The nanocone master mold made on glass substrate is first cleaned and silanized for 30 min followed by ethanol and deionized water rinse. (b) 5 μL of UV-curable polymer (NOA-61) is evenly spread on the top of the nanocone master and a PET sheet is carefully, to avoid the bubble formation, put on top of the polymer to act as a substrate. The master with the polymer and PET sheet then exposed to UV-light (105 mW cm−2) for 60 sec. (c) The PET substrate with nanohole arrays is peeled off carefully from the master mold. (d) Then and then in order to make the structure surface plasmon active, 90 nm of metal layer of gold or silver is deposited [46].
Schematic overview of the replica molding fabrication process. (a) The nanocone master mold made on glass substrate is first cleaned and silanized for 30 min followed by ethanol and deionized water rinse. (b) 5 μL of UV-curable polymer (NOA-61) is evenly spread on the top of the nanocone master and a PET sheet is carefully, to avoid the bubble formation, put on top of the polymer to act as a substrate. The master with the polymer and PET sheet then exposed to UV-light (105 mW cm−2) for 60 sec. (c) The PET substrate with nanohole arrays is peeled off carefully from the master mold. (d) Then and then in order to make the structure surface plasmon active, 90 nm of metal layer of gold or silver is deposited [46].

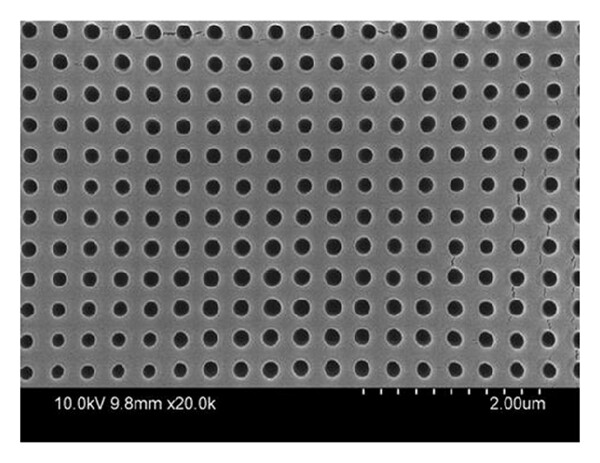

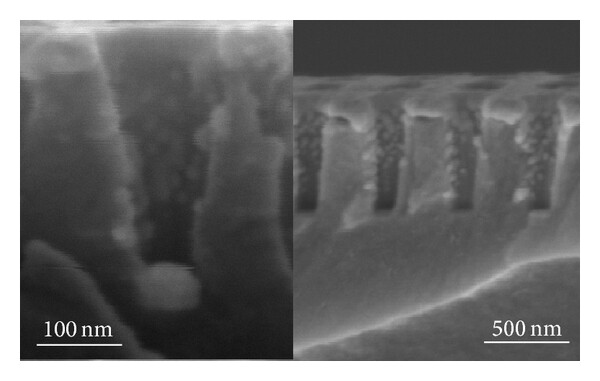

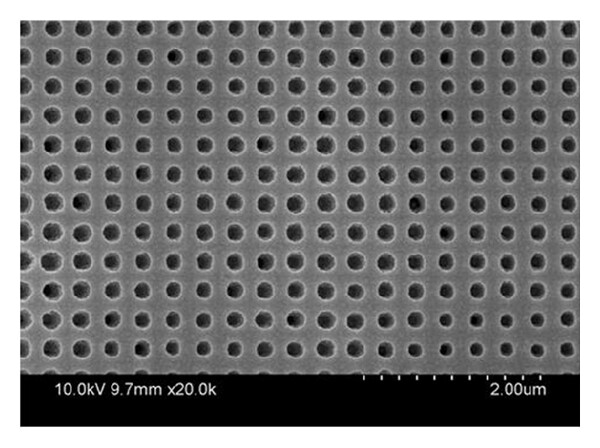

SEM image of the plasmonic device fabricated using replica molding method. (a) SEM (top view) image of polymer nanohole structure before deposition of metal. (b) SEM (top view) image of nanohole structure after 90 nm deposition of Ag. Top (c) and cross-sectional (d) view SEM images of plasmonic device showing the nanoparticles inside the nanohole structure [46].
SEM image of the plasmonic device fabricated using replica molding method. (a) SEM (top view) image of polymer nanohole structure before deposition of metal. (b) SEM (top view) image of nanohole structure after 90 nm deposition of Ag. Top (c) and cross-sectional (d) view SEM images of plasmonic device showing the nanoparticles inside the nanohole structure [46].
SEM image of the plasmonic device fabricated using replica molding method. (a) SEM (top view) image of polymer nanohole structure before deposition of metal. (b) SEM (top view) image of nanohole structure after 90 nm deposition of Ag. Top (c) and cross-sectional (d) view SEM images of plasmonic device showing the nanoparticles inside the nanohole structure [46].
SEM image of the plasmonic device fabricated using replica molding method. (a) SEM (top view) image of polymer nanohole structure before deposition of metal. (b) SEM (top view) image of nanohole structure after 90 nm deposition of Ag. Top (c) and cross-sectional (d) view SEM images of plasmonic device showing the nanoparticles inside the nanohole structure [46].
3. Sensitivity of Plasmonic Sensor

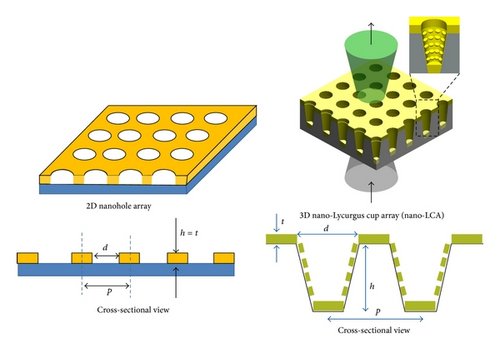

As shown in Table 1, the sensitivity of plasmonic sensors is limited to about 1000 nm/RIU in the visible range. High sensitivity of more than 1500 nm/RIU is shown in the IR and near IR region using plasmonic array sensor [45]. Recently, Gartia et al. reported a surface plasmon-based sensors with sensitivity of 46,000 nm/RIU using cup shaped nanohole array (also known as the nano-Lycurgus cup array (nanoLCA)) [46]. NanoLCA enables detection of reactions that induce a small change of the refractive index such as DNA hybridization even by naked eye. Figure 8 presents a comparison of geometrical differences between common EOT structures and the nano-LCA structure for enhancing the plasmonics characteristics [46]. First, the tapered geometry will funnel and adiabatically focus the photons on the subwavelength plasmonic structure at the bottom, leading to large local electric field and enhancement of EOT (due to radiative coupling of surface plasmons). Secondly the localized resonance supported by 3D nano-LCA will enable broadband tuning of optical transmission through controlling the shape, size, and period of holes as well as the shape, size, and period of metallic particles decorated at the side walls. Moreover, the LSPs mediated transmissions in nano-LCAs are expected to be of higher magnitude than the SPPs mediated transmission in typical 2D hole arrays. Figure 9 shows how the nanocup array sensor changes color when different liquids are dropped on its surface. Figure 9(a) shows the white light transmitted by a hole with the shape of wave function “ψ.” Figure 9(b) shows the same hole with the nanocup array sensor on top of it. The image is taken in transmission mode, when air (n = 1) is present, and the surface of nano-LCA sensor appears green. Similarly, Figure 9(c) shows an array of holes and Figure 2(d) shows the corresponding transmission image of nano-LCA on top of it. The scale bars for both the images are 100 μm. The dotted area in Figure 9(d) shows the color orange when sodium chloride solution partially covers the surface of the nano-LCA. Figure 9(e) shows the vibrant color produced by the nano-LCA when the different solutions (with refractive indices n > 1) are dropped on the surface. The transmission spectrum will redshift and it will redshift more with larger n values. In Figure 9(e), oil with larger n values appears redder compared to that of the sodium chloride (NaCl) solution.
Table 1.
Comparison of sensitivity of different plasmonic-based sensors.

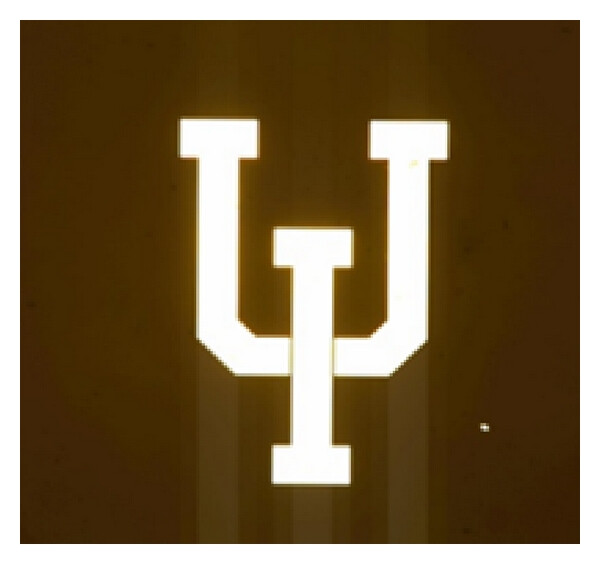

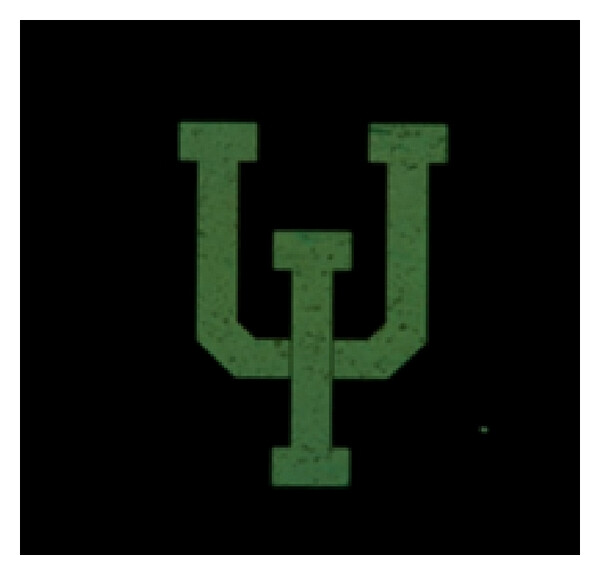

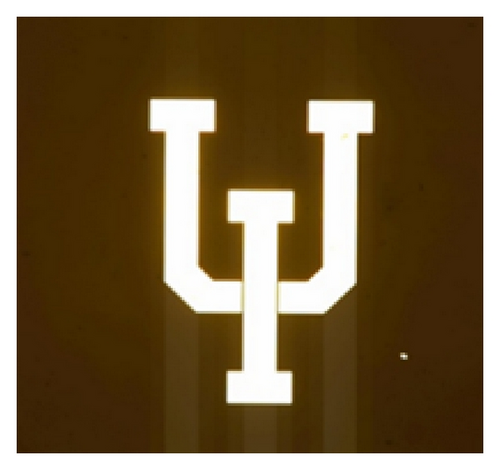

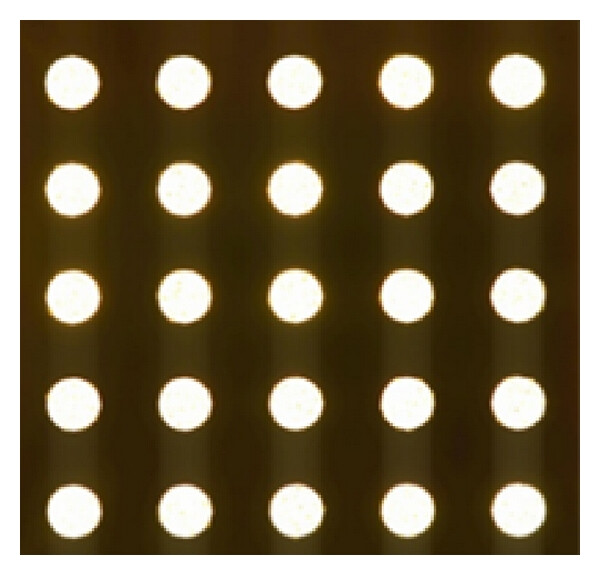

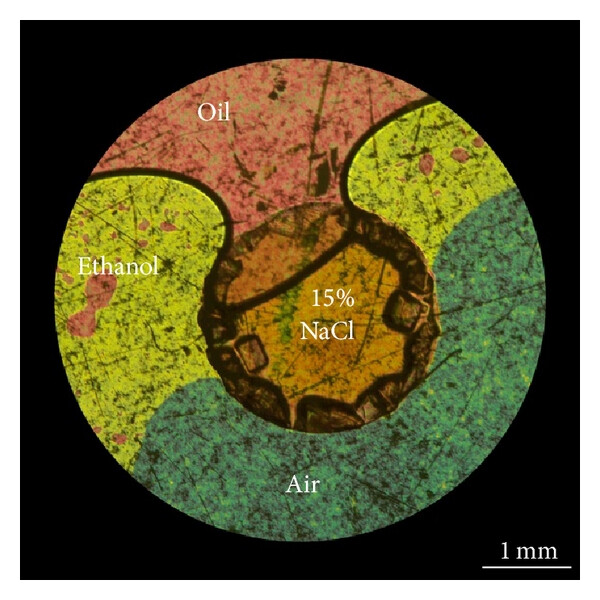

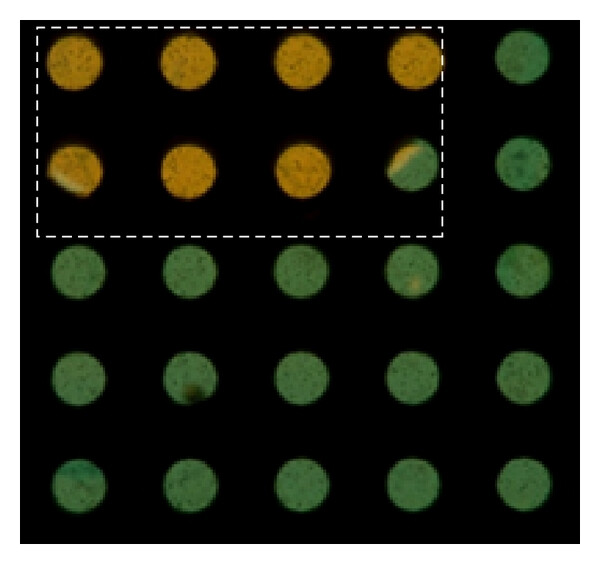

Colorimetric plasmonic sensing with nanocup array device. Bright field image ((a) and (c)) without and ((b) and (d)) with the sensor. The green color is with air (n = 1) and the orange color (inside the dotted area) is due to NaCl solution on top of the sensor. (e) Mixture of ethanol, oil, and NaCl shows distinctive colors on the sensor.
Colorimetric plasmonic sensing with nanocup array device. Bright field image ((a) and (c)) without and ((b) and (d)) with the sensor. The green color is with air (n = 1) and the orange color (inside the dotted area) is due to NaCl solution on top of the sensor. (e) Mixture of ethanol, oil, and NaCl shows distinctive colors on the sensor.
Colorimetric plasmonic sensing with nanocup array device. Bright field image ((a) and (c)) without and ((b) and (d)) with the sensor. The green color is with air (n = 1) and the orange color (inside the dotted area) is due to NaCl solution on top of the sensor. (e) Mixture of ethanol, oil, and NaCl shows distinctive colors on the sensor.
Colorimetric plasmonic sensing with nanocup array device. Bright field image ((a) and (c)) without and ((b) and (d)) with the sensor. The green color is with air (n = 1) and the orange color (inside the dotted area) is due to NaCl solution on top of the sensor. (e) Mixture of ethanol, oil, and NaCl shows distinctive colors on the sensor.
Colorimetric plasmonic sensing with nanocup array device. Bright field image ((a) and (c)) without and ((b) and (d)) with the sensor. The green color is with air (n = 1) and the orange color (inside the dotted area) is due to NaCl solution on top of the sensor. (e) Mixture of ethanol, oil, and NaCl shows distinctive colors on the sensor.
Due to longer decay length (200–300 nm for SPR [47] and 5–10 nm for LSPR [48]) of the evanescent surface plasmon wave, SPR-based sensors have a higher sensitivity to bulk refractive index changes, whereas LSPR sensors are more sensitive to surface refractive index changes such as a molecular adsorption processes [23]. However, due to longer decay length of the evanescent wave, the results obtained from the SPR sensor are a convolution of both surface and solution-based refractive index changes. In general, LSPR-based sensors are at least an order of magnitude less sensitive than SPR sensors [49]. In addition, the smaller propagation lengths (or lifetimes) in typical LSPR sensors lead to broad resonance line width. This limits the figure of merit (FOM) achievable by LSPR sensors. However, in the nano-LCA sensor design the mirror-like structures such as Bragg reflectors were used to produce Fano resonances from the interference of evanescent (dark) and propagating (bright) modes (Figure 9) [46]. This allowed the sensor to have higher FOM in spite of using LSPR. True colorimetric sensing on subwavelength hole structures (also known as EOT devices) is challenging because of the appearance of multiple transmission peaks due to multiple interferences and diffraction of light generally known as the surface plasmon polariton-Bloch wave (SPP-BW) and Wood’s anomaly. The so-called quasi 3D plasmonic crystals [50] utilize the change in the transmission intensities (none or minimal shift in the resonance peak wavelength) for analyte detection and quantification. However, the resonance of such devices has only been demonstrated in near infrared and far infrared wavelengths [50] making it difficult to use conventional bright field microscopes and color photography for colorimetric sensing. On the other hand, the reported nano-LCA sensor demonstrates an improvement in the biosensing platform by combining LSPR and SPR. In this design LSPR scattering modes of the metal nanoparticles on the nanocup side walls are selectively transmitted by the nanohole array to achieve higher sensitivity.
The sensitivity (S) of the SPR sensor is defined as the ratio between the resonance wavelength shift to the variation of the refractive index of the surrounding medium, S = Δλ (nm)/Δn (RIU), and the FOM of the sensor is defined as the ratio between sensitivity and the line width of the resonance (δλ):
(2)
Research studies are primarily pursued to increase the sensitivity (increasing the wavelength shift) and improve FOM (decreasing the line width) of the SPR sensor in addition to developing various biosensing applications. Table 1 presents a comparison of sensitivity of different plasmonic sensors. As shown in the table, one of the ways to increase sensitivity is by increasing the aspect ratio as the aspect ratio is directly proportional to the dipolar polarizability. For example, by increasing the aspect ratio from sphere to disk and to nanorods, the sensitivity generally improves. Similarly, the sensitivity can be improved by introducing multipolar resonances, for example, using nanocrescents [51, 52], instead of dipolar resonances (e.g., nanospheres). Peter Nordlander recognized that plasmon hybridization can be utilized, such as using nanorings, to increase the sensitivity of the SPR sensor [53]. Fano resonance, where weak coupling and interference occur between dark and bright plasmon modes, has emerged as another method to improve the sensitivity. In 1998, Ebbesen et al. showed that periodic nanohole arrays in thick metal film can be utilized to observe extraordinary optical transmission (EOT) [54]. Since then, the EOT structure has been extensively used for surface-based biosensing as opposed to colloidal-based sensing. In order to improve the sensitivity of EOT structures, LSPR, colloidal particles and mirror like structures have been incorporated [46].
Even though the naked eye sensing is implemented with plasmon-based colorimetry, it is for qualitative detection only. To make a biosensor which can do point-of-care detection and accurately perform quantitative analysis, especially for lab-on-chip applications, peripheral facilities and packaging are indispensable. The lab-on-a-chip-based sensor has the advantages of miniaturization, portability, automation, low cost, and negligible consumption of reagents. In recent decades, the development of microfluidic-based technology has greatly advanced the progress of micro total analysis systems [26]. The simultaneous rise of plasmonics and microfluidics has enabled the researchers in the fields enthusiastically to explore for plasmonic subwavelength optics and rapid-prototyping of lab-on-a-chip devices, forging a new field named plasmofluidics [55]. Among the plasmofluidic devices, ordered arrays of nanoholes in metal films facilitate resonance-induced field enhancement with no need of additional optical instrumentation [56]. Using nanohole arrays as sensing elements has the advantages of high reproducibility, small footprint, multiplexing capabilities, and the possibility for collinear optical integration [57]. These advantages make nanoholes particularly suitable for planar integration into onchip microfluidic environments [55].
4. Microfluidic Nanohole Array Sensors
Nanohole array sensors have been integrated with microfluidics to realize simple, portable, label-free optical sensors that have a small sample volume requirement, improved mass transport, and simplified optical illumination and detection systems. Microfluidics have been integrated with other types of label-free optical sensors such as surface plasmon resonance [58], photonic crystal [59], and ring resonator [60]. Affinity capture assays performed on a photonic-crystal sensor demonstrated that the microfluidic format has the fastest analyte detection time, the lowest limit of analyte detection, and the largest binding of analyte compared to the same assays performed in a microplate format and a spot format [61]. Moreover, microfluidic format has the advantages of enabling kinetic measurements (e.g., association and disassociation of analyte) and low analyte consumption. In particular to nanohole array sensors, microfluidics also allow for flow-through design, as opposed to flow-over, when the nanoholes are open through holes; in this case, the nanohole array acts not only as a sensing element but also as an analyte concentrator by confining the flow to the sensing area [62]. The integration of microfluidics to plasmonic-based sensors and, more specifically, nanohole-array-based sensors has been extensively reviewed elsewhere [26, 55].
4.1. Fabrication, Implementation, and Characterization of Nanohole Array Sensors
4.1.1. Fabrication and Integration of Microfluidics with Nanohole Array Sensor
(Poly)dimethylsiloxane (PDMS) is a common elastomer used to fabricate microfluidic devices due to its many advantages, including solvent compatibility, optical transparency, and feature replication (Figures 10(a)–10(c)) [63, 64]. In fabrication, the precursor agents (base agent and curing agent) of PDMS are mixed and degassed, and the PDMS solution is poured over a master with microfluidic design, which can be fabricated by photolithography or stereolithography. The PDMS solution is then cured thermally, and after curing, the microfluidic design is replicated on the PDMS substrate. The PDMS can be used to replicate microscale features (e.g., channels and chambers) down to hundreds of nanometers in a lateral resolution reliably and the same master can be used to fabricate more PDMS devices repeatedly [65]. Most commonly, the PDMS devices are integrated with a SiO2 surface, in which both surfaces are treated with O2 plasma to form hydroxyl groups and to form chemical adhesion between the two surfaces [66]. However, nanohole array sensors are typically coated with coinage metals, for example, gold (Au) or silver (Ag), and these materials are not compatible with O2 plasma treatment to integrate with the PDMS microfluidic device.

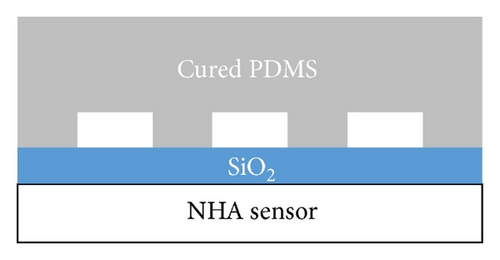

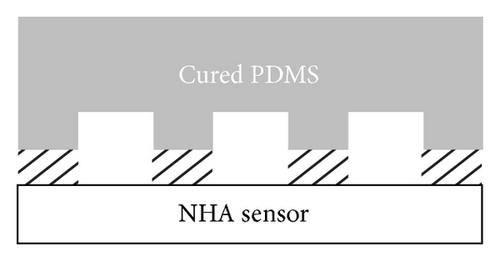

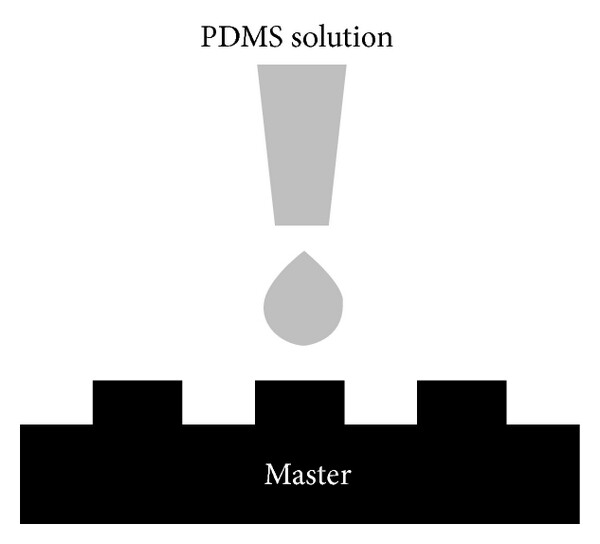

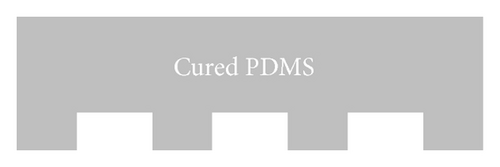

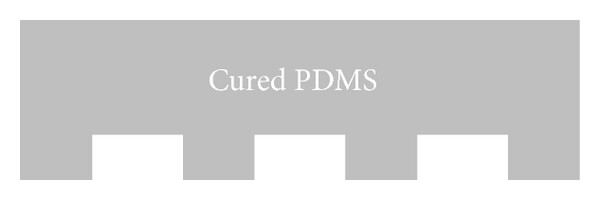

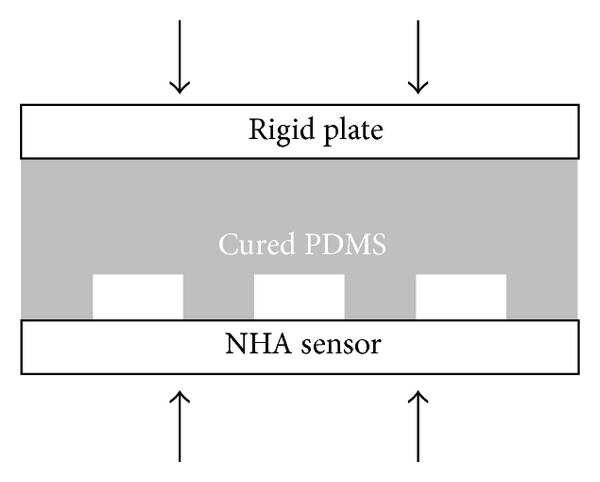

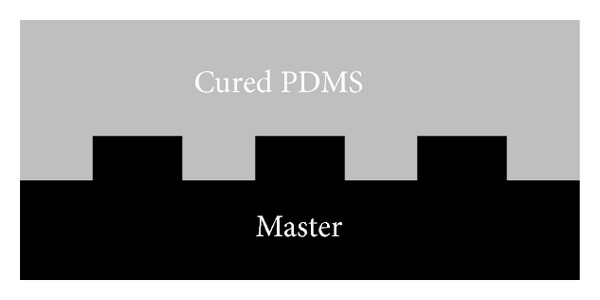

Schematic overview of fabrication and integration of PDMS-based microfluidic device with nanohole array (NHA) sensor. (a) (Poly)dimethylsiloxane (PDMS) solution consisted of the base agent and the curing agent and is poured over a master mold. ((b)-(c)) The solution is cured thermally and, when cured, the PDMS device is excised and removed from the master mold. The PDMS-based microfluidic device can be integrated with the nanohole array sensor via (d) deposition of thin layer of SiO2, (e) stamp of thin layer of adhesive (indicated by diagonal lines), and (f) compression between rigid plates. Note the deposited layers are not drawn to scale.
Schematic overview of fabrication and integration of PDMS-based microfluidic device with nanohole array (NHA) sensor. (a) (Poly)dimethylsiloxane (PDMS) solution consisted of the base agent and the curing agent and is poured over a master mold. ((b)-(c)) The solution is cured thermally and, when cured, the PDMS device is excised and removed from the master mold. The PDMS-based microfluidic device can be integrated with the nanohole array sensor via (d) deposition of thin layer of SiO2, (e) stamp of thin layer of adhesive (indicated by diagonal lines), and (f) compression between rigid plates. Note the deposited layers are not drawn to scale.
Schematic overview of fabrication and integration of PDMS-based microfluidic device with nanohole array (NHA) sensor. (a) (Poly)dimethylsiloxane (PDMS) solution consisted of the base agent and the curing agent and is poured over a master mold. ((b)-(c)) The solution is cured thermally and, when cured, the PDMS device is excised and removed from the master mold. The PDMS-based microfluidic device can be integrated with the nanohole array sensor via (d) deposition of thin layer of SiO2, (e) stamp of thin layer of adhesive (indicated by diagonal lines), and (f) compression between rigid plates. Note the deposited layers are not drawn to scale.
Schematic overview of fabrication and integration of PDMS-based microfluidic device with nanohole array (NHA) sensor. (a) (Poly)dimethylsiloxane (PDMS) solution consisted of the base agent and the curing agent and is poured over a master mold. ((b)-(c)) The solution is cured thermally and, when cured, the PDMS device is excised and removed from the master mold. The PDMS-based microfluidic device can be integrated with the nanohole array sensor via (d) deposition of thin layer of SiO2, (e) stamp of thin layer of adhesive (indicated by diagonal lines), and (f) compression between rigid plates. Note the deposited layers are not drawn to scale.
Schematic overview of fabrication and integration of PDMS-based microfluidic device with nanohole array (NHA) sensor. (a) (Poly)dimethylsiloxane (PDMS) solution consisted of the base agent and the curing agent and is poured over a master mold. ((b)-(c)) The solution is cured thermally and, when cured, the PDMS device is excised and removed from the master mold. The PDMS-based microfluidic device can be integrated with the nanohole array sensor via (d) deposition of thin layer of SiO2, (e) stamp of thin layer of adhesive (indicated by diagonal lines), and (f) compression between rigid plates. Note the deposited layers are not drawn to scale.
Schematic overview of fabrication and integration of PDMS-based microfluidic device with nanohole array (NHA) sensor. (a) (Poly)dimethylsiloxane (PDMS) solution consisted of the base agent and the curing agent and is poured over a master mold. ((b)-(c)) The solution is cured thermally and, when cured, the PDMS device is excised and removed from the master mold. The PDMS-based microfluidic device can be integrated with the nanohole array sensor via (d) deposition of thin layer of SiO2, (e) stamp of thin layer of adhesive (indicated by diagonal lines), and (f) compression between rigid plates. Note the deposited layers are not drawn to scale.
Other bonding techniques are available to integrate the PDMS microfluidic device with the nanohole array sensors (Figures 10(d)–10(f)) [67]. The desirable properties of the bonding method and materials are solvent compatibility, topographical compatibility, mechanical robustness, and optical transparency. A thin layer of silica has been deposited on top of the coinage metal for O2-plasma-treatment adhesion and biological interfacing [68]. Optical adhesives, curable by photo- or thermal activation, can act as an adhesive layer between the PDMS device and the surface of the nanohole array sensor [67]. For nonpermanent adhesion, the PDMS device has been mechanically compressed via sandwiching between two rigid plates and clamping [69]. Likewise, the nanohole array can be directly integrated into a flow cell, which can be fabricated with other materials beside PDMS [70]. Due to the flexibility in the channel designs and the ease of fabrication methods, the microfluidic device can be tailored to the applications ranging from simple fluid transport to fluid mixing using serpentine channels (Figure 11).

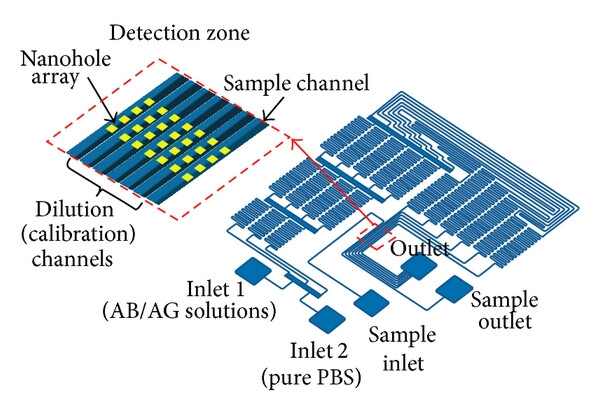

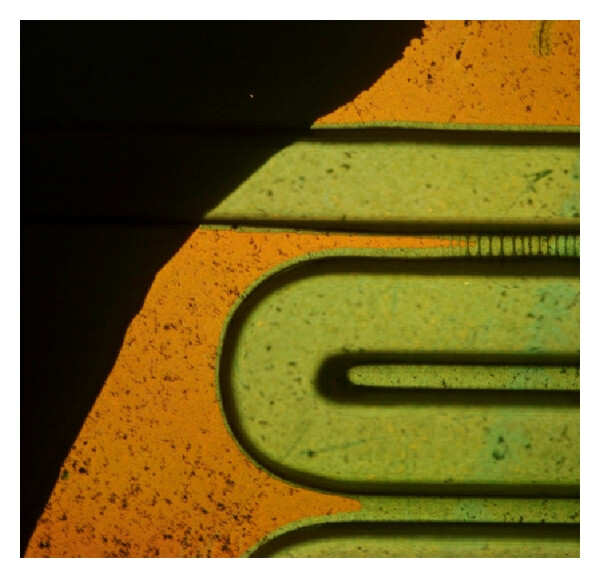

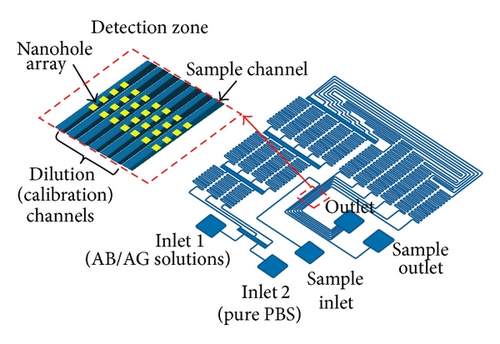

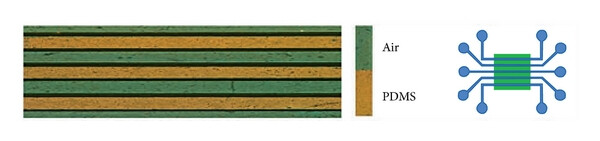

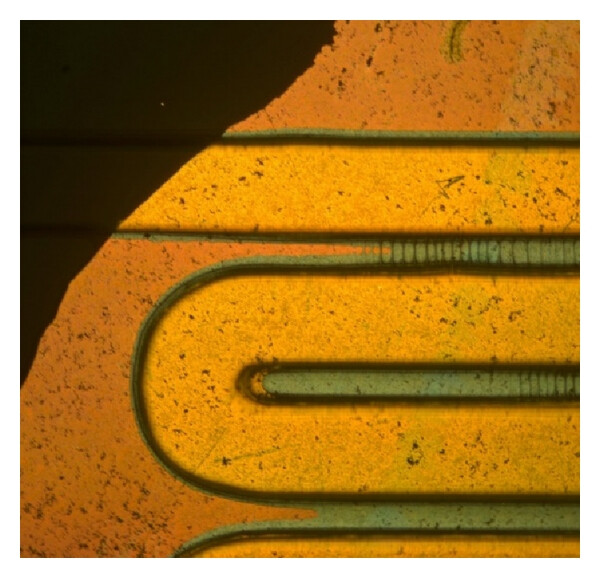

Overview of different microfluidic designs integrated on nanohole array sensor. (a) Parallel microfluidic channels with a width of 500 µm. (b) Serpentine microfluidic channels on a nanohole sensor array empty and (c) the same channel filled with water. (Channel width: 500 µm). (d) Microfluidic concentration gradient generator using serpentine channels integrated with nanohole array sensors. Modified from [77].
Overview of different microfluidic designs integrated on nanohole array sensor. (a) Parallel microfluidic channels with a width of 500 µm. (b) Serpentine microfluidic channels on a nanohole sensor array empty and (c) the same channel filled with water. (Channel width: 500 µm). (d) Microfluidic concentration gradient generator using serpentine channels integrated with nanohole array sensors. Modified from [77].
Overview of different microfluidic designs integrated on nanohole array sensor. (a) Parallel microfluidic channels with a width of 500 µm. (b) Serpentine microfluidic channels on a nanohole sensor array empty and (c) the same channel filled with water. (Channel width: 500 µm). (d) Microfluidic concentration gradient generator using serpentine channels integrated with nanohole array sensors. Modified from [77].
Overview of different microfluidic designs integrated on nanohole array sensor. (a) Parallel microfluidic channels with a width of 500 µm. (b) Serpentine microfluidic channels on a nanohole sensor array empty and (c) the same channel filled with water. (Channel width: 500 µm). (d) Microfluidic concentration gradient generator using serpentine channels integrated with nanohole array sensors. Modified from [77].
4.1.2. Optical Illumination and Detection of Nanohole Array Sensors
An optical illumination source is required to observe the extraordinary transmission and to detect the changes in the intensity of the transmitted or reflected spectrum of the light as it transmits or reflects from the nanohole array. The optical illumination source is typically a broadband source (e.g., tungsten-halogen lamp, xenon arc lamp) with light production in the visible wavelength range (λ ~ 450–750 nm) and in the near-infrared range (λ ~ 750–1000 nm). A broad range of wavelength is required to detect the change in the wavelength at which there is maximum intensity. Alternatively, a monochromatic illumination source (e.g., laser, light emitting diode) can be utilized to illuminate the nanohole array but only the variations in the intensity of transmitted/reflected light can be detected. With monochromatic illumination sources, the choice of wavelength is limited due to the discretized nature of the light that can be produced (e.g., laser lines are limited wavelengths such as 532 nm and 633 nm). An important property for an illumination source for nanohole array is high spectral irradiance (given in units of W/m2 nm) in the relevant range of wavelengths or high irradiance (W/m2) for monochromatic sources. Even with extraordinary transmission, nanohole array sensors typically transmit less than ten percent of the illuminated light; in addition, the area of the sensor may be limited to hundreds of micrometer squared, which requires high magnification objectives with a small field of view that reduces the amount of the transmitted light to be collected.
Accordingly, several optical detection systems have been used in conjunction with the aforementioned illumination sources. For spectral measurement, a grating is required in the detection system to disperse the broadband transmitted light and a charge-coupled detector is used to quantify the dispersed light according to its wavelength, for example, in a spectrophotometer (Figure 12(a)). Photomultiplier tubes may be used for quantifying the transmitted light from monochromatic illumination sources. Additional optical components such as high pass, low pass, band pass filters, and dichromatic mirrors may be employed to further distinguish the spectral or intensity changes in the transmitted light through the nanohole array sensor. For imaging, charge-coupled detectors overlaid with a color filter array (e.g., Bayer filter that has 50% green, 25% blue, and 25% red components) can be used to visualize the nanohole array sensor with some spectral distinction (Figure 12(b)). In our study, both forms of instruments schematically shown in Figure 12 were utilized.

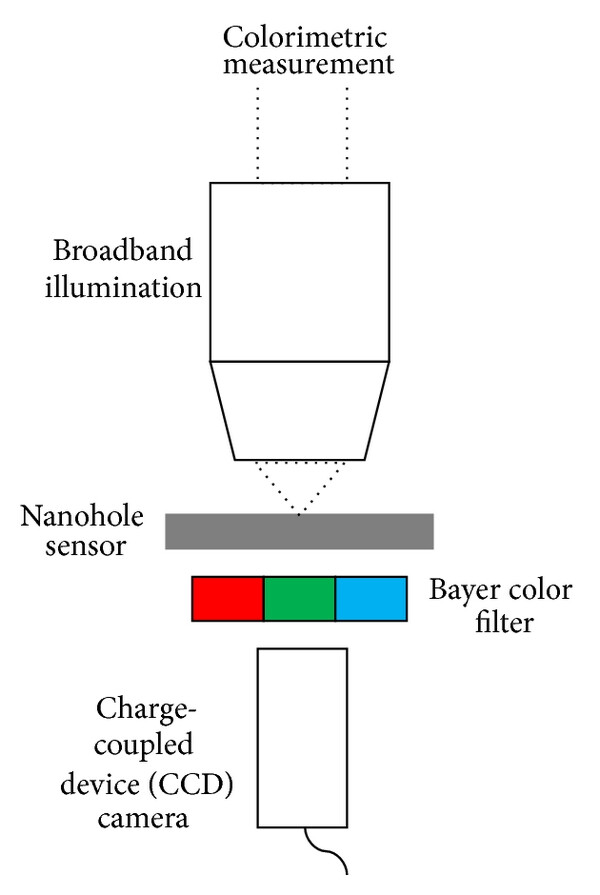

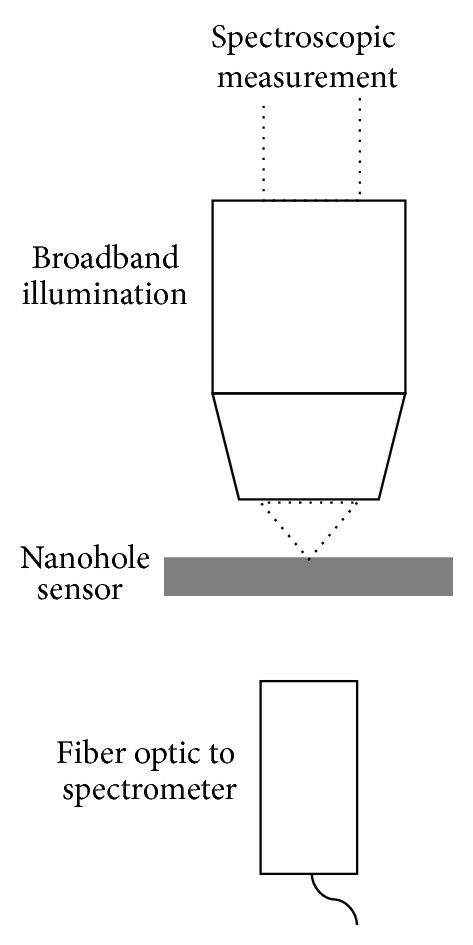

Typical optical setup for the measurement of transmission through nanohole sensor. (a) In spectroscopic measurement, in which the spectrum of the transmitted light is acquired, a broadband illumination is incident on the nanohole sensor and the transmitted light is collected using a fiber optic coupled to a spectrometer. (b) In colorimetric measurements, in which the intensity of the transmitted light through a color filter (e.g., Bayer color filter) is acquired, a broadband illumination is incident on the nanohole sensor, and the transmitted light is passed through a color filter and imaged using a charge-coupled device (CCD) camera.
Typical optical setup for the measurement of transmission through nanohole sensor. (a) In spectroscopic measurement, in which the spectrum of the transmitted light is acquired, a broadband illumination is incident on the nanohole sensor and the transmitted light is collected using a fiber optic coupled to a spectrometer. (b) In colorimetric measurements, in which the intensity of the transmitted light through a color filter (e.g., Bayer color filter) is acquired, a broadband illumination is incident on the nanohole sensor, and the transmitted light is passed through a color filter and imaged using a charge-coupled device (CCD) camera.
4.1.3. Analysis of Detection Using Nanohole Array Sensors
In the case of broadband illumination, the spectrum of transmitted light through a nanohole array is quantified using a spectrophotometer. In the measured spectrum, there may be single or multiple peak wavelengths, which is the wavelength at which the transmitted intensity is global or local maximum (Figure 13). The peak wavelength can be identified by simply searching the intensity maxima and the peak wavelength shift (Δλ) can be quantified by determining the change in wavelength when the nanohole array is exposed to different refractive indices (Figure 13(a)). This peak wavelength shift can be correlated with the change in the refractive index (Δn) on or adjacent to the surface of nanohole array sensor. The peak wavelength shift sensitivity (S) of the nanohole array sensor can be calculated as S = Δλ/Δn. Other metrics can be used to quantify the changes in the transmission spectrum (spectral or intensity). One method is to integrate the area under the transmitted spectrum under a range of wavelengths to obtain integrated response sensitivity (R) [71]. For a given spectrum, R can be calculated as , where I(n, λ) is the measured intensity at wavelength λ for a given refractive index n (n0 is the reference refractive index), and λ1 and λ2 are the wavelength range over which the spectrum is integrated (Figure 13(b)). This method of sensitivity measurement can have a higher signal-to-noise ratio compared to the peak wavelength shift measurement [71]. For intensity variation measurement interrogated by a monochromatic light source, a single value is obtained for a single point measurement and a time trace can be obtained by recording the intensity over a course of time period (Figure 13(c)). For colorimetric imaging measurement, the red, green, and blue (RGB) channels from a color image can be obtained. Each channel represents a portion of the transmission spectrum; that is, the intensity in the red channel is from the transmitted light in a longer wavelength range and the intensity in the blue channel is from the transmitted light in a shorter wavelength range. Similar to intensity variation measurement, the change in the intensity from each channel can be correlated with the change in the transmission spectrum. Unlike intensity variation measurement, RGB contains three values for a single point measurement and it may have higher sensitivity than that of intensity variation measurement [72].

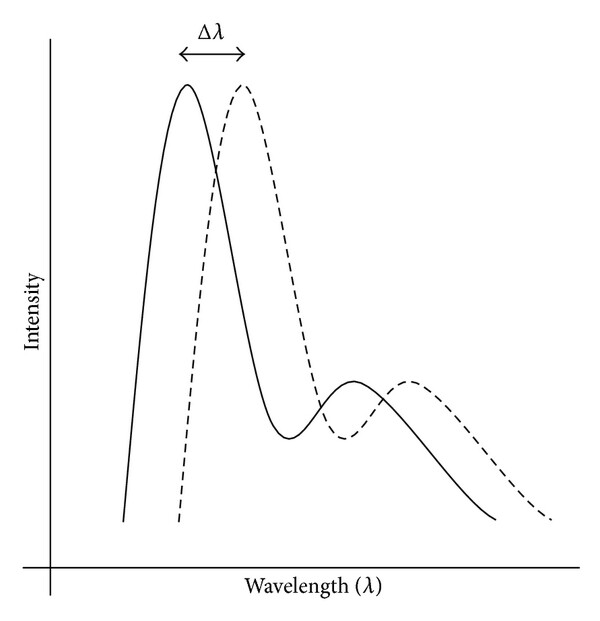

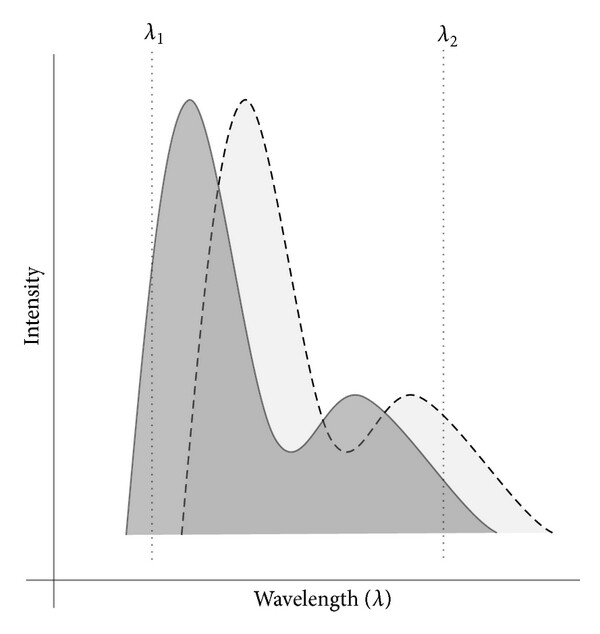

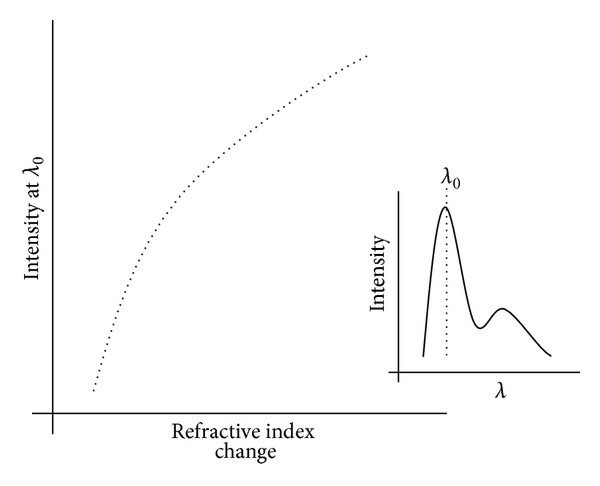

Schematic representative of the optical response of nanohole array sensor to refractive index change. (a) The change in the wavelength of maximum transmission intensity, also known as peak wavelength shift, can be quantified when comparing the transmission spectrum of nanohole array sensor exposed water (refractive index = 1.33) (solid) and water with glucose added (refractive index = 1.34) (dashed). (b) Integrated sensor response can be obtained from integrating the area under the transmission spectrum over a defined range of wavelengths (e.g., λ1 to λ2). (c) Intensity variations at a single wavelength from the transmission spectrum (inset) can also be monitored in response to changes in the refractive index on the nanohole array sensor.
Schematic representative of the optical response of nanohole array sensor to refractive index change. (a) The change in the wavelength of maximum transmission intensity, also known as peak wavelength shift, can be quantified when comparing the transmission spectrum of nanohole array sensor exposed water (refractive index = 1.33) (solid) and water with glucose added (refractive index = 1.34) (dashed). (b) Integrated sensor response can be obtained from integrating the area under the transmission spectrum over a defined range of wavelengths (e.g., λ1 to λ2). (c) Intensity variations at a single wavelength from the transmission spectrum (inset) can also be monitored in response to changes in the refractive index on the nanohole array sensor.
Schematic representative of the optical response of nanohole array sensor to refractive index change. (a) The change in the wavelength of maximum transmission intensity, also known as peak wavelength shift, can be quantified when comparing the transmission spectrum of nanohole array sensor exposed water (refractive index = 1.33) (solid) and water with glucose added (refractive index = 1.34) (dashed). (b) Integrated sensor response can be obtained from integrating the area under the transmission spectrum over a defined range of wavelengths (e.g., λ1 to λ2). (c) Intensity variations at a single wavelength from the transmission spectrum (inset) can also be monitored in response to changes in the refractive index on the nanohole array sensor.
4.2. Application of Microfluidic Nanohole Array with Biofluids
4.2.1. Surface Functionalization of Nanohole Array Sensor
Like other label-free sensors, the nanohole array sensor requires a selective surface layer, which needs to be functionalized, for specificity and for capturing the analyte of interest and preventing nonspecific binding of other analytes (Figure 14(a)). The desired properties of surface functionalization are high surface density, high stability (i.e., temperature, solvent, flow rate), high analyte capture efficiency (binding affinity), and low cross-reactivity. Different strategies for surface functionalization have been reviewed, in the context of label-free sensors, with emphasis on the type of material surface that requires functionalization [73, 74]. Since nanohole array sensors have surfaces coated with coinage metals (e.g., Au or Ag), there is a limitation to the surface functionalization method that can be employed. The most common method of surface functionalization is to utilize a thiol group, which contains a sulfur atom, to react with the surface atoms containing Au or Ag. The reaction requires a molecule with thiol-terminated group (e.g., alkanethiol) to be incubated via immersion, which will then self-assemble on the surface of the sensor. By coupling the desired ligand on the opposite end of the molecule from the thiol-terminated group, the surface functionality can be specified. For example, for the traditional avidin/streptavidin-biotin affinity assay, the surface of the sensor can be functionalized with biotinylated thiol, which contains a thiol group on one end and biotin on the other. The thiol group can react with the surface of the sensor forming a covalent bond and the biotin group is available to bind with the avidin/streptavidin molecule when introduced over the sensor. For more complicated surface functionalization, other reactive moieties can be functionalized to react with the ligand of interest. For example, cysteamine, which contains a thiol group and an amine group, can be functionalized on the surface of the sensor first. The amine group can further react with an activated carboxyl group (activated with EDC/NHS chemistry) available on the surface of a protein of interest.

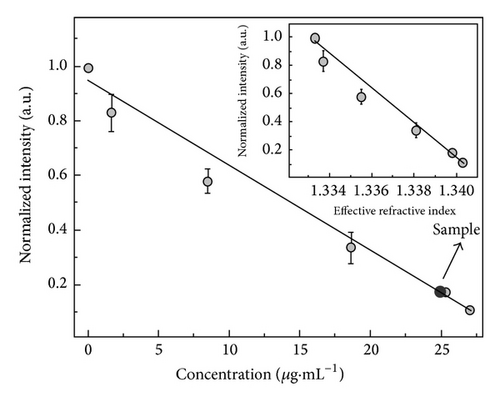

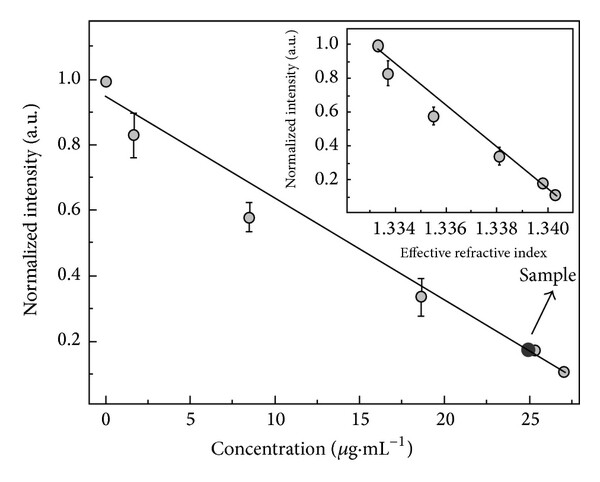

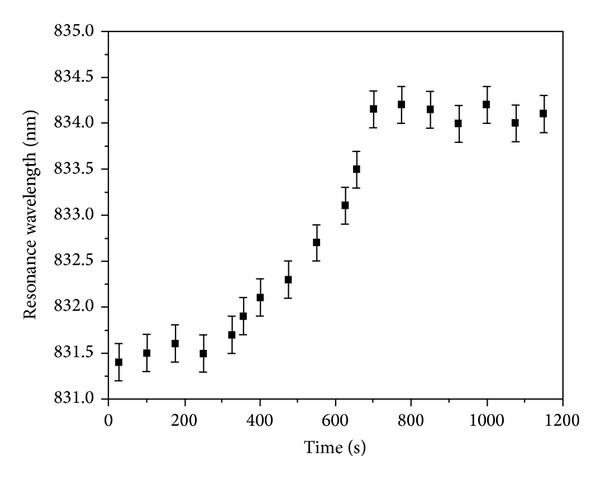

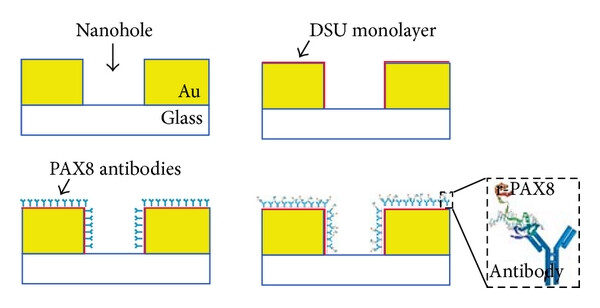

Surface functionalization and detection of biomolecules using nanohole array sensor. (a) Typical surface modification of nanohole array sensor for specific recognition of biomolecule. The surface is modified with a monolayer of linker (DSU) and antibodies (PAX8). (b) Intensity variation due to the presence of increasing concentrations of antibodies on the surface of the nanohole array sensor. Modified from [77]. (c) Colorimetric variations due to difference concentrations of target and probe DNA strands immobilized from nanohole array sensor. Modified from [46]. (d) Peak wavelength shift due to the nonspecific attachment of bovine serum albumin on a nanohole array sensor. Modified from [93].
Surface functionalization and detection of biomolecules using nanohole array sensor. (a) Typical surface modification of nanohole array sensor for specific recognition of biomolecule. The surface is modified with a monolayer of linker (DSU) and antibodies (PAX8). (b) Intensity variation due to the presence of increasing concentrations of antibodies on the surface of the nanohole array sensor. Modified from [77]. (c) Colorimetric variations due to difference concentrations of target and probe DNA strands immobilized from nanohole array sensor. Modified from [46]. (d) Peak wavelength shift due to the nonspecific attachment of bovine serum albumin on a nanohole array sensor. Modified from [93].
Surface functionalization and detection of biomolecules using nanohole array sensor. (a) Typical surface modification of nanohole array sensor for specific recognition of biomolecule. The surface is modified with a monolayer of linker (DSU) and antibodies (PAX8). (b) Intensity variation due to the presence of increasing concentrations of antibodies on the surface of the nanohole array sensor. Modified from [77]. (c) Colorimetric variations due to difference concentrations of target and probe DNA strands immobilized from nanohole array sensor. Modified from [46]. (d) Peak wavelength shift due to the nonspecific attachment of bovine serum albumin on a nanohole array sensor. Modified from [93].
Surface functionalization and detection of biomolecules using nanohole array sensor. (a) Typical surface modification of nanohole array sensor for specific recognition of biomolecule. The surface is modified with a monolayer of linker (DSU) and antibodies (PAX8). (b) Intensity variation due to the presence of increasing concentrations of antibodies on the surface of the nanohole array sensor. Modified from [77]. (c) Colorimetric variations due to difference concentrations of target and probe DNA strands immobilized from nanohole array sensor. Modified from [46]. (d) Peak wavelength shift due to the nonspecific attachment of bovine serum albumin on a nanohole array sensor. Modified from [93].
4.2.2. Affinity Capture Assays Using Nanohole Array Sensor
DNA Hybridization. Nanohole array sensors have been used to detect the hybridization of complementary oligonucleotide strands with 18 base pairs [46]. The probe oligonucleotide strand is thiol-terminated at the 5′ end and is immobilized to the coinage-metal sensor surface. The target oligonucleotide strand contains an exact match complementary sequence to that of the probe strand and is labeled with a fluorophore (HEX) to confirm the hybridization to the probe strand. The hybridization of 10 µM of the target strand to the immobilized probe strand (100 µM) induced approximately 32 nm in the peak wavelength shift and could be observed colorimetrically with an increase in the intensity of the red channel down to 0.1 nM of the target strand, confirmed by fluorescence imaging (Figure 14(c)).
Nanohole array sensors can also be used to detect color change in response to difference in DNA concentration in solution form as shown in Figure 15. For 100 pM of DNA solution on the sensor, the transmission image looks greenish orange, whereas the 100 µM DNA solution looks red on the transmission image. The color spectra obtained from the image clearly show the red shift trend of the resonance with an increasing concentration of DNA solution.

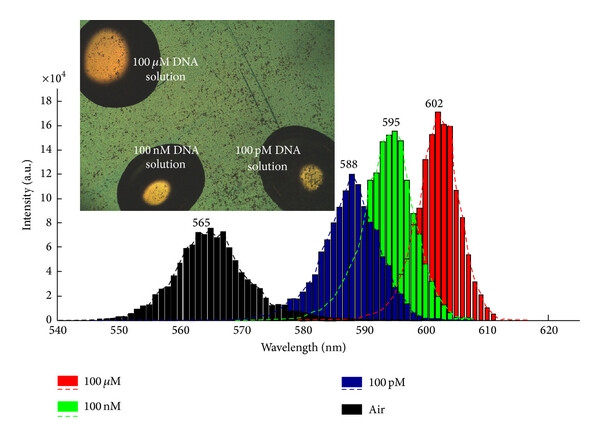

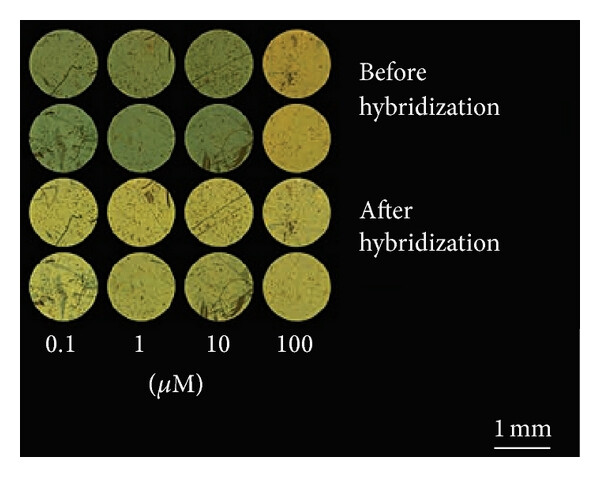

Solution-based colorimetric sensing using nano-LCA sensor. The inset image shows drop of DNA solution with concentration 100 pM, 100 nM, and 100 μM on the sensor surface. The transmission color of the sensor changes from yellow to red when DNA concentration changes from 100 pM to 100 μM, respectively. The color spectra obtained from the image are also shown.
Antigen-Antibody Binding. Antigen-antibody binding assay is commonly used to demonstrate the performance of the sensor by determining the limit of detection of the sensor and the association constant, Ka, of the antigen-antibody binding. This assay has high relevance in the pharmaceutical industry where large libraries of molecules need to be screened against potential drug targets for binding affinity. A common model binding assay is the biotin-avidin model, where the biotin molecules (molecular weight: 244 Daltons) can bind with the four available binding sites of one avidin molecule (molecular weight: 60 kiloDaltons) [75]. The Ka of the biotin-avidin interaction is approximately 1015 molar−1. The detection of the interaction between biotin avidin has been demonstrated using nanohole array sensors [35, 69, 72]. In particular, the binding of streptavidin (1 milligram dissolved in 4 milliliters of phosphate buffered solution) to immobilized cysteamine-linked biotin was observed to induce a peak wavelength shift of 3.5–4 nanometer [69]. Another model molecule for protein is bovine serum albumin (molecular weight: 66.5 kiloDaltons), which can be immobilized on the sensor by simple protein adsorption or covalently linked by carboxylated thiol linker (e.g., 6-mercaptohexanoic acid). Simple protein adsorption of bovine serum albumin on a nanohole array sensor had a peak wavelength response of 3 nanometers [46], while on a different nanohole array sensor, anti-BSA antibody binding to BSA induced a peak wavelength shift of 42 nanometers (Figure 14(d)) [46, 76]. A biomarker of ovarian cancer (r-PAX8) was detected using immobilized antibodies (linked with dithiobissuccinimidyl undecanoate to the surface) on a nanohole array sensor (Figure 14(b)) [77]. The sensor had a limit of detection of 5 nanomolars within a range of 0.25 to 9.0 µg mL−1 using an intensity variation detection with a monochromatic illumination source at 633 nanometers. The binding of a monolayer of mouse IgG immunoglobulins to protein A/G to a nanohole array caused a peak wavelength shift of 22 nanometers and when incorporated with a notch filter, the change in the peak wavelength shift could be visualized due to the corresponding change in the intensity [78].
4.2.3. Viral Detection
In a flow-through design, synthetic particles that are on the order of viruses (70 nanometer diameter polystyrene beads coated with streptavidin) have been detected using biotin-immobilized nanohole array sensor [70]. The surface of the sensor was functionalized with biotinylated thiol groups and the detection is due to the binding of the streptavidin-coated beads to the biotinylated surface of the sensor. The flow-through design provided a faster response time that is a peak wavelength shift of 15 nanometers observed in 40 minutes whereas the flow-over design required 200 minutes to observe the same shift. Analyte concentration as low as 103 particles mL−1 induced a measurable peak wavelength shift on the nanohole array sensor. Viral loads that consisted of vesicular stomatitis virus (VSV), Ebola virus, and vaccinia virus were detected on nanohole array sensor (periodicity: 600 nm, hole radius: 220 nm) with a flow-through design (Figures 16(a)–16(h)) [79]. For surface functionalization, protein A/G was first immobilized directly on the surface of the sensor followed by antibodies specific to the glycoprotein presented on the surface of a particular virus. The binding of the protein A/G and the antibodies caused a measurable shift in the peak wavelength (~4 nm and ~14 nm, resp.). Upon binding of the viruses to the antibodies, a shift of approximately 14–21 nm peak wavelength shift was observed for the Ebola virus detection [79]. Even with the background interference from cell growth medium with fetal calf serum, viral load as low as 106 plaque-forming unit (PFU) could be resolved compared to that of the reference sensor.

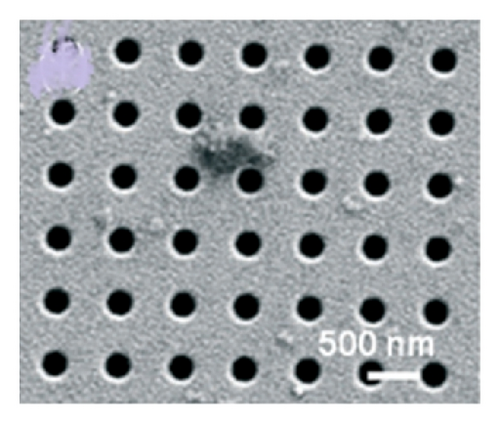

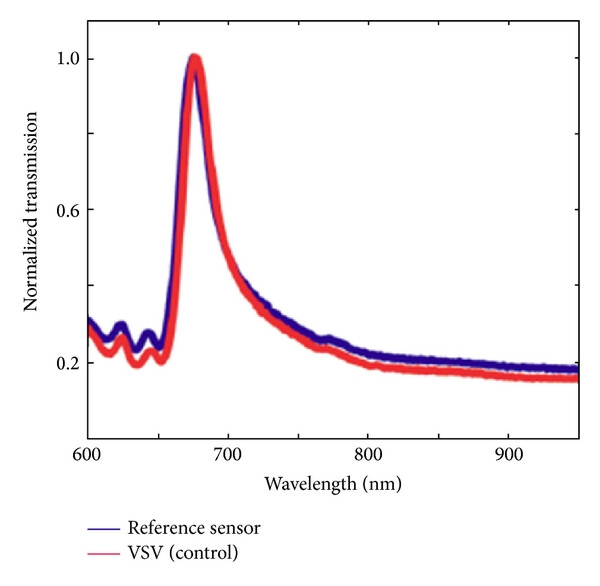

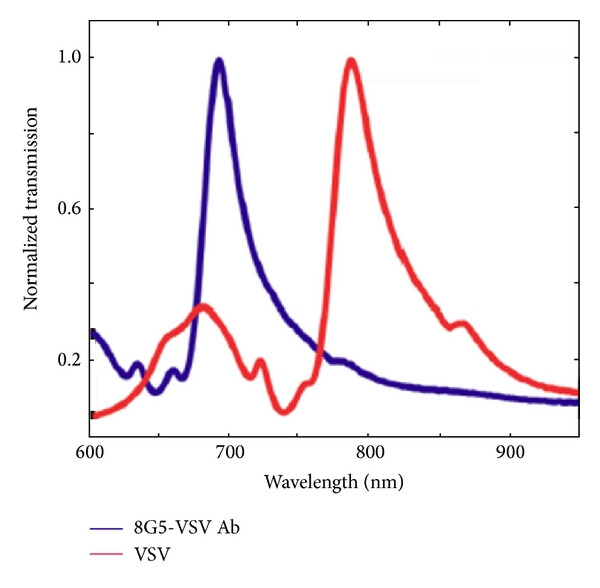

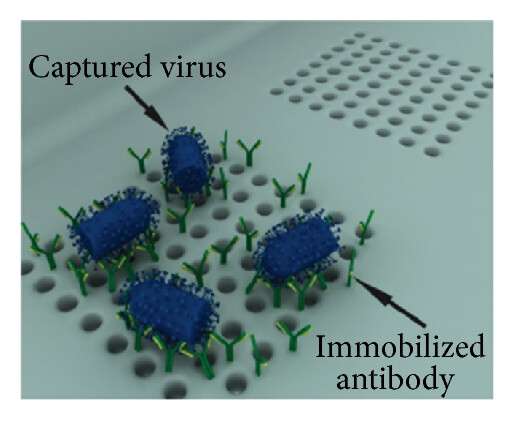

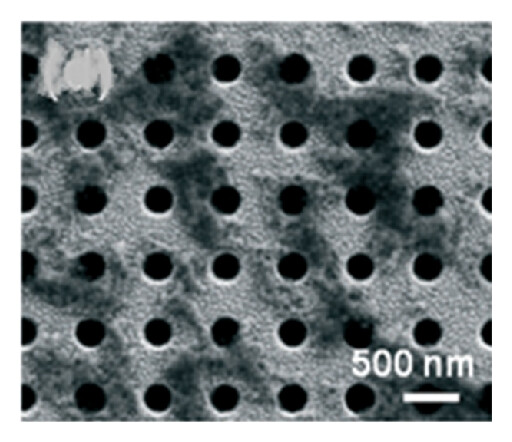

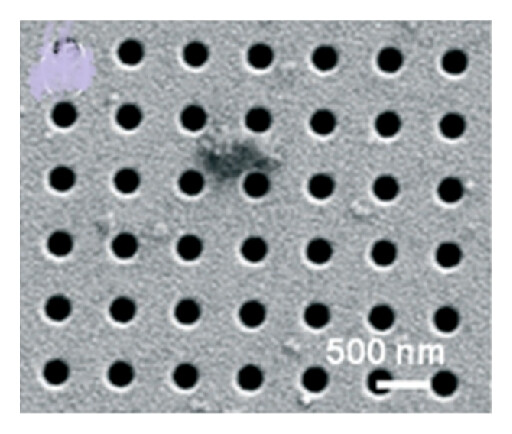

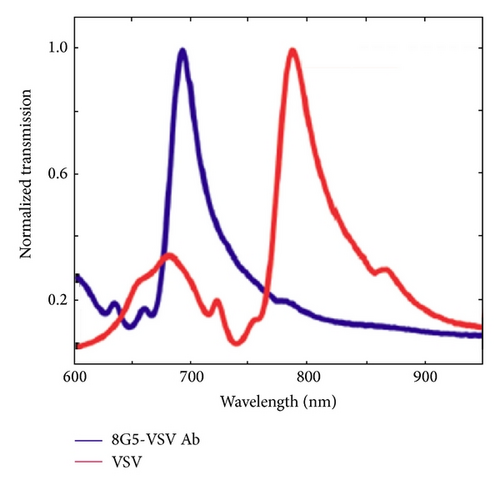

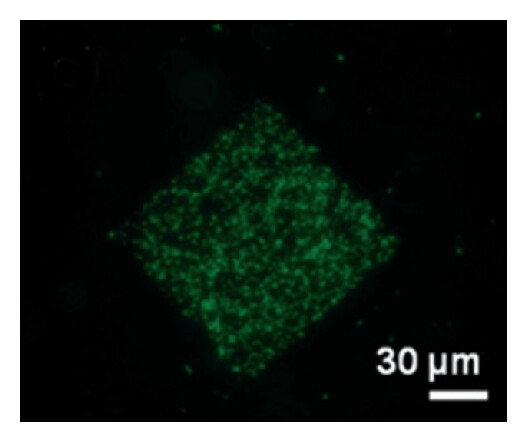

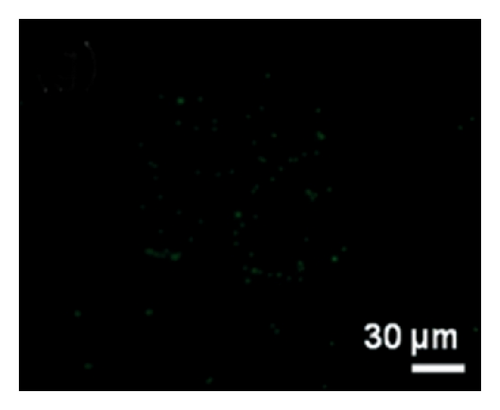

(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
(a) Schematic showing nanohole plasmonic sensor functionalized (immobilized with capturing antibody targeting vesicular stomatitis virus (VSV)) and control sensors (unfunctionalized). (b) Schematic showing VSV attaches only to the antibody immobilized sensor. (c) Transmission spectrum of control sensor without the capture antibody. (d) Transmission spectrum of sensor with the capture antibody showing about 100 nm shift in the resonance peak after the capture of VSV. Adapted from [79] (e) SEM image of the sensor without the virus. (f) Optical image showing the transmitted color by the sensor without the virus. (g) SEM image of the sensor with the virus. (h) Optical image showing the transmitted color is vanished with the capture of virus. Adapted from [70].
Future Outlook. Label-free plasmonic sensors, based on surface plasmon resonance (SPR) and localized surface plasmon resonance (LSPR), their microfabrication, instrumentations, integration to microfluidics, and applications for biofluids detection have been reviewed. The advancement of 3D nanohole fabrication techniques led to two orders of magnitude improvement in the FOM compared to colloidal nanoparticles [46]. The nanoimprint-based fabrication method enabled the formation of 3D nanohole array with footprint of four-inch wafers with a lower cost [46]. Nanohole array has been designed for both spectroscopic and color imaging-based on-chip biosensing applications. It has been shown that a flow-through microfluidic integrated nanohole sensor can improve the response time by 14-fold compared to same sensor with flow-over sensing methods [26]. The nanohole array sensor, due to its advantages, will help realize portable, inexpensive, label-free, and plasmon-based sensors with high sensitivity and high usability point-of-care diagnostics. In particular, colorimetric nanoplasmonic sensor combined with microfluidics can be integrated with existing mobile electronics such as cell phones and tablets or with existing bedside equipment such as drug infusion and blood transfusion apparatus. Multiplexed molecular detections in biofluidic samples including blood plasma, urine, and saliva can be done with a simple colorimetric sensing on the nanoplasmonic sensor and yet at a much higher sensitivity and surface specificity in comparison with a chromophore-based colorimetric assay. The nearly equipment-free nanoplasmonic sensing will completely transform the applications of SPR technology into new territories such as point-of-care diagnostics and telemedicine.
Conflict of Interests
The authors declare that there is no conflict of interests regarding the publication of this paper.
Authors’ Contribution
Abid Ameen, Manas Ranjan Gartia, and Austin Hsiao contributed equally to this paper.
