Validation of Methods for the Optical Characterisation of the Wettability of Polymeric Films for Food Packaging

1. Introduction

The possibility of measuring the wettability of polymeric films, particularly of polypropylene materials for food packaging applications, is becoming increasingly important from an industrial and economic standpoint because it determines the possibility of using new materials for bonding and new inks for printing. These technological innovations, provided they ensure a satisfactory and stable surface adhesion, allow for creating packaging that is increasingly pleasing from an aesthetic point of view and for geometries of packaging that are more and more particular, as the food market requires. If, instead, the characteristics of wettability of adhesives are taken into consideration, their better characterisation allows for reducing the area of ​​overlap for the gluing and consequently to reduce the film surface required by more than 10%, as experimentally verified. The wettability is the technological characteristic that takes into account the capacity of adhesion of a liquid on a solid film; the physical quantities to evaluate it are the polar and dispersive components of the surface free energy (SFE), usually expressed in millinewtons per meter, for which there are no methods for direct measurement.

The polar SFE, constituting together with the dispersive component the overall SFE, has greater effect on the wettability of polypropylene films; the methods currently in use, as defined in ASTM D 2578 [1], that provide the overall SFE are, thus, only partially exhaustive. They, in fact, are not always able to provide the information necessary to support the experimental investigations, which are usually performed to characterise the film produced and to assess the effect of surface treatments to increase the wettability. The results that can be obtained with the procedure proposed in [1] are also significantly affected by the subjectivity of the operator assessment, and the method provides the SFE only as a value belonging to predefined classes.

However, different methods are already available in the literature for the calculation of the SFE and the significant components of the phenomenon. In fact, there are the methods of Fox and Zisman [2] and the method of Fowkes [3] capable of providing the polar and disperse components in two subsequent steps of the calculation, which are then reduced to one from Owens-Wendt-Rabel and Kaeble (OWRK), as described in [4].

They provide different physical models that bind the quantities of interest, even if their validity appears limited to certain classes of materials (polymeric films with different treatments, metals, paints, coatings, and biological film), due to the specific modelling assumptions. All, however, make it possible to evaluate the polar and disperse components of the SFE, by direct measurement of the contact angle; consequently, the uncertainties with which the polar and disperse SFE can be assessed depend on the measurement uncertainty of the contact angle.

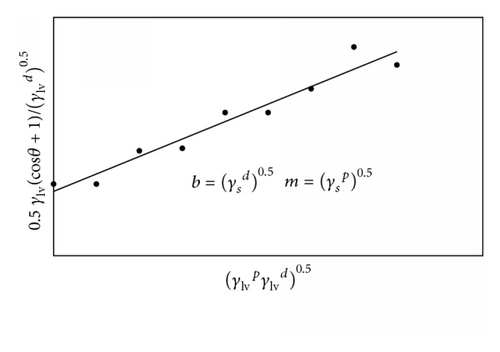

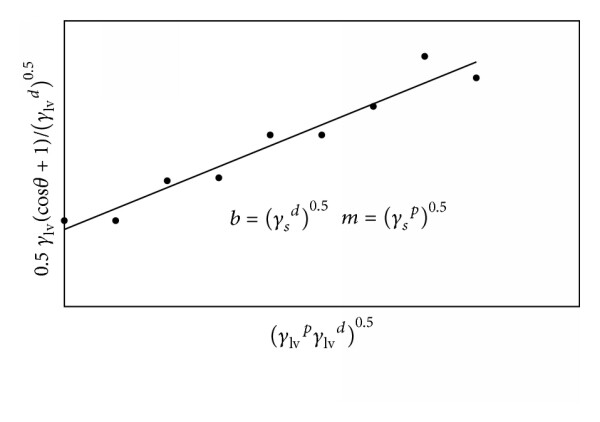

In this paper, particular reference is made to the method (OWRK) [4] among the methods available in the literature for several reasons: the physical hypotheses appear complete and suitable to the type of polymer studied, and the approach is operationally feasible, even in an industrial context. For these reasons, it has been used in other works described in the literature [5–7].

Although the method is widespread, preliminary evaluation of the measurement uncertainty only recently appeared [4, 5, 7]. In particular, reference [7] proposes an analytical evaluation of the SFE uncertainty. In this paper, however, an experimental uncertainty assessment is proposed, which takes into account the real behavior of the instrument used.

The measurement uncertainty of the methodology and also the identification of technical-operational solutions to reduce it appear important, not only for reasons of metrological correctness but also to readily identify possibilities of the development of new materials and the effects of surface treatments.

In fact, as will be described below, the method is affected by numerous influence variables of different types, which complicates the uncertainty evaluation.

2. The Physical Model and the Experimental Methodology

The knowledge of the values ​​of the polar and disperse components of the SFE allows for describing a curve, very important from the point of view of applications, the “wetting envelope” [4], which makes particularly immediate the evaluation of the surface wettability by a known liquid. If the representative point of the new liquid is inside the curve, the film will be “wetted.”

3. Materials, Measurement Method, and Results

As previously mentioned, for the indirect evaluation of the SFE components of a polypropylene film, the method of the contact angle measurement has been used, using a vision system, which allows the assessment of the geometrical parameters of the “sessile” drop, both statically and dynamically, where the dynamic measure consists of the determination of the temporal trend of different geometric parameters of interest, such as the contact angle and volume of the drop and position of the contact line.

The measurements have been conducted on a test bench consisting of a commercial system for the analysis of images, OCA20 of Data Physics Company, which has been used to dispense, in a controlled manner, the volumes of the drops and to monitor their variation over time, to optimise the fixing of the film and to adjust the illumination of the sample. A part of the image processing has been performed by the software package of the above measurement system; some procedures for image and data processing have also been specifically developed in this work to achieve both a validation of the software indications and different information for comparison purposes.

Two different polypropylene films have been analysed, Film1 and Film2, for reasons of industrial privacy. They are both PET films, but the second has been subjected to a corona surface treatment [6].

The sample fluids have been chosen because they wet the polypropylene film in a unique way; the wettability decreases rapidly from diiodomethane to formamide and water. The contact angle follows an opposite trend.

Tests have been conducted with the aim of identifying the different contributions that will be afterwards composed.

3.1. Operational and Instrumental Factors

Graphs of Figures 2, 3, and 4 show some of the results of tests conducted by varying some parameters of interest, in particular, the size of the drop and the waiting time between the drop deposition and the angle measurement for different films and reference liquids. The drop outline has been obtained by using the circular fitting method.

The diagrams refer to different pairs of film-liquid, not for the purpose of comparison, but with the aim to give examples of the data from which the contribution of the different variables involved has been calculated.

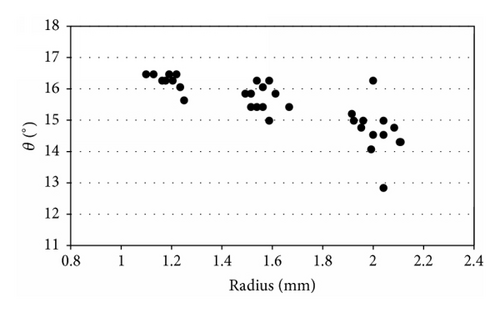

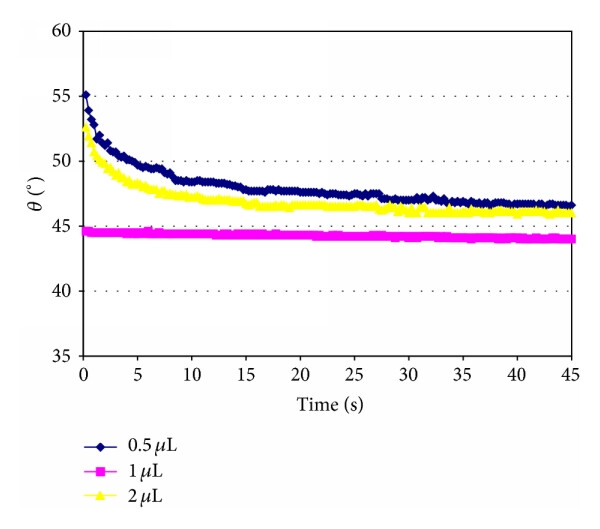

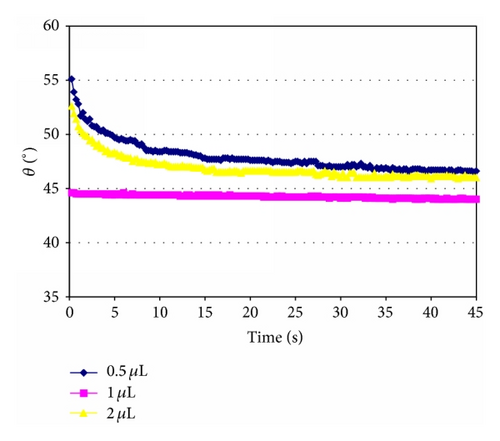

The effect of size (Figure 2) appears more important on the measurement uncertainty of the angle, with respect to the waiting time (Figures 3 and 4). In fact, as long as you wait a minimum time for the settling of the drop, which is dependent on the liquid, the percentage changes of data over time appear to be less important than the other effects.

The tests have been conducted in laboratory with the temperature in the range (20 ± 2)°C and relative humidity in the field (50 ± 10)%. The effects of these parameters, which affect the liquid evaporation, have been taken into account experimentally by evaluating the temporal trend of the contact angle. They appear, however, to be not relevant.

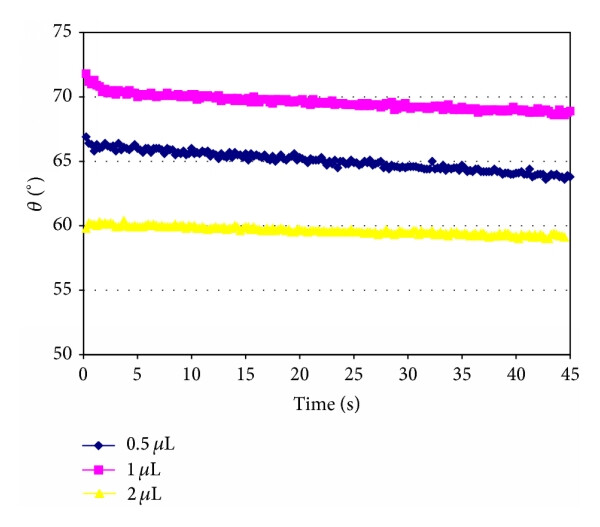

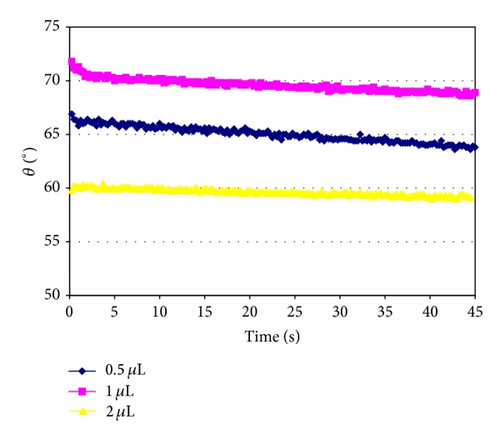

The graphs of Figures 3 and 4 show that the measurement dispersion also depends on the type of film/fluid pair; the highest variability occurs with the water, to which the films of polypropylene must be strongly repellent.

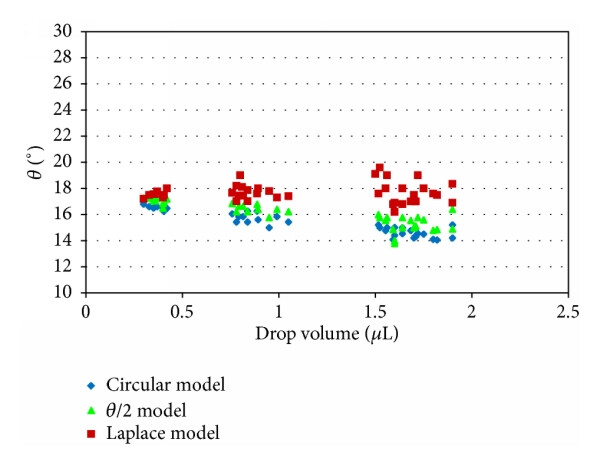

Figure 5 shows the variation of the results when different methods of fitting are used, according to different geometric hypotheses.

Fifty tests have been conducted for each film/liquid pair with different operators, on different days, in the environmental conditions specified above, for data reproducibility evaluation.

The contribution to the overall uncertainty of the environmental and operating variables, such as, in particular, volume and modelling of the drop outline, has been expressed as standard deviation s_vm of the results.

The contribution to the overall uncertainty of the waiting time before the angle measure has been evaluated as the standard deviation s_t, assuming a rectangular probability distribution between the minimum and the maximum value ​​of a measurement time sequence.

The use for testing of different samples of the same type of film has allowed for taking into account the variability of the surface roughness and inhomogeneity related to surface treatments.

3.3. Uncertainty Assessment

The overall uncertainty has been obtained according to [9] by the following equation:

$$ ()

The uncertainty changes, as outlined above, depending on the film/fluid pair considered.

For example, in the case of Film1/diiodomethane θ = (16.1±1.2)^°, and in the case of Film2/water θ = (69.2±4.0)^°. The other values ​​of θ are intermediate.

A confirmation of the variability estimated for the contact angles has been obtained from dynamic tests; the temporal trend of θ is evaluated when the volume is increased continuously, beyond the value ​​of the maximum value of the drop volume (2 μL) set in the static tests. The results of this type of test are affected by hysteresis phenomena [10], as shown by the “sawtooth” trend of the diagram in Figure 6.

In this situation, metastable conditions of the drop occur, and the variability of θ appears overestimated.

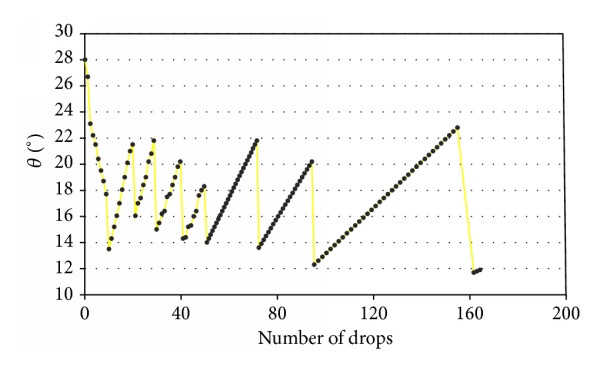

It is noted that, considering an average hysteresis interval of 6° for the Film1, as can be seen from the graph in Figure 6, and assuming a rectangular probability distribution within this range, the resulting uncertainty u_hyst can be evaluated as [9]

$$ ()

This value of uncertainty seems to be overestimated, as mentioned, and, in fact, it is assumed to be a confirmation of the uncertainty evaluation of 1.2°, as evaluated for the Film1.

The measure of the θ values and the evaluation of their uncertainties have allowed for assessing, in accordance with (3), the components $$ and $$ for the two films studied, when subjected to different surface treatments.

The uncertainties of SFE have been obtained by evaluating the values ​​of $$ and $$ by the model described, varying θ in the range of uncertainty (θ±s)^°, and calculating the standard deviation of the data. The effect of the uncertainty of the characteristics of the reference fluids appears to be negligible.

If the results are taken into account, the component affected by greater uncertainty is $$.

In particular, $$ mN/m in the case of Film1 and $$ mN/m in the case of Film2.

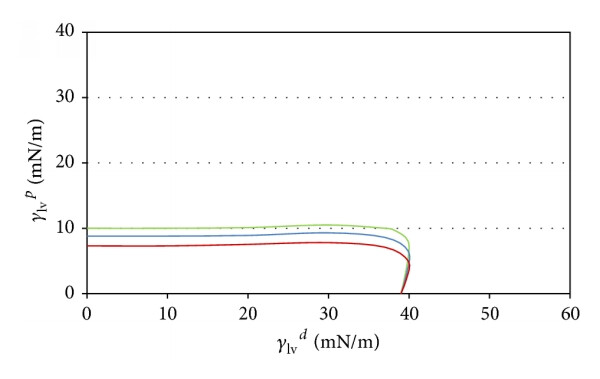

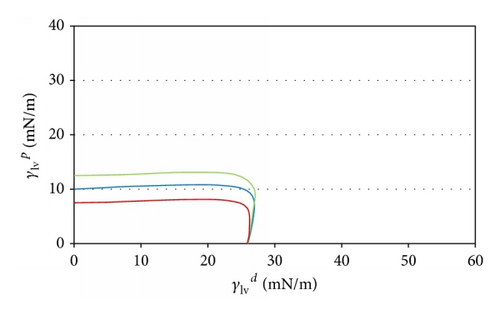

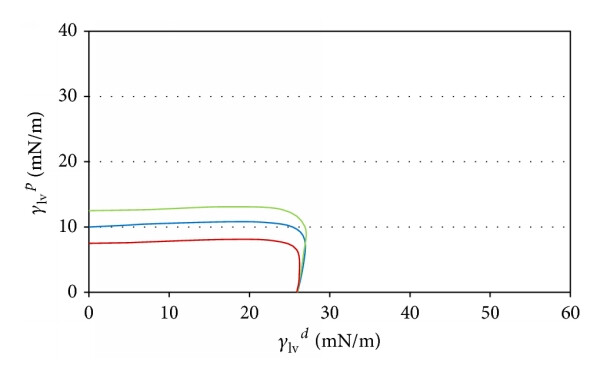

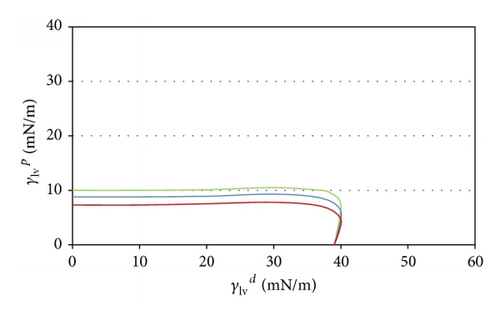

In Figures 7 and 8, the curves of wettability in the wettability diagram are described, obtained for Film1 and Film2 and calculated in correspondence with the aforementioned average angles θ = 16.1 and θ = 69.2, respectively; the uncertainty range is also represented ($$ mN/m and $$ negligible in the case of Film1, $$ mN/m and $$ negligible in the case of Film2).

There is a need to “stress” the surface treatment for the Film2 to create a sufficient area of ​​wettability in the wettability diagram. The low value of dispersive SFE, $$, has led to a considerable increase of the uncertainty, presumably due to higher physical and chemical nonuniformity of the surface, due to the stressing surface treatment.

These results suggest that the average value of the SFE provided by the measurement method is not sufficient to make assessments about the wettability of films, especially when they are subjected to surface treatments to increase the wettability itself. Uncertainty evaluation is, then, essential to make reliable evaluations of the possible compatibility of new materials.

4. Conclusions

In the present work, the effect of the influence variables in the measurement of the contact angle of drops, θ, deposited on different polypropylene films for food packaging was evaluated.

In particular, the effect of the operational quantities was evaluated, such as drop size, growth rate, waiting time, positioning of the sample on the measuring bench, lighting, and geometric modelling of the droplet.

The analysis enables the identification of the most important influence parameters, which is also useful for the implementation of experimental procedures that are transferable in an industrial contest.

The study of different films allowed for highlighting the importance of the surface treatment on the measurement accuracy. This treatment, on one hand, leads to improvement of the wettability. On the other hand, because of the possible considerable increase of the measurement uncertainty of SFE, it may affect the possibility to provide operatively usable information based on experimental data having an excessive measurement uncertainty.
