Renal Cell Carcinoma with Intraluminal Spread of the Entire Upper Urinary Tract

1. Introduction

Although RCC occasionally invades the renal pelvis and ureter microscopically, massive extension into the renal pelvis and ureter is a rare event. Herein, we describe a case with an RCC growing in the renal pelvis and ureter and reaching the bladder.

2. Case Presentation

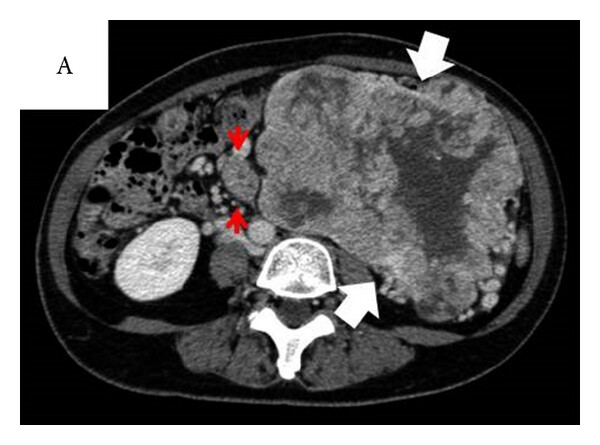

A 51-year-old female visited us due to asymptomatic macroscopic hematuria persisting for two weeks. She had experienced discomfort, not pain, in the stomach. She had been followed up at another clinic for polycythemia for several years. Cystoscopy revealed a nonpapillary tumor about 2 cm in diameter, emanating from the left ureteral orifice (Figure 1). Blood results at presentation showed Hb 14.8 g/dL, Cr 0.7 mg/dL, estimated GFR 68.1 mL/min, WBC 6.6 × 10³/μL, CRP 5.35 mg/dL, LDH 184 IU/L, and Ca²⁺ 9.9 mg/dL. Urine cytology was negative for malignant cells.Contrast enhanced CT showed an unevenly contrasted tumor, infiltrating almost all renal parenchyma, filling the renal pelvis and ureter, and extending into the urinary bladder (Figure 2). There were no apparent metastases to lung, liver, adrenal glands, or lymph nodes. With a tentative diagnosis of renal pelvic tumor, we didnot perform perioperative biopsy, and she underwent nephroureterectomy with hilar lymph node dissection. Macroscopically the tumor almost replaced the whole kidney. The renal pelvis and ureter were extensively packed with the tumor. Histological examination (Figure 3) revealed a clear cell RCC, grade 2 > 1, with microvascular invasion, Fuhrman grade 2, without any sarcomatoid elements. There was no evidence of a venous thrombus or metastasis to lymph nodes. Leibovich score was 6. Postoperative course was uneventful, but 6 months later multiple pulmonary metastases were detected.

3. Discussion

Although RCC may penetrate the renal pelvis, intraluminal spread into the renal pelvis and ureter is extremely rare with only a few cases reported in the English literature [1–6]. Munechika et al. [3], Chen et al. [4], and Fujita et al. [5] reported similar cases, although the tumor extension was limited in the renal pelvis and ureter. Gulati et al. [6] reported a case in which the tumor protruding from the ureteral orifice was resected transurethrally and confirmed as a clear cell RCC. Interestingly, in these cases, as well as ours, no visible venous thrombus was reported. We did not resect the tumor in the bladder transurethrally because we considered it was less likely lymphoma, whose tumor marker, soluble IL-2R, was 643 U/mL a little over normal range.

Also, enhanced CT findings did not show hypovascular pattern, suggesting that it would not be sarcoma.

Intraluminal spread of the upper urinary tract by other types of cancer has also been documented (Table 1). Thorup reported a case of implantation of colonic adenocarcinoma which occluded the ureter a year after the surgery with ureteral injury. Tsurumaki et al. described a case of uterine endometrioid carcinoma filling the upper urinary tract 11 years after hysterectomy with partial ureterectomy for invasion.

The implantation and/or invasion to urothelial mucosa followed by intraluminal expansive growth would be the pathogenesis of this rare manifestation. However, because of the rarity of these cases, clinical characteristics have not been fully understood.
