Model Reference Control of Hyperchaotic Systems

Pengfei Zhao,

Corresponding Author

Pengfei Zhao

[email protected]

College of Geoexploration Science and Technology, Jilin University, Changchun 130026, China jlu.edu.cn

College of Computer Science and Technology, Jilin University, Changchun 130012, China jlu.edu.cn

Department of Scientific Computing, Florida State University, Tallahassee, FL 32306, USA fsu.edu

Search for more papers by this author

Cai Liu,

Cai Liu

College of Geoexploration Science and Technology, Jilin University, Changchun 130026, China jlu.edu.cn

Search for more papers by this author

Xuan Feng,

Xuan Feng

College of Geoexploration Science and Technology, Jilin University, Changchun 130026, China jlu.edu.cn

Search for more papers by this author

Pengfei Zhao,

Corresponding Author

Pengfei Zhao

[email protected]

College of Geoexploration Science and Technology, Jilin University, Changchun 130026, China jlu.edu.cn

College of Computer Science and Technology, Jilin University, Changchun 130012, China jlu.edu.cn

Department of Scientific Computing, Florida State University, Tallahassee, FL 32306, USA fsu.edu

Search for more papers by this author

Cai Liu,

Cai Liu

College of Geoexploration Science and Technology, Jilin University, Changchun 130026, China jlu.edu.cn

Search for more papers by this author

Xuan Feng,

Xuan Feng

College of Geoexploration Science and Technology, Jilin University, Changchun 130026, China jlu.edu.cn

Search for more papers by this author

First published: 31 December 2012

https://doi.org/10.1155/2012/252487

Citations: 1

Academic Editor: Jong Hae Kim

Share a link

Email
Wechat
Bluesky

Abstract

We have applied a famous engineering method, called model reference control, to control hyperchaos. We have proposed a general description of the hyperchaotic system and its reference system. By using the Lyapunov stability theorem, we have obtained the expression of the controller. Four examples for the both certain case and the uncertain case show that our method is very effective for controlling hyperchaotic systems with both certain parameters and uncertain parameters.

1. Introduction

Chaos has received increasing attentions in the last thirty years. Compared with the ordinary chaotic systems, the hyperchaotic systems hold at least two positive Lyapunov exponents and then possess more complicated attractors. Hyperchaotic systems have the characteristics of high capacity, high security, and high efficiency and have been studied in many fields, such as secure communication [1, 2], cellular neural network [3, 4], chemical processing [5], nonlinear circuit [6–8], and other fields [9, 10].

Controlling chaos (or hyperchaos) is very meaningful. The research has been started since the pioneering work of OGY method [11] was published. As the development of computational technique and controlling theory, many methods have been proposed for controlling chaos such as, LMI-based approach [12, 13], sliding control [14], active control [15], optimal control [16, 17], and passivity-based control [18, 19]. However, the hyperchaotic systems are more complex than the ordinary chaotic ones. To obtain the satisfying effect of control, we should focus on more advantage algorithms and ideas of controlling techniques. There have been some results on controlling hyperchaotic systems, such as feedback control [20, 21], adaptive control [22], backstepping control [23], and impulsive control [24].

In this paper, we will show that although a hyperchaotic system is complex, its dynamics can still be controlled along an expected trajectory. The controller is generated by an advantage control method, called model reference control (MRC). Nowadays, MRC is widely used in engineering, such as control of robots [25], mechanical oscillators [26], economic cycle [27], and disease spread [28]. Our aim is to control a hyperchaotic system to track with an expected trajectory with the aid of MRC. In the following section, the formulation of the problem will be presented. In Section 3, we will propose the framework of MRC on hyperchaotic systems with certain parameters and the systems with uncertain parameters. In Section 4, we will give two numerical examples to show the effectiveness of MRC on hyperchaotic systems with certain and uncertain parameters and also two examples for the hyperchaotic systems with uncertain parameters. Finally, the conclusion will be given in Section 5.

2. Problem Formulation

The first example of the hyperchaotic systems was presented by Rössler in 1979 [29]. Since then, other hyperchaotic systems have been reported [30], and many researchers are focusing on the discovery of new hyperchaotic systems and their control. In this section, we will describe the basic formulation of generalized hyperchaotic system and the reference system. Recently, nonlinear scientists are focusing on the control problem of chaotic and hyperchaotic systems with uncertain parameters [31–37]. Hence, we will give the formulation of both the hyperchaotic systems with certain parameters and the systems with uncertain parameters.

Since a hyperchaotic system with certain parameters should have quadratic terms at least, we may formulate the system as follows:

(2.1)

where X is an n dimensional column vector, X^T is its transposed matrix, A is an n² × n matrix including n matrices A₁, A₂, …, A_n in the form of n × n, B is an n × n matrix, and u is an n dimensional input control column vector. It is worth noting that X^TAX is only the nominal expression of matrix multiplication, and it describes the quadratic terms in blocks as follows:

(2.2)

Equation (2.1) can cover a great many hyperchaotic systems, though it may not fit for the systems with higher order terms or even a fractional order term. The uncertain form of system (2.1) is as follows:

(2.3)

where C(X) is an n × m matrix, uncertain parameter α is an m dimensional column vector, and other variables as above. Here, m might be equal to n, also smaller or bigger than n.

In this section, we will also introduce a reference system with only linear terms and constants. Our aim is to control the hyperchaotic system track along with the reference model system that exhibits asymptotic stability as follows

(2.4)

where the matrix

is a known constant matrix with appropriate dimensions, the eigenvalues of the matrix

have negative real part such that the system is asymptotically stable. By letting the system (2.4) be the reference system, we will control the hyperchaotic system (2.1) track along with the system (2.4). Here, X_r is called state output vector of the reference model, and

the reference input vector.

Particularly, if the reference system has a two-order term, we may write it as

(2.5)

where

is a similar matrix as A.

3. Model Reference Control of Hyperchaotic Systems

In this section, MRC is applied to control a hyperchaotic system with both certain parameters and uncertain parameters. Our objective is to obtain the exact control law u such that the original system follows the dynamical behavior of the reference model. We will review the Lyapunov stability theorem for autonomous systems and then give the explicit expression of the controller.

Theorem 3.1 (Lyapunov stability theorem for autonomous systems). Let x = 0 be an equilibrium point for a dynamical system described by

(3.1)

where f : D → ℝⁿ is a locally Lipschitz and D ⊂ ℝⁿ a domain that contains the origin. Let V : D → ℝ be a continuously differentiable, positive definite function in D. Then x = 0 is an asymptotically stable equilibrium point, if

is negative definite. The scalar function V is a Lyapunov function if

is negative semidefinite in the region D :

Assume that the error system (3.1) satisfies the conditions of Theorem 3.1, and its Lyapunov function has the form as

(3.2)

where P is a symmetric positive definite matrix. The derivative of V(e) with respect to time is

(3.3)

In the whole process of MRC, the output of reference model and that of the controlled system are compared, and the error vector e is

(3.4)

If we want to control the system (2.1) to track along with system (2.4), we may have the following results. By using (2.1) and (2.4), we obtain the following error system:

(3.5)

We will try to design a control vector u such that the objective equation

(3.6)

From (3.1) and (3.2), the MRC problem is converted to the asymptotic stability of zero vector of the error system (3.1). Here, we will use the Lyapunov stability theory to determine the proper control law u. The theorem is as follows.

Theorem 3.2. Let P be any symmetric positive definite matrix, λ_max is the largest eigenvalue of the matrix , the controller . The hyperchaotic system (2.1) will asymptotically follow the desired dynamical system (2.4), if λ < −λ_max/2 and λ ≠ 0.

Proof. The fact that the hyperchaotic system (2.1) asymptotically follows the system (2.4) is equivalent to asymptotical stability of the error system. Hence, we will try to prove the inequality of .

For the symmetric property, the scalar equation (3.3) may have the following description:

(3.7)

For λ < −λ_max/2, the matrix

is negative definite. Also, the scalar

is obtained.

Using the result of Theorem 3.1, it can be concluded that the error e will converge to 0 asymptotically. Equivalently, the controller u will make the hyperchaotic system (2.1) asymptotically follow the desired dynamical system (2.4).

If we want to control the system (2.1) to track along with system (2.5), we may have the following results. By using (2.1) and (2.4), we obtain the following error system:

(3.8)

It is easy to obtain the control law in the following theorem with similar process of Theorem 3.2.

Theorem 3.3. Let P be any symmetric positive definite matrix, λ_max is the largest eigenvalue of the matrix , and the controller . The hyperchaotic system (2.1) will asymptotically follow the desired dynamical system (2.4), if λ < −λ_max/2 and λ ≠ 0.

We can omit the proof of Theorem 3.3, for it is similar to that of Theorem 3.2.

Theorems 3.2 and 3.3 are fit for the hyperchaotic systems with certain parameters. In the following, we will give two similar theorems for the systems with uncertain parameters. To simplify the control process, we will make P = I.

Theorem 3.4. Let λ_max is the largest eigenvalue of the matrix , the controller , where is the estimation of uncertain parameter α, and satisfies the differential equations . The hyperchaotic system (2.3) will asymptotically follow the desired dynamical system (2.4), if λ < −λ_max and λ ≠ 0.

Proof. For the uncertain property of system (2.3), we should redefine the Lyapunov function as follows

(3.9)

Similar to the proof of Theorem 3.2, we have to prove the inequality of

(3.10)

For λ < −λ_max, the matrix

is negative definite. Also, the scalar

is obtained.

Hence, the controller u will make the hyperchaotic system (2.3) asymptotically follow the desired dynamical system (2.4).

If we want to control the system (2.3) to track along with system (2.5), we may have the following results. We have the following error system:

(3.11)

It is easy to obtain the control law in the following theorem with similar process of Theorem 3.4.

Theorem 3.5. Let λ_max is the largest eigenvalue of the matrix , the controller , where is the estimation of uncertain parameter α, and satisfies the differential equations . The hyperchaotic system (2.3) will asymptotically follow the desired dynamical system (2.5), if λ < −λ_max and λ ≠ 0.

We can also omit the proof of Theorem 3.5.

4. Numerical Examples

This section has two parts. The first part is the numerical examples for controlling hyperchaotic systems, where all the parameters are certain. We will use the result in Theorem 3.2 to control hyperchaotic Rössler system and use that of Theorem 3.3 to control the hyperchaotic Lorenz system. The second part is the numerical examples for controlling the systems with uncertain parameters. Especially, Example III has four uncertain parameters, and Example IV has six uncertain parameters.

The whole numerical results show that MRC is very suitable and efficient for controlling hyperchaotic system with both certain parameters and uncertain parameters.

4.1. Example I

The four-variable hyperchaotic Rössler system is described by

(4.1)

According to (2.1), we have

(4.2)

where u₁, u₂, u₃, and u₄ are equal to 0 in the initial state and need to be determined by Theorem 3.2.

The reference model with asymptotical stability is as follows:

(4.3)

According to (2.4), the matrix

and the control vector

of the 4-dimensional reference system (4.3) have the following description:

(4.4)

According to Theorem 3.2, we may let matrix P = diag [1,1, 1,1], then the matrix

(4.5)

and its largest eigenvalue is λ_max = 63.6297. By considering the conditions λ < −λ_max/2 and λ ≠ 0, we should obtain λ = −40. Then, the controller should be determined by Theorem 3.2,

(4.6)

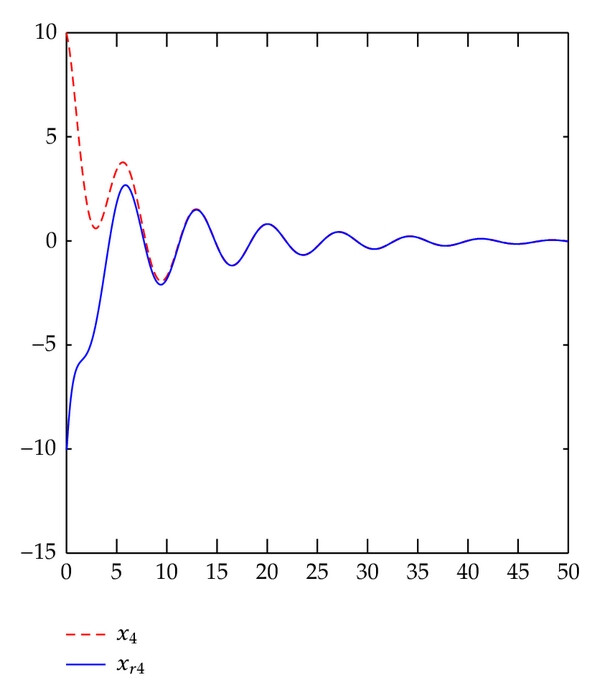

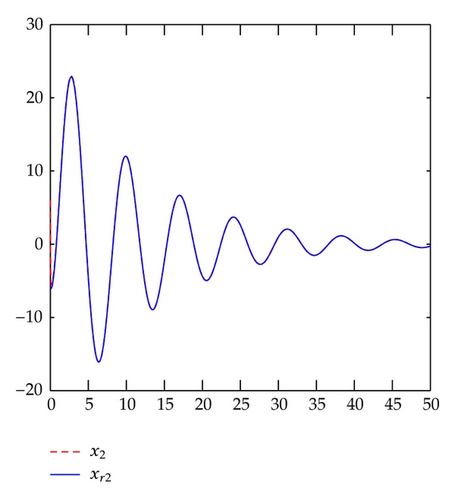

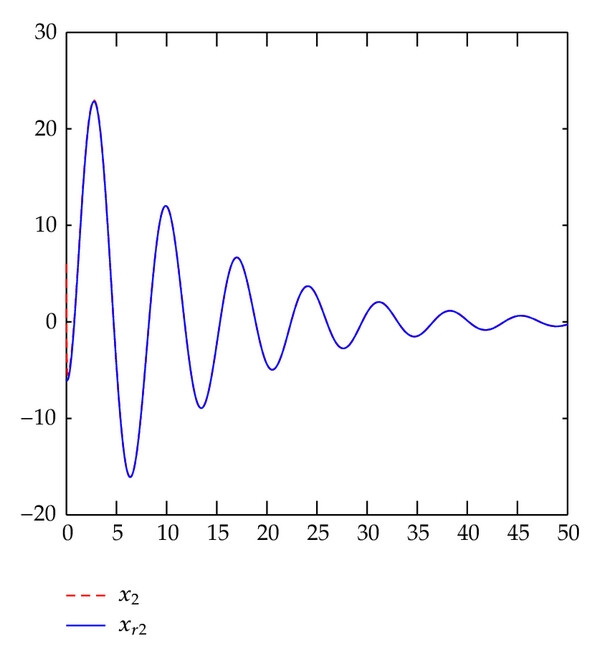

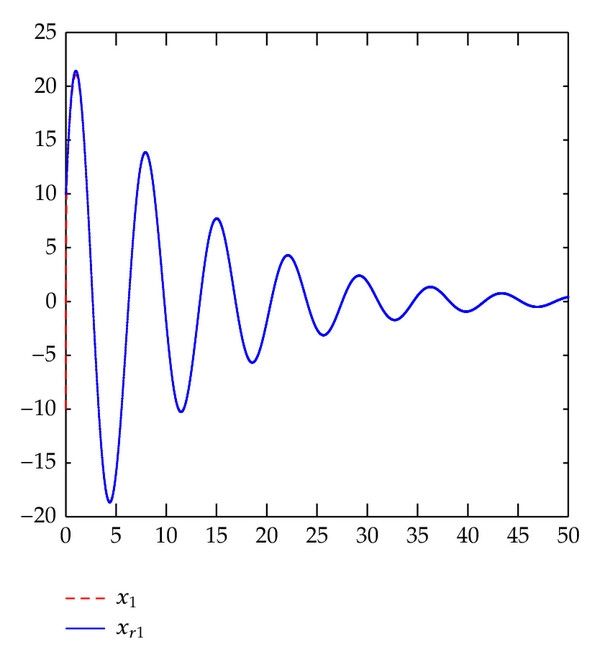

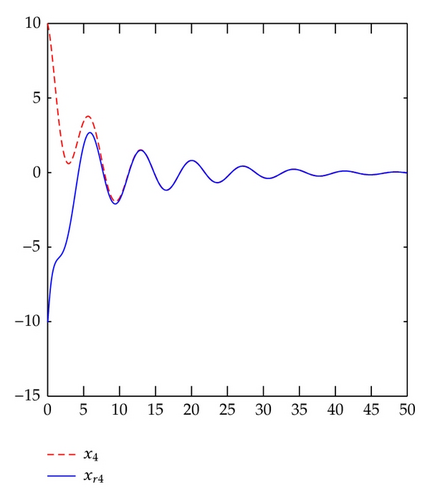

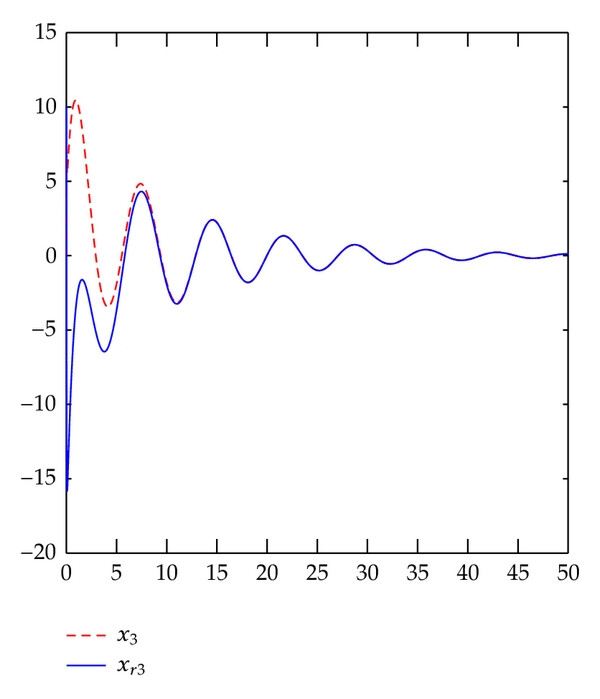

Figure 1 shows that the controller can make the hyperchaotic Rössler system (4.1) track along with its reference system (4.3). Here, the initials of these two systems are [−10,6, 0,10] and [10, −6,10, −10], respectively.

Details are in the caption following the image — **Figure 1 (a) x1 and xr1**
Open in figure viewer PowerPoint

Comparison of the corresponding variables in the controlled hyperchaotic Rössler system and its reference system: (a) x₁ and x_r1; (b) x₂ and x_r2; (c) x₃ and x_r3; (d) x₄ and x_r4.

4.2. Example II

The four-variable hyperchaotic Lorenz system [30] is described by

(4.7)

(4.8)

(4.9)

(4.10)

According to (2.1), we have

(4.11)

where u₁, u₂, u₃, and u₄ are equal to 0 in the initial state and need to be determined by Theorem 3.3.

The reference model with asymptotical stability is as follows:

(4.12)

According to (2.5), the matrix A_i (i = 1, …, 4) and

and the control vector

of the 4-dimensional reference system (4.12) have the following description:

(4.13)

According to Theorem 3.3, we may let matrix P = diag [1,1, 1], then the matrix

(4.14)

and its largest eigenvalue is λ_max = 5.8387. By considering the conditions λ < −λ_max/2 and λ ≠ 0, we should obtain λ = −10. Then, the controller should be determined by Theorem 3.3,

(4.15)

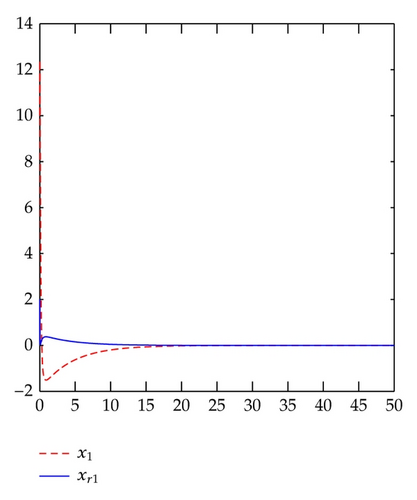

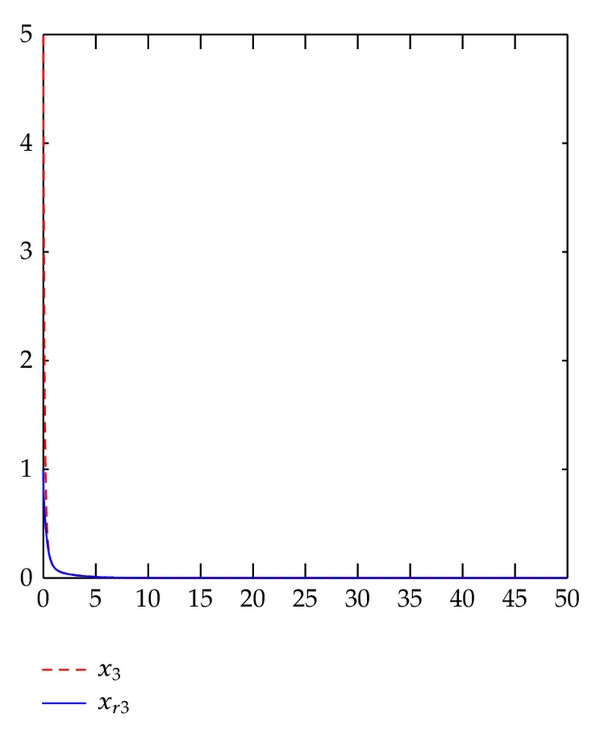

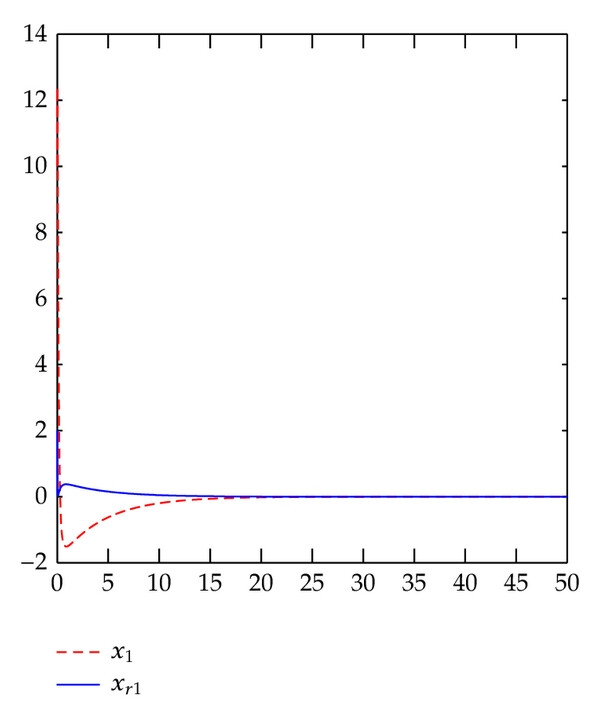

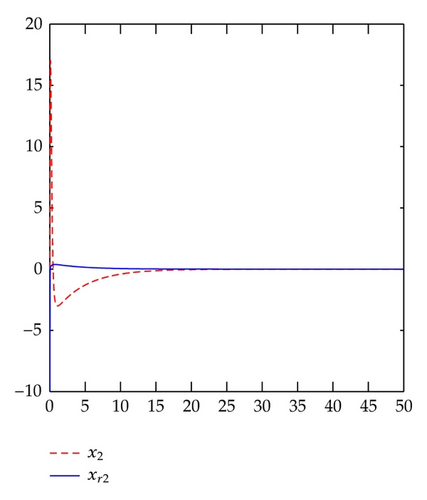

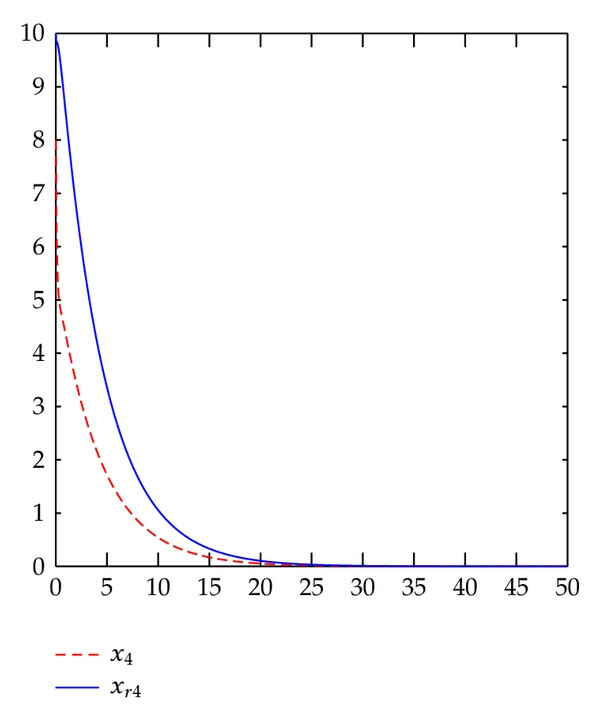

Figure 2 shows that the controller can make the hyperchaotic Lorenz system (4.7)–(4.12) track along with its reference system (4.12). Here, the initials of these two systems are [10,0, 5,8] and [2, −10,1, 10], respectively.

4.3. Example III

The four-variable hyperchaotic Rössler system with uncertain parameters is described by

(4.16)

According to (2.3), we have

(4.17)

where u₁, u₂, u₃, and u₄ are equal to 0 in the initial state and need to be determined by Theorem 3.4. In Figure 3,

is the estimation value of the column vector α, where

The estimation system of uncertain parameters is

(4.18)

The reference model is the same as Example I,

(4.3)

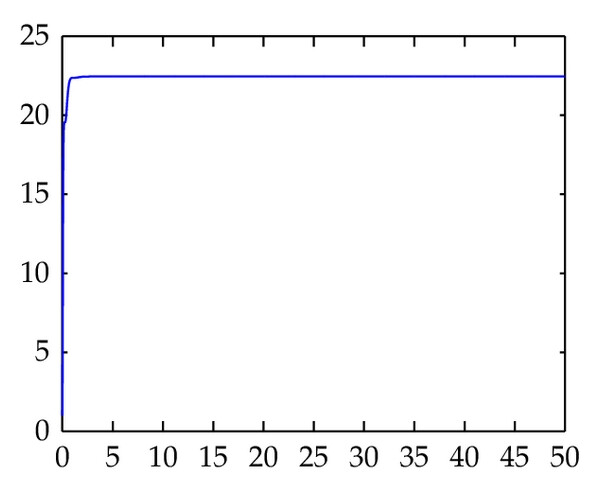

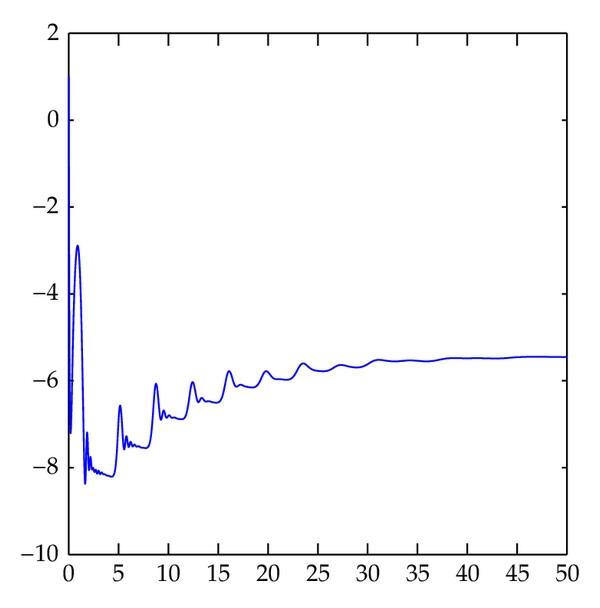

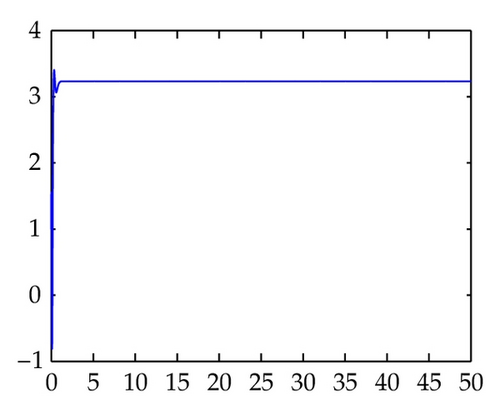

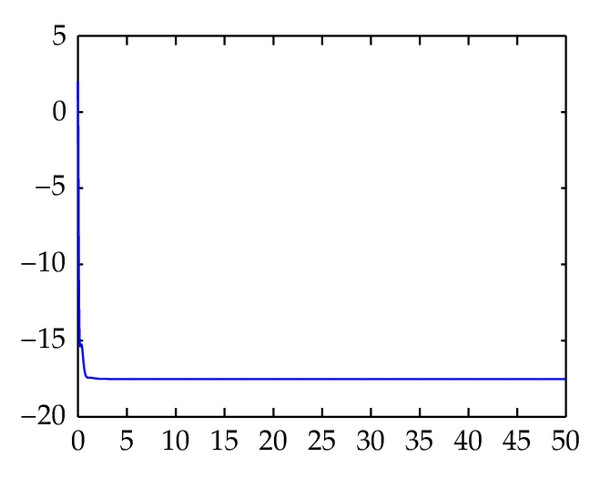

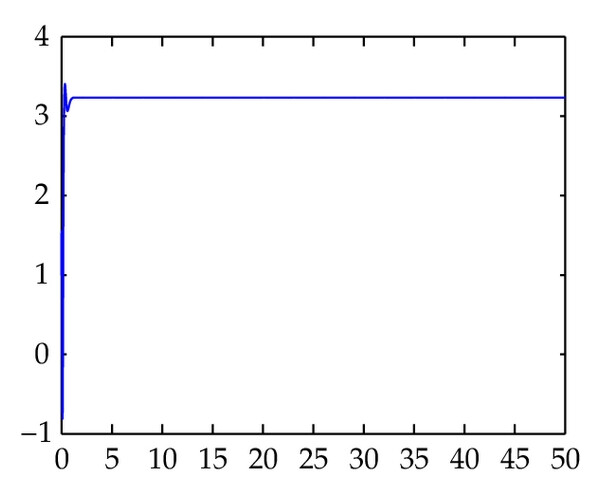

We have the largest eigenvalue λ_max = −0.9675. By considering the conditions λ < −λ_max and λ ≠ 0, we should obtain λ = −1.

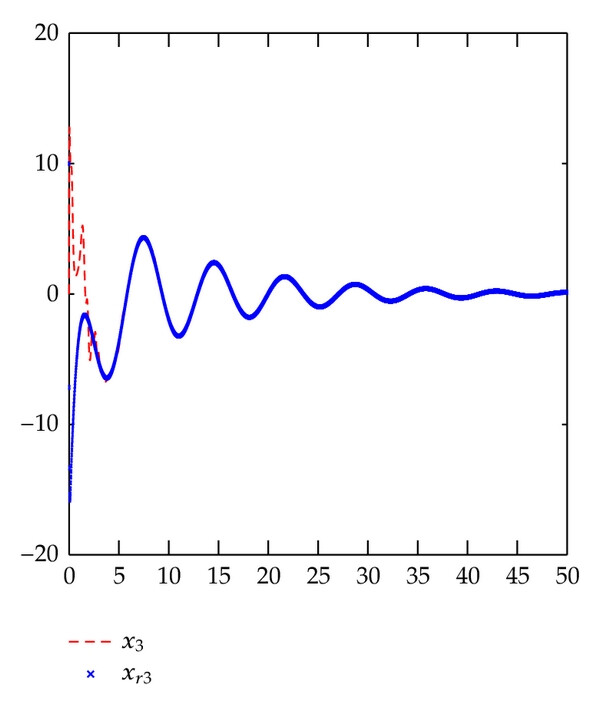

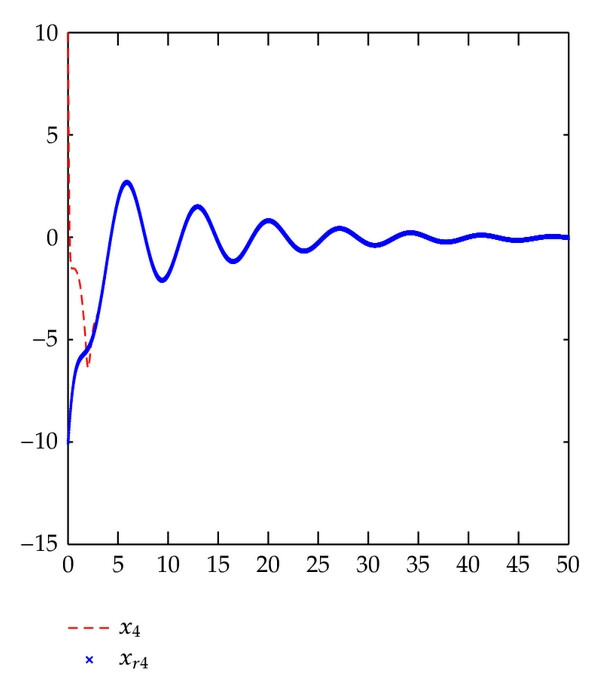

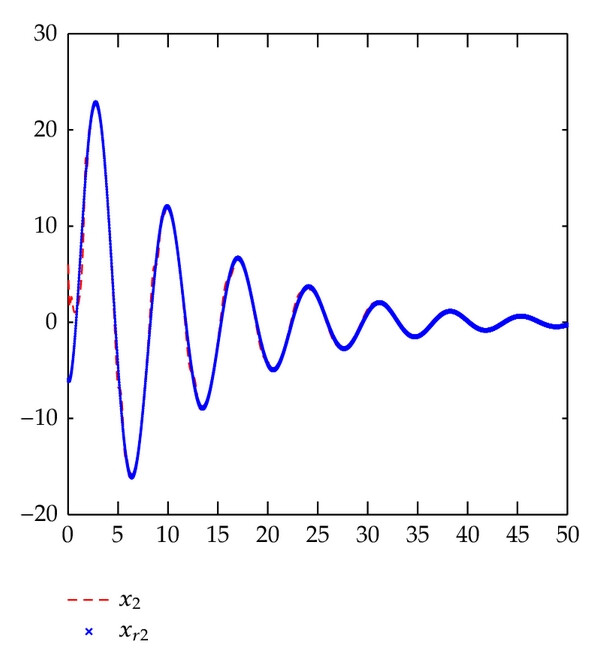

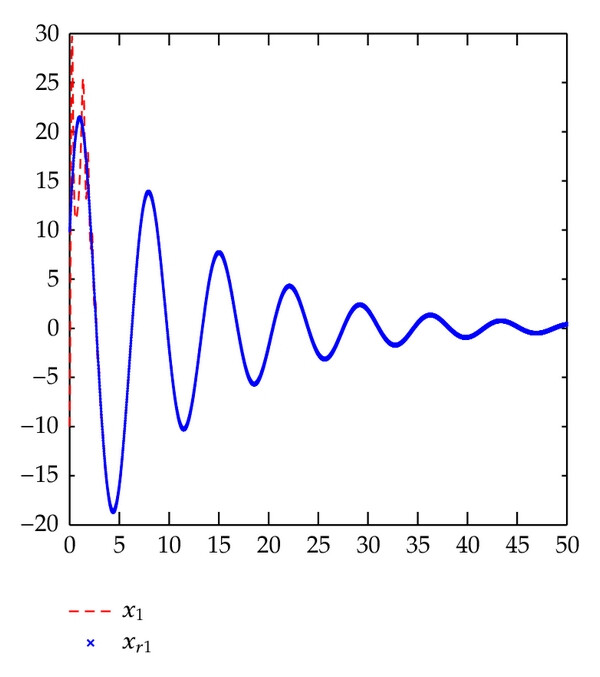

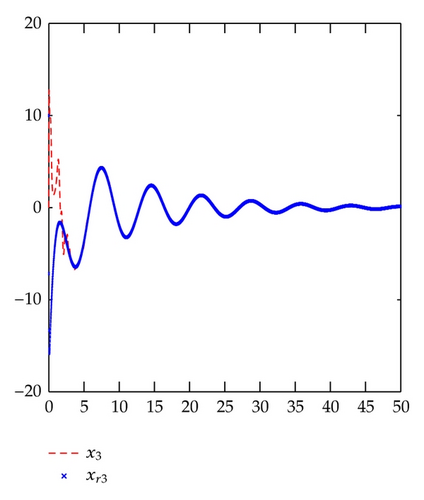

Figure 4 shows that the controller can make the hyperchaotic Rssler system with four uncertain parameters (4.1) track along with its reference system (4.3). Here, the initials of the hyperchaotic system, reference system, and estimation system of uncertain parameters are [−10,6, 0,10], [10, −6,10, −10], and [1,2, 1,2], respectively.

Comparing with Figures 1(c), 1(d), 4(c), and 4(d), we find that our method has even a better performance in the uncertain case than the certain case. In Figure 4(a), we can see some waves in time domain [0,2], and it is not better than the certain case. In Figures 4(b) and 1(b), the controlling performance is similar.

4.4. Examples IV

The four-variable hyperchaotic Lorenz system with uncertain parameters is described by

(4.20)

where

(4.21)

where u₁, u₂, u₃, and u₄ are equal to 0 in the initial state and need to be determined by Theorem 3.5. Figure 5 shows the estimation of α, and

is the estimation value of the column vector α, where

The estimation system of uncertain parameters is

(4.22)

The reference model is the same as Example II with asymptotical stability is as follows:

(4.23)

and the largest eigenvalue of

is λ_max = 0.1767. By considering the conditions λ < −λ_max and λ ≠ 0, we should obtain λ = −1.

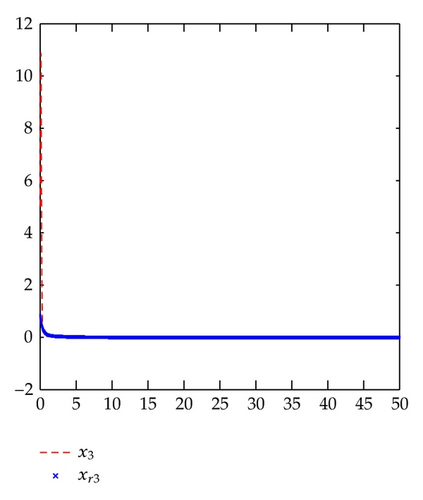

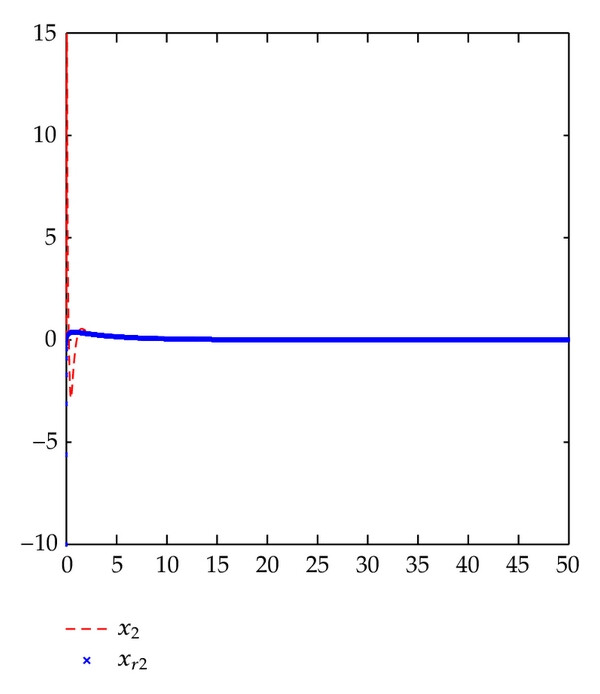

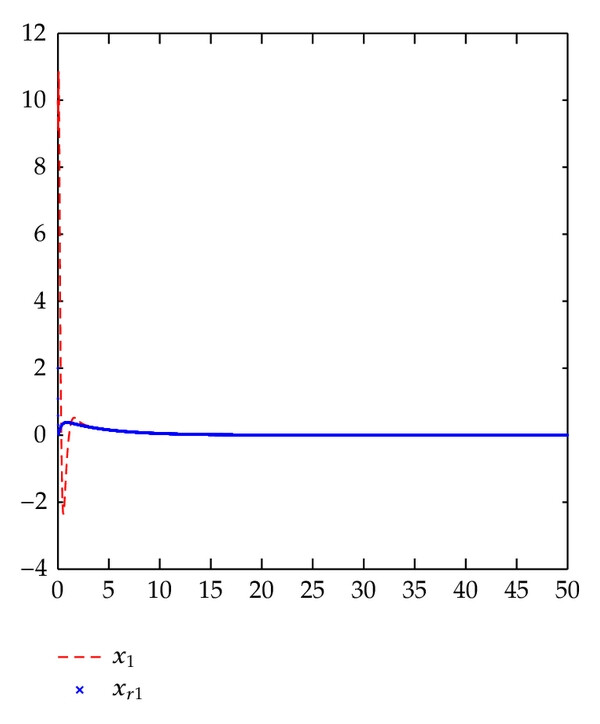

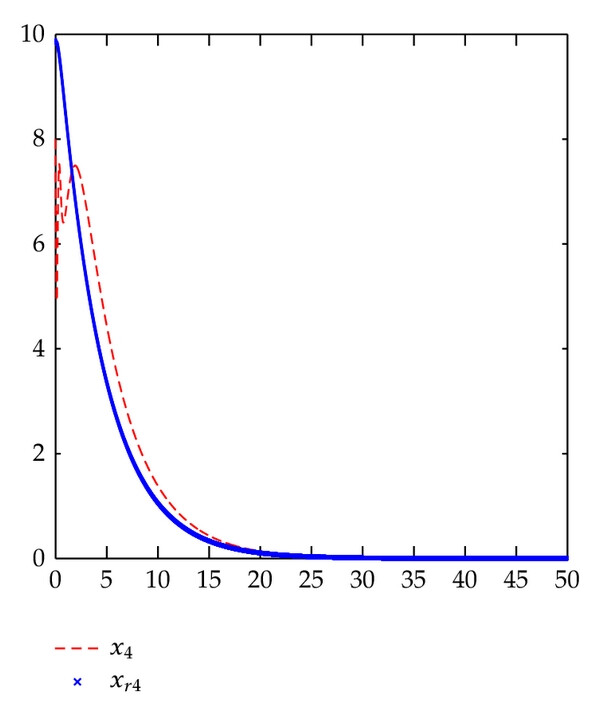

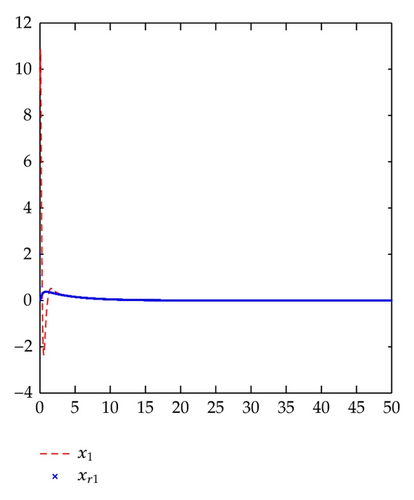

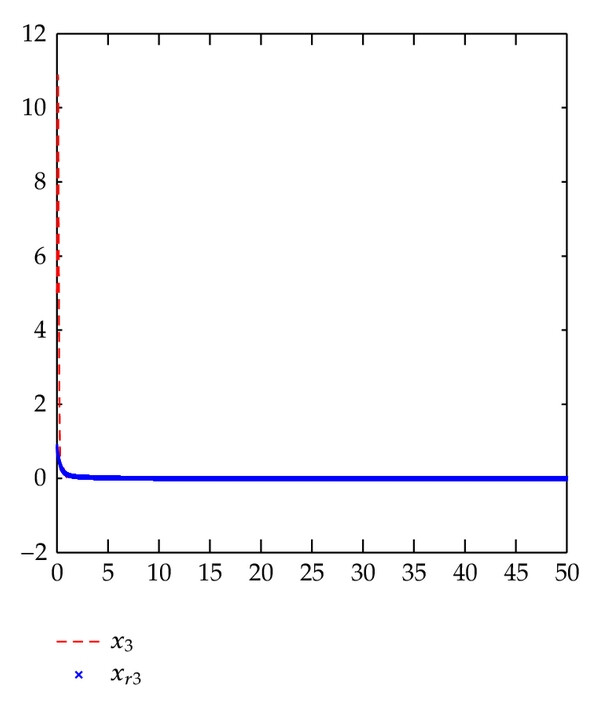

Figure 6 shows that the controller can make the hyperchaotic Lorenz system with uncertain parameters (4.20) track along with its reference system (4.23). Here, the initials of the hyperchaotic system, the reference system, and the estimation system of uncertain parameters are [10,0, 5,8], [2, −10,1, 10], and [1,2, 1,3, 1,0], respectively.

The performance in Figures 6(a)-6(b) is much better than the one in Figures 2(a)-2(b). Other parts of the two figures have almost the same performance.

5. Conclusion

In this paper, we have used an MRC technique to control the hyperchaotic system to track with an expected trajectory. The expression of the controller has been given. Four numerical examples show that the MRC method is very effective for controlling both the hyperchaotic system with all certain parameters and the systems with uncertain parameters. By comparing the results in the corresponding figures, we find that our method does not only fit for controlling hyperchaotic systems with certain parameters, but also is a robust for the systems with uncertain parameters.

Acknowledgments

This paper is supported by China Scholarship Council. P. F. Zhao expresses sincere thanks to Professor Y. Li for his guidance, Professor D. Liu and Professor B. Yang for their instructions. Also, many thanks to the NSFC (grant number 11071026, 11001100, 11171131, 61133011, 61170092, 60973088, 61202308 and 11026043) and the Basic Research Program of Jilin University (450060481098). This work is supported in part by the National Basic Research Program of China (973) under Grant 2009CB219301, the National Public Benefit Scientific Research Foundation of China under Grant 201011078, the China Scholarship Council and the National Innovation Research Project for Exploration and Development of Oil Shale under Grant OSP-02 and OSR-02. The authors gratefully acknowledge the anonymous reviewers for their hard work and good patience.
