4.1 Sexual transformation

Haldane (1922) considered that the lack of heterogametic individuals could be due to either their being killed off or due to their sexual transformation (where the heterogametic sex appears as the normally homogametic sex). Evidence of the latter came from two Lepidopteran genera: Fumea and Lymantria. Subsequent work from Goldschmidt (1934), claimed that half of all males from Lymantria dispar crosses were in fact fully transformed females, which are heterozygous. However, Clarke and Ford (1982), who performed the same crosses and then used sex chromatin techniques to identify the chromosome compliments, found that, although there was a large excess of males (as Haldane's rule would predict), these were also chromosomally male.

As pointed out by Laurie (1997), even if this explanation is correct, it cannot completely account for Haldane's rule as heterogametic hybrid inviability has been shown to occur in many cases. Nonetheless, Laurie called for more investigation into this potential explanation of Haldane's rule. Disappointingly, it would appear that very little research has occurred since 1997, although, in a cross between Caenorhabditis briggsae males and C. remanei females, Baird (2002) demonstrated that sexual transformation is the cause of Haldane's rule in these species. Perhaps the relative neglect of this hypothesis stems from the fact that sex chromosomes are usually a good predictor of sex and that sexual transformations are demonstrably not the cause of Haldane's rule in so many taxa. Additionally, this hypothesis can only ever explain the absence of males, not their sterility.

4.2 Chromosomal rearrangements

In 1932, Haldane provided yet another hypothesis in his book ‘The Causes of Evolution’. This is based on evidence from Drosophila where an X-Y translocation (where one section of a sex chromosome breaks off and is relocated on the other) being artificially induced resulted in sterile males because they lacked part of the Y chromosome. As Laurie (1997) points out, it is difficult to see how reciprocal translocation would become fixed in a population and the idea is essentially dismissed. However, the idea should not be completely dismissed as multiple movements between the Y chromosome and autosomes have been documented in Drosophila lineages, with all such events creating the potential for male-specific problems in these hybrids (Koerich et al., 2008). Recent proof of translocations from autosomes to the sex chromosomes in Rumex hastulatus, which is only the second example of plants displaying Haldane's rule, also suggests that chromosomal rearrangements might be an interesting phenomenon in the plant kingdom regarding Haldane's rule (Kasjanuk et al., 2019).

4.3 Y incompatibilities

Another hypothesis that has been posited is that because Y (or W) chromosomes are largely heterochromatic, there may be Y-X or Y-autosome incompatibilities leading to the heterogametes being sterile (Muller, 1942). Pantazidis and Zouros (1988) showed that when Drosophila arizonensis males carry the Y chromosome of D. mojavenis they are sterile due to immotile sperm. However, they also found that when one of the fourth autosome pairs is replaced with a homologue of D. arizonensis as well, the sperm is motile once again. A Y-autosome interaction is therefore causing this sterility. There have been discoveries of significant effects from the Y chromosome in other Drosophila species as well (Lamnissou et al., 1996), while other species show no such incompatibilities (Orr, 1989b). The fact that Y incompatibilities are implicated in cases of heterogamete sterility can be used to explain some instances of Haldane's rule for sterility and is therefore a good reason to expand this research into other taxa. The Y chromosome is not usually required for viability though, as evidenced by the large number of species with XO chromosomes that produce viable hybrid offspring (Voelker & Kojima, 1971). Haldane's rule for inviability therefore requires an alternative explanation.

4.4 Dosage compensation

Coyne and Orr (1989b) point out that a potential contributing factor to Haldane's rule is a breakdown in dosage compensation, the process by which the expression of sex-linked and autosomal genes are balanced. In Drosophila, dosage compensation involves an increase in the transcription of the genes on the male X chromosome (Baker et al., 1994) (see Table 2). Coyne and Orr note that this could cause Haldane's rule in two ways, the first involving the cis-acting sequences near the X-linked genes diverging between the two species. This would result in one species' X-linked genes not being recognized by the other species' regulatory sequences, wreaking havoc in the compensation process. The other way would involve problems with the hyperactivation of X owing to the counter genes on the autosomes (which either allow or disallow the hyperactivation of X) not being recognized as a result of divergence in the two species. Likewise, the number of these counter genes could also diverge. Orr (1989a) used D. melanogaster females and D. simulans males in a cross to test the hypothesis that a breakdown in dosage compensation is a cause of postzygotic isolation. Specifically, Orr made clever use of the sxl locus, which blocks or allows hyperactivation based on the X:Autosome ratio. By introducing this sxl control gene into sterile hybrid males, the dosage compensation is corrected and, if dosage compensation were to be the cause of sterility or inviability, the hybrids would become fertile. Orr's experiments did not yield this result and the hybrid males remained completely sterile or inviable, evidence which suggests that dosage compensation does not explain Haldane's rule.

While this result has convinced many that dosage compensation is not the cause of Haldane's rule, it should be noted that there is a myriad of different ways in which dosage compensation operates in taxa other than Drosophila (Marin et al., 2000) and therefore this hypothesis should be more widely explored. There have also been some interesting findings since 1989 which suggest that dosage compensation might cause Haldane's rule in conjunction with other hypotheses. These will be discussed in the faster-X section of the review.

4.5 Dominance theory

Of all the theories that seek to explain Haldane's rule, the dominance theory likely enjoys the most support and readily provides good evidence that can easily be linked to the BDM incompatibility example presented earlier, originally from Dobzhansky (1936). However, the history of this theory is fraught, beginning with it being verbally proposed by Muller, only to be rejected experimentally 50 years later, before finally being resurrected with a few alterations (Orr, 1997).

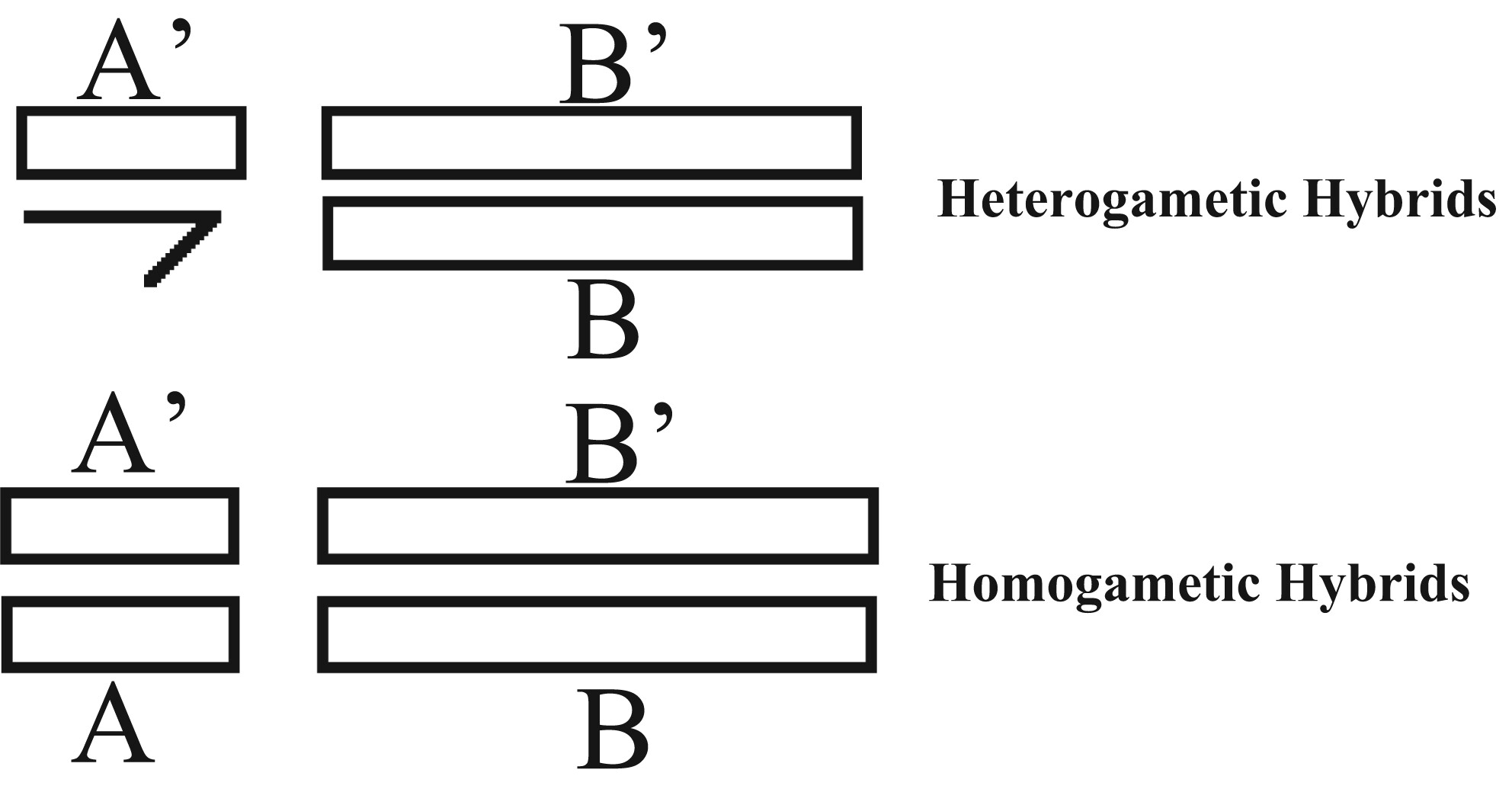

The best way to explain this is to imagine two autosomal genotypes in two different species, one with genotype A′A′BB and the other with genotype AAB′B′ such that when they interbreed, their offspring have genotype A′AB′B. Imagine now that the A′ locus is X-linked, and the B′ locus is on an autosome (Muller, 1942). The male genotype will be A′B′B (where one allele is missing due to only one X chromosome being present). If there were any harmful interactions between A′ and B′, and A′ was recessive while B′ was dominant, then the dominant A allele's absence would not mask the effects of this harmful interaction, whereas the female genotype of A'AB'B would (see Figure 1 for a visual representation of this). The key point to understand here is that there is an epistatic interaction that is exposed in heterogametes but not in homogametes because the latter experiences a dominance interaction. A scenario such as this will give rise to Haldane's rule.

With Muller's theory being known, Coyne (1985) sought to test his theory experimentally. Muller posited that if Haldane's rule is due to the recessivity of X-linked genes then females with two identical X chromosomes should also experience sterility and inviability. Coyne tested this with crosses in Drosophila species where an X chromosome from D. simulans was attached to an otherwise hybrid genetic background with haploid autosomes from other Drosphila species: D. sechelia and D. mauritiana. These attached X chromosomes produced an unbalanced hybrid female that was expected to be sterile. However, all unbalanced females turned out to be perfectly fertile. Muller's explanation therefore does not hold in the case of male hybrid sterility.

Coyne (1985)'s experiment did not lead to the complete dismissal of Muller's dominance theory. Wu (1992) subsequently noted that the theory may still hold true for the inviability of the heterogametic sex. Tests for inviability soon followed from Orr (1993a) who used D. simulans females with an attached X chromosome, to cross with D. teissieri males, which produced females that are genetically as unbalanced as inviable hybrid F1 males. Orr found these females (as well as males) to be lethal and also revealed that these unbalanced females died during the same developmental stage as the male hybrids, strongly suggesting that the same loci cause lethality in males and unbalanced females. Orr also did a species cross between female D. melanogaster with an attached X chromosome and a male D. simulans and, again, both sexes were lethal. What can be concluded from research from both Coyne (1985) and Orr (1993a) is that when it comes to Haldane's rule, the causes of sterility and inviability are different because factors affecting fertility have sex-limited effects, whereas those affecting viability do not.

Following Orr (1993a)'s experimental evidence, Muller's theory was promptly formalized mathematically (Orr, 1993b; Turelli & Orr, 1995). A key finding of Orr's (1993b) model was that if Muller's original theory were true, and the X-linked genes are masked in hybrid females, then the females would have two of these incompatibility genes and would surely suffer from the additive effect of carrying twice as many, causing the forces acting in both hybrid sexes to balance, leading to both suffering equally. Orr therefore modified Muller's theory slightly with a new condition that states that these X-linked speciation genes must be at least slightly recessive on average. Evidence that the loci contributing to isolation are at least partially recessive is therefore needed as proof. Handily, this proof had already been supplied decades earlier by Muller and Pontecorvo (1942) and subsequent introgressions, the repeated backcrossing of hybrids also proved this (True et al., 1996). Presgraves (2003) approached the test differently by causing small chromosomal deletions in D. melanogaster and then using a rescue mutation from D. simulans to produce hybrid offspring that were hemizygous for the deleted regions. Presgraves discovered a number of incompatibilities between these two species and estimated that the recessive incompatibilities are eightfold higher in number than dominant ones.

As evidence has accumulated in support of the dominance theory there has at times been a tendency to dismiss the other hypotheses altogether. Indeed, Laurie (1997) felt the need to specifically warn against doing so. A note of hesitancy is of course warranted when almost all evidence for the dominance theory came from the Drosophila genus. There is further evidence of dominance theory from Anopheles mosquitos, but these have the same X-Y, male heterogametic system as Drosophila (Slotman et al., 2007). However, cases of Haldane's rule in the female heterogametic system of Lepidopterans now point towards dominance theory as at least one of the possible explanations of isolation between species in this taxon (Davies et al., 1997; Salazar et al., 2005).

There is, however, a taxon in which dominance theory can be conclusively ruled out: marsupials. In a crucial paper, Watson and Demuth (2012) point out that female mammals inactivate one of their X chromosomes so that it is transcriptionally silent, making them functionally hemizygous. They note that placental mammals differ from marsupials in that the former randomly inactivates either the paternal or maternal X chromosomes, whereas the latter will always inactivate the paternal sex chromosome. They explain that the consequences of this are that placental mammals produce a mosaic of maternal and paternal X chromosomes, while the marsupials have the consistent hemizygous expression of the maternal X chromosome. This led them to postulate that Haldane's rule should not hold true in marsupials if it is to be explained by dominance theory, because the hybrid males and females are expected to suffer equally in the face of X-linked incompatibilities. However, they note that Haldane's rule is observed in marsupials and so an alternative explanation is needed.

4.6 Faster-male theory

A well-supported explanation that can also account for Haldane's rule is the so-called faster-male theory, as proposed by Wu and Davis (1993). They point to evidence that shows male reproductive characters evolve at a faster rate than female ones. This is attributed to the selective pressures on males being particularly strong, owing to intra- and intersexual selection, which is less strong on females. They also point to a number of differences between spermatogenesis and oogenesis, such as the lack of postmeiotic transcription in the former, and suggest that this may cause the process to be more sensitive to minor stoichiometric changes in the gene products as there is no capacity for the regulation of transcription.

Malone and Michalak (2008) find good evidence that oogenesis can tolerate a great deal of gene misexpression in a cross between the frog species Xenopus laevis and X. muelleri. They used these frogs because they are a female heterogametic system that is a rare exception to Haldane's rule. It was found that despite hybrid females being perfectly fertile, they have far greater gene misexpression compared with the hybrid males, suggesting that the process of oogenesis is indeed less easily disturbed. The fact that Xenopus frogs are a female heterogametic system means that, despite these frogs not conforming to Haldane's rule, they provide rather good support for the faster-male hypothesis in male heterogametic taxa if the same mechanism is at work. Evidence that this is the case in male heterogametic systems comes from the fragility of spermatogenesis in crosses between the nematodes C. briggsae and C. nigoni, which exhibit Haldane's rule (Sanchez-Ramirez et al., 2021).

Faster-male evolution also appears to have been supported by a collation of data on crosses in Anopheles and Aedes mosquitos (Presgraves & Orr, 1998), as well as introgression studies in Drosophila (Masly & Presgraves, 2007; Tao & Hartl, 2003), Hyla frogs (Dufresnes et al., 2016) and Cyprinodon fishes (Tech, 2006). Identifying the specific genes involved in the misregulation of spermatogenesis was also shown to be possible by Gomes and Civetta (2014) who found that sterility specific to male hybrids was driven by three genes in Drosophila: pelo, vis and topi.

Somewhat unorthodoxly, hermaphroditic species have also been the subject of research in the 21st century. Although simultaneous hermaphrodites lack distinct sexes, the functionality of the male and female genitalia can be used to identify instances of Haldane's rule and assess whether faster-male evolution is taking place. This is because, if faster-male evolution is causing Haldane's rule, then this should occur in the absence of sex chromosomes as well (Orr & Presgraves, 2000). Schilthuizen et al. (2011) found just this by reviewing the cases of defects in hybrid hermaphrodites in Pulmonata. They found that genital defects were rare but predominantly found in male genitalia.

Faster-male theory would serve as an explanation for why Haldane's rule was observed by Coyne (1985) and Watson and Demuth (2012) where males were the heterogametic sex and dominance theory could be ruled out as an explanation. However, there are some issues with this theory. Most obviously, Haldane's rule does not refer specifically to males, but to heterogametes such that, as noted by many previous reviewers of the subject, it can only ever be a partial explanation of Haldane's rule and it should in fact work contrary to Haldane's rule in ZW sex determination systems, as is the case in the aforementioned Xenopus frogs of Malone and Michalak (2008) (Coyne & Orr, 2004; Delph & Demuth, 2016; Laurie, 1997; Orr, 1997). A further sticking point is that this theory only accounts for Haldane's rule for sterility, not inviability as the lethal mutations will usually kill both sexes (Hollocher & Wu, 1996; Wu et al., 1996). It looks to be the case then that the faster-male theory can explain instances of Haldane's rule that dominance theory cannot by itself account for.

4.7 Faster-x theory

Yet another explanation of Haldane's rule was posited by Charlesworth et al. (1987) who suggested that it could be a by-product of the other rule of speciation: the large-X effect, which refers to the disproportionately large role of the X chromosome in reducing hybrid fitness. This original paper suggests that both these rules of speciation could be explained by X (or Z) linked genes evolving faster than autosomal ones. Presgraves and Meiklejohn (2021) point out that this assumes that unique beneficial mutations that are fixed in the population are the basis for adaptation, that there are equal germline mutations for the two sexes and that there is an equal sex ratio, implying that the effective population size of X is ¾ that of autosomes. They note that the ratio of the rate of adaptive substitution on the X chromosome and autosomes varies depending on the dominance coefficient of a given mutation (dominance within the species in this case, not in the hybrids). Therefore, if natural selection is the force driving evolution, then only mutations that are on average partially recessive will experience faster-X evolution. The relevance of these recessive mutations is that if X-linked incompatibilities increase in frequency they will favour the occurrence of Haldane's rule if they are recessive, while the opposite is true if this is not the case (Turelli & Orr, 1995). This is because the heterogametic sex suffers less than the homogametic sex when X-linked dominant mutations are concerned, owing to the fact that the former only has one X chromosome. However, if the mutation is recessive, then the heterogametes suffer in the absence of the heterozygosity present in the homogametes (Laurie, 1997).

Orr (1993b) points out the problem with the faster-X theory: it cannot explain Haldane's rule by itself because, even if all alleles are recessive and the X chromosome evolves faster than the autosomes, Haldane's rule will not be observed. Orr notes that this is because every recessive X-linked allele from a male will be accompanied by a dominant allele in a female. Orr (1997) explains that, instead of faster-X causing Haldane's rule per se, under certain circumstances, the faster-X theory can work alongside the other explanations of Haldane's rule to increase isolation. The first scenario considered is that the genes causing hybrid sterility or inviability may also be recessive in hybrids, causing the mechanism on which the dominance theory is based to be exaggerated. The second is that many genes that affect hybrids might only be expressed in one sex, leading to faster evolution of the genes expressed in the heterogametic rather than the homogametic sex when advantageous new mutations are partially recessive (Coyne & Orr, 1989b).

As with the other hypotheses, introgression studies have been used to test the faster-X hypothesis. An example is the introgression of X-linked genes across hybrid zones between the mouse subspecies Mus musculus musculus and M. musculus domesticus. (Payseur et al., 2007). However, it is important to consider what exactly this evidence supports. As Delph and Demuth (2016) point out in their review, this is a demonstration of the large-X effect, but not necessarily evidence of faster-X as an explanation of Haldane's rule. Good evidence comes in the form of genome-wide studies, which show that faster-X evolution occurs in sex chromosomes of Drosophila relative to autosomes (Begun et al., 2007). Interestingly the earlier findings in Drosophila found the opposite (Betancourt et al., 2002), so mounting evidence, coming from genome-wide techniques, is building in favour of faster-X being at least somewhat important in explaining Haldane's rule. Faster rates of evolution also exist on the X chromosome of Aphids than in their autosomes (Jaquiery et al., 2018) and Z chromosomes also evolve faster in birds (Mank et al., 2007) and Lepidopterans (Sackton et al., 2014). Beyond these individual studies, reviews of the large-X effect show that sex chromosomes being more differentiated than autosomes is a significant and widely observed pattern (Presgraves, 2018).

Most recently, Filatov (2018) reported on the role of degeneration of the Y chromosome and how this can potentially drive compensatory evolution of dosage compensation mechanisms on the X chromosome, leading to faster-X evolution. Filatov's work makes use of data from plant crosses in Silene, which exhibit Haldane's rule and have Y chromosomes that degenerated rapidly but rather recently compared with most animals, alluding to the importance of hemizygosity being reduced in plants relative to animals when it comes to explaining Haldane's rule. Filatov's findings serve as a potential explanation for both rules of speciation, and it should be noted that, because this explanation involves dosage compensation, his findings add to the evidence that dosage compensation, previously discussed, could play an important role in postzygotic isolation. Filatov also notes that this explanation is unlikely to be relevant to animals as their Y chromosomes are older and degenerate at a slower rate. However, it is worth noting that taxa lacking dosage compensation, such as Lepidopterans, are less likely to be affected by faster-X evolution suggesting that there is some association between this hypothesis and dosage compensation (Presgraves, 2002).

4.8 Meiotic drive

A further theory, first proposed by Frank (1991) and Hurst and Pomiankowski (1991), with a history of fluctuating levels of support, is that divergence between the meiotic drive systems between species could be responsible for Haldane's rule. Meiotic drive can be defined as a distortion of mendelian ratios by selfish genetic elements (Toothill, 1984). Frank's (1991) argument consists of two key points: the first is that sex chromosomes experience greater levels of meiotic drive than autosomes and the second is that the systems of meiotic drive diverge between species which leads to postzygotic isolation.

Frank (1991) explains the former by verbally detailing a scenario where the drive is caused by the interaction between two loci on the X chromosome that would increase the reproductive success of the X chromosome at the expense of the Y chromosome, with the same being true of alleles on the Y chromosome. Frank then supposes the existence of a distorter allele on an autosome that biases segregation by producing a product that destroys a responder allele. If the distorter and responder are on the same chromosome, the distorter will destroy its own chromosome and so it is only under rare circumstances that cooperating loci are found on autosomes, leading to more meiotic drive on sex chromosomes. Frank then explains the second point by imagining a number of co-evolved suppressors and distorters on the sex chromosomes where they each cancel out so that no drive occurs. In hybrids, however, no such co-evolution has occurred as the chromosomes originate from different species and so are sterile due to meiotic aberrations or inviable due to mitotic aberrations.

Following the proposal of this theory, it was promptly pointed out that there was no empirical evidence for it. In fact, Johnson and Wu (1992) and Coyne and Orr (1993) showed that, in Drosophila hybridisations, there were no signs of meiotic drive. In his 1997 review on Haldane's rule, Orr roundly dismisses meiotic drive as an explanation claiming that it had been proven not to be the cause of Haldane's rule and that, at best, it may act now again. By 2004, this dismissiveness had all but vanished and Coyne and Orr (2004) dedicated no less than three pages in their book on speciation to considering the faults and merits of this theory (faster-X by comparison received only one page). They suggested that the previous studies were unfortunate in their choice of species and that some species of Drosophila do in fact show meiotic drive. For example, Tao et al. (2001) found a small, tightly linked region on chromosome three of D. simulans that reduced hybrid male fertility and in doing so caused meiotic drive. This was a dominant conspecific suppressor named Tmy and when one of these was replaced with a recessive nonsuppressing allele (tmy) from D. mauritiana, the dominance of Tmy caused the sex distortion expected under a meiotic drive scenario.

Coyne and Orr (2004) are quick to point out, however, that this is not in and of itself proof that meiotic drive is the force behind postzygotic isolation. Instead, they point to two scenarios that could fit with the aforementioned findings. One is that the meiotic drive arose in two species and are incompatible with each other when they mate to produce hybrids, the other is that meiotic drive never actually occurred in either species. These two scenarios are indistinguishable from one another.

However, important pieces of evidence in support of meiotic drive are being pieced together, including sex chromosome drive systems in Caenorhabditis where X-carrying sperm outcompete Y-bearing sperm (Bundus et al., 2015) and proof of driver/suppressor systems evolving rapidly (Presgraves et al., 2009). Patten (2018) recently reviewed some of the evidence supporting meiotic drive as a cause of hybrid incompatibility and concluded that genetic conflicts commonly co-evolve and that empirical evidence now supports this hypothesis as a potential explanation of Haldane's rule in many cases. Patten notes, however, that an expansion beyond the common model organisms would make a much more compelling case for this theory.
