Overlapping transport and chaperone-binding functions within a bacterial twin-arginine signal peptide

Identification of the NapD binding epitope within the NapA signal peptide

During biosynthesis of the E. coli periplasmic nitrate reductase the NapA signal peptide (NapAsp) is the primary point of recognition for the NapD Tat proofreading chaperone (Maillard et al., 2007). The first aim of this work was to identify the key amino acid residues that constitute the binding epitope on NapAsp recognized by the NapD protein. Initially, a genetic approach was taken in which a bacterial two-hybrid (BTH) system was employed. The BTH system relies on the reconstitution of adenylate cyclase activity in an E. coli cya mutant using complementary fragments (‘T25’ and ‘T18’) of an adenylate cyclase domain from a secreted toxin of Bordetella pertussis (Karimova et al., 1998). Positively interacting partners can be readily identified on MacConkey-Maltose indicator plates, while the degree of interaction can be quantified using β-galactosidase assays. This method has proven powerful in characterizing Tat signal peptide/chaperone interactions (Maillard et al., 2007; Buchanan et al., 2008).

A plasmid encoding a NapAsp-T18 fusion was coexpressed in an E. coli reporter strain with plasmid pT25-NapD (Fig. 1B) and an in vivo interaction between NapAsp and NapD was readily detected (Fig. 1B). Next, the NapAsp-T18 plasmid was mutagenized such that each napA codon from positions 2–34 (Fig. 1A) would encode glutamine [chosen as a polar amino acid only rarely found in Tat signal peptides (Cristobal et al., 1999)]. This bank of napA mutants was then screened against the vector encoding a T25-NapD fusion and the level of in vivo interactions scored (Fig. 1B). The data clearly show that substitution of NapA residues R6, M9, K10, A13 and A17 with glutamine result in very low levels of β-galactosidase activity, indicative of impaired recognition of these peptides by NapD (Fig. 1B). A second substitution of A17 with leucine corroborated these initial findings and was also observed to impair the interaction with NapD (Fig. 1B). Note also that residues R6, M9 and K10 all fall within the canonical twin-arginine motif required for protein transport, and that a double R5Q-R6Q variant signal peptide was also found to be impaired in NapD binding (Fig. 1B).

In order to validate the in vivo two-hybrid results, isothermal titration calorimetry (ITC) was used as a sensitive in vitro protein–protein interaction technique. In order to allow the facile isolation of an intact NapA signal peptide a chimera was designed comprising maltose binding protein (MalE) linked via its C-terminus to a His-tagged NapA signal peptide (ϕMalE-NapAsp). Originally, Maillard et al. (2007) performed a titration with 50 µM NapD against 5 µM ϕMalE-NapAsp and recorded an apparent single binding event with a K_d ∼ 7 nM and an ‘N’ value (binding stoichiometry) of 0.59. Here, the experimental conditions were changed slightly such that 100 µM NapD was titrated against 10 µM ϕMalE-NapAsp (Fig. 2A). In this case, the binding curve became noticeably biphasic (Fig. 2A) corresponding to two distinct binding events – the first with a K_d ∼ 3 nM and the second with apparent K_d ∼ 143 nM (Table 1). Analysis of the binding stoichiometries (‘N’) points to a sum total of the molar ratios that is very close to 1.0 (Table 1). This suggests that, rather than two binding sites residing on one chaperone protein, these binding events involve two separate pools of protein each with a single binding site, but with 35% of the population binding with an apparent K_d of ∼ 3 nM and 64% of the population having a K_d of ∼ 143 nM (Table 1).

Next, four of the NapA amino acid substitutions found to impair NapD binding in vivo (R6Q, M9Q, K10Q and A17Q) were introduced into the ϕMalE-NapAsp fusion protein. The interactions of each with NapD were then separately analysed by ITC (Table 1). NapD was observed to bind the M9Q version of the NapA signal peptide in vitro with similar characteristics to the native peptide (Table 1). It was concluded, therefore, that the in vivo result for M9Q (Fig. 1B) was a ‘false negative’, possibly resulting from instability of the NapA M9Q construct.

The remaining variant NapA signal peptides (R6Q, K10Q and A17Q) were all adversely affected in NapD binding compared with the native signal peptide (Table 1). In all three cases only a single binding event could be fitted to the data and the apparent K_ds had increased by an order of magnitude to ∼ 1 µM (Table 1). In all three cases the binding stoichiometries remained well below 1.0 (Table 1), suggesting again that there are at least two populations of interactions at play with the majority of NapD molecules either not interacting at all with the variant signal peptides, or with binding that is too weak or transient to be detected by this technique. Taken together, the in vivo and in vitro interaction experiments point to NapA residues R6, K10 and A17 being directly involved in the NapD binding event, and together form an epitope for NapD binding towards the N-terminus of the twin-arginine signal peptide.

The role of the NapA signal peptide in protein transport and nitrate reductase activity

To test the importance of the NapD binding epitope (NapA R6, K10 and A17) in the assembly and activity of the native nitrate reductase enzyme, three new strains were constructed. The LCB2048 parental strain (which produces only one active nitrate reductase, NapA) was genetically modified such that the napA R6, K10 and A17 codons were individually replaced with glutamine codons at the native nap locus on the E. coli chromosome. The new strains were designated SGQ061 (as LCB2048, napA R6Q), SGQ101 (as LCB2048, napA K10Q) and SGQ171 (as LCB2048, napA A17Q) respectively.

The ability of SGQ061 (NapA R6Q), SGQ101 (NapA K10Q), and SGQ171 (NapA A17Q) to reduce nitrate to nitrite in vivo was assessed (Fig. 3). This assay reports on both the subcellular localization of NapA (only periplasmic enzyme can reduce nitrate in the living cell) and the levels of nitrate reductase activity in the periplasm. Under these assay conditions, the parental strain (napA⁺) showed a peak of nitrite production around 2.5 h following nitrate addition, which then gradually decreased to a stable, basal level, presumably as the nitrite was further reduced to ammonium by the periplasmic cytochrome c nitrite reductase. Conversely, the SGQ061 (NapA R6Q) strain did not display any detectible nitrite production even after 8 h incubation with exogenous nitrate (Fig. 3). Surprisingly, despite its apparent importance in NapD binding, the SGQ101 (NapA K10Q) strain retained periplasmic nitrate reductase activity close to that observed for the parental strain (Fig. 3). The SGQ171 (NapA A17Q) strain, however, displayed consistently lower levels of nitrate reduction than that detected for the parental strain (Fig. 3). In particular, the SGQ171 (NapA A17Q) strain produced nitrite relatively slowly, which peaked at a relative level less than half that observed for the parental strain (Fig. 3).

To dissect these data into specific defects in either Tat transport or enzyme biosynthesis, signal peptide function was assayed in isolation. A fusion of the NapA signal peptide alone (NapAsp) to chloramphenicol acetyl transferase (CAT) was previously observed to efficiently transport the passenger protein to the periplasm, and so confer sensitivity to exogenous chloramphenicol as CAT is inactive in that compartment (Maillard et al., 2007). Here, this growth test was used to assess the Tat transport efficiency of the NapA R6Q, K10Q and A17Q variant signal peptides (Fig. 4). An E. coli strain (MG1655, tat⁺) was separately transformed with plasmids encoding ϕNapAsp-CAT and the NapAsp R6Q, K10Q and A17Q derivatives. Aerobic growth was then tested in the presence and absence of exogenous chloramphenicol (Fig. 4). The strain producing the fusion bearing the native NapA signal peptide was incapable of growth in the presence of chloramphenicol (Fig. 4), indicative of efficient targeting of the enzyme to the periplasm. Conversely, the strain producing the R6Q derivative of the NapAsp-CAT fusion was observed to be resistant to the addition of exogenous chloramphenicol at 200 µg ml⁻¹, an indication of a defect in Tat transport activity (Fig. 4). Taken together, these data (3, 4) are consistent with the NapAsp R6Q derivative being blocked in Tat transport activity (no physiological periplasmic nitrate reductase activity and impaired translocation of the CAT reporter protein).

Consistent with the data from nitrate reduction experiments (Fig. 3), the NapA K10Q variant signal peptide displayed only a minor defect in Tat transport activity when fused to the CAT reporter protein (Fig. 4). This suggests that both cofactor loading and protein targeting are not compromised by this signal peptide sequence change. The NapA A17Q variant signal peptide displayed an intermediate phenotype in the Tat transport assay (Fig. 4), which is indicative of a Tat transport defect in this variant signal peptide.

The NapA signal peptide adopts an α-helical conformation upon binding NapD

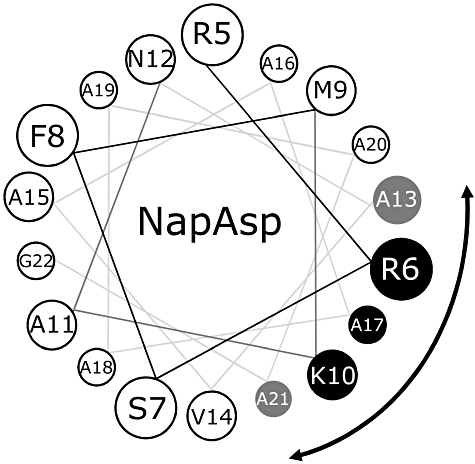

If the primary sequence of the NapA signal peptide is plotted as a canonical α-helix (3.6 residues per turn), then the R6, K10 and A17 residues all cluster together on a distinct face of the helix (Fig. 5). Moreover, if the α-helical model (Fig. 5) is correct this suggests that NapA A13 and A21 should also be close to the binding interface. Indeed, examination of the in vivo BTH data shows that both the A13Q and A21Q NapAsp variants are compromised for NapD binding in vivo (Fig. 1B). This analysis gives an initial indication that the NapA signal peptide may adopt an α-helical conformation during the NapD binding event; however, the structure of the NapA signal peptide, either before or after NapD binding, has not been reported. In order to address this, NMR-based approaches were taken.

The solution structure of ‘free’ NapD was solved by Maillard et al. (2007) using high resolution, multidimensional NMR techniques. However, previous NMR analysis of peptide binding involving titration of ¹⁵N-labelled NapD with a ϕMalE-NapAsp fusion (a 50 kDa polypeptide) led to a slow tumbling complex that resulted in line broadening (Maillard et al., 2007). In order to circumvent this problem here the NapA signal peptide (NapA residues M1 – V33) was covalently linked (via a short linker sequence – RSNLGIEGRPG) to the extreme C-terminus of NapD. The resultant NapDAsp chimera was stable to purification and ITC experiments showed that NapDAsp was unable to bind exogenously added NapA signal peptide (data not shown), which suggests strongly that the covalently linked signal peptide is bound within, and so is occluding, its native binding site on NapD.

Next, the NapDAsp fusion protein was produced in a form that was double-labelled with ¹⁵N and ¹³C. An overlay of the ¹⁵N-HSQC spectra of the NapD and NapDAsp proteins showed additional peaks in the latter originating from the additional residues of NapDAsp (Fig. S1). In addition, considerable differences in the positions of the cross-peaks previously assigned to native NapD were observed in the NapDAsp spectrum (Fig. S1). Together, these effects are indicative of the formation of a complex between the NapD core and the final ∼ 40 residues of the NapDAsp construct, which correspond to the NapA Tat signal peptide. Using triple-resonance NMR spectroscopy, the backbone and β-carbon assignments for residues T3-E85 of the NapDAsp protein (corresponding to the NapD part) and residues A109-A127 (corresponding to NapA signal peptide residues A11-A29) were made. Residues 86–108 of the NapDAsp fusion, which include NapA signal peptide residues M1-K10, could not be identified in the spectra, presumably because they are in intermediate exchange leading to line broadening beyond detection.

Figure 6A shows the weighted per-residue chemical shift differences for the NapDAsp fusion protein when compared with the free form of NapD. Upon signal peptide binding, the largest effects are observed for NapD residues T3-S9 in β-strand 1, D38 at the C-terminal end of β-strand 2, and L74-Q78 in β-strand 4, whereas residues of β-strands 2 and 3 with outward-facing side-chains also typically show significant effects (Fig. 6C). The measured chemical shifts were then used to predict both secondary structural elements, as well as S² order parameters, which report on structural order of each individual residue (Fig. 6B). S² values can range from 0, denoting complete disorder, to 1 for fully ordered, rigid structure, with values > 0.7 typical for regularly folded protein (Fig. 6B). Compared with the free NapD, the S² values of NapDAsp show significantly higher values for the N-terminal and C-terminal regions of NapD (residues 3–6 and 75–79), indicating a more structured region for these parts of the molecule upon signal peptide binding (Fig. 6D). TALOS+ secondary structure predictions indicated the formation of an extended conformation of NapD residues 74–79, in line with the increased order parameters. Other secondary structure elements remain unchanged and the TALOS+ predicted ϕ, Ψ dihedral angles are consistent with the conformation of the free NapD. Although located in the core of NapD, the chemical shift effects observed for I19 indicate this residue senses the presence of the NapA signal peptide.

NapDAsp fusion protein residues A109-V123, corresponding to NapA signal peptide residues A11-V25, are well ordered and clearly in an α-helical conformation, as judged from the TALOS+ and NOE data. The signal peptide helical side-chains are followed by three residues in a turn-like conformation. Notably, to accommodate this turn NapA signal peptide residue G22 adopts a positive ϕ angle. Subsequent residues rapidly become more disordered, as judged from their S² order parameter values.

Next, chemical shift predicted structural data were used to generate a model for the complex (see Experimental procedures). Figure 7 shows a surface representation of the NapD protein, colour-coded according to the per-residue chemical shift pertubation, and the NapA signal peptide in stick representation. The signal peptide is positioned snugly on top of the β-sheet of NapD. The interface comprises an extensive surface with hydrophobic interactions and the close packing explains the need for the poly-Alanine character of the NapA signal peptide. The newly formed β-sheet residues of NapD, V75-Q79, line one side of the interaction interface and are paired with residues W5-V7 of β-strand 1 (Fig. 6C and D). Notably, V75 and Y76 together form a β-bulge. In the model, NapA signal peptide residue K10 engages in a salt–bridge interaction with E49 of NapD, with its aliphatic side-chain atoms packed against NapD V47. NapA signal peptide residue R6 wedges in between E49 and W5 of NapD, with its side-chain atoms packed against the W5 side-chain, whereas its guanadinium groups are oriented towards the highly acid β3-α2 loop-region of the NapD molecule comprising E51, D52 and E54. At the C-terminal end of the signal peptide, the backbone oxygen of NapA A21 engages in a hydrogen bond to the side-chain of NapD Q43, and the NapA L22 residue packs into a cavity formed by NapD residues V37 and the Hβ-atoms of D38. Notably, the Cβ chemical shift of D38 changes by > 3.0 p.p.m. upon signal peptide binding.

Overall, the NMR spectra and resultant structural model clearly show that the NapA signal peptide adopts a helical conformation upon NapD binding, and that the peptide binding site spans the length of the single β-sheet face of the NapD protein.

Suppression genetics: isolation of NapD variants with affinity for NapAsp A17Q

Next, an attempt was made to genetically identify the regions of NapD important for the regulation of the interaction with NapAsp. This was tackled by searching for conformational suppressor mutations in napD that could restore binding to the variant signal peptides identified in this work (Fig. 5). To select for suppressors a genetic screen was employed based on the BTH system. The reporter strain BTH101 was co-transformed with a plasmid encoding either NapAsp R6Q-T18 or NapAsp K10Q-T18sp or NapA A17Q-T18 together with random libraries of napD mutants. These were prepared by error-prone PCR where the chosen theoretical error rates were 1.0% and 1.5%. The PCR products were cloned into vector pT25 resulting in around 100 000 clones per library. Suppressors (i.e. positive interactors) were detected on MacConkey maltose indicator plates where red colonies indicated an interaction.

The screen against NapAsp R6Q resulted in the isolation of 25 suppressors that could apparently restore interaction with this normally defective signal peptide. However, when the specificity of each newly isolated suppressor was tested by two-hybrid against the other glutamine-substituted NapA variants (K10Q and A17Q) it was clear that none of the 25 suppressors were specific for the R6Q substitution. It is possible that this screen has isolated variant NapD proteins with a generally enhanced affinity for the NapA signal peptide.

The screen against NapAsp M9Q resulted in no suppressors whatsoever, which is further evidence that the NapAsp M9Q-T18 fusion is unstable and a ‘false negative’ in this assay.

The screen against the NapAsp K10Q signal peptide identified three suppressors able to rebind this signal peptide. In this case, however, one of the suppressors was unable to interact with the R6Q or A17Q variants of the NapA signal peptide and so was considered specific for the K10Q substitution. Sequence analysis revealed four NapD amino acid substitutions were present in the product of this clone: S9G, I22T, V36I and G68S. This variant protein was not pursued further here.

Finally, the screen against the NapAsp A17Q signal peptide identified 12 suppressors apparently able to rebind this signal peptide in vivo. Here, three of the suppressors were highly specific for the A17Q substitution and sequencing of the mutant napD genes identified an I19F single variant, an A14T/A71T double variant, and an I19F/T59I double variant.

Overexpression vectors were constructed that would encode six different NapD variants: the I19F single substitution; the A14T/A71T and I19F/T59I double substitutions; and the A14T, T59I, and A71T single substitutions. Each variant was then purified and tested for signal peptide binding in vitro against native MalE-NapAsp and its A17Q variant by ITC (Table 2). As shown in Table 1, native NapD binds the native NapA signal peptide in a biphasic manner with a relatively low (3 nM) and a higher (143 nM) dissociation constant, while titration of native NapD against MalE-NapAsp A17Q resulted in a single binding event with an apparent K_D of 1.1 µM. In contrast here, when NapD I19F was titrated against MalE-NapAsp A17Q this resulted in a biphasic binding with a relatively low (14 nM) and a higher (704 nM) dissociation constant (K_D) (Table 2, Fig. S2). These data suggest strongly that a single I19F substitution in NapD is sufficient to restore binding to the NapA A17Q signal peptide.

The NapD A14T/A71T suppressor was also isolated and titrated against MalE-NapA_SP A17Q in the calorimeter (Table 2, Fig. S2). This also resulted in a biphasic binding curve (Fig. S2) with a relatively low (12 nM) and a higher (218 nM) dissociation constant (K_D) (Table 2), which is broadly similar to that seen for the native interaction (Table 1, Fig. 2). As there were two amino acid substitutions in this suppressor the corresponding single substitutions were also analysed. Interestingly, the NapD A14T variant was essentially incapable of binding to the native NapA signal peptide, or the NapA A17Q variant (Table 2): when titrated against MalE-NapA_SP A17Q a single binding event was observed with an apparent K_D of ∼ 2 µM (Table 2). Similarly, the single A71T NapD variant bound MalE-NapA_SP A17Q with single binding event and an apparent K_D of 833 nM (Table 2). Thus, it appears that a combination of both A14T and A71T is necessary to restore native-like binding of NapD to the A17Q variant signal peptide.

Finally, the NapD I19F/T59I suppressor was isolated and titrated against MalE-NapA_SP A17Q (Table 2, Fig. S2). This too resulted in a biphasic binding curve (Fig. S2) with a relatively low (22 nM) and a higher (261 nM) dissociation constant (K_D) (Table 2), similar to that seen for that observed for both native interaction (Table 1) and the interaction of the I19F single substitution. In this case the T59I amino acid substitution was found to not contribute much to the binding event. The NapD T59I single variant was isolated and titrated against MalE-NapA_SP A17Q. In this case only a single binding event was observed with an apparent K_D of 633 nM (Table 2).

Taken together, these experiments have identified a NapD I19F single substitution, and an A14T/A71T double substitution, as being sufficient to restore binding of NapD both in vivo and in vitro to the A17Q variant NapA signal peptide.

Phenotypic characterization of NapAsp A17Q suppressors

Given that the introduction of the napA A17Q mutation onto the chromosome at the native nap locus resulted in a strain that had clearly reduced periplasmic nitrate reductase activity (Fig. 3), it was investigated here whether the new suppressors could restore full physiological NapA activity to the mutant strain. E. coli strain SGQ171 (as LCB2048, napA A17Q) was transformed with pT25-NapD-based plasmids encoding NapD I19F, A14T/A71T and I19F/T59I and the in vivo nitrite production assay carried out (Fig. S3). The SGQ171 (napA A17Q) strain characteristically produces nitrite after a long lag-phase of around 3 h, but none of the three identified suppressors were able to dramatically increase the degree of nitrate reduction exhibited by this strain (Fig. S3). Note, however, that strain SGQ171 still produces endogenous NapD. In order to address this, a new strain was constructed called LP203_S that, besides the chromosomal codon change for napA A17Q, also carries an in-frame deletion of napD. This strain (LP203_S) was found to be completely devoid of any NapA activity (data not shown). Moreover, nitrate reductase activity could not be restored by any of the napD suppressor mutants either (data not shown). Clearly, then, the napD suppressor mutants can bind the NapA A17Q signal peptide both in vivo and in vitro but are apparently devoid of any physiological activity.

Signal peptide recognition by the NapD chaperone

In this study NapA signal peptide residues R6, K10 and A17 residues have been identified as being central to the NapD recognition mechanism. When plotted as a canonical α-helical wheel, residues R6, K10 and A17 (as well as A13 and A21) are predicted to cluster together to form a distinct binding face on the signal peptide (Fig. 5). Sequence comparison of the Tat signal peptide from E. coli NapA with those of other bacteria shows that those residues of the NapD binding epitope are all very well conserved (Fig. S4), suggesting a conserved and important role for those residues in NapD binding in general.

The NapA R6 residue clearly has overlapping functions in both assembly and export of the nitrate reductase. A strain carrying a chromosomal NapA R6Q allele was completely devoid of nitrate reductase activity (Fig. 3), and a reporter assay suggested this substitution was a signal peptide defective in Tat transport (Fig. 4). These data clearly point to a role for NapA R6 in Tat transport. However, both in vivo and in vitro binding studies also identified R6 as being important for the NapD interaction (Fig. 1, Table 2). Taken together, this is suggestive that as well as the structural diversity observed in different Tat proofreading chaperones (e.g. the all-helical TorD family versus the ferredoxin-like NapD family) that there is also functional diversity in the different protein families. Indeed, initial studies of signal peptide binding by Tat proofreading chaperones focussed on the TorD family in general and the TorD-TorA system from E. coli in particular. The TorD binding epitope on the TorA signal peptide was mapped by glutamine-scanning mutagenesis using similar methodology as described here for NapD-NapA (Buchanan et al., 2008). However, in this case the TorD binding epitope was located at the C-terminus of the TorA signal peptide – relatively far, in molecular terms, from the conserved twin-arginine motif (Buchanan et al., 2008). Moreover, TorD family chaperones seem to be intimately linked with cofactor insertion and maturation of metalloenzymes, so much so that some non-exported enzymes rely on their activity for assembly (Ize et al., 2009). The NapD-NapA system is very different in this regard, as the NapA Tat motif at the N-terminus of the signal peptide overlaps with the NapD chaperone-binding epitope considerably (Fig. 5). This could suggest that NapD binding and Tat transport are co-evolved functions within the NapA signal peptide, and could further imply that the role of NapD is focussed entirely on the Tat transport step on nitrate reductase biosynthesis, rather than in cofactor insertion as is often assumed.

The NapA K10 residue lies within the Tat motif and is very highly conserved in nitrate reductase signal peptide primary sequences (Fig. S4). In this case, however, a K10Q substitution had little effect on overall the nitrate reductase activity in vivo. Similarly, a strain carrying a napA A17Q allele at the native chromosomal locus had low, but still detectible, periplasmic nitrate reductase activity. These data suggest cofactor insertion and protein export can continue to a significant extent in these mutants. This seems at odds, however, with the NapD binding experiments, which suggest both K10Q and A17Q NapA substitutions drastically impair NapD binding. Given that NapD is essential for nitrate reductase activity (Maillard et al., 2007), how can these results be reconciled? One possibility is that the detection limits of the BTH system, which these data suggest must lie above an apparent K_D of 750 nM (Fig. 1, Table 1), bears little relation to the binding constants required for NapD function in the living cell. Indeed, the variant NapA signal peptides reported here to be ‘devoid’ of chaperone binding still retain some ability to interact with NapD, with apparent K_Ds of ∼ 1 µM (Fig. 1, Table 1), and a binding constant of 1 µM could be considered relatively ‘tight’ for many other biological systems. It is therefore conceivable that NapD function is continuing to some extent in the mutant strains. The key experiment to test this, of course, was the deletion of the napD gene in the SGQ061, SGQ101 and SGQ171 mutant backgrounds. This resulted in all cellular nitrate reductase activity being lost (Fig. S3), which confirms that NapD can still functionally interact with the variant NapA signal peptides identified in this work.

Interestingly, ITC revealed a two-tier, biphasic binding event for the NapD interaction with the native NapA signal peptide (Fig. 2). This observation was apparently in contrast to previous published work (Maillard et al., 2007). At first glance, this biphasic binding curve may appear to suggest two binding sites for the signal peptide on each NapD protein; however, it should be noted that the total molar binding stoichiometry (N) consistently adds up to 1, as opposed to 2, and the subsequent NMR study described here revealed a single signal peptide binding site for NapD. Therefore, in this case such a biphasic binding curve could be best explained by either NapD or the NapA signal peptide existing as two subpopulations with subtly different properties. For example, similar biphasic binding between the E. coli NarJ protein and the N-terminus of NarG has recently been observed (Zakian et al., 2010). In addition, it was also demonstrated by NMR that the NarG N-terminus has only one binding site on NarJ (Zakian et al., 2010). In this case slight changes in pH were able produce single monophasic binding curves and it was concluded that NarJ consists in two subpopulations with different protonation states, and that this is sufficient to observe subtle differences in binding characteristics (Zakian et al., 2010).

A model for the NapD–NapAsp complex

High-resolution NMR spectroscopy is a powerful technique for studying structure, dynamics and interactions of biomolecules. The NMR data presented in this study clearly indicate the formation of a specific complex between the tail of the NapDAsp fusion construct, corresponding to the NapA signal peptide, and the NapD protein (6, 7). This interaction induces an extension of β-strand 4 of NapD but leaves the overall conformation of the NapD molecule unaffected. The signal peptide traverses the β-sheet region of NapD almost completely. NapA residues R6 and K10 are well-positioned to engage in ionic interactions with the negatively charged (and almost completely conserved) E49 and E51 residues of NapD. Indeed, a previously described E49A variant of NapD resulted in a 4.5 kCal mol⁻¹ loss of binding enthalpy when titrated against the NapA signal peptide in an ITC experiment (Maillard et al., 2007), which can now be readily explained by a loss of the NapA K10/NapD E49 salt–bridge. Substitution of NapD E33, positioned just juxtaposed to E49, with alanine had little effect on the peptide binding enthalpy (Maillard et al., 2007). In line with this finding, NapA K10 faces away from NapD E33 with its amino group at > 6 Å distance from the NapD E33 carboxyl moiety. Moreover, a loss of 5.9 kCal mol⁻¹ in peptide binding enthalpy upon substitution of the conserved NapD Q43 with alanine (Maillard et al., 2007) supports the observation made for the NapDAsp model in this work that Q43 is hydrogen bonded to the backbone oxygen of NapA A21 at the C-terminal end of the signal peptide helix. Indeed, the deleterious effects of further substituting alanine residues at the NapD–NapAsp interface by glutamine are now readily explained as this would immediately disrupt the tight packing observed in this region due to steric clashes.

During the course of this work, an alternative NMR structure of the NapD-NapAsp complex was deposited in the PDB (2pq4). As the experimental data pertaining to the 2pq4 structure have not been deposited in the public BMRB database, we could not fully verify our model against these data. However, our model agrees with the 2pq4 structure in the extension of NapD β-strand 4 and the positioning of NapAsp residues A21-L24 at the N-terminus of NapD β-strand 3. The major differences involve the helical nature of the signal peptide and its angle with respect to the NapD molecule (c.f. Fig. S5). Moreover, the 2pq4 structure does not provide a rational explanation for the NMR and interaction data presented in this work (c.f. Fig. S5): the importance of NapAsp R6 and K10 in NapD binding cannot be explained in the 2pq4 structure, nor can the prior napD mutagenesis data (Maillard et al., 2007). Indeed, the agreement between the chemical shift perturbation data and the 2pq4 structure is generally poor and the NapA signal peptide conformation in the alanine-rich region is in disagreement with the TALOS+ predicted dihedral angles. Assessment of the structural quality shows very poor overall scores for the 2pq4 complex (Table S1).

Long-range effects on signal peptide recognition by NapD

Screening of a napD mutant suppressor library revealed the single substitution I19F, and the double variant A14T/A71T, as being able to restore binding to the NapAsp A17Q. NapD residue I19 is positioned at the N-terminal end of the first α-helix, and is therefore not located in direct vicinity of the NapD/NapA interface. However, a possible explanation for the effect of I19F on NapA_SP A17Q binding comes from inspection of our NapDAsp model. The NapD I19 side-chain forms hydrophobic interactions with L44 on β-strand 3 and the neighbouring residue, I45, has direct contact with NapAsp residue A17 in the complex. Thus, it is conceivable that a NapD I19F substitution could have a long-range influence on the conformation of I45, which could in turn allow binding of the NapAsp variant A17Q. In support of such an indirect mechanism are the chemical shift perturbations observed for NapD I19 and S20 (Fig. 6), which are the only residues on this face off the molecule that display significant effects upon signal peptide binding.

The effect of the A14T/A71T substitutions on NapD is more difficult to estimate because the NapDAsp model shows no direct binding of those two residues to the signal peptide. Clearly, only a detailed structural analysis of the NapD A14T/A71T – NapA A17Q complex will reveal the true molecular basis for this interaction.

Concluding remarks

How does the NapDAsp model relate to other Tat chaperone-signal peptide pairs? There are no structures of TorD family chaperones in complex with peptides; however, mutagenic studies (Chan et al., 2008) and docking simulations of the E. coli DmsD Tat proofreading chaperone with the Tat signal peptide of DmsA proposed that the peptide could adopt an extended conformation devoid of secondary structure when bound to DmsD (Stevens et al., 2009). However, this conclusion is based on an extrapolation of genetic and biochemical work onto a ligand-free chaperone structure, while the NapD/NapA work presented here demonstrates that amino acids involved in long-range indirect effects, including those very distant from the actually signal peptide binding site, are commonly identified by these methods. Overall, the comprehensive analysis of the NapD-NapAsp complex reported here shows that the twin-arginine signal peptide of NapA adopts an α-helical structure during NapD binding and clearly identifies the binding interface between the two molecules. Future work will focus on how the signal peptide is handed onwards from NapD to the Tat translocase to complete the transport of the nitrate reductase on the Tat pathway.

Bacterial strains and growth conditions

Escherichia coli strains SGQ061, SGQ101 and SGQ171 carry chromosomal mutations that produce variant NapA proteins bearing R6Q, K10Q, or A17Q substitutions respectively. The host strain used in the construction of these mutants was LCB2048 (Blasco et al., 1992), which lacks both respiratory nitrate reductases but retains NapA. Mutant alleles were first constructed on pMAK705 and then moved onto the chromosome by homologous recombination (Hamilton et al., 1989).

For in vivo Tat transport assays the (essentially ‘wild-type’) E. coli strain MG1655 was used. This strain was transformed with pUNI-NapA encoding a fusion between the NapA signal peptide and CAT as described by Maillard et al. (2007), or variants of that vector constructed by site-directed mutagenesis. Cultures were grown aerobically in Luria–Bertani (LB) medium supplemented with variable amounts of chloramphenicol and growth rates were monitored in a Biotek 2 instrument.

Protein methods

NapD^His was overproduced and purified as described by Maillard et al. (2007). Variations of ϕMalE-NapAsp^His fusion protein were prepared by performing immobilized metal affinity chromatography (IMAC) under denaturating conditions using 20 mM Tris.HCl (pH 7.5), 250 mM NaCl, 2 mM DTT (Buffer A) containing 5 M urea. Bound proteins were refolded on the HisTrap HP column (GE Healthcare Bio-Sciences AB) by applying a gradient of 5-0 M urea in Buffer A over 18 column volumes. Refolded proteins were subsequently eluted by a linear gradient of 30 ml over 0-0.5 M imidazole in Buffer A. Proteins were dialysed and concentrated.

Isothermal titration calorimetry was performed at 28°C in a VP-ITC microcalorimeter (GE Heathcare). The syringe was charged with 100 µM NapD^His (or variants) and the sample cell contained 1.4 ml of 10 µM of the appropriate MalE fusion protein. Titrations typically comprised of 35 × 8 µl injections of NapD^His. Data analysis was performed with Origin software (GE Healthcare).

Bacterial two hybrid system

Protein–protein interactions were detected in vivo using a bacterial two-hybrid system (Karimova et al., 1998). Interactions were estimated by measurement of β-galactosidase activity in the E. coli BTH101 reporter strain grown aerobically to mid-log phase at 30°C.

NMR spectroscopy

Backbone and side-chain assignments of NapDAsp were obtained using the standard triple-resonance experiments HNCACB, CBCACONH, HN(CA)HA and (H)CCH-TOCSY experiments recorded on Varian Inova spectrometer operating at 600 MHz ¹H resonance frequency. Three-dimensional ¹⁵N- and ¹³C-edited NOESY experiments were recorded on a Varian Inova spectrometer operating at 800 MHz ¹H resonance frequency and equipped with a cold probe using an 100 ms mixing time. All data were processed using the NMRPipe program suite (Delaglio et al., 1995) and analysed using SPARKY. The program TALOS+ (Shen et al., 2009) was used for prediction of ϕ, ψ backbone angles and calculation of the S²–order parameter (Wishart et al., 1995). Per-residue chemical shift differences between NapD and the NapDAsp constructs were calculated using weighting factors (Ayed et al., 2001) 1.0, 0.154, 0.276 for ¹H, ¹⁵N and ¹³C shifts respectively.

Modelling of the NapDAsp complex

Using the first ensemble member of the structure of the free NapD as a starting point (PDB code 2jsx), residues 71–81 of NapD strand β4 were first adjusted and extended. Starting first with residues 71–74 and then repeating for each successive residue, its ϕ, Ψ backbone angles were set to the TALOS+ predicted values and NapD β-strand 4 was refined in a short simulated annealing procedure using the program YASARA (http://www.yasara.org) and the YASARA2 force field. A plausible β-strand extension was formed for NapD residues 75–78. Next, the structured residues N12-V25 of the NapA signal peptide were folded using the TALOS+ predicted ϕ, ψ backbone angles. The peptide was then positioned onto the NapD protein in such as fashion to generate the largest agreement with the observed chemical shift perturbation data. A random nature for NapA residues R5-A11 is not in accordance with the chemical shift perturbations observed for the strand β3-helix α2 region of the NapD molecule and would result in considerable steric clashes between the bulky NapD residue W5 and signal peptide residues R5, R6, F8 and M9. It is more likely that this region of the peptide is in intermediate exchange thus leading to line broadening beyond detection. NapA residues R5-A11 were therefore modelled as an ideal helix, which is in line with the conformation of the NapA signal peptide in the alternative 2pq4 NMR structure and our protein interaction data. To avoid steric clashes, the side-chain conformation of NapD residue Y76 and NapAsp residues F8 and M9 were changed. Preferred χ₁, χ₂ rotameric conformations, as derived from the WHATIF structural reference database, were tested and a selection was made on the basis of minimal steric overlap. Finally, the NapD-NapAsp complex was refined using the program YASARA and the YASARA2 force field in explicit solvent. The complete NapA signal peptide and the NapD side-chains of residues 5, 7, 9, 11, 33, 35, 36, 38, 43, 45, 47, 49, 75, 76 and 78, which together form the complete β-sheet interface, were allowed to adjust in this refinement. The structure of the resulting NapD-NapAsp complex together with its chemical shift data was then subjected to the CING validation server (http://nmr.cmbi.ru.nl/icing; results in Table S1).

Site-directed and random mutagenesis and library screening

The plasmid pT25-NapD, from the bacterial two hybrid system, was used as a template to generate a library of random mutations in napD using error-prone PCR (error rate estimated at 1.0% and 1.5%). The method used was similar to that employed by Buchanan et al. (2008).

In vivo nitrite production assays

To measure nitrate reductase activity the Grieß method of nitrite detection was used, essentially according to Maillard et al. (2007). In brief, cells were grown anaerobically in LB medium supplemented with 0.5% glycerol (v/v), 0.4% fumarate (w/v) and 0.2% nitrate (w/v). Nitrite concentration was measured by sampling 200 µl cell-free culture supernatant and adding 600 µl of 100 mM Tris.HCl (pH 7.6) and 400 µl of a 2:1 mixture of 4% sulphanilamide [in 25% (v/v) conc. HCl] and 0.08% (w/v) N-(1-naphthyl)ethylendiamine. Samples were incubated for 15 min at room temperature before the absorbance at 540 nm was recorded.
