2.1 Study population

During the sixth ANISE²⁵ meeting in Antananarivo, Madagascar in 2018, we invited ANISE member states to participate in Influenza Surveillance in Africa (InSAFRO), a survey to assess surveillance systems in Africa and their participation in the World Health Organization's (WHO) Global Influenza Surveillance and Response System (GISRS). ANISE is a network of laboratorians, epidemiologists, public health officials, physicians, veterinarians, researchers and policy makers who collaborate to strengthen capacity for respiratory virus surveillance and research in Africa. ANISE promotes the use of standardized protocols for surveillance of respiratory illnesses to generate evidence for public health interventions and policy.

2.2 Data collection

We used a standardized survey to gather information about sentinel surveillance practices, real-time reverse transcription polymerase chain reaction (rRT-PCR) capacity, the number of samples tested, and the number positive for influenza by week and age group during 2011-2017. Influenza type, subtype, and lineage data were collected, if available. To explore whether influenza surveillance networks had expanded or contracted during the study period, we also gathered information about the type of surveillance conducted (ie, for ILI and/or SARI), and number of active sites. We assessed whether the case definitions reported by the survey matched WHO-recommended ILI and SARI case definitions.²⁶ Data were collected through the InSAFRO survey about national surveillance operational costs and funding sources. We reviewed reported avenues for regular dissemination of surveillance data in country to determine whether the generated influenza surveillance data were used to inform influenza prevention and control measures (eg, launching risk communication and vaccination campaigns). Finally, we surveyed participants about national vaccine policies or guidelines that could benefit from influenza surveillance.

2.3 Additional data collection

We also gathered information about influenza test results reported to the GISRS platform FluNet [40] and about samples shared with WHO Collaborating Centers (CCs). We reviewed published and unpublished burden of disease estimates solely to estimate the number from InSAFRO countries (ie, not to extract findings for a meta-analysis); this review was conducted until September 2019. We summarized findings by World Bank income classification and population size²⁷ to estimate the representativeness of samples collected and tested.

2.4 Data analyses

To describe surveillance capacity during 2011-2017, we summarized the number of sentinel sites and rRT-PCR throughput capacity for laboratory testing by country. The collection of potential risk factors for SARI and in-hospital deaths were also noted. We estimated the relationship between annual rates of samples tested and positives by WHO transmission zone. We repeated this for each country during 7 years of surveillance using a generalized estimating equation method with repeated-measures Poisson regression where the dependent variables were counts of influenza-positive detections and samples tested for each year of the study and the independent variable WHO transmission zone.²⁸ We explored the association between surveillance funding source and World Bank income classification status using Fisher's exact test to determine if there were non-random associations between income classification and funding source (eg CDC, WHO, or Government) as categorical variables. We also plotted the number of samples tested and the proportion of influenza detections among ILI and SARI case-patients during the 7-year surveillance period by age group to determine changes in the amount of testing by age group. We used a linear regression to identify potential trends in the number of influenza viruses shared with WHO CCs and samples reported to FluNet over time. Lastly, we used Mann-Whitney Rank Sum test to explore whether countries that used influenza vaccines in the private or public sector were more likely to report a greater number of influenza tests results to FluNet. Analyses were performed using SAS^® 9.4 and StataCorp 2019 Version 16.

2.5 Ethics and funding

This project was deemed a program evaluation and received a non-research determination from the CDC IRB because it does not use data from human subjects; its primary intent was to determine the fitness and capacity of influenza surveillance to serve participating countries. The data collection forms and templates were reviewed and approved by the ANISE working group. Collaborating institutions received official invitation letters requesting information about their surveillance systems. This project was supported by the ANISE executive committee and funded by CDC.

3.1 Characteristics of surveillance systems

Twenty-two (92%) of 24 ANISE members attended the 2018 annual meeting; 18 (81%) of these 22 agreed to participate in InSAFRO. These 18 countries have a cumulative population of 710 751 471 which represents 56% of Africa's total population (Table 1). Four countries did not contribute data for analysis: two did not attend the 2018 ANISE meeting and two were unable to complete the survey in time for analyses. On average, participating countries had conducted 13 years of influenza surveillance (range: 5-41 years); South Africa and Madagascar had conducted surveillance the longest among the countries (ie, >30 years) (Figure 1).

InSAFRO countries collected influenza surveillance data through 187 ILI and 104 SARI sentinel sites. On average, countries had 11 (range: 1-54) ILI and 6 (range: 1-18) SARI sentinel sites. Ten (56%) of the 18 countries used the ILI and 14 (78%) used the SARI case definitions recommended by WHO.²⁶ The eight countries that modified their ILI case definition and the four countries that modified their SARI case definition each identified cases with onset of fever within 7 days of illness onset rather than the WHO recommended 10 days.²⁶

On average, countries tested a cumulative 28 529 specimens a year (Table 1). The number of ILI samples decreased by 12% from 16 210 in 2011 to 14 477 in 2017 while the number of SARI samples tested remained similar at approximately 14 000 specimens. Most (80%) of the 18 countries collected data about case-patients' age and preexisting medical conditions. More than half of the samples collected were from children aged <5 years (ie, 53%, 95% CI: 51-54 from ILI and 61%, 95% CI: 57-65 from SARI). Few samples were from persons aged ≥65 years (1%, 95% CI: 1-2 from ILI and 3%, 95% CI: 3-3 from SARI). Only 10 (56%) of the 18 countries documented in-hospital outcomes (eg death, recovery, and transfers) for SARI case-patients.

InSAFRO countries spanned four WHO influenza transmission zones²⁸; the Northern [Algeria] countries contributed a cumulative annual average of 636 specimens, the Western zone [Cote d'Ivoire, Democratic Republic of Congo, Mali, Niger, Nigeria, Senegal, Togo] 8926 specimens, the Eastern zone [Kenya, Madagascar, Malawi, Mozambique, Tanzania, Uganda, Zambia] 11 248 specimens, the Central zone [Cameroon, Central African Republic] 2408 specimens, and the Southern zone [South Africa] zone 5308 (P ≤ .0001). Based on a Poisson regression model no evidence of a difference was seen in the rate of samples tested per million persons per year between transmission zones among surveyed countries: Central zone (4.7/1 000 000-y), Eastern zone (2.1/1 000 000-y), Northern zone (2.2/1 000 000-y), Southern zone (2.5/1 000 000-y) and Western zone (1.1/1 000 000-y, P ≤ .3).

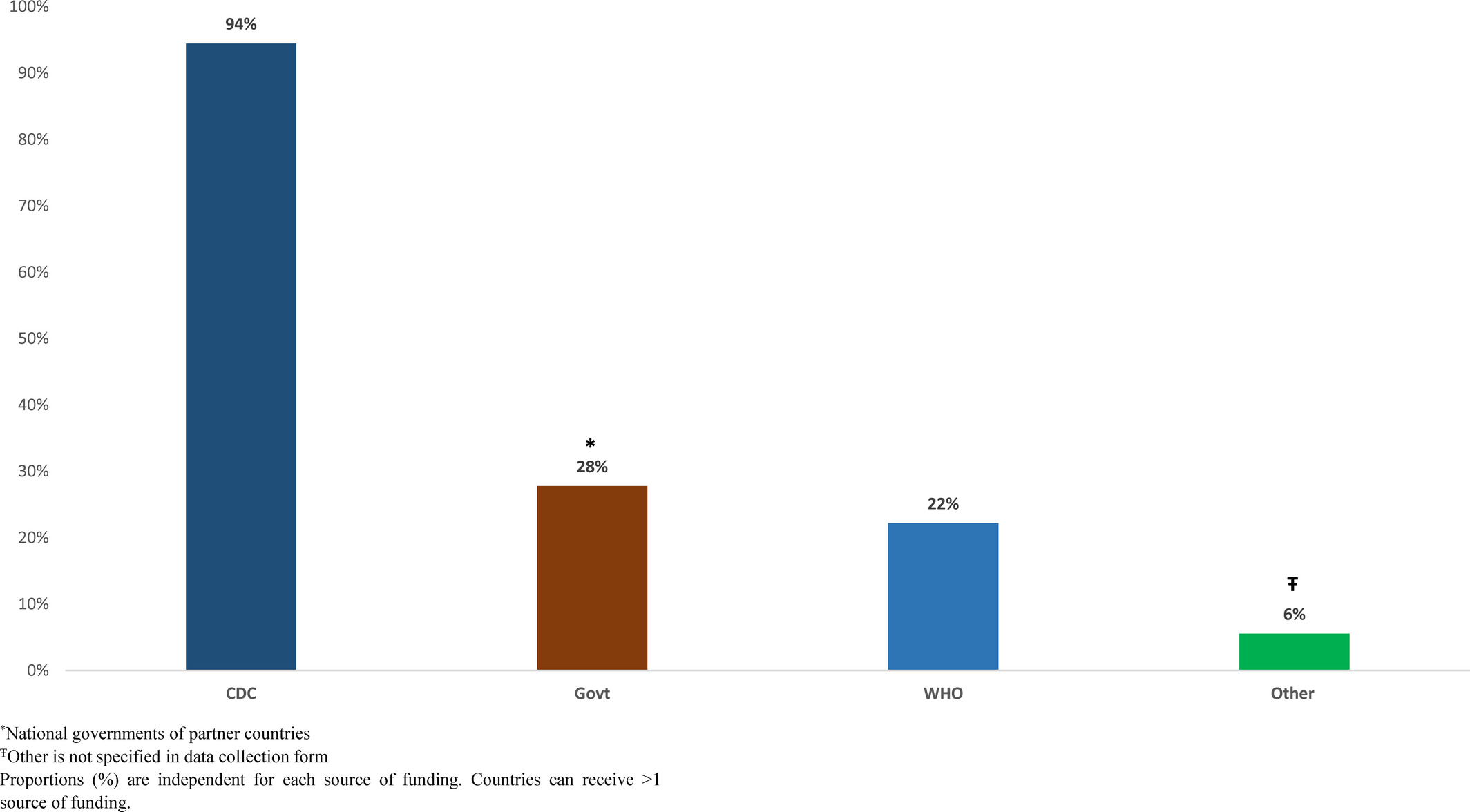

Countries reported that influenza surveillance cost approximately between $10 000 and $1 267 280 to operate each year (median $105 000). All 18 countries paid for surveillance with funds from multiple agencies (Figures 2 and 3). We found no associations between the type of external funding and World Bank income classification. Seven (39%) of the 18 countries conducted influenza surveillance as part of an integrated disease surveillance system for improved detection and response to leading causes of illness.

4.1 Surveillance and laboratory capacity

Our results suggest that following substantial investment in capacity-building at the turn of the millennium, most of the 18 African countries we evaluated sustained or strengthened influenza surveillance and laboratory diagnostic capacity, routinely reported findings to WHO, and shared samples with WHO CCs. In 2012, Radin et. al reported a tenfold increase from 4623 specimens in 2006 to 44 763 in 2010 among 15 African countries, 9 of which overlap with our survey countries.³ Our findings suggest most InSAFRO participants have continued to strengthen surveillance in the decade after the Radin report.

All surveyed countries had the capacity to test influenza specimens through rRT-PCR, which helped them to maintain situational awareness about respiratory viruses in their respective countries. Although the number of sentinel surveillance sites has not significantly increased from 2012, possibly in an effort to improve the cost-benefit of surveillance, there was an overall increase in sampling and testing. Sampling for SARI respiratory increased especially among children aged 0-4 years (Figure S2). The overall increase in SARI sampling, which was accompanied by a modest decrease in ILI sampling, might be attributed to an emphasis by the global community to strengthen severe respiratory illnesses surveillance to compensate for the perceived shortcomings of surveillance to track severe illnesses during the 2009 pandemic.^{31, 32}

4.2 Participation in GISRS and WHO CCs

Investment in surveillance capacity-building resulted in sustained reporting of virus activity to GISRS and shipment of specimens to WHO CCs, even after a 37% decrease in external funding for such activities. All countries contributed influenza viruses to one or more WHO CCs during the northern and southern hemisphere Vaccine Composition Meeting for vaccine candidate virus selection. Although specimen testing increased among participating countries, the number of positive viruses shared with WHO CCs by transmission zones remained similar throughout the study period (Figure S5). Although we suspect additional specimens were not requested by the CCs because of limitations in the number that CC's can characterize. There may be value in setting benchmarks for the minimum and maximum number of influenza specimens collected within the beginning, middle, and end of epidemics that should be shipped quarterly to WHO CCs assuming year-round transmission. Such benchmarks might allow countries to ensure that they share timely specimens and maximize the chances that influenza viruses identified within their country will be adequately represented in vaccine formulations.

In addition to demonstrating sustained or increased testing capacity during 2011-2017, our survey showcases the increase in the number of NICs in Africa and their newly attained ability to lineage-type influenza B. NICs are critical to the sustainability of surveillance because they orchestrate laboratory surveillance within countries, provide support to subnational laboratories, and liaise with WHO and its CCs. NICs do proficiency testing for subnational laboratories, test clinical specimens for influenza, identify and further characterize viruses, and report findings to WHO through FluMart. NICs also collect specimens for shipment to CCs either emergently, when they identify what might be novel viruses, or quarterly to inform vaccine strains selection. This is evident during the current COVID-19 pandemic where NICs are the underpinning for the rollout of testing for SARs-CoV-2.^{23, 24, 33}

In 2018, the WHO revised the Terms of Reference (TOR) for NIC status to exclude the requirements for national laboratories to isolate influenza viruses. This shift in TOR recognized that some CCs prefer that countries send influenza-positive specimens for rapid sequencing first rather than delay shipment with virus isolation attempts. In Africa, virus isolation requirements frequently held back national laboratories from achieving WHO NIC designation; we anticipate that more countries in Africa will now be able to attain WHO NIC designation because of the relaxed TOR.

4.3 Funding and expansion of surveillance

Despite reduction in external contributions, influenza surveillance seemed sustainable during the past decade. Thirteen countries received funds through US CDC cooperative agreements and indirect financial support from other partners (Figure 2). During 2010-2019 two new countries were awarded capacity-building funds to establish their national surveillance programs by the US CDC, five moved from capacity-building cooperative agreements (on average 450 000 USD during a 5-year period) to maintenance cooperative agreements (on average 250 000 USD) with a cumulative decrease in funding of 1 461 020.00 USD (37%). Two other countries moved to a sustainability cooperative agreement, and received on average 50 000 USD, to support their established surveillance activities.

Despite notable national and institutional commitments, surveillance systems in Africa still rely largely on external funding to sustain or increase surveillance capacity. All countries were also beneficiaries of the CDC-funded International Reagent Resource, which provided registered countries with the reagents for the surveillance of novel and emerging influenza strains at no cost. In addition, WHO, Institut Pasteur, and national governments supported influenza surveillance and regional capacity strengthening to respond to outbreaks and for pandemic preparedness.

4.4 Vaccines and policy

Seasonal influenza vaccines are available in African countries, however public sector access remains limited. Influenza vaccines were available in the private and public sector in two-thirds of the 18 surveyed countries and, although more than a third had influenza disease burden estimates, less than one in five countries had publicly available national vaccine guidelines or policies. In countries using influenza vaccines, these were typically available in pediatric health centers, private pharmacies, and embassies except for two countries (South Africa and Madagascar) where influenza vaccines were licensed, offered routinely at the point of care, and recommended in the public sector. In South Africa, for example, free seasonal influenza vaccines were available in all public primary care facilities with a limited stock of approximately 1 000 000 doses for use among persons at high risk of influenza complications. Of note, countries that used influenza vaccines in the private sector reported, on average, a higher number of samples to WHO FluNet.

Our survey suggests that a disproportionally high percent of specimens from InSAFRO countries came from children aged <5 years. Although 16% of the 2019 census population for countries is aged <5 years, children aged <5 years represented 61% of ILI and 53% of SARI specimens. Our finding is consistent with that of other studies in Africa including Zambia where 60-80% of SARI samples were from young children.²¹ The large percent of children which comprise surveillance case-patients might reflect underlying rates of severe respiratory illness among those in the extremes of age and health utilization patterns that focus scarce resource on children rather than older adults as noted in a handful of health utilization surveys.^{17, 20, 21, 30, 34, 35} Additional evaluations are needed to determine if the proportion of samples obtained from different age groups is representative of those who seek care at sentinel sites. Such evaluations might be useful because representative sampling was not included as a formal milestone for evaluation in CDC funding opportunity applications.

4.5 Limitations

The InSAFRO analyses were limited to surveillance data from 18 out of 54 WHO Member States in Africa. Nevertheless, these 18 countries comprised half of Africa's population and our findings might be generalizable to additional countries in Africa. We did not comprehensively quantify external funding countries received for surveillance. InSAFRO countries reported 21% more respiratory samples results to WHO FluNet than they reported to our survey, possibly because our survey allowed participants to report results once while FluNet allows countries to update backlogged results at any given time. We also did not enumerate the number of pediatric-focused health facilities in order quantify the proportion of specimens from clients aged <5 that were collected from pediatric inpatient or outpatient health facilities. We did not explore exact amounts countries were awarded versus amounts spent in their cooperative agreement funds. Finally, our survey was not designed to explore how countries used surveillance findings for public health action.
