Flexibility in a changing arctic food web: Can rough-legged buzzards cope with changing small rodent communities?

2.1 Study area

The study was conducted at the Erkuta Tundra Monitoring Site in Russia from 1999 to 2017. The study area is located near the confluence of the Payuta and Erkuta rivers in the southern part of the Yamal Peninsula (68.2°N, 69.2°E), in the low arctic shrub tundra. It is characterized by flat tundra interspersed with hills (up to 40 m high) with some steep slopes, and sandy cliffs along river banks and lakes (Sokolov, Ehrich, Yoccoz, Sokolov, & Lecomte, 2012). The landscape is subdivided by a dense network of rivers and lakes (Figure 1), and many low-lying areas are flooded in spring. Based on data from the CRU TS 4.01 spatial climatic dataset (Harris, Jones, Osborn, & Lister, 2014), mean July temperature during the study period was 13°C. The vegetation is composed of erect dwarf shrub tundra, low shrub tundra, Sphagnum-rich wetlands, and dense patches of willow thickets, which can be over 2 m high (Ehrich et al., 2012).

The small rodent community is composed of four main species: the narrow-headed vole (Microtus gregalis), Middendorff's vole (Microtus middendorffi), the collared lemming (Dicrostonyx torquatus), and the Siberian lemming (Lemmus sibiricus; Sokolova et al., 2014). At present, voles are the dominating species, with the narrow-headed vole as the most abundant. Other herbivores include mountain hare (Lepus timidus), muskrat (Ondatra zibethica), willow ptarmigan, and domestic reindeer (Rangifer tarandus). Several species of geese (mostly white-fronted geese, Anser albifrons) are breeding in the area at low numbers. Main predators, in addition to the rough-legged buzzard, are arctic fox, peregrine falcon (Falco peregrinus), long-tailed and arctic skua (Stercorarius longicaudus, S. parasiticus), and small mustelids (Mustela erminea and M. nivalis; Sokolov, Sokolova, Ims, Brucker, & Ehrich, 2016).

2.2 Small rodent abundance

An abundance index of small rodents was obtained each year from snap trapping. For 1999–2006, trapping was carried out on lines of approximately 50 or 100 traps placed at 5 m intervals in several habitats for a minimum of two nights (Sokolov, 2003). Trap lines were situated in the core of the study area (Figure 1). Trapping was conducted from July to September in 1999, only in July in 2000, and in June and July from 2001 to 2006. The number of trap nights per year varied from 200 to 2,410 (mean = 905; Table S1). Since 2007, small rodents were trapped in the second part of June and in the beginning of August according to the small quadrat method (Myllymäki, Paasikallio, Pankakoski, & Kanervo, 1971) in three habitat types (willow thicket edge, mesic dwarf shrub tundra, and wetlands) as described in Sokolova et al. (2014). From 2007 to 2011, we used permanent small quadrats placed in two spatial units for two nights per season (2 units × 3 habitats × 6 quadrats × 12 traps × 2 nights × 2 sessions = 1,728 trap nights per year; in 2007 and 2016, only one session was carried out for logistic reasons; Table S1). In 2012, a third unit consisting of quadrats in the same habitats was established (resulting in a total of 2,592 trap nights per year; Figure 1). Traps were baited with raisins and rolled oats. The trapping data were summarized as yearly abundance indices consisting of the number of animals trapped per 100 trap nights.

The two trapping protocols were used in parallel during 6 years (2010–2015), allowing to compare abundance indices. This comparison revealed that trap lines consistently yielded higher numbers of animals trapped per effort. Systematic differences in yield resulting from the configuration of the trapping design were examined by Fauteux et al. (2018). Their results showed that a group of three traps corresponded approximately to the effort of two single traps. Therefore, to assemble our data series, we reduced the trapping effort of the small quadrat data with 0.67—a correction, which resulted in a better fit between the two methods. To assess how robust our results are to the change in trapping protocol, we assembled an alternative time series using the trap lines for 1999–2006 and 2010–2015 and the same correction factor. All analyses were carried out with both small rodent datasets, and the results led to the same conclusions (Appendix S1, Table S4).

Periodicity of the total small rodent abundance index was assessed based on an autocorrelation plot of the detrended time series. We estimated trends in total abundance and abundance of the main species as coefficients of linear regressions of abundance against time, and a trend in the amplitude of population fluctuations was estimated from coefficients of variation calculated for a 5-year time window (linear model with autocorrelation, package nlme in R). The two species of lemmings were combined to one abundance index for most of the analyses, because it was not possible to analyze Siberian lemmings separately due to their very low numbers.

2.3 Nesting and diet of buzzards

Breeding of rough-legged buzzards was surveyed from the middle of June to the middle of August each year. To assess density, we searched for nests by walking through the study area targeting sites where nests had been observed in previous years, and places with similar habitat. In Yamal, buzzards can breed on cliffs, gentle slopes, or even in flat tundra (Sokolov, 2003). Buzzards exhibit conspicuous territorial behavior and when such behavior was detected, a systematic nest search was carried out. Coordinates of each nest were determined with a handhold GPS and breeding density was estimated each year relative to the study area. The size of the study area varied between 100 and 130 km² in the earlier years, and was gradually increased to 250 km², which are surveyed since 2012 (Table S2).

For each nest, we recorded the number of eggs laid (only four nests were found after hatching). If possible, nests were revisited to determine hatching and the survival of chicks until fledging. Hatching was considered successful, if at least one chick was observed in the nest. Brood size was defined as the number of chicks that survived until an age of approximately 3 weeks, when they reached a size at which they could be ringed.

The diet of buzzards was determined through the dissection of pellets. Pellets were collected throughout the study area mainly from cliffs, small hillocks, and close to nests. Except for the nests, the places where pellets were collected were almost the same every year. Pellets were dissected in the laboratory and all undigested segments of prey were determined by means of specific features of bones, feathers, teeth, etc. If possible, rodent remains were determined to species based on the enamel pattern of the first lower molar according to Borodin (2009).

2.4 Statistical analysis

All statistical analyses were carried out in R version 3.5.0 (R Core Team, 2018). The numerical response of buzzards to small rodent abundance was analyzed with generalized linear models (GLM) with a Poisson distributed error and the number of nests found each year as response variable. The size of the study area each year was included as an offset. A possible temporal change in the numerical response could be gradual or occur at a specific time resulting from a regime shift. Therefore, we created a factor with two levels corresponding to two distinct periods as explanatory variable (period) in addition to continuous time. The break between the two periods was determined based on the data as the year, for which the residual deviance of the model was smallest. Thus, predictor variables were the total small rodent abundance index, the abundance index for lemmings, year, and period. Six candidate models were assembled and compared with Akaike's information criterion corrected for small sample size (AIC_c): a model with small rodent abundance, a model with lemming abundance, and models, which included small rodents and year or period, and a possible interaction between the two variables. We did not include models with year or period and lemming abundance, because only very few lemmings were trapped in recent years. Model fit was assessed graphically. Because theoretically the numerical response of predators is nonlinear, we specifically checked for indications of nonlinearity or thresholds of the response over the range of the predictor value. The function dispersiontest of the package AER (Kleiber & Zeileis, 2008) was used to test for overdispersion. The small rodent and lemming indices were log transformed to achieve normal distribution of residuals. As there were 0 lemmings trapped in some years, for lemmings, 0.017 was added to the abundance index, which corresponds to half of the minimum which could have been trapped (Fauteux et al., 2018). For the best model, we report parameter estimates and confidence intervals. Because the increase in the study area could have caused changes in habitat quality, which might have influenced breeding density, we repeated the analysis taking into account only the nests found in the initial study area of 100 km².

Breeding effort (clutch size), hatching success, and brood size were analyzed using a similar approach and the same combination of explanatory variables and candidate models as for nest density (but no offset). As previous studies have shown that rainfall is important for brood survival (Beardsell et al., 2016; Potapov, 1997), we included the mean July rainfall (CRU TS 4.01 spatial climatic dataset; Harris et al., 2014) as additive effect in all models for brood size. As any recorded breeding attempt per definition included at least one egg, a truncated Poisson distribution was used for the number of eggs (function vglm of the package VGAM in R; Yee, 2015). Hatching success was modelled using a GLM with a binomial error distribution and hatching was considered successful if at least one egg in the nest hatched. Brood size was modelled with a Poisson error distribution and analyzed only for nests that had hatched successfully. Model fit was assessed as above.

The diet data were summarized as the proportion of each small rodent species among all individual small rodents identified in the dissected pellets. Prey selectivity was defined as the proportion of consumed prey relative to the proportion of available prey, not necessarily assuming active selection by the predator. We calculated selection ratios for lemmings (both species together), Middendorff's voles, and narrow-headed voles as the proportion of individuals of the species identified in pellets each year divided by its proportion in the trapping data. To assess a possible change in prey preference over time, we calculated the standardized selection ratio α for each year (Equation 1, where r_i is the proportion of prey i in the diet, n_i the proportion of prey i in the environment, and m the number of species; Hellström et al., 2014; Manly, Miller, & Cook, 1972). If each prey is used proportionally to its availability α = 1/m. Higher α reveals preference. Linear regressions were used to test for changes of selection ratios over time.

(1)

3.1 Small rodents

After correcting for the change in protocol, the trapping index varied between 0 in 2006 and 12.6 in 1999 relative to 100 trap nights carried out according to the small quadrat method (18.9 in 1999 based on the original data from the trap lines). The total abundance index was above 10 only in 1999. After this, fluctuations were of lower amplitude with small peaks of abundance every 3–5 years. Autocorrelation plots for the detrended time series revealed no significant autocorrelations for the total small rodent abundance or for each of the Microtus vole species. Until 2007, Middendorff's voles were the most abundant species, and after that, narrow-headed voles predominated (Figure S1). The lemmings exhibited two peaks with a 5-year interval in the beginning of the study, but remained at low densities after that. Siberian lemmings were mostly trapped in 1999 and 2005, and not a single individual was caught after 2009. Collared lemmings were most abundant in 1999 and 2004, but were present in the trapping data at low frequency during the whole study period.

Overall, there was a negative, but not statistically significant, trend in the total small rodent abundance index (slope = −0.20, SE = 0.11, p = .08). Considering the main species, the data showed a decrease in lemmings (both species together) and in Middendorff's vole (lemmings: slope = −0.05, SE = 0.02, p = .03; Middendorff's vole: slope = −0.26, SE = 0.08, p = .01). At the same time, the abundance of narrow-headed voles increased (slope = 0.09, SE = 0.03, p = .02). There was thus a significant shift in small rodent community composition. The amplitude of abundance fluctuations estimated as coefficient of variation did not change significantly over the study period (slope = −0.03, SE = 0.02, p = .20), but the suggested negative trend was compatible with a fading out of the small rodent cycle.

3.2 Buzzard breeding

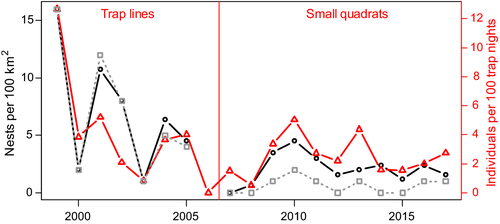

In total, 104 buzzard nests were recorded during the study period. The maximum number of nests was observed in 1999 with 16 nests, whereas in 2007, no nests were found at all (no observations were carried out in 2006). The density of buzzard nests decreased considerably over the study period, and the observed decrease was even stronger when taking into account only nests found in the initial study area of 100 km² (Figure 2).

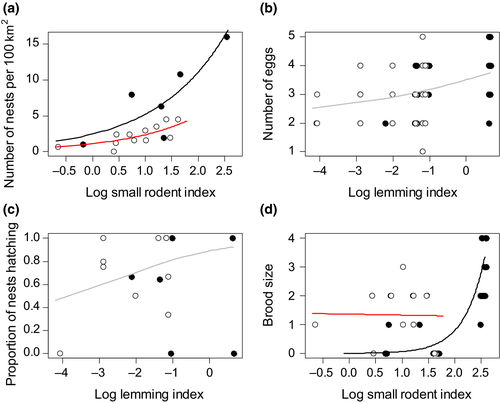

Nest density varied with small rodent abundance (Figure 2). A model with an additive effect of the small rodent index and period received most support from AIC_c (Table S3). Dividing the study period after 2004 yielded the models with the lowest residual deviance; therefore, we defined the “early” period as 1999–2004 and the “recent” period as 2005–2017. A subdivision after 2005 or 2006 received nearly as much support (difference in residual deviance = 0.35). On average, nest density doubled for an increase of one in the log of small rodent abundance (95% confidence interval [CI] = 1.55–2.94; Figure 3a), and nest density relative to small rodent abundance was reduced by a factor of 0.45 after 2004 (CI = 0.29–0.71). The distribution of residuals was satisfactory and the model did not show any signs of overdispersion. There was no indication of nonlinearity in the residuals and the overlap in the small rodent abundance index between the two periods makes it unlikely that the effect of period is due to a nonlinear numerical response over the range of values included. According to AIC_c, the next best model included small rodent abundance and an additive effect of year (difference in AIC_c ΔAIC_c = 1.66; Table S3), showing a congruent result of a positive effect of small rodents with a decrease of density over time by a factor of 0.94 (CI = 0.90–0.98) per year. A model with lemming abundance explained the data considerably less well (ΔAIC_c = 28.88). Analyzing breeding density only in the initial study area of 100 km² gave qualitatively similar results, but the decrease in breeding density after 2004 was stronger (Table S5).

Average yearly clutch size varied between 2 and 4 (overall mean = 3.1, SD = 0.95) and the maximal clutch size observed was 5. The variation in clutch size was best explained by a model with the log of lemming abundance as explanatory variable (ΔAIC_c to the next best model = 4.45; Table S3). It indicated a moderate increase in clutch size by a factor of 1.13 (CI = 1.02–1.24) for an increase in 1 in the log of lemming abundance (Figure 3b). For hatching success, the model with the log of lemming abundance received most support from AIC_c (ΔAIC_c for total small rodent abundance = 4.06) and indicated a positive effect of lemming abundance on hatching success (0.65, CI = 0.24–1.12 on the logit scale; Figure 3c). Inspecting the data revealed, however, that this effect was only due to the year 2016, when none of the six recorded nests hatched and no lemmings were caught. Without this extreme year, there was no effect of lemming abundance on hatching success (Table S3).

The number of chicks surviving until fledging varied a lot between years. In the peak year of 1999, all nests produced at least one fledgling, the maximal brood size was 4, and a total of 43 fledglings were produced in the 100 km² study area. In 2001 or in 2014, on the contrary, all chicks died. The number of fledglings per 100 km² after 1999 varied between 0 and 3.2. On average, brood size in nests which had hatched successfully was 1.55 until 2005 and 1.36 after that, and did not differ significantly between the periods (t test: t = 0.52, p = .6). A model with small rodent abundance, period, and an interaction between the two predictors in addition to total rainfall in July received clear support from AIC_c (ΔAIC_c = 5.66). This model indicated that there was a significant positive effect of rodent abundance on the number of fledglings until 2004 but not after that (Figure 3d). Taking into account small rodent abundance, the number of fledglings was, however, significantly higher after 2004 than in the period before that. Inspecting the data for influencial values showed that the strong positive effect in the earlier period was due only to the peak year in 1999, whereas brood size in the other years was low. Without this year, the interaction model was not better than a simpler additive model (ΔAIC_c = 1.36 for the interaction model). The latter showed no effect of small rodent abundance over the more narrow range of density fluctuations after 1999, or of total July precipitation, on the number of fledglings. There was, however, a clear increase of the number of fledglings in the recent period (estimate on the log scale = 2.08, CI = 0.79–3.94).

3.3 Buzzard diet

The pellet dissection revealed that four species of small rodents, the two lemming species and the two Microtus voles, constituted the main part of the buzzard's diet. Altogether, we identified remains of 4,307 individual small rodents representing 88% of all identified prey items (Table 1). Pellet dissection is, however, a method that is likely to underestimate the presence of larger prey in the diet, from which mostly meat is consumed (Francksen, Whittingham, & Baines, 2016; Pokrovsky et al., 2014). For birds, we counted one individual when feathers or other remains were found, although these could belong to several individuals. Because our study focusses on the response of buzzards to changes in small rodent community composition, we limited the statistical analyses of dietary preferences to small rodents. As red-backed voles (Myodes rutilus) occurred only at very low frequencies, they were also excluded from these analyses.

Comparing the proportions of small rodent species in the diet data to their relative availability as estimated by trapping revealed a clear preference for lemmings. Remains of both species were found in the pellets every year, although Siberian lemmings were less frequent than collared lemmings, as in the trapping data (Figure S2). Because of the low abundance of Siberian lemmings, both species were pooled for the diet analyses. The proportion of lemmings in the pellet data was higher than their proportion among trapped individuals in all years (Figure 4a), although it declined toward the end of the study period together with the decline in lemming abundance (Figure S2). The two Microtus voles were consumed proportionally to their availability at low proportions, but they were underrepresented at high relative abundance (Figure 4b,c). This was true during the whole study period. Accordingly, the selection ratio α was above one-third for lemmings during the whole study period (showing preference), and below for the two Microtus vole species (Figure 4d). For lemmings and for Middendorff's vole, there was no trend in α over the study period. For narrow-headed voles, the species which increased in abundance according to the trapping data, α decreased by 0.012 per year over the study period (p = .02).

4.1 Rough-legged buzzard breeding

Studies from other areas in the Arctic showed that rough-legged buzzards can display variable dependence on small rodents as main resource. Thus, on Bylot Island, they behave as lemmings specialists showing a clear numerical response (Therrien et al., 2014). In northern Fennoscandia, they are small rodent specialists (Tast et al., 2010), with a preference for Norwegian lemmings as prey (Hellström et al., 2014). In other areas, however, they are less specialized and use birds, notably ptarmigan, as alternative prey in low small rodent years (Pokrovsky et al., 2014; Springer, 1975), or breed even in areas where small rodents are absent, such as on Kolguev Island (Pokrovsky et al., 2015). None of these studies documented; however, the reaction of a buzzard population to a change in resource availability over time, and it was therefore unclear how fast they could adapt to such changes locally.

A comparison among study areas reveals also considerable differences in demographic rates. Maximal densities on Bylot Island reached 15 pairs per 100 km² (Therrien et al., 2014), which is about the same as the maximum observed in our study area in 1999, in a year where lemmings were abundant. In that population, mean clutch size and mean brood size were also higher with 4.4 and 4.0, respectively (Beardsell et al., 2016), than in southern Yamal (mean clutch size = 3.1 and mean brood size = 1.3). In populations relying partly or completely on other prey than small rodents, both densities and clutch/brood size were lower and similar to the ones observed at Erkuta after 2005 (Pokrovsky et al., 2014, 2015). Particularly high breeding densities have been reported from Fennoscandia, where buzzards reached 25 pairs per 100 km² in peak small rodent years (Hellström et al., 2014). In this area, small rodent densities were considerably higher than both on Bylot Island and in Yamal, and this community included Norwegian lemmings. These comparisons indicate that an adaptation to lower resource availability occurs at the cost of lower densities and reproductive output.

Weather, in particular heavy rainfall during the nestling period, is detrimental to the breeding success of northern raptors breeding in open nests (Anctil, Franke, & Bety, 2014; Lehikoinen et al., 2009; Pokrovsky et al., 2012; Potapov, 1997). Our data, however, did not indicate a negative effect of rainfall on brood size. This may be because we used monthly total rainfall, as daily data were not available for our study area. Several authors documented indeed that particularly strong rain is harmful to the young raptor chicks (Anctil et al., 2014; Potapov, 1997). Observations from particular years confirm that this was also the case in our study area in some years. In 2001, for instance, all chicks died after a heavy rainstorm that lasted for 2 days.

4.2 Changes in small rodent dynamics

During the study period, we documented a decrease in lemmings and an increase in narrow-headed voles, at the same time as the amplitude of small rodent fluctuations faded out. Our data do not really allow to compare the two lemming species, but they indicate that the decline was most pronounced for Siberian lemmings. Although our observations covered only a few years before the change in dynamics, other sources report that 3–5 year high amplitude cycles were typical for small rodents in southern Yamal previous to 1990 (Danilov, 2000; Osmolovskaya, 1948). Moreover, both species of lemmings reached high abundances in southern Yamal until the 1990s, including in sites, which are more than 100 km south of our study area (Balakhonov, Danilov, Lobanova, & Chibiryak, 1997; Danilov, 2000).

Similar small rodent community changes observed elsewhere in the Arctic have been attributed to climate change (Ims & Fuglei, 2005). Shorter winters with less stable cold weather and warm spells with rain leading to ground icing are more detrimental to lemmings that depend on winter breeding under the snow to reach high densities, than to voles (Ims et al., 2011). Hard snow at the basis of the snow pack, which can result from warm weather and strong winds in fall, or rain-on-snow events later in winter, is particularly detrimental to growth of lemming populations in winter (Domine et al., 2018; Kausrud et al., 2008). Although not addressed by our study, similar processes might be suggested for our study area. Both spring and fall temperatures have indeed increased since the 1970s based on interpolated monthly average values (Harris et al., 2014). Temperature increase was considerable in October (0.94°C per decade) as well as in the spring months April, May, and June (0.90, 0.89, and 0.77°C per decade, respectively). Warmer falls might have increased the probability of wet snow, which freezes to a hard bottom layer remaining during the whole winter (Domine et al., 2018), whereas warmer springs and falls together result in a shorter winter season, a change which was hypothesized to have caused the collapse of lemming cycles in eastern Greenland (Gilg et al., 2009). Despite suggestive correlations, our data do not allow to determine the causes for the observed changes in the small rodent community. It is also possible that the change in dynamics is related to a change in species dominance driven by interactions within the community (Hanski & Henttonen, 1996), or that it represents a low amplitude phase in a system with transient dynamics (Angerbjörn, Tannerfeldt, & Lundberg, 2001).

4.3 Changes in trophic relationships

During the whole study period, both species of lemmings were clearly overrepresented in the buzzards diet relative to the small rodent trapping data. It is possible that lemmings were somewhat underrepresented in the trapping data, because some of the habitats, where the traps were set, were not optimal for lemmings. However, this is unlikely to explain the strong selection for lemmings in the diet. Moreover, a similar positive selection of lemmings has been observed in northern Sweden, in a small rodent community composed of Norwegian lemmings, grey-sided voles, and tundra voles (Microtus oeconomus). The key role lemmings play for arctic predators has also been demonstrated for other species such as arctic foxes or snowy owls in Fennoscandia (Ims et al., 2017). The preference of predators for lemmings may be related to their larger size providing more food per hunting effort, and possibly to the fact that they are easier to catch. The observation that clutch size was correlated with lemming abundance might suggest that buzzards use lemmings as a clue for years when it is worth to invest in a big clutch. Lemmings may also be more visible to avian predators than voles, particularly narrow-headed voles, who often live in willow thickets and dig burrow systems (Palchekh, Malkova, Kuzmin, & Yakimenko, 2003; Sokolova et al., 2014). The decrease in the selection coefficient α over the study period supports the hypothesis that it is difficult for buzzards to exploit this increasing prey species.

Seasonal dynamics contribute also to the key role lemmings play for predators. Because they reproduce under the snow, lemmings reach indeed high densities already after snow melt, whereas vole densities increase over the course of summer (Ims & Fuglei, 2005). Lemmings are thus available at the onset of the breeding period of predators. During the last 10 years, vole populations clearly increased over summer in our study area, whereas for lemmings, the seasonal pattern was not clear due to their very low densities (Ehrich et al., 2017).

In conclusion, we showed how the response of a moderately specialized predator to small rodent abundance changed with a possibly climate-driven change in small rodent dynamics and community composition. Our results confirm previous findings that changes in small rodent dynamics will be detrimental for arctic predators (Ims et al., 2017; Schmidt et al., 2012), but at the same time, they suggest that some predators will be able to partially adapt to these changes by modified responses of demographic rates to resource abundance. In order to understand the consequences of climate-driven ecosystem changes and predict future species distributions, a better understanding of trophic interactions and their plasticity is important. In the future, it would be interesting to investigate the relative roles of individual phenotypic plasticity versus individual differences or evolutionary changes in such processes.
