Buccal bone thickness at dental implants in the maxillary anterior region with large bony defects at time of immediate implant placement: A 1-year cohort study

1 INTRODUCTION

Immediate implant placement in the esthetic region is stated to be a favorable treatment modality for replacing failing teeth.1-3 Conversely, there are also studies which conclude to be cautious with immediate implant placement, especially if highly esthetic demands are involved.4 Particularly in the esthetic zone, preservation and establishment of labial mucosa and underlying buccal bone has been shown to be a key factor in achieving optimal results.5, 6

In the esthetic region, there is data regarding buccal bone thickness (BBT) when the tooth is still in situ.7, 8 Januário and colleagues7 showed that the buccal bone wall in most cases was less than 1.0 mm thick and even in half of the sites 0.5 mm or less. In the study of El Nahass and Naiem8 it was reported that usually mean BBT at the central and lateral incisors was less than 1.0 mm. Removal of a maxillary anterior tooth will lead to significant loss of BBT within a few weeks.9 It has been posed that immediate dental implant placement with augmentation of the space between implant and buccal wall should prevent these dimensional changes, but the results of this preservation technique are contradictory.3, 10, 11 It is of interest if the original buccal wall still exists in time or disappears and the augmented bone functions as a new buccal plate at the implant.12

If a large bony defect results after extraction, hard and soft tissue grafting is often recommended in combination with delayed implant placement.13, 14 However, there are also studies reporting a favorable esthetic outcome when placing implants in fresh extraction sockets with buccal wall dehiscences.15, 16

The morphological assessment of buccal bone volume before placement of dental implants and at dental implants during a follow-up period is of great interest to clinicians to predict reliability of treatment in the esthetic region. Cone-beam computed tomography (CBCT) has been successfully used for various dental procedures.17 The CBCT has also been used to assess buccal bone dimensions prior and after implant placement.18, 19

Despite the interest to clinicians, there is lack of studies regarding preservation and possible changes in BBT at dental implants, especially with large bony defects at the time of immediate implant placement. One reason is because in analyzing BBT on CBCT's difficulties are encountered with standardization of measurements. The use of three-dimensional (3D) image diagnostic and treatment planning software programs could be helpful.20

The purpose of the present cohort study was to assess, on CBCT's, BBT at the time of tooth extraction in the esthetic region in patients with large bony defects and 1 month and 1 year after final restoration placement and compare it with a group without or with small bony defects.

2 MATERIAL AND METHODS

2.1 Patient selection

Forty participants with an implant-supported restoration in the esthetic region of the maxilla were included in the study, originally part of two randomized controlled trials performed at the University Medical Center Groningen in the Netherlands.21, 22 These trials got approval by the Medical Ethic Board (METC 2010.246) and registered (www.isrtcn.com: ISRCTN57251089). All participants gave written informed consent and research was carried out in accordance with the Declaration of Helsinki.

The following group was selected from a study in which patients presented a failing tooth in the maxillary esthetic region with a large bony buccal defect21:

• test group (n = 20): large bony defect

and compared with a group selected from a study in which patients presented a failing tooth in the maxillary esthetic region without or with a small bony buccal defect22:

• control group (n = 20): without or small bony defect

A large bony defect was defined as being ≥2 mm and a small bony defect as <2 mm, after the review of Chen and colleagues23 and confirmed by the Consensus Statements of Hämmerle and colleagues.24 In both the test group and the control group, implants were immediately placed implant and delayed provisionalized.

Characteristics at baseline of the study groups are:

• test group (n = 20): mean age in years (range): 43.7 (18-63); male/female: 11/9; location of implants (central incisor/lateral incisor/canine): 12/5/3;
• control group (n = 20): mean age in years (range): 42.3 (23-66); male/female: 8/12; location of implants (central incisor/lateral incisor/canine): 13/6/1.

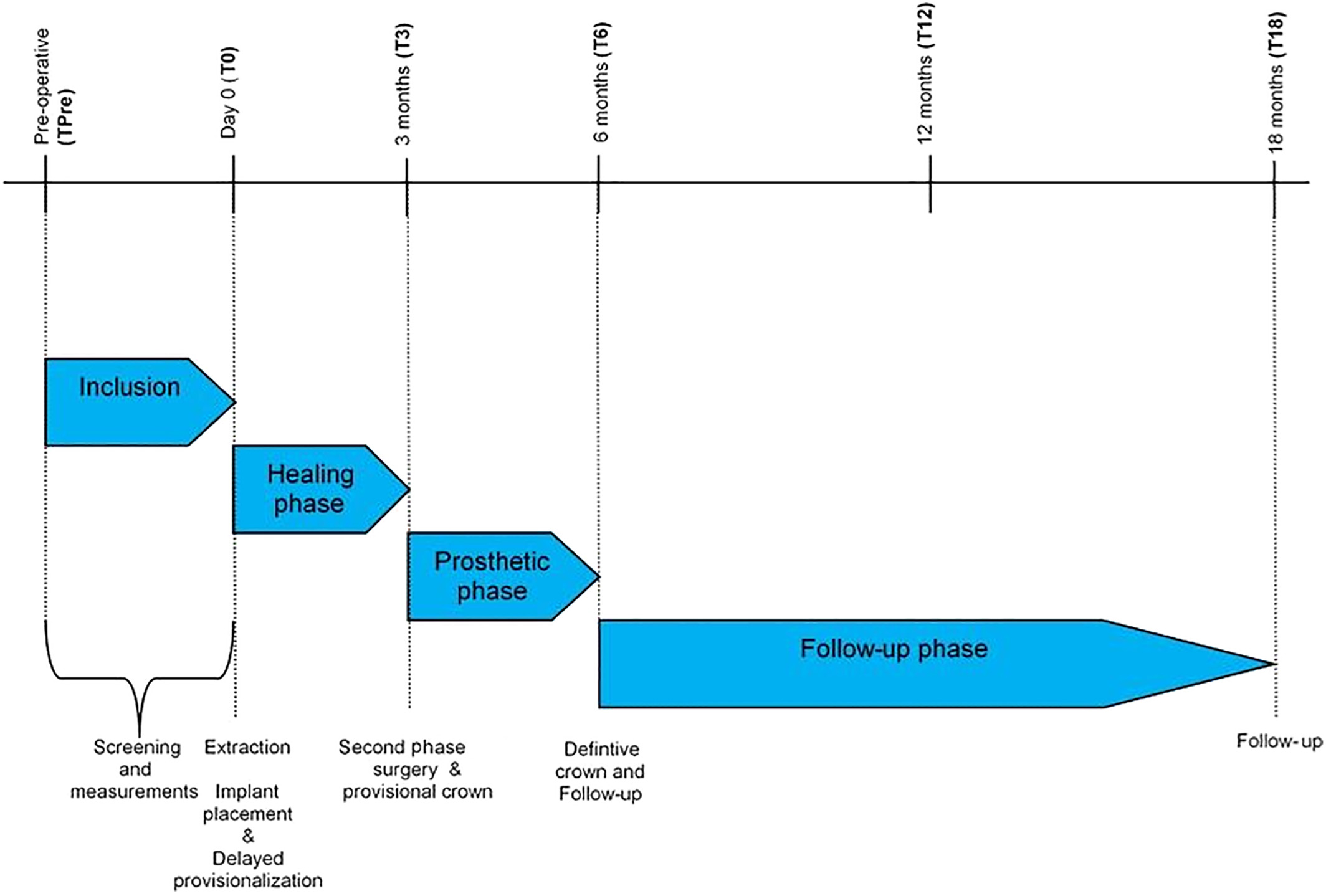

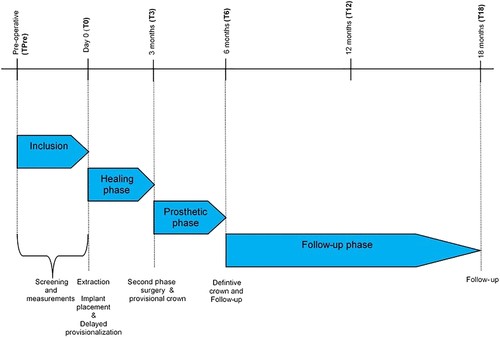

The time path for both test and control group is illustrated in Figure 1. For details with regard of selection of the patients, allocation to the groups, surgical and prosthetic procedures and analysis performed see Slagter and colleagues.21, 22 A short description is presented below.

2.3 CBCT measuring procedure

To define the presence and thickness of bone at the time of tooth extraction and to measure changes in the BBT over time, CBCT's (iCAT 3D exam scanner, KaVo Dental GmbH, Biberach, Germany) were made before extraction and after 1 month and 1 year after placement of the final restoration. This scanner was validated for measuring bone thickness by Fourie and colleagues.25 They reported a method error of only 0.05 mm (95 CI 0.03-0.07 mm). Bone thickness measurements were done using 3D image diagnostic and treatment planning software (NobelClinician, version 2.1, Nobel Biocare - Guided Surgery Center, Mechelen, Belgium). A CBCT imaging and software protocol, developed and validated by Slagter and colleagues, was used.20

Of each patient, the position of the implant was determined by importing the 1-month and 1-year CBCT, in DICOM multi-file format, into an image computing program, Maxilim, version 2.3 (Medicim, Sint-Niklass, Belgium). With the concept of multimodality image registration using information theory (MIRIT) the exact position of the implant can be recognized, determined, and implemented in the patients DICOM files.26 The MIRIT procedure finds its base on recognizing image similarities. The degree of similarity between intensity patterns in two images (one of the implant with the dimensions used in the patient and the one of the depicted implant in the DICOM file of the patient) is determined, and consequently, the recognized image is registered automatically into one coordinate system.

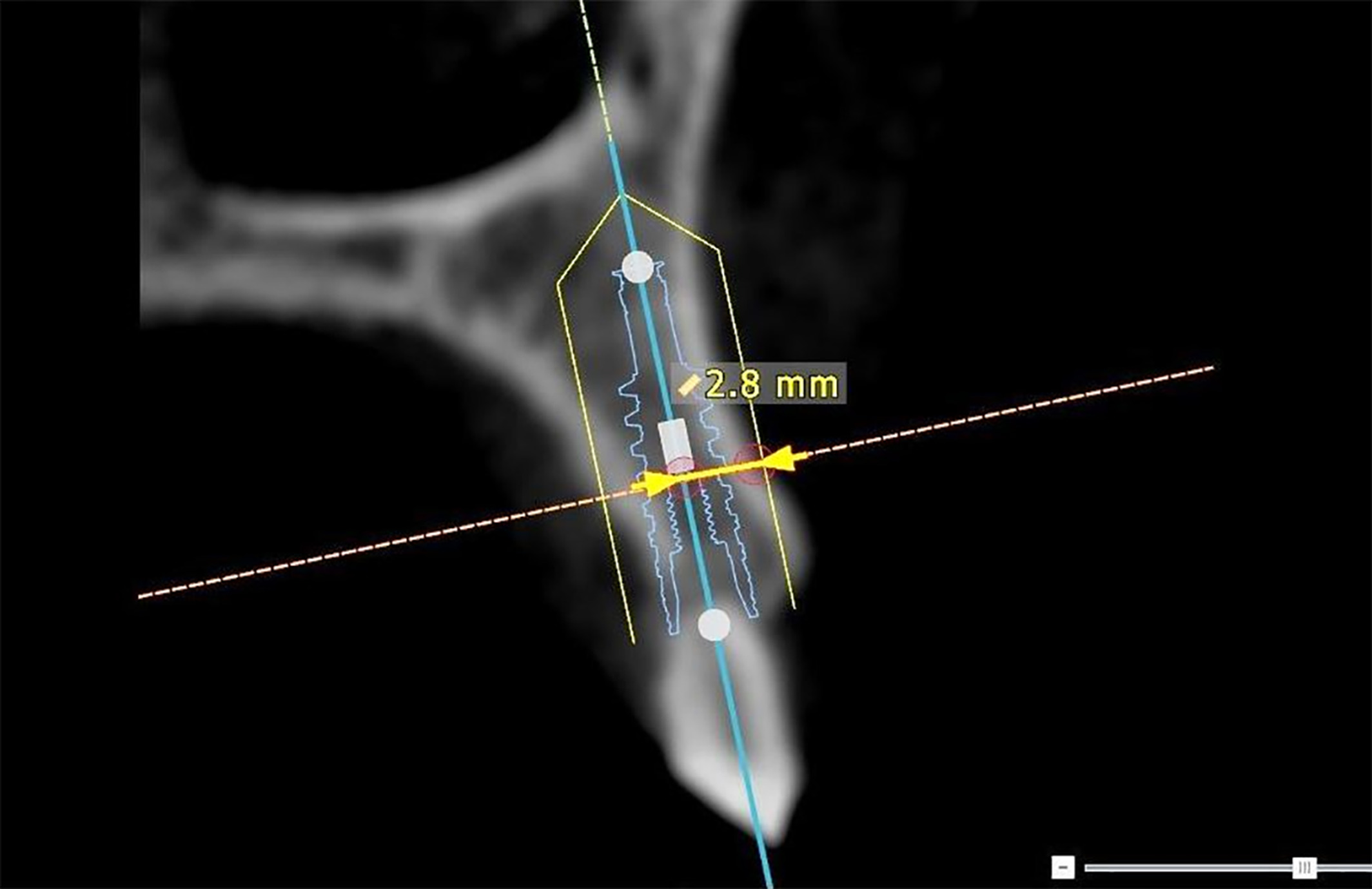

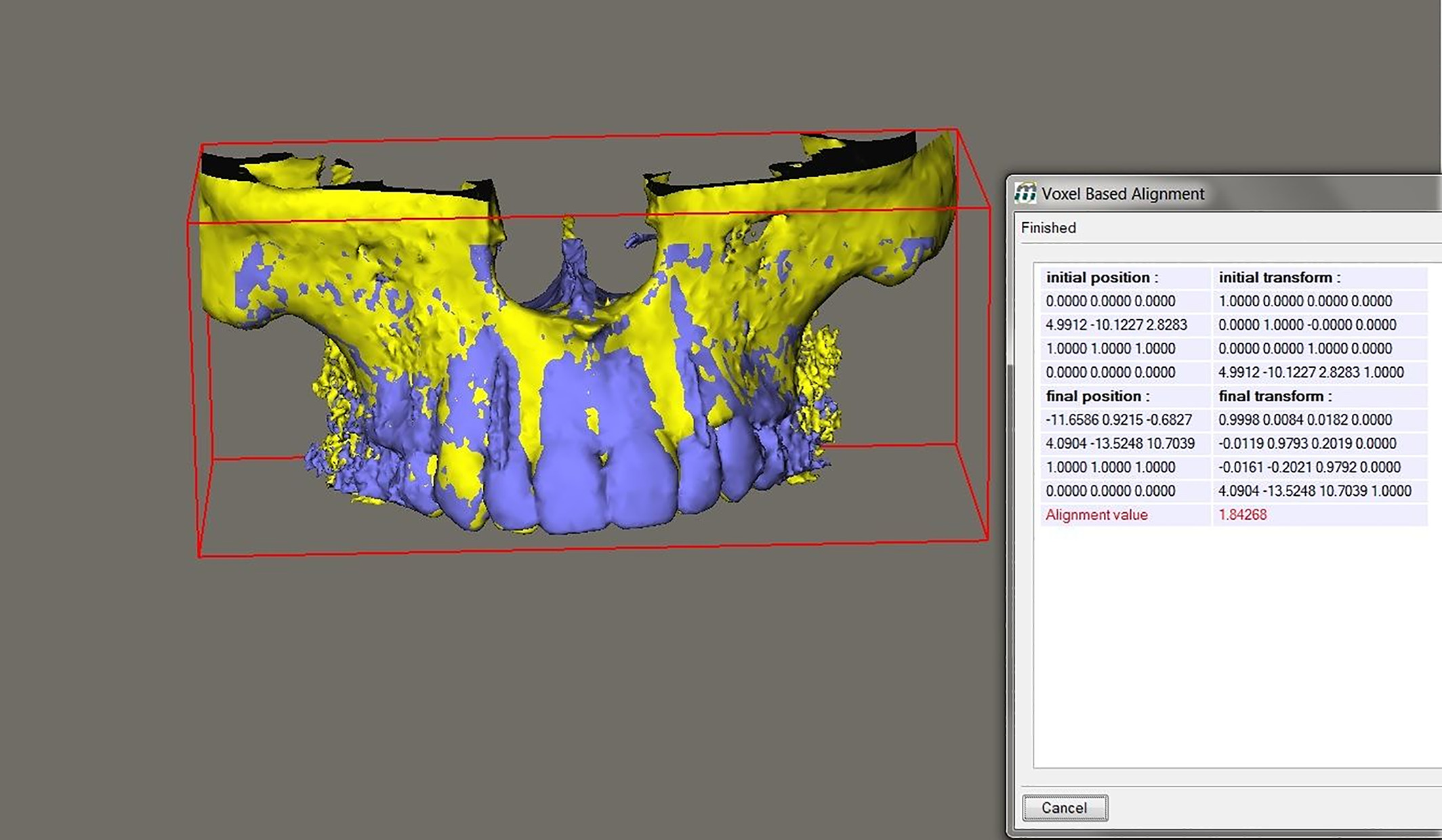

A different procedure was followed for the pretreatment CBCT's in which no implant was present yet and MIRIT cannot recognize an implant position. First, both the pretreatment CBCT and the 1-month CBCT were imported in Maxilim. Both images were aligned by the computing program. Because the exact position of the implant has been determined for the 1-month image, it is now possible to implement this position in the pretreatment DICOM file. In this way, a combined file has been constructed in which the tooth is still present and an implant has been imported in the exact position where it is going to be after treatment (Figure 2).

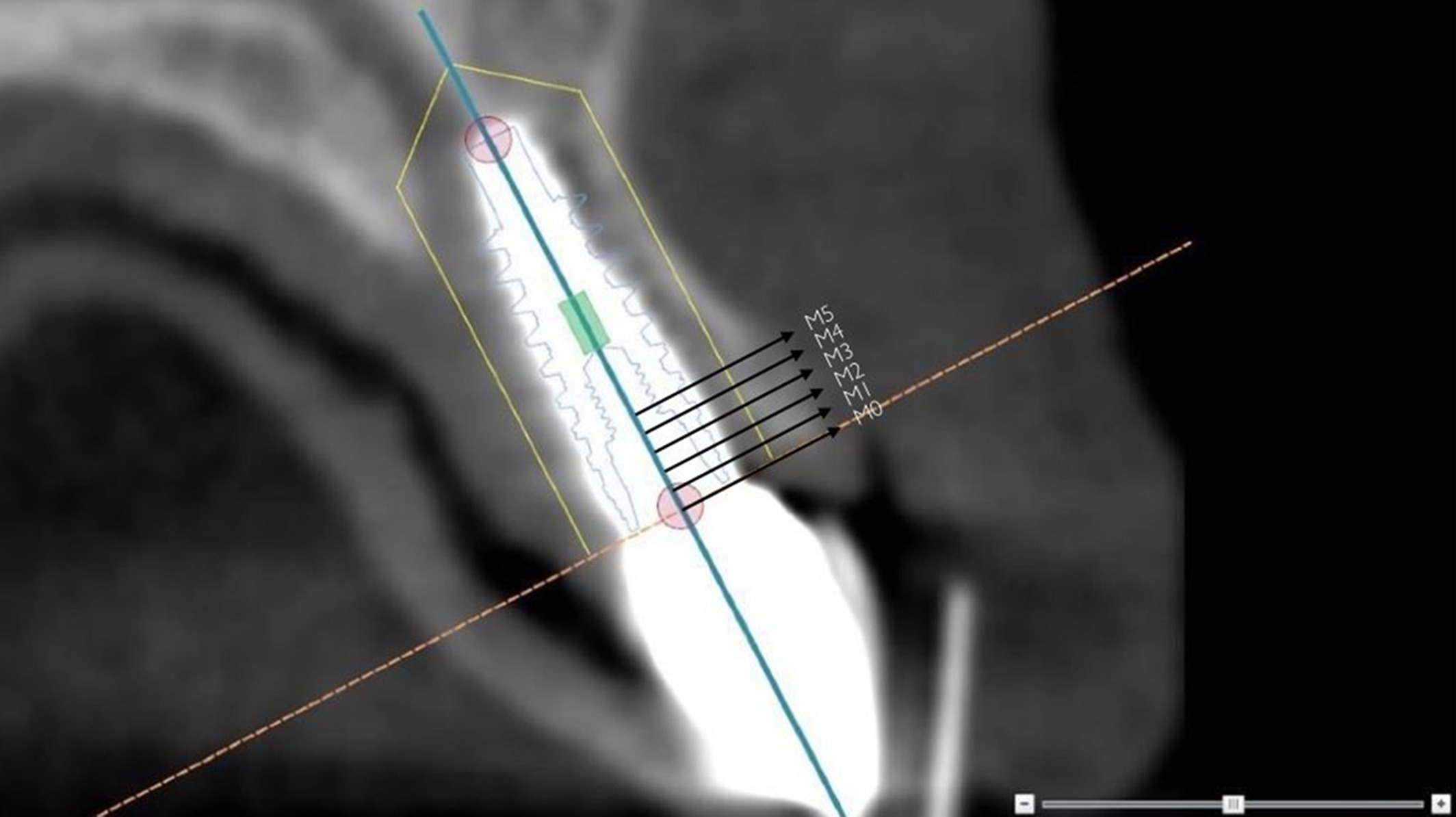

In NobelClinician, the exact position of the implant, as determined in Maxilim, was aligned with a planning implant. Buccal bone measurements, at midline of the implant, were performed with the standard provided measurement options of NobelClinician. The upper 5 mm section of the implant was defined as the area of interest, beginning at the neck of the implant. Buccal bone measurements (in mm) were performed from the radius of the interior contour of the implant to the outer surface of the bone. In this way, measuring at the interface between implant and bone, often disturbed by scattering, was avoided. Buccal bone thickness was measured for 5 mm along the axis beginning at the neck of the implant (M0) toward apical (M1, M2, M3, M4, M5; Figures 3 and 4).

3 RESULTS

One patient from the control group did not show up at follow-up and was excluded from further analysis. Five pretreatment CBCT's were not available (two in the test group and three in the control group). This resulted in CBCT's of 34 patients available for the present study. Median and interquartile ranges, together with means and standard deviations, of bone thickness at M0-M5 at pretreatment, 1 month and 1 year after final restoration placement are depicted per study group in Table 1.

In patients from the test group, the median distance from the outer surface of the buccal bone to the surface of the future implant at all different positions was at pretreatment 0 mm. One year after definitive crown placement median BBT varied from 0.84 to 1.09 mm. In patients from the control group, the median distance of six positions from the outer surface of the buccal bone to the surface of the future implant at pretreatment varied from 1.99 to 2.28 mm. One year after definitive crown placement median BBT was more than 1 mm at all six positions. At 1 month and 1 year, there was not a significant difference in BBT between the groups. There is not a significant difference between BBT at 1 month and 1 year in both the test group and the control group.

Clinical soft tissue outcomes and esthetic appearance of both groups are depicted in Table 2.

4 DISCUSSION

In patients with large buccal bone defects at time of immediate implant placement it appeared to be possible to create a new buccal bone plate, which was stable during a 1-year follow-up period. Results were not significantly different from patients without or with small bony defects.

In the test group, there was no bone present at the first 3 mm at the labial side of the future implant position. At positions M4 and M5, distance from outer contour of the bone to the surface of the virtual implant was small. The next CBCT in this group was taken after 7 months. At this time point, 1 month after placement of the definitive restoration, median BBT was approximately 1 mm at any position. Between 7 months and 18 months, BBT remained stable without a significant difference between the time periods. This means that the augmented bone functioned as a stable new buccal plate. This outcome can be compared with results of the case series study of Sarnachiaro and colleagues,16 in which implants were immediately placed in patients with large buccal defects. At start of the restorative phase, after 6 months of healing, at the neck of the implant a mean BBT of 3.0 mm was achieved. It must be noted that in the present study this was much less, being a little bit more than 1 mm.

In the control group without or with small bony defects, there was always bone present before treatment at the buccal side of the future implant position, varying from a median value from outer contour of the bone to the surface of the virtual implant of 1.99-2.28 mm. Consistent with the test group, the next CBCT in the control group was taken after 7 months. In these 7 months, the median BBT diminished significantly with at least 0.5 mm. It could well be that the total original wall has been resorbed in these 7 months. Between 7 months and 18 months, there was not a significant difference in BBT between the time periods, meaning that also in this group buccal bone remained stable during the first year of follow up, even when the original buccal wall had been resorbed. This could mean that the newly augmented bone functioned as a new buccal plate. Outcomes in the control group are comparable with results of the study of Mazzocco and colleagues28 in which CBCT measurements were presented of a group with immediate implant placement in cases without bony defects. The method used was superimposition of CBCT's. They found a mean diminution of BBT of about 0.6 mm in the first millimeters along the implant axis after 6 months, stating that most of the original buccal wall must have been resorbed. A comparable result was also found in the present control group.

At 7 months and at 18 months, BBT was not significantly different between patients from the test group and the control group at all six evaluated positions along the implant axis and BBT appeared to be stable. This means that in patients with a failing tooth in the maxillary esthetic region immediate implant placement is possible if initial implant stability can be achieved, irrespective of the presence of a buccal bone defect.

It appeared from the present study that buccal bone thickness at dental implants in the esthetic region was hardly subject to change. This can be called a very favorable outcome, because it means that bone thickness achieved at placement of the final restoration remains stable. Moreover, if future evaluation with longer follow-up evaluations confirms this finding, this means that after finishing treatment no major complications related to physiologic bone resorption are to be expected.29

However, there are also studies on immediate implant placement in the esthetic region, with longer follow-up periods, showing extreme variation in buccal bone thickness, with even cases without any buccal bone. Benic and colleagues30 followed 14 patients over 7 years and found a median buccal bone thickness of 0.0 mm (mean 0.4 mm). Groenendijk and colleagues31 reported in a 2-year retrospective study on 16 patients a buccal bone thickness of 1.8 mm (varying from 0.9 to 2.4 mm). Raes and colleagues32 reported on a 8-year prospective study with 16 patients with immediate placement. Median buccal bone thickness varied from 0.80 to 1.24 mm along the implant axis and never exceeded 2 mm.

A successful esthetic treatment is dependent on realization of an optimal 3D implant position within sufficient bone dimensions and preservation of adequate bone during follow-up, especially at the labial implant surface.33, 34 The position of the implant in relation to the labial bony wall of the alveolar ridge is thought to influence BBT after implant insertion.35 In the study of El Nahass and Naiem,8 a mean BBT of natural incisors still in situ, of 0.57 to 0.84 mm was found in the first 4 mm toward apically. Buccal bone thickness in the present study at implants is at least the BBT at natural teeth. This could mean that, probably due to the surgical procedure with palatal placement of the implant and filling the buccal space in the extraction socket between implant and buccal wall, formation and preservation of buccal bone, at least with a follow-up of 1 year, was successful.

A limitation of analyzing buccal bone thickness on radiographs is that measuring the thickness of a radio-opaque structure does not automatically mean that this structure is actually bone. It could well be that only limited living bone material is present in the applied bone substitute or even that only a mixture of bone substitute and connective tissues is assumed to be bone.

Clinical soft tissue outcomes, being change in midfacial mucosal level and pocket probing depth, showed limited recession in both groups and normal probing depth values in both groups. Also esthetic appearance, expressed with PES, revealed high scores without a difference between the groups. These good clinical features correspond with the presence of buccal bone at the implants in both groups, giving support to the soft tissues.

A limitation of the present study design is the direct comparison of a group with a large bony defect with a group without or with a small defect. Although the same outcome measures were used and with the same treatment team and observers, it could be that procedures between the groups differ more than just the augmentation. Next to this only a limited sample size was used; to strengthen the conclusions more patients are needed.
