Prognostic impact of circulating tumor cells detected with the microfluidic “universal CTC-chip” for primary lung cancer

2.1 Cell lines

Four human lung cancer cell lines were used in this study. PC9 (Riken BioResource Research Center), NCI-H441 (ATCC), and NCI-H1975 (ATCC) were cultured in RPMI-1640 medium (Wako Pure Chemical Industries) supplemented with 10% FBS (Thermo Fisher Scientific) at 37°C and 5% CO₂. A549 (ATCC) was cultured in EMEM (Wako Pure Chemical Industries) supplemented with 10% FBS and 1% nonessential amino acids (Wako Pure Chemical Industries) at 37°C and 5% CO₂.

2.2 Flow cytometry analysis

To analyze the EpCAM expression, cell lines were incubated with anti-EpCAM Ab (1:100 dilution, clone HEA125; Santa Cruz Biotechnology) for 1 hour at room temperature, and were subsequently incubated with goat anti-mouse IgG Ab conjugated with fluorescein isothiocyanate (1:20 dilution; BD Biosciences). Flow cytometry analysis was carried out using an EC800 Cell Analyzer (Sony Biotechnology), and the data were analyzed using FlowJo software (Becton, Dickinson and Company). Mean fluorescence intensity was calculated as the ratio of positive control to negative control.

2.3 Preparation of CTC-chip and evaluation of cell-capture efficiency in lung cancer cell lines

Preparation of the CTC-chip and evaluation of cell capture efficiency were carried out as described previously.¹⁸ The CTC-chip was first incubated with goat anti-mouse IgG (SouthernBiotech) as the base Ab overnight at 4°C and then with mouse anti-human EpCAM Ab as the capture Ab at room temperature for 1 hour (“EpCAM-chip”). For the evaluation of cell-capture efficiency, 1 mL (100 cells/mL) of blood collected from healthy volunteers was mixed with tumor cells labeled using the CellTrace CSFE Cell Growth Kit (Thermo Fisher Scientific). The sample was then applied to the CTC-chip at a constant flow rate (1.0 mL/h) and monitored using a fluorescence microscope (CKX41; Olympus). The total number of cells applied to the CTC-chip (N-total) was determined by counting the cells that passed through the inlet of the CTC-chip, and the number of captured cells (N-captured) was determined by counting the cells that remained on the CTC-chip. Cell-capture efficiency was calculated as the N-captured / N-total ratio, and the average and standard errors were calculated for each sample. The blood collection tube used for the CTC-chip was a BD Vacutainer EDTA-2K (Becton, Dickinson and Company), and each experiment was carried out in triplicate.

2.4 Clinical evaluation of CTCs in lung cancer patients

Peripheral blood was sampled from patients with a pathological diagnosis of lung cancer, and 1 mL blood was applied to the EpCAM-chip. Cells captured on CTC-chips were incubated with primary Abs, rabbit anti-CK Ab (ab9377; Abcam) and rat anti-CD45 Ab (clone YTH24.5; Abcam), for 1 hour at room temperature, followed by incubation for 30 minutes at room temperature with a secondary Ab, Alexa Fluor 594 anti-rabbit IgG Ab (Thermo Fisher Scientific) and Alexa Fluor 488 anti-rat IgG Ab (Thermo Fisher Scientific) containing 1 µg/mL Hoechst 33 342 (Cell Signaling Technology). Cells with round-to-oval morphology, Hoechst 33342-positive nuclei, CK-positive staining in the cytoplasm, and CD45-negative staining were identified as CTCs. Circulating tumor cell identification was independently examined by two of the investigators without any knowledge of the clinical data. In case of discrepancy between the two investigators, a consensus was reached by simultaneous examination. For CTC detection in the CellSearch system to compare the sensitivity, CTCs were quantitatively evaluated in 7.5 mL blood per standard manufacturer protocol. The number of CTCs in 1 mL blood was indicated as the CTC count for the CTC-chip and that in 7.5 mL blood was indicated as the CTC count for the CellSearch system. Additionally, to evaluate nonspecific detection, peripheral blood samples were collected from 10 healthy individuals and used to detect CTCs in the same manner.

2.5 Genetic analysis for validation of captured cells with EpCAM-chip

For the validation of captured cells with the EpCAM-chip, 1 mL (100 cells/mL) of blood collected from healthy volunteers containing PC9 (EGFR exon 19 deletion), NCI-H441 (KRAS G12V mutation), and NCI-H1975 (EGFR exon 21 L858R and exon 20 T790M mutations) was applied to the CTC-chip system in the above method. After tumor cell identification, captured single cells were collected into 200-μL tubes (including 2 μL PBS) by micromanipulator M-152 (Narishige Group), and was submitted for WGA using the PicoPLEX Single Cell WGA Kit version 3 (Takara Bio) according to the manufacturer’s instructions, in order to obtain a sample suitable for sequencing analysis. Mutational analysis of EGFR exons 19 and 21 and KRAS codon 12 was based on our previous reports.²¹ Polymerase chain reaction was carried out by using Taq polymerase (Takara Taq; Takara Bio) and sequences of the primers are as follows: EGFR exon 19, 5′-GTCTTCCTTCTCTCTCTGTCATAG-3′ (sense) and 5′-CCACACAGCAAAGCAGAAACTCAC-3′ (antisense); EGFR exon 21, 5′-TCAAGATCACAGATTTTGGGCG-3′ (sense) and 5′-CATCCTCCCCTGCATGTGTTAAAC-3′ (antisense); and KRAS codon 12, 5′-AAACTTGTGGTAGTTGGACCT-3′ (sense) and 5′-CTATTGTTGGATCATATTCG-3′ (antisense).

A fraction of KRAS PCR product was subsequently digested with BstNI (New England Biolabs) to identify codon 12 mutation. All PCR reactions were carried out on the GeneAmp PCR System 9700 (Thermo Fisher Scientific). Amplification of the intended fragments was confirmed by electrophoresis on 3.0% agarose gel (Nippon Gene Co., Ltd.) containing 0.5 μg/mL ethidium bromide (Genesee Scientific).

2.6 Statistical analysis

Differences in categorical variables were evaluated using Pearson’s χ² test or Fisher’s exact test, as appropriate. Differences in continuous variables were evaluated using a t test (Student’s t test or Welch’s t test) for normally distributed data and the Mann-Whitney U test for nonnormally distributed data. Cancer-specific survival was calculated from the date of the CTC test until cancer-specific mortality or the last follow-up. Progression-free survival was calculated from the date of the CTC test until recurrence, mortality, or the last follow-up. The Kaplan-Meier method was used to estimate CSS and PFS, and survival differences were compared between the two groups using the log-rank test. The analysis of prognostic factors was undertaken using the Cox proportional hazards regression model. A P value of less than .05 was considered statistically significant. All statistical analyses were carried out using SPSS (version 27.0; IBM).

3.1 Optimizing EpCAM-chip and cell-capture efficiency in lung cancer cell lines

In the previous study, with a base Ab concentration of 20 μg/mL and a capture Ab concentration of 20 μg/mL, PC9 cells spiked in blood were captured with an average capture rate of 88%.¹⁸ When the concentration of the base Ab was increased to 200 μg/mL to achieve a higher capture rate, PC9 cells were captured at approximately 100% (P = .022; Figure S1A), and we adopted this condition for further experiments. NCI-H441 cells with positive EpCAM expression were effectively captured with the optimized EpCAM-chip (average capture efficiency, 88.8%). In contrast, A549 cells with low EpCAM expression were not effectively captured with the EpCAM-chip (average capture efficiency, 13.4%) (Figure S1B).

3.2 Comparison of CTC detection sensitivity of EpCAM-chip and CellSearch in lung cancer patients

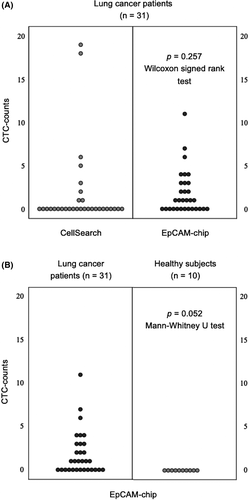

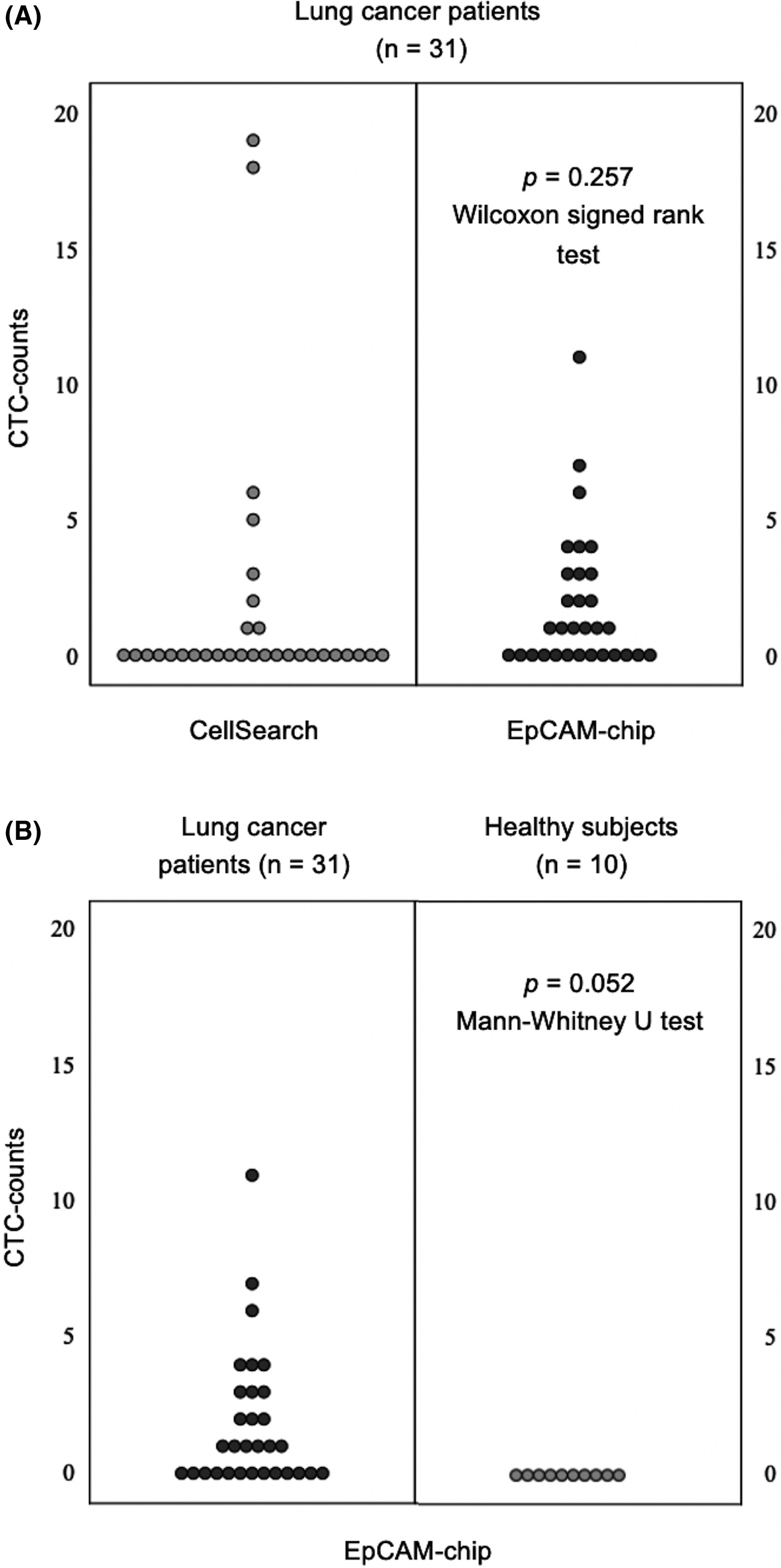

Overall, 31 peripheral blood samples drawn from individual lung cancer patients were subjected to quantitative analyses for CTCs using the EpCAM-chip (Figure S2) and CellSearch system. Patients’ characteristics and distribution of CTC count with the EpCAM-chip and CellSearch system for each sample are summarized in Table 1 and Figure 1A. Circulating tumor cells were detected in 58.1% samples (18/31 patients) with the EpCAM-chip and in 25.8% samples (8/31 patients) with the CellSearch platform. Median CTC counts with the EpCAM-chip and CellSearch system were 1/1 mL (range, 0-11) and 0/7.5 mL (range, 0-19), respectively, and average CTC counts were 1.88/1 mL and 1.74/7.5 mL, respectively. Despite no significant difference being observed between the two devices (P = .257), the results suggested that the EpCAM-chip has better performance in CTC detection. In 10 healthy participants, no cells were detected, and there was no obvious nonspecific detection (Figure 1B).

3.3 Clinical impact of CTCs detected with EpCAM-chip in lung cancer patients

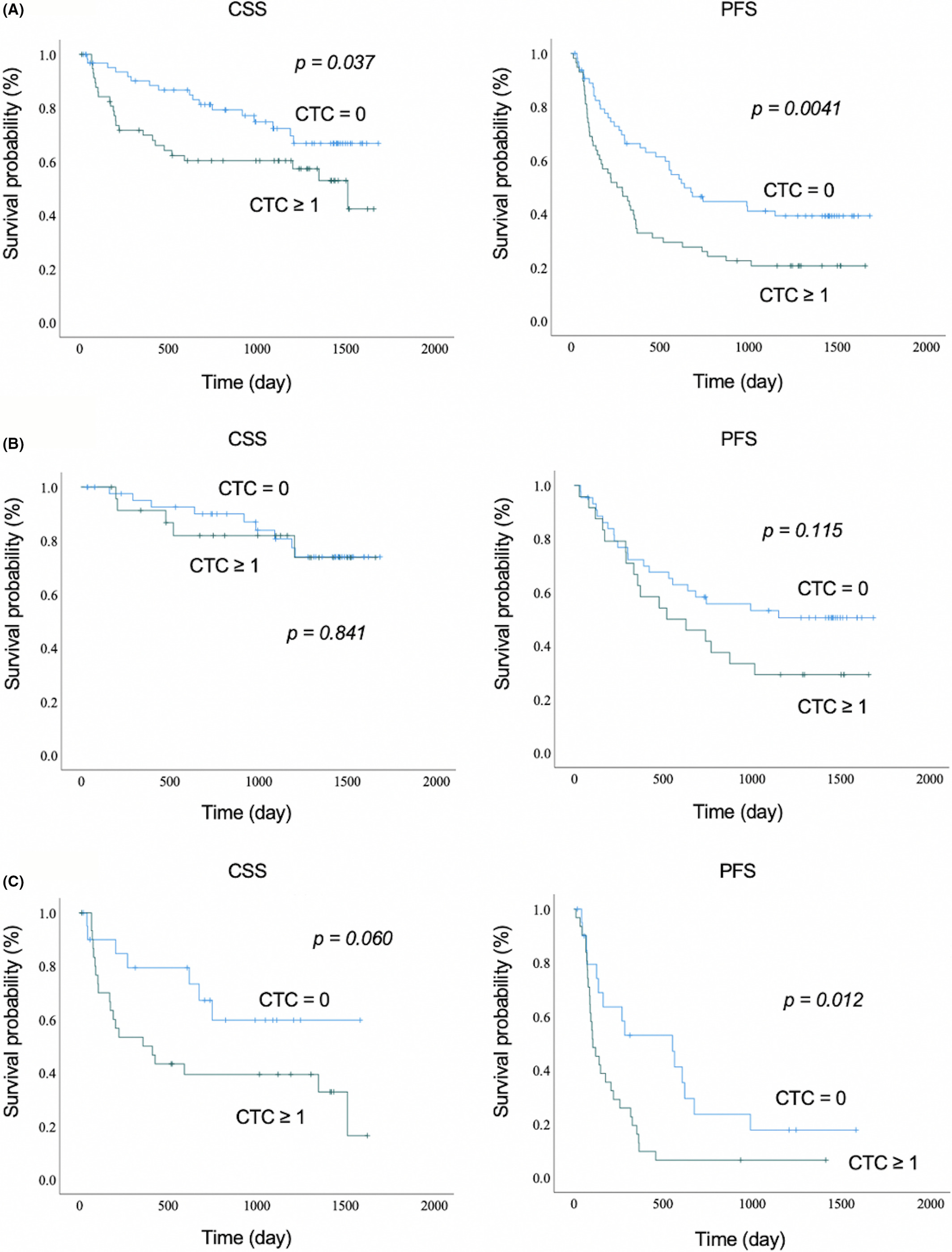

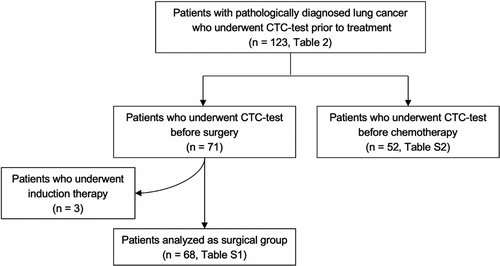

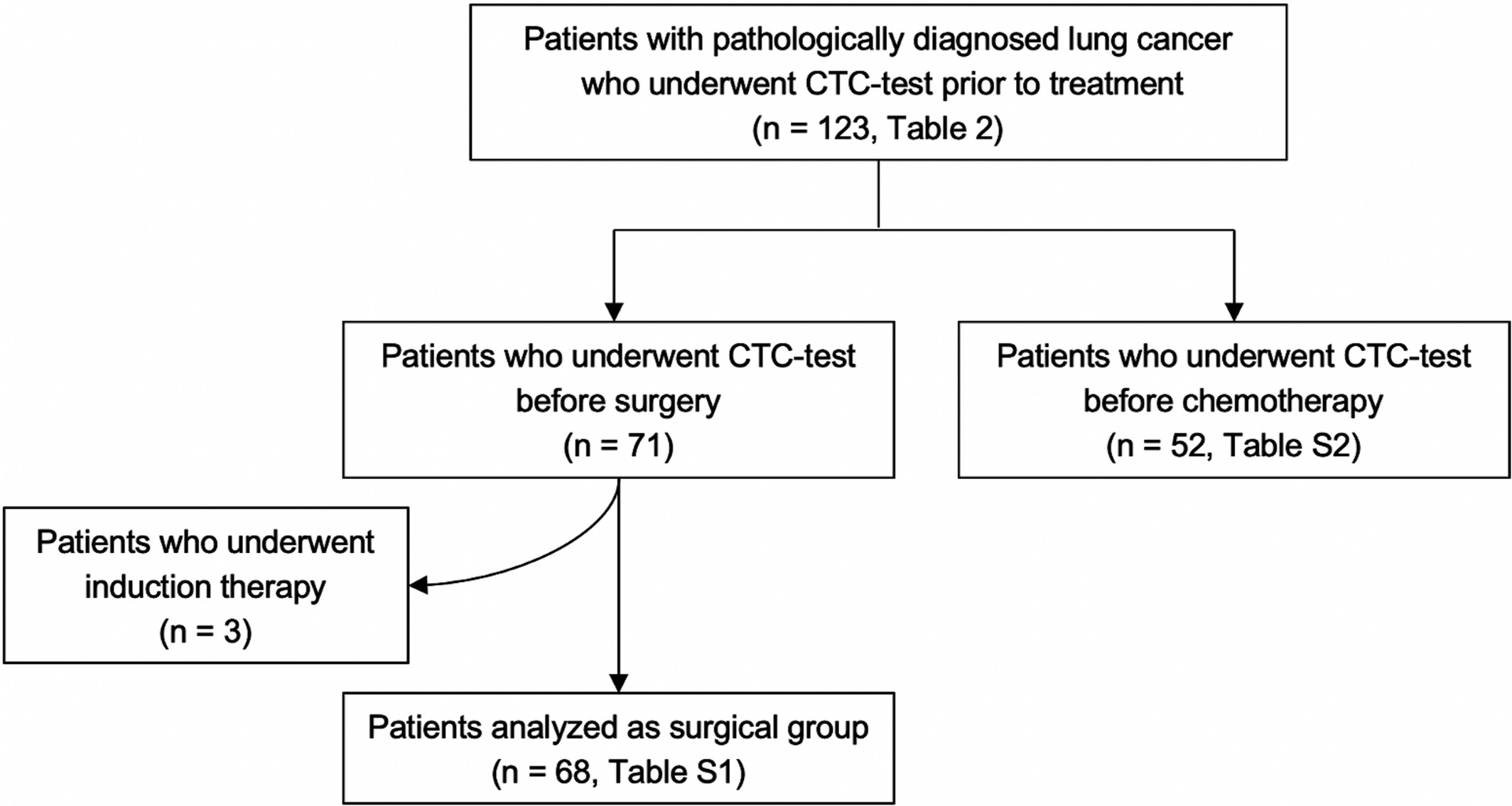

To evaluate the clinical implications of CTCs detected using the EpCAM-chip, we further analyzed additional blood samples drawn from a total of 123 lung cancer patients prior to treatment, especially surgery (n = 71, including postinduction therapy [n = 3]) or chemotherapy (n = 52, including more than second-line therapy [n = 8]) (Figure 2). Patients’ characteristics are described in Table 2. Circulating tumor cells were detected in 58 patients (47.2%), and the median and average CTC counts were 0 and 1.73 (range, 0-29), respectively, in the overall population. Circulating tumor cell positivity according to the stage was as follows: 26.5% (9/34) in stage I, 56.3% (9/16) in stage II, 50.0% (12/24) in stage III, and 57.1% (28/49) in stage IV. The detection rate of CTCs was significantly higher in chemotherapy group patients than in surgery group patients (P = .0062). These results suggested that CTCs are more easily detected in inoperable patients due to lymph node metastasis or distant metastasis, and that CTCs might contribute to tumor progression. The survival analysis is presented in Figure 3. The median follow-up was 984 (range, 13-1684) days. The 1-year/3-year CSS rates for the CTC-positive and CTC-negative groups were 69.8%/60.3% and 90.1%/72.3%, respectively. The 1-year/3-year PFS rates for the CTC-positive and CTC-negative groups were 39.5%/23.9% and 68.5%/50.5%, respectively. Both CSS (P = .037) and PFS (P = .0041) were significantly better in the CTC-negative group (Figure 3A). Patient characteristics for the surgical group, excluding postinduction therapy, (n = 68) are described in Table S1. Circulating tumor cells were detected in 24 patients (35.3%), and the median and average CTC counts were 0 and 1.53 (range, 0-29), respectively. In the CTC-negative group, 54.5% patients were stage I, whereas 37.5% were stage I patients in the CTC-positive group. The 1-year/3-year CSS rates for the CTC-positive and CTC-negative groups were 91.3%/95.1% and 81.9%/80.7%, respectively. The 1-year/3-year PFS rates for the CTC-positive and CTC-negative groups were 69.9%/38.6% and 75.6%/60.7%, respectively. Cancer-specific survival was similar between the CTC-positive and CTC-negative groups (P = .841); PFS tended to be better in the CTC-negative group, although the difference was not statistically significant (P = .115) (Figure 3B). Patient characteristics (n = 52) for the chemotherapy group are described in Table S2. Circulating tumor cells were detected in 32 patients (61.5%), and the median and average CTC counts were 1 and 1.88 (range, 0-12), respectively. The 1-year/3-year CSS rates for the CTC-positive and CTC-negative groups were 79.4%/50.0% and 59.7%/39.4%, respectively. The 1-year/3-year PFS rates for the CTC-positive and CTC-negative groups were 52.9%/27.5% and 13.3%/6.7%, respectively. In the CTC-positive group, CSS (P = .060) and PFS (P = .012) were associated with poor prognosis, and the difference in PFS was statistically significant (Figure 3C). Furthermore, in the analysis of patients with (17 patients; EGFR tyrosine kinase inhibitors, 14 patients; anaplastic lymphoma kinase inhibitors, 3 patients) and without (35 patients) the use of molecular targeted agents, there was no significant difference in CSS (P = .567) or PFS (P = .973) in patients with molecular targeted agents (Figure S3A). In patients without molecular targeted agents, both CSS (P = .095) and PFS (P = .0089) were poor in the CTC-positive group, with a significant difference in PFS (Figure S3B).

3.4 Genetic analysis for validation of cells captured with EpCAM-chip

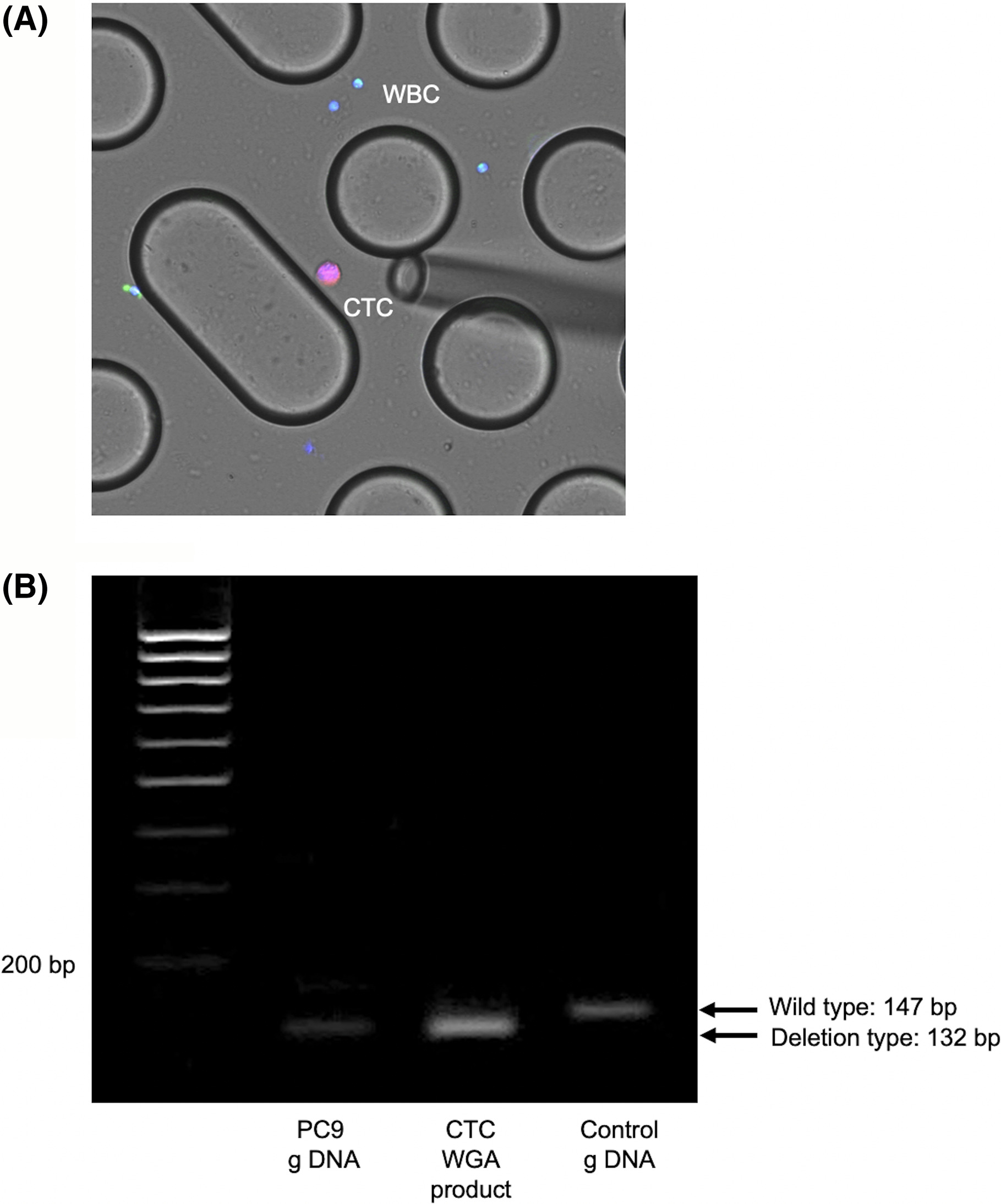

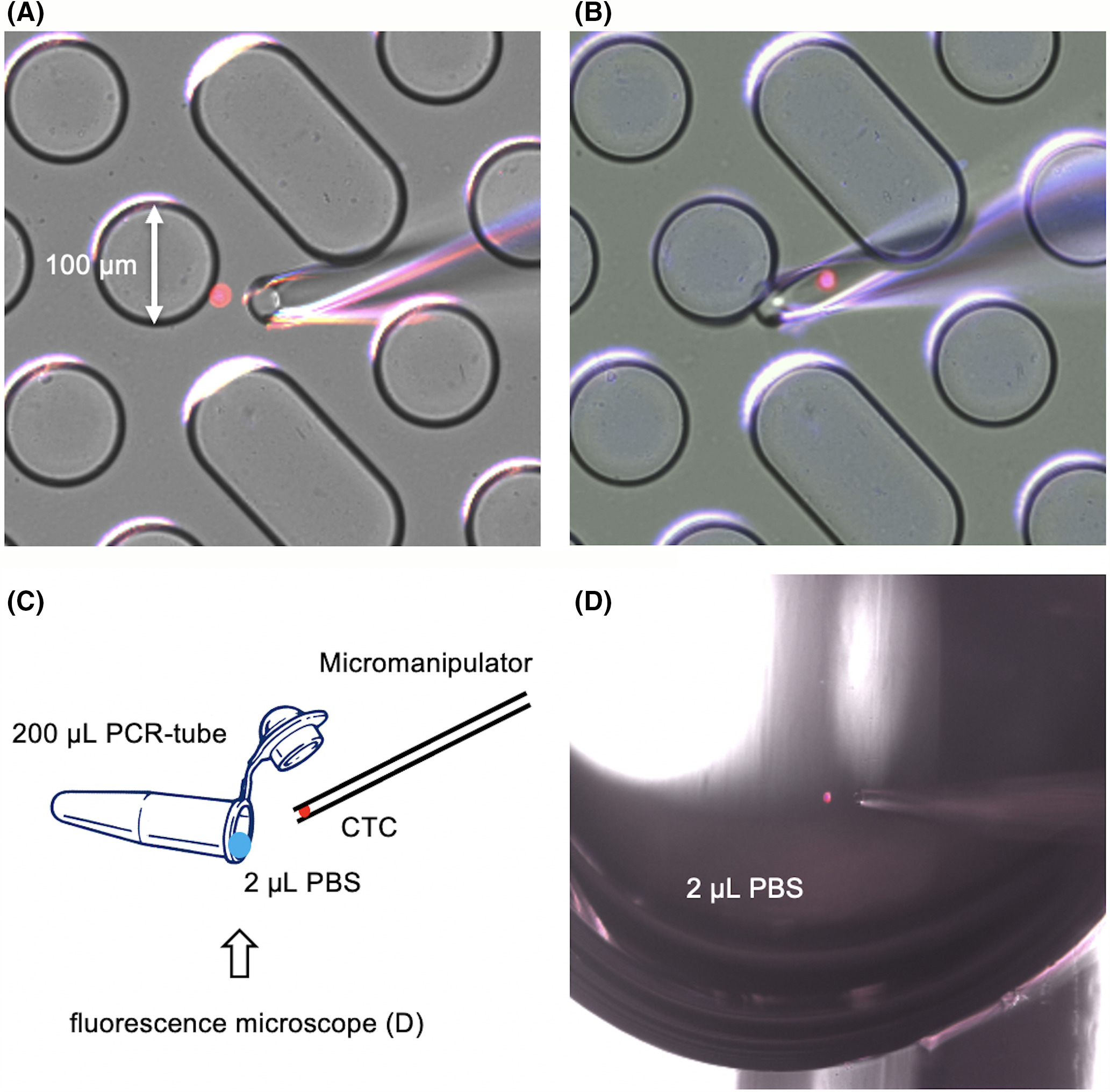

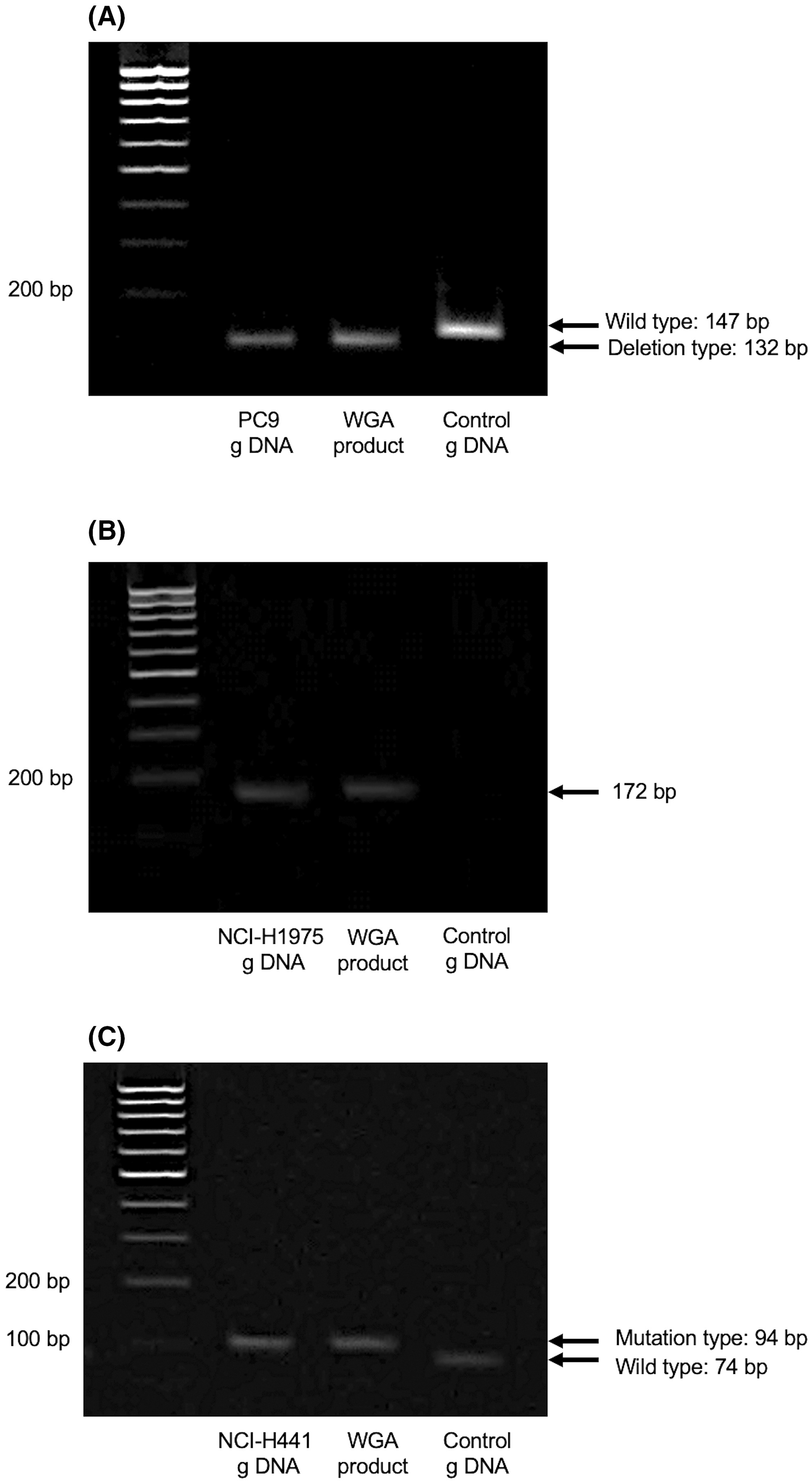

The detection of cells from the CTC-chip is described in Figure 4, and the results of electrophoresis of cells captured by the CTC-chip are presented in Figure 5. The PCR products containing exon 19 revealed a 147-bp band when the allele was a WT and a shorter band (132 bp) when the allele was a deletion type. To detect a point mutation of the second base of codon 858 in exon 21, mutant allele-specific amplification was carried out, and only the DNA sample with a mutation revealed a band. Following BstNI (New England Biolabs) digestion, the 94-bp product of the WT KRAS was cut into 74 bp and 20 bp fragments. If there is any mutation at the second position of codon 12 of KRAS, BstNI digestion is not possible. In cell line analysis, genetic mutations in each cell line were detected in the cells captured by the CTC-chip. Therefore, subsequent examinations of clinical specimens from lung cancer patients with EGFR exon 19 deletions (78-year-old woman with recurrence of intrapulmonary metastasis and pleural dissemination after treatment with EGFR tyrosine kinase inhibitor osimertinib for pT4 [ipsilateral intrapulmonary metastasis] N0M1a stage 4a) revealed that the captured cells had EGFR exon 19 deletions (CTCs) (Figure 6).
