The early diversification of ray-finned fishes (Actinopterygii): hypotheses, challenges and future prospects

(1) Past studies

Although our understanding of patterns of actinopterygian diversity lags behind that of other groups, a number of studies over the past few decades have investigated fish diversity at different taxonomic levels and geological scales (Fig. 1). Initially, these approaches used published compendia to generate family- and/or genus-level diversity curves. The first major attempt (Thomson, 1977) used data from Romer's (1966) compendium to plot genus- and family-level diversity of Phanerozoic ‘fishes’ (Acanthodii, Agnatha, Chondrichthyes, Chondrostei, Holostei, Placodermi, Sarcopterygii and Teleostei; Fig. 1E). In subsequent years, several studies used family-level data from Benton (1993) to investigate osteichthyan diversity through the Palaeozoic. Patterson (1994) plotted diversity curves for osteichthyans as well as stem-actinopterygians, stem-neopterygians and stem-teleosts, encompassing all Palaeozoic actinopterygians included in the parent dataset (Fig. 1A). Blieck (2011; Fig. 1B) and Benton (2014: fig. 2.11) also used data compiled by Benton (1993) to plot family-level diversity curves of vertebrates from the Ordovician to Triassic, though did not focus on actinopterygians. Additionally, Friedman & Sallan (2012) used an existing marine dataset (Sepkoski, 2002) to present genus-level diversity patterns of all ‘fishes’ (vertebrates excluding Tetrapoda and including Conodonta) throughout the Phanerozoic (Fig. 1C).

Other attempts have used literature-based datasets to interrogate patterns of diversity. Sallan & Coates (2010) assembled a dataset of gnathostome occurrences from 66 localities spanning the Middle Devonian (Givetian) to early Carboniferous (Serpukhovian) and presented diversity curves of gnathostomes (Acanthodii, Actinopterygii, Chondrichthyes, Placodermi, Sarcopterygii, Tetrapoda; Fig. 1F). Lloyd & Friedman (2013) compiled data from a variety of sources, both as a means of comparing datasets (Agassiz, 1833; Carroll, 1988; Benton, 1993; Sepkoski, 2002; Palaeobiology Database, downloaded on 31/05/12) and to investigate the diversity of Phanerozoic ‘fishes’ (excluding Conodonta) with a particular focus on the fossil record of Great Britain (Fig. 1D). Romano et al. (2016) and Vázquez & Clapham (2017) compiled datasets that commence in the Asselian (early Permian) and encompass osteichthyans (Actinistia, Dipnoi, Holostei, ‘Palaeopterygii’, ‘Subholostei’ and Teleosteomorpha: Romano et al., 2016; Fig. 1F) and marine fishes [Osteichthyes (excluding Dipnoi) and Chondrichthyes (excluding Acanthodii); Vázquez & Clapham, 2017].

As in Lloyd & Friedman (2013), a large proportion of recent diversity studies for fossil groups utilise occurrence data from the PBDB, a public resource that is voluntarily maintained by an international group of palaeontologists. However, most diversity studies on actinopterygians have relied on published compendia or datasets compiled directly from the literature, i.e. without use of the PBDB [see Vázquez & Clapham (2017) for an exception]. There have not yet been enough efforts to enter occurrence data for osteichthyans, and particularly actinopterygians, into the PBDB to represent their record accurately, as discussed by Lloyd & Friedman (2013) and evidenced by current PBDB Palaeozoic actinopterygian diversity curves for genera, collections, formations and equal-area grid cells (Fig. 2). Several periods throughout the Devonian and early Permian lack entries entirely, and no time period contains more than 50 occurrences: the average number of occurrences is less than eight per interval, while the median is three. Diversity levels appear to fluctuate wildly during the Carboniferous before a precipitous rise through the Permian and steep drop in the Changhsingian. The PBDB data presented here (Fig. 2) is intended as a snapshot of the currently available occurrence data, highlighting that research effort to contribute Palaeozoic actinopterygian occurrences to the database has thus far been minimal. Improving this record represents a priority for future studies, and efforts are currently underway to expand the actinopterygian PBDB record.

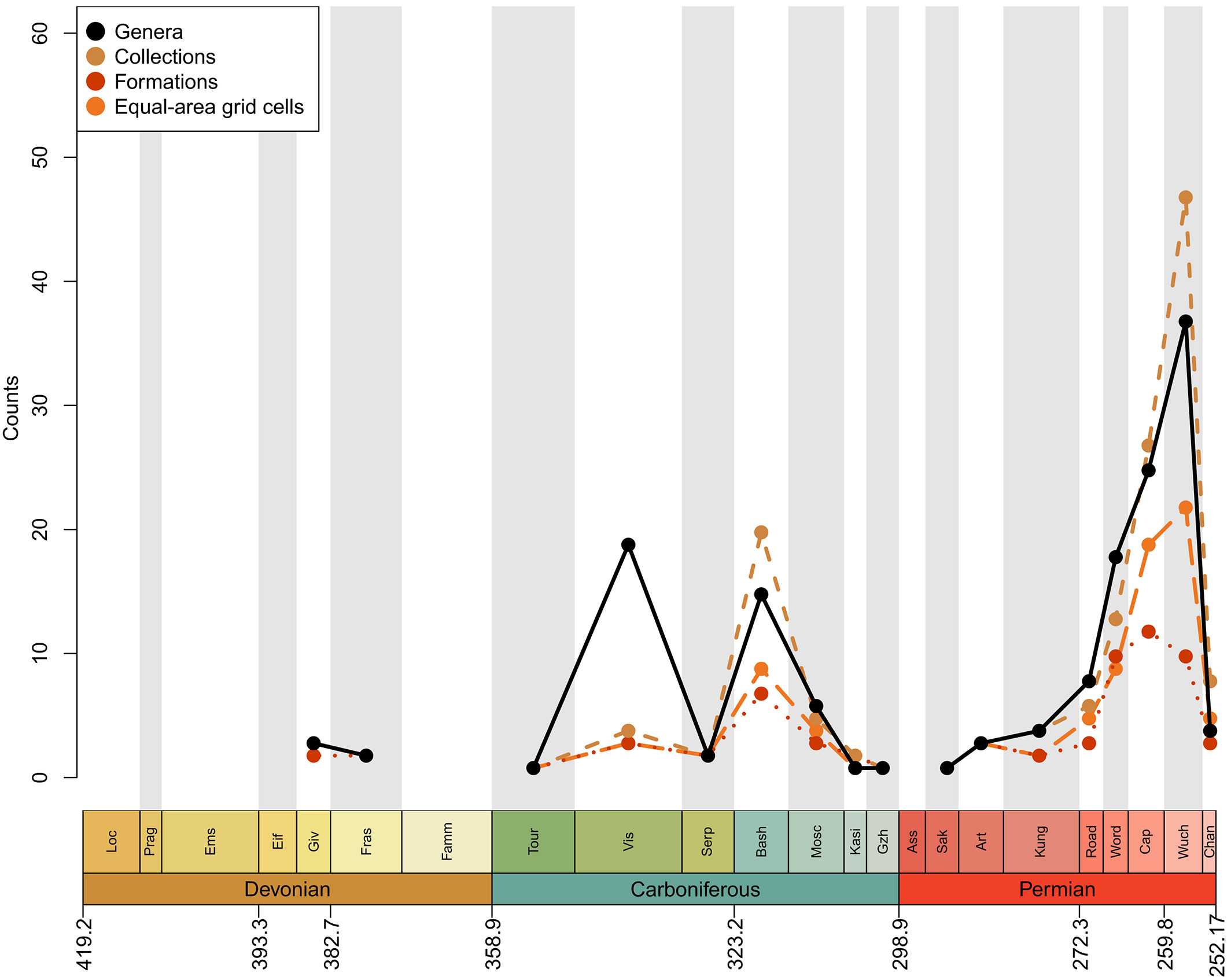

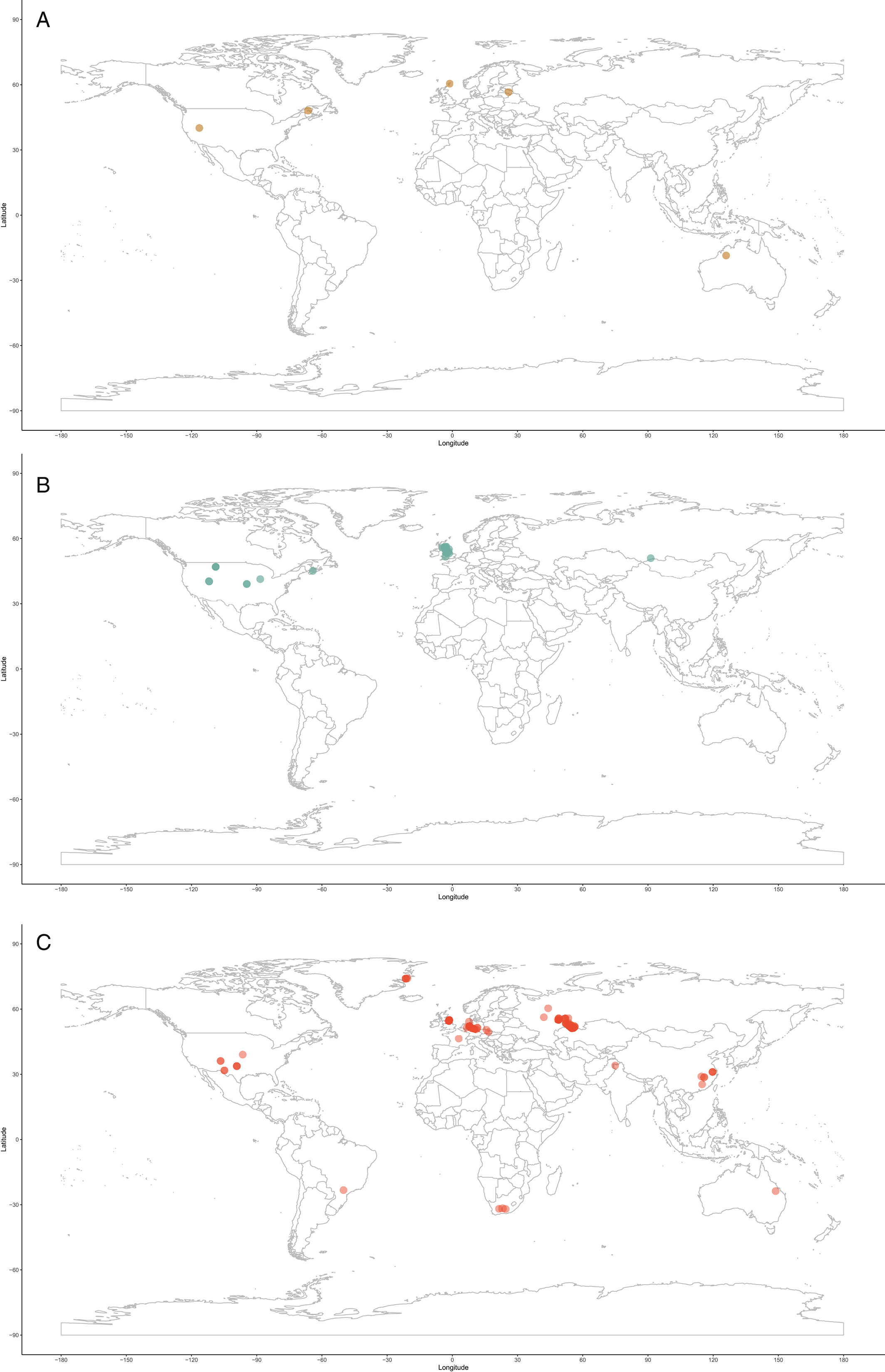

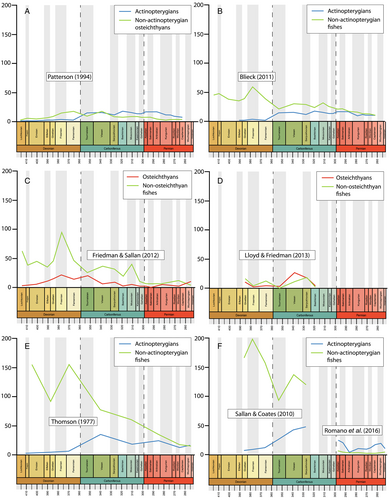

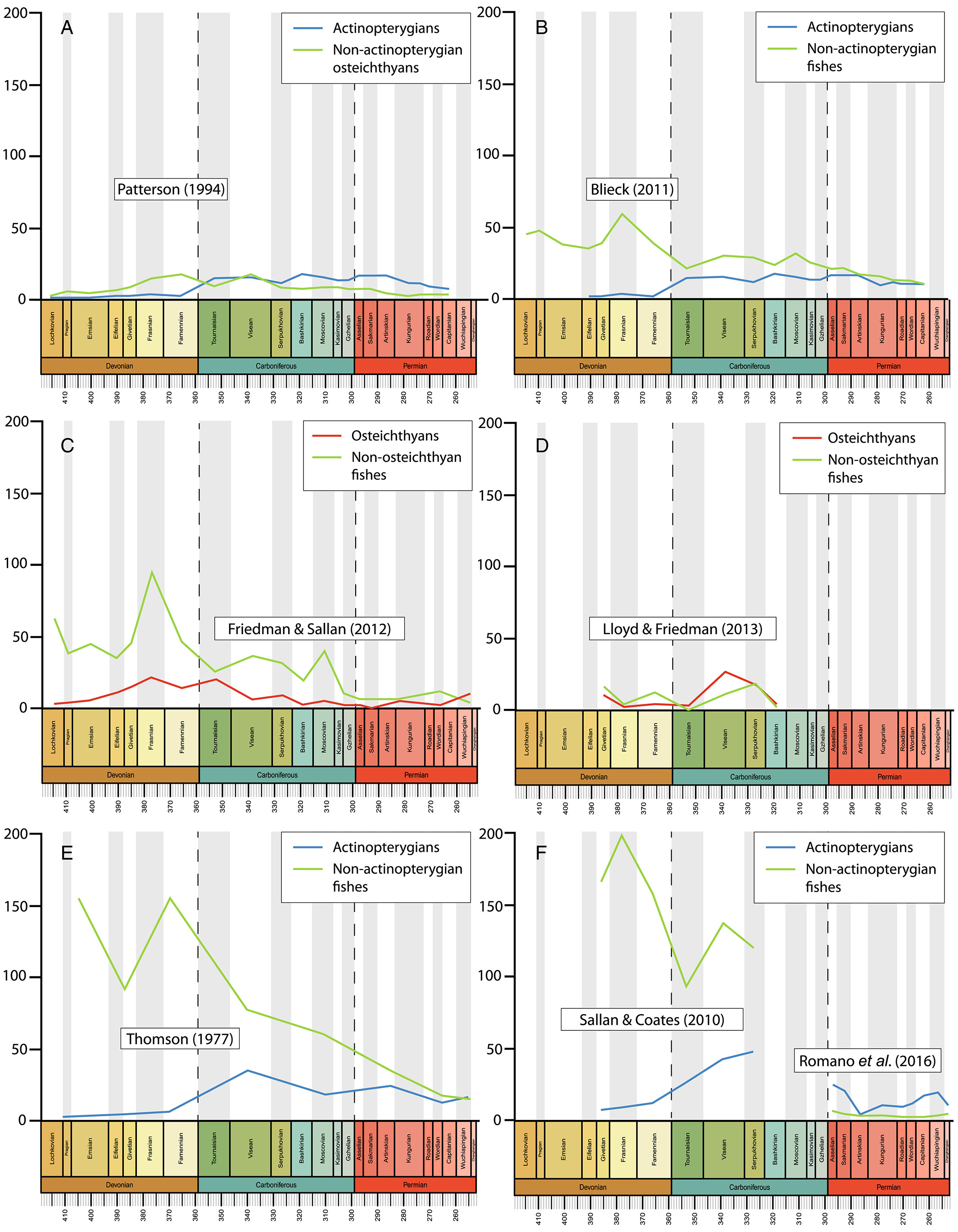

The studies introduced above differ greatly in their sampling and spread of taxa, but collectively they provide an indication of the general patterns of changes in actinopterygian diversity through time, as summarised below and in Figs 1 and 2.

(2) Devonian diversity patterns

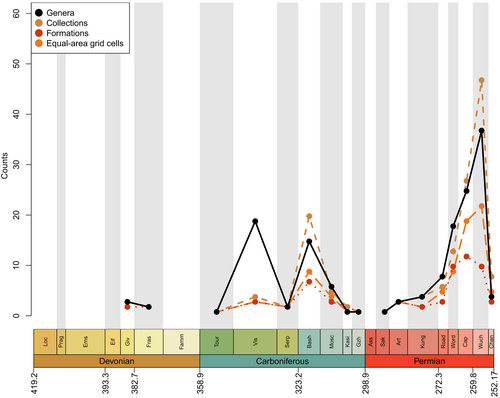

All studies covering the Devonian depict very low counts of actinopterygians (Thomson, 1977: fig. 7; Patterson, 1994: fig. 1; Sallan & Coates, 2010: fig. 1; Blieck, 2011: fig. 2) (Fig. 1), and PBDB occurrences are lacking (Fig. 2). Thomson (1977), Patterson (1994) and Sallan & Coates (2010) show a gradual rise from the Middle to Late Devonian. Blieck (2011), however, figures a small peak in the Frasnian, likely due to the Gogo and Gladbach faunas (Sallan & Coates, 2010), while only a handful of genera from the Givetian and Frasnian (and none in the Famennian) have been entered into the PBDB. Only four genera (eight species) of actinopterygians are entered in the PBDB for the entire Devonian; fewer than the number described in the literature for just the Famennian (Dunkle, 1964; Dunkle & Schaeffer, 1973; Taverne, 1997; Daeschler, 2000; Prokofiev, 2002; Friedman & Blom, 2006).

While new taxa are still being described, actinopterygians appear to be genuinely rare in Devonian deposits, especially relative to other taxa (Friedman, 2015: fig. 4). Reclassification of Meemannia Zhu et al. 2004 as a ray-finned fish rather than a lobe-finned fish (Lu et al., 2016) filled a conspicuous temporal gap in early actinopterygian evolution, but this taxon remains the only actinopterygian known amongst roughly 20 species from this locality. Choo et al. (2019) recently described a new genus of actinopterygian from the highly diverse Frasnian Gogo Formation, which is known primarily for its placoderm and sarcopterygian faunas. Although ray fins account for only five species out of around 50 Gogo taxa (Long & Trinajstic, 2010, 2017; Sallan & Coates, 2010: fig. 2) they comprise a large proportion of specimens, indicating faunal abundance despite taxonomic paucity. Even more recently, Newman et al. (2021) described a new species of Cheirolepis Agassiz 1835 from the Givetian of Svalbard, found alongside roughly 20 non-actinopterygian fishes. Similarly, a new site from the Famennian of Belgium has yielded microremains of an undescribed actinopterygian, amidst large numbers of other vertebrates (Olive et al., 2015a,b, 2016, 2020).

Recent work on historically undersampled regions has revealed numerous new taxa, although overall taxonomic diversity of actinopterygians remains relatively low throughout the Devonian. Isolated jaw elements, body impressions and scales from Famennian deposits in South Africa likely represent a single actinopterygian amid a diverse array of other fishes (Gess & Whitfield, 2020), while renewed prospecting in the contemporary Maïder Basin of Morocco has produced remains of a single articulated actinopterygian (Frey et al., 2018) amongst its well-known placoderm and chondrichthyan assemblages. New South American discoveries include evidence of a stegotrachelid actinopterygian from the Frasnian of Colombia (Olive et al., 2019), the first actinopterygian remains from the Devonian of the Parnaíba Basin of Brazil (Pais de Rezende et al., 2021), and a new circumpolar species from the Middle Devonian (Figueroa, Weinschütz & Friedman, 2021). As in other localities, non-actinopterygian fishes dominate these faunas (Janvier, 2007; Janvier & Maisey, 2010; Figueroa & Machado, 2018). The low diversity of actinopterygians also correlates with their limited morphological disparity, contrasting with the vast array of anatomies, and presumably ecologies, exhibited by Devonian sarcopterygians and placoderms (Anderson et al., 2011). While important for understanding the early evolution of the group, these scattered reports of new Devonian taxa are unlikely to change existing overarching hypotheses of actinopterygian diversity: as minor faunal components represented by a small number of taxa relative to other fish groups.

(3) Carboniferous diversity patterns

Previous diversity studies consistently report a large increase in actinopterygian taxonomic diversity in the earliest Carboniferous following the end-Devonian mass extinction (EDME). This increase is somewhat reflected in the data currently entered in the PBDB, although entries are extremely limited both taxonomically (only 51 taxa from 92 localities are entered) and geographically (all but one of the entries are from USA and UK localities; Fig. 3B). Thomson's (1977) counts of ‘chondrostean’ genera (which encompasses all Devonian and Carboniferous actinopterygians) rise sharply in the Mississippian, as does Patterson's (1994) stem-actinopteran family-level count. Sallan & Coates (2010) show this significant change in absolute and relative diversity most clearly in their presentation of faunal composition from the Devonian into the Carboniferous (Sallan & Coates, 2010: fig. 2; see also Friedman, 2015: fig. 4). This sharp rise is especially notable because the early Carboniferous (Tournaisian and early Visean) coincides with ‘Romer's Gap’, an apparent hiatus in the fossil record of tetrapods (and other animals) variably explained as either a period of poor sampling (Romer, 1956), low atmospheric oxygen (Ward et al., 2006) or recovery following the EDME (Sallan & Coates, 2010). Recent concerted efforts have begun to populate Romer's Gap, indicating that poor sampling accounted for most of the apparent paucity of the record (Clack et al., 2019; Otoo et al., 2019). The diversification of actinopterygians immediately following the EDME likely represents an adaptive radiation seeded by very few – or perhaps just one – actinopterygian lineages (Sallan & Friedman, 2012; Sallan, 2014; Giles et al., 2017), although this hypothesis has not been explicitly tested. The contrast between diverse (e.g. in Russia; Alekseev et al., 1994) and depleted (e.g. in Morocco; Frey et al., 2018) early Tournaisian faunas exemplifies the uncertainty of the relative contributions of extinction recovery, poor sampling and spatial bias to the observed fossil record, although potential differences between local environmental conditions are an important consideration.

Raw genus diversity increases into the Visean from Tournaisian levels in most previous analyses (Patterson, 1994; Sallan & Coates, 2010; Blieck, 2011) and the PBDB (Fig. 2). The fossil record of Great Britain exhibits a particularly extreme increase in osteichthyan richness, most likely due to the very richly sampled Visean deposits of Scotland (Dineley & Metcalf, 1999). This rise coincides with a proliferation of new morphologies and ecologies, likely via multiple independent acquisitions of key traits such as durophagy and deep- and eel-like-bodies (Sallan & Friedman, 2012; Sallan, 2012, 2014; Sallan & Coates, 2013; Friedman, 2015; Friedman et al., 2018). This gradual rise in richness, accompanied by morphological and functional diversification, may represent a classic extinction recovery and adaptive radiation (Sallan & Friedman, 2012; Sallan, 2014).

Previous studies suggest conflicting patterns of actinopterygian raw diversity into the Serpukhovian. Patterson (1994) and Blieck (2011) report a decrease in family counts, in contrast to a slight increase in genus counts in Sallan & Coates (2010). The diversity curve of Thomson (1977) only separates data into Mississippian and Pennsylvanian bins, and therefore lacks the temporal resolution to allow comparison. Discrepancy between the trends in Sallan & Coates (2010), Patterson (1994) and Blieck (2011) may be due to poor higher-level taxonomy in actinopterygians. For example, the highly diverse Bear Gulch fauna likely drives the rise in actinopterygian diversity in Sallan & Coates (2010), but this is not captured in higher-level family counts due to the aggregation of genera in broad, ill-defined families. Additionally, the Serpukhovian decrease in PBDB occurrence data contrasts with other studies (e.g. Sallan & Coates, 2010) and is, in part, due to inconsistencies between regional substages and International Commission on Stratigraphy (ICS) stages. For example, in the PBDB, Bear Gulch localities are included in the Bashkirian due to the age range of the Arnsbergian, but more accurately should be placed in the Serpukhovian.

It is difficult to reconstruct patterns of diversity in the late Carboniferous due to a lack of compiled occurrence data across the Pennsylvanian. Sallan & Coates' (2010) range ends at the Mississippian, while Romano et al.’s (2016) data begin in the Asselian. Thomson's (1977) genus counts decrease from the Mississippian to the Pennsylvanian, however family counts of actinopterygians increase from the Serpukhovian to the Bashkirian (Patterson, 1994; Blieck, 2011). For the Moscovian–Gzhelian the only data for actinopterygians are the family counts derived from Benton (1993); these show gradual decreases from the Bashkirian to the Moscovian, and again from the Moscovian to plateau in the Kasimovian and Gzhelian (Patterson, 1994; Blieck, 2011). Importantly, counts of families remain at roughly the same level as they were in the Tournaisian and Visean. Counts of osteichthyan genera are not discernible for this period in Friedman & Sallan (2012: fig. 2), and there are no Kasimovian or Gzhelian occurrences in the British fossil record (Lloyd & Friedman, 2013). Counts of genera in the PBDB decrease throughout the Pennsylvanian (Fig. 2), although this also appears to be a result of low data entry: Pennsylvanian PBDB actinopterygian occurrences derive from important localities for other groups [e.g. Linton for early tetrapods (Hook & Baird, 1986); Mazon Creek for arthropods (Clements, Purnell & Gabbott, 2019)].

Reported overall trends in actinopterygian diversity in the Carboniferous are consequently unclear. Genus-level counts are suggestive of a gradual rise throughout the Mississippian (Sallan & Coates, 2010), with a subsequent drop in the Pennsylvanian (Thomson, 1977). This contrasts with family counts, which are relatively stable except for minor deviations in the Serpukhovian and Bashkirian.

(4) Permian diversity patterns

Genus- and family-level counts in previous studies agree on the general trend of actinopterygian diversity in the Permian, although differ at finer timescales. The highest counts are observed in the early Permian in curves derived from Benton's (1993) dataset (Patterson, 1994; Blieck, 2011) and Thomson's (1977) genus-level data. Occurrence-based datasets also show a peak in the early Permian, although limited to the Asselian and Sakmarian, likely driven by freshwater Lagerstätte (Romano et al., 2016). However, very few early Permian occurrences of actinopterygians have been entered into the PBDB (Fig. 2), although the geographic spread of occurrences in the Permian PBDB is substantially greater than the Devonian or Carboniferous (Fig. 3C). Genus- and family-level trends deviate from one another in the Artinskian: the family curve stays more or less stable, whereas genus richness decreases substantially. Family-level counts drop in the Kungurian and remain roughly at this level, with minor fluctuations, until the end-Permian. Genus richness in Thomson's (1977) curves for ‘chondrosteans’ drop in the middle Permian and rise slightly in the late Permian; the late Permian also sees the first appearance of holosteans. Counts in the finer-scale dataset of Romano et al. (2016) rise gradually from the Roadian–Wuchiapingian, reaching close to early Permian levels before dropping in the Changhsingian. Unlike the early Permian, PBDB data closely reflect the trends of Romano et al. (2016) in large part due to targeted entry of marine fishes for studies relating to the End-Permian Mass Extinction (e.g. by Vázquez & Clapham, 2017). It is clear, however, that the substantial freshwater actinopterygian fossil record from the late Carboniferous-early Permian (Beltan, 1978, 1981; Forey & Young, 1985; Murray, 2000; Soler-Gijón & Moratalla, 2001; Evans, 2005; Štamberg & Zajíc, 2008; Šimůnek & Cleal, 2020) has not yet been entered into the PBDB.

While previous studies have established a broad understanding of general diversity trends in the Palaeozoic, patterns differ depending on the taxonomic level and geological scale investigated, and there has not yet been a through-Palaeozoic study focussing solely on actinopterygians. At present, publicly available occurrence databases lack the level of detail required for reconstructing long-term diversity through the Palaeozoic, necessitating the collation of occurrences spanning the Palaeozoic.

(1) Data preparation

Global occurrences of Palaeozoic Actinopterygii were compiled from the published literature. Taxonomically indeterminate occurrences (i.e. those that could not be confidently assigned to a valid genus or species) were excluded, as were occurrences represented solely by scales or teeth (i.e. only body fossils were retained). The cleaned dataset comprises 1611 occurrences, representing 468 species belonging to 225 genera, from 507 unique geographic locations. We recognise that databases compiled from the published literature are subject to bias (Alroy, 2010a,b,c; Clapham et al., 2016; Close et al., 2018), however collating and examining occurrences present in the literature provides a foundation upon which to build. The database includes taxon identity, locality name, locality coordinates, stratigraphy, region and country, age (ICS stage and regional substage), authority naming the taxon and the year the species was described. These data are available as online supporting information (Table S1) and are in the process of being uploaded to the PBDB.

(2) Occurrence data

The length of stratigraphic stages drastically differs within the Palaeozoic. For example, the Kasimovian is 3.3 million years (Myr) in length, compared to the 15.8 Myr long Visean. As the length of intervals may impact richness trends (Raup, 1972; Smith & McGowan, 2011), occurrence data were placed in composite intervals of roughly equal length (~9 Myr) intervals following Close et al. (2017, 2020a,b), as well as in standard stratigraphic stages (Lochkovian–Changhsingian). In order to form equal length intervals, some stratigraphic stages were combined (e.g. the Kasimovian and Gzhelian) and others were split (e.g. the Visean) (Table S2). Interval ranges were updated to reflect most recent stage boundaries according to the ICS (Cohen, Harper & Gibbard, 2021). Equal-length intervals were compared with standard stratigraphic stages to obtain an indication of the effect of interval length on diversity counts.

Face-value (=raw, uncorrected, or observed) genus and species richness at ‘global’ scales are presented with the proviso that face-value diversity counts may be highly misleading. While ‘global’ curves likely represent the extent of spatial sampling rather than global palaeodiversity (Close et al., 2017, 2020a,b), face-value richness counts allow for comparison with previous diversity curves (e.g. Thomson, 1977; Sallan & Coates, 2010; Romano et al., 2016) and for an initial exploration of gross Palaeozoic actinopterygian diversity. ‘Global’ (gamma scale) face-value richness curves were computed using sampled-in-bin counts of occurrences. Counts of geographic localities and geological units (unique formations, members, groups, etc.) were used to provide an indication of sampling effort. Occupied equal-area grid cells, i.e. the number of 50 km² cells on a global map (constructed using the dggridR R package; Barnes, 2021) that contained unique localities, were calculated as a further measure of sampling. Localities were plotted on a modern world map to show the scope of present-day sampling.

Linear regressions were conducted to investigate the relationship between counts of taxa and various sampling metrics (localities, formations and equal-area grid cells), as well as with sea level through time (data from Hannisdal & Peters, 2011). All analyses were conducted within R 4.1.0 (R Core Team, 2020).

(3) Collector's curves

We extracted taxonomic identity, country, authority naming the taxon and the year the species was described from the occurrence database, resulting in a total of 516 species. Collector's curves showing cumulative counts of the total number of species described through time globally and within the UK were then plotted.

(1) Occurrence data

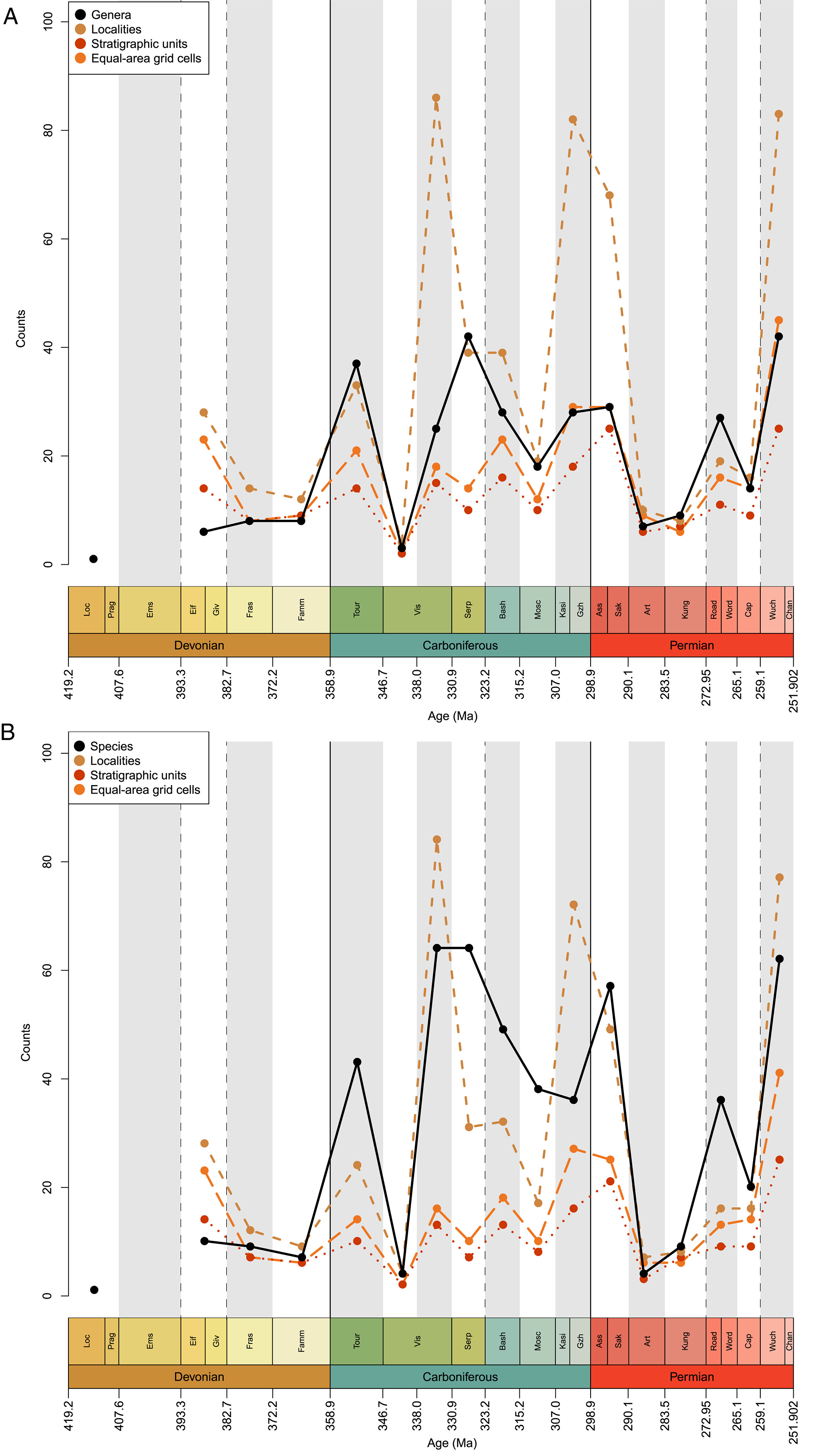

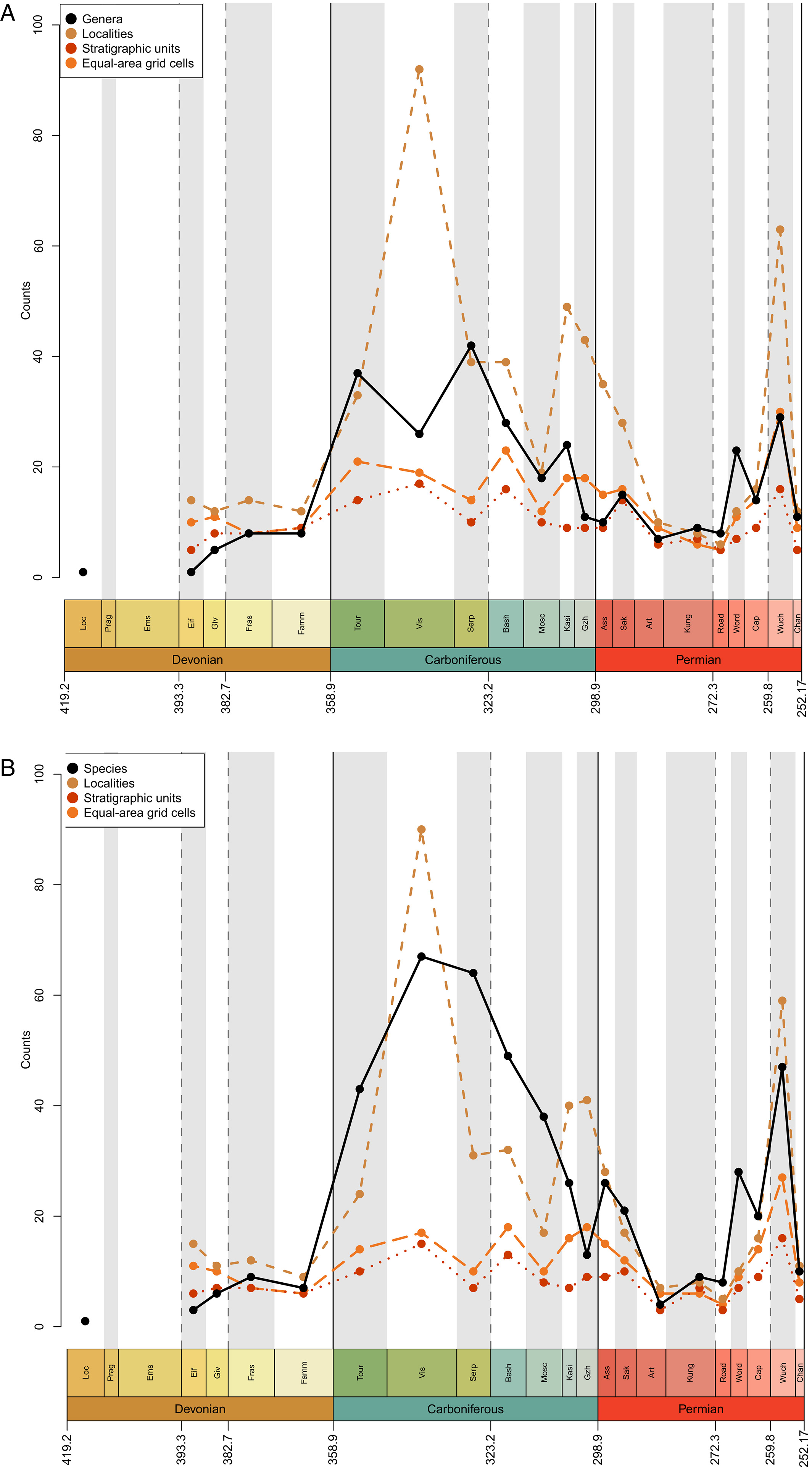

Overall diversity trends in the equal length genus-level, raw occurrence dataset are hard to discern (Fig. 4A), but genus richness is highest during the late Permian (Lopingian; Wuchiapingian) and mid-Carboniferous (Serpukhovian). The lowest levels are seen in the Devonian: only a single taxon is identified in the Lochkovian (Lu et al., 2016), and, aside from contentious scale-based taxa, no ray-finned fish are known from Pragian or Emsian deposits. Richness increases marginally from the Eifelian and Givetian to the Frasnian, remaining flat in the Famennian. Counts increase substantially from the Famennian to the Tournaisian, before decreasing dramatically in the early Visean (Chadian-Holkerian) and rising in the late Visean (Asbian–Brigantian). A peak in the Serpukhovian is followed by a decrease in counts in the Bashkirian and Moscovian and another modest rise across the Carboniferous-Permian boundary. A large decrease in the Artinskian sees raw genus counts return to late Devonian levels. Counts increase again from the Artinskian trough to the Wordian, followed by a fall in the Capitanian and final peak in the Lopingian.

Raw species richness broadly follows the same pattern, though with some notable departures (Fig. 4B). The highest species counts are in the late Visean (Asbian–Brigantian) and Serpukhovian, although are only marginally lower in the Lopingian (Wuchiapingian and Changsinghian) and earliest Permian (Asselian and Sakmarian). In contrast to patterns of genus richness, species richness decreases slightly from the Middle to the Late Devonian. Furthermore, Kasimovian and Gzhelian species richness is lower than the Moscovian, meaning that, unlike in the raw genus counts, richness noticeably increases across the Carboniferous to Permian boundary.

Comparison of counts of taxa in roughly equal-length stages with counts in ICS stages shows that the choice of sampling interval strongly influences richness trends (Figs 4 and 5). Devonian trends for genus and species richness are similar (Fig. 5A), however trends in the early Carboniferous and Permian differ, with ICS stage counts instead largely resembling (as expected) previous studies analysing these periods (e.g. Sallan & Coates, 2010; Romano et al., 2016). Genus richness is highest in the Serpukhovian, however a notable departure from previous hypotheses is the Tournaisian peak in genus richness followed by a drop in the Visean. This results from a discrepancy in the age of the diverse Waaipoort Formation: previous work counted these deposits as Visean (Sallan & Coates, 2010), suggesting a gradual rise in richness through the Mississippian, while recent studies shift the age back to the Tournaisian (Lakin et al., 2016), in turn altering Mississippian richness trends. There is then a general decline throughout the Pennsylvanian that reaches a trough in the final interval of the Carboniferous, the Gzhelian (Fig. 5A). Richness then decreases in the Asselian and rises in the Sakmarian before a drop in the Artinskian (the lowest count of genera throughout the Carboniferous and Permian). Genus richness fluctuates through the Kungurian (increase from Artinskian), Roadian (decrease from Kungurian), Wordian (increase from Roadian), Capitanian (decrease from Wordian), Wuchiapingian (increase from Capitanian) and Changhsingian (decrease from Wuchiapingian); these trends are broadly similar to Romano et al. (2016). Species richness trends are generally the same (albeit exaggerated) as those of genus richness, excepting the Visean, which becomes the most speciose interval of the Palaeozoic (Fig. 5B).

Face-value richness at both genus and species level closely tracks proxies for sampling effort; where the number of localities, formations and equal-area grid cells are high, richness is also high (Fig. 4). Notable exceptions to this trend are the Eifelian–Givetian and Serpukhovian. Discrepancy in the Eifelian–Givetian is due to the widespread occurrence of Cheirolepis at a time when actinopterygians had very low relative diversity. In the Serpukhovian, high genus counts despite a decrease in sampling metrics is a result of the diverse Bear Gulch fauna (Lund, Greenfest-Allen & Grogan, 2012). In addition, three large peaks in counts of localities in the late Visean, Kasimovian and Gzhelian and Asselian and Sakmarian are a result of intense sampling of localised regions with homogenous contemporary faunas [e.g. Midland Valley of Scotland, Visean (Dineley & Metcalf, 1999); Boskovice Graben, late Carboniferous and early Permian (Štamberg, 2007; Štamberg & Zajíc, 2008)], and thus do not correspond with peaks in genus richness. However, there are species-level richness counts peaks in the late Visean and Asselian and Sakmarian (Fig. 4B).

First inspection reveals multiple sources of bias in the Palaeozoic actinopterygian fossil record. The clear differences between the species- and genus-level curves highlight issues with problematic ‘waste-basket’ genera containing vast numbers of species, while overall face-value richness appears to track sampling metrics. Regressions (Fig. S1) show that genus richness positively correlates with number of localities (R² = 0.47, p = 0.003, Fig. S1A), stratigraphic units (R² = 0.34, p = 0.019, Fig. S1B) and occupied equal-area grid cells (R² = 0.39, p = 0.009, Fig. S1C). Removing the highly diverse Bear Gulch and Glencartholm assemblages strengthens these relationships. As expected, interval length does not correlate with richness when using roughly equal-length intervals (R² = 0.16, p = 0.128, Fig. S1D). Overall genus richness also significantly correlates with sea level (R² = 0.47, p = 0.003, Fig. S1E). This relationship persists when analysing isolated counts of freshwater genera (R² = 0.44, p = 0.005, Fig. S1F), although counts of marine genera do not significantly correlate with sea level (R² = 0.15, p = 0.135, Fig. S1G). This significant correlation, with both overall genera and freshwater genera, disappears when the Devonian stages are removed (R² = 0.14, p = 0.205, Fig. S1H; R² = 0.20, p = 0.129, Fig. S1I).

(2) Distribution of Palaeozoic actinopterygians

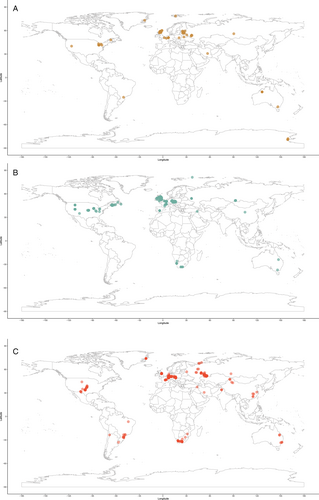

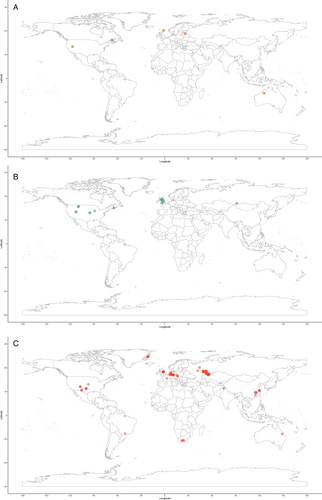

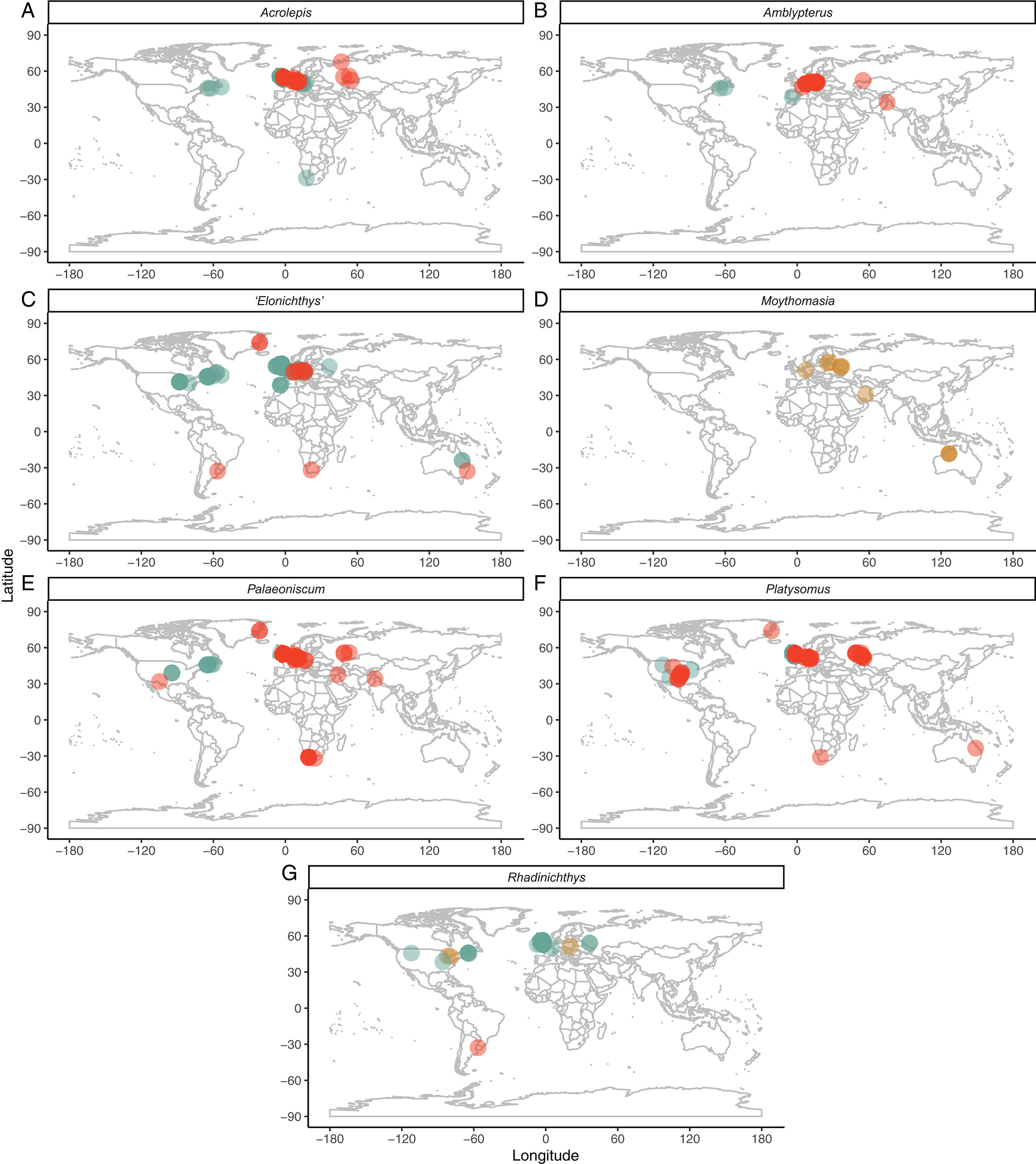

A global map of occurrences gives a broad overview of the distribution of actinopterygian localities through the Devonian, Carboniferous and Permian (Fig. 6), showing that published occurrences are overwhelmingly located in Europe and North America. Here we break down the global data in order to (a) understand better the distributions of actinopterygians through the Palaeozoic and (b) identify widespread taxa or regions that share taxonomic affinities.

(a) United Kingdom and the Republic of Ireland

Eifelian and Givetian occurrences in the well-known Orcadian basin precede a nearly continuous Carboniferous record of actinopterygians in the British Isles, which persists until the end of the Moscovian. This is followed by a total lack of occurrences until the extensively sampled Wuchiapingian deposits of the Raisby and Marl Slate Formations (Westoll, 1934, 1941b).

The earliest Devonian taxon from this region, Cheirolepis from the Eifelian of Scotland (Pearson & Westoll, 1979), is also present in North America (Arratia & Cloutier, 1996, 2004), the Baltic (Mark-Kurik, 2000) and Spitsbergen (Newman et al., 2021), while Stegotrachelus (Givetian; Swartz, 2009) may also occur in central Europe (Ørvig, 1960). Some Tournaisian actinopterygians in the British Isles are present at other isolated Northern Hemisphere localities, for example in the Tournaisian of Russia (Lebedev, 1996) and Serpukhovian of the USA (Lowney, 1980). However, by far the most common genera throughout the Carboniferous are ‘Elonichthys’ and Rhadinichthys, which are also geographically widespread (Fig. 7C, G). While there are some endemic genera that are locally widespread and present at many localities [e.g. Eurynotus, Nematoptychius (Traquair, 1908; Moy-Thomas & Dyne, 1938; Friedman et al., 2018)], the other most common Carboniferous occurrences in British and Irish deposits are of globally distributed genera (Platysomus, Palaoniscum, Acrolepis, Fig. 7A, E, F). The late Permian fish fauna (Marl Slate and Raisby Formations) is very similar to that of contemporary German deposits (Kupferschiefer and Zechstein Formations; Westoll, 1941a).

(3) Collector's curves

We compiled collector's curves for Palaeozoic actinopterygians to examine whether the asymptote observed by Lloyd & Friedman (2013) for the British fossil fish record is upheld when restricted to Palaeozoic actinopterygians and is extended beyond Great Britain. An asymptote is observed when considering Palaeozoic actinopterygians from the British Isles (Fig. 8). The number of described taxa starts to plateau in the late 19th century, largely due to the foundational monographic descriptions of Agassiz (1833) and Traquair (1877b). A slight increase in recent years indicates a resurgence of interest focussed around computed tomography (CT)-based redescriptions and taxonomic splitting of classic taxa held in museums (e.g. Coates & Tietjen, 2018), as well as new collection and local taxonomic reviews (e.g. Elliott, 2014, 2016). While unlikely to alter large-scale diversity patterns (Lloyd & Friedman, 2013) this uptick is suggestive of further hidden diversity in the fossil record of Palaeozoic actinopterygians in Great Britain, particularly with regard to redescription of material that has been untouched since the 19th and early 20th century.

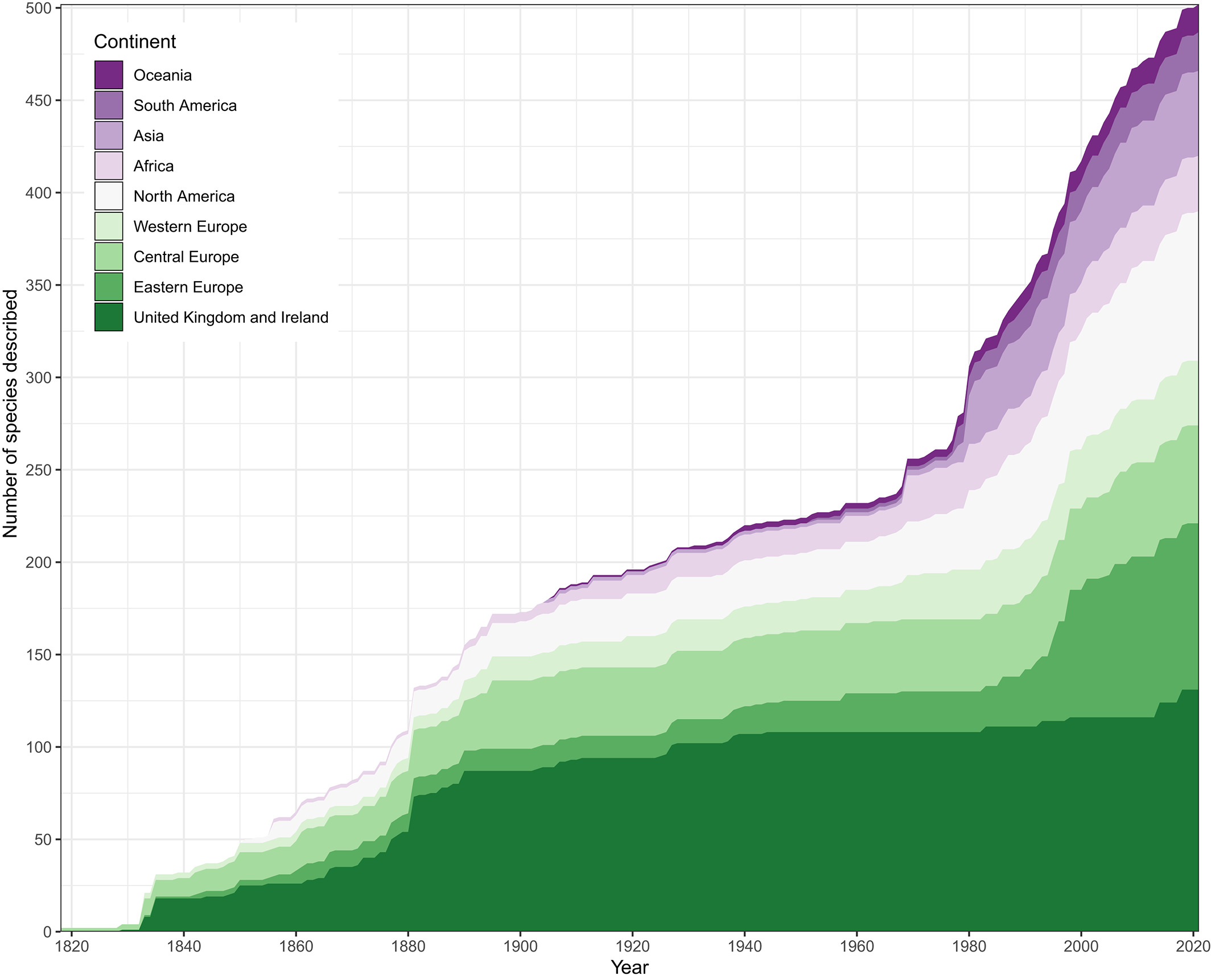

The global collector's curve, however, presents a very different trend (Fig. 8). During the 19th century, the global curve roughly tracks that of the British curve, albeit with slightly higher cumulative counts. This is in part due to the works of Agassiz (1833) and Traquair (1877a,b), who also described actinopterygians from Belgium, France and Germany, with other important contributions from the USA and Europe (e.g. Newberry, 1856; Hancock & Atthey, 1872; Frič, 1879). Throughout the 20th century, however, the global curve departs from the British curve, continuing to rise steadily. Part of this can be traced to significant contributions from Aldinger (1937) and Gardiner (1969), who described new taxa from Greenland and South Africa, respectively. From the late 1960s the global collector's curve accelerates at a faster and steadier rate than at any time previously, corroborating statements that the fossil record of Palaeozoic actinopterygians is undersampled (Sallan & Coates, 2010).

This accelerated rate of descriptions is a combined result of a steady description of isolated occurrences (e.g. Daeschler, 2000; Prokofiev, 2002; Friedman & Blom, 2006; Long, Choo & Young, 2008; Mickle & Bader, 2009; Mickle, 2011, 2017, 2018; Choo, 2015; Giles et al., 2015; Figueroa et al., 2021; Newman et al., 2021; Štamberg & Steyer, 2021) as well as descriptions of new, diverse, highly productive fish faunas such as Bear Gulch (Lowney, 1980; Lund & Poplin, 1997; Lund, 2000; Poplin & Lund, 2000; Mickle, Lund & Grogan, 2009; Grogan & Lund, 2015), Mazon Creek (Schultze & Bardack, 1987), the Waaipoort Formation (Gardiner, 1969), Rio Negro (Beltan, 1989), Kalyn-Kara (Kazantseva-Selezneva, 1981) and the Gogo Formation (Gardiner & Bartram, 1977; Choo, Long & Trinajstic, 2009; Choo et al., 2019; Choo, 2012).

A geographical breakdown of the regions yielding new actinopterygian genera and localities reveals that Europe and North America are the most intensely sampled regions in the Palaeozoic actinopterygian fossil record. New European fishes account for the largest increase in descriptions in the last three decades, while contributions from North America are also increasing, although the mechanisms differ between Europe and North America. For example, increased sampling of multiple localities has contributed to the rising rate of new descriptions from Europe. Extensive work in Central Europe (Štamberg, 2007, 2010, 2013, 2016a,b, 2021; Štamberg & Zajíc, 2008; Choo, 2015) and European Russia (Minikh, 1992, 1998; Esin, 1995; Yankevich & Minikh, 1998; Minikh & Minikh, 2009; Minikh et al., 2016; Bakaev & Kogan, 2020) in recent years is responsible for the increase from these regions (Fig. 8). Actinopterygians are also being described from new British (Elliott, 2016) and Western European (Giles et al., 2015; Štamberg & Steyer, 2021) deposits. By contrast, the majority of new species from North America stem from focussed efforts on well-known localities, such as Bear Gulch (Lowney, 1980; Lund & Melton, 1982; Lund & Poplin, 1997, 1999; Lund, 2000; Poplin & Lund, 2000, 2002; Mickle et al., 2009; Grogan & Lund, 2015), Kinney Brick Quarry (Gottfried, 1987, 1992; Bardack, 1992; Zidek, 1992; Williams & Lucas, 2013; Stack et al., 2021), and Mazon Creek (Bardack, 1979; Schultze & Bardack, 1987). Comparatively few taxa derive from more depauperate localities (Mickle, 2017, 2018; Wilson, Pardo & Anderson, 2018).

While historically understudied regions are producing new taxa, sampling and descriptions from well-sampled regions are still outpacing them. The relative proportion of descriptions from African deposits has decreased, as except for a handful of taxa from the Beaufort Group (e.g. Bender, 2001, 2002, 2004, 2005), no taxa have been described since the mid-20th century (Gardiner, 1969). New fishes from Siberia (Kazantseva-Selezneva, 1980) and Kazakhstan (Kazantseva-Selezneva, 1981) boost counts of taxa from Asia in the late-20th century, with new descriptions published steadily in subsequent years (Poplin et al., 1991; Prokofiev, 2002, 2005; Zhu et al., 2006; Wang et al., 2007). Descriptions from South America follow a similar pattern, with an early burst (Beltan, 1978) followed by irregular but sustained contributions (Malabarba, 1988; Beltan, 1989; Cox & Hutchinson, 1991; Richter & Breitkreuz, 1997; Martha, 2002; Figueiredo & Carvalho, 2004; Hamel, 2005; Dias, 2012; Figueroa et al., 2021), notably from the Paraná Basin of Brazil (Cox & Hutchinson, 1991; Figueiredo & Carvalho, 2004; Hamel, 2005; Dias, 2012). Descriptions from Oceania [comprised exclusively of Australian fishes (Woodward, 1931, 1940; Gardiner & Bartram, 1977; Campbell & Phuoc, 1983; Long, 1988; Choo et al., 2009, 2019; Choo, 2012)] consistently comprise a very small proportion of the global collector's curve.

New actinopterygian taxa are being erected both from newly discovered deposits and through revisiting and revising existing museum collections. It is likely that further diversity is hiding in the extensive collections of museums in historically well-sampled regions (e.g. Natural History Museum, London; American Museum of Natural History, New York City) – Mickle (2017) notes hundreds of specimens of three early Carboniferous genera in North American museums. Notably, museum collections will be crucial in augmenting occurrence data, as they likely contain vastly more unique localities than are recorded in the primary literature (by over an order of magnitude; Marshall et al., 2018). In parallel, sampling of new localities in underrepresented regions is likely to yield new taxa as the sampling universe expands (Raup, 1972; Close et al., 2018). The widespread adoption of CT scanning will continue to facilitate valuable redescriptions and taxonomic revisions of such material and remains an important avenue for research (Giles & Friedman, 2014; Giles et al., 2015, 2017; Pradel et al., 2016; Coates & Tietjen, 2018; Friedman et al., 2018; Argyriou et al., 2018; Figueroa, Friedman & Gallo, 2019). Both new exploration and revisiting museum collections will be important in increasing our understanding of Palaeozoic actinopterygians.

(1) Fossil record biases

A major obstacle to interpreting the evolution of Palaeozoic actinopterygians accurately is the various forms of biases that pervade their fossil record, which are related to geological, geographic, and anthropogenic factors. Investigations into the effect of geological, spatial and taphonomic biases on the actinopterygian fossil record are in their infancy, and the extent to which observed patterns of diversity are driven by biases is far from understood. Previous studies posit that changes in richness of the fossil fish record through time likely represent changes in sampling (Friedman & Sallan, 2012). Furthermore, the number of occupied grid cells has been suggested as the best proxy for explaining the richness of all fishes in the fossil record of Great Britain, although osteichthyan richness does not correlate with any proxy (Lloyd & Friedman, 2013). Actinopterygian richness in the Palaeozoic, however, tracks sampling proxies such as localities, formations and equal-area grid cells (Fig. 4). A common suggestion in the literature is that the late Palaeozoic record is poorly sampled, particularly in terms of marine deposits, and that this leads to low levels of diversity (Hurley et al., 2007; Near et al., 2012; Broughton et al., 2013). Freshwater occurrences of actinopterygians dominate much of the Permian (Romano et al., 2016; Smithwick & Stubbs, 2018) and some of this skew away from marine deposits may have been linked to the formation of Pangaea and coincident reductions in coastline (Friedman & Sallan, 2012). Pinpointing the extent to which geological, spatial and taphonomic biases drive the actinopterygian record is a critical next step in understanding the evolution of actinopterygians in the Palaeozoic.

(2) Taxonomic issues

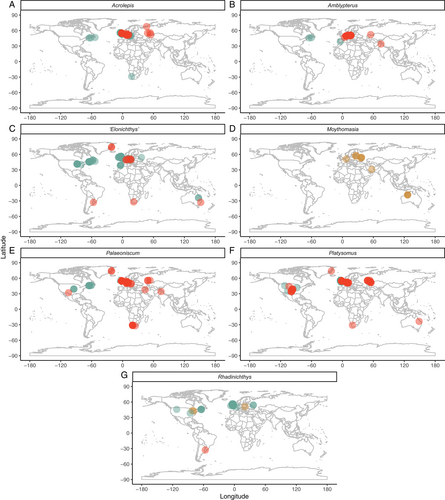

Deep-seated problems with Palaeozoic actinopterygian taxonomy exacerbate low levels of actinopterygian genus richness, despite high numbers of species and considerable morphological variation within these genera. Many genera from this period have apparently global distributions and stratigraphic ranges spanning nearly the entirety of the Carboniferous and Permian (Fig. 7; Gardiner, 1993; Sepkoski, 2002), which may be an artefact of reduced researcher effort in this period in favour of earlier Devonian forms, or later Mesozoic forms (Sallan, 2014). As a result, many mid-late Palaeozoic actinopterygians have not been the subject of detailed taxonomic work.

Carboniferous and Permian actinopterygians received the most attention from researchers in the 19th and early 20th centuries. While much of this work was ground-breaking and laid the foundations for palaeoichthyology, there are substantial problems with some outcomes of the research, notably the existence of wide-ranging, poorly defined genera. Often, initial descriptions of taxa were brief and erected new genera with a heavy reliance on the shape of the body (e.g. deep-bodied, fusiform, slender) and scale morphology (Agassiz, 1833; Traquair, 1877a, 1879; Moy-Thomas & Dyne, 1938). This led to poorly defined genus diagnoses, often containing large numbers of dubiously related species – species whose characteristics sometimes even contradicted generic diagnoses. Some of the most notable problem genera – also termed ‘waste-baskets’ (Evans, 2005) and ‘trash fish’ (Coates & Tietjen, 2018) – are ‘Elonichthys’ Giebel 1848 (44 species), Rhadinichthys Traquair 1877 (30 species), Platysomus Agassiz 1843 (20 species), Amblypterus Agassiz 1843 (18 species), Palaeoniscum Blainville 1818 (18 species) and Acrolepis Agassiz 1843 (14 species) (Mickle, 2017), although others exhibit similar issues (e.g. Moythomasia Gross 1950). Higher-level taxonomic groups based on these genera, which are almost exclusively erected with generic diagnoses (Sallan, 2014), suffer from the same problems.

In addition to being taxonomically ambiguous, these few Palaeozoic actinopterygian genera likely obscure a significant proportion of genus-level diversity. Redescriptions and redefined diagnoses are necessary in order to reveal the true taxonomic diversity hiding within these genera. Recently, Elonichthys was redefined to include just three species (Schindler, 2018a) from Central European late Carboniferous and early Permian deposits. Consequently, the temporal and spatial extent of the genus has been drastically reduced, and around 50 other nominal species of ‘Elonichthys’, ranging from the Tournaisian to the Wuchiapingian, are invalid and currently unaccounted for in genus-level diversity analysis. More broadly, while apparently widespread by modern continental configuration (Fig. 6), palaeogeographic distributions of problem genera are more concentrated due to the proximity of Western Europe and North America in the Palaeozoic (Scotese, 2021). That these regions, where the majority of species within problem genera occur (Fig. 7), were geographically contiguous in the Palaeozoic exacerbates the geographic research bias associated with greater sampling of North America and Europe. Shared presence of numerous groups of actinopterygians [e.g. haplolepids, eurynotiforms, aeduelliforms (Sallan & Coates, 2013; Elliott, 2014, 2016; Hodnett & Lucas, 2015)] in present-day North America and Western Europe provides further evidence of a close link.

In recent years, new anatomical information revealed by CT scanning has prompted several reinvestigations of the validity of Palaeozoic taxa. Coates & Tietjen (2018) recently redescribed a Bashkirian actinopterygian and moved it to Trawdenia n. gen. This specimen was originally referred to Mesopoma, a taxon erected by Traquair (1890) in an attempt to separate species belonging to Canobius and Rhadinichthys. Traquair subsequently retracted the genus (Traquair, 1912), before Moy-Thomas & Dyne (1938) restored it (see Coates, 1993, 1998; Coates & Tietjen, 2018). Trawdenia exemplifies both the root cause of the problem with many Carboniferous and Permian actinopterygian genera – a diagnosis based on characteristics prevalent in other late Palaeozoic actinopterygians and lacking unambiguous synapomorphies – and also the route to resolving the problem: detailed redescription to identify unique characters aided by currently available technology such as CT scanning. Reinvestigation of Palaeozoic material is not simply an exercise in correcting taxonomy, however. Coates (1999) and Coates & Tietjen's (2018) work revealed previously hidden features of the endocast and pectoral fin in a specimen that had been known to the literature for over a century. The case of Trawdenia, as well as others such as Eurynotus crenatus (Friedman et al., 2018) and Brazilichthys macrognathus (Figueroa et al., 2019), clearly demonstrate that reinvestigation can reveal not only hidden taxa, but untold anatomical and ecological diversity.

(3) Phylogenetic issues

Relationships of the four extant actinopterygian clades (Cladistia, Chondrostei, Holostei, Teleostei) has reached a point of consensus through both molecular (e.g. Betancur-R et al., 2017; Hughes et al., 2018; Dornburg & Near, 2021) and morphological (e.g. Patterson, 1982; Gardiner & Schaeffer, 1989; Coates, 1998; Cloutier & Arratia, 2004; Grande, 2010; Xu, Gao & Finarelli, 2014; Giles et al., 2017) research. Sallan (2014) provided a detailed summary of previous hypotheses of living clades and the basis for this consensus. Friedman (2015) synthesises attempts to place Palaeozoic actinopterygians relative to extant clades, highlighting that the relationships of extinct actinopterygians, both in relation to each other and to extant clades, remain unclear.

The cladistic analysis of Gardiner & Schaeffer (1989), which built significantly on prior work by Gardiner (1984), represented a seminal study for investigations into Palaeozoic actinopterygian relationships (Friedman, 2015). Gardiner & Schaeffer (1989) organised early actinopterygians into groups (e.g. the Moythomasia Group, the Platysomus Group), which they tentatively posited to be monophyletic, in order to determine actinopterygian phylogeny. Although the monophyly of these groups was rarely upheld in later work, this analysis and the anatomical characters it established forms the basis for almost all future phylogenetic studies (e.g. Coates, 1999; Dietze, 2000; Poplin & Lund, 2000; Cloutier & Arratia, 2004; Poplin & Dutheil, 2005; Friedman & Blom, 2006; Swartz, 2009; Fig. 9). The history of phylogenetic work on actinopterygians mirrors the geographic biases related to sampling of actinopterygian occurrences, with clear bias towards the regions in which research groups are located (Fig. 9).

Subsequent analyses have attempted to determine the relationships of primitive actinopterygians relative to extant clades (e.g. Cloutier & Arratia, 2004) or focussed solely on Palaeozoic actinopterygian interrelationships (e.g. Friedman & Blom, 2006). Although most analyses draw on multiple sources, two main subsequent ‘lineages’ of analyses have arisen, both with a focus shifted towards relationships of actinopterygians rather than early bony fishes. Cloutier & Arratia (2004), which attempted a major synthesis of existing character matrices, sourcing characters from previous cladistic and phylogenetic studies, heavily influenced Mickle et al. (2009) and Swartz (2009), while Friedman & Blom (2006) became the basis of Choo (2012) and all subsequent analyses derived from that matrix (Giles et al., 2015, 2017; Argyriou et al., 2018; Choo et al., 2019; Figueroa et al., 2019, 2021; Fig. 9). Giles et al. (2017) significantly expanded and revised this derived matrix with the aim of interrogating relationships between living and fossil actinopterygian lineages.

Other matrices focus on a particular fauna or geographic region. Most notable amongst these are efforts to investigate the relationships of Bear Gulch actinopterygians, which include limited taxa from outside this deposit (Lund, Poplin & McCarthy, 1995; Lund, 2000; Fig. 9). Cloutier & Arratia (2004) attempted to integrate these analyses with other early actinopterygian and osteichthyan matrices. This was further expanded by Mickle et al. (2009; Fig. 10B; and in an unpublished thesis: Mickle, 2012), who included more Bear Gulch forms and several other taxa (e.g. Roslerichthys; Hamel, 2005). Separately, Elliott (2016; Fig. 10D) conducted an analysis of Scottish Bashkirian actinopterygians, sampling traditionally underrepresented groups (such as haplolepids) while excluding all other Palaeozoic actinopterygians.

In general, expansion of these matrices has focused on increasing taxon sampling of actinopterygian groups that are already represented and adding more crownward taxa (Latimer & Giles, 2018; Argyriou et al., 2018; Ren & Xu, 2021), rather than including previously excluded Palaeozoic taxa. Numerous proposed Palaeozoic actinopterygian clades are yet to be included in phylogenetic analyses despite high support in the literature [e.g. eurynotiforms (Sallan & Coates, 2013; Friedman et al., 2018)], and many others remain represented by a single terminal (e.g. platysomids; Giles et al., 2017). Hypotheses of relationships have been shown to change substantially when additional taxa from underrepresented taxonomic groups are included [e.g. saurichthyids (Argyriou et al., 2018); dapediids and pycnodonts (Latimer & Giles, 2018)], resulting in topologies and divergence timelines inconsistent with past molecular (Betancur-R et al., 2017; Hughes et al., 2018; Dornburg & Near, 2021) and morphological (Cloutier & Arratia, 2004; Grande, 2010; Xu et al., 2014; Giles et al., 2017) consensus, suggesting that this skewed representation may be a major source of uncertainty in the early actinopterygian tree.

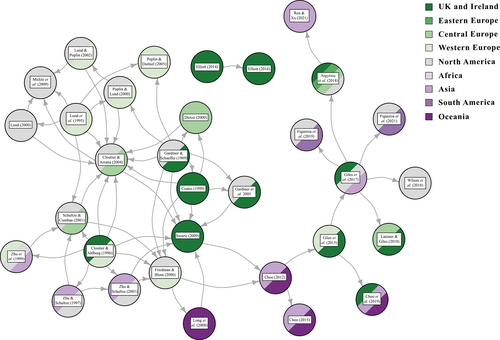

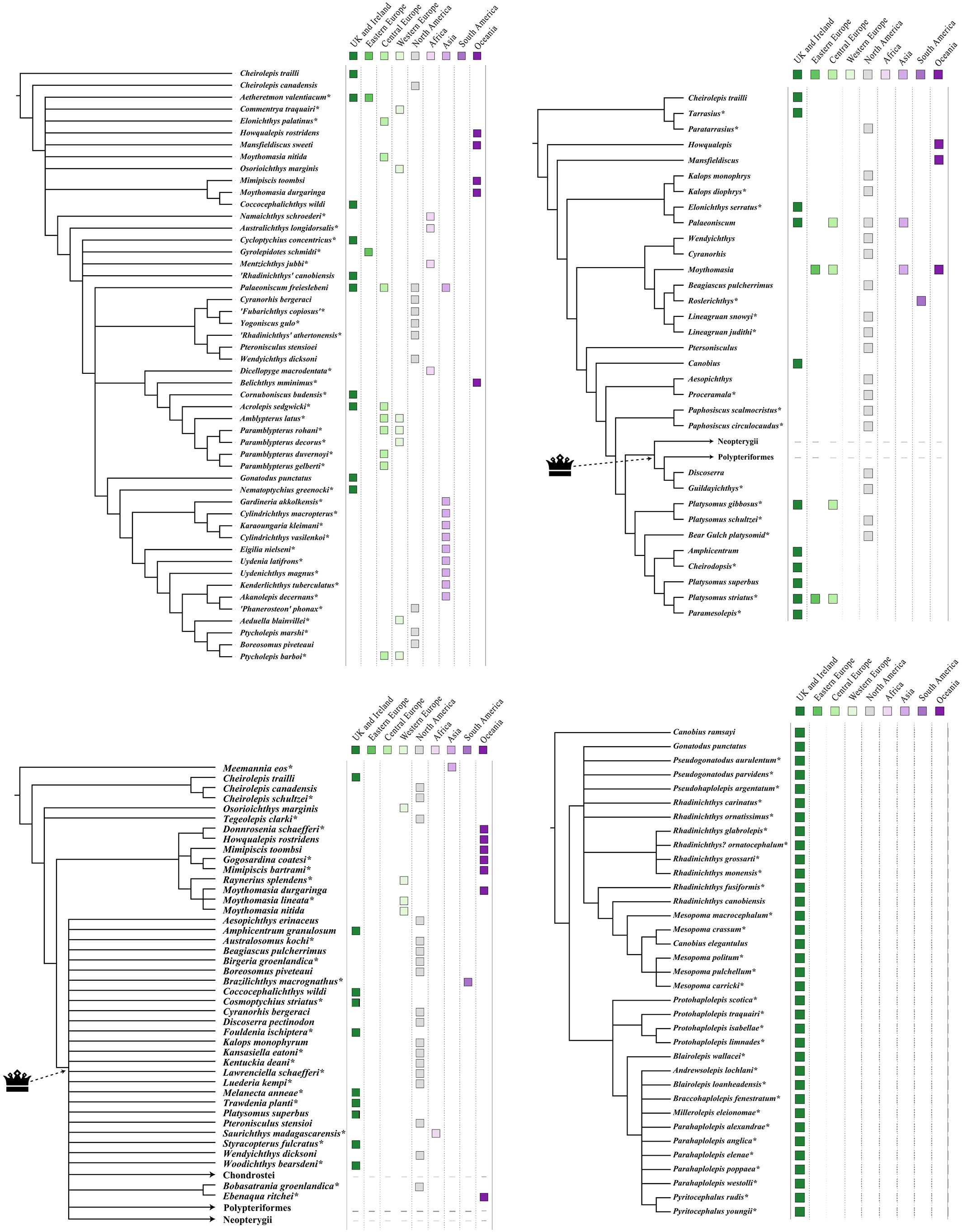

Other sources of bias are noticeable, especially temporal and geographic imbalances. Most analyses contain roughly even numbers of Devonian and Carboniferous taxa (Coates, 1999; Cloutier & Arratia, 2004; Gardiner, Schaeffer & Masserie, 2005; Giles et al., 2017; Figueroa et al., 2021), despite there being an order of magnitude more species described from the Carboniferous (Fig. 4). Permian taxa are largely excluded, despite the nearly equivalent numbers of Permian species relative to the Carboniferous (Fig. 4). Furthermore, most analyses heavily sample fishes from British, North American and Australian deposits (Fig. 10). Dietze (2000; Fig. 10A) is a notable exception that incorporates underrepresented taxonomic groups (e.g. amplypterids) and geographic regions (e.g. Africa, Asia, Central Europe), although very few subsequent analyses have built upon this widespread sampling of taxa. A synthesis and integration of disparate phylogenetic analyses that focus on individual groups or regions (e.g. Dietze, 2000; Elliott, 2016) with broader analyses that attempt to span the actinopterygian radiation (e.g. Giles et al., 2017; Figueroa et al., 2019, 2021; Ren & Xu, 2021) is sorely needed. Among the most recent iterations of the Giles et al. (2017) matrix are studies beginning to expand the geographic spread of taxa by including actinopterygians from South America (Figueroa et al., 2019, 2021). Importantly, when sampling expands beyond taxa from the Euro-American realm, support for past hypotheses of relationships among stem-actinopterygians collapses (Fig. 10C).

Lack of an adequate representation of known morphologies, clades and geographic regions in character matrices is drastically preventing an accurate understanding of Palaeozoic actinopterygians (Friedman, 2015). While revisions to early cladistic and phylogenetic analyses (Gardiner & Schaeffer, 1989; Coates, 1999) have resulted in the shift of the majority of Palaeozoic taxa from the actinopterygian crown to the stem (Cloutier & Arratia, 2004; Mickle et al., 2009; Giles et al. 2017), the relationships between the numerous diverse clades within the Palaeozoic are still highly unstable. As well as expanding the geographic range encompassed by taxa, it will be important to address existing imbalances in geographic sampling before analysing important phylogeographic aspects of actinopterygian evolution (such as dispersal rates), as variation in sampling can greatly influence results (Gardner, Surya & Organ, 2019).
