2.1 Animals

Male and female adult mice between 8 and 20 weeks of age were used for all experiments. To determine the best method to establish cocaine CPA, we used a variety of wild-type mice, which consisted of in-house bred Cre⁻ littermates or floxed mice from our transgenic mouse lines (all are on a C57BL/6J background). We used 103 mice: 41 Adora2a-Cre^−/− (RRID: MMRRC_034744-UCD; [42]), 2 MOR^f/f [43], 19 VGat:Cre (RRID: IMSR_JAX:028862) and 41 VGluT2:Cre (RRID: IMSR_JAX:016963). A subset of these (Adora2a-Cre^−/− = 24), along with six additional saline-treated MOR^f/f mice to be used as controls, were used in a subsequent qPCR experiment to measure Pdyn and Penk in the striatum. To test whether a shifted balance between striatal enkephalin and dynorphin affects the development of cocaine CPA, we generated mice with a homozygous deletion of Penk from striatal dopamine D2 receptor–containing medium spiny neurons (D2-PenkKO). This was achieved by crossing Adora2a-Cre^+/− and Penk^f/f mice. We have used the Adora2a-Cre line multiple times to selectively target these medium spiny neurons [44, 45], and this genetic cross produces a near complete reduction in enkephalin from striatal neurons [38, 46]. Furthermore, these D2-PenkKO mice do not show alterations in striatal Pdyn expression [38]. For these experiments, 17 D2-PenkKO and 17 Adora2a-Cre^−/− Penk^f/f littermate controls were used. Mice were group-housed in a temperature- and humidity-controlled environment under 12:12 h light/dark cycle (lights on at 06:30 or 7:00) with food and water available ad libitum. Behavioural experiments were performed during the light cycle. All animal procedures were performed in accordance with guidelines from the Institutional Animal Care and Use Committees of the University of Texas Austin and Rutgers, the State University of New Jersey.

2.2 Drugs

Cocaine HCl was dissolved in sterile saline (0.9%) and administered intraperitoneally at a volume of 10 mL/kg. We tested a range of cocaine doses (15, 20 and 25 mg/kg) to determine the best dose to condition CPA. Previous studies report that rewarding doses of ethanol, nicotine and amphetamine were able to induce CPA using a trace conditioning procedure; thus, we selected cocaine doses known to induce place preference in previous experiments from our lab and others [23, 38, 41].

2.3 Conditioned Place Avoidance

2.3.1 Apparatus

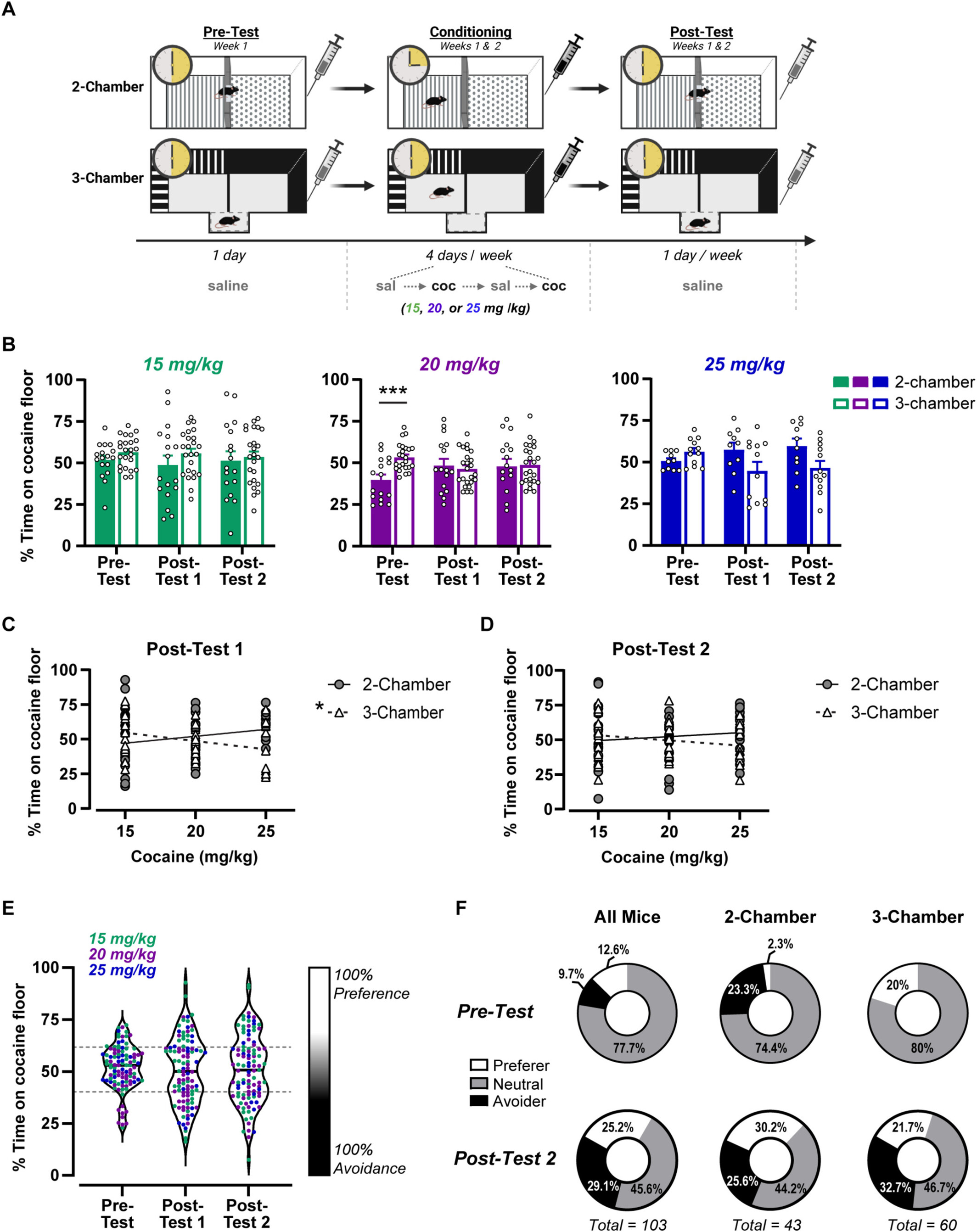

Mice were divided into two groups and received trace conditioning in either a two-chamber (Med Associates) or three-chamber (Stoelting) apparatus (Figure 1A). The two-chamber apparatus consisted of two distinct contexts that differed by their tactile floor cue (grid and hole), which were separated by a guillotine door. The three-chamber apparatus consisted of two contexts discriminated by tactile floor cues (smooth and textured) and visual stimuli (vertical white stripes and plain black walls), which were joined by a smaller connecting chamber.

2.4 Quantitative Polymerase Chain Reaction

A subset of mice that had been conditioned with 25-mg/kg cocaine (Adora2a-Cre^−/−− = 24) or received equal exposure to repeated saline injection (MOR^f/f = 6) were euthanized immediately after Post-Test 2 to measure Penk and Pdyn using qPCR. The MOR^f/f saline controls, although not fully identical to nonfloxed wild-type animals, are functionally wild-type in the absence of Cre and ensure that potential effects of loxP insertion are equalized between Experiments 1 and 2. Mice were deeply anaesthetised with isoflurane, decapitated, the brain extracted and the dorsal and ventral striatum were dissected on ice. Tissue was homogenized and stored in RNA later until RNA was extracted (RNeasy, Qiagen), and cDNA was synthesized (iScript, BioRad). Relative mRNA expression of proenkephalin (Penk, Mm01212875_m1) and prodynorphin (Pdyn, Mm00457573_m1) was determined relative to the housekeeping gene β-actin (Actb, Mm01205647_g1) using TaqMan Gene Expression Assays (ThermoFisher) utilizing a CFX384 Real-Time System (initial hold at 95°C for 20 s, 40 cycles at 95°C for 1 s and 60°C for 20 s). Samples were run in triplicate, and negative controls were run in parallel. Relative expression of the genes of interest was calculated using the ΔΔCт method.

2.5 Statistical Analysis

Place conditioning data from the wild-type dataset were quantified as the percent time spent on the cocaine-paired floor and analysed using multifactorial ANOVAs with preference test as a repeated measure and chamber type and cocaine dose as between-subject factors. To determine whether time spent in the neutral zone of the three-chamber apparatus was driving place conditioning effects, separate two-way ANOVAs were performed for each cocaine dose with zone as a between-subject factor and test as a repeated measure. Sex effects were evaluated using two-way ANOVA after collapsing place conditioning data across cocaine dose and chamber type. A simple linear regression was used to predict the effect of cocaine dose on cocaine avoidance. To better capture individual conditioning responses, we stratified subjects based on pretest variability using ±1 standard deviation from the pretest mean to define a ‘neutral’ zone at baseline (e.g., no preference). This method avoids arbitrary cutoffs (e.g., a median split) and ensures that classification as a preferer or avoider reflects a meaningful deviation from baseline and not preconditioning bias. Even so, a small number of subjects exhibited consistent pretest and post-test conditioning (Experiment 1: 3 avoiders and 4 preferers out of 103 total; Experiment 2: 3 avoiders and 2 preferers out of 34 total); however, excluding these subjects did not alter the results (data not shown); thus, analyses were performed with all subjects included. Relative proportions of the preferer, avoider and neutral groups were analysed using Chi-square analysis or Fisher's exact test when sample sizes were below five per group. The relationship between Penk and Pdyn mRNA expression with place conditioning was analysed using Pearson's correlation. Separate two-way repeated measures ANOVA were performed for the ventral and dorsal striatum to determine how preference grouping affected relative opioid peptide gene expression. To analyse differences in cocaine avoidance in the D2-PenkKO experiment and address the kurtosis observed in the dataset, a generalized linear model with an inverse Gaussian probability distribution was used to compare conditioning at pretest versus post-test after 2 weeks of conditioning. Significant interactions from multifactorial datasets were followed up with two-way ANOVA, simple main effects analyses and pairwise post hoc t-tests when appropriate. Post hoc analyses were corrected for multiple comparisons using Sidak's. Data were analysed using Prism (GraphPad) or SPSS (IBM), and results were considered significant at an alpha of 0.05. All data are presented are individual values, percentages of total or mean ± SEM.

3.1 Individual Differences in the Development of Cocaine CPA Are Not Predicted by Cocaine Dose or Apparatus Type

We first sought to determine the optimum parameters to establish cocaine CPA using a trace conditioning procedure. We varied the apparatus type (three-chamber or two-chamber), conditioning time (15 or 30 min) and cocaine dose (15, 20 or 25 mg/kg) between subjects (Figure 1A) and performed a three-way RMANOVA to determine how these parameters affected the development of cocaine CPA. Overall, the mean percent time spent on the cocaine-paired floor was fairly stable and did not significantly vary as a function cocaine dose or apparatus over testing (Test × Chamber × Dose: F_4,230 = 2.14, p = 0.077; Figure 1B). Although there was an interaction between chamber and test (F_2,230 = 7.1, p < 0.01), follow-up post hoc analysis shows that this was driven by a difference at the pretest, rather than differential conditioning between the chamber types per se (two-chamber vs. three-chamber at pretest: t₃₅₇ = 3.98, p < 0.001). Importantly, this pretest difference appears to be isolated to the group that later received 20-mg/kg cocaine, suggesting that this preconditioning bias is a result of sampling error rather than the two-chamber apparatus being generally biased (Figure 1B, middle). Cocaine dose also affected the percent time spent on the cocaine-paired floor (Main effect of dose: F_2,115 = 3.43, p < 0.05); however, post hoc analysis did not find significant differences between doses. To further probe this effect, we compared the linear regressions of cocaine dose versus preference score between the two chamber types at Post-Tests 1 and 2. Cocaine dose predicted the percent time spent on the cocaine floor at Post-Test 1 for the three-chamber apparatus (F_1,58 = 6.6, p < 0.05), but not the two-chamber (F_1,40 = 1.76, p = 0.19; Figure 1C). A higher cocaine dose was associated with greater avoidance of the cocaine-paired floor in the three-chamber apparatus; however, this relationship was small, and cocaine dose only accounted for 10% of the variation in preference (R² = 0.10). In contrast, cocaine dose was not predictive of the percent time spent on the cocaine-paired floor at Post-Test 2 for either apparatus type (Figure 1D). Thus, it appears that the highest cocaine dose (25 mg/kg) in the three-chamber apparatus was slightly better at initially conditioning CPA. Importantly, place avoidance was not due to increased time spent in the nonconditioned ‘neutral’ zone (i.e., the small chamber connecting the two conditioning chambers), but rather less time spent in the cocaine zone and more time spent in the saline zone (Test × Zone: F_4,66 = 5.7, p < 0.001; Table 1). Despite CPA being slightly stronger with this cocaine dose and the three-chamber apparatus at Post-Test 1, with more conditioning trials, neither cocaine dose nor apparatus type influenced the expression of CPA.

Given the minimal effect of cocaine dose and apparatus type on the development of cocaine CPA, we collapsed the data across these variables to increase our power to detect sex differences in cocaine CPA (Figure 1E). Cocaine preference did not differ between males and females at any preference test (F_1,95 = 1.34, p = 0.25), and sex did not interact with cocaine dose (F_2,190 = 1.00, p = 0.37); thus, all subsequent data analyses were performed collapsed across sex. When analysing the collapsed data, the mean percent time on the cocaine floor did not change across testing (F_2,204 = 0.49, p = 0.61); however, the variability of the preference scores progressively increased between the pretest and post-tests. This was reflected as a greater coefficient of variation at Post-Test 2 (32.5%) compared with pretest (20.8%) and can be observed through the increasingly polarizing responses in Figure 1E. To examine these individual differences, preference scores at Post-Test 2 were stratified into three categories by subtracting or adding one standard deviation (10.75, based on the pretest mean) from the Post-Test 2 mean (51.02%). This created an upper threshold for Avoidance (≤ 40.27%), a lower threshold for Preference (≥ 61.77%) and a ‘neutral zone’ (40.28%–61.76%) (Figure 1F). We next compared the relative proportion of preferers, avoiders and neutral subjects, collapsed across apparatus type, and found a significant shift between pretest and Post-Test 2 (Χ² [2, n = 103] = 51.08, p < 0.0001; Figure 1F). At Post-Test 2, most subjects were classified as neutral (45.6%), and there were slightly more avoiders (29.1%) than preferers (25.2%). Between pretest and Post-Test 2, the percentage of subjects expressing avoidance increased by threefold (from 9.7% to 29.1%). Although the percentage of preferers also increased, it only doubled between pretest and Post-Test 2 (from 12.6% to 25.2%). Additionally, the relative proportions of preferers and avoiders were not different between apparatus types, suggesting that both apparatus types were equally good at conditioning cocaine CPA (Χ² [2, n = 103] = 1.08, p = 0.58). When taken together, these data indicate that cocaine causes bivalent responses that become increasingly prevalent at higher doses.

3.2 High Striatal Proenkephalin Relative to Prodynorphin Is Associated With Cocaine Avoidance

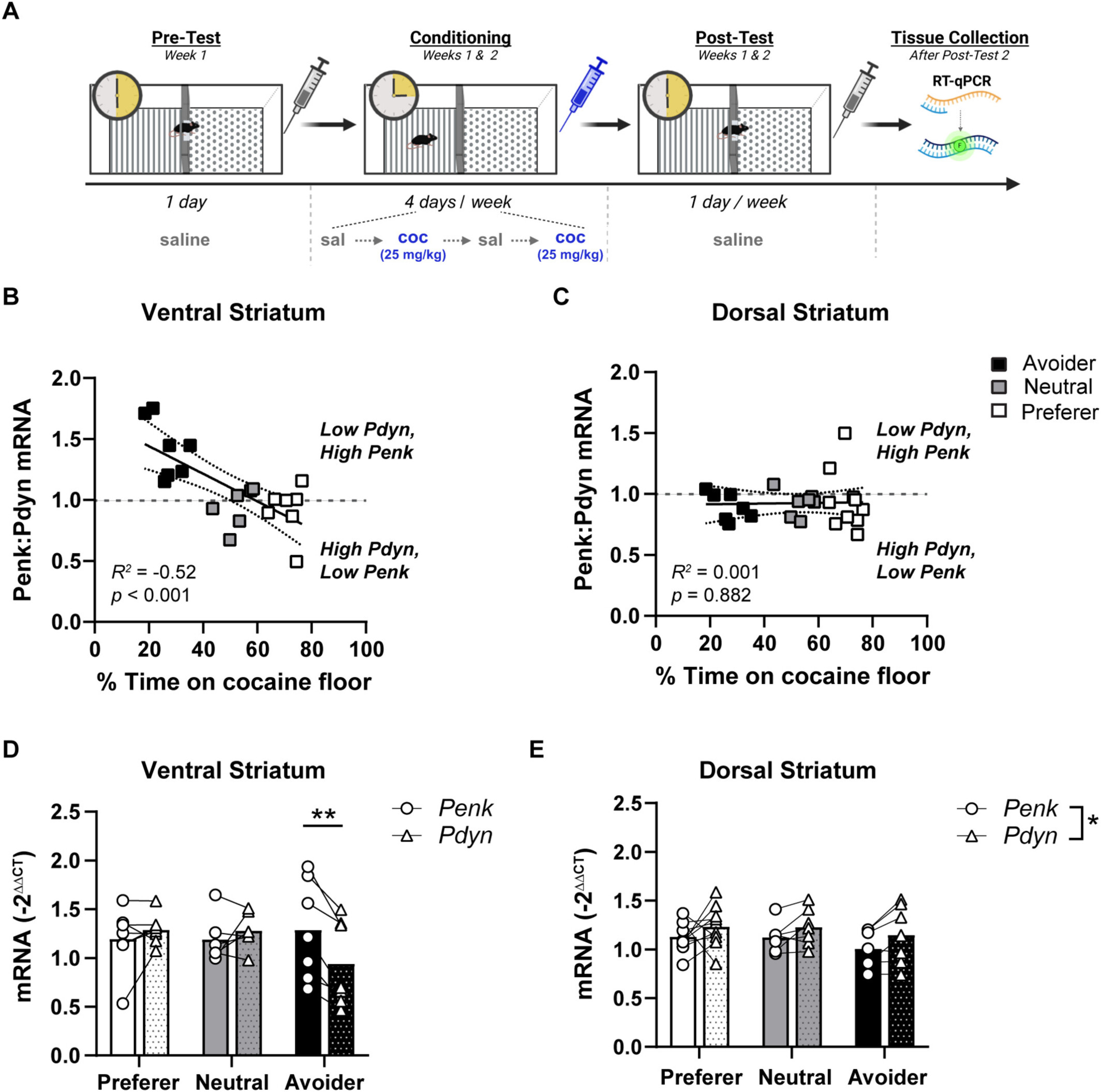

We next investigated striatal opioid peptides as an underlying neurobiological mechanism responsible for biasing the development of cocaine preference or avoidance in a trace conditioning procedure. Within the striatum, MOR signalling is linked to motivation for food and cocaine [39, 47, 48]. In particular, augmenting enkephalin within the ventral striatum facilitates the acquisition of cocaine place preference [23]. Conversely, dynorphin-mediated signalling through the KOR is aversive, though there is heterogeneity in this effect depending on the striatal subregion [35, 36]. We hypothesized that differential levels of striatal enkephalin relative to dynorphin may be a neurobiological correlate underlying the individual differences in the development of cocaine preference or avoidance following trace conditioning. To test this, we performed RT-qPCR to measure Penk and Pdyn mRNA levels within the dorsal and ventral striatum of subjects following their completion of trace conditioning (25 mg/kg; two-chamber apparatus; Figure 2A). We then compared the mRNA expression with each subject's percent time on the cocaine floor to determine if low Penk and high Pdyn were associated with cocaine CPA. Cocaine avoidance was not correlated with Penk mRNA levels in the dorsal or ventral striatum (Table 2). In contrast, Pdyn expression was positively associated with cocaine preference in the ventral, but not dorsal, striatum (R² = 0.2, p < 0.05; Table 2).

A correlation between cocaine preference and Pydn, but not Penk, suggests that a shift in the balance between these peptides may be influencing the development of cocaine preference versus avoidance. Indeed, dynorphin and enkephalin regulate the responsiveness of striatal medium spiny neurons and in this way play an important role in regulating striatal output, motor activity and motivated behaviour [30]. Thus, we correlated the Penk-to-Pdyn ratio with each subject's cocaine preference. Within the ventral striatum, a higher Penk:Pdyn ratio was negatively correlated with the percent time spent on the cocaine floor (R² = 0.52, p < 0.001; Figure 2B). In contrast, cocaine preference was not correlated with the Penk:Pdyn ratio in the dorsal striatum (Figure 2C).

The strong negative association between ventral striatum Penk:Pdyn with cocaine preference indicates that the balance of these peptides may be important for regulating cocaine avoidance. However, this analysis cannot ascertain whether this is due to higher Penk, lower Pdyn or a combination of the two. To address this, we stratified each subject's mRNA expression into preferers, avoiders and neutral groups using one standard deviation of the pretest mean (Figure 1E). Within the ventral striatum, the relationship between Penk and Pdyn mRNA expression depended on the preference group (Gene × Group: F_2,17 = 9.7, p < 0.01; Figure 2D). Subjects categorized as avoiders had higher Penk levels relative to Pdyn (t₁₇ = 4.32, p < 0.01). In contrast, there was no difference between Penk and Pdyn for subjects that preferred cocaine or were neutral. Additionally, although mean levels of Pdyn were lower for avoiders compared with preferers or neutral subjects, this comparison did not reach statistical significance. Within the dorsal striatum, the balance between Penk and Pdyn was similar across avoiders, preferers and neutral subjects, with Pdyn being slightly elevated relative to Penk across all groups (Gene: F_1,21 = 7.03, p < 0.05; Figure 2E). This is consistent with the literature indicating that cocaine increases striatal Pdyn mRNA and peptide levels [29, 49-54], particularly in the dorsal striatum [55]. In addition, levels of the control gene, beta actin, were consistent between treatment groups, indicating that differences in Pdyn or Penk expression were not due to non-specific changes in gene expression (saline vs. cocaine: 20.09 ± 0.14, 19.95 ± 0.09; unpaired t-test: t₁₁₃ = 0.78, p = 0.44). Taken together, cocaine CPA is associated with lower Pdyn levels relative to Penk selectively in the ventral striatum.

3.3 Higher Relative Pdyn Within the Striatum Prevents Development of Cocaine Avoidance

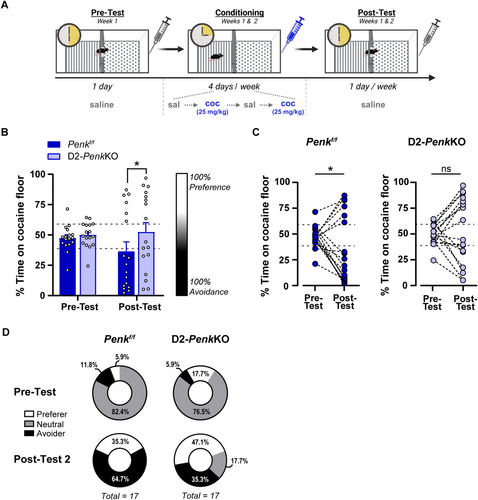

Although the qPCR results are informative, they cannot preclude whether differences in Pdyn and Penk existed prior to conditioning. Thus, we next tested whether the lower Pdyn relative to Penk levels in the ventral striatum of avoiders represented a causal, pre-existing neural signature that biases towards the development of CPA in a trace conditioning procedure. To address this, we took advantage of a cell-selective knockout mouse line in our laboratory that lacks Penk in striatal D2-MSNs (D2-PenkKO; [38]). These mice show a near complete lack of Penk in the striatum [38] and therefore have a pre-existing shift in the striatal Penk:Pdyn ratio that favours a higher Pdyn tone relative to Penk. Given our observations that (1) higher Penk relative to Pdyn is associated with cocaine avoidance and (2) higher Pdyn relative to Penk is associated with cocaine preference, we hypothesized that D2-PenkKO mice would be more resistant to developing cocaine CPA. Additionally, since wild-type mice show a wide distribution of preferers versus avoiders, we speculated that a difference between the D2-PenkKOs and littermate controls would likely be best reflected as a shift in the relative proportions of preferers, avoiders and neutral mice rather than in differences in the mean percent time on the cocaine floor per se.

The distribution of preference scores in the D2-PenkKO and littermate controls was not normally distributed and exhibited significant kurtosis for pretest and Post-Test 2. Therefore, we used a generalized linear model (Wald's Chi-square) with an inverse Gaussian distribution to approximate the distribution and analyse the change in preference between pretest and Post-Test 2. We observed that the percent time on the cocaine floor changed across testing depending on the genotype (Genotype × Test: Wald Chi-square: 5.73, df = 1, p < 0.05; Figure 3B,C), despite no difference between genotype in the pretest (Figure 3C). Post hoc follow-up analysis confirmed that by Post-Test 2, Penk^f/f controls had developed a significant cocaine avoidance (p < 0.05) compared with the pretest. In contrast, cocaine CPA was mitigated in D2-PenkKOs (p = 0.12) (Figure 3C). Moreover, the difference between genotypes was also significant at Post-Test 2 (p < 0.05), but not at pretest, suggesting that a higher Pdyn tone relative to Penk prevented the development of cocaine avoidance. We next evaluated the proportion of avoiders and preferers within each genotype by stratifying subjects based on pretest variability using ± 1 standard deviation from the pretest mean ($$$ \overline{X} $$$ = 48.7, σ = 10.2) to define a ‘neutral’ zone at baseline (e.g., no preference; 38.6%–59%). Subjects with preference above or below this strata were categorized as preferers (≥ 59%) or avoiders (≤ 38.5%), respectively. The mean conditioning score for Penk^f/f controls (36.5%), but not for D2-PenkKOs (52.4%), fell inside the region of avoidance. At pretest, the relative proportions of preferers, avoiders and neutral were not different between genotypes, and most subjects fell into the neutral range (Fisher's exact test; p = 0.69; Figure 3D, top). At Post-Test 2, both genotypes showed a significant shift in the relative proportions of these groups (Fisher's exact test; Penk^f/f: p < 0.0001; D2-PenkKO: p < 0.01). Although the proportions were not different between genotypes (Fisher's exact test; p = 0.12; Figure 3D, bottom), the low per strata sample sizes may limit the ability to detect differences. Taken together, these data suggest that the balance between striatal Penk and Pdyn may influence the development of cocaine preference or avoidance using a trace conditioning procedure.

4.1 Optimum Parameters for Cocaine CPA

In this investigation, we sought to establish the optimum parameters to condition cocaine place avoidance using a trace conditioning procedure and to investigate the striatal opioid milieu as a neurobiological correlate of cocaine CPA. Previous research has shown CPA develops following trace conditioning to ethanol, amphetamines and nicotine. However, despite self-report and preclinical data indicating that cocaine has aversive qualities associated with intoxication, CPA to cocaine using trace conditioning has not been established. Moreover, CPA for cocaine has traditionally proven more difficult in mouse models, as compared with work in rats [6]. We tested different cocaine doses, conditioning session times and apparatus types, which are variables previously shown to influence the development of drug conditioning. We observed a large variability in cocaine conditioning, with roughly equal proportions of subjects developing preference and avoidance. Quite to our surprise, the propensity to condition avoidance was not reliably predicted by any of the parameters we manipulated, nor was backwards conditioning more effective (unpublished observations). Additionally, sex was not a factor in determining the likelihood of conditioning cocaine place avoidance. Although conditioning time varied between the two-chamber and three-chamber apparatuses, there was no difference between these experimental results, which speaks to the robust nature and generalizability of these findings.

The small effect of cocaine dose on cocaine CPA was specific to the three-chamber apparatus and did not persist past 1 week of conditioning. It is possible a higher dose (i.e., > 25 mg/kg) may be more acutely aversive and therefore condition a larger, more enduring CPA. Using a simultaneous conditioning procedure, most doses of methamphetamine resulted in CPA, whereas only very low doses produced conditioned preferences [56]. To our knowledge, though, there are no reports showing an inverted-U dose–response for cocaine preference with simultaneous conditioning. Thus, it is unclear whether the balance between reward and aversion shifts towards more aversion with increasing cocaine dose, or perhaps whether the aversive qualities of cocaine require a longer history of drug use. It should be noted, however, that acutely aversive drug doses do not appear to be necessary because previous experiments use rewarding drug doses to induce CPA in trace conditioning [25-27].

Mean CPA was slightly larger when subjects were conditioned using a 30-min session time within the three-chamber apparatus. In simultaneous conditioning procedures, conditioning session time does not affect cocaine place preference [41]. It is conceivable that longer conditioning times may lead to a stronger memory of the CS when the drug is administered and thus a better CPA; however, the small effect in the current dataset suggests that this is not the case. Consistent with this, ethanol CPA develops with only a 5-min conditioning length [25]. One advantage of the three-chamber apparatus is the distinct presentation of conditioned cues. However, data from three-chamber conditioning apparatuses, although commonly used, can also be difficult to interpret if the time spent in the unconditioned ‘neutral’ chamber changes significantly after conditioning. Subjects may spend more time in the unconditioned chamber because of its relative novelty, and drugs that block the habituation to novelty may enhance this effect [57]. In the current experiment, time spent in unconditioned chamber did not significantly change after conditioning, indicating that the preference and avoidance observed were not the result of shifts in novelty perception of the unconditioned chamber. Taken together, the trace conditioning procedure yields fairly equal cocaine conditioning between the two-chamber and three-chamber apparatuses, indicating neither is preferential for generating cocaine CPA.

4.2 Interpretations of Cocaine CPA in Trace Conditioning

Several potential interpretations have been posited to explain the development of drug CPA using trace conditioning, including interfering with habituation of neophobia [26], the drug-paired context becoming a conditioned inhibitor potentially by conditioning a ‘drug wanting’ state [58] or by conditioning an initial, transient aversive drug effect [25]. If the drug interferes with habituation of neophobia associated with the conditioning chamber, CPA may represent contextual neophobia rather than an aversive aspect of the drug per se. However, this interpretation does not explain why subjects express place preference when the same drug is administered in a simultaneous conditioning procedure. Thus, although we cannot rule this out for other drugs with dissociative properties, this appears to be an unsatisfactory explanation for cocaine CPA in the current study.

In the case of the drug-paired context becoming a Pavlovian conditioned inhibitor, the conditioning chamber is thought to elicit avoidance because it predicts the absence of the rewarding drug sensation and a ‘drug wanting’ state [59, 60]. However, morphine and diazepam fail to condition a place avoidance (or preference) in a trace conditioning procedure [61-64]. This does not appear due to subthreshold dosing because the same doses elicited place preference using a simultaneous conditioning procedure [61, 64]. Additionally, if the delay of drug reward was indeed driving the CPA, one would expect the CPA to maintain, and perhaps intensify, with increasing delay between the CS and US. When increasing delays were introduced in ethanol trace conditioning experiments, though, CPA was abolished [25]. In contrast, studies using a conditioned taste aversion procedure report robust aversion with a 30-min delay between the CS and cocaine self-administration [60]. However, despite similar CS–US temporal dynamics between trace conditioning and conditioned taste aversion experiments, the conditioned responses to contextual versus gustatory stimuli can be different. For instance, morphine administration following consumption of a novel tastant within a conditioning chamber results in taste, but not place, avoidance [61]. Notably, stronger relationships between the qualities of specific cues and the subsequent reinforcers have long been shown to support stronger conditioning [65]. Thus, it is possible that the ability of a stimulus to support Pavlovian associations with motivational drug effects depends on the stimulus modalities and specific physiologic drug response. However, coupling these conditioning discrepancies with evidence that CPA degrades with increasing delays makes the conditioned inhibitor explanation of CPA less likely. Moreover, conditioned inhibition does not reasonably explain why in the current study approximately equal proportions of subjects developed preference and avoidance.

The development of CPA in trace conditioning may also result from subjects experiencing a transient aversive state following cocaine injection, which becomes paired with the preceding context. The onset of a longer-lasting rewarding affective state is thought to occur afterwards and is more likely paired with the home cage environment. This transient aversion may stem from various sources such as the transition from sobriety to intoxication, peritoneal irritation or an aversive state associated with cocaine intoxication. We suspect aversion due to state transition or peritoneal irritation is unlikely. Only a subset of subjects developed CPA in the current study and not all intoxicating drugs condition avoidance. Further, there is not convincing evidence for peritoneal irritation at the cocaine doses used in the current study and, if present, this would occur equally for the saline-paired chamber. Evidence from human cocaine users [8-10] and rodent models [11-13] indicate that cocaine elicits an anxiogenic state immediately after administration in a subset of subjects, supporting the hypothesis that CPA in the current study resulted from an acutely aversive state associated with cocaine intoxication. How long this aversive state lasts is not known, but it is likely a combination of pharmacokinetic and pharmacodynamic effects. Further, although only a subset of subjects conditioned avoidance, it recapitulates, to an astonishing degree, the rate of human cocaine users who report experiencing a negative affective state associated with cocaine use (29.1% in our mouse population vs. 24% in humans) [10]. Thus, the culmination of evidence suggests that cocaine CPA likely results from a Pavlovian association between a transient, cocaine-induced negative affective state and the preceding context.

4.3 Striatal Opioids as a Mechanism Influencing the Development of Cocaine Avoidance

Dynorphin-mediated KOR signalling within the ventral striatum is associated with cocaine withdrawal [66] and pain-induced negative affect [67], and withdrawal from chronic cocaine increases dynorphin levels within the striatum [30]. This heightened dynorphin tone is thought to act as a negative reinforcer, because KOR activation incites stress-induced reinstatement of cocaine seeking [33, 65] and blockade of KORs attenuates it [32, 68]. Based on this literature, we hypothesized that cocaine CPA would be associated with high striatal dynorphin. Conversely, subjects expressing cocaine CPA had lower levels of striatal Pdyn compared with preferer and neutral subjects, and this effect was isolated to the ventral striatum. Together, these data suggest that striatal dynorphin signalling may have opposing roles in mediating aversion associated with acute intoxication versus cocaine withdrawal. Considering that KOR-mediated signalling facilitates cocaine relapse after withdrawal [69], the association between low striatal Pdyn levels and cocaine CPA in the current data support the interpretation that avoidance is due to a transient cocaine aversion, rather than a ‘drug wanting’ state.

The finding that mice with higher relative striatal dynorphin to enkephalin (i.e., D2-PenkKO) have greater cocaine seeking is consistent with the literature and supports the hypothesis that high striatal dynorphin tone drives cocaine seeking. Thus, place preference may reflect the experience of an aversive ‘drug wanting’ state mediated by high striatal dynorphin. This is supported by the current data in D2-PenkKO mice since, even though Pdyn levels were not directly measured in the current study, our prior findings indicate they have higher Pdyn:Penk mRNA levels compared with littermate controls [38]. Consistent with this, the non-selective opioid antagonist naloxone blocks expression of cocaine preference in female D2-PenkKO mice and littermate controls [38]. Whether this effect was mediated by dynorphin or another opioid peptide, though, is unclear. This is an important consideration because enkephalin tone and MOR-mediated signalling within the ventral striatum also facilitate the acquisition and expression of cocaine place preference [23]. Another potential interpretation is that D2-PenkKO mice have a generally potentiated cocaine reward, though our previous work indicates that D2-PenkKO mice acquire cocaine place preference normally in a simultaneous conditioning procedure [38]. Dynorphin-mediated ‘drug wanting’ may be a less probable explanation for cocaine preference in the wild-type mice from the current study because Pdyn levels for preferers were similar to that of neutral and avoiders. Thus, KOR-mediated signalling was likely not driving cocaine seeking in these subjects. It is possible that place preference is a result of unmasking cocaine reward due to a blunted transient aversion. This is also unlikely, though, since rewarding doses of opiates and benzodiazepines do not condition avoidance or preference in a trace conditioning procedure [61, 63, 64] but do result in preference in simultaneous conditioning [61]. Taken together, these data suggest that although enkephalin and dynorphin both drive cocaine seeking, they do so through opposing motivational mechanisms. Moreover, our data suggest that pre-existing heightened striatal dynorphin relative to enkephalin, as in the D2-PenkKO mice, is a causal mechanism rendering subjects more sensitive to the transient aversion associated with cocaine intoxication.

4.4 Limitations to the Current Study

The selectivity of the association between dynorphin and cocaine CPA for the ventral striatum is consistent with previous reports indicating that dynorphin signalling specifically within the ventral striatum is associated with cocaine withdrawal. However, work by Al-Hasani and colleagues [35] indicates even further subregion specificity related to dynorphin-mediated CPA, with KOR signalling within the ventral, but not dorsal, nucleus accumbens shell conditioning place avoidance. Although it is unclear if this subregion distinction is conserved regarding dynorphin's role in cocaine conditioning, the brain dissections and qPCR used in the current study cannot distinguish between these subregions and thus is a limitation of this approach. Additionally, the use of Penk and Pdyn mRNA expression analysis to probe differences in the endogenous opioid milieu, although highly quantitative, may not completely correlate with enkephalin and dynorphin peptide levels. The use of semi-quantitative approaches to measure peptide levels, such as immunofluorescence, or real-time detection of peptide release using sensors may complement this approach in future studies. Lastly, it remains unclear whether the qPCR results represent pre-existing differences that lead to CPA, or whether the differences in Penk and Pdyn mRNA expression developed alongside cocaine conditioning. Although we unfortunately cannot sample the brain prior to conditioning, the culmination of our results suggests that both interpretations may be possible. The gradual development of CPA and preference may indicate that a shift in dynorphin tone occurs because of cocaine exposure. This is consistent with time course studies showing striatal Pdyn levels increase in order to restrain cocaine-induced activation of D1-MSNs [30]. However, our finding that D2-PenkKOs are resistant to developing cocaine CPA may also indicate that a pre-existing shift in the balance between striatal dynorphin and enkephalin can predispose development of cocaine CPA. Future experiments capable of directly assessing striatal dynorphin tone in real time or using calcium imaging to track the activity of D1- and D2-MSNs will undoubtedly be beneficial in addressing questions such as these.

Our findings suggest that enkephalin and dynorphin within the striatum are important for the expression of conditioned rewarding and aversive aspects of cocaine. It is tempting to speculate that levels of dynorphin itself might be most essential to the expression of place preference or avoidance because avoiders showed lower Pdyn levels compared with neutral and preferer mice, with no differences in Penk levels. However, because shifts in Pdyn fundamentally alter the balance with Penk, these data cannot distinguish whether absolute peptide level or balance between the peptides is responsible for the effect. Similarly, genetically deleting Penk from striatal MSNs also inherently shifts the balance to favour dynorphin signalling within the striatum. Future experiments using intracranial administration of short-acting KOR antagonists during preference testing will help disentangle how acute changes in dynorphin-mediated signalling affect expression of CPA without inducing long-term alterations in the enkephalin-dynorphin balance.

When testing different parameters to establish cocaine CPA in Experiment 1, we observed a slightly larger CPA with the 30-min conditioning session. However, since this conditioning time was only tested in the three-chamber apparatus, we cannot differentiate whether the timing or apparatus type was the main driver for this effect. For Experiment 2, we used the highest cocaine dose to establish cocaine CPA. Interestingly, a larger proportion of control mice developed CPA in Experiment 2 than in the initial experiment, which may in part have driven the genotype difference. Considering the smaller sample size in Experiment 2, we cannot rule out the possibility that sampling error contributed to the more robust CPA in controls. Although it is tempting to compare the D2-PenkKO mice to control mice from Experiment 1, the most appropriate comparison is the littermate controls run in parallel. Additionally, it is not clear whether this genotype difference would persist across other cocaine doses.
