2.1 Chemical structure of FSOCA, SOCA, and TPCA

FSOCA was prepared through the sulfonation reaction of [p-terphenyl]−4,4″-dicarboxylic acid (TPCA), which exhibits insolubility in most common organic solvents and water but shows slight solubility in dimethyl sulfoxide (DMSO) and N-methylpyrrolidone (NMP). A control sample (5,5-dioxo-5H-dibenzo[b,d]thiophene-3,7-dicarboxylic acid [SOCA]) with one sulfone group was purchased commercially. Their structures were analyzed by nuclear magnetic resonance spectroscopy and/or single-crystal X-ray crystallography (SCXRD). The proton nuclear magnetic resonance (¹H NMR)  spectrum of FSOCA (Figure S1) showed three peaks at 8.94 ppm (2H, s), 8.31 ppm (2H, d), and 8.21‒8.23 ppm (4H, t), which correspond to the four different types of protons in FSOCA. The ¹³C NMR spectrum of FSOCA (Figure S2) exhibited nine peaks within the range of 118‒167 ppm. The peak observed at 167 ppm corresponds to the carbon of the carbonyl group, while the peaks falling within the range of 118‒143 ppm can be attributed to the aromatic carbon. ¹H NMR spectrum of TPCA (Figure S3) showed two peaks at 8.03 ppm (4H, d) and 7.88 ppm (8H, d). ¹H NMR spectrum of SOCA (Figure S4) showed three peaks at 8.53 ppm (2H, d), 8.50 ppm (2H, s), and 8.46 ppm (2H, d). Large crystals of FSOCA- and SOCA-containing solvent were obtained and characterized by SCXRD, while TPCA had yet to obtain the crystals. The structure of FSOCA∙NMP was refined (CCDC no. 2287846, Figure S5), providing clear evidence of the chemical structure of FSOCA. Additionally, the chemical structure of SOCA was definitively confirmed through the refinement of SOCA∙DMF (CCDC no. 2251963, Figure S6). Fourier transform infrared (FTIR) spectrum (Figures S7‒S9) showed strong peak of carbonyl group (‒C═O) at about 1700 cm^‒1. X-ray photoelectron spectroscopy analysis revealed the presence of C, O, and S elements in FSOCA. The peaks at 169.2 and 168.0 eV in S2p spectrum were assigned to S in ‒SO₂ groups. The peak at 288.9 eV in C1s spectra can be assigned to carbonyl group, and 284.9 eV is assigned to aromatic carbon. The peaks at 532.6 and 531.9 eV in O1s spectra can be assigned to oxygen atoms in ‒COOH and ‒SO₂ groups, respectively (Figure S10). Thermogravimetric analysis showed good thermal stability (>300°C) of FSOCA, SOCA, and TPCA (Figure S11). The nitrogen adsorption‒desorption curve (Figure S12a) revealed the presence of both micropore and macropore in FSOCA. Micropores are likely a result of specific crystal defects, while macropores may formed due to particle aggregation. Additionally, the calculated Brunauer-Emmett-Teller (BET) surface of FSOCA is about 82 m² g⁻¹. Pore size distributions were calculated using the Barret-Joyner-Halenda (BJH) method (Figure S12b), revealing microporous structures located at approximately 2 nm.

2.2 Crystal structures of FSOCA and SOCA without solvent

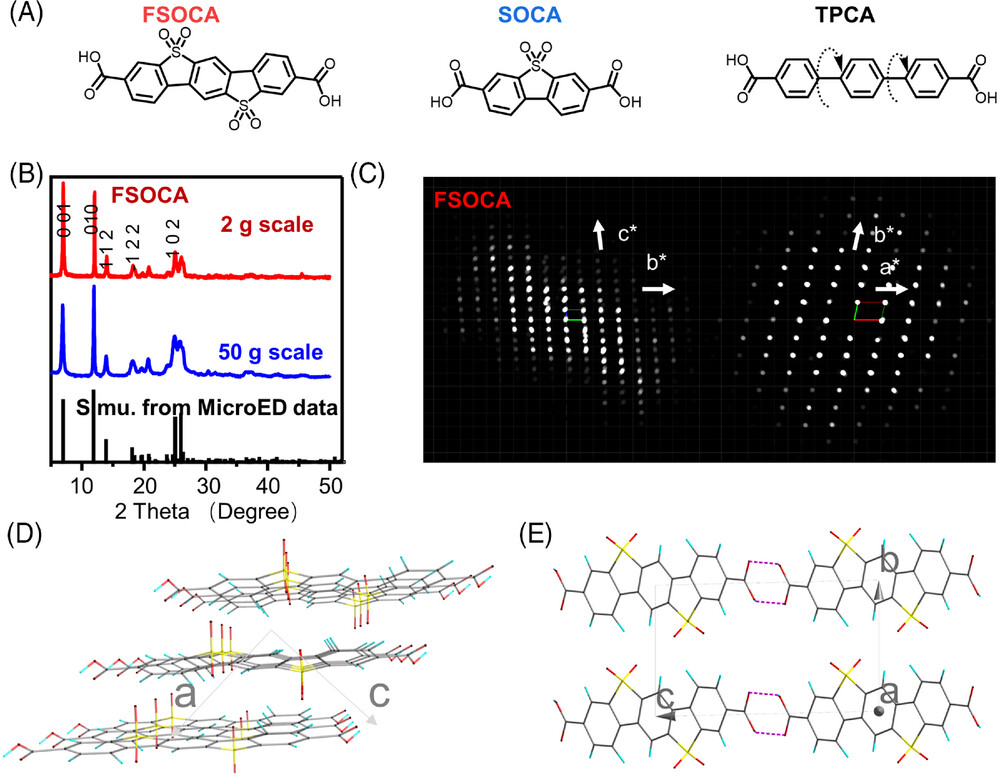

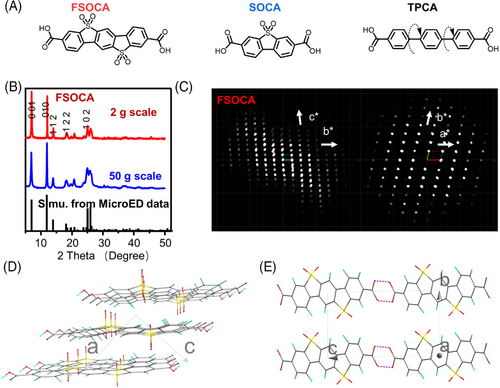

After elucidating their chemical structures, we further analyzed the crystal structures of FSOCA and SOCA in their solvent-free states. First, powder X-ray diffraction (PXRD) revealed that both FSOCA (Figure 1(B)) and SOCA (Figure S14) exhibited exceptionally high crystallinity. As shown in Figure 1(B), the peaks near 6.97°, 12.06°, 14.01°, 18.06°, and 25.04° were assigned to (001), (010), (112), ($$\bar{1}$$22), and (102) crystallographic planes, respectively. FSOCA maintains high degree of order after various solvent treatments, indicating good stability of the crystal. The slight reduction in the grain size of FSOCA may be attributed to solvent-induced crystal exfoliation (Figure S13). However, TPCA exhibits a low degree of ordered structure (Figure S15), and only three peaks in PXRD curves show that they are likely originating from self-assembled structures. The crystalline structure was further analyzed using microcrystal electron diffraction (MicroED). From the reconstructed 3D lattice in reciprocal space, the lattice constants of FSOCA (Figure 1(C‒E)) were determined as follows: a = 5.06 Å, b = 7.63 Å, c = 12.97 Å, α = 89.07°, β = 100.93°, and γ = 101.94°, with a volume of V = 480.9 ų, which was identified to $$\text{P}\bar{1}$$ (no. 2) space group. Within a unit cell, FSOCA molecules are interconnected via hydrogen bonding (Figures 1(D,E) and S16), the hydrogen bond length is 2.64 Å. The lattice constants of SOCA were determined as follows: a = 19.27 Å, b = 14.31 Å, c = 5.03 Å, α = 90.00°, β = 92.48°, and γ = 90.00°, with volume of V = 1385.7 ų (Figure S17), corresponding to space group P21 (no. 4). Within a unit cell, nine SOCA molecules were linked via hydrogen bonding between two carboxyl groups (Figures S18 and S19).

FSOCAs tend to adopt a rod-shaped, layered structure (Figures S20 and S21). Similarly, an SOCA exhibits a nanorod-type structure (Figure S22). In contrast, TPCA presents as irregular nanosheets (Figure S23). Interestingly, FSOCA's morphology appears to be influenced by the solvent used (Figures S24–S26), possibly due to the exfoliation in organic solvents. This phenomenon was also observed through atomic force microscopy analysis (Figure S27). In acetone, FSOCA displayed a nanosheet-like morphology with a thickness of around 4 nm, whereas in water, it adopted a nanorod structure with a size of about 100 nm.

2.3 Characterization of physicochemical properties

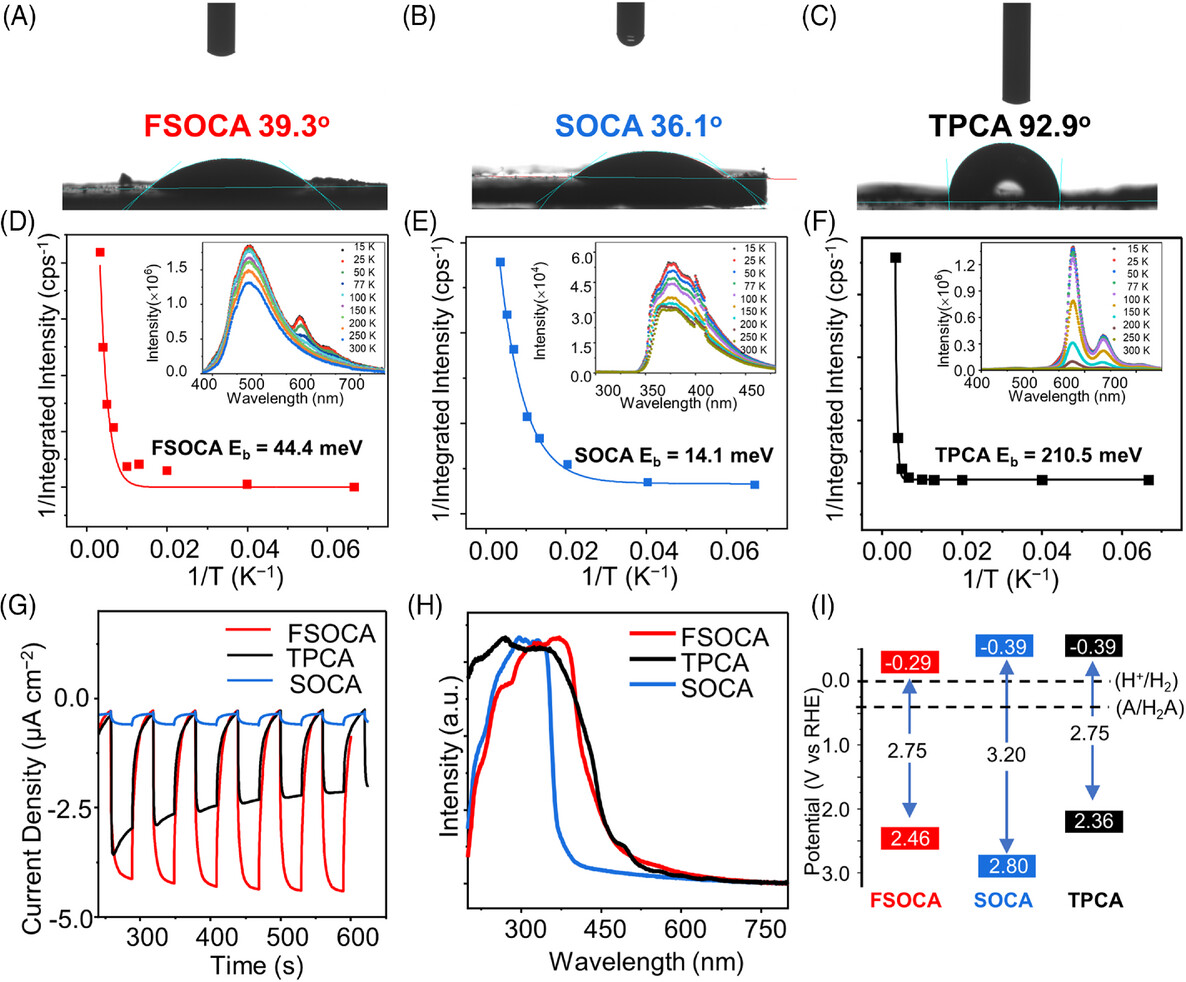

Water contact angle measurements (Figure 2(A‒C)) revealed water contact angles of approximately 36°‒39° for FSOCA and SOCA, and 92° for TPCA, indicating the hydrophilic nature of FSOCA and SOCA and the hydrophobic behavior for TPCA. Dynamic light scattering (Figure S28) revealed a relatively narrow size distribution of FSOCA and SOCA in water, whereas TPCA exhibited a broader size distribution. These findings confirmed that both SOCA and FSOCA exhibit significantly better hydrophilicity and dispersibility in water compared to TPCA.

A low exciton binding energy implies that photo-generated excitons are more easily separated, making it an important parameter for characterizing exciton separation in materials. We employed temperature-dependent photoluminescence to assess the exciton binding energy of these molecules (Figure 2(D‒F)). By fitting the data using the Arrhenius equation, I(T) = I₀/[1 + A exp(‒E_b/k_B × T)], the calculated E_b for FSOCA, SOCA, and TPCA were 44, 14, and 210 meV, respectively. This means that FSOCA and SOCA exhibit weaker electron‒hole pair interactions compared to TPCA, facilitating easier separation of excitons into carriers.⁵

Subsequently, spectroscopic analysis was conducted to investigate the photoelectric properties. Ultraviolet (UV)‒vis reflectance spectra revealed absorption onsets at around 370 nm (SOCA), 450 nm (FSOCA), and 460 nm (TPCA) (Figure 2(H)). This indicates that compared to SOCA, FSOCA, and TPCA possess broader visible light absorption capabilities.⁴³ The charge transfer ability of these molecules was analyzed through electrochemical impedance spectroscopy. SOCA exhibited the highest conductivity, followed by FSOCA, with TPCA showing the lowest conductivity (Figure S29). Typically, improved conductivity promotes the efficient transport of photogenerated excitons, thereby enhancing overall performance. However, under the utilized light source (>320 nm), SOCA displays a significantly narrower absorption spectrum, limited to wavelengths below 370 nm, whereas FSOCA has a broader absorption range extending to 450 nm. Consequently, this leads to a lower density of carriers generated for the SOCA than for the FSOCA, which is supported by the notably lower photocurrent density (Figure 2(G)).

The fluorescence spectra of FSOCA, SOCA, and TPCA exhibited maximum emission wavelengths of 478, 380, and 572 nm, and the average lifetimes were determined as 2.08, 0.56, and 6.68 ns, respectively (Figure S30).¹¹ We further tested the photoluminescence quantum yield to evaluate the separation and transport behavior of photo-generated charge carriers (Figures S31 and S32). The photoluminescence quantum efficiencies (φ_f) for FSOCA and TPCA are 6.0% and 44.5%, respectively. Considering that the photoluminescence quantum efficiency is the result of competition between fluorescence or phosphorescence radiation and other kinds of radiative or non-radiative transitions. A lower photoluminescence quantum efficiency (φ_f) of FSOCA may indicate faster electron transfer processes, while the photogenerated excitons of TPCA are more easily to recombine. The energy level structures of three molecules were analyzed using a combination of UV‒vis reflectance spectroscopy and Mott‒Schottky analysis (Figures S33 and 2(I)). Their energy level structures meet the energy requirements for HER and H₂O oxidation reactions.

2.4 Photocatalytic experiments

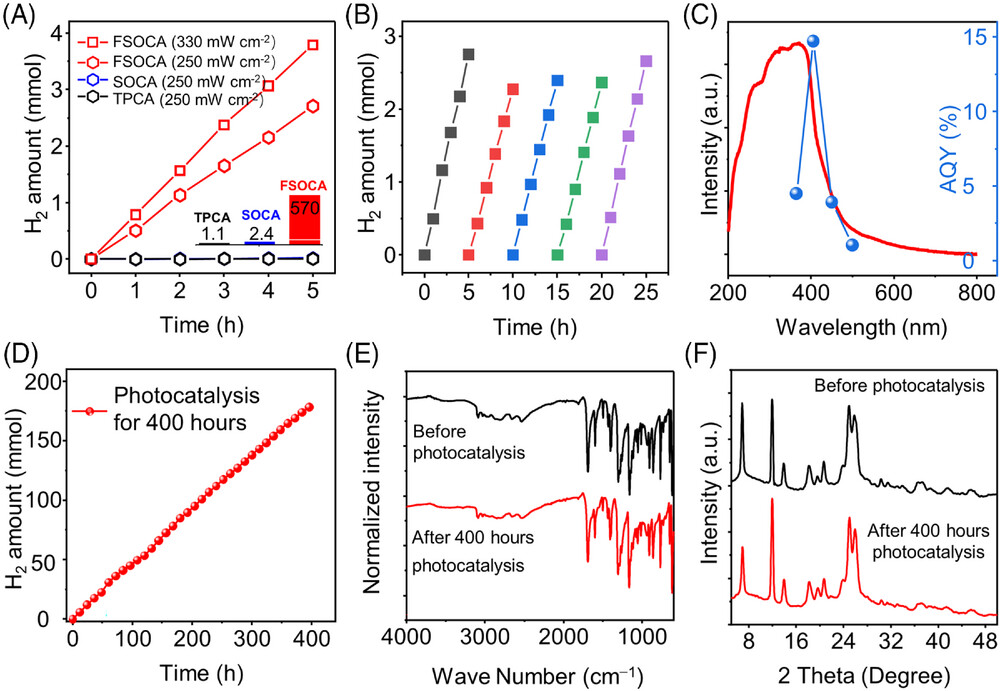

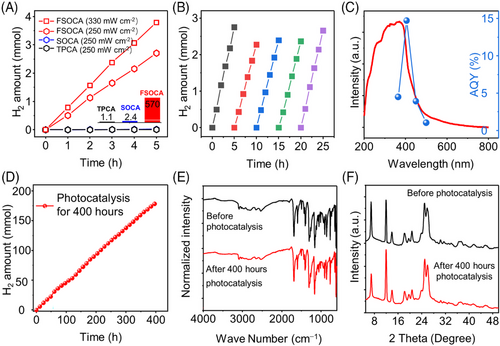

Photocatalytic hydrogen evolution activity was evaluated on Labsolar-6A system (Beijing Perfectlight) using ascorbic acid (AA) as the sacrificial agent and platinum (Pt) as the co-catalyst. Under UV‒vis light irradiation (λ > 320 nm, 250 mW cm⁻², Figure 3(A)), the average H₂ evolution of FSOCA was 570 µmol h⁻¹ (57 mmol g⁻¹ h⁻¹) (Figure S34). And the performance of FSOCA could reach up to 760 µmol h⁻¹ (76 mmol g⁻¹ h⁻¹) at λ > 320 nm, 330 mW cm⁻². This ranks it among the top organic photocatalysts (Table S1). SOCA shows low performance (2.4 µmol h⁻¹, 240 µmol g⁻¹ h⁻¹), which could be attributed to the restricted light absorption (Figure S35). The performance of TPCA was similarly low (1.1 µmol h⁻¹, 110 µmol g⁻¹ h⁻¹). Moreover, the optimal Pt loading for FSOCA was determined to be approximately 0.43 wt% through analysis using inductively coupled plasma mass spectrometry (ICP-MS) (Figure S36 and Table S2). When using triethanolamine (TEOA) or methanol as sacrificial agents (Figure S37), the HER performance achieved is 6.0 mmol g⁻¹ h⁻¹ for TEOA and 1.54 mmol g⁻¹ h⁻¹ for methanol, both of which are significantly lower than that observed with ascorbic acid. This difference may stem from factors such as pH variations and discrepancies in redox potential. The wavelength-dependent apparent quantum yield (AQY) trend follows that of photoluminescence excitation spectroscopy, indicating wavelength-dependent hydrogen production (Figure S38). The AQY at 405 nm (±10 nm) is 14.7% (Figure 3(C) and Table S3).

FSOCA maintained its HER activity over five cycles (Figure 3(B)) and sustaining continuous hydrogen production for 24 h (Figure S39) without a notable decrease in activity, highlighting its excellent stability. FSOCA demonstrated continuous hydrogen evolution in extended photocatalytic experiments lasting 400 h (Figure 3(D)). FTIR and PXRD analyses were conducted to assess the chemical and crystalline structures of FSOCA after 400 h (Figure 3(E,F)). The FTIR spectra and PXRD patterns of FSOCA indicating the preservation of its structure. Furthermore, the morphology of FSOCA remained largely unchanged after the photocatalytic experiment (Figure S40). Transmission electron microscopy images revealed the presence of numerous Pt nanoparticles (ranging in size from 2.0 to 5.0 nm) on the surface of FSOCA following the photocatalysis experiments (Figure S41).

2.5 Transient spectroscopy

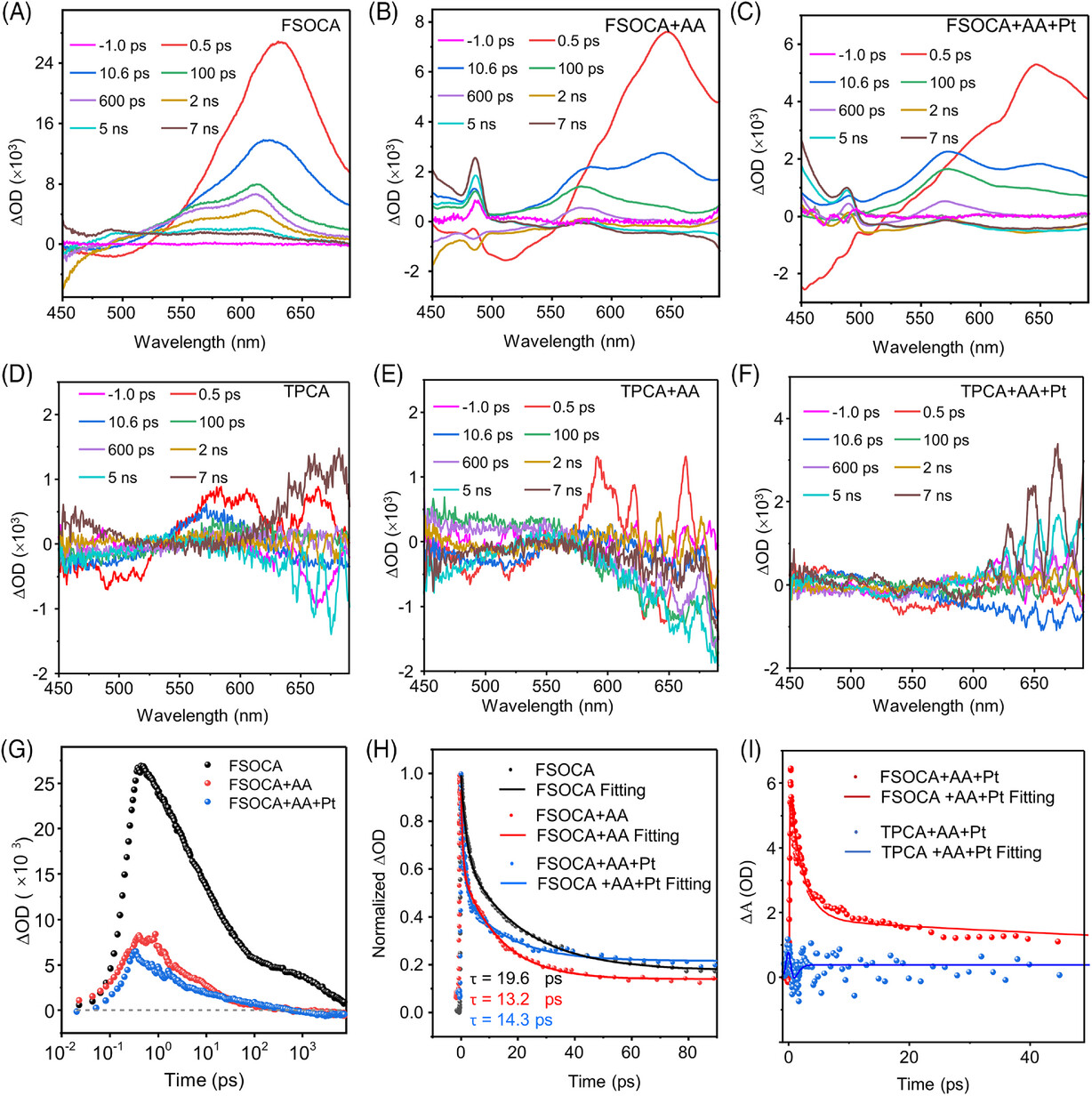

Ultrafast transient absorption spectroscopy was employed to investigate the charge separation behavior. The negative signal ranging from 450 to 520 nm was attributed to the ground state bleach (GSB). In addition, positive signal from 540 to 700 nm was attributed to trapped carriers because its formation corresponded to the decay of the GSB signal (Figures 4(A) and S42).^{42, 44, 45} The trapped carriers were specifically identified as trapped holes based on their rapid decay with the introduce of the hole scavenger AA and AA + Pt (Figure 4(B,C,G)). In contrast, TPCA (Figure 4(D‒F)) displayed minimal signal intensity between 450 and 700 nm following excitation at 360 nm, implying inefficient electron separation in aqueous systems.

The lifetimes of charge carriers were investigated through TA kinetics analysis of FSOCA and TPCA. In the case of FSOCA, both FSOCA + AA (13.2 ps) and FSOCA + AA + Pt (14.3 ps) exhibited shorter lifetimes compared to FSOCA alone (19.6 ps), indicating that the trapped holes were effectively quenched by AA (Figure 4(H) and Table S4). Conversely, both TPCA (1.1 ps) and TPCA + AA + Pt (0.46 ps) displayed shorter excited-state lifetimes than FSOCA + AA + Pt (14.3 ps) (Figures 4(I) and S43 and Table S4). This suggests that the introduction of sulfone groups in FSOCA results in a longer excited-state lifetime. Moreover, AA can rapidly capture the holes of FSOCA within several picoseconds, reducing the electron‒hole recombination and enhancing FSOCA's activity for HER.

2.6 The interaction between FSOCA and AA

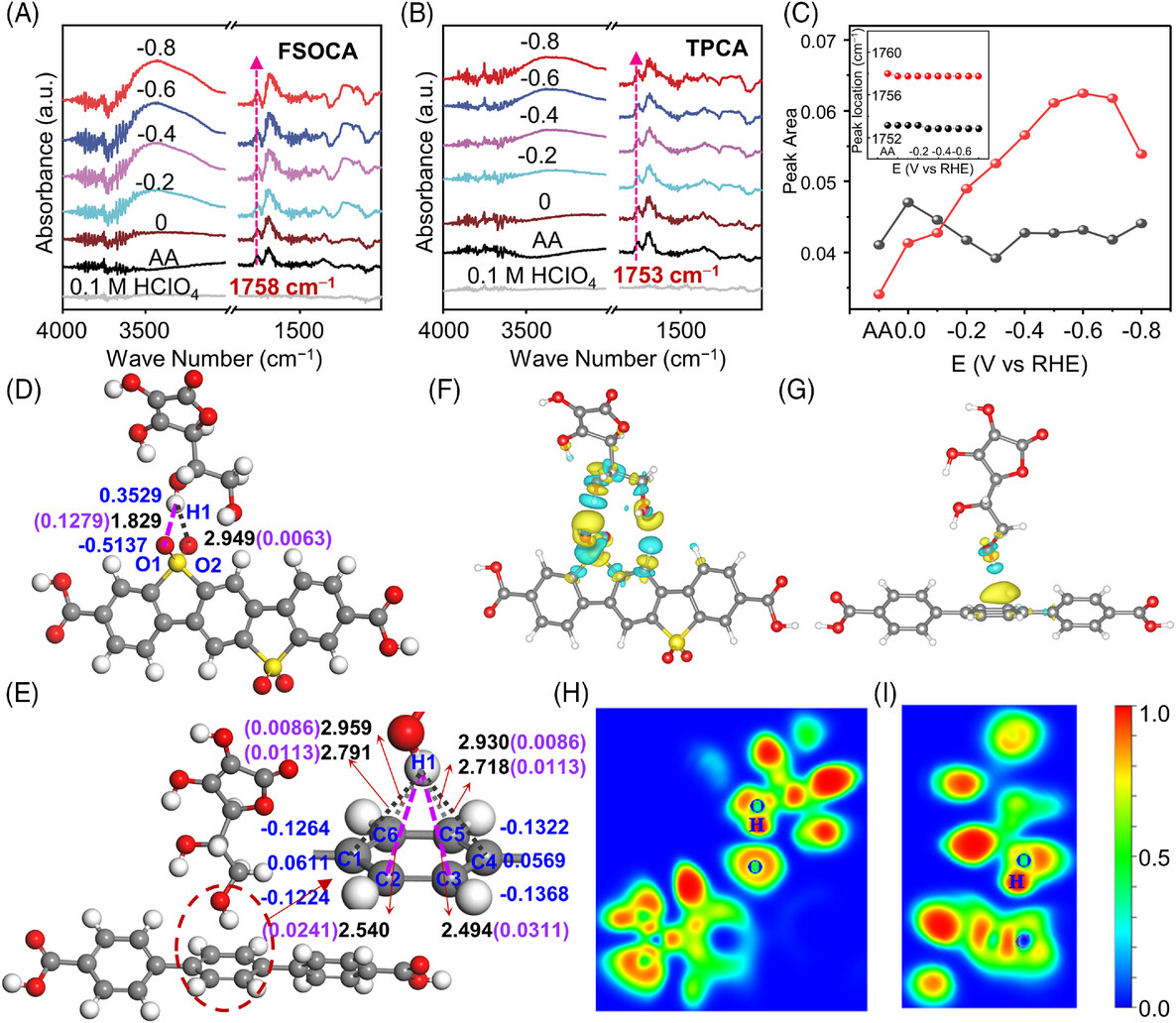

To gain deeper insights into the impact of sulfone groups on the interaction and charge transfer processes between FSOCA and AA, we utilized in situ attenuated total reflection surface-enhanced infrared absorption spectroscopy (ATR-SEIRAS) to monitor the adsorbed species near the electrochemical interface. Before conducting the tests, background correction was performed using FSOCA and support as the electrochemical interfaces to mitigate interference from their signals. In the resulting spectra (Figure 5(A)), the positive peak observed at 1758 cm^‒1 is attributed to the C═O stretching mode in the ester group of AA. Conversely, when TPCA was used as the electrochemical interface (Figure 5(B)), the C═O stretching mode in the ester group of AA was observed at 1753 cm^‒1. Additionally, the position of the C═O stretching mode remained unchanged with variations in applied potential for both FSOCA and TPCA (Figure 5(C), inset). However, when the potential decrease, the intensity increased for FSOCA at 1758 cm^‒1, indicating specific adsorption of AA on FSOCA, and the intensity of the C═O stretching mode remained relatively constant with decreasing potential for TPCA (Figure 5(C)).⁴⁶ This suggests that AA is much more easily adsorbed on FSOCA than TPCA.

Theoretical calculations were employed to quantify the interaction strength between AA and the organic photocatalysts (FSOCA and TPCA). According to computational analysis, the bond lengths of O1‒H1 and O2‒H1 were determined to be 1.829 and 2.949 Å, respectively, for AA adsorbed on FSOCA. This suggests a preference for AA to adsorb near the O atom rather than between two O atoms (Figure 5(D) and Table S5). This suggests the formation of hydrogen bonds between the hydroxyl groups in AA and the sulfonyl groups in FSOCA. In the case of AA adsorbed on TPCA, the shortest bond lengths were 2.494 and 2.540 Å for C3‒H1 and C2‒H1, respectively (Figure 5(E)). The adsorption energies of AA on FSOCA and TPCA were −0.40 and −0.19 eV, respectively. This indicates that the interaction between AA and FSOCA is stronger than that between AA and TPCA.

The charge density difference diagram reveals that the charge depletion regions on the H1 atom of AA‒FSOCA (Figure 5(F)) are more extensive compared to those of AA‒TPCA (Figure 5(G)). Furthermore, the blue regions between the O1 and H1 atoms of AA-FSOCA are lower than those between the C3 and H1 atoms in AA‒TPCA. Overall, the electron localization function (ELF) value is relatively small for FSOCA (Figure 5(H,I)). The density-derived electrostatic and chemical (DDEC6) method was used to analyze hydrogen bonds. Quantitative atomic population analysis indicated hydrogen bond orders of 0.1279 (Figure 5(D), O1‒H1) and 0.0241‒0.0311 (Figure 5(E), C2‒H1 and C3‒H1) at the adsorption positions in the two materials. A higher bond order at O1‒H1 corresponds to a greater desorption energy of the AA molecule. The net atomic charges of the hydrogen atom are measured at 0.3529 and 0.3293 |e|. This, along with the bond orders, provides evidence for the variance in charge density and the ELF diagram. These suggest that the hydrogen bonds exhibit a significant electrostatic character with a lesser covalent character. In conclusion, AA demonstrates greater ease of adsorption and stability on FSOCA compared to TPCA.

Taken together, various factors, including conjugated structure, crystallinity, and light absorption ability, play significant roles in influencing the efficacy of photoinduced proton reduction. The incorporation of sulfone groups enhances the delocalized range and rigidity of the molecular skeleton, resulting in lower exciton binding energy (44 meV for FSOCA compared with 210 meV for TPCA). Moreover, the rigid conjugated backbone enables FSOCA to attain higher ordered structures in contrast to TPCA. Reduction in exciton binding energy and highly crystalline structure facilitates the separation of photogenerated carriers, thereby reducing the recombination of carriers (evidenced by the excited-state lifetimes at 650 nm, which are 19.6 ps for FSOCA and 1.1 ps for TPCA). Additionally, the robust interaction between the sulfone group and sacrificial agents, such as AA, facilitates efficient electron transfer processes. In summary, the combination of a highly crystalline structure, low exciton binding energy, and strong interaction with sacrificial agents renders FSOCA a highly efficient and promising organic semiconductor-based photocatalyst for hydrogen evolution.

4.1 Materials

SOCA (98%, Aladdin), P-terphenyl (99%, Aladdin), oxalyl chloride (98%, Aladdin), carbon disulfide (CS₂, 99.9%, Aladdin), aluminum chloride (AlCl₃, 99%, Aladdin), fuming sulfuric acid (20 wt.%, Sinopharm Chemical Reagent Co., Ltd.), sodium bicarbonate (NaHCO₃, 99.7%, Aladdin), hydrochloric acid (HCl, 36 wt. %, Sinopharm Chemical Reagent Co., Ltd.), sodium sulfate (Na₂SO₄, 97%, Aladdin), and AA (99.0%, Aladdin) were used. All the chemicals were used directly as received without further purification.

4.2 Preparation of TPCA

First, 1.50 g of para-terphenyl (6.50 mmol) and 3.35 mL of oxalyl chloride were added into a 100 mL flask and 30 mL of carbon disulfide (CS₂) was added. Then, 1.475 g of aluminum chloride (11.06 mmol) was added under ice bath. After 1 h, 0.870 g of aluminum chloride (6.51 mmol) was added. The mixture was stirred at room temperature for 24 h. Then, the mixture was poured into crushed ice. The solid was filtered after evaporating the carbon disulfide. The solid was washed by dilute hydrochloric acid and diethyl ether and then dried at 50°C to obtain a pale yellow solid. ¹H NMR (600 MHz, DMSO): δ 8.03 (d, 4H), 7.85 (d, 8H).

4.3 Preparation of FSOCA

First, 0.5 g (1.57 mmol) of TPCA and 1.5 mL of fuming sulfuric acid (oleum H₂SO₄; 20% SO₃) were added in a 10 mL flask and refluxed at 120°C for 24 h. The mixture was added to 20 g of ice. A yellow precipitate was isolated via suction filtration, washed with H₂O and 1 M NaHCO₃ solution, and then isolated via suction filtration. The yellow cake was stirred in 1 M HCl for 1 h and isolated via suction filtration and drying at 50°C to get the final product. A yield of 0.60 g of FSOCA was obtained. ¹H NMR (600 MHz, DMSO): δ 8.94 (s, 2H), 8.31 (d, 2H), 8.23 (t, 4H).
