Solubility considerations in relative block crystallization and morphology of PEO-b-PCL films

2.1 Materials

PEO-b-PCL samples of varying PCL weight fraction were analyzed. A list of samples is shown in Table 1, where the naming shorthand 5k5k represents the molecular weight in g mol⁻¹ of each block, respectively. Samples were purchased from Polymer Source, Inc. and Advanced Polymer Materials, as denoted in Table 1, and used as received. Molecular characteristics were confirmed using ¹H NMR. Chloroform and THF were obtained from EMD Millipore Corporation, and toluene was purchased from Fisher Scientific International, Inc. THF was distilled to ensure dryness. KBr salt plates used for FTIR analysis were purchased from International Crystal Labs.

2.2 Differential scanning calorimetry

Differential scanning calorimetry (DSC) analysis was performed using a PerkinElmer DSC 8000 paired with an Intracooler 2. 3.0 to 5.0 mg of each sample was loaded into a standard aluminum DSC sample pan. Difference in mass between sample pan and reference pan was <0.1 mg. Samples were heated to 80°C, held for 5 minutes, and then cooled to −20°C at a rate of 10°C min⁻¹ to observe the crystallization behavior.

2.3 FTIR analysis

1% (wt/wt) solutions were created by dissolving powder polymer samples in chloroform, toluene, or THF at room temperature or with slight heating to ensure dissolution. Prepared solutions and KBr salt plates were incubated in an oven at the desired drying/crystallization temperature for 10 minutes to ensure temperature equilibration before casting. Two hundred microliters of the solution was drop cast onto the KBr salt plate. The solvent was allowed to evaporate in the oven at various temperatures (T_iso) for 1 to 10 hours. Melt films were drop cast from chloroform and put into a separate oven at 80°C for 10 minutes to melt the film and remove any solvent effects before placing into the oven at T_iso. After the drying time had concluded, the KBr salt plates were allowed to cool to room temperature and films were analyzed using a Thermo Fisher Scientific Nicolet 6700 FTIR39 in transmission mode. ATR-FTIR using a single-bounce diamond crystal was performed on THF-polymer solutions. The solution was drop cast onto the crystal, and spectra were collected during drying. All FTIR data was collected as eight scans with a data spacing of 0.964 cm⁻¹ (resolution of 16), which allowed for fast collection and well-averaged spectra.

2.4 Polarized optical microscopy

Two hundred microliters of each prepared 1% PEO-b-PCL solution was drop cast onto a glass slide and allowed to dry. A Leica DM2700P POM with a CCD camera attachment was used to analyze prepared samples. Visualization of different morphologies was enhanced by using a quarter-wave plate. A Mettler Toledo HS82 hot stage was used to prepare melt-recrystallized films.

3.1 DSC results

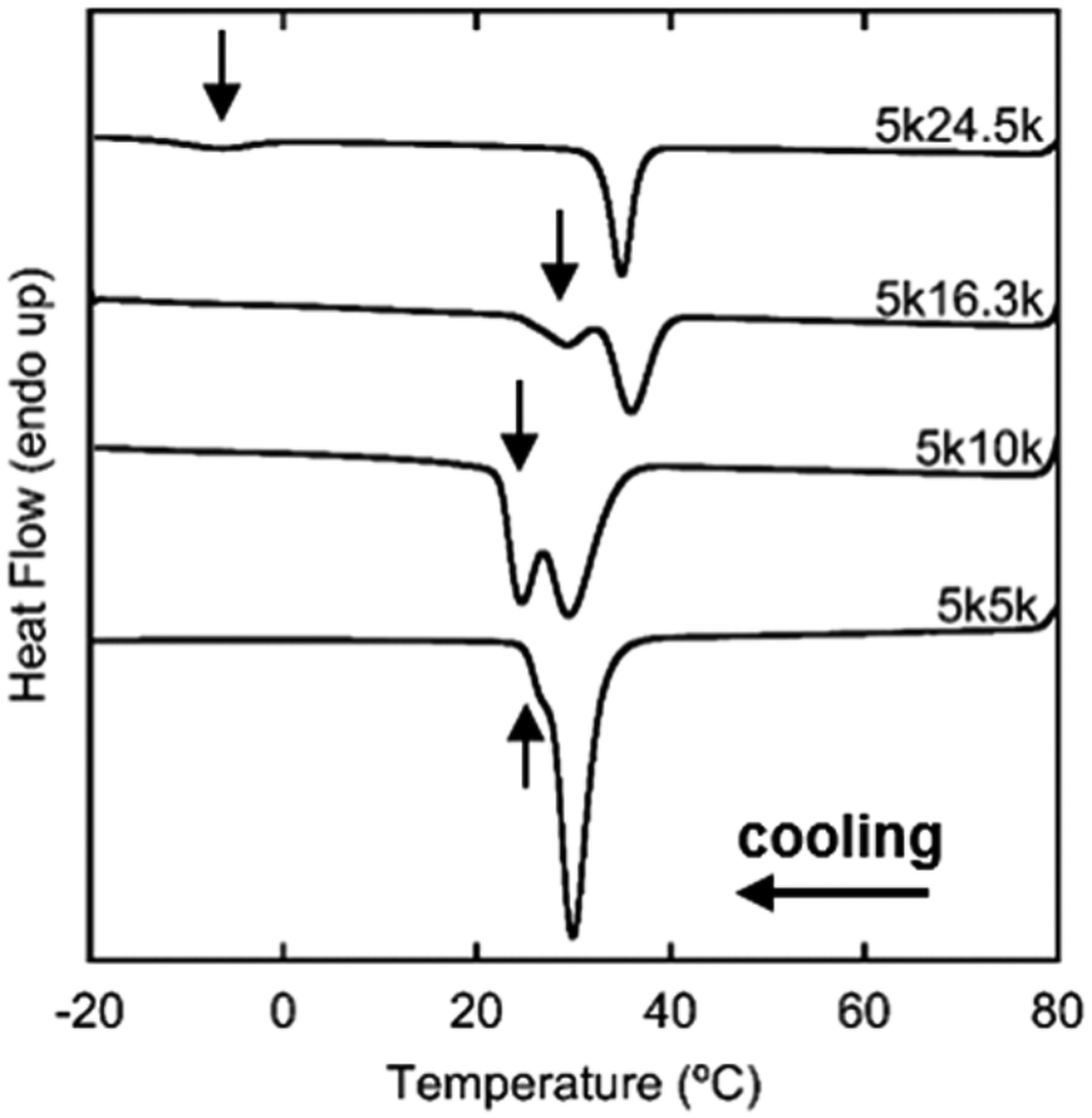

DSC cooling experiments were performed on as-received polymer powder to determine the relative onset non-isothermal crystallization temperatures (T_x). This indicated whether both blocks should crystallize at ambient conditions during film preparation. The cooling thermograms for 5k5k, 5k10k, 5k16.3k, and 5k24.5k PEO-b-PCL are shown in Figure 1. The first peak is assigned to PCL crystallization because of its larger weight fraction,17, 18, 21, 23-35 and therefore the second peak (indicated by arrows) was assigned to PEO crystallization. Onset T_xs were determined for both PCL and PEO using Pyris software. Specifically, a tangent line was drawn from the inflection point of the curve (or near in some PEO cases) to the baseline. The intersection of the tangent and baseline was considered the T_x-value. Table 2 is a summary of the T_xs of each block in each sample. 5k5k produced one peak with a small shoulder, which is a superposition of each block's crystallization peak, indicating one coincident crystallization event. The shoulder is a result of the delay in PEO's onset crystallization when compared with PCL, though the shoulder is difficult to assign as purely PEO given the complex crystallization mechanism.28 Because of this complicated mechanism, the same T_x has been assigned to PEO and PCL in Table 2.

The 5k10k, 5k16.3k, and 5k24.5k DSC thermograms in Figure 1 contain two distinct peaks indicating two separate crystallization events, or a sequential crystallization mechanism. Here, the sample had to be further cooled for the PEO block to begin crystallizing. This mechanism allowed the first crystallizing block, PCL, to have more of an influence on the macroscopic structure and relative block crystallinity because it was allowed to finish or nearly finish crystallizing before the second block could begin (dependent on cooling rate), resulting in more spatial confinement of the second block. For example, at w_PCL = 0.83, the T_x^PEO was depressed significantly to −1°C, which may indicate a fractionated crystallization as seen by Müller and coworkers.36, 38 Since these experiments were performed non-isothermally, the two peak areas for moderate w_PCL still overlapped. With the complex nature of coincident crystallization for comparable weight fractions, the role of the non-crystallizing block as a diluent is complicated since both components prefer to nucleate competitively. With an increase in w_PCL, T_x^PCL increased slightly to indicate a true separation of the two blocks' nucleation and growth. T_x^PCLs were lower than homopolymer PCL due to small diluent contributions. The overlap of PEO and PCL crystallization for 5k16.3k likely was due to the larger polydispersity (1.40) compared to most other samples with similar w_PCL.17, 18 5k24.5k was the only sample without PEO crystallization at ambient temperature, further supporting that conditions for film preparation should have no effect on relative crystallinity and minimal effect on crystal/film morphology at high w_PCL.

3.2 Relative block crystallinity

FTIR and POM were used to evaluate the crystallization in PEO-b-PCL films. FTIR was used to identify the relative crystalline content rather than a more typical DSC approach because the significant overlap in crystallization peaks made a quantitative analysis cumbersome, though this approach is still under investigation. The high possibility of melt-recrystallization during heating further complicates an effective quantitative analysis by DSC. Additionally, assignments of melting events during heating of the film would be reliant on another form of analysis, such as FTIR or WAXD, anyway. Since the FTIR absorbance of crystalline chains is proportional to the crystalline amount, a qualitative comparison using this single FTIR technique was chosen. POM provided morphological evidence to support the relative crystallinity exhibited by the FTIR study.

Each block has a set of FTIR bands associated with its crystalline and its amorphous forms (see, e.g., References 40-42). The most comparable and deconvoluted set of peaks for determining relative crystallinity were 842 cm⁻¹ (CH₂ rocking) for PEO and 731 cm⁻¹ (CH₂ rocking) for PCL. These bands correlate to coupled, resonant motion in two consecutive CH₂ groups and five consecutive CH₂ groups, respectively.43 Because PCL chains have the potential for vibrational coupling of two adjacent CH₂ groups, either in the crystalline chain or in the rigid amorphous fraction, it was important to verify any PCL contribution to absorption at the 842 cm⁻¹ band at large w_PCL. Figure 2A shows FTIR spectra of as-cast films of 5k16.3k from different solvents and of 15k PCL homopolymer. In 5k16.3k (w_PCL = 0.76) films cast from toluene (green line), a large absorbance was observed at 842 cm⁻¹. This was attributed to crystalline PEO as this signal matches well with all previously reported data. However, homopolymer PCL (black line) does have a small absorption at 842 cm⁻¹. This result shows that the crystalline PCL could contribute to the 842 cm⁻¹ band. The w_PCL = 0.76 sample cast from chloroform (blue line) and THF (orange line) shows a similarly small absorbance. The small absorbance can be assigned to both the crystalline PCL component and crystalline PEO by comparison to the three other spectra. Reasons for the difference in crystallization behavior with different solvent will be discussed later.

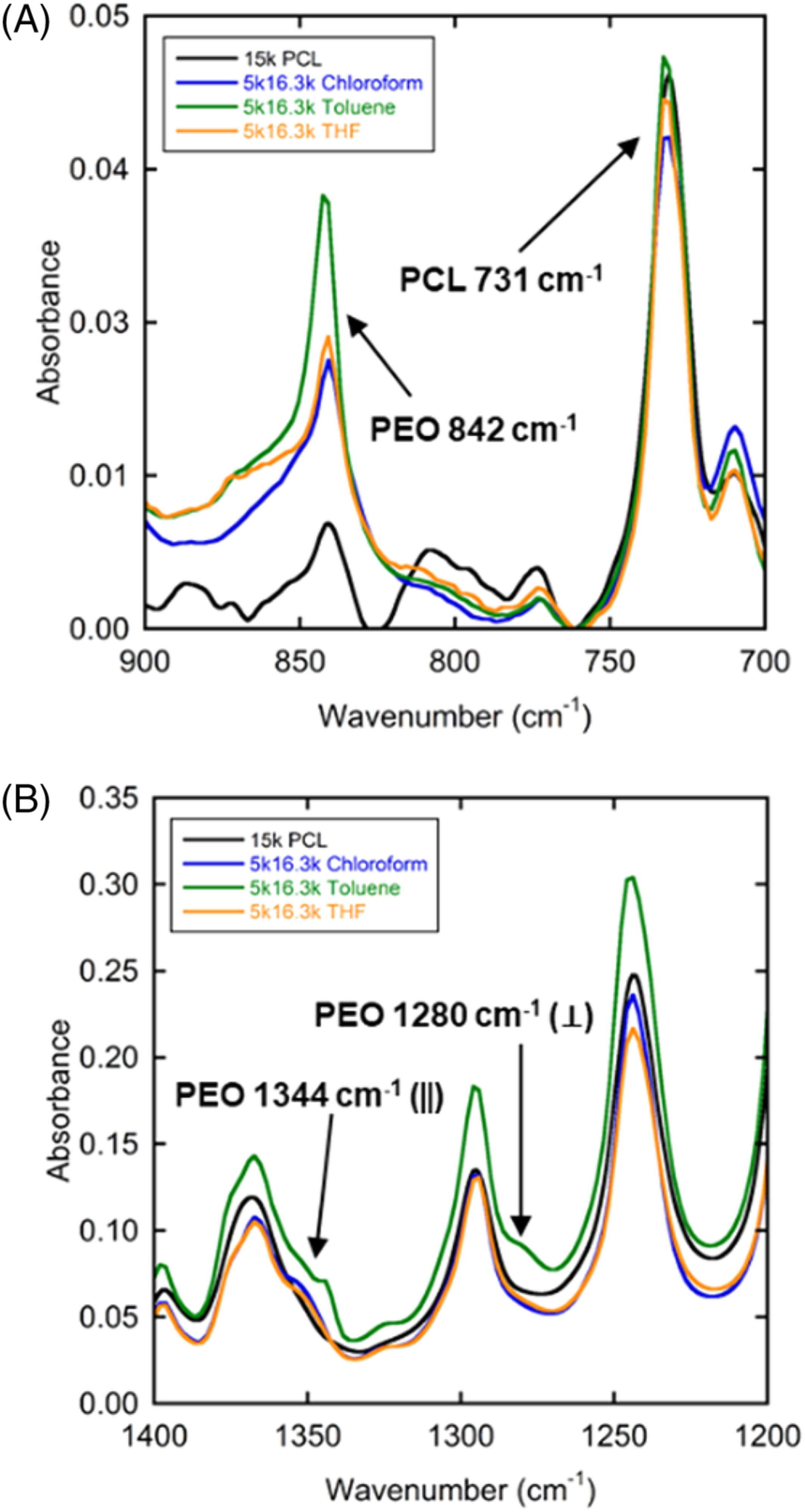

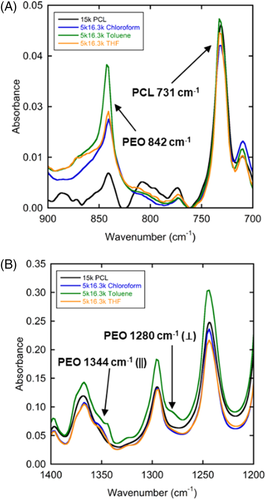

When the PEO component of 5k16.3k was crystallized, the signal from PEO was dominant, making identification of PEO crystallization somewhat obvious, and indicating that even with small PEO composition (w_PEO = 0.24), the PCL absorbance at 842 cm⁻¹ was markedly less significant. Figure 2B shows FTIR spectra for the same samples at higher wavenumber. This data was used to identify further whether PEO crystals were formed. The presence of bands at 1280 cm⁻¹ (CH₂ twist perpendicular to the chain axis), 1344 cm⁻¹ (PEO CH₂ wag parallel to chain stem axis), and/or 1361 cm⁻¹ (PEO CH₂ wag perpendicular to chain stem axis) confirm PEO crystallization in chloroform and toluene but not THF.21, 40 PCL absorbs at 1295 cm⁻¹ (CO stretch parallel to the chain stem axis) and 1367 cm⁻¹ (CH₂ wag parallel to the chain stem axis) which overlap with the PEO absorbances; therefore, only small peaks were observed which are denoted by arrows in Figure 2B.

Because crystalline PCL contributes a small absorbance at 842 cm⁻¹, it complicated the approach of comparing the two absorbance values at 842 and 731 cm⁻¹ to determine relative crystallinity. In most cases, the 842 cm⁻¹ band is a superposition of both crystalline PEO and a small contribution from PCL. There was typically enough amorphous PEO absorbance from 830 to 870 cm⁻¹ (Figure 2) to cover the PCL signal (w_PCL of 0.50 and 0.67). Amorphous PEO has a maximum around 854 cm⁻¹. As PCL block length increases, however, it is important to account for this small PCL absorbance because the 842 cm⁻¹ band may appear to show crystalline PEO when, in fact, it is completely amorphous.

Relative crystallinity of the blocks, therefore, was described using a (PEO/PCL) ratio of the crystalline band absorbances of each block, A_PEO/A_PCL, for a given sample. Since the absorbance is proportional to crystalline mass fraction of the irradiated area, this method is semiquantitative in relation to crystallinity and normalizes against film thickness, though does not account for the changing mass fractions overall. For completely amorphous PEO, a band centered around 854 cm⁻¹ was present which can be used as a normalization because its absorbance does not change with phase changes. To minimize the PCL-produced 842 cm⁻¹ absorbance, and to accurately account for only crystalline PEO, the commensurate absorbance at 854 cm⁻¹ was subtracted from the absorbance at 842 cm⁻¹, following Equation (1):

(1)

This normalization helps to remove any contribution of amorphous PEO from A₈₄₂; therefore, A_PEO should be representative of crystalline PEO only. The 854 cm⁻¹ absorbance is synonymous with an isosbestic point because its absorbance does not change significantly with phase changes. There is minimal decrease in absorbance between 852 and 870 cm⁻¹; therefore, the 842 cm⁻¹ band appearance has been denoted evidence of crystalline PEO.42 This method provided a quick and easy way to compare crystallization using different samples and different conditions. Two weaknesses of this method, however, are that little to no crystallization of either block causes an artificially high or low absorbance ratio as the numerator or denominator approaches zero and that these values have modest physical meaning without knowledge of the absorptivity constant.

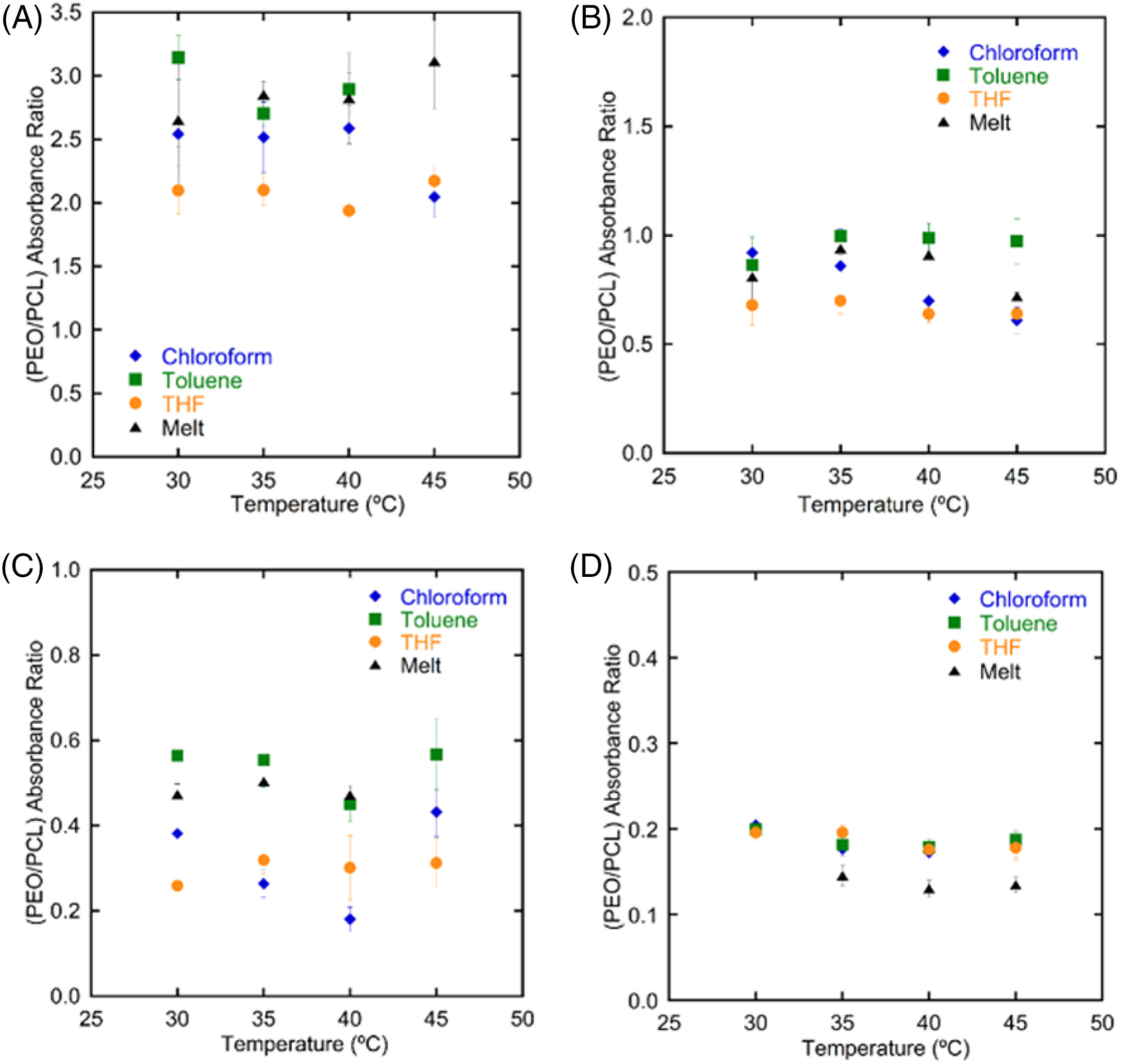

PEO-b-PCL films were cast and dried from various solvents and at various T_iso. The as-cast films were analyzed using transmission FTIR to determine the relative crystallinity of the two blocks. (PEO/PCL) absorbance ratio (A_PEO/A_PCL) as a result of casting from different common solvents was plotted vs T_iso in Figure 3. Films cast from chloroform (blue diamonds), toluene (green squares), THF (orange circles), and melt-recrystallized (black triangles) are plotted. It should be noted here that crystallization that occurred during drying at T_iso was not distinguished from crystallization that may have occurred during cooling under ambient conditions after removal from the isothermal oven. The absorbance ratio is representative of the prepared film (drying at T_iso and cooling to room temperature). DSC results in Figure 1 gave some indication of the crystallization process during drying and cooling. It is assumed that for 5k5k (w_PCL = 0.50) PEO-b-PCL, both blocks crystallized during drying. For 5k10k (w_PCL = 0.67), it was likely that both blocks crystallized during drying. Although, at the highest temperatures, PEO may have remained amorphous until cooling. For 5k16.3k (w_PCL = 0.76), it is likely that only PCL crystallized during drying at higher T_iso, and PEO crystallized during cooling to room temperature based on the T_x observed in DSC. For 5k24.5k (w_PCL = 0.83), only PCL crystallized with no PEO crystallization because the films were not quenched below T_x^PEO = −1°C.

Several trends are observed in Figure 3. First, as w_PCL increased, the absorbance ratio decreased due to restrictions in PEO crystallization with larger PCL content.17, 18, 23, 24, 34 As a reference, since no PEO crystallization occurs in the w_PCL = 0.83 sample, an A_PEO/A_PCL value of ~0.20 or less indicates only PCL crystallization. A value greater than zero also supports the observation that a small 842 cm⁻¹ peak appeared for PCL crystallization, as discussed above. As seen in Figure 2, 842 cm⁻¹ absorption for w_PCL = 0.76 was significant to identify PEO crystallization. This resulted in an A_PEO/A_PCL ratio between 0.30 and 0.50. Also, it was observed that since PCL is the majority component in most instances here, the 731 cm⁻¹ band absorption was nearly constant. These two results seemed to indicate that variation in A_PEO/A_PCL likely was due to changes in PEO crystallization. Significantly larger ratios in w_PCL = 0.50 (A_PEO/A_PCL > 2.0) compared to w_PCL = 0.67 were due to the moderately larger PEO mass fraction, resulting in more absorbing species per volume. The role of molecular weight and weight fraction have been studied extensively elsewhere. This trend only serves as reference for the role of T_iso and solvent for each sample.

Second, T_iso had a minimal effect on the final (PEO/PCL) absorbance ratio. Crystallization of the two blocks was competitive for w_PCL = 0.50 and 0.67 since both likely crystallized at all T_iso. For w_PCL = 0.83, the ratio remained constant over T_iso because PCL was the dominant crystal present. Chloroform was a bit unique in that the ratio decreased slightly with T_iso for w_PCL = 0.67 and 0.76. Additionally, the crystallinity of PCL remained relatively constant. It is unclear from FTIR only how much the crystallinity changed because there is not an easy way to convert absorbance to crystallinity accurately. Variation in absorbance was likely due to imperfect crystallization due to solvent interactions.

Third, the casting solvent influenced A_PEO/A_PCL. Again, for w_PCL = 0.83, sufficient undercooling was needed to nucleate PEO crystallization. It is unsurprising that the solvent does little to promote PEO crystallization at temperatures above −1°C. The melt values are a bit smaller, indicating that the drying process hindered PCL crystallization slightly. Varying A_PEO/A_PCL values appear for all other w_PCL indicating that solvent choice promotes or inhibits PEO crystallization as the minority component. More specifically, films cast from chloroform had ratios between those from the melt and those from THF. Chloroform, therefore, had a slight preference to solubilize PEO. Alternatively, since PCL was the less soluble moiety, chloroform promoted its crystallization first. PCL crystallizes first from the melt due to molecular size. Films cast from toluene (Figure 3, green squares) had higher ratios in nearly all instances. Larger ratios indicate more pronounced PEO crystallization. This was evidence that PEO was less soluble in toluene and perhaps crystallized first. These results match previous research in this area.21 Interestingly, this effect was observed in films with a w_PCL up to 0.76, though the amount of PEO crystallization was small. This may indicate that PCL crystallization was reduced as well giving a slightly larger A_PEO/A_PCL. THF showed a decrease in the ratio relative to other solvents, indicating that PEO crystallization was underdeveloped in these films. Since THF is a moderately good solvent for PEO, the PEO domains remained more solvated during drying, allowing PCL to crystallize first. While PCL crystallized first for chloroform and melt films, THF restricted PEO crystal formation most. It should be noted here that occasionally THF films had a wet visual appearance, but no measurable FTIR signal for THF at 1066 and 907 cm⁻¹ (see Supporting Information, Figure S1). Though the FTIR spectra showed no THF bands, there was on occasion a very small band at 3400 cm⁻¹. Since THF is hygroscopic and miscible with water, a small fraction of water could be present. It should be noted that the THF was distilled and stored under dry conditions, and when tested, THF solvent showed no band at 3400 cm⁻¹. Therefore any water present had accumulated during drying by condensing from humid air. This will be discussed in more detail later. The data in Figure 3 does not include any films that appeared wet.

3.3 Film morphology

Crystal morphology of dry films was analyzed via POM. Since T_iso seemed to have minimal effect on the relative crystallinity, POM experiments were performed only at room temperature to observe morphology differences in films cast from different solvents. Morphologies at higher T_iso were similar, but more pronounced, so they are not presented here. Figure 4 shows the results for each set of sample-solvent combination except 5k24.5k images. As was expected, these showed no difference in film morphology with different solvents but can be viewed in the Supporting Information (Figure S2). Figure 4 is organized by sample 5k5k (A-D), 5k10k (E-H), and 5k16.3k (I-L). In each set, a POM image for a film dried from chloroform, toluene, THF, and melt-recrystallization are included. The sequence is chloroform at the top-left with toluene, melt-crystallization, and THF following around in a clockwise manner.

The melt-recrystallization samples show the typical morphology associated with high nucleation density and small spherulite size of PCL-dominant crystallization, as would be expected.18, 28 Using this as a reference, we looked at the POM images for all other samples in the context of the results shown in Figure 3. In other words, how does the morphology change given the change in relative crystallinity seen in FTIR for the PEO and PCL blocks? The chloroform POM morphology is most similar to melt crystallization. The images in Figure 4A,E,I show similar high nucleation density, small spherulite sizes as shown in Figure 4D,H,L. The nucleation density during drying was higher from chloroform than the melt-recrystallization sample for two reasons. First, as the solvent is evaporating, the concentration of polymer in solution is increasing, causing local precipitation to occur since chloroform is only a partial nonselective solvent. As drying proceeds, the coalescence of precipitation and crystallization begins to occur in the localized areas, leading to a higher number of nuclei than during melt-recrystallization. Second, in the melt-recrystallization process, the sample was quenched to room temperature by removing the melt from the oven. It is likely that nucleation occurs at a higher temperature as the sample cools. This would cause fewer nuclei to form as growth proceeds. Because drying keeps the polymer in the amorphous state at room temperature, the undercooling, or ΔT, driving force is likely more significant and results in more nuclei forming. This could be a manifestation from the evaporation rate and evaporative cooling as well. These morphologies match well with other reports of PEO-b-PCL, where PEO crystallization is not obvious via POM but was identified using techniques such as FTIR, XRD, or DSC.17, 18, 21, 23-34

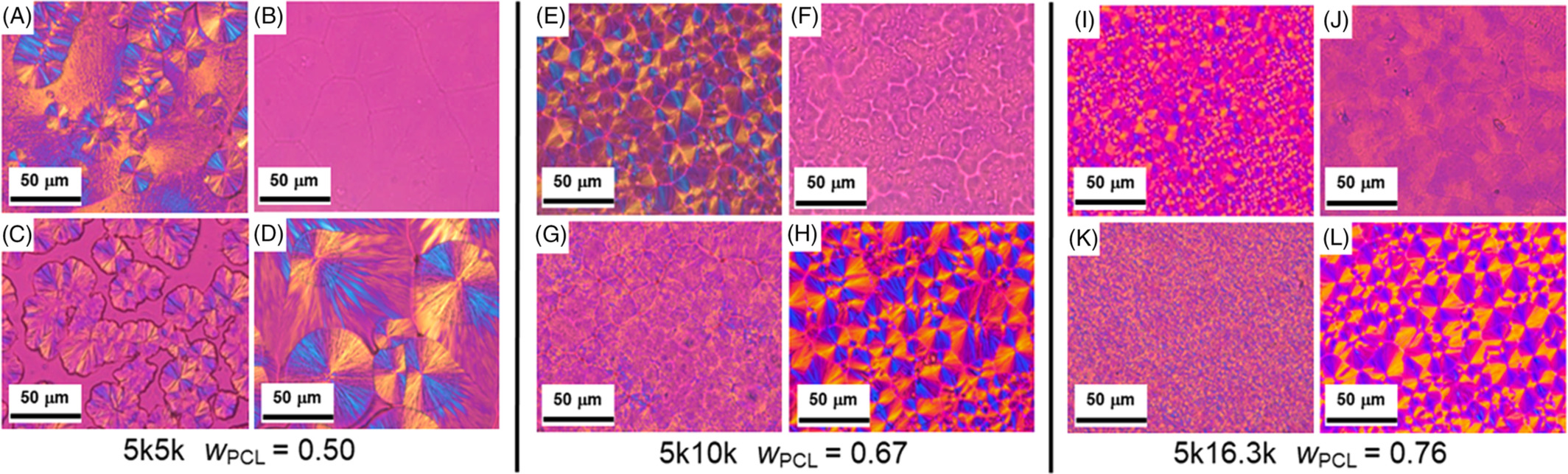

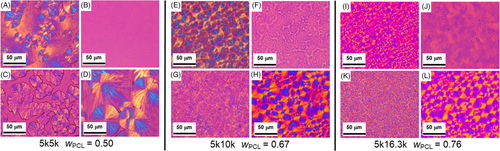

Films cast from toluene (Figure 4B,F,J) show little-to-no birefringence. Because there is evidence for crystallization of both blocks in the FTIR spectra (Figure 3), it was concluded that crystals in films cast from toluene were preferentially flat-on instead of edge-on. This was supported by our previous findings for 10k10k PEO-b-PCL.22 FTIR spectra confirmed the crystal orientation based on similar analysis of specific bands associated with vibrations parallel to the chain axis (see Supporting Information, Figure S3). The parallel vibrational bands had larger absorption bands in the 5k24.5k sample compared to others indicating that the PEO crystallization is likely important for the flat-on crystal orientation. As w_PCL increased, the birefringence became more noticeable, which may indicate a tilting of the crystal axes. However, these spherulites still do not possess the obvious birefringence observed in chloroform and melt-recrystallization films, Figure 4I,L, respectively.

Finally, the morphology of films cast from THF was irregular and dependent on w_PCL. These films' spherulite structures have varying surface coverage, lower nucleation density, and faint birefringence. At highest w_PCL, the films began to adopt more typical POM morphology and birefringence with still some mild irregularity. Based on the FTIR spectra in Figure 2 (and Figure S1), the crystals that have formed were PCL spherulites, though the PCL crystallinity may be reduced slightly. The 5k5k sample has competitive PEO and PCL coincident crystallization, which appeared to dominate any solvent effects, that is, the similar block size allowed for local nucleation to occur irrespective of solvent. As w_PCL increased, PCL nucleation was favored but residual solvent may have hindered crystal growth and perfection.

Along with the FTIR data, POM shows that the solvent choice impacts the crystallization of the PEO-b-PCL copolymer even at moderate w_PCL. Chloroform morphology appears to follow melt crystallization. Films cast from toluene have a change in crystal orientation for both PCL and PEO crystals. THF hinders the crystallization of PCL by causing irregular morphological development similar to the results seen by Toolan et al.44 Additionally, the possible solvation of the PEO block by THF or water may hinder PEO crystallization that occurs through ambient drying procedures.

3.4 Role of humidity in PEO crystallization

As mentioned, some films exhibited a wet look after drying indicating the presence of some solvent. These films were not analyzed for the data presented in this article. The presence of incomplete drying did bring up the question: how does the delayed drying affect PEO crystallization? THF and water are both moderately good solvents for PEO. Thus, they would decrease PEO crystallinity as measured by A_PEO from the FTIR. For w_PCL = 0.50 and w_PCL = 0.86, this had minimal influence on the results. For 5k5k, PCL and PEO crystallization happen concurrently with strong tendency for both blocks to nucleate quickly, minimizing the influence of residual THF or water on PEO crystallization. For 5k24.5k, no PEO crystallization occurred at room temperature anyway. For moderate w_PCL, incomplete drying appeared to prevent PEO crystallization as identified by smaller A_PEO and lower absorbance ratios for the wet-looking films. Interestingly, FTIR absorbance of bands related to THF or water were much smaller relative to the polymer film absorbance. The evaporation process typically takes a slightly longer time than precipitation and crystallization of PCL, allowing PCL to nucleate first, dictating the crystal morphology. It should be noted that PCL has some solubility in THF and minimal water absorption; therefore, the PCL domains may be affected as well but not as significantly because PCL crystallization is more thermodynamically favorable. Given that irregular spherulitic morphologies and significant FTIR absorption at 731 cm⁻¹ were observed, PCL crystals formed, confirming that it is less soluble in THF and water than PEO. The swelling of the PEO domains by THF or water is unquantified; therefore, the restrictions on PCL crystallization by the apparent volume fraction of swollen PEO are unknown, though it may be a possible cause for the development of the irregular morphology. The effect on PEO crystallization was most prominent for the 5k10k, w_PCL = 0.67 sample.

To evaluate crystallization in films cast from THF more accurately, ATR-FTIR during drying at room temperature was used to evaluate the development of PEO crystallization in the absence of or presence of residual THF/water. Raw ATR-FTIR spectra for the drying of 5k5k, 5k10k, and 5k16.3k films on the diamond ATR crystal are shown in the Supporting Information (Figure S4). The spectra is characteristic of THF at early times. As the THF evaporates, the typical PEO-b-PCL spectrum appears. At longer times, the PCL band increases in absorbance and reaches a constant value when PCL primary crystallization has ceased. Eventually, the crystalline PEO band at 842 cm⁻¹ begins to appear. At longer times, the PEO band no longer increases, indicating that PEO crystallization has stopped. Figure 5 shows plots of absorbance vs time for the two bands, 731 cm⁻¹ (A_PCL) and 842 cm⁻¹ normalized by the absorbance at 854 cm⁻¹ as discussed earlier (A_PEO), and their A_PEO/A_PCL ratio. Figure 5A shows the plot for 5k5k. Figure 5B is the 5k10k sample under normal conditions. Figure 5C is the plot for 5k16.3k.

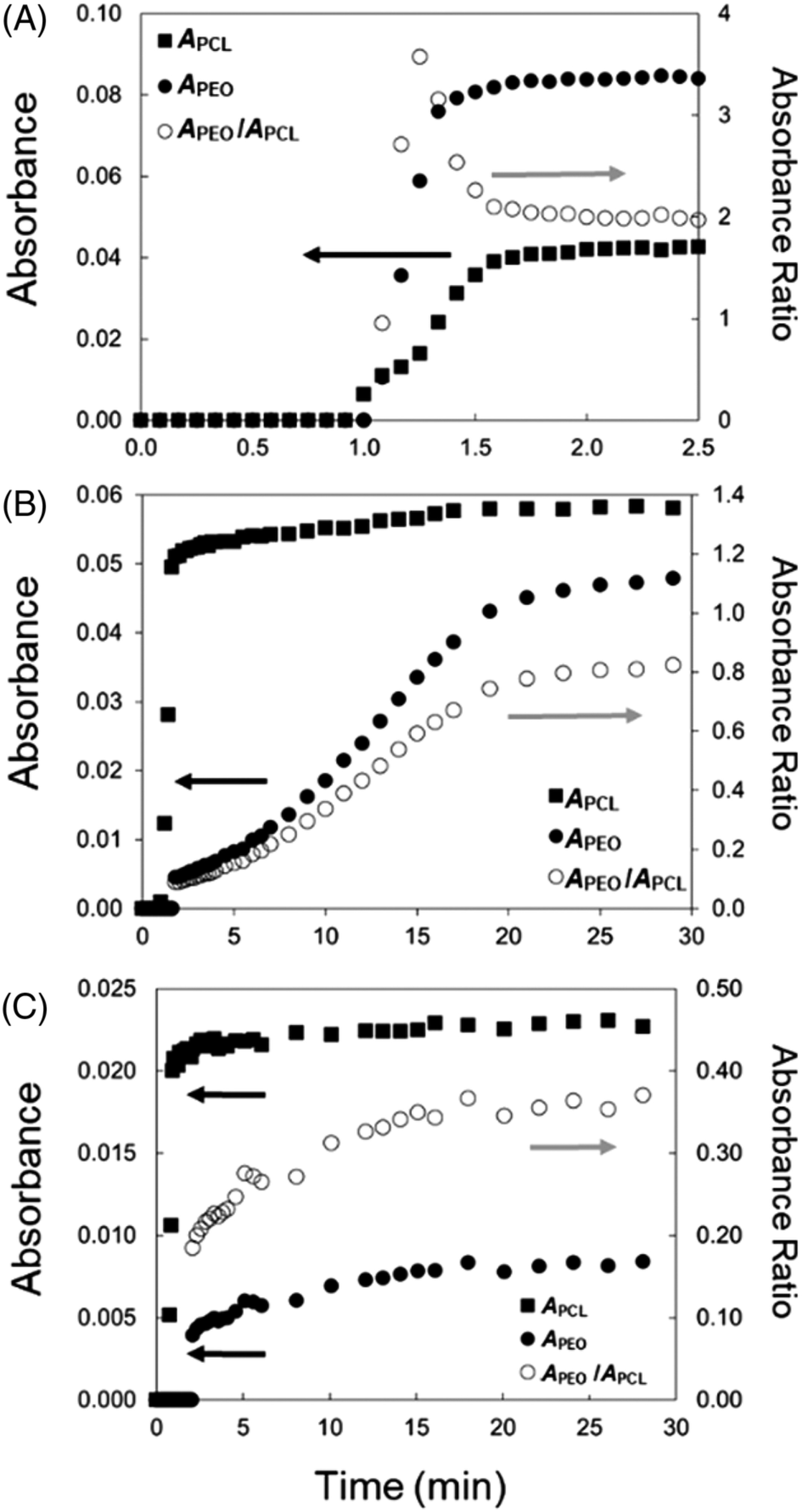

From the absorbance vs time plots, it was apparent that for w_PCL = 0.50, PEO nucleation occurred simultaneously with PCL nucleation with a faster crystallization rate. For w_PCL ≥ 0.50, PEO nucleation is delayed relative to PCL crystallization, though it does occur relatively shortly after for 5k10k and 5k16.3k. These short nucleation times demonstrated minimal inhibition by THF or water under “dry” conditions. In Figure 5B,C, A_PEO is much smaller due to less PEO crystallinity. This is confirmed by the lower absorbance ratios as shown in Figure 3.

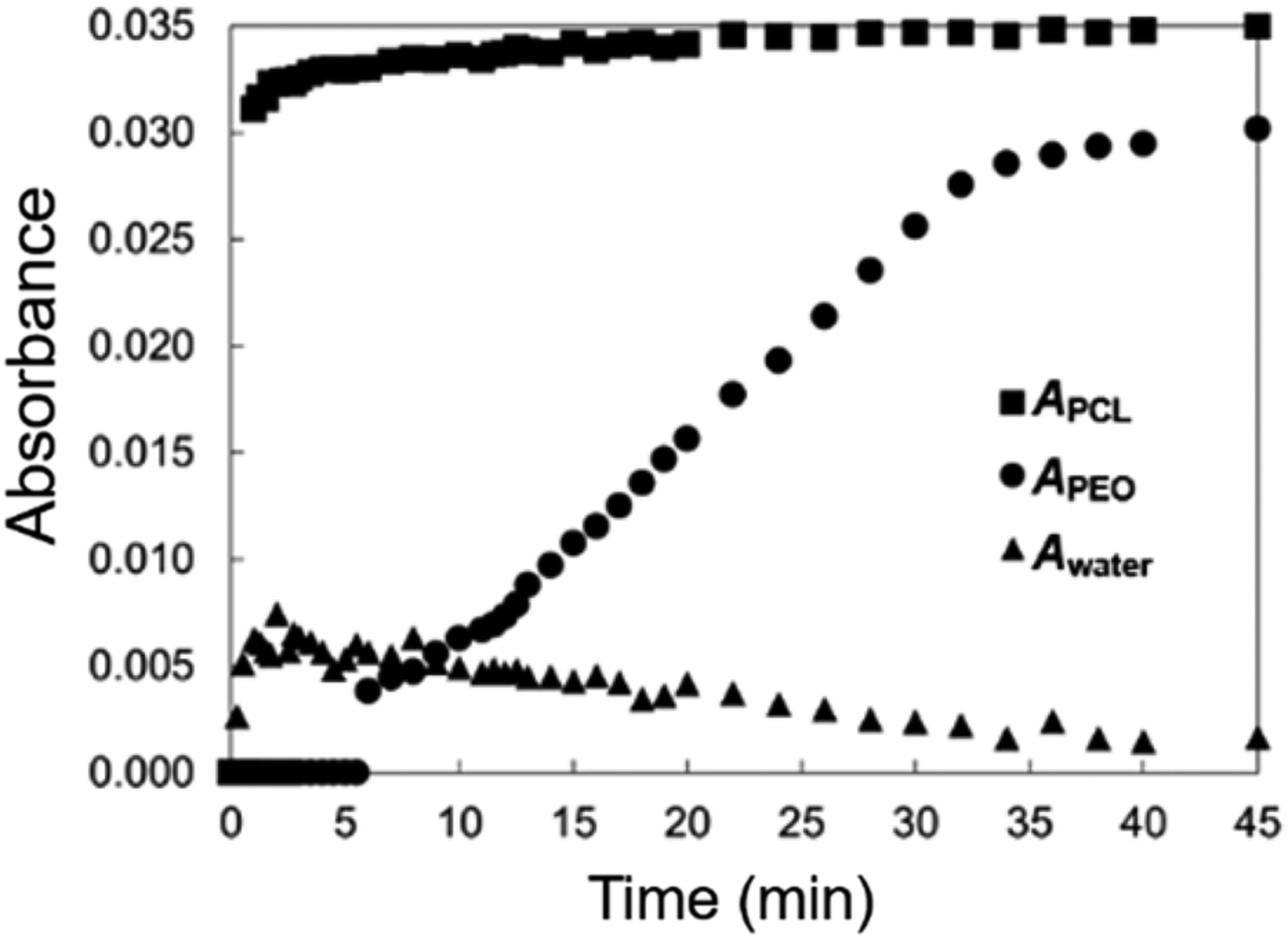

For a film with residual solvent or a small amount of water, the PEO crystallization was delayed as evidenced by A_PEO. Figure 6 shows a similar plot of absorbance with drying time for a 5k10k film cast in a humid environment. Figure 6 shows that PCL crystallization occurred quickly, while PEO crystallization was delayed several minutes after the PCL crystallization. In addition, the maximum PEO crystallization was achieved at a later time compared to dry conditions. This delayed PEO crystallization was different than the results shown in Figure 5. Figure 6 also shows the absorbance at 3430 cm⁻¹, which is representative of OH stretching in water (A_water). A small amount of water that was adsorbed (or absorbed) during evaporation is present early during drying. The mechanism of water infiltration is difficult to understand as the FTIR absorbance was small. As time progressed, this water signal began to decrease as A_PEO increases. The final A_PEO/A_PCL for these films was 0.85, which is comparable to a completely dry film.

In moderately humid conditions, PEO crystallization was delayed up to a few hours. This observation confirmed that the PEO crystallization had been inhibited by the presence of THF (residual solvent or slower evaporation) and water. In highly humid conditions, films appeared wet after drying overnight. It should be noted that the 3430 cm⁻¹ band is characteristically large for water. Given the small absorbance seen in Figure 6, the mass of water must be small relative to the mass of PEO-b-PCL film. Again, no THF bands were observed, but with significant overlap with PEO and PCL bands, a residual amount cannot be negated. This was true even in the higher humidity situations. Absorbance ratios for films with inhibited PEO crystallization were near 0.40 with a small A_water. These films were dried in vacuum. After removal of water via this method, the absorbance ratio became comparable to the values reported for dry films, ~0.80.
