Volume 31, Issue 2 pp. 188-195
RESEARCH ARTICLE
Full Access

The taphonomy of medium-sized grouse in food remains of the northern goshawk Accipiter gentilis, compared with damage done by man and other predators

Krzysztof Wertz

Krzysztof Wertz

Institute of Systematics and Evolution of Animals, Polish Academy of Sciences, Krakow, Poland

Search for more papers by this author
Risto Tornberg

Risto Tornberg

Ecology and Genetics Research Unit, Faculty of Science, University of Oulu, PO Box 8000, Oulu, Finland

Search for more papers by this author
Zbigniew M. Bochenski

Corresponding Author

Zbigniew M. Bochenski

Institute of Systematics and Evolution of Animals, Polish Academy of Sciences, Krakow, Poland

Correspondence

Zbigniew M. Bochenski, Institute of Systematics and Evolution of Animals, Polish Academy of Sciences, Slawkowska 17, 31-016 Krakow, Poland.

Email: [email protected]

Search for more papers by this author
First published: 11 November 2020
Citations: 5

Abstract

This study describes bone damage of medium-sized grouse (Lyrurus tetrix and Lagopus spp.) in food remains of the northern goshawk Accipiter gentilis and compares it to damage done by other birds of prey and humans. In general, the ‘signature’ left on the bones by the goshawk is similar to those of other diurnal birds of prey, but it differs from human-derived damage and from owl pellets. These differences are visible in bone preservation, fragmentation and perforation. This study is the first to describe the characteristic damage to the sternum and coracoid that is probably typical of other raptors as well. Reliable analysis of zooarchaeological materials requires not only correct identification to the species but also determining where the bones came from at a given site. Bird bones from open-air archaeological sites may contain food remains of the goshawk, whose habitat is forests in the vicinity of open areas. This study will assist in determining the factor(s) responsible for the accumulation of zooarchaeological materials.

1 INTRODUCTION

The Lagopus species often dominate in fossil materials (Tyrberg, 1995), and they were often hunted by humans (Baales, 1992; Serjeantson, 2009). It is known, however, that grouse are also food for various predators. Therefore, the correct determination of the factor depositing the archaeological material is very important. Although birds, especially medium-sized grouse (Lyrurus tetrix and Lagopus spp.), are the staple food of the northern goshawk (Brüll, 1977; Tornberg, Korpimaki, & Byholm, 2006), its food remains have not yet been studied taphonomically. The northern goshawk occurs and nests in forests, often near openings, where it also hunts. The remains of its victims are abandoned in the vicinity of the nest and under roosts and may get mixed with traces of human occupation at some open-air archaeological sites that were temporarily or alternately occupied by man. This article describes the typical damage to bird bones in the food of the northern goshawk, thereby filling the gap in our understanding of the taphonomy of predators that hunt similar prey as humans do.

2 MATERIAL AND METHODS

Food remains of the northern goshawk Accipiter gentilis have been collected from under roosts and eyries in northern Finland since the 1970s. They were the basis for several scientific studies on the diet composition and food preferences of this species (Tornberg, 1997, 2001; Tornberg et al., 2006; Tornberg, Reif, & Korpimäki, 2012). A huge collection of these remains (several cubic meters) was kept by the University of Oulu, and now, after the space reduction of its natural history museum, it is in the possession of one of its collectors and co-author of this paper, Risto Tornberg. For luck of time, it was not possible to study all the material for this paper. We limited ourselves to examining randomly selected 26 large complete samples from 9 years (1975, 1979, 1981, 1991–1992, 2000 and 2013–2015), which together constituted a representative amount of goshawk food remains. A significant portion of the food remains examined contained body parts that were still in articulation, partly covered with skin, feathers or fur. All samples have been combined and analysed as one material. This procedure eliminates possible differences between individual northern goshawks and makes the results representative of the entire A. gentilis species.

To save time, the bones were identified only to higher taxa levels (genera, families and orders) using the ISEA PAS osteological collection and identification keys (Bochenski & Tomek, 2009; Cohen & Serjeantson, 1996; France, 2009, 2011; Schmid, 1972; Tomek & Bochenski, 2009). During the research, and in accordance with literature data (Tornberg, 1997, 2001), it quickly became apparent that medium-sized grouse (L. tetrix and Lagopus spp.) definitely dominated in the assemblage, whereas the remaining prey belonged to many different taxonomic groups. Therefore, we decided to analyse only medium-sized grouse thoroughly and provide only basic data for the remaining prey of the northern goshawk.

Bird bone fragmentation was analysed according to the methodology proposed by Bochenski, Tomek, Boev, and Mitev (1993) and consistently used in later papers (Bochenski et al., 1998; Bochenski, Huhtala, Sulkava, & Tornberg, 1999; Bochenski, Korovin, Nekrasov, & Tomek, 1997; Bochenski & Nekrasov, 2001; Bochenski & Tomek, 1994; Bochenski, Tomek, Tornberg, & Wertz, 2009; Bochenski & Tornberg, 2003; Lloveras, Nadal, et al., 2014; Lloveras, Thomas, Lourenço, Caro, & Dias, 2014).

The ratio of the wing to the leg bones was calculated as the number of wing fragments (humerus, ulna and carpometacarpus) divided by the sum of wing and leg fragments (femur, tibia and tarsometatarsus), expressed as a percentage (Ericson, 1987). The ratio of the proximal to distal elements was calculated as the number of proximal fragments (scapula, coracoid, humerus, femur and tibiotarsus) divided by the sum of proximal and distal fragments (ulna, radius, carpometacarpus and tarsometatarsus), expressed as a percentage (Bochenski & Nekrasov, 2001). The ratio of the core to the limb elements was calculated as the number of core fragments (sternum, pelvis, scapula and coracoid) divided by the sum of core and limb fragments (humerus, ulna, radius, carpometacarpus, femur, tibiotarsus and tarsometatarsus), expressed as a percentage (Bochenski, 2005; Bramwell, Yalden, & Yalden, 1987). The chi-square test was used to assess the statistical significance of the obtained deviations from the hypothesized natural proportions: 6:6 for wing-to-leg ratio, 10:8 for proximal-to-distal ratio and 6:14 for core-to-limb ratio (paired bones count for 2 and single bones for 1 in these proportions).

For each skeletal element, the number of identified specimens (NISP) was established and the minimum number of individuals (MNI) was calculated for the medium-sized grouse species together. The results are presented both as absolute numbers (MNI Element) and as the percentage of the number of fragments of the element that produced the highest MNI value (i.e., Total MNI%). The MNI values are certainly underestimated as they have been calculated from all combined material (i.e., not for each year or sample separately), bones have not been identified to species and proximal and distal parts have not been fitted together. The minimum number of elements (MNE) was calculated in a similar way to the MNI, that is, for all medium-sized grouse bones of a specific skeletal element. It is the sum of the complete bones (left and right) and the proximal (left and right) or distal (left and right) fragments, whichever is more numerous (for characteristic of NISP, MNE and MNI values, see Lyman, 1994 and Serjeantson, 2009). The results are presented as percentages of the total number of all skeletal elements included in the analysis (MNE%).

The bone surface was examined for holes and perforations made by the northern goshawk's claws and beak when handling the prey. The number and position of the perforations on the bone were noted.

3 RESULTS

3.1 Preservation and fragmentation of bones

Medium-sized grouse (L. tetrix and Lagopus spp.) were by far the most numerous victims of A. gentilis; their remains accounted for more than half of all the bones (981 out of 1818) (Table 1). Ducks, corvids, pigeons, large and small grouse (capercaillie and hazel grouse) and hares and squirrels were also relatively numerous. Among the other victims there were owls, diurnal birds of prey, charadriids and some passerines up to the size of a thrush.

TABLE 1. Number of identified specimens (NISP), minimum number of elements (MNE) and minimum number of individuals (MNI) by taxon recovered from non-ingested food remains of the northern goshawk
NISP MNE MNI
Lepus sp. 47 47 7
Sciurus sp. 28 26 8
cf. Arvicola sp. 1 1 1
Anser sp. 1 1 1
Anatinae 157 155 24
Bonasa bonasia 42 42 7
Grouse (medium sized) 981 954 109
Tetrao urogallus 60 60 7
Galliformes indet. 124
Columba sp. 48 48 7
Charadriiformes 7 7 2
Accipiter nisus 3 3 1
Accipiter gentilis 3 3 1
Accipitridae indet. 1
Asio flammeus 8 8 1
Strigiformes indet. 8
Corvidae 222 219 19
Passeriformes (up to Turdus size) 23 22 4
Aves indet. 54
Total 1818 1596 199
  • Note: Medium-size grouse (Lyrurus tetrix and Lagopus spp.), which is the main topic of this study, is marked in bold.

In terms of the NISP and MNE, the most frequent bones of medium-sized grouse are the coracoid, humerus and scapula (Figure 1). The sternum and femur are half as numerous; the remaining bones are much rarer in the material. Remains of the skull and mandible are scarce. By far the best skeletal elements for the MNI calculation are coracoid, sternum, scapula and humerus—the MNI% values obtained on their basis range from 90% to 100% (Tables 2 and 3).

Details are in the caption following the image

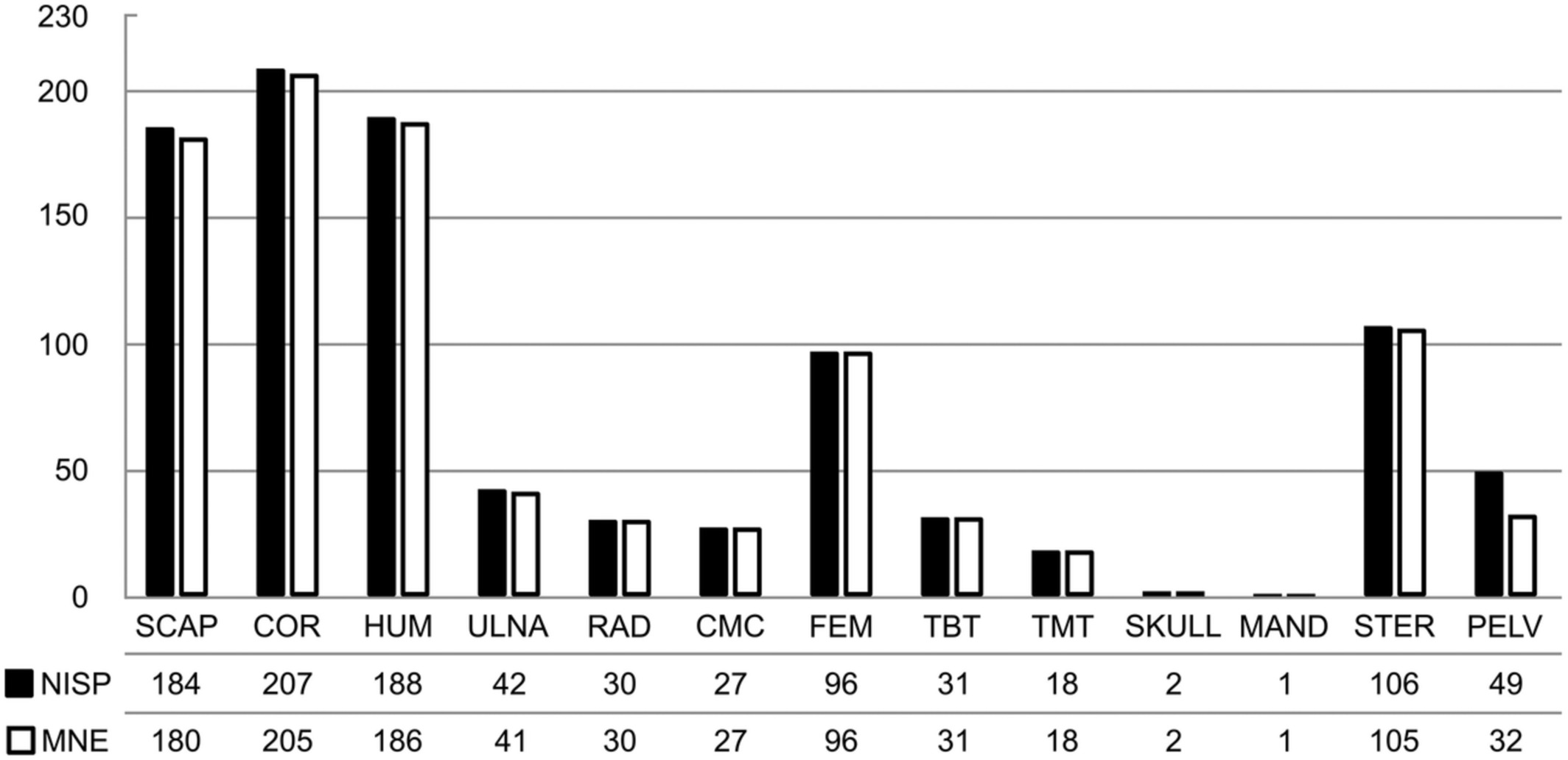

Skeletal elements of medium-sized grouse (Lyrurus tetrix and Lagopus spp.) recovered from non-ingested food remains of the northern goshawk. cmc, carpometacarpus; cor, coracoid; fem, femur; hum, humerus; mand, mandibula; pelv; pelvis; rad, radius; scap, scapula; ster, sternum; tbt, tibiotarsus; tmt, tarsometatarsus
TABLE 2. Fragmentation of the skull, mandible, sternum and pelvis of medium-sized grouse (Lyrurus tetrix and Lagopus spp.) recovered from non-ingested food remains of the northern goshawk
Skull
Number of fragments Whole skull (%) Skull with beak and brain case without back part (%) Brain case (%) Whole beak (%) End of beak (%) Other fragments (%) MNE (%) Element MNI (N) Total MNI (%)
2 50 - 50 - - - 0.2 2 2
Mandible
Number of fragments Whole mandible (%) One branch (%) Articular part (%) Tip of mandibula (%) Middle part of branch (%) MNE (%) Element MNI (N) Total MNI (%)
1 100 - - - - 0.1 1 1
Sternum
Number of fragments More than half with rostrum (%) Less than half with rostrum (%) Fragments without rostum (%) MNE (%) Element MNI (N) Total MNI (%)
106 73 26 1 11 105 96
Pelvis
Number of fragments Synsacrum with 1 or 2 ilium-ischii-pubis bones (%) Ilium-ischii-pubis bone (%) Synsacrum whole or partial (%) Acetabulum region (%) MNE (%) Element MNI (N) Total MNI (%)
49 49 2 16 33 3 32 29
  • Abbreviations: MNE, minimum number of elements; MNI, minimum number of individuals.
TABLE 3. Fragmentation of long bones of medium-sized grouse (Lyrurus tetrix and Lagopus spp.) recovered from non-ingested food remains of the northern goshawk, expressed as percentages of the total number of fragments for the element found
Bone Element NISP (N) Whole bone (%) Proximal part (%) Distal part (%) Shaft (%) MNE (%) Element MNI (N) Total MNI (%)
Scapula 184 45 55 - - 19 99 91
Coracoid 207 95 4 1 - 21 109 100
Humerus 188 93 4 3 - 19 98 90
Ulna 42 86 12 2 - 4 23 21
Radius 30 90 10 - - 3 16 15
cmc 27 96 - - 4 3 15 14
Femur 96 97 3 - - 10 49 45
tbt 31 94 6 - - 3 19 17
tmt 18 100 - - - 2 12 11
  • Abbreviations: cmc, carpometacarpus; MNE, minimum number of elements; MNI, minimum number of individuals; NISP, number of identified specimens; tbt, tibiotarsus; tmt, tarsometatarsus.

The elements of the axial skeleton are largely fragmented (Table 2). The sternum is usually damaged, but its front part is preserved with the rostrum sterni and the corpus sterni of different sizes, with jagged fracture edges (Figure 2a). In contrast, long bones are mostly complete; in most cases, the percentage of whole long bones exceeds 90%, (Table 3). The scapula, which is not a typical long bone, often survives as the epiphysis with a part of corpus scapulae of varying length.

Details are in the caption following the image

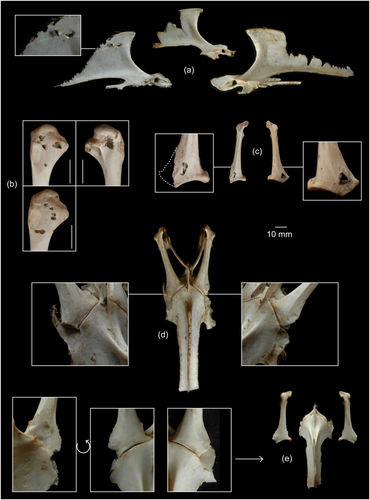

Damage to medium-sized grouse (Lyrurus tetrix and Lagopus spp.) bones recovered from non-ingested food remains of the northern goshawk: (a) perforated sternum with jagged fracture edges; (b) proximal humerus with multiple perforations; (c) perforated sternal part of the coracoid; (d) articulated sternum and coracoid: on the right-hand side, processus craniolateralis (sternum) and processus lateralis (coracoid) are damaged, whereas on the left-hand side, they are not damaged; (e) damage to processus craniolateralis (sternum) and processus lateralis (coracoid) are visible on the left- and right-hand sides; they can also be seen when the bones are disarticulated [Colour figure can be viewed at wileyonlinelibrary.com]

3.2 Bone ratios based on the MNE

The wing bones were more numerous than the leg bones; proximal skeletal elements were more numerous than distal elements, whereas core elements were more numerous than limb elements (Table 4). The deviation from the expected proportions (6:6, 10:8 and 6:14, respectively) is statistically significant (p < 0.05) for each of the three ratios mentioned above (χ2 = 29.776, χ2 = 300.550 and χ2 = 280.541, respectively). The differences between the data obtained on the basis of NISP and MNE were marginal (Table 4).

TABLE 4. Medium-sized grouse (Lyrurus tetrix and Lagopus spp.) recovered from non-ingested food remains of the northern goshawk: ratios of wing to leg elements, proximal to distal elements and core to limb elements, calculated from NISP and MNE
Value Wing–leg Prox–dist Core–limb
NISP 63.9 85.8 55.8
MNE 63.7 85.7 54.9
  • Abbreviations: MNE, minimum number of elements; NISP, number of identified specimens.

3.3 Perforations

Perforations attributable to the beak and/or claws were observed on approximately 10% of bones (Table 5). Individual skeletal elements were affected to a varying degree by punctures. The most frequently punctured element was the sternum (about 40% of all sterna were perforated), followed by the pelvis (about 25%), humerus and coracoid (about 10% each).

TABLE 5. Perforated bones of medium-sized grouse (Lyrurus tetrix and Lagopus spp.) recovered from non-ingested food remains of the northern goshawk
Punctured bones Quantity (N) Punctured element frequency (%)
Scapula 4 2
Coracoid 16 8
Humerus 20 11
Ulna 1 2
Femur 1 1
Tibiotarsus 3 10
Skull & beak 1 50
Sternum 43 41
Pelvis 13 27
Total 102 10

Almost half of the perforated humeri (9 out of 20) and every fifth sternum (9 out of 43) have two or more perforations (Figure 2a,b); multiple perforations were less frequently observed on other bones.

The coracoid was most often perforated in the sternal part (14 out of 16 perforated coracoids, Figure 2c); on the humerus, sternum and pelvis no higher frequency of perforation was found in any particular region.

A significant number of sterna were preserved in articulation with coracoids. Some of these combined elements show characteristic damage, which indicates that A. gentilis tends to hit specific body parts of its victims, in this case, the breast region (sternum-coracoid connection). This results in frequent damage to the processus craniolateralis of the sternum and the processus lateralis of the coracoid (Figure 2d,e). Altogether, about 77% of sterna (82 out of 106) have their processus craniolateralis damaged and about 48% coracoids (99 out of 207) have their processus lateralis damaged.

The share of immature specimens was about 8% (80 out of 981 bones).

4 DISCUSSION AND CONCLUSIONS

Reliable ways to distinguish bones anthropogenic in origin from those accumulated by avian predators include cut marks, burn marks, damage to the humerus and ulna during the disarticulation of the elbow by overextension and worked bone (Laroulandie, 2005; Serjeantson, 2009). However, such traces are usually sparse, even if from the archaeological context it appears that it was man who deposited the material. Therefore, various types of analyses of bone composition and fragmentation play an important role in taphonomic research.

4.1 Taxa composition

The composition of the fauna found in a given archaeological material can be a valuable clue about its origin (Bochenski, 2005; Lloveras, Cosso, Solé, Claramunt-López, & Nadal, 2018). What matters here is not only the species composition, which may vary depending on the geographic region and season, but also the size of the preferred prey, which is more constant for a given predator. In Fennoscandia, the main food of the goshawk is grouse, especially L. tetrix and L. lagopus, whereas corvids, thrushes, pigeons and hares and squirrels are important prey under certain circumstances (Tornberg et al., 2006). Thus, the food remains researched by us reflect well the actual goshawk diet in this region. The list of bird species in the northern goshawk's diet is very long, and today, grouse does not constitute its main food everywhere. Currently, the main food of the goshawk in Central Europe are partridges and doves (Brüll, 1977), but in historical times, grouse could also play a role similar to that in Fennoscandia.

4.2 Skeletal composition

The frequency of individual skeletal elements in archaeological materials may be an indication of its origin. In food remains deposited by man, usually, the humerus and femur dominate (Mourer-Chauviré, 1983). However, in food remains from birds of prey and owls, the situation is more complicated because it depends on several factors, including the size of the victim (Baales, 1992; Mourer-Chauviré, 1983) and whether the bones were swallowed and spit out as pellets or the meat was stripped of them and the bones themselves were not ingested (Bochenski, 2005). The coracoid and humerus predominate in the material currently studied, which matches the uneaten food remains of other large diurnal raptors including the imperial eagle, golden eagle, white-tailed eagle and gyrfalcon (Bochenski, 2005; Bochenski et al., 1999; Bochenski et al., 1997; Bochenski & Tornberg, 2003; Bramwell et al., 1987; Lloveras et al., 2018). These raptors, including the goshawk currently under study, also have a very low percentage of skulls and mandibles in uneaten food remains, and their prey's sterna, coracoids and humeri give very high MNI values. In addition to these species, also a few others, including the crested caracara and Egyptian vulture, have a large amount of sterna in their uneaten food remains (Lloveras, Nadal, et al., 2014; Montalvo et al., 2011).

4.3 Fragmentation

In terms of the degree of fragmentation of long bones, the studied food remains of the goshawk fit well with the Category 3 distinguished by Bochenski (2005), which includes non-ingested food remains of diurnal birds of prey. This category is characterized by a very low degree of fracture, with more than 60% of the bones intact. Most species of diurnal birds of prey are included in it, which is confirmed by various independent studies (Bochenski et al., 2009; Bochenski & Tornberg, 2003; Laroulandie, 2002; Lloveras et al., 2018; Lloveras, Nadal, et al., 2014). The large fragments of the sternum with the preserved rostrum sterni and the jagged edges of the corpus sterni are also typical of the non-ingested food remains of various diurnal birds of prey (Bochenski et al., 2009; Lloveras et al., 2018; Lloveras, Nadal, et al., 2014), gulls (Serjeantson, Irving, & Hamilton-Dyer, 1993) and possibly other avian predators.

4.4 Ratios

The results obtained from all three bone ratios (wing/leg, proximal/distal and core/limb) fully agree with the bone damage found in non-ingested food remains of diurnal birds of prey (Bochenski, 2005). The wing/leg ratio: in most species of diurnal birds of prey, uneaten food remains are dominated by wing bones (Bochenski et al., 1997; Laroulandie, 2002; Lloveras, Nadal, et al., 2014; Lloveras, Thomas, et al., 2014; Montalvo et al., 2011) although there are also exceptions, such as for example, the Golden Eagle, where a slight predominance of leg bones was observed (Lloveras et al., 2018). In pellet materials, the wing/leg ratio is usually close to 1:1 (Bochenski, 2005) whereas assemblages accumulated by man can have very different wing/leg ratios, depending on for instance the purpose for which the birds were collected, hunting method, differential transport of carcases or the properties of the bones themselves (Bovy, 2002, 2012; Ericson, 1987; Laroulandie, 2010; Lefèvre & Laroulandie, 2014). The proximal/distal element ratio: high preponderance of proximal elements in food remains of the northern goshawk corresponds to Category 3 predators, which include the golden eagle (Bochenski, 2005). It is noteworthy that a similarly high dominance of proximal elements was also found independently in studies on food remains of the golden eagle (Lloveras et al., 2018). Pellets of diurnal birds of prey and owls show either an equal share of proximal and distal elements (Category 1 predators) or a slight dominance of proximal elements (Category 2 predators), which in turn allows to distinguish between these three groups of predators (Bochenski, 2005). The core/limb ratio distinguishes between pellet materials of owls and diurnal raptors (limb elements prevail) and non-ingested food remains of diurnal raptors (core elements prevail) (Bochenski, 2005). The currently studied northern goshawk material fits this pattern very well, because core elements prevail to a similar degree as in several independent studies on golden eagles (Bochenski et al., 1999; Bramwell et al., 1987; Lloveras et al., 2018).

4.5 Perforations

The perforations found on the bones of the northern goshawk victims are similar to those left by other species of raptors. Possible differences may be in the percentage of damaged bones. Current results indicate that the northern goshawk perforates the bones of its victims to a rather moderate degree (about 10%). A similarly low percentage of perforated bones was found in Bonelli's eagle victims (approximately 6%; Lloveras, Thomas, et al., 2014), slightly higher in golden eagle victims (approximately 14%; Lloveras et al., 2018) and the highest in Egyptian vulture (approximately 28%; Lloveras, Nadal, et al., 2014). A common feature of all species of birds of prey that have so far been examined for bone perforation of their victims is the high frequency of perforations on the sternum, pelvis, humerus and coracoid (Bochenski et al., 2009; Laroulandie, 2000, 2002; Lloveras et al., 2018). The northern goshawk, currently under study, is no exception. For two reasons, it can be expected that the sternum will be most prone to perforation. First, there is a lot of meat on the sternum, and second, it is an element of the skeleton with a relatively large surface area. Bochenski et al. (2009) have already suggested that the shape and surface of the prey sternum may play a significant role in the amount of perforations. They found that the wide sternum of ducks was more often perforated than the narrow sternum of galliforms.

The simultaneous damage to the sternum by breaking the processus craniolaterales and the coracoid by breaking the processus lateralis was noticed due to the fact that many food remains in the studied material, including the sternum-coracoid complex, were still in articulation. Such damage has also been found on many isolated sterna and corcaoids. This damage has not been described anywhere before. It seems that it may also be characteristic of other species of birds of prey. Due to the high frequency of sterna and coracoids damaged in this way, it can be expected that they will also be visible on bones from archaeological excavations.

Current studies, including skeletal composition, fragmentation and perforations, indicate that the goshawk damages the bones of its prey in a manner typical of diurnal raptors. Bird bones from open-air archaeological sites that were temporarily or alternately occupied by man may contain food remains of the goshawk, whose habitat is forests in the vicinity of open areas. This study will assist in determining the factors responsible for the accumulation of zooarchaeological materials.

ACKNOWLEDGEMENT

We thank Kauko Huhtala (University of Oulu) for providing us with the food remains of the goshawk he has collected.

    CONFLICT OF INTEREST

    The authors declare that they have no conflicts of interest.
