Optimization of undersampling parameters for 3D intracranial compressed sensing MR angiography at 7 T

Matthijs H. S. de Buck

orcid.org/0000-0001-8217-8192

Wellcome Centre for Integrative Neuroimaging, FMRIB Division, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK

Search for more papers by this author

Peter Jezzard,

Peter Jezzard

orcid.org/0000-0001-7912-2251

Wellcome Centre for Integrative Neuroimaging, FMRIB Division, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK

Search for more papers by this author

Aaron T. Hess,

Corresponding Author

Aaron T. Hess

[email protected]

orcid.org/0000-0002-9289-5619

Wellcome Centre for Integrative Neuroimaging, FMRIB Division, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK

Correspondence

Aaron T. Hess, FMRIB Division, Wellcome Centre for Integrative Neuroimaging, University of Oxford, John Radcliffe Hospital, Oxford, OX3 9DU, UK

Email: [email protected]

Search for more papers by this author

Matthijs H. S. de Buck,

Matthijs H. S. de Buck

orcid.org/0000-0001-8217-8192

Wellcome Centre for Integrative Neuroimaging, FMRIB Division, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK

Search for more papers by this author

Peter Jezzard,

Peter Jezzard

orcid.org/0000-0001-7912-2251

Wellcome Centre for Integrative Neuroimaging, FMRIB Division, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK

Search for more papers by this author

Aaron T. Hess,

Corresponding Author

Aaron T. Hess

[email protected]

orcid.org/0000-0002-9289-5619

Wellcome Centre for Integrative Neuroimaging, FMRIB Division, Nuffield Department of Clinical Neurosciences, University of Oxford, Oxford, UK

Correspondence

Aaron T. Hess, FMRIB Division, Wellcome Centre for Integrative Neuroimaging, University of Oxford, John Radcliffe Hospital, Oxford, OX3 9DU, UK

Email: [email protected]

Search for more papers by this author

First published: 28 March 2022

https://doi.org/10.1002/mrm.29236

Citations: 4

Funding information: BHF Centre of Research Excellence, Oxford, RE/13/1/30181; Dunhill Medical Trust, NIHR Oxford Biomedical Research Centre, Siemens Healthineers, Wellcome Trust, 203139/Z/16/Z

Share a link

Email
Wechat
Bluesky

Abstract

Purpose

3D time-of-flight MRA can accurately visualize the intracranial vasculature but is limited by long acquisition times. Compressed sensing reconstruction can be used to substantially accelerate acquisitions. The quality of those reconstructions depends on the undersampling patterns used. In this work, we optimize sets of undersampling parameters for various acceleration factors of Cartesian 3D time-of-flight MRA.

Methods

Fully sampled datasets, acquired at 7 Tesla, were retrospectively undersampled using variable-density Poisson disk sampling with various autocalibration region sizes, polynomial orders, and acceleration factors. The accuracy of reconstructions from the different undersampled datasets was assessed using the vessel-masked structural similarity index. Identified optimal undersampling parameters were then evaluated in additional prospectively undersampled datasets. Compressed sensing reconstruction parameters were chosen based on a preliminary reconstruction parameter optimization.

Results

For all acceleration factors, using a fully sampled calibration area of 12 $\times$ 12 k-space lines and a polynomial order of 2 resulted in the highest image quality. The importance of parameter optimization of the sampling was found to increase for higher acceleration factors. The results were consistent across resolutions and regions of interest with vessels of varying sizes and tortuosity. The number of visible small vessels increased by 7.0% and 14.2% when compared to standard parameters for acceleration factors of 7.2 and 15, respectively.

Conclusion

The image quality of compressed sensing time-of-flight MRA can be improved by appropriate choice of undersampling parameters. The optimized sets of parameters are independent of the acceleration factor and enable a larger number of vessels to be visualized.

1 INTRODUCTION

Time-of-flight (TOF) MRA is a valuable technique for clinical study of the intracranial vasculature. It visualizes the blood in a certain region (slice or slab) by generating bright-blood contrast between inflowing and stationary spins. In the brain, it can be used for detection of various types of vascular complications, such as atherosclerosis and stenosis¹ or aneurysms.^{2, 3} Compared to other angiography techniques, such as CT angiography, TOF-MRA has the benefit of being a noninvasive technique without the need for intravenous contrast agents and without exposing subjects to ionizing radiation.

High spatial resolution MRA can visualize small and highly tortuous vessels such as the lenticulostriate arteries (LSAs),⁴ which are implicated in up to a third of symptomatic strokes.⁵ MRA can be improved by using ultrahigh field MRI, with static magnetic field strengths of ≥ 7 Tesla (T).⁶ TOF-MRA at 7 T benefits from longer T₁ relaxation times and increased SNR, resulting in the potential for higher resolution acquisitions and improved visibility of small vessels.⁴ However, the achieved spatial resolution is limited by long acquisition times, which can lead to patient discomfort, increased patient movement, and increased clinical costs. In order to remain within clinical scan durations, sub-Nyquist sampling techniques are required, such as parallel imaging techniques.⁷

Compressed sensing (CS)⁸ techniques have the potential to achieve high acceleration factors. CS combines highly undersampled nonuniform acquisitions and sparsity in a given domain to restore image quality. Due to the intrinsic sparsity of TOF-MRA data in both the image and wavelet domain, and the improved MRA contrast at 7 T, it has already been shown that acceleration factors of 7.2⁹ or higher^{10, 11} can be achieved with a minimal reduction in clinical image quality¹² or even with improved diagnostic image quality compared to conventional acceleration methods.¹¹

Cartesian undersampled k-space trajectories for 3D TOF-MRA with CS reconstruction are commonly designed using 2D undersampling covering the 2 phase-encode directions (k_y, k_z), with each sampled point in the (k_y, k_z) plane representing a continuously sampled line in the frequency-encode direction (k_x). Such undersampling masks are often created using pseudorandom variable-density Poisson disks¹³ with a fully sampled calibration region in the center of the (k_y, k_z) plane.^{9, 12-17} Variable-density Poisson disk undersampling distributions are characterized by 3 parameters: (1) the undersampling factor (R), (2) the polynomial order of the sampling density variation (pp), and (3) the size of the fully sampled calibration region (calib).

Although the image quality depends on those undersampling parameters, no conclusive information is available about their optimal values for 3D TOF-MRA at 7 T. It also remains unclear how the optimal acquisition parameters depend on the acceleration factor and resolution being used. Earlier work on reconstruction optimization for 2D-multislice Nesterov reconstruction of 3 T TOF-MRA found the best reconstruction results using the smallest of 3 calibration region sizes,¹⁷ but this smallest region for 2D MRA was still substantially larger than the calibration regions recently used for 7 T CS TOF-MRA in 3D.⁹ Other work has compared the image quality from retrospectively undersampled 3D-MRA data for various accelerations factors^{10, 14} or for the combination of acceleration factor and calibration region size in undersampled 2D MRI acquisitions for different contrasts.¹⁸ For dynamic MRI¹⁹ and numerical T₁-weighted brain models,²⁰ studies into the optimization of undersampling parameters are available. However, it is unclear how this translates to the case of 3D TOF-MRA, which requires the visibility of smaller structures in the reconstructed images and has the potential for higher acceleration factors due to the higher intrinsic sparsity.

In this work, which is an extension of Ref. 21, 3D TOF-MRA undersampling parameters were optimized by retrospectively evaluating different calibration region sizes and polynomial orders at 6 acceleration factors (5 to 15). Finally, the identified undersampling patterns were evaluated in healthy subjects using additional prospectively undersampled acquisitions that adopted the optimized parameters.

2 METHODS

2.1 Data acquisition

Data were acquired using a 3D gradient-echo noncontrast-enhanced TOF-MRA sequence on a Siemens (Erlangen, Germany) Magnetom 7 T scanner using a 1T×x32Rx head-coil. All experiments were performed under an institutional agreement for technical development in accordance with International Electrotechnical Commission and UK Health Protection Agency guidelines. In each subject, 4 sequential slabs²² consisting of 640 × 506 × 56 voxels with a resolution of (0.31 mm)³ were acquired using a slab overlap of 19.64% and a combined FOV of 200 × 157 × 60 mm³. Further sequence parameters were: TR/TE = 14/5.61 ms (allowing for asymmetric echo), flip angle = 20°, and bandwidth = 118 Hz/pixel. To reduce SAR, an increased excitation pulse duration of 1.536 ms was used. No motion correction was used. The acquisition time was 26:39 min for a fully sampled acquisition.

Fully sampled datasets from 2 subjects were used for parameter optimization through retrospective undersampling (Cohort 1). Additional datasets were acquired using a modified TOF-MRA sequence that utilized predefined variable-density Poisson disk undersampling masks. A fully sampled acquisition and 4 different undersampled datasets, using both the optimized and more conventional undersampling parameters, were acquired from 7 healthy volunteers (Cohort 2). The reconstructed image quality for those additional datasets was compared to assess consistency of the findings.

2.2 Undersampling

Undersampling masks were generated using the SPIRiT Toolbox v0.3,* characterized by the 3 previously described parameters ( $R, pp, and calib$ ). A polynomial order of 0 corresponds to homogeneous undersampling, with higher values corresponding to denser sampling (i.e., lower Poisson disk radii) closer to the center of k-space. Larger calibration regions (consisting of $calib \times calib$ continuously sampled frequency-encode lines) improve the estimation of coil sensitivities²³ but take up more scan time, thereby reducing the available time to acquire other regions of k-space for scan time-matched acquisitions. Undersampling was performed retrospectively for the fully sampled data acquired in Cohort 1 at acceleration factors ranging from 5 to 15. The calibration region size was chosen to range from the lower limit for the ESPIRiT tool (calib = 10) to the highest value found in the literature for 3D TOF-MRA.⁹ In Cohort 2, prospectively undersampled data were acquired for validation at R = 7.2 (which was previously found to be “a reasonable trade-off between scan time and image quality”⁹, p. 201) and R = 15. Note that the undersampling masks in this work were generated using the SPIRiT Toolbox, which uses a polynomial variation for the sampling density distribution (given by the value of pp). Alternative ways of varying the sampling density distribution can also be used for Poisson disk undersampling, such as the Gaussian density distribution used in Ref. 9.

2.3 Reconstruction

For all reconstructions, coil sensitivities were estimated using ESPIRiT²³ based on the fully sampled calibration region in the center of k-space. For the reconstruction of undersampled data, compressed sensing was implemented using a Fast Iterative Shrinkage-Thresholding Algorithm (FISTA)²⁴ with ℓ1-regularization in the wavelet domain^{17, 25} using the pics (parallel imaging and compressed sensing) tool in the Berkeley Advanced Reconstruction Toolbox^{26, 27} (BART; v0.4.02). The ℓ1-regularization seeks to find the solution to:

\min_{x} \{| A (x) - b | + λ {| ϕ (x) |}_{1}\},

()

where b represents the acquired (undersampled) k-space data; A is the undersampled Fourier Transform operator over the reconstructed image x;

λ

is a regularization parameter; and

ϕ

denotes the Daubechies wavelet transform. The first term (

| A (x) - b |

) ensures data consistency, whereas the second term (

λ {| ϕ (x) |}_{1}

) enforces sparsity in the wavelet domain.

Before the undersampling parameter optimization was performed, appropriate values for $λ$ and the number of iterations (n_iter) were first established by reconstructing 2 different undersampled datasets (at $R = 9$ and $R = 13$ ) for each subject using various values for n_iter and $λ$ , and comparing the resulting reconstructions to the fully sampled reference data. Parameter values ( $λ = 0.007, n_{iter} = 20$ ) that consistently returned good reconstruction results were used for all other reconstructions; see Supporting Information Figure S1. The initial reconstruction parameter optimization was performed using arbitrarily chosen undersampling masks. For validation, it was repeated at the end of the study using the established optimized undersampling masks to ensure that the initial optimized reconstruction parameters were still consistent.

Reconstructions were performed offline using an Intel (Intel, Santa Clara, CA) Xeon CPU E5-2680v4 running at 2.40 GHz with 14 cores and 28 logical processors. A single-slab CS reconstruction took approximately 14 min.

2.4 Quantification of reconstruction quality

Previous work found that when comparing reconstructions from retrospectively undersampled TOF-MRA data to the corresponding fully sampled data, the vessel-masked structural similarity index (SSIM) correlates very well with visual evaluation by radiologists.²⁸ The root-mean-square error, which is also often used in the literature, was found in Ref. 28 to result in low agreement with visual evaluation by radiologists and is therefore not used in this work.

The structural similarity index is a quantitative estimate of the perceived visual agreement between a set of images based on local intensity variations. Higher SSIM indicates greater agreement between a set of images, with a value of 1 indicating perfect agreement. Here, the SSIM is calculated for maximum intensity projections (MIPs) normalized to the 99th intensity percentile. The mean SSIM is calculated over a vessel-masked region (Figure 1B), which reduces the sensitivity to variations in the background signal.

Details are in the caption following the image — **FIGURE 1**
Open in figure viewer PowerPoint

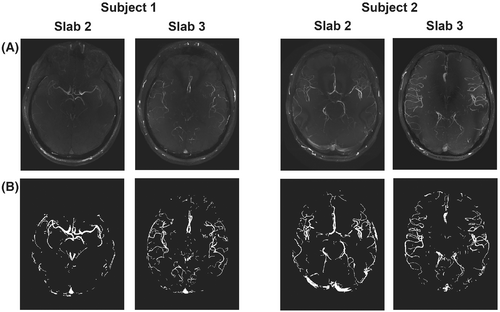

The 4 slabs used to test retrospective undersampling strategies (from Cohort 1). (A) MIPs of the fully sampled reconstruction for each slab. (B) The corresponding vessel masks, which were used for computing the vessel-masked SSIM²⁷. MIP, maximum intensity projection; SSIM, structural similarity index

The SSIM requires spatial consistency of the information in the 2 images being compared. This limits its use when comparing prospectively undersampled datasets because minor subject motion between consecutive scans significantly influences the SSIM. Therefore, a metric (‘number of detected peaks’) to estimate the change in the number of visible vessels in an image⁹ was used to assess the quality of prospectively undersampled data. From MIPs, 100 cross-sectional lines in the left–right direction were taken, covering the central 50% of the FOV in the anteroposterior direction. Along these lines, peaks in the intensity profiles were detected using the findpeaks function in MatLab R2019a (MathWorks, Natick, MA) with a minimum peak prominence of 0.15.

To quantify the difference in visibility of small vessels in prospectively undersampled acquisitions, a comparable approach was used to estimate the visibility of the LSAs in coronal projections.

3 RESULTS

3.1 Fully sampled data

Figure 1 shows MIPs of the fully sampled reconstructions of the central 2 (out of 4) slabs for both subjects in Cohort 1, which were used for parameter optimization. Those slabs were used as the ground-truth reference for all combinations of parameters used to assess the different retrospectively undersampled reconstructions. Only 2 slabs per subject were used to remain within a reasonable computation time. The central slabs were found to contain vessels of various sizes and degrees of tortuosity (Figure 1), making it possible to compare undersampling parameter optimization results for different parts of the vasculature.

3.2 Undersampling optimization

The mean vessel-masked SSIMs resulting from the retrospective undersampling parameter optimization for 6 acceleration factors R (5 to 15) for all slabs (in Figure 1) are presented in Figure 2. Each of the values in Figure 2 is the mean value for 2 different undersampling masks (using the same undersampling parameters) such that each datapoint is the average of 8 comparisons: 4 different slabs with 2 different undersampling masks each. Supporting Information Figures S3–S6 show the results for each individual slab.

Especially for higher acceleration factors, Figure 2 indicates that for matched scan time an optimal set of undersampling parameters occurs for 12 × 12 calibration lines (‘calib = 12’) with a polynomial order of approximately 2.0 to 2.4. For datasets reconstructed from the Cohort 1 data with a downsampled spatial resolution (0.5 mm and 0.6 mm isotropic), optimal undersampling parameters consisted of 12 × 12 calibration lines and a polynomial order of approximately 1.6 to 2.0 (data not shown).

For validation, the initial reconstruction parameter optimization was repeated for those optimized undersampling parameter values; see Supporting Information Figure S2, which confirms generally good performance of the previously established reconstruction parameter values ( $λ = 0.007, n_{iter} = 20$ ).

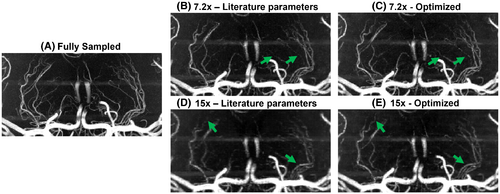

Figures 3 and 4 show example reconstructions from fully sampled data, prospectively undersampled data with “literature-based” parameters,⁹ and prospectively undersampled data using “optimized” parameters (Cohort 2). In these figures optimized undersampling masks were generated using $calib = 12$ and $pp = 2.0$ , and literature-based masks were generated using $calib = 32$ and $pp = 2.0$ with matched scan time; see Supporting Information Figure S7.

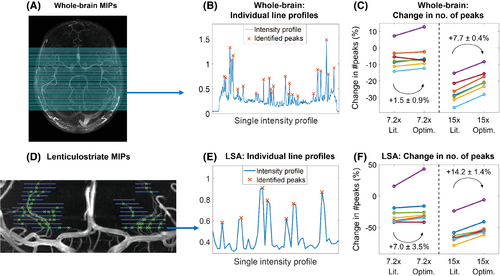

Figure 5 shows examples of the implementation of the ‘number of detected peaks’-metric, as well as the resulting differences between the various undersampling schemes for the 7 volunteers in Cohort 2. Results are shown for whole-brain axial MIPs and coronal MIPs of the lenticulostriate region.

At R = 7.2, the mean relative number of detected peaks when using 12 × 12 compared to 32 × 32 calibration lines increases by 1.5 ± 0.9 percentage points (from −6.1% to −4.6%) for axial MIPs and by 7.0 ± 3.5 percentage points (−26.5% to −19.5%) for the LSAs. At R = 15, the number of detected peaks increases by 7.7 ± 0.4 percentage points (−26.9% to −19.2%) for axial MIPs and by 14.2 ± 1.4 percentage points (−60.9% to −46.7%) for the LSAs.

The change in the number of detected peaks when using optimized undersampling parameters is statistically significant at R = 15, based on 1-sided paired-sample t tests: p < 0.001 for both whole-brain and LSA MIPs and at R = 7.2 for LSA MIPs (p = 0.047). At R = 7.2, statistical significance was not reached for the whole-brain MIPs, but a trend value of p = 0.063 was obtained.

4 DISCUSSION

Although differences in the image quality when using various autocalibration region sizes and polynomial orders are visible for all acceleration factors in Figure 2, the relative importance of using optimized parameters increases at higher acceleration factors. For all acceleration factors, 12 × 12 calibration lines with a polynomial order of 2 to 2.4 consistently yielded the best reconstruction accuracy. Simulation results at reduced spatial resolutions indicate the same optimal calibration region size but with slightly lower polynomial orders (approximately 1.6 to 2.0 at 0.6 mm isotropic). For all resolutions, optimization of the calibration region size has a bigger influence on the image quality than optimization of the polynomial order. This optimal calibration region size is considerably smaller than values found in the literature. Reducing the calibration region size from 32 × 32 to 12 × 12 lines in k-space corresponds to an 86% reduction in the amount of scan time required for scanning this central k-space region. For a fixed scan time, this makes it possible to spend more scan time acquiring data at higher spatial frequencies, explaining the observed improvement in small vessel visibility. Asymmetric calibration regions, with reduced coverage in the partition direction (k_z), were not included in this work because of limitations in the used implementation of ESPIRiT.

For the prospectively undersampled data, the performance of these optimized undersampling parameter values is compared to those taken from Ref.9. Figures 3 and 4 show a clear reduction in the number of visible vessels at high acceleration factors using both optimized and literature-based acquisition parameters compared to a fully sampled acquisition. However, vessel visibility and sharpness noticeably improve when using optimized undersampling parameters versus literature parameters, especially for small vessels and at high acceleration factors. Although accurate quantitative comparison of different prospectively undersampled acquisitions using SSIM is not possible due to subject motion between scans, the reduction in signal loss when using optimized parameters was quantitatively approximated using the detection of vascular signal peaks. The identified peak locations in reconstructions from prospectively undersampled data are consistent with the locations of the peaks in the corresponding fully sampled data (not shown), indicating that the metric gives a representative approximation of relative image quality.

Prospectively and retrospectively undersampled data can differ in image quality because of the possibility of eddy-current artifacts due to larger gradient switching in prospectively undersampled acquisitions and different amounts of total subject motion due to the different scan times. However, the observed improvement in image quality when using optimized undersampling schemes identified using the retrospectively undersampled data (Figure 2) is consistent with the results found in Figures 3-5 for prospectively undersampled data. This applies to both the improvement in image quality when using smaller calibration regions (in particular, 12 × 12 calibration lines) and to the increased importance of acquisition parameter optimization at higher acceleration factors. This improvement when using optimized undersampling parameters can be achieved without increasing scan time or reconstruction time, and without additional technical requirements. This improvement in image quality at a given acceleration can also be interpreted as an opportunity to increase acceleration factor to achieve equal image quality (Supporting Information Figure S8). For example, a scan duration of 2:36 min (R = 11) when using 32 × 32 calibration lines provides comparable results to a scan duration of 1:57 min (R = 15) using 12 × 12 calibration lines.

Because a small calibration region size was observed to improve performance, we also evaluated reconstructions from k-space data without calibration regions using simultaneous autocalibration and k-space estimation (SAKE)²⁹ for sensitivity estimation (Supporting Information Figure S9). This did not provide improved image quality compared to the reconstructions using 12 × 12 sampled lines in k-space.

For 1 of the 7 volunteers in Cohort 2, an increase in the number of detected peaks is visible in the undersampled acquisitions (purple data in Figure 5). This is likely caused by a reduction in image quality in the fully sampled dataset due to subject motion during that scan, highlighting a benefit of accelerated acquisitions.

The data used in this work were acquired using a relatively simple protocol, which does not make use of techniques such as additional (e.g., fat or venous) signal saturation,^{9, 30, 31} parallel transmission,^{32, 33} variable-rate selective excitation (VERSE)-shimming,^{9, 30, 34} or intravenous contrast agents.^{35, 36} Such techniques can enhance contrast and increase sparsity and thereby improve the CS reconstruction results. However, the optimal undersampling parameters were found to be consistent for volumes with high differences in vascular characteristics and visibility (Figure 2) and are therefore also expected to remain consistent for different contrasts. The improvement in image quality when using 12 × 12 calibration lines was also found to be consistent for data acquired using various acceleration factors and spatial resolutions. Although 32-channel receive coils are most commonly used in 7 T MRI, it remains unclear how the results presented here would translate to different coil configurations.

Previous work on the optimization of acquisition parameters for CS T₁-weighted MRI in 3D found that optimized sampling schemes require increasingly dense sampling in the center of k-space for higher acceleration factors,²⁰ and that the extent of the calibration region should be as high as possible for 2D-MRI.¹⁸ This is different from the results found here, with an optimized set of acquisition parameters that appears to be consistent for all acceleration factors and that uses a small calibration region. This difference may be explained by the inherently sparser image contrast of MRA compared to T₁-weighted MRI and the use of 3D instead of 2D k-space data. Because this sparser image signal is contained in high-frequency areas of k-space, sampling at off-center locations of k-space remains important at higher acceleration factors for MRA.

5 CONCLUSION

Optimized undersampling parameters for 3D MRA at 7 T using compressed sensing reconstruction were established. For all acceleration factors, the highest image quality was achieved by using a fully sampled calibration area of 12 × 12 lines and a polynomial order of 2. Although the optimized undersampling parameters were the same for all acceleration factors, the importance of using optimized undersampling parameters was found to increase for higher acceleration factors.
