1 Introduction

Poly(lactic acid) (PLA) has gained significant relevance as a thermoplastic material due to its biocompatibility and biodegradability.^[1] Its intriguing mechanical and physical properties make PLA a good candidate to replace traditional petroleum-based polyolefins,^[2] with the principles of the circular economy.^[3] Many efforts have been directed to better understand the correlation between PLA microstructures and material properties with targeted physical/mechanical properties, comparable to those of traditional plastics.^[4]

The two stereogenic centers on the cyclic monomer result in three different diastereoisomers, D-LA (R,R), L-LA (S,S), and meso-LA (R,S). The mixture of homochiral polymers, PLLA and PDLA, co-crystallize in a stereocomplex phase that exhibits enhanced thermal and mechanical properties in comparison to those of the homochiral phase.^[1] This leads to an increasing research interest in the stereoselective ROP of racemic lactide (rac-LA),^[5] an equimolecular mixture of R,R-LA and S,S-LA, for the formation of isotactic-diblock, and isotactic-multiblock PLA,^{[6, 7]} materials with better performance. The most common route to achieve stereoselective PLA is through a metal catalyst,^[8-15] although interesting examples of enantiomeric synthesis of rac-LA by organocatalysis have been reported.^[16-18] From a mechanistic point of view, stereoselectivity can be governed by two different mechanisms: the enantiomorphic site control (ESC) and the chain-end control (CEC). In the former stereoselectivity is dictated by the chirality of the catalyst whereas in the latter by the configuration of the last inserted monomeric unit. In CEC the catalyst framework is assumed to be generally achiral, although, in principle, the ligand framework may influence the stereogenic center of the last inserted monomer, which in turn determines the relative sequence of stereocenters in the main chain. The CEC stereocontrol is conceptually simple, and it can be argued that only a modest degree of chain-end control can be achieved (measured by P_m parameter = probability to give meso enchainment). Indeed, the first achiral Al-salen type complexes (system 1, Chart 1) introduced by Spassky shows a low stereocontrol (P_m = 0.68) with a formation of isotactic stereoblocks [PDLA-PLLA]_n with a melting temperature (T_m) = 149–151 °C.^[19] A notable exception was later reported by Nomura^[20] by using achiral aluminium-Schiff base derivative (system 2, Chart 1) with a relevant stereocontrol (P_m = 0.91) and producing isotactic stereoblocks with improved thermal properties (T_m = 192 °C). Recent developments in machine learning methods explored the multidimensional structure-activity relationships for stereoselective achiral Al complexes through a Bayesian optimization procedure.^[21] In particular, the Al salen-type achiral complex (system 3, Chart 1) produces PLA stereoblocks with high P_m = 0.92 and T_m = 192 °C through CEC, as confirmed by ¹H NMR analysis.^[21] Despite the interest in stereoselective ROP of rac-LA, computational models rationalizing the origin of the stereoselectivity in such reactions are limited^[22-26] and focused primarily on the ESC. As a matter of fact, we recently reported that tracing the origin of stereocontrol in the rac-LA ROP by enantiopure Al-chiral catalysts is complicated by the variation of ligand wrapping modes during the ROP catalytic cycle.^[27-29] Nonetheless, computational studies on the chemical features of CEC governing stereoselectivity in rac-LA polymerization are rare.^{[30, 31]} Intrigued by the (remarkable) level of stereocontrol achieved by system 3,^[21] we used the Density Functional Theory (DFT) approach (computational details in Supporting Information) employed in chiral Al-Salen catalysts^{[27, 28, 32]} to extract unprecedented chemical features for CEC of rac-LA ROP promoted by 3.

In this work, we will show that CEC and ESC are strictly interconnected and share similar chemical features. Indeed, although the catalyst precursor is achiral, the active site during the polymerization adopts a chiral wrapping mode due to the octahedral geometry originated from the coordination of the LA monomer. The DFT calculations have been combined with a molecular descriptor (%V_Bur)^[33-35] and with the activation strain model (ASM),^{[36, 37]} coupled with natural energy decomposition analysis (NEDA)^[38] (see Supporting Information). This combined approach has been used in stereoselective olefin polymerization,^[39-42] but there are no examples in literature for stereoselective rac-LA ROP catalysis to the best of our knowledge.

2 Results and Discussion

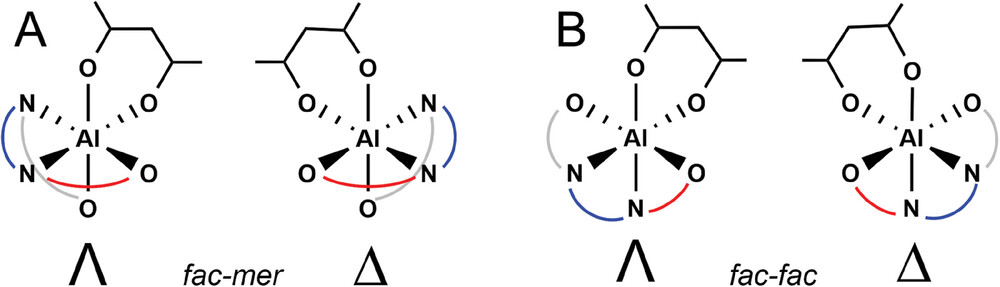

The combination of all the elements of chirality considered here for stereoselective ROP of rac-LA promoted by 3, including the ligand wrapping mode, the R,R and S,S-LA diastereoisomers and their enantiofaces, the chirality of growing chains and of the metal Al center are summarized in Figure S1 (Supporting Information). We preliminary calculated the wrapping mode energetic preference for 3 characterized by a fac-fac (ff) and fac-mer (fm) isomerism by using the bidentate acetylacetonate (acac⁻) coordination (Figure 1).

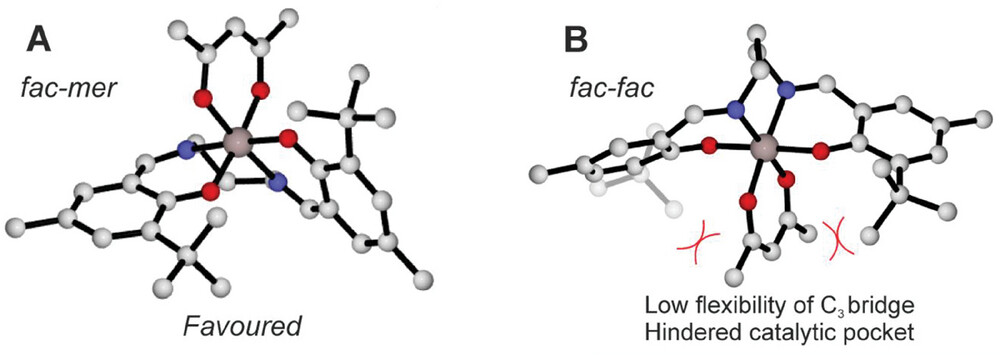

Indeed, both wrapping modes resulted to be isoenergetic for rac-LA polymerization with chiral salen Al-catalyst;^[27] however, for the achiral system 3 we found a clear preference (5.5. kcal/mol) for fm configuration (Figure 2A) with respect to ff (Figure 2B). The C₃-carbon bridge leads to a conformational strain keeping the O-Al-O angle at 180°, reducing significantly the size of the catalytic pocket for ff wrapping mode that will not be further considered in our ROP mechanistic study.

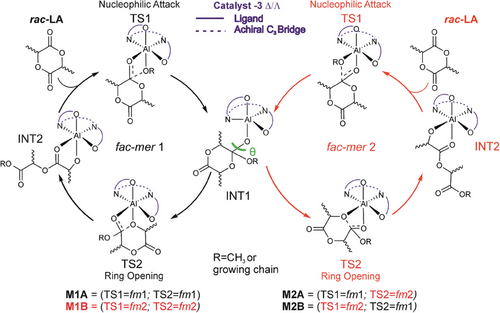

Replacing the symmetric acac⁻ bidentate ligand with LA monomer and polymer growing chain splits fac-mer isomer in two configurations, fac-mer1 (fm1) and fac-mer2 (fm2) (Scheme 1) which differ for the position of methoxide/chain and monomer. This asymmetry needs to be carefully addressed in ROP processes, and we propose a coordination-insertion mechanism substantially based on two catalytic cycles (Scheme 1). We defined the first nucleophilic attack of the carbonylic group of the monomer to the methoxy oxygen as the first transition state (TS1) followed by a first intermediate (INT1) and a second transition state (TS2) involving the ring opening of the cyclic monomer. After the formation of a second intermediate (INT2), the catalytic cycle repeats. However, due to the asymmetry of the two coordination sites generated by the monomer and the growing chain (fm1 and fm2), two possible mechanisms have been taken into account: M1 (A and B) in which both TS1 and TS2 occur in the same wrapping mode (fm1 or fm2 respectively) and mechanism M2 (A and B) in which TS1 and TS2 occur with different wrapping mode (TS1 is fm1 or fm2 and TS2 is fm2 or fm1, respectively).

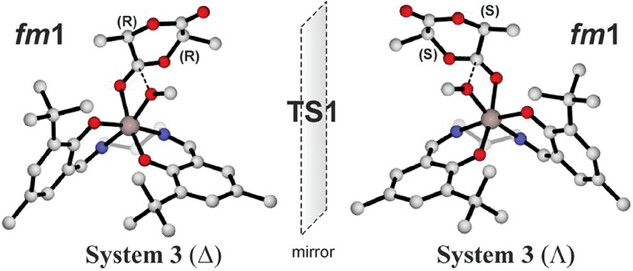

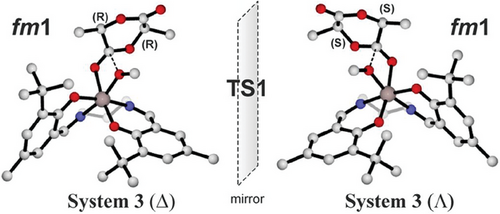

We selected the system 3 in Δ configuration recalling that results of Λ isomer are obtained by inversion of chirality as shown in Figure 3.

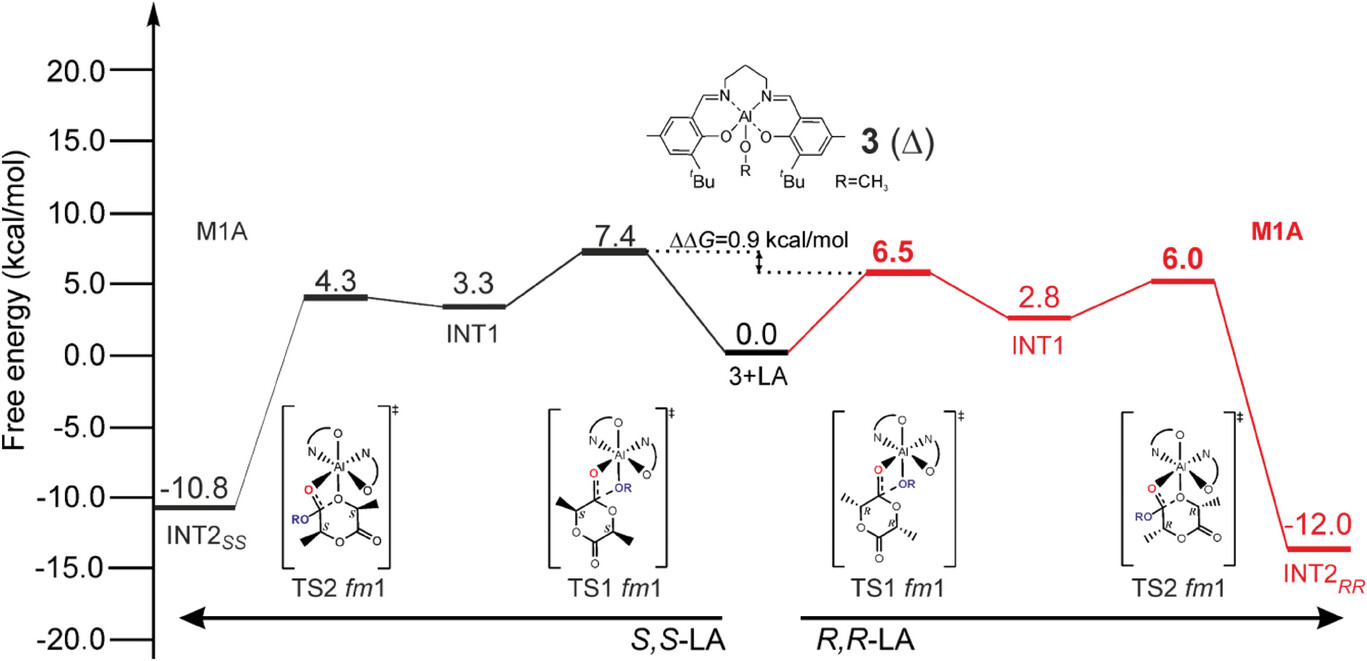

In Figure 4 we report the Gibbs energies for the simplified minimum energy paths (MEP) for LA insertion (R,R-LA on right and S,S-LA on left side) into the Al-OCH₃ bond. Both fm1 and fm2 wrapping modes have been investigated, (complete lists in Tables S1 and S2, Supporting Information) by fixing a Δ octahedral chirality. These data cannot be compared with the experimental results due to the lack of chiral chain, nevertheless they can give hints on the interplay of the ligand wrapping modes. We found a small stereoselectivity (0.9 kcal mol⁻¹) for R,R-LA insertion, and the preferred paths show a fm1 wrapping modes for both the monomers with the M1A mechanisms (Figure 4).

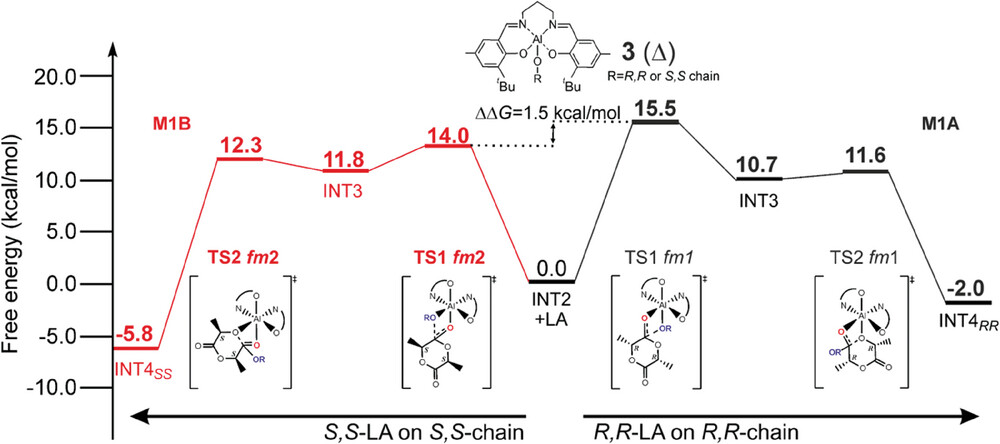

The computed Gibbs energies of the simplified MEPs (complete lists in Tables S3 and S4, Supporting Information) by using chiral growing chains for R,R-LA (Figure 5-right) and S,S-LA (Figure 5-left) propagations provide greater insight. Notably, we predicted distinct mechanisms for S,S-LA propagation, which follows the M1B pathway (fm2 catalyst geometry in both TS1 and TS2). In contrast, R,R-LA propagation favors the M1A mechanism (fm1 catalyst geometry in both TS1 and TS2). The TS1s are the rate-limiting steps (RLS) and the calculated stereoselectivity of 1.5 kcal mol⁻¹ (ΔΔG, Figure 5) is in good agreement with the experimental results.^[21] However, the underlying reason for the preference for S,S-LA propagation requires further investigation. The buried volume analysis (%V_Bur) on the RLS shows that S,S-chain at fm2 (Figure 6A) is positioned in the less hindered zone of the SE quadrant along the negative y-axis, while the R,R-chain at fm1 (Figure 6B) is pointing toward the positive z-axis, that is the overcrowded area of SE quadrant where are located the ^tBu substituents.

The optimized DFT geometries for the two RLS are reported in Figure S1 (Supporting Information) where, in addition to the ligand steric effects, we note also that the monomer conformations show the methyl groups in equatorial position for S,S-LA (Figure S1A, Supporting Information) and in axial position for R,R-LA (Figure S1B, Supporting Information).

For achieving a more complete picture on the origin of the stereoselectivity and on the variation of the energetics depending on ligand wrapping modes, we used the ASM-NEDA analysis^[36-38] (see Supporting Information for details) and the results are reported in Table 1.

In Table 1 the energetic variation of the different assembly modes obtained by the ASM-NEDA analysis (ΔΔE_Tot, Table 1) has been decomposed into the two components ΔΔE_Strain and ΔΔE_Int. Following our previous experiences on the olefin polymerization transition metal catalyzed^[39-42] we further decomposed the ΔΔE_Strain, into two fragments corresponding to the ligand catalyst + growing chain (ΔE_Strain(Cat)) and to the monomer (ΔE_Strain(Mon)). The ASM-NEDA values do not include solvent and entropic corrections, so discrepancies with the calculated DFT Gibbs energies (ΔΔG, Table 1) are expected. The energetic difference between the RLS TSs of the two isotactic propagations, namely S,S-LA on S,S chain and R,R-LA on R,R chain (entry 1 in Table 1), is positive indicating a preference for the former. The ΔE_Strain(Cat) and ΔE_Strain(Mon) reveal that the catalyst with S,S-ending chain in fm2 geometry is less strained compared to its R,R-ending chain counterpart in the fm1 geometry.

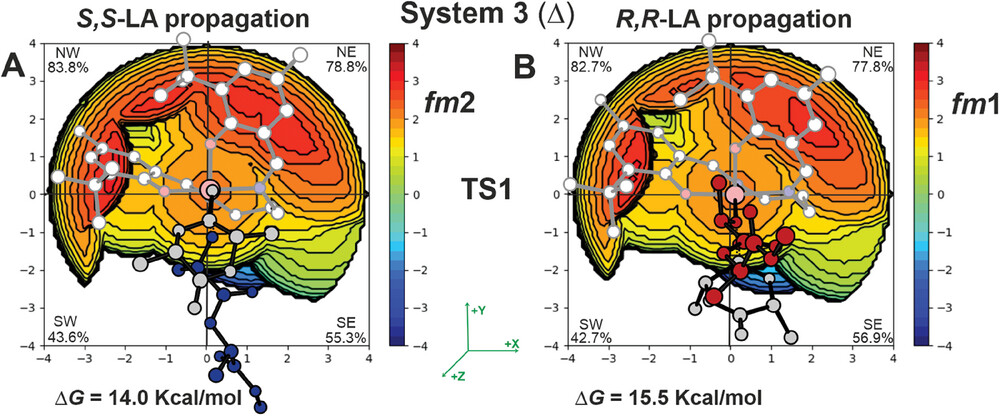

This supports our interpretation of the %V_Bur maps of Figure 6 where the R,R-chain is positioned in the SE red zone, leading to a more congested environment for both the chain/ligand framework.

Additionally, the ΔE_Strain(Mon) values reflect the different monomer conformations, with the methyl groups in equatorial and axial orientations for S,S-LA and R,R-LA, respectively, stabilizing the S,S-LA conformation (Figure S1, Supporting Information). The calculated energetic preference for the fm1 conformation in R,R-LA propagation (entry 2, Table 1) and for the fm2 conformation in S,S-LA propagation (entry 3, Table 1) further highlights the influence of steric effects on both the catalyst fragment and monomer deformation (Figure S2, Supporting Information). A complete analysis of the ΔΔE_Int contributions is provided in Table S5 (Supporting Information).

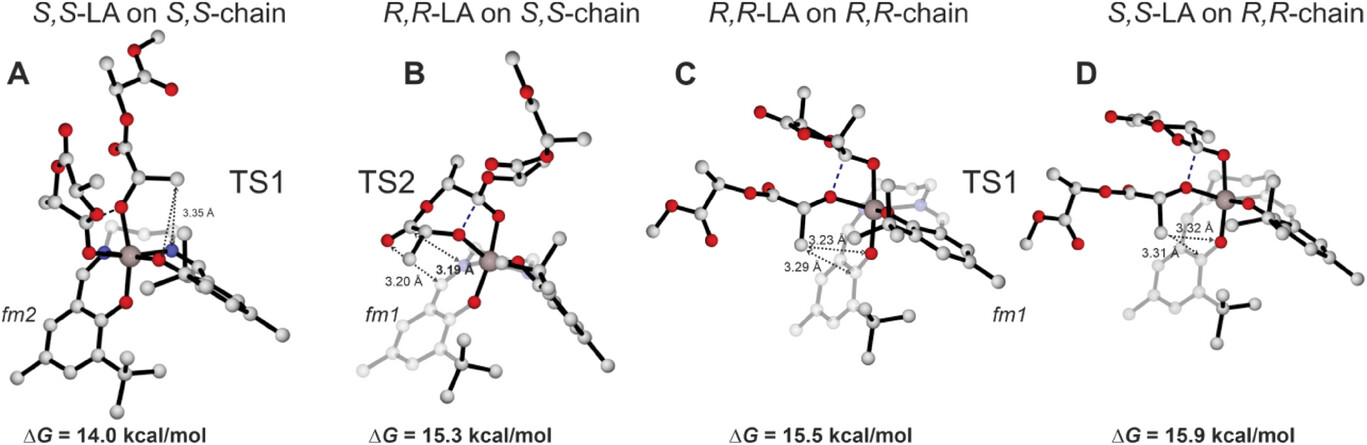

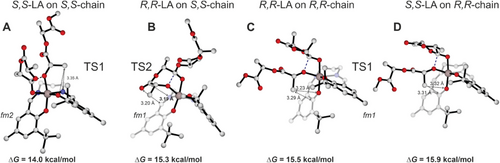

Finally, we decided to further investigate the role played by the chiral growing chain by considering different assembly modes, thus including the S,S and R,R-LA insertions on system 3 with R,R and S,S-ending chains, respectively. The key energetic results are reported in Table 2 (complete lists in Tables S6 and S7, Supporting Information) and the DFT optimized geometries of the RLS TSs are reported in Figure 7. Interestingly, we found that S,S-LA insertion is favored over R,R-LA into the S,S-chain; however, this preference is reversed when considering the R,R-LA last inserted unit (thus forming the R,R-ending chain), in line with the CEC (Table 2).

At this stage, it is worth to resume the kinetic experiments reported by Nomura^[18] on similar achiral Al-salen catalysts where the polymerization kinetic constants for the enantiopure LLA are higher than the ones for rac-LA (Figure S3, Supporting Information). The values reported in Table 2 match the experimental data (Supporting Information), suggesting that Δ configuration exhibits a clear preference toward the S,S-LA (Λ configuration toward the R,R-LA); the following insertion of R,R-LA forming an R,R-ending chain makes a mismatch^[43] for the catalyst with an increasing of the activation Gibbs energies (Table 2). This mechanism, which mixes the features of the ESC (chiral configuration with the fm wrapping mode) and the CEC (inverted preference for R,R and S,S-LA depending on the last inserted unit), is a reasonable way to explain the isotactic stereoblock microstructure and it is summarized in Scheme 2. Incidentally, the Scheme 2 may also account for the formation of highly isotactic stereoblock copolymer of PLA via the polymer chain exchange mechanism proposed by Coates^[44] where the two preferred Δ/Λ configurations (Figure 3) may exchange the S,S and R,R- ending chains after a certain number of insertions.

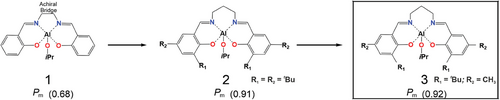

For the final validation of our computational analysis, we simulated the ROP of rac-LA promoted by the achiral system 1 (Chart 1), which shows a lower experimental stereoselectivity (P_m = 0.68) compared to system 3. Our results confirm that the key features described previously – fm2 preference for S,S-LA and fm1 preference for R,R-LA- are maintained, with the calculated stereoselectivity (ΔΔG = 0.8 kcal/mol) in good agreement with the experimental data. Optimized geometries of system 1 for the rac-LA TSs along with the %V_Bur steric maps are reported in Figure S4 (Supporting Information). The absence of ^tBu substituents on the ligand reduces the steric hindrance in the SE quadrant leading to the observed decrease in stereoselectivity.

3 Conclusion

In this contribution, we explained, through DFT analysis combined with %V_Bur steric maps and the ASM-NEDA analysis, the origin of stereocontrol in the ROP of rac-LA promoted by achiral Al-based catalysts. The mechanism(s) we proposed, as well as the methodology we used for explaining the stereoselective ROP by enantiopure complexes following the enantiomorphic site control,^{[27, 28, 45]} is working well also for stereoselective ROP by achiral Al-based complex following the chain end control. We carefully analyzed all the elements of chirality during the polymerization processes and we identified the rate-limiting steps for R,R-LA and S,S-LA propagation. We found that the ligand wrapping mode is dictated by the monomer configuration (fm2 for S,S-LA and fm1 for R,R-LA). It is worth to stress that the match with the experimental parameters (P_m and T_m) is sorted out only by including the ligand dynamic features reported in Scheme 1. The main factors were revealed by the %V_Bur steric maps and the ASM-NEDA analysis.

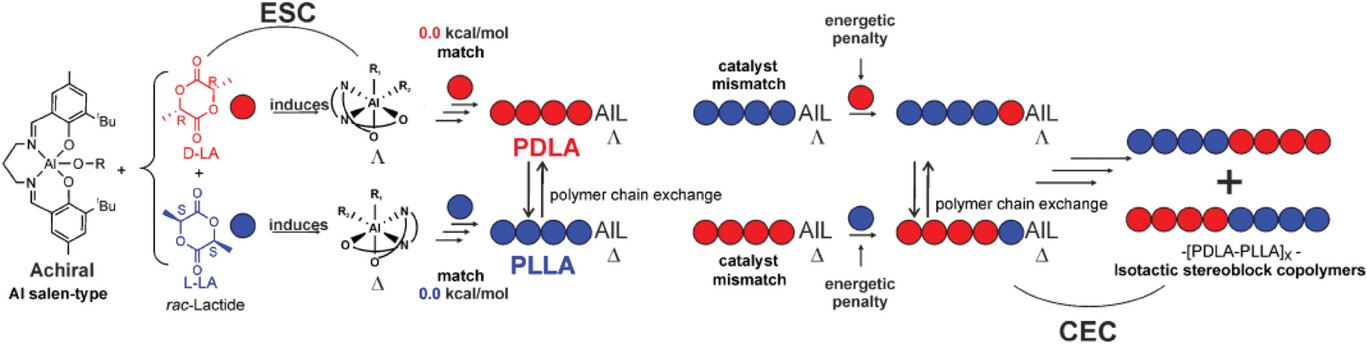

Furthermore, the values resulting from computing all the assembly modes agree with the polymerization kinetics of homochiral PLLA leading to a mechanistic path proposed in Scheme 2. In conclusion, we explained how achiral Al-Salen systems dictate the stereoselectivity through a chain end control exerted by the chiral configuration of the active site. Revealing the origin of the stereocontrol is an important target to achieve stereoselective ROP polymerization for the synthesis of biodegradable materials with tailored properties.^[46-50]
