Few Drugs Display Flip-Flop Pharmacokinetics and These Are Primarily Associated with Classes 3 and 4 of the BDDCS

INTRODUCTION

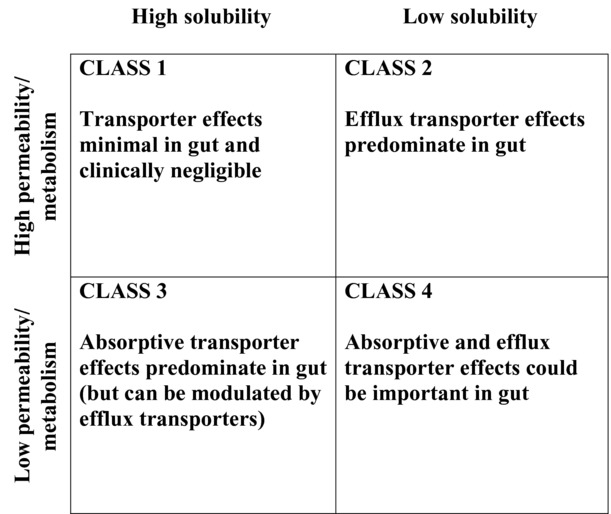

Accurate prediction of in vivo pharmacokinetics from in vitro measurements is an ongoing goal in the field of pharmaceutical sciences, and was a primary incentive in the establishment by Amidon et al.1 of the Biopharmaceutics Classification System (BCS). Wu and Benet2 built upon the BCS by modifying it to include information concerning drug elimination, and thus created the Biopharmaceutics Drug Disposition Classification System (BDDCS; Figure 1) to aid in predicting in vivo drug disposition by identifying the role of drug transporters, here presented with respect to effects in the intestine, as reviewed by Shugarts and Benet.3 The BDDCS gives scientists and clinicians a tool for predicting drug disposition and drug–drug interaction characteristics very early in the development and with little additional expense. This paper is dedicated to Professor Amidon in recognition of his outstanding and seminal contributions to the pharmaceutical sciences. It would not have been possible to conceive the BDDCS,2 without his prefatory insightful development of BCS.1

Gastrointestinal absorption is generally faster than elimination for most immediate-release, orally dosed drugs. However, there are exceptions characterized as flip-flop pharmacokinetics, in which the rate of absorption of a drug is slower than its rate of elimination. It is termed “flip-flop” because the absorption is the limiting process for elimination and a drug cannot be cleared from the system any faster than it enters into that system. It follows that observing an increased terminal elimination half-life following oral (p.o.) dosing of a drug, as compared with its intravenous (i.v.) half-life, is indicative of flip-flop pharmacokinetics, that is, although the ratio of a drug's absorption half-life to its elimination half-life (t_1/2,abs/t_1/2,elim) is usually less than one, in the case of flip-flop kinetics, the ratio is greater than one. In 2011, Yáñez et al.4 published an extensive review of flip-flop pharmacokinetics, identifying 12 drugs exhibiting flip-flop pharmacokinetics following immediate-release p.o. dosing.

It is hypothesized here that drugs exhibiting poor intestinal membrane permeability rate would be those most likely to display flip-flop kinetics, as also noted by Yáñez et al.4 Poorly permeable drugs generally have a low oil-to-water partition coefficient and are classified as BDDCS Classes 3 and 4, which are poorly metabolized. This report describes 19 drugs that display flip-flop kinetics and are poorly metabolized, although one of these poorly metabolized drugs displays a very weak flip-flop profile. These drugs are all associated with Classes 3 and 4 of the BDDCS. Based on these classifications, the BDDCS predicts that absorptive (uptake) transporters may play an important role in the gastrointestinal absorption of Classes 3 and 4 drugs (Figure 1). Here, we suggest that in vitro measures of permeability rate and extent of metabolism will predict whether a drug would be likely to display flip-flop kinetics in vivo.

METHODS

Drugs described in the literature as displaying flip-flop kinetics after p.o. dosing of immediate-release formulations in mammals (humans, monkeys, horses, rats, or rabbits) were identified in a survey of previously reported pharmacokinetic studies. Searches using the term “flip-flop [or flip flop] kinetics [and pharmacokinetics]” were performed in both PubMed and Web of Science, via various internet searches (e.g., Google) and reexaminations of specific drug categories as will be described. The search results were then gleaned to identify reports of flip-flop drugs and their respective i.v. and p.o. half-lives. Studies investigating controlled-release formulations, prodrugs, or drugs administered via nonoral delivery sites (e.g., intramuscular, inhalation, etc.) were excluded from consideration. Close to 200 studies identifying flip-flop pharmacokinetics were found via the search processes utilized, with the overwhelming majority related to formulations developed to achieve flip-flop pharmacokinetics for drugs with short half-lives. For example, a recent publication5 reports flip-flop kinetics for the Class 1 drug mycophenolate in transplant patients for an enteric-coated formulation. Similarly, drugs with nonenzymatically catalyzed metabolism (e.g., thalidomide6) or drugs reported to display flip-flop kinetics under conditions of decreased intestinal motility that would affect absorption kinetics were also excluded (e.g., cephradine7 or dabigatran etexilate8, 9). Two additional drugs were excluded because of the lack of corroborating evidence in the literature: a report of possible flip-flop kinetics of etoposide in children was ambiguous10; a single report of the i.v. half-life of vildagliptin in humans11 was within the range of p.o. half-lives reported in other human studies,12, 13 and in addition, studies with vildagliptin in rats clearly demonstrated a lack of a flip-flop phenomenon.14

Where available, the reported terminal half-life after p.o. dosing of a drug was compared with the elimination half-life after i.v. dosing, and a ratio was calculated for each. Drugs were then classified into the BDDCS based on solubility and extent of metabolism following the tabulation of Benet et al.15 A drug is said to be highly soluble in both BCS and BDDCS when its highest dose strength is soluble in 250 mL or less of aqueous media over the pH range of 1–7.5 at 37°C.2 Drugs were classified as highly metabolized if metabolism accounts for at least 60% of its elimination.15 Of the 22 drugs found to exhibit flip-flop kinetics, 13 had a published BDDCS classification.15 The remaining nine were classified based on the above-mentioned criteria. Further searches of the literature were performed to identify which of these drugs were known substrates of the uptake and efflux transporters expressed on the intestinal lumen and liver.

RESULTS

Acamprosate, amoxicillin, ampicillin, calcium dosbesilate, carbovir, carvedilol, cefuroxime, cephalexin, fexofenadine, florfenicol, furosemide, levovirin, meclofenamic acid, metformin, nitrofurantoin, pravastatin, rebamipide, sapropterin, xamoterol, zanamivir, and zidovudine are reported to display flip-flop kinetics, whereas nedocromil is reported to show a weak trend toward flip-flop kinetics (Table 1). Each of these drugs, except for carvedilol, meclofenamic acid, and sapropterin, is eliminated primarily through excretion (i.e., poorly metabolized) and thus is assigned to Class 3 or 4 of the BDDCS. Interestingly, zidovudine displays flip-flop kinetics in rats,16 where it is poorly metabolized (20%–30% metabolized)17-19 as compared with both monkeys19, 20 and humans19, 21, 22 in which zidovudine displays normal kinetics and is extensively metabolized (60%–75% metabolized).

In the majority of cases presented in Table 1, the slow absorption process after an p.o. dose had a very obvious impact on pharmacokinetics and resulted in an observed terminal half-life that was longer by about twofold or greater as compared with the i.v. dose elimination half-life. One clear exception was nedocromil, for which the flip-flop trend was weak, and the absorption half-life to elimination half-life ratio was closer to one (Table 1). Notably, nedocromil has an inherently longer elimination half-life (13.8 h) than any of the other drugs (0.3–7.7 h) that displayed convincing flip-flop kinetics. Two BDDCS Class 2 drugs30, 37, 38 and one Class 1 drug45 are reported to exhibit flip-flop pharmacokinetics.

Classification into the BDDCS helps to predict whether uptake and/or efflux transporters in the gut will play a role in the absorption of a drug2, 3 (Figure 1). The effects of transporters on the absorption of Class 1 compounds are negligible. For Class 2 compounds, the effects of efflux transporters are expected to dominate in the gut. The BDDCS predicts that absorptive transporter effects will predominate for Class 3 drugs, although efflux transporters in the gut may potentially modulate their disposition. For Class 4 drugs, the BDDCS predicts that the drug's disposition is likely to be affected by both absorptive and efflux transporters. Eighteen of the 21 drugs (omitting zidovudine) with flip-flop kinetics identified herein were poorly metabolized and thus classified as either Class 3 or 4 drugs. We recently reviewed intestinal drug transporters48 and only half of the drugs exhibiting flip-flop kinetics have been previously shown to be substrates for at least one uptake and/or efflux transporter (not limited to intestinal transporters) that may play an important role in their pharmacokinetics (Table 2). When the drug is listed as a substrate in the University of California, San Francisco–US Food and Drug Administration Transportal database,49 this compilation provides primary reference sources.

DISCUSSION

There are currently two major drug classification systems in use, the BCS and the BDDCS, which are based on the solubility and nominally the permeability of a drug. The BCS was developed to allow waiver of in vivo bioequivalence studies for highly soluble, highly permeable drugs, where rapid dissolution of immediate-release dosage forms could be established.1, 65 However, as pointed out by Benet and Larregieu,66 the definitive criterion for assignment of Class 1 BCS is ≥90% absorption, and, in fact, a number of poor permeability rate drugs relative to metoprolol (e.g., cefadroxil, cephradine, levofloxacin, loracarbef, ofloxacin, pregabalin, and sotalol) showing ≥90% absorption are assigned to BCS Class 1.67 In contrast, BDDCS was developed to predict drug disposition based on solubility and permeability rate, with the recognition that high permeability rate compounds were eliminated primarily by metabolism, whereas poor permeability rate drugs were eliminated by renal and biliary excretion of unchanged drug.2 A strength of the BDDCS for predicting disposition including drug absorption and flip-flop kinetics lies in the ability to easily obtain values for the extent of metabolism that are definitive, reliable, and generally consistent from study to study. Alternatively, we have recently shown that in vitro measurements of permeability rate predict BDDCS Classes 3 and 4 poor metabolism with 85.6 ± 13.1% accuracy, which is better than utilizing in vitro permeability measurements to predict BDDCS Classes 1 and 2 extensive metabolism at 74 ± 7%.68 In the current report, all but three of the drugs found to display flip-flop kinetics were poorly metabolized and thus associated with Classes 3 and 4 of the BDDCS. Zidovudine is a particularly interesting example. It is classified as BDDCS Class 1 for its extensive metabolism in humans, in whom it lacks flip-flop kinetics; however, zidovudine is BDDCS Class 3 in rats in which it is poorly metabolized and displays flip-flop kinetics.16, 22

One might expect that flip-flop kinetics would be observed with Class 2 drugs exhibiting poor solubility and/or extensive biliary recycling. However, neither we nor Yáñez et al.4 were able to identify any BDDCS Class 2 compound that exhibited flip-flop kinetics in humans except carvedilol.30 Here, in 20 healthy subjects, the carvedilol i.v. half-life was 2.4 h, whereas the terminal half-life was 4.3 h for a 50 mg suspension, and 7.1 and 6.4 h for a 25 and 50 mg capsule, respectively.30 It appears here that dissolution of this poorly soluble drug yielded the flip-flop kinetics for the suspension, with disintegration of the capsule (or dissolution of unwetted particles) causing a further increase in the terminal half-life. As noted in Table 1, an additional BDDCS Class 2 drug, meclofenamic acid, was found to exhibit flip-flop kinetics in horses.37, 38 As with the great majority of the drugs in Table 1, meclofenamic acid exhibits a rapid i.v. half-life, 1.4 h. Meclofenamic acid would not be expected to exhibit flip-flop kinetics in humans because the package insert indicates that following oral dosing in 10 subjects the mean elimination half-life was 1.3 h, ranging from 0.8 to 2.1 h.

As we had expected more Class 2 poorly soluble drugs to exhibit flip-flop pharmacokinetics, we examined 60 Class 2 drugs listed by Benet et al.15 with the highest dose numbers where p.o. and i.v. data are available without finding additional drugs to add to our list. We recognize that this is a very small subset of potential studies to examine. In the BDDCS classification,15 230 Class 2 drugs are dosed orally, with each drug probably studied in two to four animal species and humans. Thus, approximately 500–900 studies could be investigated outside of those identified as exhibiting flip-flop pharmacokinetics. Similarly 188 Classes 3 and 4 orally dosed drugs may be found in the compilation.15 Of these 188 drugs, we were able to identify 113 compounds where bioavailability following p.o. and i.v. dosing was reported in the Goodman and Gilman Pharmacokinetic Data compilations (7th through 12th editions). One of these drugs, zanamivir, exhibited slower oral absorption than elimination that was not identified as flip-flop pharmacokinetics in the publication.47 We had previously identified zanamivir as exhibiting flip-flop pharmacokinetics following inhalation and intranasal administration, but did not identify the p.o. dosing data, and no p.o. dosage form of this drug had been approved (or submitted for approval), but we have included zanamivir in our listing in Table 1. Following identification of zanamivir, we carefully reviewed other drugs approved for inhalation or nasal administration. It is possible that albuterol may exhibit flip-flop pharmacokinetics following p.o. dosing,69 but our confidence in the report is not sufficient to list it here. We believe that the other two inhalation Classes 3 and 4 drugs listed in Benet et al.,15, ipratropium and terbutaline, do not exhibit flip-flop pharmacokinetics.

During the review process for this paper, flip-flop pharmacokinetics was reported for the drug sapropentin dihydrochloride in infants and young children with phenylketonuria.45 Sapropentin dihydrochloride is a synthetic preparation of the naturally occurring phenylalanine hydroxylase cofactor tetrahydrobiopterin (BH4). We have listed the drug as BDDCS Class 1 because it is dehydrated by the enzyme PCD/DCoH (pterin-4a-carbinolamine dehydratase/dimerization cofactor of hepatocyte nuclear factor 1α).70 However, the body regenerates BH4 in vivo and the major route of elimination in humans is via the bile. Thus, in fact, because of the regeneration process, sapropentin dihydrochloride might be considered to have BDDCS Class 3 characteristics. However, as noted in Table 2, transporter effects on sapropentin (or BH4) have not been identified.

The current findings describe a further benefit of employing the BDDCS early in drug development. It is proposed that Classes 3 and 4 drugs are primarily susceptible to flip-flop kinetics in humans, and the data suggest that such disposition is likely to be most apparent and a more important consideration for drugs with relatively short half-lives. One would like to know whether a drug exhibits flip-flop pharmacokinetics so as to be able to define the rate-limiting step in drug elimination and to predict potential drug interactions and the potential liability for toxicity - lack of efficacy outcomes.

Given that transit through the small intestine takes only a few hours following gastric emptying,71 the presence of a flip-flop phenomenon for immediate-release drugs would intuitively only be possible for drugs with half-lives not exceeding their gastrointestinal transit time. Additionally, classification as BDDCS Class 3 or 4 has implications for both drug–drug interactions as well as pharmacogenetics. In the former case, concomitant administration of another drug that affects the expression or function of a given transporter or enzyme may alter the pharmacokinetics of the drug of interest and potentially result in drug concentrations in either subtherapeutic or toxic ranges. In the latter situation, the natural variation of transporter expression or function also has the potential to affect a drug's disposition. For example, polymorphisms in OCT1 affect the pharmacokinetics of metformin in humans.72 Thus, use of the BDDCS during early-stage development of novel drugs will help to identify those drugs that may encounter important transporter effects that require more directed characterization of their disposition.

Although flip-flop pharmacokinetics is a topic found in almost all pharmacokinetics textbooks and a topic of presentation in courses taught both in academia and in short courses taught to industrial scientists, there are very few drugs that inherently exhibit slower p.o. absorption than elimination (vs. many controlled-release drug products designed to achieve this phenomenon). This was found by Yáñez et al.4 and reviewed here. In fact, of the 698 orally dosed drugs examined by Benet et al.,15 only nine are here documented to exhibit flip-flop pharmacokinetics in humans.

In summary, this report demonstrates that poorly metabolized drugs in BDDCS Classes 3 and 4 are associated with flip-flop kinetics in cases where the drugs have relatively short half-lives. Furthermore, absorptive and efflux transporters may potentially play important roles in the disposition of BDDCS Classes 3 and 4 drugs. It might be expected that poorly soluble Class 2 drugs should also exhibit flip-flop kinetics where absorption is limited by dissolution, although only one example was identified. The implications of these findings are that simple in vitro measures of solubility and permeability rate can be used with the BDDCS early in development to predict whether flip-flop pharmacokinetics might occur (although few drugs would actually be expected to do so) and gut transporters are likely to influence the in vivo pharmacokinetic behavior of a new molecular entity. Thus, the BDDCS classification helps to identify compounds early on for which increased characterization of transporter interactions may be necessary for the purpose of predicting potential drug–drug interactions including transporter–enzyme interplay, as well as assessing the potential importance of pharmacogenetic variability in a population.
