PD-L1 promotes OCT4 and Nanog expression in breast cancer stem cells by sustaining PI3K/AKT pathway activation

Expression analysis of human breast tumor microarray datasets

The dataset consisted of mRNA expression profiling of breast invasive carcinoma samples (n = 530) performed using Agilent G450A_07 arrays from The Cancer Genome Atlas (TCGA) project (http://cancergenome.nih.gov),12 and TCGA level 3. The most highly processed data were downloaded in accordance with TCGA Data Access Policies (https://tcga-data.nci.nih.gov/tcga/) and used for analysis. Stemness score was calculated as the average expression of consensus stemness gene expression signature (CSR gene signature markers from ref. 13) for each sample. Correlations between continuous data were estimated by Pearson's correlation coefficient (r) and associated p values were computed by transforming the correlation to create a t statistic. All statistical analyses were performed with the MATLAB software packages (Mathworks, Natick, MA, USA), PARTEK Genomics Suite (Partek Inc., St. Lois, MO, USA) and SAS 9.4 (Statistical Analysis System, SAS Institute Inc., Cary, NC, USA). A p value of <0.05 was considered significant.

Cell culture and treatments

MDA-MB-231 and T-47D cells were maintained in DMEM supplemented with 7% fetal bovine serum (FBS, Invitrogen, USA). SUM-159 cells were cultured in DMEM/12 medium supplemented with 10% FBS, 1 µg/mL hydrocortisone and 5 µg/mL insulin (both from Sigma, USA). Cell lines were used within 6 months of purchase from ATCC, otherwise, they were authenticated using STR analysis (Promega).

Protein expression analysis was done on exponentially growing cells at 40–60% confluence unless otherwise stated. For the inhibition of PI3K/AKT/mTOR pathway, 50 µM LY294002 plus 100 nM of Rapamycin was used (all from EMD Calbiochem-Millipore, USA) as previously described.14

PD-L1 was downregulated using specific ShRNA to PD-L1 from OriGene, USA (RS vector, TR314098) as previously described.11 Among provided plasmids, #TI356387 was the most efficient in downregulating PD-L1 in MDA-MB-231 cells. Cells were cloned to obtain a stable PD-L1 knockdown. At least two clones were selected from the Sh-RNA line, their knockdown effect was confirmed (Supporting Information, Fig. 1) and they were designated as Sh-PD-L1 (a) and Sh-PD-L1 (b). To ensure that our findings are not due to off-target effects, we used another ShRNA (lentiviral GIPZ-GFP commercially available vector from openbiosystems, plasmid V2LHS_53668 and hence designated as (GIPZ-Sh-PDL1)). The statistical analysis for this part of the study was done using Student's t test as calculated by Excel.

Immunofluorescence

Immunofluorescence labeling was done as per the antibody provider (cell signaling) instructions with minor modifications. Briefly, cytospin-attached cells were air-dried. Cells were washed in PBS then fixed in 4% paraformaldehyde for 20 min at room temperature. Nonspecific binding was minimized using blocking/permeabilization solution (0.3% triton-X in 5% goat serum in PBS) for 1 hr. Primary antibody was added overnight at 4°C at the indicated dilution (Supporting Information, Table 1) in antibody buffer (1% BSA and 0.3% Triton X in PBS. After PBS washing, an appropriate Alexa conjugated secondary antibody was added at 1:400 dilution in addition to DAPI (both secondary antibody and DAPI are from Molecular probes, USA) for 60 min. Cells were mounted (VectaMount, Vector labs, USA) before analysis using Zeiss Axioimager Z2 (Zeiss, Germany) for image capture and BD pathway 855 image analyzer (Becton Dickenson, USA) for immunofluorescence quantitation.

Quantification of fluorescence intensity was done using BD pathway 855 system and a 20× objective (Olympus, NA 0.75) according to instrument standard protocols. Briefly, predefined analysis protocols (macros) were formed using a montage of 3 × 3, which had at least 2000 cells per montaged image. Data were analyzed in BD Image Data Explorer and the images from at least 4 different experiments were used to calculate the expression level of each studied protein. In addition, the number of cells considered positive for each studied protein was quantified using an arbitrary MFI cutoff that selects for around 50% of total analyzed cells for each experiment. All data were further normalized on the untreated control (Sh-Cont).

Proteomic analysis: Protein in-solution digestion and protein identification by mass spectrometry: LC-MS^E

Prior to expression proteomics analysis, total whole cell lysate protein extracts (100 μg) derived from MDA-MB-231 human breast cancer cell lines were subjected to in-solution tryptic digestion as previously described.15 The protein identification was done using one-dimensional Nano Acquity liquid chromatography coupled with tandem mass spectrometry on Synapt G2 HDMS (Waters, Manchester, UK). The sample analysis was done on a Triazaic Nano source (Waters, Manchester, UK) and ionization in the positive ion mobility mode nanoESI as previously described.15, 16 The Progenesis QI for Proteomics version 2.0.5387 (Nonlinear Dynamics/Waters, Manchester, UK) was used for all automated data processing and database searching using the Uniprot database (www.uniprot.org) for protein identification. The data were filtered to show only unambiguous protein identification using multiple parameters including expected molecular mass, percentage coverage, peptides count, unique peptides and confidence scores.

Western blotting

Western blotting was done as previously reported.17 Briefly, cellular proteins were extracted using RIPA lysis buffer or SDS lysis buffer. Proteins were denatured and separated using SDS-PAGE and transferred to PDVF membrane. Membranes were incubated with primary antibodies diluted in PBST (in the presence or absence of 5% BSA) as per antibody data sheet. After using an appropriate secondary antibody, the signal could be developed using SuperSignal kit and visualized by ImageQuant LAS4010 Biomolecular Imager (GE Healthcare, Pittsburgh, PA, USA). Cytoplasmic and nuclear protein extracts were prepared as previously published.18

Flow cytometry and cell sorting

Cells were prepared for flow cytometry, acquired using LSRII and analyzed using DIVA software as previously described.19 Cells were sorted using FACS Aria as previously described.19

Mouse xenotransplantation studies

Animal work, including anesthesia and euthanasia, was done in accordance to protocols approved by the institution animal care committee and the Research Advisory Council (RAC# 2140–001) of King Faisal Specialist Hospital and Research Centre (KFSH&RC). MDA-MB-231 cells transfected with ShRNA that specifically targets PD-L1 (Sh-PDL1 (a)) or a scrambled control Sh-Cont were injected orthotopically in 6–8-weeks-old female NOD.Cg-Prkdc^scid IL2rg^tm1Wjl/SzJ, also known as NOD/SCID/IL-2R^neg/neg (NSG, obtained from Jackson Laboratories) or NU/J also known as nude mice. Mice were monitored weekly for tumor formation or any sign of illness/weakness and they were sacrificed after 11 and 12 weeks of injection of NSG and nude mice, respectively. The frequency of CSCs was calculated as reported previously20 using publically available website (http://bioinf.wehi.edu.au/software/elda/). Tumor volume was calculated as ½ (length × width2). Kaplan–Meier survival analysis curve was done using GraphPad Prism 5.

PD-L1 expression in breast cancer is associated with stem-like features

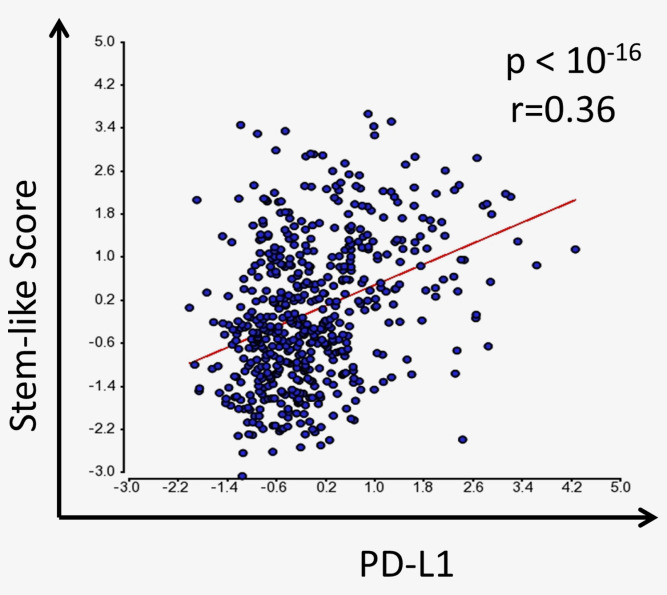

To examine the relationship between PD-L1 expression and CSCs, we used publically available breast cancer patients' gene expression data (TCGA, n = 530 patients). To this end, PD-L1 expression was evaluated in relation to stemness score, which was calculated from a panel of stem cell gene signature as reported previously by Shats et al.13 In this large dataset, there was a statistically highly significant correlation (Pearson's r = 0.36, p = 1.7 × 10⁻¹⁷) between PD-L1 expression and stemness score (Fig. 1), strongly suggesting a positive association between PD-L1 expression and stem-like cells in breast cancer. Furthermore, we looked at the association between PD-L1 and other common stemness associated genes that were not part of the gene list used by Shat et al. There was also significant correlation between PD-L1 expression and these additional stem cell-associated genes as listed in Supporting Information, Table 2. Altogether, we concluded that there is a statistically highly significant correlation between PD-L1 expression in breast cancer and the expression of stemness-associated genes.

PD-L1 expression is important for the maintenance of stemness factors

To investigate if PD-L1 expression has a direct role in the stemness of cancer cells we used PD-L1 specific ShRNA to knockdown PD-L1 expression in the breast cancer cell line MDA-MB-231 cells. These cells normally express high level of PD-L1 compared to other breast cancer cell lines.11 Downregulation of PD-L1 was confirmed using western blot, flow cytometry and immunofluorescence in two different clones of PD-L1 ShRNA (Sh-PD-L1 (a) and Sh-PD-L1 (b), Supporting Information, Fig. 1a,b).

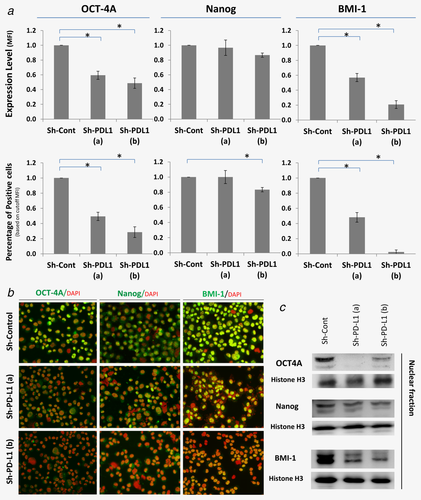

Owing to the critical role of embryonic antigens on the self-renewal ability of CSCs, we used the two PD-L1 knockdown clones to check for the effect of PD-L1 knockdown on the expression of OCT-4A, Nanog and SOX-2 embryonic stem cell transcriptional factors. Provided that there is a previously reported effect of cell density on stemness of cancer cells,21 we carried out experiments on cells harvested from exponential or confluent conditions. Downregulation of PD-L1 significantly reduced OCT-4A expression in both exponentially growing as well as confluent cells as shown by immunofluorescence (Fig. 2a,b and Supporting Information, Fig. 2). Similarly, although to a lesser extent, Nanog was also downregulated upon PD-L1 loss but only in one clone (Sh-PDL1 (b) in exponentially growing cells. Interestingly, the effect of PD-L1 on Nanog expression became significant when tested on confluent cells (Fig. 2a,b and Supporting Information, Fig. 2). PD-L1 loss had minimal effect, if any, on SOX-2 expression (Supporting Information, Fig. 3).

We checked another stemness controlling protein, called B lymphoma Mo-MLV insertion region 1 homolog (BMI1), which is well known to control stemness of CSCs.22 Immunofluorescence shows a dramatic decrease in the BMI1 expression upon PD-L1 knockdown in exponential growing cells (Fig. 2a,b). This significant inhibition of BMI1 expression upon PD-L1 knockdown was lost when tested on confluent cells (Supporting Information, Fig. 2). Thereafter, all later experiments were done using exponentially growing cells. PD-L1 knockdown mediated downregulation of OCT-4A, Nanog and BMI-1 was further confirmed using western blot (Fig. 2c). Altogether, PD-L1 is important to maintain the expression of the embryonic antigens OCT-4A and Nanog and the stemness factor BMI-1.

PD-L1 knockdown inhibits AKT phosphorylation

To gain insight into the mechanism of how PD-L1 can affect the expression of embryonic antigens, we used liquid chromatography coupled with tandem mass spectrometry (LC/MS) to analyze global protein expression in breast cancer cells upon PD-L1 knockdown. Approximately >2000 proteins were identified in total between Sh-Cont and both Sh-PD-L1 (a) and (b). We identified significant changes (ANOVA, p values <0.05) with at least fivefold in the expression of a total of 214 different proteins upon PD-L1 knockdown. To summarize all data and understand the main pathway responsible for most of these changes, data were subjected to ingenuity pathway analysis (IPA). The network analysis showed AKT1 as a central node that is related, directly or indirectly, to many of the protein expression changes detected upon PD-L1 knockdown (Supporting Information, Fig. 4).

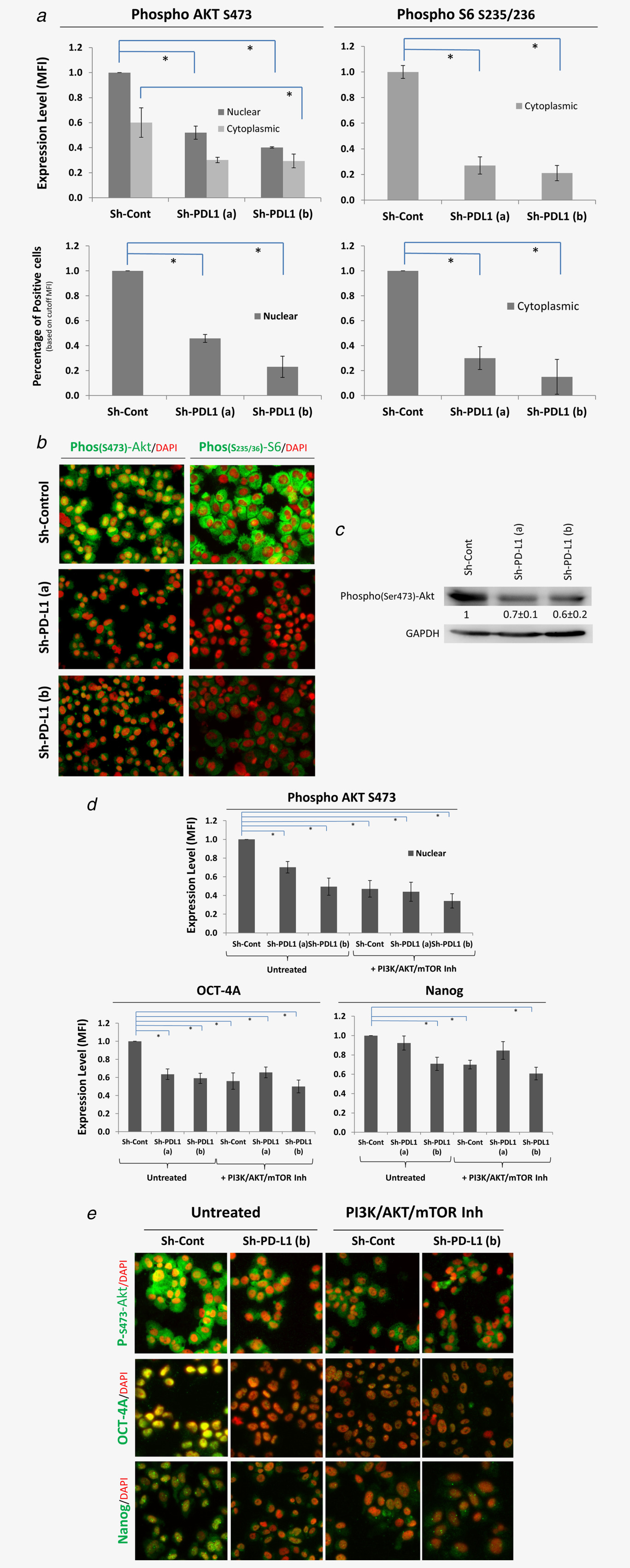

To validate this observation, we used immunofluorescence to measure the phosphorylation (S473) of AKT in our PD-L1 knockdown clones. There was a dramatic decrease in the phosphorylation of AKT that was prominent in the nucleus (Fig. 3a,b). To further confirm these results, we measured phospho-AKT using western blot. PD-L1 knockdown cells had significantly lower level of phosphorylated AKT confirming that PD-L1 expression is important to maintain phosphorylated AKT (Fig. 3c). To further confirm the effect of PDL1 on AKT activity, we measured the activation of mTOR, which is very well-known to be under the control of PI3K/AKT activity. PD-L1 knockdown resulted in a dramatic decrease in the mTOR activity as shown by the reduced phosphorylation (at S235/236 site) of its downstream target, the ribosomal S6 (Fig. 3b).

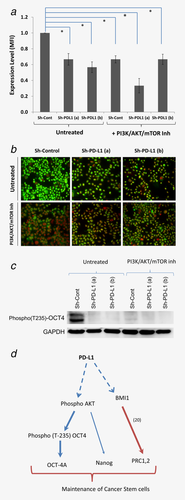

We then used pathway inhibitors to test whether the effect of PD-L1 knockdown on the OCT-4A and Nanog was due to the inhibition of AKT activation. Given our data (Fig. 3b) and the well-known feedback loops of PI3K/AKT and mTOR pathways,23, 24 we inhibited the entire PI3K/AKT/mTOR pathway to examine whether the effect of PD-L1 on OCT-4 A and Nanog expression is PI3K/AKT pathway dependent. PI3K/AKT/mTOR inhibition significantly reduced the phosphorylation of AKT (Fig. 3d, top). PD-L1 knockdown did not have further inhibition on OCT-4A when PI3K/AKT/mTOR pathway was inhibited (Fig. 3d,e). Similarly, the PD-L1 (b) clone that showed significant effect on Nanog expression did not show further effect when the PI3K/AKT/mTOR pathway was inhibited (Fig. 3d,e). These data suggest that the effect of PD-L1 on OCT-4A and Nanog is PI3K/AKT-pathway dependent.

Inhibiting PI3K/AKT/mTOR pathway did not have an effect on BMI1 expression (data not shown), suggesting that the effect of PDL1 on BMI expression is PI3K/AKT-independent.

To test the universality of our findings to other types of breast cancer cells, we knocked down PD-L1 in another breast cancer cell line (SUM-159), which normally expresses abundant PD-L1 in a similar fashion to MDA-MB-231 cells. PD-L1 knockdown in SUM-159 cells validated the decrease in OCT-4A, Nanog and BMI1 that we obtained with PD-L1 knocked in MDA-MB-231 cells (Supporting Information, Fig. 5). Furthermore, we transfected PD-L1 ORF in T-47D breast cancer cells, which are normally PD-L1 negative, to test whether we could replicate the PD-L1 mediated effects on stemness factors in this cell line. Upon ectopic PD-L1 expression, OCT-4A, Nanog and BMI1 were upregulated as shown by immunofluorescence (Supporting Information, Fig. 6a) and western blot (Supporting Information, Fig. 6b).

The above findings depended on PD-L1 knockdown using one sequence of PD-L1 Sh-RNA. Therefore, to ensure that these observed changes are not due to an off-target effect, we transfected MDA-MB-231 cells with another PD-L1 ShRNA that utilizes different sequence and inserted on a different vector. Results with the second Sh-RNA (GIPZ-Sh-PDL1) were consistent with the previous one confirming the downregulation of OCT-4A, Nanog and BMI1 we observed in these cells are specifically due to PD-L1 knockdown (Supporting Information, Fig. 7).

Altogether, we have demonstrated that PD-L1 expression sustains AKT phosphorylation, which in turn is important for the maintenance of OCT-4A and Nanog expression. On the other hand, we have shown that PD-L1 regulate BMI1 expression in a PI3K/AKT pathway-independent manner.

PD-L- mediated PI3K/AKT pathway activation promotes the phosphorylation of (T235) OCT-4

Lin et al. has previously shown that AKT maintains OCT-4 expression by sustaining its phosphorylation at threonine 235 site in both embryonic stem cells and embryonic carcinoma cells.25 This AKT-mediated phosphorylation of OCT-4 promotes its stabilization and nuclear localization. Therefore, we checked the effect of PD-L1 expression on the phosphorylation (T235) of OCT-4. Indeed, PDL1 knockdown significantly decreased the phosphorylation of OCT-4 in both clones (Fig. 4a,b). More importantly, inhibition of PI3K/AKT/mTOR pathway decreased the phosphorylation of OCT-4 in a similar fashion to knocking down PDL1. The effect of PD-L1 knockdown on the phosphorylation of OCT-4 and its dependence on PI3K/AKT/mTOR pathway was confirmed by western blot (Fig. 4c). Altogether, PD-L1 maintains OCT-4 phosphorylation and increases its total protein expression in a PI3K/AKT pathway-dependent fashion.

Based on the above data presented we propose that PD-L1 regulate breast cancer stemness via modulating OCT-4A and Nanog expression, which is PI3K/AKT pathway-dependent and through promoting BMI1 expression, in a PI3K/AKT-independent fashion (Fig. 4d).

PD-L1 is critical for the self-renewal of CSCs

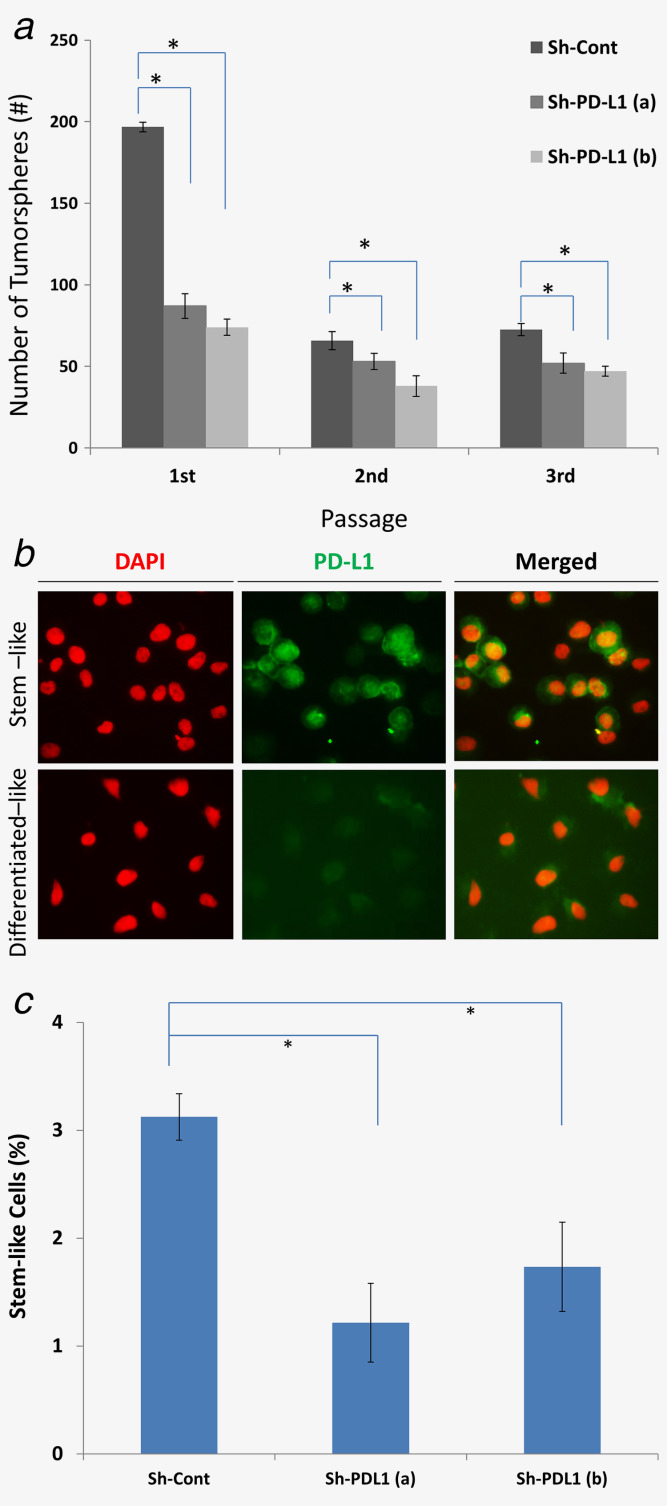

The effect of PD-L1 knockdown on the expression of stem-related molecules suggests a direct role for this molecule in CSC maintenance. To functionally test the role of PDL1 on maintaining CSCs, we examined the ability of PD-L1 knockdown cells to grow in an anchorage-independent manner (tumorsphere formation ability). PD-L1 knockdown significantly decreased the ability of breast cancer cells to form tumorspheres as compared with the scrambled control (Fig. 5a). PD-L1-mediated effect on tumorsphere formation was consistent in three subsequent passages supporting for the role of PD-L1 in breast cancer stemness.

We then sorted MDA-MB-231 cells stem-like cells (CSCs enriched population) using standard Ep-CAM+/CD44^high/CD24^low cell surface markers and their differentiated counterparts (Ep-CAM^low/neg/CD44^low/CD24^high) and compared their level of PD-L1 expression. Immunofluorescence results confirmed the higher level of PD-L1 expression in CSCs compared with the more-differentiated breast cancer cells. Interestingly, in addition to membranous PD-L1 there was a nuclear fraction PD-L1 in CSCs (Fig. 5b). Quantitation of stem-like cells in PD-L1 knockdown using flow cytometry showed a decrease in the percentage of these cells compared with the control (Fig. 5c and Supporting Information, Fig. 8).

We validated our work in vivo by performing an extreme limiting dilution assay (ELDA), the golden standard of CSCs frequency estimation in vivo. PD-L1-knockdown MDA-MB-231 breast cancer cells were injected at different inoculation densities (10, 100 and 1000 cells/mice) in 6 mice per group with similar setting for control cells. We have chosen the most immunocompromised strain of mice, which is NOD/SCID/IL-2R^−/− (NSG), to neutralize the effect of PD-L1 on the immune system. In this strain of mice the incidence of tumor formation was extremely high, which is consistent with previous reports.26 Even with this high level of tumorigenicity, knockdown of PD-L1 resulted in ninefold decrease the frequency of CSCs from 1:1 in the control cells to 1:9 in the PD-L1 knockdown cells (Table 1). Importantly, the survival of mice injected with PD-L1 knockdown cells were significantly (p < 0.001) longer than mice injected with control cells (median survival were 77 days for mice injected with PD-L1 knockdown cells compared with 53 days for mice injected with control cells (Supporting Information, Fig. 9). Necropsy on dead mice revealed massive metastatic nodules suggesting this as the cause of death. To further ensure that such an effect is reproducible in other type of immunocompromised mice, we repeated the experiment in Nude mice. We obtained similar results; although the tumor incidence was much lower (Table 1). Interestingly, in nude mice, the survival was much better and therefore we could compare the tumor size in each group. Sh-Cont cells formed significantly larger tumors (average of 600 mm²) compared with Sh-PD-L1 cells (average 170 mm²).

Altogether our data in vivo and in vitro demonstrate that PD-L1 is critical for the maintenance of breast CSCs.
