1 INTRODUCTION

Kidney renal clear cell carcinoma (KIRC) is the most common subtype of renal cell carcinoma and one of the most common primary malignant tumors of the urinary system, also one of the top 10 common tumors in the world, ranking sixth among the top 10 tumors in male and ninth in female.^{1, 2} The other two common subtypes are papillary renal cell carcinoma and chromophobe renal cell carcinoma.³ Although renal cancer is a disease that can be detected early and treated surgically, one-third of cases will progress to metastasis, which is associated with poor prognosis and poses great treatment challenges.⁴ Currently, kidney cancer is considered to be a disease closely related to genetic mutations. The genes that are mutated in kidney cancer are involved in different pathways and signaling to regulate various aspects, including angiogenesis,⁵ mitochondrial autophagy,⁶ DNA repair,⁷ intercellular junctions,⁸ extracellular matrix junctions,⁹ microtubule stability,¹⁰ mitotic spindle function,¹¹ and cellular metabolism.¹² At present, the following four key genes are considered as KIRC risk drivers, which are VHL, PBRM1, BAP1, and SETD2, respectively.¹³ Tumor-specific neoantigens can provide more opportunities for cytotoxic T cells to interact with and destroy cancer cells to enhance the immune response.¹⁴ Notably, the treatment options for KIRC patients have increased over the past decade, with cancer immunotherapy becoming as an emerging and important field and a breakthrough to change adverse outcomes.¹⁵ Due to the different immunotherapy regimens, it is urgent to find biomarkers to identify tumor heterogeneity, so as to develop dosage regimens and predict drug efficacy. Therefore, it is meaningful to evaluated the correlation between biomarkers, tumor immunotherapy, and clinical outcomes for targeting or circumventing tumor heterogeneity.

Pain is the most desperate symptom of cancer, impairing life quality and shortening survival time.¹⁶ We have focused on pain management in cancer patients, yet the role of pain-related metabolic responses in tumor pathophysiology remains a mystery. Of interest, opioid receptor has been reported to be expressed in sheer volume of human cancers, containing prostate cancer,¹⁷ lung cancer,¹⁸ and breast cancer.¹⁹ In retrospective studies of patients with prostate or lung cancer receiving opioids for pain, higher opioid needs were found to be associated with poorer cancer outcomes.^{17, 18} Pain genes are key mediators of the pain pathway.²⁰ Due to the different mechanisms of pain, there are mainly four types of pain-representative genes, including (a) ion channel pain genes: sodium ion channel (gene representative: Nav1), potassium ion channel (gene representative: EHMT2), calcium ion channel (gene representative: SP1); (b) neurotransmitter pain genes: 5-hydroxytryptamine (gene representative: SLC6A4), catecholamine neurotransmitter (gene representative: COMT); (c) opioid receptor pain genes (gene representatives: OPRM1, OPRD1); (d) drug metabolism enzyme pain genes: cytochrome P4502D6 enzyme (gene representative: CYP2D6), cytochrome P4503A4 enzyme (gene representative: CYP3A4).

As the few studies on the pain molecular basis of KIRC, we believe that pain genes (NAV1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) have not been reported previously in patient with KIRC. These findings provide a new breakthrough for prognosis and treatment in KIRC.

2 MATERIALS AND METHODS

TIMER database (http://timer.cistrome.org) was applied for the pan-cancer analysis of different pain genes. TCGA database (https://portal.gdc.cancer.gov) was used for expression level analysis and clinical characteristics analysis of different pain genes in KIRC patients via R package (ggplot2, version 3.3.3). Kaplan–Meier plotter database (http://www.kmplot.com) was performed to make a survival significance analysis of different pain genes. Metascape database(https://metascape.org) was used to make the pathway and process enrichment analysis and quality control and association analysis of pain genes. STRING database (https://version11.string-db.org) was applied for the molecule interaction analysis of pain genes. Human Protein Atlas database (https://www.proteinatlas.org) was used for protein expression level and subcellular location expression level analysis. Single Cell Expression Atlas database (https://www.ebi.ac.uk/gxa/sc/home) was allowed to perform a spatiotemporal immune zonation analysis. LinkedOmics database (https://www.linkedomics.org/login.php) was used for positively correlated significant gene expression and negatively correlated significant gene expression analysis of different pain genes in KIRC patients. cBioPortal database (https://www.cbioportal.org) was applied for DNA methylation analysis of different pain genes. MethSurv database (https://biit.cs.ut.ee/methsurv) was used for Heatmap analysis of DNA methylation. CancerSEA database (http://biocc.hrbmu.edu.cn/CancerSEA/home.jsp) was performed to make an associated cancer functional states analysis of different pain genes. COSMIC database (https://cancer.sanger.ac.uk/cosmic) was used for gene mutation distribution analysis of different pain genes. The Immunotherapy database (https://www.rocplot.org/immune) was used for immunotherapy analysis, containing anti-PD-1 therapy, anti-PD-L1 therapy, and anti-CTLA4 therapy of different pain genes TISIDB database (http://cis.hku.hk/TISIDB/index.php) was applied for immunomodulator analysis, containing immunoinhibitor, immunostimulator and MHC molecule of different pain genes.

3 RESULTS

3.1 Pan cancer analysis of pain genes (NAV1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) in KIRC patients

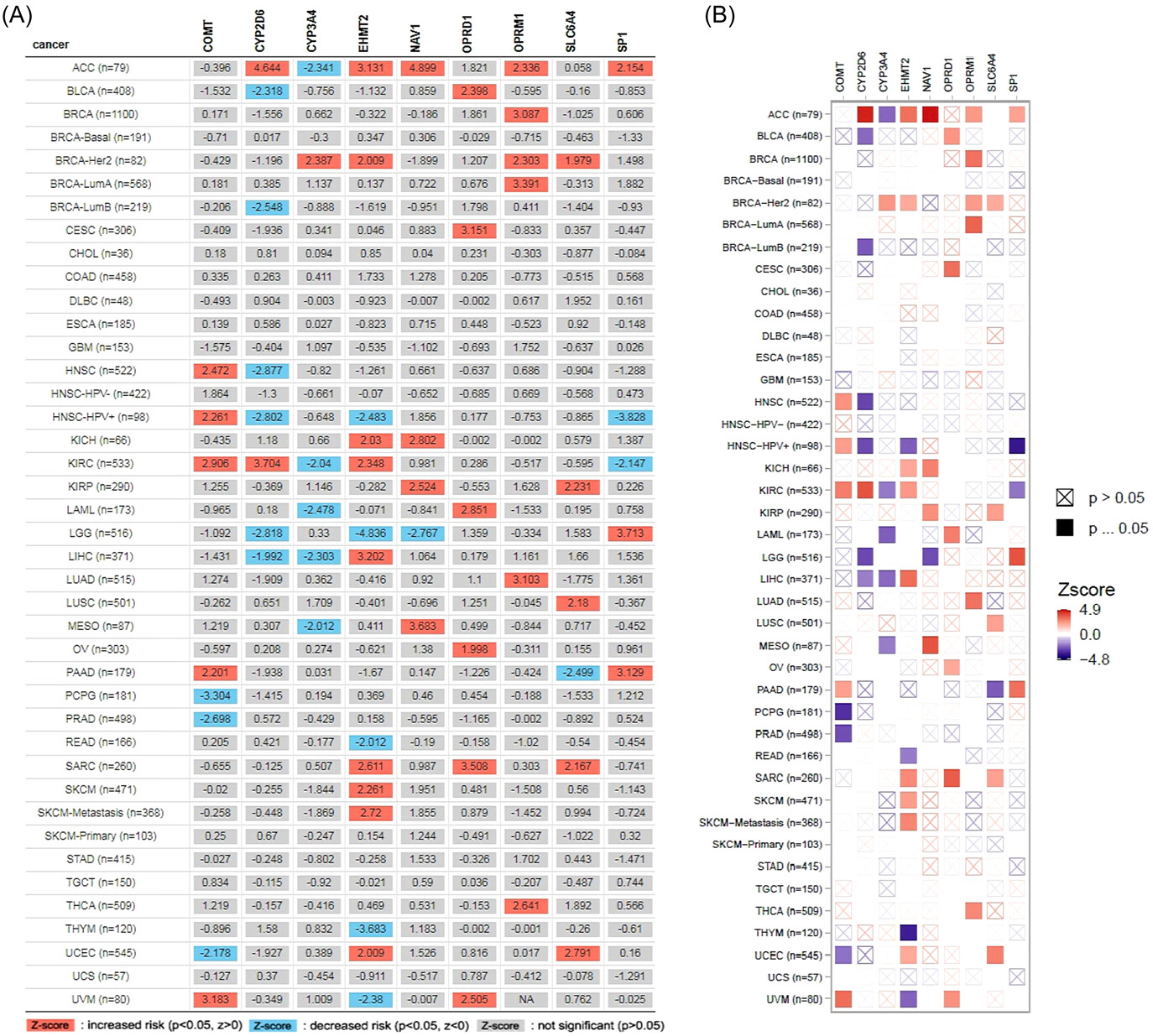

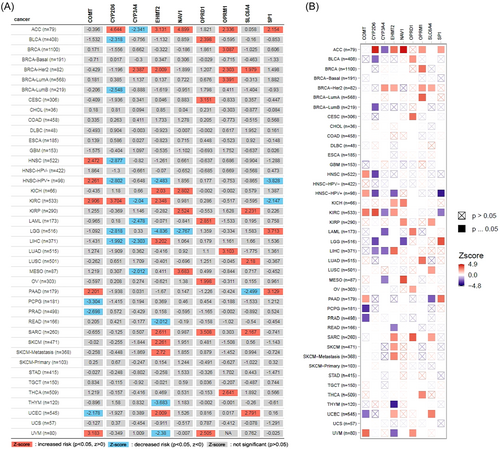

TIMER database was used for pan-cancer analysis of different pain genes (Nav1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) (Table 1). The expression of pain genes was statistically significant in a variety of tumors with different prognostic significance (Figure 1).

Table 1. Summary of target pain genes.

Genes	Description	Chromosomal Location
NAV1	Neuron navigator 1	1q32.3
EHMT2	Euchromatic histone-lysine N-methyltransferase 2	6p21.3
SP1	Sp1 transcription factor	12q13.1
SLC6A4	Solute carrier family 6 member 4	17q11.2
COMT	Catechol-O-methyltransferase	22q11.21
OPRM1	Opioid receptor, mu 1	6q24−q25
OPRD1	Opioid receptor, delta 1	1p36.1−p34.3
CYP2D6	Cytochrome P450, family 2, subfamily D, polypeptide 6	22q13.1
CYP3A4	Cytochrome P450, family 3, subfamily A, polypeptide 4	7q21.1

3.2 Different pain genes (NAV1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) expression level, survival significance, and predicted functional pathways in KIRC patients

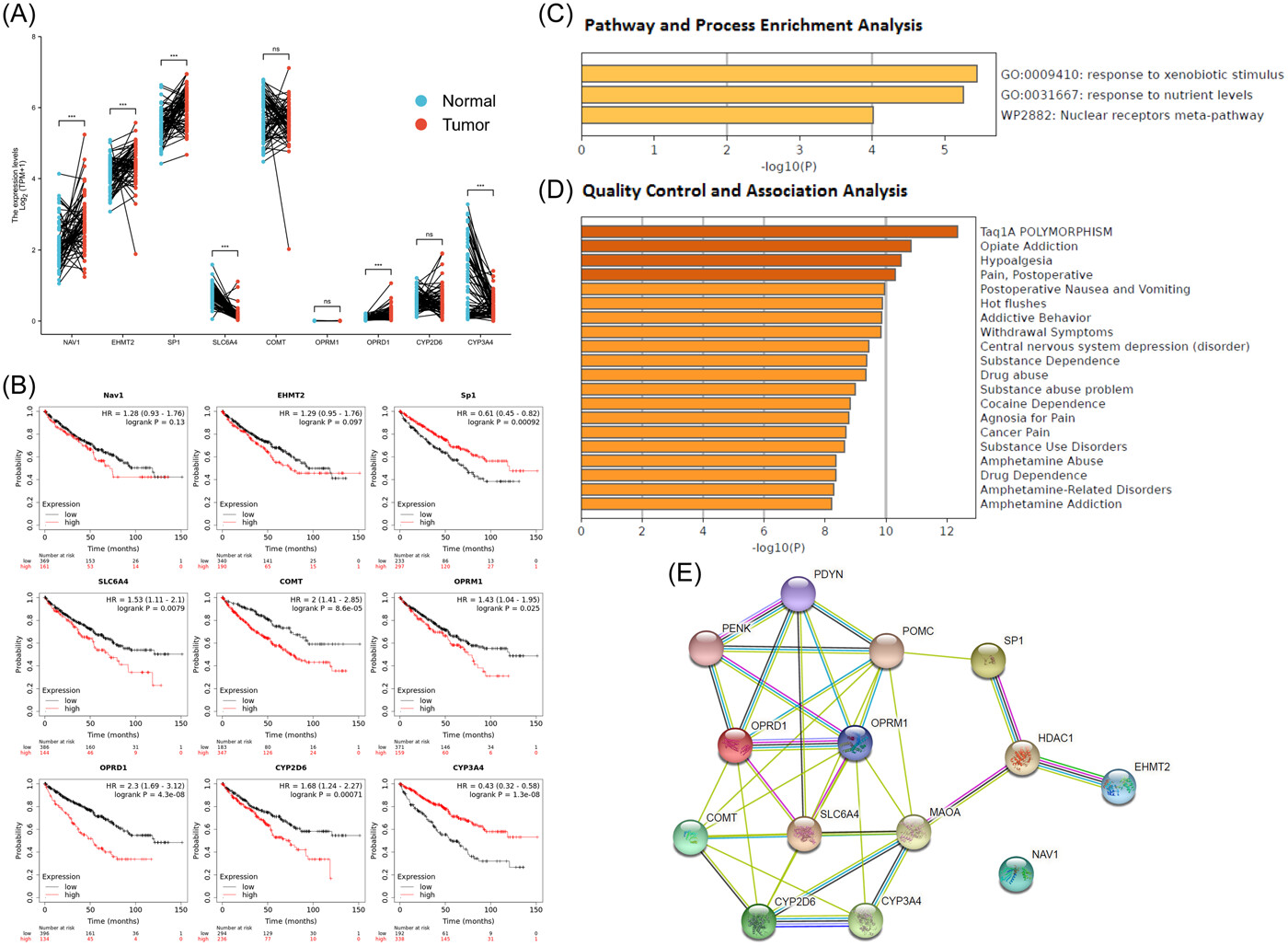

TCGA database was used to analyze expression levels of different pain genes (Nav1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) in KIRC patients using R package (ggplot2, version 3.3.3) (Figure 2A). Kaplan–Meier plotter database was used for survival significance analysis of different pain genes (NAV1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) in KIRC patients. SP1 (HR = 0.61 and p = 0.00092) and CYP3A4 (HR = 0.43 and p = 1.3e−8) were as favorable survival biomarker for KIRC patients. SLC6A4 (HR = 1.53 and p = 0.0079), COMT (HR = 2 and p = 8.6e−5), OPRM1 (HR = 1.43 and p = 0.025), OPRD1 (HR = 2.3 and p = 4.3e−8) and CYP2D6 (HR = 1.68 and p = 0.00071) were as unfavorable survival biomarker for KIRC patients. In addition, NAV1 (HR = 1.28 and p = 0.13), EHMT2 (HR = 1.29 and p = 0.097) were not significantly associated with survival in KIRC patients (Figure 2B). Metascape database was used to make the pathway and process enrichment analysis and quality control and association analysis of pain genes. Pathway and process enrichment analysis showed the top 3 representative enriched clusters consisted of GO:0009410 (response to xenobiotic stimulus), GO:0031667 (response to nutrient levels) and WP2882 (nuclear receptors meta-pathway) (Figure 2C). Quality control and association analysis showed that top 5 enriched clusters in DisGeNET were C4694057 (Taq1A POLYMORPHISM), C0524662 (opiate addiction), C0085625 (hypoalgesia), C0030201 (pain, postoperative) and C0520909 (postoperative nausea and vomiting) (Figure 2D). STRING database was used for protein–protein interaction enrichment analysis of different pain genes (Nav1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) in KIRC patients (Figure 2E). Genes with survival p < 0.001 were included in our follow-up study.

3.3 Clinical characteristics analysis of pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4) in KIRC patients

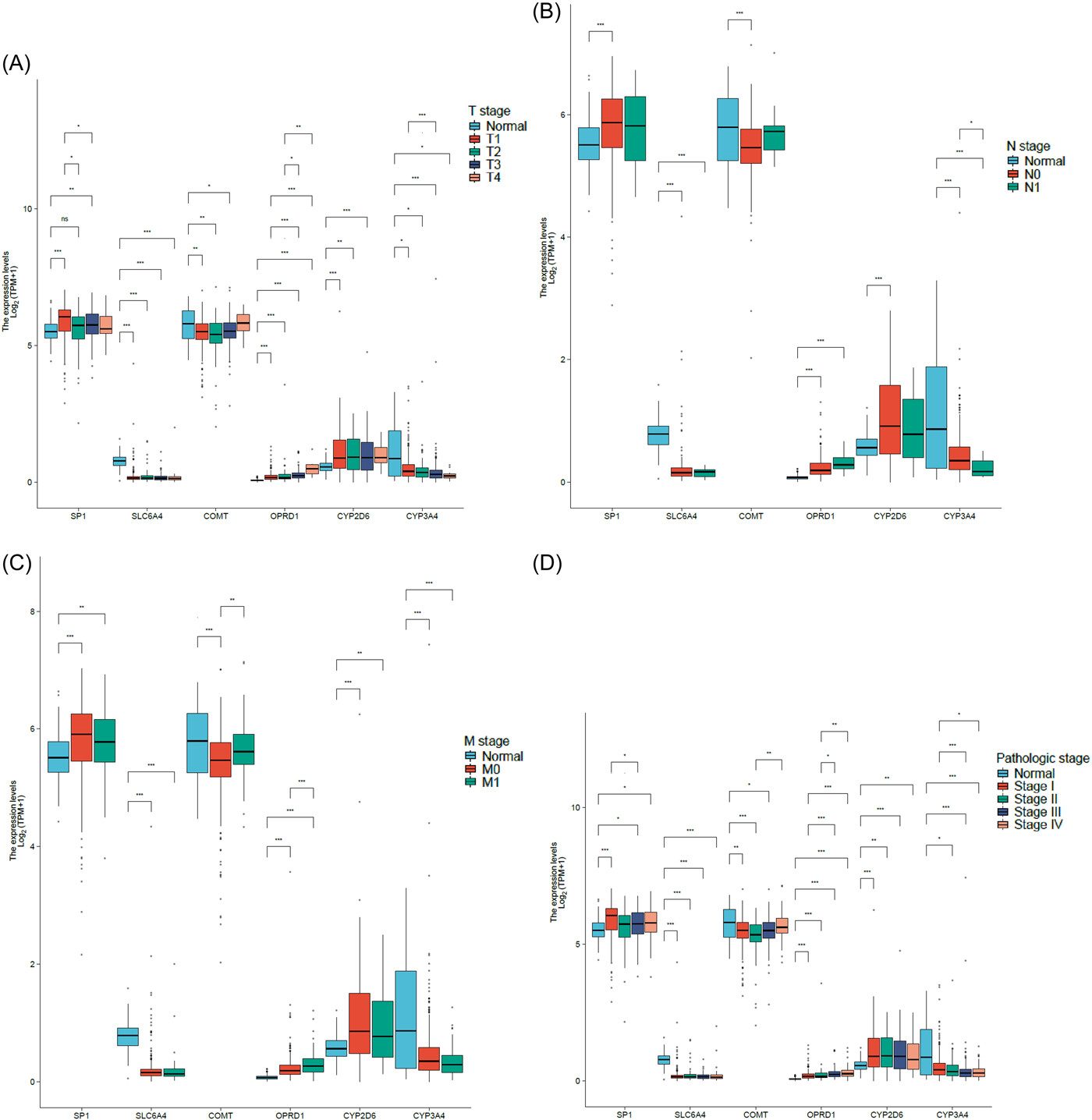

TCGA database was used to analyze clinical characteristics (T stage, N stage, M stage, and pathologic stage) of different pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4) in KIRC patients via R package (ggplot2, version 3.3.3) (Figure 3).

3.4 Protein expression level, subcellular location expression level, and spatiotemporal immune zonation of pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4)

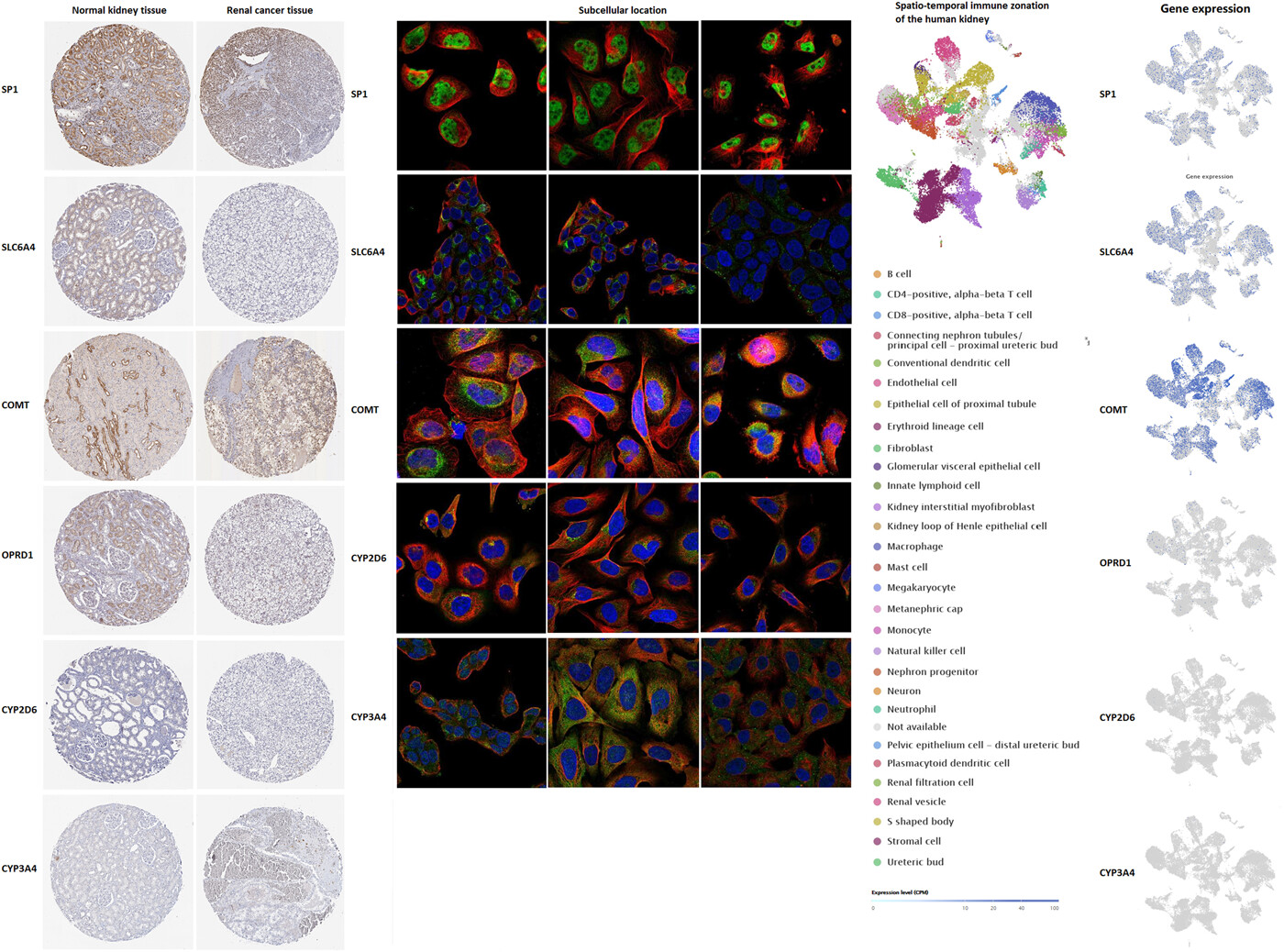

Human Protein Atlas database was used for protein expression level and subcellular location expression level analysis, and Single Cell Expression Atlas database was used for spatiotemporal immune zonation analysis (Figure 4). The protein expression of SP1 in renal tumor tissues was higher than that in normal kidney tissues. However, the protein expression of SLC6A4, COMT, and OPRD1 in renal tumor tissues was lower than that in normal kidney tissues. Additionally, CYP2D6 and CYP3A4 protein expression could not be detected in either renal tumor tissues or normal kidney tissues. The main subcellular location expression of SP1 was nucleoplasm. The main subcellular location expression of SLC6A4 were Golgi apparatus and vesicles. The main subcellular location expression of COMT was vesicles. The main subcellular location expression of CYP2D6 was in Golgi apparatus. The main subcellular location of CYP3A4 was cytosol.

3.5 Gene co-expression analysis of pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4)

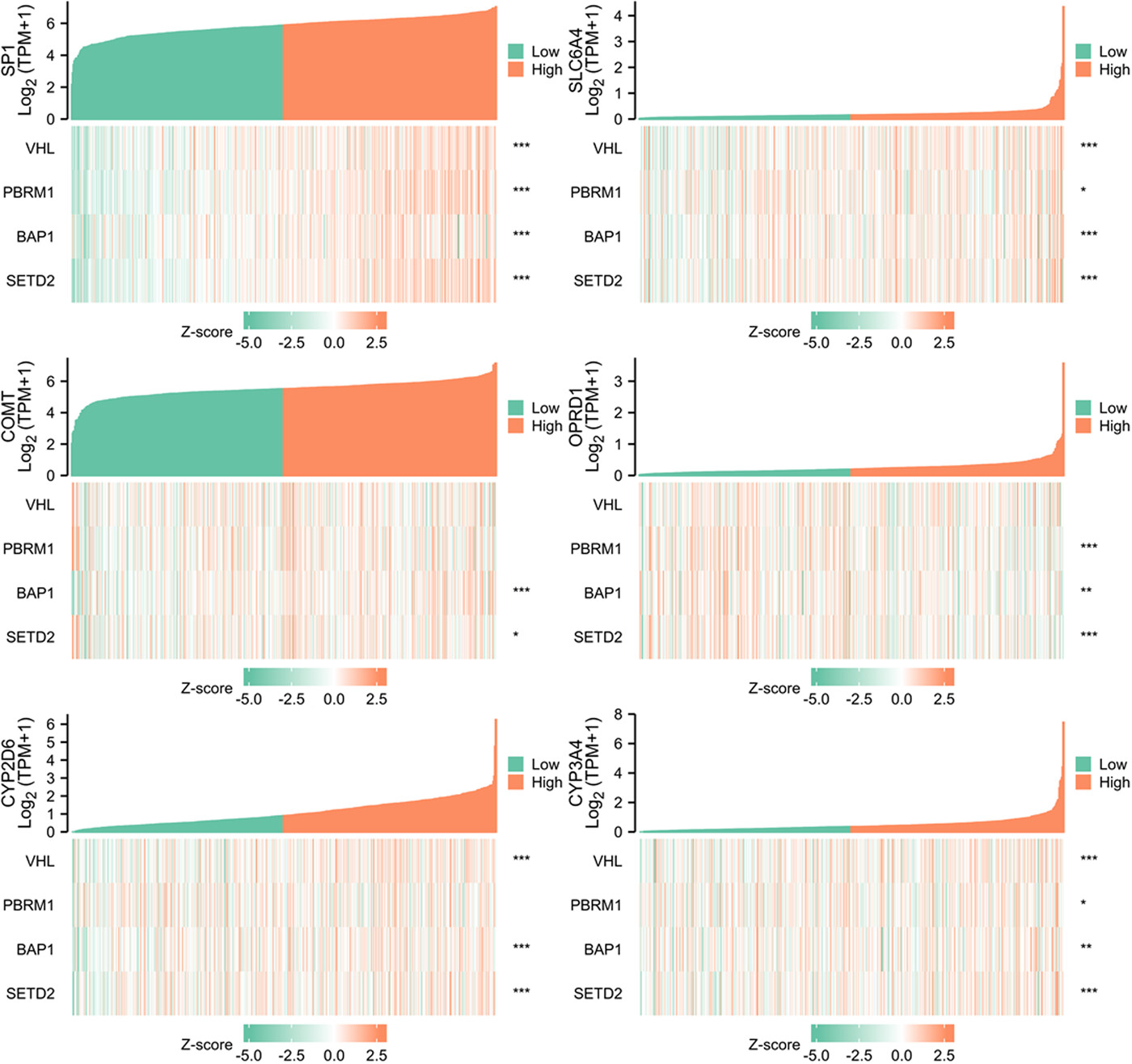

TCGA database was used for KIRC risk driver genes (VHL, PBRM1, BAP1, and SETD2) co-expression analysis of different pain genes via R package (ggplot2, version 3.3.3), which revealed the interaction between pain genes and KIRC risk driver genes (VHL, PBRM1, BAP1 and SETD2) (Figure 5, Table 2). LinkedOmics database was used for positively correlated significant gene expression and negatively correlated significant gene expression analysis of different pain genes in KIRC patients (Figure 6).

Table 2. Heatmap of co-expression between pain genes and KIRC risk driver genes.

Pain gene	Risk gene	r (Pearson)	p Value	r (Spearman)	p Value
SP1	VHL	0.576	<0.001	0.546	<0.001
SP1	PBRM1	0.662	<0.001	0.640	<0.001
SP1	BAP1	0.404	<0.001	0.448	<0.001
SP1	SETD2	0.700	<0.001	0.670	<0.001
SLC6A4	VHL	0.198	<0.001	0.289	<0.001
SLC6A4	PBRM1	0.090	0.036	0.098	0.022
SLC6A4	BAP1	0.164	<0.001	0.224	<0.001
SLC6A4	SETD2	0.138	0.001	0.201	<0.001
COMT	VHL	−0.000	0.992	0.019	0.666
COMT	PBRM1	0.027	0.537	0.084	0.050
COMT	BAP1	0.368	<0.001	0.274	<0.001
COMT	SETD2	0.073	0.091	0.109	0.011
OPRD1	VHL	0.011	0.800	−0.001	0.980
OPRD1	PBRM1	−0.097	0.024	−0.164	<0.001
OPRD1	BAP1	−0.092	0.033	−0.141	0.001
OPRD1	SETD2	−0.143	<0.001	−0.174	<0.001
CYP2D6	VHL	0.252	<0.001	0.317	<0.001
CYP2D6	PBRM1	0.028	0.523	0.033	0.446
CYP2D6	BAP1	0.218	<0.001	0.233	<0.001
CYP2D6	SETD2	0.158	<0.001	0.172	<0.001
CYP3A4	VHL	0.112	0.009	0.198	<0.001
CYP3A4	PBRM1	0.045	0.295	0.092	0.032
CYP3A4	BAP1	0.070	0.105	0.112	0.009
CYP3A4	SETD2	0.120	0.005	0.184	<0.001

• Abbreviation: KIRC, kidney renal clear cell carcinoma.

3.6 DNA methylation analysis of pain genes (SP1, SLC6A4, COMT, CYP2D6 and CYP3A4)

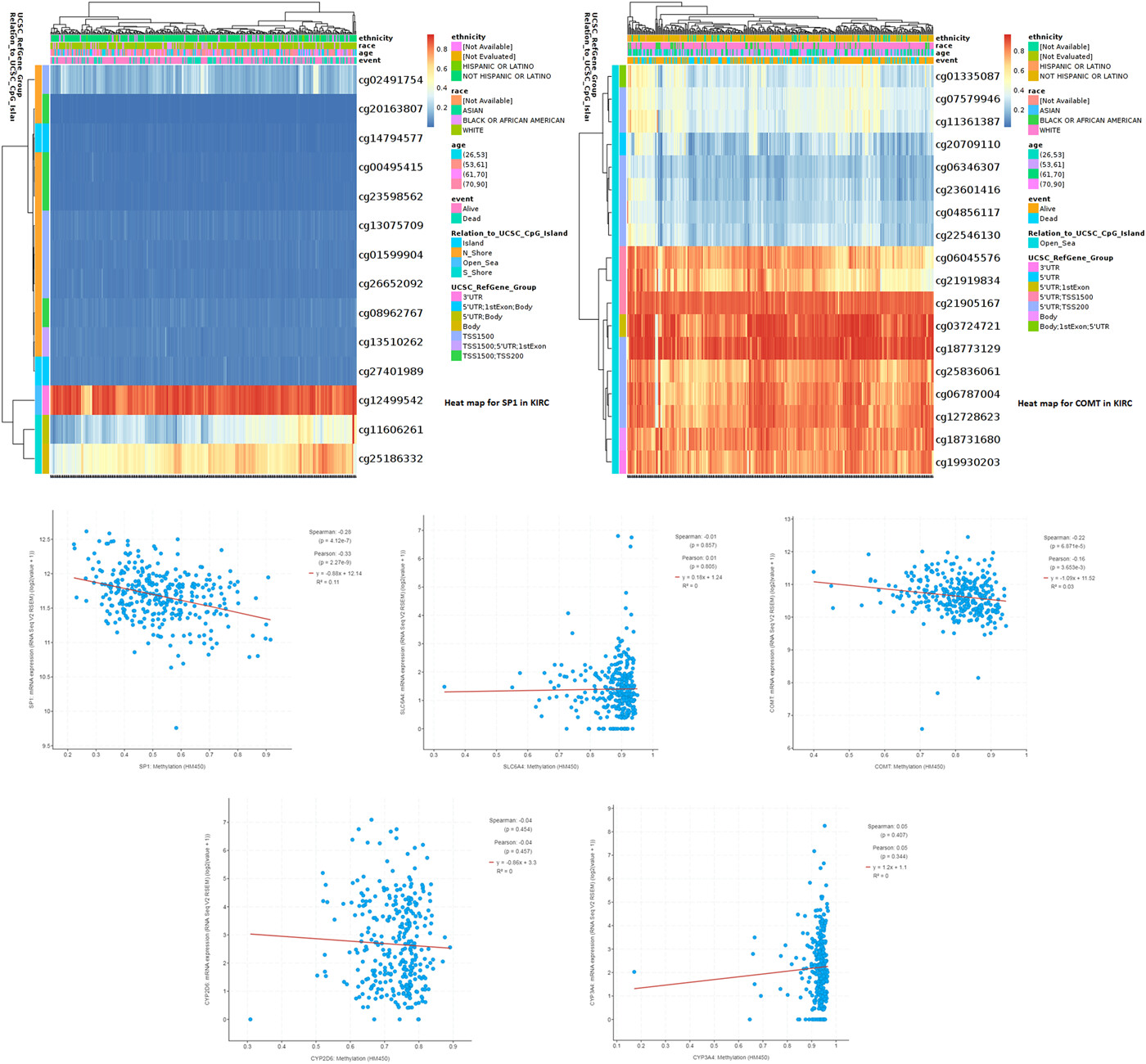

cBioPortal database was used for DNA methylation analysis of different pain genes. MethSurv database was used for Heatmap analysis of SP1 (p = 4.12e−7) and COMT(p = 6.87e−5) DNA methylation to reveal methylation sites (Figure 7).

3.7 Gene mutation distribution analysis of pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4)

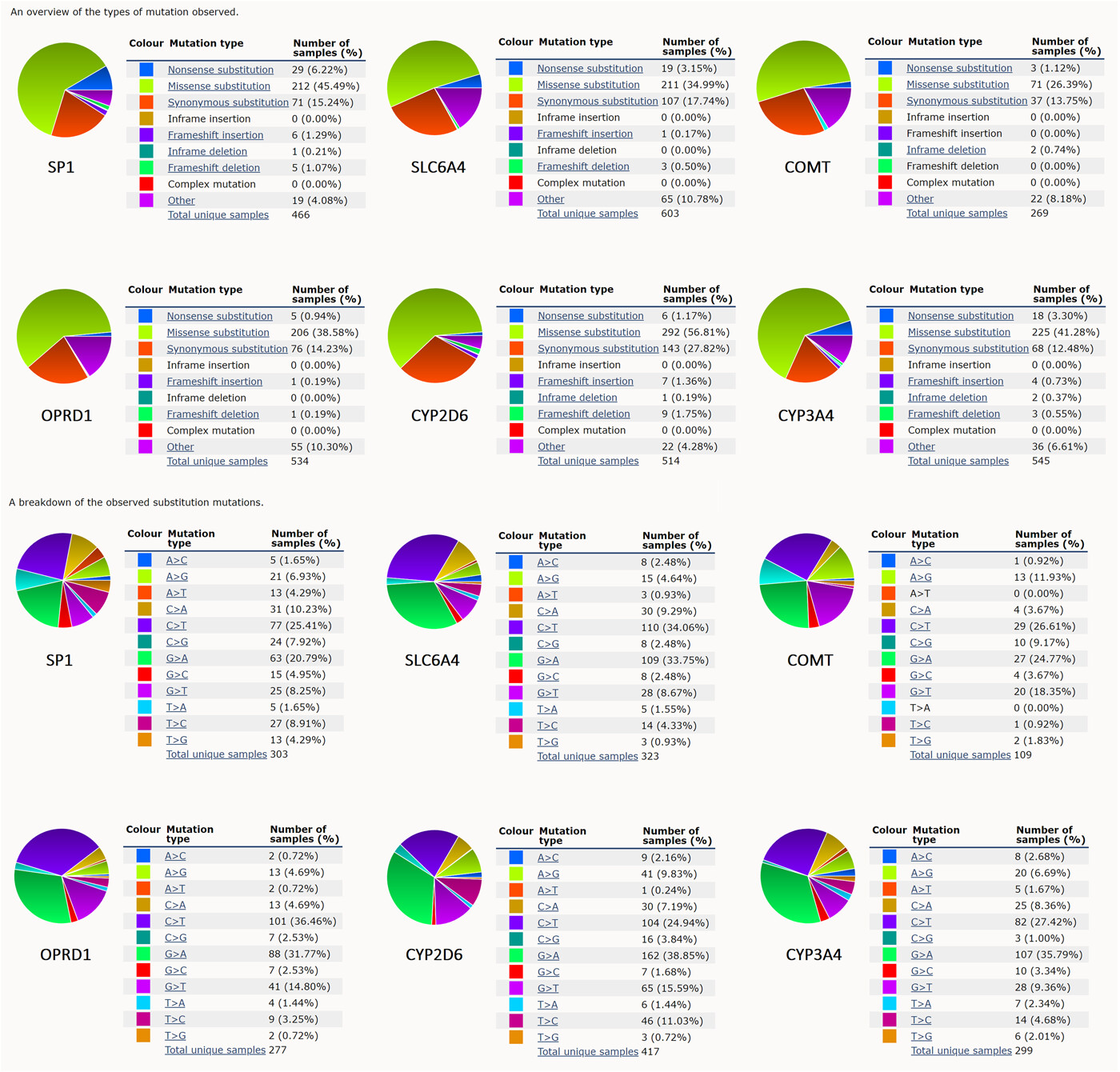

COSMIC database was used for gene mutation distribution analysis of different pain genes, including an overview of the mutation types and the breakdown of the substitution mutations (Figure 8).

3.8 Associated cancer functional states analysis of pain genes (SP1, SLC6A4, COMT, OPRD1, and CYP3A4)

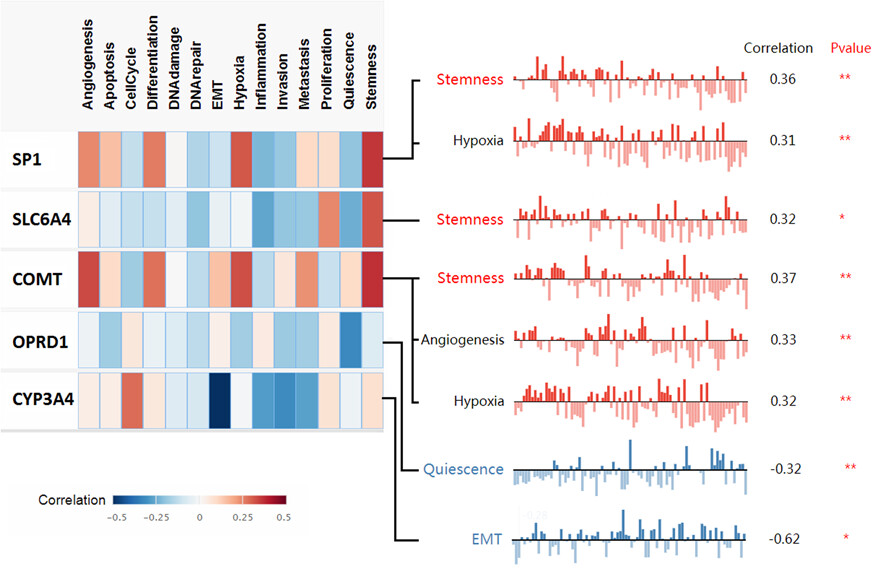

CancerSEA database was used to analyze the associated cancer functional states of different pain genes (Figure 9). The top three cancer functional states of different pain genes in KIRC were stemness, hypoxia, and angiogenesis.

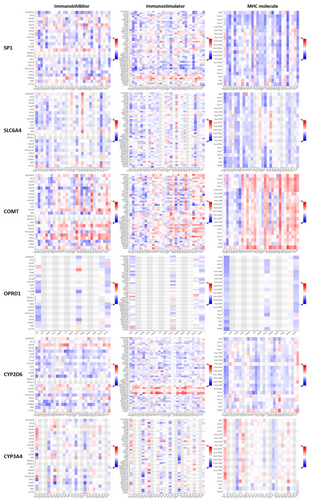

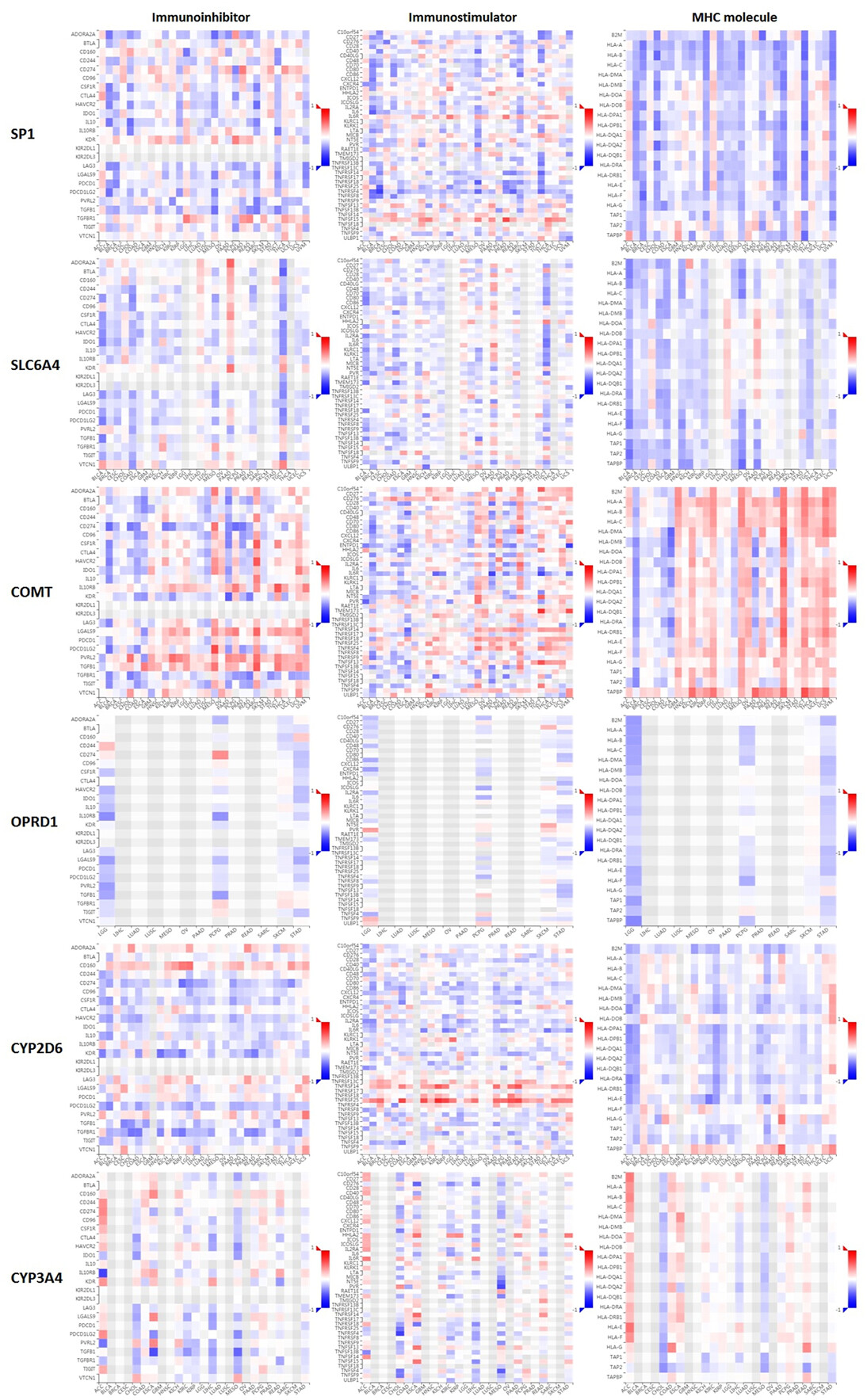

3.9 Immunotherapy analysis (anti-PD-1 therapy, anti-PD-L1 therapy, and anti-CTLA4 therapy) and immunomodulator analysis (immunoinhibitor, immunostimulator, and MHC molecule) of pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4)

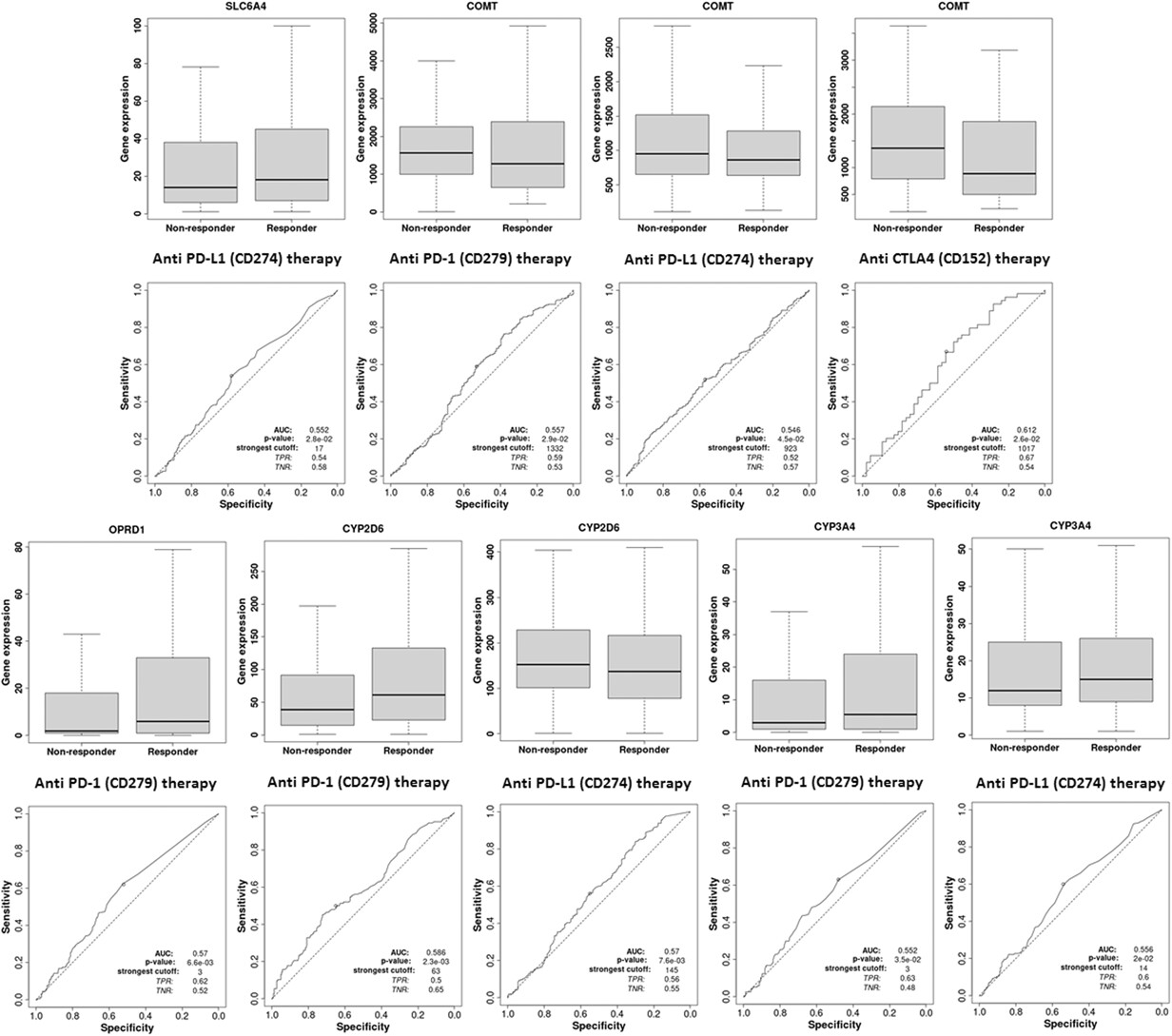

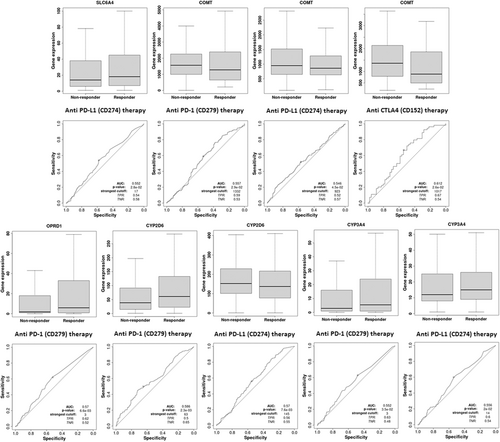

Immunotherapy database was used for immunotherapy analysis (anti-PD-1 therapy, anti-PD-L1 therapy, and anti-CTLA4 therapy) of different pain genes (Figure 10). COMT (AUC = 0.557, ROC p = 2.92−02), OPRD1 (AUC = 0.57, ROC p = 6.6e−03), CYP2D6 (AUC = 0.586, ROC p = 2.3e−03) and CYP3A4 (AUC = 0.552, ROC p = 3.5e−02) were significant sensitivity to anti-PD-1 therapy. SLC6A4 (AUC = 0.552, ROC p = 2.8e−02), COMT (AUC = 0.546, ROC p = 4.5e−02), CYP2D6 (AUC = 0.57, ROC p = 7.6e−03) and CYP3A4 (AUC = 0.556, ROC p = 2e−02) were significant sensitivity to anti-PD-L1 therapy. COMT (AUC = 0.612, ROC p = 2.6e−02) were significant sensitivity to anti-CTLA4 therapy. The immunomodulator analysis (immunoinhibitor, immunostimulator, and MHC molecule) of different pain genes also has been showed based on TISIDB database (Figure 11).

4 DISCUSSION

Aberrant gene expression is an important driver of KIRC,¹³ and is related to various pathophysiological processes of tumor.^5-12 Individualized tumor immunotherapy based on genes can provide the best therapeutic effect with minimal side effects for cancer patients. Of note, a preclinical study suggested that high expression of opioid receptor can activate the receptors that play critical roles in cancer progression or metastasis, including epidermal growth factor receptor, vascular endothelial growth factor tyrosine kinases receptor, platelet-derived growth factor receptor, and mitogen-activated protein kinase receptor.^{21, 22} Based on this, we first explored the expression levels of representative pain genes (NAV1, EHMT2, SP1, SLC6A4, COMT, OPRM1, OPRD1, CYP2D6, and CYP3A4) in KIRC, their prognostic significance, their roles in cancer functional states, their DNA methylation and their relevance to tumor immunotherapy (anti-PD-1 therapy, anti-PD-L1 therapy, and anti-CTLA4 therapy) and immunomodulator (Iimmunoinhibitor, immunostimulator, and MHC molecule), which added crucial new members to the genomics of KIRC and provided the new references for clinical immune personalized therapy.

Our study revealed that the expression levels of NAV1, EHMT2, SP1, SLC6A4, OPRD1, and CYP3A4 between the normal and tumor were statistically significant. Representative pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4) were statistically significant (p < 0.0001) in the prognosis of KIRC, and have been listed as the key research objects in follow study. Interestingly, after further study, we found that the expression differences of pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4) were statistically significant in T stage, N stage, M stage, and pathological stage of KIRC. In addition, the gene co-expression and DNA methylation sites were revealed. Besides, cancer functional states analysis of pain genes indicated that top 3 cancer functional states in KIRC were stemness, hypoxia, and angiogenesis, which suggested a possible pathological process in which the pain genes may be involved in renal cancer. Moreover, immunotherapy (anti-PD-1 therapy, anti-PD-L1 therapy, and anti-CTLA4 therapy) and immunomodulator (immunoinhibitor, immunostimulator, and MHC molecule) in KIRC were significant associated with pain genes (SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4), which were the important addition to clinical decision making for patients.

5 CONCLUSION

Our study uncovered a mechanism for the effect of pain genes on KIRC outcome via the modulation of associated co-expression gene networks, gene variation, and tumor Immunotherapy. SP1, SLC6A4, COMT, OPRD1, CYP2D6, and CYP3A4 were the new potential biomarkers for prognosis and treatment in KIRC.
