Functional Role of the Secretin/Secretin Receptor Signaling During Cholestatic Liver Injury

Liver diseases are a major health concern and affect a large proportion of people worldwide. There are over 100 types of liver disorders, including cirrhosis, cholangiocarcinoma (CCA), hepatocellular carcinoma, and hepatitis. Despite the relevant number of people who are affected by liver diseases, and the increased awareness with regard to these disorders, the number of deaths corresponding to liver injury is expected to increase in the foreseeable future. One of the possible reasons for this is that a complete comprehension of the mechanisms of hepatic damage involving specific liver anatomical districts is lacking, and, as a consequence, current treatments available are suboptimal. A major burden in the clinical setting are chronic cholestatic liver diseases (e.g., primary biliary cholangitis [PBC], primary sclerosing cholangitis [PSC], biliary atresia), which target the biliary epithelium and are characterized by cholestasis.^{(1, 2)} Because the secretin (Sct)/secretin receptor (SR) axis (expressed only by cholangiocytes in the liver)^{(3, 4)} is the major regulator of ductal bile secretion,^{(5, 6)} it is intuitive that this axis plays a key role in the maintenance of biliary homeostasis during the progression of cholangiopathies. For instance, PBC is characterized by reduced bicarbonate secretion, a phenomenon possibly impeding the formation of an canalicular film (“bicarbonate umbrella”) on bile ducts, which has protective properties against highly concentrated bile acids (BAs).^{(1, 7, 8)} In this review, we examined the molecular mechanisms by which the Sct/SR axis regulates biliary function and the homeostasis of the biliary epithelium in normal and pathophysiological conditions.

Role of the Sct/SR Axis in the Modulation of Ductal Bile Secretion in Normal Conditions

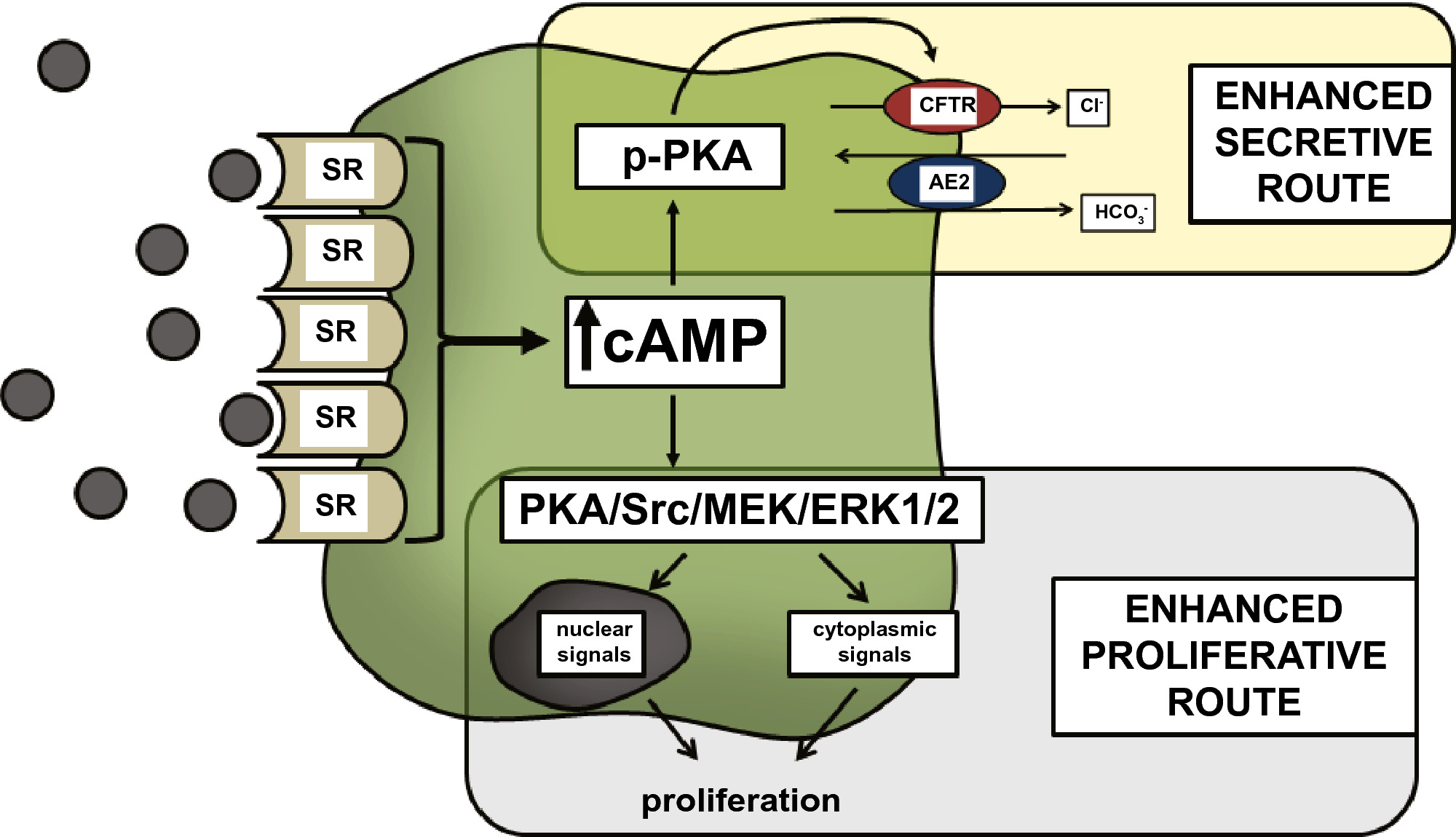

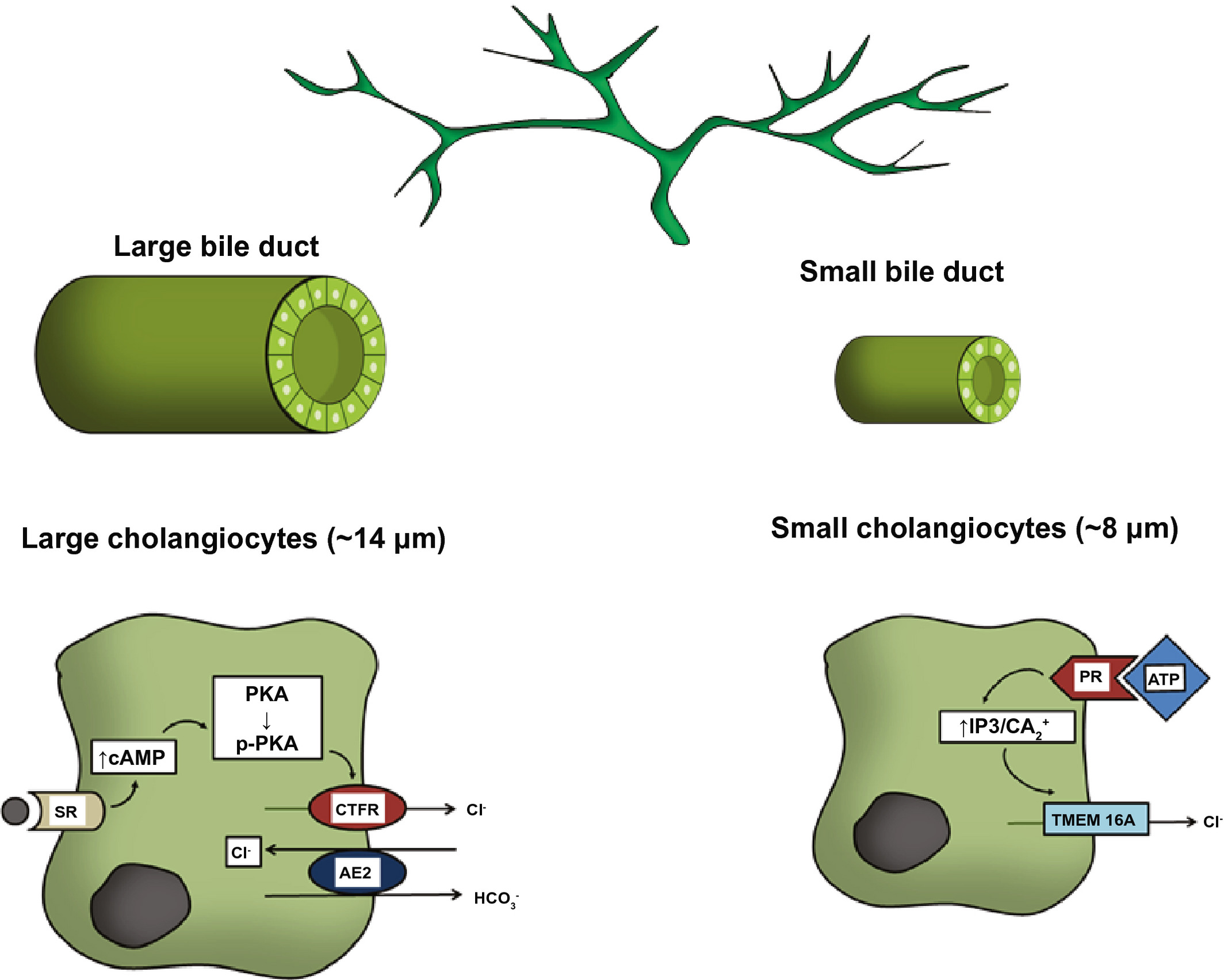

The mechanism linking Sct to ductal secretion is as follows: Sct binds to SR on large cholangiocytes, increasing intracellular cAMP levels, which in turn stimulates phosphorylation of protein kinase A (PKA), opening of the cystic fibrosis transmembrane conductance regulator (CFTR), and activation of the apically located Cl⁻/ exchanger AE2 (anion exchanger 2), leading to enhanced secretion of bicarbonate-rich choleresis.^{(3, 5, 14)} Further research clarified that Sct stimulates water and bicarbonate secretion only in large cholangiocytes lining the large bile ducts, but not small cholangiocytes lining the small ducts.^{(3, 15)} This finding demonstrates that the dimensional heterogeneity of the biliary epithelium is linked to functional differences, as only large cholangiocytes express SR, CFTR, and AE2.^{(3, 16)} Moreover, these cells are reactive to other gastrointestinal peptides/neuropeptides and neurotransmitters such as somatostatin, gastrin, and endothelin-1.⁽⁶⁾ Among nonhormonal regulators of biliary secretion, BAs need to be underscored. A number of studies show that SR, cAMP levels, and AE2 were all increased in large cholangiocytes exposed to a physiologic amount of taurocholic or taurolithocholic acids.⁽¹⁷⁾ The important interplay between the Sct/SR axis and BAs, in supporting hepato-biliary secretion, was further confirmed by the individuation of a specific apical-sodium-BA cotransporter (ASBT) detected in cholangiocytes.⁽¹⁷⁾ ASBT is responsible for partial reuptake of BAs from bile, allowing their recirculation in blood in a short circuit within the liver, thus increasing hepatocyte BA-dependent bile flow.⁽¹⁸⁾ Interestingly, Sct was demonstrated to stimulate migration of ASBT from the cytoplasmic to the canalicular membrane of cholangiocytes and to increase BA uptake from cholangiocytes, thus enhancing cholehepatic shunting.⁽¹⁹⁾ Taken together, it is intuitive that BA-dependent hepatocyte bile flow and BA-independent (regulated by the Sct/SR axis) cholangiocyte secretion are integrated in a complex interplay. With regard to small cholangiocytes, even if these cells lack SR, CFTR and AE2, an alternative mechanism to secrete water and electrolytes has been identified involving the activation of Ca²⁺-dependent pathways.⁽²⁰⁾ Small mouse cholangiocytes have been shown to release adenosine triphosphate and to produce purinergic receptor–mediated bile secretion.^(21).This suggests the presence of an alternative, compensatory pathway in small cholangiocytes to maintain biliary homeostasis when larger bile ducts are damaged.^{(22, 23)} However, when large cholangiocytes are injured, such as after carbon tetrachloride (CCl₄) treatment, small, mitotically dormant cholangiocytes proliferate, thus replacing and acquiring the phenotypic features of large cholangiocytes.⁽²³⁾ Secretory pathways of large and small cholangiocytes are depicted in Fig. 1.

Sct/SR Axis in Experimental Animal Models of Cholestasis

Cholestasis is a process exhibiting an early phase with intense “typical” cholangiocyte proliferation, possibly compensatory, followed by a second later stage represented by loss of bile ducts (ductopenia) and fibrosis, which is accompanied by an “atypical” proliferation.⁽²⁴⁾ Accordingly, it seems important to examine the relationship between the Sct/SR axis and bile ducts with respect to these two different phases. In this section, the findings on the Sct/SR axis will be described with respect to hyperplastic or ductopenic experimental settings.

Sct/SR Axis in the Early Hyperplastic Phase of Cholestasis

The bile duct ligated (BDL) rodent model represents an important tool to evaluate the molecular mechanisms occurring in the early hyperplastic phase of cholestasis, also reproducing “ductular reaction” (a histological finding corresponding to proliferating ductules), which is frequently observed in liver specimens of human cholestatic diseases.⁽²⁴⁾ Pivotal studies using this experimental system demonstrated that Sct-stimulated bile secretion is linearly related to the degree of bile duct hyperplasia, and cholangiocytes isolated from BDL rats expressed SR at a rate that was higher compared with normal cholangiocytes.^{(4, 25)} Up-regulation of the Sct/SR axis corresponded to increased synthesis of intracellular cAMP, which led to increased activation of PKA, opening of CFTR channels, and activation of AE2 with subsequent enhanced biliary secretion.^{(3, 5, 6, 14, 26)} In this setting, biliary cAMP levels have been shown to play a central role in promoting choleretic signaling. In fact, down-regulation or up-regulation of cAMP signaling by several gastrointestinal hormones and neurotransmitters, such as somatostatin, gastrin, endothelin-1, and the α2-adrenergic receptor agonists (as well as a number of BAs), proportionally changes ductal bicarbonate secretion.⁽⁶⁾ Moreover, during BDL-induced cholestasis, increased cAMP levels not only support choleresis, but also enhance the expansion of bile ducts.^{(6, 15, 27, 28)} Proliferation of bile ducts is correlated with cAMP-dependent activation of ERK 1/2 signaling; however, this mechanism is inhibited in BDL rodents lacking SR.^{(28, 29)} Further studies clarified that cAMP-mediated proliferation in this setting is sustained by both autocrine (by large cholangiocytes) and paracrine (duodenal S cells) Sct secretion and is promoted by specific microRNAs (miR125b and let7a), which increase biliary mass and liver fibrosis by directly targeting vascular endothelial growth factor-A and nerve growth factor (NGF), respectively.⁽²⁷⁾ Changes in large cholangiocyte phenotypes after BDL are depicted in Fig. 2.

Sct/SR Axis in Ductopenic Models of Cholestasis

Chronic cholestasis, in both humans and rodent models, is characterized by a ductopenic stage, with reduced biliary mass and progression to liver fibrosis. A transient ductopenic cholestatic model was induced in animals using toxins, such as CCl₄.⁽²³⁾ CCl₄ treatment induced selective damage and loss of Sct-stimulated secretory activity in large (but not small) cholangiocytes.⁽²³⁾ Interestingly, the consequential loss of secretive and proliferative activities in large cholangiocytes was replaced by the expansion of small cholangiocytes, which de novo acquired the phenotypes of large cells.⁽²³⁾ The relocation of Sct/SR axis from damaged (large) to nondamaged (small) cholangiocytes underscores the efforts of the biliary epithelium to maintain a pathway of paramount importance during injury. We suggest that small cholangiocytes typically display traits of committed progenitor cells and may act as a biliary-committed progenitor niche that expands and differentiates to large cholangiocytes during cholestatic injuries in an effort to maintain secretive capacity and biliary homeostasis.⁽²⁴⁾

Sct/SR Axis in Animal Models Resembling Adult Human Chronic Cholestatic Liver Diseases

PBC is an autoimmune disease that primarily affects middle-aged women, and is characterized by positive antimitochondrial antibodies (AMA) in the blood and potentially evolves toward extended liver fibrosis and cirrhosis.⁽³⁰⁾ The target cells of human PBC are cholangiocytes lining the interlobular bile ducts (i.e., small ducts), with consequential necrosis, apoptosis, and progressive cholestasis.⁽³¹⁾ PBC, at the ultrastructural level, displays nonsuppurative cholangitis with portal inflammatory infiltrates consisting of autoreactive T cells surrounding bile ducts.⁽³¹⁾

Sct/SR Axis in PBC Animal Models

The lack of knowledge and effective medical treatments for PBC is also related to the existence of inadequate animal models. Lately, several systems based on genetically modified mice have been proposed. One of these models is represented by the dominant-negative transforming growth factor β receptor II (dnTGF-βRII) mouse, which exhibits AMA positivity, coupled with biliary inflammation and injury of small bile ducts.⁽³²⁾ The Sct/SR axis was recently examined in an early-stage PBC mouse model (dnTGF-βRII, 12 weeks) to establish the role of this pathway in biliary injury, liver inflammation, and fibrosis.⁽⁷⁾ This study demonstrated increased stimulation of Sct/SR signaling in this mouse model. Inhibition of SR signaling by the SR antagonist Sec5–27 decreased biliary senescence, liver inflammation, and fibrosis. Interestingly, in this model, contrary to what has been canonically observed, stimulation of Sct/SR signaling did not correspond to increased bicarbonate biliary secretion. This phenomenon, in parallel with what is observed in human PBC, possibly affects the formation of the protective bicarbonate umbrella⁽³³⁾ at the canalicular side of the biliary system, which is likely associated with miR-506-mediated CFTR/AE2 decreased expression. The importance of AE2 stimulation by the Sct/SR molecular cascade of signals has been supported by observations in Ae2a,b^−/− mice with disruption of the AE2 gene.⁽³⁴⁾ This rodent model exhibits inflammatory liver damage and biochemical signs of progressive cholestasis and cytolysis coupled with AMA positivity, thus representing another suggested animal model to study PBC for its similarity with the corresponding human disease.⁽³⁴⁾ Other rodent models of PBC have been described, such as IL-2Rα^−/− mice, which is a genetically modified strain that demonstrated 100% AMA positivity as well as mild bile duct injury, interface hepatitis, and severe colitis, although the latter not typically observed in patients with PBC.⁽³⁵⁾ Another interesting model has been developed in mice by inducing chronic expression of interferon gamma (IFN-γ) by deletion of 3’-untranslated region adenylate uridylate-rich element within the IFN-γ gene.⁽³⁶⁾ This strain exhibits (1) 100% AMA positivity, (2) increased levels of BAs, (3) female predominance, and (4) not only portal and lobular inflammation, but also granulomas (which are a specific feature of human PBC) at histological examination; however, changes of Sct/SR axis as a function of cholestatic liver damage have not been evaluated.

Sct/SR Axis in PSC Animal Models

With regard to PSC, the absence of diagnostic markers for early detection, low prevalence, and difficulty in accessing the biliary tract in human patients stimulated the search for animal models to study this disease.⁽³⁷⁾ Multidrug resistance 2 (Mdr2, i.e., Abcb4) gene knockout mice (Mdr2^−/−) is one system that is currently being used to study PSC. Ablation of this gene removes phospholipid secretion in bile, in turn counteracting the formation of mixed micelles in cooperation with BAs, a process that mitigates the cytopathic-detergent property of BAs. Because these mice mimic several key features of human PSC (including the development of cholangitis, irregular bile duct formation, and liver fibrosis), they are generally considered a suitable tool to study this disease.⁽³⁸⁾ Moreover, pictures resembling high similarities with PSC have been described in patients with defects of the MDR3 gene: the homolog of mouse Mdr2.⁽³⁹⁾ Using this model, a possible important role of the Sct/SR axis in liver fibrotic processes occurring in PSC was proposed.⁽⁴⁰⁾ In fact, cholangiocytes isolated from Mdr2^−/− mice demonstrated a basal increase in Sct and SR gene expression that, in turn, was associated with the activation of transforming growth factor β1/transforming growth factor β1 receptor (TGF-β1/TGF-β1R) axis and mothers against decapentaplegic homolog 2/3 (SMAD2/3) phosphorylation; the latter pathway is well known for promoting liver fibrosis through hepatic stellate cell activation.⁽⁴¹⁾ Moreover, a direct link between SR signaling and TGF-β1 stimulation was achieved when the specific Sct inhibitor Sec 5–27 was administered to mice. In fact, suppression of the Sct/SR axis in Mdr2^−/− mice was associated with reduced activity of the TGF-β1R/SMAD2/3 pathway and a subsequent decrease of liver collagen deposition.⁽⁴¹⁾ These findings were then extended in the same Mdr2^−/− mouse model that was crossed with mice containing SR gene disruption.⁽⁴²⁾ The model of Mdr2^−/−/SR^−/− mouse confirmed the contribution of Sct/SR axis in supporting liver fibrosis, as evaluation of collagen deposition in liver tissues was markedly decreased in Mdr2^−/− mice with disruption of the SR gene. However, this model expanded these findings by demonstrating that cellular senescence (arrest of cell cycle under stress conditions) and neo-angiogenesis that are enhanced, together with fibrosis, in Mdr2^−/− mice were normalized by suppression of the SR gene in the same animals. On the basis of these findings, a possible mechanism starting from Sct and involving (1) SR, (2) neo-angiogenetic factors, and (3) cellular senescence to determine liver fibrosis in experimental PSC, was suggested for the first time.

SCT/SR Axis in Adult Human Cholestatic Chronic Liver Diseases

In the following subparagraphs, the findings regarding Sct/SR axis in human PBC and PSC experimental studies are reported.

SCT/SR Axis in Other Human Diseases Targeting the Biliary Tree

Few data are available with regard to the Sct/SR axis in human biliary diseases, other than PBC and PSC. Biliary atresia is a pediatric disorder affecting about 6 out of 100,000 newborns in the western world. Being the most important cause of severe cholestatic liver disease in children, biliary atresia is a progressive obliterative cholangiopathy, involving primarily large ducts. Therapy for biliary atresia is based on surgical approaches either with liver transplantation or Kasai procedure. The latter is based on the complete removal of the extra-hepatic portion of the biliary tract and the direct anastomosis of the gut at the base of the liver, where the smaller (less or not affected) bile ducts converge. Given the important choleretic effect of Sct, treatment with this hormone was hypothesized in the 1980s (in conjunction with the surgical treatment) as a potential therapeutic for biliary atresia.⁽⁴⁶⁾ Lately, a possible impairment of the digestive hormone system in this disease (involving Sct and cholecystokinin excretion) was suggested in a case report.⁽⁴⁶⁾ A fetus showing a gallbladder full of sludge at 34-week gestation (possibly evolving toward biliary atresia) was treated, shortly after the induction of a premature birth, with Sct and a cholecystokinin analogue.⁽⁴⁶⁾ A short course of this treatment normalized bile flow and dissolved the sludge, thus preventing the possible onset of a chronic cholestatic disease in this child. Based on this observation, the authors suggested dysregulation of choleretic hormones as a possible factor inducing biliary atresia. Several attempts have been made to develop animal models mirroring the features of human biliary atresia; however, despite the efforts, an adequate animal system to evaluate the pathogenesis of this pediatric disease and to test therapeutic strategies is not available so far.

Finally, another important human liver disease affecting the biliary tract is CCA. Differently from other liver primary tumors, such as hepatocellular carcinoma, SR is expressed in human CCA.⁽⁴⁷⁾ To clarify the possible role of Sct/SR axis in CCA, a study was undertaken on CCA cell lines (primarily Mz-ChA-1) and liver tissue.⁽⁴⁸⁾ Unlike normal cholangiocytes, Sct inhibited CCA cell growth in culture, which was related to a failure in inducing an increase of the intracellular levels of cAMP, as observed in normal cholangiocytes. The inhibitory effect of Sct on CCA growth was then confirmed in an in vivo model of BALB/c nude mice injected with Mz-ChA-1 cells. After 57 days, these mice when treated with Sct (intraperitoneal injection, 25 µg/kg/body weight every 3 days) had CCA tumors 3 times smaller in volume when compared with control. The peculiar inhibitory effect of Sct on tumor growth was attributed to an erroneous coupling of SR with the G-protein Gα_i (inhibitory) instead of the normal coupling with Gα_s. This study provided the first evidence of the possible role of Sct/SR system in modulating CCA growth. Results of main studies evaluating the Sct/SR axis in specific human diseases of the biliary tract are provided in Table 1.

Summary and Future Perspectives

As reported in this review, Sct is a gastrointestinal hormone that has a multitude of effects on both healthy and injured biliary epithelia. While the attention of liver researchers was, at the beginning, captured by the important effects of Sct on BA-independent ductal secretion, our knowledge has extended to recognizing a role for this hormone in regulating proliferation, cellular senescence, and fibrosis of the hepatic biliary compartment. These effects are obtained by the wide interaction of the Sct/SR pathway with growth factors, miRs, BAs, cellular transporters, and other biological components. Animal models of cholestasis (or cholangiocyte damage) remain of paramount importance to further clarify molecular features of this process; however, additional efforts should be undertaken in the future to translate animal findings to human pathological conditions. Discovery and adoption of more appropriate animal models that mimic human diseases and/or confirmation of animal data in human samples represent a promising strategy to achieve new therapeutic tools. Finally, an in-depth study of Sct-related biological effects would be relevant for other important nonbiliary liver diseases. In fact, the evidence of a cooperative role of Sct and scavenger receptor CD36 in lipid absorption and the finding of reduced fatty tissue deposition in Sct knockout mice⁽⁴⁹⁾ suggest manipulation of Sct/SR pathway may mitigate liver diseases characterized by increased fatty deposition.
