Determination of soybean routine quality parameters using near-infrared spectroscopy

2.1 Reagents and apparatus

Concentrated sulfuric acid, sodium hydroxide, boric acid, hydrochloric acid, petroleum ether, bromocresol green, methyl red, anhydrous sodium carbonate, potassium sulfate, copper sulfate, and ethanol were all analytical grade (AR) reagents and were purchased from Sigma-Aldrich Shanghai Trading Co Ltd (Shanghai, China).

MB3600 FT-NIR spectrometer was purchased from ABB-Bomem (Quebec, Canada).

2.2 Sample Collection

The 360 samples soybeans (total 50 varieties) were collected from two represented areas. Two hundred and forty samples collected from Northeast China through National Research Center of Soybean Engineering and Technology in October 2013. One hundred and twenty samples collected from the Yangtze River through Zhenjiang Grain and Oil Co., Ltd in September 2014. Samples were dried in oven at 25°C for 24 hr.

2.3 Preparation of soybean sample sets and classification of model samples

The preparation of soybean sample has 90 samples. Each soybean sample was 500 g, and each sample was divided into two equal parts. One part was stored for future use, and the other part was divided into five equal parts. The soybean samples were crushed using a high-speed multifunction mill and screened through mesh sizes of 10, 20, 40, 60, and 80 to provide particles with diameters of 2, 0.9, 0.45, 0.3, and 0.2 mm, respectively. When more than 95% of the particles had passed through the mesh sieve, the individual powders were thoroughly mixed and scanned to determine the best particle size for modeling. The remaining 270 soybean samples were crushed and screened using the best method according comprehensive modeling of the first 90 samples and then divided into a calibration set (n = 216) and an external validation set (n = 54) to establish the best model for determination of moisture, crude fat, and protein content.

2.4 Chemical analysis of soybean samples

The moisture content of the soybeans was determined according to AACC Method 44-15.02 (International, 2010c), the crude fat content was determined according to AACC Method 30-25.01 (International, 2010a), and the protein content was determined according to AACC Method 46-11.02 (protein was determined by the combustion method, with a protein correction factor of %N × 6.25) (International, 2010d). Each sample was analyzed three times, and the final results are presented as mean values.

2.5 Collection of near-infrared spectra

To ensure consistency of the samples used for NIR scanning, the sample thickness was maintained at 2 cm. A high efficiency MB3600 FT-NIR spectrometer, with a scanning spectral range of 3700–15,000/cm and built-in Horizon MB stoichiometric modeling software, was used to collect the spectra of the soybean samples. The spectrometer was turned on and allowed to warm up for 30 min and the spectra were then collected over the range 4000–12,600/cm, at a resolution of 16/cm with 60 scan number, which containing the absorbance regions of the traits of interest (4000–9000/cm for protein, moisture, and fat). Each sample was scanned three times to eliminate differences caused by objective factors.

2.6 Evaluation of the NIR model

The performance of the prediction model was evaluated using an internal cross-validation method, which incorporates root mean square error of calibration (RMSEC), standard error of cross-validation (SECV), and correlation coefficient of cross-validation (R_cv). Smaller values of RMSEC and SECV and higher values of R_cv indicate better performance of the prediction model (Ferreira, Galão, Pallone, & Poppi, 2014). External validation is the evaluation of the predictive performance of the calibration model in the validation sample set. The predictive performance of the model can be evaluated using the determination coefficient (R²) and the statistical probability (p value). Higher values of R² and p values <0.05 indicate better performance of the prediction model.

3.1 Analysis of soybean components

The quality indices, moisture, crude fat, and protein content, for soybeans samples used in the study, are presented in Table 1. For the 90 selected samples, moisture, crude fat, and protein content were 8.47%–10.67%, 17.71%–25.14%, and 37.37%–43.20%, respectively. For the 216 samples in the calibration set, moisture, crude fat, and protein content were 7.42%–13.71%, 15.78%–25.57%, and 37.37%–43.21%, respectively. For the 54 samples in the external validation set, moisture, crude fat, and protein content were 6.92%–11.24%, 17.75%–25.39%, and 37.04%–43.56%, respectively. The number of samples used for modeling was much higher than 50, which is the minimum sample size proposed for NIRS modeling (Williams et al., 1985). The quality indices, moisture, crude fat, and protein content were widely distributed and were representative of sample composition, providing favorable conditions for the establishment of quality models.

3.2 Spectrogram of soybean samples

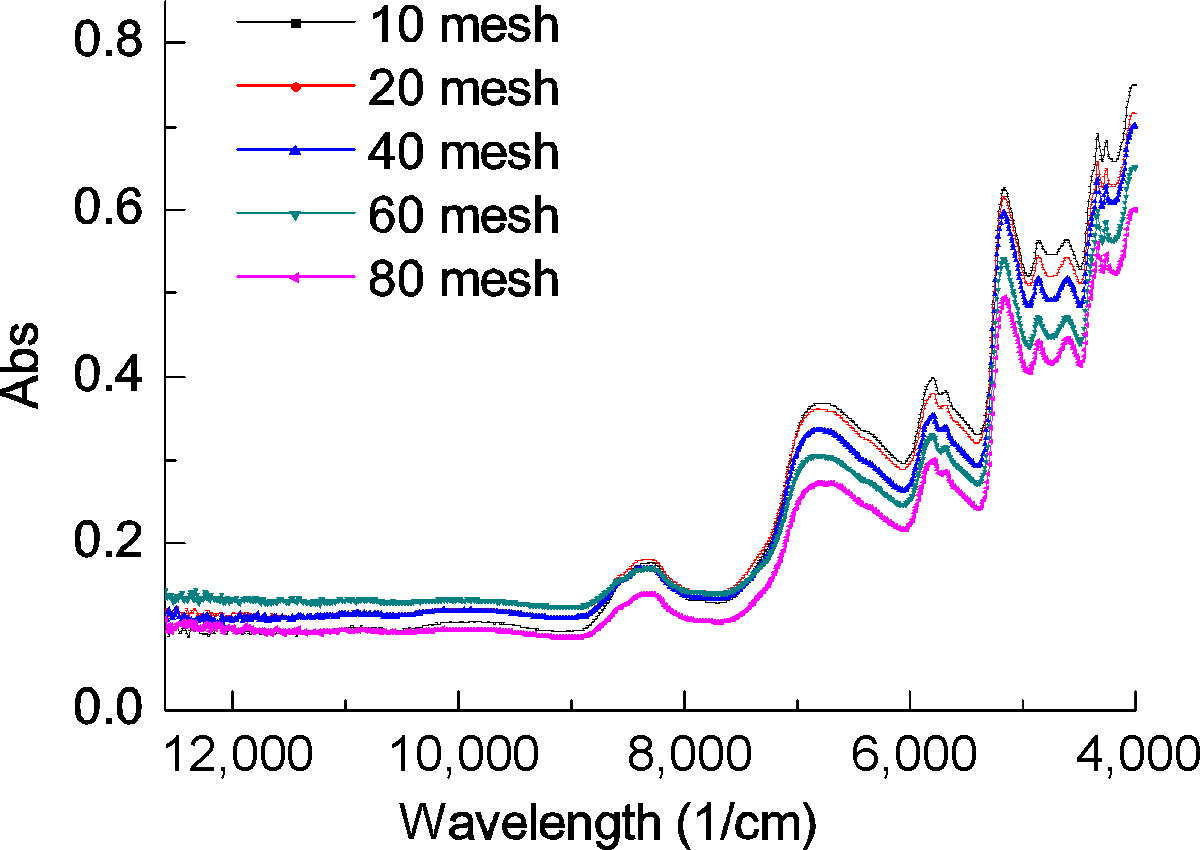

NIRS analysis is based on the characteristic absorption bands from combination vibrational frequencies of NH, CH, OH, and CO in chemical components of samples in the NIR region (Martin, 1992). The position of the absorption bands provides information about the chemical composition of the components, and the strength of the absorption band is proportional to the amount of the hydrogen-containing group that is present. The NIR spectra of soybean samples can be used as a basis for quantitative analysis of quality indices. The distribution pattern of the sample group under investigation is not accurately reflected if the sample size is too small or too large and useful information may be obscured because irrelevant statistical differences are emphasized. As a result, the performance of the model is greatly reduced. Fewer, but more valuable, samples should thus be chosen to ensure the establishment of a model with the best predictive power. Variations in the intensity of the absorption bands for five samples of the same soybean with different particle sizes at different wavelengths in the spectral region 4000–12,600/cm are shown in Figure 1. The intensity of the absorbance showed a tendency to increase with increasing particle size. Spectral variation was also greater at higher wavelengths, thus affecting the reliability of the NIR prediction model.

3.3 Selection of optimal particle size for soybean modeling

Many studies that describe models for evaluation soybean quality have been published. In the research, crushed soybean kernels showed better modeling effect for quality prediction. Pazdernik et al. analyzed the amino acid and fatty acid content of whole grains and crushed samples of soybeans using NIRS technology and obtained cross-validation R² values of .380–.850 and .060–.830 for the crushed samples and whole grains, respectively, demonstrating the higher accuracy of the tests conducted on crushed samples (Pazdernik, Killam, & Orf, 1997). Haughey et al. analyzed different soya bean meal by NIR, and the correlation coefficient of the model was between 0.990 and 0.890(Haughey, Graham, Cancouët, & Elliott, 2013).

In our paper, we firstly analyzed the moisture, crude fat, and protein content of whole kernels using NIRS technology, and the results indicated that the R_cv of the moisture content model was .971. However, the R_cv values of the crude fat and protein models, which were .520 and .495, respectively, showed the predication ability of these two models was low. So modeling analysis of 90 crushed soybean samples with different size was performed using Horizon MB stoichiometric software, combined with partial least squares (PLS) analysis. Samples were pretreated and the data were then processed using appropriate spectral mathematical procedures, including multiple scattering correction, derivation, detrending, normalization, offset correction, and standard normal variate, to determine the optimal particle size for modeling the moisture, protein, and crude fat content of soybeans. Ninety samples of soybean crushed samples were sieved, the particle size were 0, 20, 40, 60, 80 mesh, the establishment of the appropriate model to find the best modeling particle size, the experiment using Horizon MB stoichiometric software modeling results in Table 2.

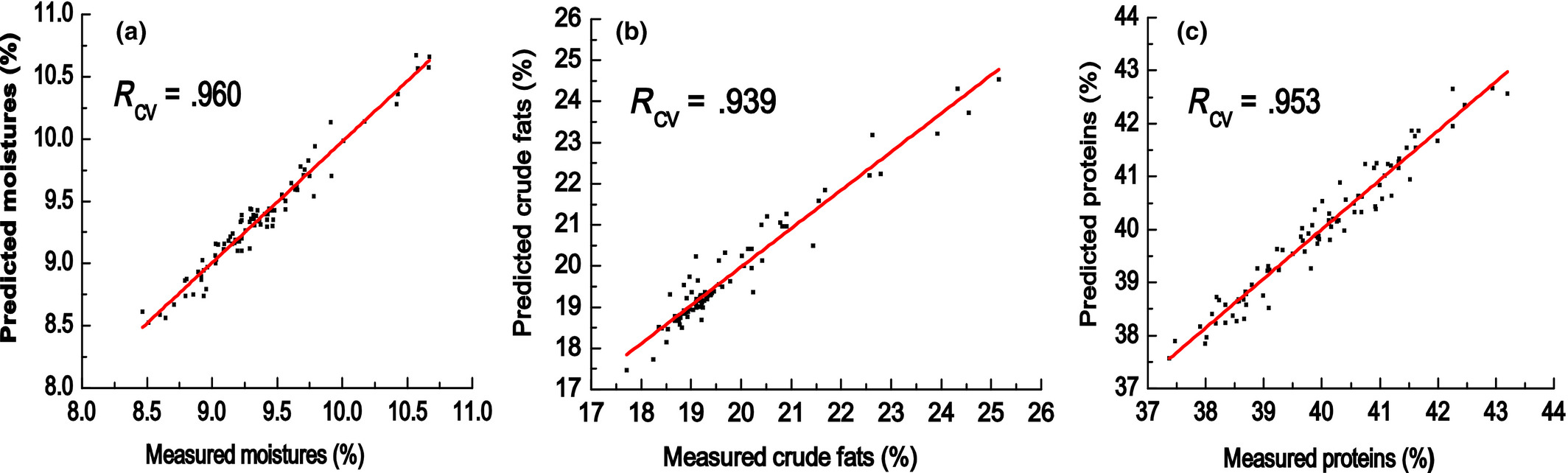

As shown in Table 2, the R_cv of the soybean moisture content model increased from .954 to .960 when the particle size of crushed samples was decreased from 10 mesh to 40 mesh. The R_cv values of the 60 and 80 mesh models, which were .914 and .899, respectively, were lower than that of the 40 mesh model. The R_cv of the soybean crude fat content model increased from .895 to .939 when the particle size was decreased from 10 mesh to 60 mesh. The R_cv of the 80 mesh model was .933, which was lower than that of the 60 mesh model. The R_cv of the soybean protein content model increased from .928 to .953 when the particle size was decreased from 10 mesh to 60 mesh. The R_cv of the 80 mesh model was .948, which was lower than that of the 60 mesh model. This phenomenon may be induced from the soybean grinding process as long grinding time may lead slight soybean quality changes. Based on an overall consideration of the modeling results of the crushed soybean samples, the standardized multivariate scatter correction method was selected as the best method for determination of the moisture content of soybeans. As shown in Table 2, crushed soybean particles, screened using a 40 mesh sieve, gave the minimum RMSEC and SECV values and the maximum R_cv value (.503, .253, and .960, respectively). The normalized multivariate scatter correction method was selected as the best method for determination of the crude fat content of soybeans. Crushed soybean particles, screened using a 60 mesh sieve, gave the minimum RMSEC and SECV values and the maximum R_cv value (.266, .071, and .939, respectively). The deviation-corrected multivariate scatter correction method was selected as the best method for determination of the protein content of soybeans. Crushed soybean particles, screened using a 60 mesh sieve, gave the minimum RMSEC and SECV values and the maximum R_cv value (.390, .152, and .953, respectively). The models for moisture, crude fat, and protein content, established under optimal conditions, are shown in Figure 2.

3.4 Establishment of NIR calibration model

In this step, the calibration model using 216 soybean samples which were crushed to optimal particles size. The data were then processed using appropriate spectral mathematical procedures mentioned before, including multiple scattering correction (MSC), derivative, detrending, normalization, offset correction, and standard normal variate. The internal cross-validation method is used to evaluate the predictive performance of the model. The internal cross-validation verifies the superiority of the detection model by RMSEC, SECV, and cross-correlation coefficient R_cv. The smaller the RMSEC and SECV, the larger the R_cv, and the better the model predictive performance.

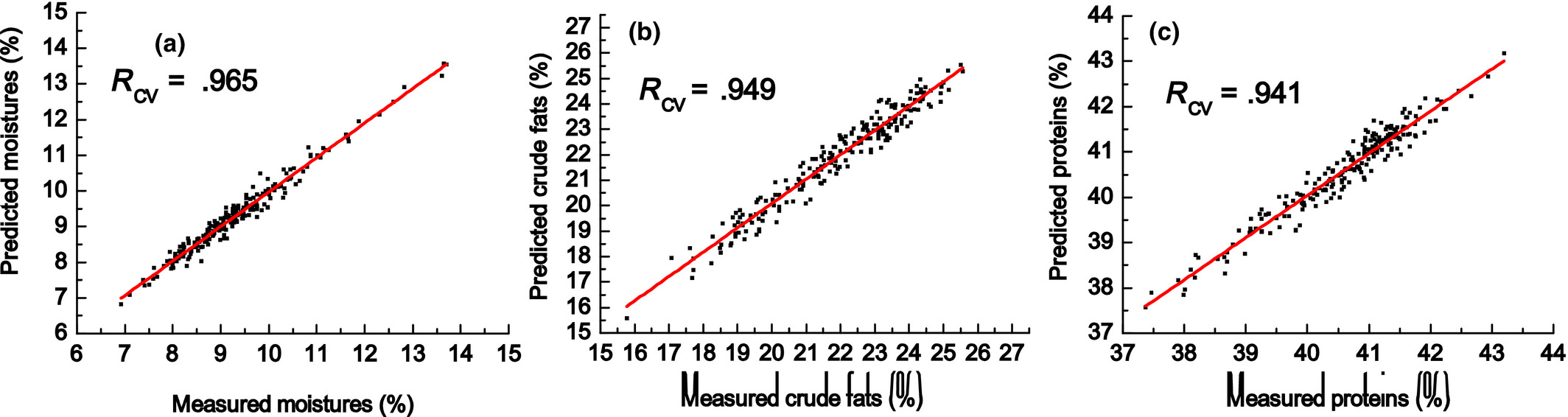

In this study, Horizon MB stoichiometric software modeling and analysis of near-infrared instrument were used to pretreat the calibration sample. After proper mathematical treatment, it can be seen from Table 3 that for the soybean crushed particles, 40 mesh water RMSEC and SECV were the smallest, R_cv was the largest, RMSEC was 0.451, SECV was 0.203, and cross-validation correlation coefficient was 0.965. As can be seen from Table 4, the calibration curve of the normalized normalized multiple scattering of 60-mesh crude fat for soybean smash particles is the best, RMSEC and SECV are the smallest, R_cv is the largest, RMSEC is 0.735, the SECV was 0.540, and the cross-validation correlation coefficient R_cv was .922. As can be seen from Table 5, the method for correcting the scattering of 60 mesh protein by soybean smash particles is the best using the multiple scattering correction method with the smallest RMSEC and SECV, the largest R_cv and the standard deviation of correction (RMSEC) of 0.537, the error (SECV) was 0.287, and the cross-validation correlation coefficient R_cv was .920.

Under the best processing method, the R_cv values for moisture, crude fat, and protein content were .965, .922, and .920 shown in Table 6. However, some outliers will inevitably occur in the establishment of a prediction model using NIR spectral data, and the presence of these outliers will seriously affect the accuracy of the prediction model. To avoid the elimination of outliers by mistake, the soybean quality value and spectrum of outliers were measured again. If it is still an outlier, it is permanently removed from the calibration set; otherwise, the sample is retained. Results of the corrected NIR calibration model are shown in Table 6 and the data based on the corrected model are shown in Figure 3. The R_cv values for soybean crude fat and protein content increased to .949 and .941, respectively, after correction. There were no outliers in the NIR model for moisture content in crushed soybeans as the moisture detection based on AACC method or NIR method was simple and effective.

Based on the NIR methods, soybean moisture and protein content models were also established by Ferreira et al. who obtained R² values of .800 and .810 for the moisture content model and protein content model, respectively (Ferreira, Pallone, & Poppi, 2013). D.S. Ferreira used totally 40 soybean samples to use near-infrared and midinfrared spectroscopy, with diffuse reflectance measurements, associated with multivariate calibration methods based on partial least squares algorithm. The determination coefficient (R²) for moisture, ash, protein, and lipid content were 0.72, 0.73, and 0.88, respectively, having an RMSECV (root mean square error of cross-validation) <2.09% (Ferreira et al., 2014). However, in this study, the calibration model using 216 soybean samples was improved after the samples were crushed to give particles of uniform size with better prediction ability. The cross-validation R_cv values for soybean moisture, crude fat, and protein content were .965, .949, and .941, respectively, with very small SECVs (0.203, 0.420, and 0.256, respectively).

3.5 External validation of NIR soybean model

SPSS linear regression analysis was performed on selected soybean samples as externally validated data and experimentally determined chemical values. The Anovab variance table was mainly used for the F test of regression linearity. The statistics F means square regression and mean residual sum of square. If the F value is too small, indicating that the explanatory power of the independent variables to the dependent variable is very poor, fitting the regression line is meaningless. If the smaller the probability value sig, the more obvious the linear correlation is.

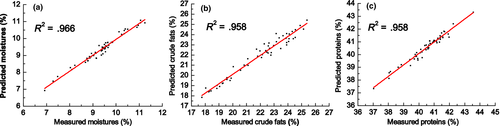

As can be seen from Table 7, the F of variance of soybean crushed granules moisture, crude fat, and protein is very large, respectively, 1494.903, 1192.713, and 1173.284, Sig values are 0, and the corresponding regression normalized residuals standard PP diagram, it can be seen that the standard PP diagram for each indicator points is basically located in a straight line, indicating that the external verification of several regression lines is meaningful, the establishment of near-infrared calibration set model is applicable and can be used to accurately determine the unknown quality of the soybean sample content.

External validation results showed that, for the 54 soybean samples as a group, the minimum deviation, maximum deviation, and mean deviation for the moisture content of the crushed grains were 0.004%, 0.349%, and 0.129%, respectively. Corresponding values for crude fat were 0.006%, 0.941%, and 0.329%, and those for protein were 0.012%, 0.607%, and 0.204%. Verification is needed to evaluate established NIR models, and external prediction samples are used to test their applicability. R² values of the soybean quality indices models are close to 1, indicating a high degree of fitting in regression of the measured and predicted values. The Durbin–Watson test is commonly used to detect whether there is a residual. The value of the Durbin–Watson statistic lies between 0 and 4, and a value close to 2 indicates that the variables are independent of each other. We used this test for independent assessment of the residual between the predicted and measured values in the soybean model. Calibration models were imported into the high efficiency MB3600 FT-NIR spectrometer used in the experiment. Spectral scanning was performed on 54 samples comprising different varieties of soybean collected from Northeast China and the Yangtze River Basin, and predicted values of moisture, crude fat, and protein content were generated. The statistics of the external validation model are shown in Table 8, and correlations between the measured and predicted values are shown in Figure 4.

Many papers have been established good models for fast evaluation of crop quality. Heman et al. established a model to determine the moisture content of rice and obtained an R² value of .920 in external validation of the model (Heman & Hsieh, 2016). Fassio et al. established a model to determine the crude fat content of corn and obtained an R² value of .900 in external validation of the model (Fassio, Restaino, & Cozzolino, 2015). Xiaodong Mao et al. established a model to determine the protein content of wheat and obtained an R value 0.975 in external validation of the model (Mao, Sun, Hui, & Xu, 2014). In the present study, R² values of the NIR models for determination of moisture, crude fat, and protein content were .966, .958, and .958, respectively, and R_cv values were .965, .941, and .949, respectively, demonstrating that the models of soybean moisture, crude fat, and protein content have good predictive value. Values of the Durbin–Watson statistic for the moisture, crude fat, and protein content of crushed soybean grains were very close to 2, indicating that the residual of the model is not self-correlated and that the regression equation covers the dependent variable changes. Additionally, p values for the regression parts were all 0.00, which is lower than the significance level of 0.05, showing that the values predicted by the model are highly significant in the interpretation of real values for soybean samples. After comprehensive analysis using the results of external validation, the predictive performance of the calibration model using the external validation set was found to be credible, indicating that the NIR calibration models for the moisture, crude fat, and protein content of crushed soybean are representative and have good predictive ability.
