Effects of gamma radiation combined with cinnamon oil on qualities of smoked salmon slices inoculated with Shewanella putrefaciens

2.1 Samples preparation

Smoked salmon slices were bought from online shopping mall and transported into our laboratory under low-temperature conditions within one day.

Salmon slices were immersed into 10⁵ CFU/ml S. putrefaciens solution at 30°C for 5 min, and then, the inoculated salmon slices were stored at 4°C for 2 h. Samples were divided into four groups randomly. The first group of samples untreated was used as control (CK), the second group was 1% (v/v) cinnamon oil (C), the third group was treated with 2 kGy gamma radiation (G), and the fourth group was treated with 2 kGy gamma radiation and 1% (v/v) cinnamon oil (G+C). Salmons of C and G+C were immersed in cinnamon oil solutions at 4°C for 10 min to make the final cinnamon oil concentration of 1% (v/v), and then, groups of G and G+C packaged with sealed ice bags were transported into the Institute of Crop and Nuclear Technology Utilization, Zhejiang Academy of Agricultural Sciences, China, as soon as possible, and then radiated. Samples were gamma-radiated using ¹³⁷Cs irradiator at a dose rate of 1.0 kGy/h, and the actual dose was within ± 2.0% of the target dose after dosimetry. The dose rate was established using National Physical Laboratory (Middlesex, UK) dosimeters. During radiation, all samples were maintained lower temperature using sealed ice bags covering. After radiation, all samples were transported to our laboratory, packed into the sealed general packaging bags, and stored in a refrigerator at 4°C for analysis.

2.2 Microbiological determination

The total viable counts (TVC) were determined on method of Gram and Huss (1996).

2.3 pH determination

The pH value was determined using a digital pH-meter (PHS-3C, Precision Scientific Instrument Co., Ltd, Shanghai, China) at ambient temperature. A sample of 10 g was homogenized in 90 ml deionized water, and the mixture was filtered.

2.4 TVB-N determination

Total volatile basic nitrogen (TVB-N) of samples was determined based on the method of Antonacopoulos and Vyncke (1989). The TVB-N values (mg N/100 g of fish) of samples were determined according to consumption of sulfuric acid.

2.5 TBARS determination

Thiobarbituric acid-reactive substances (TBARS) were determined based on the previous methods by Ke, Cervantes, and Robles-Martinez (1984). The TBARS value was expressed as micromoles MDA per kilogram samples and was calculated from the standard curve of malonaldehyde.

2.6 Total lipid extraction and fatty acid composition determination

Lipid in salmon slices was extracted by the following method (Folch, Lees, & Sloane Stanley, 1957). A sample of 5 g was homogenized in the mixture of chloroform and methanol (2:1, v/v). Nonlipid impurities were removed using 4 ml of 0.88% aqueous KCl (w/v). Then, the upper layer was removed and the lower layer contains the dried lipid extract. Total lipids of samples were measured gravimetrically. The lipid extract was then used as an analysis of fatty acids.

Fatty acid methyl esters (FAME) were prepared and determined using the gas chromatograph–mass spectrometer (Trace 1300-ISQ, Thermo, USA). TG-5MS chromatograph column (dimensions: 30 m × 0.25 mm × 0.25 μm, Thermo Scientific, USA) was employed for chromatographic separation. The oven temperature rose from 50–150°C at a rate of 40°C/min and reached a peak temperature of 230°C at 2°C/min. A sample of 1 μl was injected into the column with the carrier gas at a flow rate of 1.5 ml/min. Data were collected and analyzed using the Chromatography Data System.

2.7 Statistical analysis

Experiments were performed in triplicate. All data were subjected to analysis of variance (ANOVA). Significant differences between mean values were determined using Duncan's multiple range test (p < .05). Statistical analyses were performed using SPSS (SPSS Inc., Chicago, USA).

3.1 Microbiological analysis

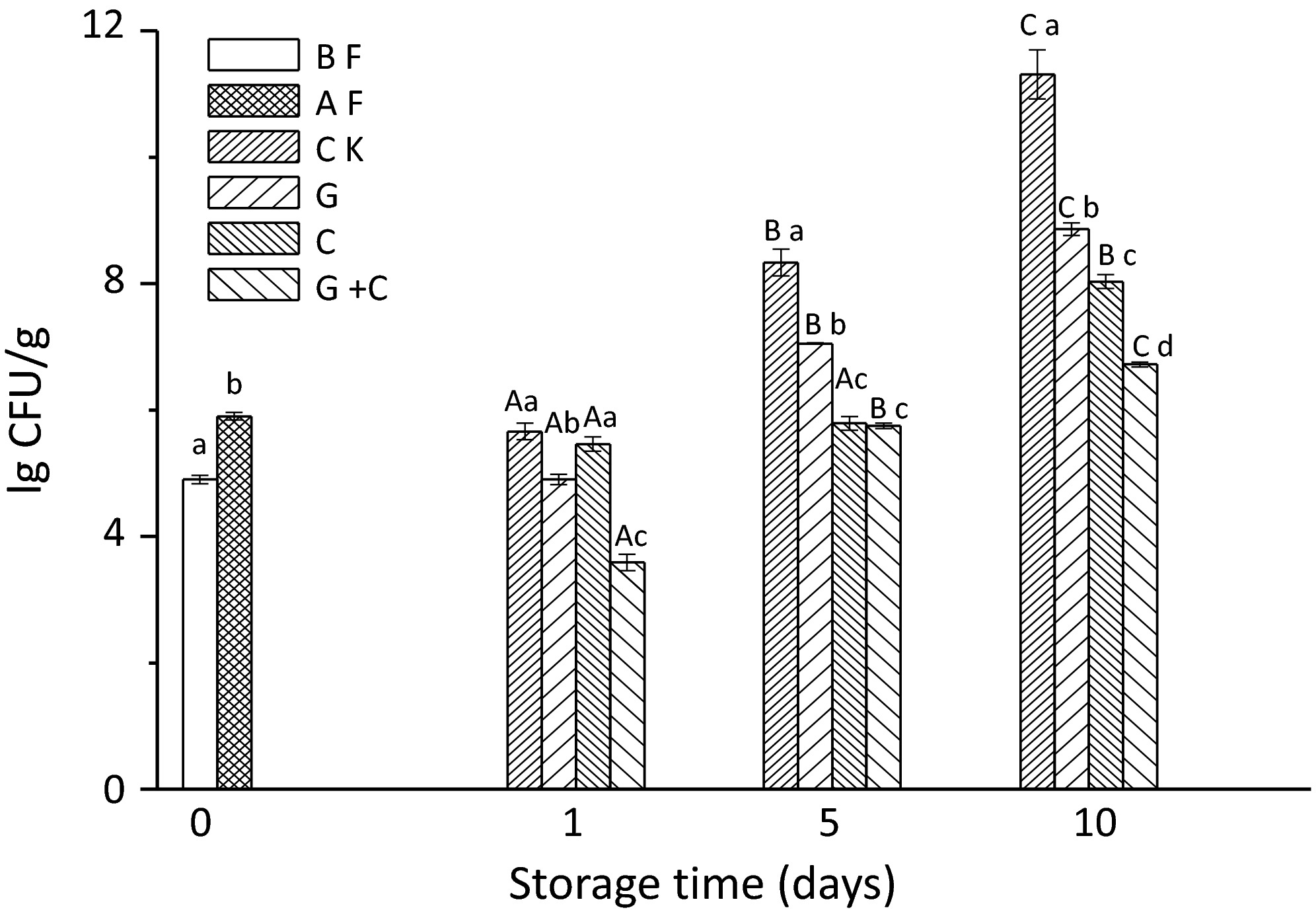

Changes in TVC in salmon slices are shown in Figure 1. TVC of salmon increased from 4.9 lg CFU/g at the beginning to 5.9 lg CFU/g after inoculated S. putrefaciens. It indicated that S. putrefaciens was successfully inoculated in salmon slices. During storage, an increase of TVC in all groups was observed, especially in the samples of CK. TVC of 6 lg CFU/g is often used to suggest the end of shelf life of a fish product in food industries (Gudrun et al., 2010). The values of the samples of G+C were close to and reached this level during storage; however, other groups were much higher than this level. It indicated that combination treatment of G+C had a significantly greater antimicrobial activity than C and G. The ability of radiation and cinnamon oil to prevent growth of microorganisms in food has been confirmed by other authors (Cheok et al., 2017; Haute et al., 2016). Huq, Vu, Riedl, Bouchard, and Lacroix (2015) reported that the cinnamon oil significantly improved the radiosensitivity of L. monocytogenes. Altan and Turan (2016) studied synergistic effect of freezing and irradiation on bonito fish and indicated that fewer bacteria were detected in irradiation as compared with control samples. In addition, when radiation is used in combination with antimicrobials, such as cinnamon oil, the antibacterial effect is strengthened through synergistic action (Huq et al., 2015). These studies indicated that the technology of radiation combined with cinnamon oil significantly reduced the growth of microorganism, which were similar to our work.

3.2 pH value analysis

The pH analysis during storage is a rapid and often used method for evaluating fish freshness (Truong, Buckow, Nguyen, & Stathopoulos, 2016). The pH of fish muscles can strongly reflect the postmortem changes such as autolysis process and microbiological spoilage. Values of pH in fish could be increased due to the formation of putrefactive compounds and microbiological activities during cold storage.

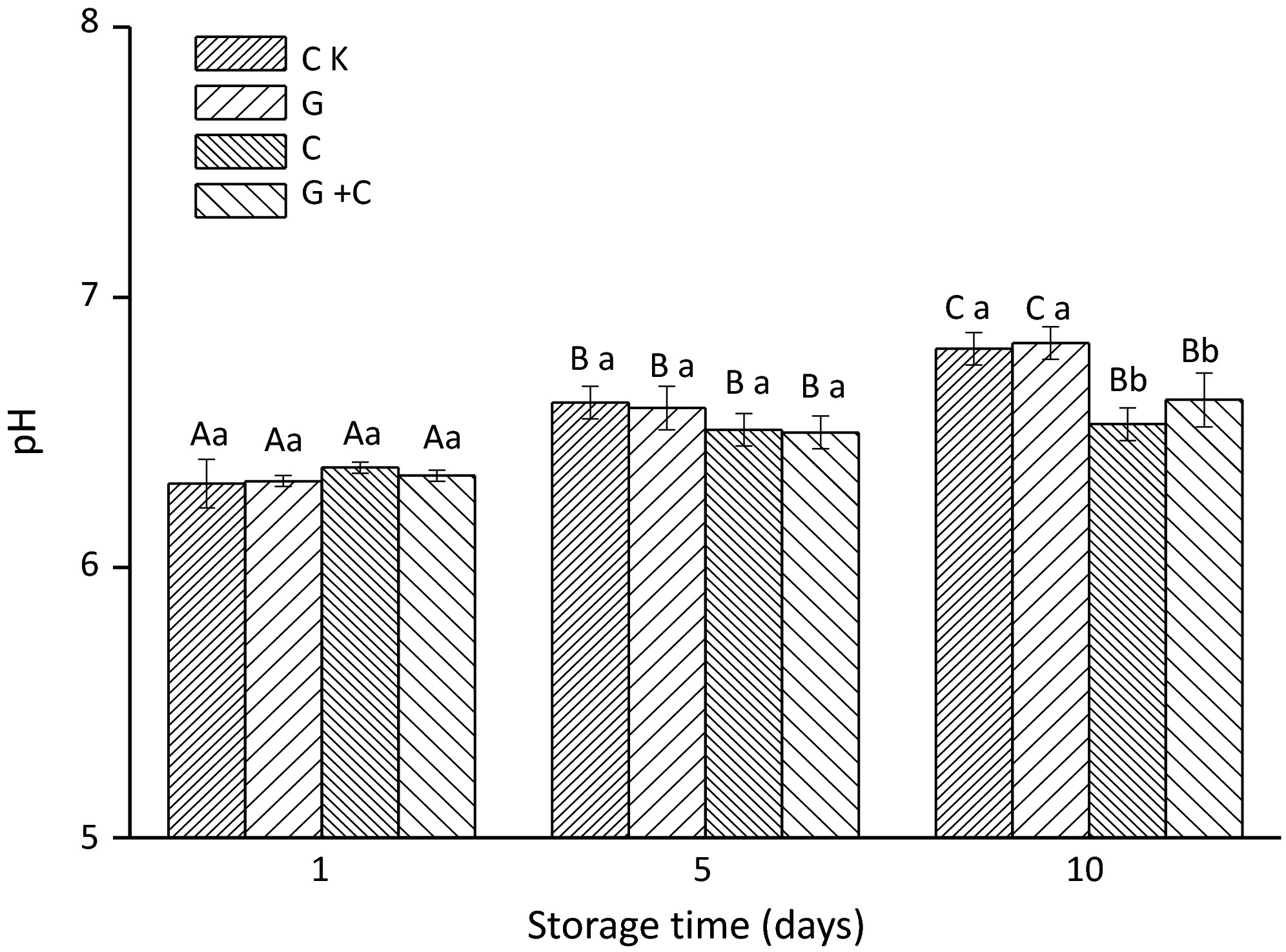

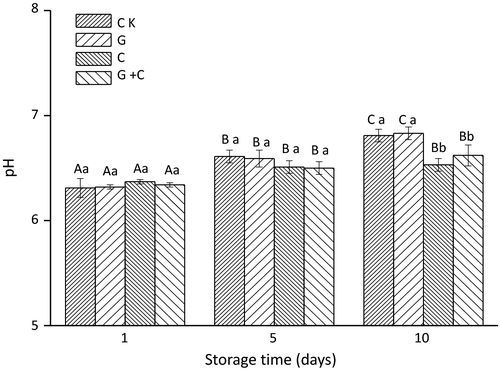

Changes in pH values in samples during storage are presented in Figure 2. The initial pH values of all samples on day 1 were around 6.3, and no significant difference was found between CK, G, C, and G+C. The initial pH value for salmon fillets was 6.63 and pH values ranged from 6.5 to 6.7 (Sathivel, 2005), which was similar to our results. During storage, the pH of all samples increased, especially CK and G. The increase in pH values may be due to the formation of basic decomposition products, such as alkaline volatile amines produced by spoilage bacteria. There were no significant differences among the treatments on day 1 and day 5, but on day 10, differences in G+C and C compared to others were significant (p < .05). On day 5 and day 10, no significant difference was found between C and G+C. These results indicated that cinnamon oil, especially cinnamon oil combined with radiation treatment, could slow down the increase in pH values by inhibiting the activity of bacteria.

3.3 TVB-N analysis

For fish, protein and nonprotein nitrogenous compounds are greatly due to microbiological activity, which produce total volatile basic nitrogen (TVB-N). TVB-N is a much better indication of fish corruption, including measurement of trimethylamine, dimethylamine, ammonia, and other compounds associated with seafood spoilage (Goulas & Kontominas, 2006; Ryou, Titlow, Mays, Bae, & Kim, 2016). TVB-N values could increase curvilinearly or linearly with time, and a level of 35–40 mg N/100 g is the limit for evaluating spoilage (Lakshmanan, 2000).

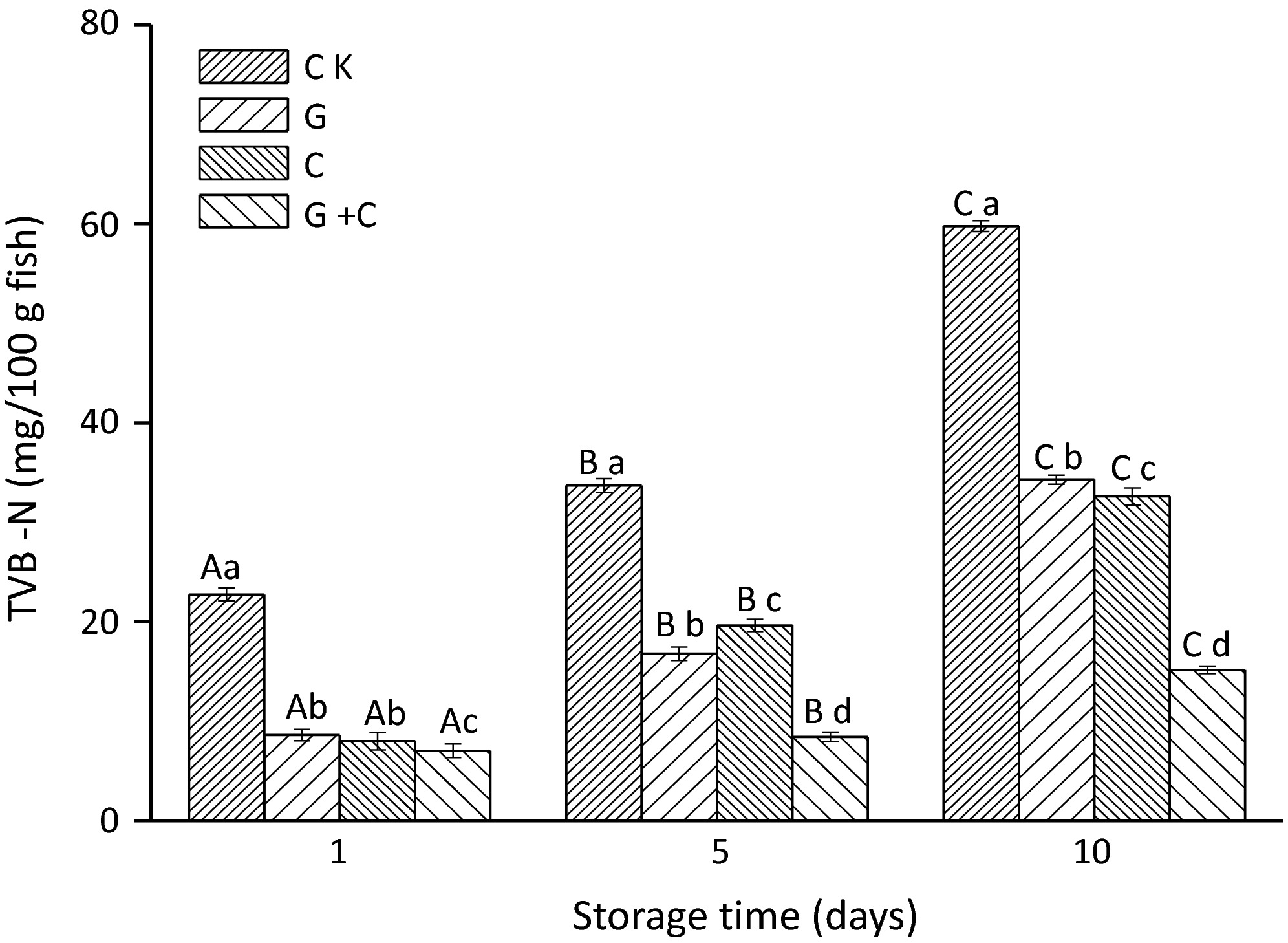

TVB-N changes in all samples during storage are presented in Figure 3. The values of CK increased from 22.96 mg N/100 g on day 1 to 59.92 mg N/100 g on day 10 of storage. The TVB-N values of G, C, and G+C groups were less than 10 mg N/100 g on day 1, which were within recommended ranges of TVB-N in fresh fish (5–20 mg N/100 g). After 10 days of storage, the values reached 34.16, 32.48, and 15.12 mg N/100 g for samples of G, C, and G+C, respectively. TVB-N of G+C was much less than samples of C and G. The significantly lower TVB-N in G+C may be attributed to the strong antimicrobial activity of combination of radiation and cinnamon oil, which might inhibit both autolytic reactions and muscle protein deterioration by microorganisms.

3.4 TBARS analysis

The TBARS index is widely used for the assessment of lipid oxidation (Berry, 1973). It has been suggested that a maximum TBARS value, indicating the good quality of fish, is 5 mg malonaldehyde (MDA)/kg, while fish may be consumed up to the level of 8 mg MDA/kg (Sallam, 2007).

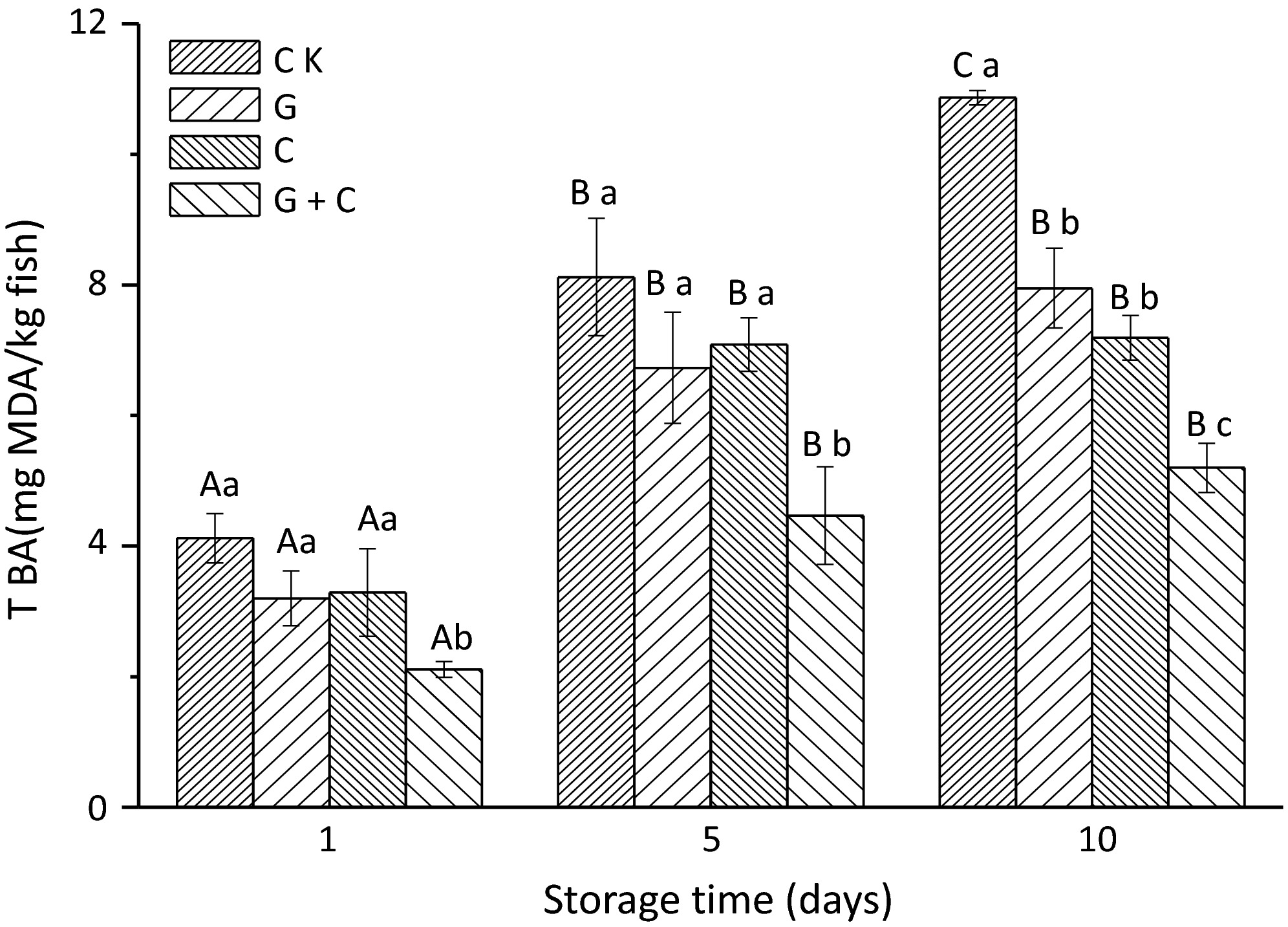

TBARS changes in salmon slices during storage are presented in Figure 4. On day 1, TBARS values of CK, C, G, and G+C were 4.06, 3.68, 3.56, and 2.45 mg MDA/kg, respectively. It showed that samples treated with combination of radiation and cinnamon oil had lowest TBARS value followed by C, G, and CK during whole storage period. TBARS values of the smoked salmon slices on the first day were much higher than fresh salmon fish. It should be noted that in the traditional smoking process, the TBARS values could be increased because some compounds present in the smoke can react with the thiobarbituric acid (Beltrán & Moral, 1991). In addition, the high temperatures used in the traditional smoking processes greatly influenced the formation of secondary oxidation compounds. As shown in Figure 4, there was a general trend of increment in overall TBARS values during storage. Ten days storage later, TBARS values of CK, G, C, and G+C reached 10.79, 8.26, 7.15, and 5.09 mg MDA/kg, respectively. The increasing rate of CK was higher than that of G, C, and G+C, and TBARS of C+G was the lowest.

3.5 Fatty acid composition analysis

Changes in fatty acid composition of all samples during storage are shown in Table 1. The content of unsaturated fatty acids (UFAs) including monounsaturated fatty acids (MUFAs) and polyunsaturated fatty acids (PUFAs) was much higher than that of saturated fatty acids (SFAs) in salmon samples. Fish, especially salmon, is one of the best sources of docosahexaenoic acid (DHA, 22:6 n-3) and eicosapentaenoic acid (EPA, 20:5 n-3) for human consumers (Sargent, Tocher, & Bell, 2002). The contents of DHA and EPA were ranged from 2.12% to 2.23% and 1.22% to 1.43%, respectively, on day 1. DHA was much more than EPA in the salmon samples. This is in agreement with the report of Chaijan, Benjakul, Visessanguan, and Faustman (2006) and Kolakowska, Olley, and Dunstan (2002) that DHA is usually more abundant than EPA.

After 5 and 10 days of storage, SFAs and UFAs in all samples decreased significantly. The reason might be due to the lipid oxidation during storage resulted in the reduction in SFA and UFA contents. As mentioned in Figure 4, TBARS of all samples on day 5 and day 10 were increased obviously as compared that on day 1, indicating that lipid in the salmon was oxidized during storage. Lipid oxidation increased with the storage time was also reported in the literature (Flick, Hong, & Knobl, 1992). UFA contents particularly PUFAs in salmon samples obviously decreased with the extension of storage time as compared with SFAs. This is in agreement with Pirestani, Sahari, and Barzegar (2010). Shono and Toyomizu (1971) reported that PUFAs in fish muscle decreased with oxidation, C22:6 acid decrease being most predominant, while SFAs and MUFAs showed comparatively little decrease, C16:0 acid decrease being almost negligible. Changes in fatty acids constituting lipids should be attributed not only to oxidative deterioration but also to enzymatic hydrolysis. As in fish lipids undergo hydrolysis into free fatty acids even on iced storage, it was possible that PUFAs and MUFAs undergo oxidation to a greater extent than SFAs, resulting in the decrease in PUFA and MUFA contents (Chauke, 2008). In addition, UFAs are quite susceptible to oxidative process, because the hydrogen of carbons adjacent to double bonds can be replaced by radical species with higher reactivity (Cosgrove, Church, & Pryor, 1987; Porter, Caldwell, & Mills, 1995).

As concerned for radiation and cinnamon oil treatments, the decrease of PUFAs in G+C samples was lowest in all samples. On day 5, contents of DHA in G+C samples were 1.51%, while that in CK, C and G had not been detected. It indicated that combination of radiation and cinnamon oil could prevent or prolong the degradation of fatty acids. Previous study reported that cinnamon oil had an antioxidant property and blocked lipid peroxidation of tissue lipids, especially polyunsaturated fatty acids (Keshvari, Asgary, Jafariandehkordi, Najafi, & Ghoreyshiyazdi, 2013). Furthermore, it was reported that the reduction of microorganism in foods could result in a decrease in oxidation rate of fatty acids (Bijl, Wolf, Schaap, & Visser, 2001). The present work showed that radiation combined with cinnamon oil treatment significantly reduced the growth of microorganism, which might result in the decrease in UFA oxidation.

The salmon inoculated with S. putrefaciens showed an increasing trend of TVC, pH, TBARS, and TVB-N values during the storage at 4°C, but that of samples treated with radiation and cinnamon oil increased slowly compared to control samples, especially the combination of the two processes. Similarly, the decomposition rate of fatty acids had significant differences in samples between treatment and control samples. These results indicated that the combination of radiation and cinnamon oil was effective in delaying deterioration of smoked salmon.
