Whale Algorithm for Schedule Optimization of Construction Projects Employing Building Information Modeling

S. M. Golmaei

S. M. Golmaei

Department of Civil Engineering, Sari Branch, Islamic Azad University, Sari, Iran

Contribution: Conceptualization, Software, Formal analysis, Writing - original draft, ​Investigation

Search for more papers by this author
J. Vahidi

Corresponding Author

J. Vahidi

Department of Computer Science, Iran University of Science and Technology, Tehran, Iran

Correspondence: J. Vahidi ([email protected])

Contribution: Supervision, Methodology, Writing - review & editing, ​Investigation, Validation

Search for more papers by this author
Morteza Jamshidi

Morteza Jamshidi

Department of Civil Engineering, Chalous Branch, Islamic Azad University, Chalous, Iran

Contribution: Supervision, Writing - review & editing, Formal analysis, Data curation

Search for more papers by this author
First published: 02 March 2025
Citations: 1

ABSTRACT

This study introduces a new approach by applying the Whale Optimization Algorithm (WOA) to create construction schedules using geometric data from Building Information Modeling (BIM). The algorithm utilizes 3D model information to establish stability criteria, which are organized in a Directed Design Structure Matrix (DSM). These criteria are integrated into the WOA Fitness function to enhance the constructability of schedules, where each schedule is symbolized as a unique whale. Through iterative WOA computations, the approach consistently achieves maximum constructability scores starting from randomly generated schedules, affirming the efficacy of this method. The results reveal that the proposed algorithm effectively produced fully executable project schedules from diverse inputs. Despite variations in computational times due to different input parameters, the experiments verified the consistent generation of schedules that are 100% executable.

1 Introduction

Construction scheduling is a critical component in project management, where optimized schedules significantly influence project success. Researchers have explored various optimization techniques, such as linear programming historically [1, 2]. Multi-objective linear programming has been particularly effective for handling resource-constrained problems like construction costs, project duration, resource idle time, and delivery schedules [3, 4]. Particle swarm optimization has also been proposed to address resource constraints in construction scheduling [5] while metaheuristic algorithms have been widely applied across diverse scheduling challenges in construction, including job-shop scheduling, concrete precast production optimization, resource leveling, and building performance assessment [6-9]. Recent studies integrate Building Information Modeling (BIM) with Multi-Objective Optimization (MOO) algorithms to enhance decision-making in construction management [10, 11]. This approach aims to synergize information systems with optimization methods to improve building design and management processes. Baghalzadeh Shishehgarkhaneh et al. [12] propose a framework combining BIM and the Fire Hawk Optimizer (FHO) to optimize project scheduling by maximizing quality while minimizing time, cost, risk, and environmental impact. Also, different analytical and numerical methods have been used by researchers to model and solve various engineering problems [13-23].

Mehmet Yılmaz and Tayfun Dede [24] investigate the time–cost trade-off dilemma in construction projects, employing non-dominant sorting (NDS) within optimization algorithms such as Rao-1 and Rao-2. They assess these methods against PSO, ACO, GA, and TLBO for small to medium-scale problems to gauge their effectiveness. Wa et al. [25] introduce an enhanced non-dominated sorting genetic algorithm (INSGA-II) tailored for time and cost optimization in construction, demonstrating its effectiveness in managing complex scheduling challenges under diverse resource constraints. Abhilasha Panwar and Kumar Neeraj Jha [26] propose a multi-objective scheduling framework (MOSM) utilizing a non-dominated sorting genetic algorithm to optimize time, cost, resources, and environmental impact concurrently, adapting solutions based on project-specific priorities. These approaches underscore the evolving use of advanced optimization techniques in improving construction scheduling efficiency and effectiveness. So far, there has been little to no research on the Whale Optimisation Algorithm (WOA) for optimizing construction schedules. Therefore, in this study, we aim to focus on WOA. Prior to that, we will explore the application of WOA in scheduling in other domains.

Understanding the stability principles of the structure is essential for developing a cohesive construction schedule. These rules are typically stored in a well-defined matrix format known as Directed DSM (Design Structure Matrix). By utilizing the rules encoded in this matrix, the WOA can effectively generate desired construction schedules that adhere to structural stability requirements. The algorithm introduced in this research endeavors to create construction schedules from the ground up, employing a fitness function. This necessitates utilizing the stability matrix derived from the Building Information Modeling (BIM) of the project. The main goal of this Whale Optimization Algorithm (WOA) is to enhance the constructability of the project to its fullest extent. This entails finding project schedules that ensure all elements feasible and secure only when its two end structural supports (such as columns or beams) were installed previously. The core operations of the WOA utilized in this research include encircling, shrinking, and hunting and evaluation of fitness based on the defined constructability criteria. These operations are pivotal in iteratively refining and optimizing the construction schedule to align with the project's structural stability requirements.

2 Model and Geometry

In general, modeling is widely used in all fields of science, including engineering, energy, industry, textiles, construction, mechanics, physics and medicine, and there are many mathematical methods for modeling that are used by researchers according to their application [27-57]. The proposed algorithm aims to establish a dynamic, interactive relationship between a project's geometric model (BIM) and its schedule, potentially revolutionizing project management. This bi–directional interface would allow immediate updates: modifying the 3D model would automatically generate a new project schedule, and adjustments to the schedule would prompt the algorithm to identify any parts or elements of the project that may pose construction challenges due to schedule changes [58, 59]. The Matrix of Constructability Constraints (MoCC) in Equation (1) functions as either established since the 1960s to depict project networks [60, 61]. Figure 1 illustrates the translation from 3D Building Information Modeling (BIM) to MoCC and the subsequent project network. The Whale Optimization Algorithm (WOA) employs this MoCC to create construction schedules for the provided 3D model. This article presents a new approach for generating schedules by employing the GA in conjunction with MoCC. The MoCC matrix in Figure 1 represents spatial relationships among geometric elements in the 3D model, crucial for developing a stable project schedule. Each solution is evaluated with a stability score based on MoCC's constructability constraints, aiming to maximize stability towards 100% using optimization methods like the Whale Algorithm (WOA), recognized for its effectiveness in project management and Expert Systems. The WOA's fitness function aligns well with the binary MoCC matrix, emphasizing stability relations. The entire process is summarized in Figure 2, with further elaboration in subsequent sections.
Matrix  of  constructability ( MoCC ) = A 1 A 2 A n A 1 A 2 A n S 1 , 1 S 1 , 2 S 1 , n S 2 , 1 S 2 , 2 S 2 , n S n , 1 S n , 2 S n , n , $$ \mathrm{Matrix}\kern0.34em \mathrm{of}\kern0.34em \mathrm{constructability}\kern0.24em (MoCC)={\displaystyle \begin{array}{c}\begin{array}{c}\\ {}{A}_1\end{array}\\ {}{A}_2\\ {}\vdots \\ {}{A}_n\end{array}}\kern0.5em {\displaystyle \begin{array}{c}{A}_1\kern0.5em {A}_2\kern0.5em \cdots \kern0.5em {A}_n\\ {}\left[\begin{array}{cccc}{S}_{1,1}& {S}_{1,2}& \cdots & {S}_{1,n}\\ {}{S}_{2,1}& {S}_{2,2}& \cdots & {S}_{2,n}\\ {}\vdots & \vdots & \ddots & \vdots \\ {}{S}_{n,1}& {S}_{n,2}& \cdots & {S}_{n,n}\end{array}\right],\end{array}} $$ (1)
where Ai represents project tasks, it refers to either the geometric components within the 3D model or the tasks planned for scheduling and Si,j dependencies between elements, denoted by values of either 0 or 1, indicating non-dependency or dependency respectively.
Details are in the caption following the image

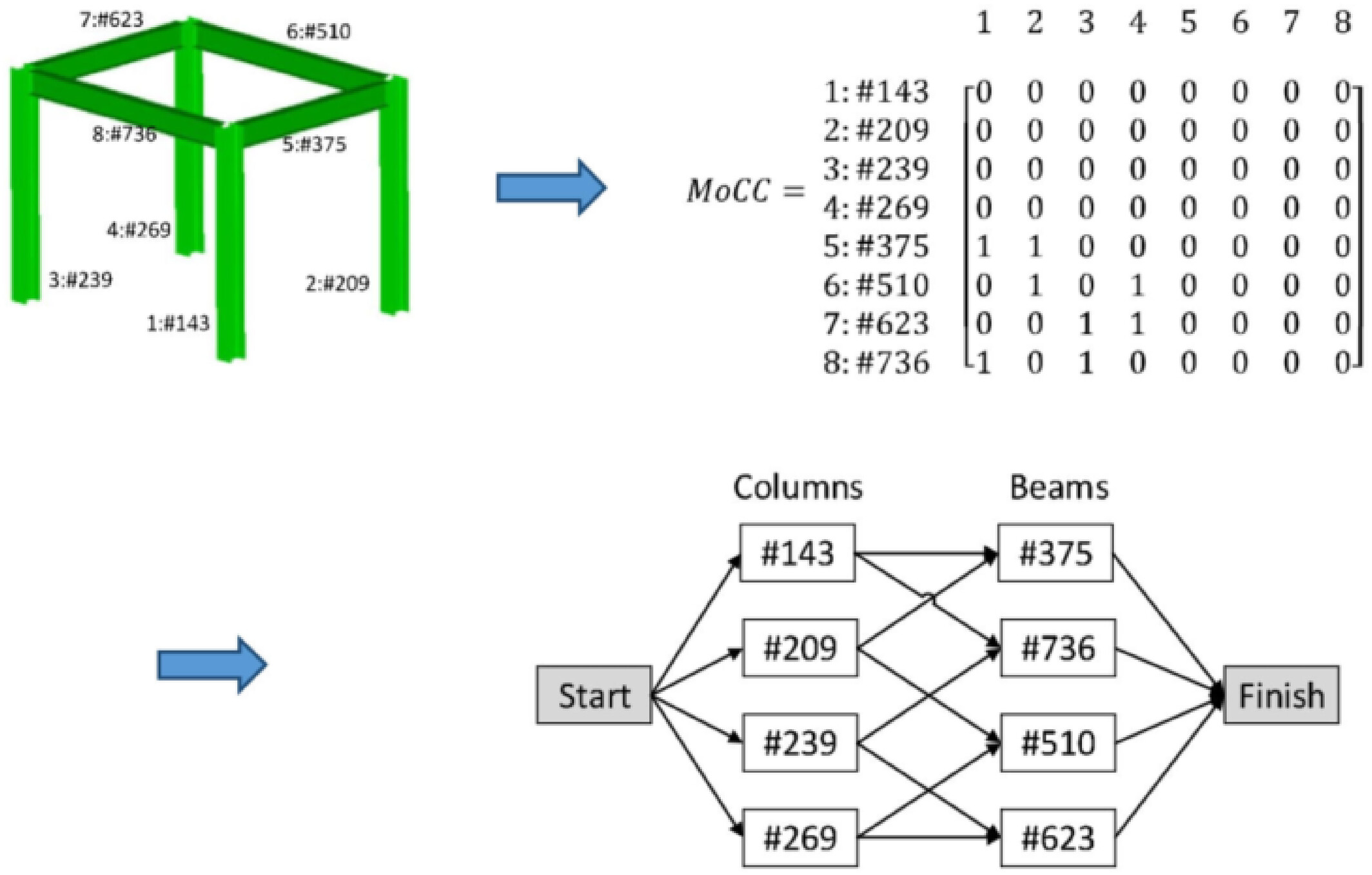

BIM to project network [58].
Details are in the caption following the image

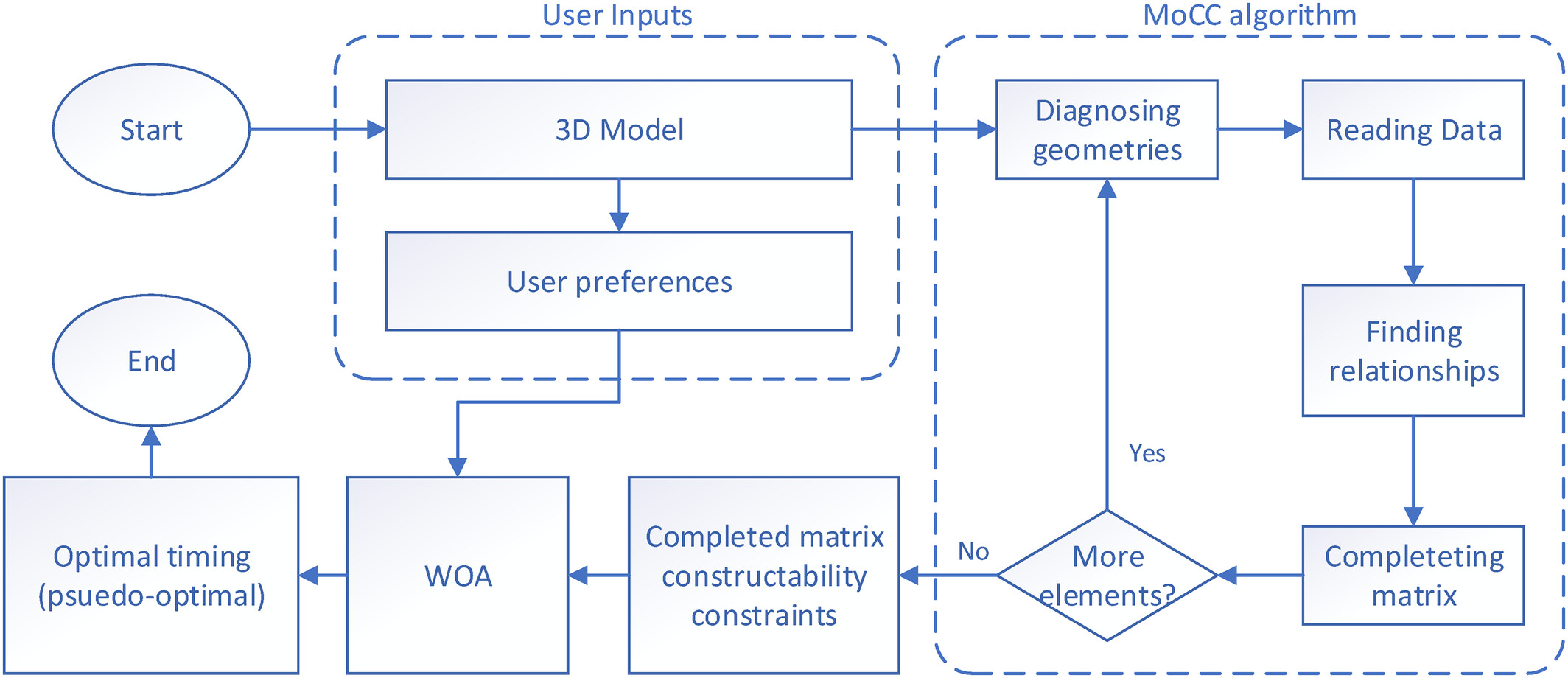

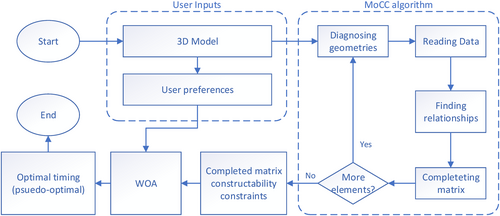

Flowchart of the proposed optimization method.

The currently developing algorithm is designed to support only specific structural elements from the IFC file format in BIM projects, specifically columns (IfcColumn) and beams (IfcBeam). To streamline calculations, these beams and columns are represented as lines with bounding boxes around them, as illustrated in Figure 3. According to the IFC standard [62, 63], dimensions can be simplified to their start and end points, eliminating the necessity to account for all intricate details. In this study, the assumption is made that if two elements intersect within their respective bounding box regions, they are considered to be physically linked. Using data extracted from the IFC and stability rules are presented in Table 1.

Details are in the caption following the image

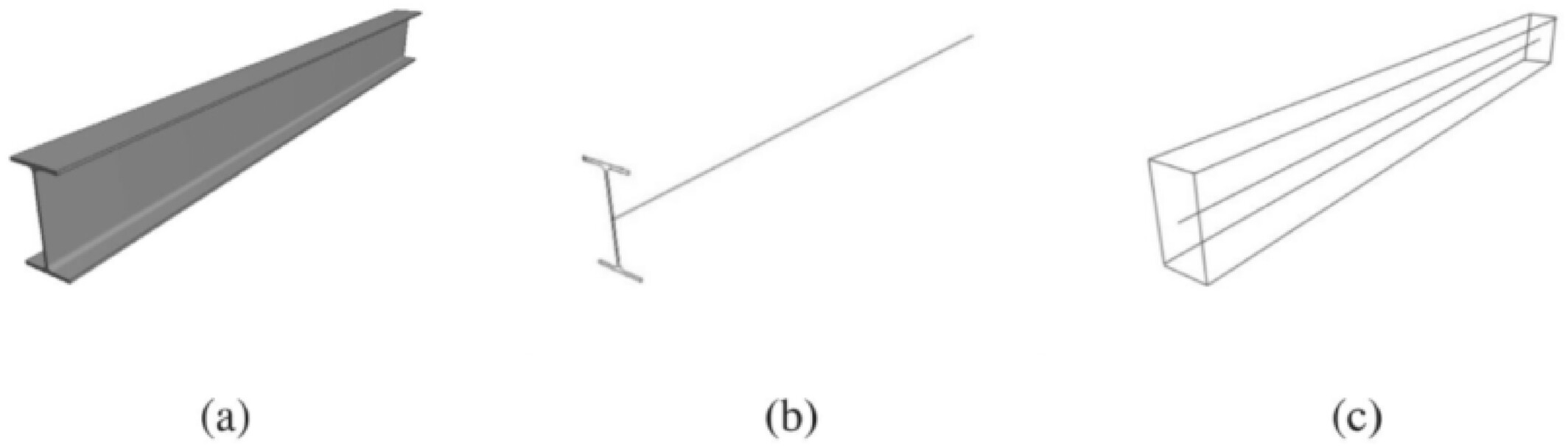

3D element simplification [58].
TABLE 1. Stability prerequisites [58].
Lower level Same level Upper level
Column Column
Beam Supporting columns or beams
Wall Beams Adjacent columns and beams
Slab Regional beams
Roof Regional beams
Door Container wall
Window Container wall

3 Optimization Algorithm

Optimization and finding optimal states are of great importance, especially in engineering design and modeling, and there are various algorithms for optimization [64-66]. The Whale Optimization Algorithm (WOA), inspired by the hunting behavior and feeding patterns of whales, is a powerful method for solving optimization problems. Utilizing concepts such as random search and evolutionary operations, this algorithm optimizes a wide range of fields including engineering, computer science, and civil engineering, parameter optimization of machine learning algorithms, industry, medicine, and energy system optimization. Known for its high efficiency, execution speed, and adaptable implementation, WOA is recognized as an effective and well-established tool for optimizing complex problems in various practical applications and research endeavors.

3.1 WOA Main Operations

The Whale Optimization Algorithm (WOA) mimics the behavior of a whale swarm navigating through the search space to identify the best global solution. WOA includes three key operations: encircling, shrinking, and hunting. During the exploitation phase, activities like encircling and shrinking are employed, while hunting is characteristic of the exploration phase. For a multi-dimensional optimization problem, the update process for the 𝑖th whale in the 𝑡th generation with WOA is as follows [67]:
Encircling operation : x i , j t + 1 = x best , j t A . d i , j t . $$ \mathrm{Encircling}\ \mathrm{operation}:{x}_{i,j}^{t+1}={x}_{best,j}^t-A.{d}_{i,j}^t. $$ (2)
Shrinking operation : x i , j t + 1 = x best , j t e bl . cos ( 2 π l ) . d i , j t . $$ \mathrm{Shrinking}\ \mathrm{operation}:{x}_{i,j}^{t+1}={x}_{best,j}^t-{e}^{bl}.\cos \left(2\pi l\right).{d^{\prime}}_{i,j}^t. $$ (3)
Hunting operation : x i , j t + 1 = x k , j t A . d best i , j t . $$ \mathrm{Hunting}\ \mathrm{operation}:{x}_{i,j}^{t+1}={x}_{k,j}^t-A.{d^{best}}_{i,j}^t. $$ (4)
A = 2 1 t t max . ( 2 r 1 ) , $$ A=2\left(1-\frac{t}{t_{max}}\right).\left(2r-1\right), $$ (5)
where t represents the current iteration number, t max $$ {t}_{max} $$ is the maximize number of iterations. x best , j t $$ {x}_{best,j}^t $$ is the position vector of the best solution obtained so far and x $$ x $$ is the position vector. b $$ b $$ is a constant for defining the shape of the logarithmic spiral, l $$ l $$ is a random number in [−1,1]. x k t $$ {x}_k^t $$ represents a random position vector, selected as a random whale from the current population. Three distances are defined as follows:
d i , j t = 2 r . x best , j t x i , j t . $$ {d}_{i,j}^t=\left|2r.{x}_{best,j}^t-{x}_{i,j}^t\right|. $$ (6)
d i , j t = x best , j t x i , j t . $$ {d^{\prime}}_{i,j}^t=\left|{x}_{best,j}^t-{x}_{i,j}^t\right|. $$ (7)
d best i , j t = 2 r . x k , j t x i , j t . $$ {d^{best}}_{i,j}^t=\left|2r.{x}_{k,j}^t-{x}_{i,j}^t\right|. $$ (8)

The WOA updates individuals using different equations depending on the probability 𝑝. If 𝑝 is less than 0.5 and the absolute value of 𝐴 is less than 1, Equation (2) is used for updating. When 𝑝 is less than 0.5 but | A | $$ \mid A\mid $$ is greater than or equal to 1, Equation (4) is applied. For probabilities 𝑝 of 0.5 or higher, Equation (3) is utilized to update the individuals. The Pseudo code of WOA algorithm is shown in Figure 4.

Details are in the caption following the image

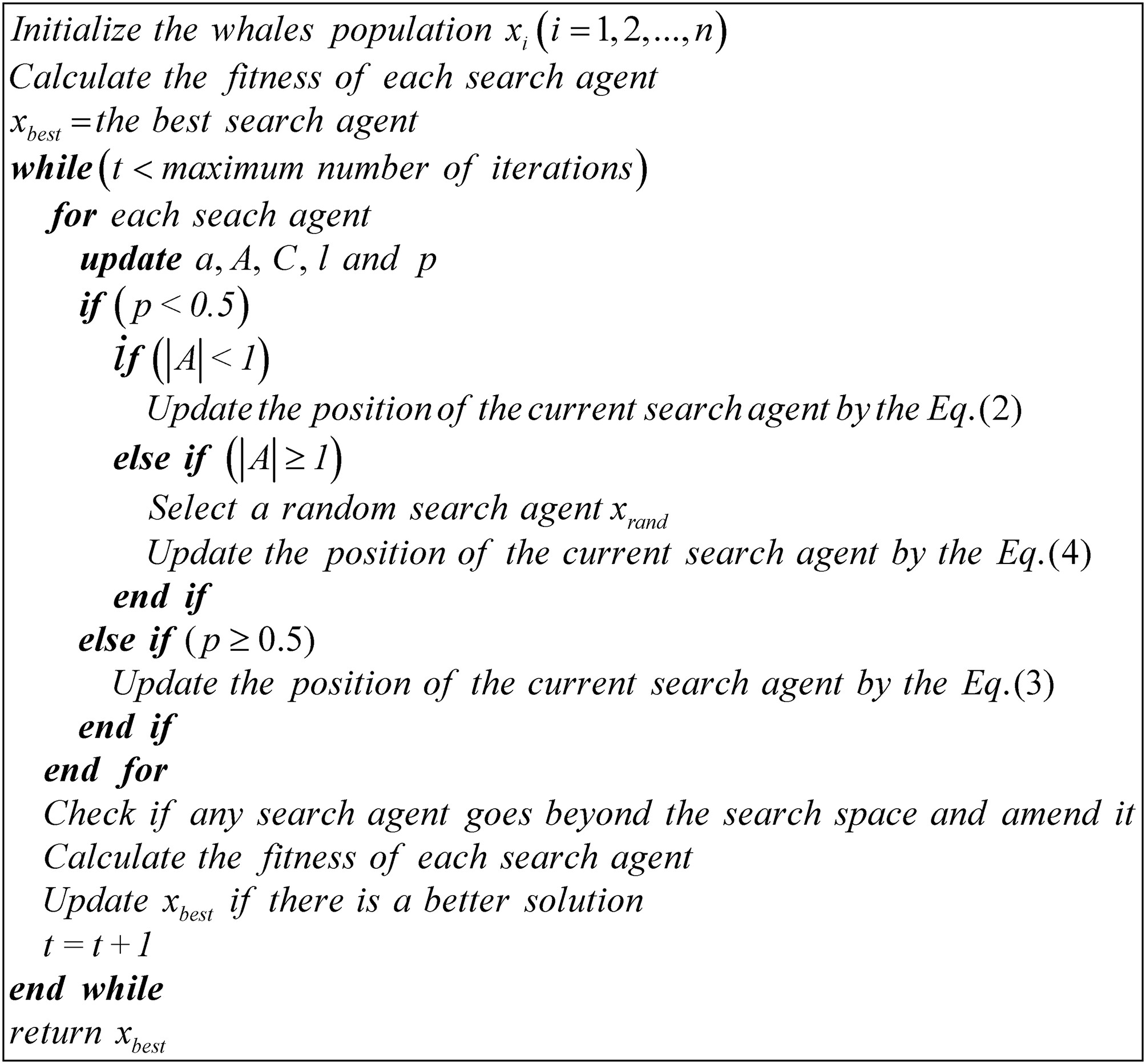

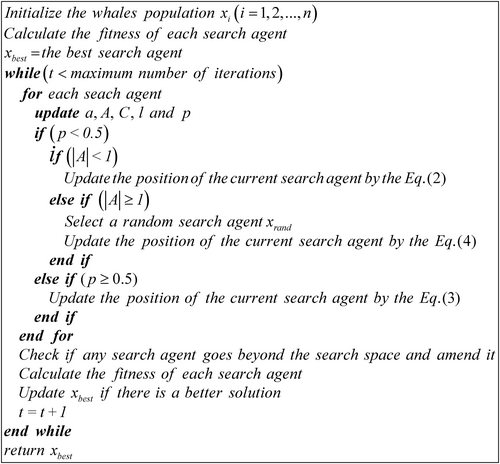

Pseudo code of WOA algorithm [67].

3.2 Initialize the Whale Population

In this approach, whale positions are defined as lists detailing the scheduled installation of elements over each time unit (such as day, week, or month) throughout the project's duration. According to this definition, a position can take one of two forms. First, the Matrix of Whales (MoW), described in Equation (9), consists of n rows representing elements from the 3D model and k columns indicating the total installation period. A non-zero value in wi,j signifies that element i is scheduled for installation at time unit j. For instance, if w4,3 = 1, it denotes that element Number 4 is scheduled for installation during the third time unit, which could be hours, days, or weeks depending on user specifications. Second, as shown in Equation (10), each element is installed in a specific time unit. By placing the installation time units of the elements side by side, a string of integers is formed. This string is then used within the WOA population. For example, in the representation form of the whale population, when w4 = 3, it means that Element 4 is installed in the third time unit, corresponding to the example previously mentioned.
Matrix  of  Whale ( MoW ) = A 1 A 2 A n D 1 D 2 D k w 1 , 1 w 1 , 2 w 1 , k w 2 , 1 w 2 , 2 w 2 , k w n , 1 w n , 2 w n , k . $$ \mathrm{Matrix}\kern0.34em \mathrm{of}\kern0.34em \mathrm{Whale}\;(MoW)={\displaystyle \begin{array}{c}\begin{array}{c}\\ {}{A}_1\end{array}\\ {}{A}_2\\ {}\vdots \\ {}{A}_n\end{array}}\kern0.5em {\displaystyle \begin{array}{c}\begin{array}{cccc}{D}_1& {D}_2& \cdots & {D}_k\end{array}\\ {}\left[\begin{array}{cccc}{w}_{1,1}& {w}_{1,2}& \cdots & {w}_{1,k}\\ {}{w}_{2,1}& {w}_{2,2}& \cdots & {w}_{2,k}\\ {}\vdots & \vdots & \ddots & \vdots \\ {}{w}_{n,1}& {w}_{n,2}& \cdots & {w}_{n,k}\end{array}\right]\end{array}}. $$ (9)
Whale = w 1 , w 2 , w 3 , , w n ; w i [ 1 . . k ] . $$ \mathrm{Whale}=\left\{{w}_1,{w}_2,{w}_3,\dots, {w}_n\right\};\kern0.72em {w}_i\in \left[1..k\right]. $$ (10)

In this context, n represents the count of project tasks, which can be geometric elements in a 3D model or scheduled activities and k denotes the overall duration of the project in time units, such as days, weeks, or months.

In random whale population generation, the total project duration is initially determined based on user-provided data. Subsequently, a string consisting of integers is generated. The length of this string, which equals the elements number or tasks extracted from the 3D BIM file, represents the sole constraint for this random population as depicted in Equation (11).
w i , j = 1 & w i , j + 1 = 0 x > j + 1 : w i , x = 0 . $$ {w}_{i,j}=1\&{w}_{i,j+1}=0\kern0.36em \to \forall x>j+1:{w}_{i,x}=0. $$ (11)

The condition stated above means that each element can only be installed once. To create a whale position effectively, generate 𝑛 integers randomly chosen from the range [1, 𝑘]. According to this rule, an element can only occupy consecutive time units if they are all sequential. To simplify the whale position further, each element is allocated to only one time unit. Thus, each row in the MoW contains a Single 1 and zeros elsewhere, ensuring that the installation of each element is limited to at most one-time unit. The time unit—whether hour, day, or week—is chosen based on user preferences. This realistic simplification mirrors common practices observed in several production processes, particularly in construction projects. It illustrates how prefabricated elements like precast concrete panels, beams, columns, steel structures, doors, windows, HVAC components, pipelines, and others are produced offsite (e.g., in factories) and then swiftly installed at their designated sites. This approach also applies to manufacturing processes like soldering electronic components onto circuit boards or assembling vehicle parts, ensuring efficient and straightforward installation procedures.

The algorithm is programmed to schedule the installation of model elements using a cumulative normal distribution. This method simulates the workload as an S-curve during the actual project completion phase.

3.3 Fitness Function

In this research, the focus is on optimizing the constructability of project sequences using WOA. Although multi-objective WOAs can measure multiple variables, this study prioritizes a single objective: the constructability of the project schedule. Ensuring that the project schedule is fully constructible is paramount, meaning that all scheduled components must be feasible for installation. The constructability score, expressed as a percentage, is calculated by dividing the number of elements that comply with the constraints in the Matrix of Constructability Constraints (MoCC) by the total number of elements.

To compute this score, the MoCC, which details the rules and constraints for each 3D BIM element based on their geometry and interdependencies, is utilized. Using the Matrix of Whales (MoW), a function reads the whale position sequence to identify the elements scheduled for installation in each time unit. For each scheduled element, the prerequisites listed in the MoCC are checked against the MoW to ensure they have been installed earlier. Once all conditions are fulfilled, the element is considered feasible for construction. The constructability percentage is determined by dividing the count of feasible elements by the total number of elements and multiplying the result by 100. This score forms the basis for selecting genomes (schedules) in the subsequent steps. All the details regarding the fitness function described in this paper are summarized in Figure 5.

Details are in the caption following the image

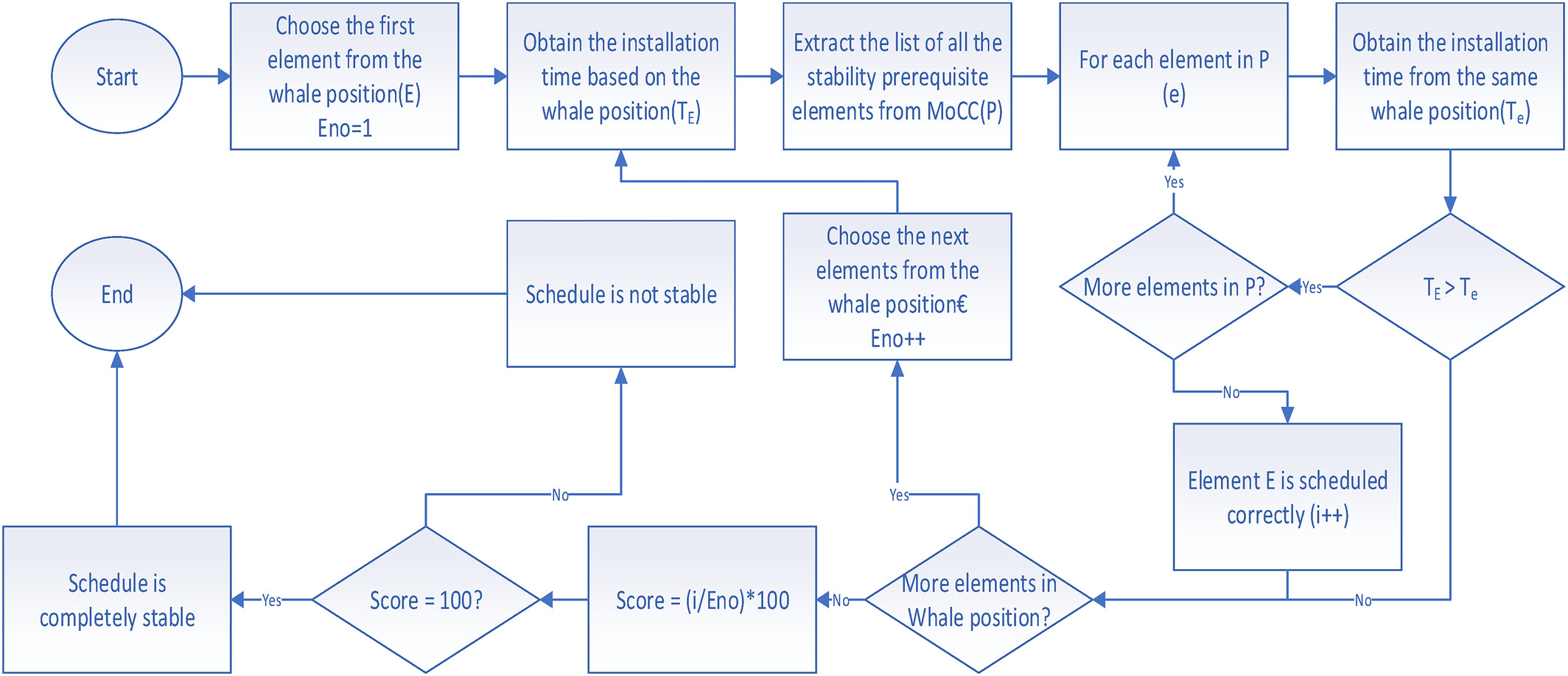

Fitness function flowchart.

3.4 Whale Position Validation

It must be mentioned that it is highly probable that the newly position of a whale after the encircling, shrinking, and hunting operations may result in invalid project schedules. To tackle this problem, the methodology includes a “Validation Function,” which is formally defined in Equation (12).
i { 1 , 2 , , n } j { 1 , 2 , , k } : w i , j = 1 and i { 1 , 2 , , n } & j { 1 , 2 , , k } & 0 < c < k : w i , j = 1 & w i , j + c = w i , j c = 0 or i { 1 , 2 , , n } : j = 1 k w i , j = 1 , $$ {\displaystyle \begin{array}{ll}& \forall i\in \left\{1,2,\dots, n\right\}\kern0.36em \exists j\left\{1,2,\dots, k\right\}:{w}_{i,j}=1\\ {}& \mathrm{and}\kern0.48em \forall i\in \left\{1,2,\dots, n\right\}\&j\left\{1,2,\dots, k\right\}\&0<c<k:{w}_{i,j}\\ {}& \kern1em =1\&{w}_{i,j+c}={w}_{i,j-c}=0\\ {}& \mathrm{or}\kern0.84em \forall i\in \left\{1,2,\dots, n\right\}:\sum \limits_{j=1}^k{w}_{i,j}=1,\end{array}} $$ (12)
where wi,j is the value of element i in time-unit j in the MoW, n is total number of elements, k is total number of time-unit steps and c is any random number between [0, k]. The Validation Function examines MoW to identify elements that are either not scheduled for installation or have multiple installation times. In the former case, this function randomly assigns installation times within the project duration. In the latter case, it preserves the first installation and removes the duplicates. For example, the new MoW and its validated version are illustrated in Figure 6. In this instance, the second installation attempt of the first element is canceled, and the second element is rescheduled randomly for installation during the third time period.
Details are in the caption following the image

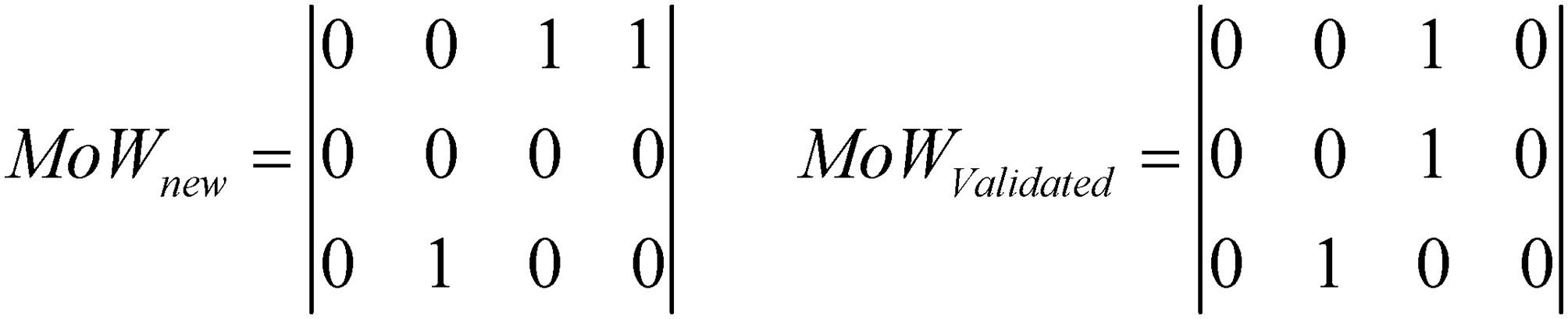

New MoW and its validated matrix.

Further details and explanations about this algorithm are available in Refs [7, 68-73].

4 Research Validation

The study's algorithm incorporates numerous factors and parameters. To ensure its efficacy across different scenarios and validate its practicality, it is essential to test various combinations of these factors rigorously. The chosen validation approach, “Experimental Validation and Design,” aligns with discussed methodologies [74]. Parameters and their ranges for validation are sourced from relevant literature, detailed further in the following section.

4.1 Experimental Design

During an experiment, intentional adjustments to one or more process variables are made to observe their impact on corresponding response variables. Design of experiments (DOE) serves as a powerful method for analyzing collected data and deriving reliable, unbiased conclusions while minimizing the number of required experiments. The general structure of the laboratory design is explained and available in Refs [75-79]. In this research, several variables have been identified for intentional modification. The complexity of the input 3D BIM is adjusted by varying the number of elements and connection types. Additionally, parameters related to the Whale Optimization Algorithm (WOA) are manipulated, including the population size of whales and the range of construction durations. These adjustments are crucial for examining their effects on the outcomes and validating their impact on the proposed methodologies.

Three distinct 3D models have been developed in this study to depict varying levels of complexity: simple, moderate, and complex BIMs. The focus of this research is exclusively on structural models and architectural elements; components such as piping, equipment, and HVAC systems are omitted from these models. Complexity levels of the models are determined by evaluating factors such as the quantity of structural elements, overall model size, and the types of connections between these structural elements. Screenshots illustrating the three different BIM inputs used in the methodology are displayed in Figure 7.

Details are in the caption following the image

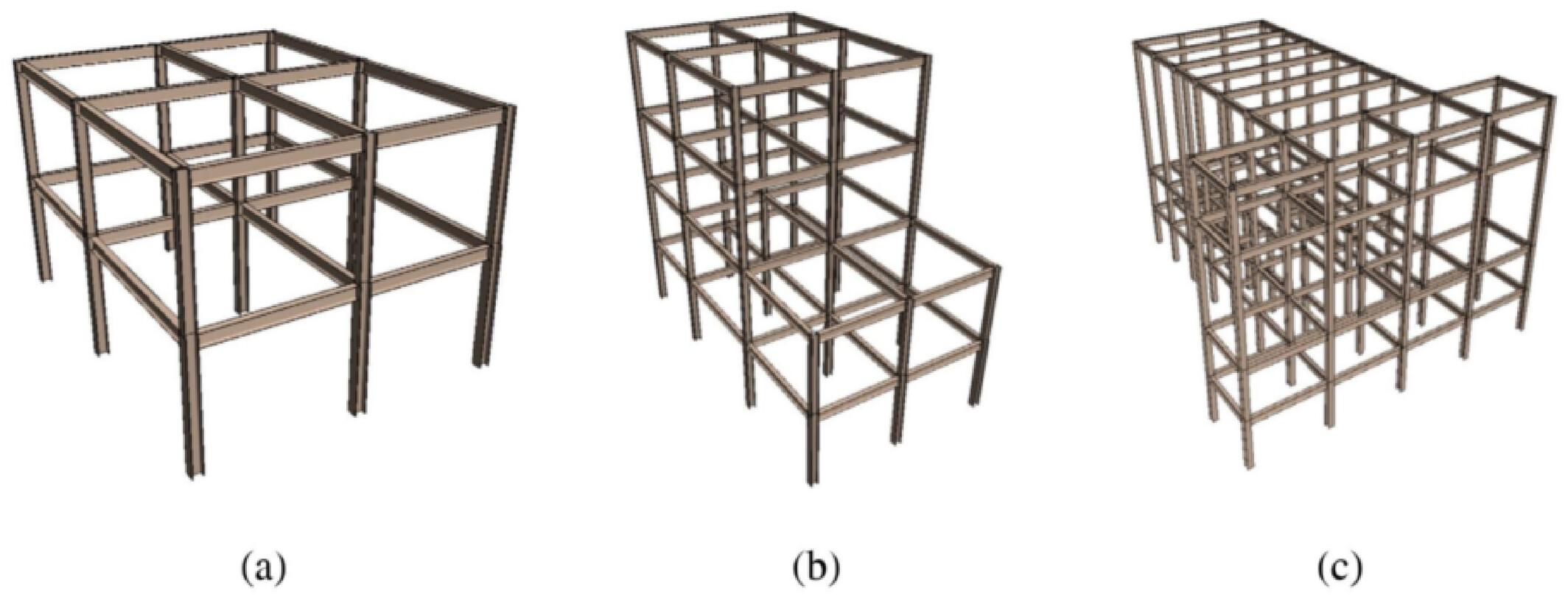

Three different 3D BIM input models [58].

Figure 7 depicts three distinct models: (a) a straightforward structural model featuring 42 elements comprising 18 columns and 24 beams. Model (b) represents a more intricate structure with 42 columns and 58 beams, totaling 100 elements. The final model, (c), represents a typical turbine building structure with 274 elements, including 102 columns, 146 girders, and 26 joists this makes it among the intricate steel structures encountered in the construction industry. Derived from standard turbine building models used in power plants, this model spans the spectrum of complexity for 3D steel structures, ranging from the simplest Figure 7a to the most complex Figure 7c, as outlined in the detailed descriptions of each 3D model input.

Various researchers have suggested different optimal sizes for population parameter. Recommended population sizes range from as low as 16 [80] to approximately 20–30 [67, 81] and occasionally extend to larger ranges like 50–100 population size. Taking into account the findings of other researchers, we have chosen a population size range of 20–100. The adjustments made to the WOA parameters are detailed in Table 2.

TABLE 2. Whale optimization algorithm parameter change set.
WOA parameters 1st 2nd 3rd 4th 5th 6th 7th
Population size 20 30 50 20 30 50 100
Duration range 10% ± 20% 15% ± 20% 20% ± 20% 20% ± 10% 10% ± 10% 15% ± 10% 25% ± 10%

In order to showcase the benefits of the proposed methodology for creating project schedules, we conducted experiments using 21 distinct sets of parameters. These 21 scenarios included three variations in model complexity, as specified in Figure 7, for each of the seven WOA parameter sets detailed in Table 2. The adjustments in both WOA parameters and model complexities resulted in 21 distinct executions of the algorithm, aimed at validating its efficacy across various situations.

The goal of these experiments is to produce several full construction sequences, matching the size of the population, that satisfy the constructability and stability criteria of the model, as calculated in MoCC. Achieving this across various experimental configurations would validate the algorithm's capability to automatically generate reliable construction project schedules.

5 Results and Discussion

As described earlier, different sets of inputs were generated and fed into the proposed algorithm to assess their effectiveness in generating complete and feasible project schedules. The constructability objective, as previously explained, involves arranging project elements in a way that ensures the stability of both individual components and the overall project model. This stability is governed by the MoCC, which was calculated beforehand. Table 3 provides further details on how these different runs achieve the research objectives. The methodology was implemented on a laptop featuring the following specifications: CPU—Intel(R) Core(TM) i7-4720HQ @ 2.60GHz, RAM—16 GB, OS—Windows 11 Pro.

TABLE 3. Completion results for different runs for the experimental design.
Run name 1st 100% score occurred Ended Calculation duration in each iteration (s)
Simple, 20 W, 10 T 374 391 0.028
Simple, 30 W, 10 T 57 70 0.035
Simple, 50 W, 15 T 52 69 0.070
Simple, 20 W, 20 T 193 214 0.028
Simple, 30 W, 15 T 68 84 0.028
Simple, 50 W, 20 T 46 67 0.056
Simple, 100 W, 25 T 25 44 0.182
Moderate, 20 W, 10 T 34,952 35,035 0.049
Moderate, 30 W, 10 T 5449 5796 0.091
Moderate, 50 W, 15 T 3441 5471 0.168
Moderate, 20 W, 20 T 5751 3467 0.077
Moderate, 30 W, 15 T 3421 3440 0.070
Moderate, 50 W, 20 T 3027 3054 0.161
Moderate, 100 W, 25 T 2785 2809 0.462
Complex, 20 W, 10 T 170,940 171,296 0.294
Complex, 30 W, 10 T 56,828 56,847 0.476
Complex, 50 W, 15 T 2902 2942 0.882
Complex, 20 W, 20 T 73,866 73,959 0.378
Complex, 30 W, 15 T 36,454 36,515 0.399
Complex, 50 W, 20 T 12,029 12,050 0.735
Complex, 100 W, 25 T 9727 9727 2.401

In Table 3, the “Run Name” field begins with labels such as Simple, Moderate, or Complex, corresponding to the input model complexities defined earlier and depicted in Figure 7 as models (a–c), respectively. Moreover, in this field, the label W denotes the number of whales in each population for the specific run, while the label T signifies the mean of the initial duration range as outlined in Table 2. The study aims to generate stable and feasible project schedules for any 3D model. Through maximizing the constructability score, the WOA algorithm targets reaching 100% in each iteration. Some experiments achieve the maximum score more quickly than others. This variation in calculation speed is influenced by several parameters, with the most significant being the input 3D model complexity and the population size.

As the complexity of the input 3D model increases, scheduling all elements becomes more challenging for the algorithm. Dealing with an infinite number of model elements is not feasible, yet the calculations reliably move towards the specified objective. However, a higher number of elements in the model results in longer computation times. To demonstrate the balance between different input variables and the computation duration of the proposed algorithm, this study introduces a new metric termed DEP (Dimension in Each Population), which is computed as described in Equation (9).
DEP = Number of 3 D elements × Population Size . $$ \mathrm{DEP}=\mathrm{Number}\kern0.17em \mathrm{of}\;3\mathrm{D}\;\mathrm{elements}\times \mathrm{Population}\kern0.17em \mathrm{Size}. $$ (13)

The correlation coefficient between DEP and the calculation duration per iteration, detailed in Table 3, is +0.9, indicating a strong positive relationship. This highlights that augmenting DEP—whether through increasing 3D model elements, expanding initial duration ranges, or enlarging population sizes—leads to extended calculation times per population. Table 4 further illustrates these dynamics: DEP significantly impacts iteration calculation time (> 90%) but has a minor effect on total calculation duration (< 40%). Conversely, the number of 3D model elements moderately influences both calculation rounds and durations (> 40% and < 90%), while population size and average initial duration marginally decrease calculation rounds and total time but slightly increase each iteration's calculation duration.

TABLE 4. Correlation coefficient table.
Calculation round Calculation duration in each iteration Total calculation duration
DEP −0.040 0.784 0.240
Number of elements 0.464 0.496 0.608
Population size −0.256 0.44 −0.088
Mean of the initial duration range −0.248 0.344 −0.084

Moreover, each iteration's calculation duration increases nearly in proportion to DEP increments. It also scales about half as much with changes in 3D model elements, population size, or average initial duration. Interestingly, the total number of iteration rounds correlates to half the increase in 3D model elements but decreases in relation to a third of the increase in population size or initial duration. Changes in DEP have a moderate impact on the total number of calculation rounds but can extend the overall computation time by around 30%. According to findings in Table 4, project duration scales by 76% with adjustments in 3D model elements and decreases by 10% in relation to increases in population size or initial duration.

Table 4 compiles the computed correlations, highlighting how WOA parameters significantly influence the computational demands to achieve desired outcomes. These correlation coefficients play a crucial role in refining WOA parameters for future research. Table 4 further details the varying speeds at which experiments reach their final scores, revealing a consistent trend of rapid initial score increases followed by gradual improvements as scheduling proceeds.

The methodology's developed tool not only generates dependable construction schedules but also offers a 4-dimensional depiction of the construction sequence, showing the evolution of the 3D model over time. This visual representation not only clarifies the construction process but also assesses schedule reliability and constructability.

6 Conclusion

The project schedule is essential for managing time, cost, and quality in Architecture, Engineering, and Construction (AEC) projects. Creating these schedules is challenging, relying on planners' expertise and understanding of project geometries and stability. Recently, integrating project information into a 3D model (Building Information Modeling or BIM) has gained importance. This paper introduces a method to extract information from BIM to develop construction sequences using a computer application and the Whale Optimization Algorithm (WOA). This approach ensures the structure remains stable during installation. The authors validated this method through 21 experiments, successfully generating stable construction schedules, demonstrating a new application of WOA in construction projects. The primary aim was to derive construction schedules from the geometric data within the project's BIM, and this objective was successfully demonstrated. The key contribution of this research lies in defining essential functions for the WOA to generate construction schedules based on a project's BIM. This study validates the use of geometric data embedded in structural BIM to sequence element installations feasibly, suggesting future potential for improving various construction processes. Future studies could also involve conducting detailed analyses to understand how changes in parameters affect schedule configurations, such as the influence of 3D model complexity on schedules and determining optimal gene numbers, population size, and initial durations.

Author Contributions

S. M. Golmaei: conceptualization, software, formal analysis, writing – original draft, investigation. J. Vahidi: supervision, methodology, writing – review and editing, investigation, validation. Morteza Jamshidi: supervision, writing – review and editing, formal analysis, data curation.

Conflicts of Interest

The authors declare no conflicts of interest.

Data Availability Statement

Data sharing not applicable to this article as no datasets were generated or analysed during the current study.
