1 INTRODUCTION

The ability of a species to cope with variations in abiotic conditions influences its distribution range (Gaston, 2003). Abiotic factors, and among them temperature, shape the geographic range of ectotherm species, and this is even more relevant in the context of global warming (Addo-Bediako et al., 2000; Somero, 2012). Some ectotherms survive extracellular freezing of their body fluids and are thus freezing tolerant, whereas most ectotherms are freezing intolerant. Instead of having high supercooling abilities (i.e., low supercooling point, SCP), freezing tolerant species, like some alpine species, tend to freeze at relatively high subzero temperatures, a phenomenon that occurs thanks to the synthesis ice nucleators and cryoprotectants that respectively induce and protect against freezing stress (Bale, 2002; Duman, 2001; Duman et al., 2004). Freezing intolerant arthropods, which include freeze-avoidant, chill-tolerant, chill-susceptible, and opportunistic-survival classes, can exhibit deep supercooling ability, ranging from −15 to −25°C (Danks, 2004), by producing cryoprotectants (e.g., polyols) and antifreeze proteins (Bale, 2002; Duman, 2001).

Body size influences and is influenced by the animal's stage, its body fat content or the concentration of ice-nucleating bacteria, which affect the SCP (Colinet et al., 2007; David & Vannier, 1996; Johnston & Lee, 1990). The size of animals also changes along latitudinal and altitudinal clines. Both an increase and a decrease of body size toward northern latitudes were observed and theorized under the Bergmann and converse Bergmann rules, respectively (Blanckenhorn & Demont, 2004). For ectotherms, these two rules were first opposed (Mousseau, 1997; Voorhies, 1996), but it seems that both larger and smaller individuals at northern latitudes are possible and the two rules are eventually not exclusive (Blanckenhorn & Demont, 2004), possibly coexisting in close species (e.g., in artic wolf spiders, see Ameline et al., 2018). The latitudinal size cline is of importance as body size also influences cold hardiness (Ansart et al., 2014), for example, with smaller arthropods having better supercooling capabilities than larger ones (Colinet et al., 2007; David et al., 1996; Sinclair et al., 2009; Sømme, 1982). Hence, a negative relationship between ectotherms size and the ability to supercool has been reported (Lee & Costanzo, 1998). Consequently, smaller individuals could benefit from colder temperatures under harsher winter conditions at northern latitudes.

Latitude, by influencing winter conditions, also influences the cold hardiness strategies defined by Bale (1996). Indeed, it influences the temperature gap between the SCP and the lower lethal temperature (Addo-Bediako et al., 2000; Vernon & Vannier, 2002), and consequently, opportunistic-survival animals are mainly found in tropical and semitropical regions, chill-susceptible and chill-tolerant in temperate and subpolar regions, and freeze-avoidant in region with severe cold winter conditions.

Despite the importance of latitude on cold resistance, most studies investigating latitudinal clinal changes of arthropods’ physiological tolerance focused on differences between species rather than among populations of the same species (Spicer & Gaston, 1999 but see, e.g., Jensen et al., 2019). Basal cold tolerance is a physiological trait that has evolved many times in arthropods (Sinclair et al., 2003). Most of the knowledge on cold tolerance of arthropods comes from the study of insects, and different mechanisms might influence the cold hardiness of insects versus arachnids. Indeed, Anthony and Sinclair (2019) showed divergent cryoprotective dehydration, the action of losing water by evaporation at low temperature, between insects and arachnids, and the presence of coma under hypoxic conditions is also remarkable in spiders (Pétillon et al., 2009). The same cold hardiness classes are used to categorize freezing intolerance of spiders and insects. Indeed, some spiders are freeze-avoidant, others chill-tolerant or chill-susceptible (Anthony et al., 2019; Kirchner, 1973). However, not all spiders are freezing tolerant (Nentwig, 2012).

In this study, we focused on fishing spiders (Araneae, Pisauridae) with contrasted distributions. These spiders are represented by two species only in Europe. Both species are quite widespread but climatic and habitat conditions in the future might negatively impact their abilities to cope with climate change (Monsimet et al., 2020), especially for the red-listed Dolomedes plantarius. Estimating the cold resistance is essential to adopt efficient conservation strategies for species having a subnivean winter habitat that might become colder in their northern range, Fennoscandia (Wipf & Rixen, 2010).

The thermal performance of populations could be depicted by a thermal performance curve representing how a temperature gradient influences arthropod activity (Sinclair et al., 2012, 2015). However, the estimation of thermal performances requires many individuals per population. Consequently, measuring an anchor point like the SCP is useful to assess the cold tolerance class of species. The SCP represents the lower lethal temperature (LLT) for freezing-avoidant species and is still a useful indicator for chill-tolerant species as SCP and LLT are almost similar for them (Bale, 1996). Even though the ecological value of the SCP has been debated (e.g., Ditrich et al., 2018; Renault et al., 2002), it is a useful metric to explore and describe the cold tolerance strategy of poorly studied species (Sinclair et al., 2015), such as Dolomedes.

In this study, we assessed the variation in cold resistance, estimated through SCP ability of different populations of the most common Dolomedes fimbriatus with contrasted distributions. Due to the rarity of D. Plantarius, we decided to sample this species only in northern population. We hypothesized that (a) northern populations of Dolomedes fimbriatus have lower SCP values than southern populations, (b) the size of spider in the north is positively related to the SCP, and (c) D. fimbriatus has lower SCP values than D. plantarius, potentially impacting the distribution of the latter one, less spread in Europe.

2 MATERIALS AND METHODS

2.1 Case study species and sampling locations

The fishing spiders, Dolomedes plantarius and Dolomedes fimbriatus, are widespread in Europe with a northern range limit in Fennoscandia. D. plantarius has a lower population density and is red-listed at the European scale (Baillie et al., 1996). The latitudinal contrast encompassed two different biogeographic positions, characterizing two different climatic areas (continental, coded C hereafter versus temperate, coded T). The continental climate is annually colder, and colder months are much colder than under temperate climate (Table 1). Moreover, the variation of temperature among seasons is much higher for continental climate (Table 1).

TABLE 1. Climatic characteristics of the sampling sites

Site	Mean temp (°C)	Diurnal range (°C)	Temp seasonality	Coldest month (°C)	Coldest quarter (°C)
T1	11.62	7.03	457.72	3.30	6.27
T2	11.14	6.30	440.90	3.40	6.07
C1	2.56	9.50	865.37	−12.70	−8.25
C2	5.52	8.54	787.69	−7.90	−4.07
C3	6.05	7.78	741.83	−6.90	−2.67

Note

• Mean temp: annual mean temperature; Diurnal range: mean diurnal range (mean monthly (maximum temperature – minimum temperature)); Coldest month: mean temperature of the coldest month; Coldest quarter: mean temperature of the coldest quarter (extracted from Worldclim2; see Fick and Hijmans (2017)).

We sampled D. fimbriatus individuals of sampled at their range limit and compared them with others from a central latitude of the distribution. We sampled two sites with D. fimbriatus in Fennoscandia (C1 and C2; Figure 1), which characterize the northern population, subject to a continental climate. In addition, we sampled two sites in France (T1 and T2; Figure 1), representing the centrally distributed populations exposed to a temperate climate. Given the conservation status of D. plantarius in Europe, the limited knowledge on the species, we chose to limit our sampling of this species to the area where it is most abundant (Fennoscandia) and we sampled only one population later compared to its sister species D. fimbriatus.

As the SCP is influenced by the developmental stage (Aitchison, 1984; Anthony et al., 2019), we sampled only juvenile spiders of both sexes. The peak of the breeding season of European Dolomedes is in late July (Smith, 2000). Females keep egg sacs several weeks before building a nursery web where eggs will hatch and from which spiderlings will later spread out into the surroundings. Juvenile spiders overwinter, but not adults, similarly to other species in the genus (Guarisco, 2010). We sampled D. fimbriatus by sweep-netting the vegetation on sunny and windless days. We sampled D. plantarius on the water surface by visual hunting, and active hunting by perturbing the water surface. We sampled, and latter tested the SCP of about 24 spiders at each sampling site (N = 24, 24, 21, 26, 24 for C1, C2, C3, T1, T2, respectively, Table 2).

TABLE 2. Description of the climatic conditions at the sampling sites, based on the Köppen–Geiger climate classification (Kottek et al., 2006)

Sites	Species	N	Country	Climate	SCP (°C)	Body size (mm)
C1	D. fimbriatus	24	Norway	Continental	−9.08 ± 0.45	4.13 ± 0.52
C2	D. fimbriatus	24	Sweden	Continental	−9.06 ± 0.4	4.43 ± 0.56
C3	D. plantarius	21	Sweden	Continental	−7.56 ± 0.32	5.36 ± 0.69
T1	D. fimbriatus	26	France	Temperate	−7.78 ± 0.4	4.62 ± 0.46
T2	D. fimbriatus	24	France	Temperate	−5.39 ± 0.4	4.44 ± 0.48

Note

• N: number of spiders tested; SCP: mean SCP ± SD; Body size: mean length of the carapace ± SD.

2.2 Measurement of the supercooling point

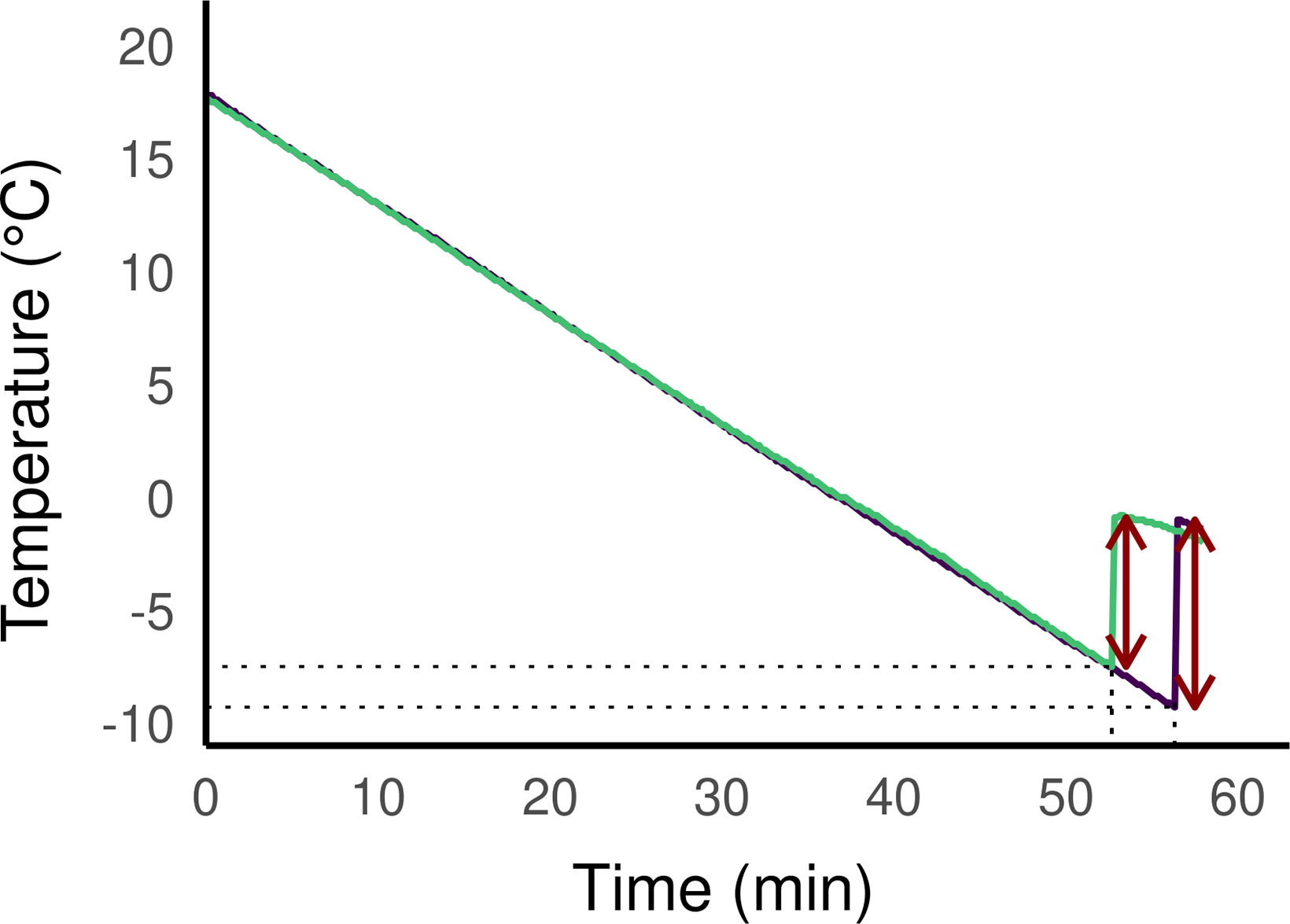

To determine the SCP, we placed the spiders in centrifuge tubes, which were submerged in a cryostat bath (Polystat CC3, Huber Kältemaschinenbau AG, Germany) filled with heat transfer fluid (Thermofluid SilOil, Huber, Germany). The temperature of the bath was slowly reduced at a rate of 0.5°C/min to reach a target temperature of −30°C. To monitor the temperature of the spiders, we placed a K-type thermocouple in direct contact with the spider opisthosoma, secured with Parafilm® and connected to a Testo 175T3 temperature data logger (Testo SE& Co., Germany). We recorded the temperature every ten seconds. The SCP was defined as the temperature at the onset of the freezing exotherm produced by the latent heat (see Figure 2 for representative exotherms), and we considered spiders dead if they did not move in the 24 hr after SCP test.

The number of spiders tested per day was limited by the capacity of the instrument (4 spiders at a time). Therefore, we included the time lag between capture and tested it to account for possible acclimation to laboratory conditions in our models (variable Diff).

3 RESULTS

3.3 Comparison of SCP across latitudes and between species

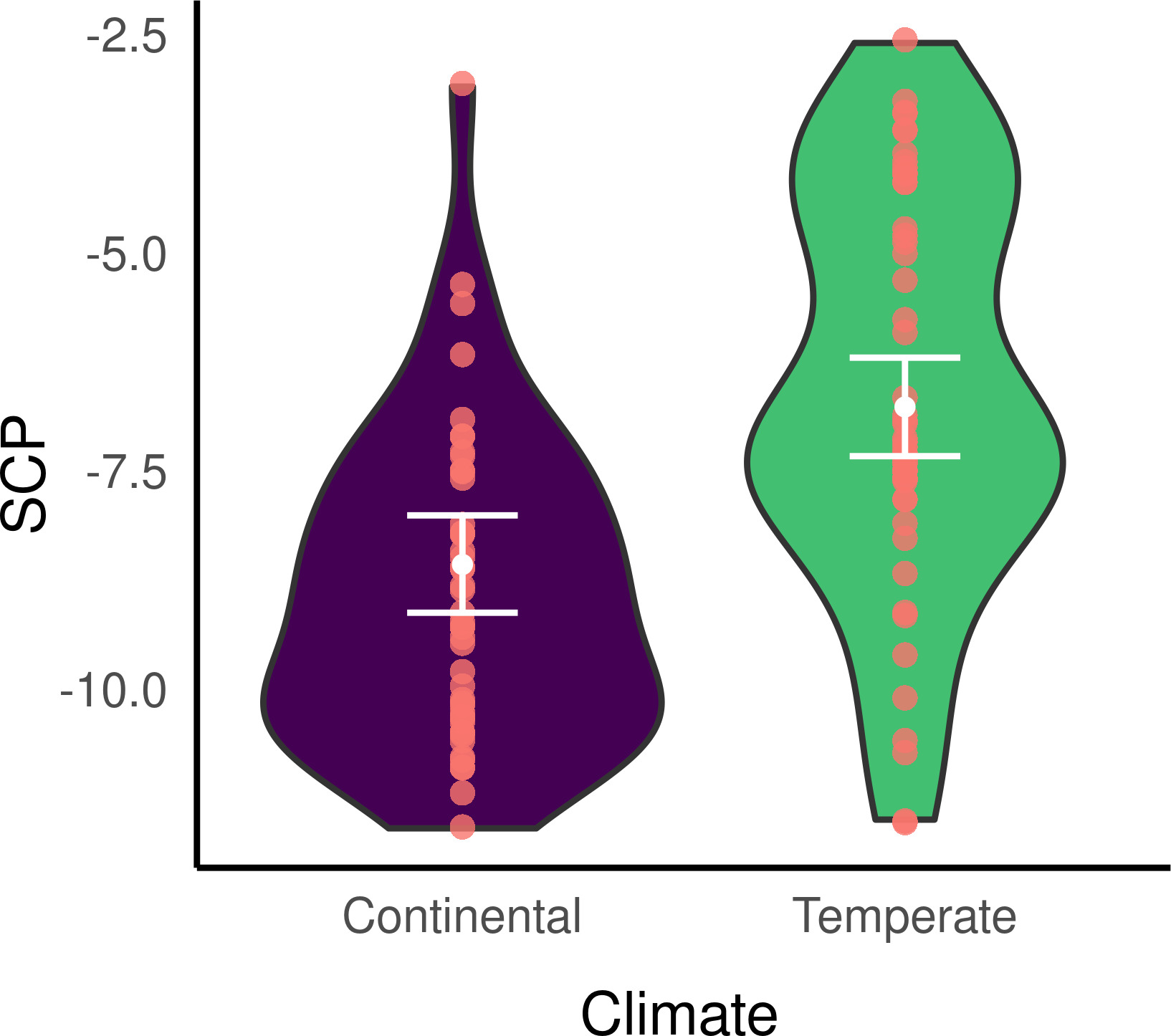

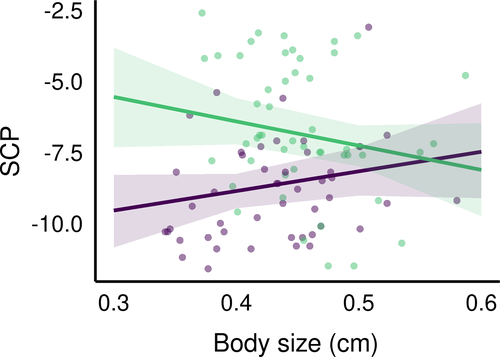

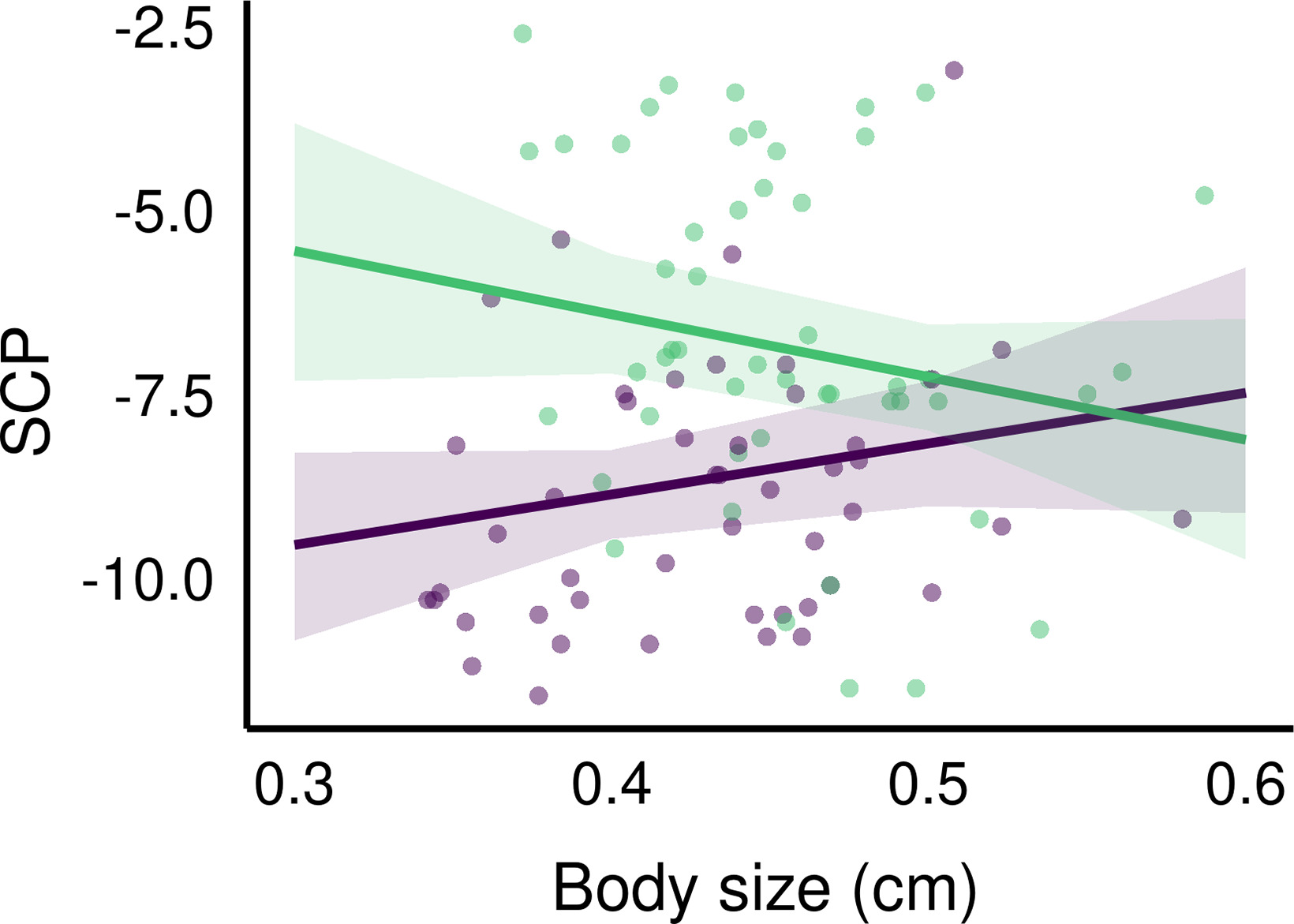

Regarding D. fimbriatus (modClim; Table 3), the SCP of individuals of southern and northern populations significantly differed (pd > 95%, <2.5% in ROPE, Figure 3) and was −6.6 ± 2.3°C (min. −11.5°C, max. −2.6°C; n = 50) and −9.05 ± 2.31°C (min. −6.30°C, max. −2.30°C, n = 48), respectively. The effect of spiders' body size on the SCP was significantly different between the two climatic areas (pd > 95%, <2.5% in ROPE; Figure 4). Namely, the SCP increased with the body size of spiders in the northern climate (median = 6.88 [−2.18; 16.05]) while the SCP decreased with the body size in the South (median = −8.52 [−19.06; 2.40]), which means that larger spiders had, in the northern and southern climate, respectively higher and lower SCP than smaller spiders.

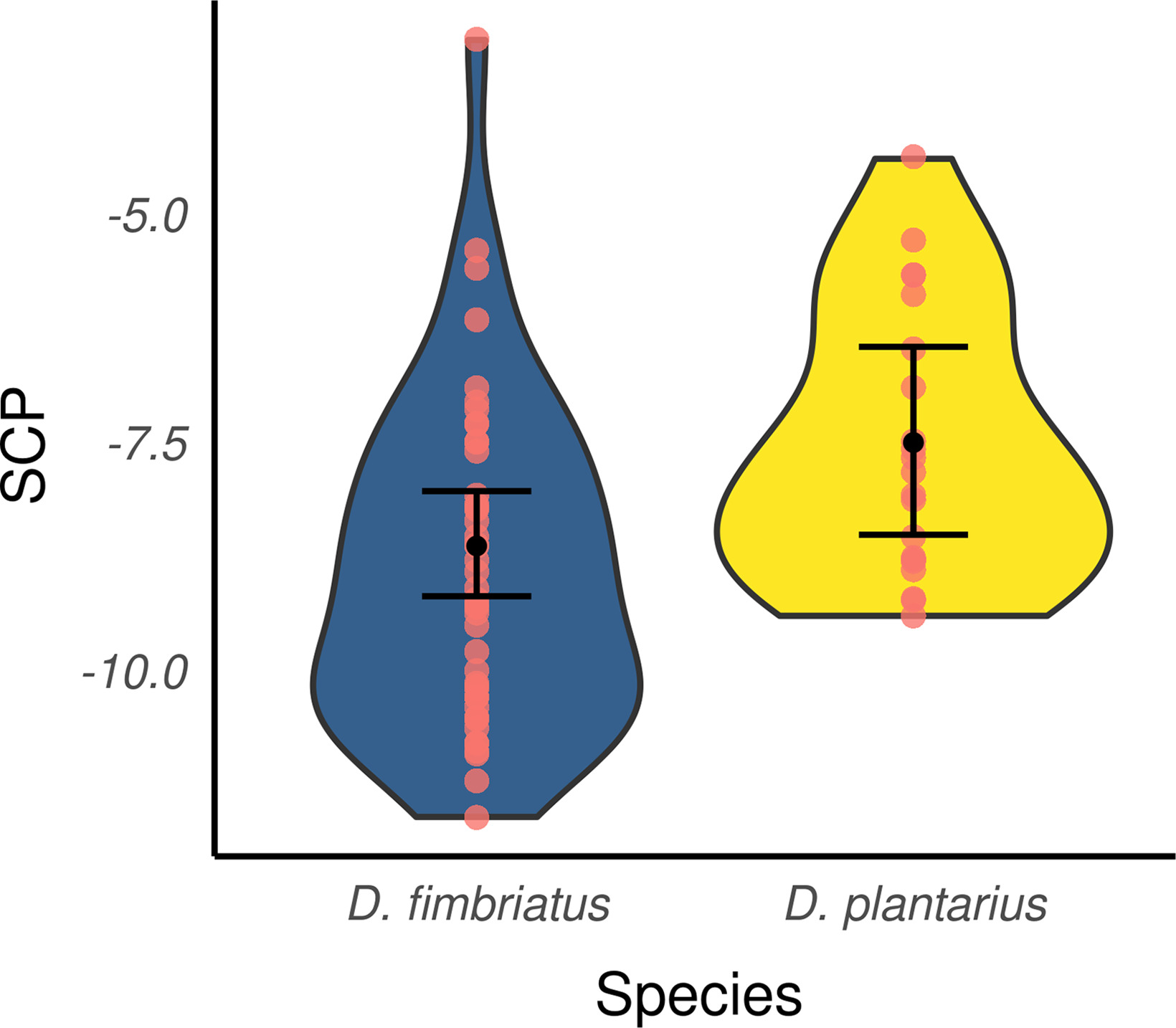

Regarding ModSp (Table 4), the SCPs of individuals of D. plantarius and D. fimbriatus of northern populations significantly differed (pd > 95%, <2.5% in ROPE, Figure 5) and were higher for D. plantarius (−7.56 ± 0.32 min. −9.4°C, max. −4.4°C; n = 21; for D. fimbriatus, see above). Nonetheless, the effect of body size on the SCP was not significant (pd < 95%) and we did not find a significant effect of Diff for modSp (pd < 95%).

TABLE 4. Parameter estimates of the most accurate model explaining the SCP values between the two species in continental climate (modSp, see Appendix S2)

	Estimate	CI low	CI high	pd	ROPE (%)	Rhat
(Intercept)	−10.19	−14.50	−5.90	1.00	0.00	1.00
Diff	−0.11	−0.32	0.10	0.83	74.44	1.00
D. plantarius	5.10	−1.14	10.90	0.95	1.15	1.00
Body size	6.57	−1.84	14.10	0.94	1.25	1.00
D. plantarius:Body size	−8.62	−20.33	3.80	0.92	0.76	1.00

Note

• CI, 95% credible intervals; Diff, time difference between date of capture and date of test; D. plantarius, species variable (D. fimbriatus in the intercept); D. plantarius:Body size, interactive effect of species and body size; pd, probability of direction; ROPE, percentage of the full region of practical equivalence.

4 DISCUSSION

Our study showed that the SCP of northern D. fimbriatus from a continental climate was lower than the SCP of southern populations from a temperate climate. The SCP was positively related to body size in the north, and the opposite effect was observed in southern population of D. fimbriatus. Finally, we found that the SCP of D. fimbriatus was lower than that of D. plantarius, even though the juveniles tested did not differ in size.

The SCP of D. fimbriatus decreased with increasing latitude, while juveniles of the species did not differ in size. In this study, we tested four populations from two biogeographic locations that were characterized by different climates and latitudes along the species distribution range. The northern populations, at the range limit, experience cold winters with permanent snow cover, whereas the southern populations of D. fimbriatus, from a more central latitude of the range, experience warmer winters with only rarely a snow cover. The northern and southern locations are characterized by temperate and continental climate, respectively (Kottek et al., 2006) and the corresponding range of temperatures might explain the decrease in SCP toward the North. Indeed, temperature influences cold hardiness in arthropods, including spiders (Nentwig, 2012) and a poleward increase in thermal tolerance is observed in many ectotherms (Sunday et al., 2011). An acclimation to warmer temperatures, as for southern spiders, can also reduce the tolerance to cold conditions (Jensen et al., 2019). At the same time, northern D. fimbriatus could benefit from their cold acclimation by being more active during cooler periods in summer (Everatt et al., 2013). Indeed, according to the metabolic cold adaptation (MCA) hypothesis, individuals from higher latitude have higher metabolic rate at a given temperature (Clarke, 1991, 1993) by showing clinal latitudinal variation in enzymes associated with cold tolerance (Sinclair, 2002).

The impact of diurnal activity range, together with temperature, is essential cues to determine the cold resistance of ectotherm arthropods (e.g., soil dwelling collembolan Orchesella cincta see Jensen et al., 2019, or Paaijmans et al., 2013, Seebacher et al., 2015). These might have impacted spiders differently at the time of our experiments (late summer/ early autumn), as northern D. fimbriatus are confronted to earlier and harsher winter. Indeed, the supercooling varies at the individual scale during the season, mainly due to the variation in concentration of cryoprotectants during the year (Sømme, 1982). These two cues have been shown to impact the overwintering of another Dolomedes species, from North America (D. triton; Spence & Zimmermann, 1998), and might similarly impact the overwintering of D. fimbriatus. To our knowledge, Dolomedes species are inactive during winter (Aitchison, 1984). Schmidt (1957) noted that D. fimbriatus overwinters twice before reaching the adult stage. He also noted that juveniles spend the winter in dry vegetation at high strata, which is probably the overwintering habitat of the southern spiders we tested here. However, the northern Dolomedes we tested endure temperatures colder than the SCP measured in this study. For this reason, we hypothesized that, similarly to Dolomedes triton in Canada (Spence & Zimmermann, 1998), spiderlings and juveniles overwinter under the snow. Indeed, the temperature in the subnivean layer, which is between the soil surface and the base of the snowpack, is warmer and more stable than the air temperature above the snow, and protect species from temperatures lower than their SCP (Marchand, 1982).

Dolomedes, like other spider species, are not freezing tolerant as none of the spiders tested survived freezing. Cold hardiness of Dolomedes is important for winter survival. Based on the cold hardiness classification of Bale (1996, 2002) (see also Appendix S3 for a summarized classification), we hypothesize that both Dolomedes, at least from the northern populations, could be either chill-susceptible or freeze-avoidant. The main difference between these two cold hardiness classes is the ability to survive damages caused by cold injuries. Freezing-avoidant species survive until freezing point, while chill-tolerant die at moderately low but not freezing temperatures due to chill injuries. The proximity of the LLT or CTmin (critical thermal minimum) and SCP detected in spiders from a close family (Pardosa, Lycosidae) at northern latitudes (Anthony et al., 2019) let us predict that Dolomedes are most probably chill-susceptible. Nonetheless, we only tested the SCP and more measurements, such as the lower lethal temperature, would be necessary to define the cold hardiness class more precisely. The cold hardiness class of Dolomedes might also vary between the two biogeographic positions as demonstrated for the butterfly Piries rapae which is either freeze-tolerant or freezing-avoidant depending on the latitude (Li & Zachariassen, 2007).

Even if D. fimbriatus from the two bioclimatic areas did not differ in body size, we found an increase of the SCP with increasing spider body size for the northern populations. Smaller individuals being more cold tolerant than bigger ones is a general trend for ectotherm animals (e.g., for ants see Hahn et al. (2008), for beetles see Johnston and Lee (1990)). This trend is also observed for spiders with smaller instars being more cold tolerant than larger juveniles and adults (Almquist, 1970; Bayram & Luff, 1993).

The converse effect was observed in southern D. fimbriatus with a decrease in SCP with increasing body size. This difference in strategy between temperate and colder habitats has been reported in other species from the closely related family of Lycosidae (Ameline et al., 2017). The northern spiders have a shortened breeding season, which can impact life-history traits such as body size (Bowden et al., 2015). The smaller D. fimbriatus under continental climate could be advantaged as they can survive colder winters. After the winter, northern fishing spiders could accelerate their development because cold-adapted ectotherms have a higher metabolic rate in an environment with limited energy (Sinclair et al., 2012). Moreover, this pattern might illustrate the clinal variation in life duration. Some Dolomedes spp. live one year (see Bonnet, 1930), while others from northern latitudes two years or more (see Duffey, 2012; Spence & Zimmermann, 1998). The northern D. fimbriatus would overwinter at a smaller size than southern individuals. The spiders from temperate climate have a longer time window to grow, and they were still growing when we sampled them and this might have resulted in smaller adult body size. Indeed, European spiders from northern latitudes tend to be smaller than spiders from lower latitudes (Hein et al., 2019; Puzin et al., 2014). The absence of difference in body size between latitudes here might be due to a limit in our sampling method, indirectly targeting individuals with similar body size. This might hide an effect of the age (impact of the instar) of spiders on the SCP.

The SCPs measured in this study were close to those measured for phylogenetically close spiders (from the same Lycosoidea superfamily) from northern latitudes (Anthony et al., 2019). These values are considered as medium cold resistance (Nentwig, 2012). Nonetheless, we found slightly higher resistance to cold temperature in D. fimbriatus compared to D. plantarius (for populations from similar biogeographic areas). Although it seems that D. fimbriatus have smaller size, we could not detect a significant difference. Nonetheless, this tendency would confirm the observation that specialist species are larger under harsher conditions because they are more adapted to their environment (Ameline et al., 2018). In turn, the difference between species might explain the wider northward distribution of D. fimbriatus compared to that of D. plantarius. The former could have benefited from higher cold resistance to expand and increase survival of populations in coldest areas, and this might explain the more limited distribution range of D. plantarius, abilities to tolerate cold being an important factor to explain past colonization (Sunday et al., 2011). Nonetheless, a better knowledge of the phylogeny of European fishing spider that is unfortunately still poorly documented (see Macías-Hernández et al., 2020; Piacentini & Ramírez, 2019; Tanikawa & Miyashita, 2008) would allow us to conclude on the difference in species adaptation to climate by using a phylogenetic comparative method (Blomberg & Garland, 2002; Garland & Adolph, 1994).

Climate change impacts spiders in various ways. At northern latitudes, subnivean layer is supposedly a nonfreezing environment with quite stable temperatures (Pruitt, 1957) but snow density and length of the snow season impacts the stability of these conditions (Bale & Hayward, 2010; Pauli et al., 2013). While air temperature increases with climate change, the subnivean layer may become colder (Wipf & Rixen, 2010). This paradox is already negatively affecting invertebrates (Slatyer et al., 2017; Williams et al., 2015). Even though we found that fishing spiders from continental climate tolerated colder temperatures than spiders from temperate climate, the lowest SCP was higher than the lowest air temperature measured historically in Fennoscandia. A weakened subnivean shelter could negatively influence northern populations and even more so for the rare D. plantarius which is less cold resistant. Another impact of the increased length of the snow free season could be a second clutch in northern Dolomedes, as reported in the arctic Lycosidae Pardosa glacialis (Høye et al., 2020).

We found that the cold tolerance of fishing spiders varied among populations, between climates for Dolomedes fimbriatus, northern spiders being acclimated to colder climate. Moreover, we found lower SCP for D. plantarius, which might be important to consider for the conservation of this red-listed species (Baillie et al., 1996). Indeed, the impact of a smaller snow layer might negatively impact the future distribution of both species in the northern part of their distribution. Moreover, the distribution of understudied invertebrates can be explored and predicted by studying life-history traits like cold resistance (Mammola et al., 2020), especially by explicitly integrating the ecophysiology of species into distribution modeling.
