2.1 Gametophyte sampling and observation of the morphological characteristics

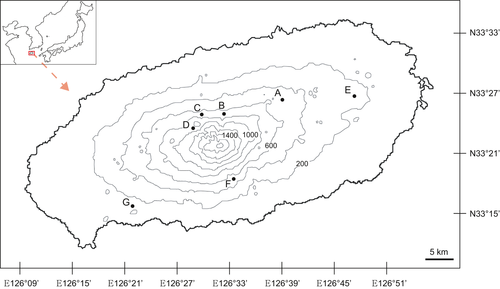

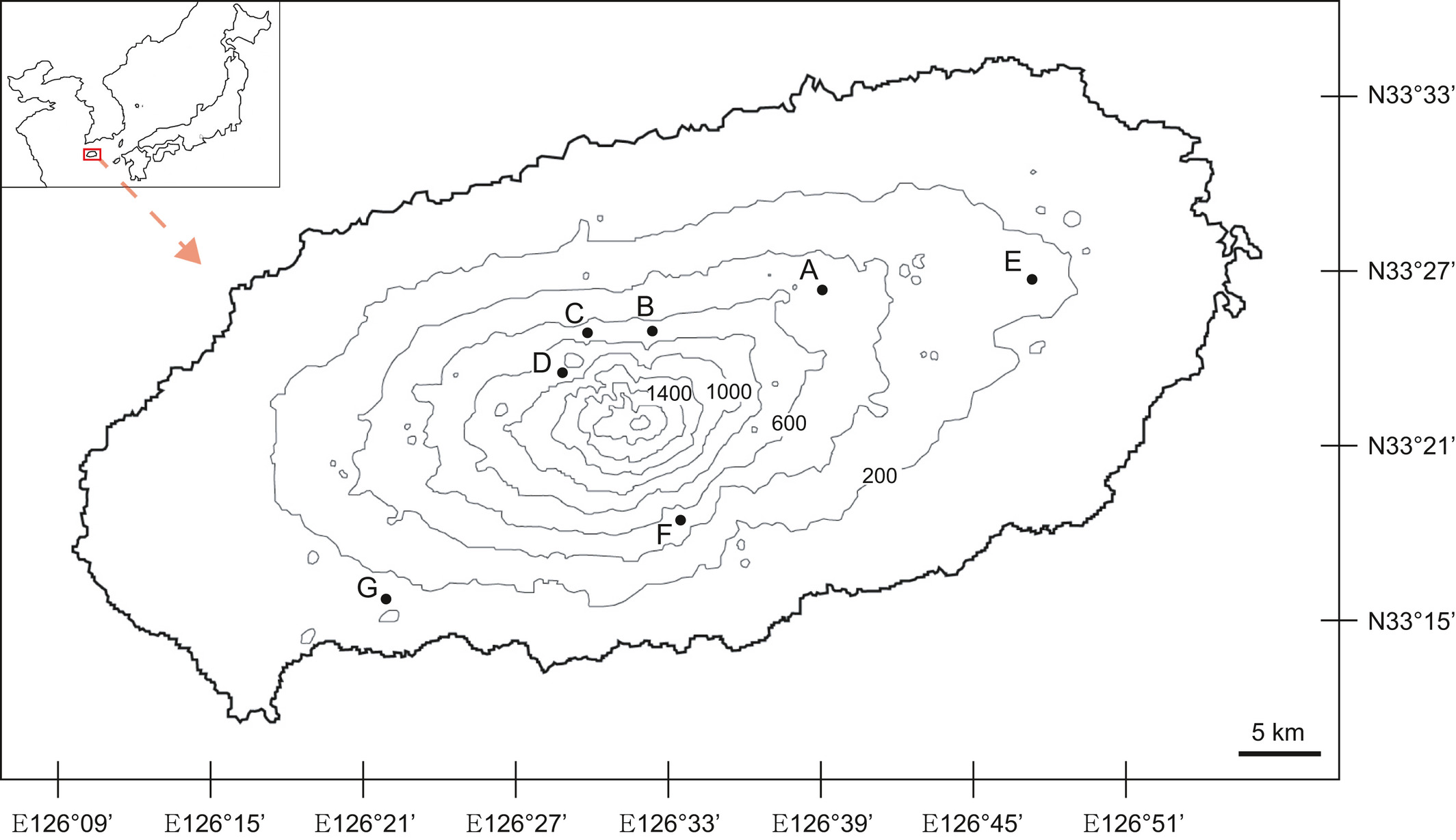

Fourteen gametophyte populations were collected from seven sites on Jeju Island (Figure 1, Table S1). In the present study, a gametophyte population was defined as all individuals on the same rock face, except at site G in which a relatively smaller number of individuals were scattered. All living samples were transported to the laboratory at the Chungbuk National University and were grown on filter paper moistened with distilled water in a Petri dish. For magnified observation, permanent slide samples were prepared with a few individuals from each population using the Entellan^®new (Merck). The voucher specimen was deposited in the slide box with the same collection number as that of the living materials. Their morphological characteristics were closely observed with a microscope (Olympus BX50).

2.2 DNA extraction and PCR amplification

As a single gametophyte was too small for the extraction of a sufficient amount of DNA for applying DNA barcoding technique, individuals within 1 × 1 cm were considered to be a clonal patch. According to this criterion, 10 prothalli near the individuals used for voucher specimens were selected from one population. Prothalli were washed with sterile distilled water and put into a 2-ml tube with 2 mm beads. Thereafter, they were crushed in a homogenizer via three cycles for 30 s followed by 10 s at the speed 2 m/s. Genomic DNA was extracted from the homogenized sample using a DNeasy Plant Mini Kit (Qiagen), following the manufacturer's protocol.

PCR amplifications for two molecular markers were performed using Ex Taq (Takara). The reaction mixture comprised 1 U Taq, 2 μl of 10× buffer, 2 mM MgCl₂, 0.8 mM dNTP, 2 μl of each primer (10 μM), 0.5 μl DNA, and distilled water filled to a total of 20 μl. Primers for the rbcL, rbcLF1F, and rbcL1379R (Little & Barrington, 2003) were first used for all gametophytes; however, it was not successful in the sample collected at site G. Thus, a new primer set was designed for this sample: Pteridaceae_rbcLF (5′-CCACAAACGGAGACTAAAGC-3′) and Pteridaceae_rbcLR (5′-GCAGCCAATTCTGGACTCCA-3′). For the trnL-F region, primer F (Taberlet, Gielly, Pautou, & Bouvet, 1991) and FernL 1Ir1 (Li, Kuo, Huang, Chiou, & Wang, 2010) were applied. The following PCR condition was employed: 95°C for 5 min, followed by 35 cycles of 95°C for 45 s, 48°C for 45 s, 72°C for 75 s, and 72°C for 5 min. PCR products were purified using a PCR purification kit (Geneall) and sequenced using the ABI 3730xl System (Macrogen). The trnL-F region of Loxogramme and Pleurosoriopsis sporophytes in Korea was also amplified owing to the short length of the Loxogramme sporophyte sequence and the absence of the Pleurosoriopsis sporophyte sequence in GenBank.

2.3 Molecular identification of gametophytes

To identify gametophytes, we applied the sequence similarity-based and phylogeny-based approach using the rbcL and trnL-F regions. Each sequence of gametophytes was compared to the nucleotide collection using BLASTn (Altschul, Gish, Miller, Myers, & Lipman, 1990) with 11 as the word size and 0.1 as the expected threshold. The following conditions were established to match the gametophytes to their counterpart sporophytes: (a) maximum percent identity, ≥99%; (b) query coverage, ≥95%; and (c) e⁻⁵, expected threshold (Table 1). Based on the BLASTn results, the putative sporophyte for each gametophyte was selected. Thereafter, the sequences of two markers from the subfamily or genus of the putative sporophytes were downloaded from GenBank. Best fit models of nucleotide substitution were determined using ModelFinder (Kalyaanamoorthy, Minh, Wong, von Haeseler, & Jermiin, 2017), and phylogenetic inferences by maximum likelihood were performed with IQ-TREE (Nguyen, Schmidt, von Haeseler, & Minh, 2015) using 1,000 ultrafast bootstraps (Hoang, Chernomor, von Haeseler, Minh, & Vinh, 2017) (Figures S1–S8).

2.4 Biogeographical study of H. wrightii

For the biogeographical study of H. wrightii, the rbcL sequences of H. wrightii were retrieved from GenBank (Table 2) and used to build a haplotype network via the TCS network (Clement, Snell, Walker, Posada, & Crandall, 2002) using POPART (Leigh & Bryant, 2015).

3.1 Habitats of gametophytes on Jeju Island

Most of the gametophytes were found on rocks in wet and shaded environments. However, one population of gametophytes grew on the underside of a stump located on a trail in a valley lacking a canopy (Figure 1; site B) and another grew on a steep slope in a relatively dry valley (Figure 1; site G). Interestingly, the sporophytes of Hymenophyllaceae members frequently found nearby where gametophytes inhabited; however, gametophytes and sporophytes were physically separated except in site F in which gametophytes and sporophytes of H. barbatum were mixed on the same rock (Table S1; Figure 2d). In the field, half of the gametophytes contained gemmae; however, they were detached from gametophytes during transportation to the laboratory and did not recur.

3.2 Identification based on the molecular markers

Based on the BLAST search performed with rbcL and trnL-F, 13 gametophytes were identified as belonging to five species known to occur in Jeju, Korea. However, the terrestrial gametophyte that occurred at the steep slope in the dry valley (site G) was matched to Antrophyum obovatum Baker which has not been previously recorded in Korea (Table 1). According to the phylogenetic relationship, all gametophytes formed a clade with their putative sporophytes and these nodes were supported by a strong bootstrap value (Figures S1–S8).

3.3 Morphological characteristics of gametophytes

All gametophytes displayed ribbon-like forms but had slight differences according to their morphological characteristics. Gametophytes of two Hymenophyllum species had dark brown rhizoids at the margin and significant branching at the apex (Figure 2a–f). The only difference between the two gametophytes was the existence of gemmae. Numerous gemmae were observed at the margin of H. wrightii gametophytes; however, they were not found on gametophytes of H. barbatum (Bosch) Baker . Gametophytes of Pleurosoriopsis makinoi (Maxim. ex Makino) Fomin were rarely branched relative to those of Hymenophyllum with light brown rhizoids at the margin (Figure 2g). These gametophytes had a round apex, with some thalli containing archegonia in the center (Figure 2i); however, antheridia were not observed. Gametophytes of Loxogramme grammitoides (Baker) C. Chr. were branched at the margin of the thallus instead of at the apex. Marginal branches elongated and formed many lobes. After the mature lobes detached from the parental thallus, they developed into new thalli (Figure 2l). Light brown rhizoids grew from the central and marginal cells (Figure 2k). Gametophytes of A. obovatum had numerous gemmae that were irregularly branched (Figure 2n) and contained whitish brown rhizoids at the margin (Figure 2o).

3.4 Geographical variation in H. wrightii

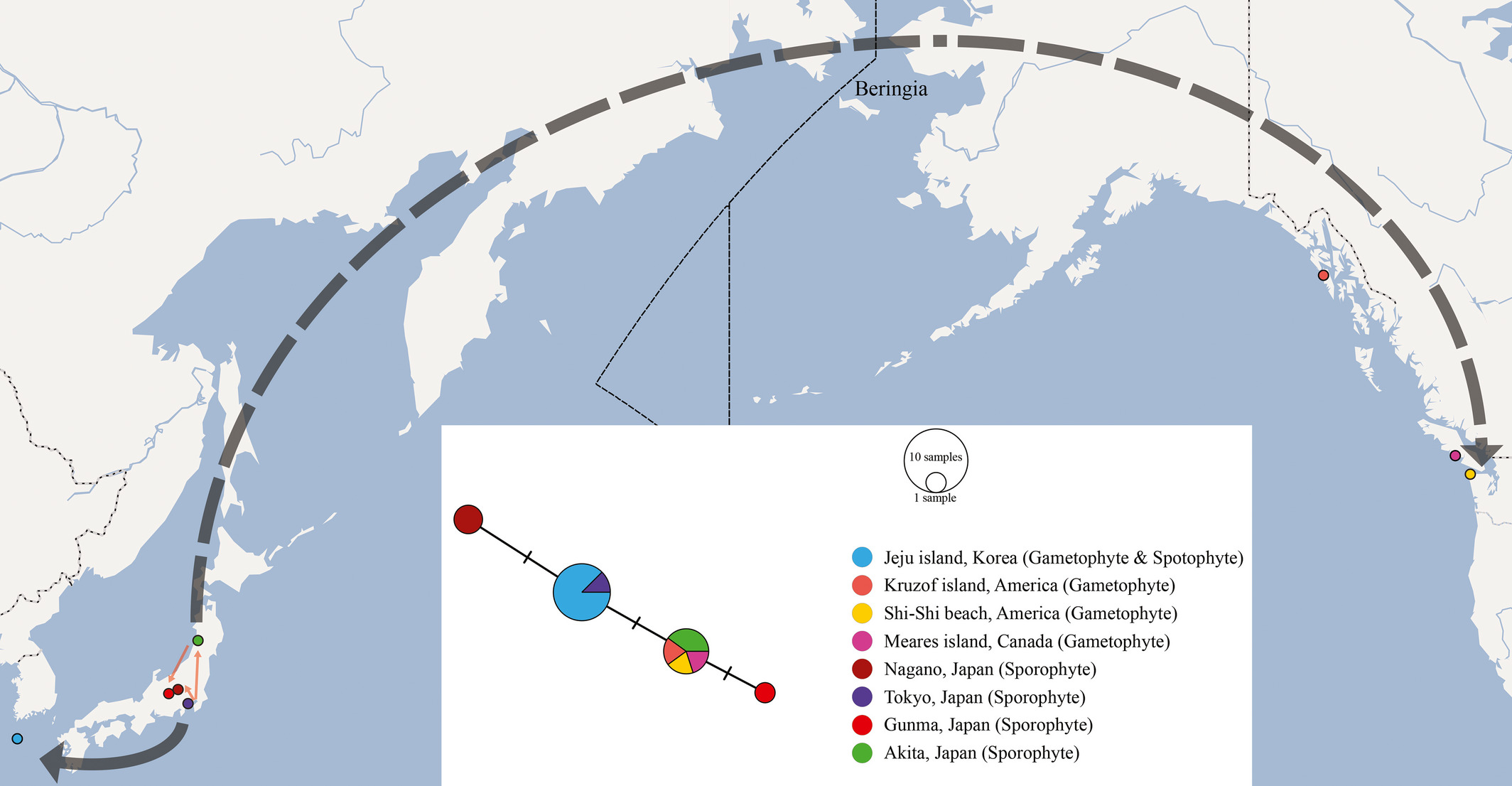

A total of four haplotypes based on the rbcL sequence data were found in the H. wrightii populations of Korea, Japan, and North America. The rbcL sequence of the H. wrightii gametophytes collected in this study was identical to that of sporophytes collected from Jeju, Korea, and Tokyo, Japan (Figure 3). Sporophytes collected from other regions in Japan, namely Nagano, Gunma, and Akita, had one or two base substitutions compared to that in sporophytes from Tokyo. Interestingly, the gametophytes occurring in North America were genetically identical to the sporophytes collected in Akita, Japan.

4.1 Antrophyum obovatum

Although there are some reports on the independent gametophytes of vittarioids (Farrar, 1978; Farrar & Mickel, 1991; Kuo et al., 2017; Pinson & Schuettpelz, 2016; Rumsey & Sheffield, 1996), here, we present the first report of the independent gametophytes of A. obovatum, a member of the vittarioids. The sporophytes of A. obovatum are distributed in Bhutan, India, Nepal, Myanmar, Thailand, Vietnam, southern China, Taiwan, and Japan (Boufford et al., 2003; Zhang, 1998), but not in Korea. It is likely that the low sea level during the glacial periods was linked to the occurrence of the present flora of East China and Japan (Harrison, Yu, Takahara, & Prentice, 2001b; Ijiri et al., 2005; Qian & Ricklefs, 2000; Xie, 1997) and numerous ferns migrated from China and Taiwan to Japan (Guo, Kato, & Ricklefs, 2003; Iwatsuki, 1994). It is also possible that ferns were independently moved from China to Japan after glaciation by long-distance dispersal. However, in terms of parsimony, the former is a more simple and adequate to interpretation of why most vittarioid ferns occurring in Japan are also found in China and Taiwan (Chen, Ebihara, Chiou, & Li, 2014; Chen, Huang, Kuo, Chang, et al., 2013; Ebihara, 2016; Wu, Raven, & Hong, 2013) (Table 3). While their migration from China to Japan during the glacial periods (Harrison et al., 2001b; Ijiri et al., 2005; Qian & Ricklefs, 2000), many sporophytes and gametophytes of ferns might have sought suitable habitats to settle throughout the land bridge (in which Jeju island is included) between China and Japan. From this perspective on the route of migration, it is interesting that only the sporophyte of Haplopteris flexuosa (Fée) E.H. Crane was reported on Jeju Island from among the vittarioids that appear in Japan. This means that Jeju Island might therefore be unsuitable for vittarioid sporophytes, which generally comprise tropical or subtropical ferns (Kramer, 1990).

Because of the cold, winter monsoon and the Halla mountain at the center of Jeju island, the northern part of Jeju is colder than the southern region. Especially, Halla mountain is often covered with snow in the winter season. In contrast, the location of site G, where gametophytes of A. obovatum were found in the present study, is close to the south coast of Jeju island, which is close to the warm Tsushima Current (Dolezal et al., 2012). Owing to this geographical condition, this site is satisfactory for the inhabitation of subtropical ferns. However, it is likely that the relatively dry conditions, compared to the general habitat of vittarioids, make it unsuitable for the survival of the sporophyte of A. obovatum. Although we did not find experimental evidence to prove the tolerance of A. obovatum gametophytes to the site, it was assumed that they may better tolerate cold (Sato & Sakai, 1981) and desiccation (Watkins, Mack, Sinclair, & Mulkey, 2007) conditions than the sporophytes.

4.2 Hymenophyllum wrightii

According to phytogeographical affinity, Xie (1997) suggested that in ancient times, East China and South Japan were closer in proximity than Korea and Japan. This is caused by the geographical connection of Japan to East China and not to Korea during the glacial periods. However, Jeju Island was located on a land bridge from the Asian continent to Japan during this period (Harrison et al., 2001b; Ijiri et al., 2005; Qian & Ricklefs, 2000). The Halla Volcano, which reaches an altitude of almost 2,000 m a.s.l., and with proximity to the warm Tsushima Current (Dolezal et al., 2012), provides the appropriate condition for various ferns to exist on Jeju Island. In practice, all fern species, distributed on Jeju Island except for Mankyua chejuense (an endemic species on Jeju island), are conspecific to those in Japan and not to those on the Korean mainland (Ebihara, 2016; Moon, 2008). Therefore, it is predictable that the migration of fern spores between Jeju Island and Japan may have been more common and widespread. For example, high phytogeographical affinity between the fern flora of Jeju Island and Japan was found in Selliguea hastata. Allozyme data showed that no variation was found among the populations of the Korean mainland; however, polymorphisms were detected between the populations of Jeju Island and Japan (Chung et al., 2013).

In addition, closely related species of monilophytes, conspecies, or vicarious species, between North America and Japan, have been reported (Iwatsuki, 1994; Li, 1952). To explain this long-distance distribution, it is suggested that wind might have served as the means of transportation of fern spores between the two continents via the Bering Strait or the Aleutian chain during the glacial period (Kim & Kim, 2014; Lu et al., 2011) including that of H. wrightii (Iwatsuki, 1994).

The sporophyte of H. wrightii is primarily distributed in Korea and Japan; however, it is also reported in the northwest coast of North America (Duffy et al., 2015; Iwatsuki, 1995). Compared to that for sporophytes, a relatively wider range has been reported for the gametophytes of H. wrightii (Duffy et al., 2015). The main difference between independent gametophytes of H. wrightii found in North America and those on Jeju Island is the presence of sporophytes near the location of independent gametophytes. On Jeju Island, sporophytes of H. wrightii were found in sites C and D and were previously reported in site B. However, Duffy et al. (2015) observed the independent gametophytes of H. wrightii in several different regions of North America; however, sporophytes were only observed in Haida Gwaii. Therefore, they questioned how the North American gametophyte populations could have been established. Chlorophyllous spores, such as those of H. wrightii, might be more susceptible to climate extremes and are shorter-lived than achlorophyllous spores (Lloyd & Klekowski, 1970); this is despite the range of ferns in the Andean region being unaffected by the presence or absence of chlorophyll in spores (Kessler, 2002). A long dispersal range of gemmae is also unlikely as they are larger and heavier than spores.

To clarify the presence of the independent gametophytes of H. wrightii in different regions of North America, excluding Haida Gwaii, without sporophytes, it is necessary to explore the relationship among the populations of sporophytes and gametophytes in distinct regions. Based on haplotype analysis, the Japanese populations are genetically diverse and may have multiple refugia. As the Korean populations seem to be recolonized from one refugium in central Japan via Jeju Island (Figure 3), no genetic variation was observed in H. wrightii in Korea regardless of the generation (i.e., gametophyte or sporophyte). On the other hand, the North American populations were observed to be genetically identical to the north Japanese population in the Akita province.

H. wrightii prefers a high altitude in Korea but sea level in Northwest America. We hypothesized that H. wrightii was more prevalent in the low land, especially along the coast, throughout northeast Asia and North America owing to migrating from the north Japanese refugium via the Bering land bridge during the glacial periods (K Iwatsuki, 1994). However, the environmental changes, such as aridity, temperature, or light conditions (Atsushi Ebihara et al., 2019; Makgomol & Sheffield, 2001; Sato & Sakai, 1981), might quickly suppress the development of the H. wrightii sporophyte throughout North America, except in Haida Gwaii, an archipelago on the northern Pacific coast of Canada. Consequently, the short period that caused the sporophyte's extinction may have restricted the nucleotide substitutions between H. wrightii haplotypes in North America and those in south Japan. Similarly, a fast disappearance of the H. wrightii sporophytes was observed in mainland Korea like in Namdeugyusan, where a mountain that ranges over 80 km inland is present. Although the previously collected herbarium specimen record stated that the H. wrightii sporophytes were present 6 years ago, no sporophytes were found at the same site in 2019. However, colonies of gametophytes were observed under many rocks in the same area. Thus, the sporophytes at this site might either be extinct or rapidly declining, whereas the gametophytes have been retained.

4.3 Pleurosoriopsis makinoi

In Korea, the independent gametophyte of P. makinoi was first reported by Lee et al. (2014). Sporophytes of this species occur throughout the Korean mainland and Jeju island; however, their occurrence is rather sparse (Lee & Lee, 2015; Moon, 2008). Ebihara et al. (2019) observed the consequence of different tree cover over sporophytes and gametophytes. As a result, they suggested that the light condition was an important factor in preventing sporophyte formation. However, we found a patch of sporophytes within 500 m of the gametophytes. Such findings imply that in addition to the light condition, differences in microenvironments suppress sporophyte production. Further long-term monitoring about the habitat conditions of P. makinoi gametophytes will assist in the better understanding for the suppression factor of P. makinoi sporophytes.

4.4 Loxogramme grammitoides

Previously, gametophytes of L. grammitoides were reported in Japan; however, a detailed morphological description was not provided (Ebihara et al., 2013). Nayar (1968) reported morphological differences in the young stages between the species of Loxogramme; the young prothalli of L. lanceolate become strap-shaped, whereas those of L. involuta expanded irregularly to exhibit unequal marginal growth. Ultimately, these prothalli become ribbon-like and highly branched. Based on our findings, the independent gametophytes of L. grammitoides were elongated but possessed fewer branches than those of Hymenophyllum. In contrast to Hymenophyllum gametophytes, marginal growth of L. grammitoides gametophytes resulted in many strap-shaped lobes, which detached from the parental prothallus for development into new prothalli (Figure 2l).

As in the case of P. makinoi, the sporophytes of L. grammitoides have rapidly declined on Jeju Island (Kim et al., 2008; Moon, 2008), therefore, the record of gametophytes in this species is very important. We also failed to find sporophytes of L. grammitoides at previously collected sites of Jeju Island according to voucher specimen information. If extirpation of these sporophytes is complete on Jeju island, the gametophytes will be considered obligate independent gametophytes, and not facultative independent gametophytes as defined in this study.

Herein, we could not clarify whether the rapid decline in the L. grammitoides sporophyte population is a temporary issue caused by artificial factors, such as logging or land development, or a consequence of climate change. Nevertheless, if the latter is true, the L. grammitoides population on Jeju Island is in the process of changing from sporophytes to gametophytes, similar to the H. wrightii in North America. Additionally, its assignment to facultative independent gametophytes of L. grammitoides will change to that of obligate independent gametophytes according to the definition provided by Kuo et al. (2017). If the environment is perfectly suitable to the sporophytes of ferns, maintaining facultative independent gametophytes will not be necessary to sustain the population and extreme climate changes will result in the transition of facultative independent gametophytes to obligate independent gametophytes. It could be suggested that the maintenance of obligate independent gametophytes appears to be similar to that of hibernation in animals, who are awaiting the occurrence of an appropriate environment. Therefore, a comparative study of the habitats of both generations of L. grammitoides should be conducted to shed light on their tolerance levels. Moreover, it would help in the better understanding of how this species is suited to its current environment.
