2.1 Pleistocene substrate

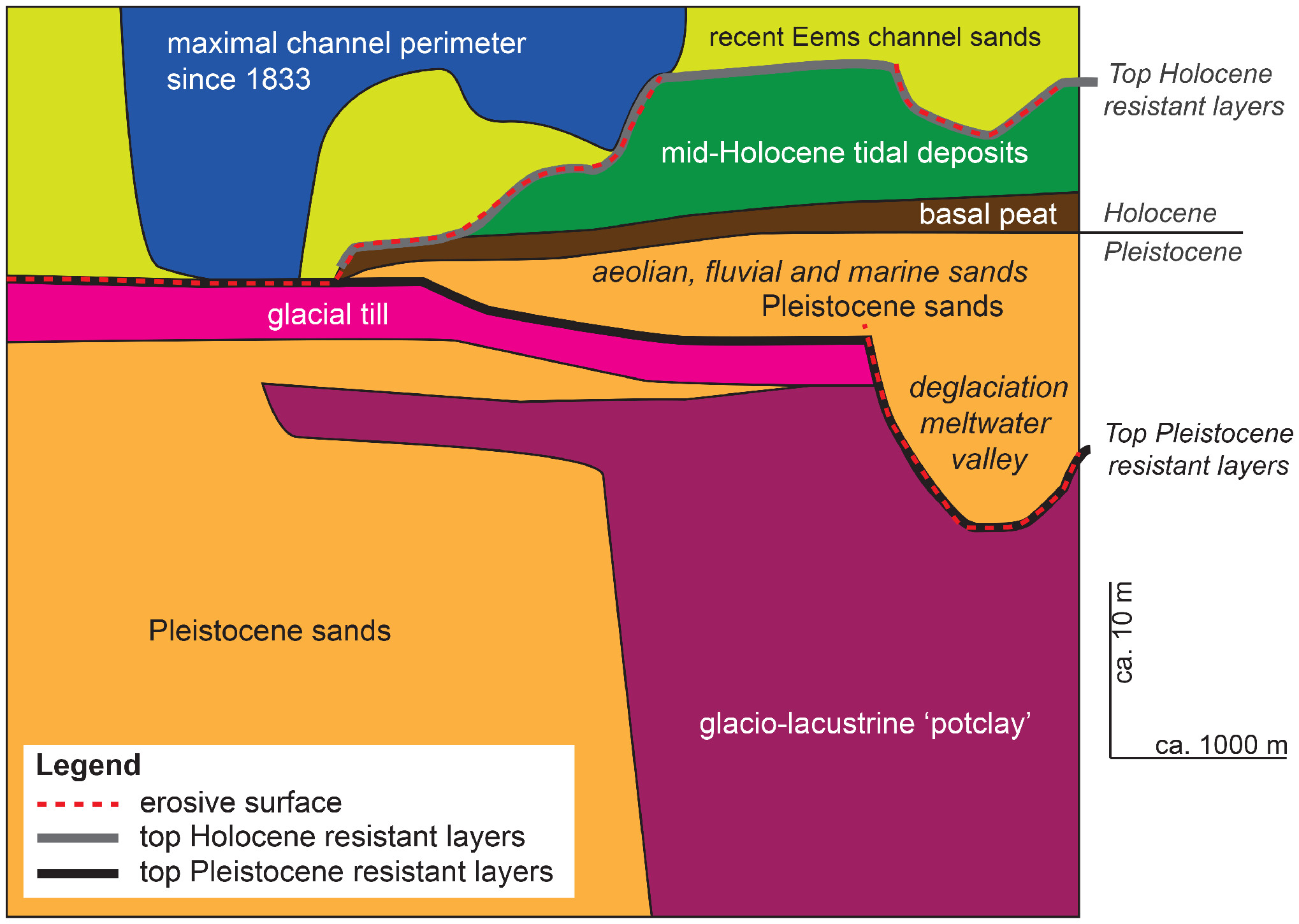

The substrate of the Ems-Dollard estuary, within the depth reach of channels, mainly consists of Pleistocene and Holocene unconsolidated sands (Kruiver et al., 2017; TNO-GSN, 2021a), which are relatively easy to erode (Figure 2). This stratigraphy is interrupted by two strongly consolidated layers, interbedded within these erodible sands (Figure 2): Elsterian glacio-lacustrine clays (also known as ‘potclays’; MIS 12 or 10; 475–420 or 370–330 ka BP) and glacial tills of Saalian age (MIS 6; ca 150 ka BP) (Peelo and Drente Formations respectively; TNO-GSN, 2021a, 2021b). Both resistant layers crop out locally in the estuary and are present underneath the wider coastal plain, although locally they have been substantially eroded by glacial meltwater (Van den Berg & Beets, 1987). Elsterian glacio-lacustrine clays were deposited in a network of former glacial tunnel valleys of several kilometres wide and up to hundreds of metres in depth (Huuse & Lykke-Andersen, 2000; Praeg, 2003; TNO-GSN, 2021a). These clays became overconsolidated due to ice-loading during the late Saalian glaciation. This same ice sheet formed an up to ca 2 m thick till sheet that consists of a mixture of strongly consolidated clays, silts, sand and gravel (Rappol, 1987). Till ridges generally have a ENE-WSW orientation, reflecting former ice movement, and are flanked by meltwater valleys infilled with erodible sands (Van den Berg & Beets, 1987; Pierik, 2010). Eemian marine sands locally occur in the study area as well as Weichselian periglacial and aeolian sands (Eem and Boxtel Formations; TNO-GSN, 2021a; 2021b). The Late Weichselian course of the Ems (palaeo-Ems valley) was different from the current position of the Ems river and estuary (Figure 1). It followed a more northerly course near Emden (well-mapped by Barckhausen & Streif, 1978) and Barckhausen (1984), where the resistant Elsterian potclay is positioned relatively deep. Under the current estuary, its course is more uncertain, but it probably ran west, just south of the current estuary, where the base of the Pleistocene deposits are lower (TNO-GSN, 2021a). A northern branch possibly existed as well, 40 km north of the island of Juist. A palaeovalley was traced in seismics and linked to the Late Weichselian/Early Holocene Ems by Hepp et al. (2019). The current spatial configuration of both the tills and the glacio-lacustrine clays is the result of the position of these tunnel valleys, till ridges and the post-glacial erosion valleys.

2.2 Holocene substrate and evolution

The Holocene coastal wedge on top of the resistant layers consists of a succession of sand, clay and freshwater peat (Figure 2). Its thickness ranges from 15–25 m close to the coastline to 5–8 m inland (Kruiver et al., 2017; Roeleveld, 1974; Streif, 2004; TNO-GSN, 2021a). The coastal wedge is thickest and oldest where Late Pleistocene inherited valleys were present in the landscape. Especially the locally preserved layers at the base of the Holocene wedge, compacted early Holocene basal peat (Nieuwkoop Formation; Basal Peat Bed; TNO-GSN, 2021b) and mid Holocene tidal clays (Vos & Van Kesteren, 2000; Naaldwijk Formation, Wormer Member; TNO-GSN, 2021b), form moderately resistant layers. The mid Holocene tidal deposits are generally sandy around former channels and more clayey toward the edges of the basin with occasional peat intercalations (Barckhausen & Streif, 1978; De Haas et al., 2018; Roeleveld, 1974; Vos & Van Kesteren, 2000). They formed before 4000 yr BP and are positioned below −5 m Mean Sea Level (MSL) (Hijma, 2016). In the second half of the Holocene, the Ems was a river with modest tidal influence, positioned in a coastal peatland environment, debouching into the Wadden Sea (Behre, 1999, 2004; Vos & Knol, 2015). These peatlands were reclaimed from the Middle Ages onwards, the Ems was embanked from around the year AD 1000 to the 13th century (Ey, 2010; Oost, 1995; Vos & Knol, 2015). The peatland drainage resulted in land subsidence (Vos & Knol, 2015), but marine influence along the river was still relatively small. This changed, however, as major land losses occurred in the 13-16^th centuries forming the Dollard Bay (50 km inland) (Stratingh & Venema, 1855). This happened after a series of storm surges into reclaimed and subsided peatlands with too weak embankments (Pierik et al., 2017; Vos & Bungenstock, 2013; Vos & Knol, 2015). Former peatlands were eroded and the effects of tides became significantly larger. The tidal prism of the estuary increased significantly (by ca 350 km²), enlarging the major channels (Van Maren et al., 2016). In the centuries afterwards, Dollard Bay was gradually infilled, forming supratidal flats that were successively embanked (Esselink et al., 2011; Homeier, 1962, 1977; De Smet, 1962). The Ems channel, bar and tidal flat deposits formed over the last centuries are generally sandier than the mid Holocene tidal deposits because they formed under higher energy conditions. In the 20th century, human impact on the estuary increased further. Deepening of the upstream tidal river, substantial dredging and the creation of large harbours changed tidal and sediment dynamics in the system (Van Maren et al., 2016). Also, tidal discharges, volumes and current velocities have increased between 1937 and 2005 (Herrling & Niemeyer, 2008). The tidal range at the entrance of the estuary, is currently around 2 m (Borkum), which has not significantly changed over the past several thousand years. In the current estuary, tidal range near the cities of Emden and Delfzijl is around 3 m. The Ems river has a mean annual discharge of 81 m³ s⁻¹.

3.1 Reconstruction and analysis of historical bathymetry

Bathymetrical changes throughout the last two centuries were used to trace potential effects of resistant layers over time. Bathymetry was extracted using historical maps of the Ems-Dollard estuary, compiled by the department of defence for 1833, 1888, 1928 and 1953. These maps were digitised and subsequently interpolated to 100 × 100 m grids. From 1985 onward detailed bathymetries are available (SI 1). Measurements for estuarine dimensions, that is width-to-depth (W/h) ratio and cross-sectional area (CSA) were extracted on cross-sections with a 200 m spacing along the estuary centreline, following (Leuven et al., 2018c). Bar length and spacing between the confluences (i.e. nodes) were measured along the centreline and compared to the local estuary width, which is defined as the channel width including bars.

3.2 Layer modelling

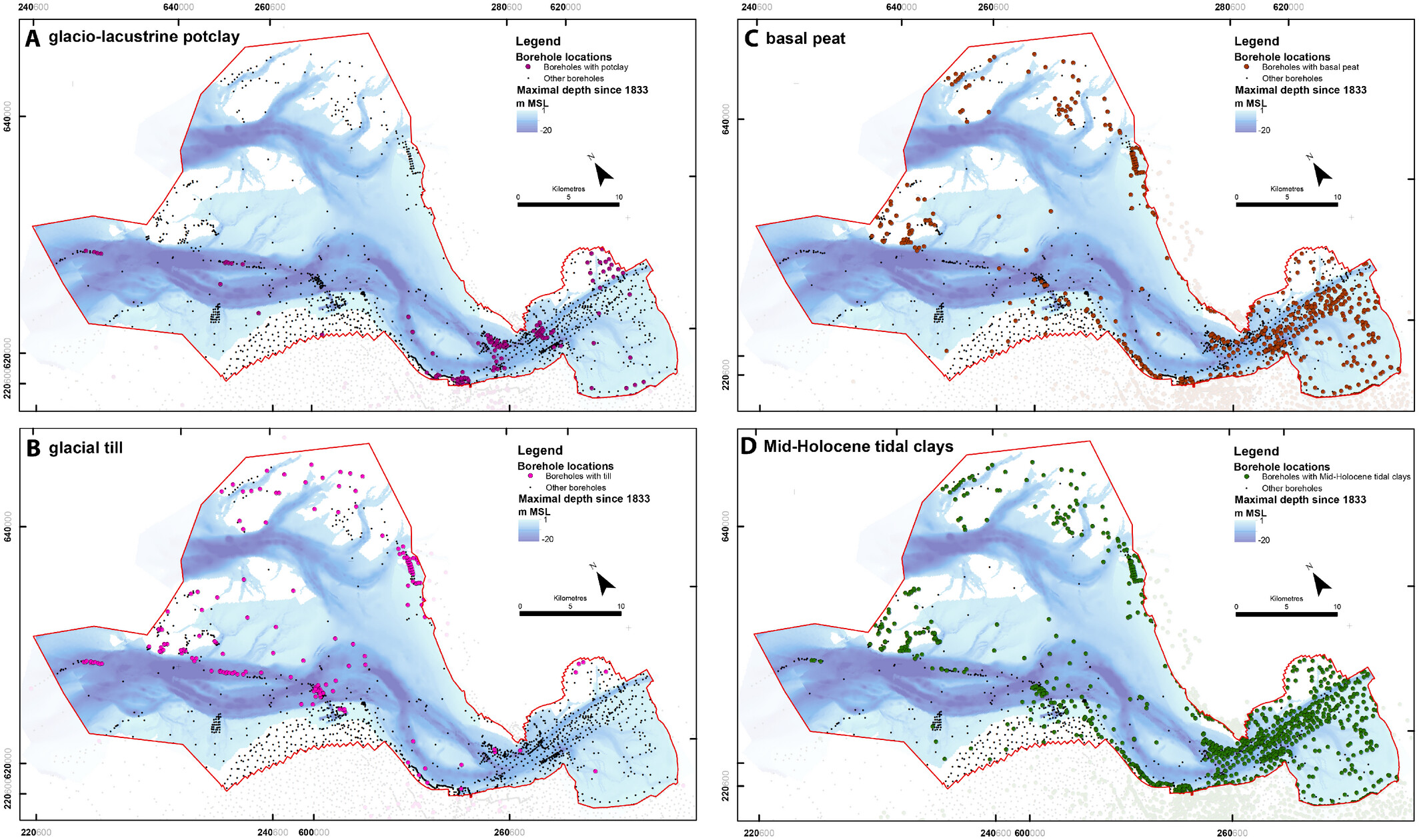

The occurrence and position of resistant layers was reconstructed by compiling a geological layer model (Figure 3) using geological borehole data from the Dutch DINOLoket (https://www.dinoloket.nl/en; TNO-GSN, 2021b) and the German LBEG (https://nibis.lbeg.de/cardomap3/) data repositories. Boreholes with resistant layers were identified (Figure 4), and the top of these layers was interpolated into raster files that show the position of the resistant layers, following the procedure of Gunnink et al. (2013). To account for post-depositional erosion, younger erosive channel fills (e.g. glacial meltwater deposits, tidal channels) were identified from the borehole data and used to cross-cut the resistant layer raster files, following the conceptual stratigraphy in Figure 2.

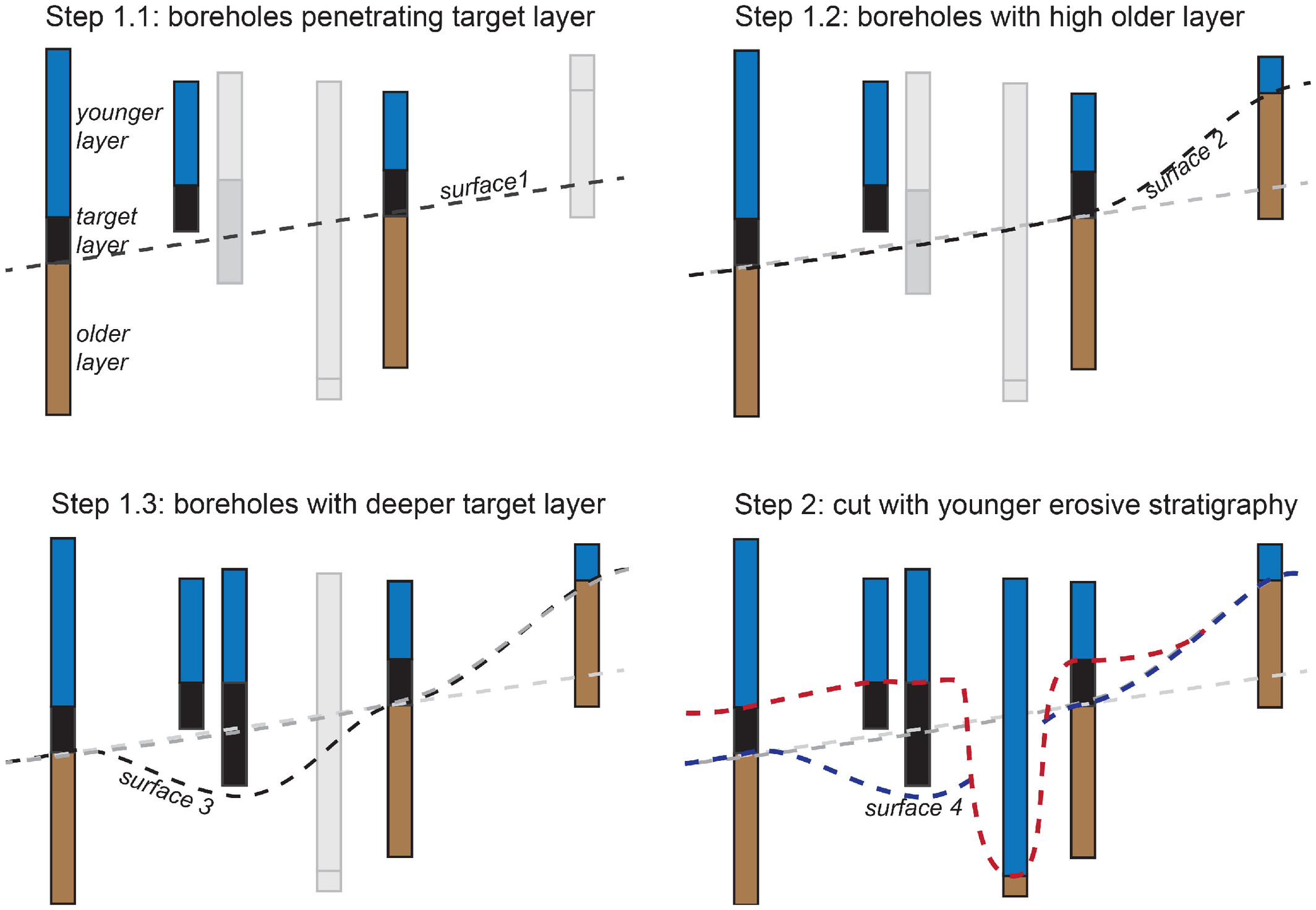

Model steps are explained below and in Figure 3. Steps 1.1–1.3 were done for all target layers, that is the resistant layers and (lumped) other deposits that relate to them (in Table 1 and Figure 2). Step 2 was only performed for the resistant layers.

Step 1.1 - Selection of all stratigraphic bases of the target layer in the boreholes in which the base of the target layer was reached. These values were interpolated, resulting in surface 1 as a first approximation of the layers’ base.

Step 1.2 - Selection of stratigraphic boreholes with tops that are older than the target layer but occur higher than surface 1. At these locations, the target layer is absent but higher, older topography is present. These points from steps 1.1 and 1.2 were interpolated, creating surface 2 as a second iterative step of the base of the target layer.

Step 1.3 - Selection of boreholes in which the target layer was reached, but its base was not. For these cases a theoretical base of 1 m below the end-depth of the borehole was defined, thereby forcing the to-be-interpolated surface below the depth of surface 2. A topogrid interpolation of surface 3 of the base of the target layer was applied using points from steps 1.1, 1.2 and 1.3.

Step 2 - After modelling the stratigraphic base of each layer, a stacked layer model was constructed with consistent stratigraphical cross-cut relationships (see Figure 2). For example, deposits associated with channels (e.g. the base of the deglaciation meltwater channel, Figure 3) dissect older deposits (e.g. tills and older Pleistocene sands), where they occur at greater depth. Because the LEBG borehole data were labelled manually, the workflow had to be adapted for these data: where resistant layers do not occur based on step 1.1, although expected, a channel structure was assumed that cuts them. The youngest Holocene Ems channel sands were labelled and used to cut all layers (no older layers could be present higher than this surface). The same was performed using bathymetry over the last 200 years, that is maximal depth over the last two centuries.

Step 2 results in a set of grids or layers of the base of each unit. Using these data, the top of any layer, including those of the resistant layers could be calculated and or combined. This was done by combining the maximal depth of the base of all younger deposits.

4.1 Position of resistant layers in new geological reconstructions

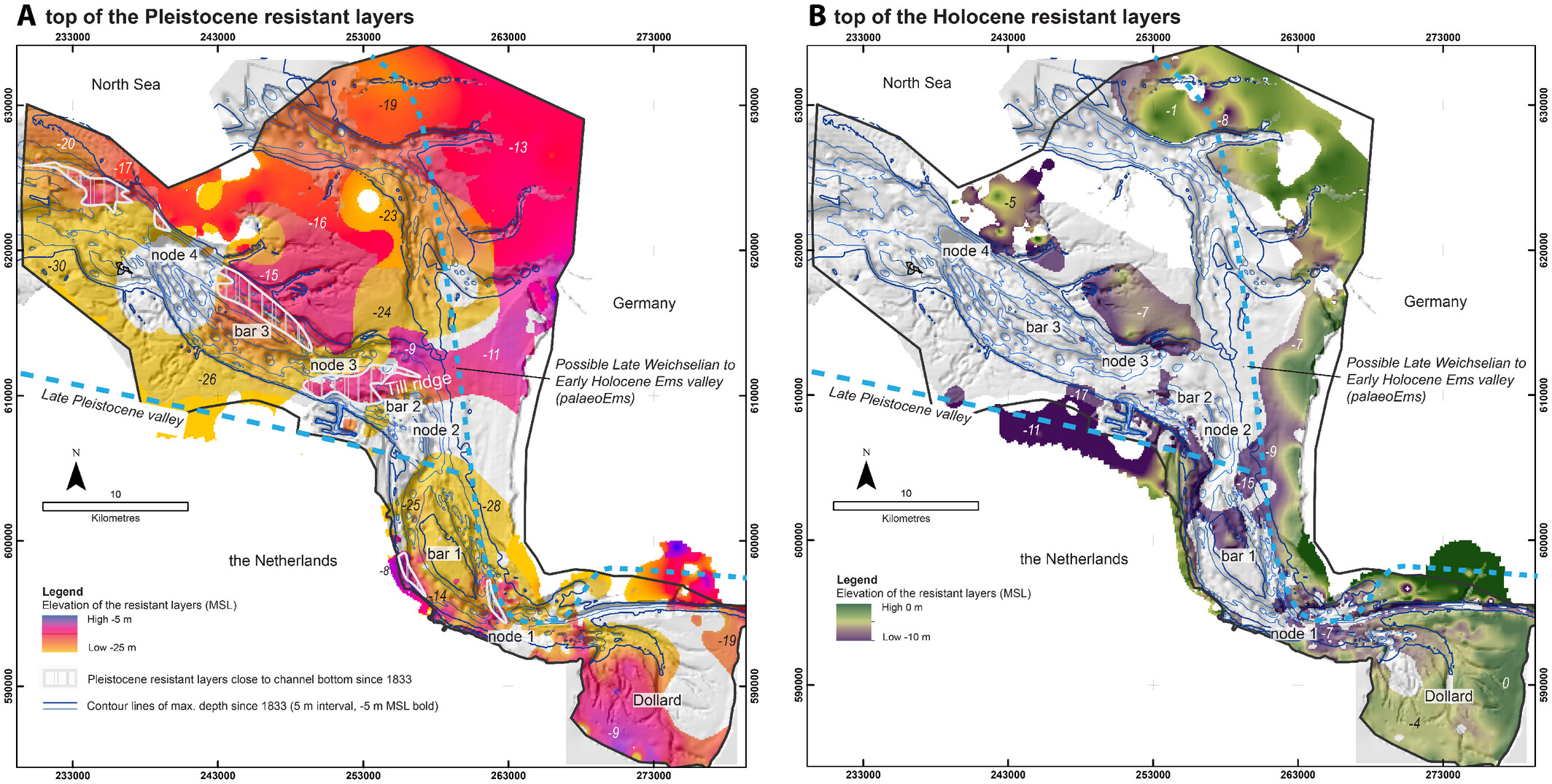

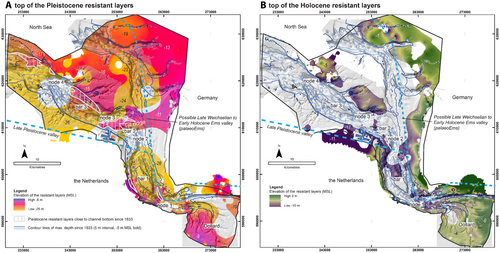

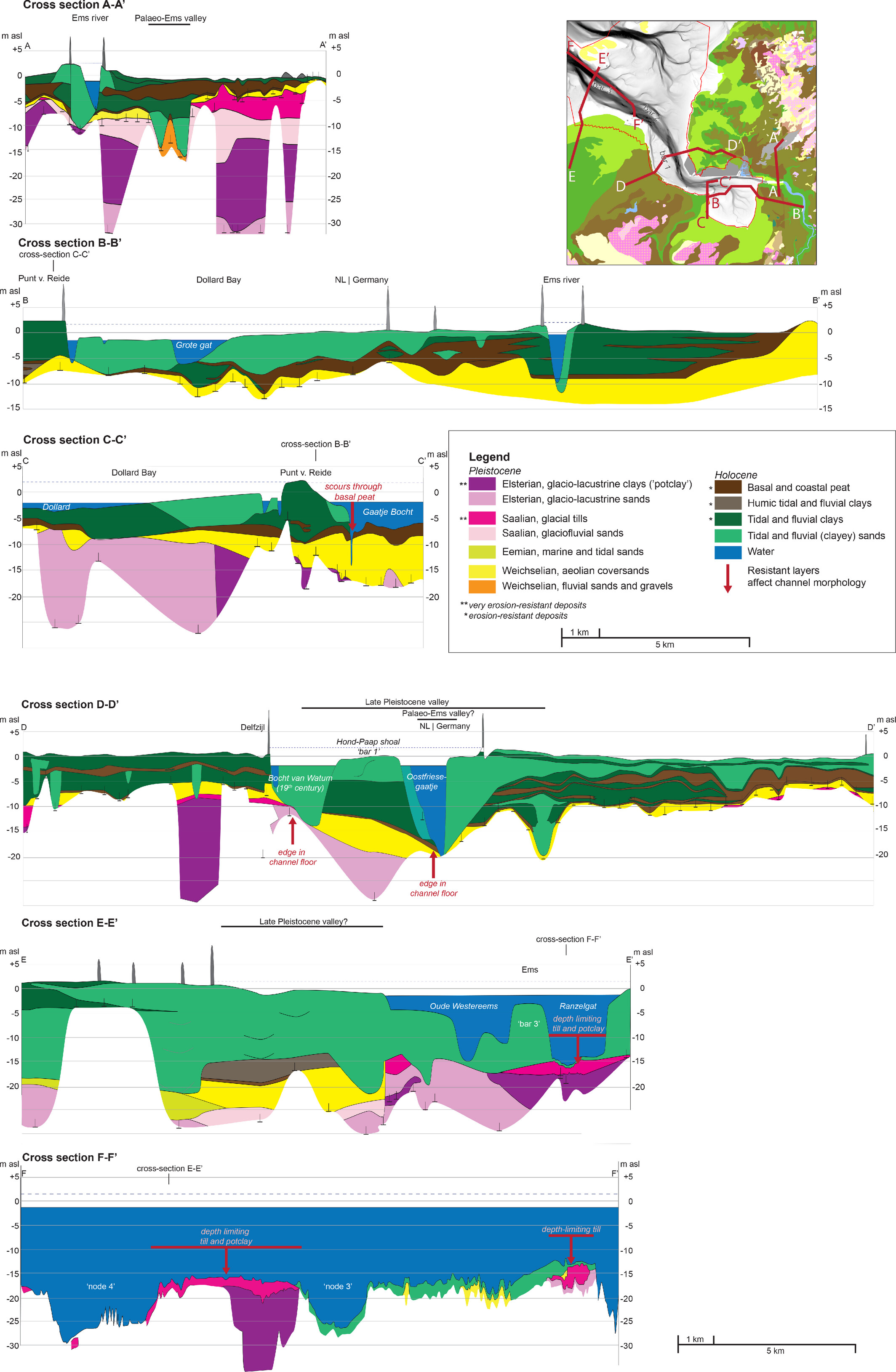

In this section the existing geological insights of the study area are supplemented with new and more detailed information on the position of Pleistocene resistant and Holocene resistant layers. For this the detailed cross-sections and new raster layer files are used (Figures 5 and 6). Where relevant, other (less resistant) units were considered as well, for example in the cases where these may represent infillings of old deglaciation meltwater valleys that dissected older Pleistocene resistant layers (see Figure 2).

The new raster layer files and cross-sections show that the erosion-resistant layers are present in the estuary's substrate at several distinct locations (Figures 5 and 6). The glacio-lacustrine potclay is close to or at the channel floor on three locations: in the northern channel around bar 3 at −18 m MSL, along the western channel of bar 1 at −15 m, and around node 1 around 15 m (Figures 5, 6A and 7). Tills are present in the northern channel around bar 3 on top of the potclay (Figure 5: E–E’ and F–F’). Near bar 2, a ENE-WSW oriented till ridge was found around 13 m depth (Figure 5: F–F’; 4B and 6). This orientation is in line with till ridges on either side of the estuary on land (Van den Berg & Beets, 1987; Pierik, 2010; Figure 1). These deposits are generally covered by Weichselian coversands and periglacial fluvial deposits, reaching several metres thick. This cover is generally absent where Holocene erosion occurred (Figure 5).

As in the adjacent till plateaus, small and large meltwater valleys have locally eroded these layers before the Holocene. Where the Holocene estuary crosses these sandy infilled Saalian meltwater valleys, deeper tidal erosion was facilitated, and the confluences preferentially formed (nodes 2,3,4 in Figure 6A). The presence of coarser fractions in the bed (D50 >300 µm Oberrecht et al., 2016: their Figure 8) show that the till has been eroded by abrasion to some degree. These resistant layers have, however, been persistently visible in the bathymetry over the last 200 years, which confirms their high resistance to tidal channel erosion.

In the study, several generations of Late Pleistocene (Ems) valleys are present with different orientations, two of which could be mapped. A Late Weichselian/Early Holocene Ems palaeovalley was convincingly demonstrated north of Emden (Barckhausen, 1984; Figure 5: A–A’). A second, relatively large meltwater channel (ESE-WNW) was found running south of the most downstream part of the estuary. It is filled with sandy glaciofluvial sediments and topped by Weichselian aeolian coversands (Figure 5: E-E’ and 6). The base of the Holocene is located relatively low along its course (Figures 5 and 6; TNO-GSN, 2021a). This valley probably formed during the Saalian deglaciation and may have been active during the Eemian and a substantial part of the Weichselian as well. In addition, a northern branch may be present, connecting to the presumed Ems palaeovalley north of Juist (Hepp et al., 2019). In the study area, its most likely course would be through cross-section D–D’ (Figure 5) (base pre-Holocene around −20 m), around the current position of the Oostfriesegaatje. The till ridge (around bar 2 in Figures 1 and 6A) with its top around −13 m MSL (Figure 5: F–F’), must have been a barrier in the landscape, so probably the valley ran just east of it, through an area with very low data density (Figure 4A,B).

The cross-sections and raster layer files also show that Holocene tidal clays and peat are found at the channel margins and also at the channel base in the most landward part of the estuary (Figures 4C,D and 5). Where the top of the Pleistocene surface is deeper (e.g. at the position of old dissecting valleys), these layers are also generally positioned deeper (e.g. in Figure 5: D–D’). Especially these deeper peat and clays are most compressed under the weight of several metres of sediments making them relatively resistant to erosion. Towards the sea, the Holocene tidal deposits are more sandy, reflecting an increasing energy gradient towards the mouth of the estuary. Perpendicular to the estuary, Holocene sediments become finer as well and the flanking peatlands contain layers of tidal clays (Figure 5: D–D’), representing distal coastal swamp environments with a varying degree of marine influence.

4.2 Reconstructed bathymetry and changes in channel volume

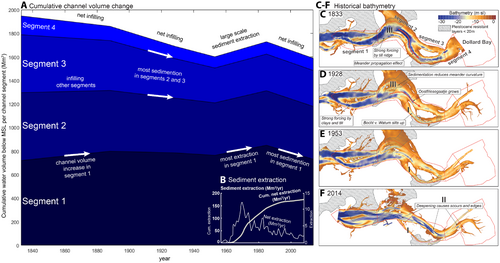

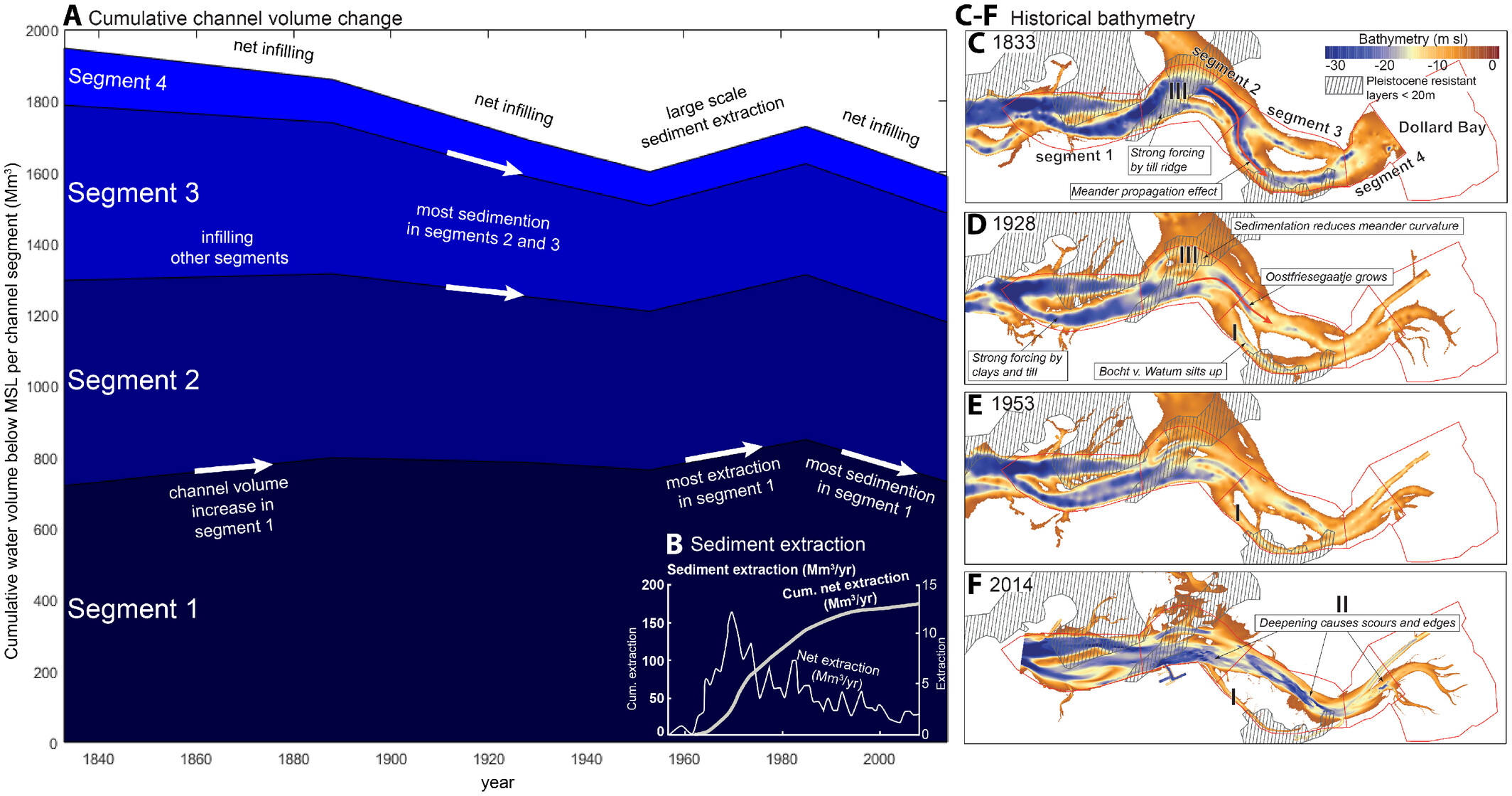

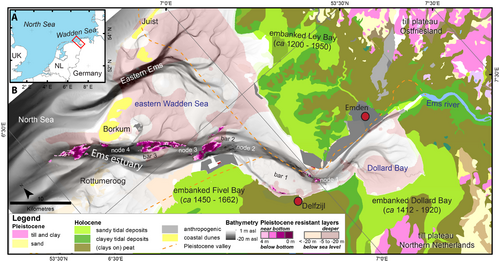

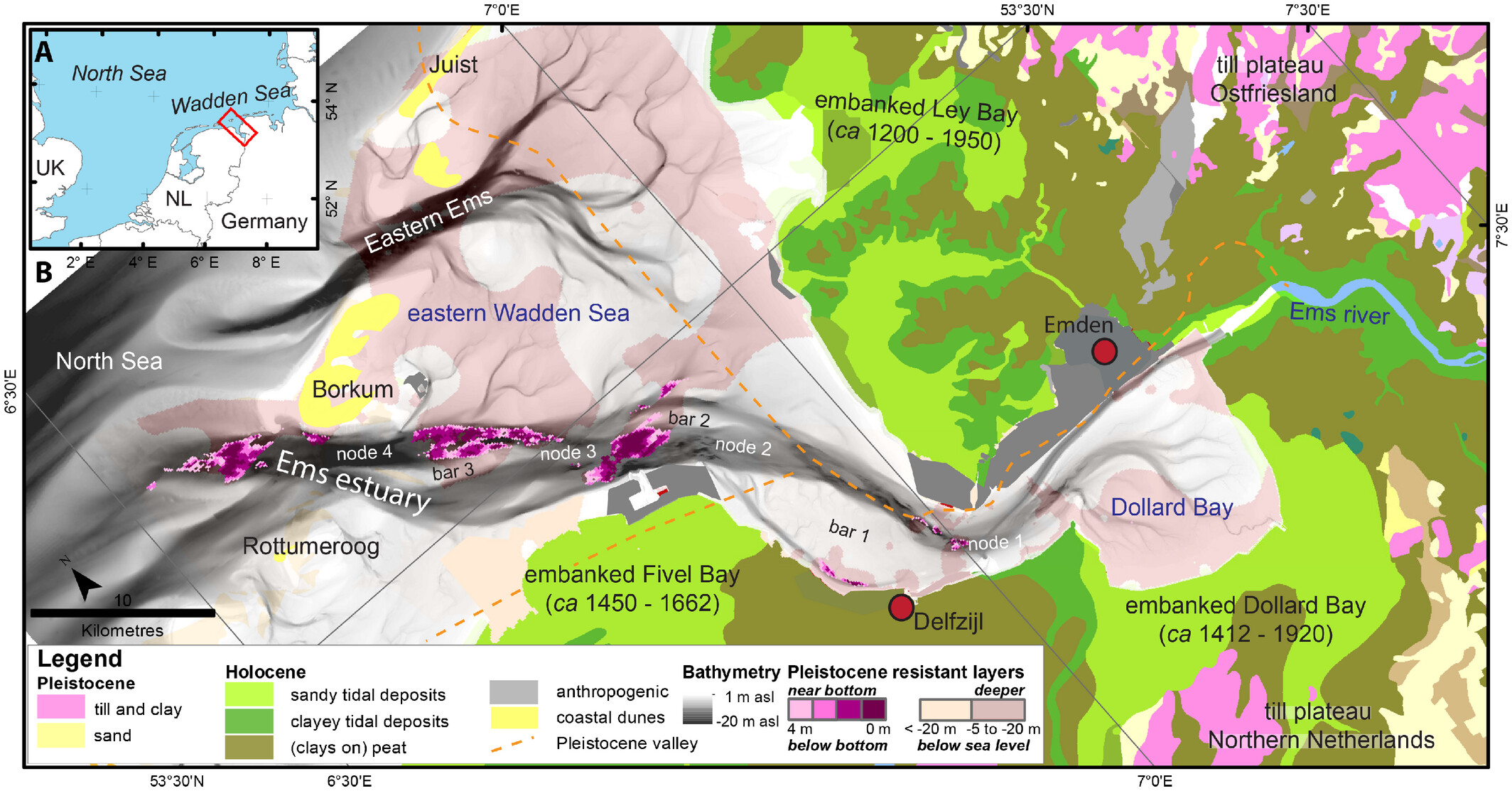

The bathymetry dataset starts in the 19^th century and shows relatively large channels in which resistant layers are well-exposed (e.g. till ridge in segment 2; Figures 1, 5 and 7). Since the 19th century, the channels have shown a net import of sediment, of 1–3 Mm³ per year, burying most resistant layers at the channel base. Most likely the system adapted to the stepwise decreasing tidal prism by embankment of the Dollard in the preceding centuries (Van Maren et al., 2016) (Figure 7). In the most seaward section (segment 1) a contrasting trend is observed in the 19^th century. Here, channel volume became larger instead of smaller by ca 1.4 Mm³/yr, probably as a reaction to the silting up of the Eastern Ems (Figure 1).

From the beginning of the 19th century to the 1960s, the system had four nodes and two channels with a relatively large meander curvature (Figure 7C,D,E). This changed as the Oostfriesegaatje (eastern channel around bar 1 in segment 3) became larger after AD 1900, while the Bocht van Watum (western channel around bar 1) became smaller (Gerritsen, 1952; Van Maren et al., 2016; Figure 7D,E,F ‘marked I’). These developments decreased channel sinuosity around bars 2 and 3 from 1.28–1.31 in 1833 to 1.08–1.01 in 1928 (Figure 8B).

Over the last 50 years human impact increased significantly through land reclamation, new harbours and dredging (Van Maren et al., 2015). Between 1953 and 1985 the total channel volume increased by ca 200 Mm³ (0.3 Mm³/yr in segment 4 to 2.7 Mm³/yr in segment 1 – Figure 7A), which equals an average of 1 m for the entire estuary. This is in accordance with the 134 Mm³ that has been extracted between AD 1960 and 1985 (Mulder, 2013; Figure 7B).

4.3 Effects of Pleistocene resistant layers

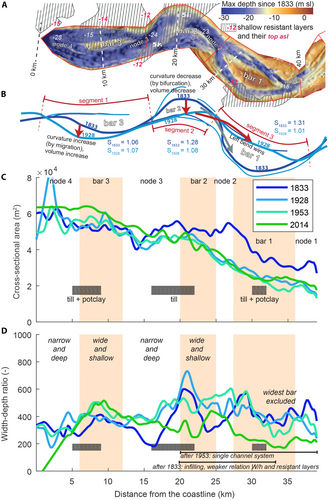

Discussed here are the effects of resistant layers on the dimensions and position of channels and bars. In the discussion section, their local and regional impact are compared and the wider implications are shown. At locations where erosion-resistant Pleistocene clays and tills outcrop (ca 10–15 m below MSL: Figure 8A), channels are less deep and the estuary is relatively wide. These trends are most prominent around bars 2 and 3 and on the bathymetry of the 19th century, when channel volume was relatively large (Figure 7). At places where the Pleistocene resistant layers are present at or close to the channel floor, channel width-to-depth ratios vary between 400 and 800 with a quasi-periodic pattern in longitudinal direction, reflecting the outcrop positions (Figure 8D). Meanwhile, the cross-sectional area (CSA) of the channels decreases approximately linearly in landward direction for all time steps (Figure 8C). This implies that, to maintain this linear longitudinal trend in CSA (Figure 8C,D), the channels have increased their widths where the equilibrium depth was limited by resistant layers. Where present, the resistant layers caused lateral channel migration and outer bank erosion, rather than channel deepening. This resulted in curved channels around non-migratory mid-channel bars (Leuven et al., 2018b), present between 6–12, 20–25, 27.5–36 km (orange shadings in Figure 8C,D). Subsequent estuary widening allowed the width of bars to increase. This mechanism explains the preferential occurrence of mid-channel bars where resistant layers are present (Figure 8A). These allogenically forced bars alternate with relatively deep and narrow channel confluences (nodes). These occur where the resistant layers are absent or too deep, for example because these zones are positioned in former Saalian meltwater valleys, filled in with Pleistocene erodible sands, flanking the till ridges (Figures 6A and 8A around 15–25 km, the latter only before 1928).

4.4 Effects of Holocene resistant layers

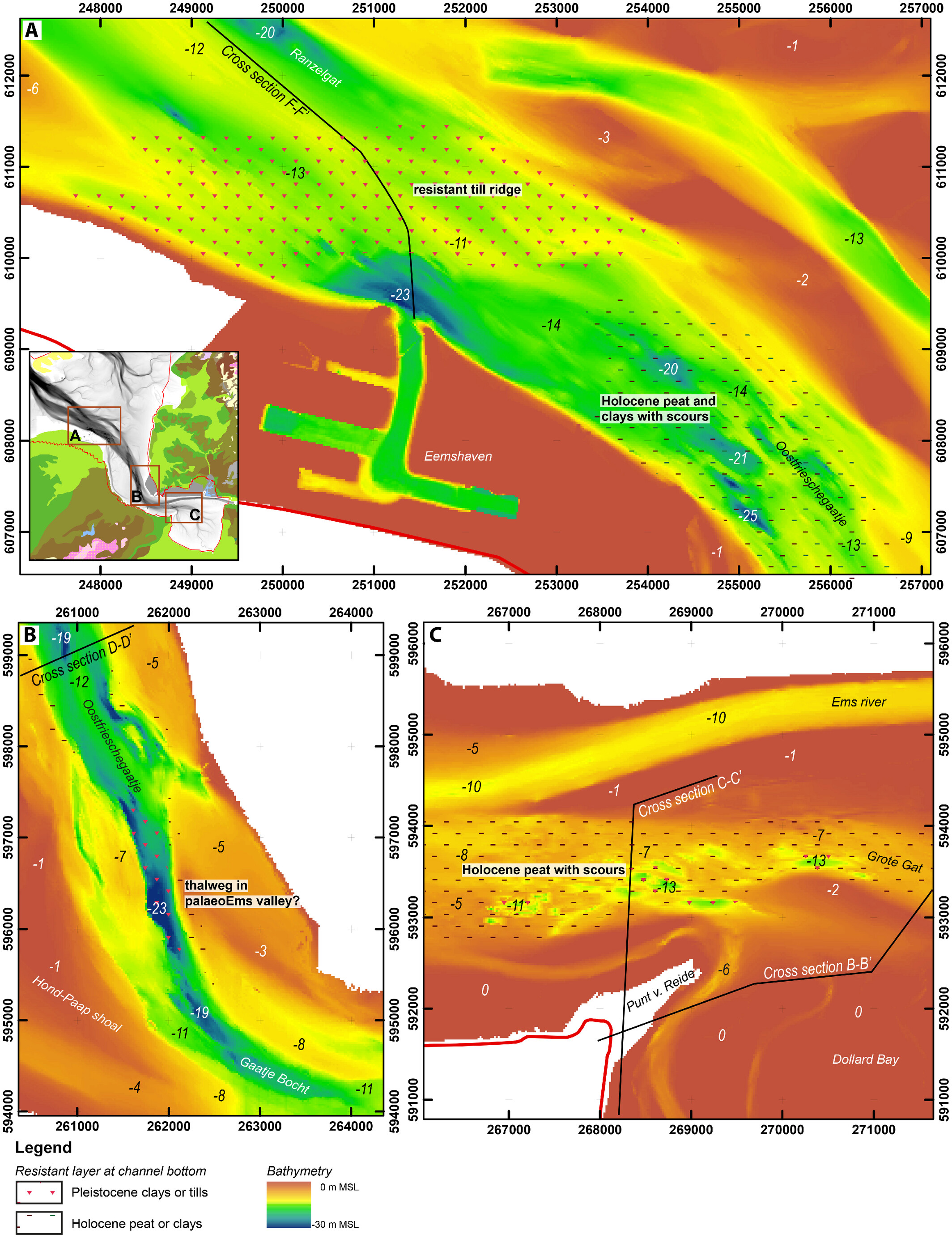

Where Holocene peat and clays form the bottom of the channel floor, channel deepening is hampered as well. Their thickness and their degree of erosion resistance are, however, smaller compared to the Pleistocene clays and tills, and therefore scour holes and edges formed more easily (Figure 5: C–C’; Figure 9A,C). These features formed at places where the channel has become deeper over the last century (e.g. Oostfriesegaatje, Gaatje Bocht Figures 7E,F and 9). These scours penetrate layers of clay and peat and then encounter Pleistocene sands that they can more easily erode, making them relatively deep, as described by Huismans et al. (2016, 2021) for scours in the Rhine-Meuse delta. Sharp edges are observed (Figure 9B) over longer distances in the channel east of bar 1 in segment 3. This channel (Oostfriesegaatje) has deepened over the last two centuries, exposing these older layers that were probably formed in early stages of Holocene transgression along the palaeo-Ems valley (Figures 1 and 5: D–D’). In the southern part of Figure 9B (Gaatje Bocht), the very base of the scour is limited by the occurrence of Pleistocene clay.

5.1 Resistant layers: a local or an estuary-wide effect?

The position of nodes and bars in the Ems-Dollard estuary are thus forced by the distribution pattern of resistant layers to a large extent, rather than resulting from changing hydrodynamic boundary conditions. Depth-limiting resistant layers result in channel widening, local bank erosion, and mid-channel bar formation, while deeper nodes preferentially occur where resistant layers are absent. This means that erosion-resistant layers at depth can have similar effects on bar and bend morphology as horizontal topographic forcing, for example by erosion-resistant banks, has long been known to have (van Dijk et al., 2012; Leuven et al., 2018c). These effects directly force at least two ca 10 km long bars (bars 2 and 3), over half the length of the estuary. These effects do not only occur locally at the positions of resistant layers; forced channel curvature around bar 2 (S = 1.28 in 1833; Figure 8) propagates to the next meander bend, favouring the branch connected to the outer bend at the bifurcation in the Bocht van Watum (during ebb flow) (S = 1.31 in 1833; red arrow in Figure 7C). Similar effects of propagating meander curvature to the neighbouring bends have been observed in fluvial environments (Van Dijk et al., 2012). This cascade of meander and tidal bifurcation effects through the system means that the effects of resistant layers can also be expanded beyond local effects over at least one bar or meander wavelength.

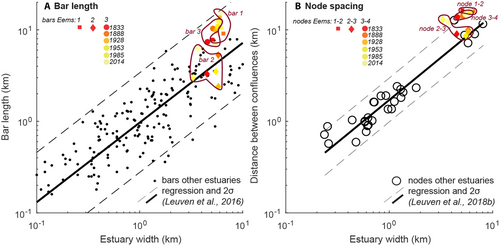

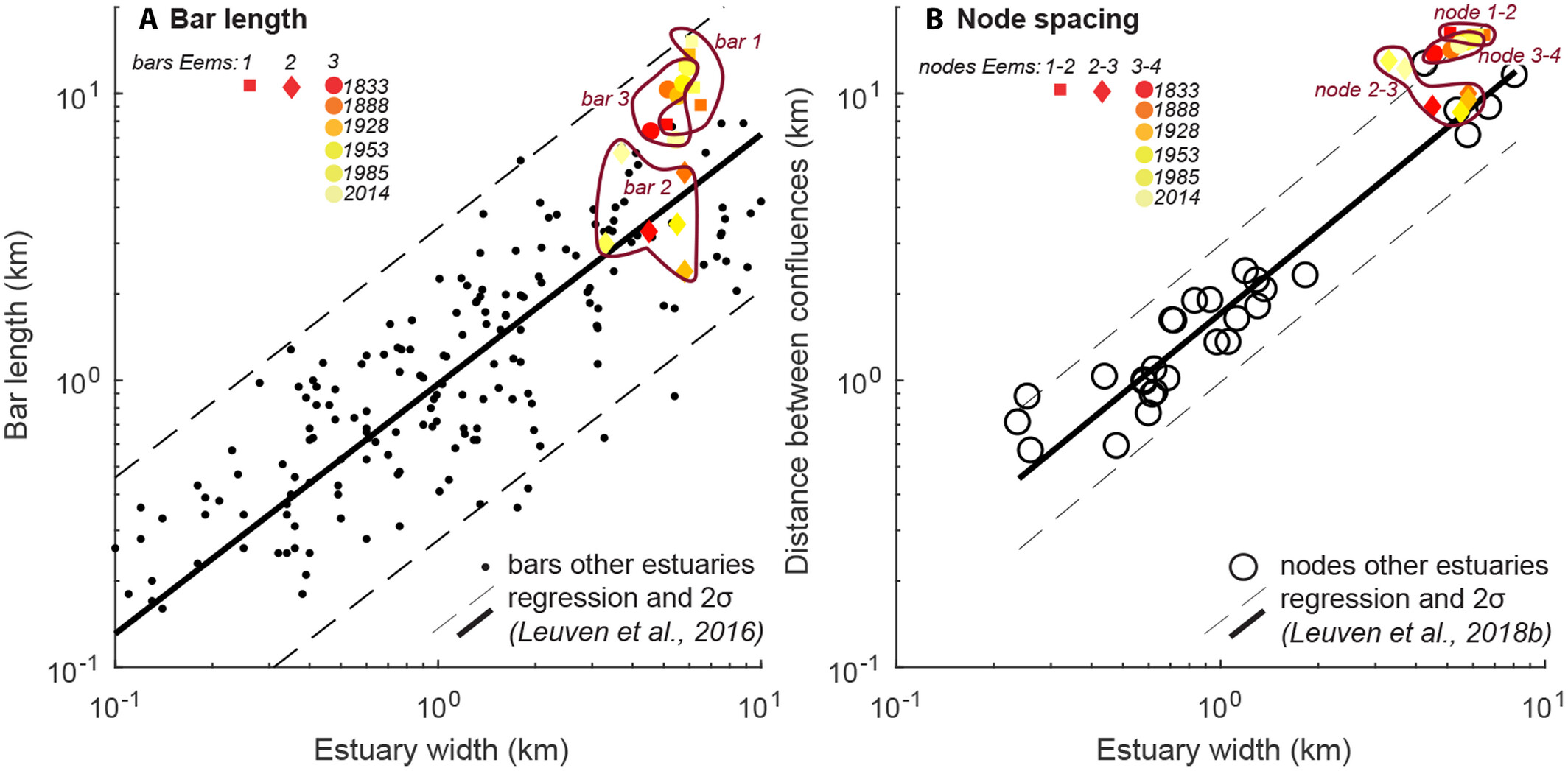

If these resistant layers are so important, would the bar lengths and node spacing have been so different without their forcing effects? Global datasets show that alluvial bar lengths and node spacing scale with estuary width (Leuven et al., 2016, 2018b). For the Ems-Dollard these variables, especially bar 1 and 3 and their bounding nodes, plot on the upper range of those found in many modern tidal systems and in laboratory scale experiments. This applies especially to node spacing that lies outside or just within the 95% confidence range of other estuaries (Figure 10A,B). Bar lengths are relatively long, but still fall within the 95% confidence range. These patterns are attributed to the fact that the spacing of the resistant layers coincidentally falls within the hydromorphologically suited range for bar and node dimensions (i.e. the confidence interval in Figure 10). The Pleistocene resistant layers hence force the exact location and the actual dimensions within or very close to that confidence range.

There were no indications that the Holocene resistant peat and clays affected channel and bar patterns on the scale of the entire estuary. Most likely this was because they are not as resistant and thick compared to the Pleistocene clays and tills that affect the system on longer timescales. The Holocene resistant layers do, however, cause significant scours and edges, which may locally lead to unstable channel banks in case scour holes may grow towards them (Huismans et al., 2021).

5.2 Human impact on exposure of resistant layers

Within the Ems-Dollard estuary an increase in channel volume can be seen that can be linked to a stronger forcing effect, while a decrease in channel volume (i.e. increased alluviation) correlates to less forcing by resistant layers. A good example of the former can be seen in the most seaward segment (segment 1), where channel volume has increased over the last century (Figure 7) and resistant Pleistocene layers became more exposed (Figure 5E–E’ and F–F’), correlating with increased meander curvature and a higher W/h ratio (around 5 km) for the more recent timesteps (Figures 7D and 8B,D). In the more upstream segments, a similar correlation is observed. The diagonally oriented till ridge in segment 2 had forced the channel curvature to be high towards the beginning of the 19th century (outer bend bar 2 around ridge marked ‘III’ in Figure 7C). This probably happened because an increase in tidal prism, caused by the formation of Dollard Bay in the 16^th century upstream (Van Maren et al., 2016), facilitated the formation of deeper channels between the 16^th and 19^th century, exposing this till ridge at their bases. As sedimentation continued over the last two centuries, this exposed till ridge was partly buried and meander curvature decreased (Figure 7D, sinuosity in segment 2 decreased from 1.28 in 1833 to 1.08 in 1928; Figure 8B). The tidal flow subsequentely preferred the Oostfriesegaatje over the Bocht van Watum since 1888 (Figure 7D). The latter eventually closed, straightening the channels in segments 2 and 3. This resulted in a decrease in sinuosity from 1.23 to 1.08 between 1833 and 1928 over the entire estuary. The trend observed in the Ems-Dollard, implies that after a period of dominant forcing by geology, autogenic processes could become more important with increased alluviation. These examples demonstrate that decreased alluviation can be associated with the stronger effects of resistant layers, because a relatively large part of the channel wetted perimeter is bounded by resistant layers. Intensified bedrock control during periods of deeper channels has also been demonstrated locally in the Marennes-Oléron Bay, France (Bertin et al., 2004). In summary, it is shown here how larger and deeper channels can trigger bedrock effects on the scale of an entire estuary via meander propagation trends. In the case of the Ems-Dollard estuary, the initial increase in channel volume and subsequent decrease over the last two centuries was not the result of changing boundary conditions. Instead, it can be linked to initial estuary expansion after storm surges in response to human-induced peatland subsidence, followed by silting up enhanced by phases of embankment (Van Maren et al., 2016; Vos & Knol, 2015).

Although channel volume and hence tidal energy in the system has varied over time, this did not seem to have strongly affected the degree to which the resistant layers could be eroded. Many Pleistocene layers did not experience significant erosion over the last centuries, despite long exposure at the channel floor. This was also observed by Schaumann et al. (2021) in a tidal channel near the German Wadden island of Norderney. The less compact and thinner Holocene peat and clays eroded faster and show clear signs of local erosion (scouring) as soon as channels form or deepened in 19^th century.

5.3 Implications for other estuaries

This study demonstrates that inherited resistant layers force the long-term morphological evolution of Holocene estuaries that were hitherto assumed to be fully alluviated (i.e. embedded in easily erodible substrate). The Ems-Dollard case illustrates how these locally present layers can affect the channel-bar pattern and planform shape of an entire estuary: they force channel, bar and node positions. These results suggest that estuary-scale forcing is strongest for the cases where the spacing of independently formed inherited resistant layers is coincidently close to the hydromorphologically expected spacing between nodes in the channel-bar system.

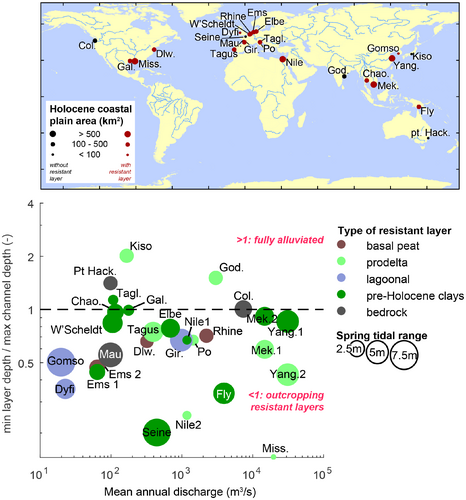

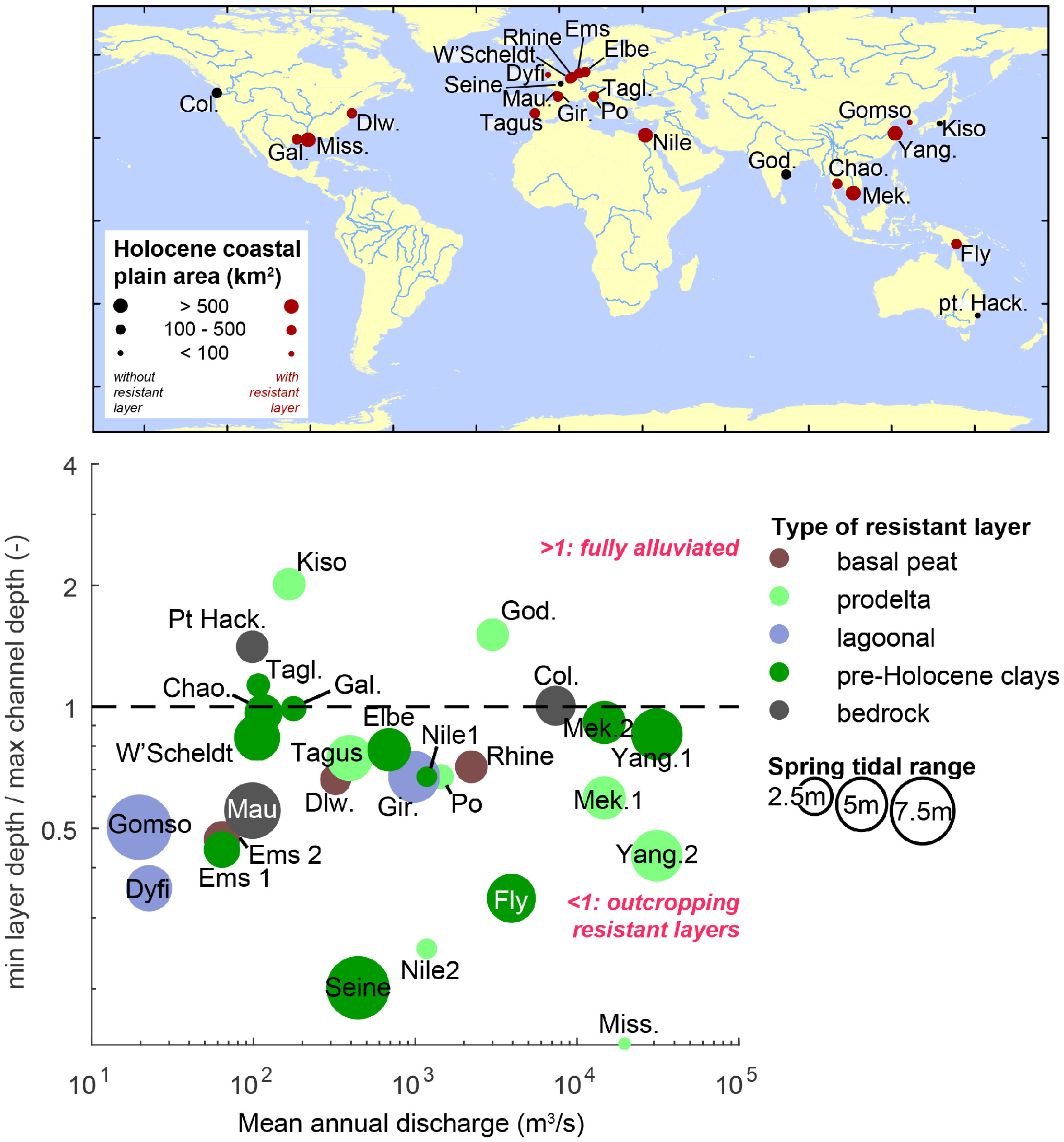

An inventory of 27 river mouths from around the world, for which geological and bathymetrical data were available, shows that various types of resistant layers interfere with channels (in 23 out of 27 cases, values are below 1 in Figure 11), regardless of the size of the estuary and the tidal range (for sources, see Supporting Information, Table S2.1). Channel depth and the position of geological layers may vary along the estuary; here the maximum channel depths are compared to the highest position of a nearby resistant layer. This means that the resistant layers are at least locally very close to the channel floor and may potentially outcrop in many other estuaries. As such hydrodynamics and morphology may be at least locally constrained in depth, with potential estuary-wide effects as observed in the Ems-Dollard estuary. This indicates that the influence of resistant layers is most likely much more widespread than hitherto thought. This limits the applicability of concepts and models that assume full alluviation.

With increased dredging and future sea-level rise, resistant layers are expected to become more exposed at the bases and edges of channels (i.e. data points will shift down in Figure 11), increasing their potential effects on the estuary morphodynamics. Such effects are especially expected in a large number of estuaries where the tidal prism is expected to increase. This could, for example, occur when the estuary surface area becomes larger when the surrounding land drowns, when tidal amplitude at the mouth increases due to seaward shifting of amphidromic points related to sea-level changes (Idier et al., 2017; Pickering et al., 2017), or due to local anthropogenic effects (Cox et al., 2021; Huismans et al., 2021). It is well-known that increasing tidal prisms lead to channel deepening (Jarrett, 1976); and over the last 20 years already, the German Wadden Sea has shown an increase in channel volume in response to sea-level rise (Benninghoff & Winter, 2019). While deepening, resistant layers could be encountered, that potentially limit further deepening, which results in unexpected widening and subsequent land loss of the often densely populated fringing lands. In addition, where Holocene peat and clays cover the bottom of a channel, scours may form and grow as channel volume increases. These may undercut structures or channel edges, potentially causing bank instability, more than already expected from the enlargement of channel volume due to sea-level rise (Leuven et al., 2019). The filling tendency of the Ems estuary studied here suggests that such a trend can be mitigated by sediment supply. Given the potential implications of resistant layers, these results highlight the need to better map shallow resistant layers in other estuaries as well. Incorporating these into morphological studies and new conceptual models would lead to improved model forecasting reliability for estuaries worldwide.
