Studying the functional genomics of stress responses in loblolly pine with the Expresso microarray experiment management system

Choreography of gene expression patterns

Microarrays provide a means of determining the transcript profiles of entire genomes under a given set of experimental conditions, where an entire genomic sequence is known. When sequencing is still in progress (e.g., maize, loblolly pine), there is the added potential for gene discovery. A cDNA microarray experiment increases our ability to find genes that are expressed in similar patterns over time or under particular conditions and to find patterns in expression data. Powerful tools for inferring function also come from the assignment of common responses to multiple environmental stresses. Much functional genomic information remains buried in the data already accumulated (Bard, 1999). New computational tools for mining this hidden information are needed, as are tools for analyzing gene expression patterns to reveal unknown cellular regulatory networks and signal transduction pathways. Accomplishments brought about through the use of microarrays are already considerable (Epstein and Butow, 2000, Somerville and Somerville, 1999, Cushman and Bohnert, 2000). Microarrays have been used to identify transcript profiles characteristic of particular human tumor types (Khan et al., 1999,Yang et al., 1999, Perou et al., 1999, Golub et al., 1999, Monni et al., 2001, Kannan et al., 2001); cell cycle regulatory mechanisms (Cho et al., 1998, Chu et al., 1998); salt stress (Kawasaki et al., 2001); hypoxia (Gracey et al., 2001); apoptosis (Brachat et al., 2000); and oxidative stress responses (Jelinsky et al., 2000, Alexandre et al., 2001).

In plants, microarray experiments with Arabidopsis cDNAs (Schaffer et al., 2000) have revealed differential effects of wounding compared to insect feeding (Reymond et al., 2000); induction of novel potential regulatory genes in response to nitrate (Wang et al., 2000); differential responses to cold and drought stress (Seki et al., 2001); potential regulatory sequences in developing seeds (White et al., 2000); and differential expression among leaves, flowers, and roots (Ruan et al., 1998). Aharoni et al. (2000) discovered a novel strawberry gene that plays a crucial role in flavor biogenesis in ripening fruit.

Complex gene expression patterns are being revealed with this new technology, involving large numbers of genes and unexpected components of cellular function in regulation and metabolism. As the complexity of microarray experiments increases, more sophisticated kinds of biological information can be extracted from microarray data. Enhanced exploitation of microarray technology requires more powerful and subtle data analysis and mining technology.

Microarray data analysis

Several algorithms from data mining, machine learning, and parametric and non-parametric statistics have entered microarray data analysis (Aharoni et al., 2000, Seki et al., 2001, Wang et al., 1999, White et al., 2000). Analysis techniques such as k-means clustering, clustering by principal components, average linkage clustering (Jain and Dubes, 1988), self-organizing maps (Golub et al., 1999), agglomerative and hierarchical algorithms (Eisen et al., 1998, Reymond et al., 2000), Bayesian methods (Smyth, 1996), plaid models (Lazzeroni and Owen, 2000), and support vector machines (Brown et al., 2000) have been featured in a majority of published research. A commonly accepted dichotomy of analysis techniques distinguishes between supervised and unsupervised methods.

From a probabilistic viewpoint, unsupervised methods model the unconditional distribution (e.g., via densities) of gene expression data, as revealed by microarray experiments (Jordan and Bishop, 1997). For example, the set of genes responding positively can be modeled by a functional form such as a Gaussian or as a mixture of functional forms (called a mixture model (Yeung et al., 2001)). k-means clustering, average linkage clustering, clustering by principal components, self-organizing maps, agglomerative and hierarchical algorithms are examples of this unsupervised mode of investigation. Supervised methods, on the other hand, can be viewed as modeling conditional distributions. For example, in addition to capturing the similarity between a set of positively-responding genes, supervised techniques can relate this gene expression to putative functional categorizations of the genes or other a priori knowledge. Support vector machines (Brown et al., 2000), decision trees (Garofalakis et al., 2000), regression (Vapnik, 1998), discriminant analysis (Sullivan, 2001), and backpropagation neural networks (Gallant, 1993) are examples of supervised techniques.

Expresso's design recognizes that different analysis methods are suited for different purposes; its software architecture is thus not meant to preferentially support one method over another. Rather, the goal of Expresso is to enable multiple modes of analysis and provide a high-level interface for managing microarray experiments. Support for data mining as a key mode of computational investigation is one of the hallmarks of our system. We show how this is achieved using inductive logic programming (ILP), used here as an exploratory data analysis technique subsuming both supervised and unsupervised techniques.

Our specific focus is on using Expresso for the physiological and molecular study of effects of drought stress on loblolly pine. We now review some pertinent research in this respect.

Environmental effects on tree growth and wood properties

Forest trees are in the earliest stages of domestication. Both tree breeding and fundamental genetic studies have been greatly hindered by the long generation times and large size of forest trees. The technology of genomics and microarrays allows insights into the molecular basis of growth and specific wood properties without the need for extensive breeding experiments over many generations, and can be carried out on existing material or on young seedlings. Genomics allows insights into the physiology of otherwise intractable systems and allows us to benefit greatly from comparisons to model systems based on sequence information. The identification, functional analysis, and location of expressed genes in forest trees has many applications. One area of specific interest is the identification of the effects of abiotic stress on wood formation, particularly water stress, because of the effect of water stress on tree growth and on wood properties (Lev-Yadun and Sederoff, 2000, Costa et al., 1998, Costa and Plomion, 1999). Growth and wood properties are important commercial factors because they affect the yield and quality of commercial forests.

A major motivation for the development of microarrays for forest trees is the potential for the analysis of environmental effects on trees in natural populations. The microarray system is potentially able to monitor acute and chronic environmental effects based upon the specificity and level of expression observed for a large suite of genes. The microarray method has great inherent accuracy and precision, but there is a great deal of development needed for this potential to be realized. One of the major barriers at present is the lack of appropriate computational tools for analyzing and interpreting the specific and the correlated effects on gene expression during development of adaptation to abiotic or biotic stress. Microarray technology can contribute greatly to studies of adaptation and response to climate change.

Short- and long-term adaptational responses of plants to environmental stress

The ability of a plant to protect itself against environmental stress is essential to its survival (Alscher et al., 1997). Acclimation of plants to extreme environmental conditions or to rapid changes in growth conditions requires a global cellular response and changes in the expression of many genes. Exposure to extremes of light intensity and temperature, drought, and some herbicides can cause the downstream formation of reactive oxygen species (ROS). ROS may be present in the form of superoxide (O₂^-), hydrogen peroxide (H₂O₂), or the hydroxyl ion (OH^-). ROS, especially OH^-, are toxic because they can oxidize any macromolecule in the cell (Scandalios, 1997). This potential threat to cellular function can cause protein unfolding, the inactivation of enzymes, DNA damage, mutation, lipid peroxidation, and consequent disruption of cell membrane function.

In animals, injury due to unchecked ROS damage has been linked to cancer and aging (Gilchrest and Bohr, 1997). ROS have also been implicated as links in stress-responsive signal transduction mechanisms (May et al., 1998). There is a suggested role for hydrogen peroxide in the signaling events leading to the activation of the defense-response (Mullineaux et al., 2000). In some instances, the plant successfully adapts to its changed environment. Both short- and long-term effects occur. Shinozaki and Yamaguchi-Shinozaki (2000) distinguish between rapid, emergency responses, and slower, adaptive responses associated with successfully attaining a new steady state under stress conditions.

Our understanding of genome-wide mechanisms contributing to successful adaptation in plant cells is incomplete. A coordinated global shift in gene expression in plant cells is expected to be involved in adjustment to unfavorable conditions. There is growing evidence that while the mechanism whereby a plant perceives and transduces a particular adverse environmental change is specific to that change, that there is considerable overlap among the mechanisms that respond to the class of adverse environmental changes (Uno et al., 2000) (see also Figure 1). Genes controlling osmotic adjustment, protein stabilization, ROS detoxification, ion transport, membrane fluidity, gene activation, and signal transduction have all been implicated in stress adjustment responses in higher plants in separate experimental systems (Cushman and Bohnert, 2000, Shinozaki and Yamaguchi-Shinozaki, 1997). Specifically, dehydrins have been shown to be associated with dehydration tolerance (Zhu et al., 2000); proteases with signal perception and transduction (Callis and Vierstra, 2000); calmodulin-mediated processes and membrane transport with salt tolerance (Geisler et al., 2000); cell wall extensibility events (extensins, proline-rich proteins) with adaptation to drought stress (Wu and Cosgrove, 2000); and lignin production (laccases, phenylpropanoid pathway enzymes) with growth under multiple stress conditions, including salt stress (Degenhardt and Gimmler, 2000) (see Figure 4 and 5).

A search for molecular adaptation mechanisms in plants

Little information has been gathered for any experimental system that documents global changes in gene expression associated with successful, long-term adaptation to stress. This is in sharp contrast to the available data that documents response to short-term exposures. Although there are several molecular defense systems that respond to environmental stress in plants (Figure 1), their relative importance for long-term stress resistance is not known. It is likely that the coordination, identity, timing, and level of induction or suppression of stress-responsive genes is critical for effective and sustained removal of toxic ROS. Redox sensing appears to play a central role in environmental stress responses. The effective repair and renewal of individual, stress-susceptible, macromolecules and associated cellular and physiological processes is essential for cell, tissue, and organism survival (see Figure 1). Gasch et al. (2000) used microarray technology to investigate adaptive responses of the entire yeast genome to a series of abiotic stresses. They interpreted increases in transcript abundance in genes associated with signal transduction, chaperones, ROS detoxification, and bioenergetics as events involving essential processes to ensure cellular survival in the face of long-term oxidative stress.

Choice of experimental system

Comparison of the transcriptional responses of higher plants to environmental stresses is a powerful tool for understanding the functions of individual genes in the responses as well as the adaptative response of the genome as a system. The use of comparative functional genomics to study responses to environmental stress in forest trees enables new and different investigations of mechanisms of adaptation. Information on gene function related to environmental adaptation is far from complete even in the model plant Arabidopsis. Many genes have important interactions that may not be apparent from their primary function. Even when a homolog has been identified by comparative sequence analysis and a specific function has been implicated, many genes may have additional functions and interactions in a woody plant that might not be inferred from studies of Arabidopsis.

Expresso: A Microarray Experiment Management System

Our research group has recognized the need to address all phases of a microarray experiment as a coherent whole and to fashion a computational system that integrates the design, analysis, and data management tasks as well as the laboratory and computational components. The Expresso system (Alscher et al., 2001) is designed to support all microarray activities including experiment design, data acquisition, image processing, statistical analysis, and data mining. Currently, the latter three stages are completely automated and integrated within our implementation. The data and physical flows realized using Expresso are shown in Figure 2. As mentioned earlier, Expresso is meant to support multiple modes of analysis and a variety of computational methods.

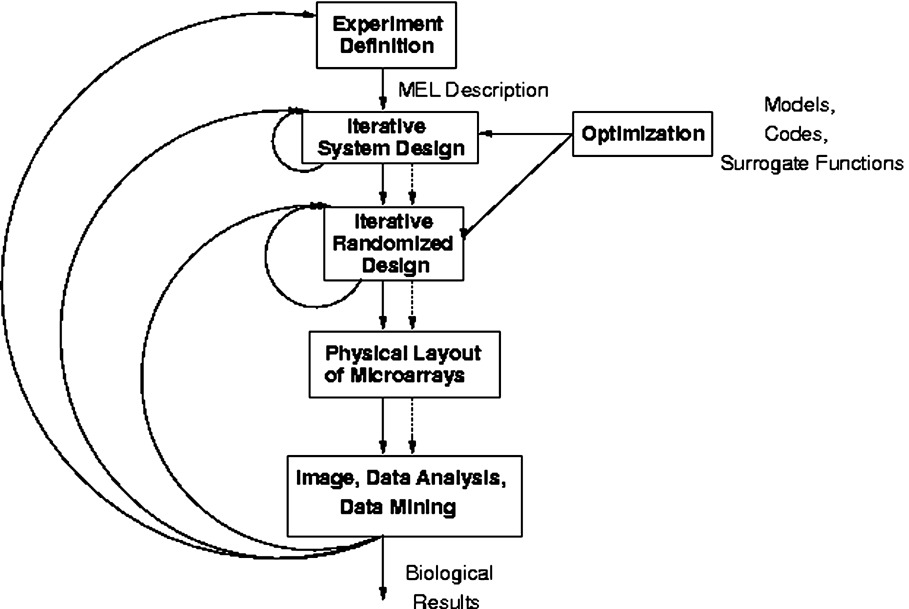

The design of Expresso underscores the importance of modeling both physical and computational flows through a pipeline to aid in biological model refinement and hypothesis generation. It provides for a constantly changing scenario (in terms of data, schema, and the nature of experiments conducted). The design, analysis, and data mining activities in microarray analysis are strongly interactive and iterative. Expresso thus utilizes a lightweight data model to intelligently ‘close the loop’ and address both experiment design and data analysis. Data mining techniques, especially ILP, are used to model interactions among genes and to evaluate and refine hypothesized gene regulatory networks. We refer the reader to (Alscher et al., 2001) for a more detailed exposition of the computational, algorithmic, and system implementation issues underlying the design of Expresso.

Modeling With Expresso

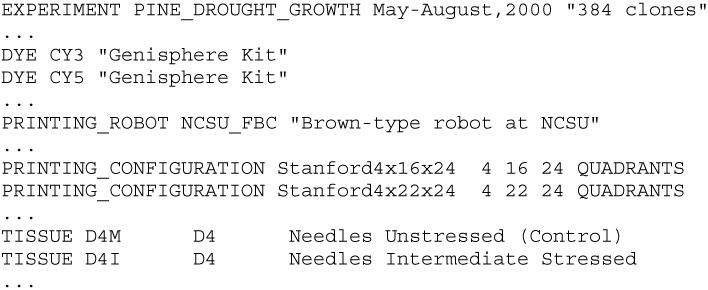

The first step in modeling with Expresso entails defining semi-structured data records corresponding to information about material selection, PCR, randomization, spotting, hybridization, gridding, data extraction, and data analysis. An instance of all of these records thus represents a pipeline of stages involved in a single microarray experiment (a partial example is given in Figure 3).

These self-describing descriptions serve several useful purposes. First, since they can be stored in a database and queried, programmatic descriptions of new experiments can be automatically created by writing queries. For example, a high-level specification such as ‘Design a new experiment using the layouts from 1999, the dye concentrations used by Mark, and the conditions of mild drought stress,’ or ‘Use the same experimental setup as EXPT-99-Pine-Drought, but with a signal threshold of 0.60’ can be realized by writing database queries in languages like SQL and XQL. In addition, biologists are able to interact with Expresso using abstractions such as stress experiments and expression levels, instead of the current emphasis on tedious details such as wells in microtitre plates or measured fluorescence in a tiff image. This is facilitated by an interface that masks how individual records are composed to arrive at full-fledged descriptions of experiments. Second, such descriptions can (optionally) be then used to manage the physical and computational execution environment (e.g., pipetting robots, image readers, and data mining software). For instance, it is possible to transform an Expresso description into the low-level programming code for controlling and driving laboratory instruments that have programmable interfaces supporting laboratory automation and management. Together, these features help us store descriptions, ‘run’ the descriptions to obtain data, record the data back in the database, and associate the data with the description that corresponds to its experimental setup. Finally, having descriptions of experiments allows us to provide sophisticated services such as change management. For example, consider that two students configure Expresso independently with different choices for various stages in the pipeline and arrive at contradictory results. They could then query the database for ‘What is different between the experiments that produced data in directory A from the ones in directory B?’ - providing responses such as ‘While the same analysis technique was used in both, a calibration threshold of 0.84 was used in B instead of 0.96 for A,’ which are obtained by automatically analyzing the descriptions.

In contrast to the variety of standards (many, XML-based) available for describing microarray data, our data model is thus aimed at capturing representations of experiments, not just experimental data. We posit that the description of an experiment is a more persistent representation of the data (it produces) than the data itself. As technology matures and evolves, recording how specific data was obtained is important for the purposes of ensuring repeatability and reliability. For example, if gridding technology improves, then ‘running’ the same (stored) description with the new setup can be used to obtain new results.

One of the hallmarks of Expresso and its semi-structured representation is that the data model is lightweight and can elegantly adapt to changes in schema over time. There is nothing in our language design that commits us, for instance, to describing DYEs by two attributes (ref. Figure 3). As new forms of DYEs are introduced into Expresso, the data model can ‘expand’ to accommodate new fields and attributes, that were not applicable in older records. The design of the semi-structured language is beyond the scope of this article; a preliminary description is available in (Alscher et al., 2001). Here, we specifically concentrate on using Expresso to understand stress responses in loblolly pine.

In particular, we investigate the use of Expresso to mine global patterns of gene expression in order to uncover regulatory mechanisms that are essential for long-term adaptation to stress in woody species. Our main focus is especially on gene expression associated with adaptation to drought stress over one growing season in loblolly pine.

Plant material

Rooted cuttings of loblolly pine equivalent in size to one-year-old seedlings were obtained from Dr. Barry Goldfarb at NCSU and were cloned from two unrelated genotypes (clones C and D) from the Atlantic Coastal Plain provenance.

Choice of target cDNAs

A substantial number of expressed genes (approximately 15 000) have now been identified from loblolly pine as part of the Pine Genome Sequencing Project (NCSU Forest Biotechnology Group, 2001). The predominant source of these expressed genes is from wood forming tissues. These tissues are rich in expressed genes involved in cell wall biosynthesis and in intracellular signalling. Microarrays have been used with a small subset of these expressed genes to examine gene expression during development and under environmental stress. The long term goals of this project are to identify the genes expressed during wood formation, to identify the time and place of their expression at the cellular level, and to correlate the effects of their expression with variation in wood properties. This approach depends on genetic mapping of expressed genes and the correlation of the map positions of loci affecting quantitative variation in wood properties with the location of specific expressed genes.

Of the ESTs sequenced by the Pine Genome Sequencing Project, many have a proposed functional annotation derived from a BLAST search of protein databases. From this annotation, we selected 384 ESTs from differentiating xylem or shoot tips representing genes of annotated function. We grouped the 384 pine ESTs into four major functional categories (as shown in Figure 4) – gene expression, signal transduction, protective processes, and protected processes. A complete list of our functional categories and groupings is available at http://bioinformatics.cs.vt.edu/˜ralscher/functional_categories.html, and a detailed list, including annotations for individual clones, at http://bioinformatics.cs.vt.edu/˜ralscher/clones_annotation.html.

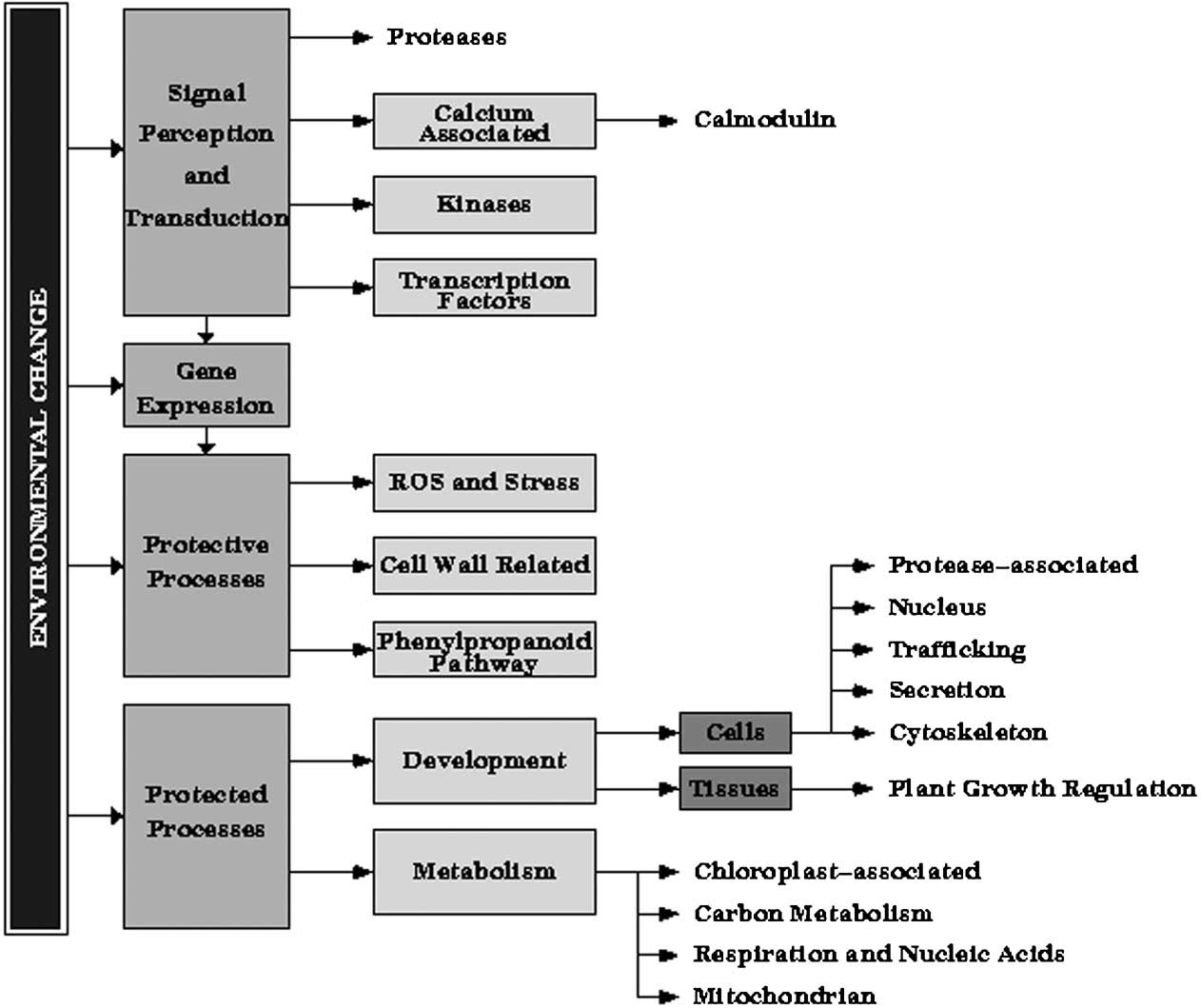

Our selection of clones includes genes involved in proposed resistance processes and signal transduction mechanisms, as well as genes associated with processes expected to be vulnerable to drought stress such as those associated with carbon metabolism, photosynthesis, and respiration. Genes associated with ROS detoxification, cell wall extension, lignin biosynthesis, and chaperone function as well as stress specific genes, such as aquaporins and dehydrins were included in the protective processes category (see Figure 5). We also included genes known to respond to other stresses, such as UV irradiation, pathogen invasion, and sulfur stress (‘isoflavone reductase-like’) (Gang et al., 1999) and xenobiotic stress (glutathione-S-transferases) (see Figures 4 and 5).

PCR amplification

384 ESTs from differentiating xylem or shoot tips (NCSU Forest Biotechnology Group, 2001) with putative functions of interest were selected and PCR amplified using M13 forward and reverse universal primers. PCR was performed in a 50 µl reaction containing 39.1 µl ddH₂O, 5 µl 10x PCR buffer, 1.5 µl MgCl₂ (50mM), 1 µl dNTPs (lOmM each), 1 µl M13 forward primer (10 µM), 1 µl M13 reverse primer (10 μM), 0.4 µl TAQ polymerase (5U/µl), and 1 µl cDNA diluent. Amplifications were carried out in a MJ Research thermocycler (Waltham, MA, USA). Denaturation was performed at 94° C for 30 sec, followed by primer annealing at 57°C for 1 min. Chain elongation took place at 72°C for 4 min. These steps were repeated for 35 cycles. Final chain elongation took place at 72°C for 10 min. PCR products were then electrophoresed in 1.5% agarose gels, stained with ethidium bromide, and visualized using UV light. This step was necessary to confirm both quantity and quality of the PCR reactants.

Microarray design and layout

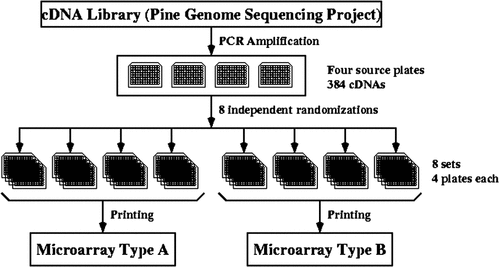

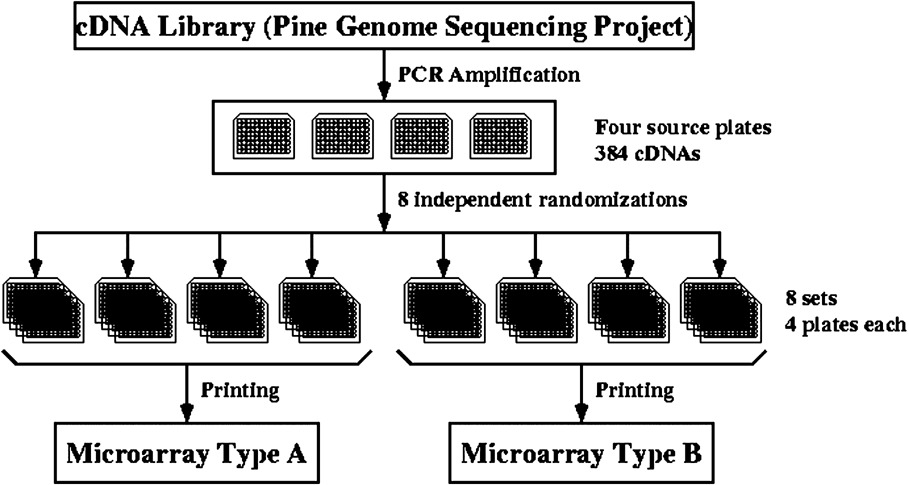

The 384 ESTs were organized in 4 microtitre source plates after PCR amplification. Expresso generated a design for printing two types of microarrays that replicated each clone four times in each microarray type and that placed the replicates at random locations in a microarray so that any systematic errors due to location can be analyzed and corrected (see Figure 6). Implementing a replicated, randomized design required the use of two robots. First, the contents of the 4 source plates were re-pipetted into 8 sets of 4 microtitre printing plates, using a TECAN Genesis 2 robot; each set was an independent randomization of the 4 source plates. Second, slides were printed using a Stanford-type arrayer (see http://cmgm.stanford.edu/pbrown/mguide) built in-house at NCSU. The randomized design guaranteed that every EST was represented once in each set of 4 microtitre plates and that each set was a different physical arrangement (permutation) of the 384 ESTs. Two types of microarrays, A and B, were printed; each had 4 replicates of the 384 ESTs, but the random arrangement of clones differed in the two microarrays. Consequently, each array type has 4 replicates of each EST, randomly placed, and a total of 1536 spots. Each glass slide contained 2 identical arrays (either type A or type B); therefore, each slide had a total of 8 replicates of each EST.

Slide preparation

After printing, slides were processed according to the manufacturer's instructions (Telechem International, Sunnyvale, CA), with some modifications. In the first step, slides were first rinsed in 0.2% SDS twice for two minutes, with vigorous agitation; were then rinsed in distilled water twice for two minutes; and were finally transferred to boiling water for two minutes and cooled to room temperature for five minutes. In the second step, 1.5 g sodium borohydride was dissolved in 450 ml phosphate buffered saline to which 133 ml of 100% ethanol was added immediately prior to use. In the third step, the slides were first transferred to the sodium borohydride solution for five minutes; were then rinsed in 0.2% SDS for one minute three times; and were finally rinsed once in distilled water for one minute. Array boundaries were marked with a diamond-tipped pen. In the final step, the slides were dried by centrifugation and stored in the dark in a dessicator at room temperature.

Hybridization

Each comparison of treatments (control versus mild drought stress; control versus severe drought stress; and mild versus severe drought stress) was done with hybridizations involving 4 microarrays on 2 slides of different types, comprising a total of 16 replicates of each EST. Total RNA was isolated from 11 separate needle samples harvested at the end of the growing season by the method of Chang et al. (1993), and was the source of cDNA to probe the microarrays, after processing using the Genisphere Gene MicroExpression Kit. The two arrays present on each slide were hybridized with probe pairs labeled reciprocally with Cy3 and Cy5 dyes. A ScanArray 4000 was used to scan the slides after hybridization (Packard BioScience). The resultant TIFF images were analyzed initially using MicroArray Suite (Scanalytics, Fairfax, VA).

Image processing

For each cDNA spot, a calibrated ratio of intensities in the Cy3 and Cy5 channels was calculated and subsequently analyzed. We used Microarray Suite by Scanalytics to calculate these calibrated ratios. The techniques used by Microarray Suite are described in Chen et al. (1997). In general, we applied the default values used by Microarray Suite during our processing. A grid was placed manually on the TIFF images, identifying the locations of cDNA spots. For each grid location, the pixels comprising the spot contained within were determined using the Mann-Whitney statistical test at 99% confidence level. All remaining pixels comprise the background surrounding the spot. The mean intensities of the spot pixels and background pixels are calculated for each channel, from which a background-corrected ratio is computed. Finally, a calibrated ratio for each spot is computed used the iterative method described by Chen et al. (1997).

Detection of gene expression changes

The inevitable presence of experimental errors complicates the determination, for each clone (cDNA) represented on a set of microarrays, whether that clone shows clear changes in transcript levels under the experimental conditions considered. Various statistical tests suggested in the literature do not fully utilize the available information or make assumptions that are probably too strong and unrealistic. Chen et al. (1997) derive a probability density of transcription ratios under strong (and highly unrealistic) distributional assumptions. They investigate neither the effects of deviations from their strong assumptions nor all possible sources of variation (e.g., due to background estimation). Some authors (e.g., Claverie (1999)) have suggested the use of t-tests applied to intensity values. This approach requires replication of the same gene on one or more arrays and the use of paired t-tests or non-parametric paired tests such as the sign test. These tests are expected to have poor efficiency with few replications. Hilsenbeck et al. (1999) use prediction regions from principal components, while Greller and Tobin (1999) describe a decision function using a statistical discordancy test. Several approaches involving Bayesian methods have also been proposed. One is the Hierarchical Generalized Linear Model (see Daniels and Gatsonis (1999) for general methodology, and Lee et al. (2001) for application to activity data), which can model and estimate noise variance components if replication is available.

The methodology followed in Expresso is qualitatively different; we obtain multiple (typically 16) log-calibrated-ratios for a single replicated clone; by observation, we find that the log-calibrated-ratios for a single clone do not follow a normal distribution. Far from it, each distribution is spread relatively evenly over a large range. Statistical analysis based on mean and standard deviation will thus be overly pessimistic in identifying clones that are up- or down-expressed. Given this observation, we make a much weaker probabilistic assumption on the distribution; we assume that a clone whose expression is not different between a probe pair will show a distribution centered at a mean log ratio of 0.0. Our assumption of a zero-centered distribution is more general than the assumption of a particular distribution, such as a normal distribution, and hence is more likely to hold in a real experiment. In a zero-centered distribution, the probability that any particular log ratio is positive (or negative) is 0.5. The number of positive (or negative) log ratios follows a binomial distribution with parameters 16 and 0.5. The probability of 12 positive log ratios (or 12 negative log ratios), out of 16, for a clone whose expression was unaffected by drought stress is 0.0384064. Consequently, a clone with 12 or more positive log ratios is up-expressed with a probability of 0.96. Our more general assumption avoids the trap of having to classify the response of each spot; rather we classify the response of each EST as one of: up-regulated, down-regulated; or no clear change. Our three-way response classification allows us to develop meaningful relationships among genes and among treatments and also provides sufficient results for the use of sophisticated data mining techniques (see below).

Inductive logic programming

The primary analysis technique used in this set of experiments is inductive logic programming (ILP) and is motivated by the need to connect functional categorizations of genes with systematic variations in expression levels. This aspect of data analysis has been recognized by many others, especially Sherlock (2000) and Golub et al. (1999). They consider the question ‘Is the overlap between the genes in a functional class and the genes in a particular cluster greater than would be expected by chance?’

In his review of expression data analysis, Sherlock (2000) discusses two techniques for correlating biological information with expression data. The first technique builds a two-way classification predictor based on weighted votes provided by gene expression from tissues in each of the two classifications. Golub et al. (1999) successfully apply the technique to classifying leukemia type from human tissues. The second technique first organizes genes into clusters using k-means clustering of expression data and then computes statistical correlations between each cluster and each of a set of functional categories. Our analysis methodology is fundamentally different from the techniques discussed by Sherlock (2000). We use the inductive logic programming (ILP) approach (Muggleton and Feng, 1990, Muggleton, 1999, Dzeroski, 1996) as an exploratory data analysis methodology to address questions such as above. Note that ILP is a computationally costly technique and is presented here merely as a framework to explore the integration of supervised and unsupervised modes of analysis. From our increased understanding of the problem domain (via ILP results), we aim to develop more customized algorithms for mining gene expression data.

ILP is used here as a technique that provides, in one integrated procedure, a way to correlate output variables (gene expression) with input variables (functional categorizations, for instance); a richer representational basis (allowing the incorporation of expressive a priori biological knowledge, not limited to functional categories); and a methodology of hypothesis formation (that can involve finding coordinated sets of gene expression data).

ILP takes input data expressed as gene expression levels in particular experiments, relationships between experiments, functional categories, and any biological knowledge that is available. As output, it provides rules of the form

level (A, CvsS, negative) :– level (A, CvsM, positive).

where C, M, and S represent control, mild drought stress, and severe drought stress conditions, respectively. This rule states: ‘If a clone (represented in the rule as A) was positively expressed in the control versus mild drought stress comparison (CvsM), then it was negatively expressed in the control versus severe drought stress (CvsS) comparison. ’ The restated rule is easily understood and can be used in later diagnostics and what-if analyses. ILP algorithms do not require explicit invocation or instructions to mine rules across comparisons. Rules are produced as the result of a process of systematic search for succinct, conceptual clusters of data. ILP can thus be used to find patterns within a given comparison, across comparisons, and across functional categories. In contrast, a purely unsupervised method may recognize a particular group of clones in the control versus mild drought stress comparison that exhibit a positive response and also recognize another group of clones in the control versus severe drought stress comparison that exhibit a negative response. However, it cannot model the connection between these two comparisons (unless we know beforehand that this kind of connection is what we are looking for). A purely supervised technique can make such a connection only after the above clusters are modeled (recognized and given as input). The ability to produce rules that subsume both supervised and unsupervised modes of analysis, without explicit direction, is the hallmark of ILP as an exploratory data analysis technique.

ILP techniques can incorporate prior biological knowledge; for example, if the biologist knows that there is a possible connection between protective processes such as ROS detoxification and protected processes such as the reductive pentose phosphate pathway, an ILP execution can be modeled to exploit such knowledge. In many cases, such prior knowledge is also helpful in speeding up ILP. In addition, ILP rules can be recursive, a feature that makes them amenable to discovery of complex relationships involving hierarchies of functional categories (Muggleton, 1999) (see results below).

Data preparation for ILP

ILP systems typically take a database of positive examples (correct gene expression data), negative examples (information known not to represent correct gene expression data) and background knowledge (functional categories, for example) and attempt to construct a predicate logic formula (such as level(A,B,C)) so that all (most) positive examples can be logically derived from the background knowledge and no (few) negative examples can be logically derived. The need for negative examples can be seen by observing that ILP algorithms conduct mining by searching through a space of possible patterns. Such a space is typically organized as a specialization-generalization hierarchy. The more specific patterns are at the bottom of the subsumption lattice and the most general patterns are at the top of the lattice. While ILP algorithms differ in how they navigate, prune, or focus on this space of patterns, all of them require a way to evaluate any specific pattern encountered in such a search. One useful form of such evaluation pertains to how accurately the pattern fits the positive examples and how accurately it fails to fit the negative examples. The more negative examples that are covered by a pattern, the less likely that it will be a good representation (or predictor) for the underlying data distribution. Hence negative examples are important to ensure that the mining does not produce overly general patterns. For instance, suppose that the only clones presented to ILP are from the ‘heat’ category and that they all responded positively in a certain comparison. Mining that all clones respond positively in that comparison would certainly be a valid (from the data distribution viewpoint) but dangerous (from the biological viewpoint) conclusion to make. If additional clones (from other categories) are presented that do not respond positively in the given comparison, then data mining can correctly infer that it is the membership in the ‘heat’ category that co-occurs with the positive expression. Similarly, negative examples help produce valid patterns by defining the boundaries of generalization without any truly ‘additional’ information.

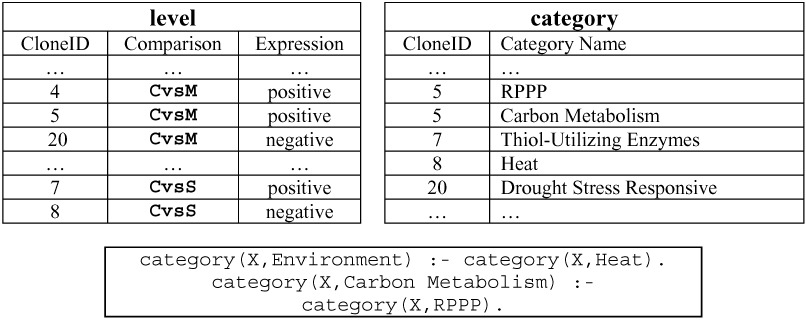

A partial listing of our database tuples is shown in Figure 7. Negative examples are automatically generated by invoking the closed-world assumption, which states that all relevant facts are stored in the tables and facts not recorded can be taken to be false. For tables that have a large number of columns (high arity), this might cause us to generate a huge number of negative examples. The typical solutions are to (i) place restrictions on how variables are coupled in an ILP rule (allowing us to use them to generate negative examples), (ii) perform a probabilistic analysis by constructing so-called stochastic logic programs. In our experiments, negative examples are easy to generate since the only variability allowed in the level table is in the Expression column. Thus, if a clone was positive for a particular comparison, we can declare two negative examples, namely that it was negative and unchanged for the (same) comparison. For our experiments, we made use of the Aleph ILP software (Srinivasan, 2001) from the Oxford University Machine Learning Laboratory.

Effect of mild and severe stress on gene expression

Data were obtained for the control versus mild stress condition and for the control versus severe, non-adaptive, condition for Genotype D and for the control versus mild condition alone for Genotype C. We performed preliminary statistical analysis on both genotypes but applied the inductive logic programming technique only to data from Genotype D. The reason for this restriction involves the theoretical model of machine learning assumed by typical ILP implementations. All expression data are distilled within Expresso into a single metric of up-expressed, down-expressed, or unchanged. Inclusion of Genotype C into our study would imply that the probability distribution from which examples (instances of gene expression data) are picked is nonuniform (ref. the control versus mild condition). However, currently available ILP systems do not provide systematic ways to incorporate this prior knowledge (of the distribution of examples) as learning parameters. While theoretical analyses are definitely feasible, our goal was to ensure the biological validity of the hypotheses generated. A total of 37 rules were mined by ILP for Genotype D.

Using Expresso, we determined that 72 of the 384 cDNAs present on the microarray showed an increase in transcript abundance relative to controls at the end of four repeated cycles of exposure to mild stress in Genotype D. Of those 72 cDNAs, 69 showed either a decrease or no change in the control versus severe comparison. Expresso mined this observation as the rule:

∼level (A, CvsS, positive) :– level (A, CvsM, positive). (1)

In rules, the notation ‘∼’ means logical negation or ‘not’. Hence, this rule means that if a clone (A) is up-expressed in the CvsM (control versus mild drought stress) comparison, then it was not up-expressed in the CvsS (control versus severe drought stress) comparison. This rule is supported by observations of transcript abundance of 69 out of 72 relevant cDNAs. This gives a confidence level of 69/72 (about 96%).

These clones, and their associated functional categories, are candidates for drought stress adaptation genes and for participation in associated mechanisms. The functional categories of the positive responders in the ‘protective processes’ grouping are shown in Figure 5. The remaining 247 cDNAs were either unaffected (204), or showed a decrease relative to the controls (43). Among the positive responders were genes already associated with water stress responses such as the dehydrins and water channel proteins or aquaporins. The class of transport proteins, into which the aquaporins fall, showed a negative response in the mild versus severe stress comparison, and a positive in the control versus mild contrast. This was indicated by the next two rules (confidences 63.63% and 66.67% respectively):

level (A, CvsM, positive) :– category (A, membranetransportprotein). (2)

level (A, MvsS, negative) :– category (A, membranetransportprotein). (3)

In the case of both dehydrins and aquaporins, different cDNAs responded to probes from the two genotypes. Aquaporins associated with both the tonoplast and the plasma membrane were present on the array. cDNAs representing both subcellular locations responded positively in the control versus mild stress comparison, suggesting the importance of water channel proteins in the tonoplast and the plasma membrane for adaptation to mild drought stress. Genes encoding heat shock proteins (HSPs) – HSP70 (chloroplast-associated chaperone function (Rial et al., 2000)), HSP23 (LEA-like genes (Dong and Dunstan, 1996)), and HSP100 (thermotolerance (Hong and Vierling, 2000)) – also responded positively to mild drought stress (confidence 83.33%):

level (A, CvsM, positive) :– category (A, heat). (4)

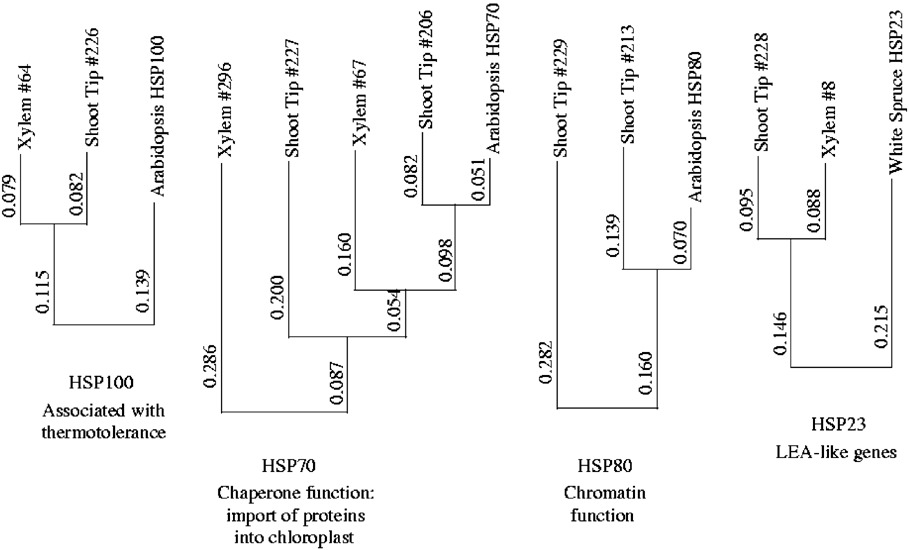

In contrast, HSP80s (thought to be involved in chromatin organization (Schnaider et al., 1999)) did not respond in either genotype. In some cases, different cDNAs responded to probes from the two genotypes (see Figure 8 and Table 1 for a summary of results obtained for HSPs). Several HSPs (Clone 226, an HSP 101; clone 228, an HSP 23.5; and clone 296, an HSP 70) showed a positive response in the control versus mild stress comparison and a negative in the control versus severe stress comparison, making them strong candidates for drought stress adaptation genes. Rubisco-binding proteins were also among the positive responders in the control versus mild drought stress comparison. In contrast, Rubisco-binding proteins were unchanged in the mild versus severe comparison, suggesting that these genes may not be among the class of candidates for stress adaptation. LP-3, an established water-stress inducible gene in loblolly pine, responded positively to probes from both genotypes. No difference in expression level of LP-3 was detected in the control versus severe contrast in Genotype D. LP-3, a protein with a chaperone function, therefore falls into the class of candidate genes associated with resistance to mild drought stress. There was no detectable difference among the thiol-utilizing enzymes for the control versus mild, or the control versus severe stress comparisons. There is much documentation demonstrating the involvement of thiol-utilizing enzymes in short term responses to oxidative stress, but little to document events associated with long-term adaptation.

The class of genes categorized very loosely as ‘isoflavone reductases,’ of which four separate ESTs were included on the array, exhibited positive responses in both genotypes in the control versus mild drought stress comparison, with two ESTs with greatest resemblance to phenylcoumarinbenzylic ether reductases responding in Genotype C, and two ESTs corresponding to the closely related pinoresinol-lariciresinol reductases in Genotype D. On the other hand, the IFR homologs showed no detectable change in the mild versus severe comparison, suggesting a response to stress, but no correlation with successful adaptation to mild drought conditions. Genes associated with lignin biosynthesis also responded positively, as did GST, proteases, and receptor-like protein kinases. In the case of cell wall associated genes, positive change was detected in the control versus mild comparison (confidence: 81.25%)

level (A, CvsM, positive) :– category (A, cellwallrelated). (5)

and a negative response for lignin biosynthesis genes in the control versus severe contrast (confidence: 81.81%)

level (A, CvsS, negative) :– category (A, ligninbiosynthesis). (6)

suggesting a role for lignin biosynthesis in drought stress adaptation.
