1 Introduction

The percutaneous treatment of chronic total occlusion (CTO) of coronary arteries can present significant challenges, however the past decade has witnessed a remarkable progress in percutaneous coronary intervention (PCI) techniques, with success rates now exceeding 90% in experienced centers [1-3]. These advancements are the result of both new cutting-edge devices and refined strategies for crossing CTOs.

The introduction of the “hybrid algorithm” has significantly enhanced the success rates, safety, and efficiency of these procedures on a global scale [1, 4, 5]. Data consistently indicate that antegrade wiring (AW) serves as the predominant strategy for navigating through CTOs, particularly those of lower complexity [4]. It is imperative to acknowledge that achieving a high success rate in CTO PCI necessitates proficiency in dissection and re-entry techniques (DART) as well as the use of retrograde approaches to achieve a comprehensive and efficacious treatment approach.

The primary objective of the AW technique is for the guidewire to puncture the proximal cap of the CTO, traverse the entire length of the CTO, and re-enter the true lumen at the distal cap. While the intention is to remain intra-plaque or in “true lumen” predominantly, it is not uncommon for the wire to pass in and out of the vessel extra-plaque/sub-intimal space during AW, often not appreciable on fluoroscopy alone [5, 6]. In cases where a wire is in the extra-plaque space, the parallel wire technique can be used to find the true lumen. This technique involves leaving the initial wire in place to act as a visual marker, while a second wire, with a microcatheter, is advanced alongside or in contact with the original wire. Visual and tactile cues are used to guide the passage of the second wire, chosen specifically to address the failure mode of the first wire, until distal true lumen wire placement is achieved. This method, including a variation known as seesaw wiring, is a cornerstone of contemporary antegrade CTO PCI. The antegrade dissection and re-entry (ADR) method, on the other hand, entails intentionally directing the guidewire and/or equipment into a dissection plane before re-entering the distal vessel lumen at or beyond the distal cap. This approach is especially beneficial when dealing with lengthy or complex CTOs and can help resolve inadvertent extra plaque wire passage during AW that cannot be resolved [1, 7-9].

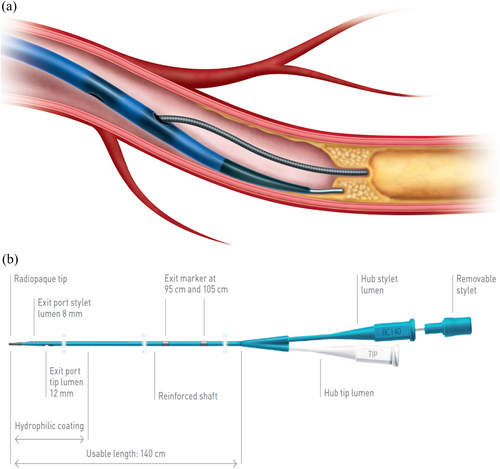

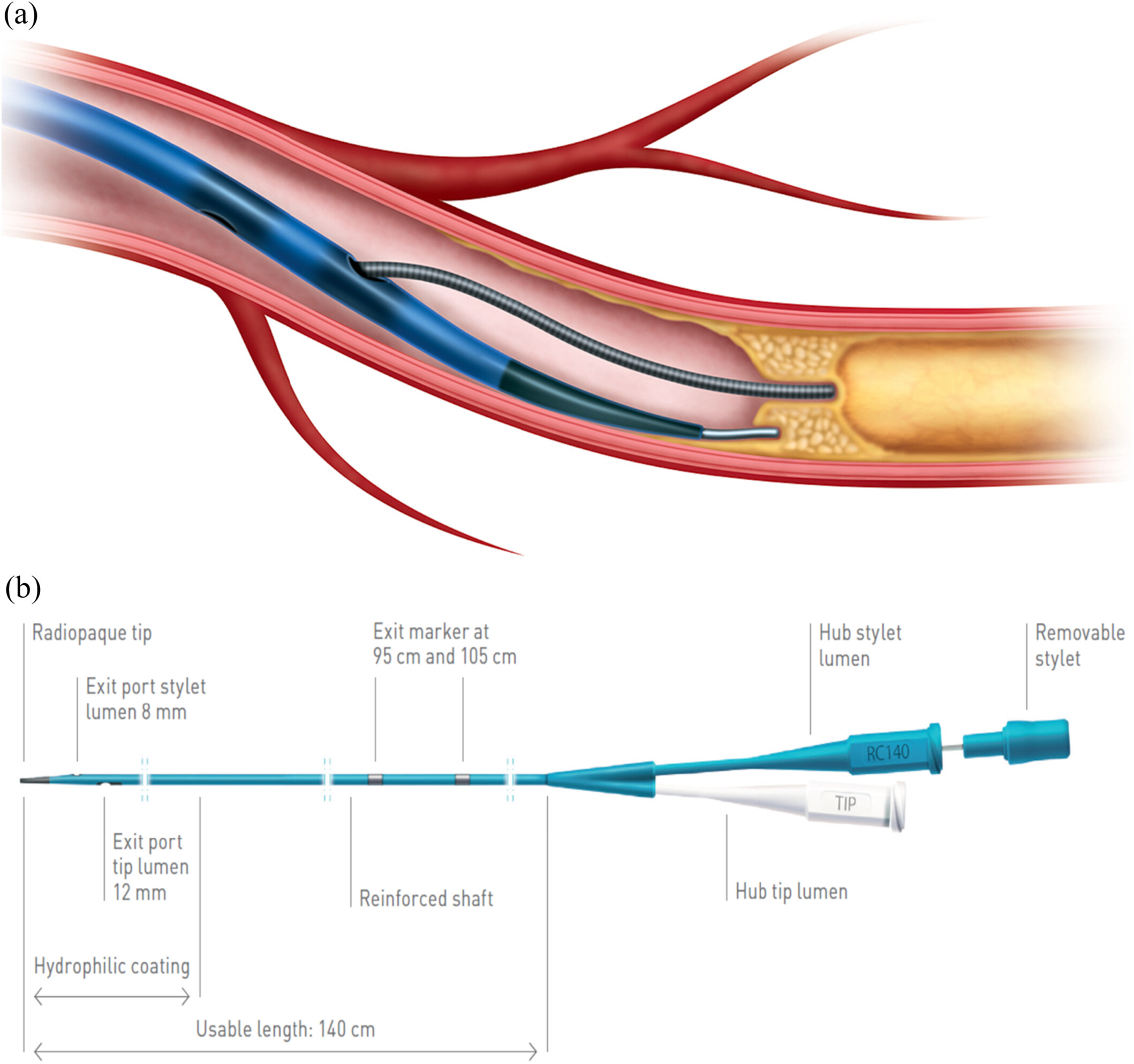

The ReCross device (IMDS, Roden, The Netherlands) is a uniquely modified true dual-lumen microcatheter with two over-the-wire lumens (Figure 1). Along with the usual distal tip exit port, it features two closely positioned side-exit ports near its distal end, oriented 180° apart, enabling controlled guidewire redirection [10]. With its unique design incorporating three exit ports, the device holds significant potential for application across all facets of antegrade CTO PCI. Nevertheless, there exists limited published data investigating its efficacy. The objective of our study was to analyze the efficiency and outcome of the ReCross device, following an agreed step-by-step protocol in contemporary CTO PCI, based on our firsthand experience.

2 Methods

2.2 Study Design

The primary objective of the study was to conduct an analysis of the technical success, and patient outcomes associated with the use of ReCross microcatheter during CTO PCI as the upfront primary strategy. Given the limited availability of published data beyond expert opinions, the discretion to employ ReCross as the initial approach was left to the operators.

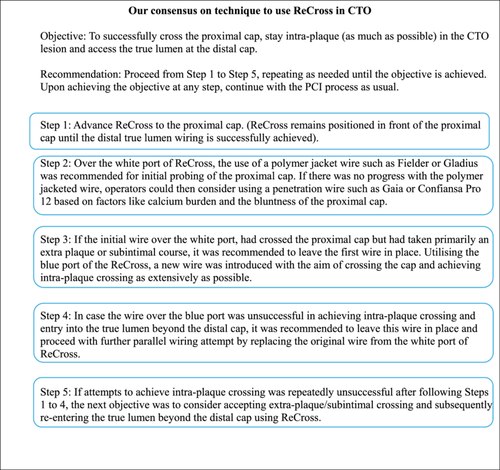

An agreed consensus among the operators on the use of ReCross in tackling CTO for this study is summarized in Figure 2. The TrapIT (IMDS, Roden, The Netherlands) was the preferred device for securing guiding wires within catheters, facilitating an effective exchange of microcatheters.

The selection and sequence of wiring techniques and guidewire choice were completely at the discretion of the operators. In the case of procedural failure, alternative strategies such as antegrade dissection re-entry (ADR) or retrograde approaches were left to the operators' judgment.

The patients were followed up until their discharge from the hospital, and then either through a clinical visit or a telephone interview. All authors confirm the accuracy and completeness of the data and analyses, as well as the adherence to the trial protocol in this report. Informed consent was obtained from all patients.

3 Results

A total of 118 patients who underwent CTO PCI across eight centers from June 2023 to April 2024 were included in the study. The majority of cases (94%) were successfully resolved using an upfront ReCross strategy, demonstrating a high level of effectiveness.

4 Discussion

In the absence of randomized trials, the selection of crossing strategies for CTOs primarily depends on various scoring evaluations and the application of the “hybrid algorithm.” Additionally, individual preferences, local device availability, and clinical experience significantly influence decision-making in this context. AWE stands as the most prevalent CTO strategy, offering distinct advantages in terms of simplicity and widespread accessibility. Notably, AWE serves as the final crossing strategy in approximately 50% of cases across various contemporary CTO PCI registries [1, 3, 11, 12]. Nevertheless, the treatment of more complex CTOs often necessitates the adoption of advanced crossing strategies, such as parallel wiring, dissection or re-entry techniques, and the retrograde approach.

ReCross microcatheter, by design, presents unique features that set it apart from other dual-lumen microcatheters. Notably, it features a distal exit port and two lateral ports positioned 180° opposite to each other. This configuration provides the operator with multiple wiring options and allows the simultaneous use of two CTO wires without necessitating any additional maneuvers. It enhances support with anchoring wire, allows the opportunity to repuncture the proximal cap without additional steps, and offers a 360° vessel access capability [10]. In addition to its role in preserving and treating bifurcated coronary branches within or in proximity to the CTO, ReCross enables “modified” parallel wiring, ADR, collateral selection, and managing subintimal hematoma [13]. It is important to note that the ReCross differs from the traditional parallel wiring technique. It utilizes antegrade dual access (ADA) instead of the conventional parallel wiring, which typically involves two single-lumen microcatheters. This distinction is significant as it eliminates the cumbersome nature associated with the classic parallel wiring approach. This device has a hydrophilic coating and a distal oval shaft, as well as a removable stylet that increases pushability, making it easier to pass through and beyond the CTO body.

Table 5 presents a comparison of recent studies employing mainly antegrade strategy with our own study. The angiographic characteristics and lesion complexity across these studies were found to be comparable. However, direct comparison of the reasons and rates of conversion to alternative strategies such as ADR and retrograde is constrained by inherent limitations, including potential case selection bias and primary intent to treat bias. Nevertheless, these findings offer valuable insights into real-world experiences with similar cases. In comparison to patients undergoing antegrade-only procedures, those undergoing retrograde CTO PCI exhibit a higher probability of having a previous history of MI, prior CABG, and peripheral arterial disease [14, 15]. The lesions necessitating the use of retrograde techniques are characterized by greater technical complexity, as indicated by higher J-CTO scores, longer occlusion lengths, increased calcification, and tortuosity. Consequently, procedures involving retrograde techniques entail prolonged durations, elevated radiation exposure, and increased contrast utilization in comparison to antegrade-only procedures [16].

In recent years, it is evident that modern CTO PCI procedures have demonstrated improved safety and efficiency while maintaining technical success rates. Additionally, data from the PROGRESS-CTO registry shows a significant drop in the retrograde approach from 39% (2012−2016) to 29% (2017−2019) [14-16]. Despite a reduction in the use of retrograde techniques, there has been no discernible impact on the rates of technical and procedural success. Moreover, there has been a marked decrease in in-hospital MACE, procedure duration, as well as the use of radiation and contrast [16].

The success rate using the ReCross device in an open-label registry from the UK involving consecutive patients undergoing CTO PCI with ReCross was found to be close to 95%, even when necessitating conversion to ADR [17]. Their study indicated that ReCross was utilized for re-entry in 29% of cases, with a success rate of 73% in those instances. The analysis of cases where controlled re-entry failed revealed that the primary causes were the inability to puncture the true lumen and, in approximately 10% of cases, failure to deliver the ReCross. The findings of our study align with these results, demonstrating that ReCross enhances the likelihood of success with the antegrade technique and is applicable for controlled re-entry in ADR cases.

The average procedure time observed in our study was notably lower in comparison to other similar studies (Table 5). We attribute this increased efficiency and high success rate in our study to the algorithmic utilization (Figure 2) of the ReCross device. Furthermore, we conducted a detailed analysis of our cases to identify factors influencing procedure time. We categorized all cases into two groups, namely “< 60 min” and “> 60 min,” to ascertain differences between them. The findings (Table 6a) revealed a correlation between an increased J-CTO score and longer procedure times, with a higher utilization of IVUS observed in the “> 60 min” group. Notably, an in-depth review of cases exceeding 90 min, as depicted in our analysis (Table 6b), unveiled that a higher calcium burden, longer lesions, and higher J-CTO score were associated with prolonged procedure durations. Additionally, there was an increased utilization of guidewires and a greater number of stents associated with prolonged procedure durations.

In terms of deliverability, only 12 (10.9%) cases in our study experienced difficulty in delivering the ReCross device, even after pre-dilatation. Moreover, ReCross requires a minimal learning curve to optimize its use, potentially leading to cost reductions when implemented as an upfront strategy. The new algorithm for the use of the ReCross microcatheter in this study has proven effective and successful in our initial experience, providing a foundational basis for broader clinical trials.

5 Conclusions

Our initial experience with the ReCross microcatheter suggests that, in selected cases and with the application of a dedicated algorithm, the anterograde approach can be highly successful. This success was achieved through a broad repertoire of techniques, including AWE, conventional or parallel wiring techniques, and ADR. However, further studies are needed to validate these findings on a larger scale.

Clinical Perspectives

Safety and efficiency are key in CTO PCI. While ReCross offers unique benefits in antegrade CTO PCI, data on its overall effectiveness is limited. Our algorithm using ReCross has shown improved success and efficiency, but more research is needed to confirm these results on a larger scale.

Conflicts of Interest

Mohamed Ayoub reports consulting/speaker/proctoring institutional honoraria from Asahi Intecc, Biotronik, Boston Scientific, Cardinal Health, Cordis, Medtronic, Teleflex, Terumo, IMDS and Abiomed. Abdul Mozid has received speakers fees from IMDS and Biotronik. Xavier Millan has received honoraria and consulting fees from Biotronik. Claudiu Ungureanu reports consulting/speaker honoraria from Abbott Vascular, Biotronik, Boston Scientific, IMDS, Medtronic, Top Medical, and Teleflex; research support: Boston Scientific, Abbott Vascular. The institution of Johan Bennett receives a research grant from Shockwave IVLS, Johan Bennett receives institutional consulting fees from Biotronik AG, Elixir and Boston Scientific, speaker fees/honoraria from Biotronik AG, Elixir, Boston Scientific and Abbott Vascular, participates in the advisory boards of Boston Scientific and Elixir, and has a leadership or fiduciary role for Biotronik. Alexandre Avran reports proctoring for Boston Scientific, Asahi, Abbott, and Biotronik. The other authors declare no conflicts of interest.
