α-Substituted five- and six-membered ring saturated sulfur heterocycles such as tetrahydrothiophene, tetrahydrothiopyran and thiomorpholine feature in natural products, chiral catalysts and potential pharmaceuticals (Figure 1). Famous natural products include Fleming's original antibiotic penicillin G¹ and biotin (vitamin B₇)² which is widely used for protein biotinylation in biochemical assays. Enantiopure five-membered ring sulfide 1 and related sulfides have been used in a range of asymmetric reactions.^3-5 Furthermore, tetrahydrothiophene derivative 2 is a potent CXCR (Chemokine receptor) antagonist in inflammation models and is being developed to treat acne;⁶ disubstituted thiomorpholine 3 is an orexin antagonist and has been explored for use in the treatment of neurological disorders.⁷

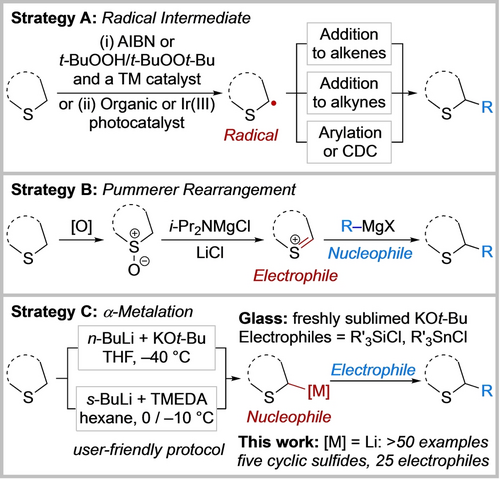

The saturated sulfur heterocycles in 1, 2 and 3 were all crafted by cyclisation of a pre-functionalised substrate with the early introduction of the substituent α to sulfur. This is one of the most common routes to α-substituted sulfur heterocycles. In contrast, approaches where an α-substituent is directly appended onto an intact saturated sulfur heterocycle, with the potential for synthetically versatile later-stage functionalisation, is a much less-represented approach. Such methods include the generation of radical intermediates and subsequent addition to alkenes⁸ or alkynes,⁹ or cross-dehydrogenative coupling (CDC),¹⁰ including photocatalysis¹¹ (Scheme 1A).

Alternatively, α-substituted thioethers can be accessed via oxidation of the cyclic sulfide to a sulfoxide and subsequent Pummerer type rearrangement using turbo-Hauser bases and Grignard reagents as nucleophiles (Scheme 1B).^{12, 13} Finally, Schlosser's base-mediated direct α-metalation/trapping of cyclic sulfides was reported by Liu and Glass (Scheme 1C).¹⁴ This method required use of freshly sublimed potassium tert-butoxide, had a limited electrophile scope and was carried out at −40 °C due to the instability of the metalated tetrahydrothiophene (see below). In two different metalation routes, Mulvey et al. prepared and characterised (X-ray crystallography/NMR spectroscopy) magnesiated¹⁵ and aluminated tetrahydrothiophene¹⁶ although electrophilic trapping proved challenging. Such metalation approaches¹⁷ build on the pioneering work by Gilman, Wittig, Corey, Seebach and Peterson in the 1940–60s on the α-lithation of dimethylsulfide and thioanisole.¹⁸ Allylic and cyclopropyl-containing acyclic sulfides have also been successfully lithiated and used in synthesis.¹⁹ However, it is notable that the metalation of cyclic sulfides is limited to those described by Liu and Glass¹⁴ and Mulvey et al.^{15, 16} Building on our experience with the α-lithiation/trapping of N-Boc heterocycles,^{20, 21} a general and experimentally simple lithiation/trapping protocol at near-ambient temperatures (0/−10 °C) is now reported (Scheme 1C). We present more than 50 examples across five different cyclic sulfides and 25 electrophiles, including application to the core scaffold present in CXCR antagonist 2.

To start, the lithiation/trapping of tetrahydrothiophene 4 was explored using 1.3 eq. s-BuLi/TMEDA (N,N,N′,N′-tetramethylethylenediamine) in hexane at the operationally simple temperature of 0 °C for 1 h. Subsequent trapping with PhMe₂SiCl delivered α-silyl tetrahydrothiophene 7 a in 86 % yield (Scheme 2A, entry 1, optimised conditions). Hexane was selected as the reaction solvent due to its inertness towards lithiation compared to typical ethereal solvents (e.g. THF) and toluene, given that relatively high temperatures were employed. Reducing the reaction time to 20 min resulted in a lower conversion to 7 a (66 %, entry 2) and use of n-BuLi/TMEDA (0 °C, 1 h) was unsuccessful (entry 3), presumably as a result of its lower basicity. The high yield of 7 a at 0 °C indicates that lithiated tetrahydrothiophene has good stability at this temperature in hexane over 1 h (entry 1). Conversely, Glass showed that use of Schlosser's base in THF at 5 °C for 1 h resulted in complete decomposition of the metalated tetrahydrothiophene by a retro-[3+2] ring fragmentation¹⁴ which may be a result of the formation of an unstable potassiated tetrahydrothiophene.

Optimisation of the lithiation/trapping of tetrahydrothiopyran 5 (Scheme 2B) commenced using the optimal conditions for lithiating tetrahydrothiophene 4, namely 1.3 eq. s-BuLi/TMEDA in hexane at 0 °C for 1 h. Trapping with a phenyl Weinreb amide gave α-keto tetrahydrothiopyran 8 a in 45 % yield (entry 1). Increasing the lithiation time to 2 h gave a slight improvement (58 % of 8 a, entry 2). These results suggested that lithiation was likely incomplete at 0 °C for 2 h; increasing the amount of s-BuLi/TMEDA to 2.0 eq. gave 8 a in much improved yields of 85 % and 91 % at 1 h and 2 h lithiation times respectively (entries 3 and 4). Lithiation at 0 °C for 2 h represents the optimised conditions (entry 4).

Finally, we investigated the lithiation/trapping of N-methyl thiomorpholine 6 (Scheme 2C). Using 1.3 eq. s-BuLi/TMEDA in hexane at 0 °C for 1 h, and trapping with benzaldehyde, gave a 50 : 50 mixture of diastereomeric α-hydroxy thiomorpholines 9 a in only 16 % yield (entry 2). The lithiated species appeared to be unstable; a 32 % yield of 9 a was obtained after lithiation at 0 °C for a shorter lithiation time (15 min) (entry 1). Thus, we speculated that lithiation at a lower temperature may increase the stability of the lithiated intermediate. Indeed, reducing the lithiation temperature to −10 °C (1 h) significantly improved the yield of 9 a to 82 % (entry 3). Although 9 a was formed as a 50 : 50 mixture of diastereomers, we were successful in growing a crystal of only one diastereomer, syn-9 a, for X-ray crystallographic analysis²² (see Supporting Information). This revealed that the lithiation was completely regioselective—there was no lithiation α to nitrogen. Increasing the lithiation time to 2 h gave optimal conditions with 9 a isolated in 86 % yield (entry 4), whereas 9 a was obtained in only 60 % yield with a lithiation time of 15 min, (entry 5). A comparison between lithiation of tetrahydrothiopyran 5 and N-methyl thiomorpholine 6 at −10 °C revealed a faster rate of lithiation of thiomorpholine 6 based on the yields of trapped products 8 a (61 %, Scheme 2B, entry 5) and 9 a (86 %, Scheme 2C, entry 4) respectively. A similar activating effect of an amino group can be identified from a comparison of the relative rates of lithiation of N-Boc piperidine and N-Boc piperazines.^{21b, 21f} Of note, use of a substoichiometric amount (0.3 eq.) of TMEDA with a longer lithiation time of 3 h gave 9 a in 87 % yield (entry 6). The successful use of substoichiometric TMEDA is remarkable as the diamine ligand (TMEDA in this case) usually remains coordinated to the lithiated species and is unavailable for further lithiation processes.²³ We propose that lithiated N-methyl thiomorpholine can dimerise (or oligomerise) to generate a stable higher order aggregate which frees up TMEDA and this is then available to coordinate to more s-BuLi for further lithiation events. Alternatively, the amine in the thiomorpholine may also act as a ligand to aid deaggregation. Such effects appear to be specific to thiomorpholine 6 as the same effect was not observed with tetrahydrothiophene 4: use of 0.3 eq. of TMEDA gave the trapped adduct in 31 % yield showing that TMEDA was not turned over in this reaction (Scheme 2A, entry 4).

With optimised reactions in hand, the electrophile scope of the lithiation/trapping of 4–6 was investigated. Trapping of lithiated tetrahydrothiophene 4 with a range of electrophiles worked well. Electrophiles with a carbonyl group were well tolerated with benzaldehydes giving alcohols 7 b (87 %, 60 : 40 dr) and 7 c (62 %, 50 : 50 dr). N-Benzyl piperidinone gave tertiary alcohol 7 d in 61 % yield, and silyl protected estrone gave 7 e (85 : 15 dr, unidentified relative stereochemistry α to sulfur).²⁴ Primary alcohol 7 g (78 % yield) was obtained using paraformaldehyde. Use of phenyl Weinreb amide gave ketone 7 f in 84 % yield. When trapping with CO₂, 2.2 g (83 % yield) of acid 7 h was isolated. In this case, trapping with CO₂ was initially carried out at −78 °C to mitigate any potential exotherms. Trapping with a sulfinamide, followed by acidic hydrolysis, gave amine 7 i in 81 % yield (65 : 35 dr). Next, α-aryl tetrahydrothiophene 7 j was obtained in 54 % yield after transmetalation of the organolithium to an organocuprate using CuCN ⋅ 2LiCl, followed by reaction with diphenyliodonium hexafluorophosphate (PhI₂PF₆).²⁵ Nucleophilic substitution of alkyl halides (n-pentyl iodide, allyl bromide and benzyl bromide) gave alkylated products 7 k, 7 l and 7 m in 50 %, 48 % and 38 % yields respectively. Finally, trapping with i-PrOBpin and Bu₃SnCl gave 7 n (51 % yield) and 7 o (84 % yield) respectively.

Similarly, lithiation/trapping of tetrahydrothiopyran 5 worked well with a range of electrophiles (Scheme 2E), giving 8 a–8 l in 39–91 % yields. Trapping with aryl aldehydes showed negligible diastereoselectivity to give alcohols 8 b (62 %, 55 : 45 dr) and 8 c (52 %%, 60 : 40 dr) respectively. In contrast, use of N-benzylidene tert-butylamine gave a single unidentified amine 8 e in 71 % yield. Carbonyl-containing products were obtained with a Weinreb amide, t-butyl isocyanate and CO₂. Ketone 8 a (91 %) and amide 8 d (89 %) were formed in high yields. With CO₂, 2.5 eq. tetrahydrothiopyran 5 was used to aid separation from by-products; this gave a moderate yield of acid 8 f (39 %). Transmetalation of the lithiated species to boron and tin gave 8 k (64 %) and 8 l (87 %) in good yields; transmetalation to form a cuprate using CuCN ⋅ 2LiCl, and subsequent coupling with PhI₂PF₆ effected α-arylation to give 8 g in 50 % yield.

Next, the scope of the lithiation/trapping of N-thiomorpholine 6 using both stoichiometric and substoichiometric TMEDA was studied (Scheme 2F). With stoichiometric TMEDA, trapping with ketones/aldehydes gave 9 a–9 e (39–83 %). Allyl thiomorpholine 9 f was isolated in 55 % yield using allyl bromide and silane 9 g was generated in 72 % yield with PhMe₂SiCl. Under substoichiometric conditions, 9 h–9 k were obtained in 45–61 % yields and n-pentyl thiomorpholine 9 l was isolated in 35 % yield from trapping with n-pentyl iodide.

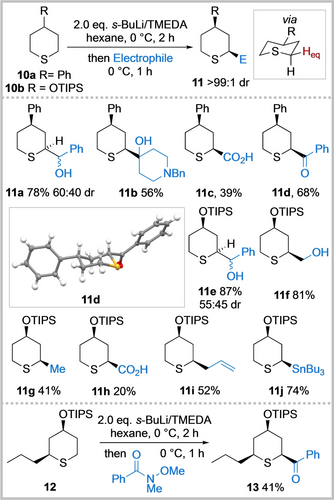

To explore the potential for diastereoselectivity, the lithiation and trapping of 4-phenyl and 4-OTIPS tetrahydrothiopyrans 10 a and 10 b was investigated. Using the conditions developed for the lithiation/trapping of unsubstituted tetrahydrothiopyran 5, disubstituted cis-2,4-tetrahydrothiopyrans 11 were isolated as single diastereomers (Scheme 3). Trapping with a range of electrophiles including benzaldehyde, N-benzyl piperidin-4-one, CO₂, phenyl Weinreb amide, paraformaldehyde, Me₂SO₄, allyl bromide, i-PrOBpin and Bu₃SnCl worked well to give 2,4-cis adducts 11 a–11 j in 20–87 % yields. Using phenyl Weinreb amide as the electrophile, ketone 11 d was obtained in 68 % yield and the 2,4-cis relative stereochemistry was confirmed by X-ray crystallography.²² The stereochemistry of the other disubstituted tetrahydrothiopyrans was assigned by analogy and confirmed in most cases through analysis of the ³J values in the ¹H NMR spectra. We postulate that the high degree of cis-stereoselectivity results from 10 a and 10 b adopting a chair conformation with the 4-substituent in the equatorial position together with the preferential lithiation of an equatorial proton α to sulfur followed by retentive trapping. A similar model is well-established for the lithiation/trapping of 4-substituted N-Boc piperidines.²⁶ However, as the lithiation of tetrahydrothiopyrans 10 a and 10 b was carried out at 0 °C, an axial deprotonation and subsequent equilibration to an equatorially-disposed thermodynamically preferred lithiated species (due to a configurationally unstable lithiated species) cannot be ruled out. Finally, cis-2,4,6-trisubstituted tetrahydropyran 13 was isolated in 41 % yield as a single diastereomer from cis-2,4-disubstituted substrate 12 (obtained from hydrogenation of 11 i, see Supporting Information) and trapping with a Weinreb amide. Presumably, the 2,4,6-cis selectivity follows a similar model to that for forming 2,4-cis 11, with lithiation occurring at the least hindered α -position.

Finally, to demonstrate the value of the products obtained from the direct lithiation/trapping of saturated cyclic sulfides, a target synthesis and two functionalisations of the trapped products were explored. For example, we applied the methodology to a new route to amino sulfide 15, a key intermediate in the synthesis of CXCR antagonist 2 (see Figure 1).⁶ Thus, tetrahydrothiophene 4 was lithiated under standard conditions and trapped with the Weinreb amide of 2-methyl furan to give ketone 7 p in 72 % yield (Scheme 4A). Condensation with Ellman's sulfinamide gave separable diastereomeric sulfinyl imines 14 a and 14 b in 40 % and 38 % yields respectively. Next, reduction of the imine functionality of 14 b using 9-BBN (9-borabicyclo[3.3.1]nonane)⁶ occurred with complete diastereoselectivity and subsequent amine deprotection under acidic conditions gave 15 (97 : 3 er) in 88 % yield over the two steps. The relative stereochemistry was established since 15 had identical ¹H and ¹³C NMR spectroscopic data to those reported⁶ and they were different to those data for the HCl salt derived from 14 a. In terms of distinct reactions, our approach is more concise than the previous approaches although those routes did deliver kg-scale quantities of 15.⁶ To show the value of the lithiation/trapping products, pinacol boronate 7 n was arylated using Aggarwal's transition-metal free stereospecific cross-coupling of secondary boronic esters with aryl organolithiums (Scheme 4B).²⁷ Addition of boronate 7 n to 2-lithiofuran followed by reaction with NBS (N-bromosuccinimide) delivered α-furyl tetrahydrothiophene 7 q in 42 % yield. Similarly, α-N-methyl indole tetrahydrothiophene 7 r was obtained in 38 % yield. In addition, MacMillan's photoredox-mediated decarboxylative arylation of amino acids²⁸ using aryl cyanides was deployed to access additional arylated cyclic sulfides (Scheme 4C). Exposure of tetrahydrothiophene carboxylic acid 7 h and aryl nitriles to a compact fluorescent light source in the presence of an iridium photocatalyst and CsF gave aryl sulfides 7 s and 7 t in 69 % and 71 % yields respectively. Similarly, tetrahydrothiopyran 8 f gave the α-pyridyl analogue 8 m in 39 % yield.

In summary, we have developed a general and experimentally simple method (at 0/−10 °C) for the lithiation/trapping of tetrahydrothiophene 4, tetrahydrothiopyrans 5 and 10 and N-methyl thiomorpholine 6. The efficient lithiation/trapping of N-methyl thiomorpholine 6 using substoichiometric TMEDA is a rare example of the use of substoichiometric diamine in lithiations. In total, more than 50 examples of functionalising five different sulfur heterocycles are presented. Synthesis of an advanced intermediate of the CXCR antagonist 2 and arylation of trapped products highlights the synthetic utility of the readily accessible α-substituted five- and six-membered ring saturated cyclic sulfides. Our methodology provides access to a range of α-substituted cyclic sulfides that are not easily synthesised by the currently available methods, especially those that proceed via a radical α to sulfur (Scheme 1A).
