A Striking Mode of Activation of Carbon Disulfide with a Cooperative Bis(silylene)

Introduction

The activation of small molecules offers numerous possibilities to synthesize functional organic compounds. While the activation of small molecules used to be a domain of transition-metals (TMs), during the last decade, it has been shown that even unactivated substrates such as H₂, CO and N₂ can be transformed without the mediation of TMs, representing a major achievement in main-group chemistry.¹ Especially low-valent main-group element compounds such as silylenes were found to be capable of activating numerous simple substrates such as O₂, N₂O, S₈, P₄, NH₃, CO₂, H₂ and CO.^{2, 3} Since the first report of an isolable N-heterocyclic silylene (NHSi) by West and Denk in 1994,⁴ a wide range of cyclic, acyclic and base-stabilized silylenes were synthesized.^{2, 5} Featuring a lone-pair of electrons and a vacant 3p-orbital at the silicon center, silylenes are known to exhibit a Lewis amphoteric behavior in which both the Lewis acidic as well as the Lewis basic centers are located at the Si^II atom. Bridged bis(N-heterocyclic silylenes) [bis(NHSis)] with two silylene moieties present in a single molecule were shown to act as very electron-rich donors in metal-mediated homogeneous catalysis and in metal-free cooperative activation of small molecules (Figure 1, top). Furthermore, bis(NHSis) are suitable to stabilize unusually low oxidation states of main-group elements such as zero-valent single silicon and germanium atoms in silylones and germylones, respectively.⁶

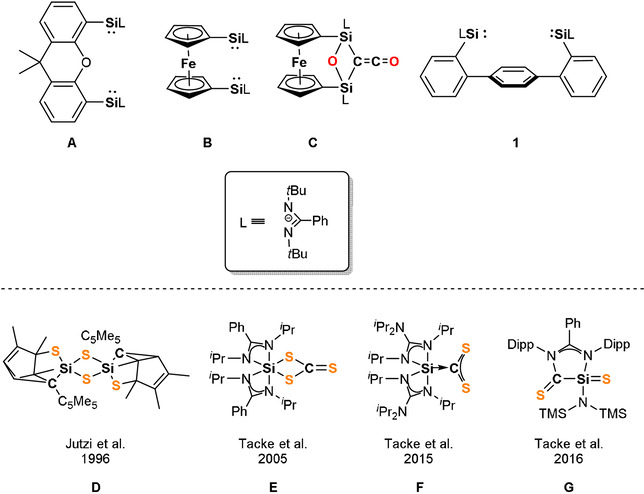

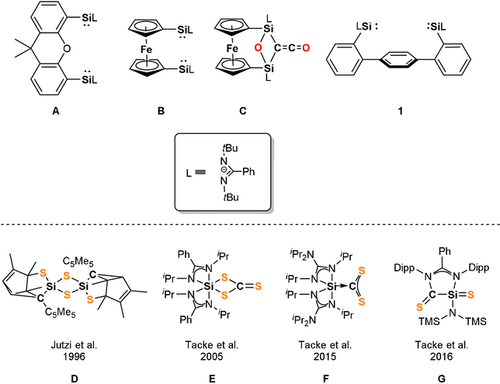

Very recently, we reported the isolation of a bis(NHSi)-stabilized diphosphorus compound acting as P⁻ transfer reagent and the cooperative activation of CO by the bis(NHSis) A and B leading to disilaketenes such as C, which react with NH₃ or primary amines to afford acetamides.⁷ For the latter, it turned out that cooperativity of the bis(NHSis) is key to bring about unprecedented activation modes of CO, resulting in a bis(NHSi)-μ(CO) complex in the first step of activation.⁸ Activation of CO₂ with mono-silylenes was intensively studied⁹ and very recently, cooperativity of bis(NHSis) towards activation of CO₂ could also be observed for A yielding a cyclic bis(silylated) carbonate.^10b Hereby, depending on the hybridization/stabilization of the Si atom, elusive silanones are formed as transient intermediates which undergo fast dimerization to cyclic disiloxanes or formation of silyl carbonates from the reaction with an additional CO₂ molecule.^{9, 10a}

CS₂, a heavy chalcogen homologue of CO₂, is another versatile building block. It is used for the industrial production of viscose fibers from cellulose and as precursor for the synthesis of CCl₄ and thiourea in large quantities.¹¹ Furthermore, CS₂ is employed as a convenient C₁ building block for C,S-containing compounds in organic chemistry.^{11, 12} With respect to the reactivity of low-valent silicon compounds towards CS_2, Jutzi discovered the formation of a dithiasilethane D from the reaction of decamethylsilicocene and CS₂.¹³ More recently, the Tacke group showed that mono-NHSis lead to the isolable NHSi→CS₂ adduct F as a proposed key intermediate for a variety of sila-C,S-containing heterocycles D, E and G.^14-16 We wondered whether the two silylene groups in bis(silylene)terphenylene 1 are cooperative in the activation of CS₂.

Herein, we report the cooperativity of the two silylene groups in 1 towards CS₂, affording the unusual de-aromatization product 2 via intramolecular cycloaddition of a reactive silene intermediate to the phenylene ring (Scheme 1). Furthermore, we invesitigated the reactivity of the new biphenyl-substituted thiasilirane 4, synthesized from the corresponding mono-silylene 3 and CS₂ (Scheme 2) and its transformation to the novel mesoionic five-membered Si₂S₂C heterocyclic compound 6 (Scheme 3).

Results and Discussion

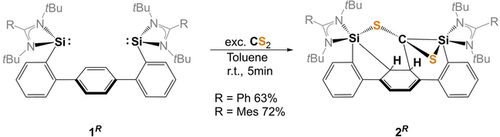

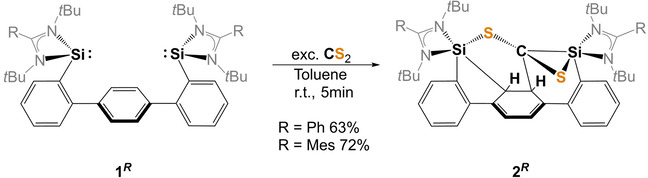

Exposure of bis(NHSis) 1^Ph and 1^Mes in toluene to CS₂ at room temperature led to the selective formation of the highly asymmetric coupling products 2^Ph and 2^Mes, which could be isolated in 63 and 72 % yields as yellow solids, respectively (Scheme 1).

The composition and connectivity of the products was confirmed by HR-ESI mass spectrometry, multinuclear NMR spectroscopy and, in the case of 2^Mes, by a single crystal X-ray structure analysis, revealing the unexpected de-aromatization of the phenylene ring. However, suitable single crystals of 2^Ph could not be obtained.

As expected, the ²⁹Si NMR spectrum of 2^Ph exhibits two singlets at δ=−114.3 (Si1) and −35.7 ppm (Si2) which were assigned by means of a ¹H,²⁹Si-HMQC NMR spectrum. The formation of 2^Ph is further supported by the appearance of two new high-field shifted ¹³C resonances in the ¹³C-NMR spectra at δ=35.7 and 43.7 ppm corresponding to the C(sp³) carbons of the cyclohexa-1,3-diene unit in 2^Ph. The related ¹H resonances appear at δ=3.11 (d, ³J_H,H=11.0 Hz) and 2.23 ppm (dd, ³J_H,H=11.0 Hz, ⁴J_H,H=3.3 Hz) in the ¹H-NMR spectrum. The C(sp²)-H protons resonate at δ=6.60 (dd, ³J_H,H=5.8 Hz, ⁴J_H,H=3.3 Hz) and δ=6.36 ppm (d, ³J_H,H=5.8 Hz) with coupling to ¹³C(sp²) nuclei as shown in the ¹H,¹³C-HSQC NMR spectrum at δ(¹³C)=115.1 and 123.8 ppm. The chiral, quaternary C1 nucleus of 2^Ph appears in the ¹³C-NMR spectrum at δ=43.9 ppm (2^Mes: 42.1 ppm) which could be assigned with ¹³C-DEPT and ¹H,¹³C-HMBC NMR spectra. The structural similarity of 2^Ph and 2^Mes is given based on consistent NMR spectroscopic and HR-ESI mass spectrometric features (see Supporting Information).

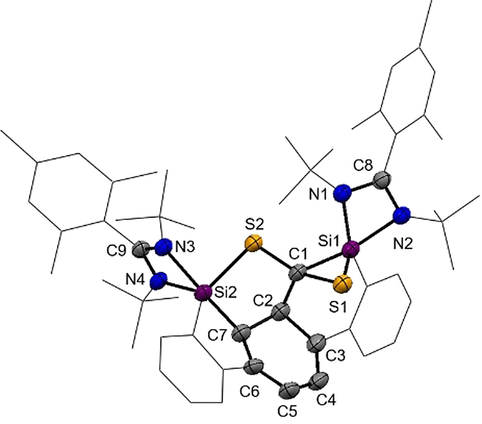

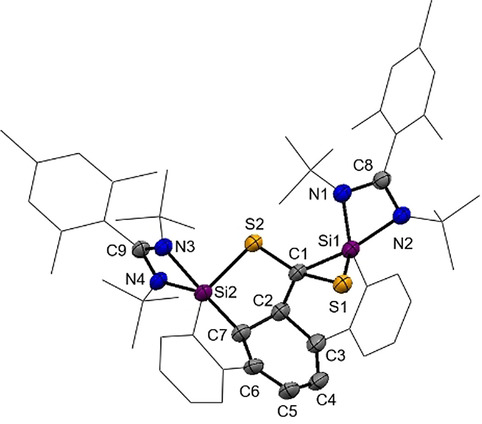

Single-crystals suitable for an X-ray diffraction analysis of 2^Mes were obtained in concentrated toluene solutions at room temperature (Figure 2). The compound crystallizes as yellow rods in the triclinic space group with one molecule 2^Mes and two toluene molecules in the asymmetric unit cell. Compound 2^Mes has a highly unsymmetrical structure containing a cyclohexa-1,3-diene unit. It features a new C−C and Si−C single bond with the C1-C2 distance of 1.543(5) Å and Si2-C7 distance of 1.924(3) Å, respectively. In line with the presence of a cyclohexa-1,3-diene, the C3-C4 (1.356(5) Å) and C5-C6 (1.349(5) Å) bond distances are much shorter compared to the C2-C7 bond distance with 1.524(4) Å for a C−C single bond. The Si-S bond distances of d(Si1-S1)=2.1455(12) Å and d(Si2-S2)=2.1817(11) Å are both in the range of a Si-S single bond.^{17, 18} The obtained Si−S/C−S and Si−C bond distances of the silylcyclopentene and silacyclohexene units are in accordance with the reported bond distances from the literature.^13-16 The formation of a 1-thia-2-silacyclopentane unit in D (Figure 1) was also ascribed by Jutzi et al. starting from decamethylsilicocene and CS₂.¹³ In contrast to the isolated dithiasilethane E and silathione I, no C-S bond cleavage did occur.

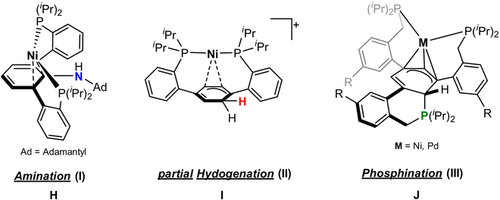

De-aromatization is a fundamental process in organic and metalorganic chemistry allowing further functionalization of aromatic compounds.¹⁹ In comparison to heteroatom containing cyclic arenes (e.g., thiophene, pyridine), benzene exhibits the highest resonance energy of 36 kcal mol⁻¹.²⁰ Based on terphenyl-supported bis(phosphine)nickel complexes, Agapie et al. reported on the amination²¹ and partial hydrogenation of the central phenylene unit (Figure 3).²² Similarly, the phosphination based on a tris(phosphine)metal complex (M=Ni, Pd) was also reported by this group.²³ However, a metal-free, silicon-based de-aromatization yielding a cyclohexa-1,3-diene is unprecedented.

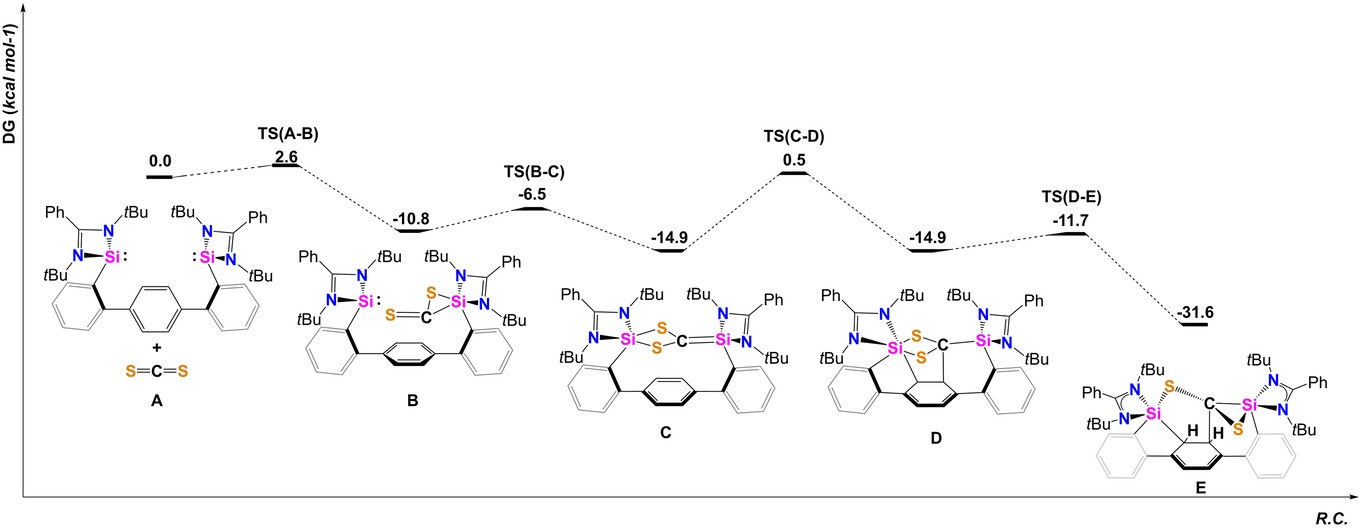

To further elucidate the mechanism leading to this unexpected de-aromatization at room temperature, affording compound 2, Density Functional Theory (DFT) calculations were performed suggesting the formation of a reactive silene as key intermediate.²⁴ The DFT-derived mechanism (Figure 4) leading to 2^Ph includes the initial formation of a NHSi→CS₂ adduct B from which the reactive silene intermediate C (ΔG=−14.9 kcal mol⁻¹) is formed by an intramolecular attack of the second Si^II-unit via TS(B-C) at ΔG^≠=−6.5 kcal mol⁻¹. The silene intermediate C is capable to add to one C=C bond of the 1,4-terphenyl spacer in a single step via the low barrier TS(C-D) of ΔG^≠=0.5 kcal mol⁻¹. Silenes (R₂Si=CR₂) are very reactive species which could only be observed as transient intermediates until 1981 when Brook et al. successfully isolated and characterized the first isolable silene.²⁵ Silene intermediates are known to play an important role in organosilicon synthesis and are prone to undergo [2+2] cycloaddition reactions.²⁶ After isomerization of the Si-S bond, the final product 2^Ph is formed, which can be seen as an intramolecularly trapped silene capable to de-aromatize the bridging phenylene. With ΔG=−31.6 kcal mol⁻¹, the overall reaction (A → E) is strongly exergonic and thus in accordance with experimental findings in which a selective formation of 2^Ph was observed within the first minute at room temperature.

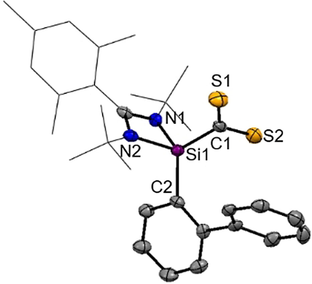

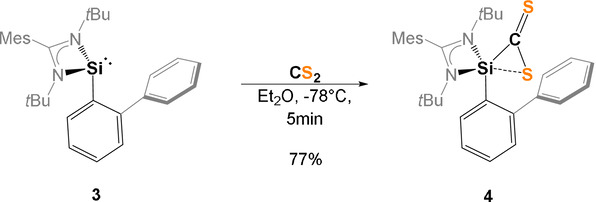

Intrigued by the striking reactivity of 1 towards CS₂, we synthesized the new biphenyl-substituted NHSi 3 to investigate whether the aromatic π-system in 3 is similarly attacked. However, this transformation led solely to the thiasilirane 4 (Scheme 2), which could be isolated as red rods in 77 % yields. Single-crystals suitable for an X-ray diffraction analysis were obtained in concentrated toluene solutions. Compound 4 crystallizes in the monoclinic space group Pc with two independent molecules in the unit cell. Its molecular structure (Figure 5) contains a three-membered SiCS-ring as central structural motif with a Si−C bond distance of 1.855(6) Å, which is in accordance with the reported Si−C bond distance of 1.843 Å in the thiasilirane N reported by Hoge et al.²⁷ and the typical Si-C distance of about 1.86 Å.²⁸ However, the Si−C bond distance in 4 is shorter compared to that in the NHSi→CS₂ adduct F (see Figure 1) reported by Tacke et al. (d(Si-C)=1.865 Å).¹⁵ Notably, the Si1⋅⋅⋅S2 distance of 2.707 Å is significantly longer than those in the related thiasiliranes K–N (see Figure 6) (2.09–2.21 Å)^{27, 29-31} and typical Si-S bond distances (2.13–2.15 Å).³²

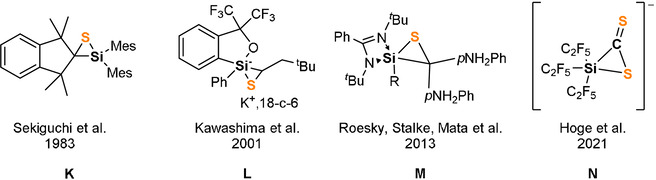

However, the Si1-S2 distance of 4 is similar to that in the anionic, pentacoordinated thiasiliranide N (d(Si-S)=2.660 Å),²⁷ suggesting a weak S2→Si1 bonding interaction. The C-S bond distances in 4 (1.657(7) and 1.667(7) Å) are in close agreement with those in N with d(C-S)=1.658(7) Å and 1.684(6) Å, respectively.

The C1 atom of 4 appears as a singlet resonance in the ¹³C-NMR spectrum at δ=274.8 ppm which is strongly low-field shifted compared to CS₂ (δ(¹³C)=192.4 ppm) and the zwitterionic carbene- and phosphine→CS₂ adducts (δ(¹³C)=219–222 ppm).³³ Tacke et al. reported for the chemically closer related NHSi→CS₂ adduct F a similar chemical shift for the C1 nucleus at δ(¹³C)=253 ppm.¹⁵ In accordance with the presence of a pentacoordinate silicon atom, the ²⁹Si nucleus in 4 is strongly low-field shifted (δ(²⁹Si)=−89.2 ppm) compared to NHSi 3 (δ(²⁹Si)=17.1 ppm). Similar low-field shifts were observed for the thiasilirane derivatives K–N (Figure 6) of δ(²⁹Si)=−70 to −118 ppm. Noteworthy, the ¹³C nucleus of the amidinato backbone in 4 resonates at lower field with δ=182 ppm (3: δ(¹³C)=157 ppm), implying a considerable zwitterionic electronic structure. Similarly, both Si−N bonds are shortened, suggesting that 4 is best described as a pentacoordinate, neutral thiasilirane with a relatively weak Si1-S2 bonding interaction (3.133(3) Å) akin to that in N. Noteworthy, 4 is not stable in solutions and slowly converts to a silathione as indicated by a color change from dark pink to deep brown upon release of CS. The formation of the silathione is further supported by heteroatom NMR spectroscopy and an X-ray diffraction analysis (see Supporting Information). Similarly, Tacke et al. reported the isolation of the silylated trithiocarbonate E (Figure 1), proposing the release of CS from a hexacoordinated NHSi→CS₂ adduct.¹⁵

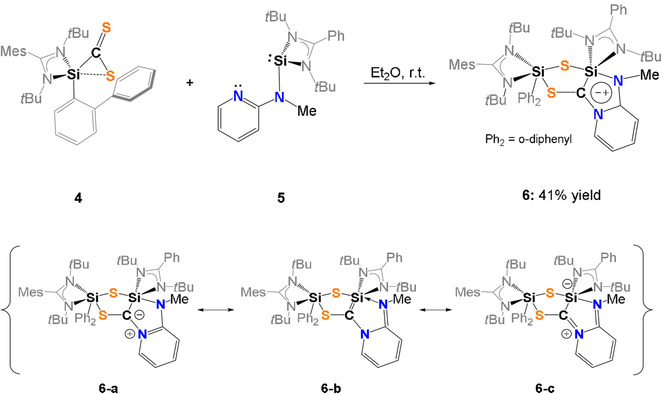

With compound 4 in hand, we wondered whether the postulated silene can be trapped upon reaction with NHSi 5 containing a (methylamino)pyridine group with an additional intramolecular N-donor site.³⁴ However, we learned that 4 acts as a C,S-transfer reagent,^{15, 27, 29-31} affording the first mesoionic heterobicyclic species of this type, compound 6, which could be isolated in 41 % yields as orange crystals from concentrated Et₂O solutions at −30 °C (Scheme 3).³⁵ In-situ NMR analysis of the reaction mixture revealed the selective formation of 6 within minutes as indicated by a color change from dark red to yellow.

The ²⁹Si NMR spectrum of 6 recorded at −50 °C exhibits two singlet resonances at high field at δ=−71.3 (Si2) and −73.4 ppm (Si1) which could be assigned with a ¹H,²⁹Si-HMQC NMR spectrum. The observed high-field shifted resonances are in line with the presence of two penta-coordinated ²⁹Si atoms, as observed in the molecular structure depicted in Figure 7.

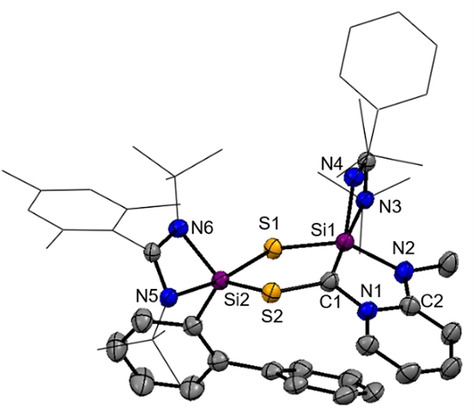

6 crystallizes in the monoclinic space group P2₁/n with one molecule of Et₂O in the unit cell. The central structural motif shows a planar CSi₂S₂-dithiadisilolane ring. The C1 atom is trigonal planar (∑=359.09°) surrounded as expected for a sp²-hybridized C-atom (Figure 7). The Si1-C1 bond distance of 1.844(3) Å is in the range of a typical Si-C single bond (1.85–1.89 Å).²⁸ The Si-S distances in 6 (see Figure 7) are akin to common Si-S bonds (2.13–2.15 Å).³² The C1-N1 (1.360(4) Å) and C2-N2 bond lengths (1.372(2) Å) are in-between typical C-N- (1.45–1.48 Å) and C=N-bonds (1.28–1.31 Å).²⁸ Comparison of the N1-C1, N1-C5 and C3-C4 distances within the pyridine unit of NHSi 5 indicates that the π-electrons are delocalized over the diazasilolidine ring (see Supporting Information), which also explains its planarity.

As mentioned above, 6 is a mesoionic heterocycle, which includes a ylidic C−N bond (see resonance structure 6 a, Scheme 3). Other resonance structures include the silylated imine 6 b and a silene form 6 c, respectively. The ylide-like structure of 6 is further supported by a NBO analysis (Supporting Information) in which the LUMO is represented by the π*(C-N) orbital.^{27, 36} Additional theoretical calculations revealed that the formation of the proposed silene-intermediate found at ΔG=30.1 kcal mol⁻¹ is most unlikely to occur.

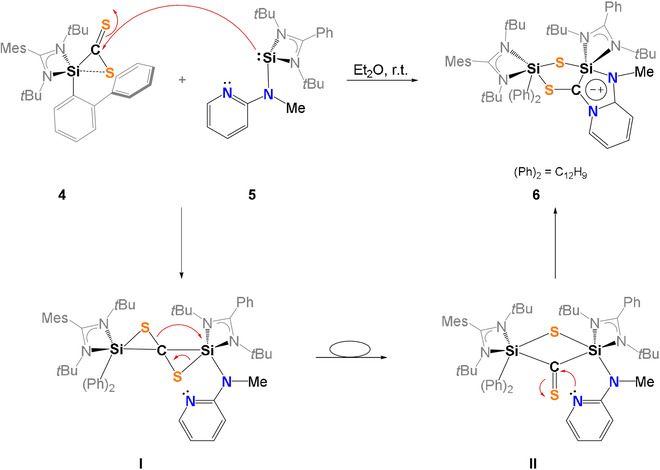

The proposed mechanism for the formation of 6 (Scheme 4) involves the formation of the 3,3′-spirobi(1,2-thiasilirane) intermediate I as previously suggested by Okazaki et al. via Si−C bond formation.³⁷ I rearranges to a bis(silyl)thioketone II containing a four-membered Si-S-Si-C ring. A comparable species was isolated by Okazaki et al. in 1996.³⁷ Nucleophilic attack of the intramolecular N-donor atom of the pyridine unit in II initiates the final rearrangement to furnish the final product 6.

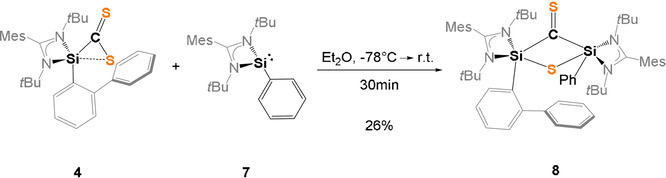

Interestingly, in the absence of an additional N-donor site, the proposed intermediate II, the bis(silylated) thione 8 could be isolated in 26 % yields as pale green crystals from concentrated Et₂O solutions at −30 °C (Scheme 5).

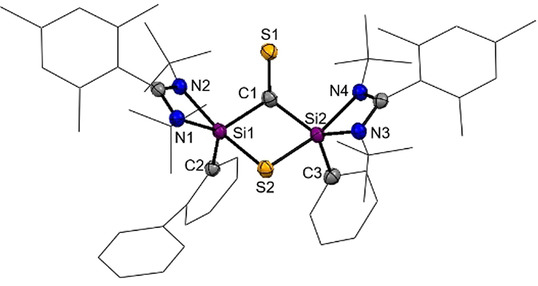

Single-crystals of 8 were obtained from the reaction mixture in C₆D₆ at room temperature. The compound crystallizes in the triclinic space group with three molecules of benzene in the asymmetric unit cell. The central structural motif is based on a non-planar, four-membered Si₂SC-ring with two penta-coordinate Si atoms (Figure 8).

The FT-IR spectrum of 8 shows a characteristic strong absorption band in the (C=S) range of 1230–1082 cm⁻¹ for thiones.³⁸ Both Si atoms show a similar ²⁹Si chemical shift of δ=−59.7 (Si2) and −67.4 ppm (Si1). The ¹³C nucleus of the C=S group appears as a singlet at δ(¹³C)=267.3 ppm.

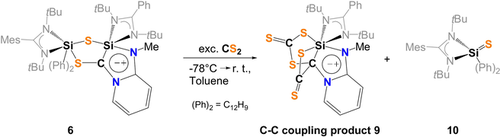

Next, the reactivity of 6 and 8 towards CS₂ was examined to address the question whether C−C bond formation does occur. While bis(silyl)thione 8 showed no reactivity, addition of CS₂ to 6 in toluene at room temperature resulted in the immediate color change from orange to pink. After one week, red single-crystals could be obtained in small quantities which turned out to be the trithiasilabicyclo[3.2.0]-dithione 9, resulting from the fragmentation reaction of 6 with two molar equivalents of CS₂ (Scheme 6).

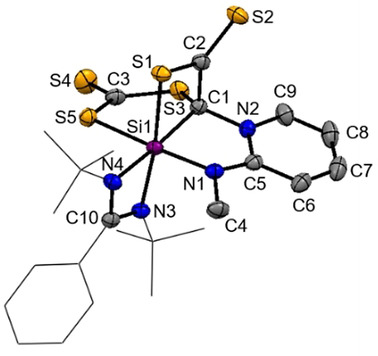

9 crystallizes in the triclinic space group with one molecule of toluene in the asymmetric unit cell (Figure 9). The addition of one CS₂ molecule occurs along the Si−C bond and can be described as a [2+2]-cycloaddition product of a silene and CS₂ in the first step, resulting in a four-membered SiSC₂- ring in 9. Similarly to 6, compound 9 has a mesoionic structure containing a octahedrally coordinated Si1 atom with a chemical shift of δ(²⁹Si)=−143.4 ppm in solution. In-situ NMR analysis of the reaction mixture indicated the formation of the corresponding silathione 10 as the only byproduct (δ(²⁹Si)=4.4 ppm).

The Si1-C1 bond (1.9639(18) Å) is elongated compared to typical Si−C bonds with d(Si-C) distances of 1.85–1.89 Å.²⁸ The C1-C2 distance of 1.544(2) Å represents a single bond. The two Si-S bonds amount 2.3340(6) Å (Si1-S1) and 2.3521(6) Å (Si1-S5), which are both elongated to those observed in 6 (d(Si-S)=2.17/2.20 Å) and a common Si-S single bond (d(Si-S)=2.13–2.15 Å),^{17, 18} but shorter if compared to the isolated thiasilirane 4 (2.707) Å).

Based on the observation of silathione 10 as stoichiometric byproduct in the reaction mixture, the mechanism depicted in Scheme 7 is proposed for the formation of the C−C-coupling product 9.

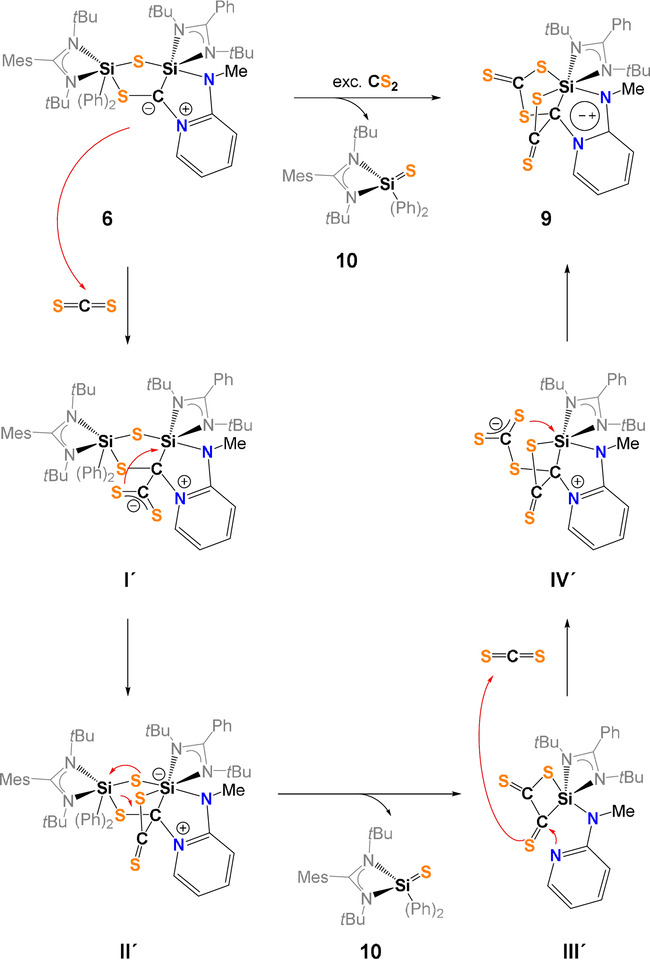

In the first step, a CS₂ molecule forms the adduct I′ with the partially negatively charged C atom in 6. Next, the four-membered SiCCS-ring is formed via S−Si bond formation. Under liberation of the silathione 10, the formation of dithione II′ is proposed, containing two C=S moieties along with C-N(pyridine) bond breaking. Through a nucleophilic attack of the N-pyridine atom in III′, the reaction of a second CS₂ molecule takes place with formation of a S−C and S−Si bond; in the last step, the final product 9 is formed.

Conclusion

In summary, the new mode of activation of CS₂ by a 1,4-terphenyl supported bis(NHSi) 1 was reported, resulting in the room temperature de-aromatization of an intramolecular bridging phenylene ring to afford 2. DFT calculations revealed a reactive base-stabilized silene C as key intermediate for this facile transformation. In contrast, the reaction of the diphenyl-substituted mono-NHSi 3 and CS₂ resulted in the isolation of an unstable thiasilirane 4 which slowly converts to a silathione upon release of CS. The reaction of the NHSi 5 containing a (methylamino)pyridine substituent furnished the novel mesoionic compound 6 which does further react with CS₂ under C−C bond formation similar to the reaction of bis(NHSi) 1 and CS₂. The series of different CS₂ activation products with divalent Si demonstrates the high potential of mono- and bis-silylenes in generating multifunctional organosulfur species which are difficult to access by other routes.
