Hydrogenative Cycloisomerization and Sigmatropic Rearrangement Reactions of Cationic Ruthenium Carbenes Formed by Catalytic Alkyne gem-Hydrogenation

After more than a century of intense research into all aspects of catalytic hydrogenation in academic and industrial laboratories,^1-7 our group managed to find a fundamentally new reactivity mode. gem-Hydrogenation is distinguished by the delivery of both H-atoms of H₂ to the same C-atom of an alkyne with formation of a methylene group; the adjacent position is concomitantly transformed into a discrete metal carbene entity.⁸ The original discovery was made using [Cp*RuCl(cod)], [Cp*RuCl]₄ or [Cp*Ru(MeCN)₃]PF₆ as catalyst, which afford electrophilic pianostool ruthenium half-sandwich complexes of the Fischer-carbene type.^{9, 10} A second system employing [(NHC)(η⁶-cymene)MCl₂] (M=Ru, Os; NHC=N-heterocyclic carbene) is photochemically driven; it opens an unconventional hydrogenative entry into “second generation” Grubbs carbenes for use in olefin metathesis.^{11, 12}

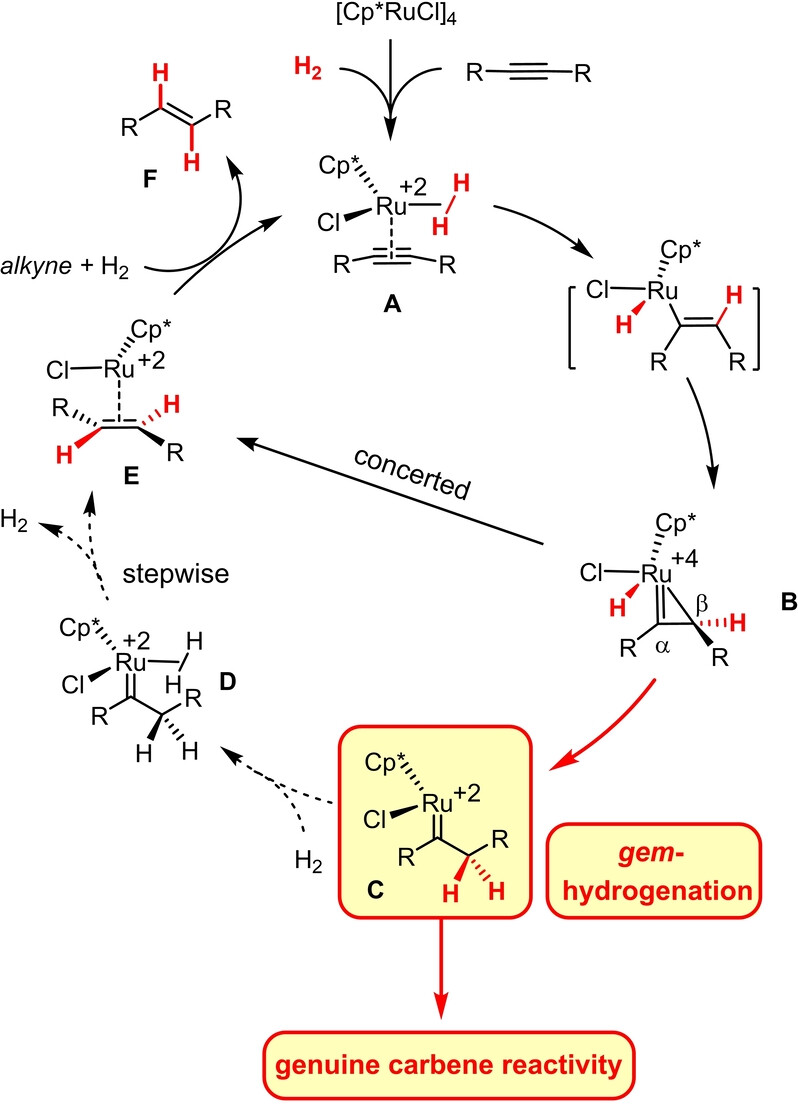

For the likely involvement of excited states, the mechanism of this photochemical gem-hydrogenation reaction is intricate and by no means fully understood. In contrast, combined experimental, spectroscopic and computational studies allow a fairly detailed picture to be drawn of the way how the [Cp*Ru]-based catalysts exert their function (Scheme 1).^{8, 10} The ruthenium atom serves as a carbophilic Lewis acid that renders the bound alkyne in a loaded complex of type A¹³ sufficiently activated for a first hydrogen transfer from H₂ initially ligated as σ-complex.^{10, 14} Either end of the resulting metallacyclopropene B is then capable of accepting the second H-atom: whereas delivery to the C_α-atom ultimately affords the corresponding trans-alkene (B→E→F),¹⁴ transfer to C_β completes the actual gem-hydrogenation event (B→C). For a regular internal alkyne, these processes have similar barriers and therefore usually run in parallel;¹⁰ substituents on the triple bond or at the propargylic position, however, can provide sufficient bias for gem-hydrogenation to become the predominant or even exclusive pathway.

The ability to generate pianostool ruthenium carbenes C in situ by catalytic hydrogenation is enabling; it allowed us to discover entirely new transformations, including hydrogenative cyclopropanation, hydrogenative metathesis, various hydrogenative heterocycle syntheses, and hydrogenative C−H insertion.^{10, 15-18} Except for a few cases, these reactions were effected with [Cp*RuCl]₄ as the catalyst,¹⁹ which is commercial and easy to use. Yet, NMR data clearly showed that other (substituted) cyclopentadienyl rings, which are less electron-rich than Cp*, favor gem-hydrogenation over the competing trans-hydrogenation to a larger extent and hence likely provide additional opportunities.^{20, 21} As outlined below, this is indeed the case.

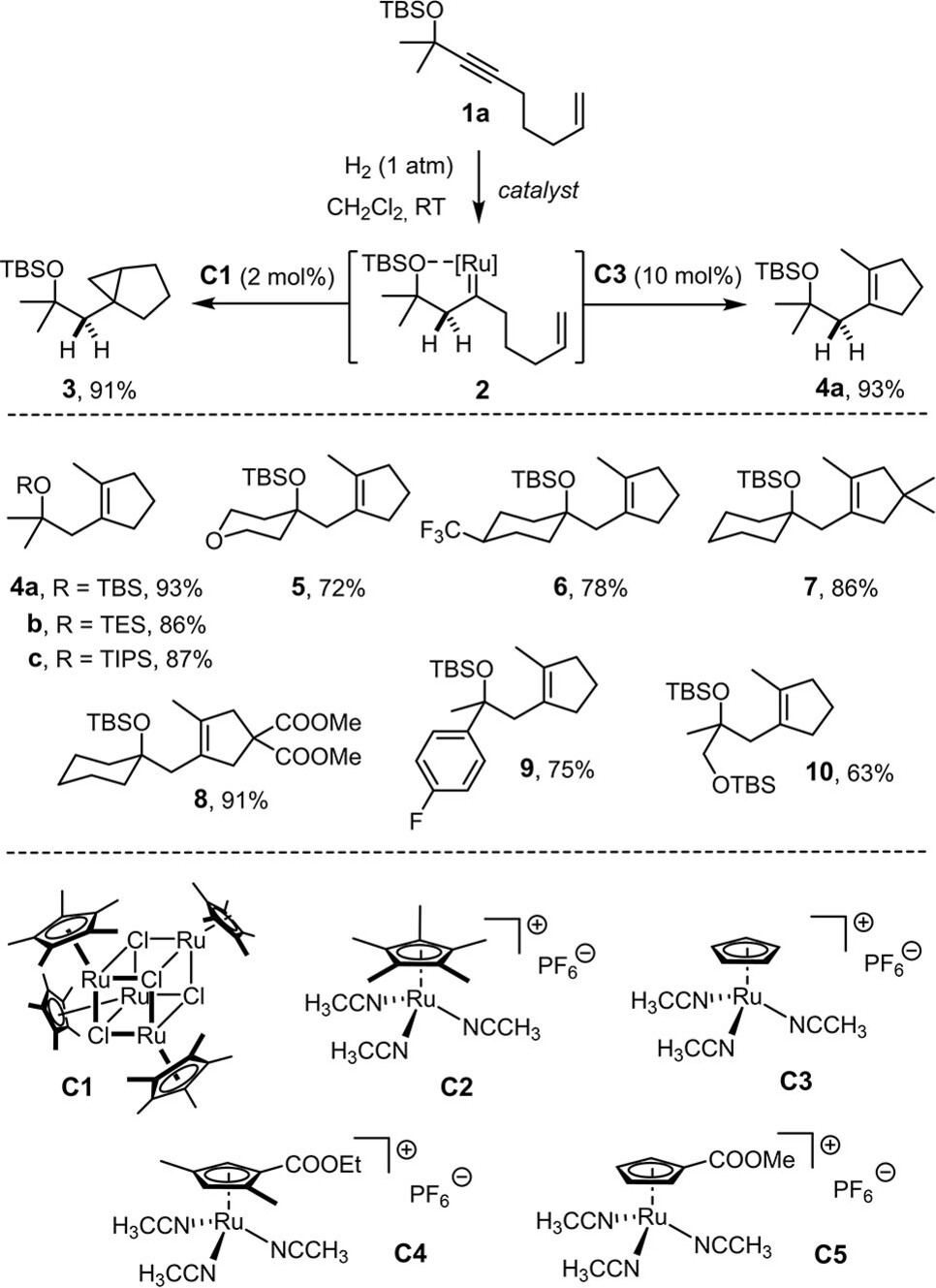

Reactions of metal carbenes with olefins other than cyclopropanation or metathesis are exceedingly rare.^{22, 23} While gem-hydrogenation of enyne 1 a with complex [Cp*RuCl]₄ (C1) afforded the expected cyclopropane 3 in high yield,^{15, 17} switch to the cationic precatalyst [Cp*Ru(MeCN)₃]PF₆ (C2) led to a surprisingly different result in that the cyclopentene derivative 4 a was formed as the major product (3:4 a=18:82, NMR). The outcome could be further optimized by recourse to the even less electron rich complexes [CpRu(MeCN)₃]PF₆ (C3)²⁴ or [Cp^TRu(MeCN)₃]PF₆ (C4),²⁵ in which the donor ability of the cyclopentadienyl ligand is reduced by conjugation to an ester substituent; their use allows cyclopropanation to be completely suppressed and product 4 a to be isolated in analytically pure form in 93 % yield. The additional examples shown in Scheme 2 illustrate the scope.

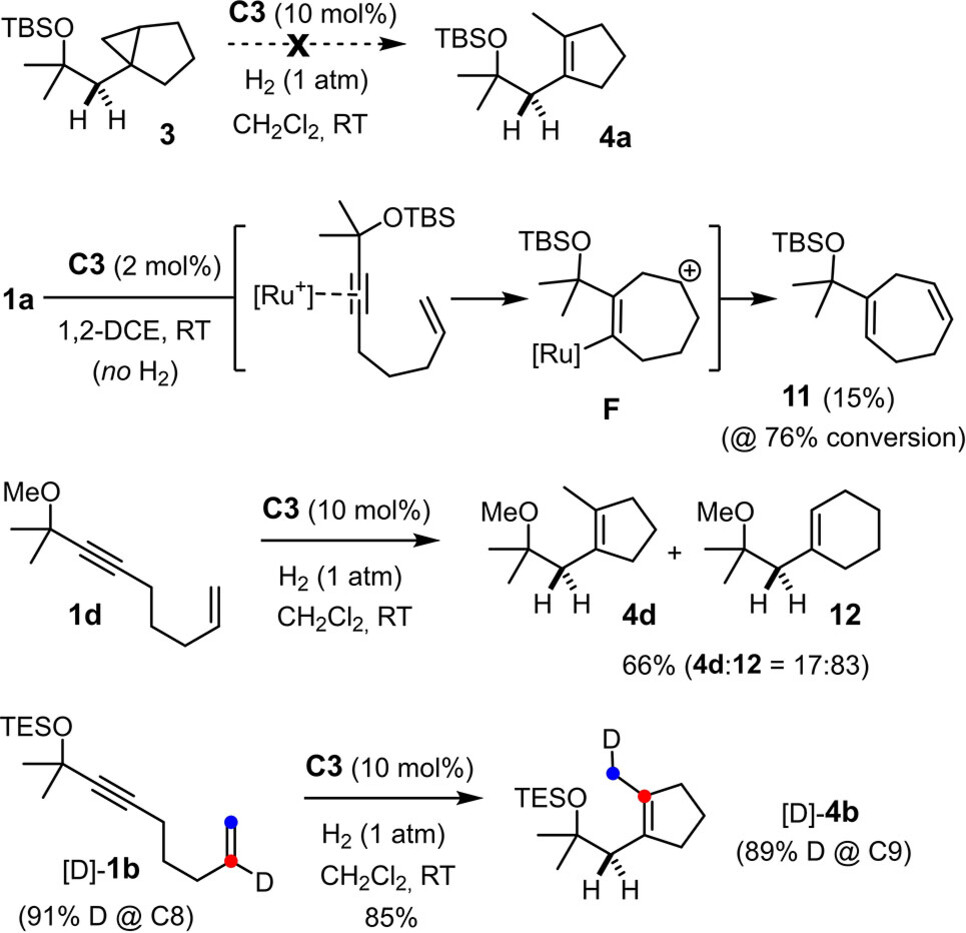

Since we are unaware of any precedent, several control experiments were carried out to gain insights into the mechanism of this catalytic carbocycle synthesis (Scheme 3). First, it was shown that cyclopentene 4 a is not a secondary product derived from cyclopropane 3 by downstream ring-opening: no evolution was observed and the compound recovered unchanged in 96 % yield after 18 h reaction time. As the molecular formula of 4 a suggests, cyclopentene formation proceeds only in the presence H₂; under Ar atmosphere, enyne 1 a was slowly converted into a complex mixture, from which only cycloheptadiene 11 could be isolated and characterized. It is reasonable to assume that this compound is the result of π-acid catalysis,²⁶ in which coordination of the [CpRu]⁺ fragment to the triple bond engenders an outer-sphere attack by the tethered alkene moiety. The resulting homoallyl cation F is one resonance extreme of a multi-faceted non-classical carbocation/carbene intermediate that stabilizes itself, inter alia, in form of product 11.^{27, 28} Additional control experiments showed that the silyl ether in 1 a also plays an important role, in that the analogous methyl ether derivative 1 d gave the cyclohexene derivative 12 as the major product admixed with cyclopentene 4 d.²⁹ Particularly relevant is the outcome of the reaction of [D]-1 b labeled at the internal position of the olefin, which furnished product [D]-4 b, in which the label has migrated by one positon to the C-atom derived from the olefin terminus; within the error bar of ¹H NMR (ca. ±2 %), no deuterium is lost during this 1,2-shift.

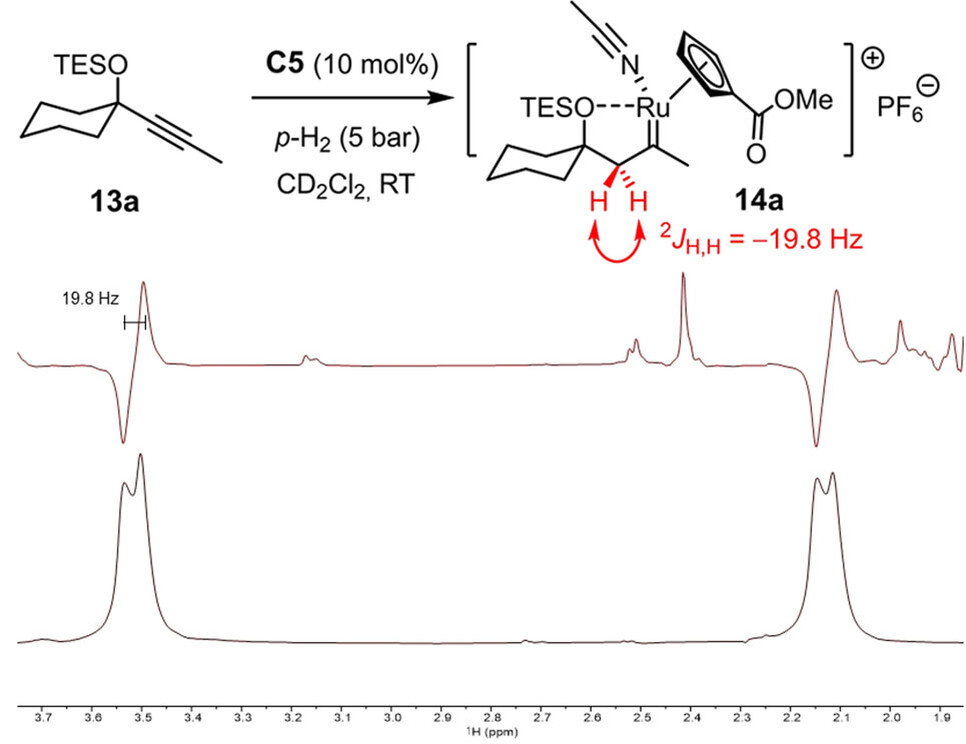

All attempts to characterize the putative intermediate 2 derived from 1 (or related enynes) by spectroscopic means were to no avail. Therefore, indirect evidence was sought to support the notion that the reaction is triggered by gem-hydrogenation. To this end, compound 13 a devoid of the tethered olefin serving as the trap for the emerging cationic carbene was hydrogenated using parahydrogen (pH₂) and the reaction monitored by PHIP NMR spectroscopy (PHIP=parahydrogen induced polarization),^{31, 32, 33} which is known to be exquisitely sensitive and has proven highly informative during our previous investigations.^{9, 10, 20} As expected, the characteristic hyperpolarized signals of a methylene group formed by regioselective gem-hydrogenation were detected when the reaction was performed with either catalytic [CpRu(MeCN)₃]PF₆ (C3, see the Supporting Information) or the ester-bearing complex C5³⁴ (Scheme 4). The distinctive “down-up” pattern of the antiphase signals proves the methylene character of the site formed in the actual hydrogenation event. For the underlying physics,^{31, 32, 33} this spectroscopic fingerprint implies that both hydrogen atoms derive from the same molecule of H₂ and must have been transferred in an (essentially) concerted step. Moreover, the large ²J coupling constant shows that the two H-atoms are diastereotopic and the adjacent carbene center of 14 a hence chiral-at-metal. This situation is best explained by assuming a donor/acceptor interaction between the silyl ether and the ruthenium center that locks the reactive intermediate in form of a cyclic array and prevents free rotation about the newly formed single bond from occurring.³⁵ Additional information was gained when the PHIP spectra were “cleared” by application of the OPSY pulse sequence (OPSY=only parahydrogen spectroscopy).³⁰ A notably better signal-to-noise ratio was observed with C5 as catalyst, which suggests that the ester substituent on the ancillary cyclopentadienyl ring renders the corresponding cationic pianostool carbene intermediate 14 a somewhat more stable and hence longer-lived on the NMR timescale than that derived from the parent complex [CpRu(MeCN)₃]PF₆ (C3) (see the Supporting Information), perhaps as a result of a stronger O⋅⋅⋅Ru interaction.³⁶

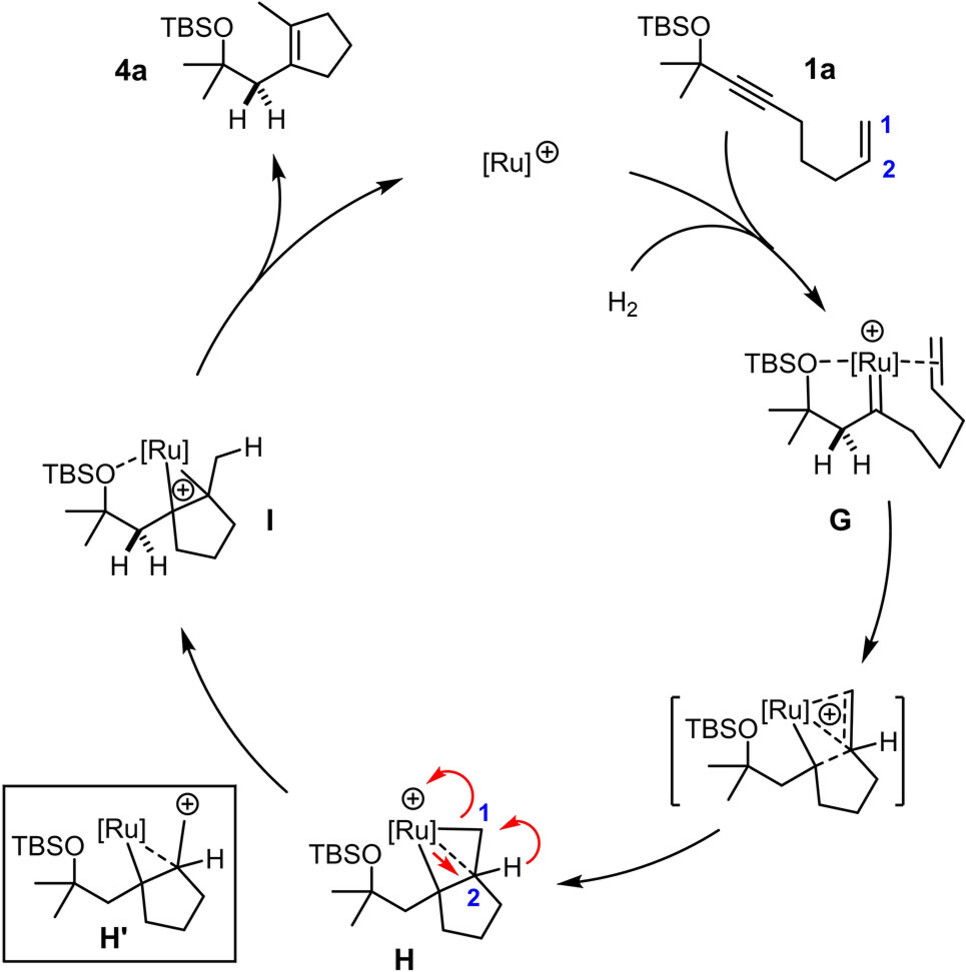

Based on these experimental data, we propose that the hydrogenative cyclopentene synthesis commences with formation of a ruthenium carbene intermediate G that is highly electrophilic by virtue of the positive charge and the fairly poor electron donor ligands that it carries (Cp or Cp^COOMe instead of Cp*; R₃SiO- instead of MeO- as the steering substituent) (Scheme 5).²⁰ Previous computations at the CCSD(T)/def2-TZVPP level of theory showed that pianostool ruthenium carbene complexes invariably react with tethered olefins to give “kite-shaped” metallacycles of type H in the first place, in which all three C-atoms entertain bonding interactions with the metal;¹⁷ in the present case, formation of such an intermediate comes along with delocalization of the positive charge.³⁷ As this intermediate evolves and a Ru−C2 bond is forming, the H-atom is forced to migrate to the adjacent terminal position, as proven by the labeling experiment. This 1,2-H shift can formally be rationalized by considering carbocation H′, which, however, must not be mistaken for a discrete intermediate but only represents a resonance extreme of the Lewis structure.³⁸ Decoordination of the metal fragment from I releases the product and closes the catalytic cycle. The overall outcome likely reflects the kinetic preference for the formation of a five-membered ring by 5-exo-trig cyclization, which has also been observed in related transformations.³⁹

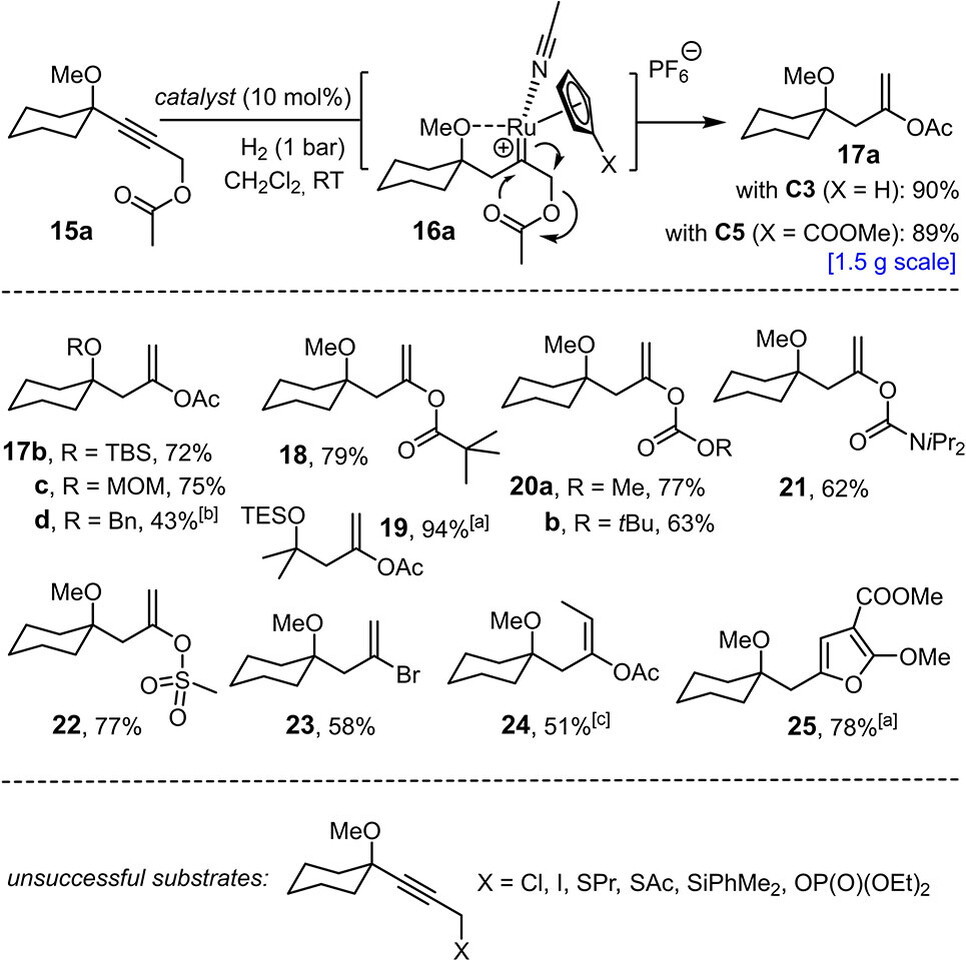

Additional evidence for the intervention of an exceptionally electrophilic intermediate comes from some of the limitations encountered when exploring the scope of the reaction. It is pointed out that all successful examples compiled in Scheme 2 comprise a carbocyclic ring formed by gem-hydrogenation/cycloisomerization; actually, placement of an oxygen or nitrogen linker in between the alkyne and alkene site in a substrate of type 1 resulted in decomposition. Though tentative, it is reasonable to assume that the presence of such innately nucleophilic sites adjacent to the emerging electrophilic carbene might explain the failure. Conversely, one could perceive opportunities to trap the putative reactive intermediate by properly placed substituents in a productive manner. In line with this notion, hydrogenation of the propargylic acetate derivative 15 a, preferentially with the aid of C5 as catalyst, cleanly furnished the corresponding enol acetate 17 a as the result of a [2,3]-sigmatropic rearrangement of the transient cationic ruthenium carbene intermediate 16 a (Scheme 6).^{40, 41, 42} The reaction scaled well (89 %, 1.47 g of product) and proved more flexible with regard to the steering substituent (ether, silyl ether, acetal) than the hydrogenative cycloisomerization outlined above (cf. 17 a–d). Moreover, groups other than carboxylic acid esters are equally prone to hydrogenative rearrangement, including carbonates (20 a, b), carbamates (21), and a weakly nucleophilic sulfonate (22). Even a propargylic bromide could be engaged in an analogous 1,2-shift without competing hydrogenolytic cleavage, as illustrated by the formation of alkenyl bromide 23, although the corresponding chloride (unreactive) and iodide (decomposition) proved inadequate. In line with earlier results on hydrogenative heterocycle syntheses,¹⁶ a substrate bearing a malonate terminus readily cycloisomerized to the trisubstituted furan derivative 25 by attack of the ester carbonyl group onto the electrophilic carbene species. Attempted transpositions of a propargylic thioether, silane, or phosphonate, however, basically met with failure.

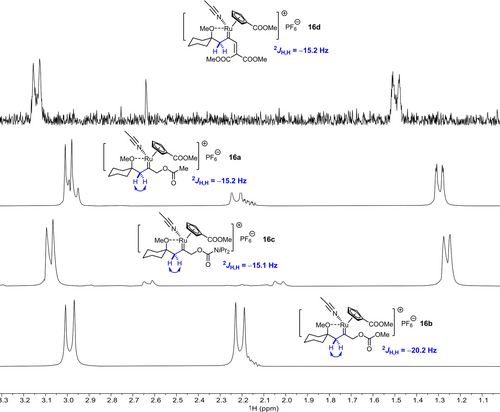

Once again, PHIP spectra provide compelling evidence for gem-hydrogenation as the decisive trigger and hence help to rule other conceivable scenarios out.⁴³ Figure 1 shows the relevant methylene region of the OPSY spectra recorded upon hydrogenation of a set of substrates with C5 as the catalyst: in each case, the characteristic PHIP-enhanced AB-pattern of the CH₂-group of a reactive intermediate of type 16 was detected, which derives from geminal delivery of both H-atoms of H₂ to the same C-atom of the corresponding alkyne substrate 15. This observation also implies that gem-hydrogenation must be remarkably facile and that the turnover-limiting step of the catalytic transformation lies downstream of carbene formation.

In summary, two unprecedented hydrogenation reactions are described, which rely on the ability of [Cp^XRu]-complexes to catalyze geminal transfer of H₂ to a triple bond with formation of a discrete ruthenium pianostool carbene flanked by a methylene group. Upon deliberate upregulation of the electrophilicity by proper choice of the ancillary Cp^X ligand on a cationic ruthenium fragment, these reactive intermediates do not engage a tethered alkene in cyclopropanation or metathesis any longer, as previously described by our group using [Cp*RuCl]₄ as the catalyst^{15, 17} but lead to cycloisomerization. Alternatively, polar substituents at the propargylic position are able to migrate onto the carbene site to give valuable enol ester or alkenyl halide derivatives. These new transformations increase the portfolio of gem-hydrogenation and encourage further investigations into this perplexing yet arguably enabling mode of hydrogen transfer and orthogonal gateway to metal carbene chemistry.
