A versatile AIE fluorogen with selective reactivity to primary amines for monitoring amination, protein labeling, and mitochondrial staining

2.1 Photophysical properties

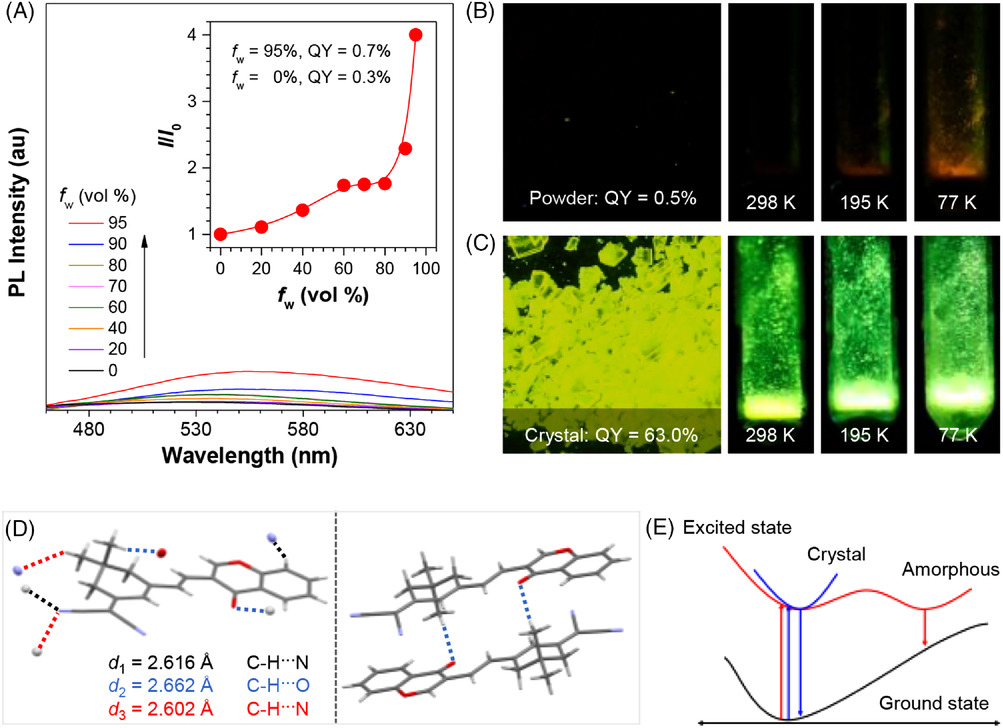

CMVMN absorbed at 387 nm (Figure S5) and emitted weakly in THF at 530 nm, with a quantum yield (QY) of 0.3% (Figure 1A). When a poor solvent of deionized water was added, the fluorescence intensity enhanced gradually due to the aggregation of CMVMN molecules. Also, the QY reached 0.7% at water fraction of 95%, verifying its AIE property. However, the fluorescence signal was still very weak, like that of the amorphous powder (QY = 0.5%, Figure 1B and Figure S6A). Curiously, the amorphous powder was cooled down. Distinct orange fluorescence was then observed at 195 K and it became stronger at 77 K (Figure 1B). This indicated the molecule became more emissive once its intramolecular motion was slowed down at low temperature.

The single crystal of CMVMN became highly emissive (Figure 1C and Figure S6B) and its QY (63%) was 126 times higher than that of the amorphous powder. Such a phenomenon was named as “crystallization-induced emission” before.^[42-45] For CMVMN crystals, each molecule formed six hydrogen bonds with surround molecules, which efficiently restricted its intramolecular motion (Figure 1D). The strong intermolecular interactions in the crystal largely rigidified the molecular conformation and avoided detrimental π–π interactions, making them show intense crystal-state emission.^{[46, 47]} Meanwhile, the emission maximum in the crystalline state (λ_em = 530 nm, τ = 2.12 ns, 77 K) was blue-shifted compared with that of the amorphous state (λ_em = 605 nm, τ = 1.06 ns, 77 K) (Figures S7 and S8). Probably, the loose packing in the amorphous state enabled the molecules to undergo some sort of intramolecular motion and hence an excited-state minimum with a small band gap emerged for amorphous sample. Eventually, the red-shifted and weakened emission was observed (see the proposed decay pathways in Figure 1E).^[48] The red-shifted and decreased emission of the crystalline solid in 298 K was also in accordance with this conjecture (Figure 1C and Figure S7A).

2.2 Reactivity and sensing response

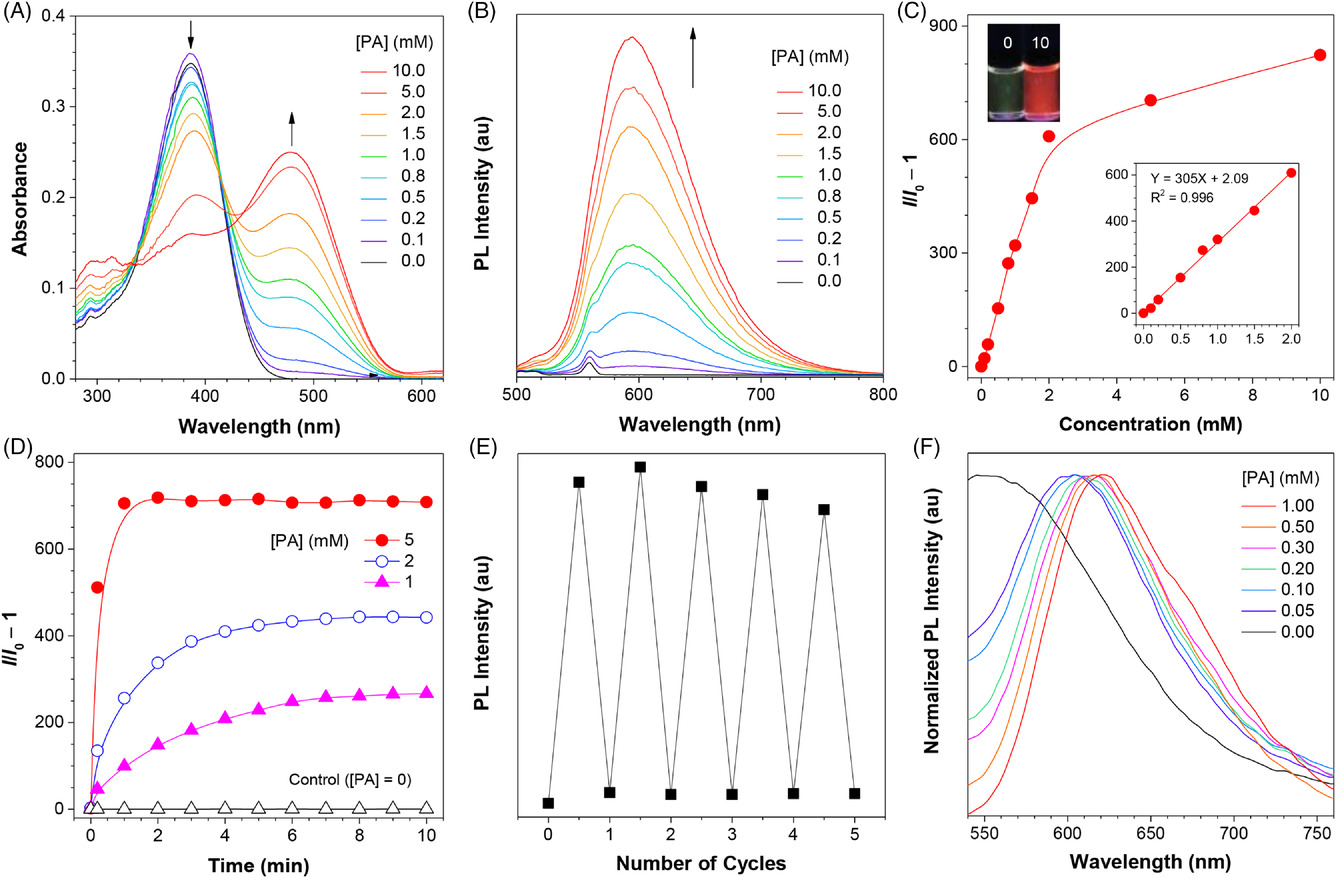

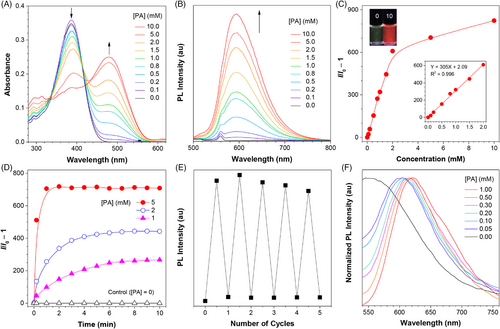

Upon addition of propylamine (PA), the absorption peak at 387 nm decreased, but a new peak emerged at 480 nm (Figure 2A), enabling the direct visualization of the amination process. Meanwhile, a significant fluorescence turn-on signal was detected at 595 nm and the intensity increased by 823 folds at a [PA] of 10 mM, which enabled the sensitive detection of PA (Figure 2B). Quantitative monitoring of PA was performed and a good linear curve was obtained at a concentration range of 0–2.0 mM (Figure 2C), from which a detection limit of 4.4 μM was calculated.^[49] Moreover, the PA detection was realized via a colorimetric method (Figure S9). Hence, CMVMN could be a fluorescent and colorimetric dual-mode probe for primary amines.

The amination initiated rapidly and the fluorescence signal almost reached a plateau within 5 min at a low PA concentration (1.0 mM) (Figure 2D). The saturation time was further reduced to 1 min at a high PA concentration (5.0 mM). Since nucleophilic reactions were better carried out under alkaline conditions,^{[50, 51]} it illustrated the autocatalytic effect of PA at high concentration. The protonation of PA with trifluoroacetic acid (TFA) would inhibit the amination process to result in decreased fluorescence. In this work, although the amination was well finished before the addition of TFA, decreased fluorescence intensity was observed, revealing the good reversibility of amination process (Figure 2E). Even more, the fluorescence turned out to be controllable via cycle addition of PA or TFA (Figure 2E), making CMVMN a promising tool for long-time dynamic tracking.^[52]

Solid-state sensing is much preferred in real applications thanks to its simple sample preparation.^{[53, 54]} The strong emission of AIEgens in solid-state makes them ideal candidates for such purpose.^[55] Curiously, the spin-coating films of CMVMN was fabricated from its dichloromethane solution and then fumed with PA vapors. A remarkable red-shift emission was observed 1 min later (Figure 2F). The emission peak red-shifted by 50 nm after exposure to PA vapors of low concentration (0.05 mM), indicating the high sensitivity. Also, quantitative detection of PA vapors using the spin-coating films were performed (Figure S10). Moreover, CMVMN exhibited good stability and reversibility after repeated exposure to PA and TFA vapors, as evidenced by the similar spectrum to that of the initial sample from the ¹H NMR measurement (Figures S1 and S11).

2.3 Selectivity

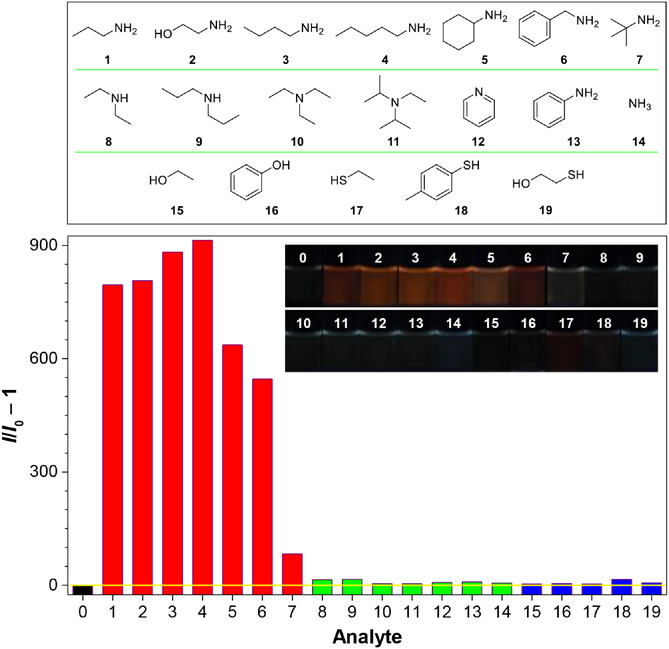

The fluorescence response of CMVMN to various nucleophiles bearing amido, hydroxyl or sulfhydryl groups was investigated. CMVMN reacted not only with PA, but also other primary amines, as revealed by the emission enhancement (Figure 3). By increasing the steric hindrance (TBA > benzylamine > cyclohexylamine), an obvious decrease in fluorescence was observed, indicating the decisive role of steric effects for amines. If CMVMN was incubated with TBA for a long time, the fluorescence increased gradually but slowly (Figure S12), which further verified the steric effect-caused weak reactivity. Under the same conditions, the fluorescence enhancement effect of primary amines was much bigger than that of other amines such as secondary amines, tertiary amines, heterocyclic amines, aromatic amines and ammonia. Meanwhile, nucleophiles with hydroxyl or sulfhydryl showed no obvious reactivity. These results revealed the high reactivity and selectivity of CMVMN toward primary amines.

2.4 Reaction mechanism

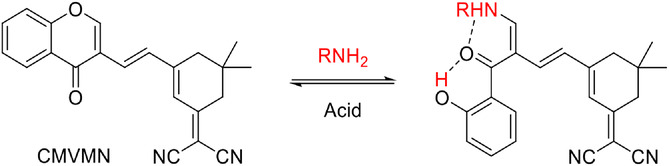

NMR titration experiments were further conducted. In general, the ¹H NMR spectra of enamines generated from chromones and primary amines showed a characteristic broad signal at δ 9–12, which attributed to the resonance of an NH group forming a strong intermolecular hydrogen bond.^{[28, 29]} Accordingly, a new broad peak at δ 10.8 emerged in the ¹H NMR spectra of CMVMN after addition of PA and the signal was intensified when more PA was added (Figure S13). Meanwhile, the original conjugated structure of CMVMN was destroyed to result in a decreased deshielding effect on the surrounding hydrogen atoms. Thus, new peaks appeared at lower fields compared with those of CMVMN. Beyond that, a mass peak at mass-to-charge ratio (m/z) of 424.2002 [M+Na]⁺ (Figure S14) related to compound S7 (Scheme 2) was detected. Hereby, CMVMN may follow a reaction path similar to typical chromones.^[28-30]

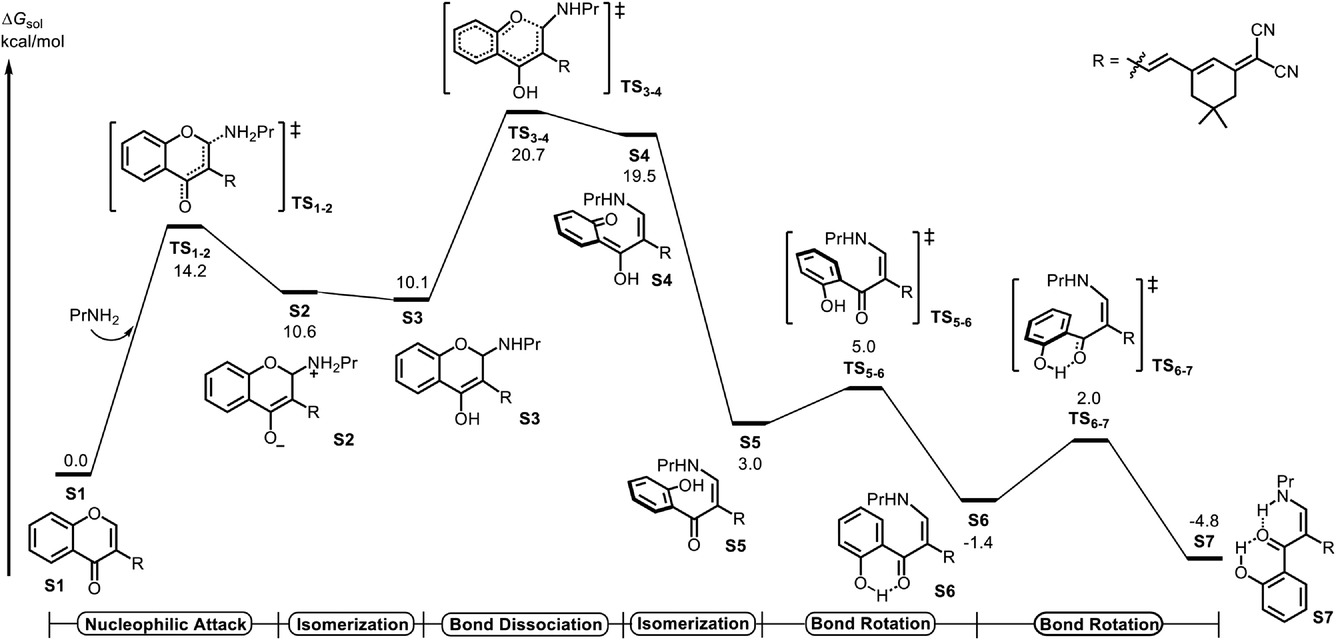

Later, density functional theory calculation was carried out. The initial nucleophilic attack followed by isomerization formed the intermediate product S3 with a high energy (10.1 kcal/mol, Scheme 2). Followed, the rate-limiting step of bond dissociation taken place accompanied with isomerization to form a metastable intermediate product S5 (3.0 kcal/mol). Since the reaction energy barrier was only 20.7 kcal/mol, the amination of CMVMN with primary amines could happen readily at room temperature. Importantly, the obtained products were stabilized by intramolecular hydrogen bonds and of low energy (−4.8 kcal/mol). However, the story for diethylamine was different (Scheme S2). The reaction energy barrier for bond dissociation was much higher (29.2 kcal/mol) because of steric effect. Thus, its reaction with CMVMN usually ended after the generation of S9 (12.3 kcal/mol), but even if S12 could be produced, it was unstable and its energy would be relatively higher (5.1 kcal/mol) than that of S7. Since both S3 and S9 were not stable in view of their high energy, CMVMN is not a good reagent for one-step nucleophilic addition as other reported electrophiles.^[14-22] Overall, the steric effect impeded the reaction of secondary amines with CMVMN, while the special intramolecular hydrogen bonding in the resulting product contributed to the amination of CMVMN with primary amines, and ultimately achieve the selective bioconjugation of CMVMN with primary amines.

2.5 Applications in printing

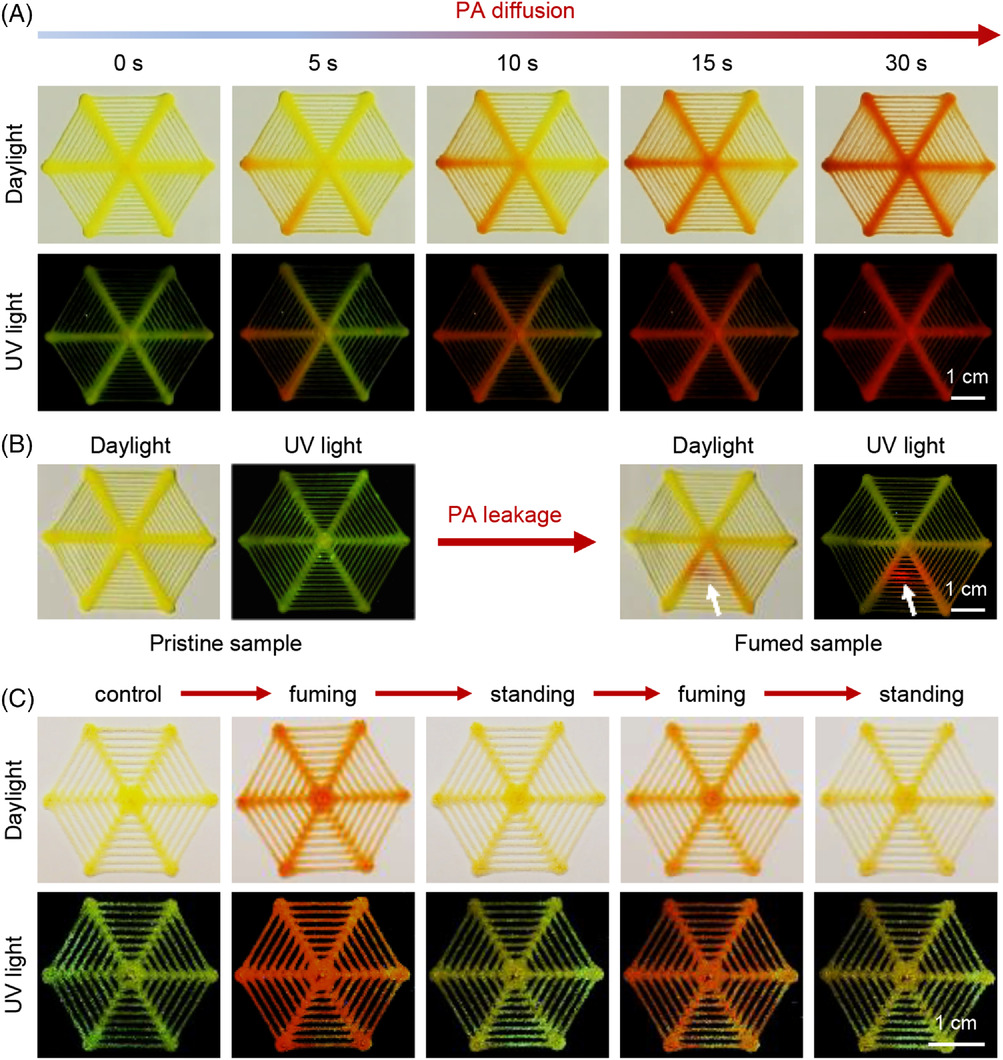

CMVMN was further applied to printing and the “spider-web” sensors were manufactured (Figure S15A). A relatively high thermal decomposition temperature of T_d = 294°C (Figure S16) was observed via thermo-gravimetric analysis, demonstrating its high thermostability. Besides, the sensor was made up of micro fibers (Figure S15B) and its loose structure was in favor of the fluxion of amine vapors. The initial sensor was pale yellow with yellow-green fluorescence. When fumed with PA, it became orange and emitted a red fluorescence (Figure S17). Obviously, this noticeable change offered a workable method for equipment-free monitoring of primary amines, but such a change was not observed for diethylamine or trimethylamine, indicating the potential of rapid identification of primary amines.

CMVMN also showed a fast and sensitive response to PA vapors (Figure 4A). At the moment PA was added to the container, the color change was detected. Notably, it first took place near the container, and 30 s later, the whole sensor changed (Videos S2 and S3). Clearly, due to the high sensitivity of CMVMN and fast rate of the amination, the diffusion process of PA was successfully visualized and recorded. Further, a PA leakage model was constructed, in which PA was sealed in a culture dish and the sensor was put on top of it, followed by piercing with a needle to make a leaking point. A real-time leaking process was then visualized and the leaking point could be recognized easily (Figure 4B and Videos S4 and S5). However, when the fumed sensor was put in open air, a gradual color fading appeared. It took about 30 min for the whole fumed sensor to revert to its original state (Figure S18). A similar phenomenon was witnessed for the fumed sensor obtained from the PA leakage model as well (Figure S19). Furthermore, reversible changes in both color and emission were observed for the printing sensor via repeated cycling fuming or standing (Figure 4C), demonstrating the high value of CMVMN for monitoring of leakage.

2.6 Labeling of biomolecules in aqueous solution

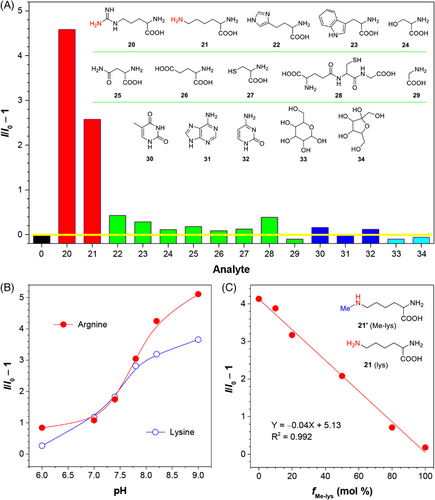

In situ probe of biomolecules was the final and crucial demand for bioconjugations. When numerous small biomolecules were chosen and cultured with CMVMN (Figure 5A), nearly no fluorescence enhancement was detected for CMVMN in the presence of other polar basic (histidine), polar neutral (tryptophan, serine, asparagine, and cysteine), polar acidic (glutamic acid) and nonpolar hydrophobic (alanine) amino acids as well as the important tripeptide glutathione^[56]. In terms of the structural formula, only arginine and lysine possessed reactive residues with the NH₂ group, and the guanidino moiety was called the primary guanidino amine^[57]. Also, the α-amino groups of amino acids were usually less reactive in nucleophilic bioconjugation due to the interference of the carboxylic acid.^{[22, 58-60]} Thus, the high reactivity of CMVMN with primary amine groups provides a new pathway for specific bioconjugation of lysine and arginine. Additionally, N(α)-Boc-L-arginine was tested and a similar fluorescence response toward CMVMN as arginine was witnessed, proving the importance of the primary guanidino amine for the amination (Figure S20). Moreover, nitrogen bases (thymine, adenine, and cytosine) and monosaccharides (glucose and fructose) were found to be inert to CMVMN. Thus, the selectivity of CMVMN toward specific amino acids (lysine and arginine) could make it a promising candidate for selective labeling of proteins.

Next, the amination process in different pH was investigated. To avoid the deterioration of the activity and structure of biomolecules, mild pH conditions were preferred. CMVMN reacted readily with arginine and lysine under relative alkaline conditions (pH > 7.4), but was greatly inhibited at pH 6.0 (Figure 5B), revealing a tunable amination process. Also, a dramatic change in relative fluorescence intensity was observed from pH 7.0 to 7.8, which suggested that CMVMN might be lighted up in a relative alkaline environment like in the mitochondria of cells. For CMVMN alone, the fluorescence kept almost constant and such a stability was favorable for sensing and labeling (Figure S21). When N₆-methyl-L-lysine (Me-lys) was picked up as a model compound to replace some lysine in the same amount, a decreased fluorescence was detected (Figure 5C). A good linearity between the relative fluorescence intensity and f_Me-lys was found as well, which demonstrated the applicability of CMVMN for selective amination of primary amines in aqueous solutions. Meanwhile, it reflected the potential of primary amine selective probes for monitoring methylation, which is an important part of post-translational modifications for proteins.^{[61, 62]}

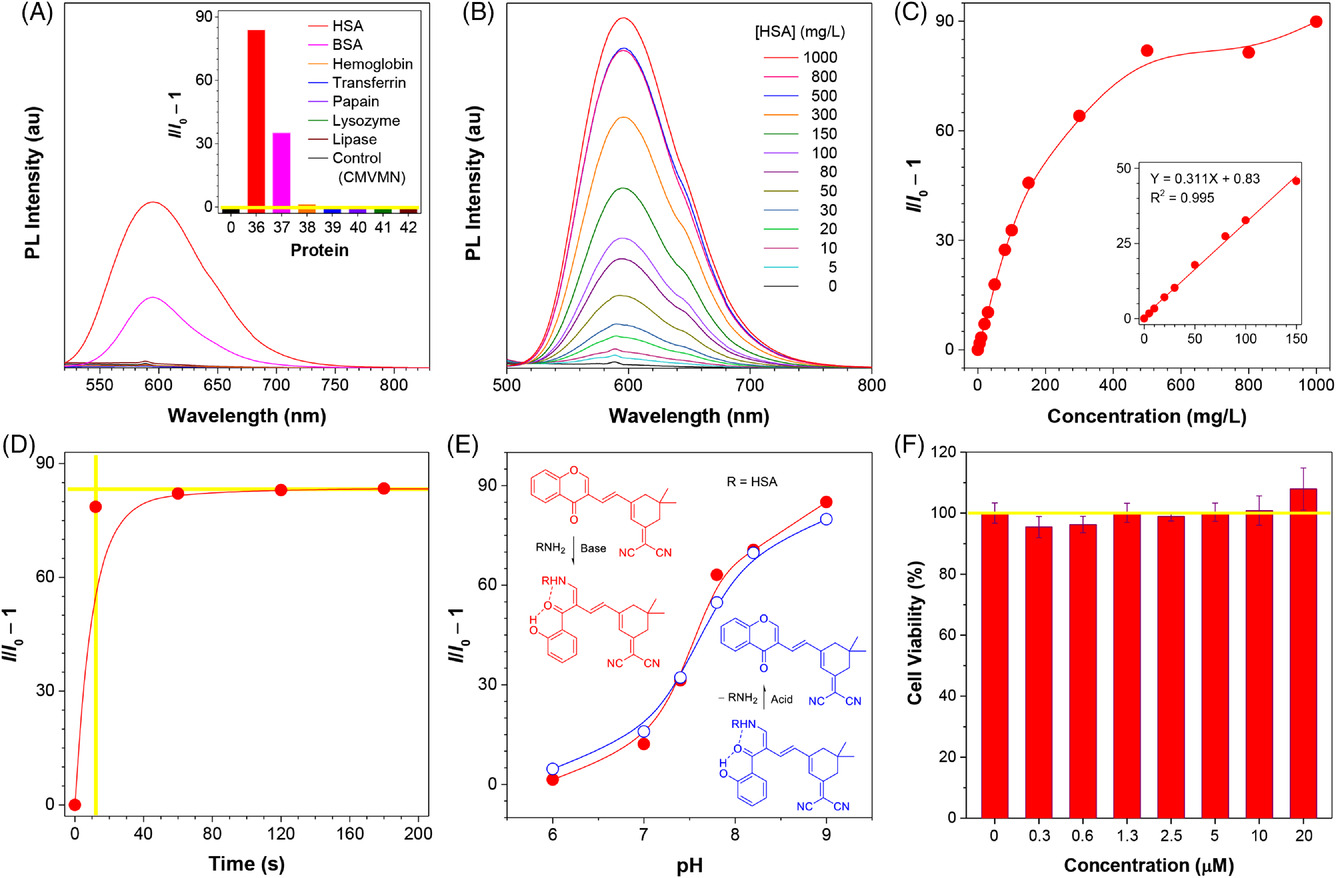

Interestingly, when HSA was added, the fluorescence spectrum largely intensified and the relative fluorescence intensity was increased by 90 folds (Figure 6A). Such an enhancement effect was noticed to be surprisingly stronger than that of arginine or lysine, especially when the high concentration (10 mM) used for amino acids testing was taken into account. Prior to this, AIEgens were found to be more reactive in cavity due to the restriction of intramolecular motions.^[63] In view of the hydrophobic nature of CMVMN, it may be trapped in the cavity of HSA (Figure S22) to result in such a significantly enhanced fluorescent signal. At least, the enhanced specificity could make CMVMN more applicable for in situ labeling of biomacromolecules since interference from other small biomolecules became negligible. Identically, because of the difference in the cavity, it was reasonable to see a discrepant selectivity of CMVMN toward other proteins, including BSA, hemoglobin, transferrin, papain, lysozyme, and lipase (Figure 6A).

To get further insight, molecular docking calculations were performed. In the HSA-CMVMN complex, CMVMN was docked in the hydrophobic cleft via the hydrogen bond interaction with ILE-142 (Figure S22). Further, nearest neighbor residues around the ligand were identified and the ARG-117 could be the reaction site in the binding cleft. In the BSA-CMVMN complex, two binding sites were found and both sites exhibited arginine residues around the ligand. However, one of the binding sites was not activated due to the hydrogen bond interactions which locked the aromatic ring and hindered the formation of the transition state (Figure S23). Thus, CMVMN could label BSA, but its reactivity was not as good as HSA. For the same reason, hemoglobin was found to be not reactive with CMVMN (Figure S24). However, other proteins (transferrin, papain lysozyme, and lipase) were found not only unable to form stable complex with CMVMN, but also none of the arginine or lysine exhibit around the possible binding sites (Figures S25–S28). On the other hand, the reaction solution of CMVMN and HSA showed an absorption peak at 487 nm (Figure S29), which was in accordance with that of the amination products of CMVMN (Figure 2A). Thus, CMVMN can efficiently recognize and capture primary amino groups inside HSA. Even though the amination of CMVMN with specific amino acids (lysine and arginine) was applied for protein labeling, its efficiency is highly associated with the hydrophobic cleft of proteins. This offers a new approach for specific protein labeling.

Subsequently, quantitative analysis of HSA was performed. The fluorescence gradually increased upon addition of HSA and a good linear curve was obtained at a concentration range of 0–150 mg/L (Figure 6B and 6C), from which a detection limit of 1.2 mg/L was calculated. Also, quantitative analysis of BSA could be realized (Figure S30). Notably, the fluorescence “turn-on” response for HSA occurred within 10 s and its intensity nearly reached a plateau (Figure 6D), revealing the fast rate of amination. Moreover, a pH-dependent reactivity similar to that of lysine and arginine was detected for HSA (Figure 6E), but when lowering the pH, the fluorescence dropped rapidly and its value was close to that of the original state (Figure 6E), suggesting of the occurrence of the deamination. Herein, tunable biolabeling of proteins in physiological pH conditions was realized by CMVMN, and it could be further applied for damage-free dynamic monitoring of proteins.

2.7 Cell imaging and mitochondria staining

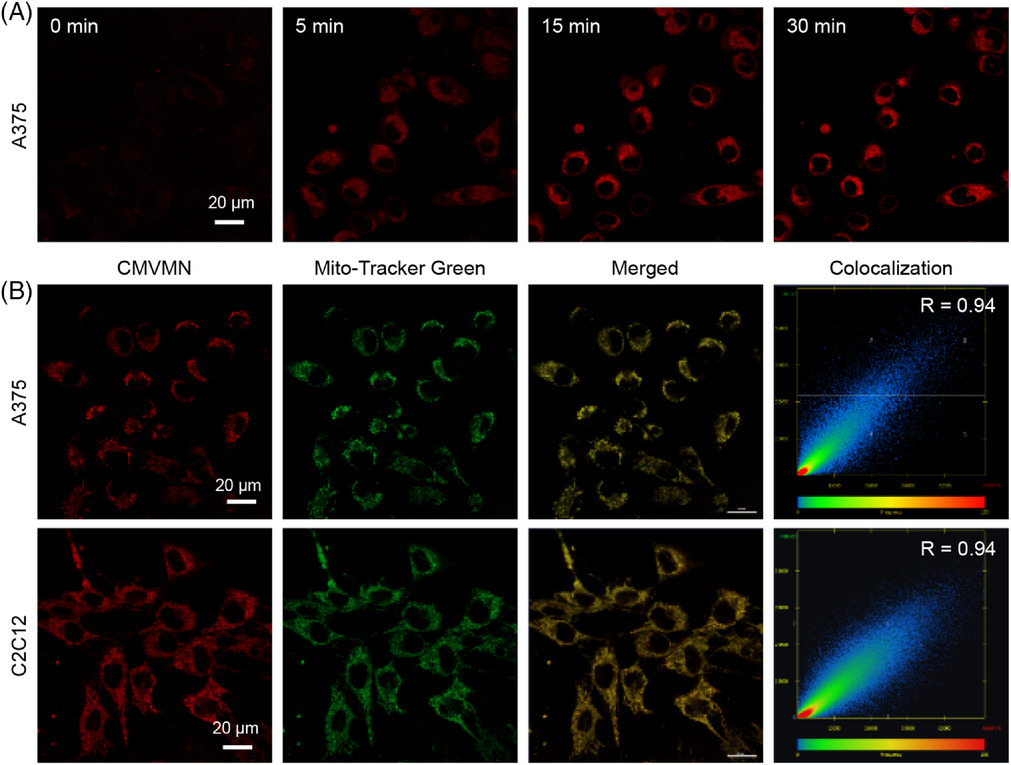

MTT assay was conducted and no considerable influence on cell viability was detected for CMVMN (Figure 6F and Figure S31). Also, a bright fluorescence of CMVMN was observed in A375 cells within 5 min and the fluorescence intensity reached a plateau 15 min later (Figure 7A), indicating the good biocompatibility and high reactivity of CMVMN in cells. Then, co-localization experiments with Mito-tracker green were conducted and a good Pearson's colocalization coefficient of 0.94 was calculated (Figure 7B), which suggested that CMVMN is predominantly lighted up in mitochondria. A similar phenomenon was observed for C2C12 cells (Figure 7B and Figure S32), verifying the potential of CMVMN for mitochondria-staining. Since the amination process of CMVMN was pH-dependent and mitochondria happened to be slightly alkaline,^{[64, 65]} CMVMN was partially astricted in mitochondria via amination and then lighted up.

In view of the high reactivity between CMVMN and HSA, it become notable for the performance of CMVMN in cells with abundant HSA. A variety of major plasma proteins, including albumin, were secreted in liver cells.^{[66, 67]} Likely, the existence of HSA in cytoplasmic matrix and other organelles would induce a relatively high fluorescent signal outside of mitochondria for liver cells. To have a better vision of the co-localization efficiency, 3D z-stack imaging was obtained. The calculated Pearson's co-localization coefficient was good for C2C12 cells (0.90) (Figure S33) again, but became attenuated but tolerable (0.69–0.71) for liver cells, indicating the amination of CMVMN with HSA in liver cells. Additionally, a good mitochondria-staining ability was witnessed for A549 cells as expected. Hence, the pH-dependent reactivity of CMVMN made it a promising mitochondria-staining probe and other reactive proteins like HSA did exist in mitochondria for CMVMN. On the other hand, the fluorescence intensity in liver cells (HepG2 cells and L-02 cells) was found to be not significantly enhanced compared with that of C2C12 cells and A549 cells (Figure S34). Also, the mitochondria isolated from C2C12 cells induced an obvious enhancement in fluorescent signal after mixing with CMVMN (Figure S35). These further verified our conjecture of the existence of reactive proteins in mitochondria for amination of CMVMN. In previous works, special functional groups like pyridinium and triphenylphosphonium salt were needed to incorporate into luminogens to make them positively charged to target the mitochondria.^[68-70] Thus, CMVMN was a neutral molecule with mitochondria staining ability. Undoubtedly, it provided a new paradigm for designing mitochondria staining probes.
