Clinical validation of an optimized multimodal neurocognitive assessment of chronic mild TBI

Introduction

Mild traumatic brain injury (mTBI) has a worldwide incidence of approximately 224/100,000 individuals.¹ Incidence of mTBI is even higher within military populations due to demographic characteristics and physical hazards associated with military operational/training activities.² Since 2000, U.S. military personnel have sustained over 340,000 mTBIs in both combat and garrison environments;³ for up to 20%, post–concussive symptoms such as irritability, fatigue, or difficulty concentrating may persist into the chronic phase of injury (beyond 3 months), disrupting life activities and motivating patients to seek follow-up care.^4-7 These symptoms, however, can be influenced by a wide range of neurological and nonneurological factors.^8-10

Comprehensive neuropsychological evaluation is a widely accepted approach for identification of functional neural impairment;¹¹ however, this approach generally returns “normal” results beyond 90 days postinjury.^12-15 This raises questions about the value of neuropsychological assessment for the mTBI patient who seeks treatment after symptoms have become chronic. Accurate and efficient identification of chronic neural impairment related to mTBI is critical to guide treatments to reduce post–concussive symptoms and return the individual to optimum functioning.

Measures of oculomotor performance show considerable potential to improve assessment of mTBI. Several studies have shown that mTBI has a negative impact on eye movements,^14-19 particularly with multiple injuries or persistent post–concussive symptoms.^{14, 20, 21} Eye movement abnormalities in TBI could be related to the broad network of regions that must communicate effectively to acquire and integrate information from the visual environment.²² Impaired eye movements have been linked to axonal injury in postmortem tissue and on diffusion tensor imaging;^23-25 abnormal functional connectivity in chronic mTBI extends to the visual system and its interactions with higher-order cognitive processing.²⁶ Importantly, the types of eye movements that are most strongly impacted by mTBI are those that most heavily rely upon effective cognitive processing, as opposed to measures of basic neuromotor function.^{14, 18, 27-29} In particular, previous research conducted by our group ^{14, 15} and others ^28-30 has shown enhanced sensitivity of eye movements to effects of mTBI under conditions of increased cognitive load. Many oculomotor metrics are also less impacted by age, education, or intelligence, relative to conventional neuropsychological measures.^{20, 31, 32}

Concurrent measurement of multiple response modalities while an examinee completes a cognitive test may provide a means for improved assessment of chronic mTBI.³¹ In previous studies,^{14, 15, 31, 33, 34} our group has developed and validated methods to assess saccadic eye movements and manual motor performance in response to varying levels of cognitive load. This study extends this line of research using a more advanced system optimized to be clinically feasible for assessment of TBI in real-world medical environments. Based on recent findings, we hypothesized that the Fusion n-Back test¹⁵ – particularly, saccadic metrics derived from the more cognitively challenging 1-Back subtest – would outperform conventional neuropsychological measures in distinguishing participants with chronic mTBI from controls.

Methods

Fusion n-Back test

The Fusion n-Back test¹⁵ is a multimodal cognitive task that combines the working memory demands of the classic ‘n-Back’ task⁴⁸ with the eye movement and visual attention demands of the Bethesda Eye & Attention Measure (BEAM) task.³¹ In preparation for this study, development efforts were undertaken to optimize the previously described¹⁵ Fusion prototype for enhanced mobility, efficiency, and clinical feasibility. In this study, the Fusion n-Back test was administered on a laptop computer, and testing procedures were streamlined, reducing testing time to 12 min total, plus instructions. Additionally, testing software was upgraded to provide enhanced ease-of-use, automated corrective feedback if an examinee failed to follow task instructions, and fully automated data processing/scoring.

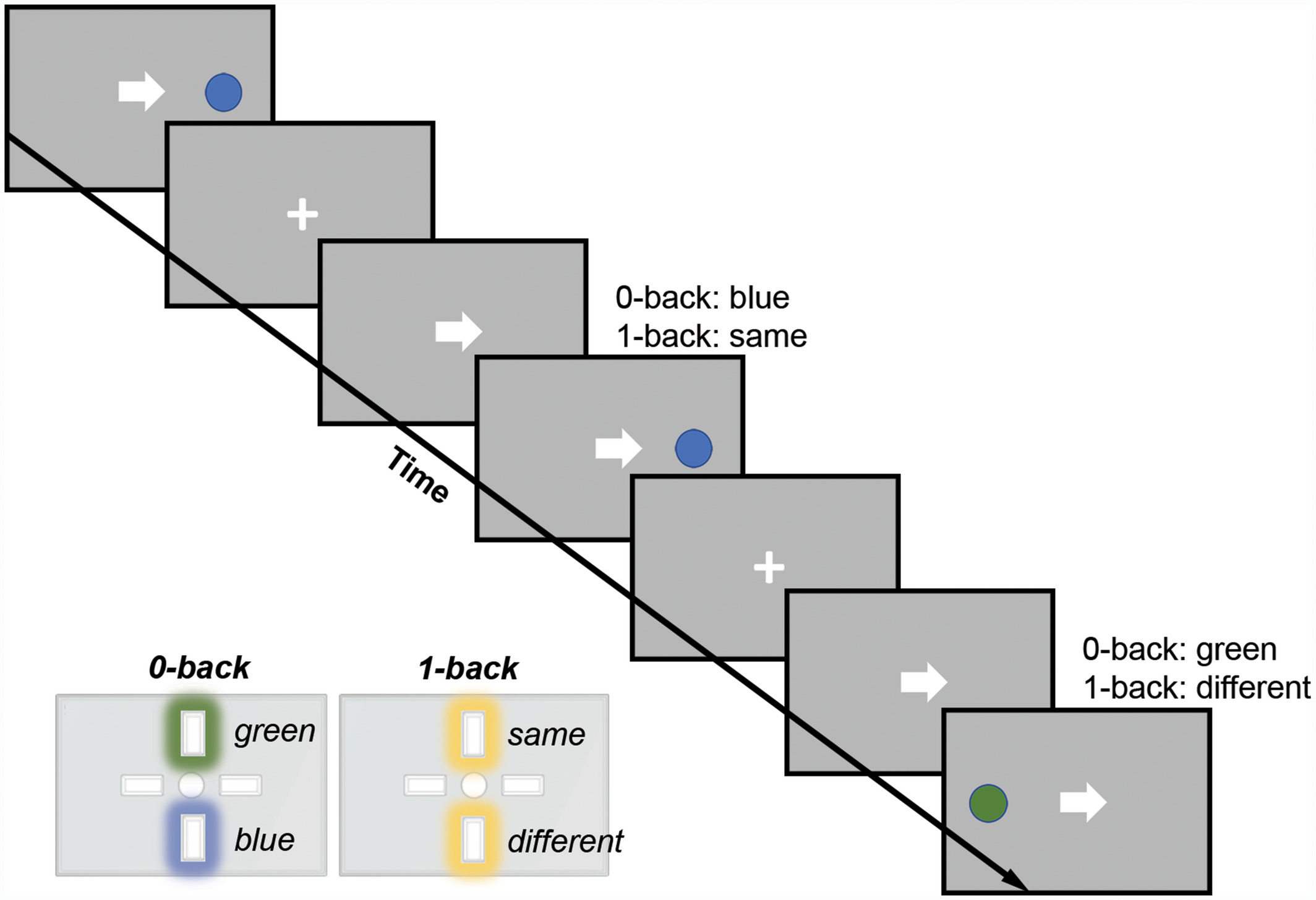

The Fusion n-Back test measures saccadic and manual responses to visual targets across two levels of cognitive load (0-Back and 1-Back; see Fig. 1). Details of the test have been described previously;¹⁵ primary test metrics are shown in Table 3. Eye-tracking data were acquired at 150Hz using a Gazepoint GP3 HD Eye Tracker. Calibration was performed at the beginning of each task run using a 9-point rectangular calibration screen. Manual responses were recorded with a Cedrus RB-530 response pad. Stimuli were presented using PsychoPy v1.85.3 at 1920x1080 resolution on a 15” 60Hz LCD notebook computer display. Participants were seated with eyes positioned 24” from the stimulus display. Head movements were minimized with a chin rest. Gaze data and manual responses were synchronized with task event markers during data acquisition.

Table 3. Psychometric characteristics of fusion n-Back test metrics.

		Reliability1	Age (r3)	Education (r4)	IQ (r4)	Global Cognition (r4)	PCL-5 (r4)	PHQ-8 (r4)
0-Back	Saccadic RT Latency (ms)	0.94	0.10	−0.06	−0.06	−0.14	0.13	0.14
	Saccadic RT Variability (ms)	0.76	0.00	−0.02	−0.18	−0.16	0.05	0.08
	Saccadic Inhibition Errors (%)	0.84	0.05	−0.12	−0.09	−0.17	−0.08	−0.14
	Manual RT Latency (ms)	0.99	0.06	−0.03	−0.23*	−0.37**	0.11	0.19
	Manual RT Variability (ms)	0.86	0.02	−0.11	−0.25*	−0.32**	0.12	0.13
	Color Discrimination Score	0.99	−0.06	−0.02	−0.02	0.35**	−0.19†	−0.17
1-Back	Saccadic RT Latency (ms)	0.95	0.09	0.03	0.09	−0.15	0.06	0.05
	Saccadic RT Variability (ms)	0.77	0.11	0.01	−0.03	−0.02	−0.04	0.01
	Saccadic Inhibition Errors (%)	0.76	−0.18	−0.09	−0.04	0.00	−0.10	−0.18
	Manual RT Latency (ms)	0.95	0.07	0.02	−0.22†	−0.42***	0.08	0.14
	Manual RT Variability (ms)	0.70	0.25*	−0.00	−0.13	−0.29*	0.15	0.14
	Working Memory Score	0.96	0.12	0.04	0.18	0.28**	−0.06	−0.02
Global Cognition		0.752	–	0.14	0.27*	–	−0.02	−0.09

Note

• IQ = estimated premorbid intelligence. Global cognition, as derived from age-corrected neuropsychological tests, is included for comparison to Fusion n-Back test metrics.
• ¹ Split-half correlation with Spearman-Brown correction, except where otherwise indicated.
• ² Cronbach’s alpha derived from age-corrected standardized test scores.
• ³ Partial correlation controlling for group (chronic mild TBI vs. control).
• ⁴ Partial correlation controlling for age and group.
• * P < 0.05.
• ** P < 0.01.
• *** P < 0.001.
• ^† P < 0.10.

Results

Comparison of neurocognitive performance in mTBI versus control groups

Test performance by group is shown in Table 2. Groups did not differ on premorbid IQ, global cognition, or any individual neuropsychological performance metrics examined. However, on the Fusion 1-Back subtest, mean performance of the mTBI group was poorer than that of the control group on saccadic inhibition errors (d = .69, P < 0.01), manual RT latency (d = .72, P < 0.05), and working memory score (d = −0.96, P < 0.01). There was also a trend for greater saccadic RT variability in the mTBI group on the 1-Back subtest (d = 0.47, P = 0.07).

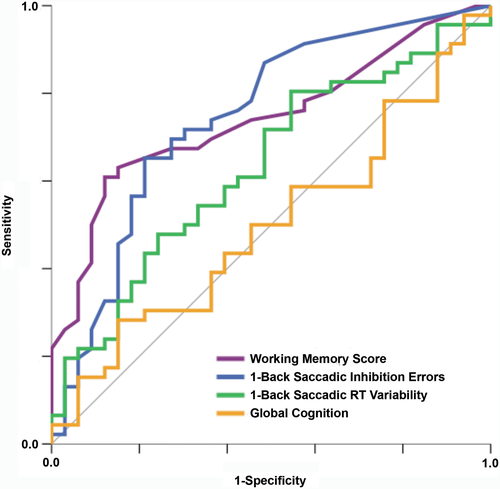

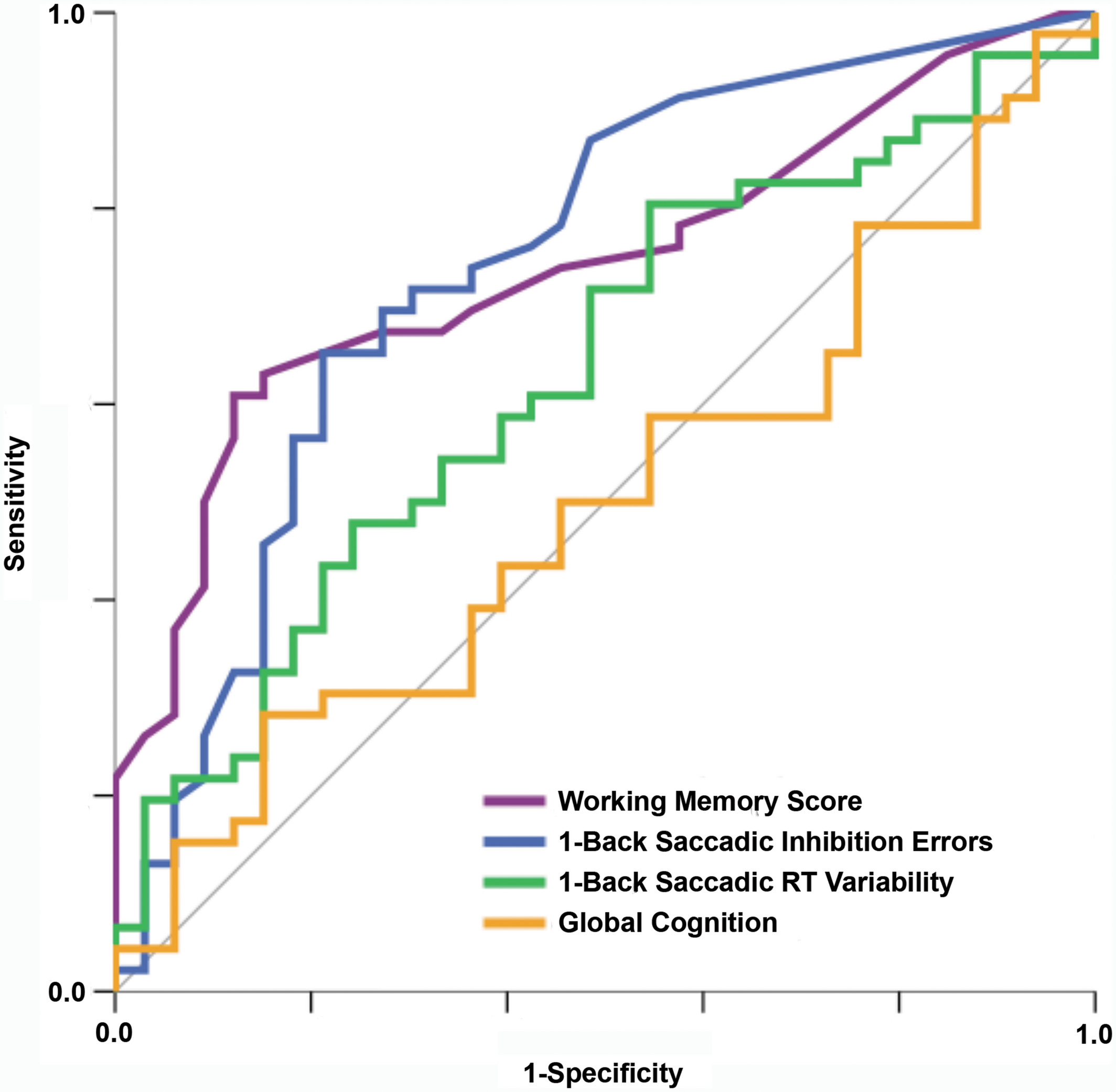

Next, analyses were performed to identify a robust set of Fusion n-Back metrics for identification of chronic mTBI. ROC analyses were conducted for the subset of variables that were P < 0.10 in ANCOVAs. As shown in Table 2, these analyses provided similar results to ANCOVA, with the addition of saccadic RT variability on the 1-Back subtest (AUC = 0.63, P < 0.05) as a significant classifier of chronic mTBI versus control group. AUC values for this group of individual metrics ranged from 0.63 to 0.75. Logistic regression was then performed to examine combined/incremental value of Fusion metrics for identification of chronic mTBI. All variables with significant AUC values from ROC analysis were entered as standardized z-scores using a stepwise forward method with P < 0.10 for entry. Regression diagnostics demonstrated that multicollinearity was not present for any variables (variance inflation factor < 4), and the model was well calibrated (Hosmer-Lemeshow test P > 0.20 for all steps). Model improvements for steps 1-3 were significant, P < 0.05. The accepted model (step 3) explained 38% (Nagelkerke R²) of the variance in group (chronic mTBI vs. control), χ²(3) = 25.90, P < 0.001, correctly classifying 74.7% of cases. In an additional step, age was entered as a predictor, but it did not significantly improve model fit (P > 0.05); therefore, this model was rejected. Effect sizes of individual predictors were comparable between model steps 3 and 4. ROC curves for variables in the accepted logistic regression model are presented in Figure 2. Proportions of participants impaired in each group are presented for each metric in Figure 3.

Odds ratios for variables included in the accepted logistic regression model are presented in Table 2; all successful predictors in this model were derived from the Fusion 1-Back subtest. As shown, participants with poor working memory scores (z = −1.0) were 2.30x more likely to be in the chronic mTBI group, Wald = 8.11, P = 0.001 (95% CI = 1.39–3.26). Membership in the mTBI group was 1.81x more likely (95% CI = 1.12–2.54) among participants with elevated saccadic inhibition errors (z ≥ 1.0; Wald = 5.38, P = 0.04) and 1.54x more likely (95% CI = 0.97–2.1) among participants with elevated saccadic RT variability (z ≥ 1.0; Wald = 3.43, P = 0.03). Combined value of these metrics was high, with positive predictive value of .76 and negative predictive value of .72.

Discussion

This study was designed to evaluate an optimized version of the Fusion n-Back test¹⁵ for multimodal neurocognitive assessment of chronic mTBI. Consistent with previous findings obtained in laboratory settings,^{14, 15} the Fusion n-Back test also demonstrated good sensitivity and specificity for chronic mTBI when used with U.S. military personnel in a clinical setting. As shown previously,^{14, 15} in this study, conventional neuropsychological tests again failed to discriminate between individuals with chronic mTBI and controls. Additional psychometric strengths of the Fusion n-Back Test included high levels of internal reliability and – for the best-discriminating metrics – no detectable confounding by demographic or psychiatric factors. Overall, these findings support the use of neurocognitive eye tracking for clinical assessment of individuals with chronic mTBI. As expected,¹⁵ the more-challenging 1-Back subtest provided superior classification of chronic mTBI relative to the 0-Back subtest. Considering similar findings with other eye movement tasks,^28-30 it appears likely that the additional working memory demands were instrumental in illuminating impairment related to chronic mTBI.

Additionally, current findings provide clear evidence for the value of a multimodal approach to neurocognitive assessment. By measuring concurrent eye movements and manual responses to test stimuli, the Fusion n-Back test produces distinct sets of saccadic and manual metrics. Examined individually, two of three saccadic metrics and two of three manual metrics from the Fusion 1-Back subtest were demonstrably poorer within the chronic mTBI group. When this set of variables was evaluated together, a set of three best-performing Fusion n-Back metrics (two saccadic, one manual) emerged as complementary predictors of TBI group.

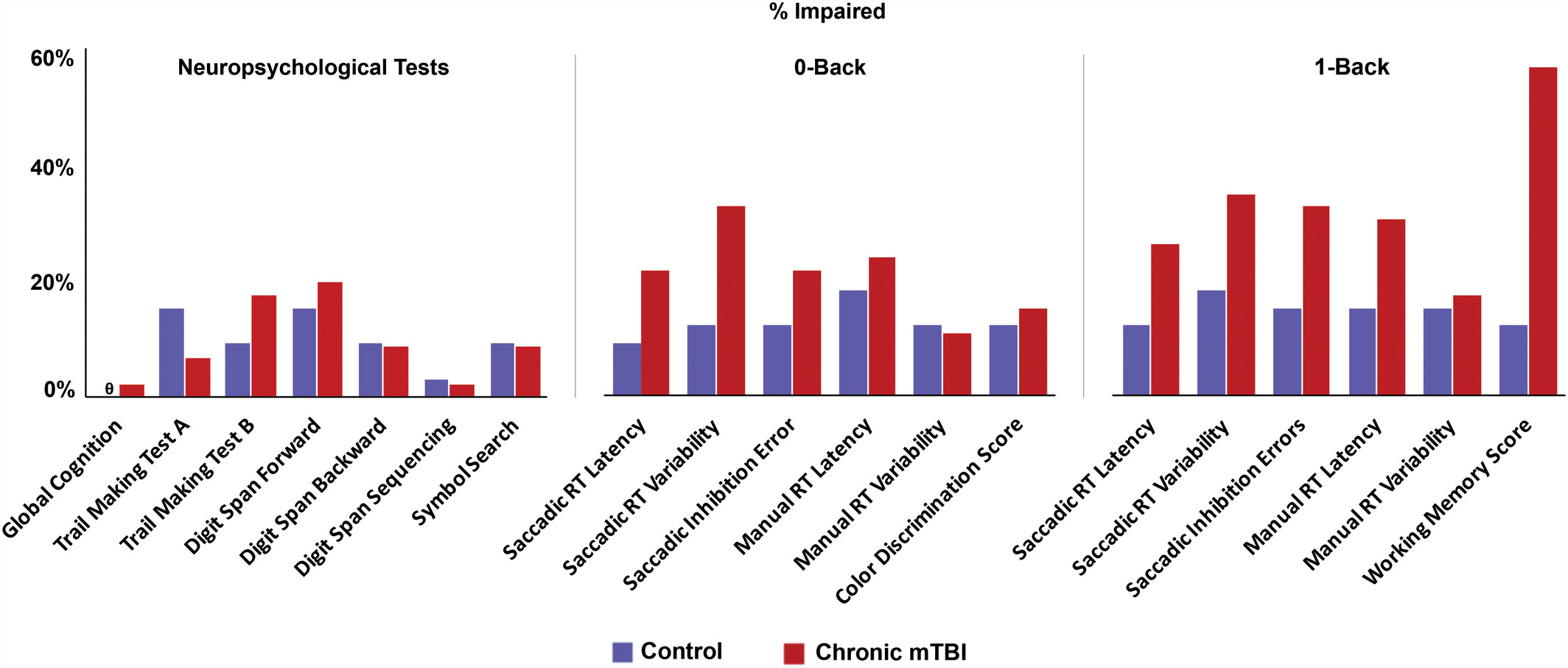

The value of assessing multiple neurocognitive and motor processes appears to be heightened by the heterogeneous nature of neural dysfunction experienced by individuals with chronic mTBI. Approximately 30–50% of individual chronic mTBI group participants demonstrated impairments in each of the best-performing metrics, including saccadic RT variability, inhibition errors, and working memory score. Collectively, these metrics were better able to identify chronic mTBI than any one test metric alone. While none of the individual test metrics was a diagnostic “silver bullet,” the Fusion 1-Back subtest appeared to effectively tap into multiple common forms of neural impairment associated with effects of chronic mTBI.

Aside from identifying persistent effects of neural injury, assessment of cognitive strengths and weaknesses can provide valuable information about an individual’s capacity to complete real-world functional tasks.^49-51 In this study, manual metrics from the Fusion n-Back test were consistently and robustly associated with global cognitive performance. Therefore, these manual metrics may also be useful in predicting functional impairment, as defined by conventional neuropsychological measures with established (if modest) predictive relationships with functional capacity.⁴⁹ The functional relevance of the types of saccadic impairment elicited by the Fusion n-Back test has not yet been examined directly. However, the inconsistent and disinhibited eye movements demonstrated by many chronic mTBI participants in this study could reduce real-world performance by interfering with the acquisition of visual information from the environment. Even among individuals who are functionally intact, these saccadic impairments might serve as valuable biomarkers of neuronal injury. Additional research will be needed to investigate the functional relevance of different forms of saccadic impairment in comparison to conventional cognitive measures.

We also observed a psychometric divergence between saccadic and manual metrics in their relationships with estimated premorbid IQ and psychiatric symptoms. Consistent with previous research,^{20, 31, 32} estimated intelligence was related to conventional neuropsychological measures and multiple manual metrics, but was not related to any saccadic metrics. Similarly, symptoms of depression and posttraumatic stress were related to manual – but not saccadic – performance. These findings provide additional evidence that saccadic metrics may provide advantages over manual metrics for detection of chronic mTBI effects with minimal interference from demographic or psychiatric factors that can confound conventional measures of cognitive performance. Interestingly, performance on the Fusion 1-Back subtest was sensitive to chronic mTBI, while the ostensibly more challenging Digit Span test from the conventional neuropsychological battery was not. The heightened sensitivity of Fusion n-Back metrics to chronic mTBI may be related to a synergy of multiple cognitive and motor demands embedded within this multimodal task.

While the mTBI and control groups were generally well matched, inclusion criteria restricted the mTBI group to those participants reporting persistent post–concussive symptoms. This criterion was selected to maximize clinical relevance of findings, as individuals are unlikely to seek clinical care if they feel their symptoms have resolved. As expected based on patterns of comorbidity, this symptomatic group of patients also had higher levels of depression and posttraumatic stress than the control group. However, these psychiatric symptoms were not related to primary metrics from the Fusion n-Back test, so we opted not to control for these factors in our analyses. Additional research within a larger sample may be useful to evaluate potentially subtle effects of psychiatric status on saccadic versus manual test metrics.

This study, building upon previous iterations of the Fusion system,^{14, 15, 31, 33, 34} provides compelling support for the utility of the multimodal neurocognitive assessment of chronic mTBI. Consistent with our previous findings,^{14, 15} the clinically optimized version of the Fusion n-Back test used in this study successfully discriminated between service members with chronic mTBI and a well-matched group of controls. Fusion metrics were most sensitive under the higher cognitive load condition (1-Back subtest). In contrast, conventional neuropsychological measures were unable to distinguish chronic mTBI and control groups. Additional findings supported the reliability of the Fusion test and suggested that saccadic metrics may be uniquely resistant to confounding influences of age, intelligence, and psychiatric symptoms. These test characteristics could provide advantages in differential diagnosis for complex brain injury populations. Additionally, with testing time as short as 8 min (if the 1-Back subtest is used alone), the Fusion system could be valuable for screening patients within clinical settings where longer test batteries are infeasible. Follow-up research is needed to identify changes in multimodal test performance over time, including comparisons of pre- and postinjury measurements and examination of potential improvement across the acute and subacute stages of TBI recovery.

Conflict of Interest

The technology described in this manuscript is included in U.S. Patent Application No. 61/779,801, U.S. Patent Application No. 14/773,987, European Patent Application No. 14780396.9, and International Patent Application No. PCT/US2014/022468, with rights assigned to the Uniformed Services University of the Health Sciences. Dr. Ettenhofer is a named inventor on these patents. All authors report no competing financial interests exist.

Author Contribution

Ettenhofer contributed to the conception and design of the study; Ettenhofer, Gimbel, and Cordero contributed to the acquisition and analysis of data; Ettenhofer and Gimbel wrote the manuscript and prepared the figures, with contributions from Cordero.
