1. Introduction

The growing demand for fossil energy and the significant increase in carbon emissions have led to the energy crisis and global warming. Countries worldwide are actively adjusting their energy structure and vigorously developing new energy sources represented by photovoltaic (PV) generation [1, 2]. The dual carbon goals proposed by China in 2020 have increased the construction of distributed PV, effectively promoting renewable energy development [3–5]. PV generation has been rapidly developing in microgrids due to its advantages of being noise-free, easy to control, and gradually reducing costs [6, 7]. Since the capacity of individual PV inverters is too small, a large number of distributed PV inverters need to be connected in parallel to increase the capacity. However, the different line parameters of multiparallel PV inverters render the balanced control of active power and reactive power more difficult. The power cannot be shared in proportion to the capacity of the inverter, easily generating problems such as circulating currents, harmonics, and transient instability, which in turn threaten the stable operation of the distribution network system [8]. Thus, the coordination control of multiparallel PV inverters in microgrid systems is critical.

Currently, there are two main methods for coordination control of microgrid systems with multiple inverters in parallel: centralized and distributed [9, 10]. A control algorithm for a centralized DC microgrid system is proposed to reduce the peak power demand of the system [11]. A centralized flow control scheme for electric vehicle–connected microgrids is proposed to effectively improve the efficiency and flexibility of microgrids [12]. A centralized secondary controller was designed to achieve a more accurate sharing of power [13]. To prevent rapid aging or damage to energy storage batteries, a centralized control architecture for microgrids is proposed [14]. However, the centralized control method has a “central node,” causing a heavy communication burden, poor reliability, and scalability, making it difficult to achieve “plug and play.” To solve the above problems, distributed control methods were proposed and first applied to the coordinated control of multiple distributed power sources in DC microgrids. A distributed secondary frequency control method for microgrids was proposed that only needs the local information for frequency recovery and power sharing [15]. With the optimal distributed control system used for microgrids, only local state information is needed to control the power balance control among distributed generations (DGs) and achieve global stability of the system [16]. A power-sharing control method for microgrids is proposed, combined with the designed adaptive virtual impedance to limit the microgrid bus voltage to the permissible range of values [17]. A distributed power coordination control method embedded in a virtual synchronous generator (VSG) is proposed to realize power sharing and frequency and voltage recovery [18].

Consensus algorithms have received much attention in recent years to further improve the performance of secondary control systems [19, 20]. A distributed hierarchical control method based on a consensus algorithm is proposed to realize power sharing in microgrid systems [21]. Distributed secondary coordination control methods through the discrete consensus algorithm are introduced to achieve voltage recovery control and current sharing control [22]. A distributed prediction–based microgrid consensus control method is proposed to improve the operational continuity of microgrids while stabilizing the voltage by using load supply forecasts from each branch [23]. A consensus-based control method is proposed to ensure the accurate sharing of reactive power among VSGs and to adjust the bus voltage to the rated value [24]. With uncontrolled access to dynamic loads such as electric vehicles, traditional consensus algorithms can no longer satisfy time-sensitive scenarios [25, 26]. To further improve the convergence speed and accuracy of the system and enhance the system’s robustness, finite-time consensus control methods have been proposed [27–29]. To realize voltage regulation and accurate current distribution in finite-time, a secondary control method based on finite-time dynamic averaging consensus is proposed [30]. A finite-time ratio consensus algorithm is proposed to achieve the asymptotic consensus of DG in finite-time and ensure the accuracy of frequency update [31]. A finite-time consensus algorithm is designed to eliminate the deviation between microgrid output power and load power [32]. Although the application of the finite-time consensus algorithm to design the secondary controller accelerates the system convergence speed and control accuracy, it is necessary to design secondary controllers for all agents in the system. If the size of the distribution system is dramatically increased, the location of the control nodes in the system is difficult to determine, and the use of a large number of controllers will lead to the fact that such methods will no longer be economically sound.

Although the above references have conducted in-depth research on the power allocation control method of paralleled multiinverter PV microgrid systems, it has not considered the limitations of system communication resources and is no longer applicable to the control of future large-scale distributed PV power generation systems. In order to further reduce the system’s demand for communication resources, complex network models represented by small-world networks have become a hot research topic [33]. Complex network theory, as an important tool for analyzing the topology of multinode complex systems, has been successfully applied to many real-world systems, including power grids, social networks, the World Wide Web, global economic markets, and airport networks, over the past decades [34–38]. As a typical CPS system, the PV microgrid has significant dynamic and complex characteristics of stochasticity, strong nonlinearity, multiscale, and multicoupling; hence, it is necessary to establish a small-world network model for PV microgrid systems and conduct in-depth research on it from the perspective of the complex network [39]. The communication topology of the PV microgrid system is effectively simplified, as each DG node is regarded as an agent through the complex network theory. Therefore, the complex network model is used to analyze its network topology structure [40]. Pinning control, as a synchronous control method in complex network dynamics, improves control efficiency by controlling a small number of nodes in the network. It is thus widely used in complex systems such as microgrids [41]. Distributed reinforcement learning methods with pinning rewards are combined with a simultaneous optimization search process to obtain maximized global rewards and optimal solutions for the microgrid, achieving current sharing control [42]. A frequency/voltage controller based on synchronous pinning is designed to pin the weighted average of frequency and voltage to the desired values [43]. The optimal power sharing of nanogrids in grid-connected microgrids is modeled as a pinning synchronization problem for optimal economic operation of microgrid systems [44, 45]. Although the above studies have made significant contributions to the microgrid pinning control methods, they still rely on expert experience for the selection of pinning nodes, which lacks universality.

Motivated by the above analysis, the coordination control problem of paralleled multiinverters of PV in the microgrid system is studied in this paper. Based on the complex network theory, the finite-time consensus algorithm and the pinning control method are combined to propose a PV microgrid coordination control method. It effectively reduces the communication burden of the system while realizing the coordination control of the system. The finite-time stability of the system is analyzed using Lyapunov stability theory. In addition, a pinning node selection algorithm is designed in this paper, which effectively improves the convergence speed of the system. Finally, a semiphysical simulation experiment platform is built to verify the superiority of the proposed control method.

The paper is organized as follows: In Section 2, a small-world network model for PV microgrids is constructed. The finite-time consensus pinning control method is given in Section 3. The finite-time stability of the system is verified in Section 4. In Section 5, several simulations have been completed to test the performance of the system. Section 6 is the conclusions and future research.

2. Small-World Network Modeling for PV Microgrids

2.2. Small-World Network Modeling

A small-world network is a network structure that lies between a regular network and a random network. Its construction method involves reconnecting each edge in the regular network with a probability p, and the reconnected edges are called shortcuts. When p = 0, the small-world network becomes a regular network, and when p = 1, it becomes a completely random network.

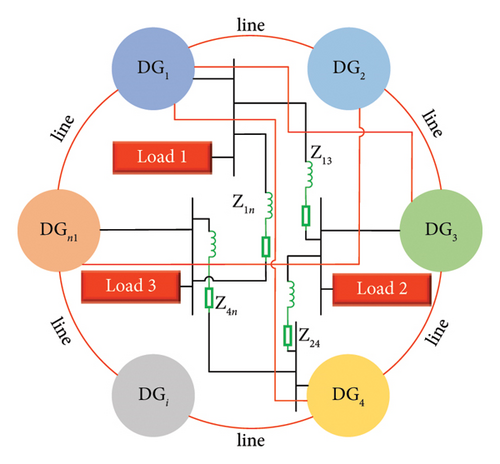

Since the PV microgrid system is a typical small-world model, thus the small-world network topology of the PV microgrid system can be constructed based on complex network theory, as shown in Figure 1.

In Figure 1, Z_ij represents the impedance between DGs and Load_i represents the load of each node, and information exchange between different DGs is achieved through line connections.

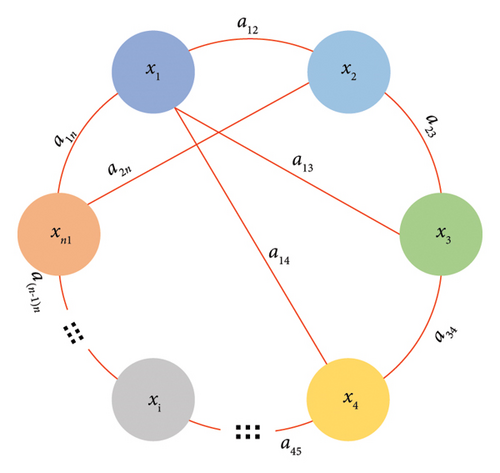

For ease of analysis, the small-world network topology of the PV microgrid system is equivalently represented, as shown in Figure 2. We consider DG_i in the system as an agent node, represented by x_i, and a_ij represents the interaction between nodes.

Considering that the PV microgrid system consists of N identical nodes, the pinning theory of the system is

$$ ()

where x_i is the state variable of the system, A = (a_ij) ∈ R^n×n represents the internal coupling matrix, $$ is the coupling matrix, and c_ij is the coupling weight. If c_ij > 0, it shows that there is a coupling weight between node i and node j.

Then, the control signals are transmitted to the subsystem and the state function is updated to

$$ ()

where a_ij is the communication topology, g_m is the pinning gain of the pinning node, and $$ is the expected value of pinning nodes. If i ∈ B, then g_m = 1 or g_m = 0, and at this point, the controlled variables of the pinning node converge to the external control signal $$. We realize the consensus of information among nodes in a microgrid system.

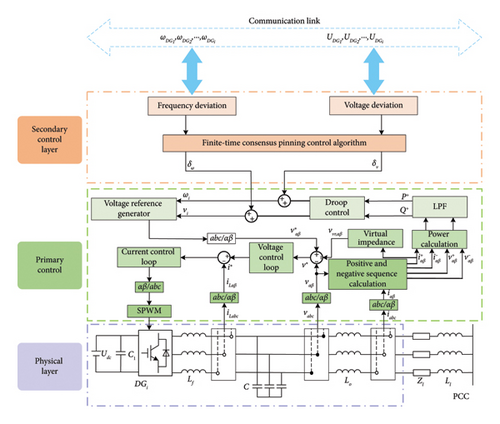

The finite-time consensus pinning control block diagram of the PV microgrid system is shown in Figure 3. The microgrid system consists of an inverter-type DG unit and primary and secondary control layers. Virtual impedance is added to the primary control layer of the system to decouple active and reactive power. The traditional droop method is used for primary control and can be expressed as

$$ ()

where ω_n, U_n, P_n, and Q_n are rated angular frequency, voltage, active power, and reactive power of primary control, respectively. k_1i and k_2i are droop coefficients for active power and reactive power, respectively. ω^∗ and U^∗ are the angular frequency and reference voltage of droop control, respectively.

3. Finite-Time Consensus Pinning Control Method

3.1. Design of Finite-Time Consensus Pinning Controller

Due to the limitation of the control layer to a single DG, information exchange between DGs in the system is not possible. In addition, the PV microgrid has a large number of DGs and a complex structure, so there is a need to achieve fast communication and coordination control of the system. Based on the finite-time consensus pinning control method, the n-dimensional linear finite–time pinning control equation with an external controller can be expressed as

$$ ()

where u_i is an external controller added to the agent node, and $$; g_m is the pinning control gain; $$ is the expected value of pinning nodes; e_i(t) is the error between actual and expected values; $$ is the coupling strength; and a_ij is the communication topology.

In order to achieve a reasonable power sharing of the pinning nodes, the external controller $$ can be rewritten in the following form:

$$ ()

Thus, equation (4) can be expressed as

$$ ()

$$ ()

where $$ and $$ are the expected values of pinning control and also the conservative value of each DG; $$ and $$ represent the active power and reactive power synchronization functions of nodes i and j, respectively; and $$ and $$ are the active output power and reactive output power of node i, respectively.

For secondary control of the system, corrections δ_ω and δ_v are introduced into the controller for accurate power sharing. As the primary control layer is droop control, combined with equation (6), the finite-time pinning control equation for secondary frequency control, voltage control, and power sharing can be expressed as

$$ ()

$$ ()

where $$ and $$ are the standard active and reactive capacities of DG, respectively, and $$ and $$ are set values for active power and reactive power, respectively.

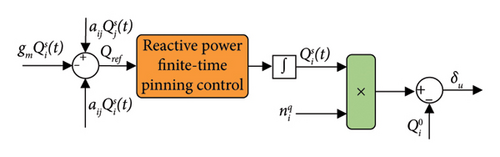

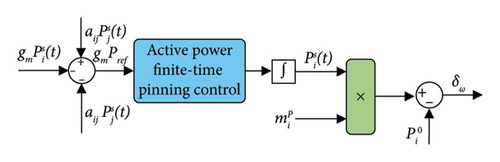

The schematic block diagram of the power secondary controller based on the finite-time pinning control method is shown in Figure 4.

As shown in Figure 4, the coefficients $$ and $$ in equations (8) and (9) will be preassigned to each pinned node. The expression for $$ and $$ is

$$ ()

$$ ()

By combinig equations (8) and (9), we have

$$ ()

where $$ is the error matrix of system output frequency, $$ is the error matrix of system output voltage, G≜diag([g₁, g₂, ⋯, g_N]) is the pinning control gain matrix of the system, and Z≜diag([ζ₁, ζ₂, ⋯, ζ_N]) is the pinning matrix.

3.2. The Selection of Pinning Nodes

Combining the theory of linear time-invariant systems and equation (12), it can be seen that the convergence speed of the system depends on the magnitude of the eigenvalue of L + GZ. Therefore, selecting a reasonable pinning node, that is, choosing the appropriate Z as a reference, is crucial for improving the performance of the system. However, it is difficult to select pinning nodes in a complex network. The existing research results are based on expert experience, which is not conducive to the widespread application of the pinning control method. Therefore, a new method for selecting constrained nodes is proposed in this paper. To analyze the problem, let ψ(Z)≜λ_min(L + gZ) denote the algebraic connectivity of the system. The upper bounds and lower bounds of ψ(Z) are analyzed to design the optimal method for selecting the pinning nodes. To further analyze the strict upper bounds and lower bounds of the network’s algebraic connectivity relative to Z, assuming $$ is the set of pinning nodes, let the farthest node to pinning node set $$ be k. We define the set $$ as follows:

$$ ()

where ∀i ∈ {1, ⋯, k}, a_pj is an element in the adjacency matrix of the system communication network, and $$. We define each set in equation (13) as follows:

$$ ()

$$ ()

where $$, $$, ∀i ∈ {0, ⋯, k − 1}.

Given an undirected network with a pinning node set $$, and $$, the upper and lower bounds of the algebraic connectivity of network ϕ(L, Z, g) are as follows:

$$ ()

The upper bound ϕ_u(L, Z, g) can be expressed as

$$ ()

$$ ()

The lower bound ϕ_l(L, Z, g) can be expressed as the minimum positive root of a polynomial, α_i(μ)i = 0, ⋯, k − 1.

$$ ()

where

$$ ()

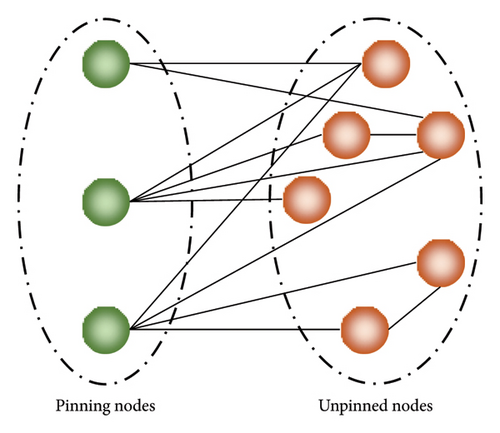

Figure 5 illustrates the sets and variables under multiple pinning nodes.

Through the above analysis, it can be seen that the upper bound of ψ(Z) is the increasing function of the pinned node degree and the pinning gain. When the pinning gain g is huge, the upper bound of the spectral radius of ψ(Z) will satisfy the condition that d_i/N is bounded, d_i is the degree of the pinned node, and d_i < N − 1. The lower bound of ψ(Z) is a strictly decreasing function of $$ from the pinned node to the farthest unpinned node. From the above analysis, it can be seen that pinning a node with a large out-degree and a short distance from other nodes will result in a more extensive range of spectral radius, indicating a better pinning control effect.

Based on this inference, the following constraint node selection algorithm can be designed. We define the variable names as follows.

route − length(i, j) is the shortest route length from one DG_i to another.

$$ ()

$$ ()

where $$ is the DG node set; Node_pinned is the pinned node set; deg(Node_pinned) is the number of links from the pinned nodes to other nodes in the system; and $$, where the sign ∖ represents the subtraction operation of sets.

Let σ^∗ be the expected algebraic connectivity to Z. Since σ^∗ ≤ max_{out−deg ree}, the least pinned DGs to realize faster convergence speed λ^∗ can be expressed as σ^⋆ ≤ deg(Node_pinned)/(N − 1). Therefore, in order to achieve a faster convergence speed, the sum of the maximum out-degree of the least pinned DGs b should exceed (N − 1)σ^∗. The pseudocode of the algorithm is as follows (Algorithm 1).

Algorithm 1: Pinning nodes selection algorithm.
• 1.

  Sort the node degrees of DG

•  

  $$

• 2.

  Let b be the smallest integer

•  

  $$

• 3.

  $$

• 4.

  when |Node_pinned| < b

• A.

  $$

• B.

  $$

• 5.

  if L + GZ ≥ σ^⋆I_N,stop;

•  

  Otherwise, let b = b + 1 and return to Step 4

4. Finite-Time Stability Analysis

The stability of the finite-time consensus pinning control method is verified by the Lyapunov stability theory. The following lemmas and theorem are given before the proof.

Since L + GZ is a negative definite matrix, a global asymptotically stable equilibrium point exists for the microgrid system. Combining Lemmas 1 and 2 and Theorem 1, it can be proven that the control system can realize power consensus within the finite time.

5. Simulation Experiment Analysis

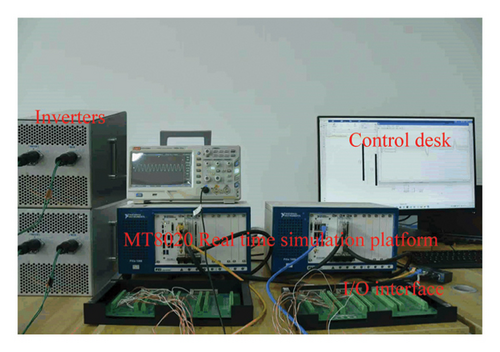

To verify the effectiveness of the finite-time consensus pinning control method based on complex networks for PV microgrids, it is tested in the MT 8020 semiphysical simulation experimental platform. This experimental platform has an 8-core Intel Xeon with a clock speed of 3.8 GHz and 32 GB DDR4 SDRAM. A microgrid system consisting of five PV inverters connected in parallel with a capacity ratio of 3:3:2:2:1 for each DG is built in StarSim HIL. The semiphysical simulation platform is shown in Figure 6.

The reference voltage and reference frequency of the PV microgrid system were set to 380 V and 50 HZ, respectively.

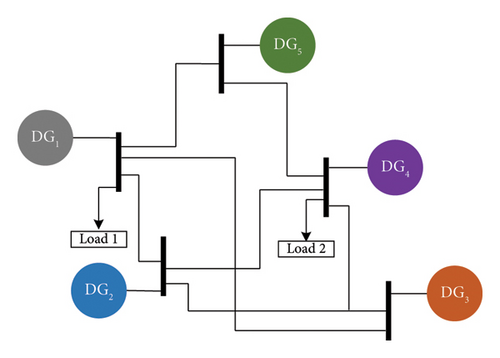

Figure 7 is the diagram of the test system, while the communication topology of the system established by employing the complex network theory is shown in Figure 8.

The parameters of DG, line, and load of the PV microgrid system are shown in Tables 1 and 2.

5.1. System Dynamic Performance Verification

According to the pinning node selection algorithm designed in this paper, the expected algebraic connectivity of the reference node is σ^∗ = 0.09. $$ is calculated by the node selection algorithm, which means that the node DG₁ and the node DG₃ are used as pinning nodes at the same time. Since there are two constraint nodes at this time, it is necessary to make a choice between node DG₂ or node DG₃ in the first iteration calculation result. If DG₂ is used as the start, $$ is the node set without DG₂, route = 4, and $$.

Thus, $$ can be used as the pinning node. If node DG₃ is used as the start, $$ is the node set without DG₃ and $$. It can be concluded that both node {DG₂, DG₄} and node {DG₁, DG₃} can be used as constraint nodes to effectively control the system.

The simulation process is divided into the following four stages: (1) 0 − 3 s,only the primary control is activated; (2) after 3 s, finite-time consensus pinning secondary control is consistently implemented; (3) load of 6 kW + 5.5 kVar is cut-in in the system; and (4) load of 6 kW + 5.5 kVar is cut-off from the system.

The system running result with node {DG₁, DG₃} as the pinning node is shown in Figure 9.

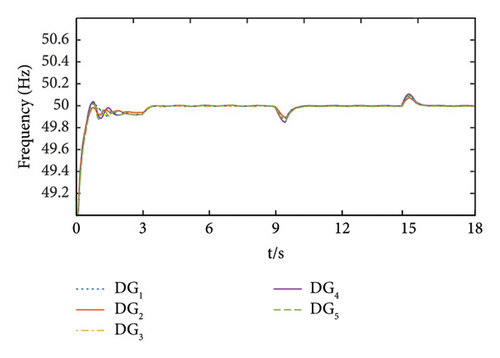

From Figures 9(a) and 9(b), it can be seen that due to the varying line impedances, the system cannot stabilize the voltage at the rated value solely through droop control during the 0–3 s time period, and there is also a certain deviation in frequency. After 3 s, the finite-time pinning control is added, the voltage value of each node is stabilized to 380 V within 0.9 s, and the frequency reaches the rated value of 50 Hz. After the load is cut-in at 9 s, although the voltage and frequency of the system decreased to varying degrees, relying on finite-time pinning secondary control, the voltage/frequency recovered to their rated values within 1.13 s. After the cut-off of the load, the voltage and frequency of the system increased and recovered to their rated values within 1.24 s. From this, it can be seen that the proposed control method has strong robustness and can quickly and effectively suppress load fluctuations in the system.

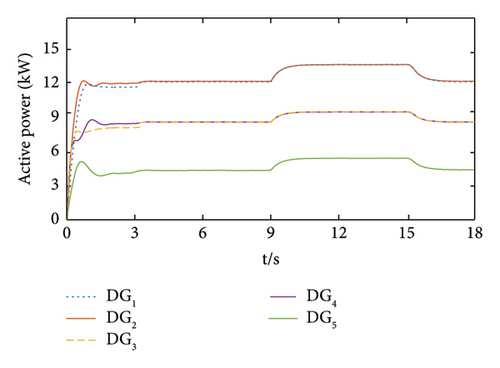

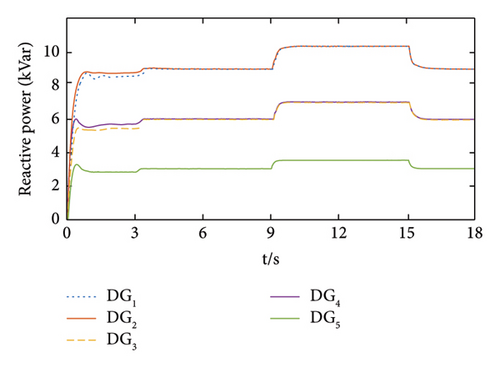

The active and reactive power balance control results for each DG output are shown in Figures 9(c) and 9(d). As seen in Figures 9(c) and 9(d), the system only relies on the droop control to share the output power before the secondary control starts. Due to the difference in the impedance parameters of the branches, the power cannot be shared proportionally according to the rated capacity of each DG. However, with the introduction of the finite-time pinning secondary control, active and reactive power can achieve power sharing in the ratio of 3:3:2:2:1. To further validate the dynamic performance of the proposed control method, a 6 kW + 5.5 kVar load was cut-in at t = 9 s and then cut-off at t = 15 s. From Figures 9(c) and 9(d), it can be seen that after load cut-in, the active power of each DG can achieve stable output under proportional distribution within 1.13 s, and the reactive power can achieve stable output within 1.24 s, and the output power is shared proportionally.

After load cut-off, the active power and reactive power of the system can still quickly achieve stabilization and power sharing according to the capacity ratio, indicating that the proposed control method has good dynamic performance.

5.2. Different Pinning Nodes’ Control Effects Comparison

To verify the influence of different constraint nodes on the control effect, DG₄ and DG₅ were used as pinning nodes for control. The simulation results of the system’s voltage and frequency are shown in Figures 10 and 11.

From Figure 10, it can be seen that when finite-time pinning control is applied to nodes {DG₄, DG₅} compared to applying pinning control to nodes {DG₁, DG₃}, although the system voltage can be stabilized around the rated value, the fastest convergence is 1.83 s and the smallest peak deviation is 3.23 V at load cut-in. The fastest convergence at load cut-off is 1.62 s and the smallest peak deviation is 2.45 V.

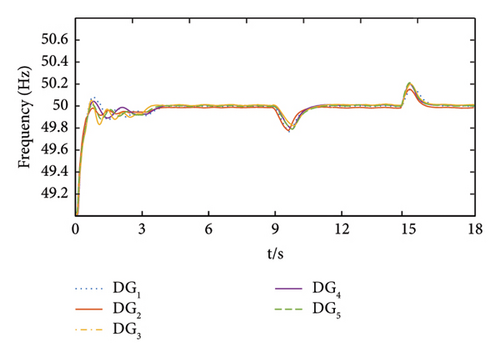

From Figure 11, it can be seen that when node {DG₄, DG₅} is selected as the pinning node, the frequency of each DG in the system can be stabilized at the rated value, eliminating the bias that exists in the primary sag control. However, the dynamic performance of the system in terms of convergence speed and peak deviation is not as good as taking nodes {DG₁, DG₃} as pinning nodes when there is a sudden change in load.

Table 3 shows the comparison results of the convergence speed and peak deviation of system voltage after selecting different constraint nodes. As can be seen in Table 3, compared with choosing {DG₄, DG₅} as pinning nodes, when the load is cut-in, the convergence time of DG₁ to DG₅ improved by 0.78, 0.79, 0.91, 0.71, and 0.45 s, respectively. When the load is cut-off, the convergence time of DG₂, DG₄, and DG₅ improved by 0.59, 0.59, 0.54, 0.26, and 0.13 s, respectively. In addition, it can be seen that when the load is cut-in, the peak deviation of DG₁ to DG₅ improved by 10.2%, 9.8%, 3.1%, 3.4%, and 2.5%, respectively. When the load is cut-off, the peak deviation of DG₁ to DG₅ improved by 5.4%, 11.3%, 9.8%, 1.8%, and 3.6%, respectively. It can be concluded that the proposed finite-time pinning control method has better dynamic performance.

Table 3. Comparison of voltage convergence speed and peak deviation for different pinning nodes.

Pinning node	Items	DGi	DG1	DG2	DG3	DG4	DG5
DG1 DG3	Convergence time (s)	Load cut-in	0.91	0.93	0.92	0.95	1.13
		Load cut-off	0.94	0.96	1.08	1.15	1.24
	Peak deviation (V)	Load cut-in	2.46	2.55	3.13	2.83	2.75
		Load cut-off	2.1	2.05	2.21	2.14	2.15
DG4 DG5	Convergence time (s)	Load cut-in	1.69	1.72	1.83	1.66	1.58
		Load cut-off	1.53	1.55	1.62	1.41	1.37
	Peak deviation (V)	Load cut-in	2.74	2.83	3.23	2.93	2.82
		Load cut-off	2.22	2.31	2.45	2.18	2.23

The above simulation experiment results verify the accuracy of the pinning node selection algorithm proposed in this paper and demonstrate the superiority of the finite-time pinning control method. These results are consistent with the conclusions drawn in Section 5.1.

5.3. Different Control Methods’ Control Effects Comparison

The dynamic response performance of the traditional finite-time secondary control is compared with the finite-time pinning secondary control, and the results are shown in Figures 12 and 13. Due to the large number of system nodes, nonpinned nodes are selected for analysis and comparison in order to verify the effectiveness of the finite-time pinning control method. It should be noted that the dashed line in the Figures 12 and 13 is the finite-time secondary control, and the solid line is the finite-time pinning secondary control.

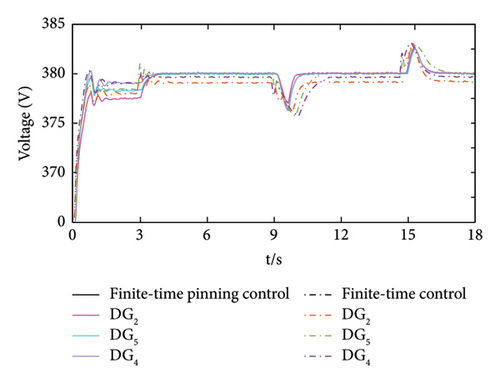

From Figure 12, it can be seen that the voltages at each node in the system have different degrees of deviation when relying only on the droop control. After the introduction of secondary control, the finite-time secondary control is able to stabilize the voltage. However, it has a significant deviation and cannot stabilize the voltage at the rated value. When the load is cut-in, the system takes 2.8 s to achieve voltage stabilization when the finite-time control method is used, and the maximum deviation of the peak voltage reaches 4.8 V.

After the cut-off of the load, the system takes 2.2 s to achieve voltage stabilization when the finite-time control method is used, and the maximum deviation of the peak voltage reaches 3.5 V. When the finite-time pinning secondary control is adopted, the voltage of each node in the system can be quickly recovered to the rated value, and the fluctuation generated during the recovery process is negligible. When the load is cut-in, the PV microgrid system can recover to the rated value in only 1.1 s, with a maximum voltage deviation of 3.8 V. When the load is cut-off, it only takes 1.2 s for the system to recover to its rated value, with a maximum voltage deviation of 2.9 V.

Table 4 shows the comparison results of the convergence speed and peak deviation of system voltage of different control methods. As can be seen in Table 4, compared to the traditional finite-time control method, when the load is cut-in, the convergence time of DG₂, DG₄, and DG₅ improved by 1.84, 2.46, and 1.41s, respectively, as the finite-time pinning control method was implemented. When the load is cut-off, the convergence time of DG₂, DG₄, and DG₅ improved by 1.99, 1.96, and 1.4s, respectively. In addition, it can be seen that when the load is cut-in, the peak deviation of DG₂, DG₄, and DG₅ improved by 10.1%, 23.7%, and 25.9%, respectively. When the load is cut-off, the peak deviation of DG₂, DG₄, and DG₅ improved by 7.7%, 15.9%, and 10.2%, respectively. It can be concluded that the proposed finite-time pinning control method has better dynamic performance.

Table 4. Comparison of voltage convergence speed and peak deviation for different control methods.

Control methods			Finite-time pinning control		Finite-time control
Load variation			Load cut-in	Load cut-off	Load cut-in	Load cut-off
Control nodes	DG2	Convergence time (s)	0.31	0.22	2.15	2.21
		Peak deviation (V)	3.72	2.51	4.14	2.72
	DG4	Convergence time (s)	0.28	0.21	2.74	2.17
		Peak deviation (V)	3.32	2.38	4.35	2.83
	DG5	Convergence time (s)	0.32	0.31	1.73	1.71
		Peak deviation (V)	3.57	2.47	4.82	2.75

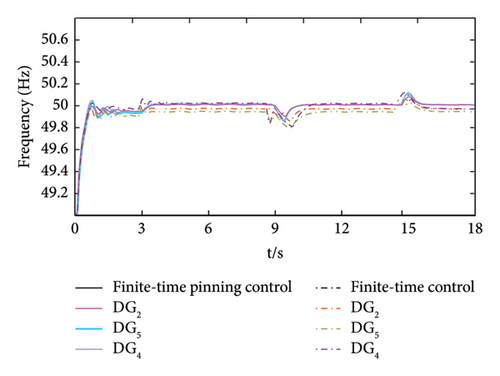

Figure 13 shows the frequency comparison of the system using different control methods. From Figure 13, it can be seen that the system’s frequency cannot be stabilized at the rated value when finite-time secondary control is used, whereas finite-time pinning secondary control can quickly recover the frequency at each node to the rated value.

When the system load changes abruptly, the convergence speed of the finite-time secondary control is significantly slower, and there are large fluctuations in the recovery process, which affects the stability of the system.

From the analysis of the above simulation experimental results, it is concluded that the finite-time pinning control method has a faster convergence speed and smaller peak deviation when the load changes abruptly, and the overall dynamic performance of the system is significantly better than the finite-time secondary control method.

6. Conclusions

In this paper, problems such as unbalanced power sharing caused by different line parameters and unsynchronization between nodes in a PV microgrid system (a typical CPS system) consisting of multiple parallel inverters are studied. A finite-time consensus pinning control method for PV microgrids based on the complex network theory is proposed to achieve coordination control of multiagent systems. A small-world network model of a PV microgrid system was constructed based on the complex network theory, and a selection algorithm for constrained nodes was proposed to overcome the subjectivity of selecting constrained nodes based on expert experience. Finally, a semiphysical simulation platform is built in StarSim HIL, relying on the MT8020 simulator. It is verified that the finite-time pinning control method can achieve stable voltage and frequency control in finite-time, enabling the deviation of the droop control to recover to the rated value quickly. The finite-time pinning control method can realize the balanced control of active and reactive power when the system load changes abruptly, and it also shows that the system has strong robustness and good dynamic response speed. The experimental results show that the peak deviation improved by 7.7% at least, and the convergency time improved by 1.4 s at least, compared to the traditional finite-time control method.

Future work will consider methods for the coordination control of PV microgrids with nonfixed topologies, considering the impacts of volatile electricity prices and extreme weather. As the typical CPS, the influence of the network attacks such as denial of service (Dos) and false data injection attacks (FDIAs) should be also considered in the future work.
