Proton-exchange membrane water electrolysis (PEMWE) powered by renewable energy sources is an eco-friendly technology for the mass production of hydrogen. One of the major obstacles in the commercialization of PEMWE is the necessity of using precious metal catalysts under corrosive operating conditions, which can be partially mitigated by using nonprecious metal catalysts for the cathode, where the conditions are less harsh than those for the anode. However, the use of nonprecious transition metal catalysts limits both performance and durability. To overcome this limitation, a wide range of NiMoMn ternary alloy catalyst compositions were fabricated by electrodeposition, and their performances were evaluated. The best-performing Ni_82.1Mo_11.6Mn_6.3 alloy catalyst exhibited an outstanding hydrogen evolution performance with an overpotential of 16 mV at −10 mA cm⁻², and with an increase of only 8 mV after 10,000 potential cycles for durability testing. The application of this material in a PEMWE single cell gave a favorable performance of 1.936 A cm⁻² at 2.0 V_cell, and an excellent degradation rate of 2.2 mV h⁻¹ in a durability test performed at 1 A cm⁻². This high performance and excellent durability of the Ni_82.1Mo_11.6Mn_6.3 catalyst was attributed to the modulation of its electronic structure, in addition to a large electrochemical surface area, and stable Mn oxide formation on the surface. These results indicate the potential of this catalyst for use in lowering the hydrogen production costs associated with PEMWE.

1. Introduction

The intermittent nature of electricity generated by renewable energy sources is known to place a load on the grid upon the production of excess electricity. This problem can be solved using an energy storage system (ESS) to store excess power by converting it to another energy type. Hydrogen has gained attention as an ESS due to its high energy density, stable storage, and zero carbon emissions during conversion. In addition, the electrolysis of water using renewable energy has been considered a promising eco-friendly method for hydrogen production due to the fact that it does not emit any pollutants [1, 2]. In this context, proton-exchange membrane water electrolysis (PEMWE) can offset the disadvantages of alkaline water electrolysis (AWE) and achieve low ohmic losses, low gas crossovers, a compact design, high-purity hydrogen production, and a fast load fluctuation response [3]. However, since the PEMWE requires an acidic operating environment, the catalyst is limited to precious metals such as Pt, which exhibits a near-optimal hydrogen adsorption energy (Δ) [4] in addition to good corrosion resistance. Furthermore, it has been reported that linking PEMWE to renewable energy sources leads to a fluctuating operating potential, thereby necessitating a material that exhibits sufficient durability under such conditions [5]. In particular, catalysts for the oxygen evolution reaction (OER) are inevitably limited to precious metals because of their operating potentials exceeding >1.23 V_RHE. Consequently, the high cost of precious metals is a major barrier to the commercialization of PEMWE systems.

However, in the case of the hydrogen evolution reaction (HER), a negative overpotential is applied with respect to 0 V_RHE, thereby partially eliminating the necessity of using precious metals. Although there are some opportunities to use nonprecious HER catalysts in PEMWE, these materials remain vulnerable to high potentials and acidic environments, resulting in chemical and structural changes, such as delamination of the catalyst layer from the substrate, and changes in its composition due to dissolution, ultimately leading to a reduced catalytic activity [6]. To address these challenges, various strategies have been developed to enhance the activity and durability of nonprecious HER catalysts, including compound selection, alloying, and structural engineering. For example, the incorporation of additional compounds and alloys can optimize the (Δ) value on the catalyst surface by altering its electronic structure, thereby enhancing the intrinsic activity of the catalyst [4, 7]. Representative examples of these compounds include the phosphides, sulfides, and carbides of transition metals [8, 9]. Differences in electronegativity between phosphorus/sulfur and transition metals modify the catalyst’s electronic structure, optimizing hydrogen adsorption, enhancing acidic HER activity, and improving durability at optimal contents [10]. Example compounds include NiP [11], CoP [12], MoP [13], and FeP [14]. In addition, Xie et al. [15]. prepared an FeP/Ti catalyst by the deposition of a FeOOH film on Ti foil using electrodeposition followed by phosphorization. The as-prepared FeP/Ti catalyst demonstrated a good performance with overpotentials of 79 and 95 mV at −10 mA cm⁻² in 0.5 M H₂SO₄ and 1 M KOH solutions, respectively. A stability test confirmed the durability of this catalyst over a period of 8–10 h. Among the sulfide-based nonprecious-metal catalysts, MoS₂ is generally the most studied, exhibiting a high activity with an almost optimal (Δ) value of 0.08 eV for the edge sites [16, 17]. Subsequently, it was found that increasing the exposure of the edge sites through nanowall formation [18] led to an overpotential of 95 mV at −10 mA cm⁻² and a Tafel slope of 78 mV dec⁻¹ in acidic solutions. In addition, Nguyen et al. [19] synthesized a nanoflower heterostructure composed of MoS₂and WS₂, attributing its remarkable HER performance to the unique interfacial properties between the two materials. Carbide-based nonprecious metal catalysts have also been reported to exhibit surface properties and performances comparable to those of Pt [8]. For example, Xiao et al. [20] prepared a bimetallic carbide nanostructure consisting of Mo₂C and WC catalysts, resulting in an overpotential of 184 mV at −10 mA cm⁻², along with no significant change in activity after 3,000 cycles.

In terms of the alloy catalysts, Ni- and Cu-based bimetallic alloys have been widely studied owing to their relatively high intrinsic activities in the acidic HER, and their superior durability, which can be attributed to their more positive standard reduction potentials compared to those of other transition metals [21–25]. For example, Deng et al. [23] prepared a CoNi@NC catalyst via a bottom-up approach using ethylenediaminetetraacetate anions, and the prepared catalyst demonstrated an overpotential of 142 mV at −10 mA cm⁻² with a Tafel slope of 104 mV dec⁻¹. In another study, Kim et al. [24] used the electrodeposition technique to fabricate a Co₅₉Cu₄₁ catalyst, leading to an overpotential of 342 mV at −10 mA cm⁻² and a Tafel slope of 103 mV dec⁻¹ in a 0.5 M H₂SO₄ solution. They also prepared a Cu_99.2Mo_0.8 catalyst [25] with a mass activity of 233.4 mA mg_Cu+Mo⁻¹ and a Tafel slope of 94 mV dec⁻¹ in an acidic solution. In addition to Ni and Cu, Mn-based catalysts have also been subjected to modification using single atoms, alloys, doping, and morphological changes, generating efficient catalysts for application in the HER [26]. For instance, Liu et al. [27] prepared MnCoP/Ti catalysts by electrodeposition and heat treatment, which exhibited an overpotential of 49 mV at −10 mA cm⁻² in a 0.5 M H₂SO₄ solution. Furthermore, Guo et al. [28] prepared a NiMnS/Ti by electrodeposition on Ti paper. Compared to the corresponding NiS/Ti catalyst, the hollow structure of the NiMnS/Ti catalyst led to a 37 mV reduction in the overpotential.

Among the binary alloy catalysts with moderate durability, NiMo is known to possess an extremely high acidic HER activity [29–33]. For instance, McKone et al. [33] reported that a NiMo catalyst with a composition ratio of 6.4:3.6 exhibited an HER overpotential of 80 mV at −20 mA cm⁻², along with a decay rate of 2.8 mV h⁻¹ over 10 h. This study, therefore, aims to further enhance the activity and durability of NiMo by the addition of Mn as a third component. More specifically, a ternary alloy catalyst composed of Ni, Mo, and Mn is fabricated via electrodeposition, and subsequently, its applicability is verified on both the half-cell and PEMWE single-cell levels. Various combinations of these three components are investigated to determine the optimal composition for maximizing the HER performance. Physicochemical and electrochemical analyses are also performed to determine the factors responsible for enhanced HER activity and durability. Notably, the electrodeposition approach, which is considered to be one of the best methods for fabricating catalyst-coated porous transport electrodes [34, 35], is used throughout to deposit the NiMoMn catalysts on carbon paper, due to its ability to rapidly produce metal nanostructures under atmospheric conditions, with strong bonding between the catalyst and the porous transport layer.

2. Materials and Methods

2.1. Catalyst Preparation

The NiMoMn catalysts were prepared using a one-step electrodeposition method. All catalysts were electrodeposited in a homemade three-electrode Teflon cell at ambient pressure and room temperature. A saturated calomel electrode ([SCE], CHI 150) and a graphite rod were used as reference and counter electrodes, respectively. Carbon paper (Ballard, Avcarb MGL280) with an exposed area of 1.43 cm² was used as the substrate for electrodeposition. The solution for electrodeposition was prepared by mixing C₆H₅Na₃O₇·2H₂O (7555-4405, Daejung), MnCl₂·4H₂O (19285S0301, Junsei), Na₂MoO₄·2H₂O (7598-4405, Daejung), and NiCl₂·6H₂O (141-01045, Waco) in deionized water (18.2 MΩ cm) with stirring for 20 min to prepare a solution with a total volume of 40 mL. Details regarding the quantities of all reagents employed for fabrication of the various NiMoMn catalysts are summarized in Table S1. The solution was then purged with N₂ for 30 min to eliminate any dissolved oxygen. Subsequently, electrodeposition was performed by applying a constant potential of −2 V_SCE for 10 min (CS350, Wuhan CorrTest Instrument Corp., Ltd.). The resulting catalysts deposited on the carbon paper were rinsed using deionized water for 20 s and dried under a flow of N₂ gas. For the best performing sample, a heat treatment was conducted at 200°C for 2 h in a 4% H₂/Ar atmosphere to investigate its effects on the performance and durability of the catalyst.

2.2. Material Characterization

Field emission scanning electron microscopy ([FE-SEM], Zeiss Sigma) was performed to observe the morphologies of the catalysts. The bulk compositions of the catalysts were evaluated using energy dispersive X-ray spectroscopy (EDS, Noran System 7, Thermo Fisher). X-ray diffractometry ([XRD], NEW D8-Advance, Bruker-AXS) was conducted to collect information regarding the crystal structures of catalysts. XRD was performed between 2θ values of 20–80° at a scan rate of 1° min⁻¹. The electronic structure, oxidation state, and composition of the catalyst surface were investigated using X-ray photoelectron spectroscopy ([XPS], K-alpha+, Thermo Fisher Scientific) with calibration based on the binding energy (284.6 eV) of the C 1s C–C peak.

2.3. Electrochemical Characterization

The HER performance was measured by cyclic voltammetry (CV) between −0.23 and 0.07 V_RHE at a scan rate of 1 mV s⁻¹. HER polarization curves were obtained after iR-compensation using the ohmic resistance obtained by electrochemical impedance spectroscopy (EIS). The electrochemical double-layer capacitances were measured by linear sweep voltammetry (LSV) in the nonfaradaic potential region at scan rates ranging from 10 to 100 mV s⁻¹ in a 1 M NaOH solution. An accelerated degradation test (ADT) was performed for the catalyst over 10,000 CV cycles between −0.2 and 0.05 V_RHE at a scan rate of 100 mV s⁻¹. A constant current durability test was also carried out at −10 mA cm⁻² for 24 h. All electrochemical measurements were performed using a three-electrode system in an acidic solution (0.5 M H₂SO₄).

2.4. PEMWE Performance Measurements

To prepare a membrane electrode assembly (MEA) with an active area of 1 cm², the best-performing NiMoMn catalyst deposited on carbon paper was used as the cathode. The anode was fabricated by spray coating commercial iridium oxide (043396, Alfa Aesar) on carbon paper with a loading of 2.0 mg cm⁻². The prepared electrodes were placed on both sides of a Nafion 212 membrane (DuPont, 50.8 μm thickness) without hot-ressing. In our study, hot pressing was not used in MEA fabrication because electrodeposition provides strong catalyst adhesion, uniform distribution, and optimal performance without the need for thermal or mechanical stress, preserving membrane integrity and simplifying the manufacturing process. The resulting PEMWE was operated at 90°C, and a flow of preheated deionized water was introduced into the anode line at a rate of 15 mL min⁻¹. The PEMWE performance was measured by performing 30 min of activation at 2.2 V_cell followed by a backward scan from 2.2 to 1.35 V_cell at 0.05 V intervals, holding for 1 min at each interval. These steps were repeated three times prior to carrying out the performance evaluation. Additionally, a constant-current durability test was performed at 1 A cm⁻² for 24 h. The catalyst loading amounts before and after the single-cell durability test were quantitatively analyzed using inductively coupled plasma mass spectrometry ([ICP-MS], 7900, Agilent). To assess the extent of metal leaching, the effluent discharged from the single cell over a 24-h period was collected and subjected to ICP-MS analysis.

3. Results and Discussion

3.1. Catalyst Characterization

FE-SEM and EDS analyses were performed on the deposited catalysts to observe the effects of the precursor ratio on the catalyst morphology and composition. Figure 1 shows SEM images of representative Ni₁₀₀, Ni_94.6Mo_5.4, and Ni_82.1Mo_11.6Mn_6.3 specimens. For the Ni₁₀₀ catalyst, spherical particles with diameters of 0.5–2 μm were observed to densely cover the carbon paper (Figure 1a). Upon the addition of a small amount of Mo, larger Ni_94.6Mo_5.4 catalyst particles were evident on the carbon paper surface (Figure 1b), and upon the incorporation of Mn, the Ni_82.1Mo_11.6Mn_6.3 catalyst produced smoother deposits on the support surface (Figure 1c), exhibiting almost no separated aggregates. These changes in the surface morphology in the presence of Mn are consistent with the observations of previous studies [36–38]. Notably, all three catalysts showed complete coverage of the carbon fibers and very uniform distribution over the entire carbon substrates (Figure S1).

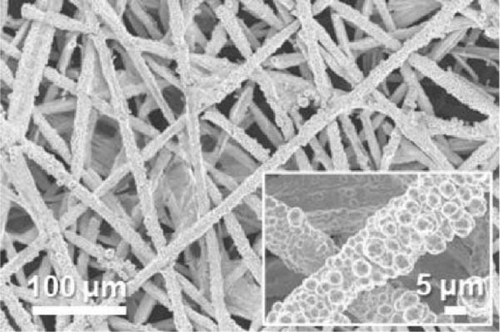

Details are in the caption following the image — **Figure 1 (a)**
Open in figure viewer PowerPoint

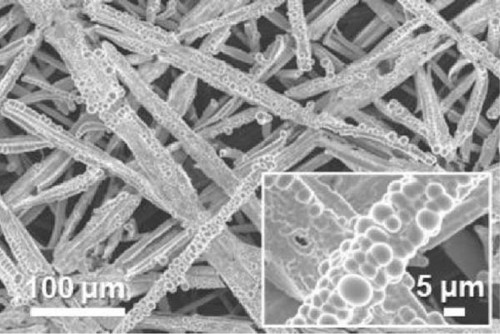

FE-SEM images of the (a) Ni₁₀₀, (b) Ni_94.6Mo_5.4, and (c) Ni_82.1Mo_11.6Mn_6.3 species. The insets show the corresponding FE-SEM images at higher magnifications.

Subsequently, the crystal structures of the three catalysts were examined using XRD, as presented in Figure 2. The carbon paper used as the substrate exhibited sharp peaks at 42.46°, 43.02°, 44.67°, 47.37°, and 54.8° (JCPDS# 26-1080). For the Ni₁₀₀ catalyst, Ni peaks corresponding to the face-centered cubic (111) and (200) planes were clearly observed at 44.5° and 51.8°, respectively (JCPDS# 04-0850). When comparing the Ni (111) peaks of the Ni₁₀₀ and Ni_94.6Mo_5.4 catalyst, it was found that the peak intensity decreased and the peak shifted to a lower angle with the addition of Mo, which was likely caused by lattice expansion due to the larger radius of Mo (0.145 nm) compared to that of Ni (0.135 nm), confirming a less developed alloy structure [29, 39–41]. Notably, no peaks corresponding to Mo were observed. In the case of Ni_82.1Mo_11.6Mn_6.3, when comparing the Ni (111) and Ni (200) peaks, it was found that the peak intensity was further reduced while the peak position was maintained, thereby indicating the presence of a ternary alloy with a reduced crystallinity.

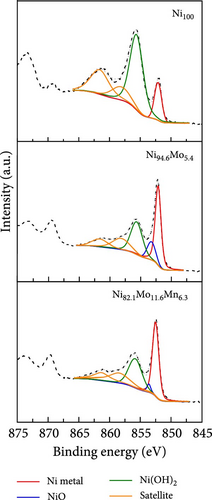

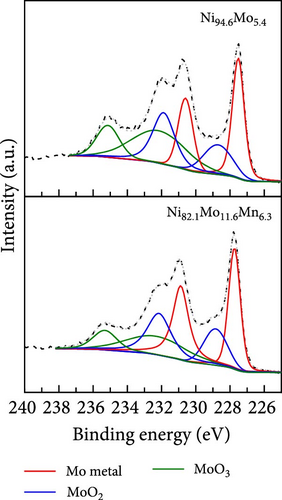

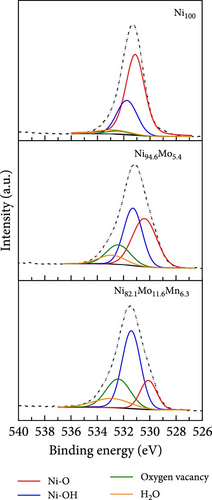

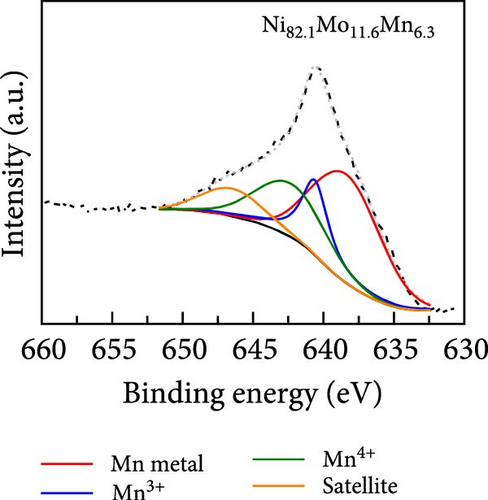

The surface elemental compositions, electronic structures, and oxidation states of the catalysts were then investigated by XPS (Figure 3). As can be seen from the Ni 2p_3/2 spectra presented in Figure 3a, in the case of the Ni₁₀₀ catalyst, peaks corresponding to Ni metal and Ni (OH)₂ were observed at 852.1 and 855.6 eV, respectively, wherein the latter arose due to the fact that electrodeposition was performed in a water-based electrolyte. For the Ni_94.6Mo_5.4 catalyst, peaks corresponding to Ni metal (852.15 eV), NiO (853.25 eV), and Ni (OH)₂ (855.65 eV) were observed, with the intensity of the Ni metal peak being significantly enhanced compared to that of Ni₁₀₀. This was attributed to the alloying of Ni with Mo, which has a lower electronegativity than Ni (i.e., 1.88 vs. 1.47 on the Allen electronegativity scale [42]). Notably, this leads to an increased electron density on the Ni d orbital, which lowers the hydrogen adsorption strength on the Ni surface and leads to faster HER kinetics [33]. Upon the addition of small amounts of Mn (i.e., Ni_82.1Mo_11.6Mn_6.3), the intensities of both the NiO and Ni (OH)₂ peaks decreased, whereas the relative ratio of the metallic Ni peak slightly increased compared to that observed for Ni_94.6Mo_5.4. This is likely due to the higher bulk Mo at% of 11.6 and the inclusion of Mn, which has a lower electronegativity (1.75 [42]) than Ni. Similarly, the dominance of MoO₂ peaks (228.9–232.05 and 229.05–232.2 eV) and MoO₃ peaks (232.1–235.25 and 232.35–235.5 eV) in Mo 3d_5/2 spectrum of the Ni_94.6Mo_5.4 catalyst (upper panel, Figure 3b), which was attributed to the electron transfer from Mo to Ni, has been relieved for the Ni_82.1Mo_11.6Mn_6.3 composition (lower panel, Figure 3b). In addition, the relative portion of metallic Mo (227.45–230.6 and 227.45–230.9 eV) increased slightly from 36.3% to 47.1% at this composition. However, the incorporation of Mn and electron transfer from the Mn species to Ni are evident by the observation of strong Mn³⁺ (640.6 eV) and Mn⁴⁺ (642.3 eV) peaks in the Mn 2p_3/2 spectrum of Ni_82.1Mo_11.6Mn_6.3 (Figure 3c). Furthermore, Figure 3d shows the O 1s spectra of the Ni₁₀₀, Ni_94.6Mo_5.4, and Ni_82.1Mo_11.6Mn_6.3 catalysts, which can be divided into M–O, M–OH, oxygen vacancy, and H₂O peaks. The proportion of M–O bonds appeared to be decreased in the order of Ni₁₀₀ > Ni_94.6Mo_5.4 > Ni_82.1Mo_11.6Mn_6.3, whereas the proportion of oxygen vacancies increased from 2.4 to 15.7% and 23.4%, respectively. Notably, an increase in the number of oxygen vacancies can enhance the catalyst activity by increasing the number of defect sites on the surface [43]. Based on the XPS analysis, it was therefore expected that the three different catalysts would exhibit different catalytic activities for the HER, as discussed in the following sections.

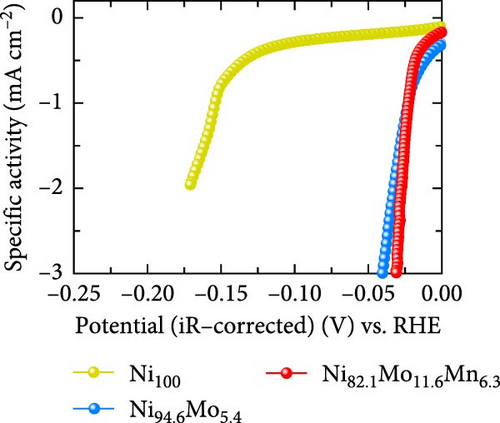

3.2. Electrochemical Characterization of the Catalysts: HER Performance

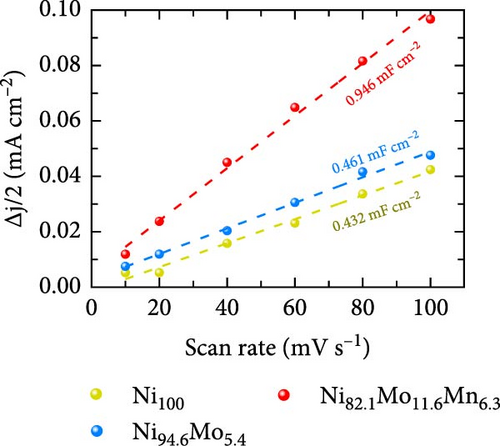

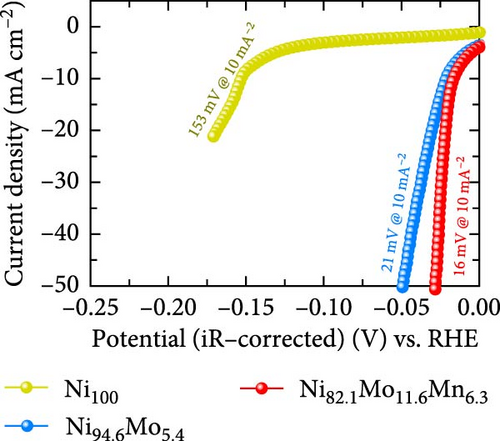

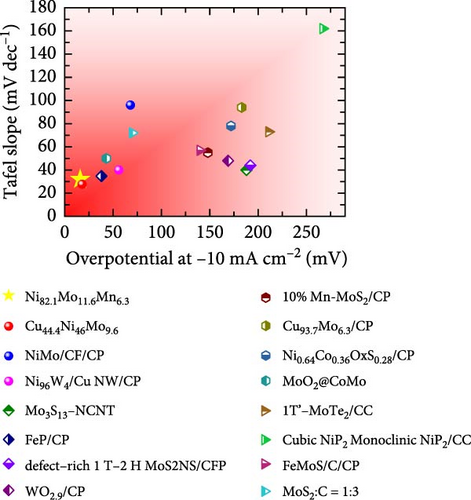

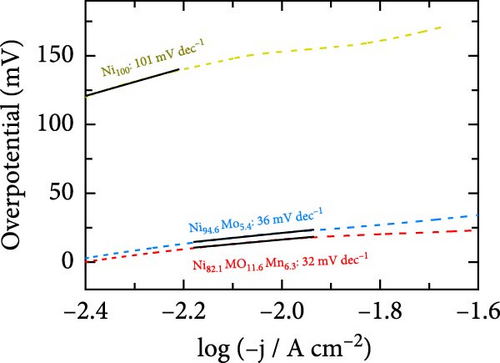

The HER activities of the prepared catalysts were evaluated, and their related electrochemical characterizations were performed, as outlined in Figure 4. More specifically, the HER performances of the Ni₁₀₀, Ni_94.6Mo_5.4, and Ni_82.1Mo_11.6Mn_6.3 catalysts were evaluated by CV using a three-electrode system at a scan rate of 1 mV s⁻¹ in an acidic solution (0.5 M H₂SO₄). Based on the iR-corrected HER polarization curves presented in Figure 4a, the slight reduction currents observed at approximately 0 V_RHE for the Ni_94.6Mo_5.4 and Ni_82.1Mo_11.6Mn_6.3 catalysts were potentially caused by the reduction of surface MoO_x species, which were generated during the electrodeposition process [25, 44]. The overpotential of Ni₁₀₀ reached 153 mV at −10mA cm⁻², indicating that this species exhibited a low catalytic activity. In contrast, Ni_94.6Mo_5.4 demonstrated low overpotentials of 21 and 49 mV at −10 and −50 mA cm⁻², respectively, while Ni_82.1Mo_11.6Mn_6.3 exhibited dramatically reduced overpotentials of 16 and 28 mV at −10 and −50 mA cm⁻². Notably, these values are close to or superior to those of recently reported Pt-based HER catalysts [45–47]. To ensure a more accurate comparison with Pt catalyst, we evaluated the HER performance of Pt prepared by electrodeposition, and the results are presented in Figure S2. As clearly shown in the figure, the overpotential at −10 mA cm⁻² is 11 mV for the Pt catalyst, demonstrating approximately 5 mV better performance. However, this performance difference is reversed at around −20 mA cm⁻², where the Ni_82.1Mo_11.6Mn_6.3 catalyst exhibits superior performance in the high-current region. The HER activities of the other catalysts fabricated using a wider range of precursor concentrations are presented in Table S1, indicating that the Ni_82.1Mo_11.6Mn_6.3 catalyst exhibited the best performance of all catalysts evaluated herein. Subsequently, Tafel plots were obtained for the Ni₁₀₀, Ni_94.6Mo_5.4, and Ni_82.1Mo_11.6Mn_6.3 catalysts based on the HER polarization curves presented in Figure 4a. As can be seen from the corresponding results (Figure 4b), Ni₁₀₀ possesses a Tafel slope of 101 mV dec⁻¹, implying that the Volmer (discharge) reaction is the rate-determining step. However, Ni_94.6Mo_5.4 and Ni_82.1Mo_11.6Mn_6.3 exhibit Tafel slopes of 36 and 32 mV dec⁻¹, respectively, suggesting that their HER processes follow the Volmer–Heyrovsky mechanism, although Ni_82.1Mo_11.6Mn_6.3 tended toward the Volmer–Tafel mechanism. Figure 4c shows a comparison between Ni_82.1Mo_11.6Mn_6.3 and other reported nonprecious metal catalysts at the half-cell level, while a more detailed comparison with previously reported nonprecious metal HER catalysts is presented in Table S2. As can be seen from the figure, Ni_82.1Mo_11.6Mn_6.3 demonstrates an overwhelmingly small overpotential and fast reaction kinetics compared to previously reported nonprecious-metal acidic HER catalysts. Furthermore, the surface areas of the electrochemical reactions were compared by measuring the electrochemical charge double-layer capacitance (C_dl; obtained from the differences between the anodic and cathodic currents during LSV at various scan rates within the nonfaradaic region in a 1 M NaOH solution (Figure S3). As shown in Figure 4d, the C_dl of Ni_82.1Mo_11.6Mn_6.3 was 0.946 mF cm⁻², which represents the largest electrochemically active surface of the three catalysts (i.e., Ni₁₀₀ = 0.432 mF cm⁻², Ni_94.6Mo_5.4 = 0.461 mF cm⁻²). The roughness factor (RF) was further calculated by dividing the C_dl by the average reported capacitance value for Ni-containing metallic electrodes measured in a 1 M NaOH solution (i.e., C_s = 0.04 mF cm⁻²) [48]. The calculated RF values for the Ni₁₀₀, Ni_94.6Mo_5.4, and Ni_82.1Mo_11.6Mn_6.3 catalysts were determined to be 10.8, 11.5, and 23.6, respectively. These values are consistent with the activity trend of the HER polarization curves shown in Figure 4a, indicating that the enlarged electrochemical surface area contributes to the superior HER activity of Ni_82.1Mo_11.6Mn_6.3. The HER activities normalized to the RF values (specific activities) were also compared to identify the intrinsic activities of the catalysts. As shown in Figure 4e, Ni_82.1Mo_11.6Mn_6.3 demonstrated the highest performance in terms of both its geometric and specific activities, especially in the high-current range.

3.3. Evaluation of the Catalyst Durability

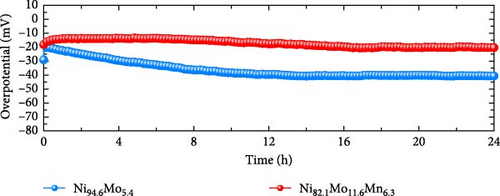

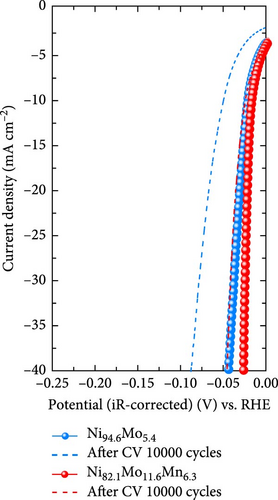

The durability of a nonprecious-metal catalyst in an acidic environment is crucial due to its vulnerability to corrosive environments. Thus, to evaluate the practical feasibility of the developed catalysts for application in commercial PEMWE systems, an ADT and a constant-current durability test were performed, as presented in Figure 4f and g, respectively. The ADT test was conducted by carrying out 10,000 CV cycles over a potential range of −0.2 to 0.05 V_RHE. As shown in Figure 4f, the overpotential of the as-prepared Ni_94.6Mo_5.4 increased from 21 to 49 mV after 10,000 CV cycles at −10 mA cm⁻², indicating a stark deterioration of the catalyst activity. The deterioration of the catalyst is clearly evident, as shown in Figure S4a, where it progressively occurs after 3,000, 5,000, and 10,000 cycles. However, only an 8 mV increase in the overpotential was observed at −10 mA cm⁻² in the case of the catalyst Ni_82.1Mo_11.6Mn_6.3 after 10,000 CV cycles (i.e., from 16 to 24 mV), thereby confirming its remarkable electrochemical durability. Notably, in contrast to Ni_94.6Mo_5.4, degradation of Ni_82.1Mo_11.6Mn_6.3 ceases after 3,000 cycles with performance remaining relatively stable up to 10,000 cycles (Figure S4b). To further evaluate the potential for durability enhancement, the Ni_82.1Mo_11.6Mn_6.3 catalyst underwent heat treatment at 200°C for 2 h in a 4% H₂/Ar atmosphere, followed by the same ADT evaluation. The results, presented in Figure S5, reveal a slight performance degradation, as evidenced by an increase in overpotential at −10 mA cm⁻² from 16 mV to 39 mV. In terms of durability, a 9 mV increase in overpotential was observed after 10,000 cycles. These findings suggest that heat treatment has a minimal and ineffective impact on both catalyst performance and durability. Secondly, the constant-current durability was assessed at a current density of −10 mA cm⁻². As shown in Figure 4g, Ni_94.6Mo_5.4 demonstrated a rapid increase in overpotential during the initial 8 h, reaching 40 mV at the end of the test. In contrast, Ni_82.1Mo_11.6Mn_6.3 showed no sharp overpotential increase during the initial stages of the test, instead demonstrating a slight initial decrease followed by a gentle increase, leading to a final overpotential of 20 mV. The corresponding degradation rates were determined to be 0.75 mV h⁻¹ for Ni_94.6Mo_5.4 and 0.125 mV h⁻¹ for Ni_82.1Mo_11.6Mn_6.3, indicating the excellent durability of Ni_82.1Mo_11.6Mn_6.3 in an acidic electrolyte. The durability of the Ni_82.1Mo_11.6Mn_6.3 catalyst was further compared with those of previously reported nonprecious metal HER catalysts (Table S2).

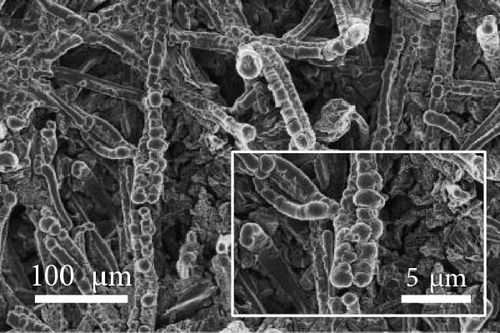

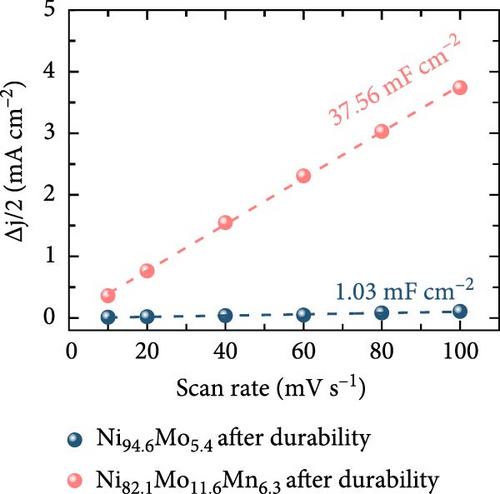

Following the durability test, and particularly after the harsher ADT, the physicochemical changes in the Ni_82.1Mo_11.6Mn_6.3 catalyst were investigated. Compared with the SEM images presented in Figure 1b, it can be seen that the morphology of Ni_94.6Mo_5.4 after the ADT (Figure 5a) was significantly changed, with substantial parts of the deposits being peeled from the carbon fiber surface, indicating dissolution of the deposits. Similarly, the Ni_82.1Mo_11.6Mn_6.3 catalyst also demonstrated a slight degree of dissolution after the ADT (Figure 5b), generating spherical particles rather than a smooth surface (see Figure 1c), while maintaining its overall coverage on the carbon fiber. Catalyst dissolution was confirmed by XRD analysis, as shown in Figure 5c. More specifically, for both the Ni_94.6Mo_5.4 and Ni_82.1Mo_11.6Mn_6.3 catalysts, the intensities of the main Ni (111) and Ni (200) peaks decreased, indicating dissolution and flaking of the bulk catalyst layer during ADT. As shown in Figure 5d, catalyst dissolution significantly affected the electrochemical surface area, with a more pronounced effect being observed for the Ni_82.1Mo_11.6Mn_6.3 catalyst. In this case, the C_dl value of the Ni_94.6Mo_5.4 catalyst increased from 0.461 to 1.03 mF cm⁻² following the ADT, while that of the Ni_82.1Mo_11.6Mn_6.3 catalyst increased significantly from 0.946 to 37.56 mF cm⁻², indicating approximately 40-fold increase in the surface area. This compensates for active site dissolution to maintain excellent catalytic performance.

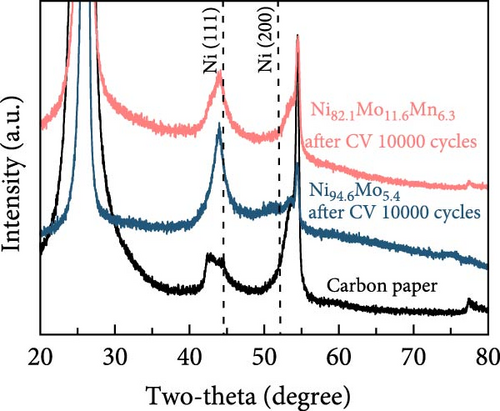

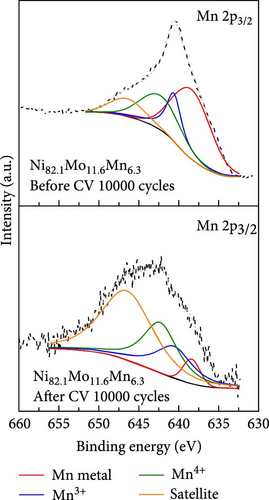

To identify changes in the surface elemental composition during the ADT, XPS analysis was conducted, and the results are outlined in Table S3. The surface composition of Ni_94.6Mo_5.4 was defined as Ni_76.0Mo_24.0 prior to the ADT, and this changed to Ni_79.6Mo_20.4 after the ADT. The difference between the bulk composition (Ni_94.6Mo_5.4) and the surface composition (Ni_76.0Mo_24.0) before the ADT implied that the catalyst surface was Mo-rich [49]. This surface-enriched Mo underwent dissolution during the ADT, reducing the Mo surface content from 24.0% to 20.4%, leading to an increase in the Ni surface content from 76.0% to 79.6%. During the potential range used for the ADT, Mo can exist as Mo³⁺, MoO₂, and MoO₄²⁻ ions depending on the pH [50]. Considering that the local pH near the cathode can exceed 7 even under acidic HER conditions [51], all three oxidation states are possible in this potential range. The larger Ni content and smaller Mo content after ADT may therefore alter the electronic structure of Ni and have a detrimental effect on the HER. However, a recent study [52] predicted that some nonstoichiometric Mn oxide phases, such as spinel Mn₃O₄ and cubic Mn₂O₃, are stable in large regions of the potential-pH diagram. Indeed, this was confirmed by XPS analysis of the Ni_82.1Mo_11.6Mn_6.3 catalyst (Table S3), wherein it was found that the as-prepared catalyst had a surface composition of Ni_70.7Mo_27.8Mn_1.5, which changed to Ni_82.3Mo_13.1Mn_4.6 after the ADT. Thus, during the ADT, significant dissolution of both Ni and Mo was observed, as in the case of the Ni_94.6Mo_5.4 catalyst, while the surface content of Mn increased from 1.5% to 4.6%. This enriched Mn content after ADT compensated for the loss of Mo and provided electrons to Ni to maintain an optimal level of hydrogen adsorption on the Ni species. This was verified from XPS analysis of the Mn species before and after the ADT (Figure 5e). More specifically, after the ADT, the intensities of the peaks corresponding to metallic Mn and Mn³⁺ decreased significantly (i.e., from 46.93% to 8.55% and from 19.02% to 10.06%, respectively). However, the proportion of Mn⁴⁺ increased (i.e., from 10.51% to 33.16%), indicating a higher oxidation state than those of the stable nonstoichiometric Mn₃O₄ and Mn₂O₃ species. This implies that electron transfer occurred from Mn (in the Mn oxide) to Ni to compensate for the loss of Mo. Thus, in combination with the enlarged surface area, stable Mn oxide formation on the surface during ADT was responsible for the enhanced durability of the Ni_82.1Mo_11.6Mn_6.3 catalyst.

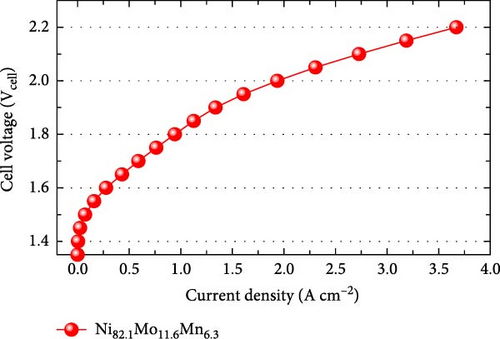

3.4. Evaluation of the Catalyst PEMWE Performance and Durability

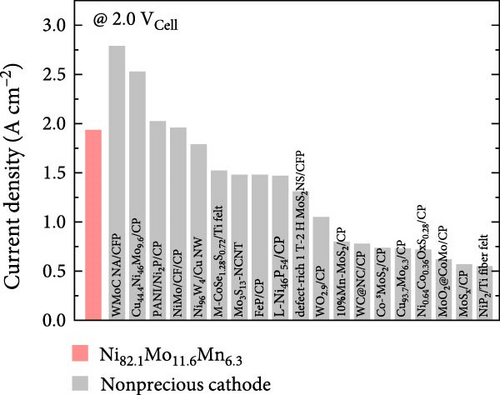

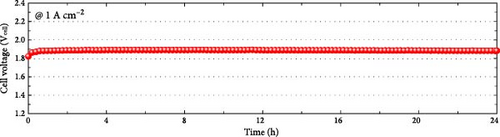

Considering the excellent activity and durability demonstrated in the half-cell test of the Ni_82.1Mo_11.6Mn_6.3 catalyst, this material was employed as the cathode in a PEMWE single cell. The MEA was fabricated by sandwiching the sprayed IrO₂/CP anode and the Ni_82.1Mo_11.6Mn_6.3/CP cathode on opposite sides of a Nafion 212 proton-exchange membrane. As shown in Figure 6a, the Ni_82.1Mo_11.6Mn_6.3 cathode-embedded PEMWE exhibited a performance of 1.936 A cm⁻² at 2.0 V_cell. This performance is relatively high compared to those of previously reported nonprecious metal HER catalysts applied to the PEMWE, as summarized in Figure 6b and Table S4. To confirm the catalyst durability obtained from the half-cell experiments, a constant-current PEMWE operation was performed at 1 A cm⁻². As presented in Figure 6c, following the initial increase after 1 h of operation, a stable cell voltage of approximately 1.883 V_cell was maintained, thereby confirming excellent durability. To assess catalyst leaching from the electrode during the durability test, ICP-MS analysis was performed, and the results are summarized in Table S5. The leached metal content was quantified by collecting the effluent discharged from the single cell over 24 h and analyzing it via ICP-MS. As shown in Table S5, the total metal leaching over 24 h was approximately 1.6 mg cm⁻², corresponding to a normalized rate of approximately 0.068 mg cm⁻² h⁻¹. These results indicate that metal dissolution during operation is minimal, and even this minimal dissolution can be further reduced, as supported by recent research findings, such as the acid treatment of carbon paper [53]. Overall, these results confirm the feasibility of Ni_82.1Mo_11.6Mn_6.3 for use as a nonprecious metal cathode material for commercialization.

4. Conclusions

A wide range of NiMoMn ternary alloy catalysts consisting of different component ratios were investigated for application as nonprecious metal HER catalysts for PEMWE. For this purpose, a one-step electrodeposition approach was employed to enable rapid screening by regulating the precursor content of the electrolyte. The half-cell performance of the optimal Ni_82.1Mo_11.6Mn_6.3 catalyst was evaluated, giving an overpotential of 16 mV at −10 mA cm⁻², and a Tafel slope of 32 mV dec⁻¹ in a 0.5 M H₂SO₄ solution. It was found that the incorporation of Mn modulated the electronic structure of the original NiMo catalyst, in addition to increasing the electrochemical surface area and number of oxygen vacancies, which simultaneously contributed to an excellent HER activity. Notably, the Ni_82.1Mo_11.6Mn_6.3 catalyst demonstrated excellent durability in an ADT over 10,000 CV cycles, with an overpotential increase of only 8 mV being recorded while maintaining a good overall coverage on the carbon fiber substrate. The enhanced durability of the Ni_82.1Mo_11.6Mn_6.3 catalyst was attributed to two key factors, namely its enlarged surface area and the formation of stable Mn oxides, which can compensate for the loss of Mo on the surface during the ADT. Upon the application of Ni_82.1Mo_11.6Mn_6.3 as a cathode material in PEMWE, a performance of 1.936 A cm⁻² was achieved at 2.0 V_cell, along with a decay rate of 2.2 mV h⁻¹ during a 24 h durability test at 1 A cm⁻². The superior performance and stability of Ni_82.1Mo_11.6Mn_6.3 suggest its potential for application as a nonprecious metal HER electrode to reduce the cost of hydrogen production by PEMWE.

Conflicts of Interest

The authors declare no conflicts of interest.

Author Contributions

Chan Hee Lee: conceptualization, formal analysis, investigation, methodology, and writing—original draft. Kyeong-Rim Yeo: formal analysis and investigation. Soo-Kil Kim: conceptualization, funding acquisition, methodology, project administration, supervision, and writing—review & editing.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean Government (MSIT) (RS-2024-00409901, RS-2024-00413272, and RS-2024-00340074).

Supporting Information

Additional supporting information can be found online in the Supporting Information section.

Open Research

Data Availability Statement

The data supporting the findings of this study are available from the corresponding author upon reasonable request.

Supporting Information
