1. Introduction

NLRP3-associated autoinflammatory disease (NLRP3-AID) is a spectrum of autosomal dominant inherited inflammasome diseases caused by gain-of-function mutations in the NLRP3 gene encoding cryopyrin and is previously known as cryopyrin-associated periodic syndromes (CAPS) [1]. NLRP3-AID comprises three distinct presentations with increasing severity: familial cold autoinflammatory syndrome (FCAS), Muckle–Wells syndrome (MWS), and neonatal-onset multisystem inflammatory disorder (NOMID), also known as chronic infantile neurological cutaneous articular syndrome (CINCA) [2]. The estimated prevalence of NLRP3-AID is 1–2 in 1 million in USA [3] and 1 in 0.36 million in France [4].

The clinical manifestations of NLRP3-AID are heterogeneous, characterized by self-subsiding fever and rash in mild cases, while hydrocephalus and cognitive impairment in severe cases. FCAS is typically presented with urticarial-like rash, conjunctivitis, and fever following generalized cold exposure, which is the mildest form of NLRP3-AID [2, 3]. MWS, first reported by Muckle and Wells [4] in 1962, shares many similarities with FCAS but not triggered by cold exposure. MWS is further marked by the presence of sensorineural deafness and amyloidosis [4]. As for CINCA, it is the severest condition of NLRP3-AID distinguished by chronic severe urticarial-like rash, arthritis fever with significant central nervous system involvement, and distal femur arthropathy [5].

The human NLRP3 gene is located on chromosome 1q44 consisting of nine exons [6] and mainly functions in the assembly of the NLRP3 inflammasome. Gain-of-function mutations of NLRP3 gene lead to unexpected activation of the inflammasome and further result in overexpression of proinflammatory cytokine IL-1β, therefore triggering systemic inflammation [2]. Since its initial report in 2001 [7], more than 260 variants have been identified in NLRP3-AID patients.

Given the complexity of clinical presentations and genetic diversity, our study addresses the paucity of research on pediatric NLRP3-AID in China. With a cohort of nine children and an average follow-up period exceeding 30 months, our aim is to provide new clinical and genetic insights, contributing to early disease identification and improved recognition in the Chinese pediatric population.

2. Methods

3. Results

3.1. Clinical Findings

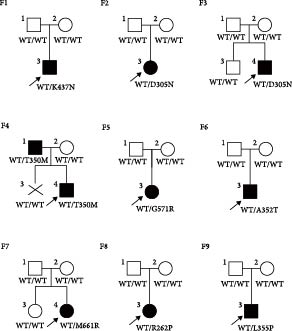

Between December 2014 and October 2022, nine patients (four females and five males) who met the inclusion criteria were recruited from Yuying Children’s Hospital of Wenzhou Medical University, Children’s Hospital of Nanjing Medical University or Children’s Hospital of Soochow University in China, including six cases of FCAS, one case of MWS and two cases of CINCA. The average follow-up time exceeds 30 months, with five cases having follow-ups longer than 3 years. The comprehensive information about their family history provided by the participants and/or their family members is presented in Figure 1. The majority of the patients had disease onset during childhood, and six cases (66.7%) were younger than 3 years old (Table 1). The median and interquartile range (IQR) 25–75 of onset age was 8 (12, 48) months. The median and interquartile range (IQR) 25–75 of age at first visit and age at diagnosis were 90 (63, 125) months and 115 (63, 130) months, respectively (Figure 2(a)). The initial symptoms at the onset were fever (66.7%) followed by rash (66.7%) and arthralgia (44.4%). The misdiagnosis rate was as high as 44.4%, with instances involving erroneous diagnoses of septic arthritis (F1-3), adult onset still’s disease (F2-3), urticaria (F9-3), and newborn sepsis and intracranial infection (F8-3). In addition, the family history was observed in one case (11.1%), as NLRP3 mutation along with rash was identified in F4-1.

Table 1. Clinical and genetic information of nine NLRP3-AID patients.

Patient		F1-3	F2-3	F3-4	F4-4	F5-3	F6-3	F7-4	F8-3	F9-3
Gender		M	F	M	M	F	M	F	F	M
Age (month)	Onset	0	216	48	8	48	36	12	0	12
	First visit	104	255	89	125	63	90	129	14	12
	Diagnosis	162	257	90	125	63	115	130	14	22
Exon		3	3	3	3	3	3	3	3	3
Variant	Nucleotide change	c.1311G > T	c.913G > A	c.913G > A	c.1049C > T	c.1711G > C	c.1054G > A	c.1982T > G	c.785G > C	c.1064T > C
	Amino acid	p.K437N	p.D305N	p.D305N	p.T350M	p.G571R	p.A352T	p.M661R	p.R262P	p.L355P
	Zygosity	Het	Het	Het	Het	Het	Het	Het	Het	Het
	Type	Missense	Missense	Missense	Missense	Missense	Missense	Missense	Missense	Missense
Computational prediction		DDDDDL	DDDDDD	LDDDDD	DBDDDL	.DLDBL	D.DDDD	DDBDDL	.DD..L	…..D
Novel mutation		—	—	—	—	—	—	Novel	—	—
Diagnosis		CINCA	MWS	FCAS	FCAS	FCAS	FCAS	FCAS	CINCA	FCAS
Medical regimen
Medicine	NSAIDs	+	+	++	++	+	+	++	++	—
	Glucocorticoid	+	—	++	++	++	++	++	++	—
	Methotrexate	+	—	++	—	++	++	+	—	—
	Thalidomide	++	++	—	++	++	++	—	++	—
	Tocilizumab	—	++	—	—	—	—	—	+	—
	Colchicine	+	—	—	—	—	—	—	—	—
	Leflunomide	+	—	—	—	—	—	—	—	—
	Canakinumab	—	—	—	—	—	—	—	++	+
	Anakinra	—	—	—	—	—	—	—	—	+
The efficacy		PR	CR	PR	CR	PR	PR	PR	PR	CR

• M, male; F, female; Het, heterozygous; D, damaging; B, benign; L, likely damaging; FCAS, familial cold autoinflammatory syndrome; MWS, Muckle–Wells syndrome; CINCA, chronic infantile neurologic cutaneous articular syndrome; NSAIDs, nonsteroidal anti-inflammatory drug; PR, partial remission; and CR, complete remission. Computational prediction: Letters represent the prediction of REVEL, SIFT, Polyphen-2, MutationTaster, GERP+, and final classification (American College of Medical Genetics and Genomics) in turn. The dot represented the lack of prediction results in this way. The medication regimen after the detection of the gene mutation was marked once more on the basis of the medication applied before the gene mutation seizure, and there were no new drugs after the seizure. + represents past treatment medication, and ++ represents current treatment medication.

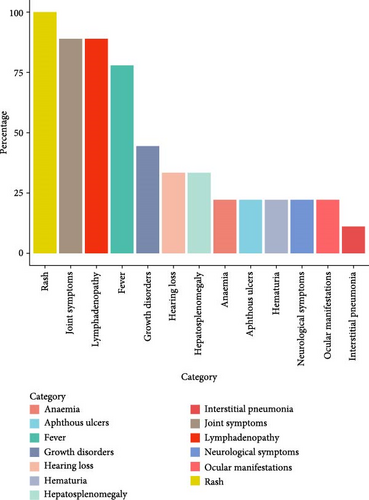

As for the clinical features, increased levels of white blood cell (WBC), C-reactive protein (CRP), and/or erythrocyte sedimentation rate (ESR) had been identified in all of the patients. Notably, two or more of these elevations were observed in 88.9% of the cases. Rash, joint symptoms (including arthritis/arthralgia, swelling of the joints, and limited joint mobility), and lymphadenopathy were the most common symptoms (Figure 3(a)–3(c) and Figure 3(g)–3(h), the percentage of which were 100%, 88.9%, and 88.9%, respectively. The most frequently affected joints in this study were the knee and ankle joints, accounting for 50% and 25%, respectively. Fever occurred in 77.7% of cases (7/9), and four of them failed to obtain a normal range of inflammatory indicators 7 days or more after the resolution of the fever. Growth retardation was found in 44.4% (4/9) of the patients while anemia was only identified in two patients. Several instances of organ involvement were documented. The positive rates for hepatosplenomegaly, hematuria, aseptic meningitis, and aphthous ulcers were 33.3%, 22.2%, 22.2%, and 22.2%, respectively. The occurrence of sensorineural deafness and ocular manifestations were 33.3% and 22.2%. The eye involvement included optic papilla edema (F2-3) and suspicious retinal phlebitis (F1-3). Of noteworthy significance, atrophic hydrocephalus and clubbing fingers were both observed in two CINCA cases within this study, and the occurrence of interstitial pneumonia, a rarely reported manifestation in previous studies, was noted in one CINCA patient (F8-3) (Figures 3(d)–3(f) and 3(i). The clinical presentations are visualized in Figure 2(b) and have been summarized by the rates of positive cases in Figure 2(c).

4. Discussion

This study analyzed clinical features, genotypes, and treatment responses of nine NLRP3-AID patients in China. The main clinical manifestations of NLRP3-AID in our cohort were recurrent urticaria-like rash, arthritis, and periodic fever with increased inflammatory markers. The incidence of eye and ear organ involvement was 22.2% and 33.3% separately, which was lower than the published data in other regions but consistent with reports from China. Of note, more than 60% of the patients had an onset age younger than 3 years. Inflammatory markers had not returned to normal more than 7 days after the subsiding of body temperature in more than half of the patients. Alarmingly, the misdiagnosis rate was 44.4% and the mean time of diagnosis delay was more than 5 years in our cohort, reflecting a lack of awareness regarding NLRP3-AID in China. Early diagnosis and appropriate treatment could significantly improve the quality of life, so the early identification of NLRP3-AID pediatric patients was of utmost importance.

Furthermore, some rare presentations were found in our patients. We observed interstitial lung disease (ILD) in a CINCA patient at the onset of the disease (F8-3). The patient exhibited the mutation c.785G > C, p.R262P and was diagnosed as CINCA presented with neonatal onset fever, urticaria-like rash, and hydrocephalus. Initially, the patient experienced respiratory distress after exercise, and chest high-resolution computed tomography (HRCT) revealed ILD, without clear evidence of infection. Then, he was treated with nebulized inhalation and a combination of NSAIDs and tocilizumab. Inflammatory markers partially improved, but the HRCT abnormalities persisted for several months. Therefore, steroids were added to the treatment, and tocilizumab was replaced by canakinumab, resulting in the improvement of lung imaging and respiratory symptoms. There was a study that reported a CINCA patient with the G307V mutation, who exhibited no response to anakinra and etanercept treatments. After switching to tocilizumab, the patient achieved partial clinical relief; however, the patient eventually succumbed to congestive heart failure and ILD [18]. Shu et al. [19] reported a cohort of four NLRP3-AIDs patients who presented with ILD at the onset of the disease and achieved recovery within 3–6 months of Canakinumab therapy, consistent with our report. Clubbing fingers were found in two of our CINCA patients, including the patient with ILD mentioned above, but the other patient did not exhibit any symptoms of dyspnea, and his lung CT was normal. This presentation was consistent with another clinical report in China, but it was rarely described in previous studies from other countries.

In terms of the association of phenotypes and genotypes, the patient harboring the A352T variant diagnosed as FCAS and did not have symptoms of nephrotic syndrome and hearing loss, as previously reported [14]. However, shared clinical features such as rash and fever were still present. D305N mutation was one of the most frequent NLRP3 mutations and suggested it may be associated with early disease onset, a chronic course, and hearing impairment [11, 15, 16]. It is interesting that this same variant locus resulted in two different clinical phenotypes. In our cohort, p.D305N was found in both FACS (F3-4) and MWS (F203) patients. The FCAS was definitively diagnosed at the age of 7 without hearing impairment, while the MWS patient was diagnosed at 21 with sensorineural hearing loss. Hearing loss might increase with age, indicating the need for special attention to hearing testing during follow-up in these FCAS cases. If the disease remained in continuous remission, whether hearing impairment would no longer occur in these FCAS patients still required further confirmation through long-term follow-up.

In terms of treatment, the major therapeutic approach was to block the function of IL-1 due to its central role in the pathogenic mechanism. There were three available IL-1 inhibitors as anakinra, rilonacept, and canakinumab [2], which proved to be safe and effective through numerous trials [20–25]. However, these medications were not easily accessible in mainland China. So, in our cohort, the majority of patients still received traditional disease-modifying antirheumatic drugs. However, we observed that in the biologics group, 66.7% achieved CR, without steroid treatment. Organ damage to the eyes and ears recovered to normal as disease activity was controlled, reaching a state of CR, suggesting that organ damage could partially reverse in this disease. This further emphasized the importance of early diagnosis, early treatment, and achieving standardized remission treatment strategies.

In conclusion, the most common clinical manifestations in NLRP3-AID patients were periodic fever of unknown origin, recurrent urticaria-like rash, and arthritis with increased inflammatory markers. Notably, heightened clinical vigilance was warranted when the above clinical features were present in individuals under the age of three, particularly if the inflammatory indicators failed to return to baseline levels during fever-free intervals. We also reported ILD and clubbing fingers could be found in CINCA patients, one novel pathogenic variant causing FCAS, expanding the clinical and genetic landscape of NLRP3-AID.

Ethical Approval

The study protocol has gained approval from the Institutional Review Board and the Medical Ethics Committee of The Second Affiliated Hospital and Yuying Children’s Hospital of Wenzhou Medical University (2021-K-327-02).

Consent

Informed consent has been obtained from all subjects or their parents.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

Authors’ Contributions

WZ, H.-G.Y., and YS conceptualized and designed the study. YS, LM, and SX recruited patients and recorded clinical data. YS, XD, and Y.-X.C. analyzed the data and wrote the manuscript. X.-F.H. and WZ gave constructive suggestions on the manuscript. YS, XD, and LM contributed equally to this work.
