1. Introduction

Tumor-induced osteomalacia (TIO) is a rare paraneoplastic disorder where typically benign phosphaturic mesenchymal tumors (PMTs) produce excess fibroblast growth factor-23 (FGF23), leading to hypophosphatemia, muscle weakness, and fractures. There are fewer than 1,000 reported cases without sex predilection; the average age of onset is in the 40s; however, pediatric cases are reported. Despite profound and chronic hypophosphatemia, diagnosis is often delayed >2.5 years from symptom onset, with localization of the underlying PMT delaying treatment another five years [1]. We present two cases of TIO due to PMTs—a soft tissue mass in the foot and, to our knowledge, the first reported intraosseous primary PMT of the scapula, as localized by ⁶⁸Ga-DOTATATE-positron emission tomography/computed tomography (PET/CT) scan.

2. Case 1

Patient 1 is a 63-year-old man with a history of obesity, sleep apnea, hyperlipidemia, vitamin D deficiency, and stroke, who presented with chronic multifocal bone pain. He underwent uncomplicated left hip arthroplasty for primary osteoarthritis in October 2018. Eight months later, he reported two months of atraumatic right hip pain. Magnetic resonance imaging (MRI) scan showed hyperintense bone marrow edema along the intertrochanteric region and lesser trochanter consistent with a non-displaced intertrochanteric stress fracture, for which he underwent open reduction internal fixation (ORIF). Laboratory results showed mild secondary hyperparathyroidism (parathyroid hormone, PTH 71 pg/mL, normal <64 pg/mL; calcium 8.5 mg/dL) and an elevated alkaline phosphatase (174 U/L, normal 30–115 U/L), thought to be due to fracture.

Six weeks later, the patient was discovered to have a remote history of vitamin D deficiency, and he was initiated on aggressive vitamin D supplementation by his endocrinologist. Secondary hyperparathyroidism resolved; however, bone-specific alkaline phosphatase (BSAP) remained elevated (67.3 μg/L, normal 7.6–14.9 μg), which was attributed to post-operative healing bone. Six months later, rheumatology diagnosed osteopenia, and weekly alendronate were started. A bone scan demonstrated diffuse increased uptake in the proximal humerus, shoulders, distal femur metaphysis, proximal tibial diaphysis, right ankle, thoracic and lumbar spines, sternum, and ribs. He was switched from alendronate to denosumab and underwent five corticosteroid injections into his right hip without significant improvement in pain.

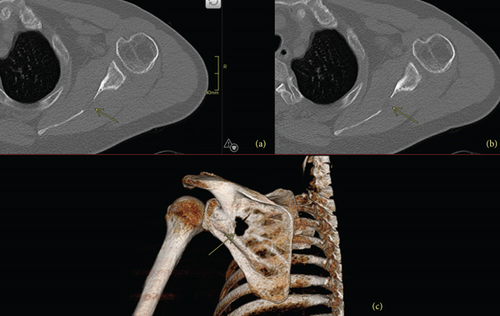

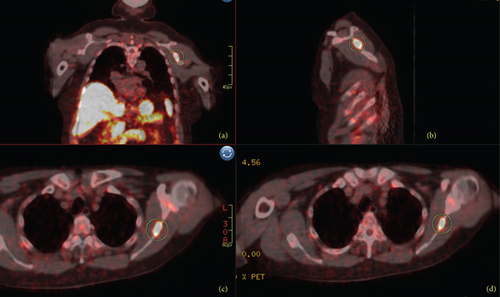

One year after the ORIF, he had continued multifocal pain including right hip, right thigh, and lumbar spine radiating to the right foot. A lumbar spine MRI demonstrated diffuse bone marrow changes and superior and inferior endplate bowing. He was re-evaluated for a broad differential of bone diseases including hypothyroidism, Paget’s disease, hypogonadism, multiple myeloma, and hypercortisolemia. Laboratory results were notable for hypophosphatemia (1.7 mg/dL, normal 2.5–4.5 mg/dL) and an inappropriately low 1,25-OH₂-vitamin D (12 pg/mL, normal 18–72 pg/mL), suggesting a diagnosis of TIO, which was supported by an elevated FGF23 (403 RU/mL, normal <180 RU/mL). Total-body ⁶⁸Ga-DOTATATE-PET/CT scan identified a lesion in the left scapula (Figure 1), confirmed by CT scan (Figure 2).

Two years after the patient’s hip replacement, he underwent wide excision of the left scapular bone lesion, with histology showing bland spindle cells consistent with PMT (Figure 3).

In anticipation of hungry bone syndrome, the patient received aggressive calcium supplementation. On postoperative day 3, hypophosphatemia and hypocalcemia had resolved. Two weeks postoperatively, phosphorus, PTH, calcium, and FGF23 (128 RU/mL) were normal. He reported a subjective increase in the strength of his bilateral lower extremities. Seven months later, he displayed full range of motion and strength of his bilateral upper and lower extremities. One year after surgery, patient continued to feel well without any pain and normal laboratory results except for a mildly elevated BSAP (22.3 μg/L), suggesting ongoing bone remineralization.

3. Case 2

Patient 2 is a 58-year-old man with a history of chronic obstructive pulmonary disease (COPD), type 2 diabetes, sleep apnea, testicular cancer, hypertension, and hyperlipidemia, who presented with a four-year history of chronic bone pain in his bilateral hips, back, and ribs, and increasing insomnia, anorexia, fatigue, and depression. In 2016, his primary physician ordered PET and dual energy X-ray absorptiometry (DEXA) scans, which revealed increased activity in the ribs bilaterally and femoral neck osteopenia, respectively. Laboratory results were significant for elevated alkaline phosphatase (251 U/L) and low 25-OH-vitamin D (10.9 ng/mL, normal >20 ng/mL). He was diagnosed with osteoporosis and vitamin D deficiency, for which he was prescribed alendronate and vitamin D supplementation.

Over the next three years, he experienced numerous atraumatic fractures, including left ilium, multiple bilateral lower ribs, right inferior pubic ramus, left sacrum, and multiple cervical and thoracic spinous processes. Laboratory results continued to show elevated alkaline phosphatase (274 U/L) and low 25-OH-vitamin D (10.9 ng/mL). He was referred to an endocrinologist and was found to be hypophosphatemic (1.3 mg/dL) with an elevated PTH (95 pg/mL) and a low 1,25-OH₂-vitamin D (9 pg/mL). FGF23 was significantly elevated to 354 RU/mL (normal <180 RU/mL), raising suspicion for TIO. Unfortunately, the patient’s insurance refused ⁶⁸Ga-DOTATATE scanning for localization, so he was started on medical management with calcium, phosphate, vitamin D, and calcitriol with some lab value fluctuations but without clinical improvement.

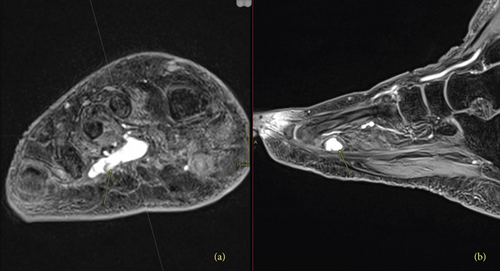

The patient was ultimately referred to the National Institutes of Health (NIH) in March 2020, where a ⁶⁸Ga-DOTATATE-PET/CT revealed a partially calcified, somatostatin receptor type 2 intensely positive soft tissue lesion in the right plantar foot (Figure 4). MRI showed an enhancing mass in the plantar right midfoot measuring approximately 2.6 cm × 1.4 cm × 1.0 cm (Figure 5).

The soft tissue mass was surgically excised, and histopathology confirmed a PMT (Figure 6) with weak staining for smooth muscle actin and fluoroimmunohistochemistry (FISH)-positivity for a fibroblast growth factor receptor-1 (FGFR1) translocation.

Post-operatively, intact FGF23 was undetectable with a rebound in 1,25-OH₂-vitamin D, signifying complete tumor removal. The patient became hypocalcemic requiring aggressive calcium supplementation, but calcium and phosphate normalized by postoperative day 5 (Table 1).

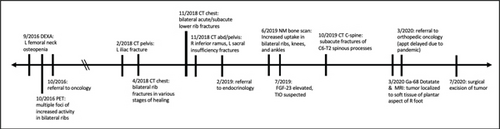

Three months postoperatively, alkaline phosphatase was still elevated consistent with ongoing skeletal remineralization. Seven months after surgery, the patient reported decreased lesser toe range of motion, but overall felt excellent. One year after surgery, alkaline phosphatase and calcium remained stable and within normal limits. The timeline of this patient’s symptoms, workup, and treatment is summarized in Figure 7.

4. Discussion

TIO is a rare, acquired cause of excess FGF23, and a bone-derived hormone that regulates blood phosphate levels by promoting renal excretion and suppressing production of active vitamin D (1,25-OH₂-vitamin D). While acquired FGF23 excess has been rarely reported with malignant tumors such prostate cancer, TIO is usually caused by benign PMTs that are often small and can be anywhere in the body [2, 3]. Soft tissue PMTs most commonly involve the extremities and acral sites, whereas bony PMTs typically involve the appendicular skeleton, cranial bones, and paranasal sinuses [3, 4]. Other bony locations include the distal femur, femoral head, tibial plateau, thoracic and lumbar spines, and sacrum [5]. A recent retrospective review of over 200 patients with PMTs found that 55.8% were in the lower extremities and 29.1% in the head and neck [6]. While there are two reports of periscapular soft tissue tumors causing TIO, we present the first reported case to our knowledge of an intraosseous scapular primary PMT [7, 8]. Of note, PMTs are often remote from locations of reported pain or pathologic fracture, as in our patients. The variable location of PMTs, including bone or soft tissue, emphasizes the importance of whole-body imaging modalities.

As most PMTs express somatostatin receptors, ⁶⁸Ga-DOTATATE-PET/CT is one of the most sensitive and specific modalities to localize PMTs [9]. Unlike simple radiographs, DOTATATE scans can detect extraskeletal lesions, which is crucial as PMTs can arise in both bone and soft tissue. Localization has improved in recent years thanks to improved radionuclide techniques, and decades-long delays in localization are less common [10, 11]. Still, diagnosis and treatment are often quite delayed, with reported average intervals of 2.9–5.7 years from symptom onset to diagnosis and treatment, in part due to the high cost of radionuclide imaging and the lack of recognition of hypophosphatemia, which is not included in most standard chemistry panels [6, 8]. Thus, it is essential that the clinician considers hypophosphatemia in the differential diagnosis of a patient with recurrent fractures and muscle weakness. Time to TIO diagnosis in Case 1 was only 14 months after initial presentation, which is vastly shorter than the reported average. This may be due to the multidisciplinary approach of the work-up, including endocrinology, rheumatology, and orthopedics.

Recent molecular genetics studies have also found that many PMTs express specific translocations, although diagnostic or therapeutic utility is mostly theoretical at this point in time. The FN1–FGFR1 and FN1–FGF1 fusion genes have been estimated to be present in 42–60% and 6% of patients with known PMTs, respectively [12, 13]. While there has been interest in using FISH to diagnose PMTs [12, 14], it is thought there may be too high a risk of false negative results to be used in routine diagnosis. It is also important to note that the tumor must first be localized, which is often the more limiting factor in time to diagnosis. Other recent literature has suggested that these fusion genes may be useful in guiding treatment, such as with FGFR1 inhibitors in patients with unresectable, persistent, or recurrent PMTs [10, 15], but has yet to be studied outside of case reports.

Both patients had persistent bony pain and multiple atraumatic fractures in the setting of chronic vitamin D deficiency and elevated alkaline phosphatase, and were thus misdiagnosed with osteopenia or osteoporosis. However, osteoporosis is four times less common in men than women. Furthermore, these patients were significantly younger than the average age (74–79 years) of rapid bone loss contributing to osteoporosis in men [16]. Therefore, clinicians should have a high index of suspicion for alternative diagnoses, such as TIO in this population, as well as other causes of FGF23-idependent hypophosphatemia, such as primary proximal tubulopathies.

While both patients were older than the average age of TIO onset, their persistent symptoms and lab abnormalities suggested a diagnosis other than osteoporosis [10]. In both cases, discovery of hypophosphatemia led to FGF23 measurement, which prompted whole-body imaging to localize the PMT. Wide margins during surgical resection are essential to induce cure; post-operative FGF23 levels are surrogates for completeness of resection, as demonstrated by almost immediate normalization of FGF23.

5. Conclusion

In conclusion, these cases demonstrate the need for a high index of suspicion for TIO in patients with persistent bony pain, pathologic fractures, and lab abnormalities refractory to treatment, especially in patients not typically at risk for osteoporosis. The variable locations of PMTs, including the skeleton and soft tissues, highlight the importance of comprehensive imaging. We recommend FGF23 testing in patients with acquired hypophosphatemia to diagnose TIO, whole-body ⁶⁸Ga-DOTATATE-PET/CT for localization of PMT, and inter-specialty collaboration to achieve timely diagnosis and treatment.

Consent

Both patients agreed to publication of their data. Additionally, Case 2 was enrolled in an Institutional Review Board-approved protocol at the National Institutes of Health and provided written informed consent.

Conflicts of Interest

The author(s) declare(s) that they have no conflicts of interest.
