1. Introduction

Black and odorous characteristics, that is, a dark color associated with an unpleasant odor, reflect extreme organic pollution of a water body [1]. Owing to the discharge of tremendous exogenous organic matter into water bodies from anthropogenic activities, oxygen in such an environment is consumed by the biochemical activities of aerobic microorganisms, thereby creating anoxic or anaerobic conditions. These conditions promote the death and decomposition of algae and other aquatic organisms. The associated processes produce gases with obvious odors, such as H₂S and NH₃, while metals, such as Fe and Mn, are reduced to dark-colored sulfides. In recent years, because of the rapid economic and societal development, severe black and odorous water problems have been experienced in many cities in China, and these seriously threaten the urban ecological environment and the health and safety of residents [2, 3]. In 2015, the State Council of the PRC issued the Action Plan for Prevention and Control of Water Pollution, in which the monitoring and treatment of black and odorous water bodies were included as important measures of water pollution prevention and control. In fact, based on this document, black and odorous water bodies in built-up areas in cities across the country must be eliminated before the end of 2030. To implement the Action Plan for Prevention and Control of Water Pollution, the Ministry of Housing and Urban-Rural Development and the Ministry of Environmental Protection jointly issued the Guidelines for the Remediation of Urban Black and Odorous Water (herein after referred to as the Guide), in which several technical issues associated with the monitoring and treatment of black and odorous water bodies were clarified [1].

Conventional black and odorous water monitoring relies on manual sampling and verification, and the results obtained are usually based on the experience of the on-site staff and the chemical data for the water samples. This method, however, is time-consuming and labor-intensive, and thus, it is challenging for regional monitoring. Concurrently, because black and odorous water bodies are usually small and dispersed, their identification using artificial methods, which are often characterized by blind areas and dead ends, is difficult. However, satellite remote sensing technology involves continuous and large-scale monitoring characteristics. The spectral differences between black and odorous and regular water bodies can facilitate the extraction of features representing the former from satellite imagery, thereby providing a rapid and reliable method for the identification and monitoring of black and odorous water bodies in urban areas [4]. In 2016, the Institute of Remote Sensing and Digital Earth of the Chinese Academy of Sciences in collaboration with the Satellite Environment Application Center of the Ministry of Environmental Protection conducted a remote sensing screening and verification study of black and odorous water bodies in Beijing, Shenyang, Taiyuan, and other cities. A related study was considered one of the ten major investigations in the field of remote sensing in China.

At present, shallow learning models that are commonly employed in China for the recognition of black and odorous water bodies through remote sensing mainly involve the following: (1) threshold segmentation based on a single feature and (2) empirical decision tree based on multiple features. The former approach relies on indexes generated from the spectral differences between black and odorous and regular water bodies. These indexes are obtained through statistical analysis of data from field samples. For example, Wen et al. proposed a band ratio method for the extraction of black and odorous water features from remote sensing imagery [5]. Li et al. also advanced a WCI and combined several remote sensing imagery signals to distinguish the two types of water [6]. In fact, Li et al. utilized the Nemerow comprehensive pollution index (NCPI) to characterize the extent of pollution of urban water bodies and compared the results retrieved using six regression models. A regression model suitable for calculating the NCPI of a scene to detect black and odorous water bodies was then obtained [7]. Yao et al. employed verification data from Shenyang to improve the band ratio method and then introduced the BOI algorithm [8]. Furthermore, Yao et al. proposed an HI threshold segmentation method based on PlanetScope images [9], while Zhang et al. enhanced the HI by suggesting the HCI [10]. Nevertheless, most of these methods utilize a single feature to perform the threshold segmentation based on a spectral analysis or a comprehensive comparison. In contrast, Li et al. proposed a classification based on an empirical decision tree involving multiple features and then proposed the DBWI, GR-NIR AWI, NDBWI, and green band features [11]. Reasonable thresholds to facilitate the identification and classification of black and odorous water bodies were also set.

Although high extraction accuracy values were achieved in some areas according to previous investigations, empirical methods were employed in most of these studies for the selection of features and determination of thresholds, and thus, these involve uncertainties. In addition, because black and odorous water bodies originate from multiple causes, mildly black and odorous water bodies can be difficult to distinguish from regular water bodies, which creates a so-called “fuzzy area” in classifications. Therefore, existing methods, especially the single feature threshold segmentation, exhibit shortcomings. To eliminate these limitations, in the present study, the CART decision-tree was employed on remote sensing and field data for Langfang in Hebei Province to propose a superior remote sensing method for recognizing black and odorous water bodies. The Gini coefficient minimization criterion and the binary recursive segmentation were used to determine the characteristics and thresholds, and then a decision-tree model was constructed for classification. The category attributes of leaf nodes were defined by calculating the degree of membership, and this created fuzzy and confidence zones. The proposed method is characterized by high classification accuracy, and the fuzzy and confidence zones generated can facilitate field inspections and improve the efficiency of different applications including engineering.

2. Materials and Methods

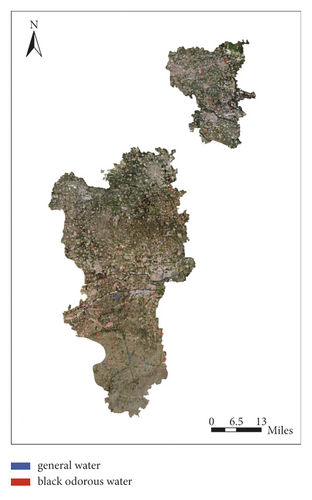

In the present study, pits and ponds in Langfang were utilized to evaluate the suitability of remote sensing for the identification and monitoring black and odorous water bodies in areas of high pollution, scattered water bodies, and manual verification challenges. A total of 94 samples were collected from these water bodies in 2021 [12]. The transparency (SD), dissolved oxygen (DO), and redox potential (ORP) of the waters were measured on-site, while the ammonia nitrogen (NH₃–N) was determined in the laboratory using the samples collected [13–16]. The samples were divided into black and odorous and regular water bodies based on the four physicochemical parameters measured (see Table 1). According to the criteria in Table 1, 47 of the water bodies were regular, while the other 47 were black and odorous (Figure 1). Among the 94 samples, 47 were randomly selected as the training set for data analysis and model training, while the remaining 47 served as the validation set for accuracy assessment. Concurrently, the Sentinel-2 imagery was employed for monitoring of the water bodies using remote sensing technology. Owing to the high spatiotemporal resolution, the Sentinel-2 imagery is widely utilized in monitoring the land surface, such as the vegetation, soil cover, and water bodies. The Sentinel-2 image contains 13 bands, and the blue (B), green (G), red (R), and near-infrared (NIR) bands involve an identical resolution of 10 m [17, 18]. Considering that most pits and ponds in Langfang cover >3,000 m², the 10 m band resolution of the Sentinel-2 imagery data was suitable for the present study. To enhance the relationship to the field sampling time, Sentinel-2A data in synchronous transit were utilized to generate spectral data for the field sampling points, to create sample sets and images, and to perform analysis.

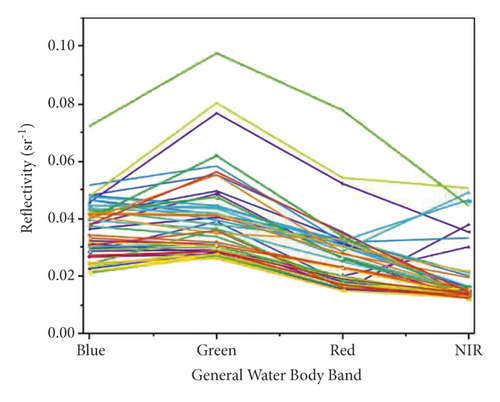

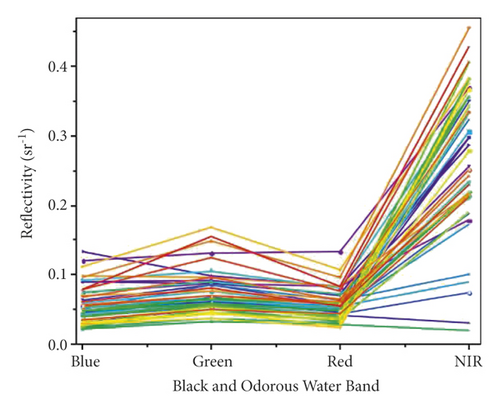

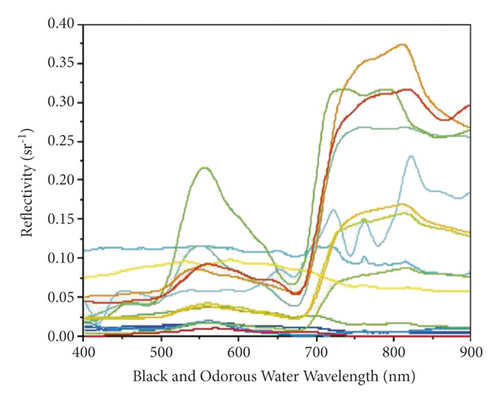

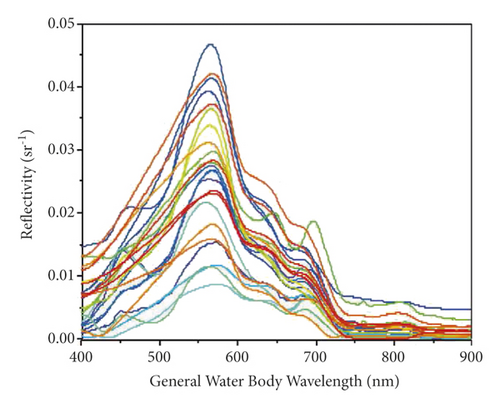

The spectral curves of the two types of water bodies based on preprocessing of data for the visible (VIS) and NIR bands are displayed in Figures 2 and 3. As shown in Figure 2, compared with the regular water bodies, the black and odorous water bodies exhibit low reflectivity values, and the associated spectral curves for the Rrs (G) − Rrs (B) and Rrs (G) − Rrs (R) display relatively gentle changes. Generally, the optical characteristics of water are determined by algal pigment contents, suspended solids, and colored dissolved organic matters. Because of extreme organic pollution, black and odorous water bodies are often enriched in organic pollutants and nutrients. Consequently, black and odorous water bodies usually have higher contents of organic matters and suspended solids than regular water bodies. In addition, nutrients would promote the growth of algae, thereby increasing the algal pigment contents. These pollutants and pigments account for changes in the optical properties of water bodies. For example, the high absorption and low backscattering of the colored dissolved organic matter and algal pigments significantly reduce the reflectivity of water in the VIS bands, so that the black and odorous water bodies usually have lower reflectance in blue, green, and red bands, thus the Rrs (B) + Rrs (G) + Rrs (R) was also utilized as the feature of black and odorous water bodies.

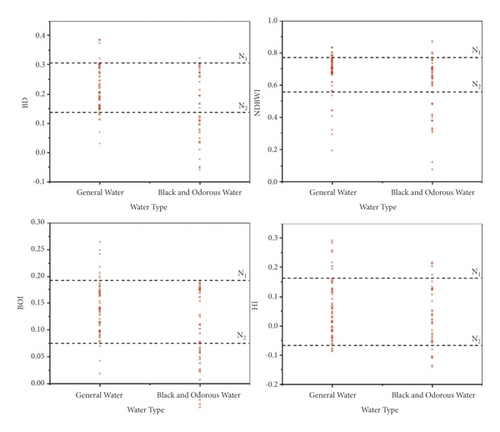

These observations are consistent with those reported in previous studies. Owing to spectral differences between the two types of water bodies in the VIS and NIR bands, multiple indexes for the extraction of features representing black and odorous water bodies were derived from sampling data by setting empirical thresholds (see Table 2). However, because black and odorous water bodies originate from diverse causes and the optical properties of some are comparable to those of regular water bodies, fuzzy areas are missed if just one spectral index is used for the extraction of features, and this negatively affects the classification accuracy. Based on data generated in the present study, four typical indexes including the band ratio (BD), BOI, HI, and WCI (Table 2) were tested, and the results are shown in Figure 4. In the spectral index range between N1 and N2, several black and odorous water samples overlap with regular water samples, and this area is termed the fuzzy area. This fuzzy area causes misclassification of black and odorous waters and elevates the uncertainty in the selection of the threshold. The threshold selection is often then subjective, and this affects the classification accuracy.

Table 2. Summary of typical indexes associated with the threshold segmentation method.

Method	Expression	Extraction range	Threshold	Reference
BD		N1 ≤ BD ≤ N2	N1 = 0.006 N2 = 0.115	[5]
WCI		N1 ≤ WCI ≤ N2	N1 = 0 N2 = 1	[6]
BOI		BOI ≤ N	N = 0.065	[8]
HI		HI ˃ N	N = 0.085	[9]

Obviously, the effective identification of black and odorous water bodies using a single feature is difficult. Therefore, in the present study, multiple features are exploited to establish a remote sensing recognition model for black and odorous water bodies. In previous studies, the Rrs (NIR) was utilized as the analysis feature, but because algal bloom and duckweed can cause regular water bodies to exhibit optical properties comparable to those of black and odorous water bodies, in the present study, it was not considered in the selection of features to prevent the introduction of additional errors [19–22]. Therefore, based on the analysis of spectral features, the Rrs (G) − Rrs (B), Rrs (G) − Rrs (R), and Rrs (B) + Rrs (G) + Rrs (R) were used to extract features for the recognition of black and odorous water bodies through remote sensing. These combinations reflect spectral differences between the two types of water bodies better because of the following: the Rrs (B) + Rrs (G) + Rrs (R) is the sum of reflectance in the visible light band, in which a black and odorous water body is characterized by a low reflectivity; the Rrs (G) − Rrs (B) and Rrs (G) − Rrs (R) are the reflectance differences between the G and B and the G and R bands, respectively, which reflect the smoothness of curves in the band ranges.

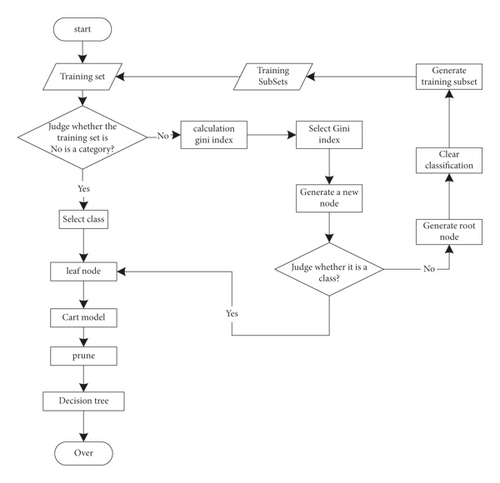

In the present study, calculations for all features were expressed in identical units (sr⁻¹), while the training and test data sets were generated by random sampling. The 47 samples in the training set included 23 black and odorous water and 24 regular water samples, while those in the test set comprised 24 black and odorous water and 23 regular water samples. The CART model was constructed hierarchically and progressively according to the training set. Starting from the root node of the first layer, internal or leaf nodes were generated layer by layer and point by point according to the principle of the minimum Gini index. Then, pruning was performed, and the CART model construction was completed. A flowchart showing components of the algorithm is displayed in Figure 5 [23–25].

3. Results

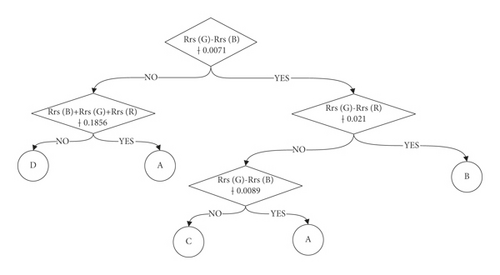

The CART model decision tree obtained in the present study is shown in Figure 6. According to the Rrs (G) − Rrs (B), Rrs(R) − Rrs (G), and Rrs (B) + Rrs (G) + Rrs (R) features, a classification involving categories A‒D was produced. This classification from the CART model is based on the degree of membership, which represents the probability of a set belonging to a black and odorous water body (Table 3) and the location of its size in the [0,1] interval. Initially, each set was divided into a confidence and a fuzzy area according to the degree of membership [26, 27]. A set with a degree of membership of 0 or 1 was assigned to the confidence area, and the category attributes of the associated set were then determined. The number 1 was then assigned to a black and odorous water body, while 0 was attributed to a regular water body [28]. The set with degrees of membership in the [0, 1] interval was assigned to the fuzzy area, and the category attributes of this set were uncertain. Considering the principle of the maximum likelihood classification, the set with degrees of membership in the [0.5, 1] interval was defined as black and odorous water bodies in the fuzzy area, while those in the [0, 0.5] are regular water bodies in the fuzzy area. Data for the attributes of category A‒D, which are based on the principles examined, are presented in Table 3.

3.2. Temporal and Spatial Characteristics of a Black and Odorous Water Body

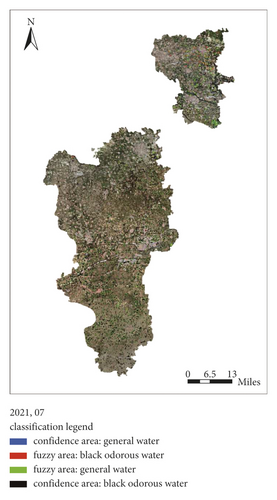

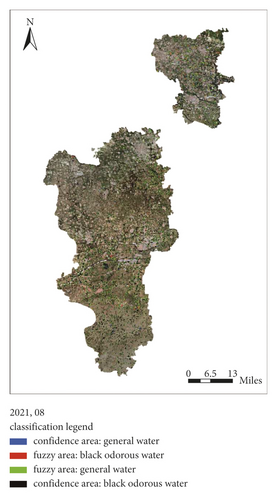

Based on the decision-tree model established, remote sensing monitoring was performed from July to September 2021 (Figures 7–9), and 30 points were randomly selected for field verification each month. The accuracy values from the monitoring and verification study are presented in Table 4. Obviously, the accuracy of this model for applications is good, and thus, it is suitable for engineering endeavors requiring the identification of black and odorous water bodies. In addition to the classification of water bodies, overall, the distribution of black and odorous water bodies decreases each month from July to September 2021. At the end of September, no black and odorous water body is present in built-up areas in all counties (cities and districts), and thus, this problem was effectively controlled. This effectiveness is attributed to the intensive measures introduced in all localities in recent years. However, an imbalance in the treatment of black and odorous water bodies in Langfang still exists. Several black and odorous water bodies are present in rural areas and at boundaries between urban and rural areas, which highlight characteristics of the overall distribution and local aggregation. Hotspots are concentrated in the north, central, east, and south areas of Langfang. The terrain in the central, east, and south areas are relatively low, and pits and ponds are common. In the north, the animal husbandry and food processing industries are relatively developed in Sanhe and Dachang County, while the central, east, and south areas are characterized by concentrated enterprises and high population densities. Therefore, activities associated with production and life, which involve the discharge of sewage, are higher in these three regions referred to above, and these elevate the probability of creating black and odorous water bodies.

Table 4. Summary of the field verification accuracy data.

Time	Overall accuracy (%)	Fuzzy area accuracy (%)	Confidence area accuracy (%)
July 2021	75.86	66.67	85.71
August 2021	75	68.75	81.25
September 2021	73.34	64.29	75

3.3. Analysis of the Cause of a Black and Odorous Water Body

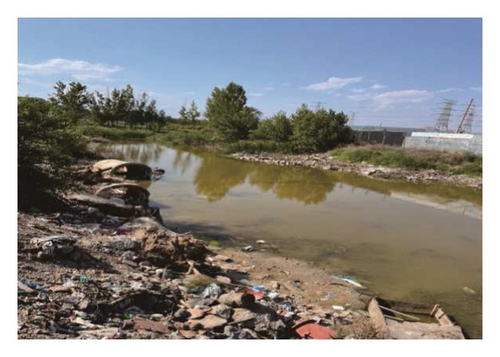

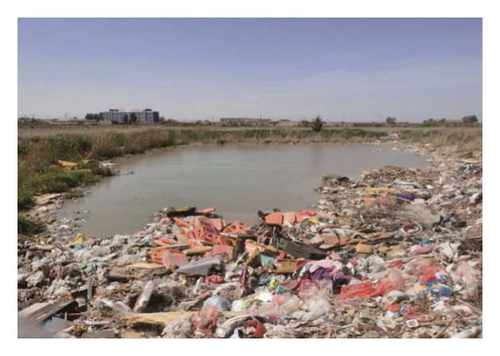

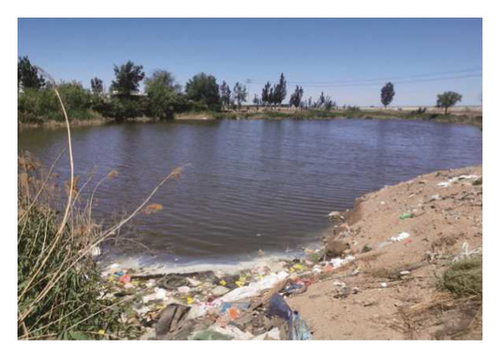

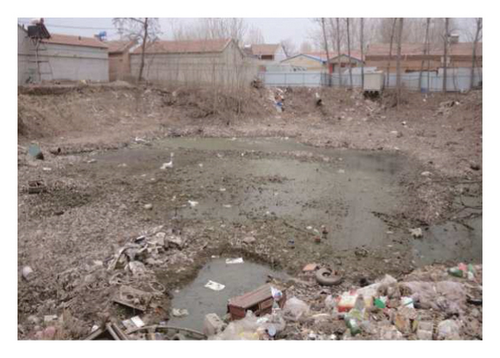

Evidently, from July to September 2021, black and odorous water bodies decreased significantly in Langfang. In fact, black and odorous water bodies were eliminated in built-up areas (cities and districts), and thus, major bodies disappeared, while small local bodies remained in rural and urban-rural areas, because of the regulations implemented in Langfang in recent years. Regarding counties (cities and districts) and other built-up areas, because of the adequate treatment of black and odorous water bodies, the remediation effect is obvious. At present, almost no black and odorous water body is present in counties (cities and districts) and other built-up areas; however, in rural and urban-rural areas, black and odorous water bodies are more difficult to control because of the high traffic and poor underground pipe network [29–34]. Therefore, although black and odorous water bodies have been significantly reduced in these areas, their elimination still requires time. Considering the field verification results (Figure 10), the formation of black and odorous water bodies in rural areas of Langfang is attributed mainly to the following:

• (1)

  Garbage removal and management problems: owing to the untimely removal and transportation of garbage in rural areas, pits and ponds are the main stacking places, and thus, leachates from domestic garbage invade water bodies through processes at the surface.

• (2)

  Domestic sewage discharge problem: in rural areas, because of the poor underground pipe network, domestic sewage is commonly discharged into pits and ponds, and this promotes the accumulation of organic matter.

• (3)

  Agricultural activities and livestock and poultry breeding: the main economic activities in rural areas are agriculture and aquaculture. Applied chemical fertilizers and livestock and poultry manure are transported into surrounding pits and ponds through the surface runoff.

• (4)

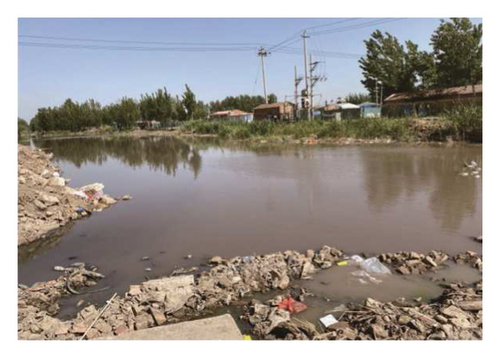

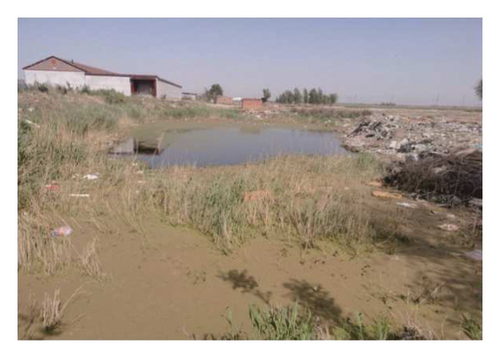

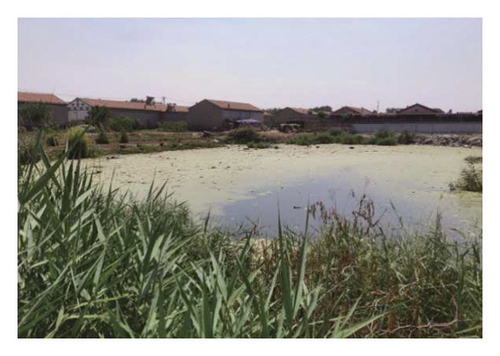

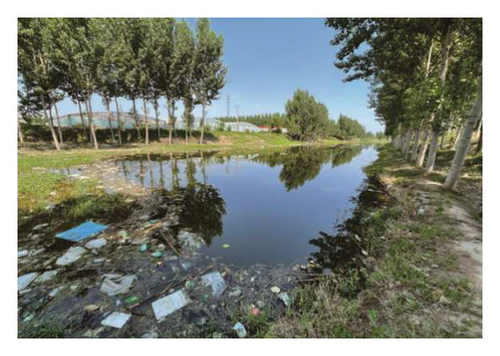

  Poor fluidity and insufficient self-purification capacity of the pit and ponds: pits and ponds are abundant in rural areas of Langfang, and in low-lying areas, the waters in these originate mostly from surface runoff. These bodies generally occupy small areas, which are characterized by poor fluidity and inadequate self-purification capacities, and these limitations are favorable for the production of black and odorous water bodies.

4. Discussion

In the engineering application of remote sensing monitoring of black and odorous water bodies, after the extraction of the associated features, field verification or remote sensing interpretation marks are also required for discrimination and to improve the accuracy. The CART model utilized in the present study adequately differentiates the extracted features associated with black and odorous water bodies and, thus, optimizes the classification accuracy. According to the results, the accuracy of extracting features representing black and odorous water bodies in the confidence zone is ideal. In engineering applications, such features can henceforth be extracted without field verification or visual interpretation. Results for the fuzzy area reveal samples that can easily be confused with regular water samples, and this area is characterized by a relatively low accuracy. Field verification or visual interpretation, however, can be performed as needed to improve the accuracy. The CART model and the confidence and fuzzy zones proposed in the present study can lessen the field verification burden for diverse applications. The proposed approach can improve the efficiency of engineering applications because of its high accuracy for the extraction of features representing black and odorous waters.

5. Conclusions

Conflicts of Interest

The authors declare that there are no conflicts of interest.

Authors’ Contributions

Q.Z. and X.D. conceived and designed the study; Q.Z., X.D., and Y.Q. collected and analyzed the data; Q.Z. and X.D. wrote the manuscript; and G.L. and Y.J. reviewed and edited the manuscript. All authors have read and agreed to the published version of the manuscript.
