2.4.1. Conventional Machine Learning-Based Bug Triage Systems

These methods use different feature extraction techniques, such as term frequency-inverse document frequency (TF-IDF), discriminating terms using the chi-square, term selection, and mutual information. These techniques use different well-known machine learning algorithms to assign a suitable fixer to the reported bug. For example, Bhattacharya and Neamtiu proposed a bug triage solution using titles, summaries, descriptions, and additional attributes. They extracted features from these selected fields using TF-IDF and the bag-of-words (BOW) model. The Naïve Bayes classifier with a tossing graph assigns the developer [28].

In addition, Tamrawi et al. used titles and descriptions from bug reports and extracted critical terms to use as features. The bug is triaged using fuzzy set features for each word [29]. Further, Anvik and Murphy extracted features using the normalized TF-IDF from the titles and descriptions. They used different machine learning algorithms, such as the Naïve Bayes, expectation-maximization, SVM, decision tree (C4.5), k-nearest neighbor (KNN), and conjunctive rules. Moreover, they generalized the recommendation of components and other appropriate developers rather than a single bug fixer [30].

Xuan et al. used developer prioritization with TF-IDF for feature extraction from titles and descriptions. They triaged the bug using Naïve Bayes and SVMs [31]. Moreover, Banitaan and Alenezi proposed a bug triage approach that uses bug report metadata. They aimed to improve the prediction accuracy of triaging using discriminatory terms from bug reports. They used the TF-IDF and chi-squared methods for feature extraction. The Naïve Bayes classifier performs the assignment task [32].

Similarly, Alenezi et al. proposed an automatic approach to assign developers with relevant experience to new bug reports. The authors used a five-term selection method to choose discriminating terms, including the chi-square, log odds ratio, term frequency relevance frequency, mutual information, and distinguishing feature selector. The predictive model built using the Naïve Bayes classifier selects bug fixers for new bug reports. The chi-squared term selection method outperformed other selection methods [33].

Additionally, Xuan et al. used a data reduction technique to select instances and features, which helps achieve high accuracy. They used the Naïve Bayes classifier to select features and assign bugs to developers [34]. Jonsson et al. [35] used TF-IDF to extract features from titles and descriptions. They created a stacked generalizer classifier by creating an ensemble of the Bayes net, Naïve Bayes, SVM, KNN, and decision tree classifiers. The ensemble technique improved their results.

Furthermore, Florea et al. [36] proposed the SVM method with TF-IDF and chi-squared for the bug recommender system. They tested their model on three different datasets. They preserved nouns from the text attributes (summaries and descriptions) and used TF-IDF for vectorization. Alenezi et al. [37] used categorical features and metadata instead of only textual data in mining the bug tracking system. They used the gain ratio to determine the essential features, providing a normalized measure of each feature’s contribution to the classification. They selected operating systems and determined the priority from the metadata because of the high gain ratio. Their results revealed poor performance when only categorical features were used. In contrast, the results of combining textual data and categorical features were promising.

In addition, Sarkar et al. proposed a bug triage system with high-confidence prediction at Ericsson. They replicated the existing models and used a high-confidence prediction level. The authors also used alarms and crash dumps with textual and categorical attributes. The normalized TF-IDF and line-IDF extracted features from the textual data and alarm and crash dumps, respectively. They used the logistic regression, SVM, KNN, and Naïve Bayes classifier. Logistic regression demonstrated good results compared to the others with a 90% confidence interval [38].

Zhao et al. [39] combined the vector space model and topic model to vectorize the textual data. The authors computed TF-IDF for the vector space model and used LDA for topic modeling. Furthermore, the SVM and neural network were used for the classification task. Their results revealed that SVM performed better than the neural network.

Software defect prediction is a similar problem to bug triage. Khurma et al. [40] proposed an island binary moth flame optimization (IsBMFO) base model that divides the solution in the population into subpopulations called islands. Then, each island is treated independently. For classification, they used IsBMFO for feature selection and three different classifiers, SVM, KNN, and Naïve Bayes. The SVM with IsBMFO performed best among KNN and Naïve Bayes.

2.4.2. Deep Learning-Based Bug Triage Systems

Recently, bug triage has been addressed using NLP and deep learning methods. Many deep learning methods employing NLP techniques for word-embedding or word representation have been proposed for bug triage problems in the last few years. For example, S. Lee et al. [2] proposed a CNN-based model that uses the word2vec model for word representation. This model uses summaries and descriptions from bug reports. In addition, they validated this technique on two open-source projects and an industrial project. It was the first study that used CNN for bug triage. Before this, the CNN technique was used for different software engineering problems, such as bug detection, severity classification, and code smells.

In addition, Choquette-Choo et al. proposed a multilabel and dual-output deep neural network for a bug triage system. The authors used latent semantic analysis for latent space representation, proposing a two-output deep neural network architecture. This architecture first predicts team classes and then predicts the developer from the predicted team. Their technique uses a heuristic approach that learns from the bug fixer and contribution level for each developer [45].

Mani et al. [3] proposed a deep bidirectional RNN with an attention mechanism (DBRNN-A) that learns semantic and synthetic features from summaries and descriptions. The authors used a representation based on the DBRNN-A for classifier training. They used word2vec to vectorize textual data and validated their technique on a significantly large dataset. Additionally, the authors publicized the data to make benchmark datasets for further research.

Furthermore, S. Guo et al. proposed an activity-based bug triage technique that uses the CNN model. According to the bug report creation time, the data were sorted, and the last 10% of the data were used for testing. Their technique exhibited promising results on large datasets [4].

Moreover, Zaidi et al. [5] proposed a CNN-based bug fixer recommendation system. The authors used both small and large datasets to validate their technique, using word2vec, GloVe, and ELMo. The CNN employed multiple convolutional kernels to extract diversified features, and their technique demonstrated state-of-the-art performance. Recently, a heterogeneous graph-based bug triage method [44] that uses a graph CNN was designed to create heterogeneous graphs from triage history. This method is quicker than the CNN and RNN methods and revealed results comparable to the existing methods.

Aung et al. [46] proposed a multitriage model that assigns developer and issue types simultaneously. They used two different deep learning models for feature extraction. The text encoder module was based on the CNN model, and an abstract syntax tree encoder module was based on biLSTM. Then, they concatenated features of both encoders and trained the two different classifiers for developer assignment task and bug issue type task. Their model showed good accuracy and performed both tasks simultaneously. However, the model required more training time than other methods due to training two different encoders and models.

Recently, Zaidi et al. proposed a bug triage system using graph neural network (GCN) and heterogeneous graph. They created a heterogeneous graph that has word-word and word-bug document edges. TF-IDF was used for weighting the word-bug document edges. Different similarity metrics were used for weighting word-word edges. Then, a simple two-layer GCN was used to train the model and model recommended list of 10 developers for the unseen reported bug [47].

4.1.1. Preprocessing

The textual data are preprocessed after extracting summaries and descriptions from the bug documents. Descriptions contain extra information, including white space, stack trace, URLs, special characters, hexadecimal codes, punctuation marks, code snippets, and directory paths. The extra information and stop words are filtered from the summaries and descriptions in the preprocessing phase.

4.1.2. Tokenizer

The tokenizer prepares the inputs for the model. The “BERTbase-uncased” tokenizer from transformers is used to tokenize the textual data. The BERT tokenizer splits the text strings into subwords and token strings, converts the token strings into IDs, and encodes or decodes the strings into integers. The tokenizer can truncate and zero-pad the textual data. Furthermore, this method manages special tokens, such as the start, end, [SEP], and [CLS] tokens required for the BERT model.

4.1.3. BERT Model

The BERT model is a new language representation model introduced by the Google AI language. Devlin et al. [48] designed the BERT model to pretrain deep bidirectional representations from unlabeled data by jointly conditioning the right and left contexts in all layers. The BERT model can be pretrained and fine-tuned, and the model is trained on unlabeled textual data during the pretraining step. While the BERT model is initialized with pretrained parameters during fine-tuning, the parameters are fine-tuned using the labeled data from the downstream task, such as question answering, text classification, and next sentence prediction.

Since the advancement of NLP and deep learning methods, bug triage problems have been solved using text classification methods. The pretrained BERT model was chosen to learn effective word representation. The BERT base model has positional embedding, 12 transformer layers, 768 hidden states, and 12 attention heads. The pretrained BERT model was trained using 800 million words from BookCorpus and 2500 million words from the English Wikipedia.

For the bug triage tasks, we applied the sequence classification technique. The parameters of the BERT base model were fine-tuned end to end using the tokenized input bug data.

4.1.4. Fully Connected Layer and Classifier Layer

The Xavier initializer was used to initialize the weights of the fully connected and classification layers. In addition, the Xavier initializer maintains activation variance and backpropagated gradients at a controlled level using a uniform distribution for all network layers.

Overfitting, which customizes the neural network weights for training data and exposes worsened accuracy on testing data, is a significant challenge in neural networks. Dropout counters the overfitting issue by randomly removing neurons during the training process with some probability to limit coadaptation.

4.2.1. Exemplar

The exemplar module forms the training set for the fine-tuned model with data on new and existing developers. This technique has been used for image data. Exemplar management is based on two main objectives: the initial exemplar set should closely resemble the class mean vector, and exemplars should be removable without breaching this property during the algorithm execution [50]. It is challenging to determine the mean vector to choose the exemplar set for textual data because each developer has different skills and has triaged different types of bugs in the past. Previous data are also needed to fine-tune the model because the extended classifier layer replaces the final layer in the base model. Fine-tuning is a quick process that takes fewer iterations to train the model, saving time.

Using all training data on existing developers with new developers for each iteration to fine-tune a model is a bad practice. Moreover, using all data from the previous datasets prevents learning new developers due to highly imbalanced data between the existing and new developer classes. This research was aim at including newly added developers in the existing trained model within less time and fewer iterations.

Therefore, we chose a random selection strategy that enhances data on new developers with randomly selected data from existing or previous developers to make the exemplar set. In each training iteration, the exemplar module selects 40% of the data on existing developers and all data on new developers. The model observes almost all data in chunks in different iterations, allowing the model to obtain good results.

4.2.2. Extended Classification Layer

Like the base model, the exemplar set is tokenized and zero-padded. The trained base model is loaded with trained weights and parameters. Neurons equivalent to the sum of the base and new developer classes ({dev₁, dev₂, ⋯, dev_n, dev_n+1, ⋯, dev_m}) replace the last fully connected classification layer. The Xavier initializer was used to assign the initial weights, the same as the base model, and dropout was used to overcome overfitting.

5.3.1. RQ 1: Is the BERT-Based Bug Triage Method Superior to Other Context-Insensitive and Context-Sensitive ELMo-Based Bug Triage Methods?

Many embedding techniques, including context-insensitive (word2vec and GloVe) and context-sensitive (ELMo) methods, have been used for bug triage systems. The pretrained vectors of word2vec and GloVe are also available and can be trained on new datasets. Moreover, the ELMo-pretrained model can be used for embedding and fine-tuning using current data during embedding. Zaidi et al. [5] and S. Lee et al. [2] used word2vec for word representation. In addition, S. Lee et al. trained the word2vec model using bug report data, while Zaidi et al. used the pretrained word2vec vectors. Furthermore, Zaidi et al. used GloVe-pretrained vectors and a pretrained ELMo embedding model. Their results demonstrated the superiority of ELMo compared to word2vec and GloVe.

Similarly, the pretrained BERT model was used for better word representation. The BERT is deeper model than ELMo, which yields good performance. Further, BERT uses a transformer-based architecture, and ELMo uses a bidirectional language model. Moreover, ELMo extracts context-aware features in both directions and concatenates them to make contextual representations. This concatenation limits the ELMo technique to take advantage of both left and right context information simultaneously. In contrast, BERT uses the masked language model in which it replaces words in a sentence randomly with a small probability (mask). Then, the transformers generate a prediction for masked words based on their left and right surrounding unmasked words [48].

The BERT method has demonstrated state-of-the-art performance in many NLP-based tasks. Moreover, BERT has also performed better in bug triage than the existing bug triage systems. Tables 2 and 3 list the top-1 to top-10 accuracy results of the BERT-based triage system for different datasets. The experimental results reveal a noticeable increase in the top-1 to top-10 accuracy values for all datasets compared to the state-of-the-art method, evidencing BERT-based triage’s superiority over the word2vec, GloVe, and ELMo methods.

Some statistical tests were conducted to check the significance of the results. The proposed method was validated on eight distinct open-source datasets. First, the Kruskal–Wallis test was conducted for the top-1, top-5, and top-10 accuracy of the proposed model, including the ELMo-CNN, GloVe-CNN, and word2vec-CNN. The Kruskal–Wallis test has a p value of less than 0.05 for top-1, top-5, and top-10 accuracy, exhibiting the significance of the accuracy results. The Nemenyi post hoc test was conducted to identify the significance between various bug triage methods. The post hoc test demonstrates that the proposed method has significantly different accuracy values than GloVe and word2vec for top-1 and top-5 accuracy. However, the proposed method has significantly different results than the word2vec-CNN for top-10 accuracy. Moreover, no significant difference exists between the proposed method and the ELMo-CNN.

We also performed the analysis of variance (ANOVA) single-factor test to double-check the significance of the accuracy values. The same observations were found in the Kruskal–Wallis test, with p values of less than 0.05 for top-1, top-5, and top-10 accuracy. The Tukey honest significance difference (HSD) test is the post hoc test performed after ANOVA to identify the significant difference between two groups statistically. The Tukey HSD demonstrates that the proposed method has significantly different values than the word2vec-CNN and GloVe-CNN for top-1 and top-5 accuracy. The proposed method has significantly different values than word2vec-CNN for top-10 accuracy. However, no significant difference exists between the ELMo-CNN and BERT-CNN for top-1, top-5, and top-10 accuracy.

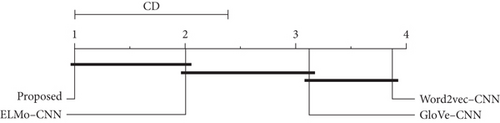

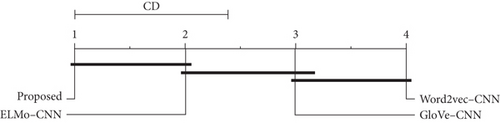

Figure 4 is the Demšar diagram demonstrating the comparison of all bug triage methods with different word-embedding techniques on all datasets. The critical distance value is 1.382 with α = 0.05. The connection between methods indicates the insignificant difference in accuracy results. The Demšar diagram also partially supports the research question.

Thus, the statistical tests partially support our research questions. Overall, the proposed method demonstrates a considerable difference in top-k accuracy compared to various bug triage methods using diverse word-embedding techniques. The proposed method has significantly different accuracy values than the word2vec-CNN and GloVe-CNN, but no significant difference exists between the proposed and ELMo-CNN methods.

5.3.2. RQ 2: Does the BERT-Based Base Model Have better Top-K Accuracy on Bug Data?

The proposed base model was validated on various datasets used in state-of-the-art methods. The experimental results indicate a significant increase in top-1 accuracy by 4% and 10% for the Eclipse Platform and Firefox small datasets, respectively. The Firefox dataset with a threshold of zero presented similar results for top-1 accuracy. The difference in accuracy decreased as the threshold increased. Top-10 accuracy exhibited a negligible difference from the ELMo-CNN for thresholds of 10 and 20. However, the base model displayed a notable difference in the top-k accuracy for thresholds of zero and five, implying that the BERT-based bug triage is a good option when the number of samples for each developer is very low. Overall, the BERT-based bug triage system demonstrated promising results for the top-1 to top-10 accuracy values. Tables 2 and 3 present detailed results for the top-k accuracy metric for all datasets. In summary, the BERT-based triage model is efficient at gaining good top-k accuracy.

The Friedman test was performed to test the significance of the experimental results at a 5% α value (significance level). The research question is addressed as a hypothesis that can be confirmed or rejected. As mentioned, the reported results are an average of five trials. The statistical test had a p value of less than 0.05 for all datasets. However, an α value of > 0.05 was recorded for the top-9 and top-10 accuracy values of the Firefox dataset with 20 thresholds. Overall, the statistical analysis has a p value of less than 0.05 most of the time. Therefore, the statistical test confirms the stated research question—the results of the proposed method have significant top-k accuracy. However, the significance is lost for top-9 and top-10 accuracy when the number of samples per class increases.

5.3.3. RQ 3: Is Fine-Tuning a Pretrained Model Better than Training the Model from Scratch?

Training a deep learning model from scratch is very costly because it requires more time. Fine-tuning is more efficient than allowing a model to learn from scratch if the model was aimed at learning the same domain task and sufficient new data are available for training. In our case, sufficient bug report data were available, and the pretrained model could be fine-tuned when the new data were available.

For evidence, we trained two separate models: the model from scratch and the fine-tuned model. The BERT model was trained using bug data to train the model from scratch. In contrast, the pretrained BERT model was used for the fine-tuned model, trained on 800 million words from Book Corpus and 2,500 million words from the English Wikipedia. Bug data have many bug reports and a considerable amount of text. However, after removing the stop words and cleaning the data, the length of many sentences decreased. Training a BERT model from scratch requires much more data. However, the fine-tuned model was efficiently trained using the pretrained model and converged into fewer iterations.

Furthermore, the experimental results support the research question. The top-1 accuracy of the scratch model was 19%, whereas the top-1 accuracy of the fine-tuned model was 28.96%. The scratch model took 20 epochs for training, and the fine-tuned model demonstrated better results in just 10 epochs. To validate this observation, we observed the training times for both the from-scratch and fine-tuned models. We executed the code on an RTX 2080 graphics processing unit (GPU) system. Each epoch of the scratch model took an average of 2.5 minutes for training using the training set from the Firefox [4] dataset. However, each epoch of the fine-tuned model took an average of 2 minutes for training. Therefore, the scratch model took an average of 48 minutes for 20 epochs, and the fine-tuned model took an average of 20 minutes for 10 epochs. Thus, using the pretrained model is a better option for training a model from scratch.

5.3.4. RQ 4: Can the Continuous Fine-Tuning Approach Solve the Newly Added Developer Problem?

Adding a set of new developers to an existing model is an ongoing problem. The existing methods cannot add new developers and require training from scratch for all developers (new developers and previous developers). As mentioned in Section 3, Käding et al. applied the continuous fine-tuning concept to allow the method to add new classes when they are available. Similarly, new developers can be added via continuous fine-tuning whenever data on new developers are available. In addition, the dataset was prepared for this task. The Firefox 20 threshold dataset has 169 developers separated randomly into sets of 100 developers, six sets of 10 developers, and nine developers. The 100-class dataset was used to train the base model, and the remaining sets were used for continuous fine-tuning and adding new developers to the existing model.

Realistically, new developers have no triage history; thus, no data would be available for the training model. Therefore, we assumed that 10 developers were new, and a manual triage manager created their histories according to their skills. Then, the manual triage history could fine-tune the model to add new developers to the existing model. After adding new developers, the experimental results revealed good top-1 to top-10 accuracy results for the continuous fine-tuning method. The base model for all 169 classes exhibited 38.42% top-1 accuracy, whereas the base model demonstrated 42.77% accuracy for the 100-class data. By incrementing the remaining developer sets, the fine-tuning model had 39.20% top-1 accuracy.

Creating a manual triage history of at least 10 bug reports is problematic because it is very challenging for a manual triager to determine at least 10 reports from another developer’s history to create a triage history for a new developer. Therefore, the Eclipse Platform dataset was divided into the base and incremental sets to make it a more realistic scenario.

The Platform dataset has 225 developers divided into 200 and 25 developers for the base and fine-tuned incremental models, respectively. In addition, the 25 developers have three bug reports, at most, in their history. From these bug reports, one bug report was chosen for testing. The experimental results of the base model indicate 47.88% top-1 accuracy for all 225 developer classes, whereas the base model exhibited 51.20% top-1 accuracy for 200 classes. However, the fine-tuned model had 49.17% top-1 accuracy for the base and incremental testing sets (200 plus 25 classes). The top-1 accuracy of the fine-tuned model was better than the base model for all 225 classes; however, it was not significant.

The detailed results of the Firefox 20 threshold and Eclipse Platform datasets are presented in Table 4. The table lists the top-1 to top-10 accuracy values for each iteration. In the technique column, the base demonstrates the scratch model for the base classes, and Inc_k indicates the fine-tuning method for each incremental iteration, where the column “classes” presents the number of base and increment developer classes in each iteration.

Comparing the first and second scenarios, developers from the first scenario have a minimum of 20 bug reports in their histories. Some have more than 20 bug reports, as many as 100 to 150 bug reports. These bug reports are manually triaged, and a developer may fix many bug reports of a different nature. Moreover, it is also possible that two or more developers may have fixed bug reports of the same nature in the past. Therefore, it can be a challenge for efficient learning, causing low accuracy. In the second scenario, new developers have a maximum of three bug reports. During the fine-tuning of the pretrained model, new classes exhibit good accuracy results compared to the base method results for all 225 classes. Additionally, different developers may have bug reports of the same nature. Nevertheless, this situation has no significant effect on learning and is not the cause of accuracy loss because the model learns the features of new developers from their data and does not lose knowledge when learning about additional developers. In summary, the continuous fine-tuning method presents promising results for adding new developers to an existing model. However, the accuracy results are not significant; thus, they require improvement.

5.3.5. RQ 5: What Problem Is Continuous Fine-Tuning Facing, and What Is Its Effect on the Accuracy Results?

Continuous learning can be achieved by continuous fine-tuning [7]. In the bug triage problem, continuous fine-tuning demonstrated better results than training a model from scratch. As listed in Table 4, the from-scratch model (base model technique) has 38.42% top-1 accuracy on all 169 classes. Furthermore, continuous fine-tuning exhibits 39.20% accuracy for the same dataset. First, the base model was trained on 100 developers’ data to make a pretrained base model for fine-tuning. Then, the remaining developers were added continuously, as in continuous learning.

However, continuous fine-tuning has a catastrophic forgetting problem, common in deep neural networks and sequential transfer learning. This problem happens due to the forgetting of previous knowledge and overfitting of new data.

In our bug triage case, the model learns new developer classes more efficiently and trains on complete base data in chunks in a few iterations. However, some bug reports were misclassified from the base testing data, demonstrating catastrophic forgetting and affecting the overall efficiency of the continuous fine-tuning model. However, our model was also trained on some parts of the base data with new data during fine-tuning. Still, the proposed model lost some knowledge and was overfitted to the new data. As presented in Table 4, the top-k accuracy decreased in each iteration from Inc₁ to Inc₆, indicating the forgetting of knowledge from the previous model. In the future, we aim to develop a more efficient triage model that can address the catastrophic forgetting problem using the knowledge distillation method.

Knowledge distillation transfers learned knowledge from the parent model to the child model without losing knowledge. We can implement this concept using the knowledge distillation loss function. The base model knowledge is transferred to a fine-tuned model to increase the triage system accuracy and efficiency.

5.3.6. RQ 6: Is the Proposed Model Efficient?

Deep learning models require considerable memory to store weights, long training times, and computation times. The use of the pretrained language model reduces training time. The BERT model on the bug dataset requires more iterations to converge; however, the proposed pretrained BERT model exhibits good results and converges in fewer iterations. Furthermore, the BERT model requires more memory to restore the pretrained model because it has 11 transformer layers. Nevertheless, it does not require sophisticated GPUs. The experiments were conducted on two systems: (1) a Core i9-9900X CPU with 64 GB RAM and Nvidia RTX 2080 with 12 GB of dedicated memory and (2) a Core i7-8700 CPU with 64 GB RAM and Nvidia GeForce GTX 1080 Ti.

We applied the proposed method to a set of datasets with varying sizes from different open-source projects (i.e., Eclipse, Mozilla, and NetBeans). The Platform [2] is the smallest dataset with 4825 bug reports and 225 developers. The Firefox [2], Mozilla [4], and NetBeans [4] are massive datasets that have 13667 reports with 848 developers, 15502 reports with 1022 developers, and 19149 reports with 265 developers, respectively. The proposed method showed good performance on all the datasets. By increasing dataset size, we can expect that the training time and training steps increase, such as each epoch of Platform dataset [2] took 30 seconds for training and trained in 109 training steps. Firefox dataset [2] took 1 minute and 20 seconds for training each epoch in 308 training steps. In comparison, each epoch took approximately 430 training steps and 1 minute and 50 seconds to train the model on the NetBeans [4] dataset. Further, the model grows gradually when the dataset of new developer classes is available. Table 4 shows the experimental results, indicating that the model gradually grows when adding new developer classes.

However, we did not test the proposed method for industrial projects because the bug data are not publicly available. Nevertheless, we hope that the proposed method can be adapted to industrial projects because their bug reports also include a summary, description, and developer information.
