1. Introduction

For computing applications, design decisions have a substantial impact on the final product’s quality [1]. The Internet of things (IoT) domain has distinct design requirements because of the existence of many communication protocols, terminologies, and architectures and involves factors like heterogeneity, diverse application domains, varied functionalities, and components [2]. During the design process of an IoT application or system, quality criteria and related measurements must be observed. Determining the quality of IoT applications and services is considerably different from conventional software systems [3]. Various IoT architectures in the literature lead to challenges when designing IoT systems and applications. The resource-constrained IoT devices, being arrayed in vastly dynamic settings and union of a range of technologies, cause conventional design standards and models to be insufficient to measure the quality of service (QoS) in IoT applications [3–6].

Graph-based metrics are an important tool to quantify software design models’ quality. The IoT EcoSystem is a design model that interconnects the heterogeneous smart devices in a broad network of distinct components to operate efficiently [7]. The IoT EcoSystem interoperates web-enabled smart devices to collect, retrieve, send, and act on data from their surroundings by using the embedded system processors, sensors, and communication hardware [8, 9]. The scope of this work is to model the IoT EcoSystem as a schema graph to define the quality measurement metrics for the IoT domain such that the service quality of an IoT system or application may be evaluated from its design model. A research matrix for the analysis of existing related research works is given in Table 1. It summarizes the current works on the base of (i) the IoT research area covered by the given works, (ii) the quality factors suggested for IoT applications, and (iii) whether the authors cover the design phase metrics. The research matrix shows that very few works have focused on defining and evaluating the quality of IoT services at the design phase through metrics. However, most works elaborate on the quality factors to standardize the IoT architectures and models.

The literature survey categorized the related works into four levels based on the qualitative and quantitative measurements criteria presented in specific research work. At the top, the services inside an IoT infrastructure are divided into information aggregation services, identity-related services, ubiquitous services, and collaborative-aware services [2]. The IoT services are usually composable and reconfigurable, leading to a dynamic environment requiring explicit support at different levels to ensure high quality for its users [15]. At the second level, Tambotoh et al. [14] identified the IoT characteristics as heterogeneity, resource-constrained devices, collaboration with hardware and resources, network mobility, embedded and adaptive devices, and design to monitoring IoT devices. At the next level, QoS factors for IoT systems and services are presented [3, 4, 6, 17, 22] based on ISO-9126 model [23]. It includes complexity, functional suitability, performance, efficiency, compatibility, maintainability, portability, and usability. At the fourth level, there are some quality analysis related works, including a 3-layer IoT architecture for QoS [10], a design and analysis process [5], and a software quality model [14].

It is evident from the data in Table 1 that the existing research focused on identifying the quality factors for IoT, whereas literature lacks quantitative metrics for design quality evaluation of IoT models and services. Existing research has mapped different features of IoT to the QoS parameters; however, there is a lack of design quality measuring metrics required for estimating the services quality of IoT systems at an early stage. This research aims to propose a suite of design quality metrics to ensure service quality in the IoT. More specifically, we have asked the following research questions: (a) What are the potential relationships between IoT service categories and identified IoT characteristics; (b) What are the QoS factors that affect the QoS in a heterogeneous IoT infrastructure; (c) How to define design metrics for IoT applications, needed to ensure the quality of services; (d) What are the possible metrics mappings to the IoT quality characteristics and services; (e) How should the presented design quality metrics be evaluated; (f) What is the advantage of evaluating an IoT system under presented design quality metrics.

The rest of this article is organized as follows. The next section is dedicated to the literature review. Section 3 defines the Internet of Things EcoSystem as an abstract graph and introduces its schema representation. The design quality metrics for the quality services in the Internet of things are proposed in section 4. The evaluation and results are given in section 5. Finally, section 6 concludes the article.

2. Literature Review

This section reviewed existing works related to IoT architecture(s), models, and those covering parameters and attributes for QoS in IoT. For IoT architecture, De et al. [24] proposed a dynamic creation of services and their testing in the IoT-A reference architecture-based IoT environment. The presented architecture is semantic oriented and test-driven and provides self-managing and testing for IoT services and creates dynamic test cases generation and execution. Yaqoob et al. [25] presented a three-layered IoT architecture with layers including application, transport, and network. They summarized various IoT architectures, including peer-to-peer, software-defined architecture, and network-based and CloudThings architecture. These architectures aim to provide QoS in heterogeneous wireless network environments and accelerate the software development process.

Li et al. [10] recognized that the varied and huge amount of devices in the IoT infrastructure makes it tough to fulfill QoS requirements. The services in IoT are re-configurable and provide quality-aware scheduling of the service-oriented IoT architectures that increase the performance and minimize the cost. Al-Fuqaha et al. [11] highlighted the key IoT challenges and QoS criteria in terms of reliability, performance management, mobility, availability, scalability, privacy, security, interoperability, confidentiality, fault tolerance, safety, resource management, operations management, architecture standardization, protocols, and network addressing and identification.

Kiruthika and Khaddaj [12] highlighted the lack of standardization in IoT paradigm attributes like self-healing hardware, functional and nonfunctional requirement, and heterogeneous mix of devices as challenges for defining the QoS model for IoT. The identified QoS factors for IoT applications are security, performance, usability, reliability, interoperability, robustness, and scalability. The QoS features vary according to the dynamic environment. Kim [13] described that the IoT applications are a complex mixture of a variety of heterogeneous devices and technologies. They derive a practical model based on the qualities of IoT applications. The QoS factors are identified as functionality, reliability, efficiency, and portability. The metrics for these QoS factors can evaluate the quality of IoT applications.

Costa et al. [5] highlighted two major design issues of the IoT. One is the representation of complex heterogeneous entities. The other is the unavailability of the method to verify the QoS in the early design phase due to resource-constrained devices deployed in a highly dynamic and unreliable environment. Performance, reliability, and availability are the features to be considered. Tambotoh et al. [14] presented an IoT software quality model that is established on ISO/IEC 25010 and information quality characteristics of COBIT 4.1. The updated version of the ISO/IEC 9126 model is defined that determines the requirements of software product quality and evaluates them. Quality assurance is considered necessary for the security and safety of the system and users in IoT. The model evaluates the internal and external properties, and includes eight quality factors, namely, functional suitability, reliability compatibility, security, usability maintainability, performance efficiency, and portability.

Thomas and Rad [22] described that the essential quality metrics to analyze and evaluate for measuring performance in the IoT system are availability, usability, reliability, and maintainability, as mentioned. White et al. [4] used ISO/IEC 25010 and OASIS WSQM as quality models for mapping of QoS factors. The quality factors for QoS evaluation were considered based on the ISO/IEC 25010 quality model. The reliability, efficiency, functional stability, and performance are the most considered/studied quality factors; however, many factors like maintainability, security, and compatibility that are critical for the proper working of the IoT applications and systems have been neglected. Moreover, it was identified that the most addressed layers are the network layer and physical layer, whereas deployment, middleware, and cloud layers lack primary studies.

Because communication, computing, and things are the three pillars of IoT, Singh and Baranwal [16] classified QoS components into QoS of communication, QoS of things, and QoS computing. Weight, interoperability, flexibility, reliability, availability, overall accuracy, stability, response time, range, sensitivity, precision security, and other communication quality factors include bandwidth, throughput, efficiency, network connection time, monetary cost, availability, security and privacy, interoperability, service level agreement, monitoring, and reliability. Communication quality factors include weight, interoperability, flexibility, reliability, availability, overall accuracy, stability, response time, range, sensitivity, and precision security. Scalability, dynamic availability, dependability, pricing, response time, security and privacy, capacity, customer support facility, user feedback, and review are all aspects of computing QoS.

Zhohov [26] proposed a quality of experience (QoE) model for dealing with the Industrial IoT application and services. The current models for evaluating the QoE are not suitable for IIOT applications as they mainly target multimedia services. Industry-related KPIs are defined to deliver the QoE for IIoT by associating the technology and business domains. They proposed QoE layered model which forecasts efficiency, productivity, safety, and reliability as Industrial KPIs for QoS. Network performance evaluation is more complicated as each IIoT has specific QoS assurances than conventional systems. Bures et al. [17] discussed various issues and challenges faced in ensuring the QoS in the IoT environment. Many issues in quality assurance have arisen as a result of the IoT’s development, including privacy and security of user information and data. Reliability, interoperability, and integration issues created a need to develop a methodology to ensure quality assurance in IoT. Systematical testing and quality assurance methods need improvement.

Zavala et al. [18] proposed an autonomic IoT infrastructure for transiting from partial-autonomic characteristics of IoT applications to complete autonomically. The inclusion of the architectural and functional blocks introduces the self-star properties. Self-configuration, self-adaptability, self-healing, self-optimization, and self-protection deal with the challenges of a dynamic, heterogeneous mix of devices, human-computer interaction, interoperability of communication protocols, scalability, and ubiquity.

Suryanegara et al. [19] established a framework for assessing IoT service QoE. The Absolute Category Rating with Hidden Reference (ACR-HR) scale served as the foundation for the framework. It assesses the quality based on the rating given by users based on their experiences. Users provide the score both before and after the implementation of the system. The user experience was evaluated via conduction of survey which is based on mean opinion score (MoS) and calculation of results is done using differential MoS based on ACR-HR. Samann et al. [21] reviewed the available techniques for QoS in IoT academia applications. Metrics considered for provisioning QoS using cloud computing in academia are latency, reliability, throughput, and network usage. However, it is not a unified process for providing all these factors.

The literature review has shown that the heterogeneity and variety of application domains for IoT have resulted in varied specifications leading to a complex IoT system with different performances. Due to this reason, the design and architecture of IoT are affected and are not standardized, thus resulting in the different architectures [27]. Due to many application domains and heterogeneous entities communicating with one another using varied protocols, there are many standards for IoT architecture that leads to the challenges in designing the IoT applications. The resource-constrained diverse mobiles and other devices resulted in the QoS concern [28]. The QoS in an IoT application is constrained by heterogeneity, resource-constrained devices, collaboration with hardware, natural human interfaces, networked mobility and volatile connectivity, embedded and adaptive devices, and design to monitor IoT devices [14]. It is necessary to specify the quality characteristics of IoT applications and evaluate them to determine whether or not they are according to the design standards.

3. Internet of Things EcoSystem as Abstract Graph

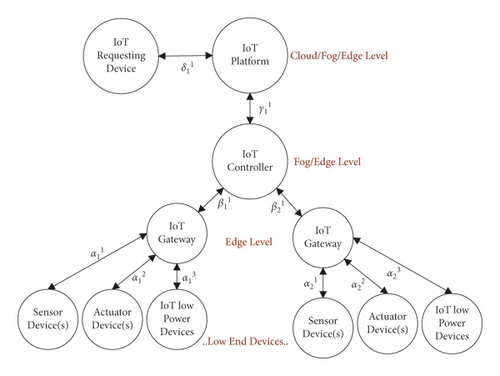

This work is based on the IoT EcoSystem concept of Bansal and Kumar [7] that puts all the heterogeneous components of IoT together to build an efficient system. For defining measurement criteria in terms of design quality metrics for the said attributes, we define the IoT EcoSystem as an abstract graph. The IoT EcoSystem concept presented by Bansal and Kumar [7] is converted into an interaction graph ‘G’ as given in Figure 1. The sensors and actuator devices work at the base layer of the IoT EcoSystem. The sensor devices collect information about environmental/physical parameters and pass the data to a gateway node (working at the upper layer). The actuator devices take instructions from the gateway and act on the linked entities/parameters/environmental attributes. The gateway manages the data flow between sensors/actuators devices. The sensors and actuators use different communication protocols to interact with the gateway. Hundreds to thousands of sensors and actuators can be managed via the gateway that filters and formats the data coming from/to sensors/actuators.

Above the gateway layer, a controller interacts with the middleware. The controller controls data coming to gateways from the middleware or IoT platform. The controller is responsible for the high-level processing of data. It classifies, computes, and converts data into information. A controller can manage hundreds of gateways. The IoT middleware does various activities like data analysis, saving data into the database server, preparing reports and graphs, and ensuring privacy and security. It manages and controls the IoT system. The cloud supports the data available in the IoT middleware. All applications avail the services and the analytical statistics delivered by the middleware through the application programming interface (API). The application provides the user view of the IoT environment.

4. Design Quality Metrics for Quality Services in the Internet of Things

4.7. Mappings of IoT Services, Characteristics, QoS Factors, and Design Quality Metrics

In this section, we mapped the newly defined design quality metrics to the QoS factors taken from the ISO 9126 model [23] (defined for the quality assessment of computing systems and applications). The QoS factors selected for this purpose, from the works of [3, 4, 6, 17, 22], include complexity, functional suitability, performance, efficiency, compatibility, maintainability, portability, and usability. The metrics defined for design quality evaluation of IoT services are IoT design complexity metric, IoT transactional complexity metric, IoT transactional network load metric, IoT communication channel demand metric, IoT interoperability resolving network complexity metric, and IoT interoperability resolving network load metric.

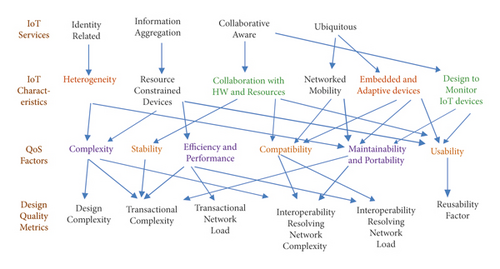

As presented in Figure 2, the QoS factor complexity is quantified with design complexity, transactional complexity, and interoperability resolving network complexity. The QoS factor stability is measured with transactional complexity. For determining the efficiency and performance factor of QoS, the metrics used are transactional complexity, transactional network load, and interoperability resolving network load. Next, we quantified the compatibility QoS factor with interoperability metrics resolving network complexity and interoperability resolving network load. At the same time, the QoS factors of maintainability and portability are mapped with interoperability resolving network load. Lastly, the QoS factor of usability is determined with the metric named as reusability factor.

The mapping between the second and third layer of Figure 2 links the QoS factors with IoT characteristics. The IoT characteristics as presented by Tambotoh et al. [14] are heterogeneity, resource-constrained devices, collaboration with hardware and resources, network mobility, embedded and adaptive devices, and design to monitoring IoT devices. The IoT characteristic ‘heterogeneity’ is mapped with complexity, maintainability, and portability of QoS factors. The IoT ‘resource-constrained devices’ characteristic is mapped with QoS factors complexity, efficiency and performance, and usability. The IoT ‘collaboration with hardware and resources’ characteristic is linked with QoS factors stability, compatibility, and usability. IoT’s ‘network mobility’ characteristic is attached to compatibility, maintainability, and portability. IoT’s ‘embedded and adaptive devices’ characteristic is linked to compatibility, maintainability, portability, and usability. Lastly, the IoT characteristic of ‘design to monitor IoT devices’ is mapped to maintainability, portability, and usability.

The services inside an IoT infrastructure are defined by Gigli et al. [2] as information aggregation services, identity-related services, ubiquitous services, and collaborative-aware services. Although all of these services are somehow related to each of the IoT characteristics, as presented in Figure 2, we categorically mapped each IoT service to the maximally related IoT characteristic(s). Therefore, in the pattern given in Figure 2, we can map the IoT services to IoT characteristics to IoT QoS factors which are mapped to the design quality metrics presented in this work. It allows us to determine the IoT services quality from defined design quality metrics.

5. Results and Discussion

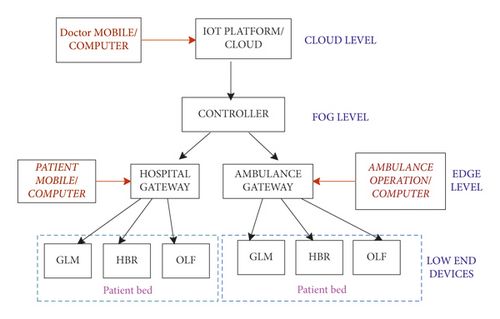

A smart city healthcare setup is taken as a case study to assess IoT service quality measuring metrics defined in this work. In our smart city healthcare model, various medical IoT devices communicate with each other and share patients‘ records and live data through the cloud, fog, and edge-computing paradigms. In the smart healthcare setup, a medical application connects a healthcare provider to his patient’s smart medical devices, as illustrated in Figure 3. We consider a hospital ICU having a specific number of patient beds. On each patient’s bed, various low-end devices as sensors are deployed to monitor the patient. The sensors include glucose level monitor (GLM), heartbeat rate (HBR) monitor, oxygen level flow (OLF), and blood pressure monitor (BPM). These devices are connected with the edge, fog, and cloud networks to make them accessible anywhere in the hospital, labs, and remotely to the doctor/specialist. The doctor can observe the patient through these medical devices and can give a prescription. Moreover, a specialist can set the actuators’ dosage and levels remotely for the advised medicine dosage for the patient.

For evaluation, we considered different scenarios of the case study system to evaluate the metrics defined in this work. The sensors and actuator devices considered in the case study are given in Table 2. The sensors are deployed for monitoring patients’ vital signs and are connected to the network for the edge, fog, and cloud connectivity. The doctor observes a patient through the sensor devices and sets the actuators to the appropriate level for administering medicine to the patient.

5.1. IoT Transactional Complexity Metric (ITCM)

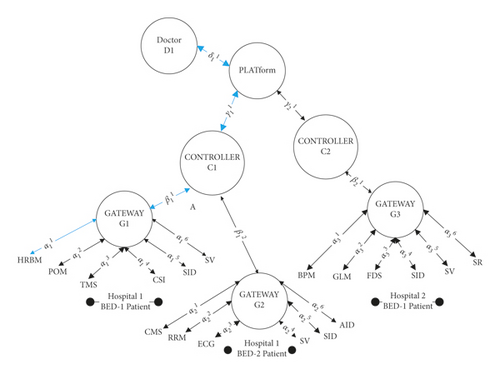

The IoT transactional complexity metric is evaluated with three transactional scenarios of a smart healthcare system. Scenario (i) is presented in Figure 4 where a doctor retrieves the data from only one sensor ‘BPM’ attached to bed 1 of hospital 1. The IoT transaction is shown in blue lines for this situation, and these data read complexity for the transaction calculated using equation (3) as four units, i.e., the number of edges involved in the transactional activity.

$$ (24)

The transactional response load for the sensor is also 4 units. So, the total response-request transaction complexity is 8 units.

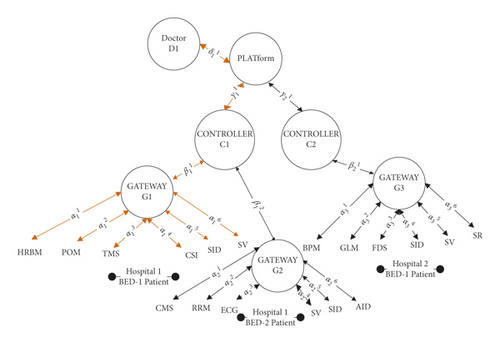

Scenario (ii) is depicted in Figure 5 in purple edges where the doctor requests data from all sensors attached to the patient bed 1 in hospital 1. The transactional request complexity for all sensors accessed through the hospital gateway is 9 units, and the same is the transactional response complexity, i.e., 9 units.

$$ (25)

The total response-request transactional complexity is 18 units.

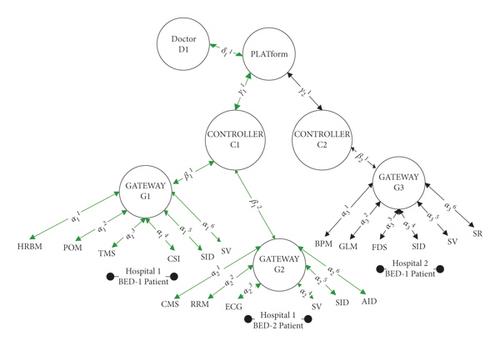

Scenario (iii) is depicted in Figure 6 in green edges where data are retrieved from ICUs of a hospital attached via two different gateways. The transactional request complexity for all sensors accessed through the hospital gateway is 16 units, and the same is the transactional response complexity, i.e., 16 units. The total response-request transactional complexity is 32 units.

$$ (26)

The average transactional complexity (5) for this case study model is calculated to be (4 + 9 + 16)/3 = (29/3) = 9, which means it is within acceptable threshold.

5.3. IoT Transactional Network Load (ITNL)

The metric defined in (9) determines the IoT transactional network load by taking the edge weight values in place of unit costs. The data packet size for each relevant IoT device (IoT node) is considered edge weight to determine a transaction’s network load. IoT transactional network load is then calculated by summing up the data loads introduced from each node involved in an IoT transaction. Table 3 presents the data size returned by each sensor/actuators device used in the case study.

Table 3. Data format and packet sizes for low-end medical devices considered in the case study.

Sensor/Actuators	Data generation	Protocol	Data	Packet size
	Time interval	Supported	Format	(In bytes)
GLM	5 minutes	CoAP = 4BYTES	TEXT	8
HBRM	1 minute	REST = 8BYTES	JSON	12
BPM	1 minute	MQTT = 2BYTES	Number	7
RRM	1 minute	CoAP = 4BYTES	XML	7
POM	5 minutes	REST = 8BYTES	TEXT	12
ECG	1 minute	MQTT = 2BYTES	JSON	10
TMS	1 minute	MQTT = 2BYTES	NUMBER	6
CMS	1 minute	MQTT = 2BYTES	NUMBER, GRAPH	8
IS	1 minute	MQTT = 2BYTES	JSON	20
CSI	1 minute	CoAP = 4BYTES	XML	16
FDS	1 minute	AMQP = 8 BYTES	JSON	23
SID	5 minute	CoAP = 8BYTES	XML	20
SV	5 minute	CoAP = 8BYTES	XML	24
AID	60 minutes	AMQP = 8BYTES	JSON	16
SR	CONDITIONAL	AMQP = 8BYTES	JSON

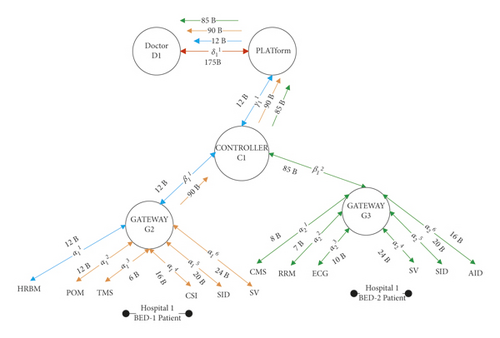

The data loads (edge weights) for scenario (i) in blue edges, scenario (ii) in blue, orange edges, and scenario (iii) in blue, orange, and green edges are given in Figure 7.

The transactional network loads for the scenarios discussed under subsection 5.1 are calculated using (9) as follows:

• (i)

  Scenario (i): ITNL = 12 bytes

• (ii)

  Scenario (ii): ITNL = 12 + 12+6 + 16+20 + 24 = 90 bytes

• (iii)

  Scenario (iii): ITNL = 12 + 12+6 + 16+20 + 24+8 + 7+10 + 24+20 + 16 = 1755 bytes

Using (10) and (11), the average transactional network load is 619 bytes.

5.4. IoT Communication Channel Demand Evaluation

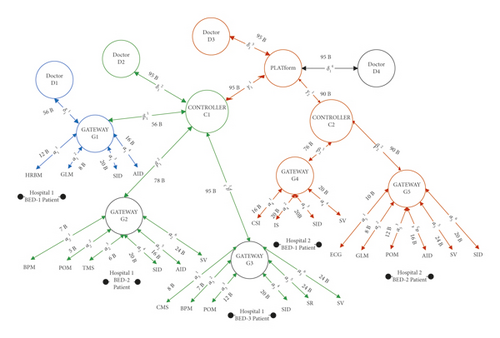

For IoT communication channel demand evaluation, we consider the IoT design model of Figure 8, where doctors D1, D2, and D3 can access the patients’ data through the gateway, controller, and platform channels connected at the edge, fog, and cloud levels, respectively. A doctor may have its own request format, and each sensor may have a different response format.

In the first case (depicted with blue edges and vertices), the doctor D1 is attached to the gateway G1 and wants to access data of bed 1 patient admitted to the ICU of hospital 1. The request is sent to the sensors and actuators attached to the patient bed in MQTT format. The sensors, in this case, are HBRM and GLM, and the actuators are SID and AID. The data size detail of these devices is given in Table 4. In this scenario, the data travel a single hop. The communication channel demand for this case is calculated in Table 5 using (16) and is determined as 56 bytes.

Table 4. Response size of actuators/sensors attached to patients bed.

Evaluation cases	Hospital 1			Hospital 2
	Bed 1	Bed 2	Bed 3	Bed 1	Bed 2
Sensors	HRBM, GLM	BPM, POM, TMS	CMS, BPM, POM	CSI, ID	ECG, GLM, POM
Actuators	SID, AID	SID, AID, SV	SID, SR, SV	SID, SV	AID, SV, SID
Response-size
Sensor	12B, 8B	7B, 5B, 6B	8B, 7B, 12B	16B, 20B	10B, 8B, 12B
Actuator	20B, 16B	20B, 16B, 24B	20B, 24B, 24B	20B, 20B	16B, 24B, 20B

Table 5. Data channel requirement where doctor D1 access data through gateway.

Sensors	Nodes	Edge name	ReqSize	ResSize (B)
HRM	Low-end device-gateway 1	Alpha	MQTT = 2BYTES	12
GLM	Low-end device-gateway 1	Alpha	MQTT = 2BYTES	8
SID	Low-end device-gateway 1	Alpha	MQTT = 2BYTES	20
AID	Low-end device-gateway 1	Alpha	MQTT = 2BYTES	16
Accumulated	gateway1-doctor 1	Delta		56

Now, take the other scenario where a doctor D2 is attached to the controller at fog level and wants to access the data of patient bed 2 and patient bed 3 of hospital 1. The healthcare device sent the data to the controller in CoAP format and forwarded it to relevant gateways. Detail of attached sensors/actuators and response size is given in Table 4. As given in Table 6, the maximum communication channel demand for hospital 1 is calculated as 64 bytes and for hospital 2 and hospital 3, it is calculated to be 95 bytes each.

Table 6. ICCD evaluation for doctor D2, who accesses the data of multiple patients admitted in hospital 1. The request format in this case is CoAP with 2 bytes.

Evaluation scenario	Nodes	Edge name	ICCD	ICDD (B)
Hospital 1 Bed 1	Low-end devices- gateway G1	Alpha	Max (α)	20
	Controller C1 gateway G1-	Beta	Max $$	56
	Controller C1- doctor D2	Gamma	Max $$	64
Hospital 1 Bed 2	Low-end devices- gateway G2	Alpha	Max (α)	24
	Controller C1 gateway G2-	Beta	Max (∑α)	78
	Controller C1- doctor D2	Gamma	Max $$	95
Hospital 1 Bed 3	Low-end devices- gateway G3	Alpha	Max (α)	24
	Controller C1 gateway G3-	Beta	Max (∑α)	95
	Controller C1- doctor D2	Gamma	$$	95

The next scenario of ICCD assessment is where the doctor D3 is linked to the cloud platform and wants to access the data of different patients admitted to different hospitals. The request is forwarded to the sensor through the platform to the controller to the gateway down to the sensors. The request format is AMPQ with 8 bytes. By using the details given in Table 7, Figure 8, and (16), the maximum communication channel demand for this scenario is determined to be 95B. It is the largest amount of data that can transfer over an interaction which is determined by the maximum interaction weight value among all of these interaction weights.

Table 7. Evaluation of ICCD where a remote doctor (D3 or D4) accesses data of patients admitted in different hospitals through cloud and uses the request format of AMPQ = 8BYTES.

Evaluation scenario	Nodes	Edge name	ICCD edge	ICDD value
Hospital 1 Bed 1	Low-end devices-gateway1	Alpha	Max (α)	20B
	Gateway G1-controller C1	Beta	Max (∑α)	56B
	Controller C1-platform P1	Gamma	Max $$	64B
	Platform P1-doctor-D3	Delta	Max $$	56B
Hospital 1 Bed 2	Low-end devices-gateway2	Alpha	Max (α)	24B
	Gateway G1-controller C1	Beta	Max (∑α)	78B
	Controller C1-platform P1	Gamma	Max $$	95B
	Platform P1-doctor-D3	Delta	Max $$	95B
Hospital 1 Bed 3	Low-end devices-gateway3	Alpha	Max (α)	24B
	Gateway G3-controller C1	Beta	Max (∑α)	95B
	Controller C1-platform P1	GAMMA	Max $$	95B
	Platform P1-doctor-D3	Delta	Max $$	95B
Hospital 2 Bed 1	Low-end devices-gateway4	Alpha	Max (α)	20B
	Gateway G4-controller C2	Beta	Max (∑α)	76B
	Controller C2-platform P1	GAMMA	Max $$	90
	Platform P1-doctor-D3	Delta	Max $$	95B
Hospital 2 Bed 2	Low-end devices-gateway4	Alpha	Max (α)	24B
	Gateway G5-controller C2	Beta	Max (∑α)	90B
	Controller C2-platform P1	GAMMA	Max $$	90B
	Platform P1-doctor-D3	Delta	Max $$	95B

5.5. IoT Interoperability Resolving Network Complexity (IIRNC) and Interoperability Resolving Network Load (IIRNL) Evaluation

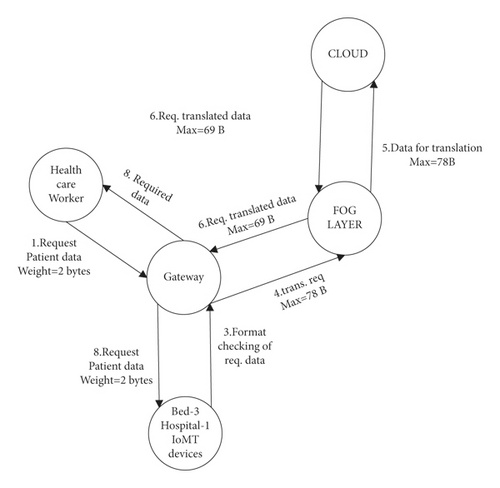

Consider a scenario where a doctor initiates a request to the gateway G1 devices for accessing patient data in JSON format. The gateway retrieves the data from devices and checks its format. If the format is as required, the data are transferred to the health care doctor’s device. However, if the data format translation is required, the gateway sends the data to the fog layer, which transfers the data to the cloud for translation. The translated data are sent back to the gateway through the fog layer and then sent to the doctor. The translation scenario is presented in Figure 9. The IoT interoperability resolving network complexity and load is determined by hop count and the weight of the edges involved. In the scenario given in Figure 9, four hops are traversed when the interoperability is not required, so the interoperability network complexity is 4, and the interoperability network load is 78 bytes. However, the data translation is required for interoperability when the doctor needs data in JSON format and his device supports CoAP format. This scenarios is given in Figure 8 for patient at bed-2 of hospital-1. The bed 2 has devices BPM, POM, TMS, SID, AID, and SV and is supporting data format Number/binary, text, number/binary, XML, JSON, and XML, respectively. The protocols supported are MQTT, REST, and AMQP as given in Table 3. After interoperability, the involved network’s complexity using (19) is calculated as 8, and the network load introduced is 69 bytes.

6. Conclusion

This work presented metrics for design quality evaluation of IoT services by defining the IoT EcoSystem as a schema Graph. The metrics defined for different IoT parameters measure design complexity, transactional complexity, transactional network load, communication channel demand, interoperability resolving network complexity, interoperability resolving network load, and reusability. The quality metrics have been mapped to the quality factors of the IoT system, including efficiency, portability, compatibility, maintainability, usability, and functional suitability according to IoT characteristics. The IoT quality factors have been mapped to IoT characteristics which include heterogeneity, resource-constrained devices, collaboration with hardware and resources, network mobility, embedded and adaptive devices, and design to monitor IoT devices. The QoS factors are then mapped to IoT services which are divided into information aggregation, identity-related, ubiquitous, and collaborative-aware services. The defined metrics are evaluated with different use cases of a smart IoT healthcare system. Finally, we conclude that the proposed design quality metrics can be used to compare and evaluate design level quality for the quality of services in IoT systems. This research work can be automated in future work, and the metrics can be directly computed to save validation time. These proposed metrics can also be used in different conditions to measure the accuracy and correctness of an IoT project.

Conflicts of Interest

The authors declare that there are no conflicts of interest.

Authors’ Contributions

The authors contributed equally to the design of ideas, analysis of results, and writing of the article.
