Some properties of boride formed on gray cast iron (GCI) have been investigated. GCI was boronized by powder-pack method using Commercial LSB-II powders at 1123, 1173, and 1223 K for 2, 4, 6, and 8 h, respectively. Scanning electron microscopy showed that boride formed on the surface of boronized GCI had tooth-shaped morphology. The hardness of boride formed on surfaces of GCI ranged from 1619 to 1343 HV_0.025, and quenched and tempered GCI ranged from 400 to 610 HV_0.025. The boride formed in the coating layer confirmed by X-ray diffraction analysis was Fe₂B single phase. Depending on boronizing time and temperature, the thickness of coating layers on boronized GCI ranged from 26 to 105 μm. The activation energy was 209 kJ/mol for boronized GCI. Moreover, the possibility of predicting the iso-thickness of boride layers variation was studied. Dry-sliding wear tests showed that the wear resistance of boronized sample was greater than that of quenched and tempered sample.

1. Introduction

Gray cast iron (GCI), which contains 2.5–5% C and 0.8–3% Si, is the most used material in machinery manufacturing because it possesses many technical advantages [1–4]. Nowadays, GCI is still used in 65% of casting parts because of its performance advantage and low cost. Lamellar graphite on GCI shows superior abrasion resistance, hardness, perfect machinability, limited lubricated-friction resistance, and vibration-absorption properties. These materials are comparable with steel in terms of pressing resistance, dimensional balance, and retention of their plastic shape under tension [5–7].

Boronizing is a thermochemical diffusion surface treatment in which boron atoms are diffused into the surface of work piece to form hard borides with the base material [8, 9], and it is a prominent where the control of friction and wear is of primary concern [10]. It is successfully applied to all ferrous materials, nickel alloys, titanium alloys, and sintered carbides [11, 12]. In recent years, several investigations have been carried out on the boronized cast irons [13–16]. However, few researchers have worked on the growth kinetics and the dry-sliding wear behavior of boronized GCI with single-phase (Fe₂B). To control the boronizing processes, knowledge of kinetic parameters is essential. It is very important to establish the variables that affect the boronizing kinetics process to control automated procedures and obtain desirable properties. For practical applications, the formation of a single-phase (Fe₂B) is more desirable than a dual layer comprising FeB and Fe₂B. This is because, although the boron-rich FeB phase is harder, it is more brittle than the iron subboride, Fe₂B phase. Furthermore, crack formation is often observed at the FeB/Fe₂B interface of a dual-phase layer, as FeB and Fe₂B phases exhibit substantially different coefficients of thermal expansion. These cracks often lead to flaking when a mechanical load is applied [17]. Therefore, the purpose of this paper is to investigate the kinetics boronized GCI. Furthermore, the wear properties of the quenched and tempered GCI and the boronized GCI are investigated using a ring-on-block wear tester under dry-sliding conditions.

2. Methods and Procedures

2.1. Substrate Materials

The substrate material used in this study was the GCI with its chemical composition given in Table 1. The test samples had a dimension of 10 mm × 10 mm × 10 mm. Before treating, all the samples were ground using 600 grid emery paper to get surface finished and degreased ultrasonically in acetone and dried.

Table 1. Chemical composition of the GCI (wt.%).

C	Si	Mn	Cr	Ni	Mo	V	Ti	P	S
3.57	2.06	0.56	0.78	0.25	0.32	0.03	0.08	0.07	0.03

2.2. Treatments

Two different heat treatment procedures including (1) quenching and tempering and (2) boronizing were followed. For quenching and tempering, GCI samples after holding at the electrical resistance furnace for 10 min were quickly oil-quenched from the temperature 1173 K and then tempered at 473 K for 2 h, followed by cooling in room temperature. Boronizing was performed in a solid medium by using Commercial LSB-II powders that had a nominal chemical composition of 88% SiC, 8% B₄C, and 4% KBF₄. All samples to be boronized were packed in the powders mix and sealed in a stainless steel container. Boronizing was performed in an electrical resistance furnace under atmospheric pressure at 1123, 1173, and 1223 K for 2, 4, 6, and 8 h, respectively, followed by furnace cooling.

2.3. Characterization

The microstructure of the polished and etched cross-section of the samples was observed by scanning electron microscopy (SEM, HITACHI S-3400N) equipped with energy dispersive spectroscopy. The Philip X-Ray Diffractometer was employed to examine the phase composition of the coating layer, with the radiation Cu-K_α, the tube voltage 40 kV, and the tube current 25 mA. The hardness measurements of the layers formed surface were performed using the Vickers microhardness tester (SHIMADZU/HMV-2) with the loads of 25 g.

2.4. Kinetic

The growth kinetics of the layer is controlled by the boron diffusion into the Fe₂B, and the growth of boride layer occurs as a consequence of the boron diffusion perpendicular to the ample surface. Fick’s laws establish the concentrations of boron in the FeB and Fe₂B. The boride layer growing obeys the parabolic law [18]:

(1)

where d is the boride layer thickness (μm), t is treatment time (min), and K is boron growth rate constant depending on boronizing temperature and is calculated from the slopes of the d² versus treatments time graphs. The relationship between the growth rate constant, K, activation energy, Q, and temperature, T, can be expressed as an Arrhenius equation [19]:

(2)

where K₀ is a preexponential constant (independent temperature),Q is activation energy (Jmol⁻¹), T is the absolute temperature in Kelvin, and R is the gas constant (8.314 Jmol⁻¹K⁻¹). Taking the natural logarithm of (2), the following can be derived:

(3)

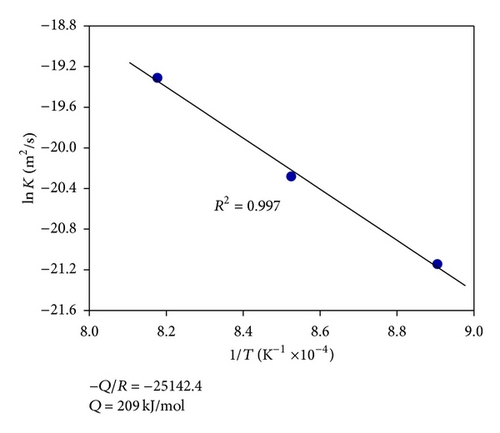

Consequently, the activation energy for the boron diffusion in the boride layer is determined by the slope obtained by the plot ln K versus 1/T using (3).

2.5. Wear Tests

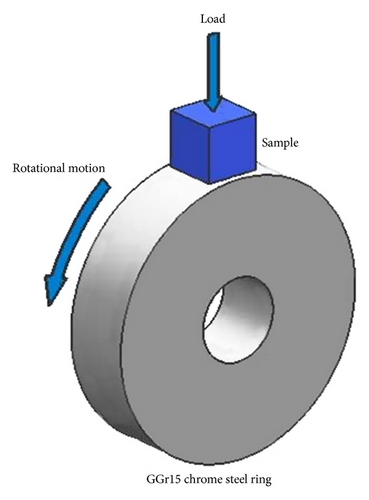

Wear tests were carried out on a Type M200 ring-on-block wear tester. A schematic view of the tester is shown in Figure 1. The tests were performed at a constant speed of 200 rpm (equating to a linear sliding velocity of 52.3 cm/s) for duration of 3600 s. A normal operating load of 30 N was used. For the counter body, 50 mm diameter GGr15 chrome steel rings (HRC52) were selected. The wear losses were measured by Type TG328A analytic balance with sensitivity of 0.1 mg. The wear rates of samples were calculated using the equation of K = W/S, where W is the wear weight in mg and S is the total sliding distance in km. The worn surface morphologies of the samples were also observed by Type JSM5910-LV scanning electron microscopy (SEM).

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

Schematic illustration of the wear test device.

3. Results and Discussion

3.1. Microstructure and Hardness

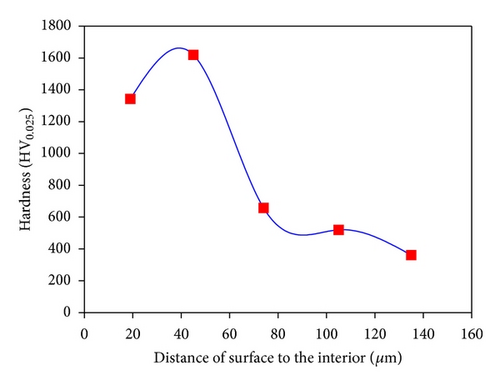

Figure 2 shows optical images of the etched cross-section of the GCI boronized at 1223 K for 6 h. As seen in Figure 2(a), it is observed that boride formed on GCI has tooth-shaped morphology. Moreover, three distinct regions are identified on cross-sections of boronized GCI surface. These are (1) a surface layer, consisting of boride phase; (2) a diffusion zone, being rich in boron; and (3) the matrix. The hardness values of boronized GCI are given in Figure 2(b). The hardness of boronized GCI ranged between 1619 and 1343 HV_0.025 and that of unboronized GCI is about 350 HV_0.025 (see Figure 2(c)). Hardness measurements show that the hardness of boride layers is much higher than that of matrix. The differences in hardness values of the boride layers are a consequence of the presence of structural defects (i.e., porosity, cracks, etc.). The hardness gradient was obtained for quenched and tempered GCI varying from about 400 to 610 HV_0.025 at a distance of 1.1 mm, which is the hardened layer thickness.

3.2. XRD Analysis

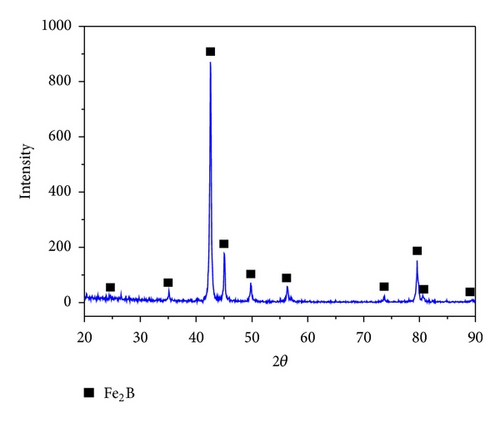

In Figure 3, the XRD patterns of the boronized GCI at 1223 K during 8 h are shown. In all patterns, the peaks are those of the Fe₂B phase only. It is known that media with lower intermediate boron potential (as compared to more powerful ones) allow single Fe₂B layers to form [20]. In commercial LSB-II powders, the use of the silicon carbide (SiC) as a reducing agent lies in better control for formation of a single-phase layer (Fe₂B). Consequently, the FeB phase did not form.

3.3. Kinetic Studies

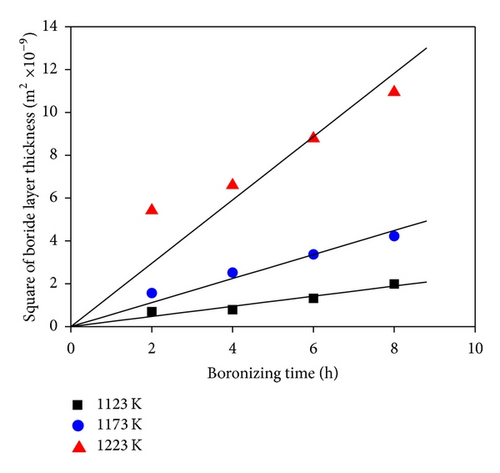

Depending on the boronizing temperature and time, the thickness of boride layers on boronized GCI ranges from 26 to 105 μm. Figure 4(a) shows the boride layer thickness of GCI as a function of time. As the boronizing time and temperature increase, the thickness of the boride layer increases. In addition, contour diagrams are utilized from the data of Figure 4(a) facilities by means of Sigma Plot 10.0 software (see Figure 4(b)). The contour diagram derived from Figure 4(a) may facilitate the choosing of process parameters in industrial applications. In order to calculate the activation energy of diffusion controlled process, square of layer thickness is described as a function of rate constant and process time, that is, d² = Kt, where K is rate constant and t is process time. If the kinetics of layer progress for the periods between 2 and 8 h is considered, it can be recognized that the layer thickness changes linearly with time as seen in Figure 5. The plot of rate constant versus reciprocal boronizing temperature reveals a linear relationship (Figure 6), and activation energy of 209 kJ/mol for GCI is determined from the slope of the straight lines.

3.4. Wear Behavior

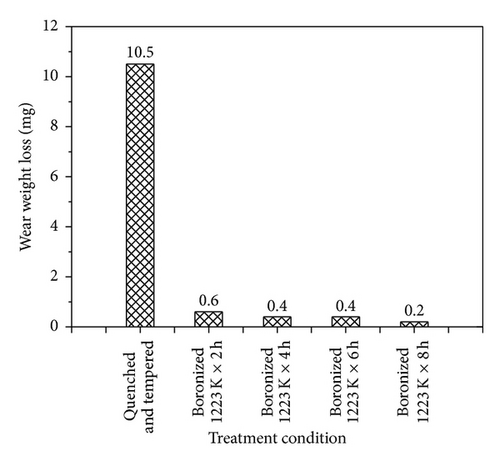

The wear weight losses of quenched and tempered GCI and boronized GCI at 1223 K are presented in Figure 7. Only the boronized samples were considered, the least wear against the GGr15 chrome steel rings was seen in that boronized for 8 h, and the highest wear was seen in that treated for 2 h. Furthermore, it was also observed that the increasing thickness of borided layer increases the wear resistance. As a result of the comparison made for wear of all treatment conditions, it is clearly observed that the quenched and tempered samples were worn more than the boronized samples involved. The hardness of boride layer plays an important role in improvement of the wear resistance.

The SEM observations of worn surfaces of the quenched and tempered GCI and boronized GCI are shown in Figure 8. For the quenched and tempered GCI sample, due to its low surface hardness, it can be observed that the worn surface is deformed under the dry-sliding wear condition (see Figure 8(a)). This is due to the fact that during the sliding course, a plastic deformation mechanism which is typical of the adhesive wear is found superficially resulting from superficial material detachment. Therefore, wear weight loss of quenched and tempered GCI is much higher than that of the boronized samples. SEM micrographs of the worn surface of the boronized samples are shown in Figure 8(b). The microscratches with slight plastic deformation are observed on the worn surface of the treated samples at 1223 K for 8 h, indicating that a mild adhesive wear and abrasive wear occurred. Therefore, the improved dry-sliding wear resistance of the treated sample is obtained. Unfortunately, under such test condition that the samples are performed on the ring slider under the applied normal load of 30 N in dry-sliding wear test, very high contact stress would occur [21], and thus boride layer is cracked by loads due to its higher hardness.

4. Conclusion

The conclusions derived from the present study can be summarized as follows.

(1)
The boride formed on the gray cast iron (GCI) has tooth- shaped morphology. It was observed that boride layers have three distinct regions: (1) boride layer; (2) diffusion zone; and (3) matrix.
(2)
The hardness values of boride formed on the surface of GCI ranged from 1619 to 1343 HV_0.025, while the unboronized GCI substrate was about 350 HV_0.025. The hardness values of quenched and tempered GCI varied from about 400 to 610 HV_0.025.
(3)
X-ray diffraction study revealed that GCI boronized by using Commercial LSB-II powders causes a single-phase (Fe₂B) boride layer formed on the surface of GCI.
(4)
It was observed that there is nearly a parabolic relationship between thickness of the layer and boronizing time. Boride layers ranged in thickness from 26 to 105 μm as a function of boronizing time and temperature. Longer times and higher temperatures result in a thicker layer.
(5)

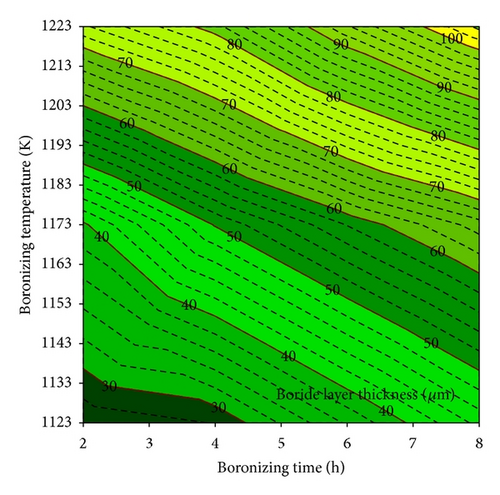

The activation energy for the boron diffusion in the coating layer is determined to be 209 kJ/mol. A contour diagram was established for predicting the depth of coating layer as a function of process time and temperature for industrial applications.
(6)
Boronizing was a more effective treatment to improve the wear properties of GCI compared with quenched GCI under the dry-sliding wear condition.

Acknowledgment

This study was supported by Research Fund for the Doctoral Program of Higher Education of China.
