Texture Control During the Manufacturing of Nonoriented Electrical Steels

1. INTRODUCTION

As finished products, industrially manufactured nonoriented electrical steels are single-phase ferrite polycrystalline materials. A macroscopic volume of such a material contains an aggregate of a large number of microscopically small granular crystallites. Each of the individual grains in the polycrystalline aggregate displays a specific orien tation with respect to an external reference frame. In general, these grains are not randomly oriented, but a preference for certain orientations may be present. In this case, the material exhibits a specific crystallographic texture. On the other hand, when the grains are oriented in an arbitrary manner, the material is textureless or displays a random texture.

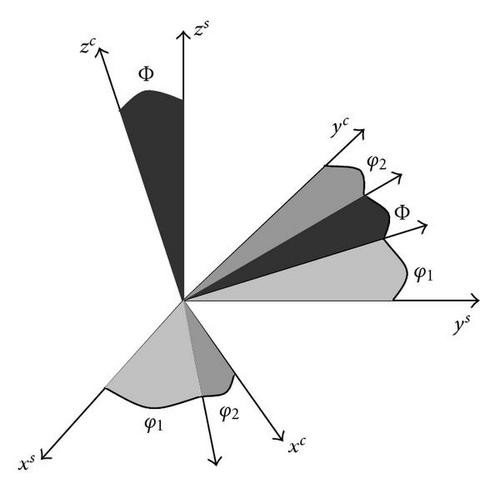

Each individual crystal orientation is characterized by the orientation relation between the sample and the crystal reference frame. The sample reference frame is a right-handed orthonormal (x^s,   y^s,   z^s) coordinate system which coincides with the RD, TD, and ND directions of the rolled sheet (rolling, transverse, and normal direction, resp.). The crystal reference frame is also a right-handed orthonormal coordinate system which is attached to the 〈100〉 directions of the cubic crystal lattice. The orientation relation between crystal and sample reference system is uniquely determined by the three Euler angles φ₁, Φ, φ₂. These angles define three consecutive rotations which must be carried out according to the schedule of Figure 1 in which the Bunge convention is adopted [1]. By executing these three rotations, the sample reference system is brought to coincidence with the crystal reference system.

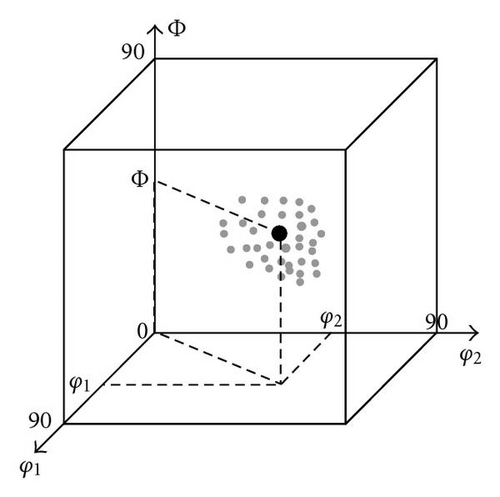

For each of the grains present in the polycrystalline material, its orientation can be uniquely specified by means of these three Euler angles. Each set of three Euler angles (φ₁, Φ, φ₂) determines the coordinate of a point in the ori-entation space which is defined in the usual Euclidean way by the three orthogonal axes corresponding to the three Euler angles, (cf., Figure 2). Imagine that for each volume element of a material, it would be possible to determine precisely its crystallographic orientation. Then, each volume element would be represented by a specific point in Euler space (cf., Figure 2). In case that the material displays a certain texture, these representation points exhibit a specific distribution which characterizes the orientation distribution function (ODF):

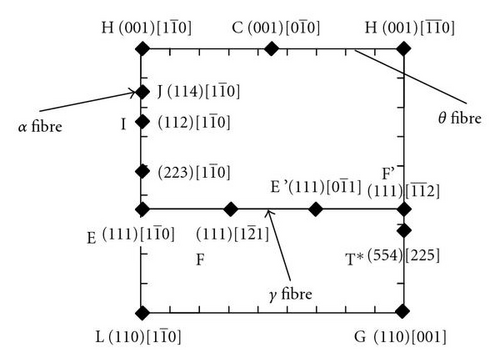

Due to intrinsic symmetry properties of rolled sheet material such as nonoriented (NO) electrical steels, the domain of the ODF can be resitricted to the following subspace 0 < (φ₁, Φ, φ₂) < 90 deg. Moreover, due to a for-tunate coincidence, almost all texture components which are observed in cold rolled or annealed sheet steel are represented in the φ₂ = 45 deg section of Euler space. There-fore, the ODF of a low-carbon steel sheet is most commonly depicted by this section only. Figure 3 shows the characteristic texture components which are represented in the φ₂ = 45 deg section. They are mainly the cube ({001}〈001〉), the rotated cube ({001}〈110〉), and the Goss ({110}〈001〉) components which are of importance for magnetic applications. Apart from individual texture components also fibre components are displayed. These fibre components represent a group of orientations for which one crystal direction corresponds to a specific sample direction. The most important fibres are the α, γ, and θ   fibres for which 〈110〉//RD, 〈111〉//ND, and 〈001〉//ND, respectively.

2. EVALUATION OF THE MAGNETIC QUALITY OF A TEXTURE

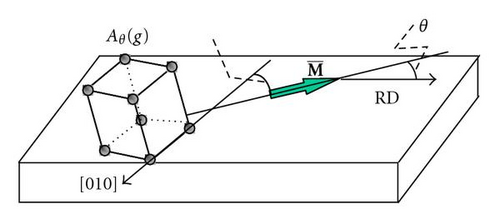

When one wants to investigate the effect of texture on the magnetic properties of electrical steel, reliable quantitative parameters are required to characterize both the dependent and the independent variables, that is, magnetic properties and texture, respectively. With regard to the magnetic prop-erties, the usual quantitative features can be employed such as the core losses, the permeability, the coercive field, the remnant induction, and other characteristics of the hysteresis curve. With regard to the texture, one must take into account the physical fact that the 〈100〉 directions are the directions of easy magnetization of a Fe-single crystal [2]. The Fe-single crystal magnetization curves show that optimum soft magnetic properties are obtained when the external field is applied in the 〈100〉 direction. Therefore, the ideal texture of a soft iron core is the one that maximizes the density of 〈100〉 crystal directions parallel to the flux lines of magnetic induction. Because in rotating applications the flux lines are nearly isotropically distributed in the laminated sheets, the ideal texture is the one that maximizes the incidence of 〈100〉 directions in the plane of the sheet. This is not the well-known Goss component ({110}〈001〉) which is usually observed in grain-oriented steels [3], but rather the orientations of the cube fibre for which the {001} planes are parallel to the rolling plane. The latter texture components display two coplanar 〈100〉 directions in the plane of the sheet, whereas the former component only delivers one 〈100〉 direction to the lamellar plane.

The value of A_θ is confined to the range (0 − 54.7deg). The lower limit corresponds to the case of a single component texture in which one of the 〈100〉 directions of the crystal lattice corresponds to the magnetization direction, whereas the upper limit is observed for a single component texture in which the direction of magnetization is aligned with the 〈111〉 lattice direction.

A low value of the A parameter corresponds to a high magnetic quality of the texture because it implies that, on average, the 〈100〉 directions are closely aligned with the flux lines which are randomly distributed in the plane of the sheet. Table 1 presents the direction averaged (according to (4)) A parameters for a number of ideal texture components. It can be demonstrated that the theoretically lowest value of the A parameter is 22.5 deg. According to the data of Table 1, this value is displayed by all individual components of the θ   fibre, and also by the θ   fibre itself. Therefore, the above presumption is vindicated, that is, the cube fibre (θ   fibre) is truly the ideal texture for NO electrical steels. This conclusion was reported as well by Rollett et al. [4].

3. CORRELATION BETWEEN TEXTURE ANDMAGNETIC PROPERTIES

Once a reliable procedure has been established to quantify both the texture and the magnetic properties, a relation be-tween them can be investigated. Such a correlation study can only be carried out successfully on condition that the independent variable (i.e., the crystallographic texture char-acterized by its A value) can be varied over a sufficiently wide range in order to gauge the effect on the dependent variable. In order to achieve this goal a dedicated data set was produced composed of a number of samples for which the A_θ parameters varied between 27.7 and 36.3 deg. For each of these samples belonging to the data set, the hysteresis losses were measured for a magnetic induction of 1.5 T and the permeability was assessed by measuring the magnetic induction for an applied magnetic field of 25 A/cm. All these magnetic properties were measured at 0, 45, and 90 deg with respect to the rolling direction and correlated with A₀, A₄₅, and A₉₀, respectively.

In order to estimate the texture effect, the following comparison can be considered. If the texture could be controlled in the most ideal way such that the theoretically optimum A parameter could be achieved of 22.5 deg, it would imply a drop of approximately 10 deg compared to the A value of 32 deg which is regularly observed on industrially manufactured NO steels (cf., infra). The above regression equations (5) and (6) show that such a 10 deg drop of the A value will produce a decrease of 1.5 W/kg in hysteresis losses and an increase of induction (B25) with 160 mT. These values must be compared with the changes that can be produced by other independent state variables of the microstructure such as grain size, precipitation density, or residual stresses. When such a critical analysis is carried out, it can be concluded that the texture has its most significant effect on the in-duction B25, which in this study is used as a measure for the permeability. With regard to the hysteresis P_h losses at 1.5 T, the grain size is much more decisive than the texture. The relative lack of correlation with a regression coefficient of r² = 0.632 indicates that also other microstructural features which were not taken into account here such as, for example, residual stresses or presence of precipitates may affect the hysteresis losses.

On the theoretical level, it could be argued that the induction B25 measured at an applied field of 25 A/cm is not the most sensitive magnetic parameter to reflect the influence of texture neither. In the magnetization curve, two different parts can be distinguished: the lower part (below the characteristic deflection point) which is controlled by magnetic domain wall displacement and the upper part (above the characteristic deflection point) which is controlled by rotational magnetization. It is the latter part which is the most dependent on the texture. This part of the magnetization curve can be appropriately characterized by the difference in saturation induction B_sat and remnant induction B_rem. Therefore, in spite of the practical problems in determining the exact B_sat value experimentally, in order to further examine the effect of texture on the magnetic behavior of NO electrical steels, it is suggested to use this difference (B_sat-B_rem) as the reference magnetic parameter.

4. CONVENTIONAL TEXTURE CONTROL IN NO ELECTRICAL STEELS

On the basis of an extensive testing program on industrially manufactured NO steel grades, it was concluded that even the widest variation of conventional processing parameters applied in state-of-the-art steel manufacturing would only produce limited variations in the magnetic quality of the textures. In these experiments, the following processing pa-rameters were considered: slab reheating temperature (SRT), finish rolling temperature (FRT), hot band coiling temperature (CT), hot band annealing (yes/no), cold rolling reduction (CR), continuous annealing temperature, line speed of continuous annealing, and skin pass reduction (SKP). On top of this, also the chemical composition of these steel was thoroughly investigated. The applied windows for all these processing and chemical parameters are listed in Table 2. Despite these wide scale variations, the A₀ parameter only varied between 25 and 31 deg, whereas theoretically this value can change between 0 and 55 deg.

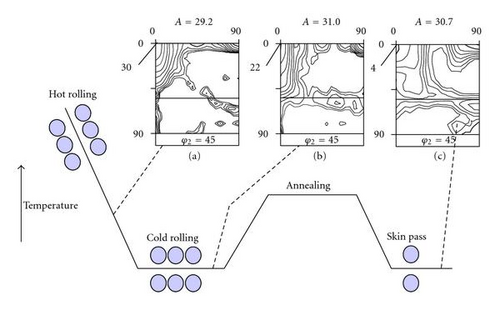

Figure 5 displays the typical ODFs which are observed in the subsequent stages of the manufacturing process of NO electrical steels. The textures reported in Figure 5 are measured in the middle of the sheet and thus represent the bulk textures. The single most important processing factor for texture control is the finish rolling temperature (FRT). Whereas for structural steels the conventional FRT is in the full austenite region [5], for NO electrical steels the op-timum textures are obtained with finish rolling in the two-phase region or even the full ferrite phase. Figure 5(a) displays the hot band texture which is observed after such a two-phase rolling. It is characterized by a very strong maximum on the rotated cube component (with an intensity maximum of >30x) and an extension along the α   fibre toward the {112}〈110〉 component. After a typical cold rolling reduction of 70%, the intensity is more homogeneously spread along the α   fibre, but a maximum of >20x still remains on the rotated cube component (cf., Figure 5(b)). The ro-tation flow as a result of cold deformation can be entirely understood on the basis of the classical full constraints Taylor theory and its relaxed constraints derivatives [6].

After primary recrystallization, the texture is significantly weakened as compared to the hot band and the cold rolling textures (cf., Figure 5(c)). Although the intensity maximum remains on the rotated cube component ({001}〈110〉), it has decreased from >20x to ~5x. The metallurgical mechanisms that controlled the recrystallization of the cold-rolled sheet did not allow the magnetically favorable {001} orientations, which dominated the hot and cold band textures, to be preserved in the annealing texture. Conversely, as shown in Figure 5(c), the recrystallization of a 70% cold-rolled product will rather favor the {111} orientations at the expense of the {001} orientations [7]. In principle, for the type of low Si grade NO steels presently under consideration, the quality of both the hot band microstructure and texture is more favorable with regard to the magnetic properties than the quality of the cold-rolled and annealed product. In many instances, also the grain size of hot-rolled sheet and additional microstructural features such as density or morphology of 2nd phase particles is commonly appropriate in terms of magnetic quality. Unfortunately, the required gauges of 0.65 mm or less cannot be obtained on current state-of-the-art hot rolling mills and thus, a subsequent cold rolling and annealing stage is unavoidable.

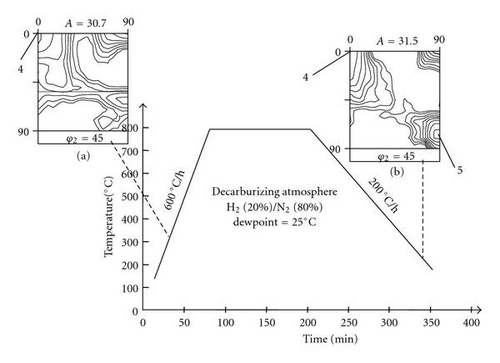

A substantial part of the volume of NO electrical steels is manufactured as semiprocessed sheet. These semiprocessed products are submitted to a skin pass reduction of 4 to 8% and additionally an annealing treatment is carried out on the punched laminations which are ready to be processed in soft-iron cores of electrical devices. This additional heat treatment, which is commonly carried out not by the steel manufacturer but by the manufacturer of iron cores, serves multiple purposes such as decarburization, grain growth, or relieving of internal stresses. This treatment definitely also affects the texture of the final product as it is exhibited in Figure 6. The ODF after this final annealing treatment displays two characteristic maxima: one on the α   fibre in the vicinity of the {113}〈110〉 component and one on the TD fibre (〈110〉//TD) some 10 deg away from the Goss component. Although a marked textural change has oc-curred, the magnetic quality of the texture in terms of its average A value was hardly affected at all by the additional heat treatment on the stamped lamella. It was shown that the texture which was produced by the annealing could be explained by considering the stored energy of plastic deformation after skin pass rolling [8].

5. ADDITIONAL METHODS OF TEXTURE CONTROL IN NO ELECTRICAL STEELS

5.1. Cross rolling

In order to control the recrystallization texture, one has to bear in mind that during the annealing of cold-rolled sheet a selection will be made of orientations which have developed during the cold rolling process. Therefore, it should be attempted to form as few as possible unfavorable orienta-tions of the α   and γ   fibres as a result of the rolling strain. Unfortunately, these are the stable end orientations which appear after conventional rolling reductions of 60 to 80% [5]. By changing the orientations of the rolling-mill rolls with respect to the sheet, the rotation paths of the orientation flow during plastic deformation can be affected. In the present study, a laboratory scale experiment was carried out in which the hot-rolled sheet was 90 deg rotated before cold rolling. In doing so the RD of hot rolling turns into the TD of cold rolling and vice versa. Hence, the hot band texture, with its characteristic strong α   fibre (cf., Figure 5(a)) is transformed into a texture with a strong 〈110〉//TD fibre by simply substituting the hot rolling by the cold rolling reference frame. Because the latter fibre is highly unstable for cold rolling, all its components will rotate toward the semistable {001}〈110〉 orientation. This procedure will give rise to an extremely strong rotated cube component ({001}〈110〉) with an extraordinary intensity of >150x, compared to Figure 7(a), which offers the advantage that it does not introduce the unfavorable α   and γ   fibre components during cold reduction. This favorable texture is not preserved, though,after the primary recrystallization treatment which produces a rather weak texture with a maximum in the vicinity of {112}〈110〉 (cf., Figure 7(b)).

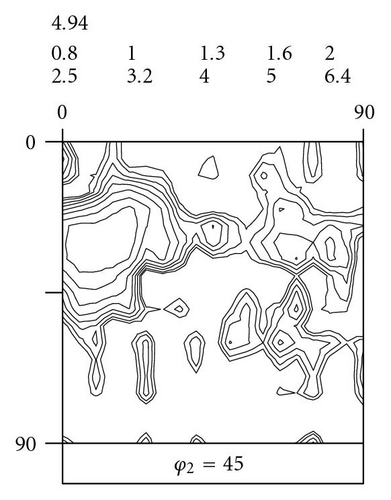

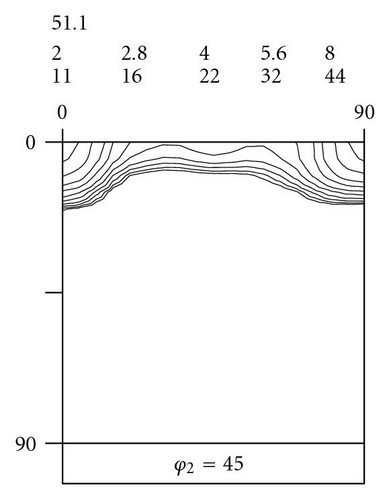

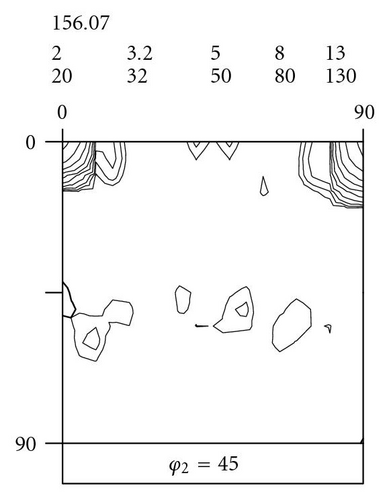

When this material is cold rolled to a reduction of 4 to 8% and submitted to an additional annealing treatment, comparable to the one which is applied to semiprocessed products, the rotated cube component spectacularly reappears in the material and even other components of the θ   fibre are formed. The texture presented in Figure 7(c) is the result of such an additional annealing treatment. It displays a maximum of >50x on the rotated cube component and ~10x on the cube component. The exceptional magnetic quality of this texture is reflected in the very low average A value of 24.3 deg which is only 1.8 deg away from the theoretical minimum value of 22.5 deg. It is obvious that cross rolling cannot be implemented in a continuous line manufacturing process. Whether or not the proposed process with cross rolling is of industrial relevance is entirely dependent of economic considerations, that is, added economic value by superior material properties versus increased manufacturing cost because of loss of production efficiency.

5.3. Surface textures

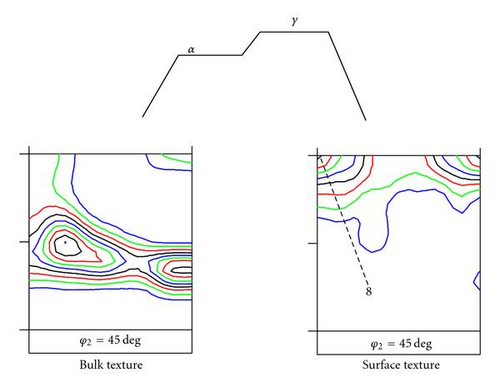

Yoshinaga et al. [14] have demonstrated that a relatively strong rotated cube texture can be obtained at the surface of an ultra-low-carbon steel when a conventionally cold-rolled sheet of this material is submitted to a short annealing treatment (2 to 3 minutes) in the full austenite phase. The forward and reverse ferrite to austenite transformation produces textures of the type presented in Figure 8. It canbe observed that there is a pronounced difference between the surface and the bulk textures. It is assumed that the surface energy will drastically affect the orientation selection occurring during the diffusion-controlled phase transformation.

Once a favorable surface texture is created, a method must be established which allows the surface grains to grow into the bulk of the sheet. Such a method is part of the metallurgical process proposed by Tomida [15]. He performed a two-stage annealing treatment on a cold rolled and recrystallized NO electrical steel with a Mn content of 1.0 to 2.5 mass% and a C content of 0.05 to 0.10 mass%. The first stage of this annealing treatment was carried out under vacuum conditions (P < 10⁻⁵ hPa) during 12 hours at varying temperatures between 850 and 1100°C. During this stage of the annealing treatment, the Mn gradually diffused out of the surface layers of the sheet. As Mn is a strong austenite stabilizing element, the removal of Mn from the surface layer locally triggered a ferrite transformation near the surface with a favorable {001} texture, very much comparable to the one observed by Yoshinaga et al. [14].

The second stage of the annealing treatment was carried out under a decarburizing atmosphere. Under these circumstances, the ferrite surface grains gradually consumed the austenite bulk of the material, hereby extending the favorable surface texture over the entire volume of the material and thus creating a columnar structure. By applying this method, extraordinary sharp cube textures could be produced concurrently with highly favorable columnar microstructures displaying an average grain size of more than 100  μm. This gave rise to a core loss between 1.4 and 1.7 W/kg and an induction of 1.76 to 1.81 T at an applied magnetic field of 50 A/cm.

6. SUMMARY AND CONCLUSIONS

In the present paper, the effect of texture on the magnetic properties of nonoriented electrical steels was analyzed. Based on the methods provided by modern quantitative texture analysis, a texture parameter was proposed which accurately characterizes the magnetic quality of any arbitrary steel texture. This parameter was correlated with a number of magnetic properties on an extensive set of steel samples. It was found that the texture has a larger impact on the permeability than on the core losses. The latter property is more dependent on the grain size than on the texture.

Various methods of texture control during steel manufacturing were evaluated. An extensive experimental study has revealed that the conventional processing parameters of a modern state-of-the-art steel plant only provide limited tools for an optimum texture control. It was shown that the finish temperature of hot rolling is the one single parameter of key importance for the development of a favorable magnetic texture on the final product after cold rolling and annealing.

In general, the comparatively favorable properties of the hot band texture and microstructure cannot be preserved after cold rolling and annealing. Therefore, nonconventional processing strategies were also investigated in the present study. A number of promising alternative techniques were evaluated such as cross rolling, two-stage cold rolling and surface annealing. In laboratory scale experiments, all of these techniques have proven to produce the favorable {001} texture combined with optimum microstructural features favoring highly advantageous magnetic properties through a modification of the hysteresis loss.
