Genetic and signalling pathways of dry fruit size: targets for genome editing-based crop improvement

Introduction

The term ‘fruit’ normally refers to the fleshy seed-containing structure of a plant that is edible in the crude state, such as apple, banana, grape, lemon, orange, strawberry and tomato (Schlegel, 2003). It also includes the structures that are not commonly called ‘fruit’, such as pod, silique, kernel and grain. Fruit, therefore, account for a substantial part of the world’s agricultural output for human and livestock diet (Giovannoni, 2004; Tanksley, 2004), and they are a major target for crop improvement. Genome editing offers the potential to accelerate fruit size breeding gains and facilitate the introduction of novel mutations that are unavailable in current germplasm (Scheben and Edwards, 2017; Scheben et al., 2017).

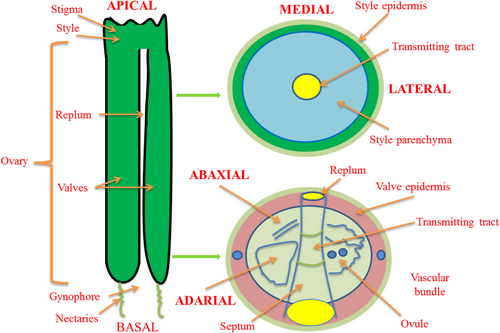

Botanically, the fruit is a feature of angiosperms that develop a gynoecium derived from carpels after flowering. As such, fruit represents the reproductive organ for seed development and a structure that offers protection from insects and pests as well as a mechanism for seed dispersal (Bennett et al., 2011; Giovannoni, 2004; Pesaresi et al., 2014; Seymour et al., 2013). Fruit types can be classified using several characteristics: dry or fleshy, dehiscent or indehiscent and apocarpous or syncarpous carpels (Karlova et al., 2014; Pesaresi et al., 2014). Capsules and siliques (as seen in Arabidopsis and relatives) are dry, dehiscent and syncarpous (Figure S1); achenes and nuts are dry, indehiscent and unicarpellate; berries are fleshy, indehiscent and syncarpous; and drupes (e.g. stone fruit) are fleshy and indehiscent with the single seed enclosed in a hard endocarp (Seymour et al., 2013).

From a biological point of view, fruit size is a vital fitness character for plant evolution. From a human perspective, fruit size is an important agronomic trait for crop improvement, and is, therefore, a target for artificial selection (Pesaresi et al., 2014; Seymour et al., 2013; Tanksley, 2004). A classic example is the fruit of fleshy, tomato, which is nearly 1,000 times larger than its ancestor, and where size is modulated by the additive contribution of tens of quantitative trait loci (QTL), some of which have been cloned (Lin et al., 2014; Tanksley, 2004). Also, studies in Arabidopsis have identified several critical regulators for fruit development (Giovannoni, 2004; Seymour et al., 2008, 2013). As a model plant and member of the Brassicaceae family, Arabidopsis has contributed significantly to our understanding of fruit size regulation, with identification and functional characterization of many genes. From an ontogenetic standpoint, final fruit size is determined by successive processes of gynoecium formation, fertilization, fruit growth involving cell proliferation, differentiation and expansion, with partial overlaps in time (Tanksley, 2004; Wang et al., 2016). Before fertilization, the first patterning event in Arabidopsis gynoecium is the construction of the apical-basal, mediolateral and abaxial–adaxial axes (Figure 1) that determine fruit length, width and thickness, respectively (Seymour et al., 2013). Fruit size in Arabidopsis is mainly determined by fruit length that is governed by elongation of the apical-basal axis. The developmental switch that turns gynoecium into growing fruit is dependent on the fertilization of ovule, which otherwise senesces and dies (Seymour et al., 2013). After the fertilization of fruit, it enters a stage where ovary growth and maturation are tightly cooperated with seed development.

Although dry fruit types (such as cereal and oilseed crops) account for the majority of plants, fruit size studies have focused primarily on fleshy-fruit species because of their importance in the human diet (Giovannoni, 2004). Despite the importance of fruit size to grain production, there are little-published reviews in dry fruit types.

Whilst tomato is an ideal system for studying fruit development, including size regulation (Karlova et al., 2014; Pesaresi et al., 2014; Seymour et al., 2008, 2013), significant advances have been made in Arabidopsis since it was sequenced in 2000 (Kaul et al., 2000). Information from Arabidopsis is often directly applicable to the polyploid crop relatives of the Brassicaceae, such as rapeseed, as well as other taxa including legumes, and lesser extent cereals. As genome editing technology and plant transformation protocols make knockout and knockin of most fruit size genes and regulatory elements in crops feasible (Scheben et al., 2017), the challenge becomes selecting appropriate editing targets. Identifying and reviewing the broad range of genes and regulatory elements controlling fruit size, therefore, provides a foundation for crop improvement through genome editing. This review summarizes the genes and regulatory networks affecting fruit size and classifies the individual genetic/signalling pathways. We aim to provide new insights into the molecular mechanisms of fruit size regulation, which may help identify novel targets for genome editing and facilitate crop genetic improvement, especially for dry fruit types, including many important crops such as soya bean, peanut and rapeseed.

Fruit size regulators

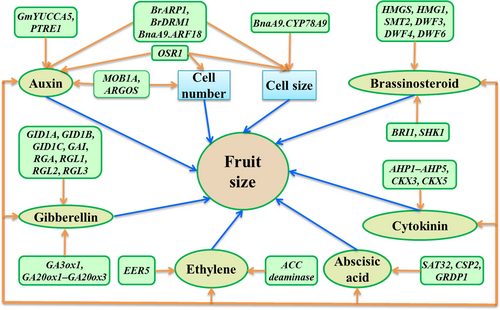

Phytohormones

Plant hormones (also known as phytohormones) are a group of low-abundance chemical substances (signal molecules) produced within plants, which can act either locally or more remotely by long-distance transport through the vascular system (Lacombe and Achard, 2016). Phytohormones can regulate or influence almost all aspects of plant growth and development (including fruit size) in response to environmental and endogenous signals (https://en.wikipedia.org/wiki/Plant_hormone). At the cellular and molecular levels, phytohormones can affect gene expression and transcription, cell division and growth. According to their chemical structures and physiological effects, phytohormones are divided into ten classes: abscisic acid (ABA), auxins (AUX), brassinosteroids (BR), cytokinins (CTK), ethylene (ETH), gibberellins (GA), jasmonates (JA), salicylic acid (SA), strigolactones (SL) and others (Lin and Tan, 2011); their roles in regulating fruit size are summarized below (Figure 2; Table 1).

Table 1. List of fruit size regulators in plants

Pathways	Gene name	Species	Accession number	Biological function	Reference(s)
Gibberellin (GA)	GA3ox1	Arabidopsis	AT1G15550	GA biosynthetic process	Hu et al. (2003)
	GA3ox4	Arabidopsis	AT1G80330	GA biosynthetic process	Hu et al. (2003)
	GID1A	Arabidopsis	AT3G05120	Cellular response to hypoxia	Griffiths et al. (2006)
	GID1B	Arabidopsis	AT3G63010	Catabolic process	Griffiths et al. (2006)
	GID1C	Arabidopsis	AT5G27320	Catabolic process	Griffiths et al. (2006)
	GA20ox2	Arabidopsis	AT5G51810	Oxidation–reduction process	Plackett et al. (2012)
	GAI	Arabidopsis	AT1G14920	Gibberellic acid homeostasis	Peng et al. (1997)
	RGA	Arabidopsis	AT2G01570	Multicellular organism development	Silverstone et al. (2016)
	RGL1	Arabidopsis	AT1G66350	DELLA proteins response to GA	Wen and Chang, (2002)
	RGL2	Arabidopsis	AT3G03450	Defence response	Lee et al. (2006)
	RGL3	Arabidopsis	AT5G17490	Multicellular organism development	Fuentes et al. (2012)
Auxin (IAA)	PTRE1	Arabidopsis	AT3G53970	Regulates auxin signalling	Yang et al. (2011)
	MOB1A	Arabidopsis	AT5G45550	Promotes auxin signalling	Cui et al. (2016)
	GmYUCCA5	Arabidopsis, soybean	AT5G43890	Auxin biosynthetic process	Wang et al. (2017c)
	BnaA9. ARF18	Rapeseed	BnaA09g55580D	Auxin response factor	Liu et al. (2008a)
	BrARP1	Brassica rapa	AT1G43170	Auxin-repressed protein 1	Lee et al. (2016)
	BrDRM1	Brassica rapa	Bra032894	Dormancy-associated protein 1	Lee et al. (2016)
	OSR1	Arabidopsis	AT2G41230	Organ growth and overall organ size	Feng et al., (2011)
	ARGOS	Arabidopsis	AT3G59900	Response to auxin	Hu et al. (2003)
Cytokinin (CK)	AHP5	Arabidopsis	AT1G03430	Signal transduction	Hutchison et al. (2006)
	AHP4	Arabidopsis	AT3G16360	Signal transduction	Hutchison et al. (2006)
	AHP1	Arabidopsis	AT3G21510	Signal transduction	Hutchison et al. (2006)
	AHP2	Arabidopsis	AT3G29350	Signal transduction	Hutchison et al. (2006)
	AHP3	Arabidopsis	AT5G39340	Signal transduction	Hutchison et al. (2006)
	CKX3	Arabidopsis	AT5G56970	Cytokinin catabolic process	Bartrina et al., 2011
	CKX5	Arabidopsis	AT1G75450	Cytokinin catabolic process	Bartrina et al., 2011
Brassinosteroid (BR)	BRI1	Arabidopsis	AT4G39400	Brassinosteroid receptor	Noguchi et al. (1999)
	DWF4	Arabidopsis	AT3G50660	Brassinosteroid biosynthesis	Si et al. (1998)
	SMT2	Arabidopsis	AT1G20330	Brassinosteroid biosynthesis	Hwang et al. (2007)
	CYP72C1	Arabidopsis	AT1G17060	Brassinosteroid metabolic process	Takahashi et al. (2005)
	BjHMGS1	Brassica juncea	AT4G11820	Sterols biosynthetic process	Liao et al. (2014)
Abscisic acid (ABA)	CSP2	Arabidopsis	AT4G38680	Regulation of cellular respiration	Nakaminami et al. (2006), Sasaki et al. (2013)
	GRDP1	Arabidopsis	AT2G22660	Response to osmotic stress	Rodríguez-Hernández et al. (2017)
	SAT32	Arabidopsis	AT1G27760	Salt and ABA-responsive	Park et al. (2009)
Ethylene (ETH)	EER5	Arabidopsis	AT2G19560	Ethylene-signalling	www.arabidopsis.org
	–	Arabidopsis	AT1G48420	1-aminocyclopropane-1-carboxylic acid oxidase	Walton et al. (2012)
Phytohormone	CYP78A9	Arabidopsis/ Rapeseed	AT3G61880	Fruit and seed development	Ito and Meyerowitz (2000); Shi et al. (2019)
Transcription factors	BoMF2	Brassica oleracea	Bol029968	Transcriptional regulatory factor	Kang et al. (2014)
	MSH1	Arabidopsis	AT3G24320	Mitochondrial genome maintenance	www.arabidopsis.org
	CSP4	Arabidopsis	AT2G21060	Regulation of transcription	Nakaminami et al. (2006); Yang and Karlson (2011)
YABBY family	CRC	Arabidopsis	AT1G69180	Regulation of transcription	Prunet et al. (2008)
Zinc finger family	SUP	Arabidopsis, cucumber	AT3G23130	Transcription factor	Zhao et al. (2012)
	DOF4.2	Arabidopsis	AT4G21030	Regulation of transcription	Zuo et al. (2013)
	DOF4.4	Arabidopsis	AT4G21050	Regulation of transcription	Zuo et al. (2013)
	NTT	Arabidopsis	AT3G57670	Zinc finger transcription factor	Chung et al. (2013)
Tri-helix family	ASIL1	Arabidopsis	AT1G54060	Regulation of transcription	Gao et al. (2016)
AP2-ERF family	SlERF36	Tomato, Arabidopsis	AT1G50640	Regulation of transcription	Upadhyay et al. (2014)
	ANT	Arabidopsis	AT4G37750	Control of cell proliferation	Mizukami and Fischer  (2000)
MADS-box family	GbAGL2	Arabidopsis, cotton	AT5G15800	Plant ovule development	Liu et al. (2015)
	SHP1/2	Arabidopsis	AT3G58780	Regulation of growth	Liljegren et al. (2004); Pinyopich et al. (2003)
	FUL	Arabidopsis	AT5G60910	Fruit development	Liljegren et al. (2000)
	STK	Arabidopsis	AT4G09960	Ovule development	Zhang et al. (2016)
Homeobox	RPL	Arabidopsis	AT5G02030	Homeodomain transcription factor	Roeder et al. (2003)
	WOX14	Arabidopsis	AT1G20700	Vasculature development	Deveaux et al. (2008)
bHLH family	AMS	Arabidopsis	AT2G16910	Regulation of transcription	Sorensen et al. (2003)
	IND	Arabidopsis	AT4G00120	Regulation of transcription	Liljegren et al. (2000)
	ALC	Arabidopsis	AT5G67110	Fruit development anddehiscence	Liljegren et al. (2000)
B3 family	REM22	Arabidopsis	AT3G17010	Transcriptional factor B3 family protein	www.arabidopsis.org
Elongation factor	TaTEF-7A	Wheat, Arabidopsis	CJ655632.1/AT5G46030	Transcript elongation factor	Zheng et al. (2014)
	SPT4-1	Arabidopsis	AT5G08565	Chromatin organization	Dürr et al., (2014)
	SPT4-2	Arabidopsis	AT5G63670	Chromatin organization	Dürr et al., (2014)
MicroRNA	MaEF1A	Arabidopsis, Banana	AT1G18070	Translation elongation	Liu et al. (2008a)
	miR172	Arabidopsis/Peanut	AT2G28056	Gene silencing by miRNA	José Ripoll et al. (2015)
	miR397b	Arabidopsis/Peanut	AT4G13555	Gene silencing by miRNA	Wang et al. (2014)
	Md-miRNA156	Arabidopsis/Apple	AT5G55835	Flower and fruit development	Sun et al. (2013)
Ubiquitin-proteasome pathway	UBP15	Arabidopsis/Rice	AT1G17110	Ubiquitin-specific proteases	Liu et al. (2016)
	UBP26	Arabidopsis	AT3G49600	Ubiquitin-specific proteases	Luo et al. (2008)
	SWA1	Arabidopsis	AT2G47990	Embryo sac development	Shi et al. (2005)
	RHF1A	Arabidopsis	AT4G14220	Regulation of cell cycle	Liu et al. (2008b)
	RHF2A	Arabidopsis	AT5G22000	Regulation of cell cycle	Liu et al. (2008b)
	MMS21	Arabidopsis	AT3G15150	Regulation of meristem development	Liu et al. (2014a)
	UBC22	Arabidopsis	AT5G05080	Protein polyubiquitination	Wang et al. (2016)
	DA1	Arabidopsis	AT1G19270	Ubiquitin receptor	Li et al. (2018)
	SAP	Arabidopsis	AT5G35770	E3 ubiquitin ligase complex	Wang et al. (2017c)
G-protein signalling	XLG1	Arabidopsis	AT2G23460	G-protein γ-subunit	Wang et al. (2017b)
	AGB1	Arabidopsis	AT4G34460	G-protein β-subunit	Lease et al. (2001)
Arabinogalactan protein	AGP19	Arabidopsis	AT1G68725	Arabinogalactan protein	Yang et al. (2007)
	AGP6	Arabidopsis	AT5G14380	Arabinogalactan glycoproteins	Levitin et al. (2008)
	AGP11	Arabidopsis	AT3G01700	Arabinogalactan glycoproteins	Levitin et al. (2008)
	HPGT1	Arabidopsis	AT5G53340	Hydroxyproline O-galactosyltransferase	Ogawa-Ohnishi and Matsubayashi (2015)
	HPGT2	Arabidopsis	AT4G32120	Hydroxyproline O-galactosyltransferase	Ogawa-Ohnishi and Matsubayashi (2015)
	HPGT3	Arabidopsis	AT2G25300	Hydroxyproline O-galactosyltransferase	Ogawa-Ohnishi and Matsubayashi (2015)
	FLA3	Arabidopsis	AT2G24450	Anchored component of membrane	Li et al. (2015)
	FLA4	Arabidopsis	AT3G46550	Mucilage biosynthetic process	Shi et al. (2019)
RNA-binding protein	LSM1A	Arabidopsis	AT1G19120	RNA metabolic process	Perea-Resa et al. (2012)
	LSM8	Arabidopsis	AT1G65700	RNA metabolic process	Perea-Resa et al. (2012)
	LSM1B	Arabidopsis	AT3G14080	RNA metabolic process	Perea-Resa et al. (2012)
Receptor kinase signalling	SNF4	Arabidopsis	AT1G09020	Carbohydrate metabolic process	www.arabidopsis.org
	ER	Arabidopsis	AT2G26330	Regulation of cell adhesion	Zanten et al. (2010)
	RPK2	Arabidopsis	AT3G02130	Meristem maintenance	Mizuno et al. (2007)
	BAM3	Arabidopsis	AT4G20270	Regulation of meristem growth	DeYoung et al. (2006)
	CLV1	Rapeseed/Arabidopsis	AT1G75820	Shoot and floral meristem size	Xiao et al. (2018)
	CLV3	Rapeseed/Arabidopsis	AT2G27250	Shoot apical meristem size	Yang et al. (2018)
Other proteins	HSP70	Arabidopsis	AT3G12580	Protein folding	Leng et al. (2016)
	CINV1	Arabidopsis	AT1G35580	Sucrose catabolic process	Qi et al. (2007)
	CcCCOAOMT1	Jute, Arabidopsis	AT4G34050	Lignin biosynthetic process	Zhang et al. (2014)
	GhWBC1	Cotton	AY255521.1	ATP-binding cassette transporter	Zhu et al. (2003)
	LNG1	Arabidopsis	AT5G15580	Unidimensional cell growth	Lee et al. (2013)
	LNG2	Arabidopsis	AT3G02170	Unidimensional cell growth	Lee et al. (2013)
	AXY3/XYL1	Arabidopsis	AT1G68560	Glycoside hydrolase family 3	Günl and Pauly (2011)
	CALS7	Arabidopsis	AT1G06490	Callose synthase 7	Xie et al. (2011)
	BGAL10	Arabidopsis	AT5G63810	Glycoside hydrolase family 35	Sampedro et al. (2012)
	FATA2	Arabidopsis	AT4G13050	Fatty acid biosynthetic process	Wang et al. (2016)
	HEMN1	Arabidopsis	AT5G63290	Oxidation–reduction process	Pratibha et al. (2017)
	GGT1	Arabidopsis	AT4G39640	Glutathione catabolic process	Giaretta et al. (2017)
	GGT2	Arabidopsis	AT4G39650	Glutathione transmembrane transport	Giaretta et al. (2017)
	BcRISP1	Cabbage, Arabidopsis	AT5G13440	Oxidation–reduction process	Liu et al. (2014a)
	BnaC9.SMG7b	Rapeseed	BnaC09g38310D	Meiotic cell cycle	Li et al. (2008)
	LPAT2	Arabidopsis	AT3G57650	CDP-diacylglycerol biosynthetic process	Kim et al. (2005)

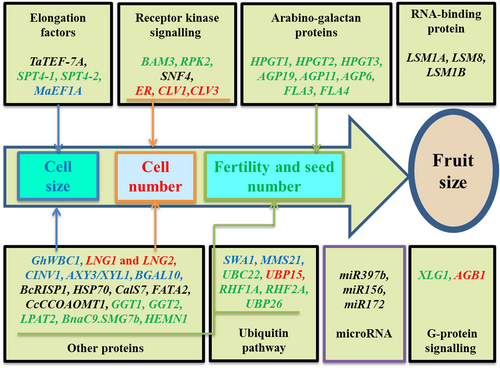

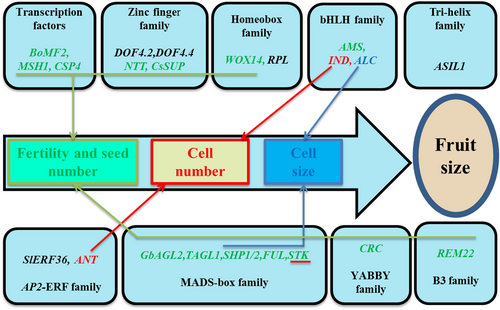

Transcription factors

Transcription factors (TFs) are usually classified into different families based on their DNA-binding domains, which play a key role in plant development by temporally and spatially regulating the transcription of the corresponding target genes (Jin et al., 2017). A previous expression profiling study showed that most of the transcript factors were involved in the development of siliques in Arabidopsis (De Folter et al., 2004); their roles in regulating fruit size are summarized below (Figure 3; Table 1).

The Brassica oleracea BoMF2 encodes a nuclear-localized AT-hook DNA-binding protein homologous to Arabidopsis AHL16 (Kang et al., 2014), which is required for tapetum proliferation during anther development. The overexpression of BoMF2 led to reduced pollen viability, shorter siliques and fewer seeds per silique (Kang et al., 2014). The Arabidopsis MSH1 is a plant organelle DNA-binding and thylakoid protein that can influence genome stability and growth pattern (Xu et al., 2011). Inhibition of this gene by RNA interference causes multiple defects in the growth and development of several species, including slower growth, dwarfism, shorter siliques and reduced male fertility in Arabidopsis (Xu et al., 2012). The Arabidopsis cold shock domain proteins (CSPs) are highly conservative DNA-binding transcript factors, which are involved in the transition to flowering and silique development (Nakaminami et al., 2009). Of which, the overexpression of CSP4 in Arabidopsis reduces fruit length and induces embryo lethality (Yang and Karlson, 2011).

Elongation factors

Eukaryotic elongation factors can be divided into transcript and translation elongation factors according to their respective roles in biological processes. Recently, several genes belonging to the elongation factors have been shown to play a role in fruit size regulation (Figure 4; Table 1).

The transcript elongation factors (TEFs) can facilitate efficient mRNA synthesis and perform diverse functions during transcription (including the modification of histone and RNA polymerase II activity), which can regulate growth and development by participating in various processes (Van Lijsebettens and Grasser, 2014). Overexpression of the wheat TaTEF-7A gene in Arabidopsis has multiple effects on asexual and reproductive traits, including increased silique number and length as well as grain length (Zheng et al., 2014). The heterodimeric SPT4/SPT5 complex is a TEF that interacts with RNA polymerase II to regulate mRNA synthesis in the chromatin context. Each subunit is encoded by two genes in Arabidipsis, and the RNAi-mediated down-regulation of SPT4-1/2 showed reduced cell elongation and vegetative and reproductive defects, including short roots and stems, small leaves, flowers and siliques with fewer seeds (Dürr et al., 2014).

Plant translation elongation factor 1 alpha (EF1A) is not only involved in protein synthesis but also a core part of plant protein trafficking, signal transduction, immune responses and apoptosis. Overexpression of banana MaEF1A in Arabidopsis greatly increased plant height, root length, as well as rhachis and silique length by promoting cell expansion and elongation (Liu et al., 2016).

MicroRNA

The microRNAs (miRNAs), which are about 21 nucleotides (nt) in length, are key components within the gene regulatory networks of eukaryotes (Bao et al., 2014). In recent years, several miRNAs have been shown to involve in fruit size regulation across several plant species (Figure 4; Table 1). The overexpression of orange Pt-miR156a in Arabidopsis leaded to late flowering, short siliques and small leaves (Wang et al., 2017a). Similarly, the overexpression of apple Md-miRNA156 in Arabidopsis resulted in late flowering, dwarfism, more leaves, short siliques with partially aborted seeds, by down-regulating its target SPL genes (Sun et al., 2013). As the downstream of FUL and ARF6/8, the miR172 plays a key role in regulating fruit development, as it is required for valve growth by restricting AP2 and TOE3 activity (José Ripoll et al., 2015). The reduced lignin deposition and increased silique number/length and seed size/yield was observed in transgenic Arabidopsis overexpressing miR397b, which regulated a laccase gene LAC4 that can polymerize monolignols into lignin (Wang et al., 2014). In peanut, a small RNA profiling and degradome analysis revealed several active modules during early pod development, including AP2 (miR172) and GRF (miR396), NAC (miR164), PPRP (miR167/miR1088), SPL (miR156/157), respectively (Gao et al., 2017).

Ubiquitin-proteasome pathway

Ubiquitin-specific protease (UBP) is a highly conserved protein family in eukaryotes, which plays an important role in protein de-ubiquitination (Liu et al., 2008b). Of these, the Arabidopsis ubp15 mutants have defect in cell proliferation and display late flowering and short root, stem, leaf, flower and fruit, as well as reduced fertility, whilst its overexpression shows opposite phenotypes (Liu et al., 2008b). The Arabidopsis UBP26 is essential for heterochromatin silencing by catalysing the de-ubiquitination of histone H2B, and its T-DNA insertion mutant showed short siliques, reduced fertility and few seeds (Luo et al., 2008).

The Arabidopsis ubiquitin-conjugating enzyme 22 (UBC22) is the only member of the Arabidopsis E2 subfamily, which can catalyse ubiquitin dimer formation in vitro in a Lys11-dependent manner. The knockout mutants of UBC22 in Arabidopsis had reduced silique length and seed number per silique, which was caused by ovule sterility due to severe defects in embryo sac that often contained no gamete nuclei (Wang et al., 2016).

The Arabidopsis SWA1 encodes a transducin family nucleolar protein that is involved in the E3 ubiquitin ligase complex, which is required for the normal progression of mitotic division cycles by regulating cell metabolism. The SWA1 mutation causes ovule abortion, and short silique in Arabidopsis (Shi et al., 2005). The RING-H2 group F1a (RHF1a) and RHF2a encode two RING-finger E3 ubiquitin ligases, of which RHF1a can directly interact with a cyclin-dependent kinase inhibitor ICK4/KRP6, leading to proteasome-mediated degradation. The rhf1a rhf2a double mutant showed reduced fertility and short siliques, which was caused by the defect in the gametophytes formation due to arrested mitotic cell cycle (Liu et al., 2008a). The Arabidopsis MMS21 encodes a SUMO E3 ligase, which is highly conserved in eukaryotes and essential for DNA repair and chromosome stability (Liu et al., 2014a). The mutation of MMS21 in Arabidopsis caused dwarfism and semi-sterility with short siliques and few seeds per silique, due to defect in gametogenesis (Liu et al., 2014a). The Arabidopsis STERILE APETALA (SAP) encodes an F-box protein that is involved in SCF (Skp1/Cullin/F-box) E3 ubiquitin ligase complex, which can promote meristemoid cells proliferation to control organ size by interacting with and targeting PPD proteins for degradation (Wang et al., 2016). The sap mutant displayed small leaves, flowers and siliques, due to decreased cell number in these organs.

The Arabidopsis DA1 encodes an ubiquitin-activated peptidase that acts as a putative ubiquitin receptor and functions cooperatively with the E3 ubiquitin ligases DA2 and EOD1/BB to negatively regulate organ size by restricting cell proliferation. The mutation of DA1 in Arabidopsis showed thicker stems, larger leaves and flowers, wider siliques and higher seed weight and yield due to increased cell numbers in these organs (Li et al., 2008).

G-protein signalling

The heterotrimeric GTP-binding proteins (G proteins) are highly conservative signalling components in eukaryotes, which consist of three subunits—Gα, Gβ and Gγ. In Arabidopsis thaliana, there is one canonical Gα (GPA1), one Gβ (AGB1) and three Gγ genes (AGGs). In addition to GPA1, there are three Gα-like genes (named XLGs) in Arabidopsis, which can interact with E3 ligases PUB4 and PUB2 and act in cytokinin signalling (Wang et al., 2017c). The xlg1/2/3 triple knockout mutant showed reduced male fertility and short siliques in Arabidopsis (https://www.arabidopsis.org/). The Arabidopsis AGB1 gene is involved in the regulation of organ shape, and its mutation increased the width but decreased the length of leaf, flower and silique, by promoting cell proliferation (Lease et al., 2001).

Receptor kinase signalling

The fruit size is largely determined by the classical CLAVATA–WUSCHEL (CLV-WUS) pathway, firstly identified in Arabidopsis and appeared to be conserved in other higher plants (Somssich et al., 2016), which can control locule number by regulating the size of shoot apical meristem (SAM). This pathway included three CLAVATA genes in Arabidopsis, of which CLV1 encodes a leucine-rich repeat receptor-like kinase (LRR-RLK), CLV2 encodes an LRR receptor-like protein (RLP) that lacks a kinase domain, and CLV3 encodes a stem cell-specific protein that can be further processed into a 12–amino acid peptide ligand for the CLV1 receptor (Kitagawa and Jackson, 2019). The loss-of-function clv mutants in Arabidopsis showed similar phenotypic changes, including larger inflorescence meristem, leading to fasciated stems and multilocular siliques. The BAM1 (derived from barely any meristem 1), BAM2, and BAM3 encode CLV1-related receptor-like kinases, which are required for ovule specification and male gametophyte development (DeYoung et al., 2006). The double and triple mutants of BAM1/2/3 genes displayed many defects in organ development, including reduced fertility and smaller leaf, flower and silique (DeYoung et al., 2006). Recently, the BjLn1 and BjMc1 gene (responsible for multilocular siliques) were successfully cloned, which was caused by the natural mutations in the CLV1 orthologues, respectively, on the A and B genome of Brassica juncea (Xiao et al., 2018; Xu et al., 2017). In recent years, the CLV-WUS pathway has become an attractive target of genome editing for crop improvement (Rodriguez-Leal et al., 2017), which has produced a series of exciting achievements. The genome editing of CLV3 orthologues can produce multilocular siliques in several dry fruit crops, including Brassica rapa and B. napus (Fan et al., 2014; Yang et al., 2018). In addition, the genome editing of CLV1/2/3 also produced multiple locular fruits with increased size in fleshy fruit crops, such as tomato and groundcherry (Lemmon et al., 2018; Li et al., 2018; Rodrı´guez-Leal et al., 2017; Xu et al., 2015; Zsögön et al., 2018).

In addition to the known CLV-WUS pathway, several genes encoding receptor kinase are also shown to involve in the fruit size regulation. As a plant-specific subunit of the SNF1-related protein kinase 1 complex, the Arabidopsis KINβγ is required for the pollen germination on the stigma surface (Gao et al., 2016), and its mutant had short stature and silique (https://www.arabidopsis.org/). ERECTA (ER) encodes receptor protein kinases containing a cytoplasmic protein kinase catalytic domain, an extracellular leucine-rich repeat, and a transmembrane region, which is required for the specification of organs originating from shoot apical meristem. The er mutant showed reduced plant height, increased inflorescence thickness and shorter but wider silique (Torii et al., 1996). The RECEPTOR-LIKE PROTEIN KINASE2 (RPK2) encodes a leucine-rich repeat receptor-like kinase, which functions as a regulator of meristem maintenance. The rpk2 mutants caused male sterility with more and short siliques failed to produce seeds due to defects in anther dehiscence and pollen maturation (Mizuno et al., 2007).

Arabinogalactan proteins

Arabinogalactan proteins (AGPs) are plant-specific extracellular glycoproteins, which are involved in various processes in growth and development, including cell division, expansion and differentiation (Pereira et al., 2015). Arabinogalactan proteins are classified into several types: classical AGPs, lysine-rich AGPs, AGP peptides, fasciclin-like AGPs and chimeric AGPs.

The Arabidopsis AGP6 and AGP11 encode classical AGPs, both of which are specifically expressed in stamens, pollen grains and tubes and required for male reproductive function. Loss of function in AGP6 and AGP11 caused reduced pollen tube growth, leading to lower male fertility, fewer seeds per silique and shorter silique (Levitin et al., 2008).The Arabidopsis AGP19 encodes a lysine-rich AGP, which was highly expressed elongating siliques and floral buds, moderately expressed in young seedlings and lowly expressed in roots and leaves (Yang et al., 2007). The T-DNA knockout mutant of AGP19 displayed multiple defects, including slow growth and reduced fertility, fewer and shorter siliques and fewer seeds per silique. The Arabidopsis FLA3 encodes a fasciclin-like AGP, which is involved in embryogenesis and microspore development. Both the Arabidopsis FLA3 RNAi and overexpression transgenic plants showed reduced fertility, fewer seeds and shorter siliques (Li et al., 2010). Similarly, the Arabidopsis FLA4 encodes a fasciclin-like AGP required for normal cell expansion, and its mutant showed short silique with fewer seeds per silique (Shi et al., 2003). The Arabidopsis HPGT1, HPGT2 and HPGT3 encode hydroxyproline O-galactosyltransferases that are required for AGPs biosynthesis (Ogawa-Ohnishi and Matsubayashi, 2015). The loss-of-function hpgt1, hpgt2, hpgt3 mutant exhibited reduced growth in vegetative organs, including small leaves, short stems and siliques.

RNA-binding proteins

RNA-binding proteins can bind to RNA molecules and play an important role in the post-transcriptional regulation of RNAs (Hentze et al., 2018), which are known to involve in plant growth, development and stress response (Lee and Kang, 2016). The SM-like proteins (LSMs) are a large family of RNA-binding proteins that involve in multiple aspects of RNA metabolism. The Arabidopsis contains 11 genes that encode the eight highly conserved SM-like proteins in yeast and animals (Perea-Resa et al., 2012). Of which, the LSM1A, LSM1B and LSM8 mutant plants showed severe development defects, including smaller leaves and shorter siliques with fewer seeds, which was caused by altering development-related gene expression through the regulation of mRNA splicing and decay (Perea-Resa et al., 2012).

Other proteins

The heat shock proteins (HSPs) functions as molecular chaperones to maintain cellular homeostasis and facilitate plants to adapt to environmental stimuli. Of the Arabidopsis HSP70 family, the knockout/down mutants of hsp70-1/4 and hsp70-2/4/5 displayed multiple phenotypic changes, including accelerated development, smaller leaves, thinner stems and shorter siliques (Leng et al., 2016). The Arabidopsis CINV1 encodes alkaline/neutral invertase that breaks sucrose down into fructose and glucose, which is highly expressed in leaf vasculature, shoot stipules, root tip and vascular cylinder, playing multiple roles in plant development. The EMS mutant of CINV1 in Arabidopsis showed earlier floral transition, smaller rosette leaves and siliques (Qi et al., 2007). The Caffeoyl-CoA 3-O-methyltransferase is a key enzyme in the lignin biosynthetic pathway, which is encoded by CCoAOMT genes found in many plant species. The overexpression of jute CCoAOMT1 gene in Arabidopsis led to taller plants and longer siliques, as well as higher lignin content (Zhang et al., 2014). The WBC1 encodes an ATP-binding cassette transporter of the white/brown complex subfamily. Overexpression of the cotton GhWBC1 gene in Arabidopsis led to 13% transformants producing short siliques with shrivelled embryos and few seeds (Zhu et al., 2003). The Arabidopsis LONGIFOLIA1 (LNG1) and LNG2 encode novel proteins that can regulate longitudinal cell elongation, which is expressed in various tissues (Lee et al., 2006). The overexpression and loss-of-function of LNG1/LNG2 in Arabidopsis could, respectively, increase and decrease the length of many organs, including leaves, flowers, siliques and seeds. The Arabidopsis AXY3/XYL1 encodes a bifunctional alpha-l-arabinofuranosidase/beta-d-xylosidase that belongs to glycoside hydrolases family 3, which can affect the structure and accessibility of the hemicellulose xyloglucan in cell walls. The mutations in axy3 led to reduced silique length and seed number per silique, likely due to the altered xyloglucan metabolism and cell wall structure (Günl and Pauly, 2011). The Arabidopsis BGAL10 encodes a member of glycoside hydrolase family 35, whose expression pattern and functions are similar to XYL1. The bgal10 mutant displayed unusual xyloglucan subunits and growth defects, especially shorter sepals and siliques (Sampedro et al., 2012). The Arabidopsis CALS7 encodes a phloem-specific callose synthase 7 required for callose deposition, which is specifically expressed in the phloem of vascular tissues (Xie et al., 2011). The T-DNA insertion cals7 mutants showed growth and reproduction defects, including short root, stem and silique as well as reduced male fertility and seed number per silique (Xie et al., 2011) The Arabidopsis FATA2 gene encodes Acyl-ACP thioesterase involved in fatty acid biosynthetic process, which was expressed d in roots, seedlings, leaves, stems, flowers, with especially high abundance in siliques. The fata2 T-DNA insertion mutants produced longer siliques with more but smaller seeds as well as increased oil content (Wang et al., 2013). Lysophosphatidyl acyltransferase (LPAT) is a key enzyme for adjusting the metabolic conversion of lysophosphatidic acid into exclusive phosphatidic acids in numerous tissues (Kim et al., 2005). The Arabidopsis LPAT2 is ubiquitously expressed in diverse tissues and is required for female but not male gametophyte development. The homozygous lpat2 mutant was lethal, and its heterozygous mutant showed shorter siliques with aborted ovules (Kim et al., 2005). The Arabidopsis HEMN1 encodes coproporphyrinogen III oxidase involved in the tetrapyrrole biosynthesis pathway, which is mainly expressed in anthers, ovules and endosperm of developing seeds. The T-DNA insertion hemen1 mutant showed defects in gametophyte development, leading to reduced fertility, seed number per silique and silique length (Pratibha et al., 2017). The Arabidopsis GGT1 and GGT2 encode apoplastic gamma-glutamyl transferases responsible for glutathione degradation, of which GGT1 is expressed in the vascular system and inside leaves, whilst GGT2 is expressed in trichomes, seeds, and roots. The knockdown of GGT1/GGT2 by RNAi showed reduced vegetative growth rate (such as smaller leaves and roots) and lower seed yield due to fewer siliques with lower length (Giaretta et al., 2017). The Brassica cabbage RISP1 gene is highly homologous to the Arabidopsis AT5G13440, which encodes ubiquinol-cytochrome C reductase iron-sulphur subunit involved in mitochondrial electron transport. The overexpression of BcRISP1 in Arabidopsis showed reduced seed set and short siliques, which is caused by the reduced pollen formation and impaired pollen tube elongation due to the interruption of the mitochondrial electron transport chain by affecting the expression of mitochondrial breathing chain-related genes (Liu et al., 2014b). A major QTL qSS.C9 for seeds per silique has been cloned on the C9 chromosome of Brassica napus (Li et al., 2015), which encodes a predicted small protein with 119 amino acids homologous to the Arabidopsis SMG7 gene that is involved in meiotic cell cycle. The BnaC9.SMG7b was mainly expressed in the vascular tissue of various organs, including cotyledons, rosette leaves, roots, young pedicels and pistils, but not in stamens, petals, stems and mature siliques. Natural loss or artificial knockdown of BnaC9.SMG7b resulted in decreased seed number per silique, silique length and seed yield but increased seed weight, which was caused by the reduced ovule fertility due to the developmental defects in the formation of functional female gametophytes.

Conclusions and future prospects

In recent years, many genes that regulate fruit size have been identified, mostly from Arabidopsis and tomato (Table S1), the two model plants for fruit development studies. Although several reviews have discussed genetic and epigenetic regulation of fruit size in the fleshy fruit type tomato (Pesaresi et al., 2014; Seymour et al., 2013; Tanksley, 2004), current knowledge of fruit size control in the dry fruit type Arabidopsis and related crops is limited. Such information is essential if a comprehensive genome editing approach is to be applied. Some initial targets for fruit size have been targeted using editing approaches, with some success (Lemmon et al., 2018; Li et al., 2018; Rodríguez-Leal et al., 2017; Zsögön et al., 2018), suggesting that, with a more comprehensive understanding of the genetic and signalling pathways underlying this trait, major gains could be achieved. In addition to improving fruit size in elite germplasm, genome editing can be used for improvement of orphan crops (Lemmon et al., 2018) or de novo domestication of crop wild relatives (Zsögön et al., 2018), which often harbour agronomically valuable disease resistance traits (Dangl et al., 2013).

In this review, we summarized those genes that have been identified as regulating fruit size, with emphasis on their genetic and molecular mechanisms. In addition, we revealed the complex genetic regulatory networks for the first time (Figure 5), based on an examination of the current knowledge on fruit size control in Arabidopsis and other dry fruits. These include phytohormone (e.g. AUX, GA, CTK, ABA, ETH and BR), transcription factors (e.g. tri-helix, YABBY, AP2-ERF, MADS-box, bHLH, zinc finger, homeobox and B3), transcription/translation elongation factors, ubiquitin-proteasome and microRNA pathways, G-protein and receptor kinase signalling, AGPs, RNA-binding proteins (Figure S2) and indicate the complexity of fruit size regulation in plants. Interestingly, many of these genes have a conserved function in regulating fruit development in both dry and fleshy fruit types, suggesting broad applicability of common genome edits. For instance, CYP78A9 and CLV-WUS pathway genes can regulate both silique size in Arabidopsis/rapeseed (Fan et al., 2014; Shi et al., 2019; Xiao et al., 2018; Xu et al., 2017; Yang et al., 2018) and fruit size in cherry/tomato (Lemmon et al., 2018; Li et al., 2018; Qi et al., 2007; Rodriguez-Leal et al., 2017; Xu et al., 2015). Besides, many of these genes have similar functions in regulating fruit size in Arabidopsis and other crops. For example, ARF18, ARP1, BoMF2, DRM1, CYP78A9, CLV1, CLV3 and SMG7 can regulate silique length in Arabidopsis and rapeseed (Kang et al., 2014; Lee et al., 2013; Li et al., 2015; Liu et al., 2015; Shi et al., 2019; Xiao et al., 2018; Yang et al., 2018). More importantly, many of the fruit size regulatory genes have expression activity and additional effects on other organs, such as roots, stems, leaves, flowers and seeds, indicating a cooperative/synergistic regulation. These results strongly suggest the conserved function of these genes in regulating the size of different organs among plant species, and so can be targeted for molecular improvement of size for fruit and other plant organs through genome editing approaches such as CRISPR/Cas.

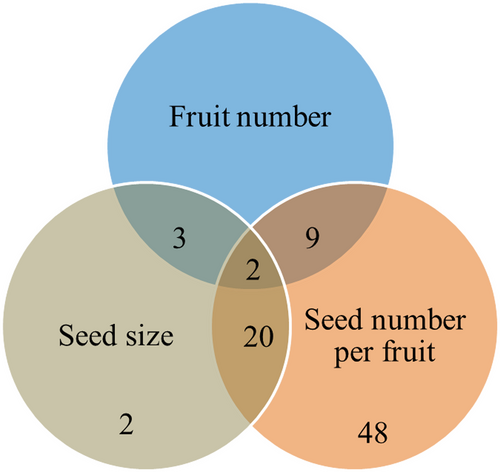

The most complicated issue in terms of regulatory networks is the relationship between fruit size and other seed yield components, including fruit number, seed number per fruit and seed size (Figure 6). Analyses of mutants with phenotypic changes in both fruit size and fruit number show an inverse relationship between the two characters/traits. This indicates a trade-off between them, which can be explained by the competition among sink organs and which is entirely consistent with many decades of agronomic research in crop plants. However, there are also some exceptions, such as miR397b, GGT1, GGT2 and TaTEF-7A can affect silique size and silique number per plant, in the same direction, which provides a unique opportunity to simultaneously improve both traits. Another important question involves the relationships between fruit size and seed number per fruit and seed size. Analyses of mutants with phenotypic changes in fruit size and seed number per fruit showed that changes in fertilization rate and seed number per fruit are usually associated with changes in fruit length, but the reverse is not true. For example, AHP1-5, BRI1, FATA2, GbAGL2, GhWBC1, GID1A, GRDP1, HEMN1, SWA1 and WOX14 are genes that control fruit size and seed number per fruit, always in the same direction. Therefore, the fertilization rate and seed number per fruit are likely upstream of fruit size. As expected, mutants with reduced fertility and seed number per fruit are usually accompanied by reductions in fruit growth/size, which indicates feedback or cross-talk between seed development and fruit growth. However, the relationship between fruit size and seed size is rather confused: in many cases (e.g. ANT, ARF18, ASIL1, CYP78A9, DA1, UBP15), they are regulated in the same direction; whereas in other cases (e.g. FATA2, AHP1-5, STURDY), they are affected in the opposite direction. Therefore, attention should be paid to the relationships between fruit size and fruit number and between seed number per fruit and seed size (i.e. the three components of seed yield) when selecting targets for editing.

Identification of these regulatory pathways is still in the early stages: the identified fruit size genes are limited, and only a little is known about the relationships between different genes within the same pathway and between pathways (such as phytohormone → signalling transduction/ubiquitin-proteasome degradation → transcription factors → response genes). The major goal for the future is to fully demonstrate the molecular mechanisms underlying fruit size regulation and construct its genetic networks. The application of modern biotechnologies, such as genome-wide association, genome editing, omics and bioinformatics, will accelerate the identification and confirmation of the fruit size regulators in plants and provide the basis for the accelerated improvement of these crops.
